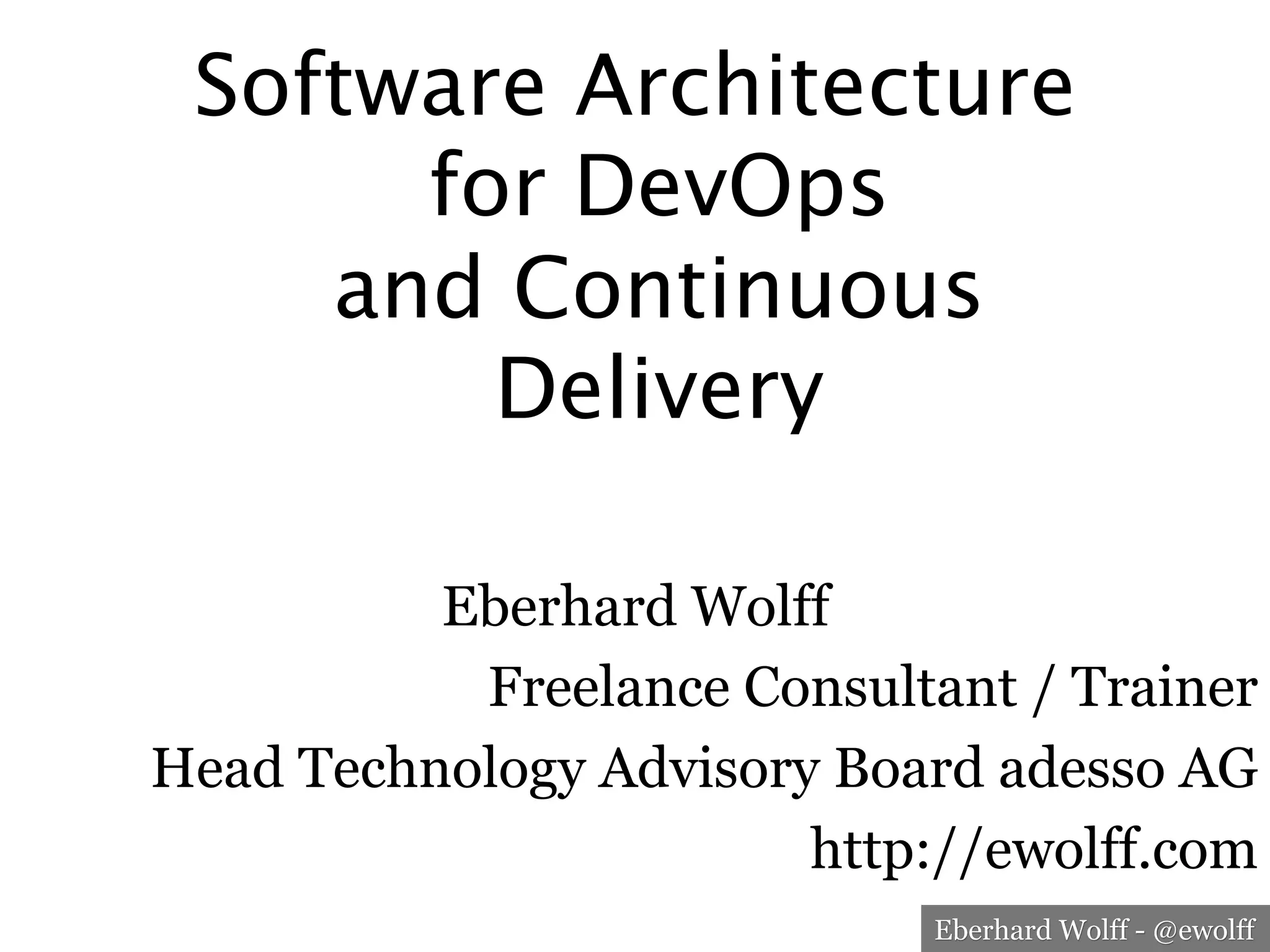

Software Architecture for DevOps and Continuous Delivery

Software Architektur 
für DevOps 
und Continuous
Delivery
Eberhard Wolff
Freelance Consultant / Trainer
Head Technology Advisory Board adesso AG
http://ewolff.com

Eberhard Wolff - @ewolff

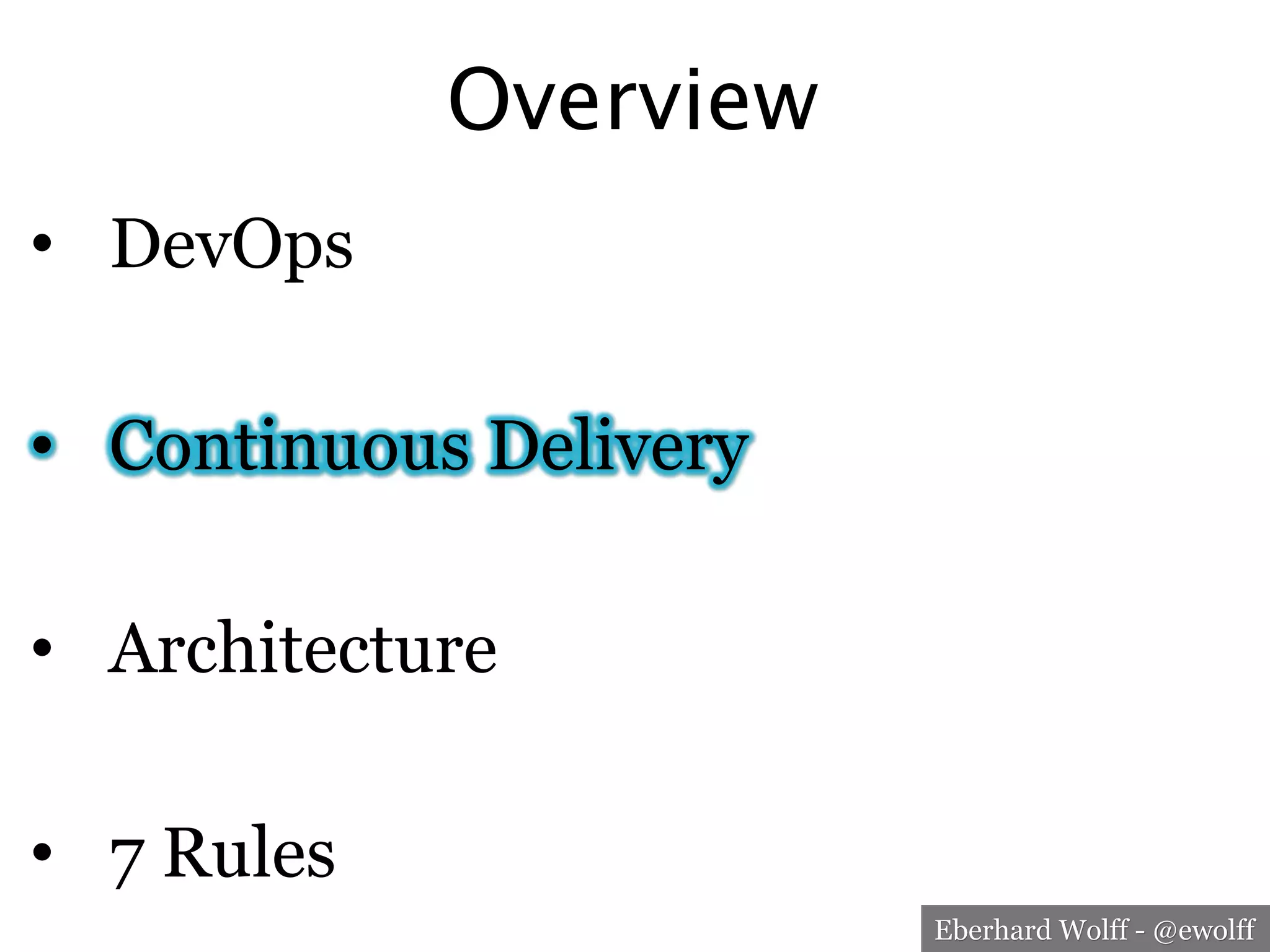

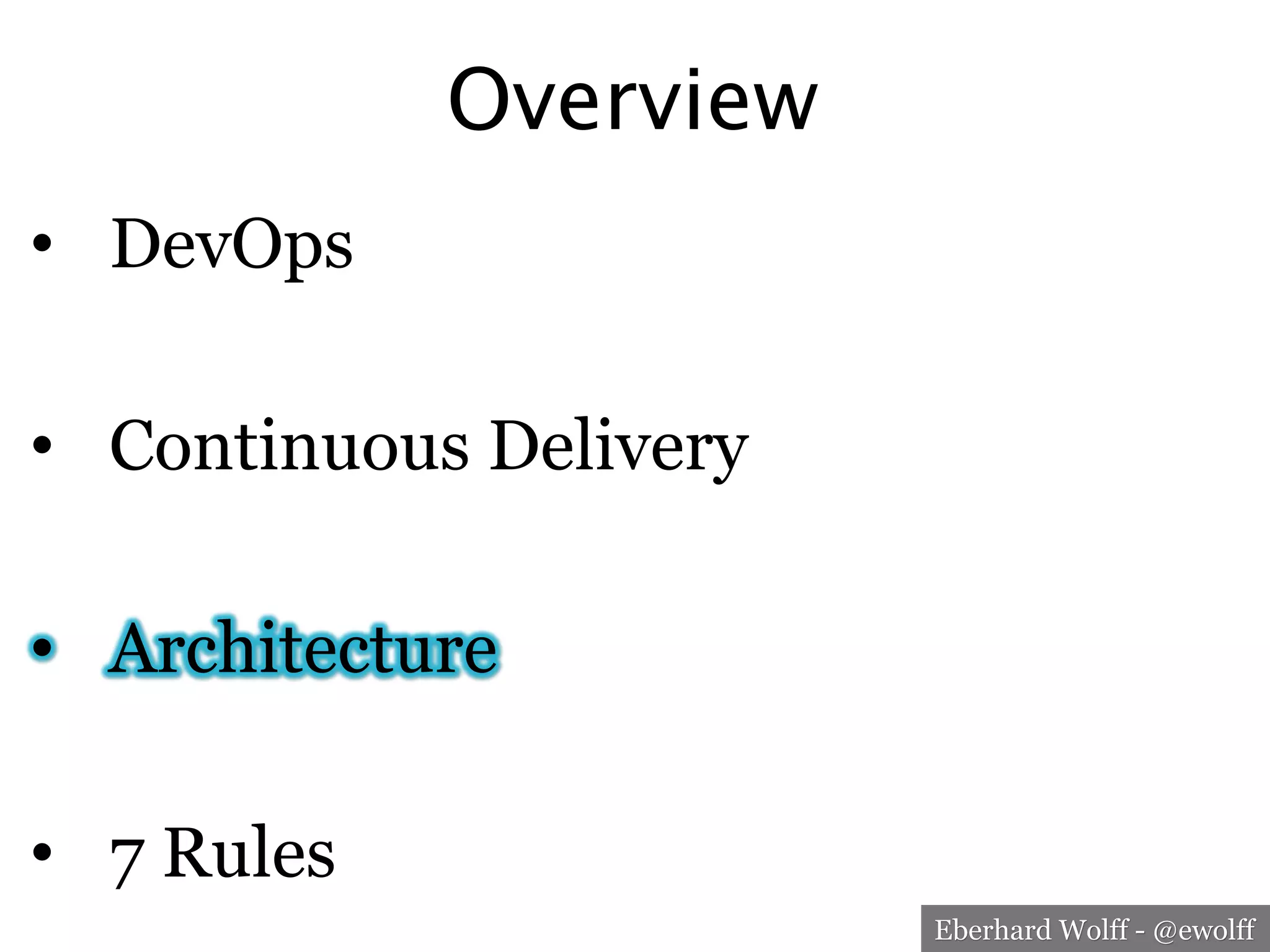

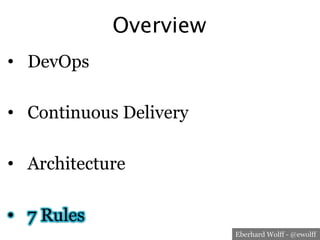

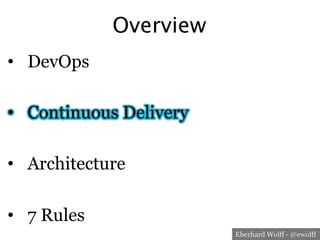

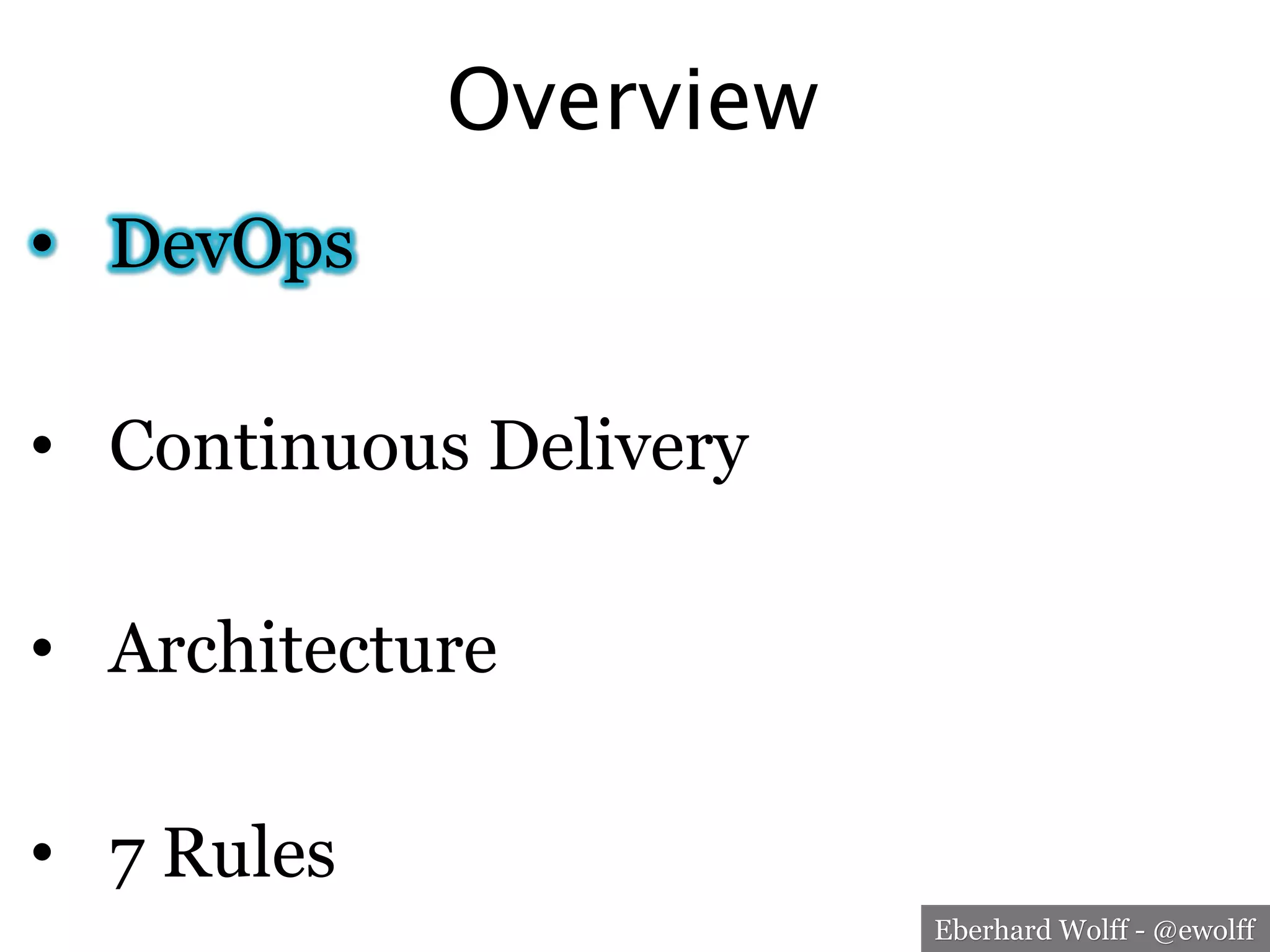

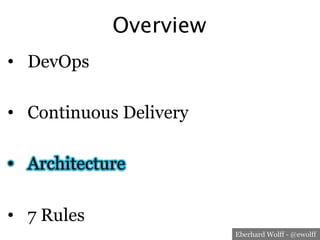

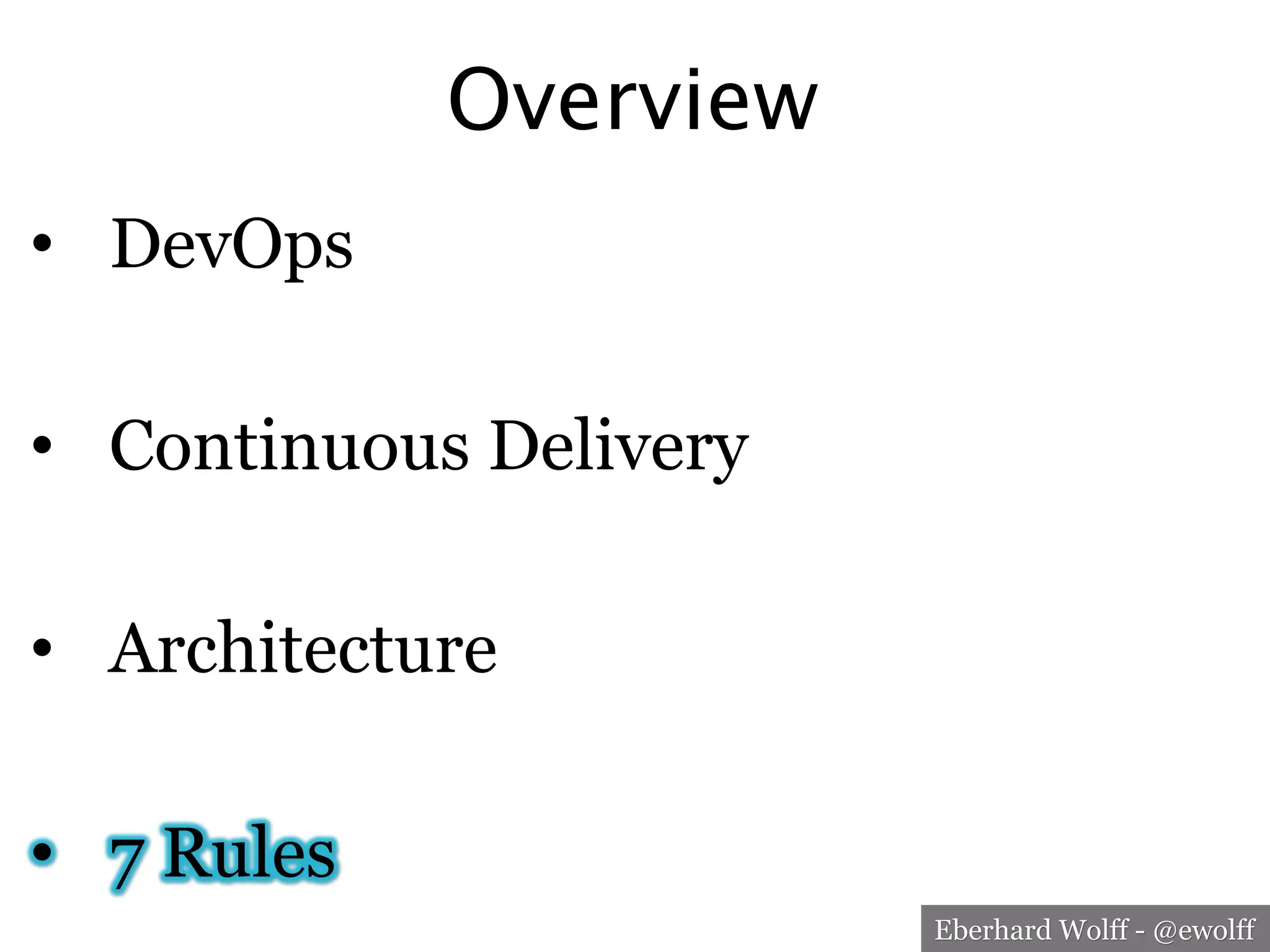

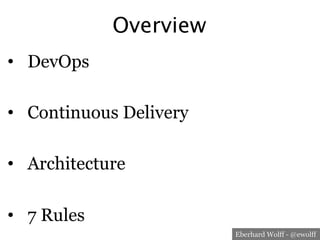

Overview
•  DevOps
•  Continuous Delivery
•  Architecture
•  7 Rules

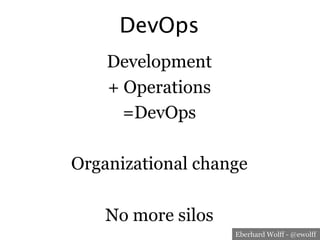

DevOps
Development
+ Operations
=DevOps
Organizational change
No more silos

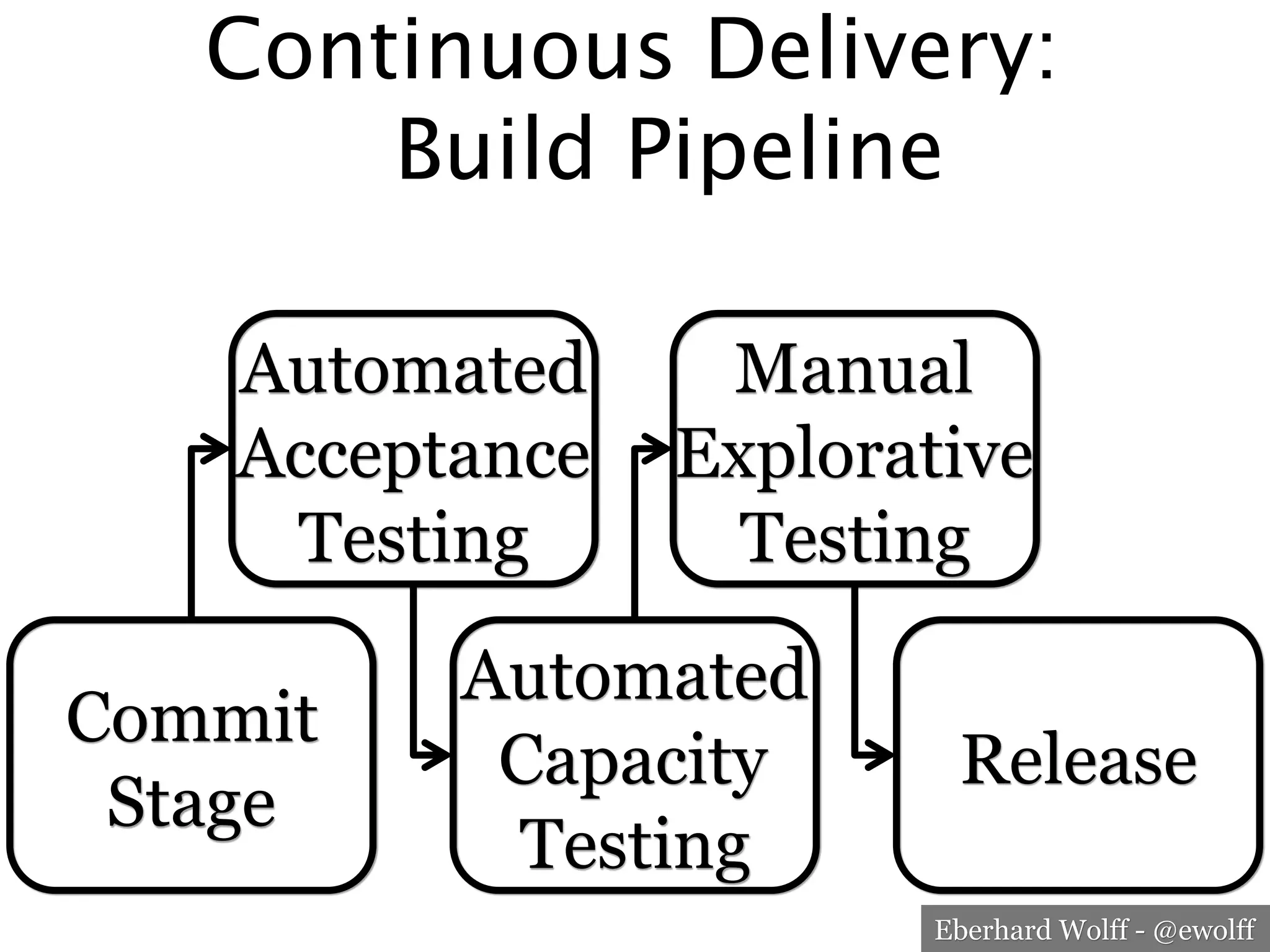

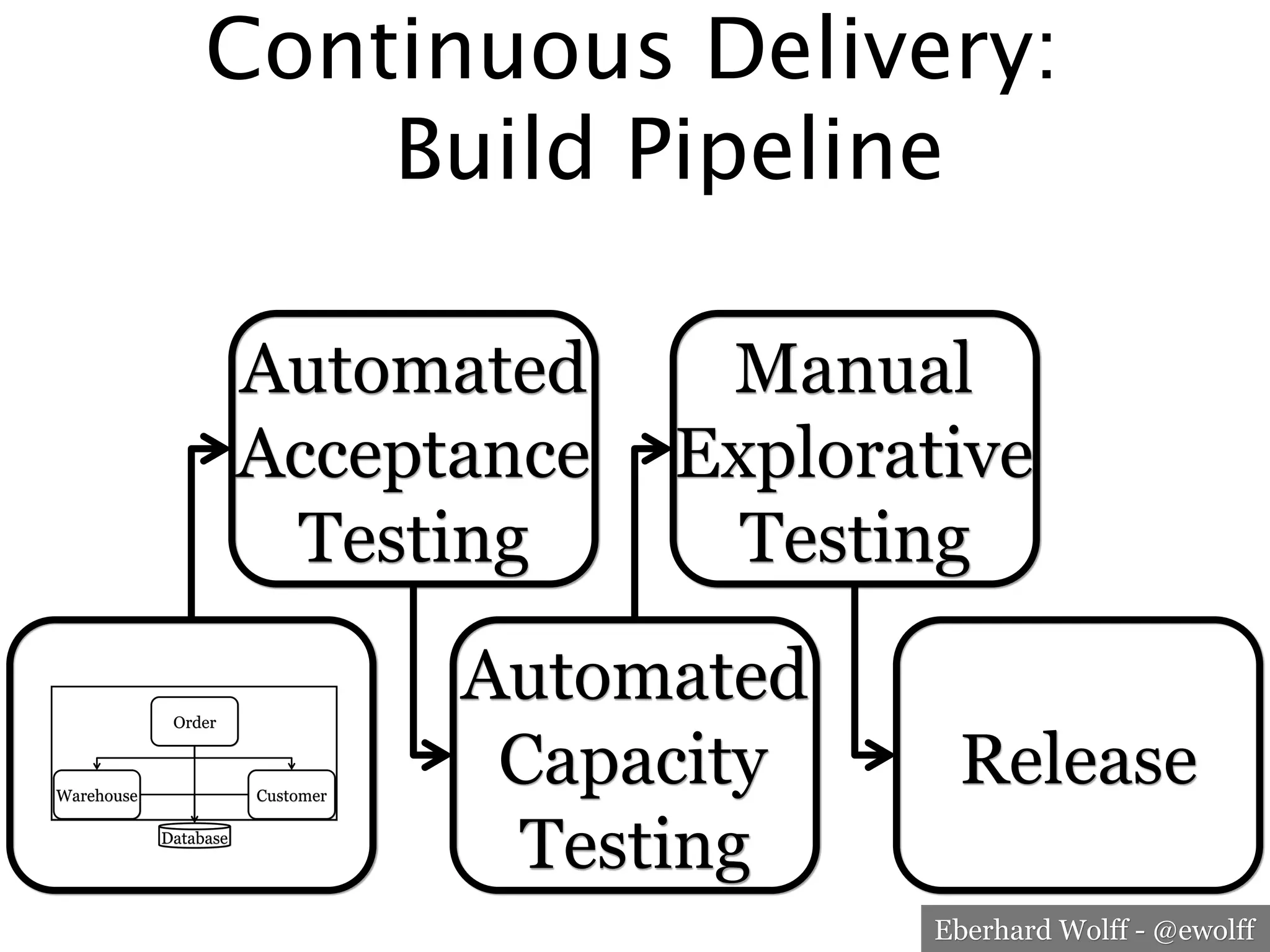

Continuous Delivery: 
Build Pipeline
Commit
Stage
Automated
Acceptance
Testing
Automated
Capacity
Testing
Manual
Explorative
Testing
Release

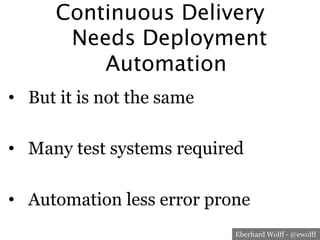

Continuous Delivery 
Needs Deployment
Automation
•  But it is not the same
•  Many test systems required
•  Automation less error prone

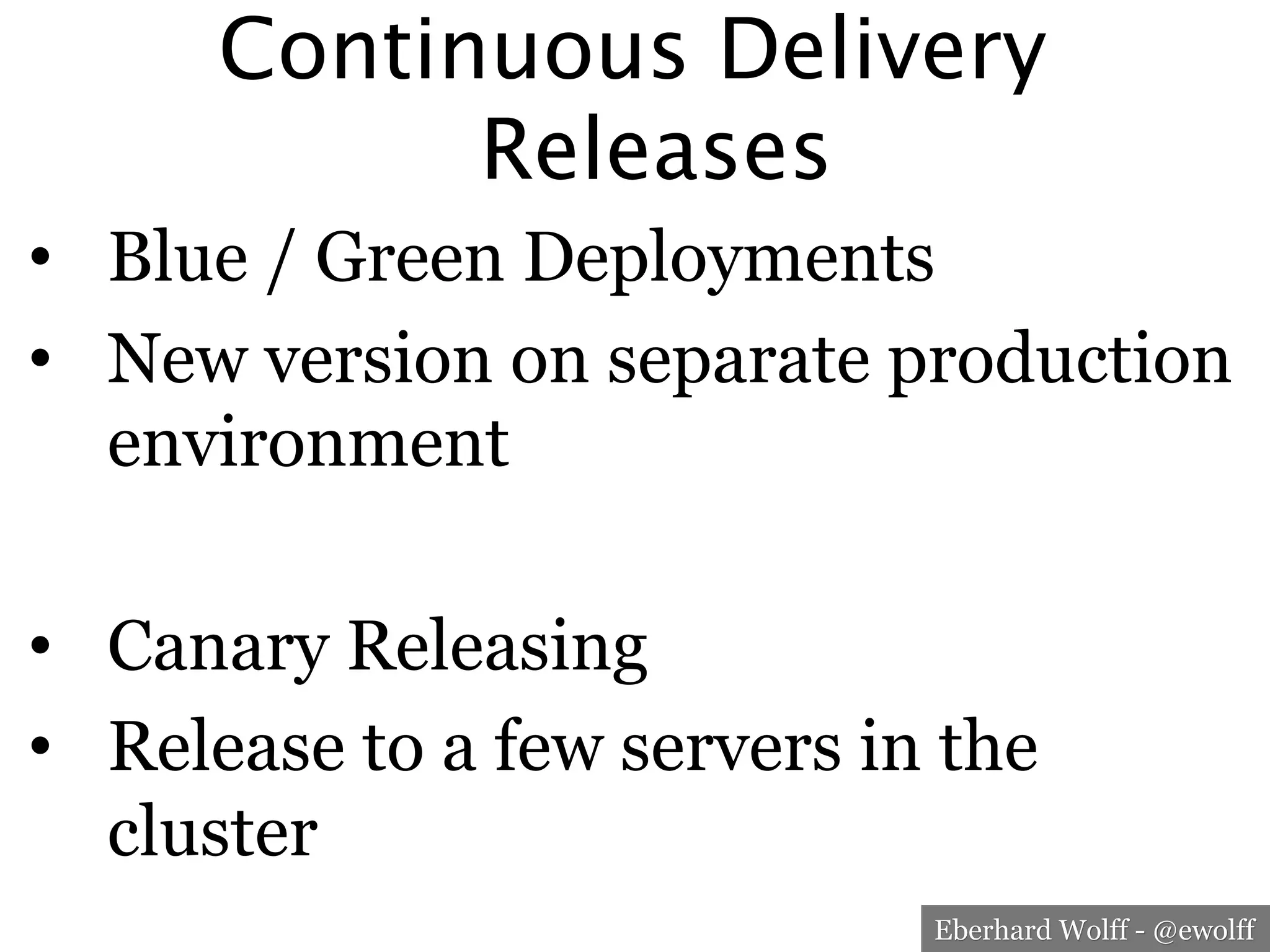

Continuous Delivery 
Releases
•  Blue / Green Deployments
•  New version on separate production
environment
•  Canary Releasing
•  Release to a few servers in the
cluster

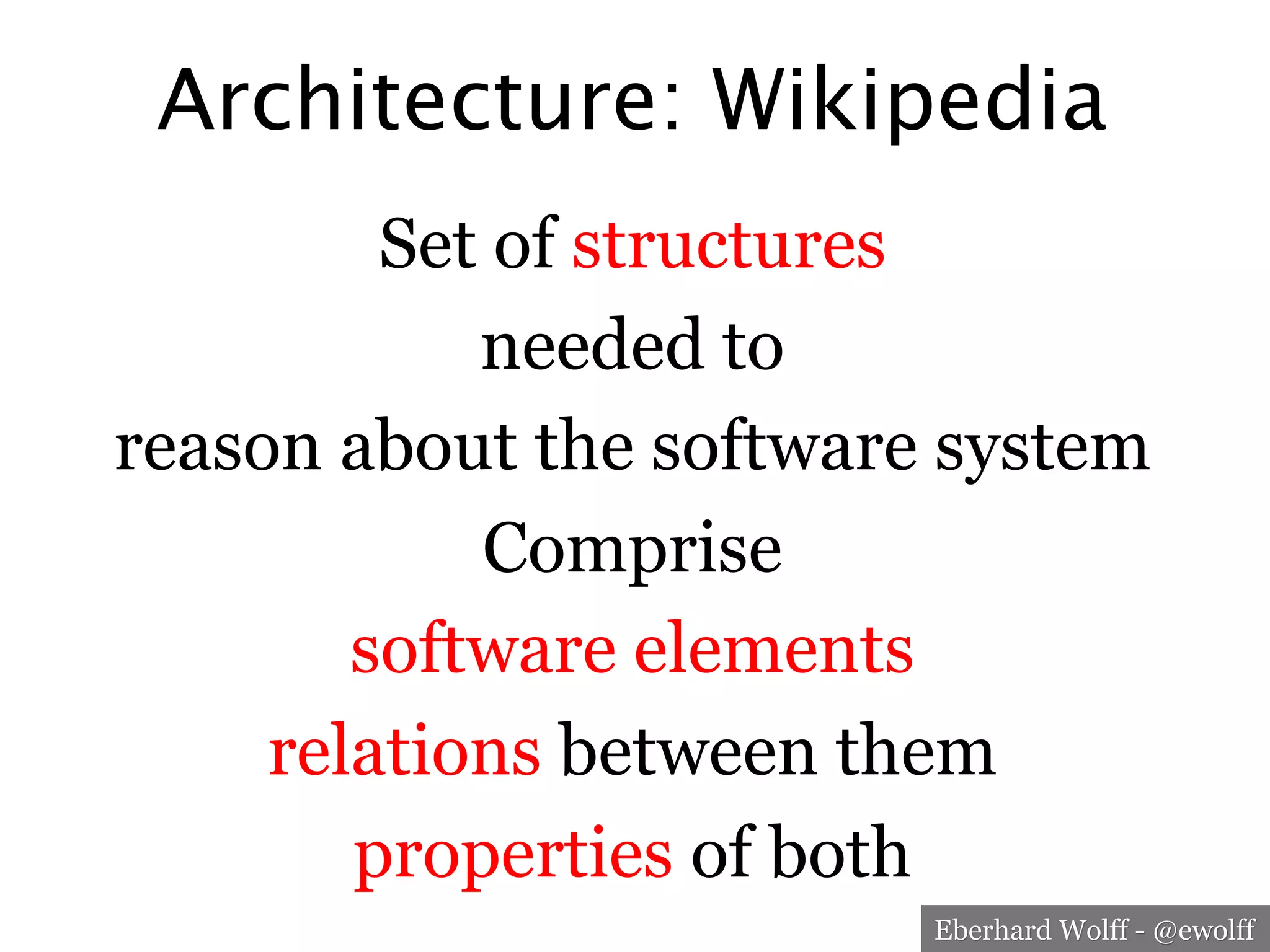

Architecture: Wikipedia
Set of structures
needed to
reason about the software system
Comprises
software elements
relations between them
properties of both

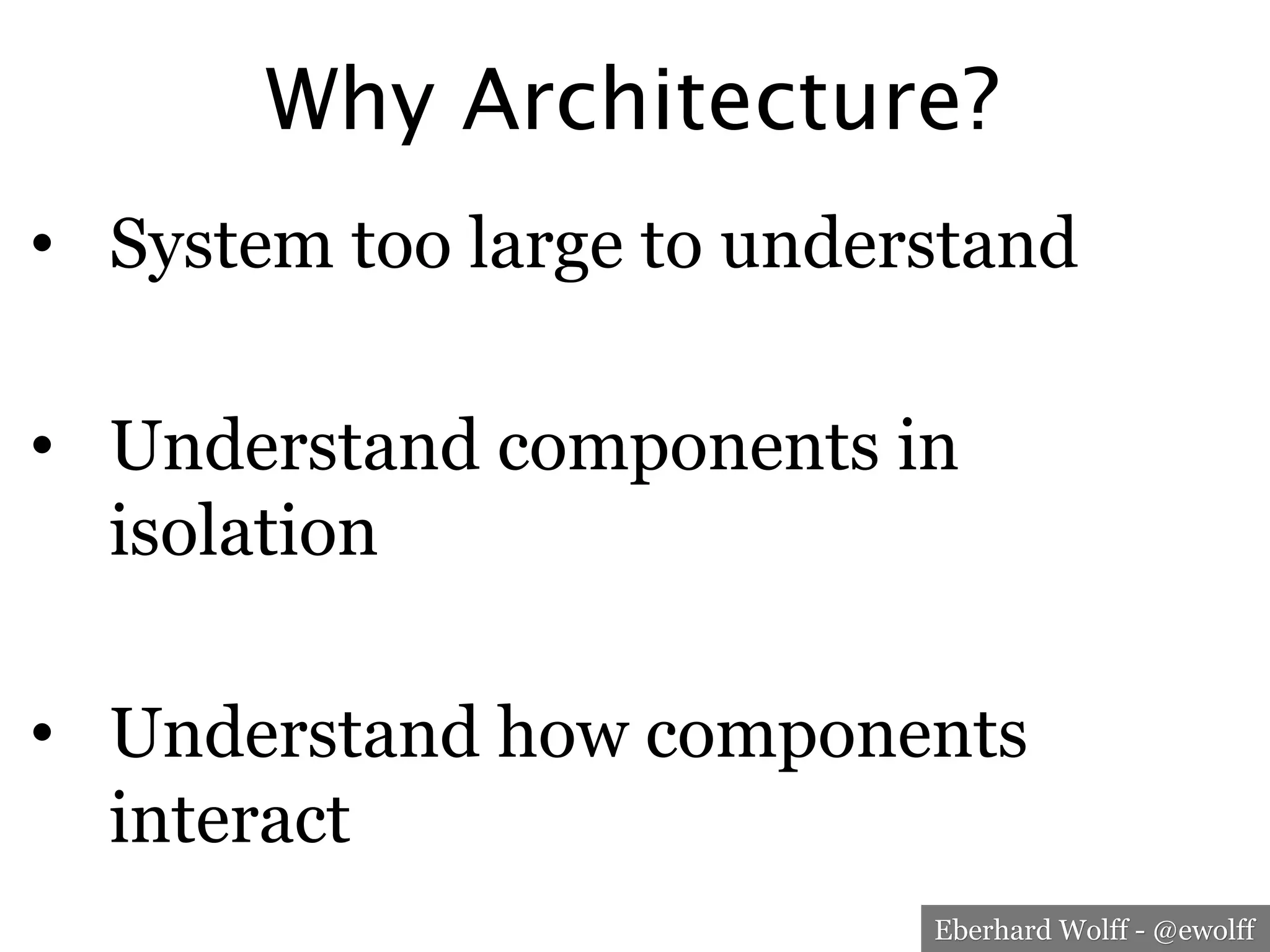

Why Architecture?
•  System too large to understand
•  Understand components in
isolation
•  Understand how components
interact

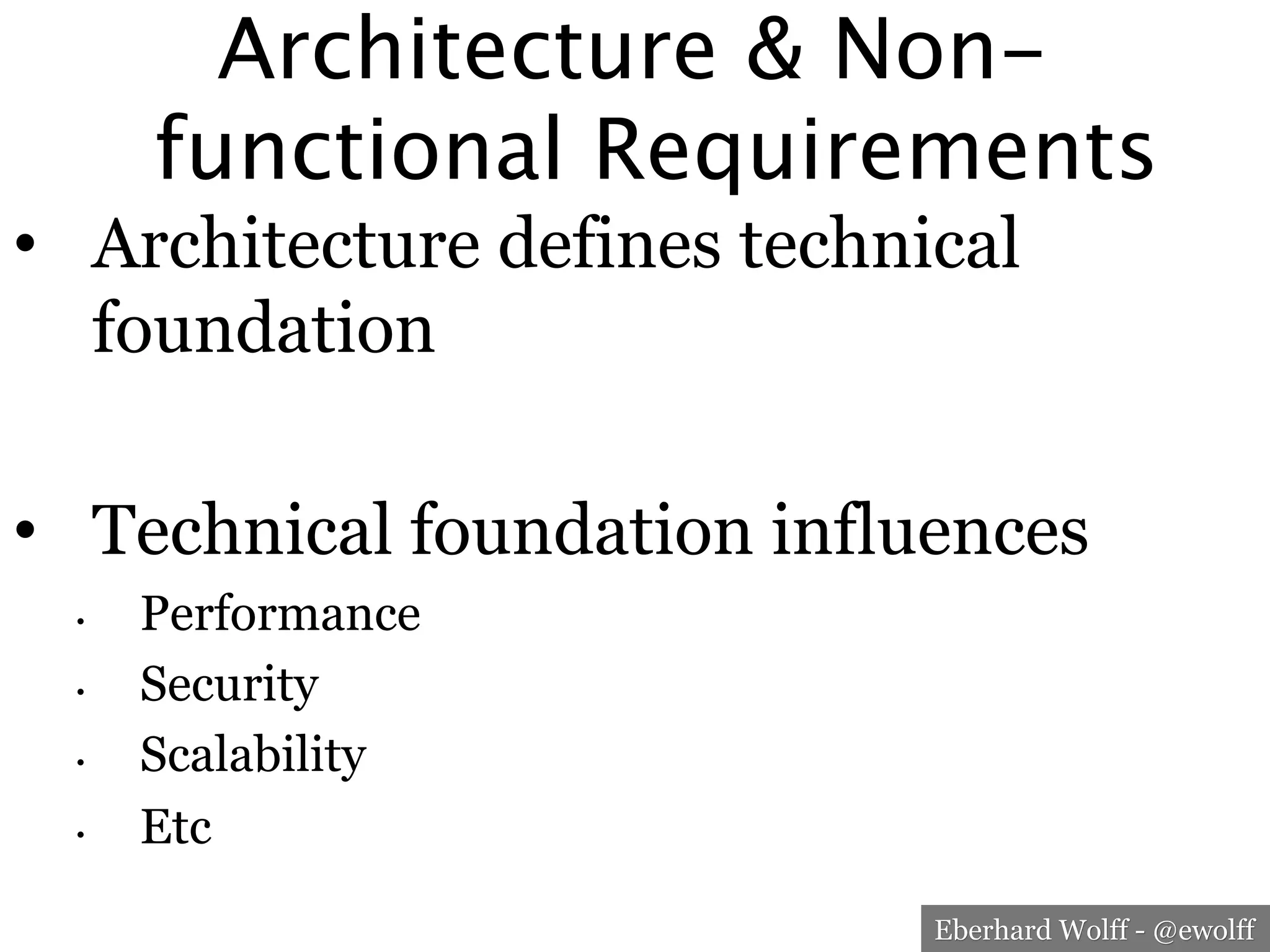

Architecture & Non-
functional Requirements
•  Architecture defines technical
foundation
•  Technical foundation influences
•  Performance
•  Security
•  Scalability
•  Etc

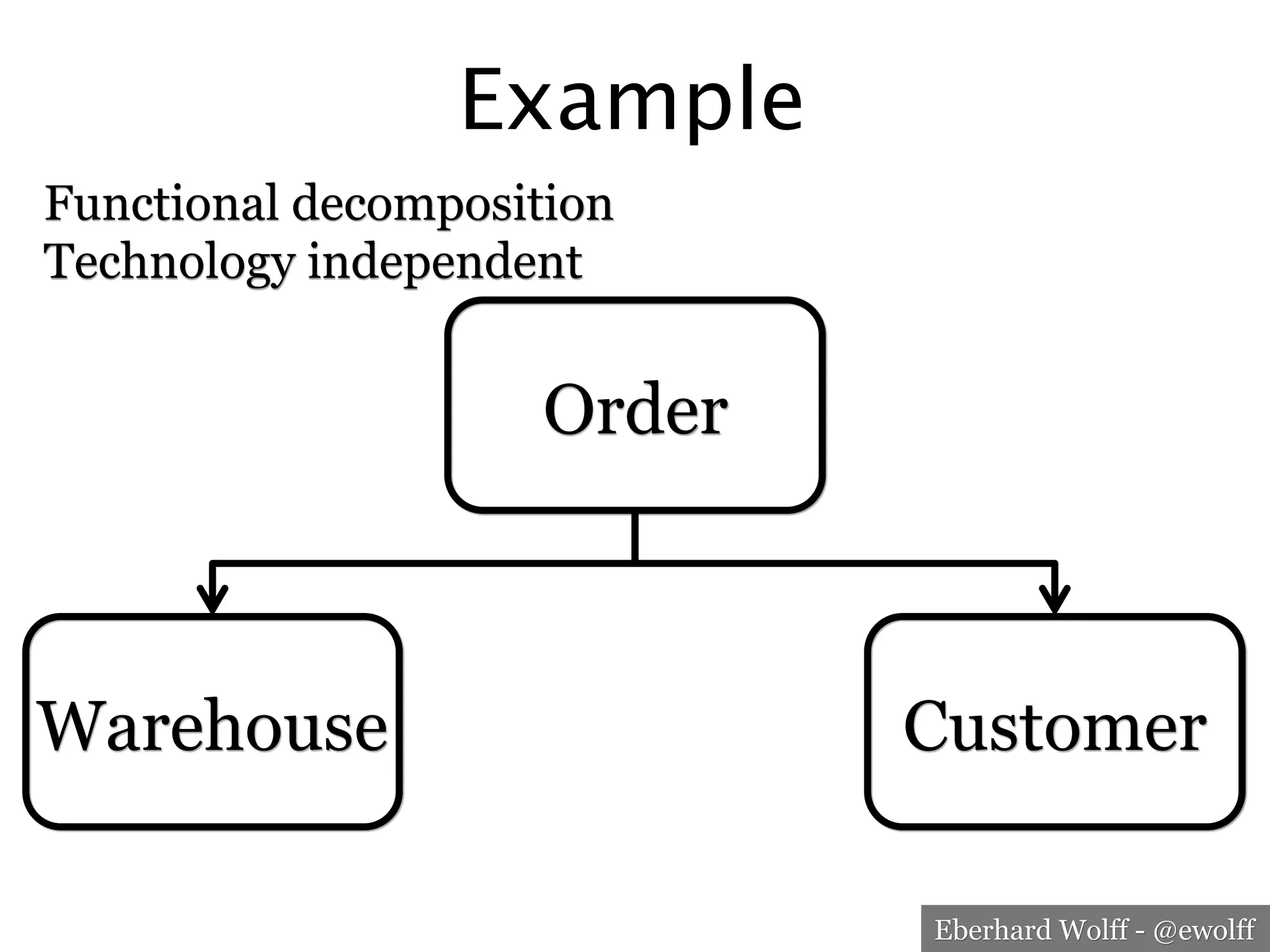

Example
Order
Warehouse Customer
Functional decomposition
Technology independent

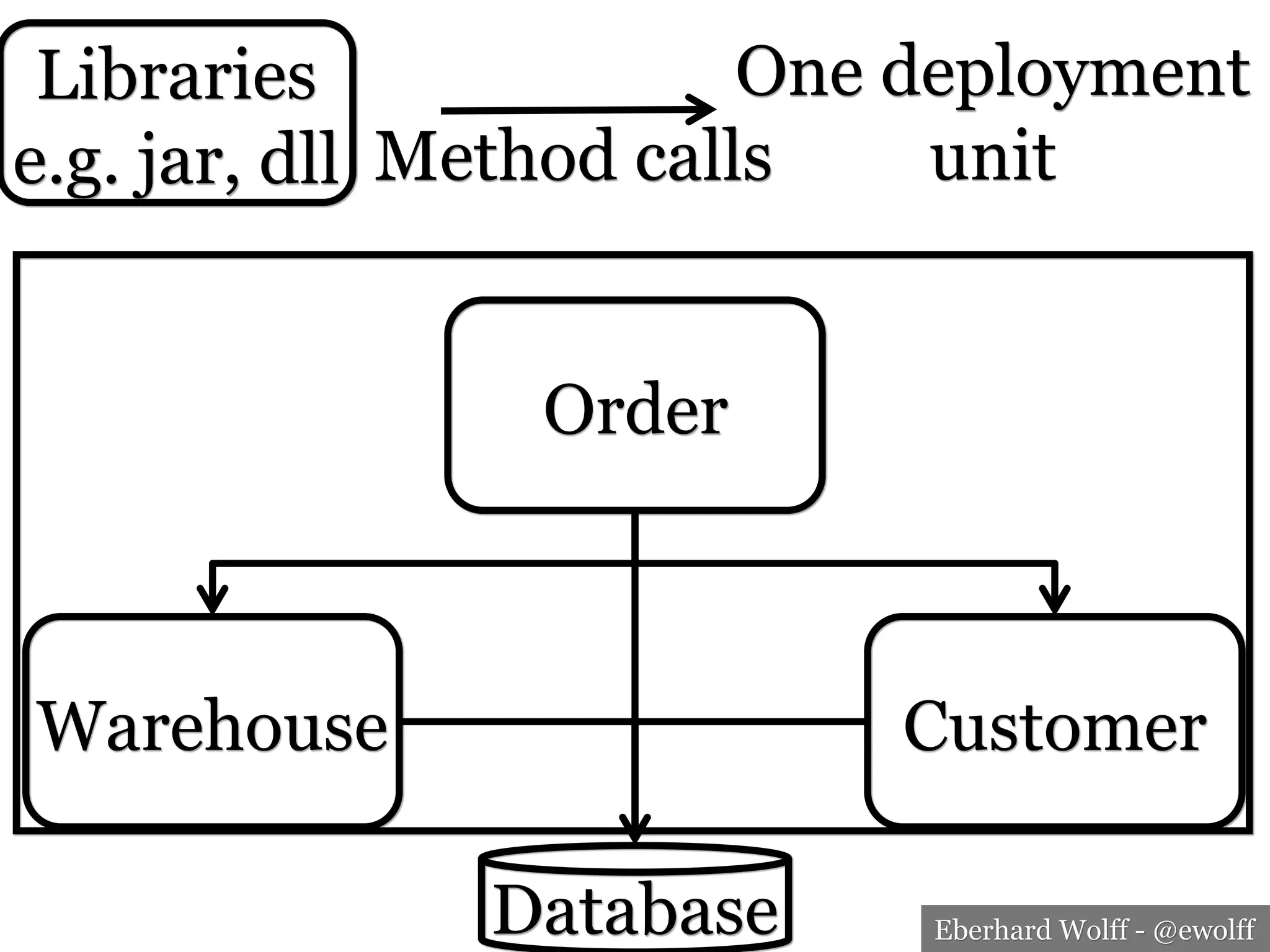

Order
Warehouse Customer
Database
Libraries
e.g. jar, dll Method calls
One deployment
unit

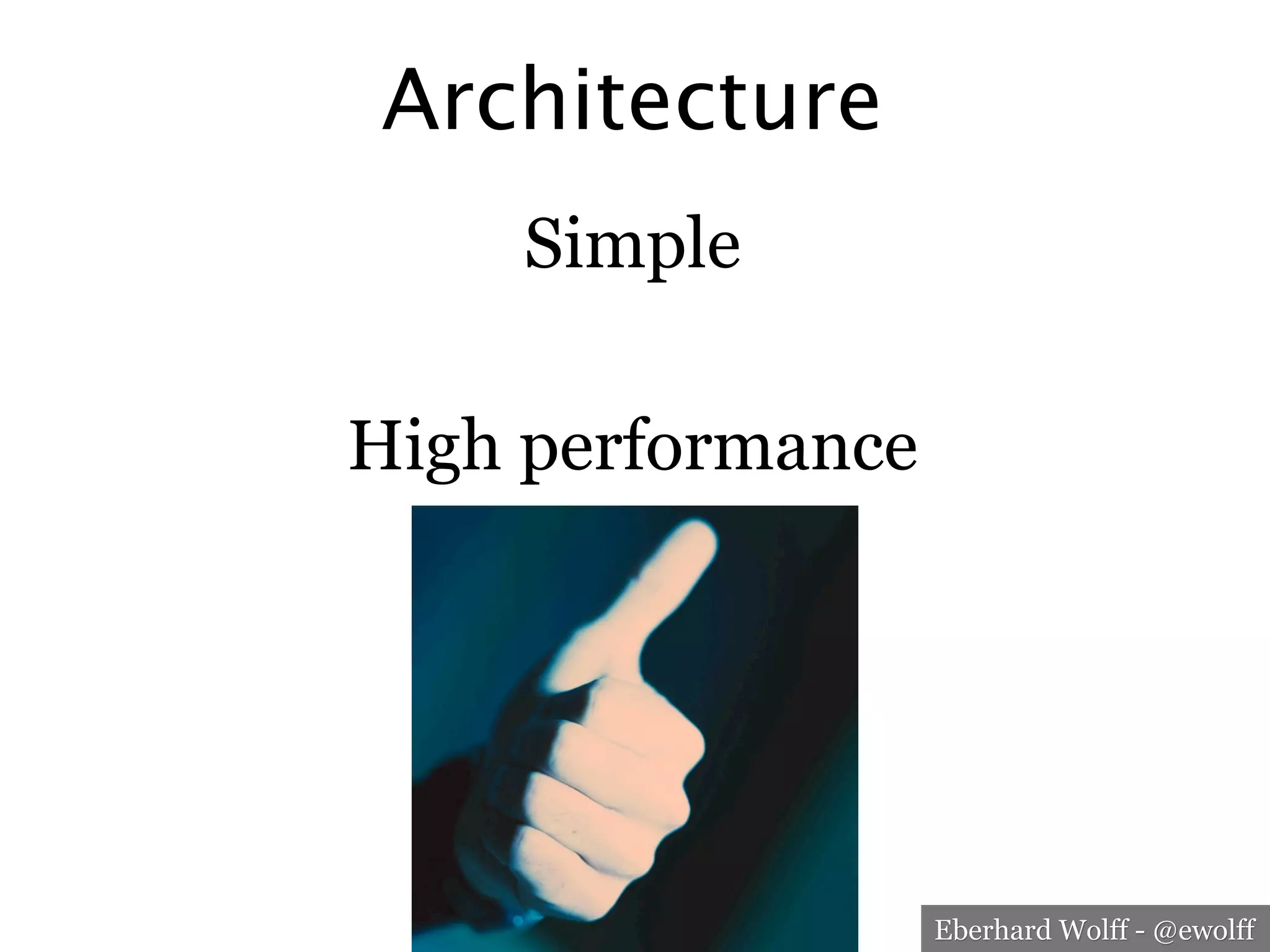

Architecture
Simple
High performance

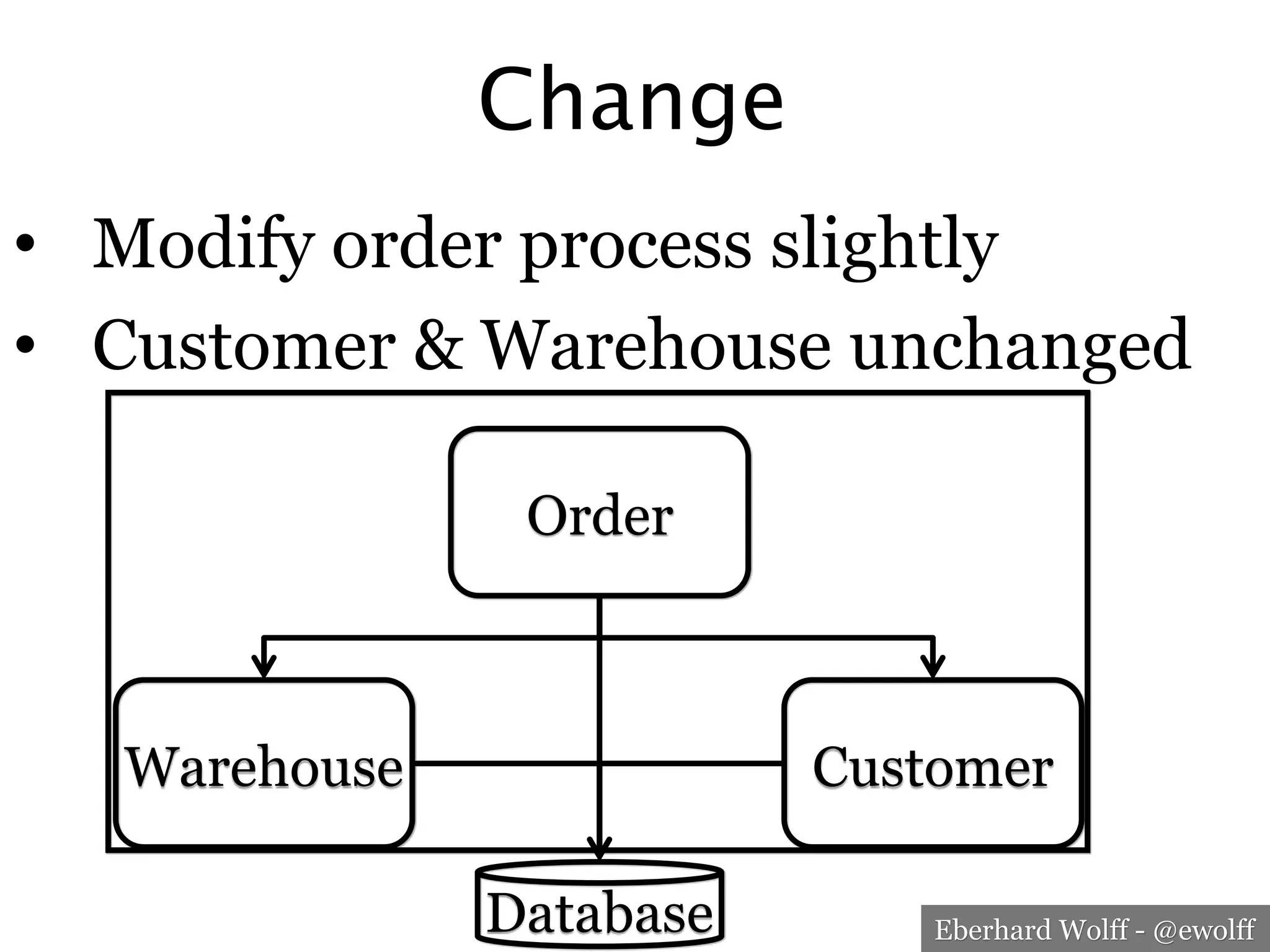

Change
•  Modify order process slightly
•  Customer & Warehouse unchanged

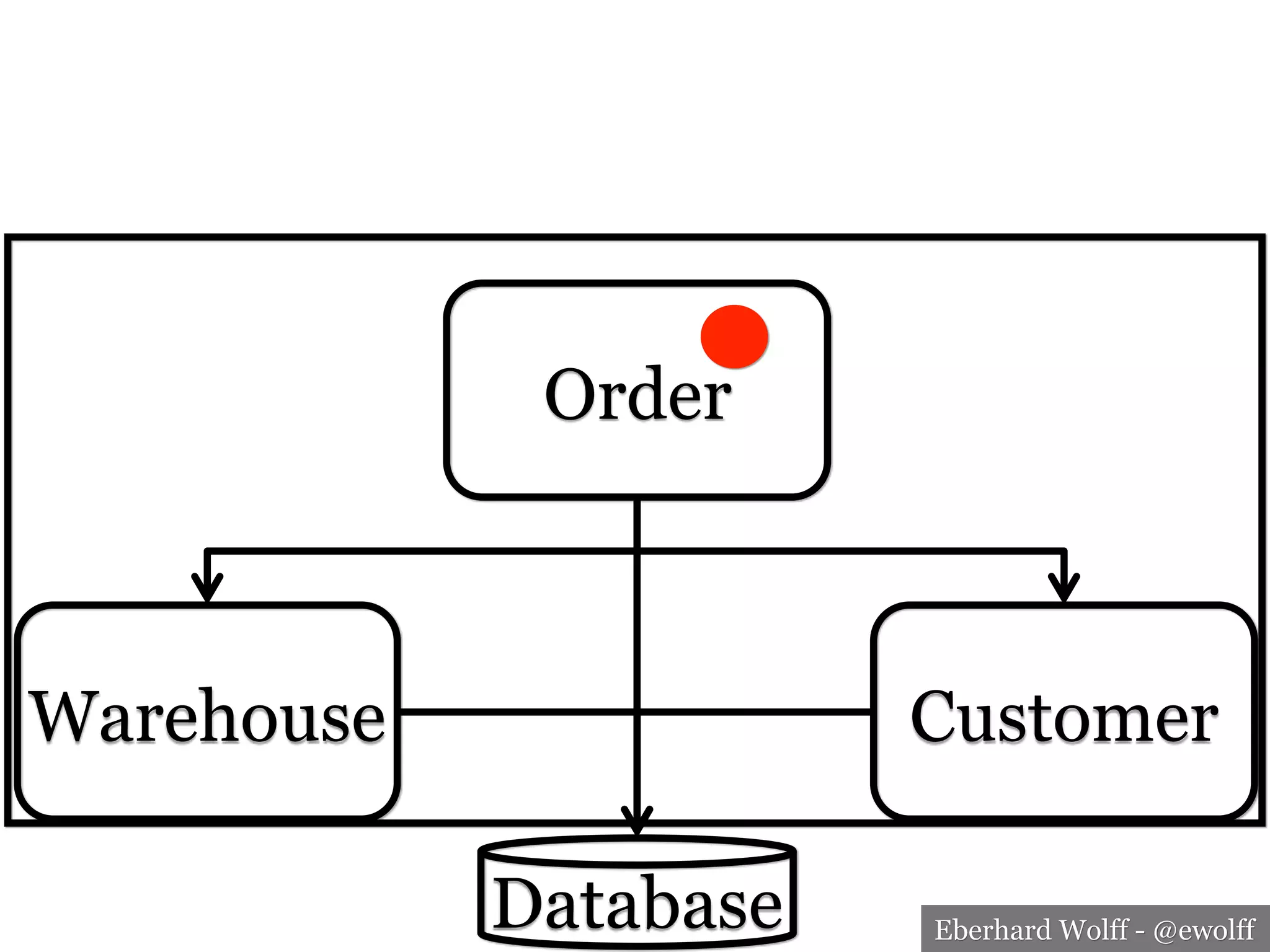

Order
Warehouse Customer
Database

Order
Warehouse Customer
Database

Build Pipeline
Commit
Stage
Automated
Acceptance
Testing
Automated
Capacity
Testing
Manual
Explorative
Testing
Release
Order
Warehouse Customer
Database

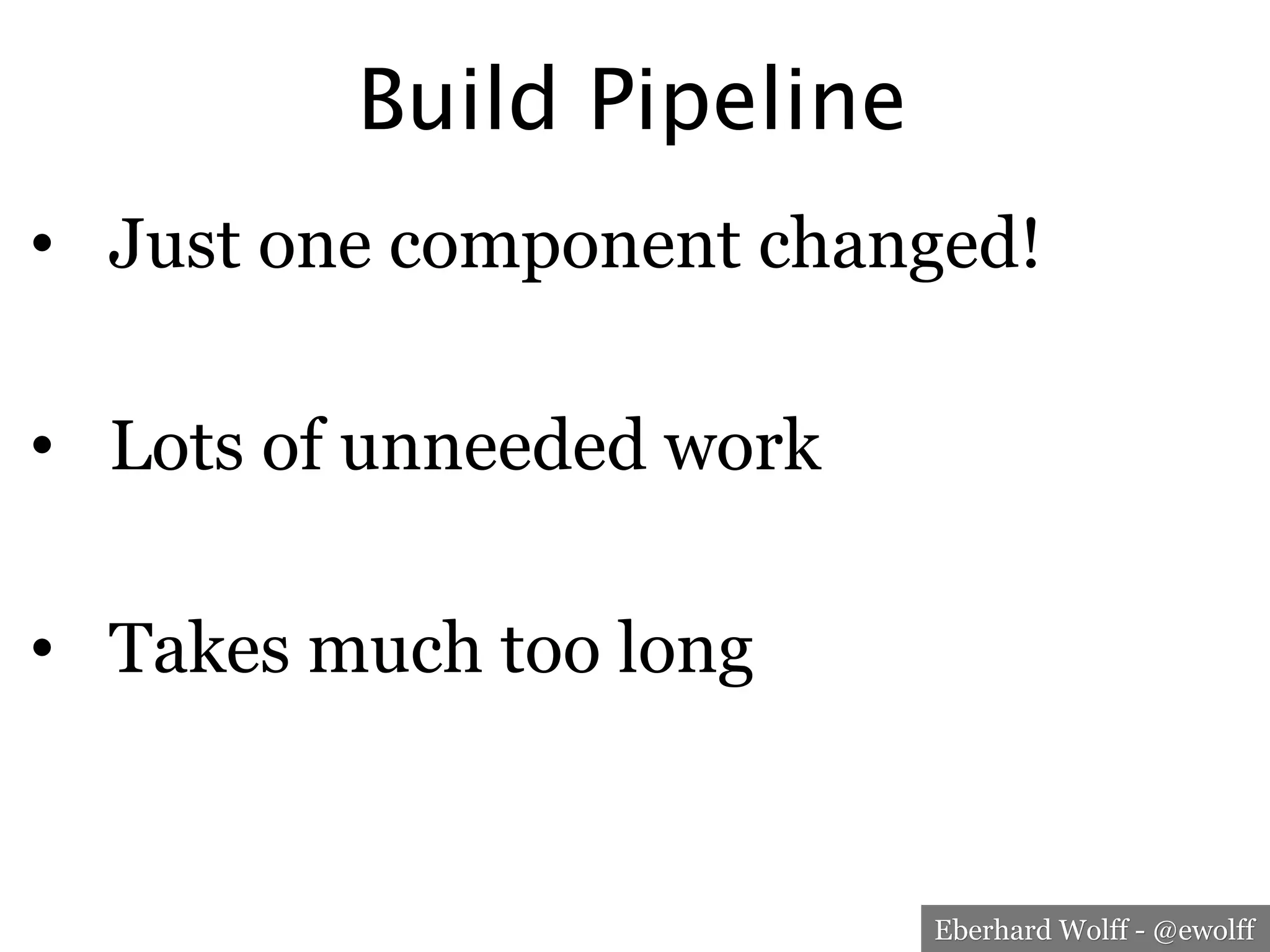

Build Pipeline
•  Just one component changed!
•  Lots of unneeded work
•  Takes much too long

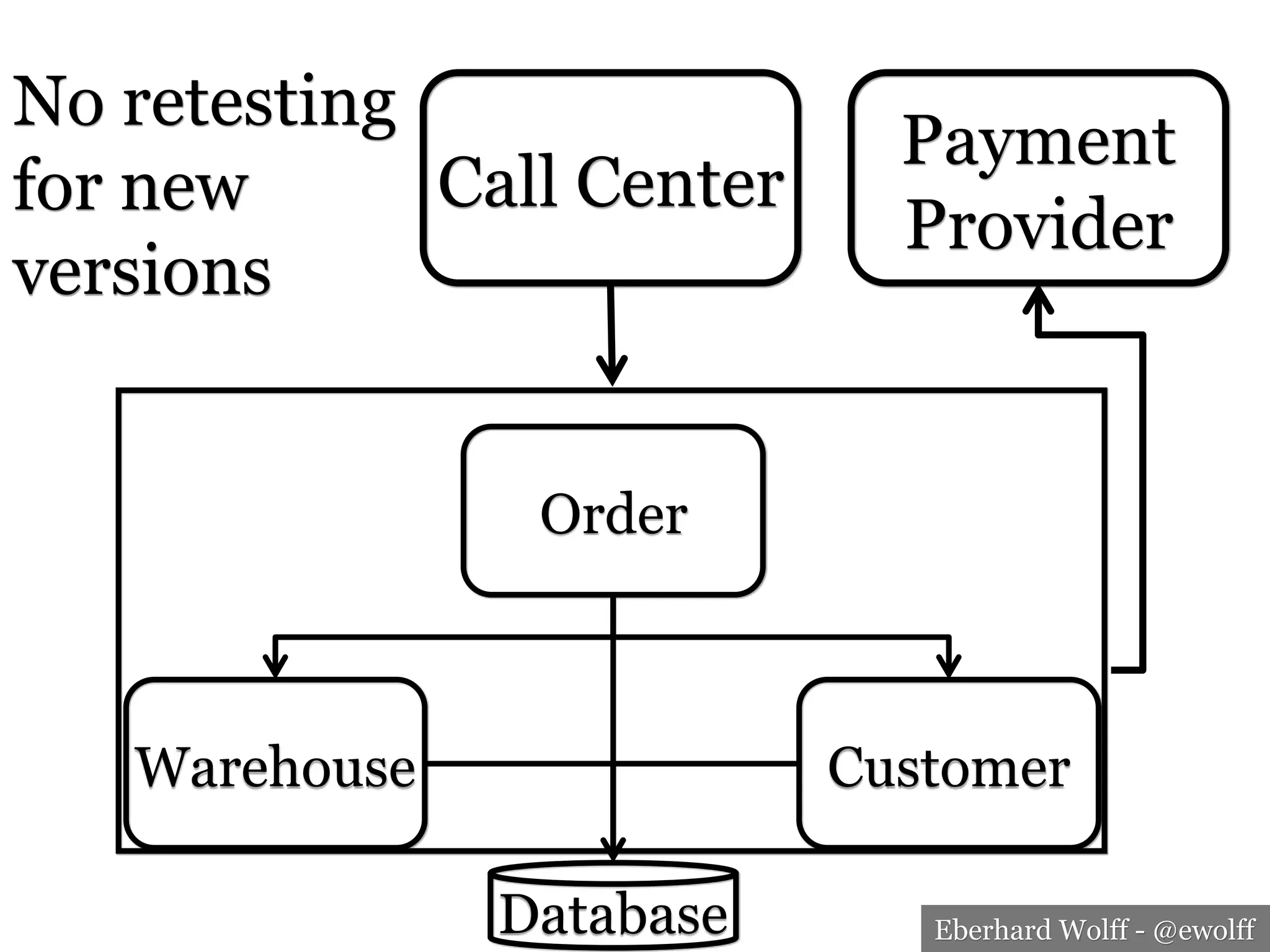

Order
Warehouse Customer
Database
Call Center
Payment
Provider
No retesting
for new
versions

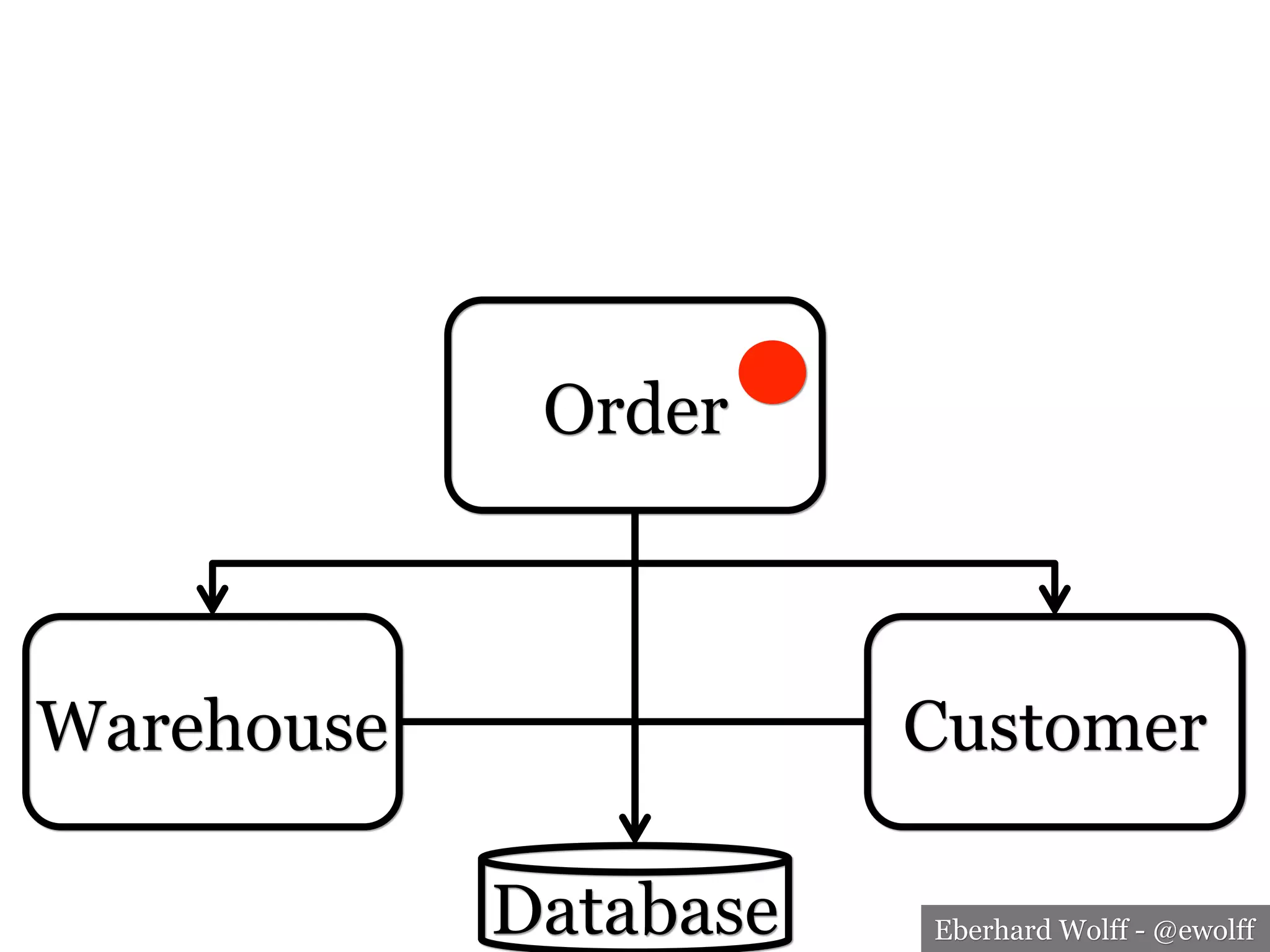

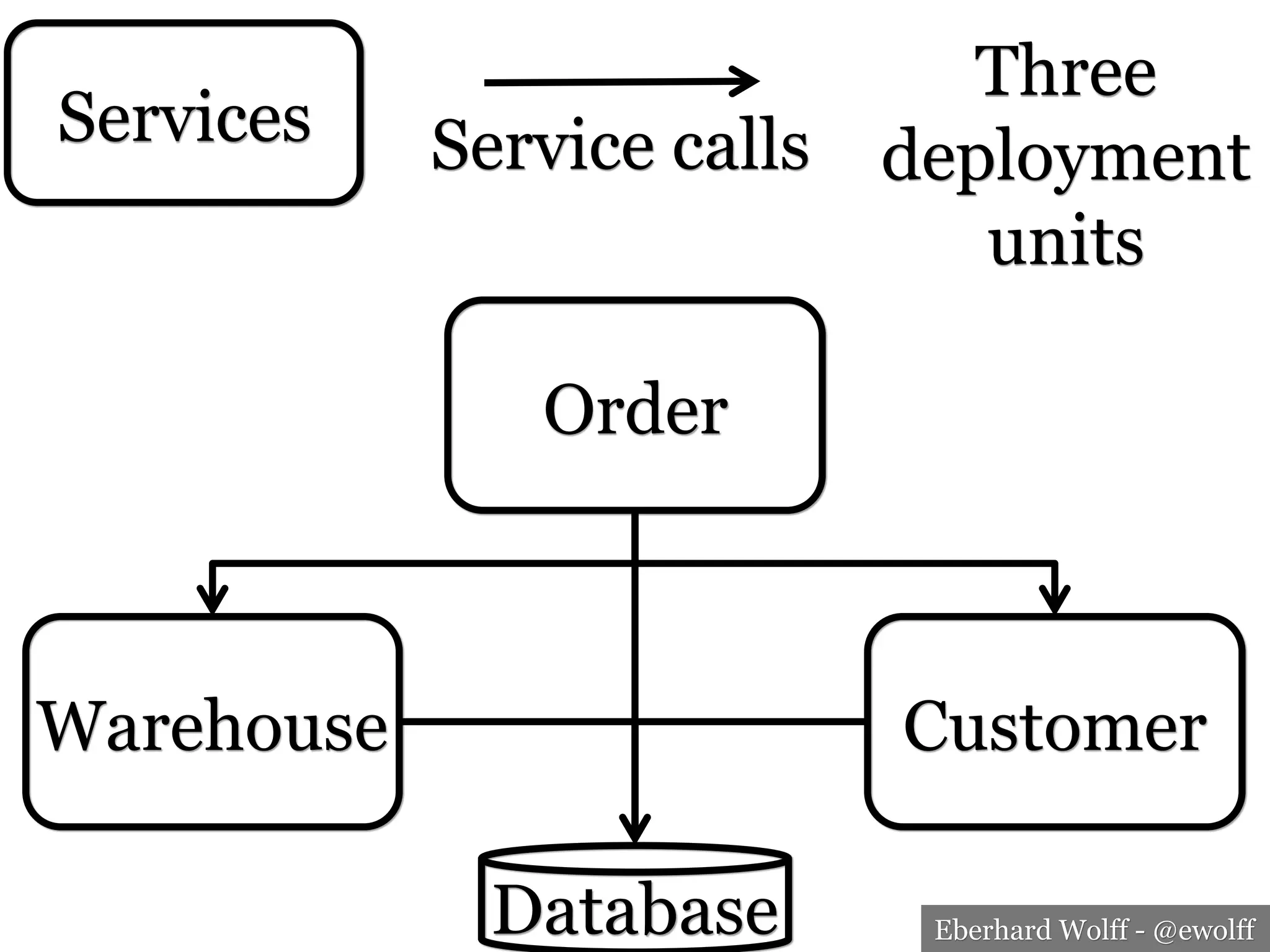

Order
Warehouse Customer
Database
Services Service calls
Three
deployment
units

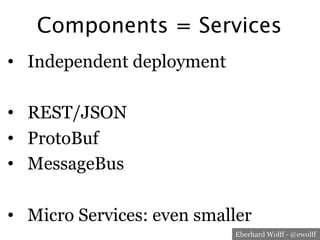

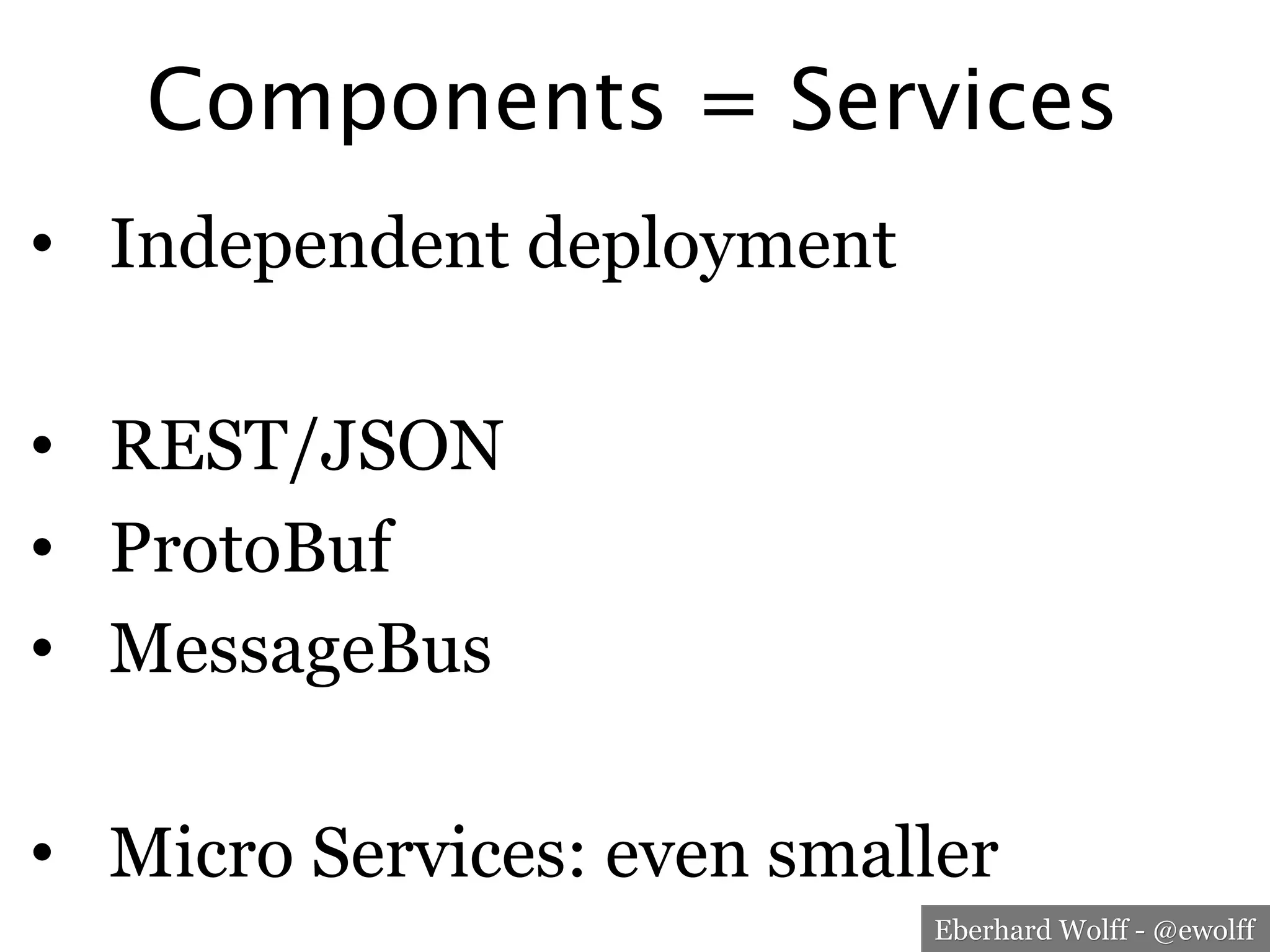

Components = Services
•  Independent deployment
•  REST/JSON
•  ProtoBuf
•  MessageBus
•  Micro Services: even smaller?

Build Pipeline
Commit
Stage
Automated
Acceptance
Testing
Automated
Capacity
Testing
Manual
Explorative
Testing
ReleaseOrder

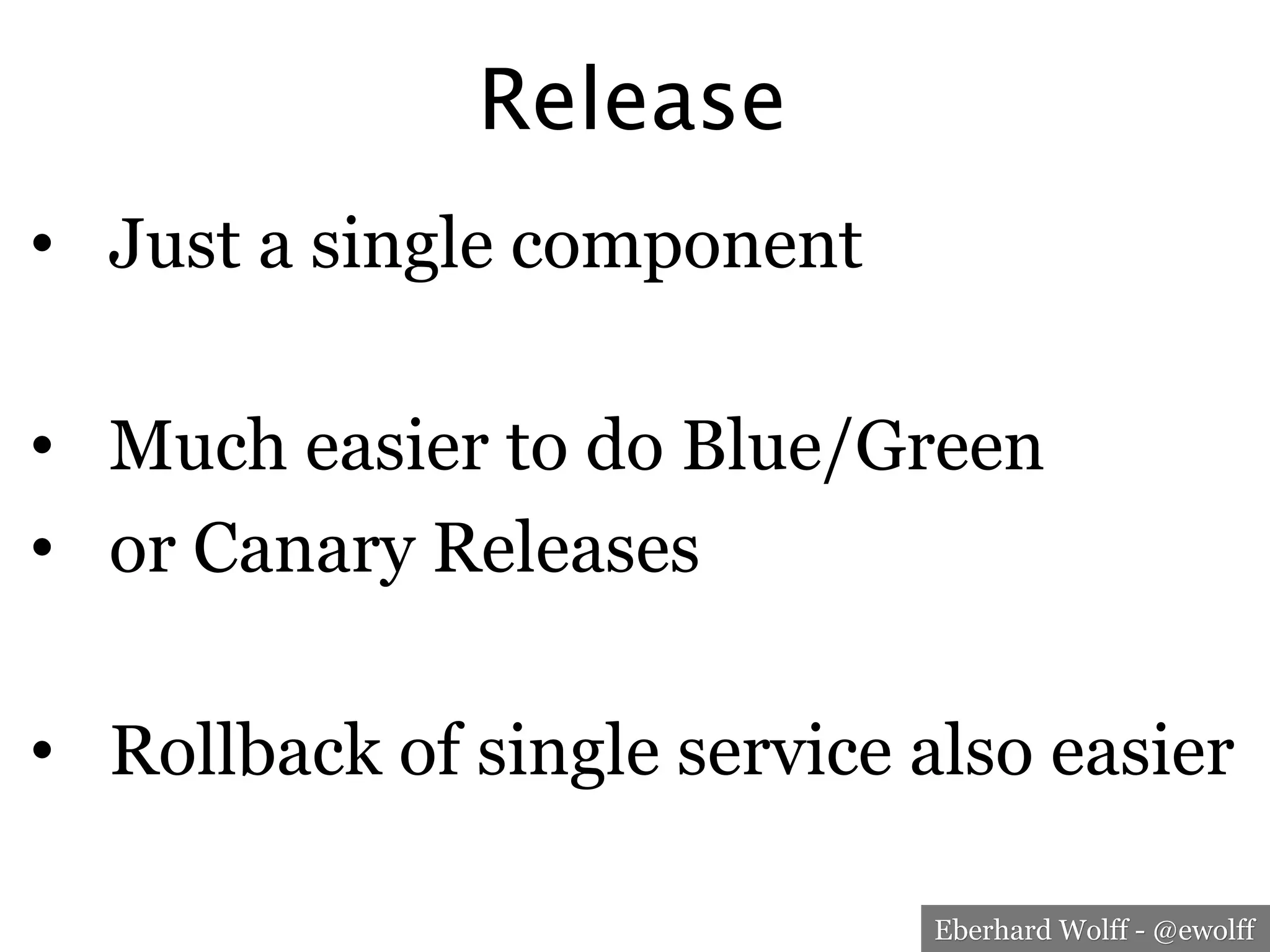

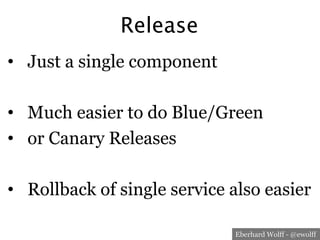

Release
•  Just a single component
•  Much easier to do Blue/Green
•  or Canary Releases
•  Rollback of single service also easier

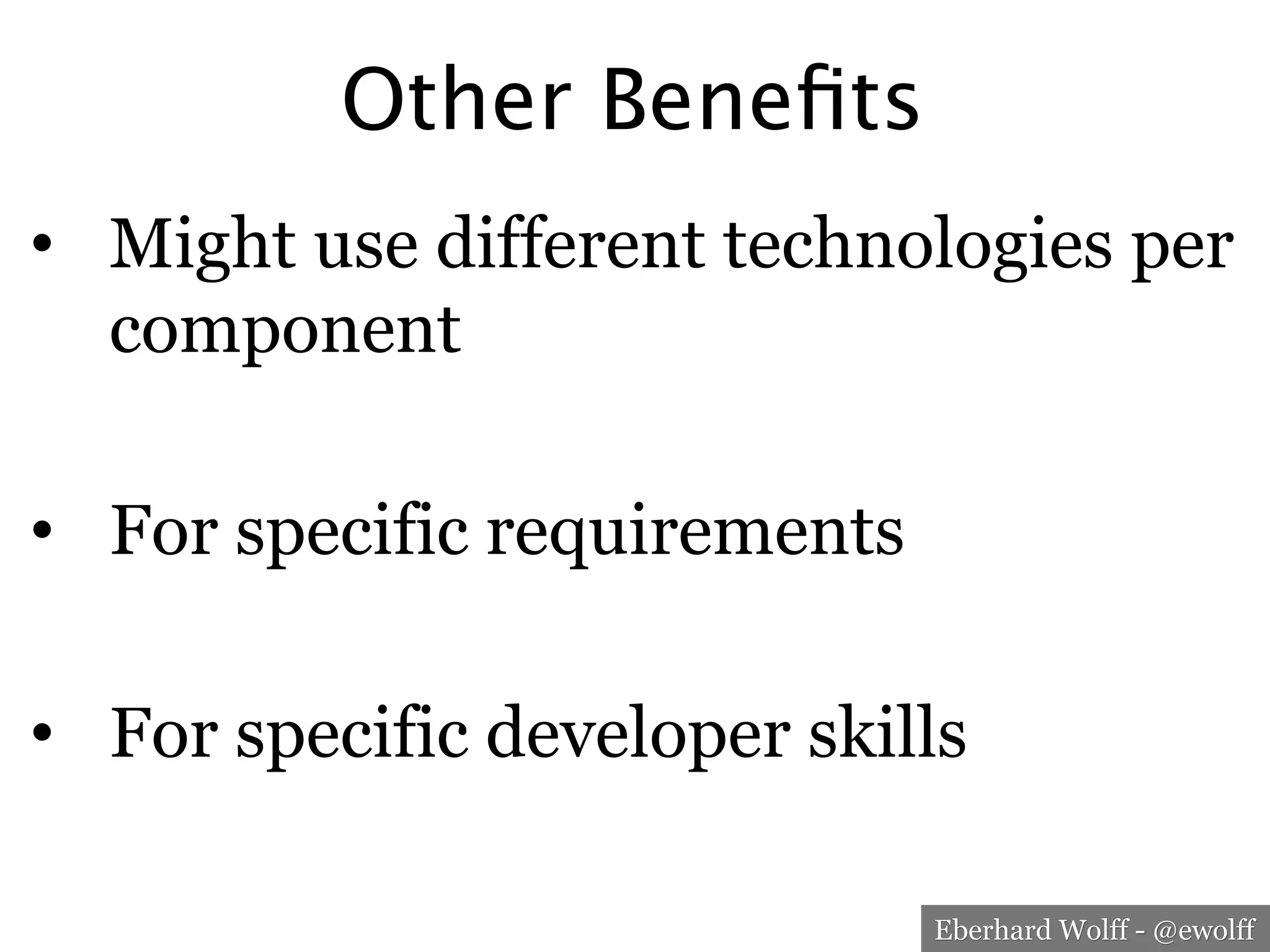

Other Beneﬁts
•  Might use different technologies per
component
•  For specific requirements
•  For specific developer skills

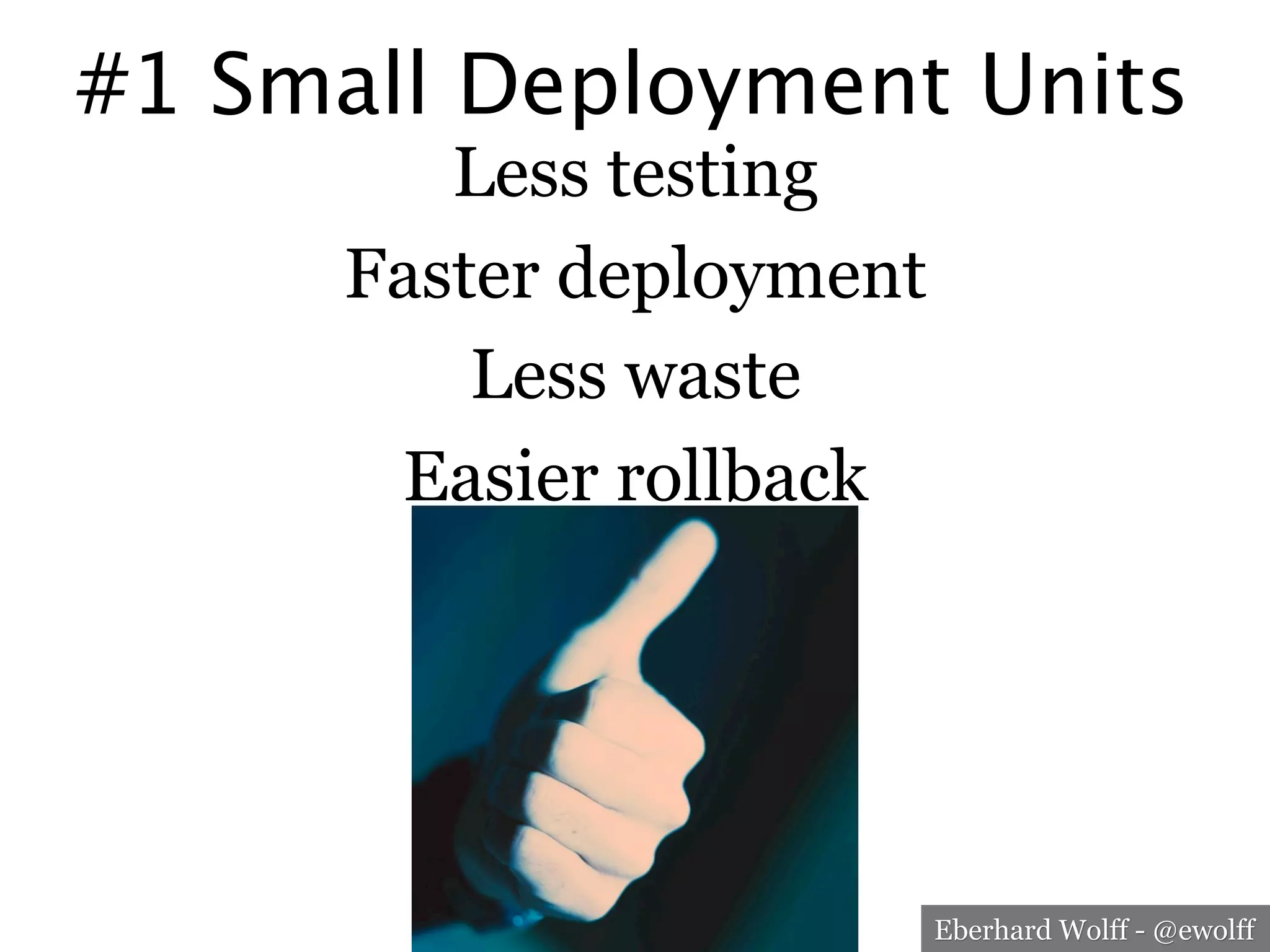

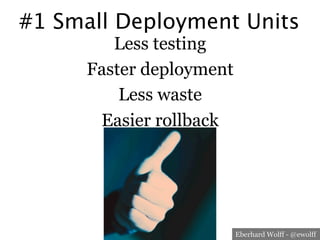

#1 Small Deployment Units
Less testing
Faster deployment
Less waste
Easier rollback

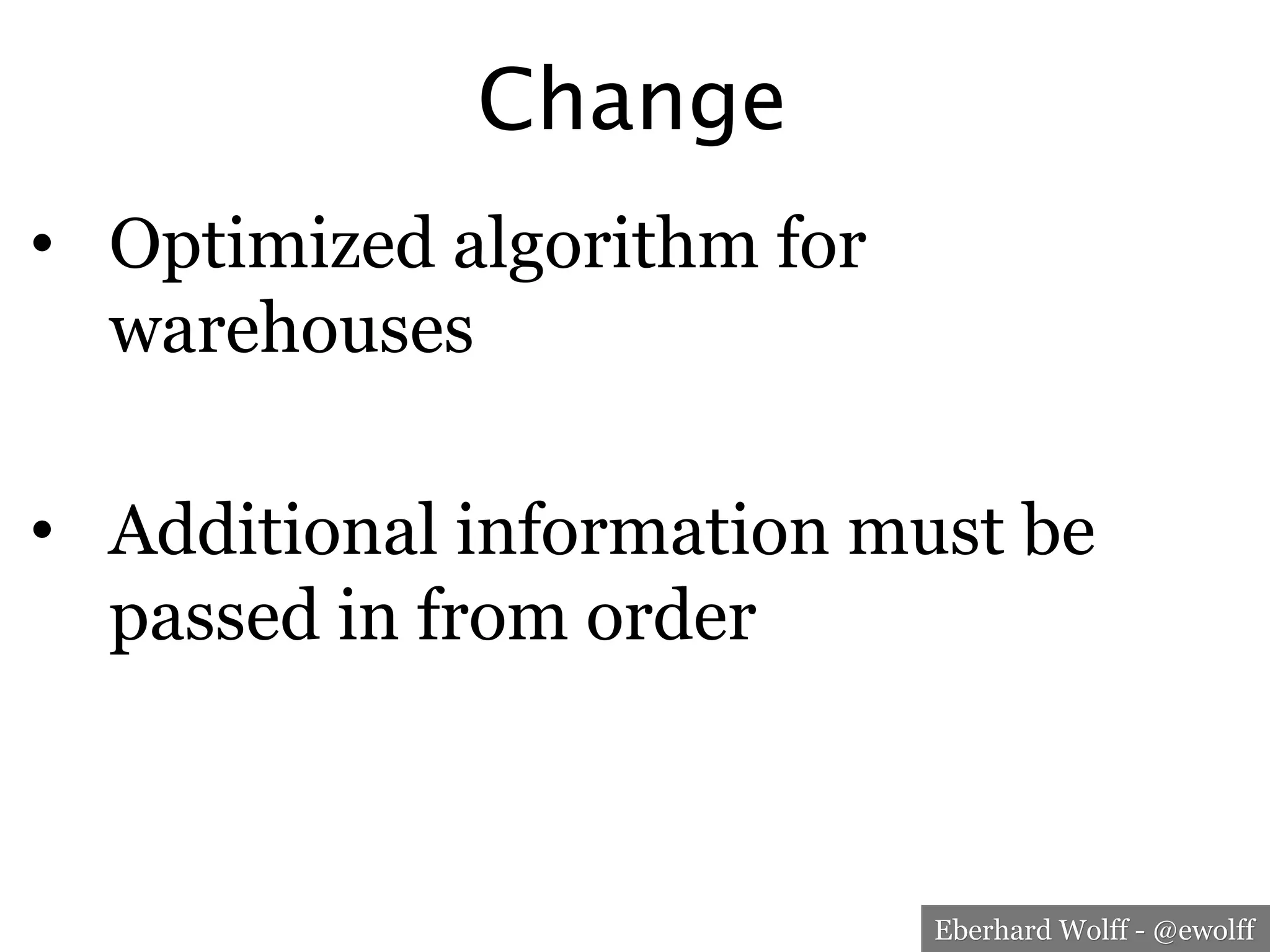

Change
•  Optimized algorithm for warehouses
•  Additional information must be
passed in from order

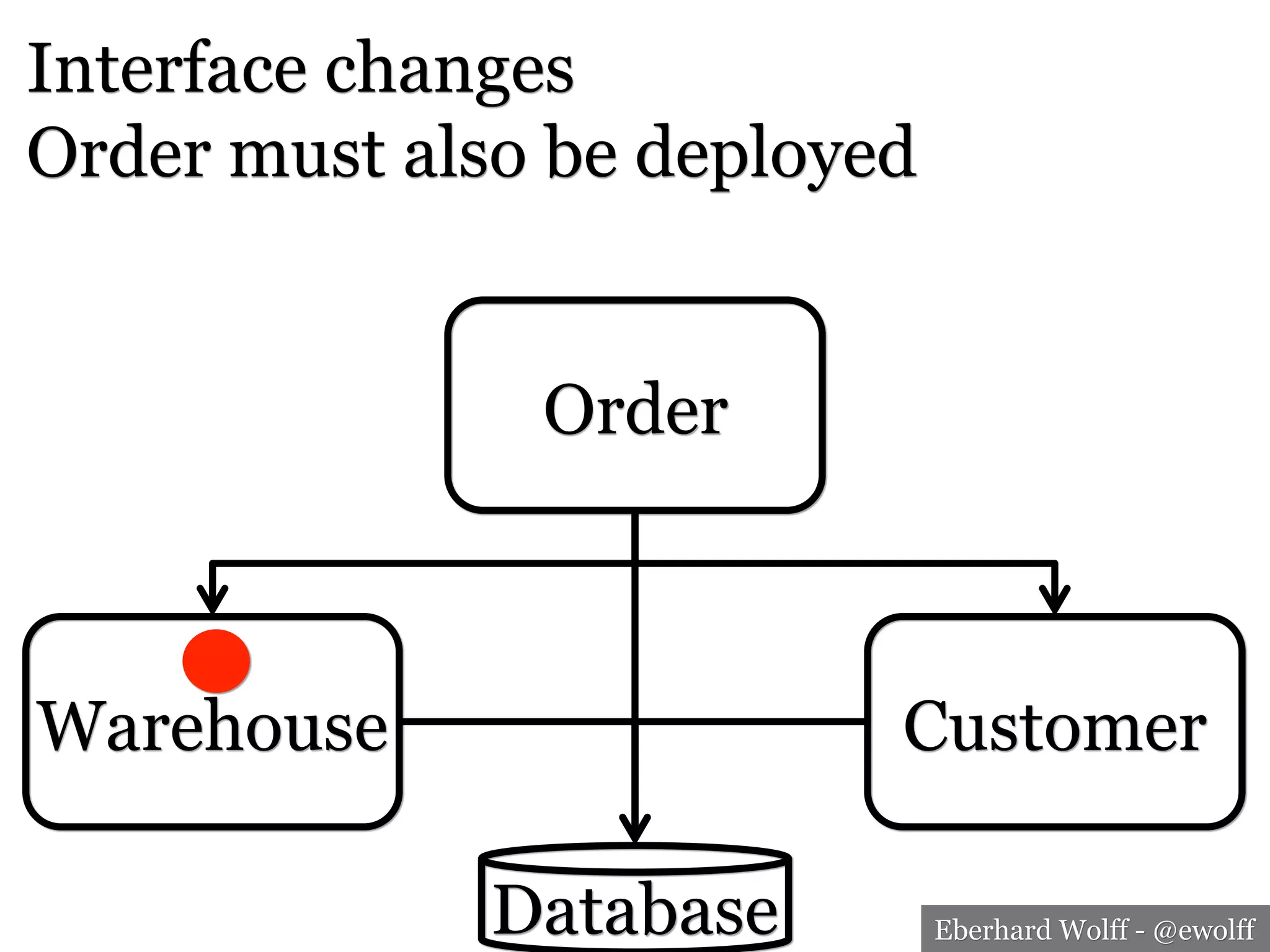

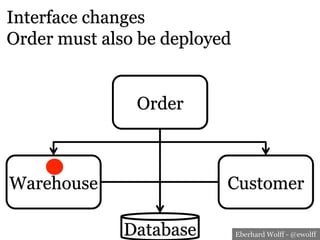

Order
Warehouse Customer
Database
Interface changes
Order must also be deployed

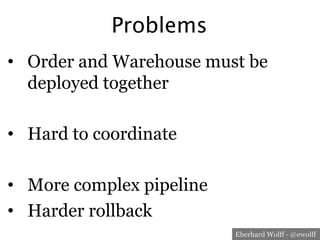

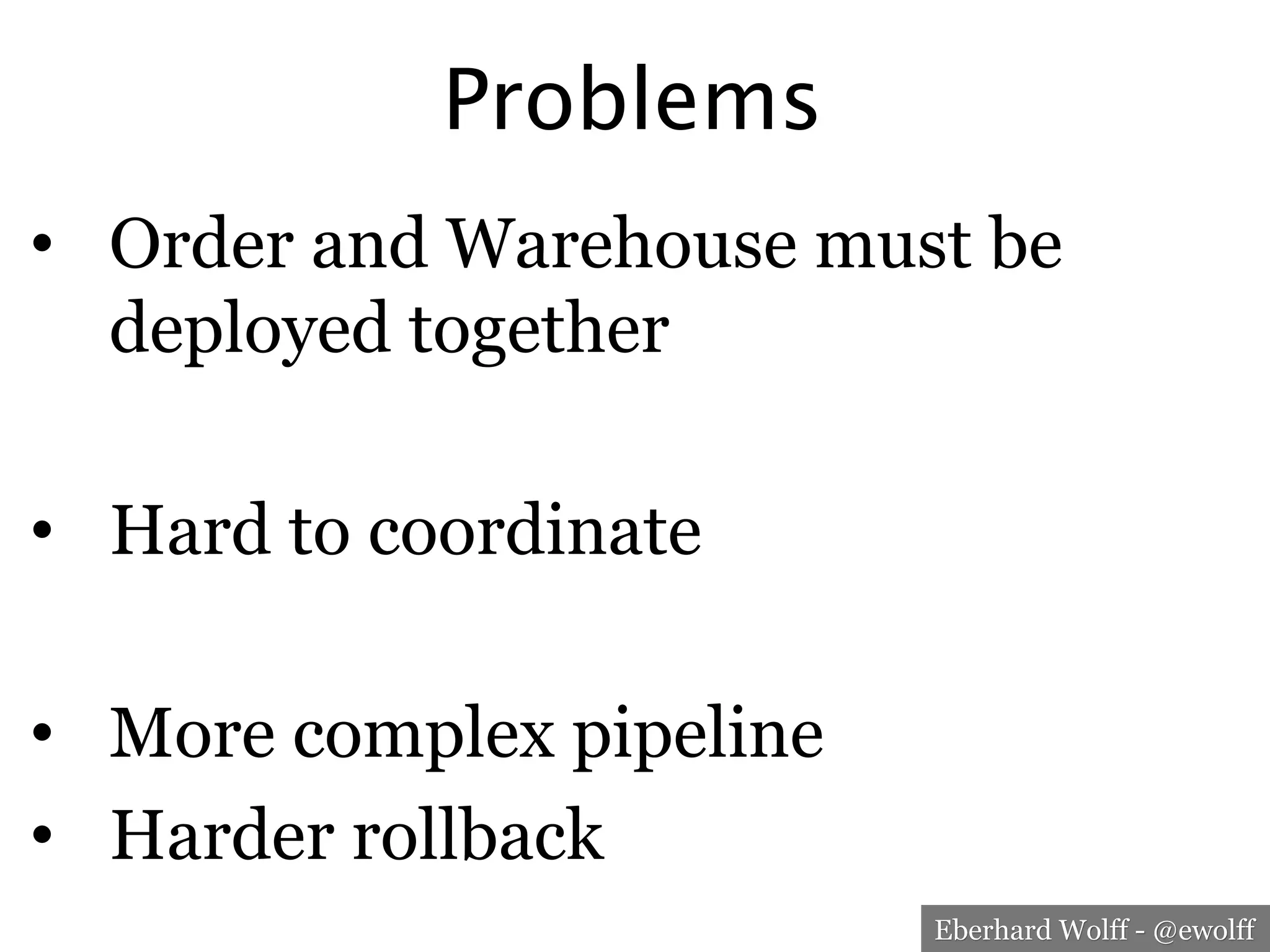

Problems
•  Order and Warehouse must be
deployed together
•  Hard to coordinate
•  More complex pipeline
•  Harder rollback

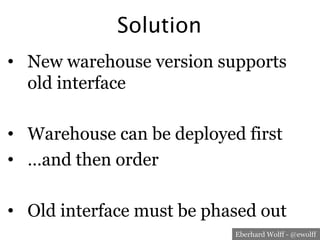

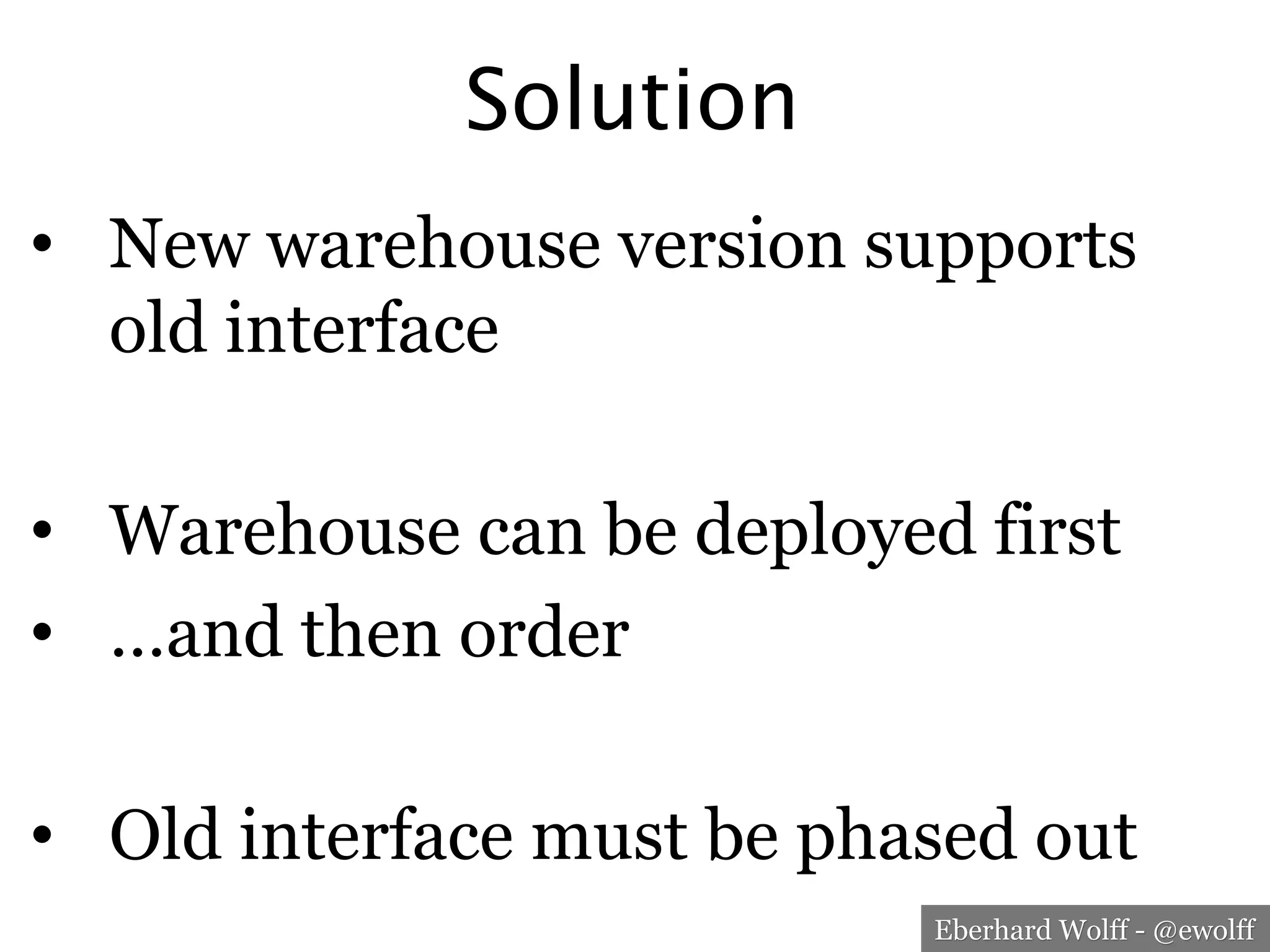

Solution
•  New warehouse version supports
old interface
•  Warehouse can be deployed first
•  …and then Order
•  Old interface must be phased out

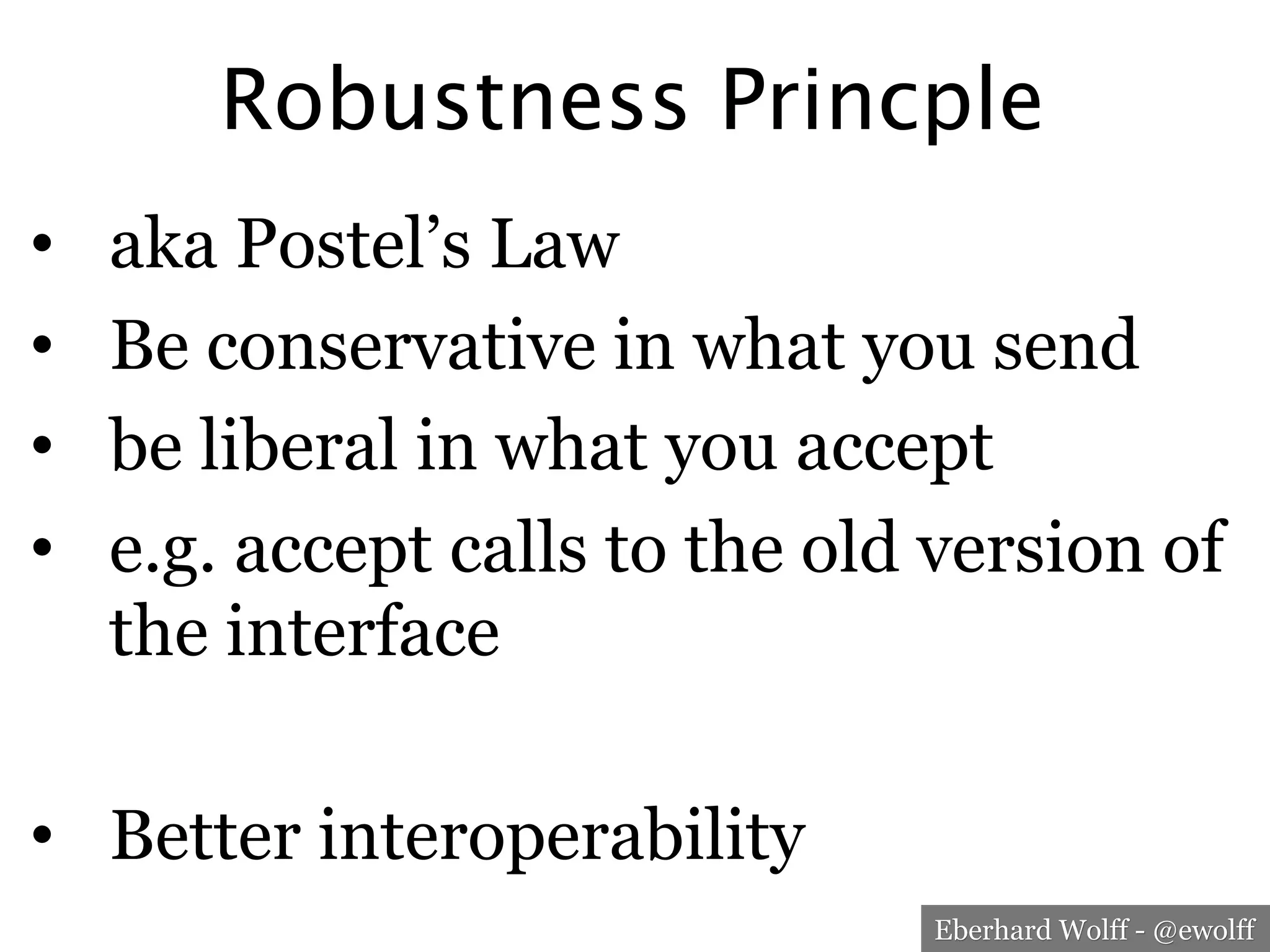

Robustness Principle
•  aka Postel’s Law
•  Be conservative in what you send
•  be liberal in what you accept
•  e.g. accept calls to the old version of
the interface
•  Better interoperability

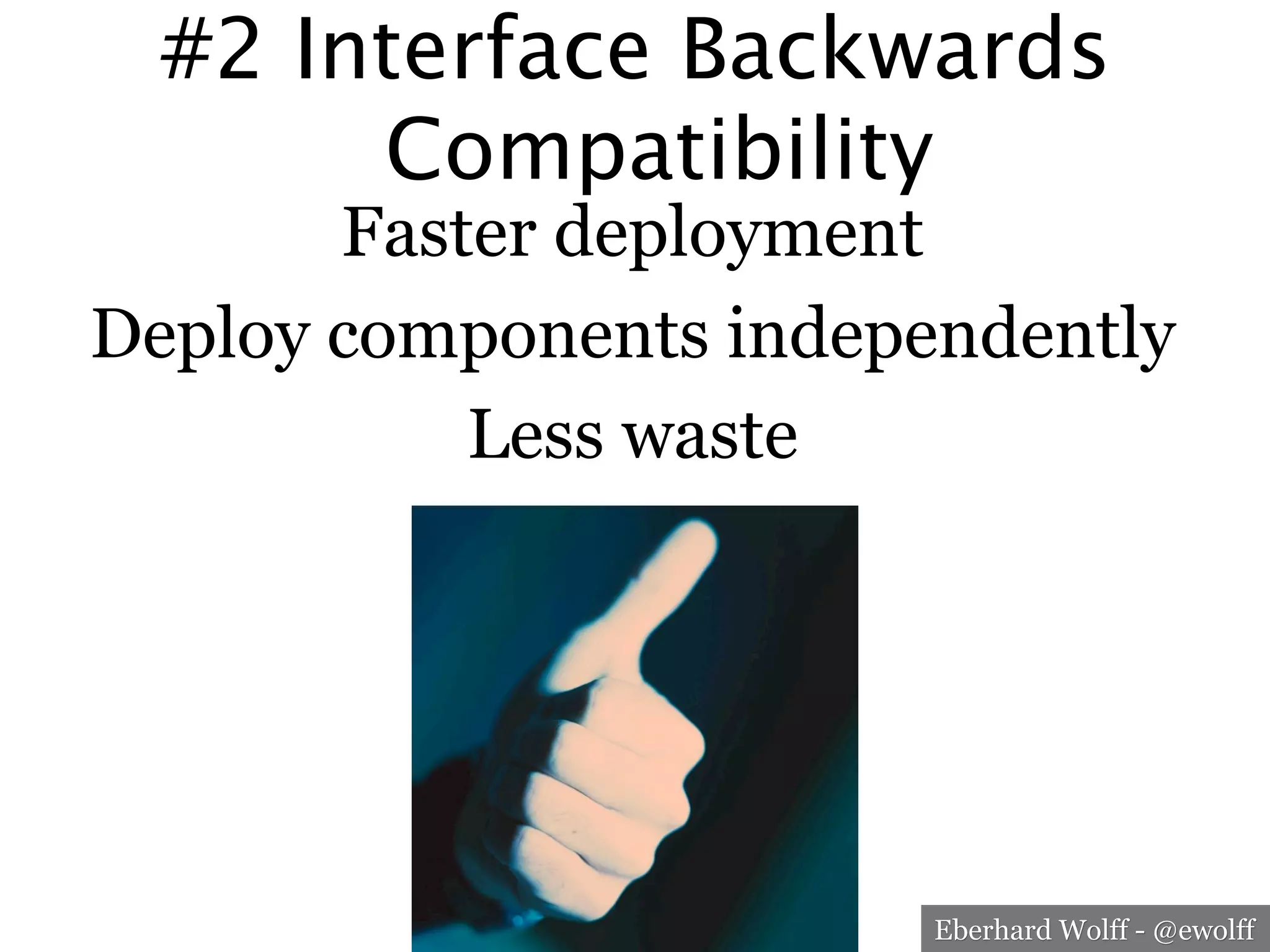

#2 Interface Backwards
Compatibility
Faster deployment
Deploy components independently
Less waste

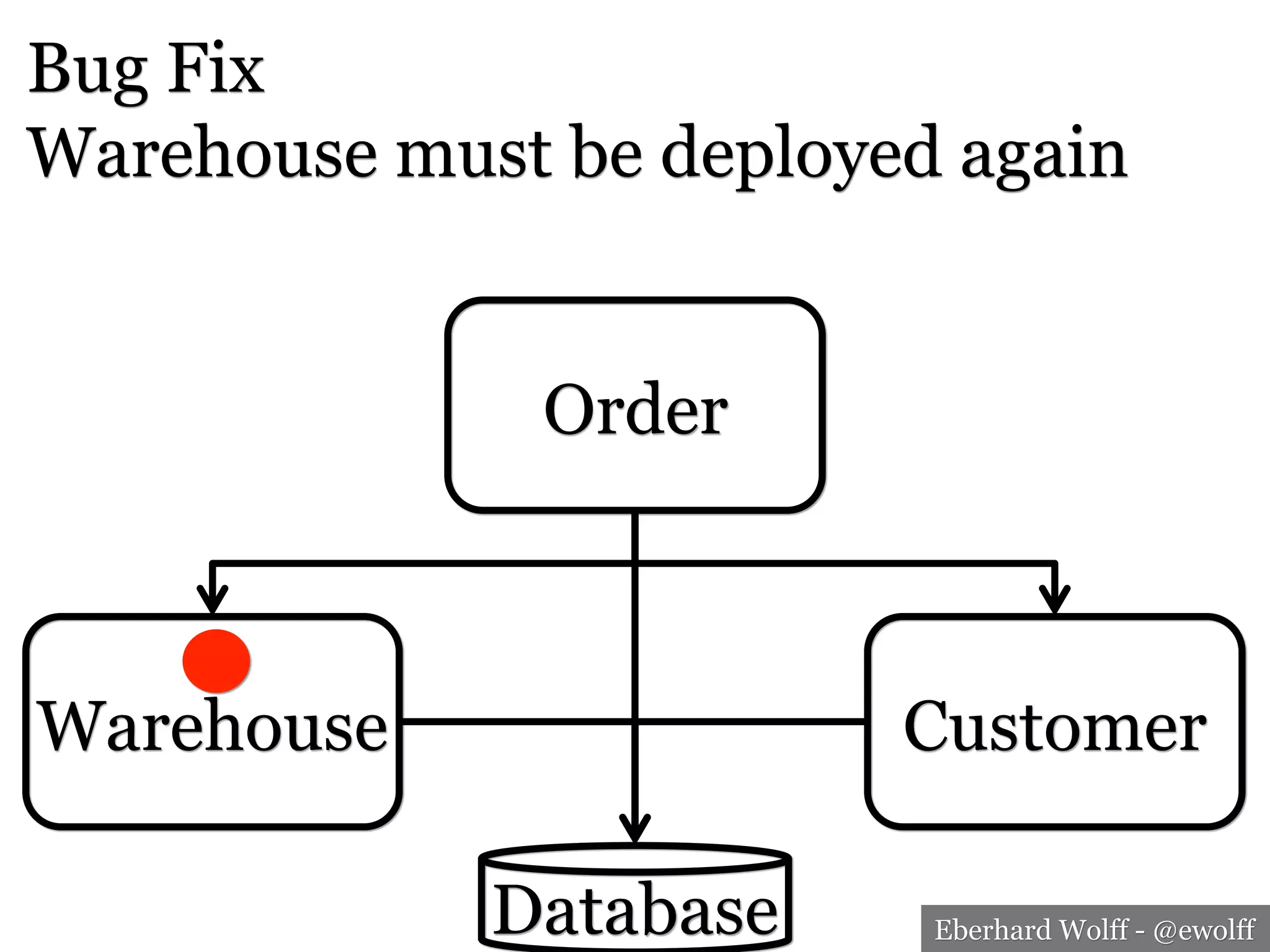

Order
Warehouse Customer
Database
Bug Fix
Warehouse must be deployed again

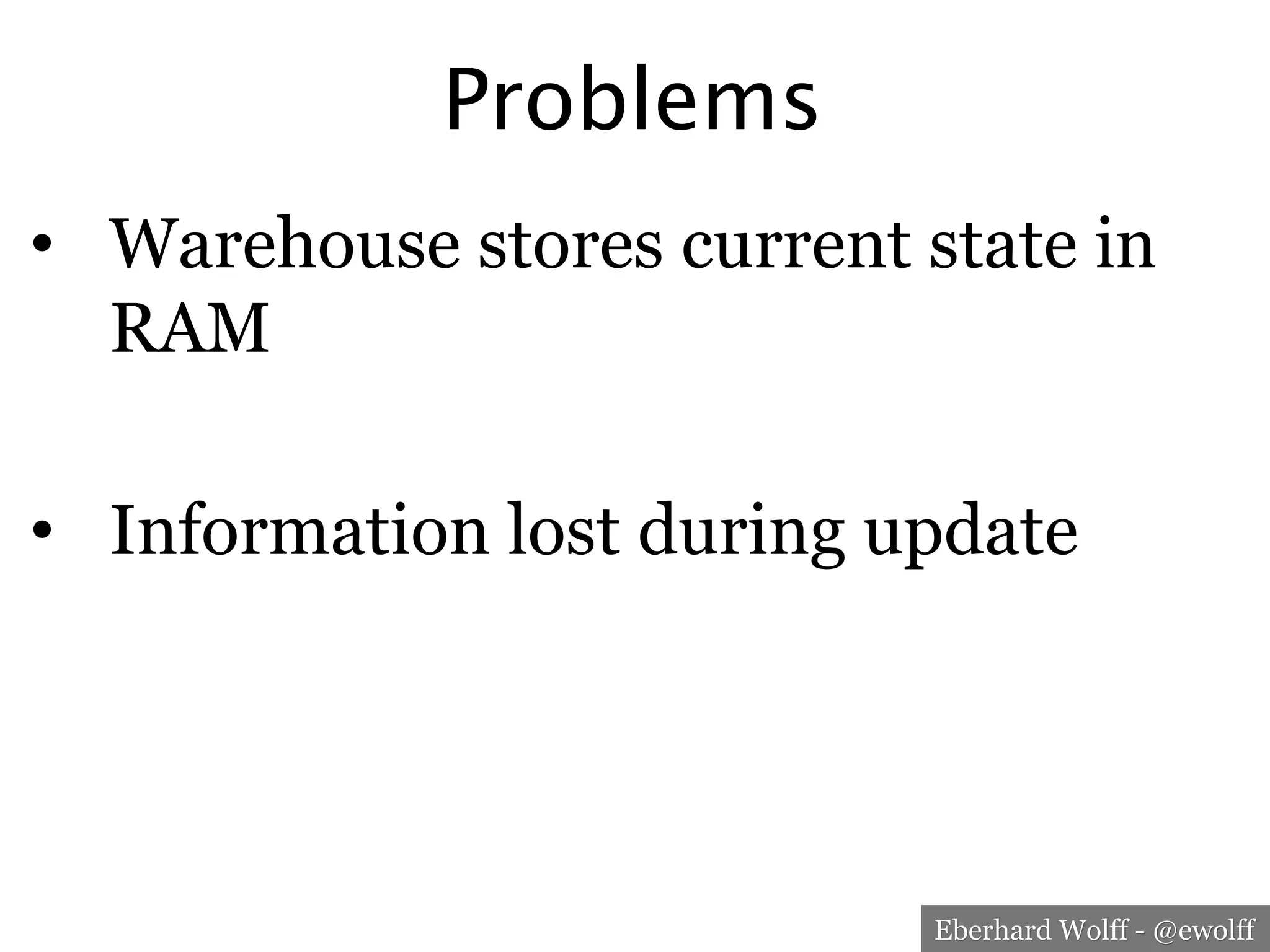

Problems
•  Warehouse stores current state in
RAM
•  Information lost during update

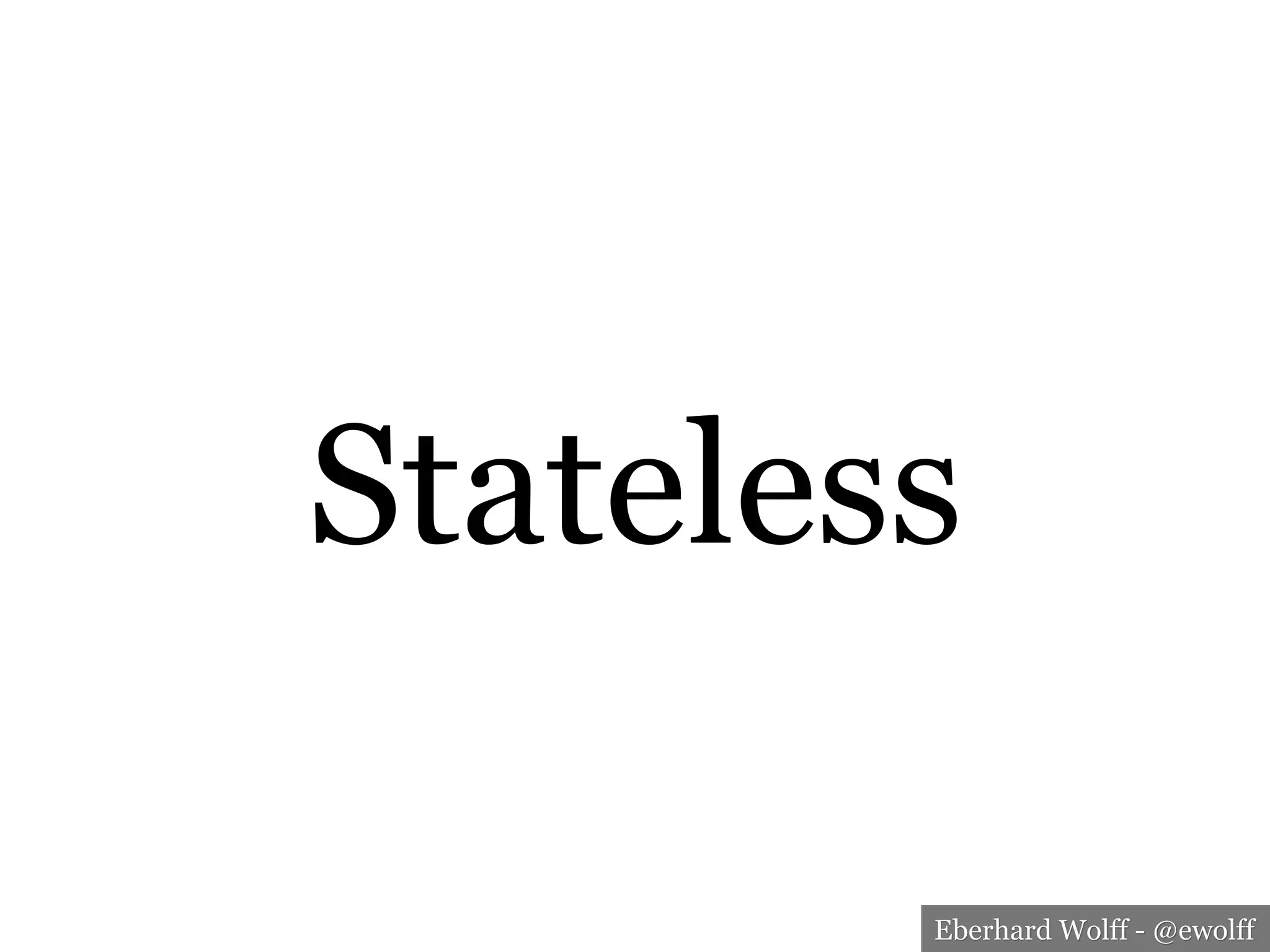

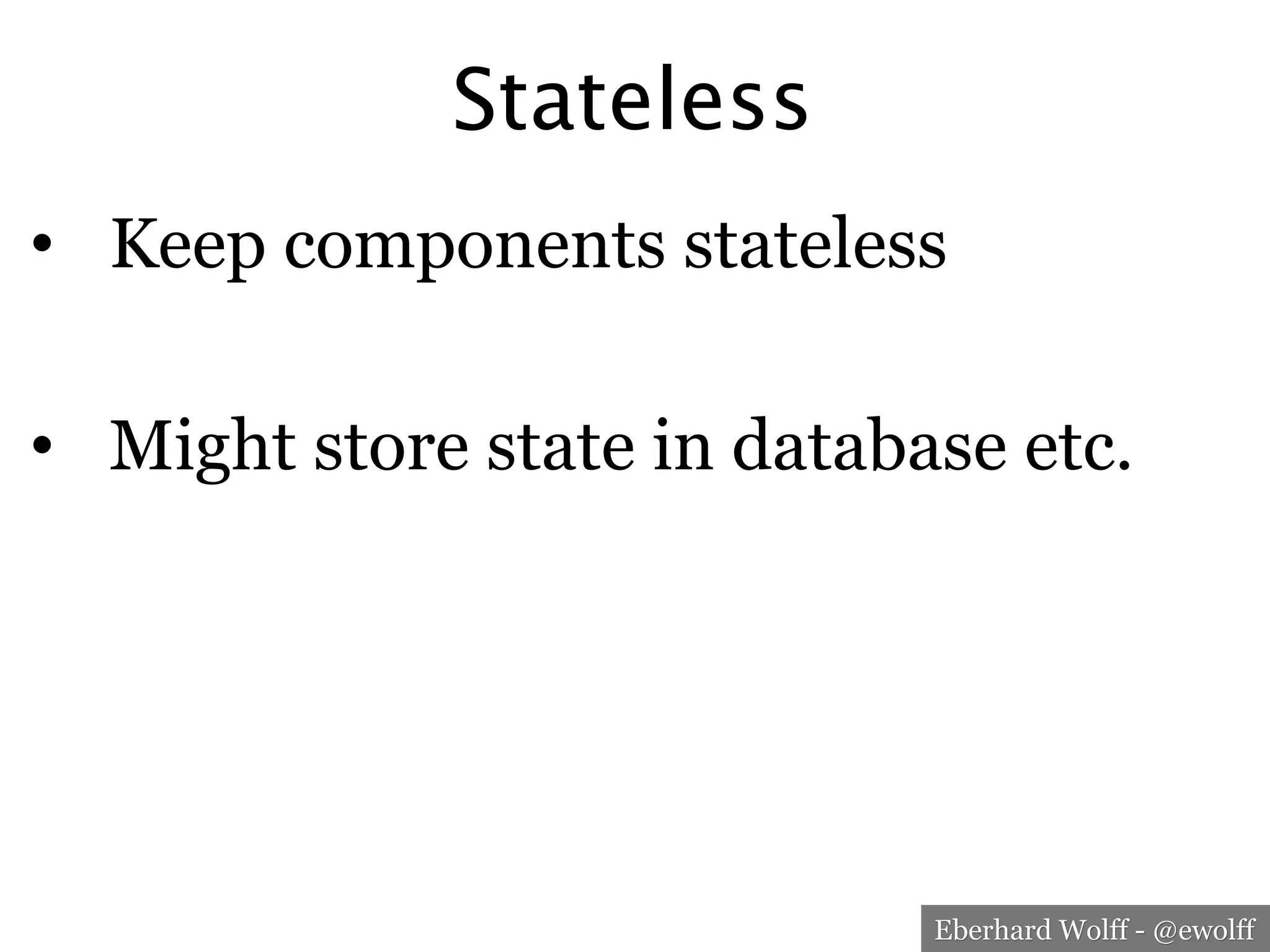

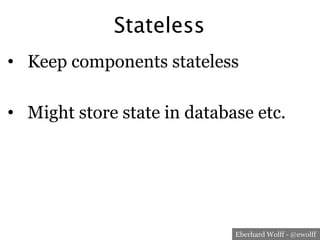

Stateless
•  Keep components stateless
•  Might store state in database etc.

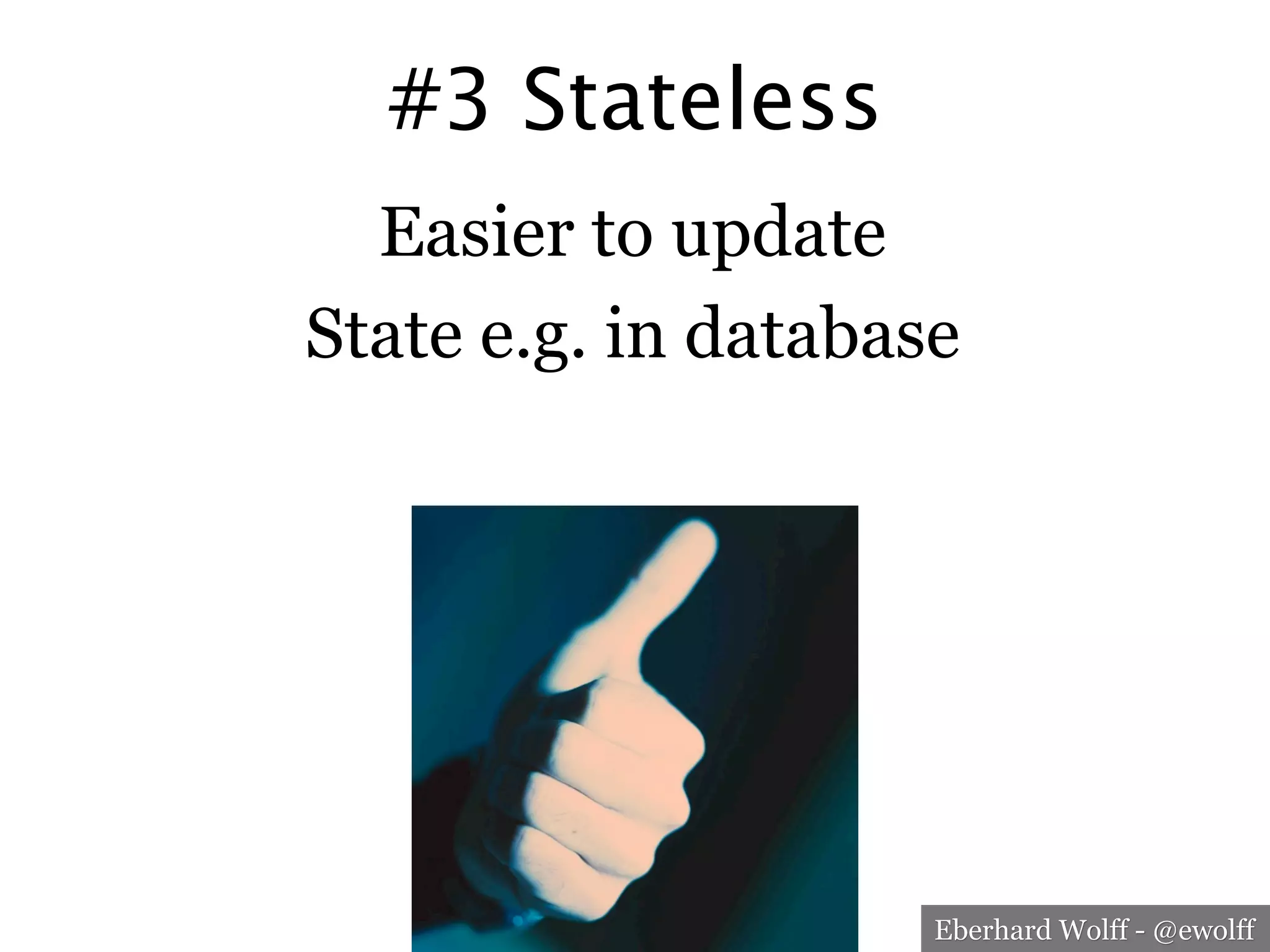

#3 Stateless
Easier to update
State e.g. in database

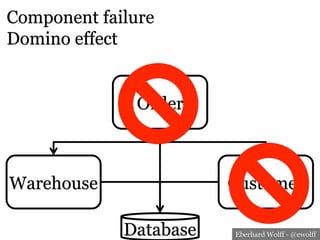

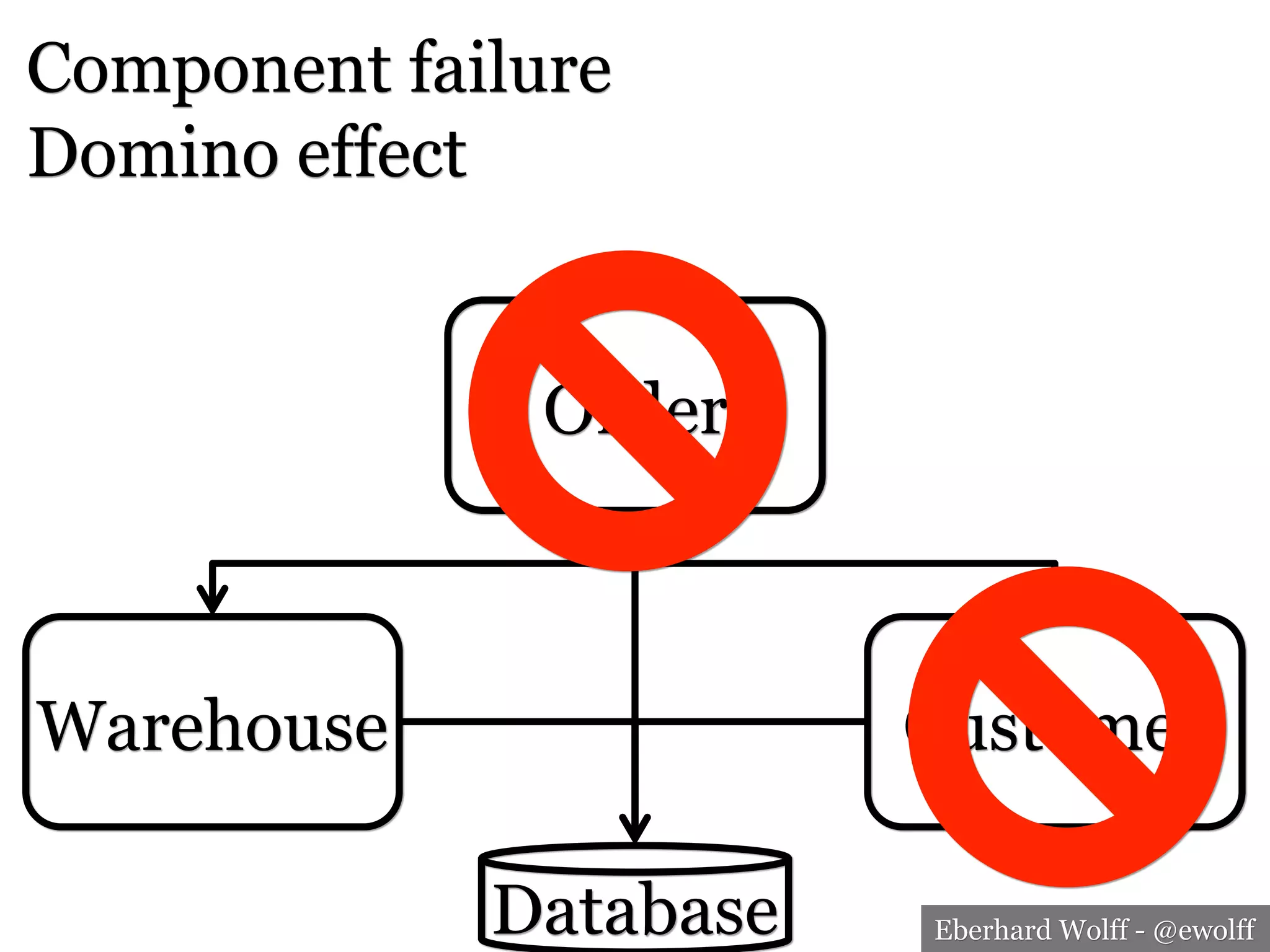

Order
Warehouse Customer
Database
Component failure
Domino effect

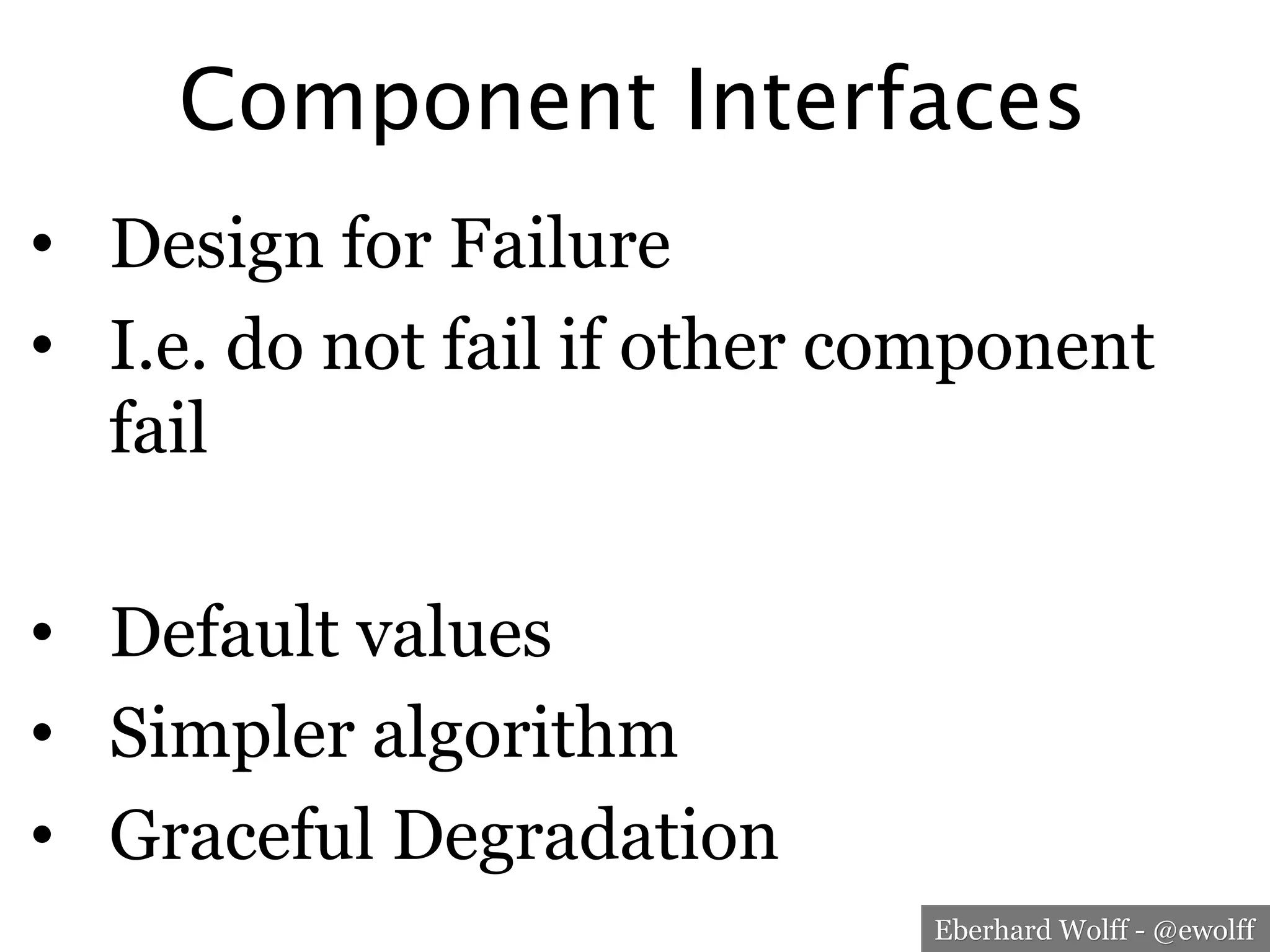

Component Interfaces
•  Design for Failure
•  I.e. do not fail if other component
fail
•  Default values
•  Simpler algorithm
•  Graceful Degradation

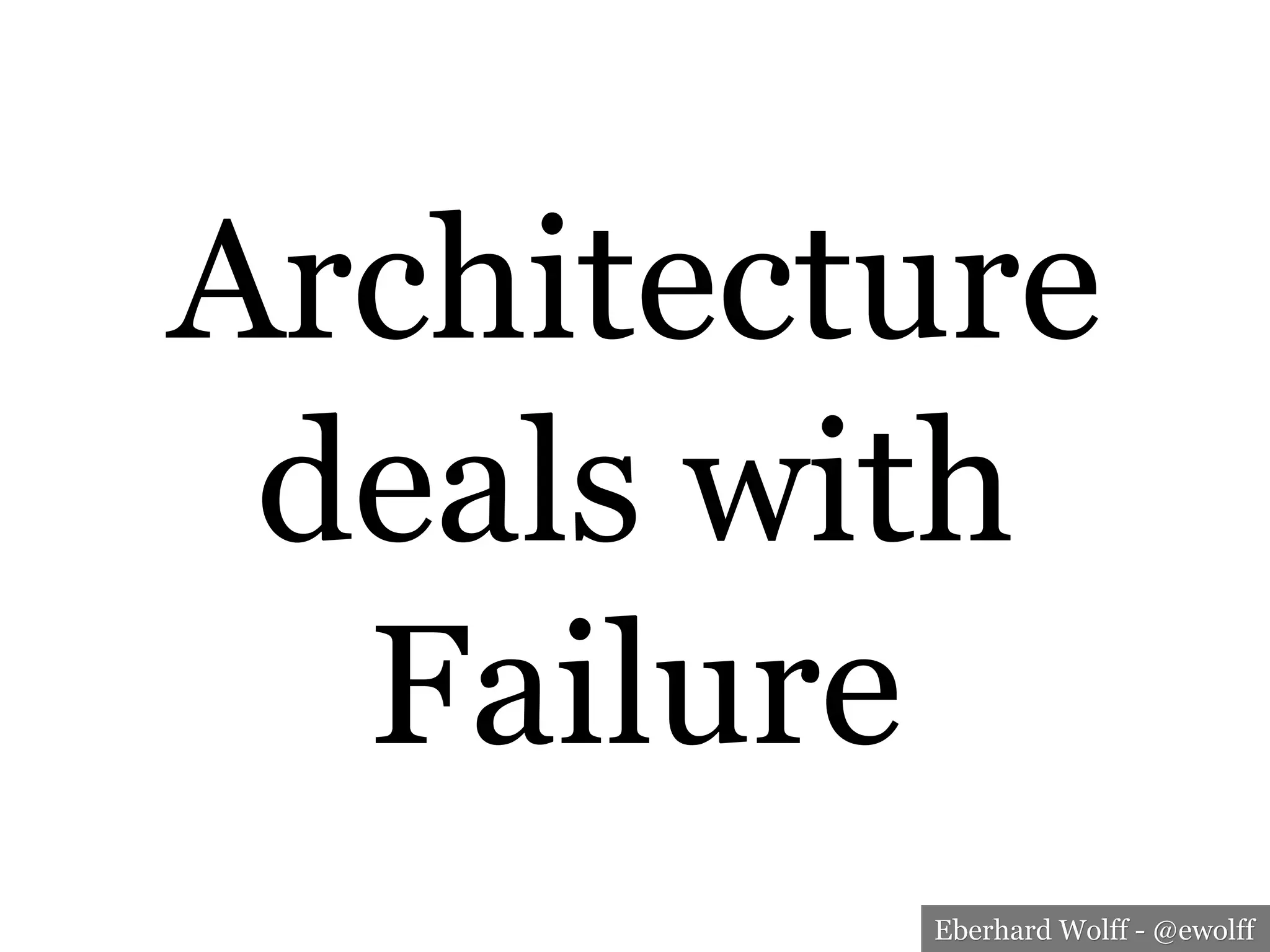

Architecture
deals with
Failure

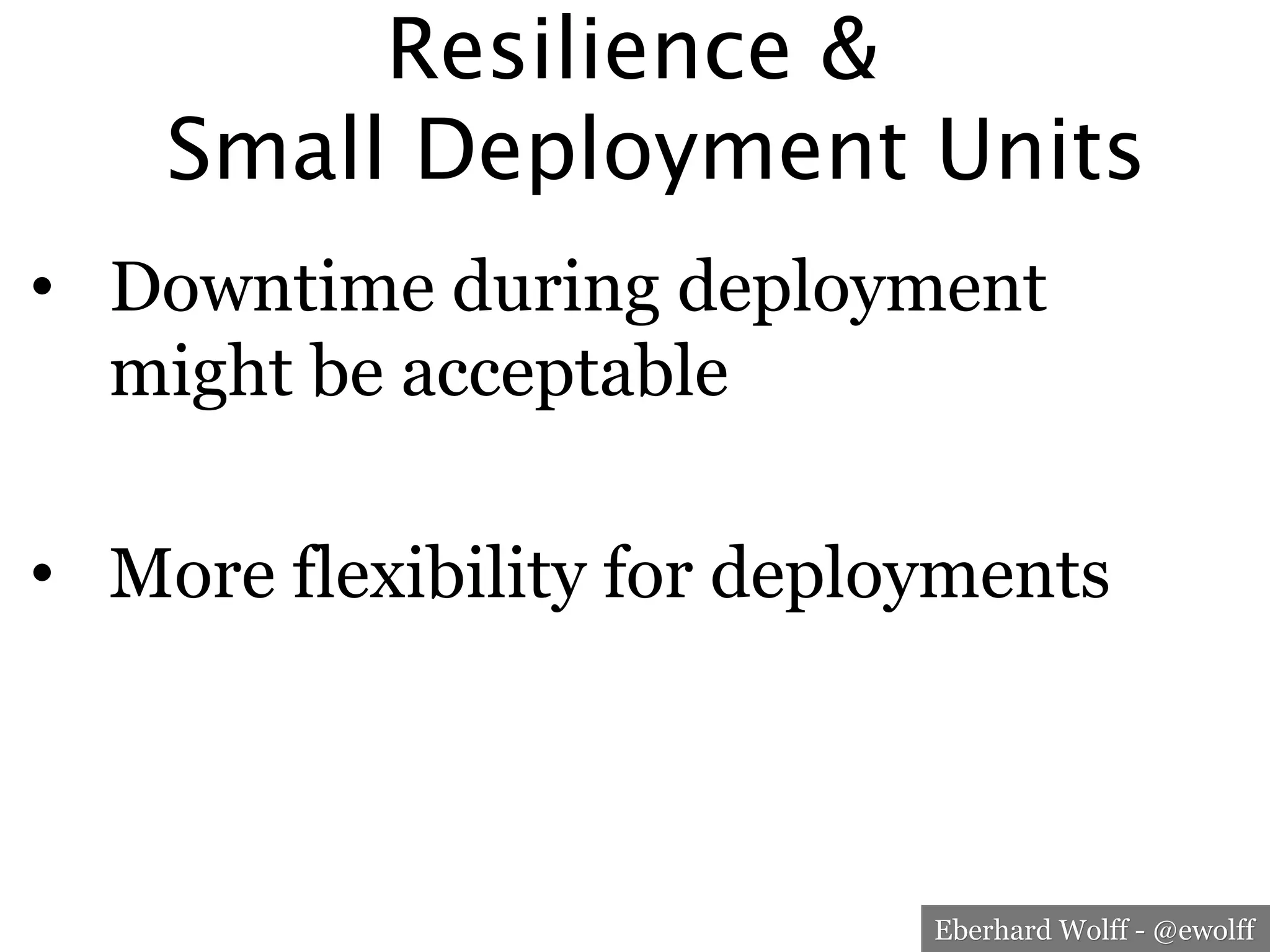

Resilience & 
Small Deployment Units
•  Downtime during deployment
might be acceptable
•  More flexibility for deployments

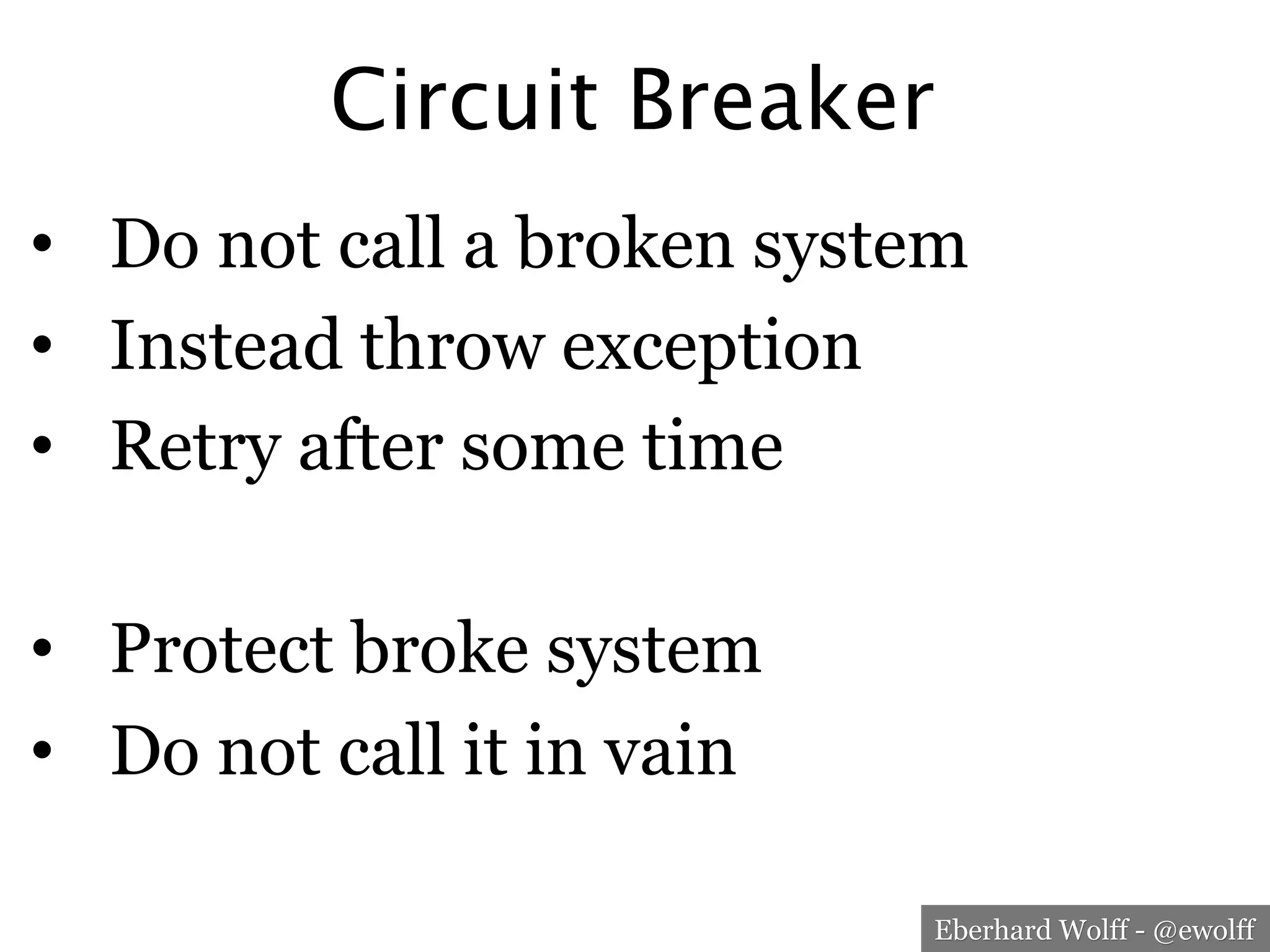

Circuit Breaker
•  Do not call a broken system
•  Instead throw exception
•  Retry after some time
•  Protect broke system
•  Do not call it in vain

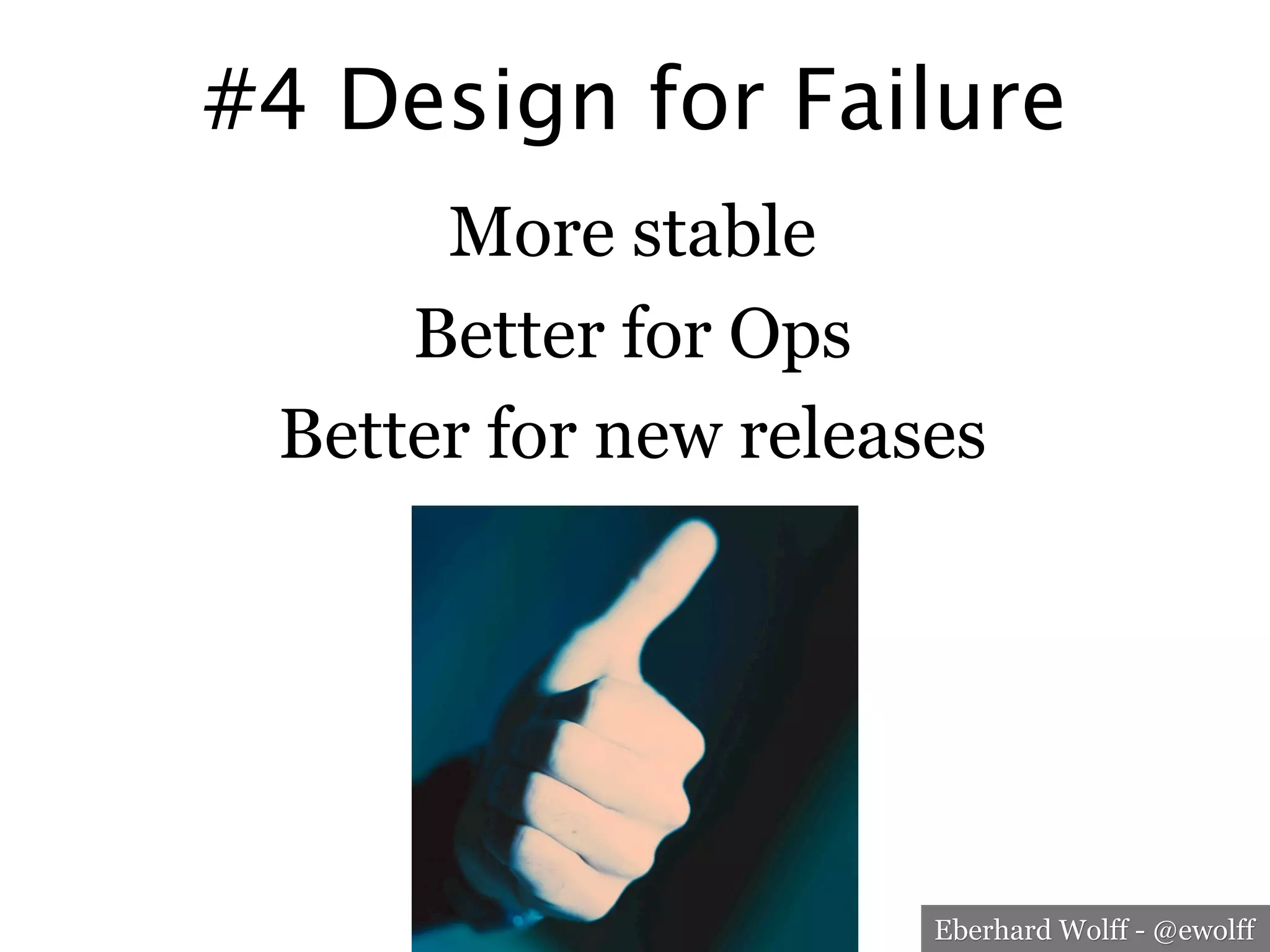

#4 Design for Failure
More stable
Better for Ops
Better for new releases

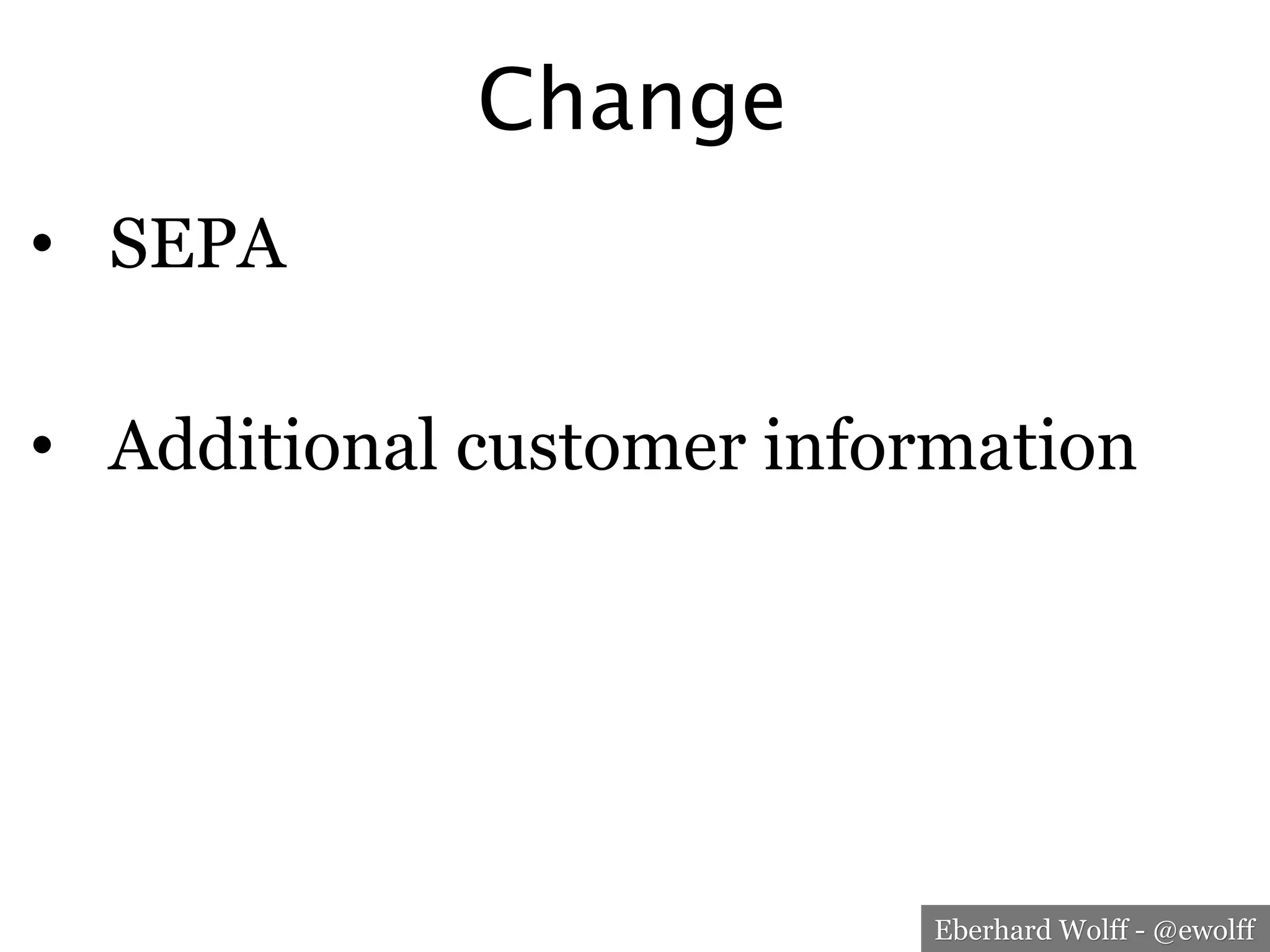

Change
•  SEPA
•  Additional customer information

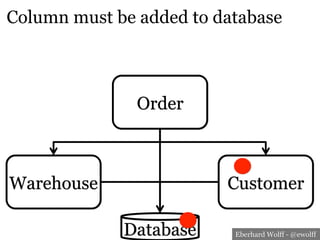

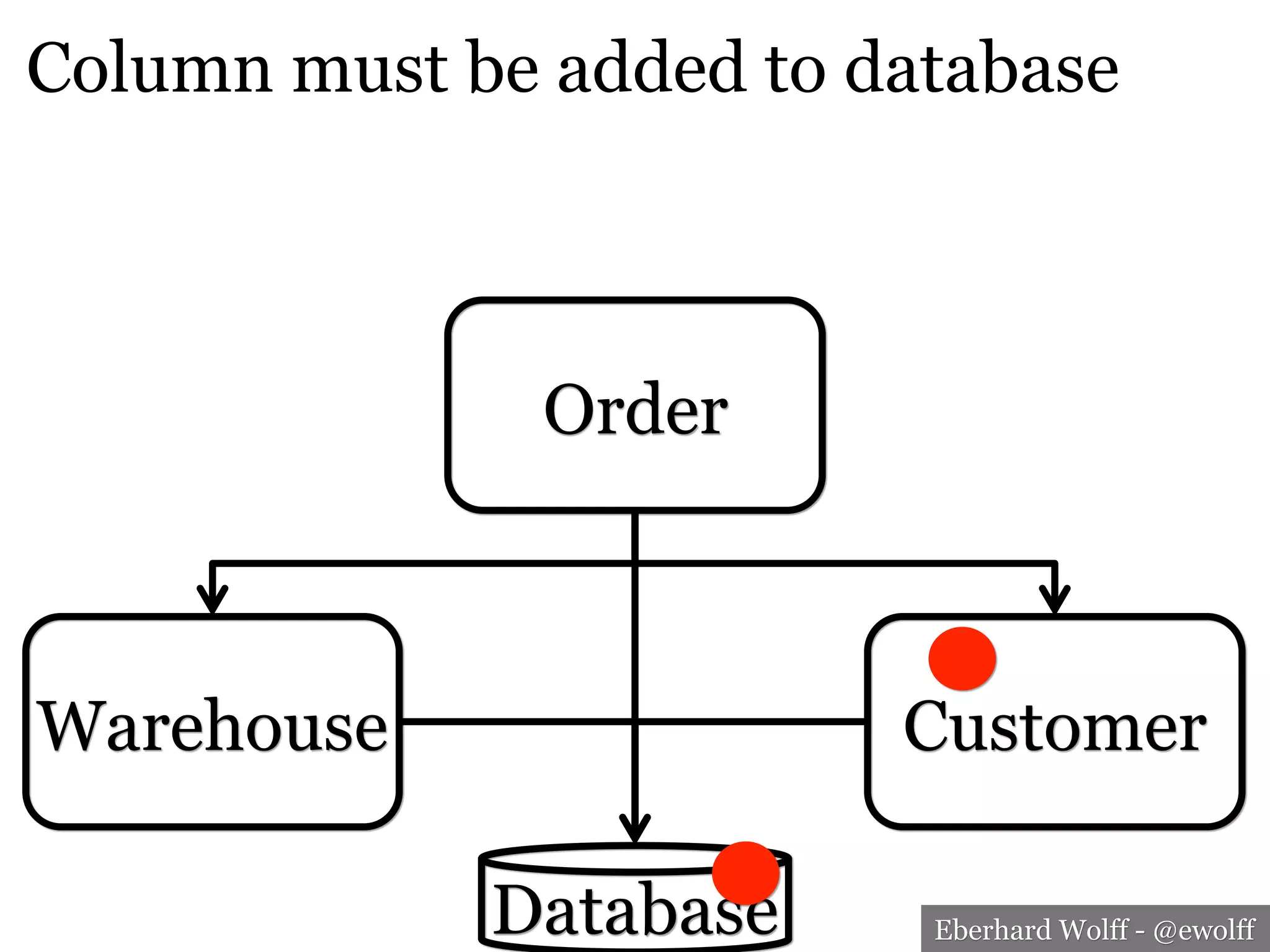

Order
Warehouse Customer
Database
Column must be added to database

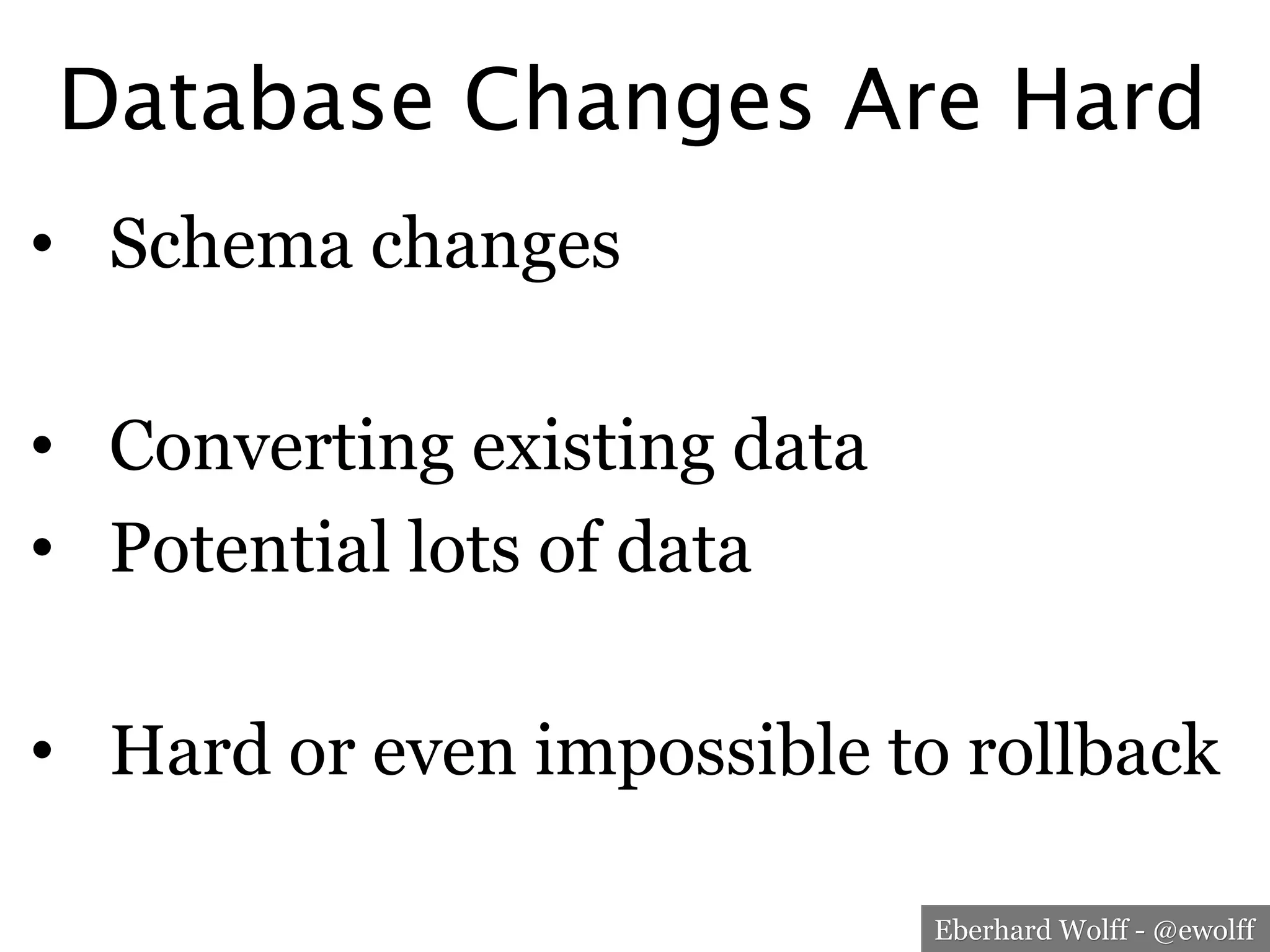

Database Changes Are Hard
•  Schema changes
•  Converting existing data
•  Potential lots of data
•  Hard or even impossible to rollback

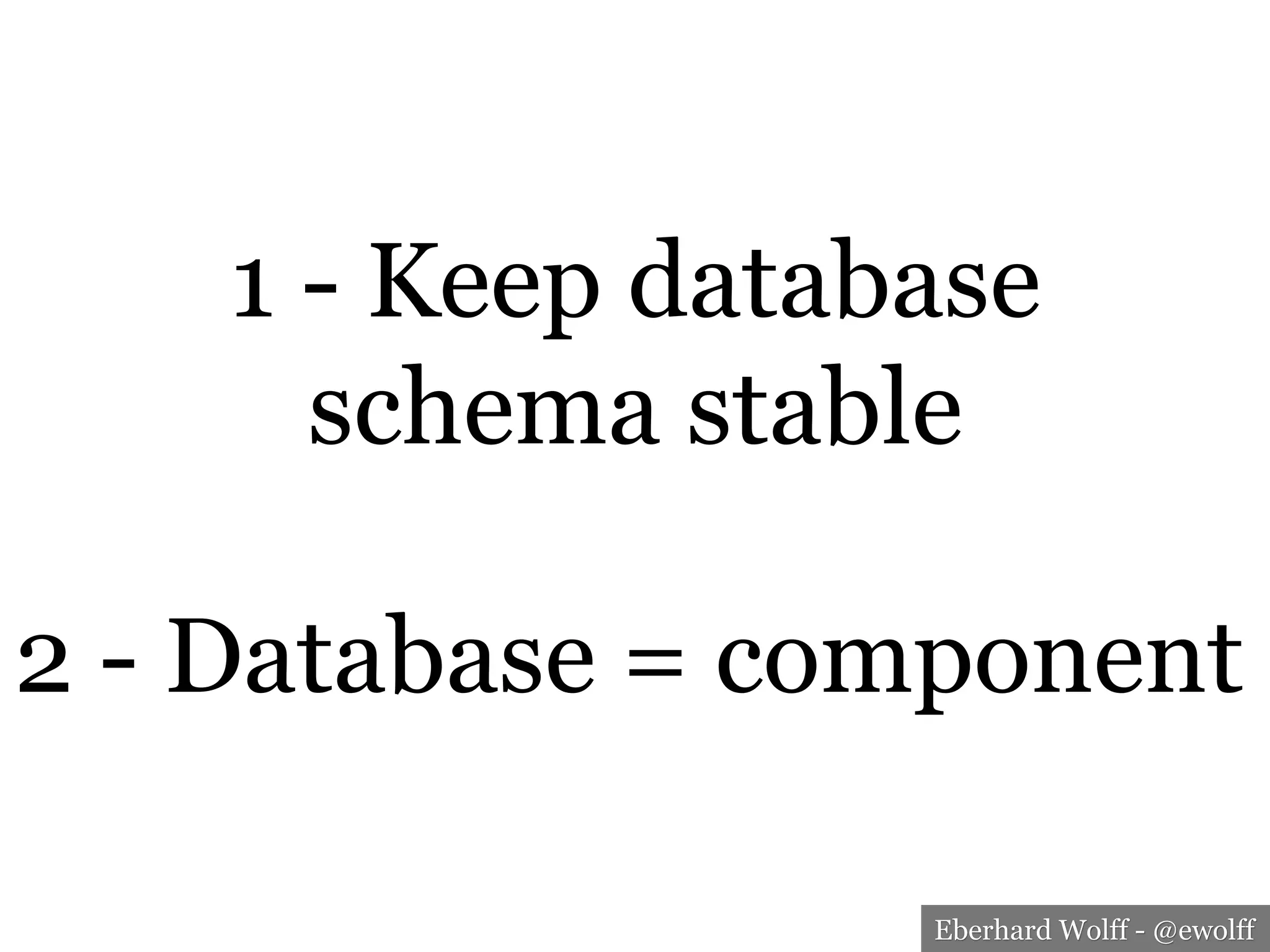

1 - Keep database
schema stable
2 - Database = component

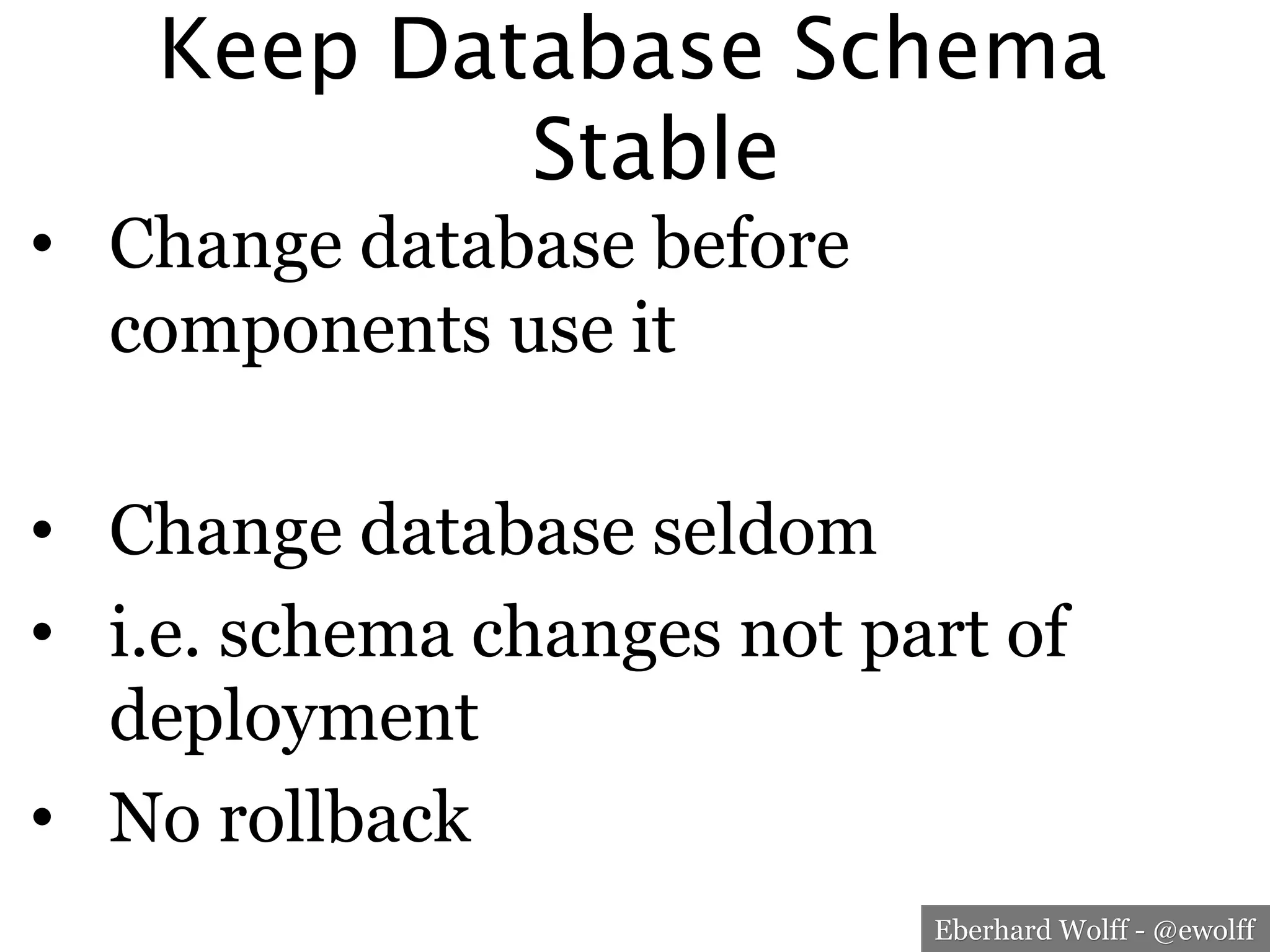

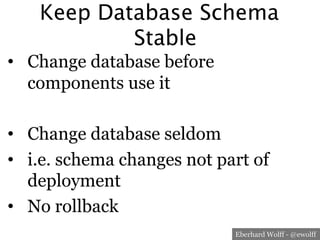

Keep Database Schema
Stable
•  Change database before
components use it
•  Change database seldom
•  i.e. schema changes not part of
deployment
•  No rollback

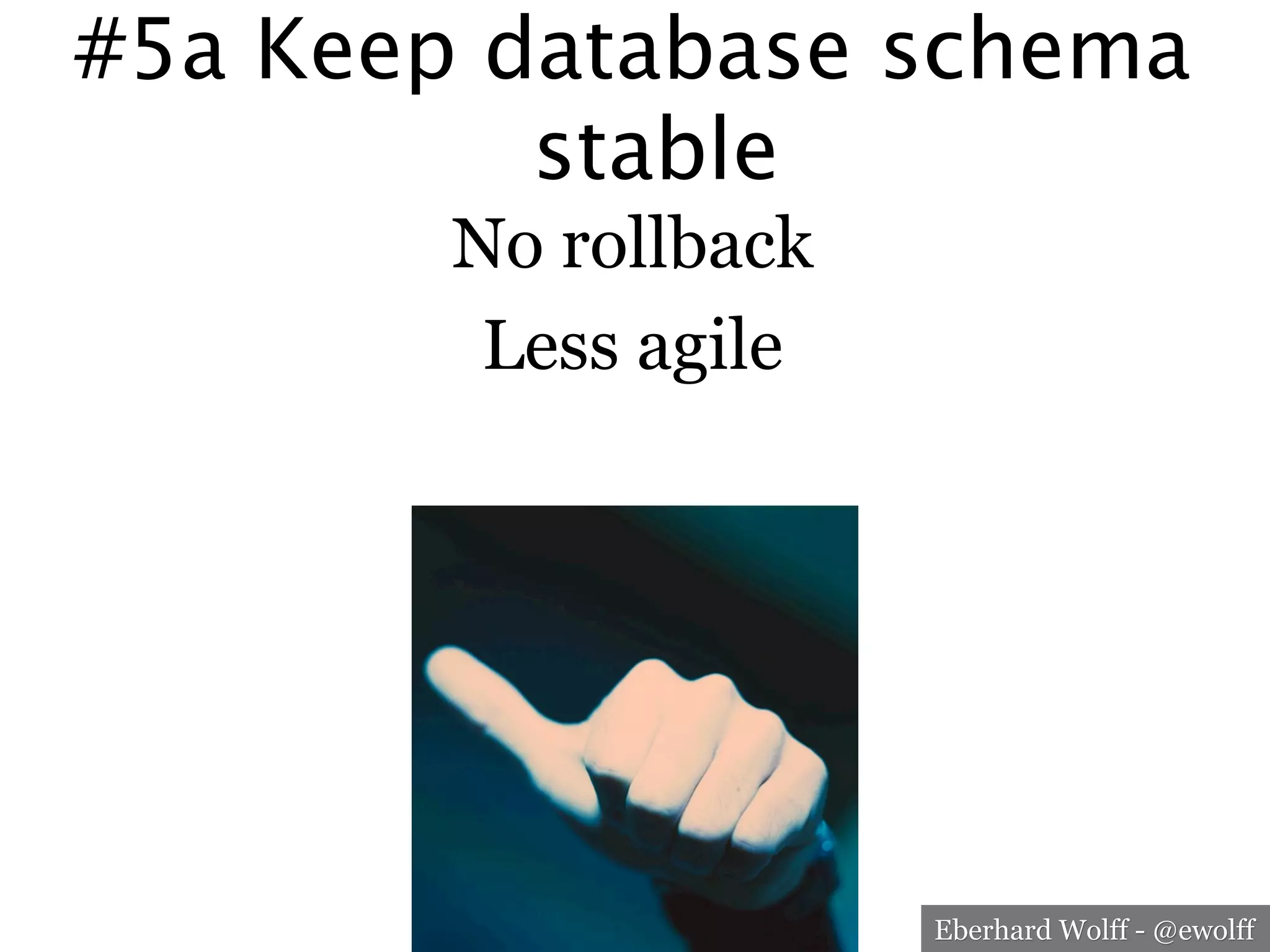

#5a Keep database schema
stable
No rollback
Less agile

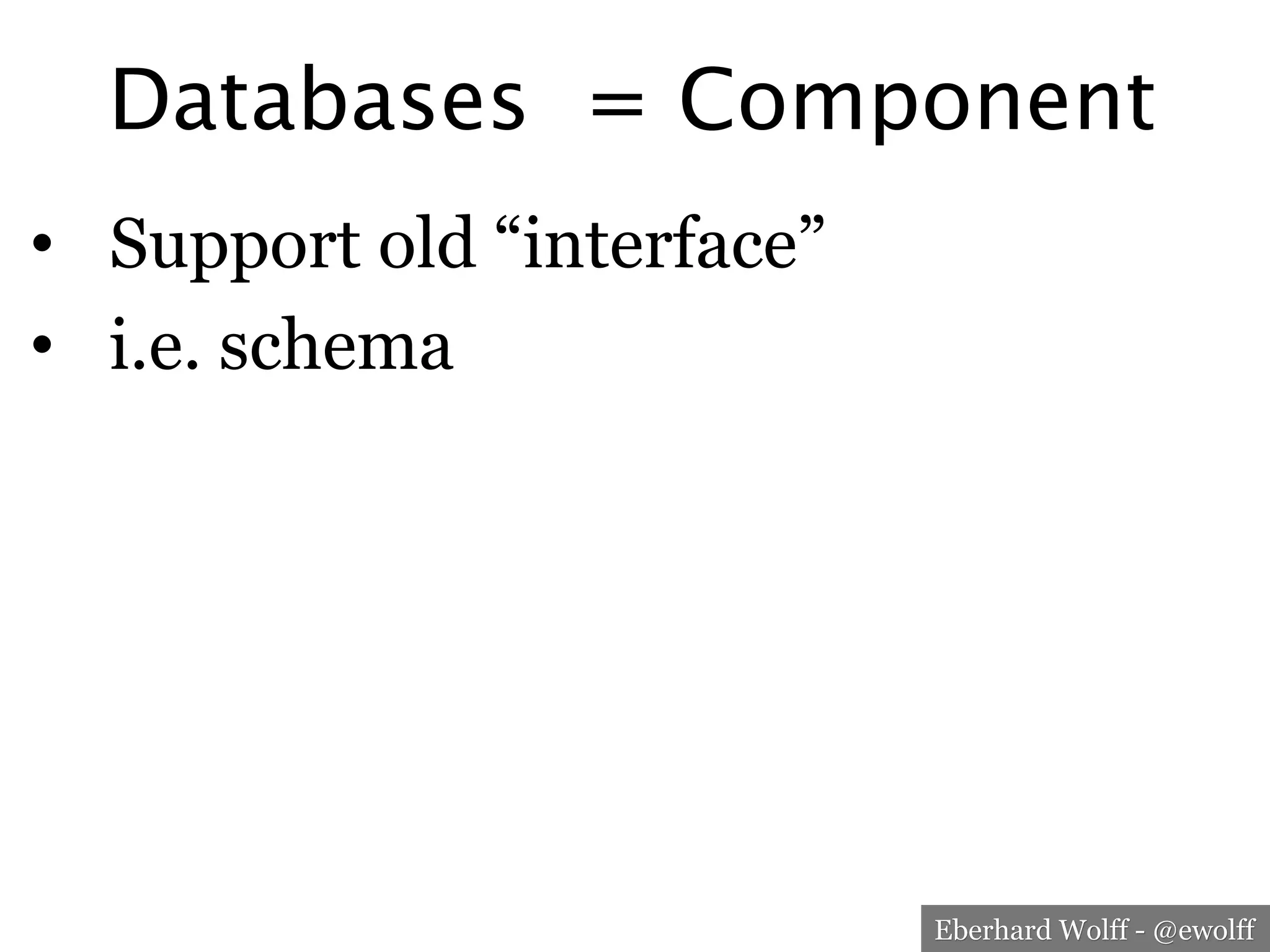

Databases = Component
•  Support old “interface”
•  i.e. schema

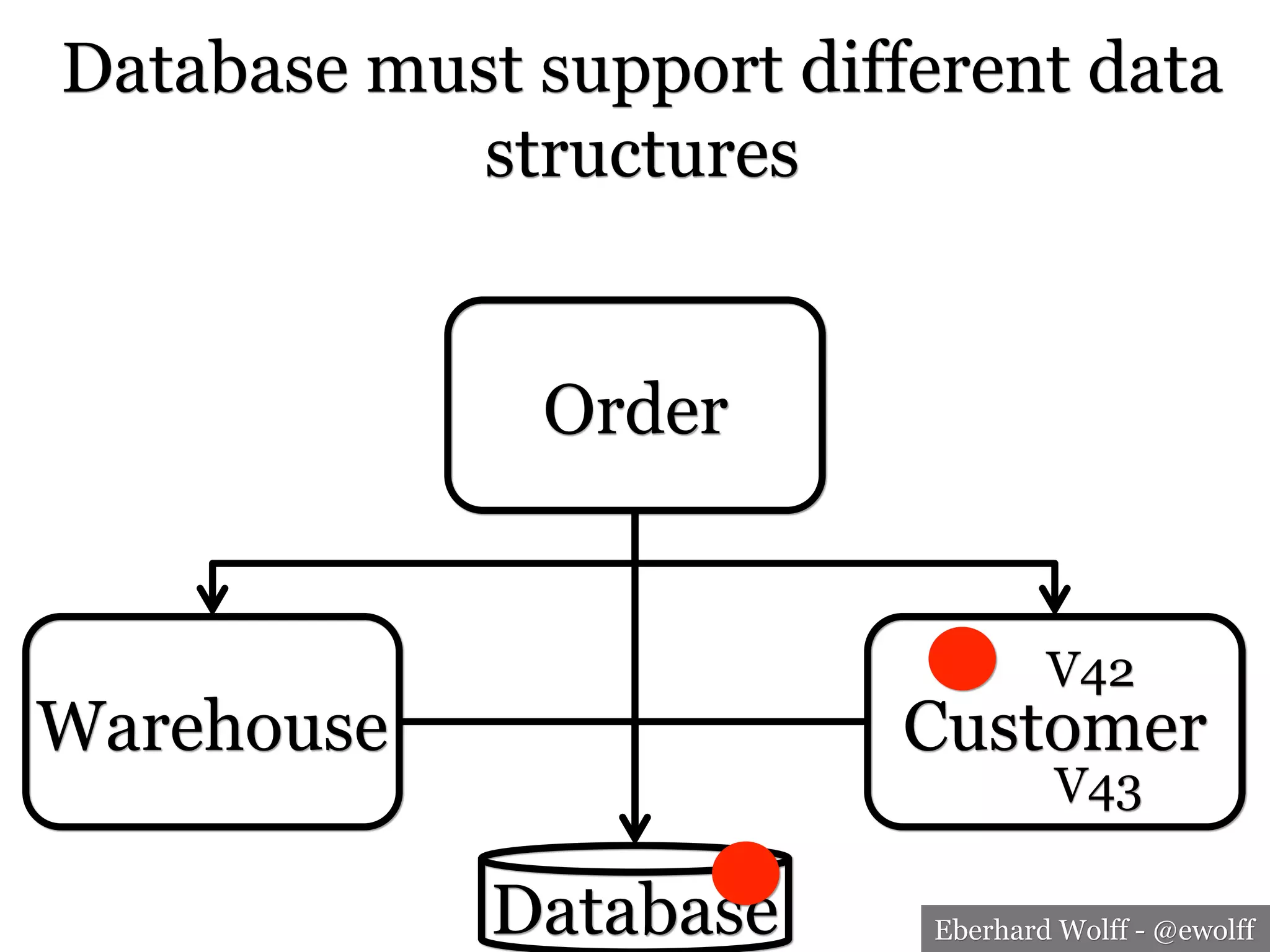

Order
Warehouse Customer
Database
Database must support different data
structures
V42
V43

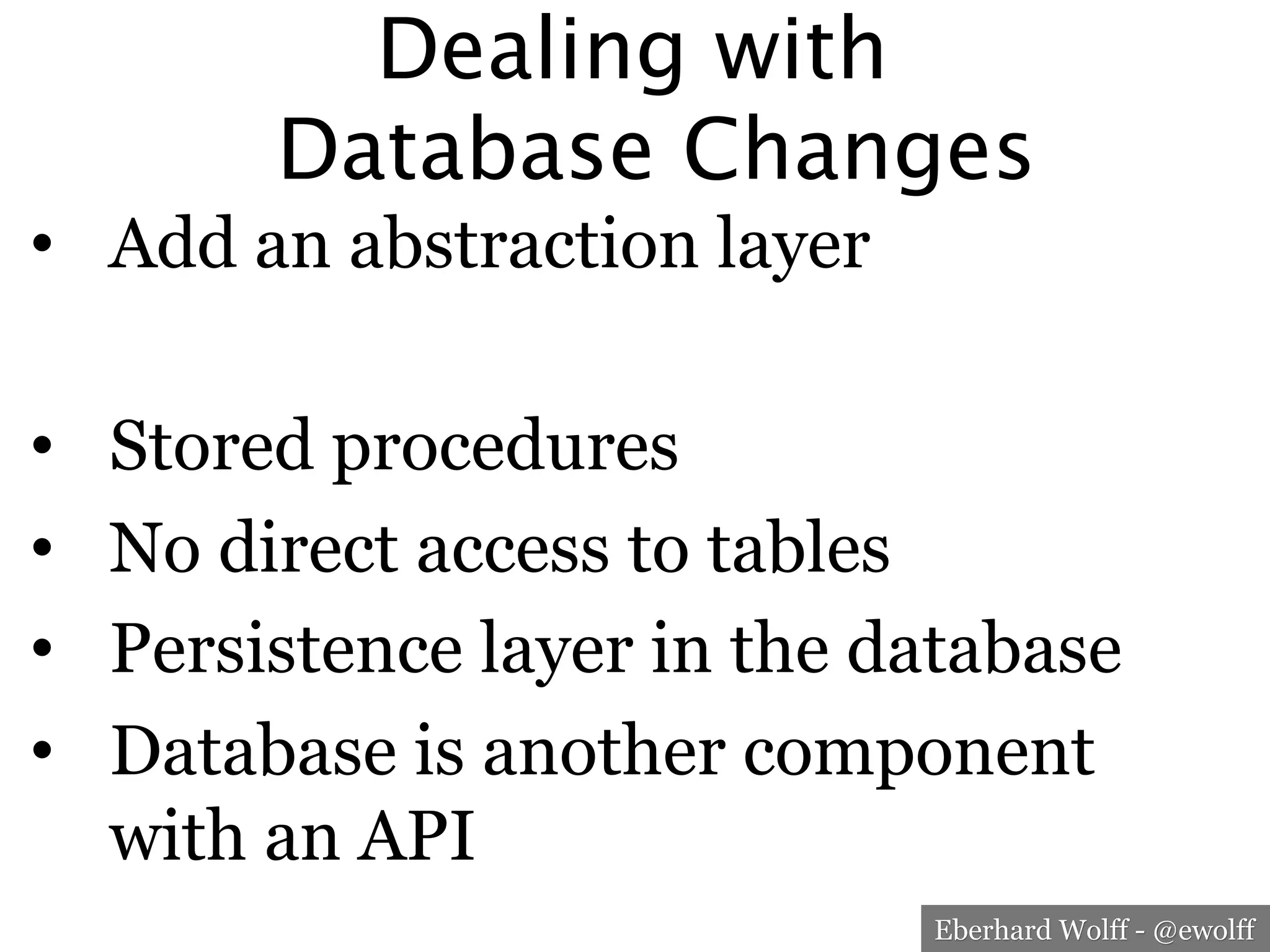

Dealing with 
Database Changes
•  Add an abstraction layer
•  Stored procedures
•  No direct access to tables
•  Persistence layer in the database
•  Database is another component
with an API

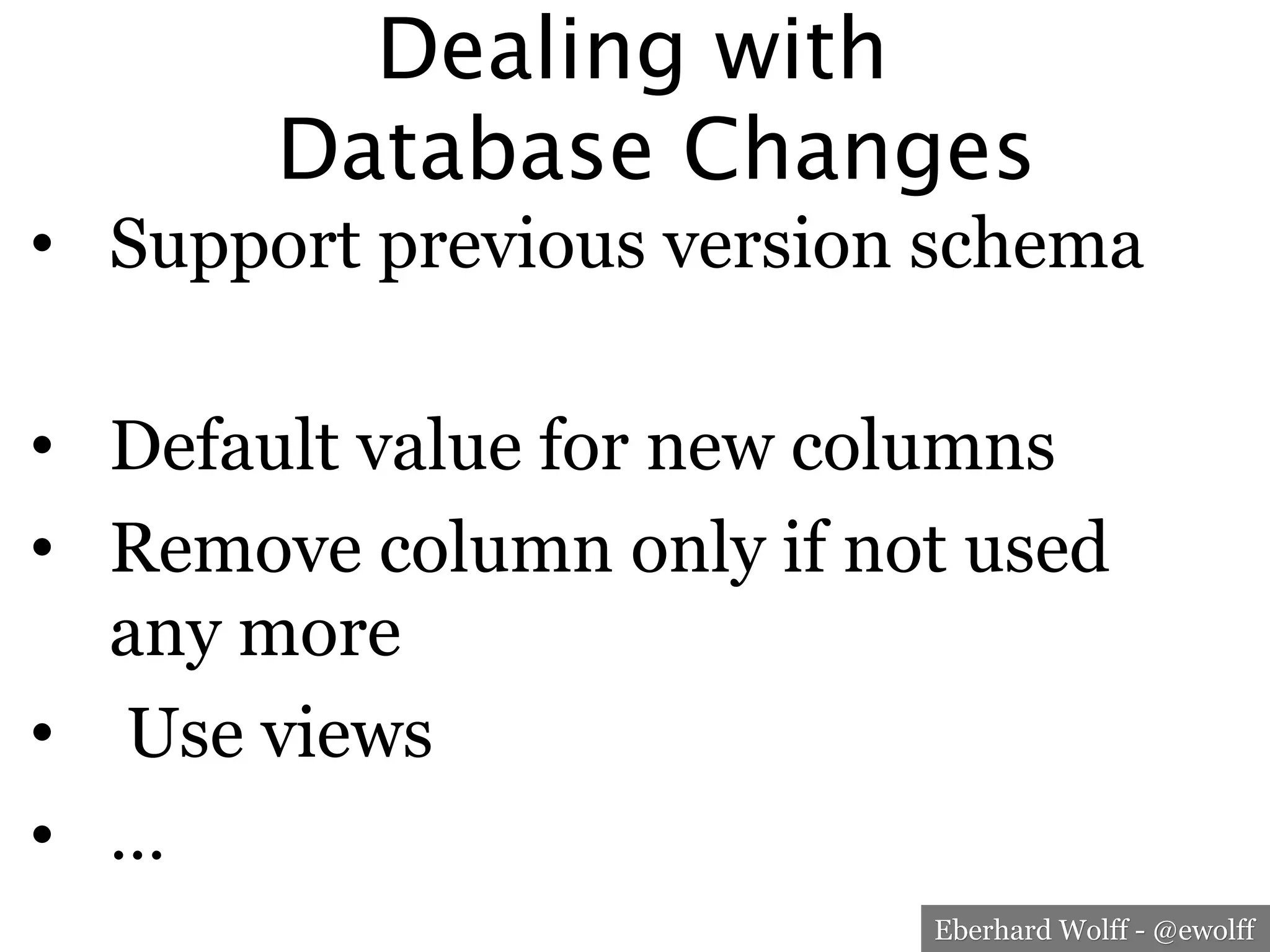

Dealing with 
Database Changes
•  Support previous version schema
•  Default value for new columns
•  Remove column only if not used
any more
•  Use views
•  …

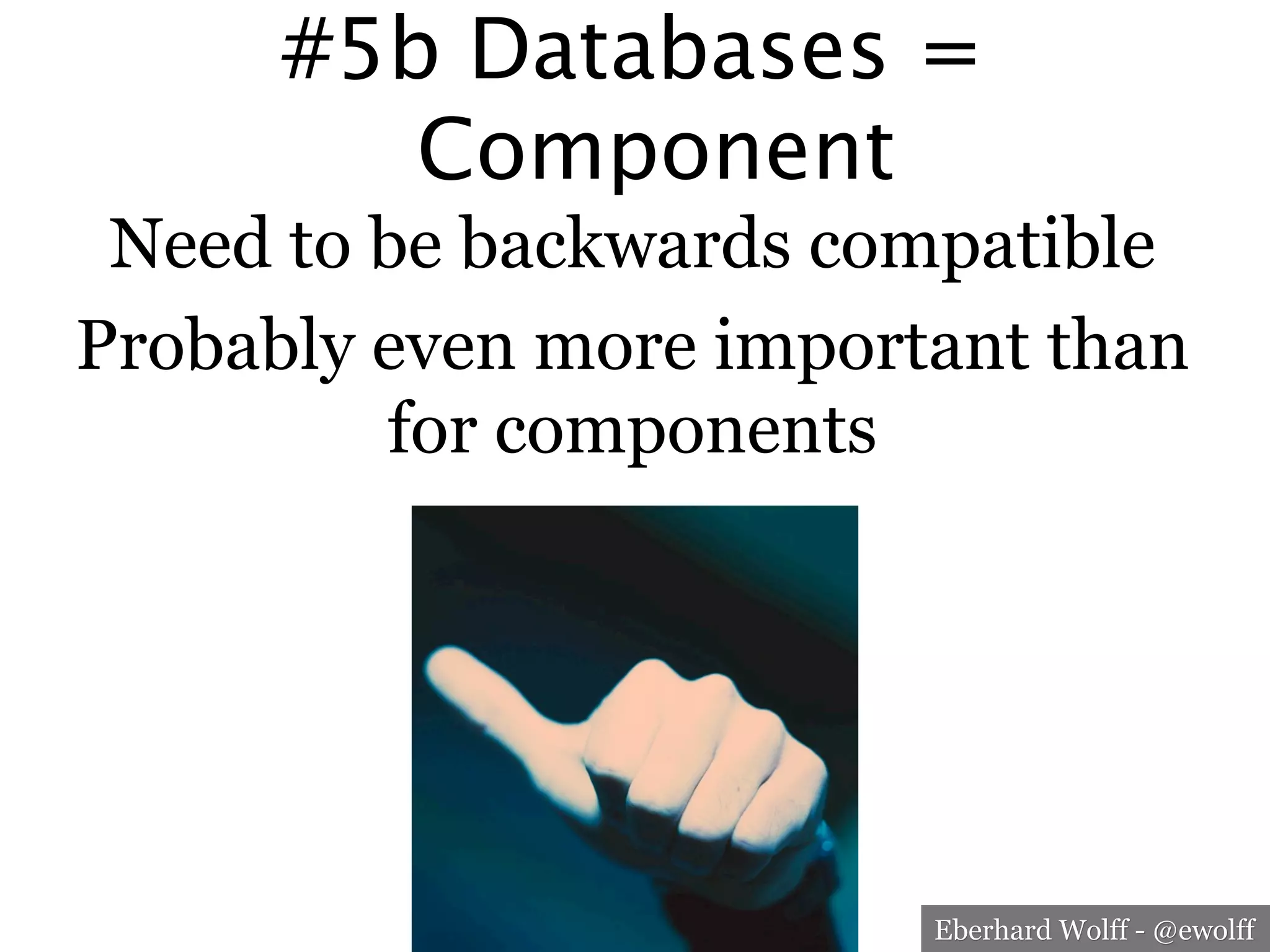

#5b Databases =
Component
Need to be backwards compatible
Probably even more important than
for components

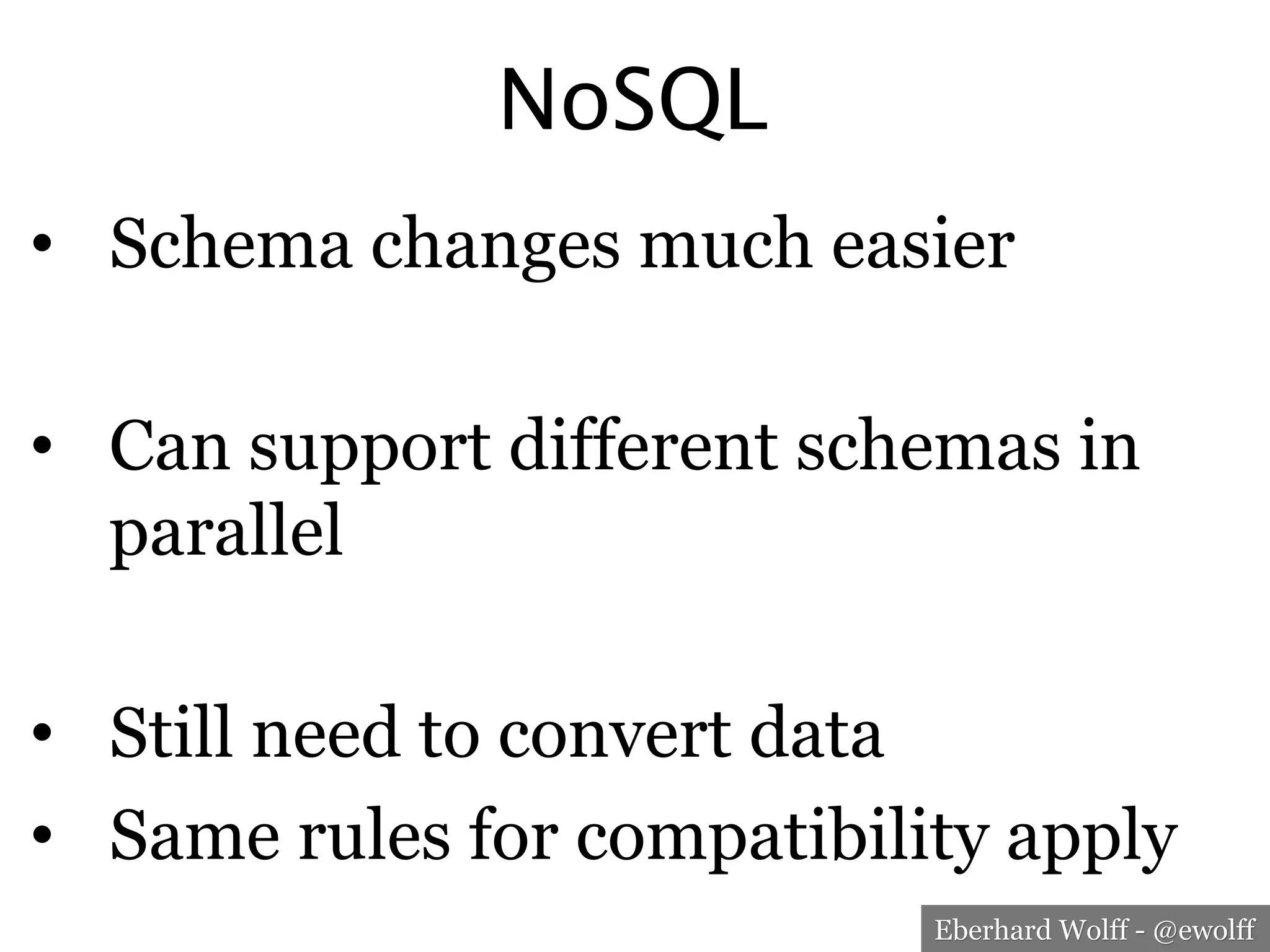

NoSQL
•  Schema changes much easier
•  Can support different schemas in
parallel
•  Still need to convert data
•  Same rules for compatibility apply

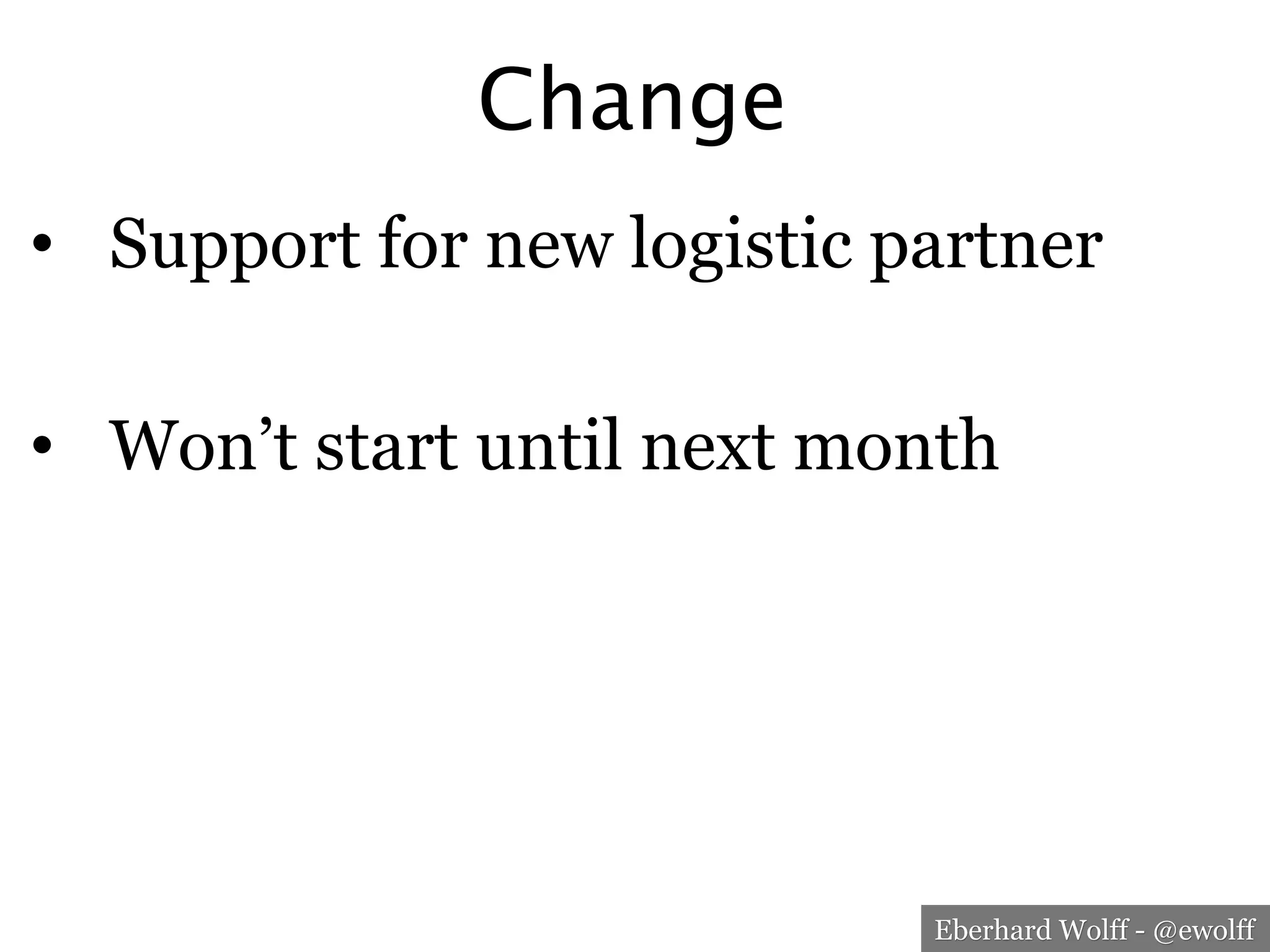

Change
•  Support for new logistic partner
•  Won’t start until next month

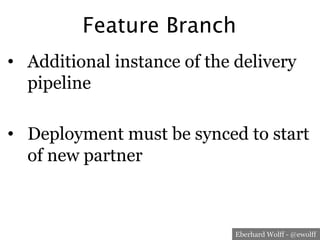

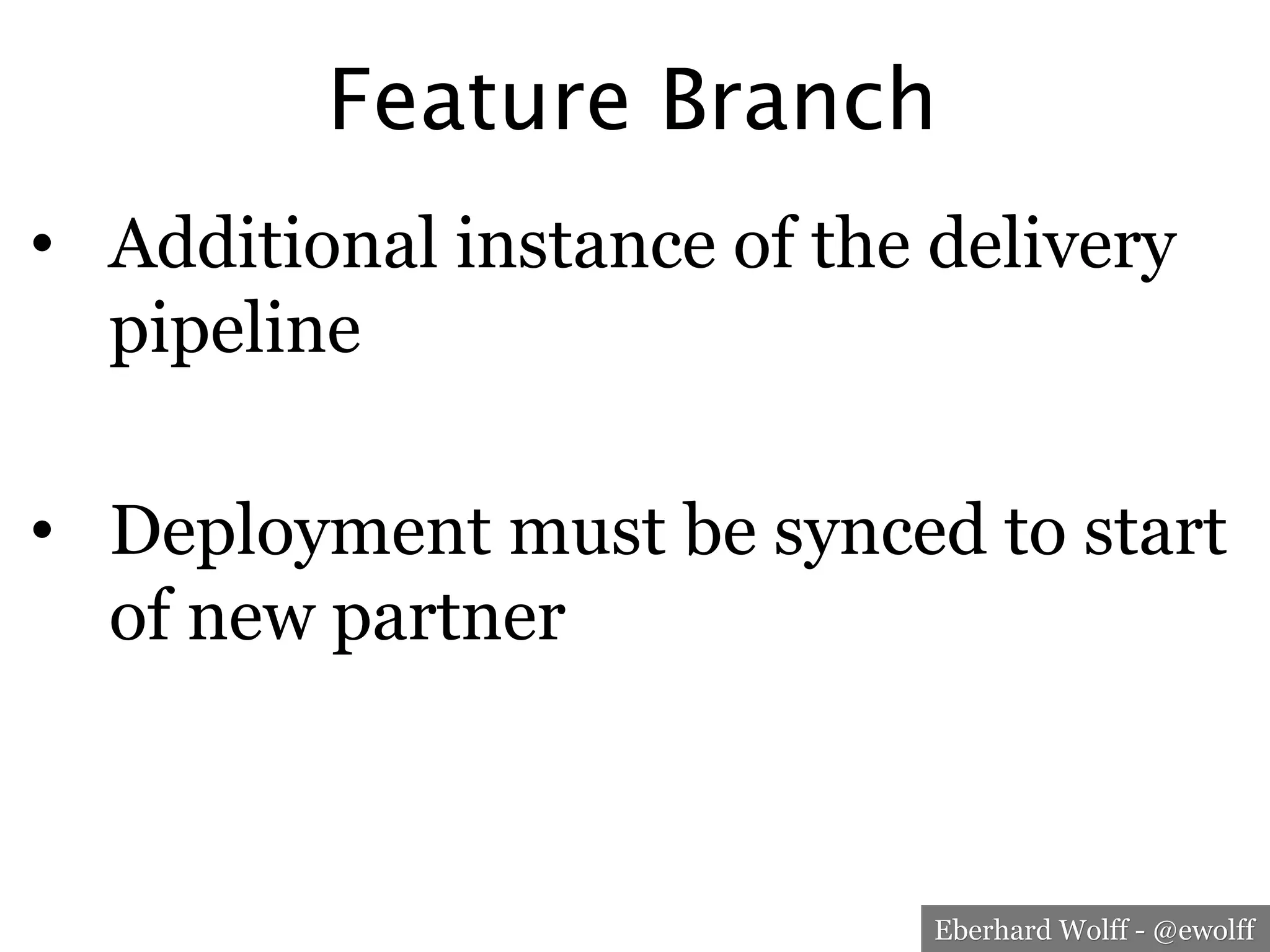

Feature Branch
•  Additional instance of the delivery
pipeline
•  Deployment must be synced to start
of new partner

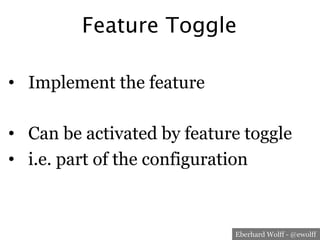

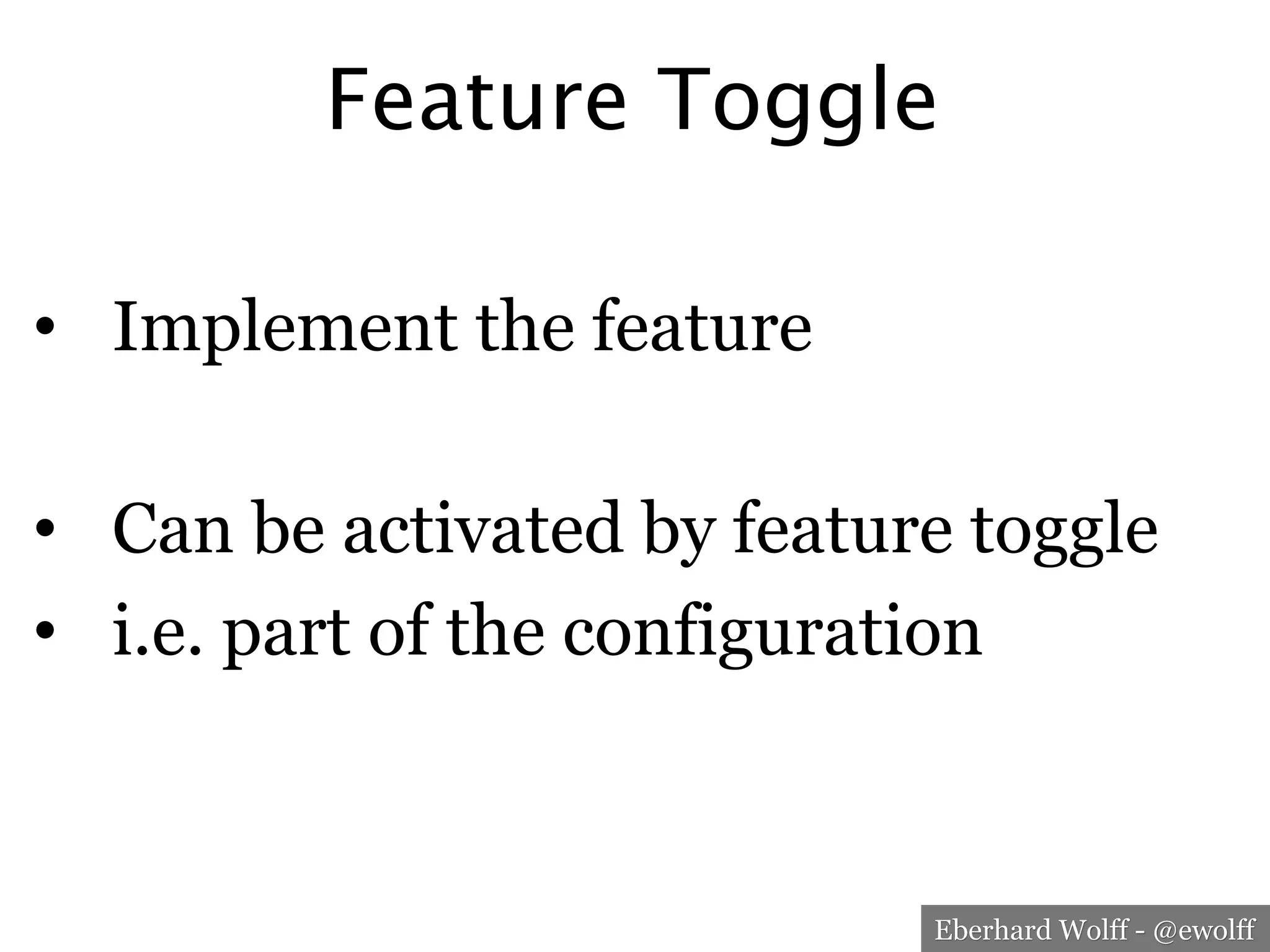

Feature Toggle
•  Implement the feature
•  Can be activated by feature toggle
•  i.e. part of the configuration

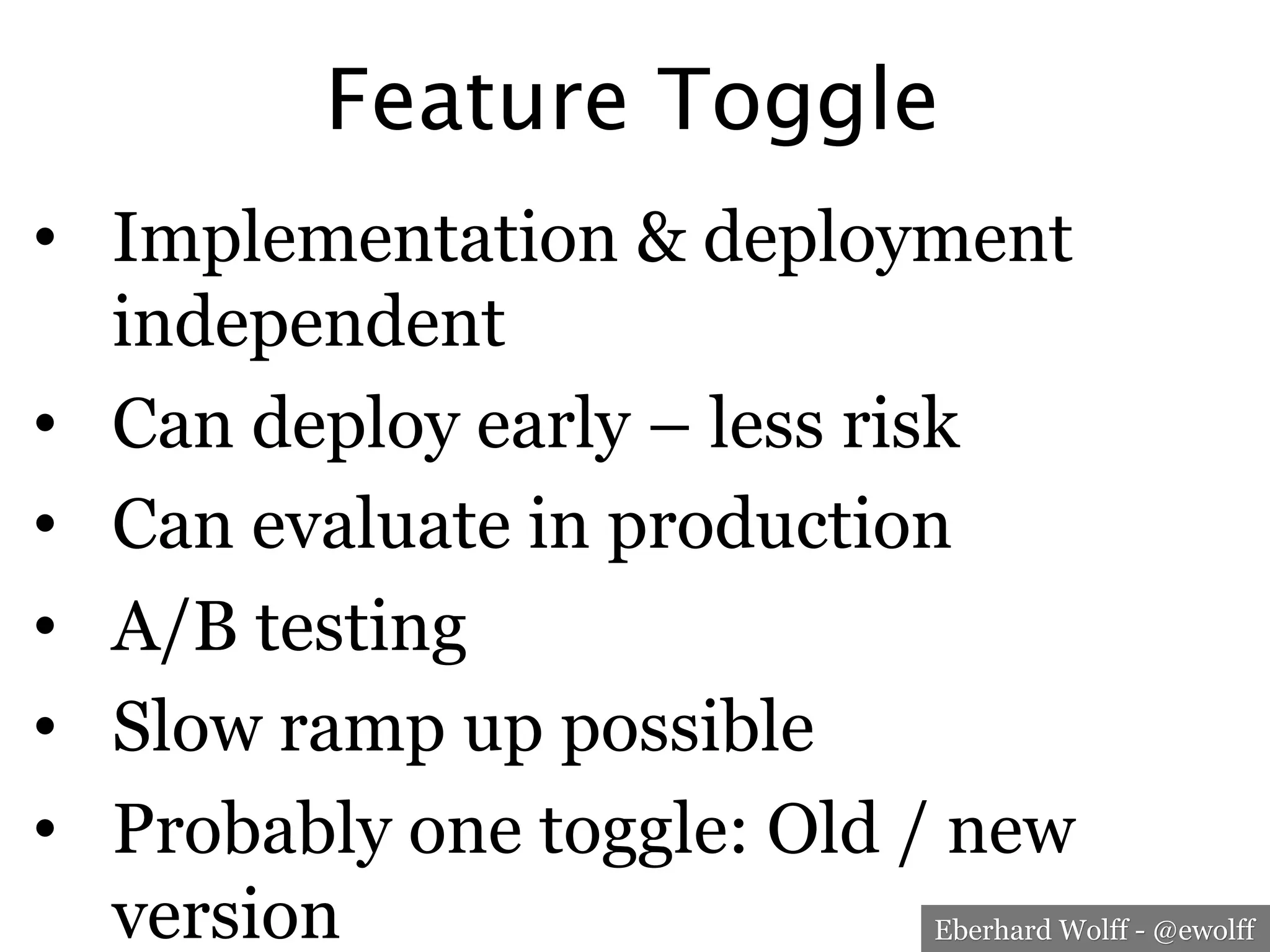

Feature Toggle
•  Implementation & deployment
independent
•  Can deploy early – less risk
•  Can evaluate in production
•  A/B testing
•  Slow ramp up possible
•  Probably one toggle: Old / new
version

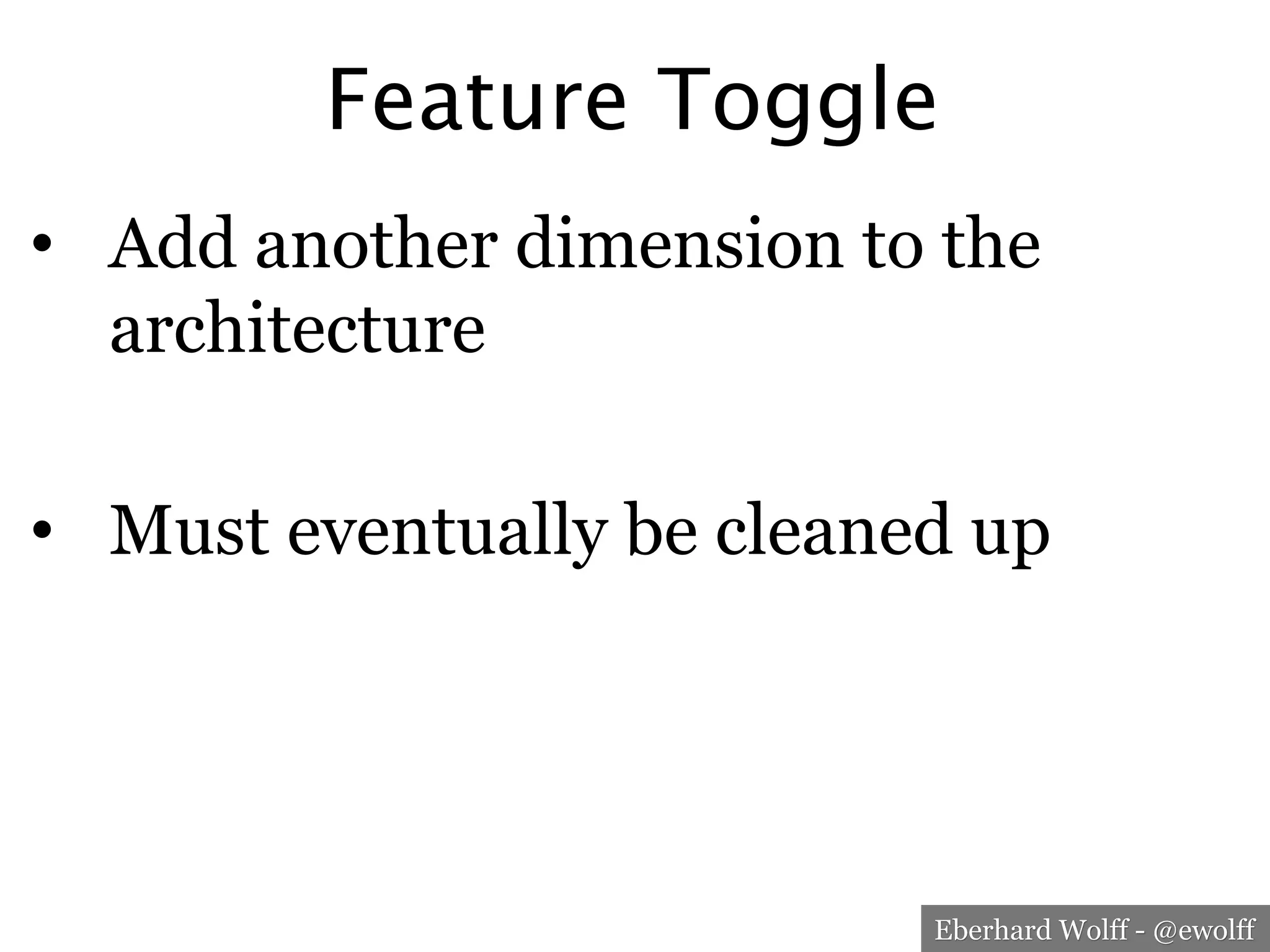

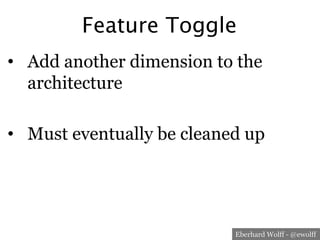

Feature Toggle
•  Add another dimension to the
architecture
•  Must eventually be cleaned up

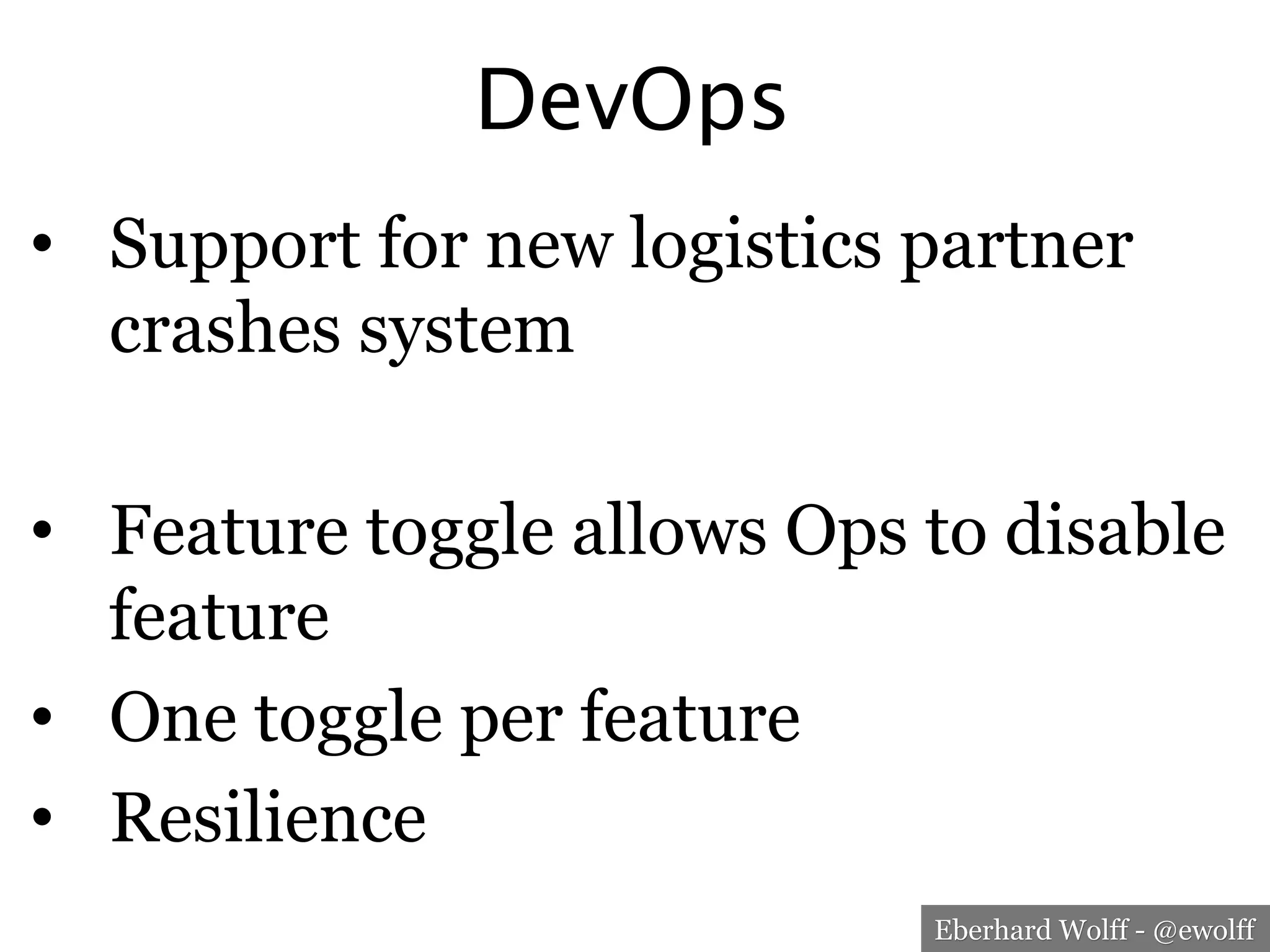

DevOps
•  Support for new logistics partner
crashes system
•  Feature toggle allows Ops to disable
feature
•  One toggle per feature
•  Resilience

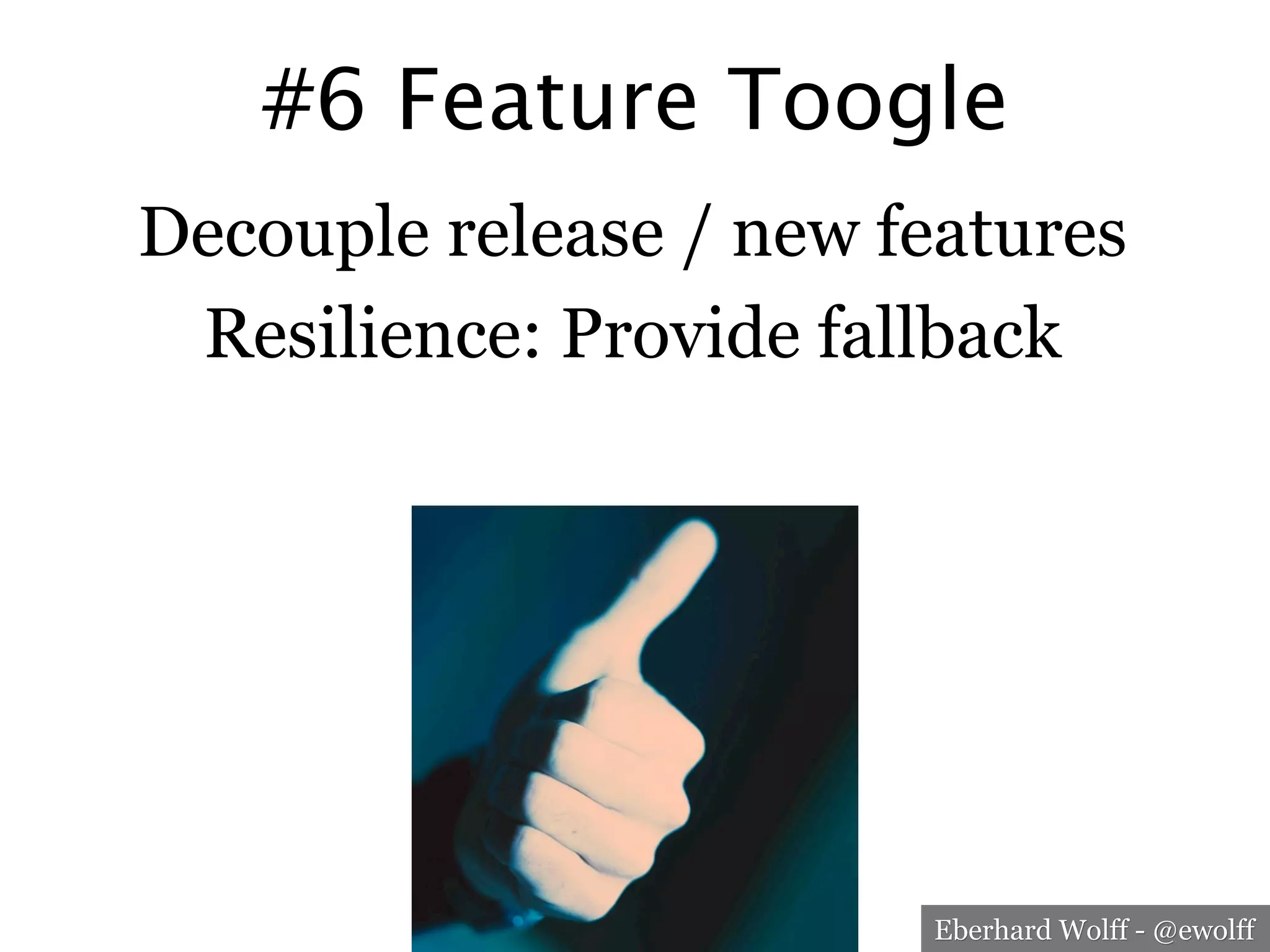

#6 Feature Toggle
Decouple release / new features
Resilience: Provide fallback

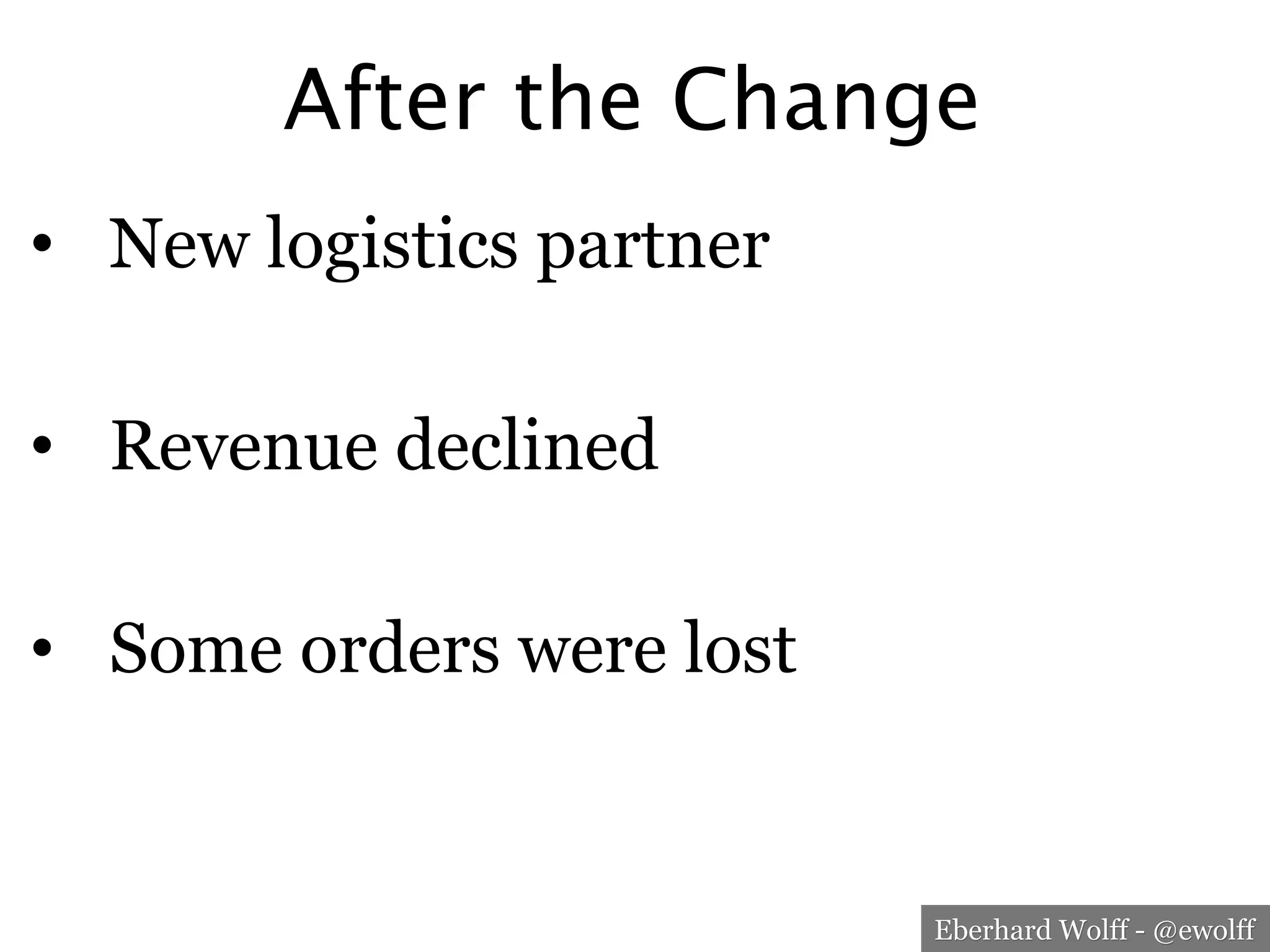

After the Change
•  New logistics partner
•  Revenue declined
•  Some orders were lost

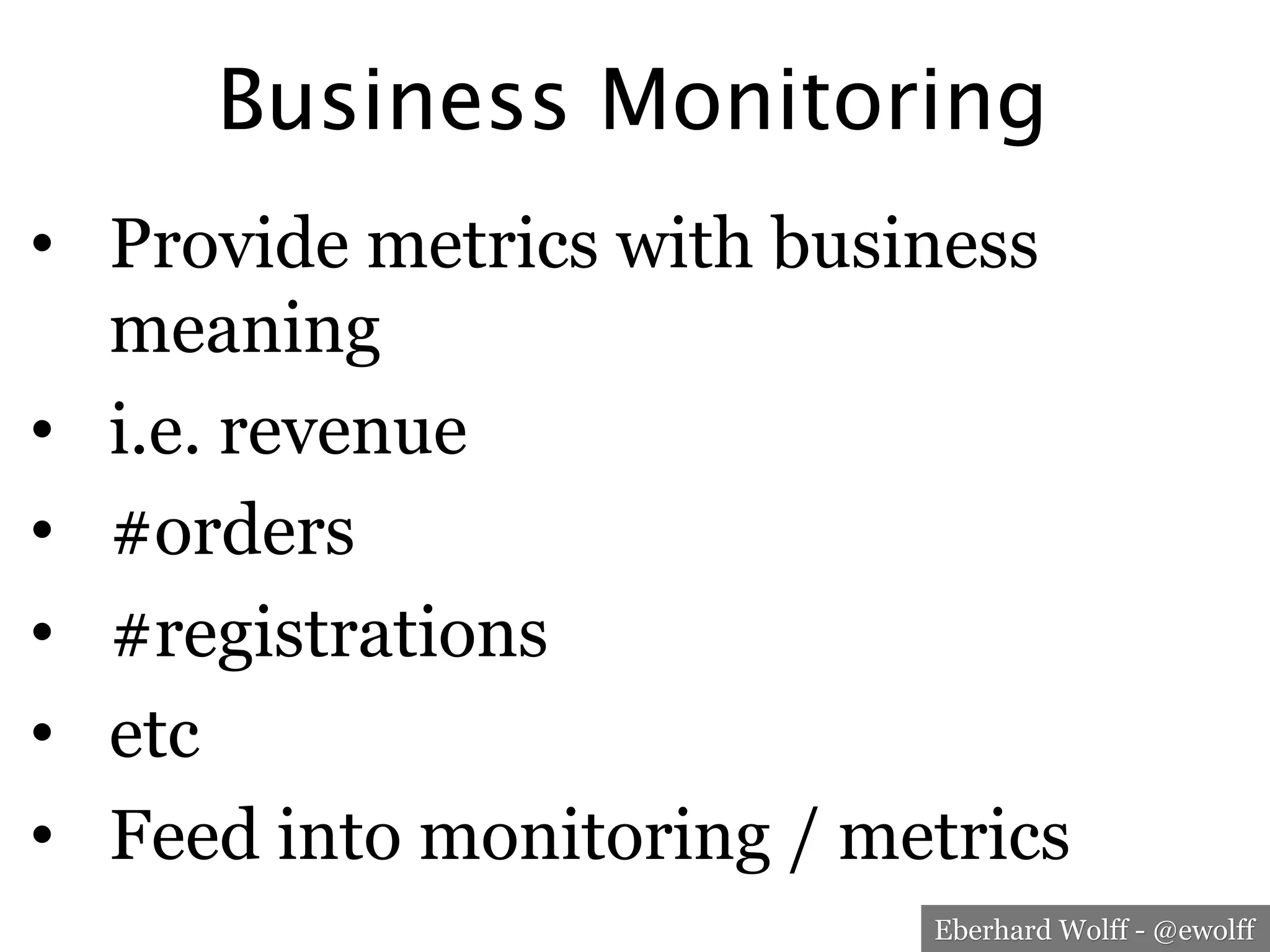

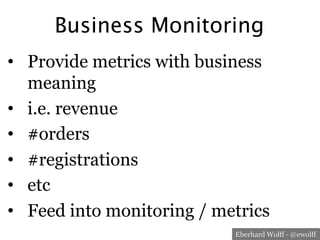

Business Monitoring
•  Provide metrics with business
meaning
•  i.e. revenue
•  #orders
•  #registrations
•  etc
•  Feed into monitoring / metrics

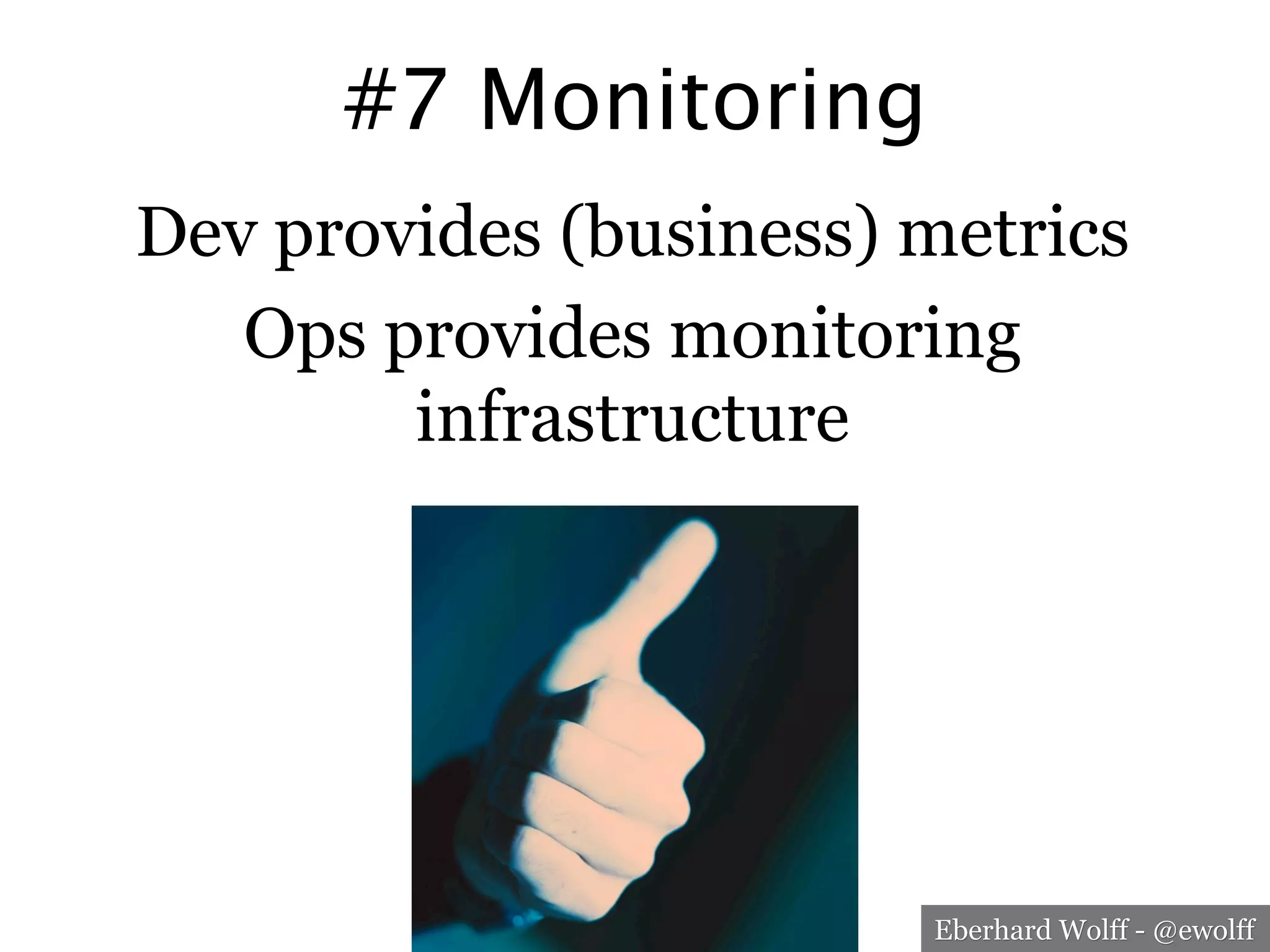

#7 Monitoring
Dev provides (business) metrics
Ops provides monitoring
infrastructure

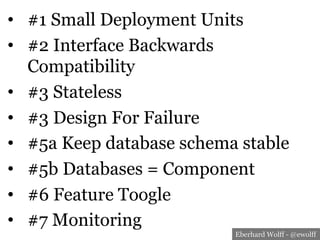

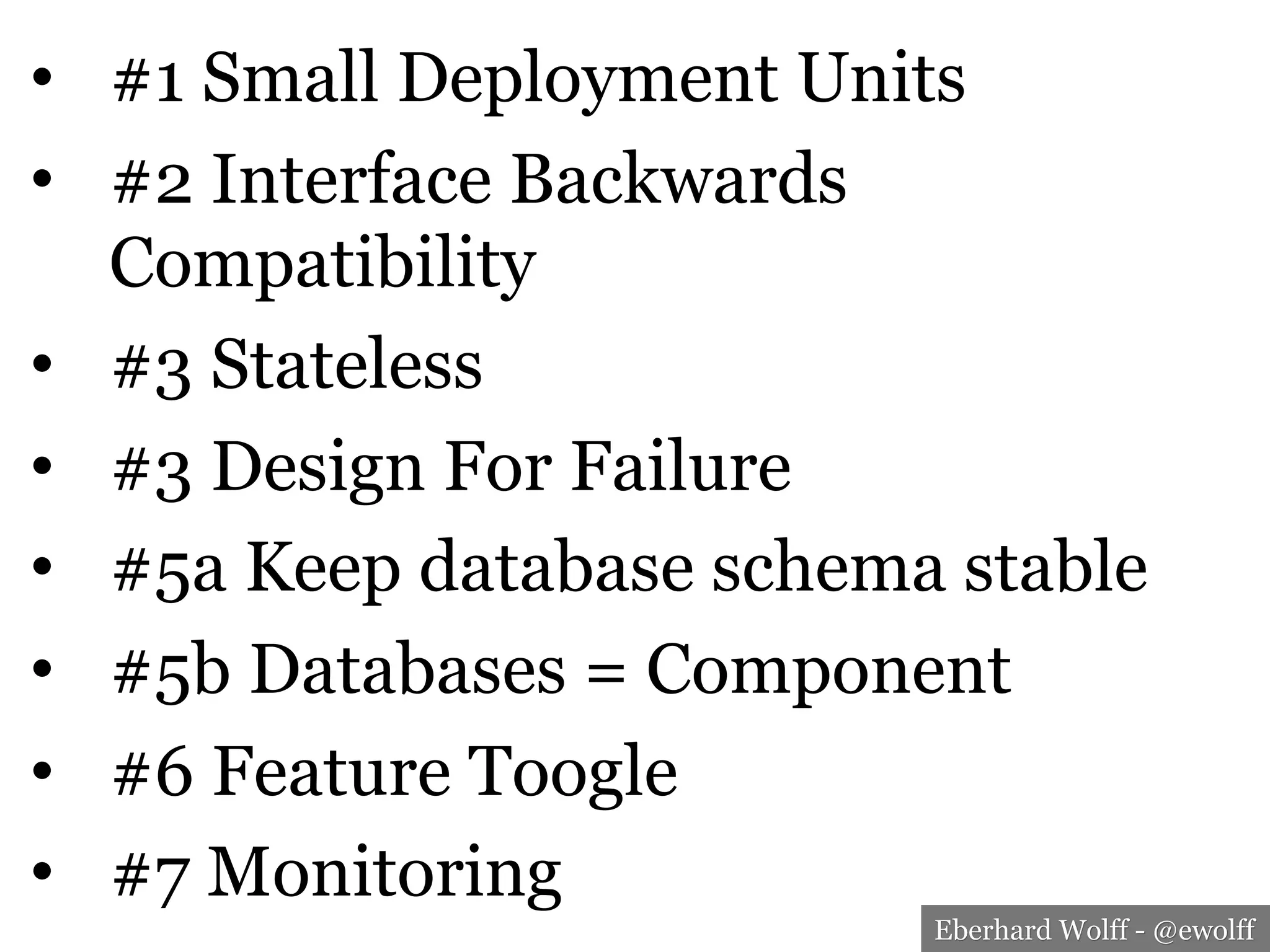

•  #1 Small Deployment Units
•  #2 Interface Backwards
Compatibility
•  #3 Stateless
•  #4 Design For Failure
•  #5a Keep database schema stable
•  #5b Databases = Component
•  #6 Feature Toggle
•  #7 Monitoring

Thank You!
