This document summarizes CI/CD on AWS by Bhargav Amin. It introduces DevOps practices like continuous integration, continuous delivery, and continuous deployment. It explains how to design a CI/CD pipeline and create one on AWS using services like CodeCommit, CodeBuild, CodeDeploy, and CodePipeline. The document provides examples of integrating these services to automate building, testing, and deploying code changes. It also includes a link to a demo repository and discusses managing infrastructure with CI/CD by updating CloudFormation templates in a pipeline.

1. CI/CD on AWS
By
Bhargav Amin
Oct 7

2. About me
• Tech Blogger (http://bhargavamin.com)
• 30,000+ views / 17,000+ visitors
• 27+ articles top ranked articles on Google Search
• 90+ tech articles
• AWS Certified SA
• Owner - DevOps and Security at Entytle Inc
• Manage Infrastructure including DevOps framework
• Travel vlogger

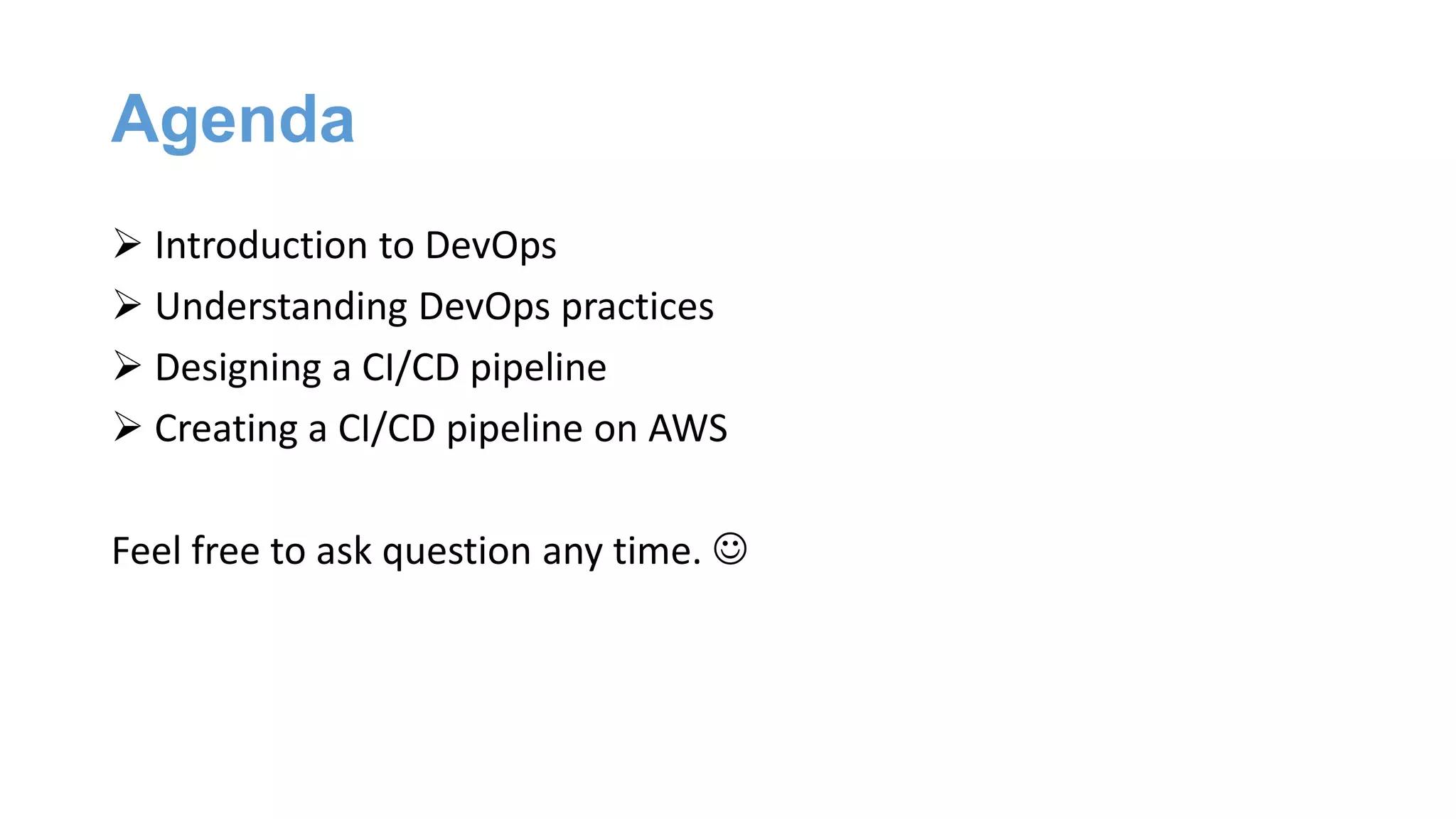

3. Agenda
 Introduction to DevOps
 Understanding DevOps practices
 Designing a CI/CD pipeline
 Creating a CI/CD pipeline on AWS
Feel free to ask question any time. 

4. DevOps the term

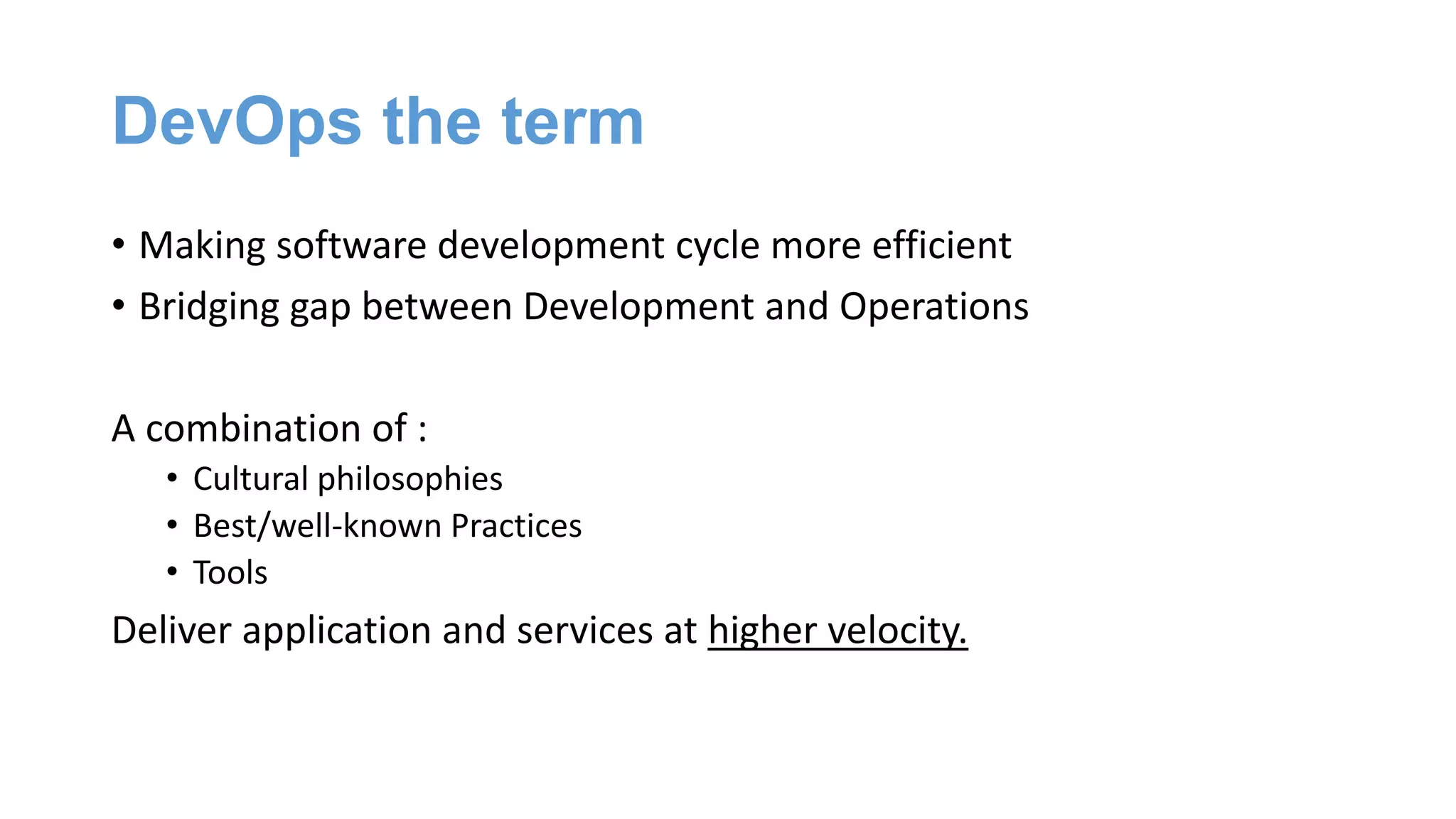

5. DevOps the term
• Making software development cycle more efficient
• Bridging gap between Development and Operations
A combination of :
• Cultural philosophies
• Best/well-known Practices
• Tools
Deliver application and services at higher velocity.

6. Practices
• Monolithic Architecture
• Service Oriented Architecture/Microservices Architecture
• Infra as code
• CI/CD

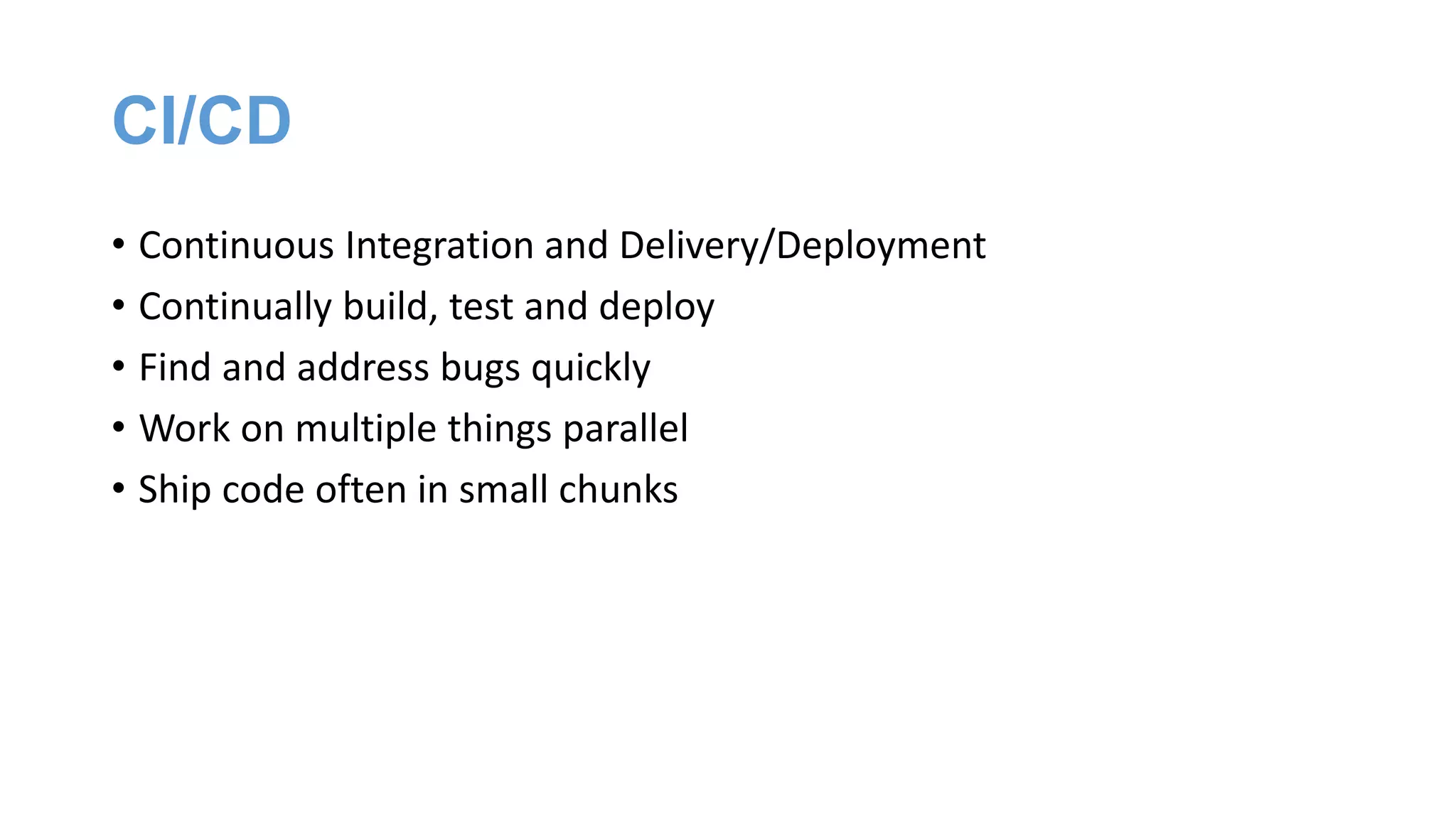

7. CI/CD
• Continuous Integration and Delivery/Deployment
• Continually build, test and deploy
• Find and address bugs quickly
• Work on multiple things parallel
• Ship code often in small chunks

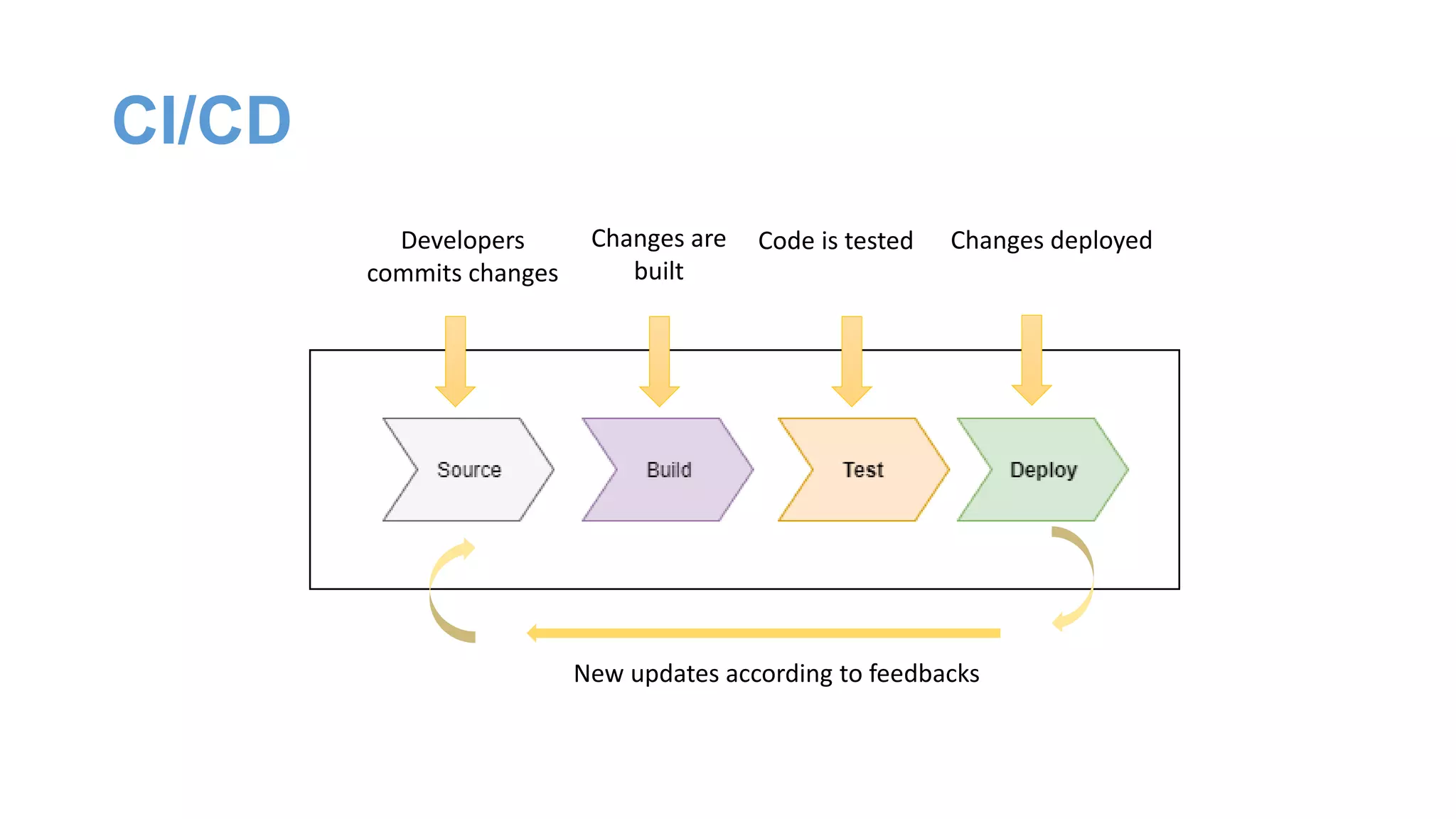

8. CI/CD
Developers
commits changes
Changes are
built
Code is tested Changes deployed
New updates according to feedbacks

9. Areas that can be automated
• Version control
• Build process
• Testing
• Configuration management
• Infrastructure provisioning
• Deployment & release
AWS
CodeCommit
AWS
CodeDeploy
AWS
CodePipeline
AWS
CodeBuild
AWS
CloudFormation
AWS
OpsWorks

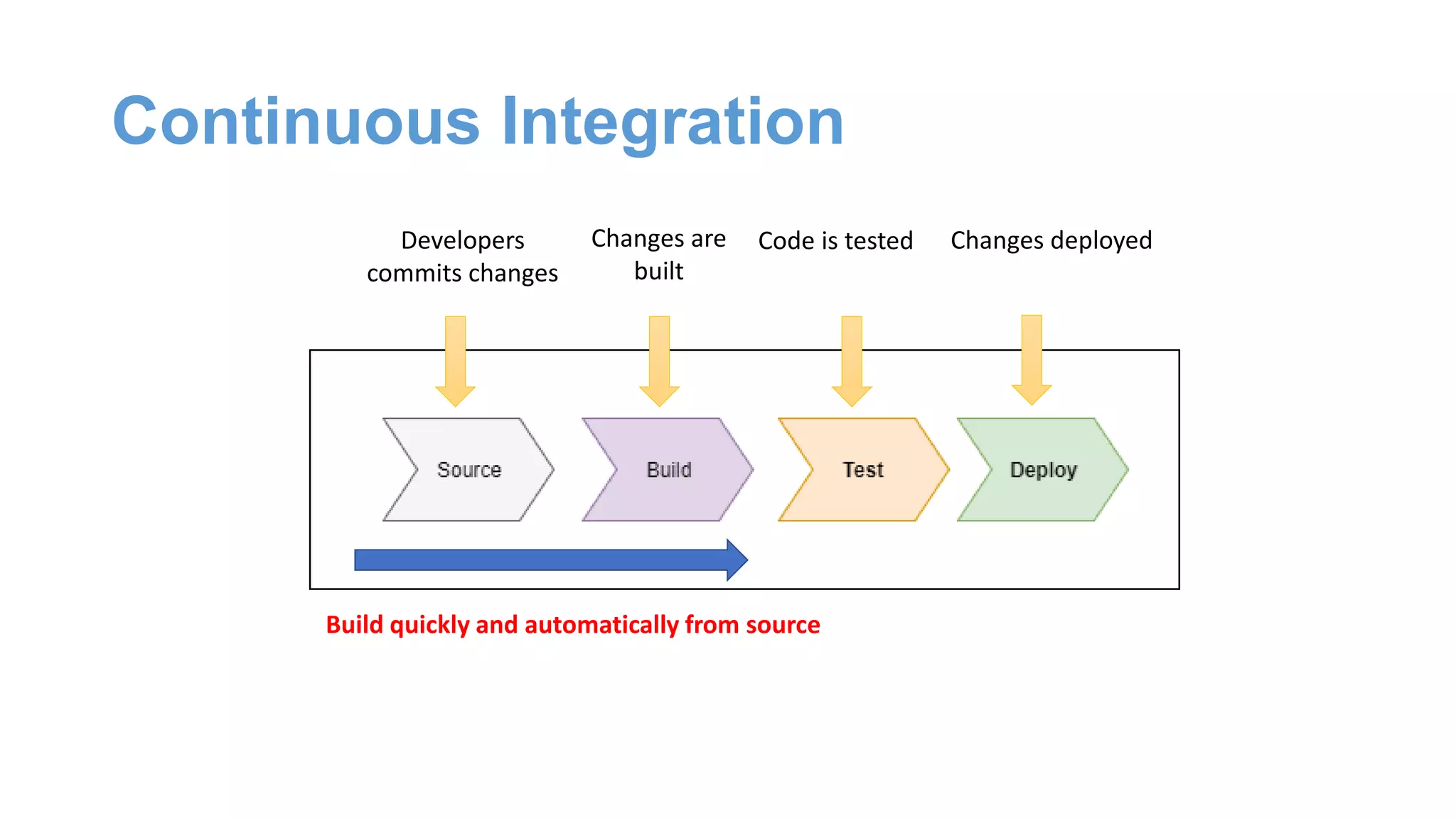

10. Continuous Integration
Developers
commits changes
Changes are
built
Code is tested Changes deployed
Build quickly and automatically from source

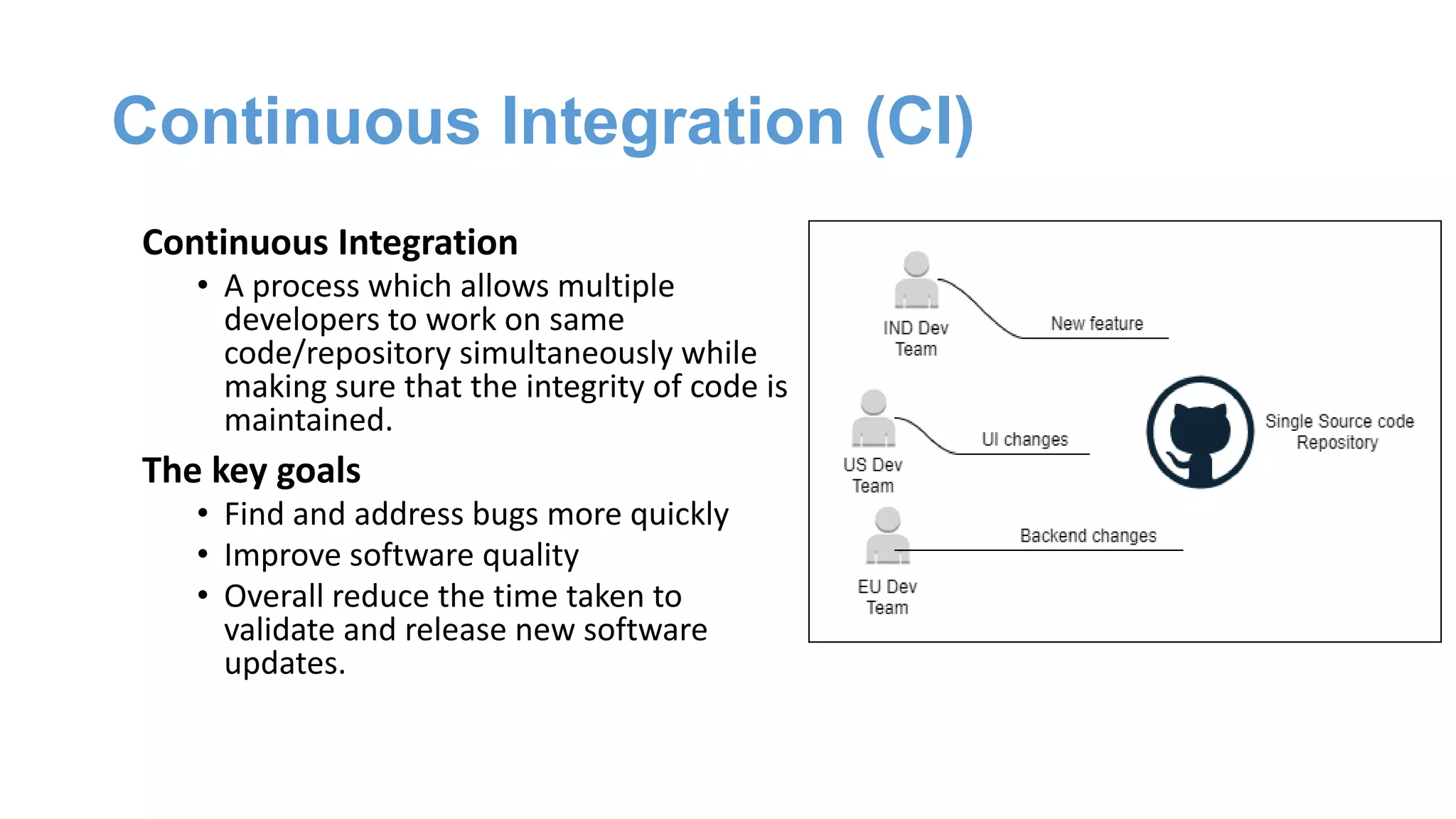

11. Continuous Integration (CI)
Continuous Integration
• A process which allows multiple
developers to work on same
code/repository simultaneously while
making sure that the integrity of code is
maintained.
The key goals
• Find and address bugs more quickly
• Improve software quality
• Overall reduce the time taken to
validate and release new software
updates.

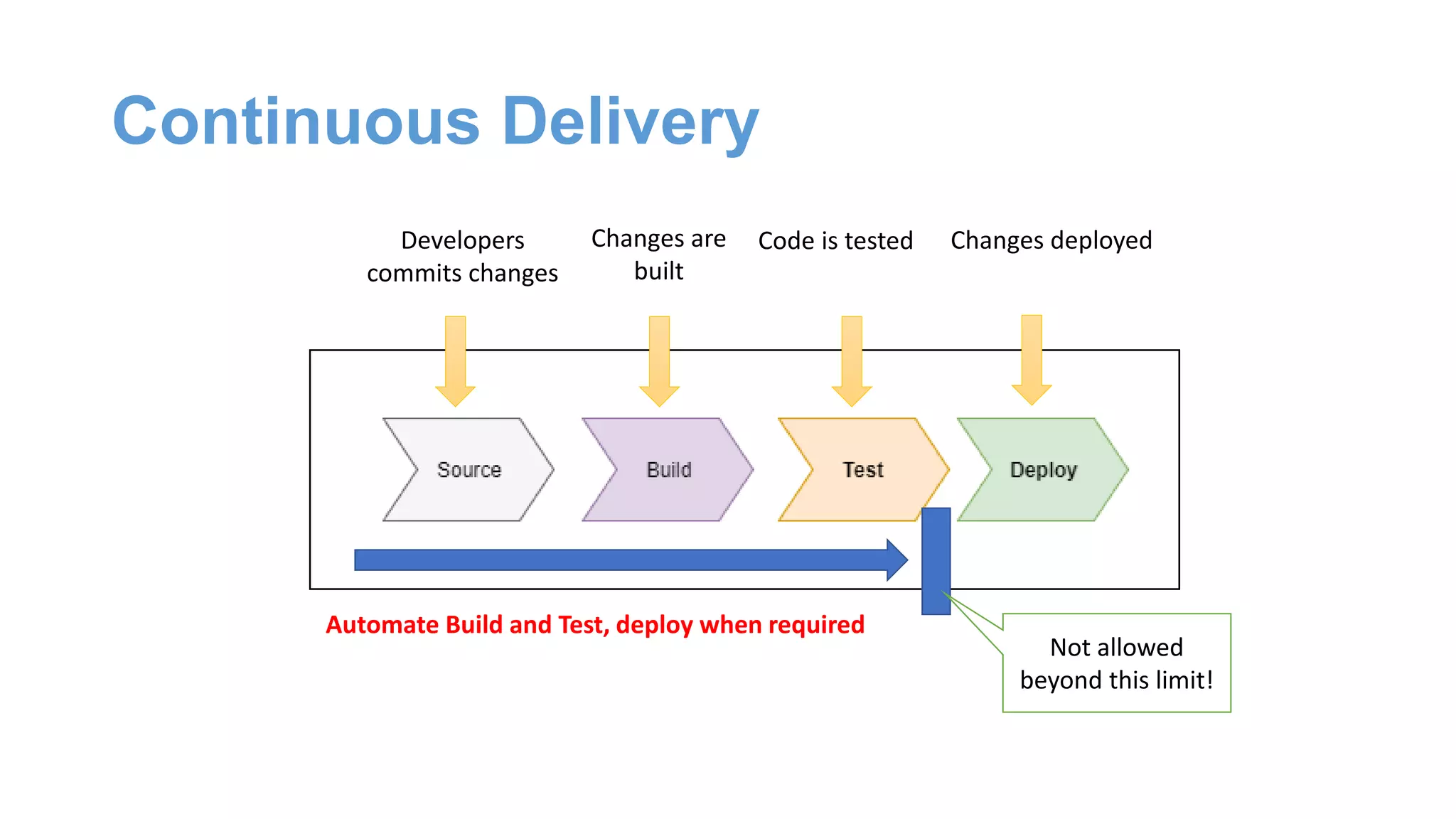

12. Continuous Delivery
Developers
commits changes
Changes are
built
Code is tested Changes deployed
Automate Build and Test, deploy when required
Not allowed
beyond this limit!

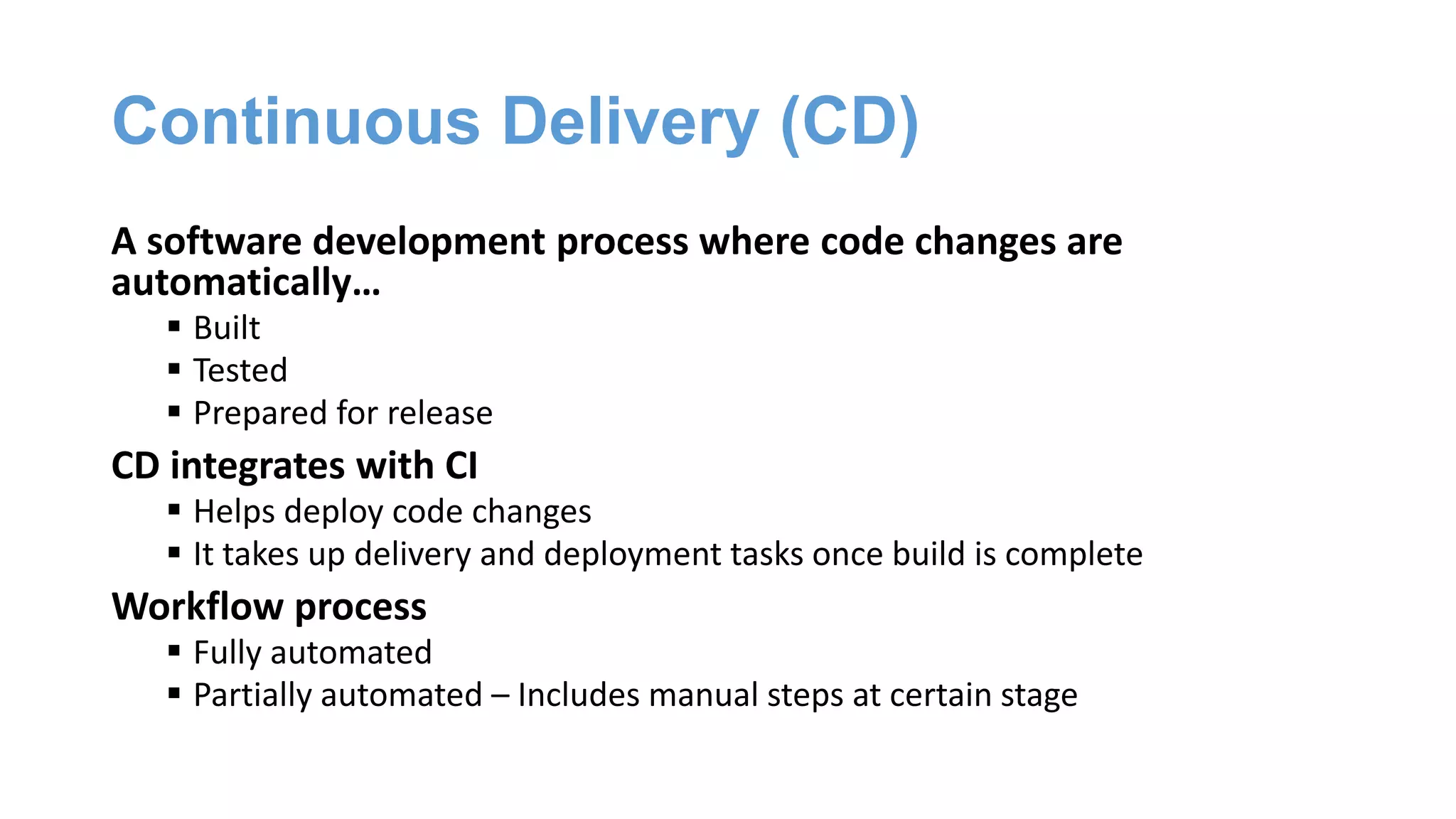

13. Continuous Delivery (CD)
A software development process where code changes are
automatically…
 Built
 Tested
 Prepared for release
CD integrates with CI
 Helps deploy code changes
 It takes up delivery and deployment tasks once build is complete
Workflow process
 Fully automated
 Partially automated – Includes manual steps at certain stage

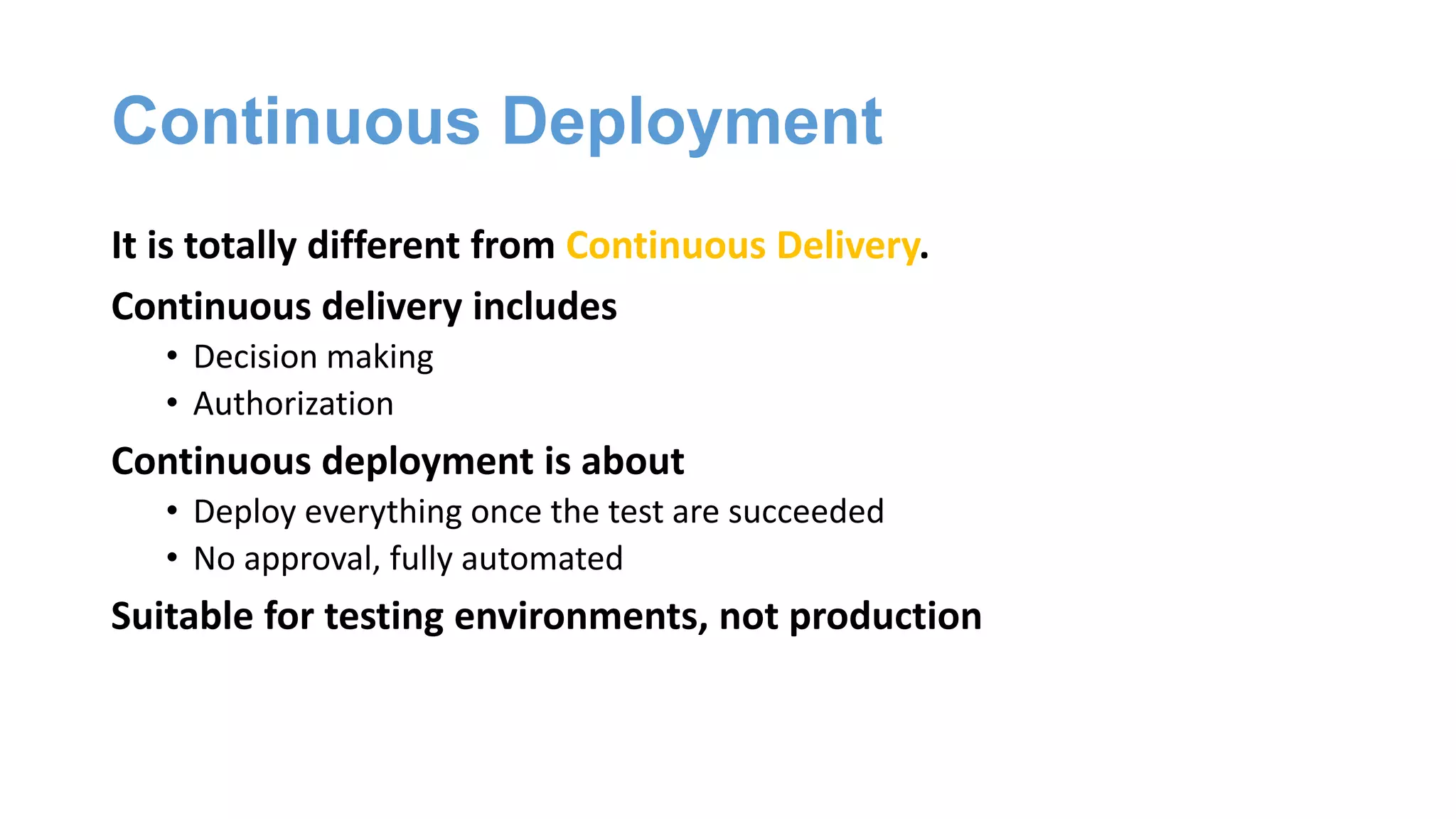

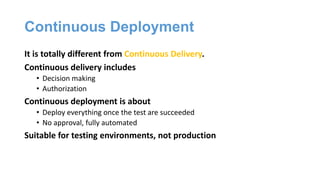

14. Continuous Deployment
It is totally different from Continuous Delivery.
Continuous delivery includes
• Decision making
• Authorization
Continuous deployment is about
• Deploy everything once the test are succeeded
• No approval, fully automated
Suitable for testing environments, not production

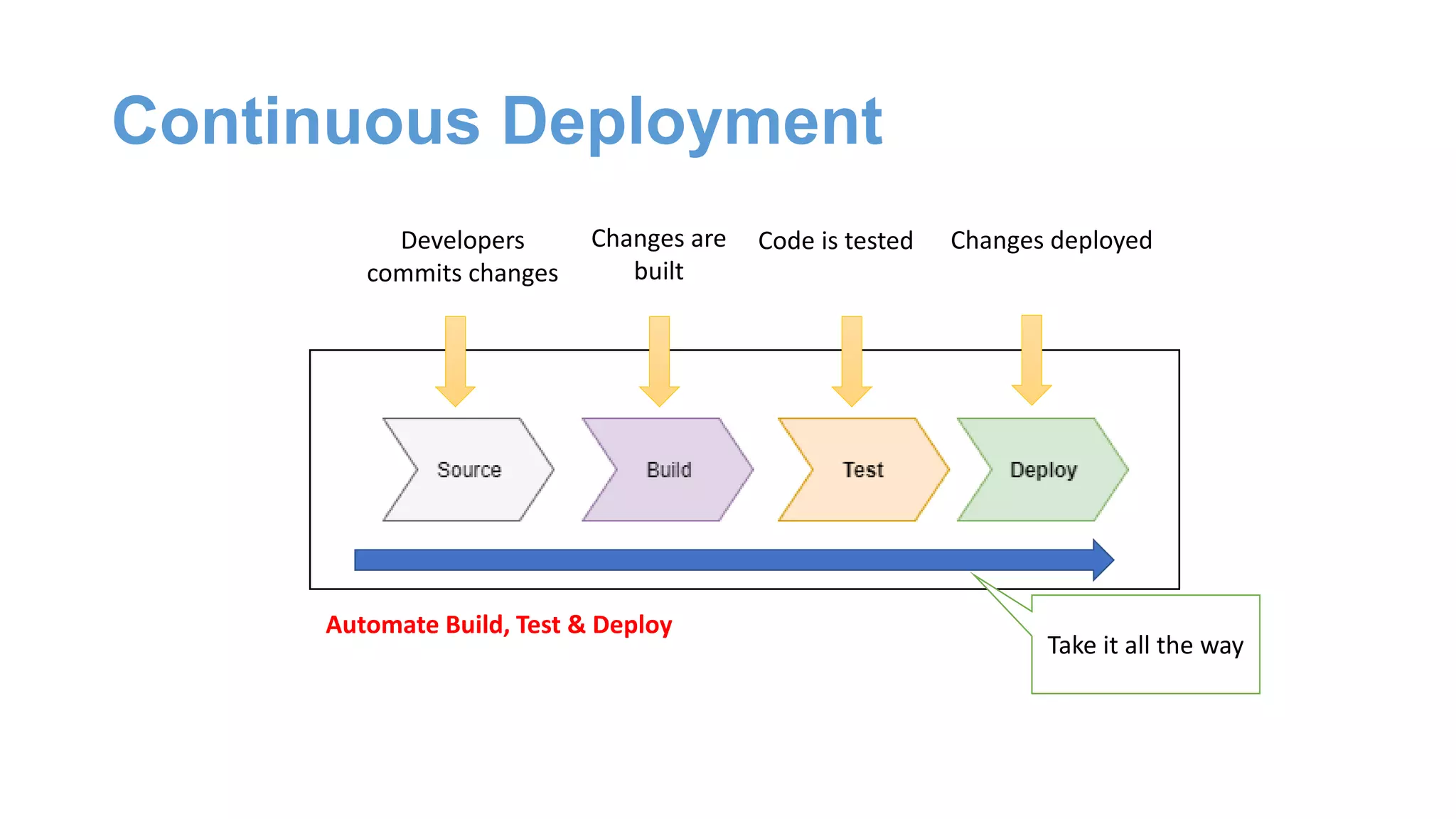

15. Continuous Deployment
Developers
commits changes
Changes are
built
Code is tested Changes deployed
Automate Build, Test & Deploy
Take it all the way

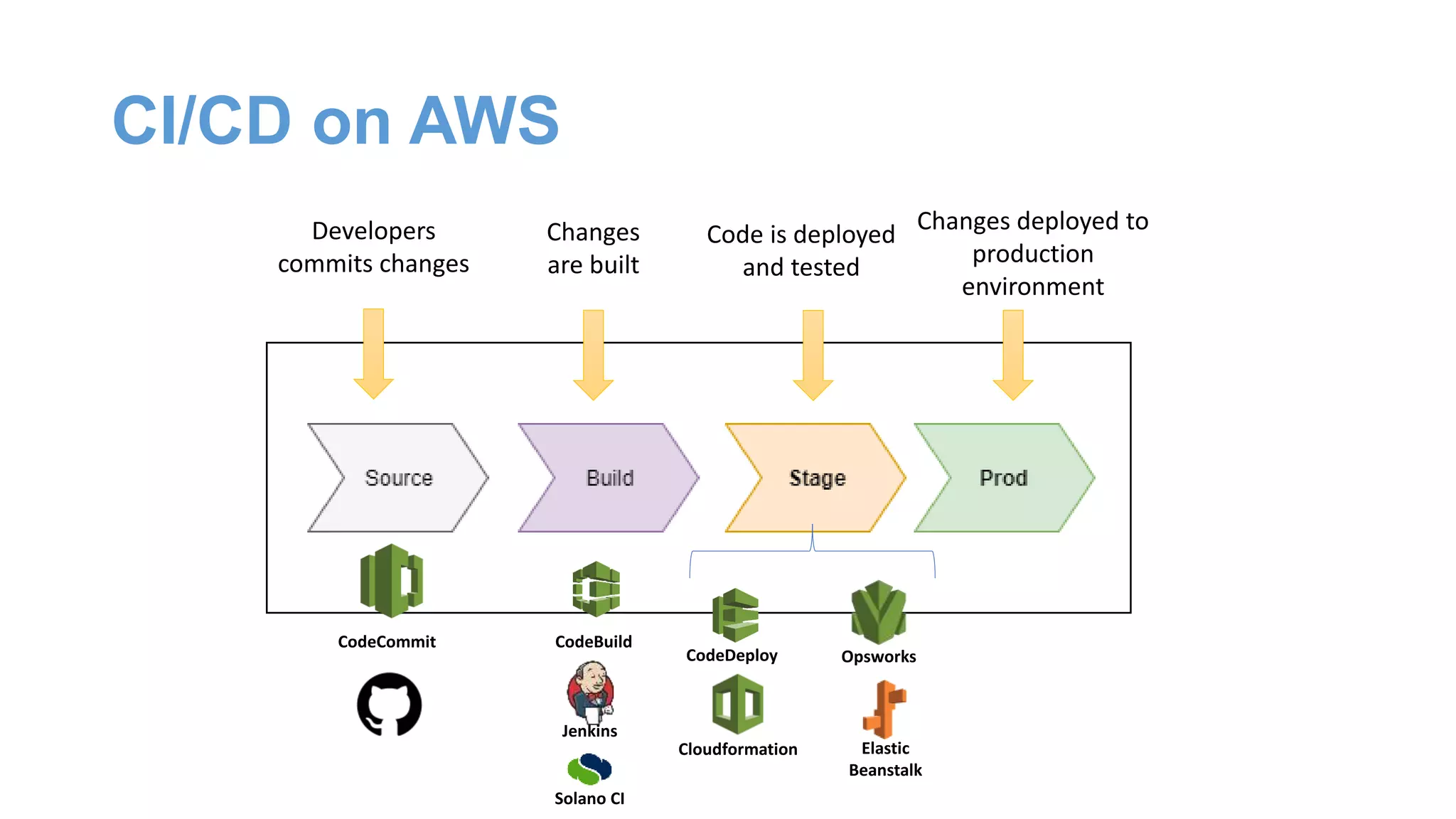

16. CI/CD on AWS
Developers
commits changes
Changes
are built
Code is deployed
and tested
Changes deployed to
production
environment
CodeBuildCodeCommit
CodeDeploy
Jenkins
Solano CI
Cloudformation
Opsworks
Elastic
Beanstalk

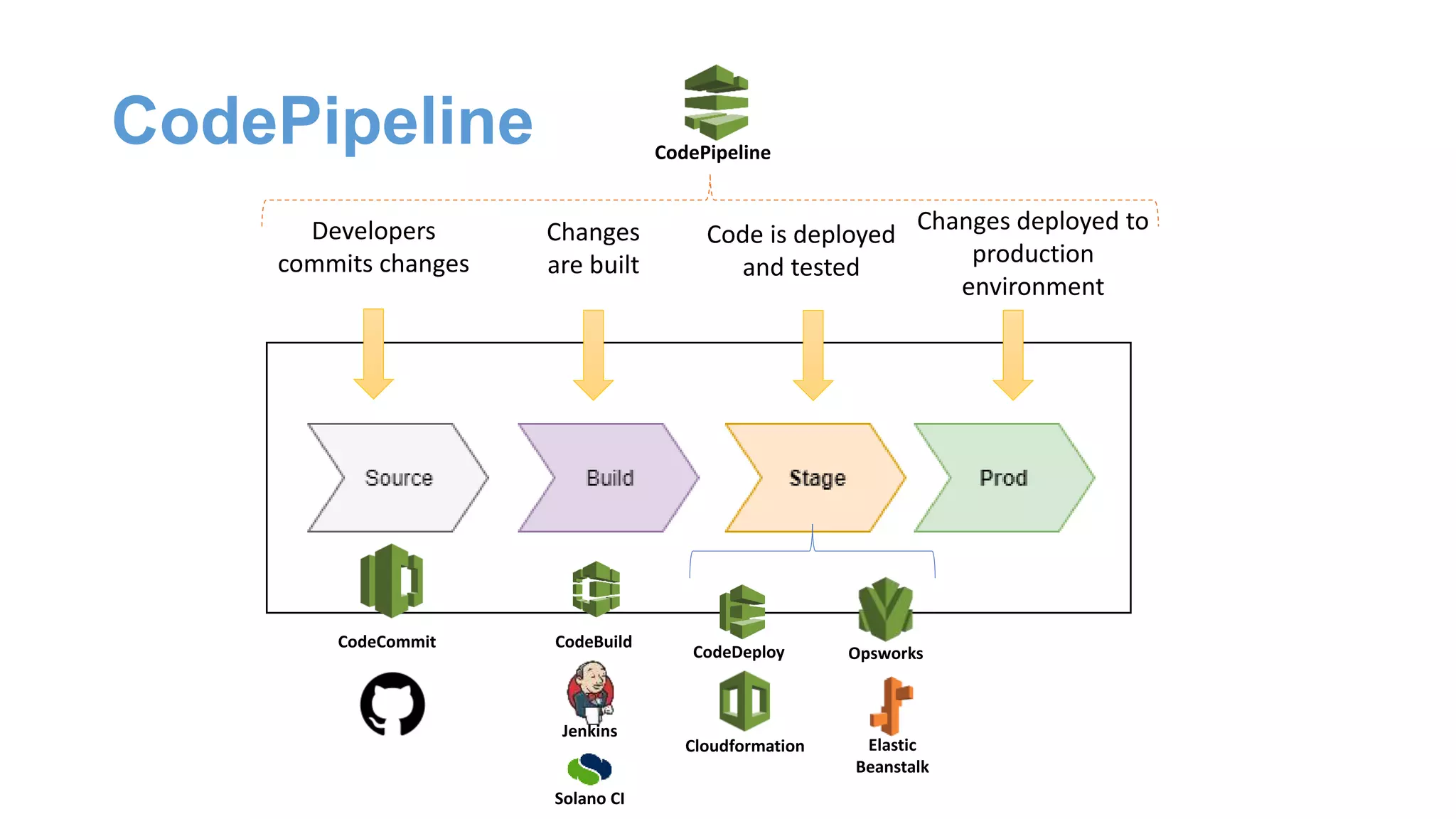

17. CodePipeline
Developers
commits changes
Changes
are built
Code is deployed
and tested
Changes deployed to
production
environment
CodeBuildCodeCommit
CodeDeploy
Jenkins
Solano CI
Cloudformation
Opsworks
Elastic
Beanstalk
CodePipeline

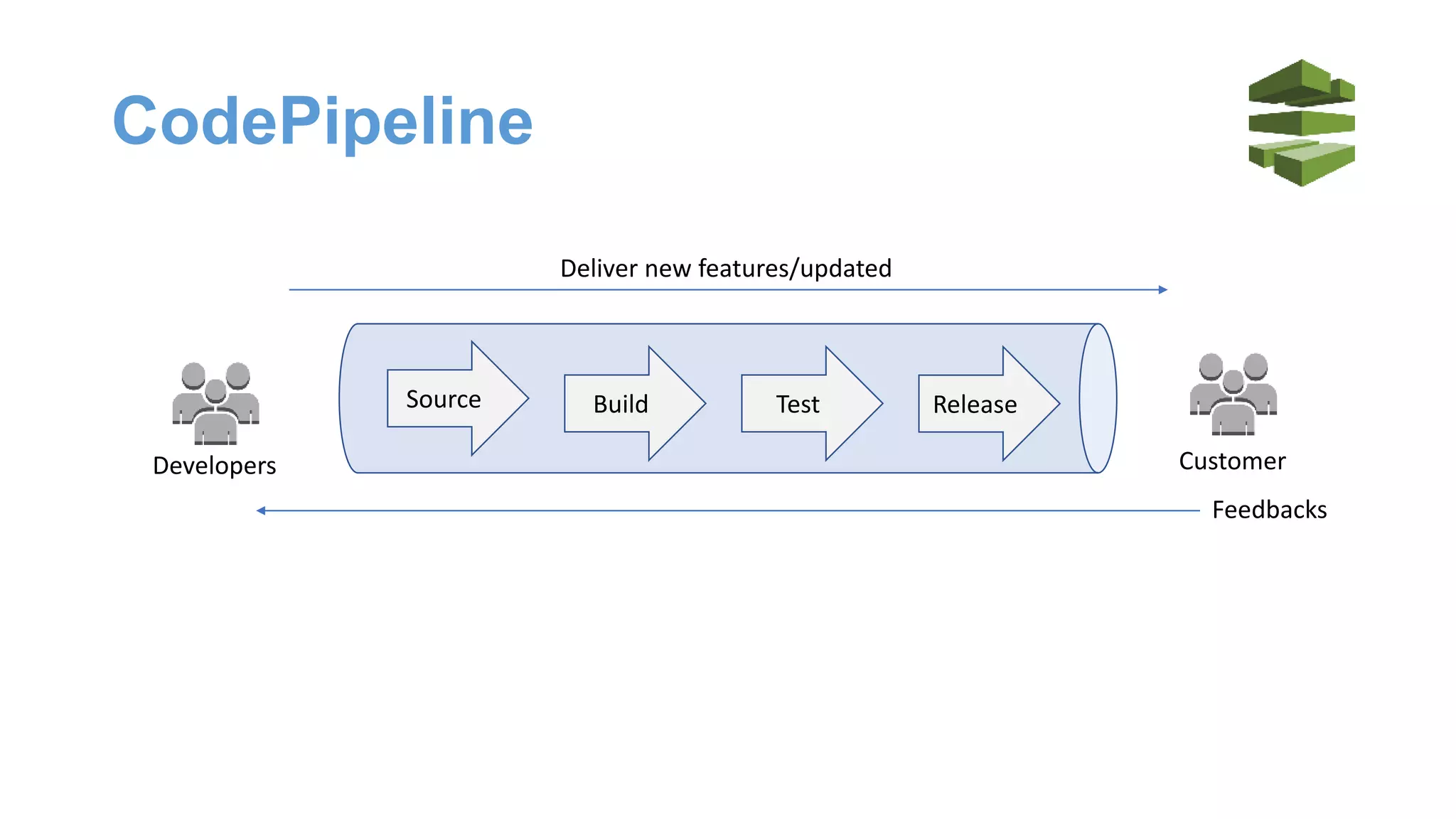

18. CodePipeline
Source Build Test Release
Developers Customer
Feedbacks
Deliver new features/updated

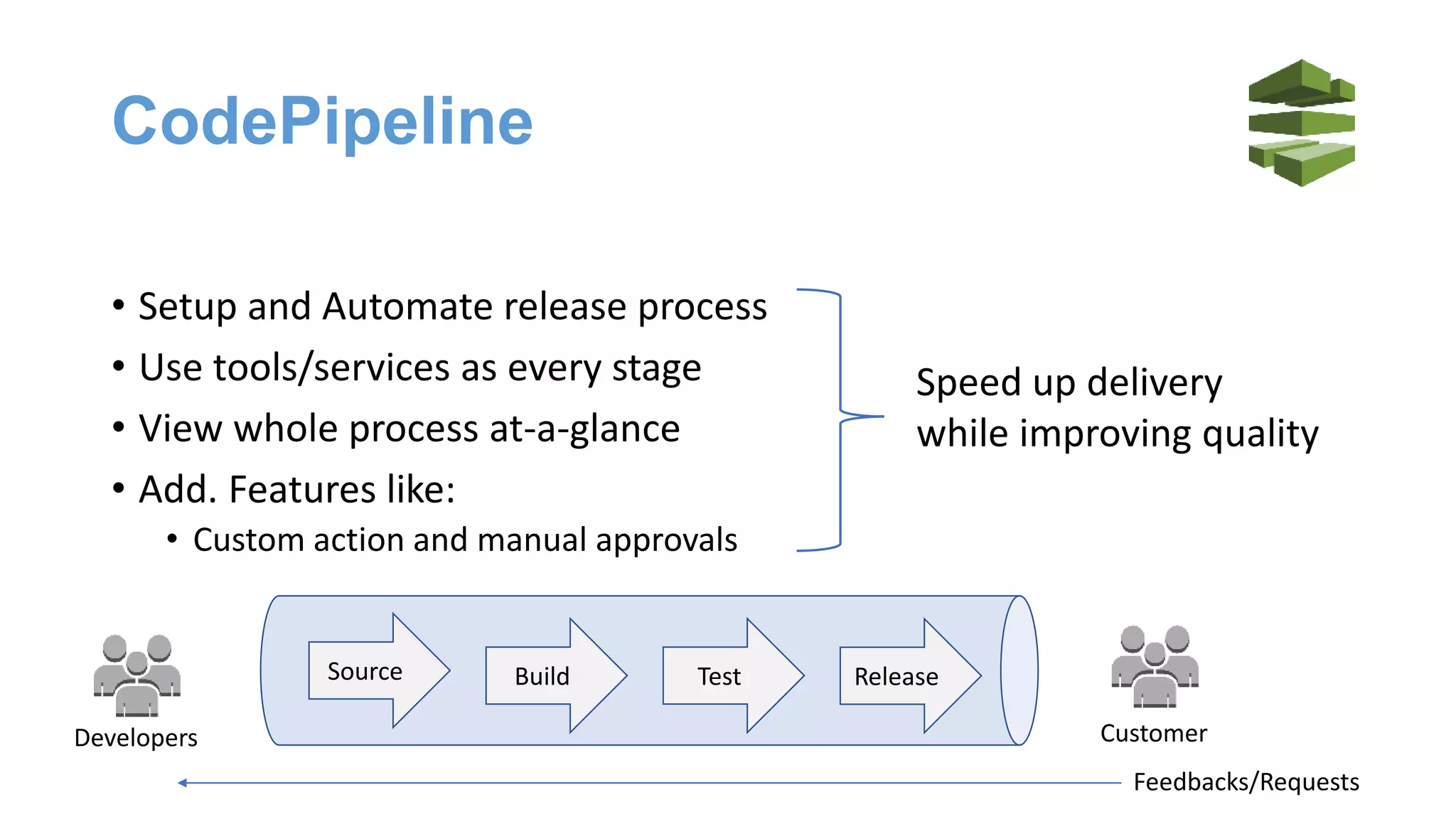

19. CodePipeline
• Setup and Automate release process
• Use tools/services as every stage
• View whole process at-a-glance
• Add. Features like:
• Custom action and manual approvals
Speed up delivery
while improving quality
Source Build Test Release
Developers Customer
Feedbacks/Requests

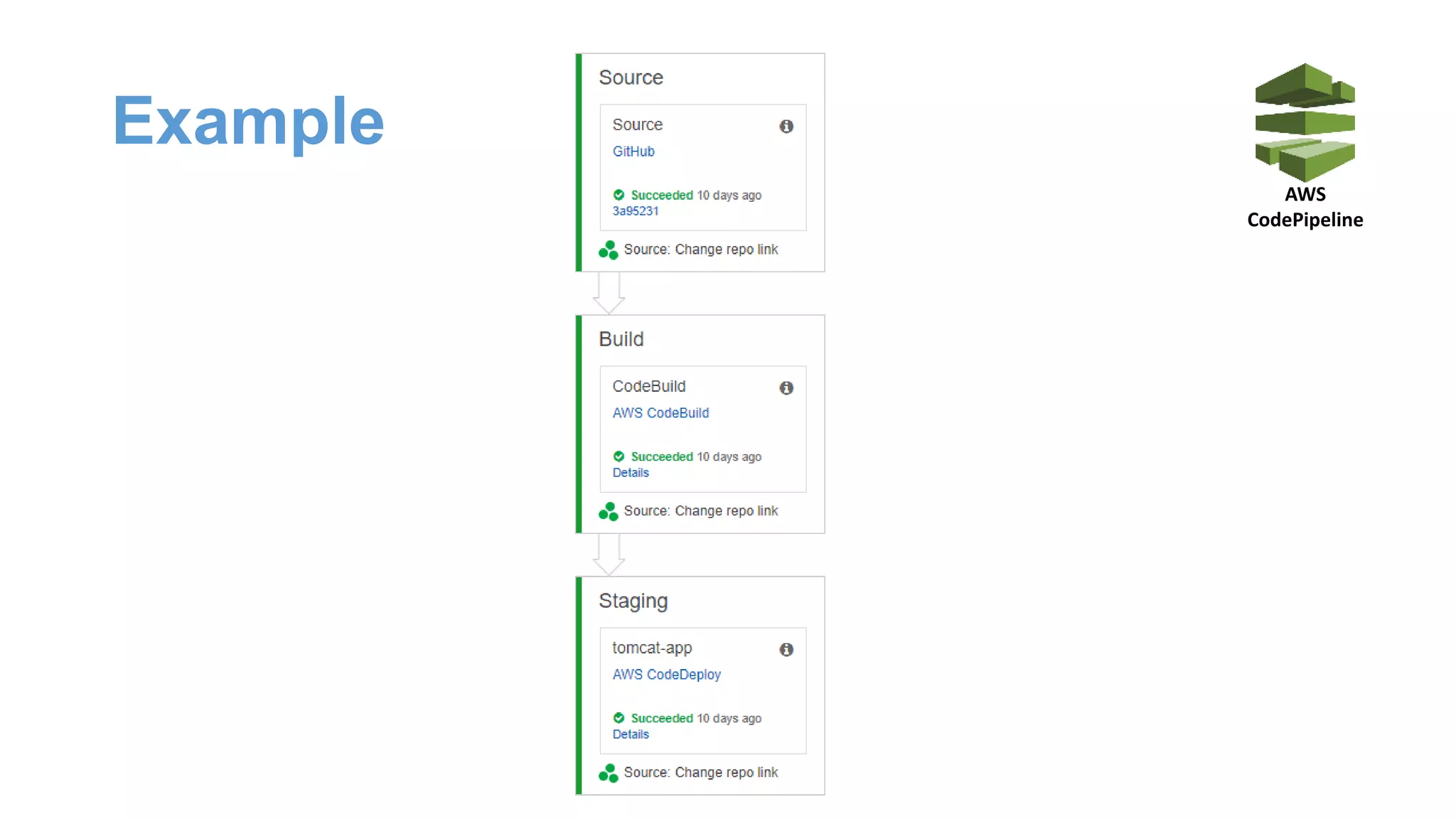

20. AWS
CodePipeline
Example

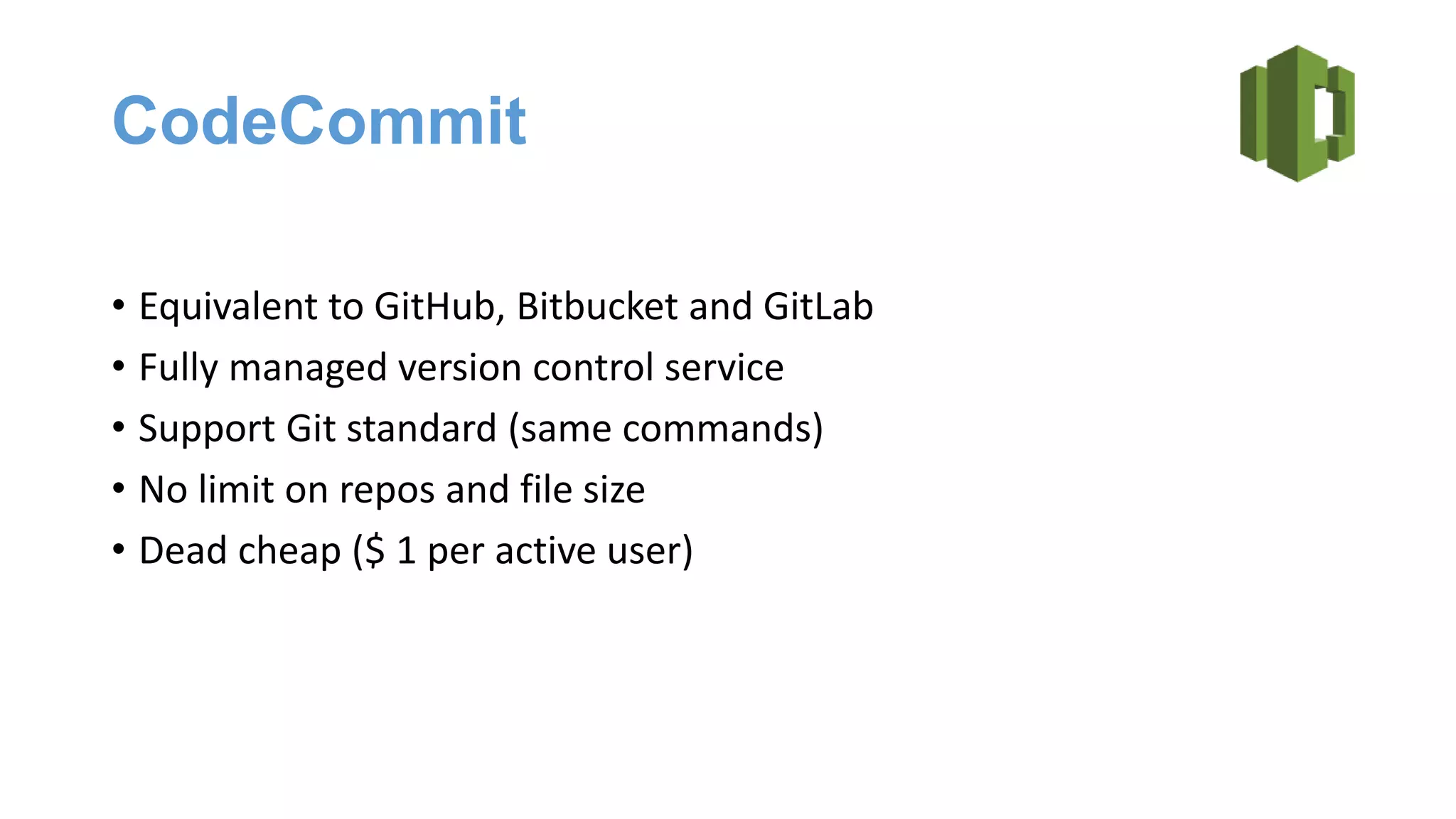

21. CodeCommit
• Equivalent to GitHub, Bitbucket and GitLab
• Fully managed version control service
• Support Git standard (same commands)
• No limit on repos and file size
• Dead cheap ($ 1 per active user)

22. CodeBuild
• Fully managed build service
• Run concurrent builds at same time/scalable
• Pre-configured environments
• Build from CodeCommit,Github,Bitbucket,S3
• Build using an EC2 instance or Docker image
• Build-as-a-code using buildspec.yaml

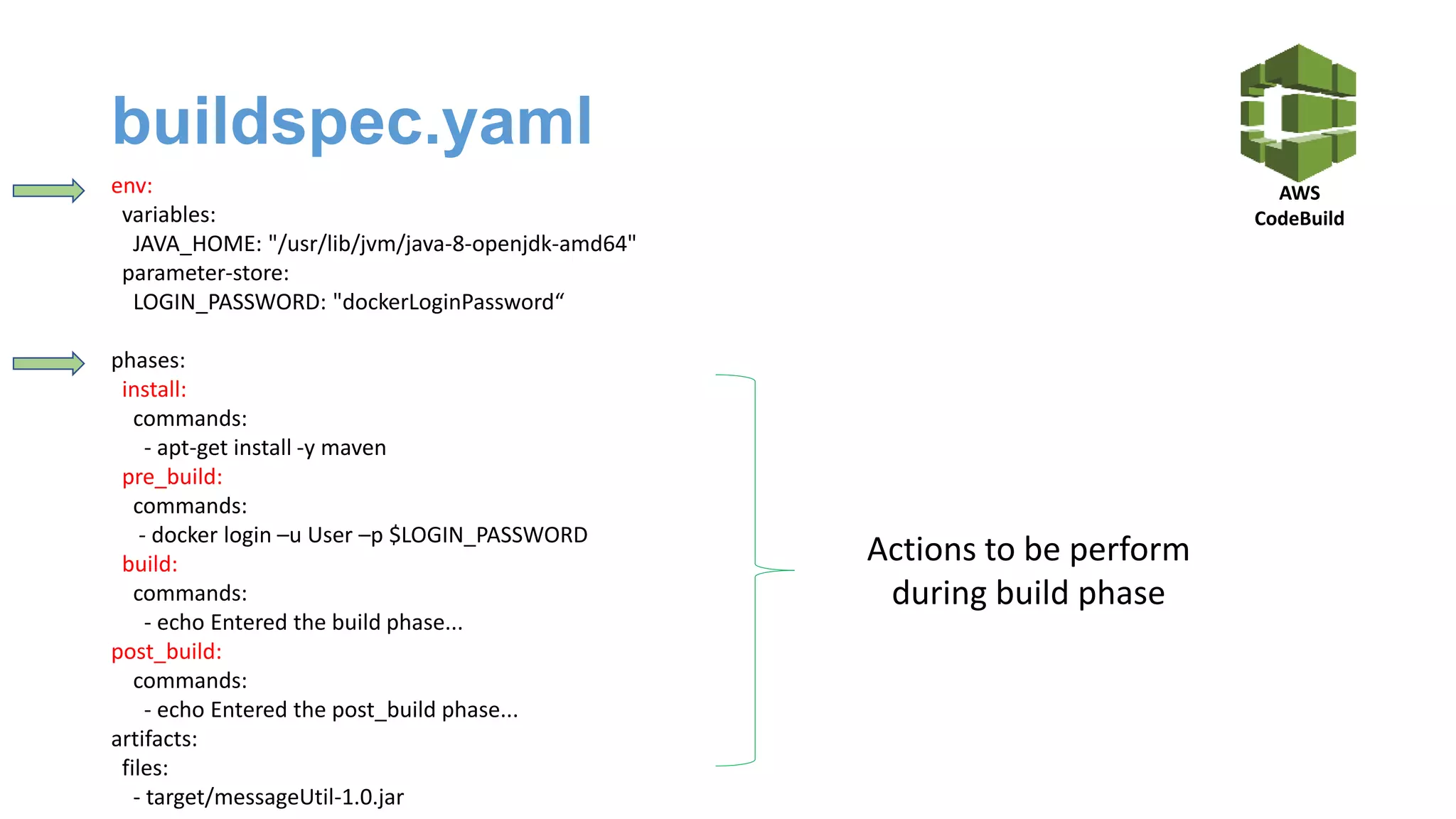

23. buildspec.yaml
AWS
CodeBuild
env:
variables:
JAVA_HOME: "/usr/lib/jvm/java-8-openjdk-amd64"
parameter-store:
LOGIN_PASSWORD: "dockerLoginPassword“
phases:
install:
commands:
- apt-get install -y maven
pre_build:
commands:
- docker login –u User –p $LOGIN_PASSWORD
build:
commands:
- echo Entered the build phase...
post_build:
commands:
- echo Entered the post_build phase...
artifacts:
files:
- target/messageUtil-1.0.jar
Actions to be perform
during build phase

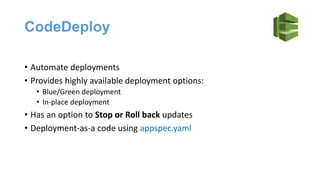

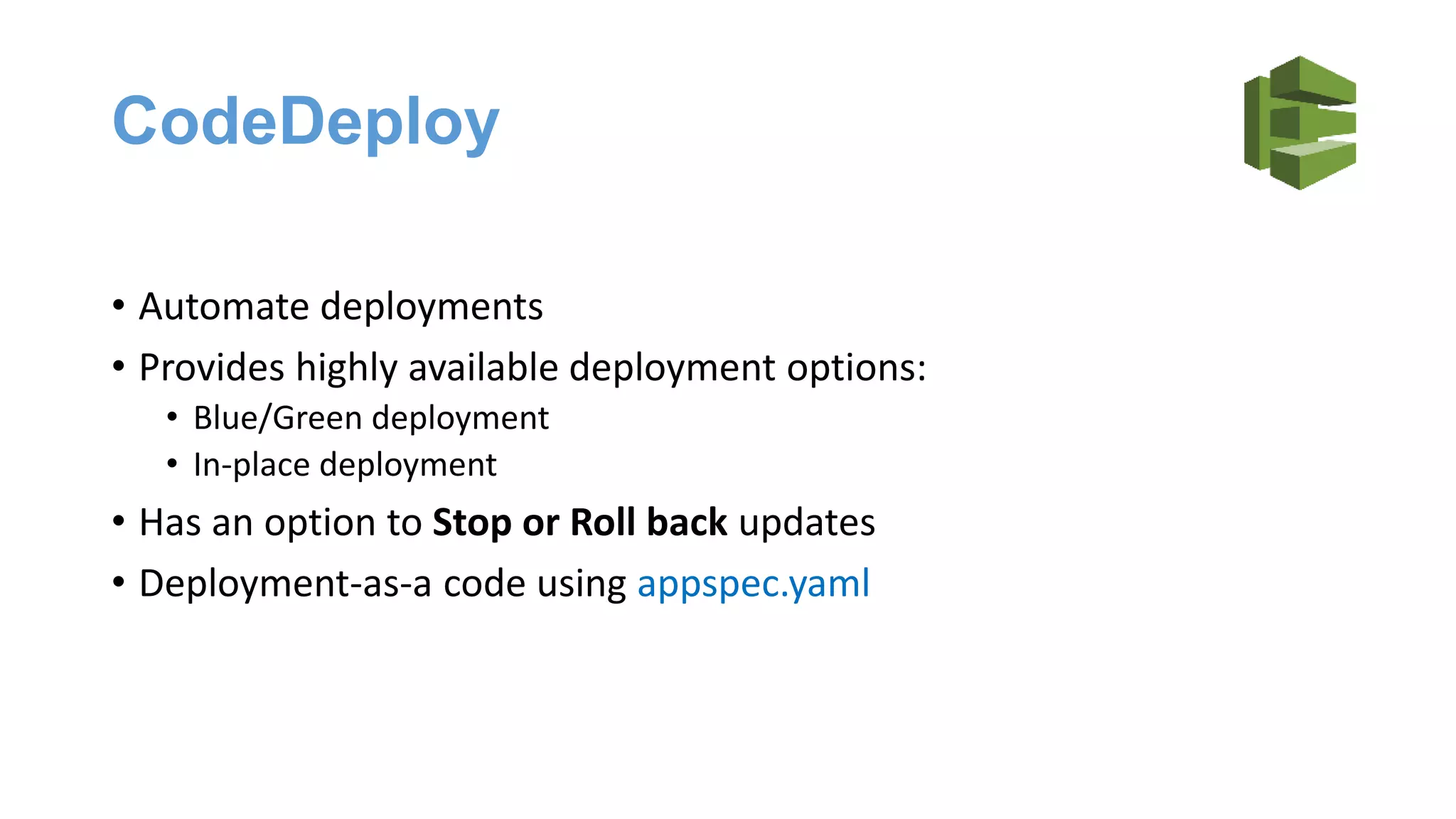

24. CodeDeploy
• Automate deployments
• Provides highly available deployment options:
• Blue/Green deployment
• In-place deployment
• Has an option to Stop or Roll back updates
• Deployment-as-a code using appspec.yaml

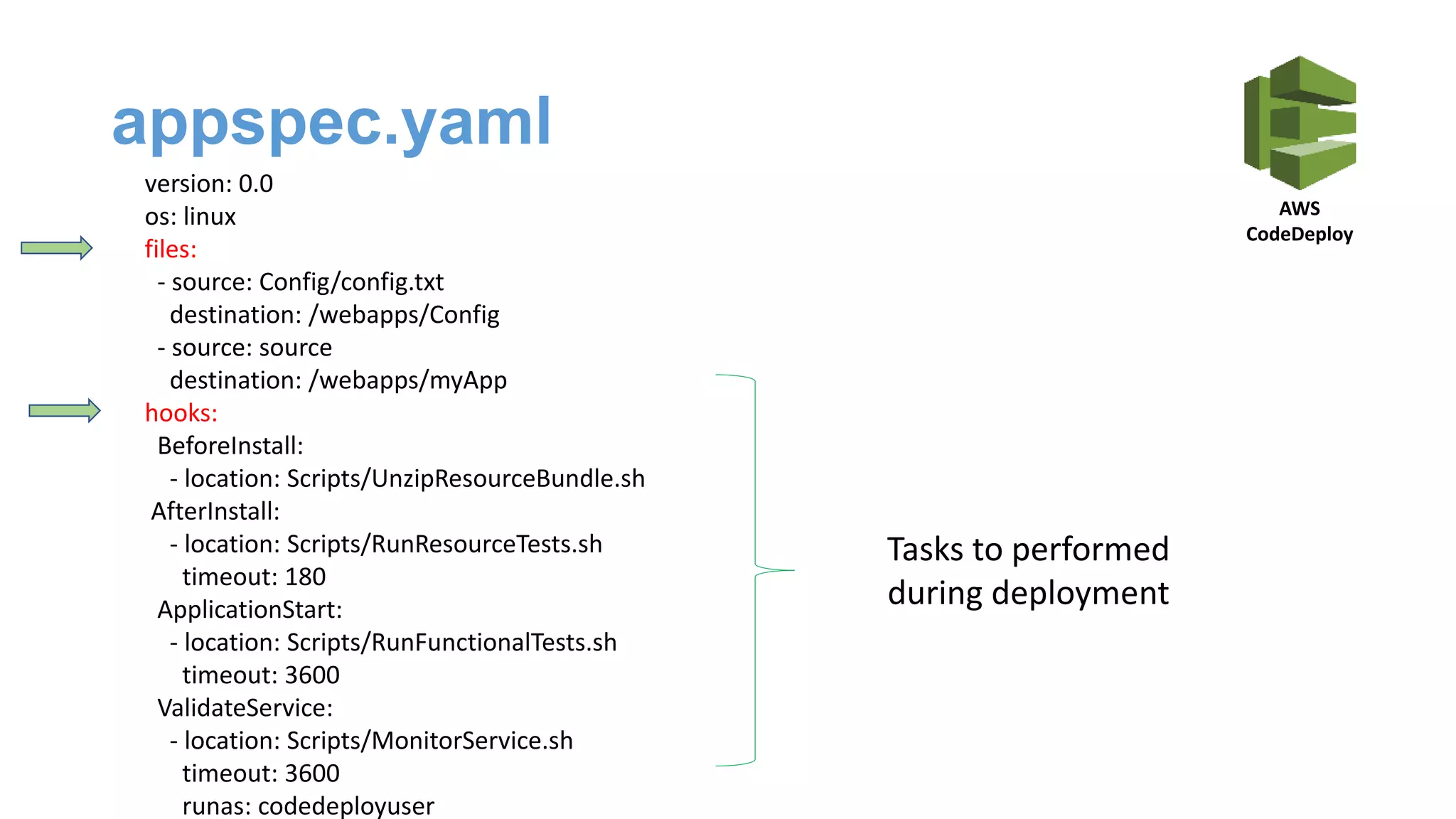

25. appspec.yaml
AWS
CodeDeploy
version: 0.0
os: linux
files:
- source: Config/config.txt
destination: /webapps/Config
- source: source
destination: /webapps/myApp
hooks:
BeforeInstall:
- location: Scripts/UnzipResourceBundle.sh
AfterInstall:
- location: Scripts/RunResourceTests.sh
timeout: 180
ApplicationStart:
- location: Scripts/RunFunctionalTests.sh
timeout: 3600
ValidateService:
- location: Scripts/MonitorService.sh
timeout: 3600
runas: codedeployuser
Tasks to performed
during deployment

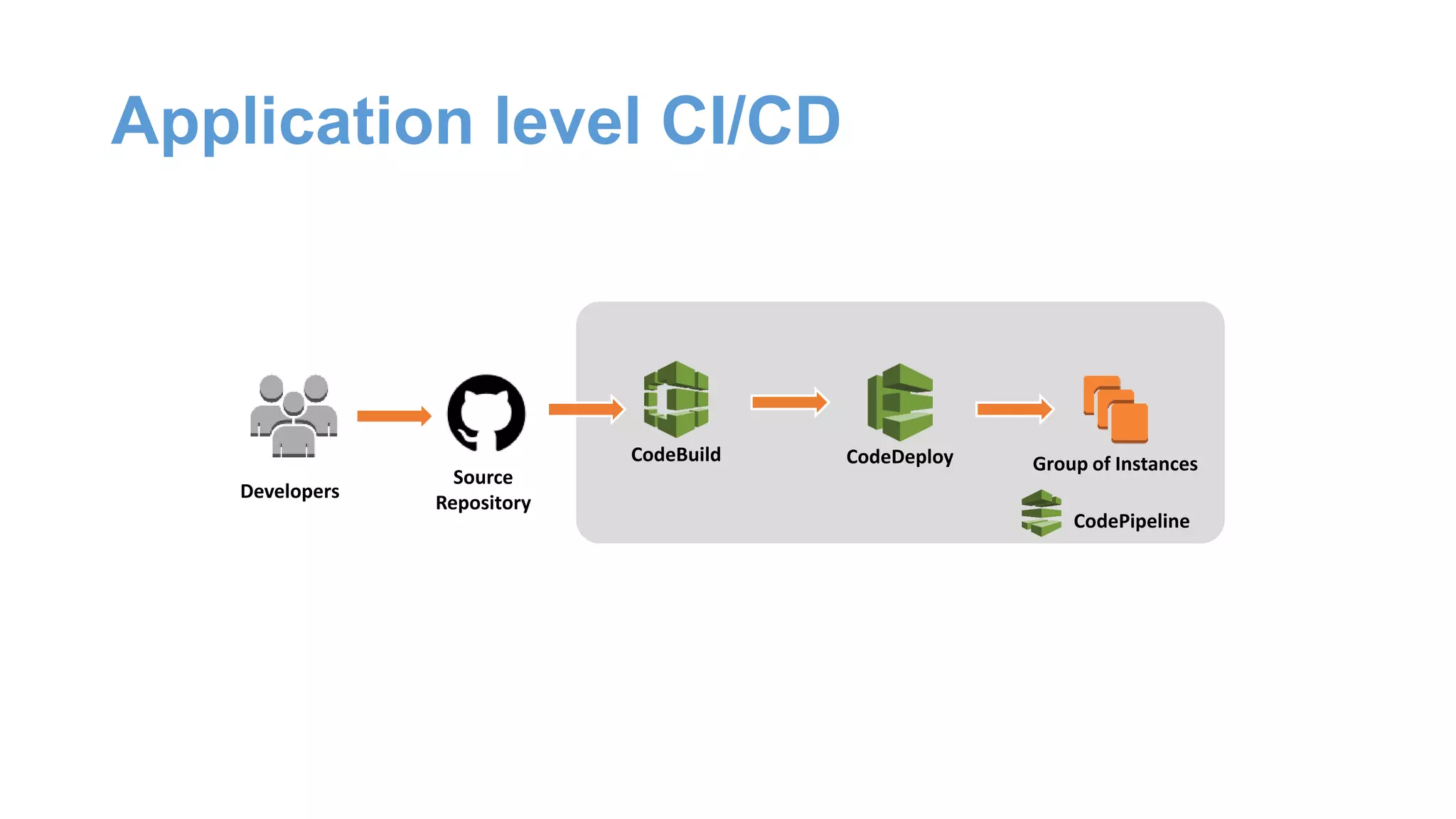

26. Application level CI/CD
CodeBuild CodeDeploy Group of Instances
Developers
Source
Repository
CodePipeline

27. Application level CI/CD
CodeBuild CodeDeploy Group of Instances
Developers
Source
Repository
1. Developers
commits code to
Git Repo
CodePipeline

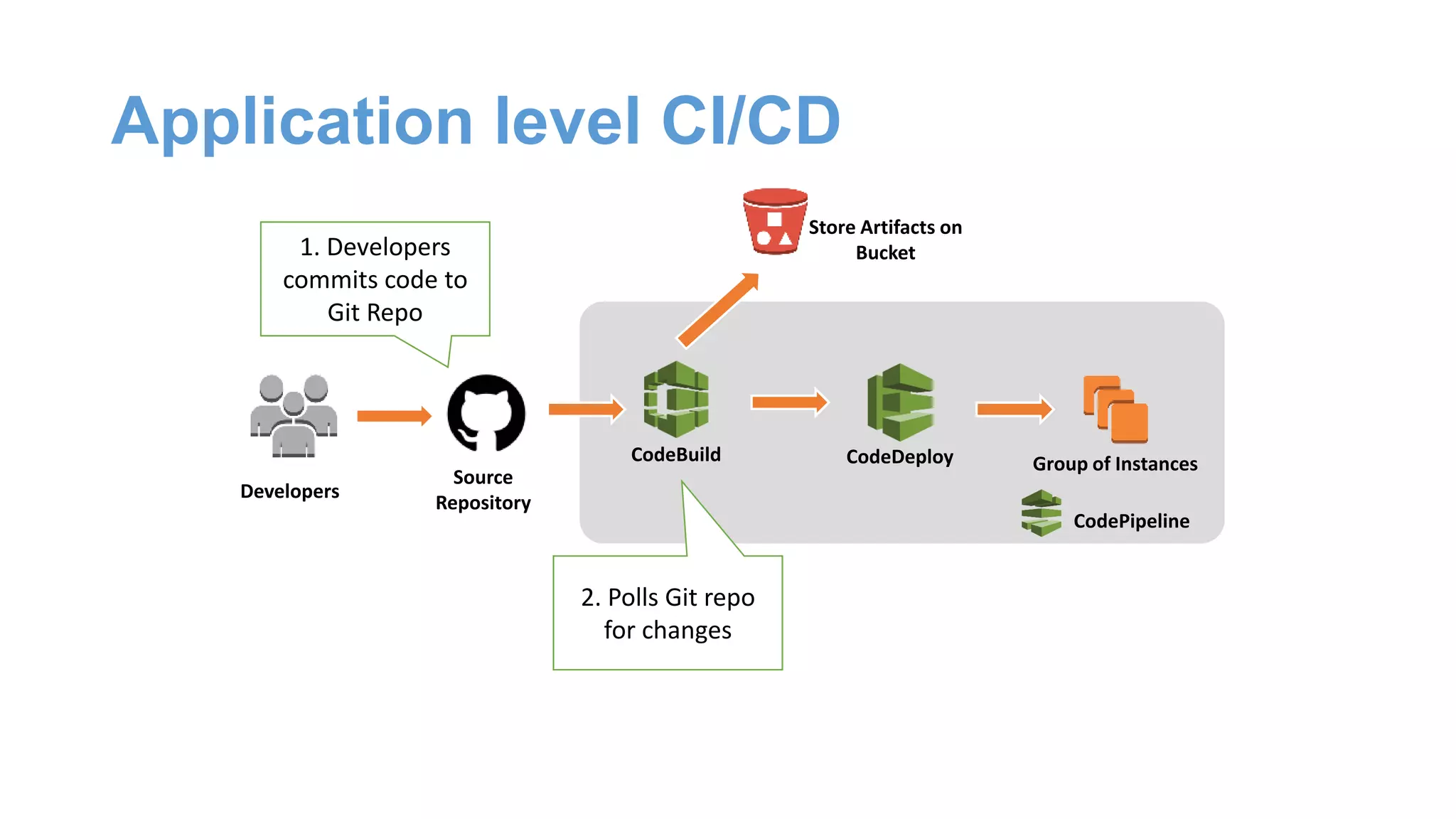

28. Application level CI/CD
CodeBuild CodeDeploy Group of Instances
Developers
Source
Repository
1. Developers
commits code to
Git Repo
2. Polls Git repo
for changes
Store Artifacts on
Bucket
CodePipeline

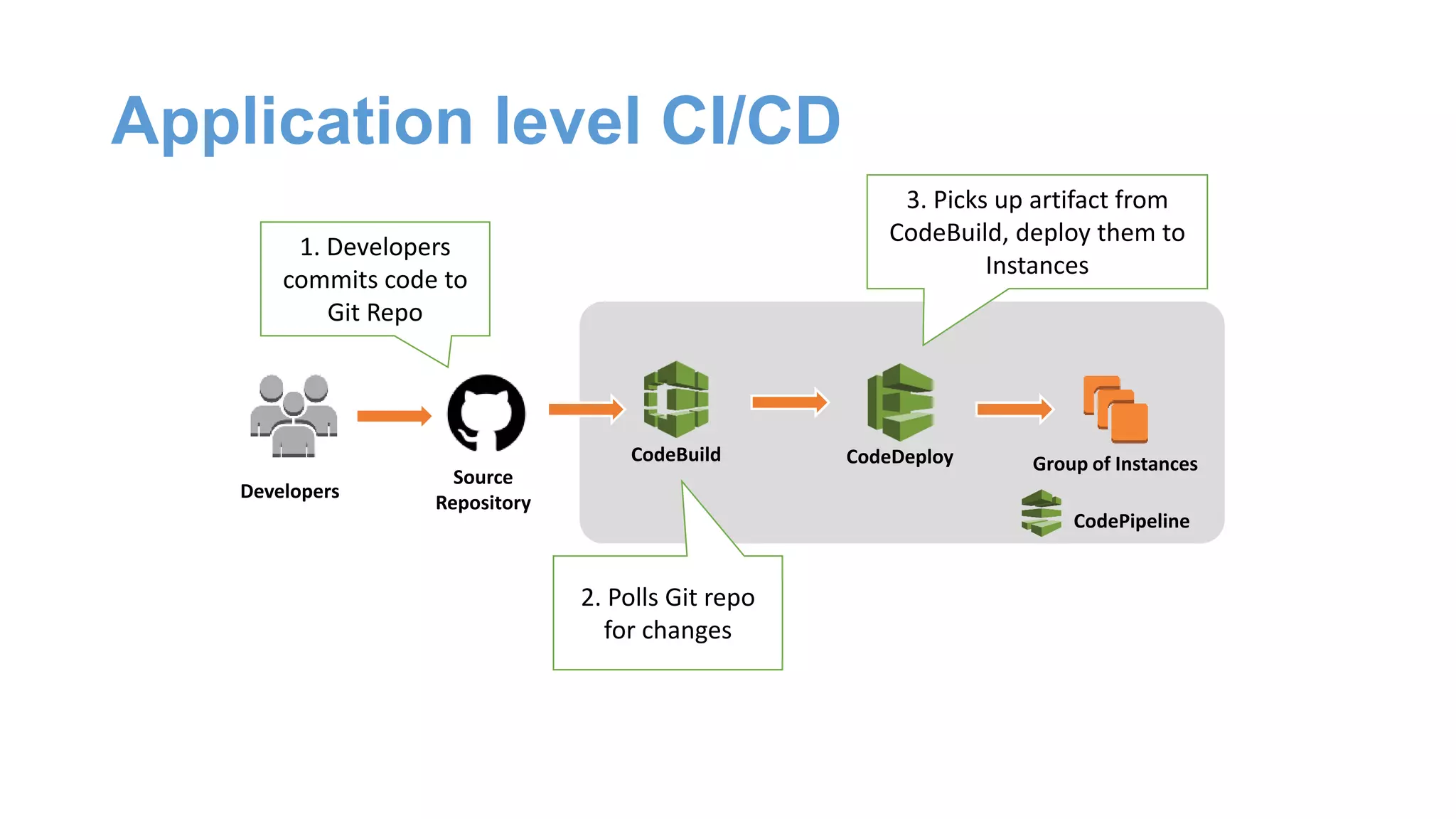

29. Application level CI/CD
CodeBuild CodeDeploy Group of Instances
Developers
Source
Repository
1. Developers
commits code to
Git Repo
2. Polls Git repo
for changes
3. Picks up artifact from
CodeBuild, deploy them to
Instances
CodePipeline

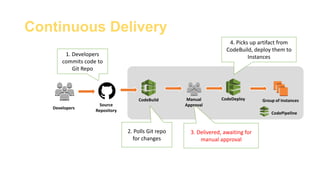

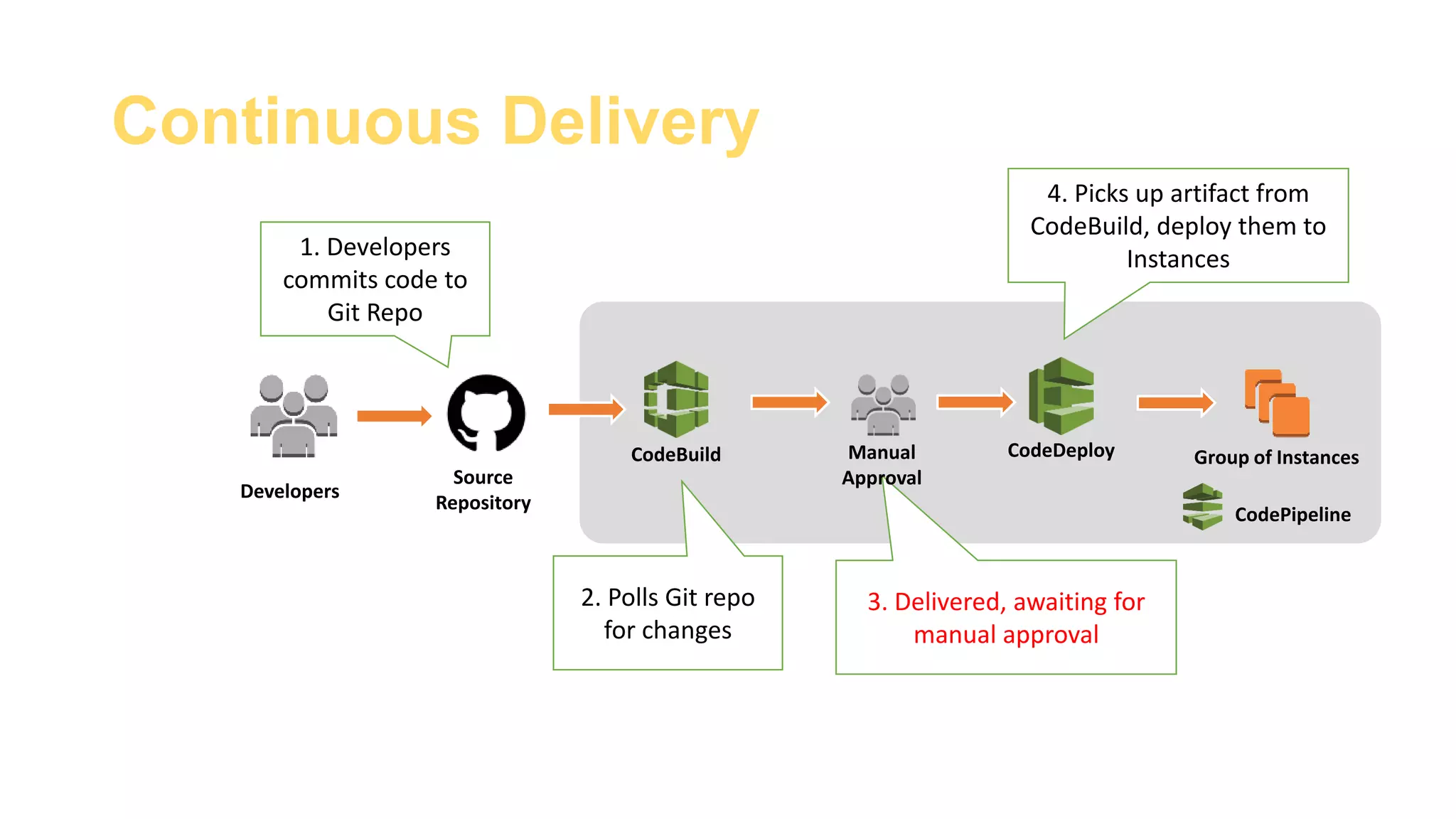

30. Continuous Delivery
CodeBuild CodeDeploy Group of Instances
Developers
Source
Repository
1. Developers
commits code to
Git Repo
2. Polls Git repo
for changes
4. Picks up artifact from
CodeBuild, deploy them to
Instances
CodePipeline
3. Delivered, awaiting for
manual approval
Manual
Approval

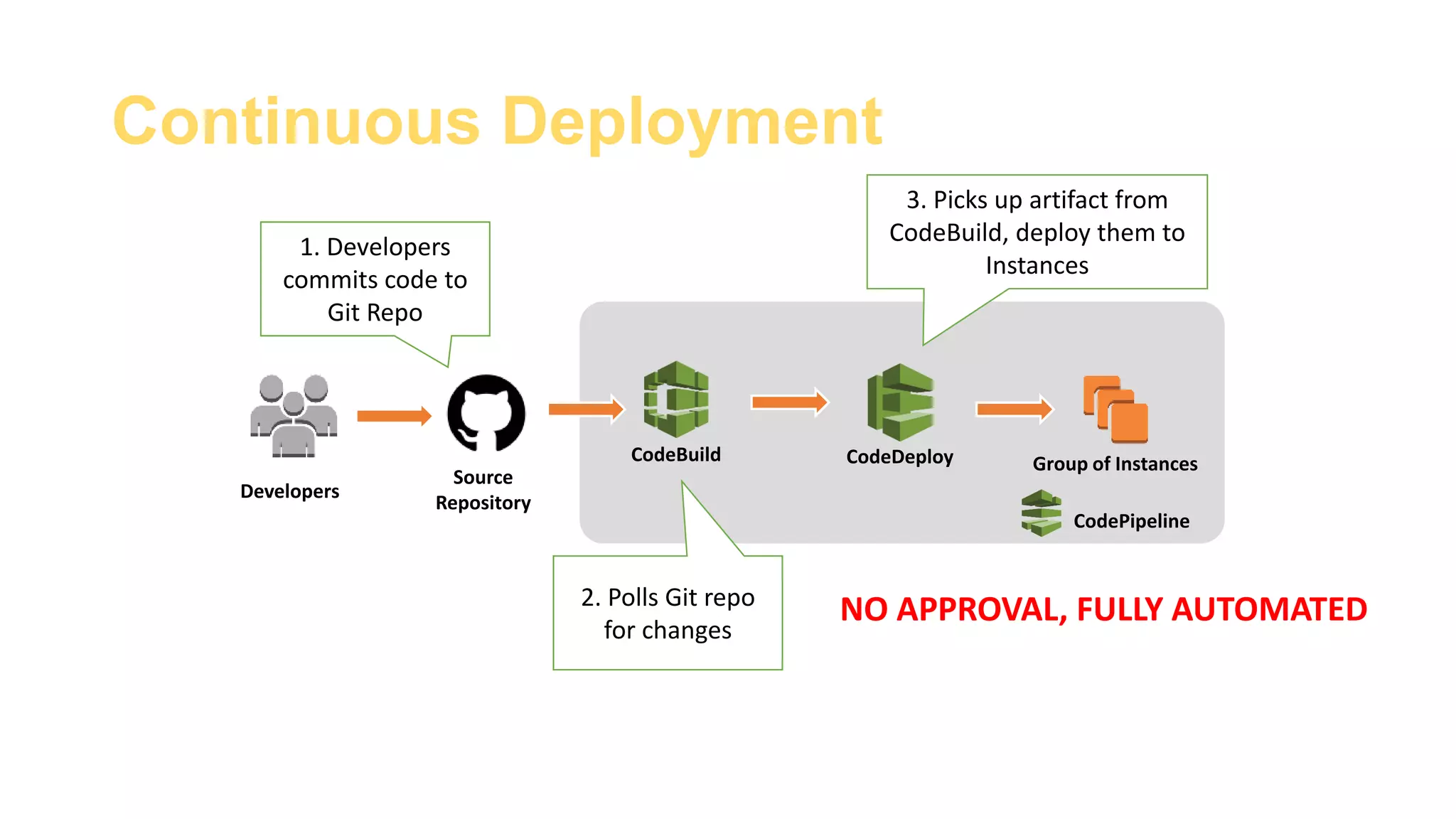

31. Continuous Deployment
CodeBuild CodeDeploy Group of Instances
Developers
Source
Repository
1. Developers
commits code to
Git Repo
2. Polls Git repo
for changes
3. Picks up artifact from
CodeBuild, deploy them to
Instances
CodePipeline
NO APPROVAL, FULLY AUTOMATED

32. Repo link for the demo
Visit : https://bhargavamin.github.io/devops-techtalk
It also includes step-by-step guide to setup CI/CD pipeline for both the demo

33. Demo

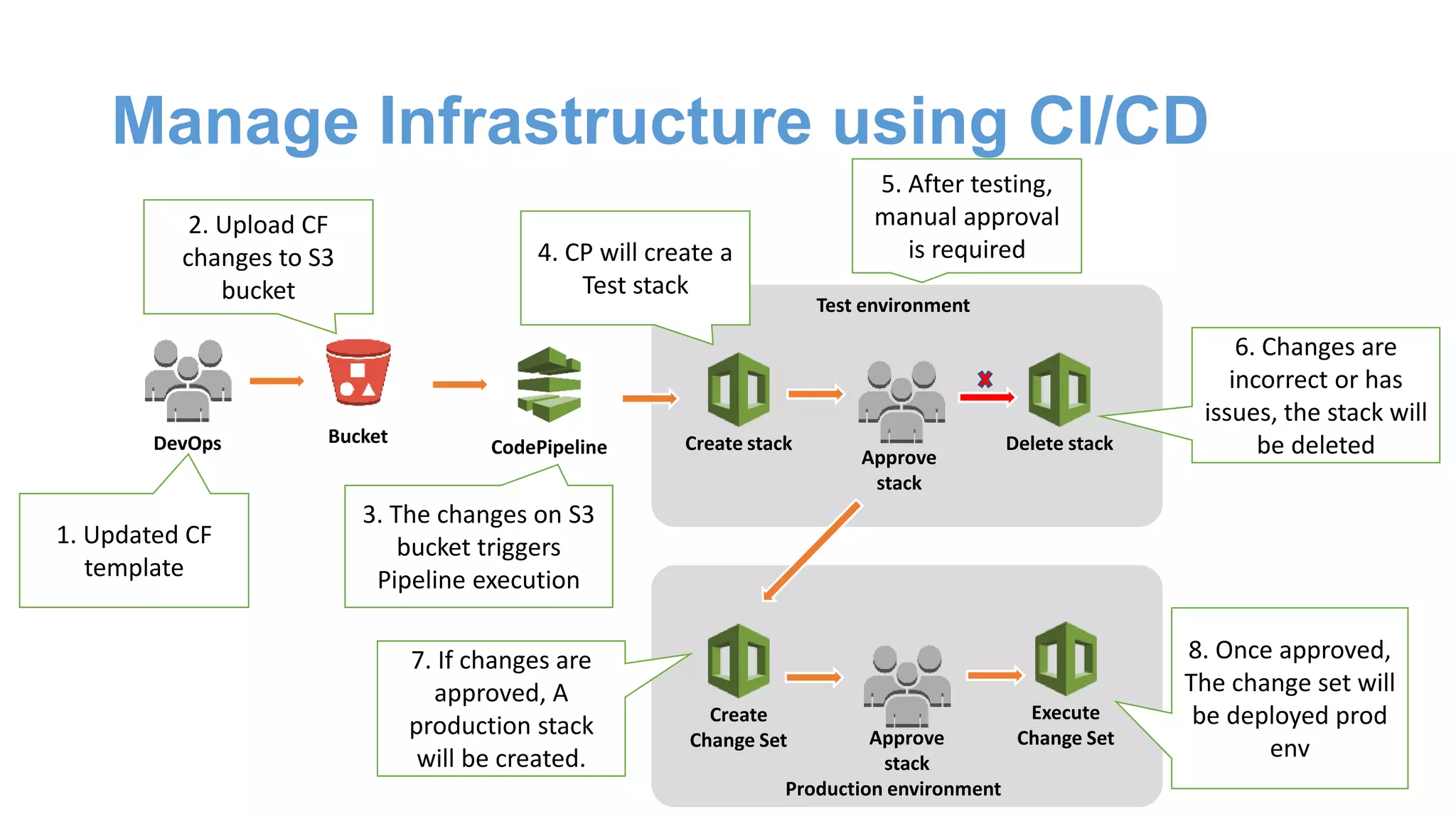

34. Manage Infrastructure using CI/CD
Bucket
CodePipeline Create stack Delete stack
Approve
stack
Test environment
Production environment
Create
Change Set
Execute
Change SetApprove
stack
1. Updated CF
template
DevOps
2. Upload CF
changes to S3
bucket
3. The changes on S3
bucket triggers
Pipeline execution
4. CP will create a
Test stack
5. After testing,
manual approval
is required
6. Changes are
incorrect or has
issues, the stack will
be deleted
7. If changes are
approved, A
production stack
will be created.
8. Once approved,
The change set will
be deployed prod
env

35. Demo

36. A continuous process which will involve making significant
changes that will increase speed of software delivery
DevOps

37. Github/bhargavamin
Website/bhargavamin.com
LinkedIn/bhargavamin
Twitter/@bhargav7amin
Mail/bhargavamin@outlook.in
Let’s connect
