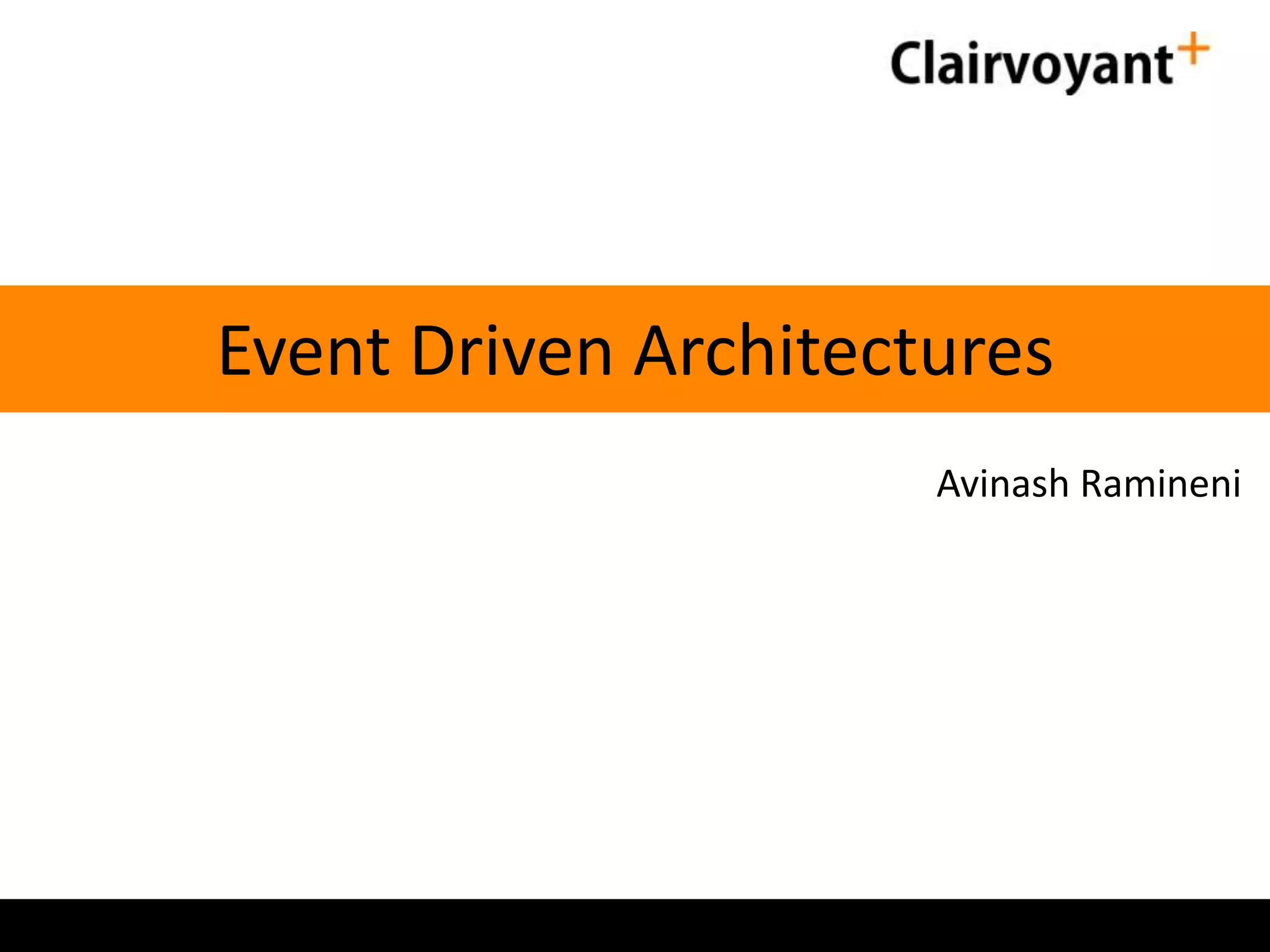

1. Event Driven Architectures
Avinash Ramineni

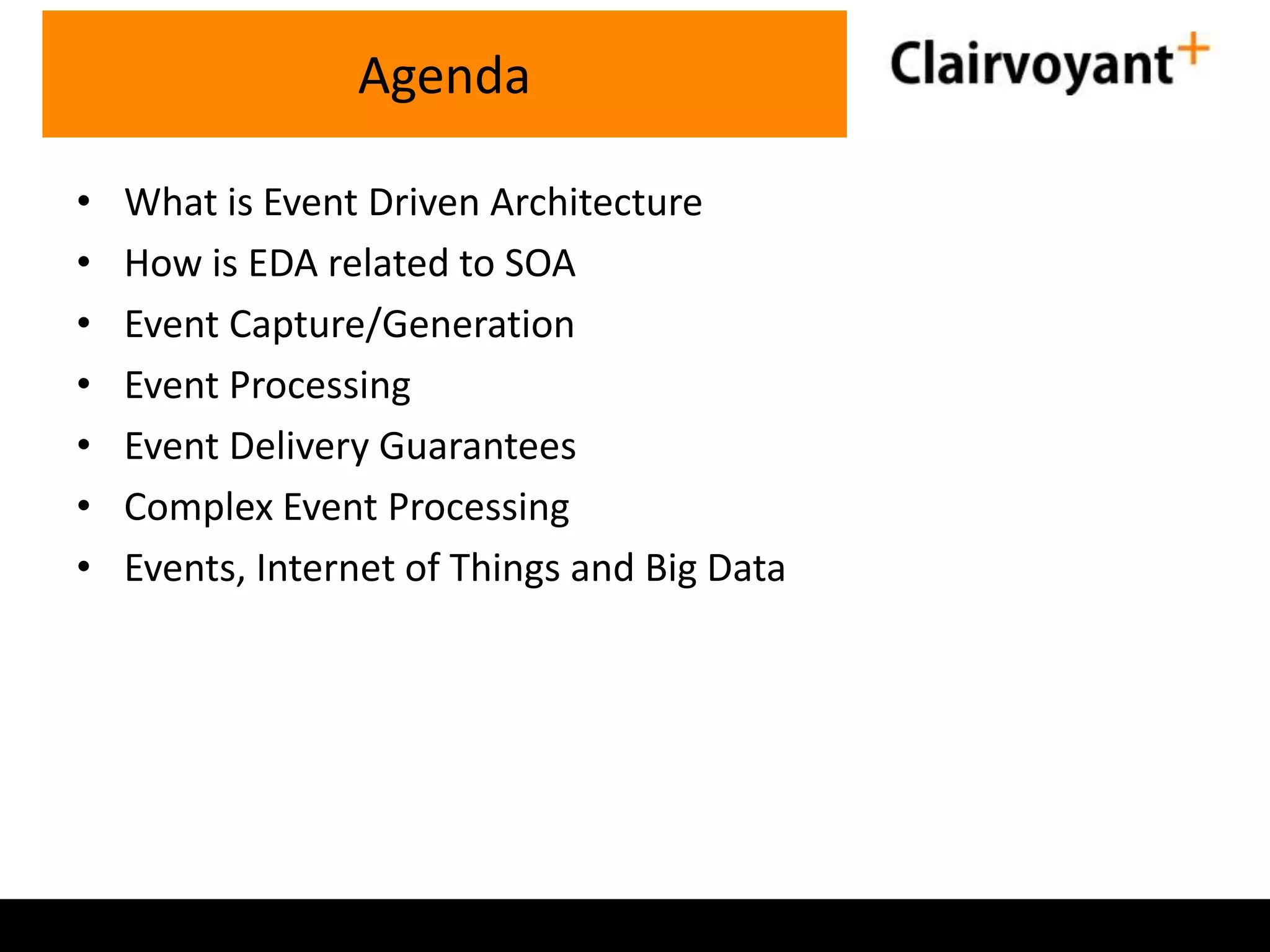

2. Agenda
•
•
•
•
•
•
•
What is Event Driven Architecture
How is EDA related to SOA
Event Capture/Generation
Event Processing
Event Delivery Guarantees
Complex Event Processing
Events, Internet of Things and Big Data

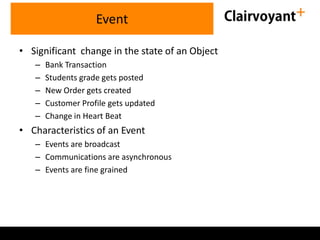

3. Event
• Significant change in the state of an Object
–
–
–
–
–
Bank Transaction
Students grade gets posted
New Order gets created
Customer Profile gets updated
Change in Heart Beat
• Characteristics of an Event
– Events are broadcast
– Communications are asynchronous
– Events are fine grained

4. Event Driven Architecture (EDA)
• Handling of the Events as they occur and the transfer of
events among the systems in a loosely coupled way
• Enables Situation Awareness and enables sense-and-respond
behavior

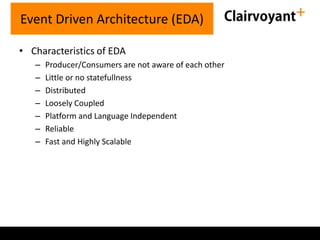

5. Event Driven Architecture (EDA)
• Characteristics of EDA
–
–
–
–
–
–
–
Producer/Consumers are not aware of each other
Little or no statefullness
Distributed
Loosely Coupled
Platform and Language Independent
Reliable
Fast and Highly Scalable

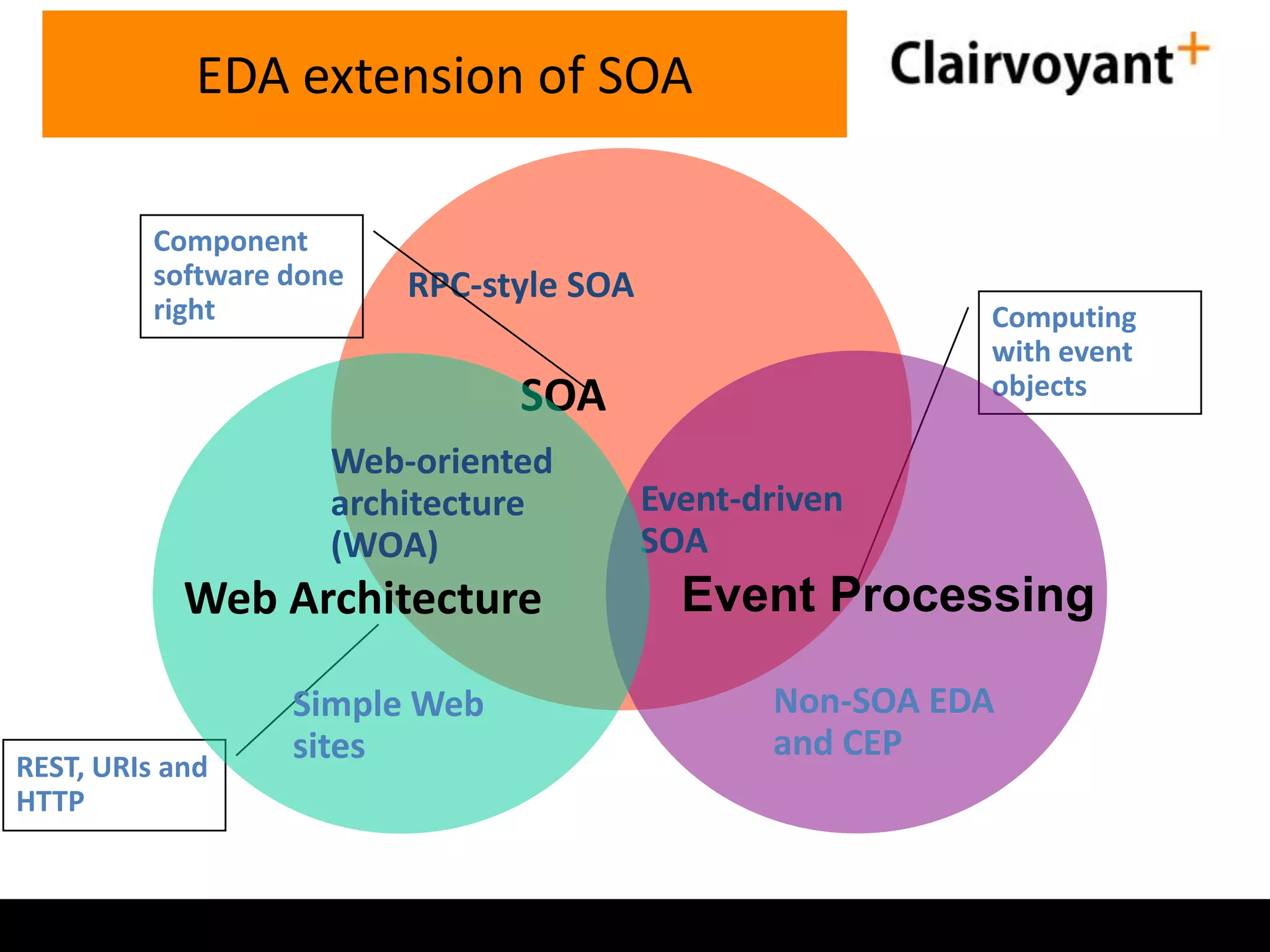

6. EDA extension of SOA
Component
software done
right
RPC-style SOA
Computing
with event
objects
SOA
Web-oriented
architecture
(WOA)
Web Architecture
REST, URIs and
HTTP
Simple Web
sites
Event-driven
SOA
Event Processing
Non-SOA EDA
and CEP

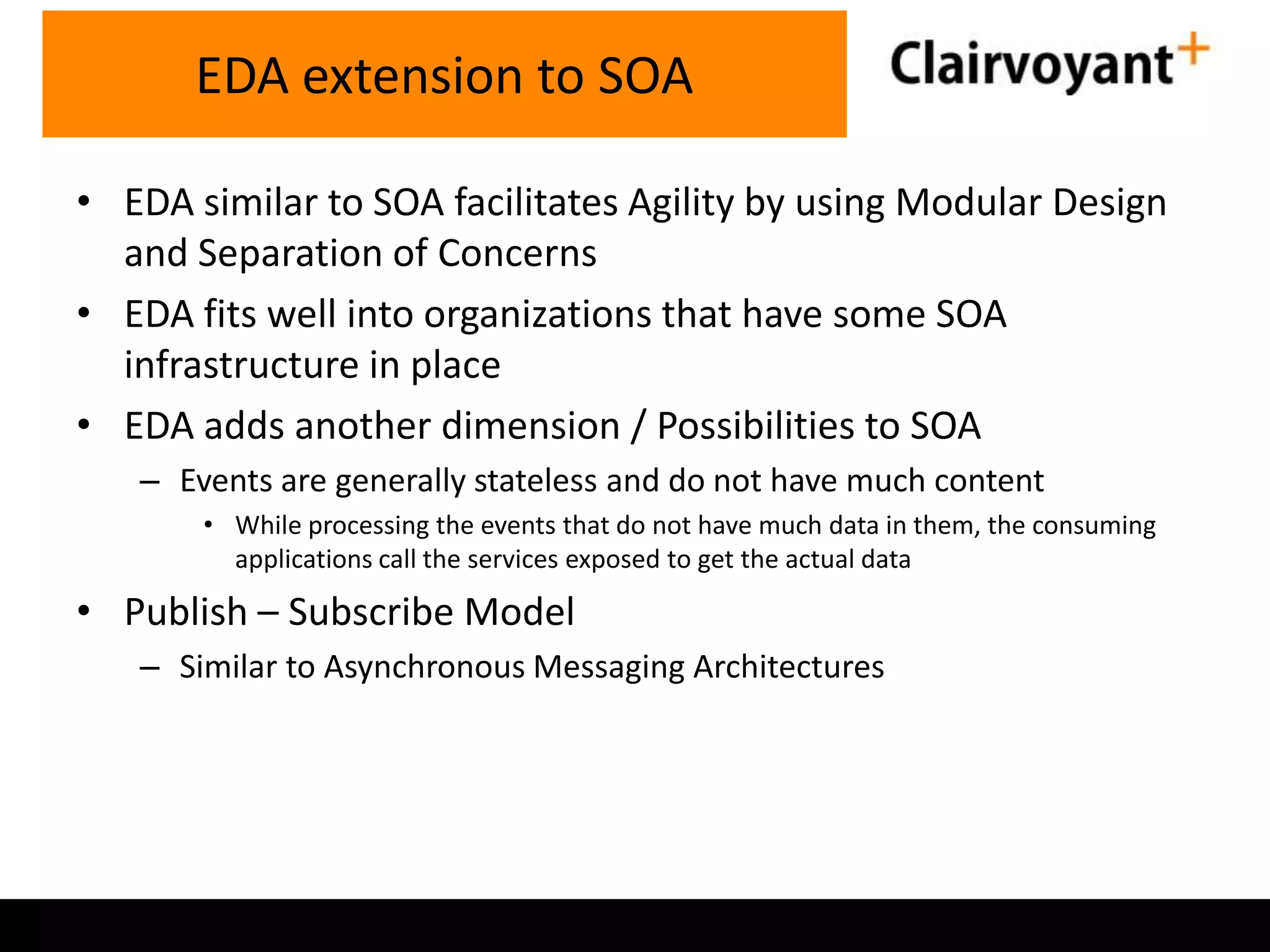

7. EDA extension to SOA
• EDA similar to SOA facilitates Agility by using Modular Design
and Separation of Concerns
• EDA fits well into organizations that have some SOA
infrastructure in place
• EDA adds another dimension / Possibilities to SOA
– Events are generally stateless and do not have much content
• While processing the events that do not have much data in them, the consuming
applications call the services exposed to get the actual data
• Publish – Subscribe Model
– Similar to Asynchronous Messaging Architectures

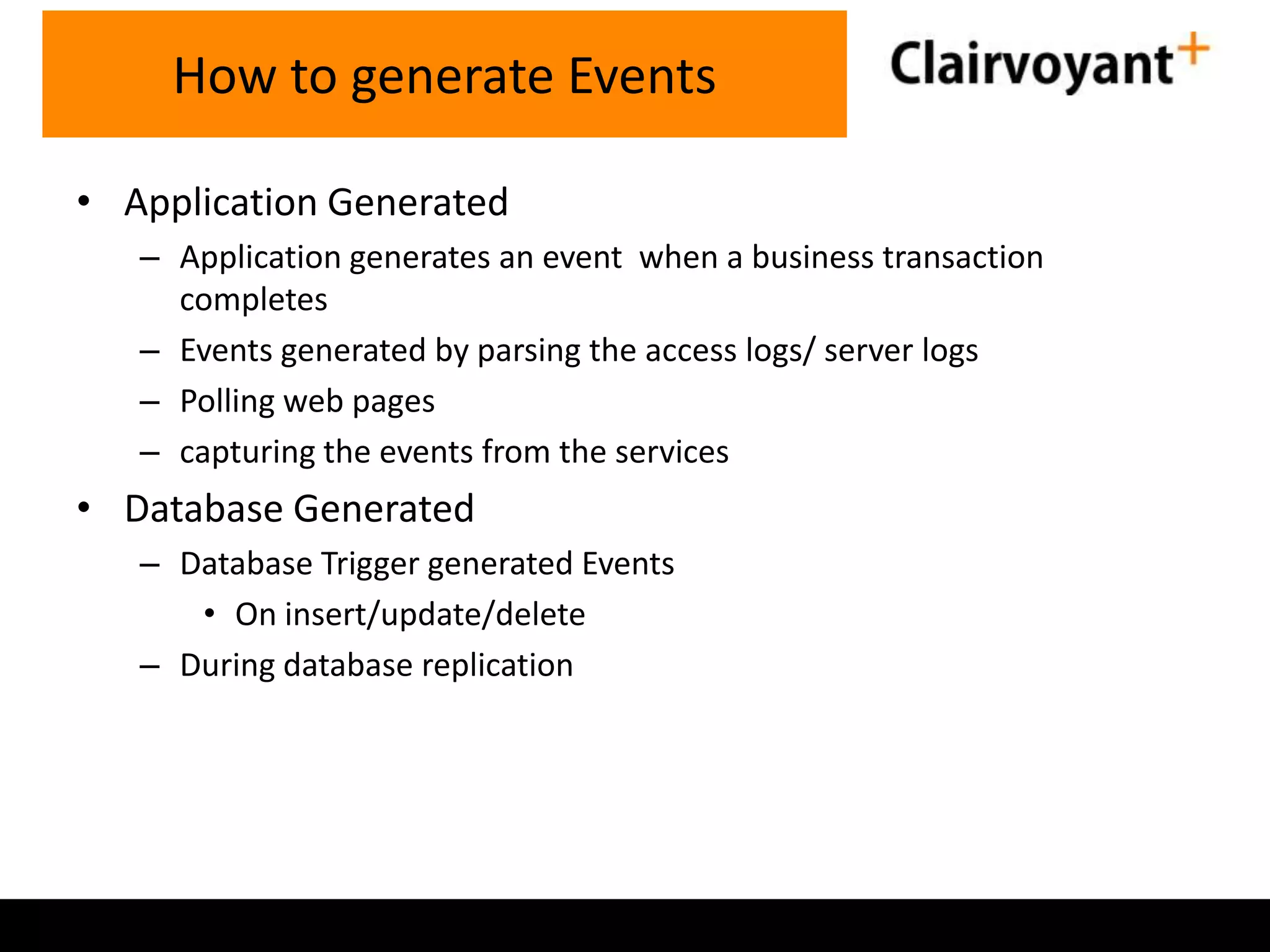

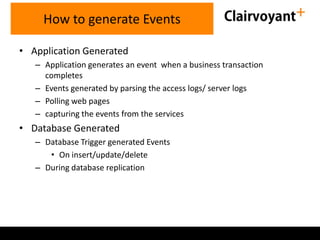

8. How to generate Events
• Application Generated
– Application generates an event when a business transaction
completes
– Events generated by parsing the access logs/ server logs
– Polling web pages
– capturing the events from the services
• Database Generated
– Database Trigger generated Events
• On insert/update/delete
– During database replication

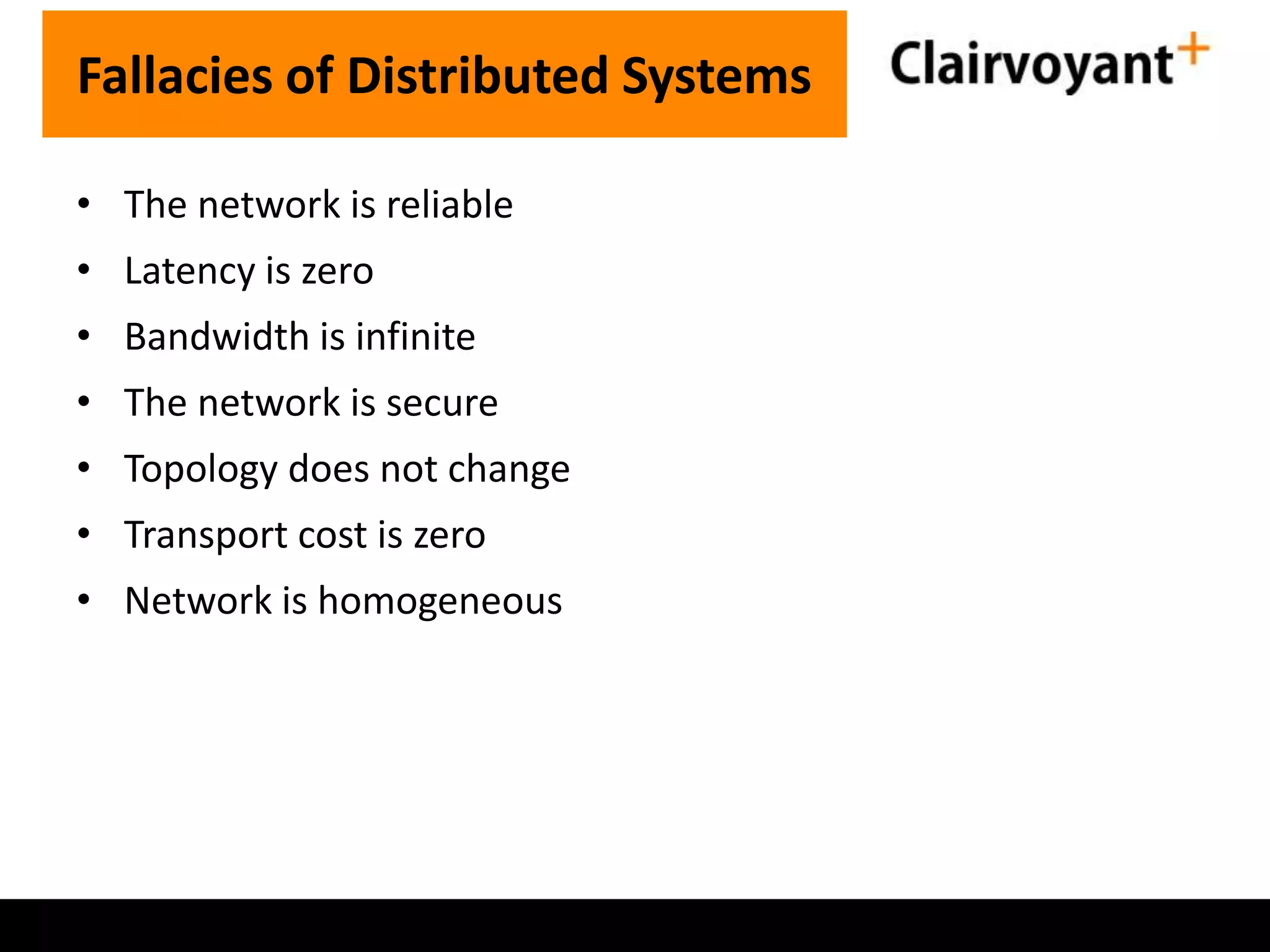

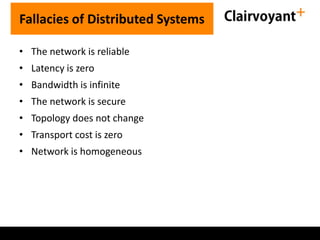

9. Fallacies of Distributed Systems
• The network is reliable
• Latency is zero
• Bandwidth is infinite
• The network is secure
• Topology does not change
• Transport cost is zero
• Network is homogeneous

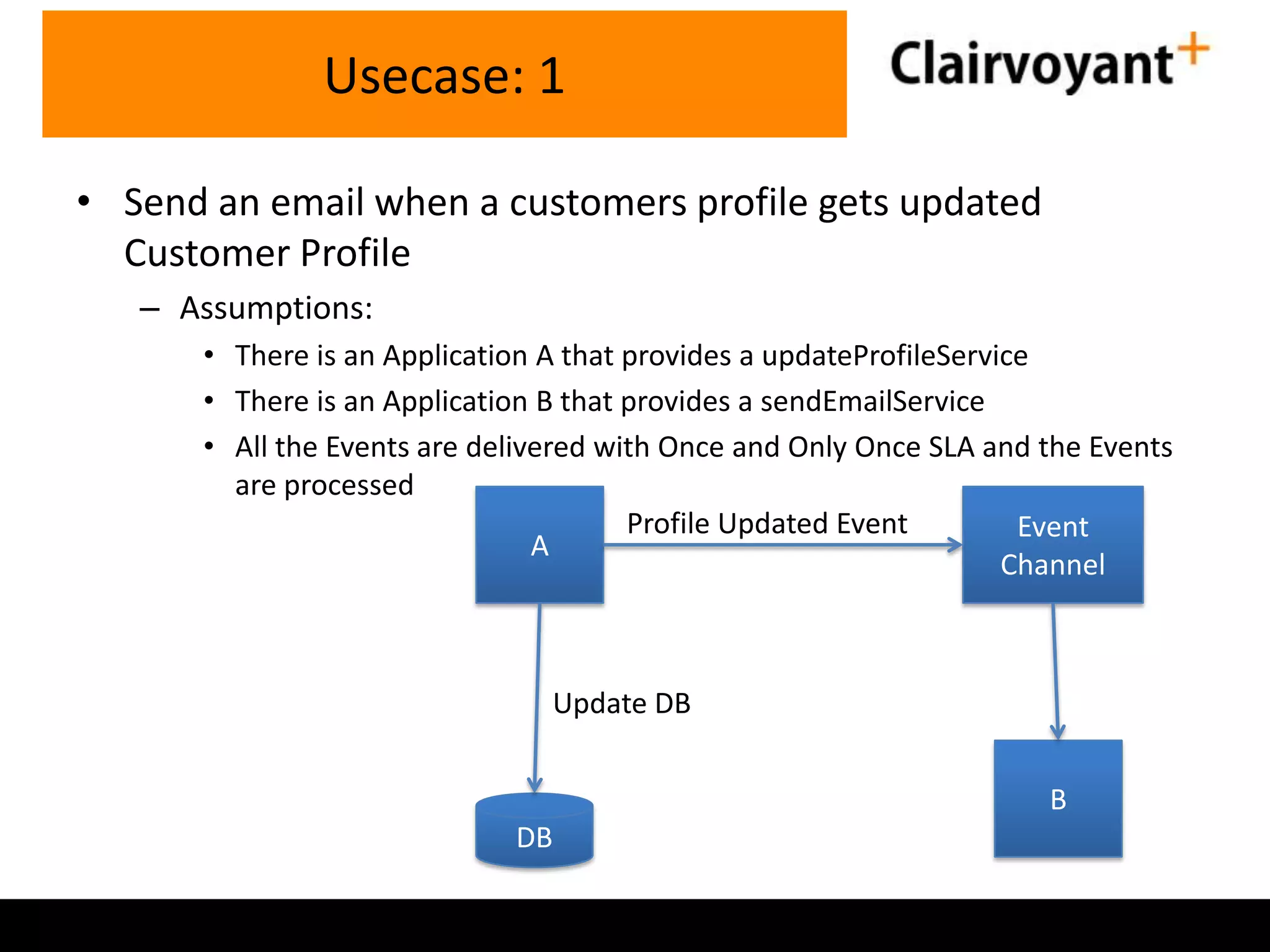

10. Usecase: 1
• Send an email when a customers profile gets updated
Customer Profile
– Assumptions:
• There is an Application A that provides a updateProfileService
• There is an Application B that provides a sendEmailService
• All the Events are delivered with Once and Only Once SLA and the Events
are processed
Profile Updated Event
Event
A
Channel
Update DB
B
DB

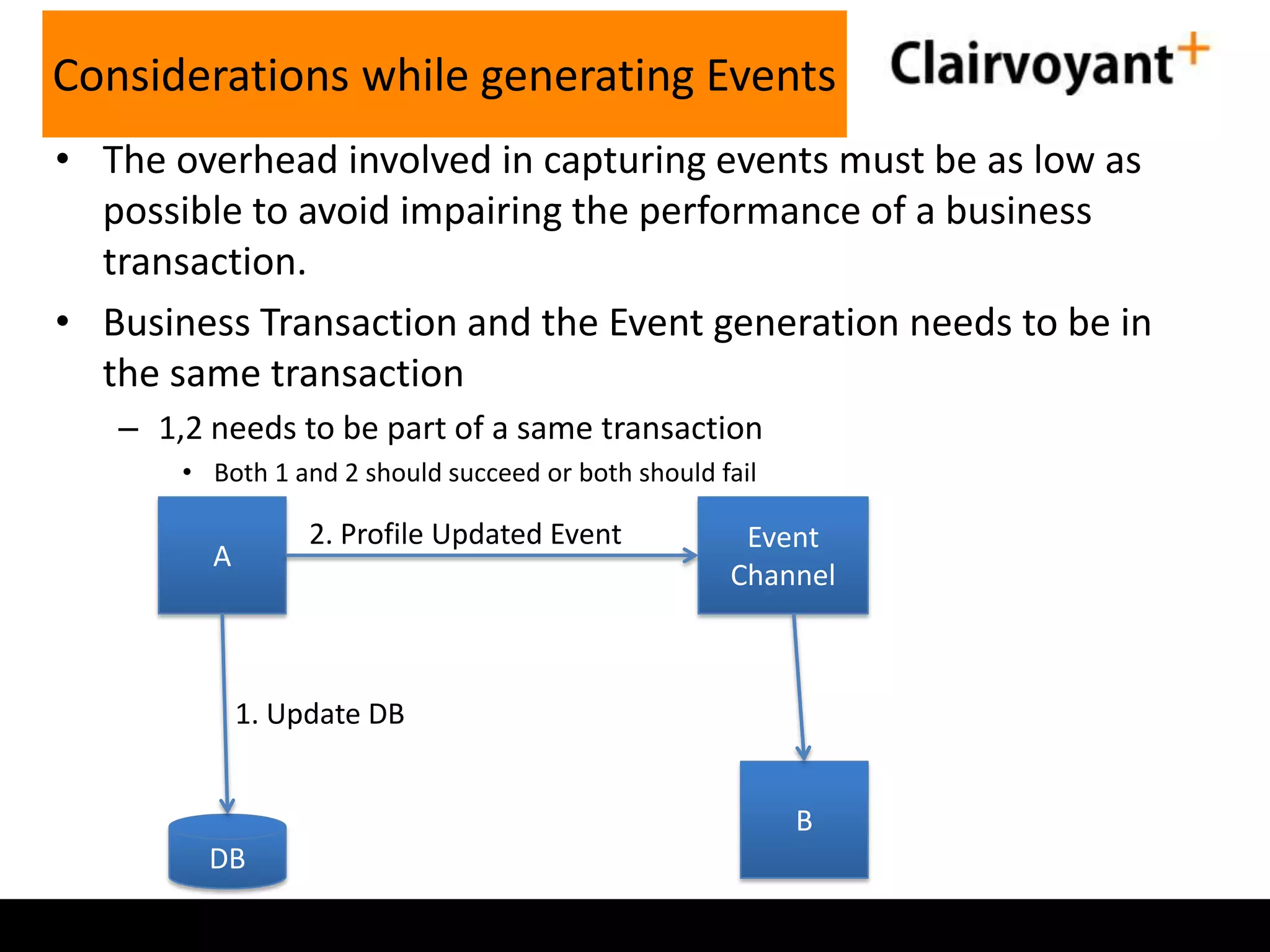

11. Considerations while generating Events
• The overhead involved in capturing events must be as low as
possible to avoid impairing the performance of a business
transaction.
• Business Transaction and the Event generation needs to be in
the same transaction
– 1,2 needs to be part of a same transaction
• Both 1 and 2 should succeed or both should fail
2. Profile Updated Event
A
Event
Channel
1. Update DB
B
DB

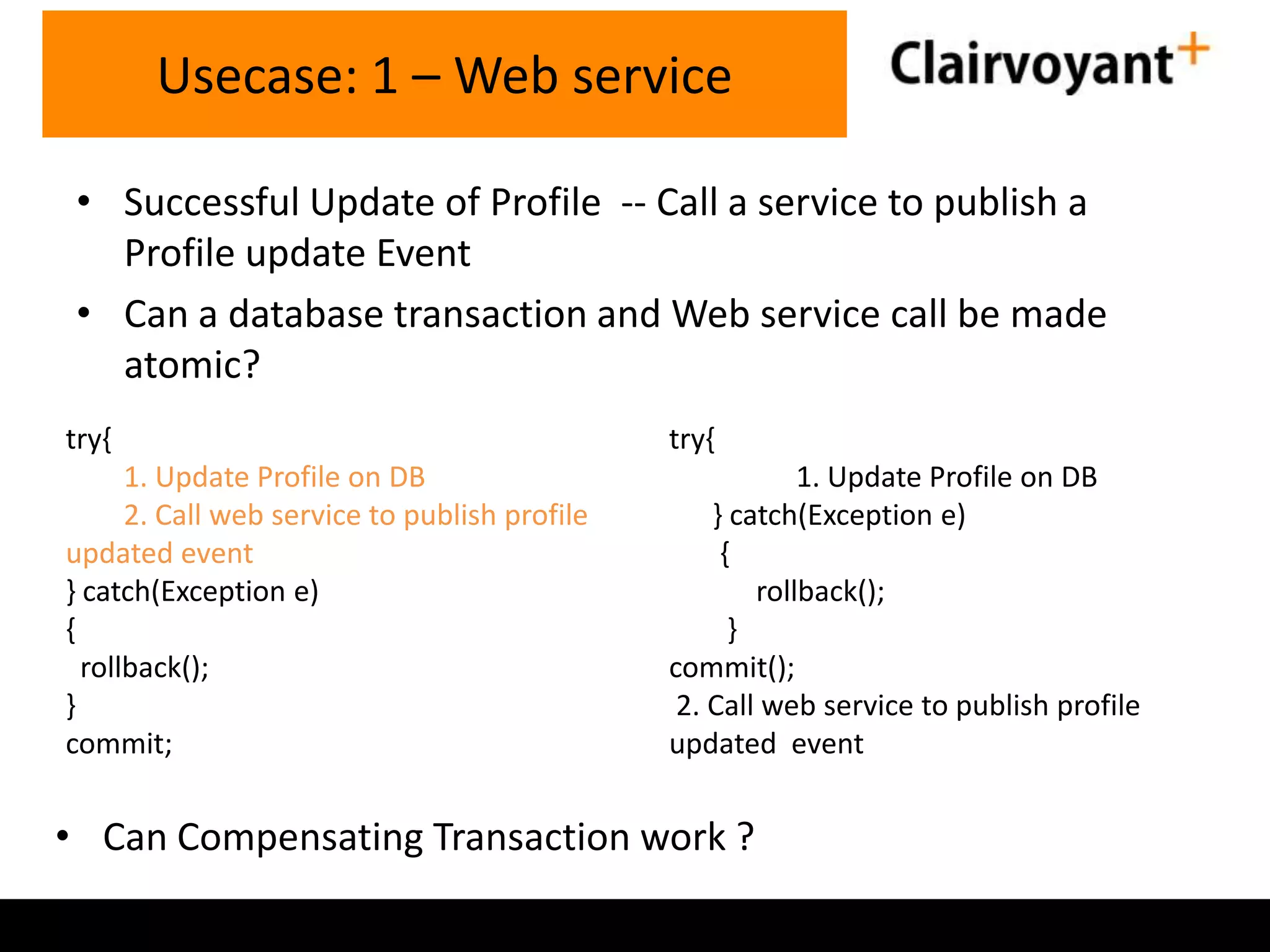

12. Usecase: 1 – Web service
• Successful Update of Profile -- Call a service to publish a
Profile update Event
• Can a database transaction and Web service call be made
atomic?
try{
try{
1. Update Profile on DB
2. Call web service to publish profile
updated event
} catch(Exception e)
{
rollback();
}
commit;
1. Update Profile on DB
} catch(Exception e)
{
rollback();
}
commit();
2. Call web service to publish profile
updated event
• Can Compensating Transaction work ?

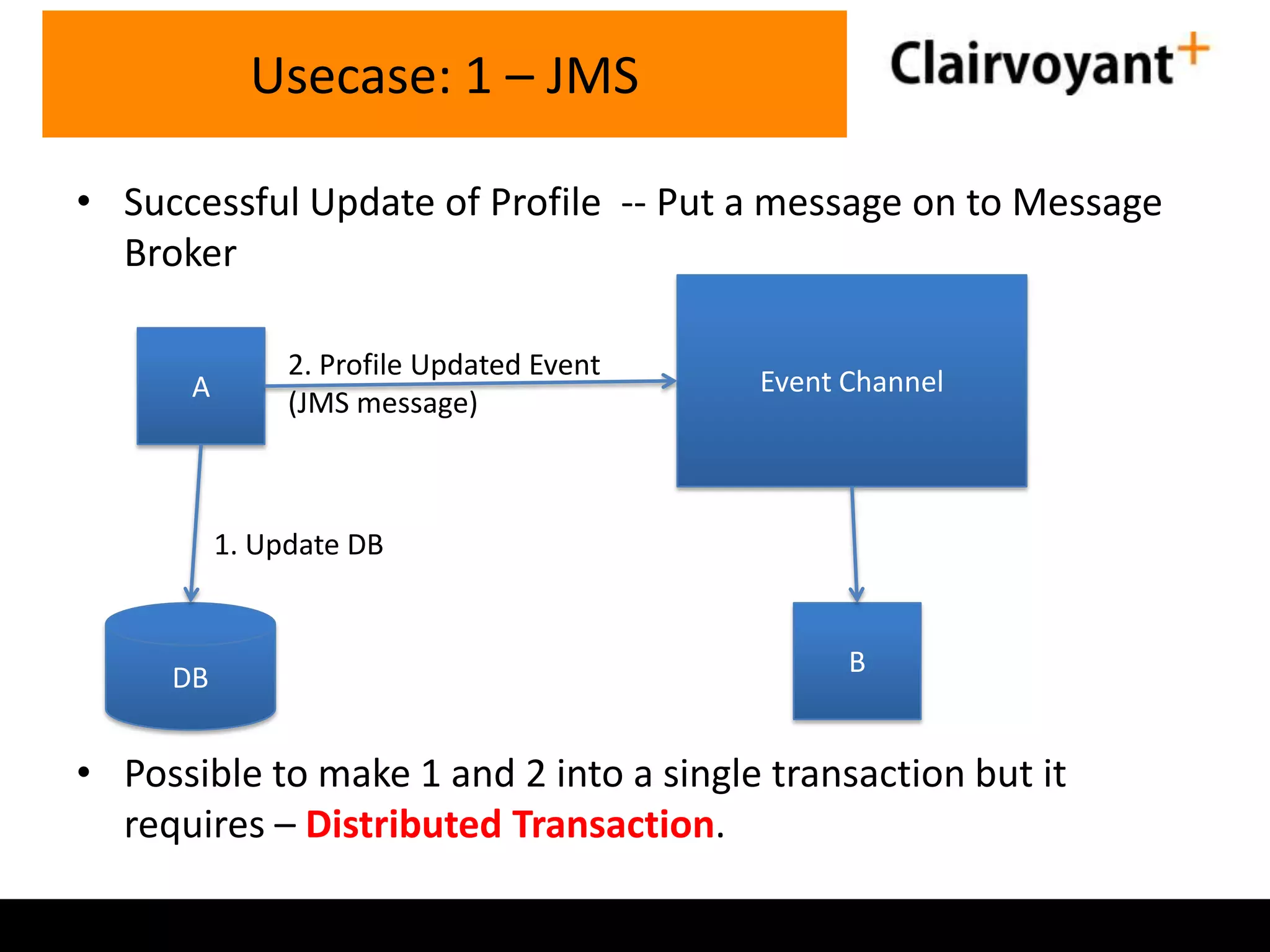

13. Usecase: 1 – JMS

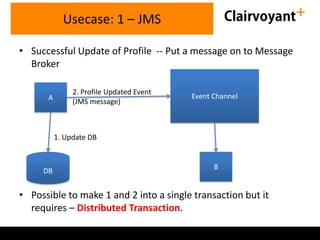

• Successful Update of Profile -- Put a message on to Message
Broker
A
2. Profile Updated Event
(JMS message)
Event Channel
1. Update DB
DB
B
• Possible to make 1 and 2 into a single transaction but it
requires – Distributed Transaction.

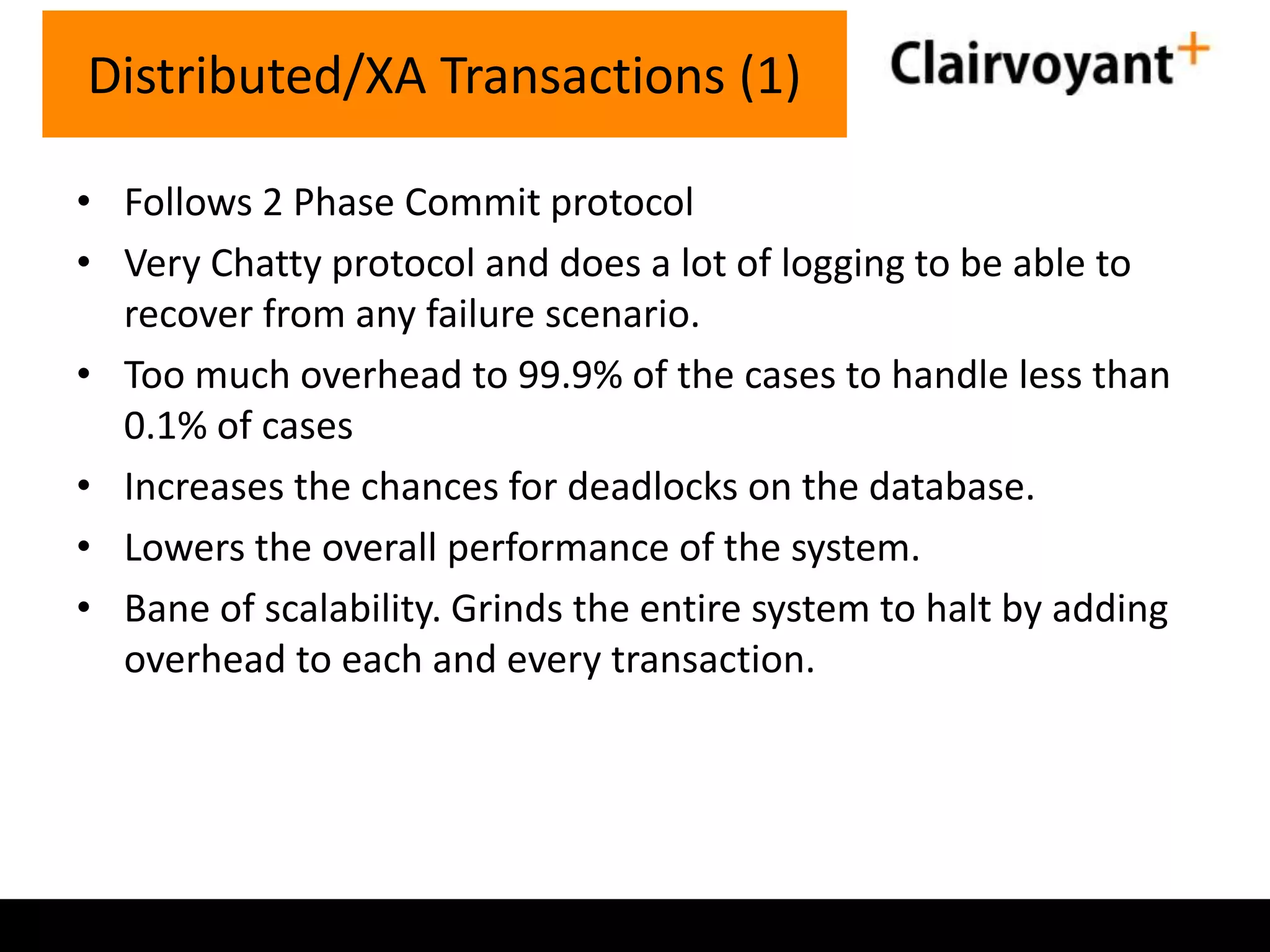

14. Distributed/XA Transactions (1)
• Follows 2 Phase Commit protocol
• Very Chatty protocol and does a lot of logging to be able to
recover from any failure scenario.
• Too much overhead to 99.9% of the cases to handle less than
0.1% of cases
• Increases the chances for deadlocks on the database.
• Lowers the overall performance of the system.
• Bane of scalability. Grinds the entire system to halt by adding
overhead to each and every transaction.

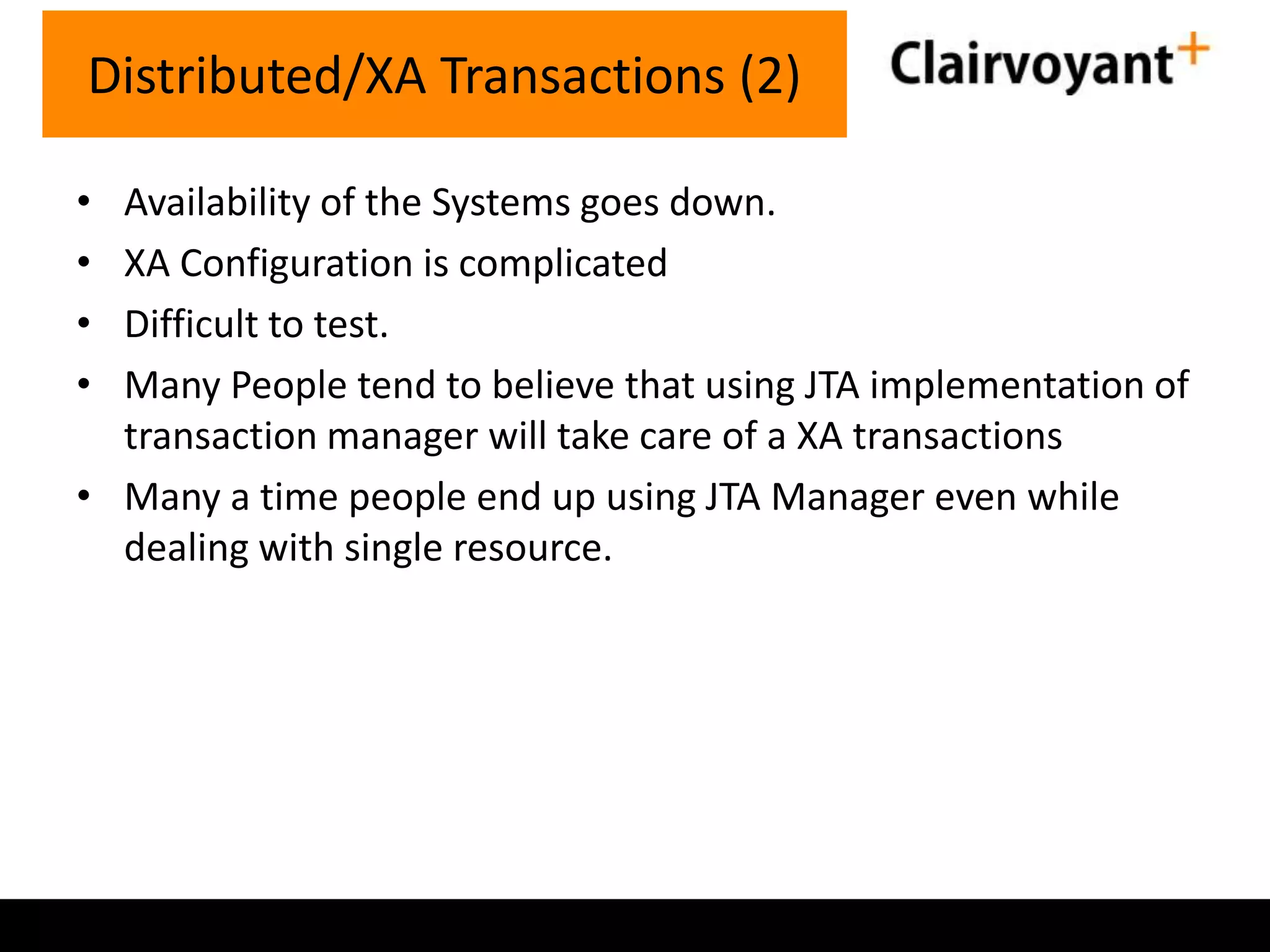

15. Distributed/XA Transactions (2)
•
•
•
•
Availability of the Systems goes down.
XA Configuration is complicated
Difficult to test.
Many People tend to believe that using JTA implementation of
transaction manager will take care of a XA transactions
• Many a time people end up using JTA Manager even while
dealing with single resource.

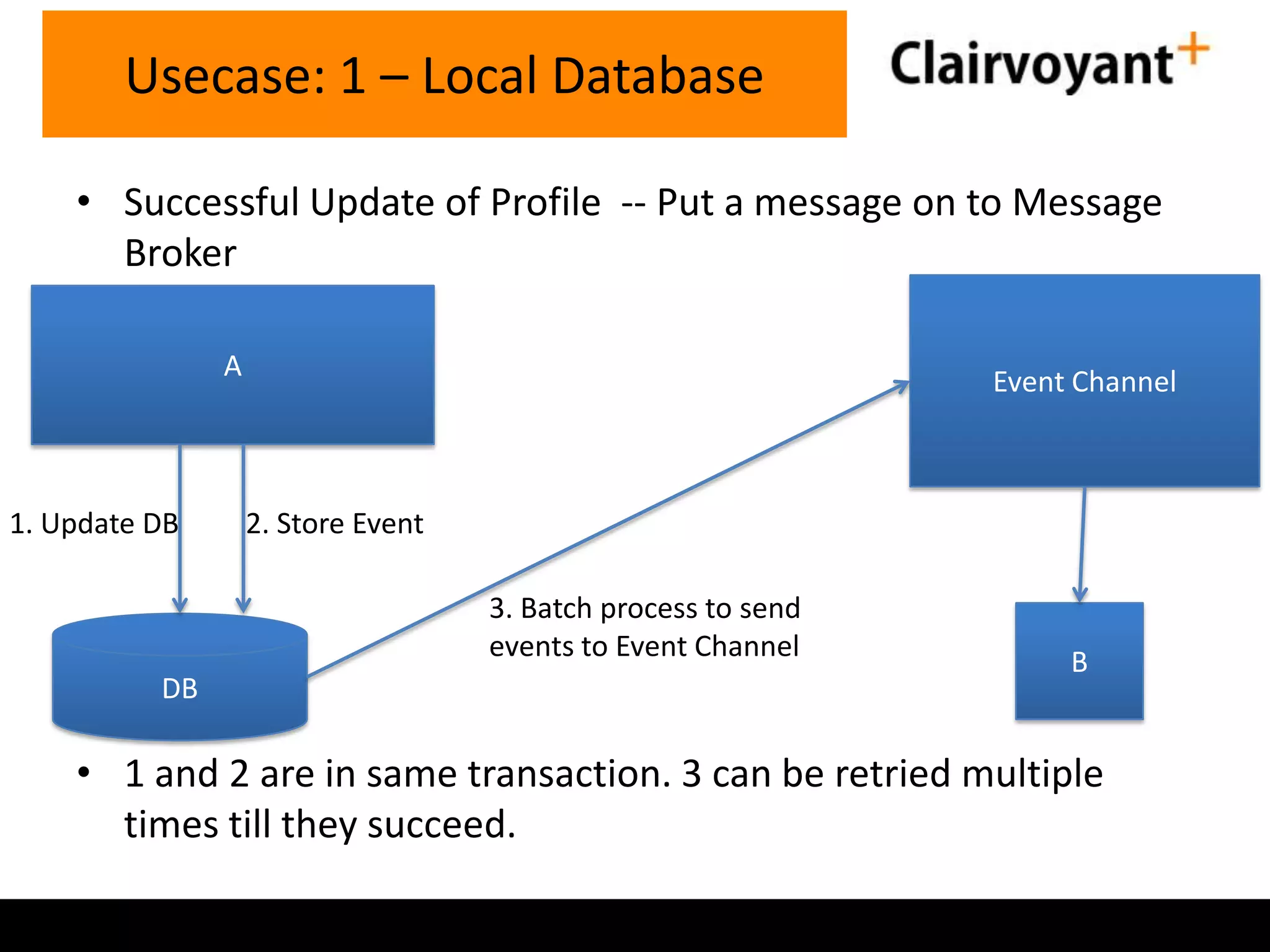

16. Usecase: 1 – Local Database
• Successful Update of Profile -- Put a message on to Message
Broker
A
1. Update DB
Event Channel
2. Store Event
3. Batch process to send
events to Event Channel
DB
B
• 1 and 2 are in same transaction. 3 can be retried multiple
times till they succeed.

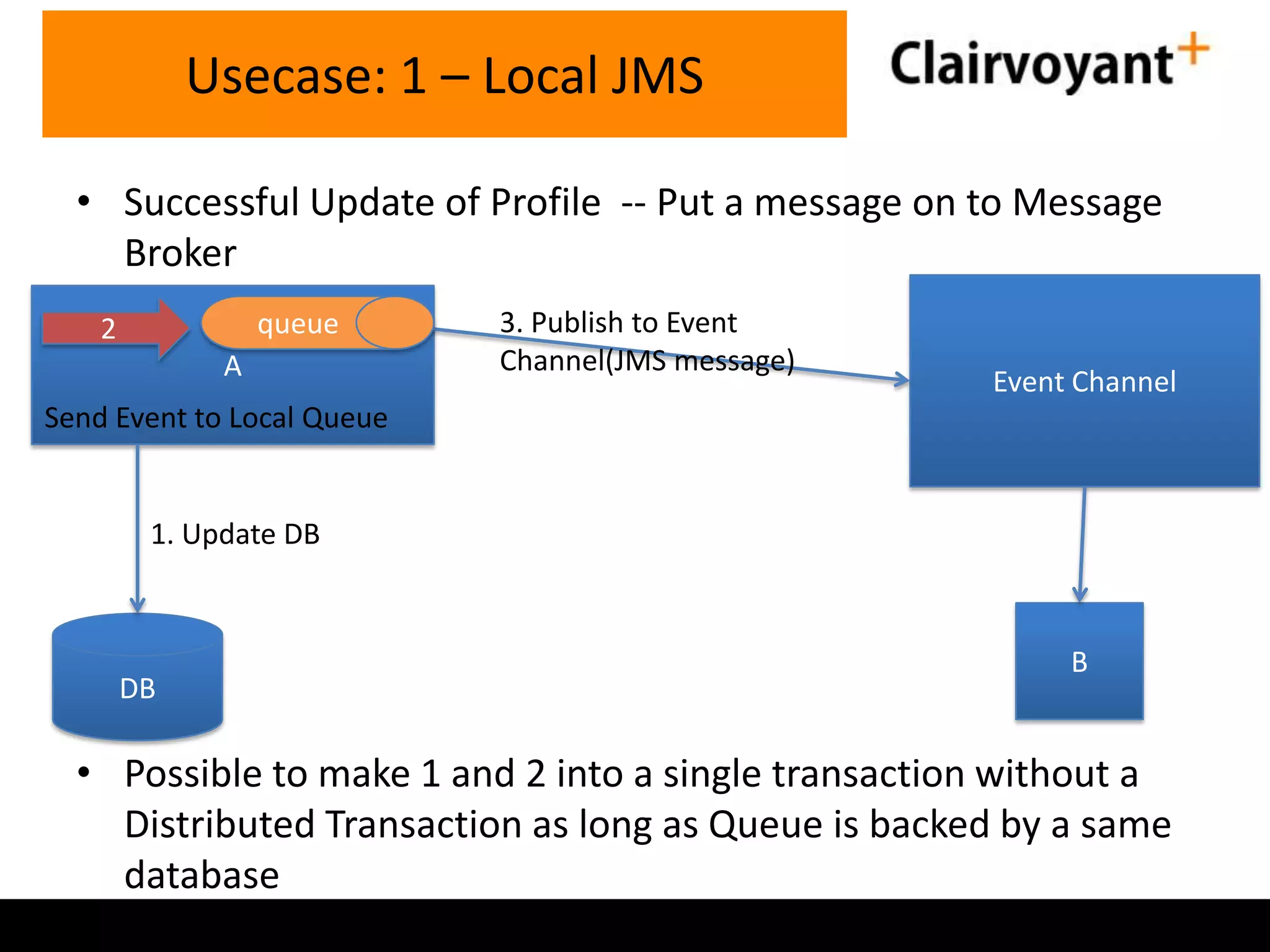

17. Usecase: 1 – Local JMS
• Successful Update of Profile -- Put a message on to Message
Broker
queue
2
A
3. Publish to Event
Channel(JMS message)
Event Channel
Send Event to Local Queue
1. Update DB
DB
B
• Possible to make 1 and 2 into a single transaction without a
Distributed Transaction as long as Queue is backed by a same
database

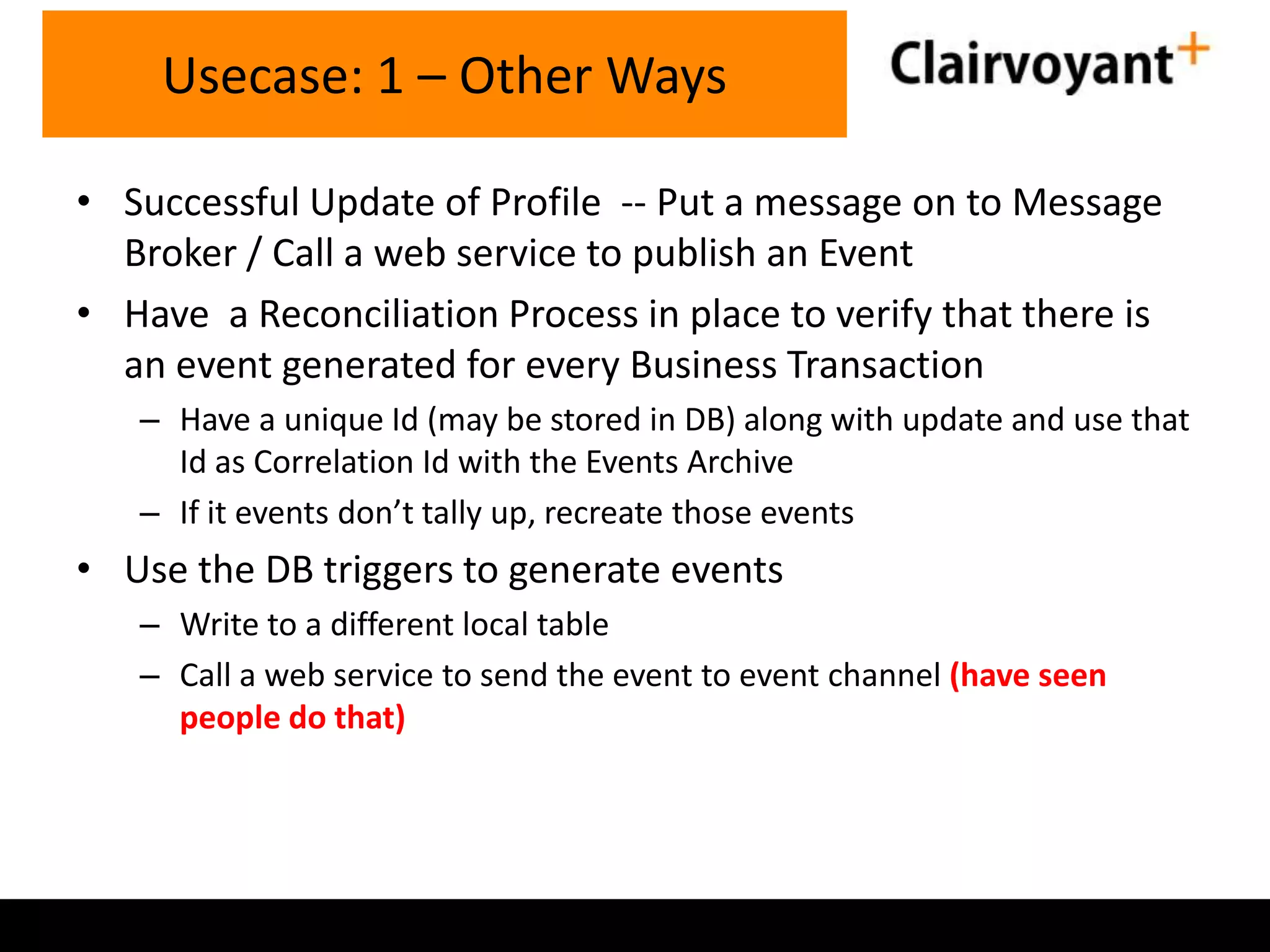

18. Usecase: 1 – Other Ways
• Successful Update of Profile -- Put a message on to Message
Broker / Call a web service to publish an Event
• Have a Reconciliation Process in place to verify that there is
an event generated for every Business Transaction
– Have a unique Id (may be stored in DB) along with update and use that
Id as Correlation Id with the Events Archive
– If it events don’t tally up, recreate those events
• Use the DB triggers to generate events
– Write to a different local table
– Call a web service to send the event to event channel (have seen
people do that)

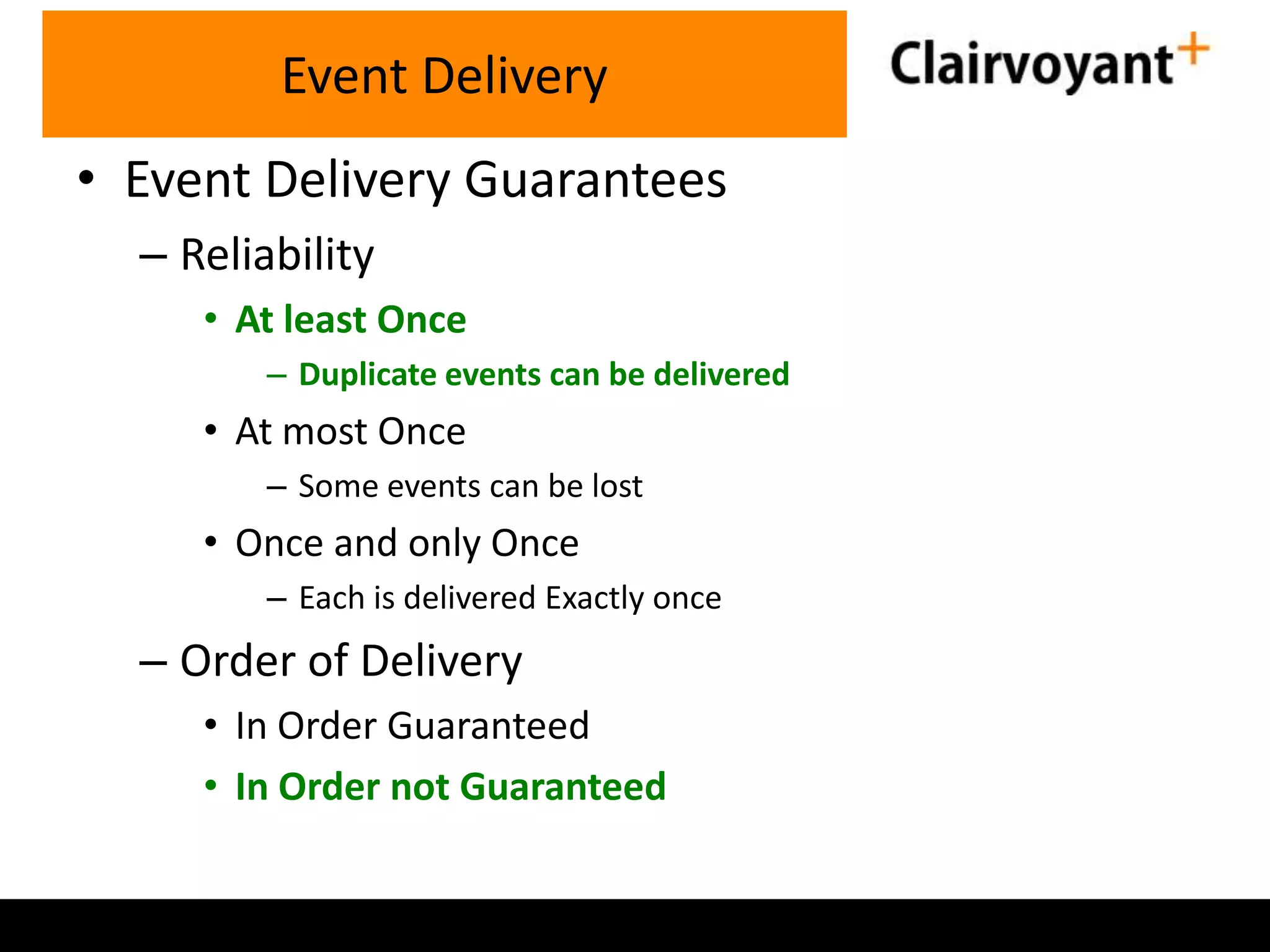

19. Event Delivery
• Event Delivery Guarantees
– Reliability
• At least Once
– Duplicate events can be delivered
• At most Once
– Some events can be lost
• Once and only Once
– Each is delivered Exactly once
– Order of Delivery
• In Order Guaranteed
• In Order not Guaranteed

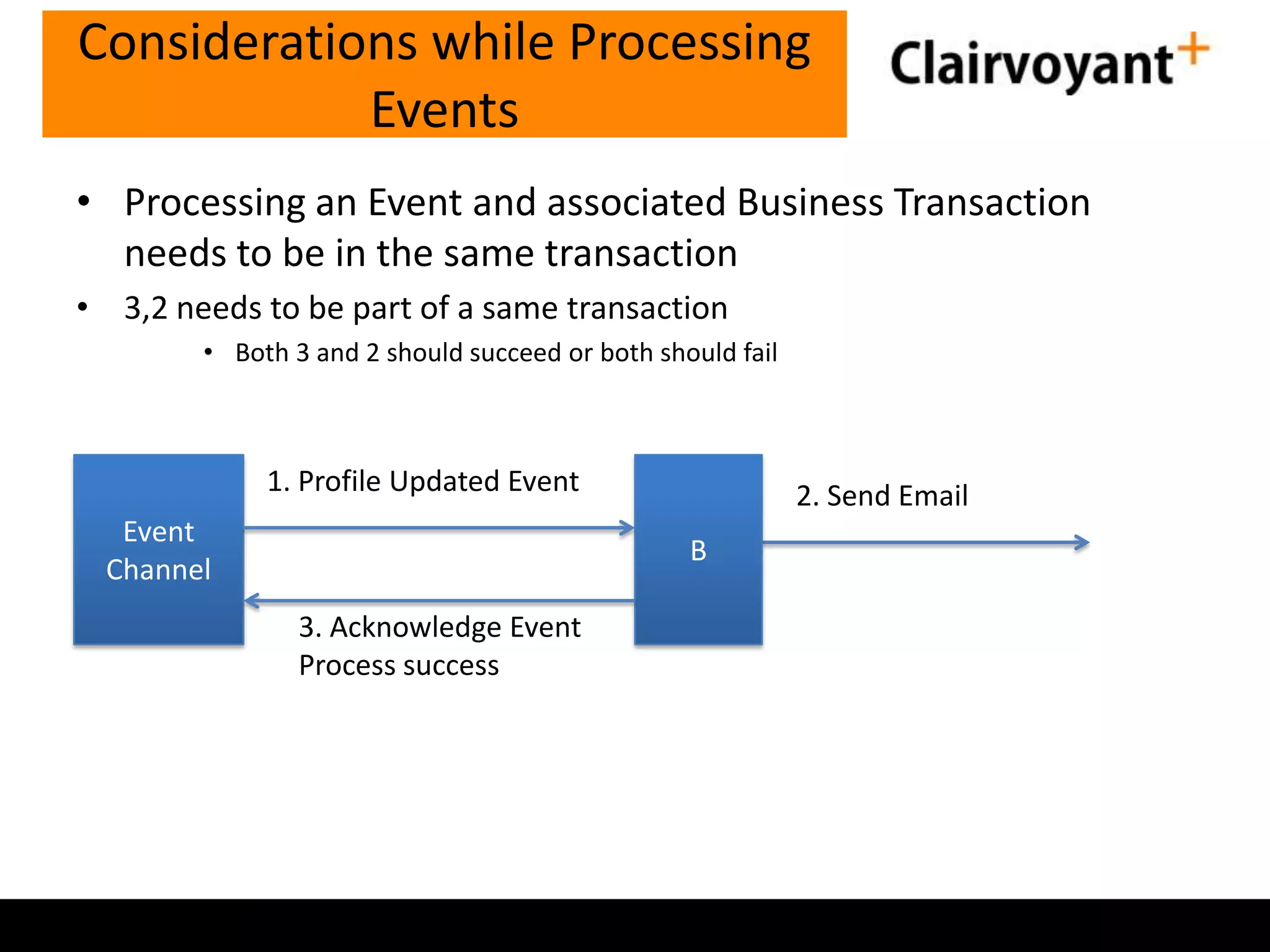

20. Considerations while Processing
Events
• Processing an Event and associated Business Transaction
needs to be in the same transaction
• 3,2 needs to be part of a same transaction
• Both 3 and 2 should succeed or both should fail
1. Profile Updated Event
Event
Channel
2. Send Email
B
3. Acknowledge Event
Process success

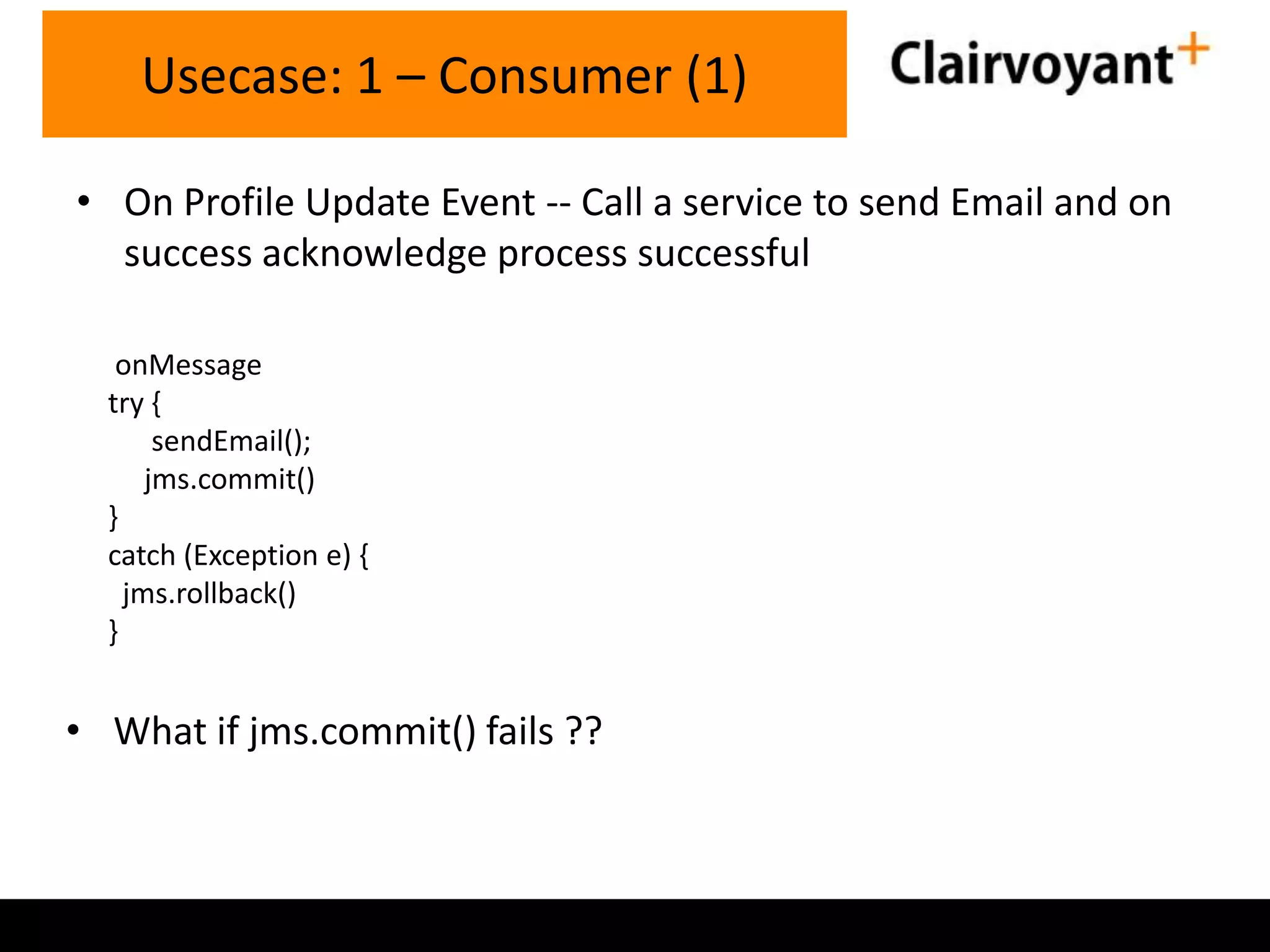

21. Usecase: 1 – Consumer (1)
• On Profile Update Event -- Call a service to send Email and on
success acknowledge process successful
onMessage
try {
sendEmail();
jms.commit()
}
catch (Exception e) {
jms.rollback()
}
• What if jms.commit() fails ??

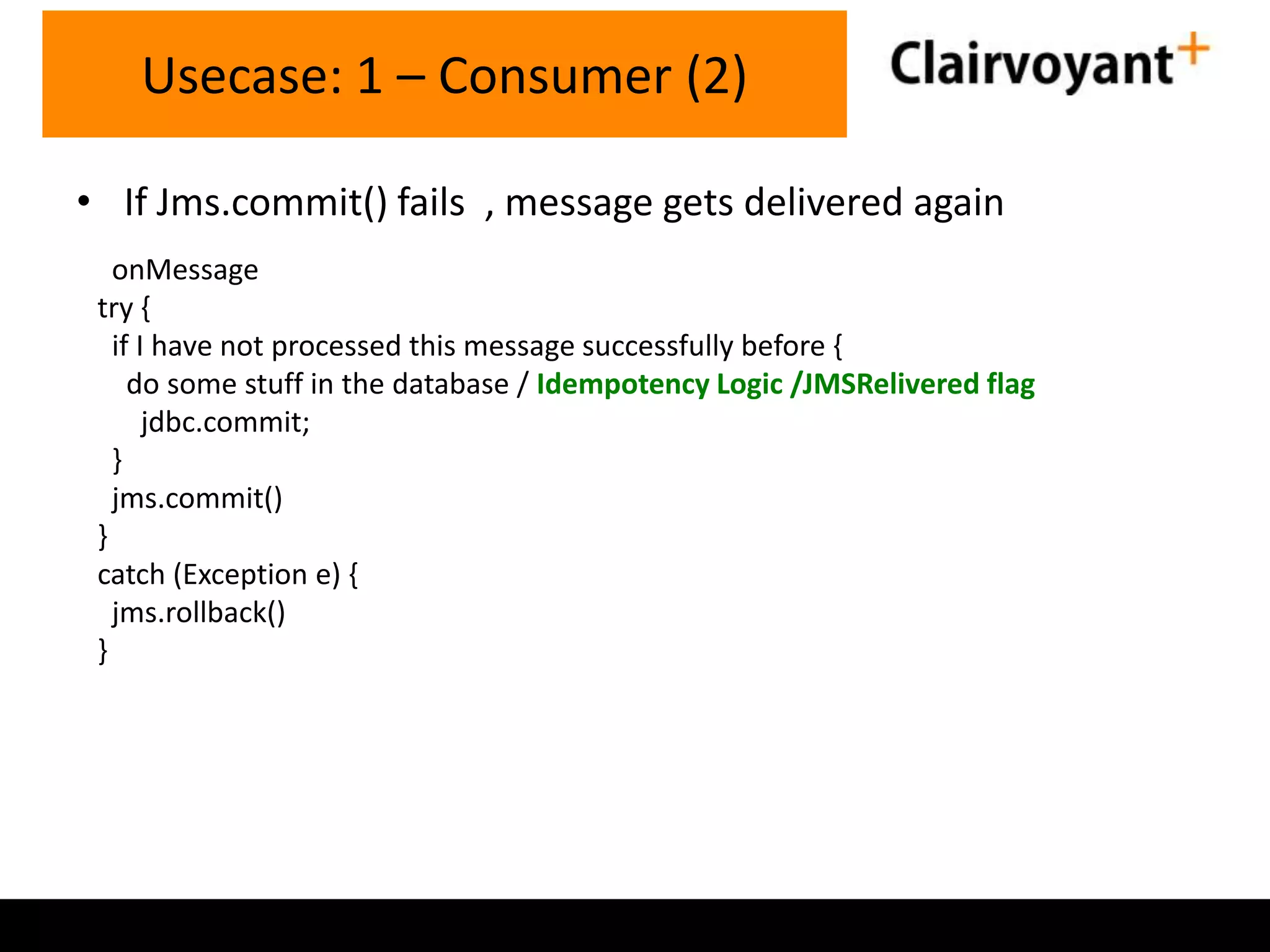

22. Usecase: 1 – Consumer (2)
• If Jms.commit() fails , message gets delivered again
onMessage
try {
if I have not processed this message successfully before {
do some stuff in the database / Idempotency Logic /JMSRelivered flag
jdbc.commit;
}
jms.commit()
}
catch (Exception e) {
jms.rollback()
}

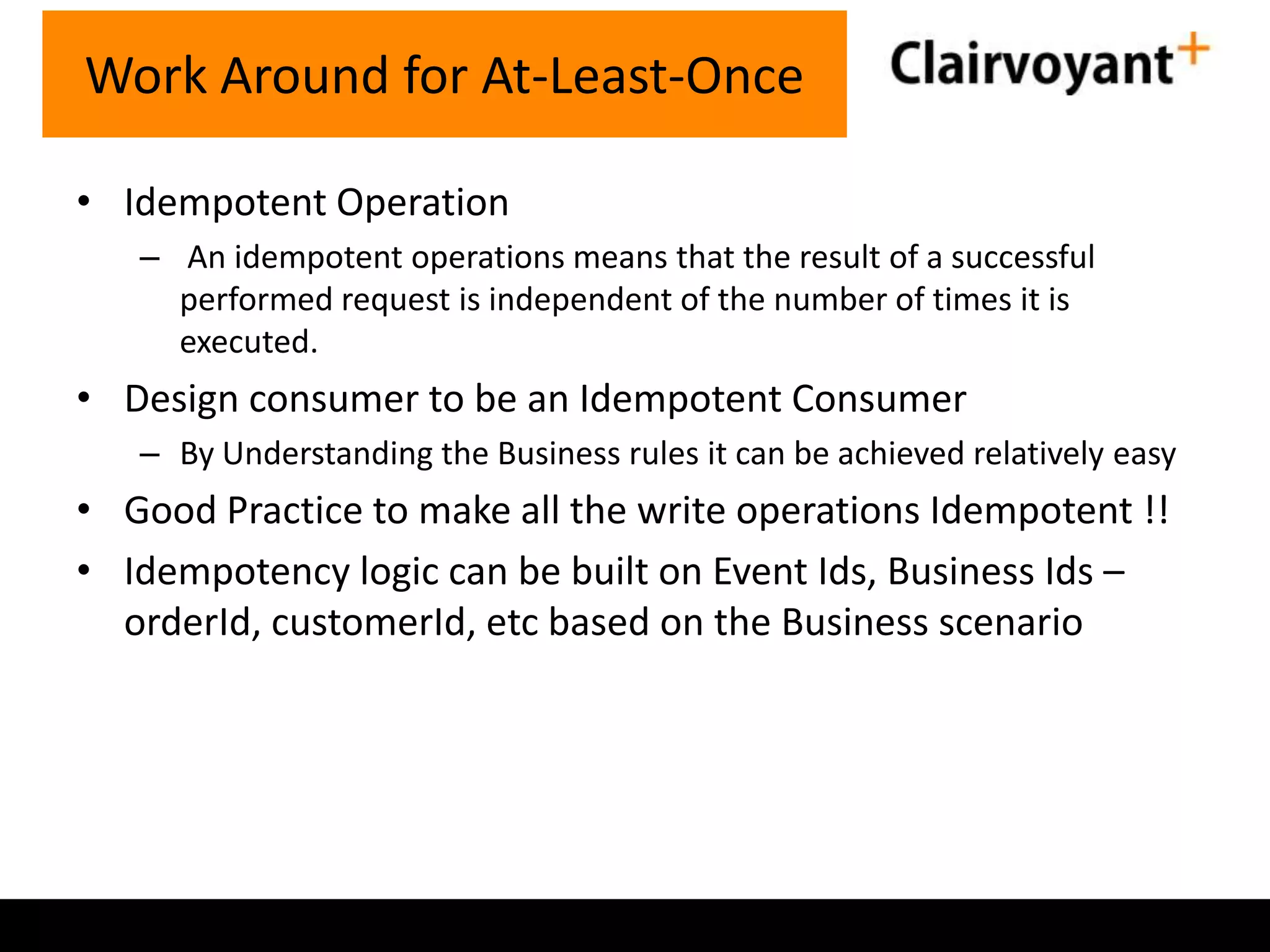

23. Work Around for At-Least-Once
• Idempotent Operation
– An idempotent operations means that the result of a successful
performed request is independent of the number of times it is
executed.
• Design consumer to be an Idempotent Consumer
– By Understanding the Business rules it can be achieved relatively easy
• Good Practice to make all the write operations Idempotent !!
• Idempotency logic can be built on Event Ids, Business Ids –
orderId, customerId, etc based on the Business scenario

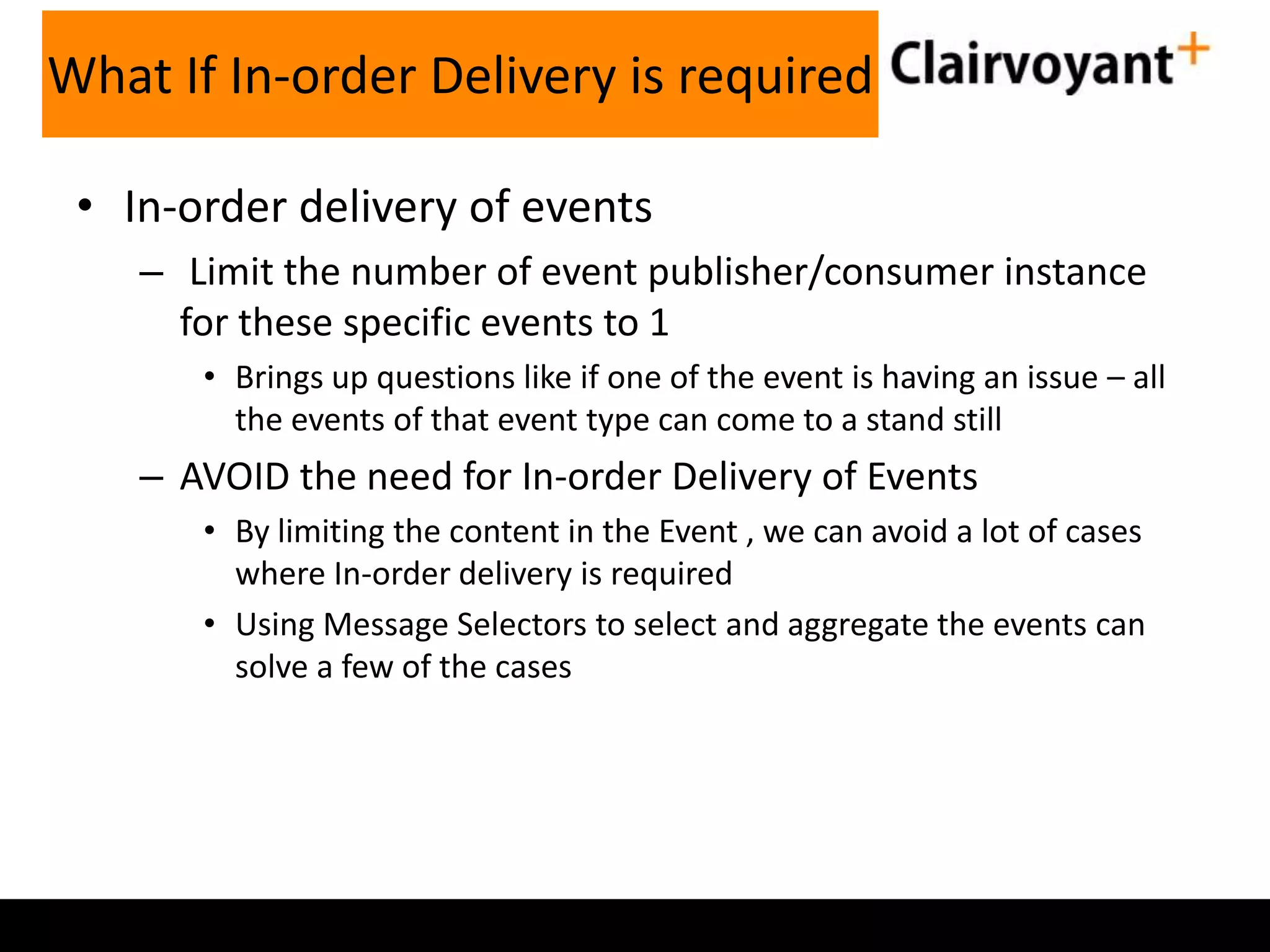

24. What If In-order Delivery is required
• In-order delivery of events
– Limit the number of event publisher/consumer instance
for these specific events to 1
• Brings up questions like if one of the event is having an issue – all
the events of that event type can come to a stand still
– AVOID the need for In-order Delivery of Events
• By limiting the content in the Event , we can avoid a lot of cases
where In-order delivery is required
• Using Message Selectors to select and aggregate the events can
solve a few of the cases

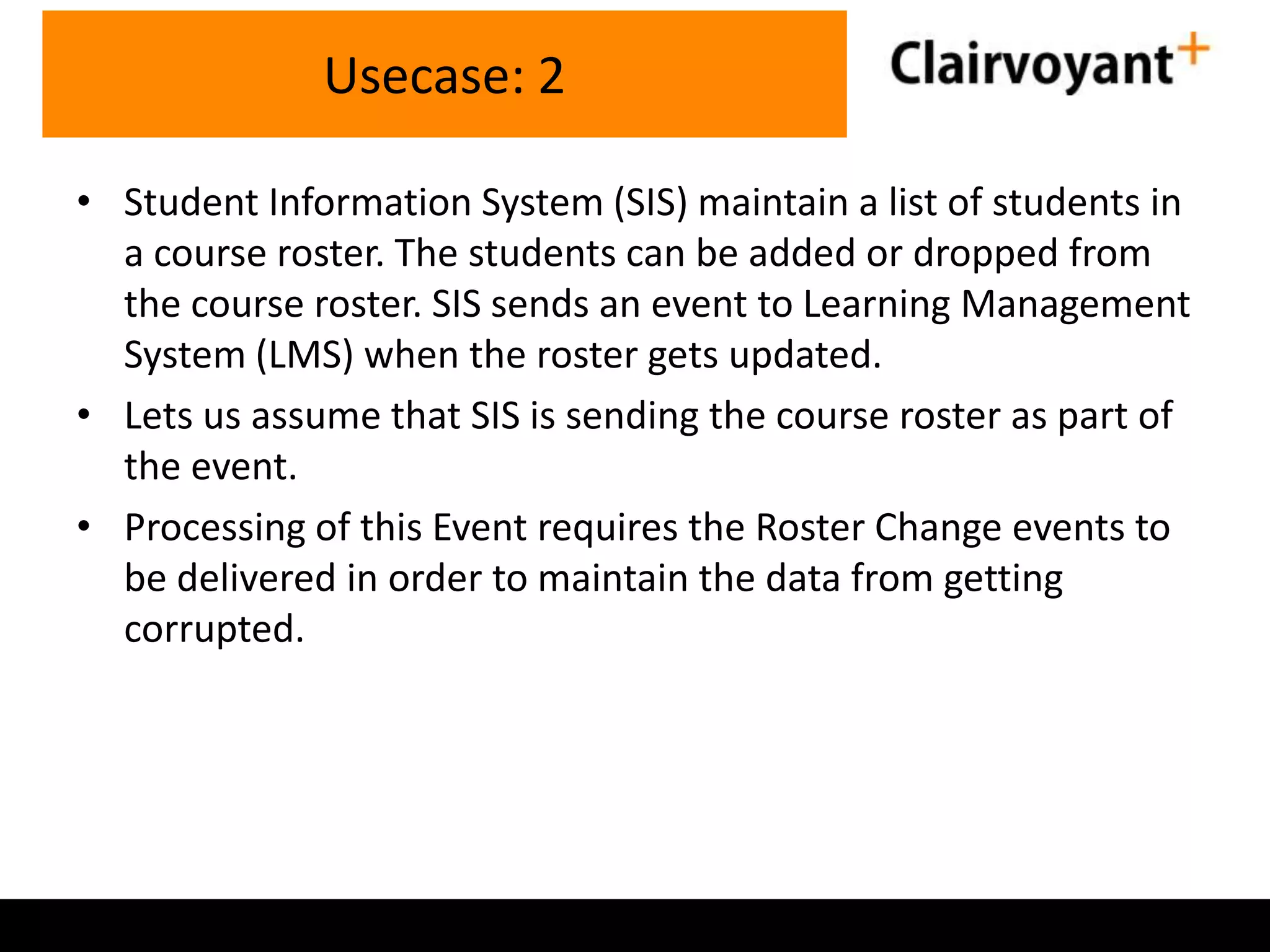

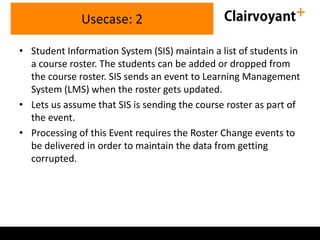

25. Usecase: 2
• Student Information System (SIS) maintain a list of students in
a course roster. The students can be added or dropped from
the course roster. SIS sends an event to Learning Management
System (LMS) when the roster gets updated.
• Lets us assume that SIS is sending the course roster as part of
the event.
• Processing of this Event requires the Roster Change events to
be delivered in order to maintain the data from getting
corrupted.

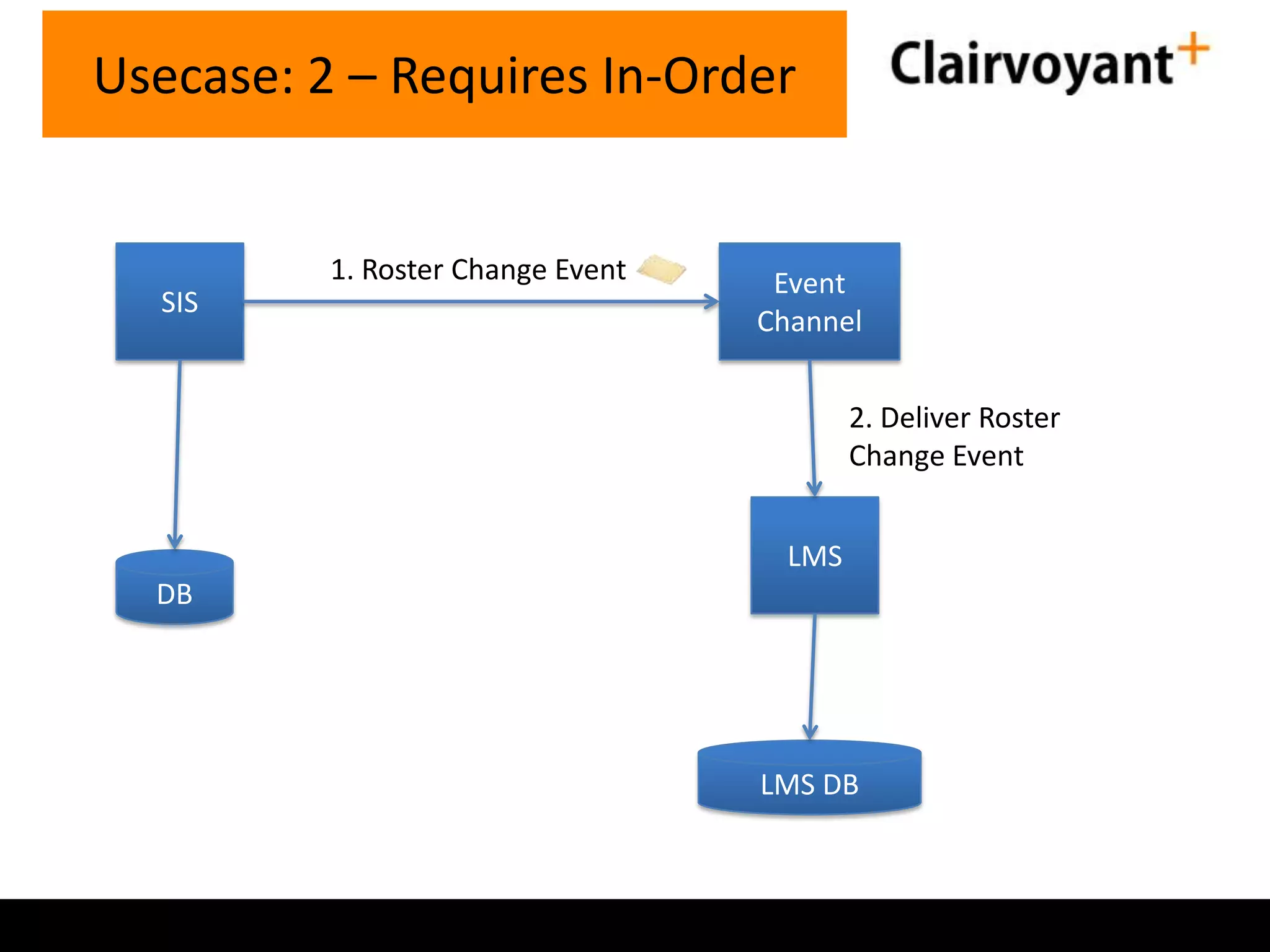

26. Usecase: 2 – Requires In-Order
1. Roster Change Event
SIS
Event
Channel
2. Deliver Roster
Change Event
LMS
DB
LMS DB

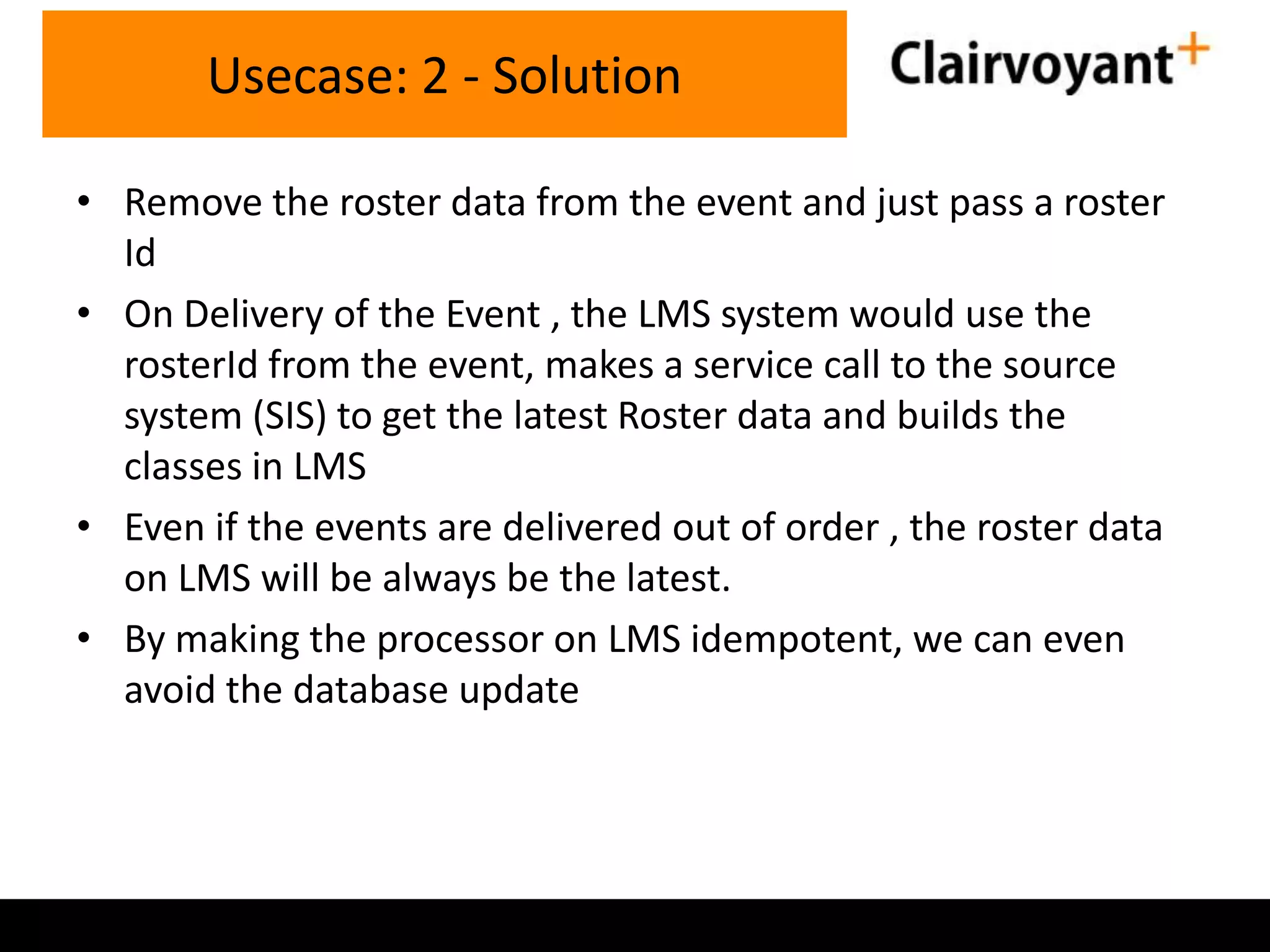

27. Usecase: 2 - Solution
• Remove the roster data from the event and just pass a roster
Id
• On Delivery of the Event , the LMS system would use the
rosterId from the event, makes a service call to the source
system (SIS) to get the latest Roster data and builds the
classes in LMS
• Even if the events are delivered out of order , the roster data
on LMS will be always be the latest.
• By making the processor on LMS idempotent, we can even
avoid the database update

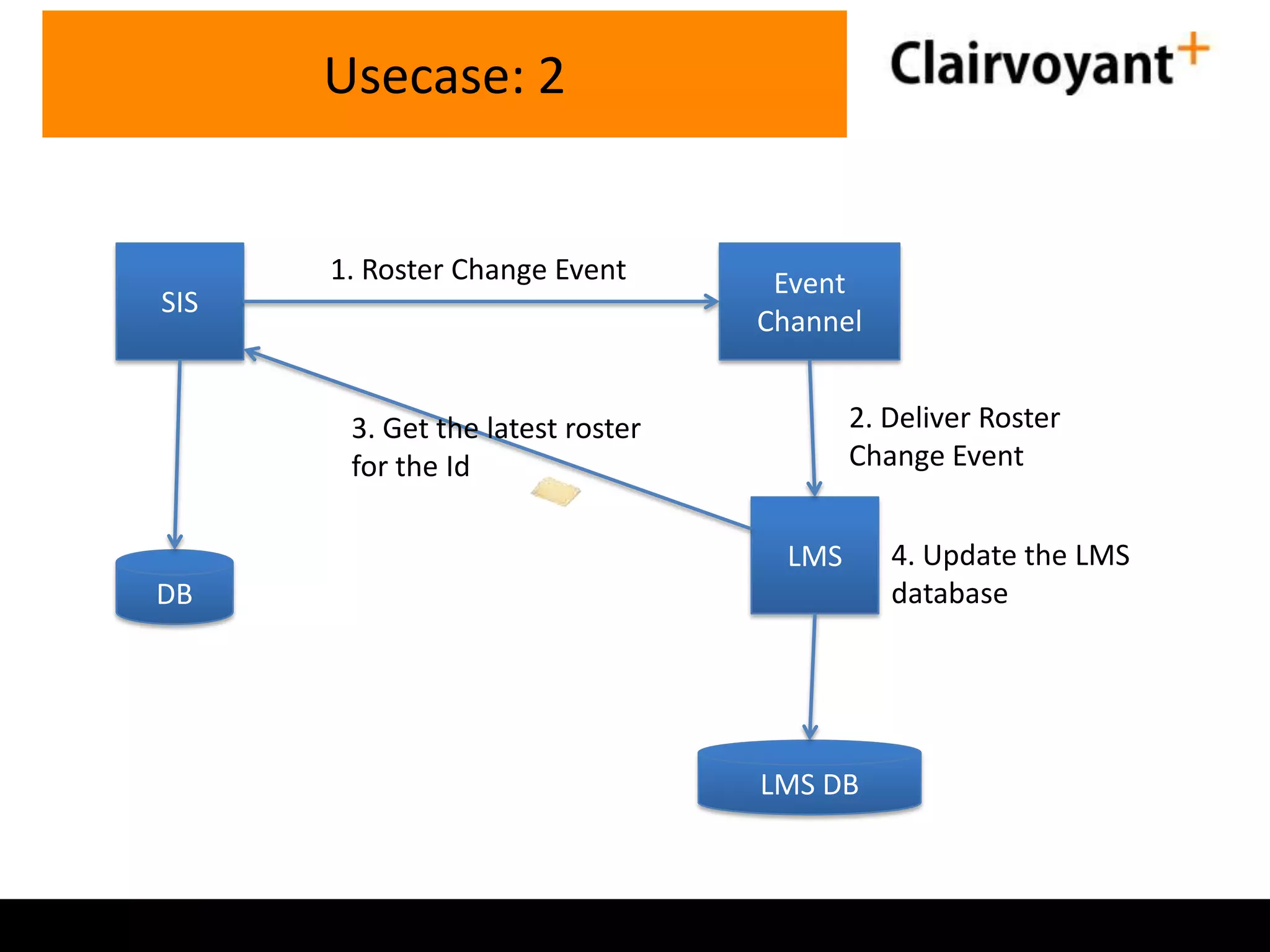

28. Usecase: 2
1. Roster Change Event
SIS
Event
Channel
2. Deliver Roster
Change Event
3. Get the latest roster
for the Id
LMS
DB
LMS DB
4. Update the LMS
database

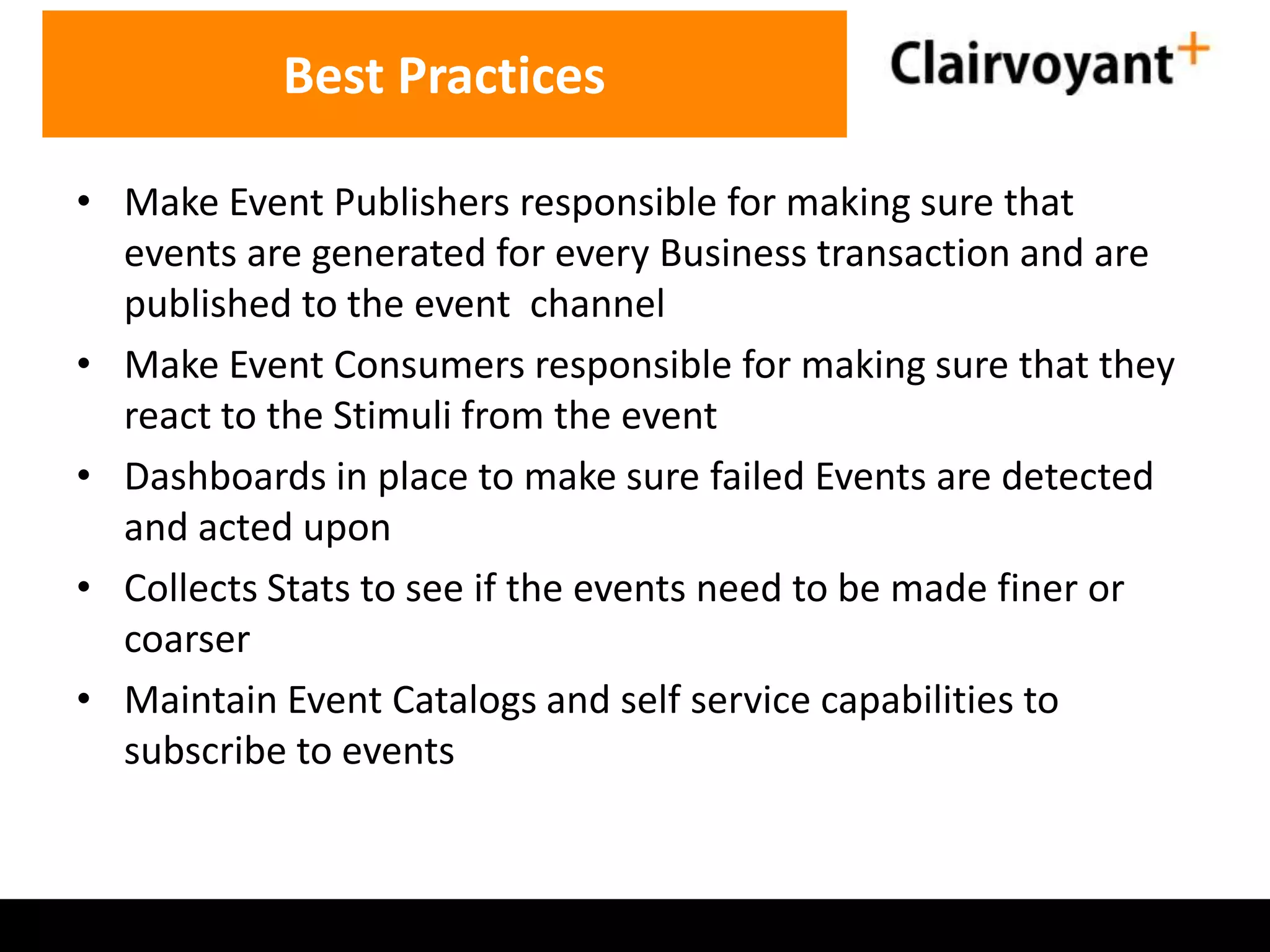

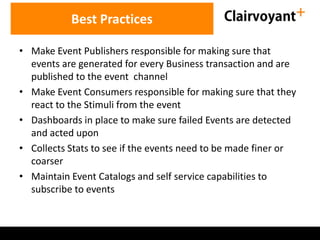

29. Best Practices
• Make Event Publishers responsible for making sure that
events are generated for every Business transaction and are
published to the event channel
• Make Event Consumers responsible for making sure that they
react to the Stimuli from the event
• Dashboards in place to make sure failed Events are detected
and acted upon
• Collects Stats to see if the events need to be made finer or
coarser
• Maintain Event Catalogs and self service capabilities to
subscribe to events

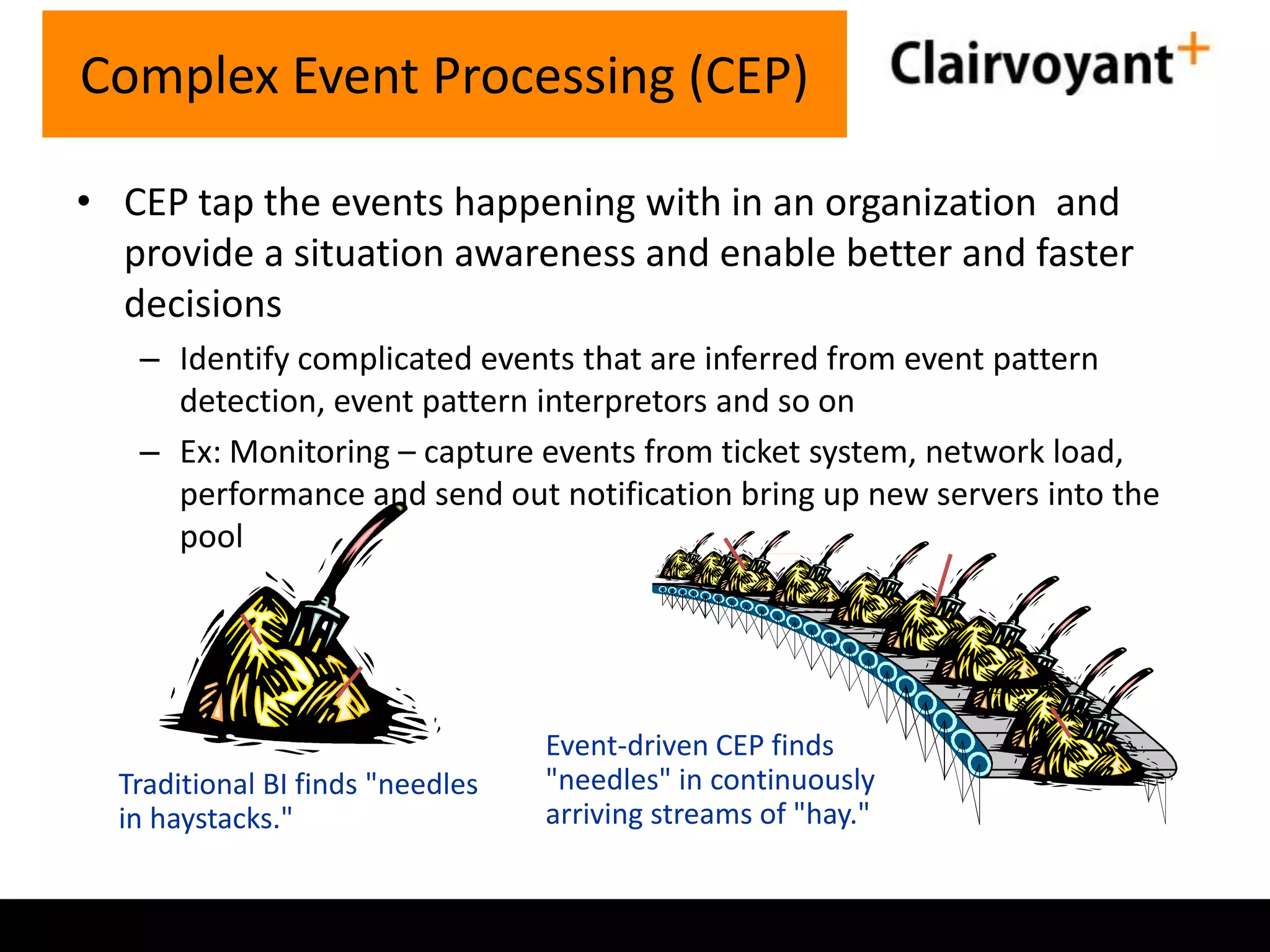

30. Complex Event Processing (CEP)
• CEP tap the events happening with in an organization and
provide a situation awareness and enable better and faster
decisions
– Identify complicated events that are inferred from event pattern
detection, event pattern interpretors and so on
– Ex: Monitoring – capture events from ticket system, network load,
performance and send out notification bring up new servers into the
pool
Traditional BI finds "needles
in haystacks."
Event-driven CEP finds
"needles" in continuously
arriving streams of "hay."

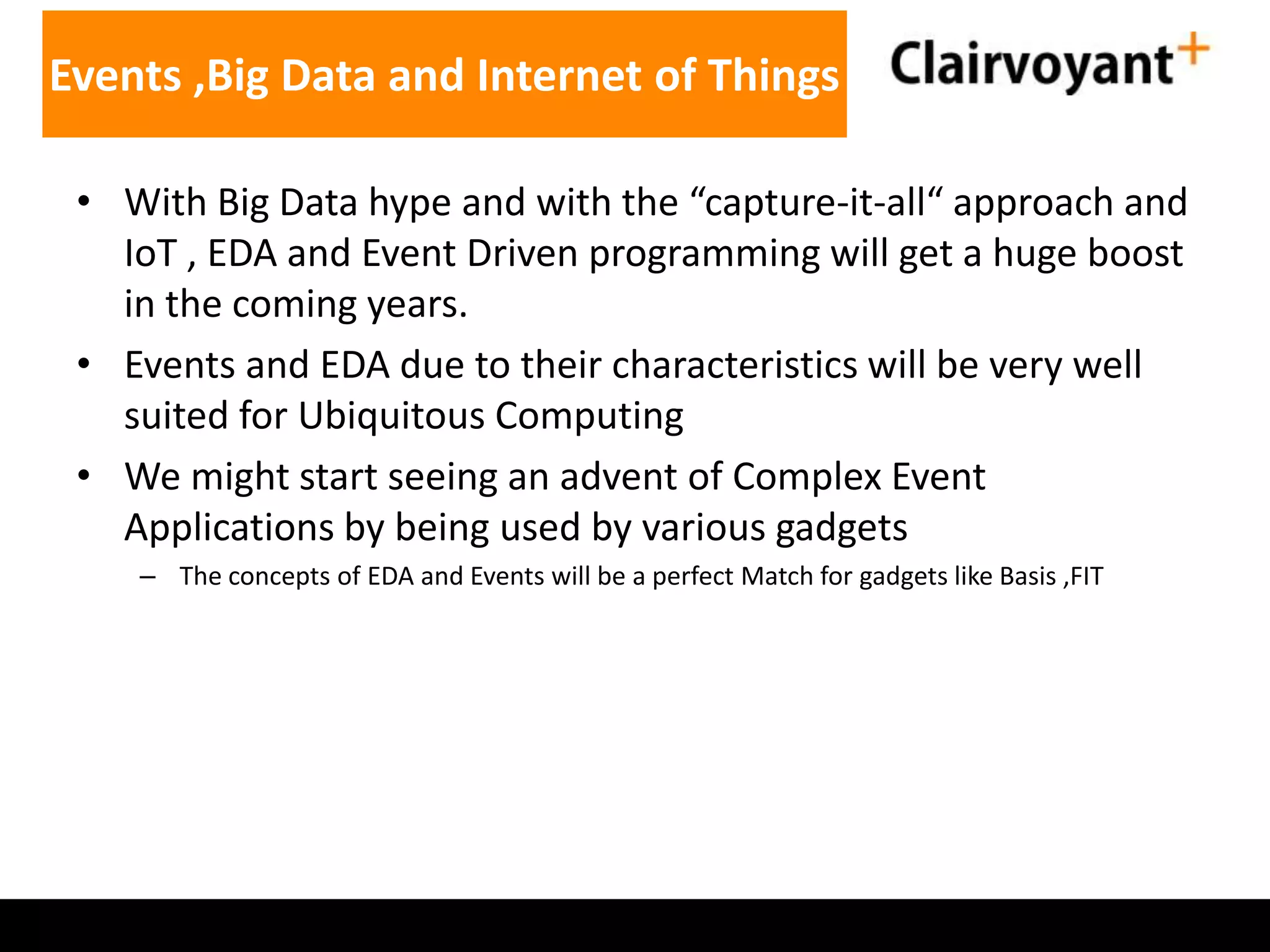

31. Events ,Big Data and Internet of Things
• With Big Data hype and with the “capture-it-all“ approach and
IoT , EDA and Event Driven programming will get a huge boost
in the coming years.
• Events and EDA due to their characteristics will be very well
suited for Ubiquitous Computing
• We might start seeing an advent of Complex Event
Applications by being used by various gadgets
– The concepts of EDA and Events will be a perfect Match for gadgets like Basis ,FIT

32. Questions ?
Industry Experience
avinash@clairvoyantsoft.com
Twitter:@avinashramineni
