1. Getting High on Espresso!
X
Ketan Soni
Getting High on Espresso!

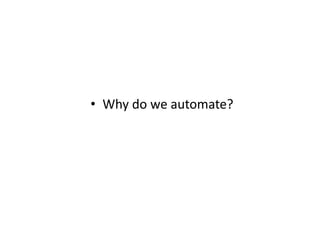

2. • Why do we automate?

3. • Do you trust your tests 100%?

6. • Synchronization
Why are they flaky?

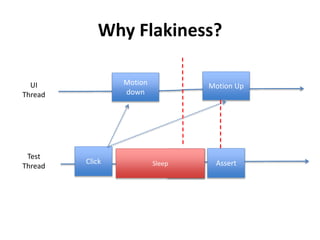

7. Why Flakiness?
UI
Thread
Motion
down
Test
Thread
Click
Motion Up
AssertSleep Assert

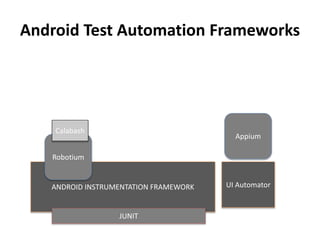

8. ANDROID INSTRUMENTATION FRAMEWORK
Android Test Automation Frameworks
UI Automator
Robotium
Appium
Calabash
JUNIT

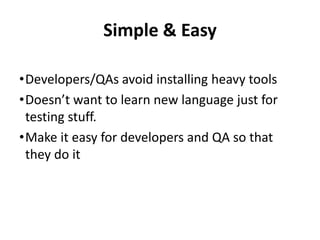

9. Simple & Easy
•Developers/QAs avoid installing heavy tools
•Doesn’t want to learn new language just for
testing stuff.
•Make it easy for developers and QA so that
they do it

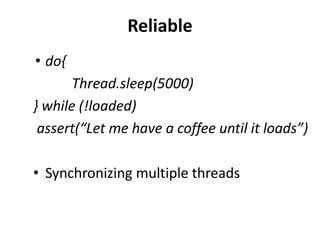

10. Reliable
• do{
Thread.sleep(5000)
} while (!loaded)
assert(“Let me have a coffee until it loads”)
• Synchronizing multiple threads

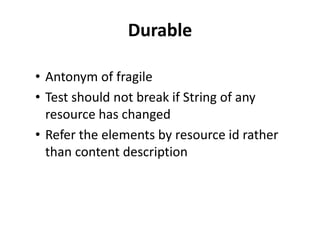

11. Durable
• Antonym of fragile
• Test should not break if String of any
resource has changed
• Refer the elements by resource id rather
than content description

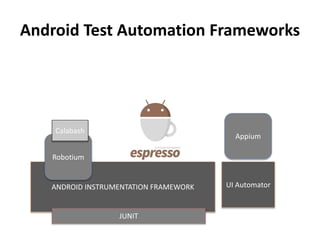

12. ANDROID INSTRUMENTATION FRAMEWORK
Android Test Automation Frameworks
UI Automator
Robotium
Appium
Calabash
JUNIT

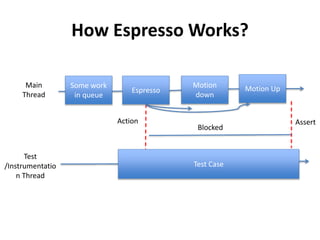

13. How Espresso Works?
Main
Thread
Motion
down
Test
/Instrumentatio
n Thread
Motion Up
Test Case
Some work
in queue
Espresso
AssertAction
Blocked

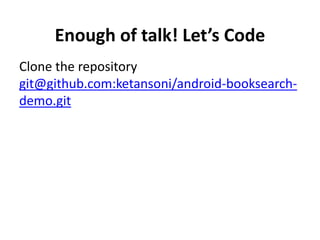

14. Enough of talk! Let’s Code
Clone the repository
git@github.com:ketansoni/android-booksearch-
demo.git

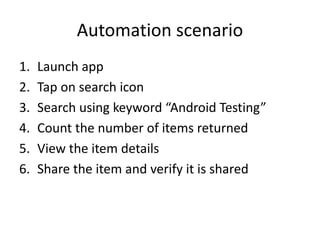

15. Automation scenario
1. Launch app
2. Tap on search icon
3. Search using keyword “Android Testing”
4. Count the number of items returned
5. View the item details
6. Share the item and verify it is shared

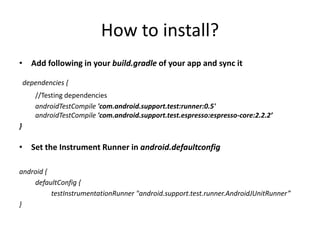

16. How to install?
• Add following in your build.gradle of your app and sync it
dependencies {
//Testing dependencies
androidTestCompile 'com.android.support.test:runner:0.5'
androidTestCompile 'com.android.support.test.espresso:espresso-core:2.2.2’
}
• Set the Instrument Runner in android.defaultconfig
android {
defaultConfig {
testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner”
}

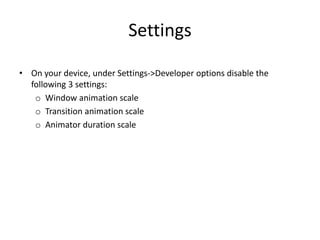

17. Settings
• On your device, under Settings->Developer options disable the
following 3 settings:
o Window animation scale
o Transition animation scale
o Animator duration scale

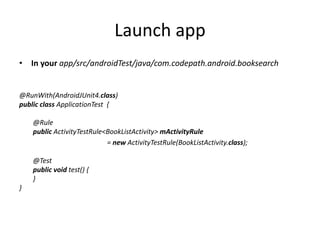

18. Launch app
• In your app/src/androidTest/java/com.codepath.android.booksearch
@RunWith(AndroidJUnit4.class)
public class ApplicationTest {
@Rule
public ActivityTestRule<BookListActivity> mActivityRule
= new ActivityTestRule(BookListActivity.class);
@Test
public void test() {
}
}

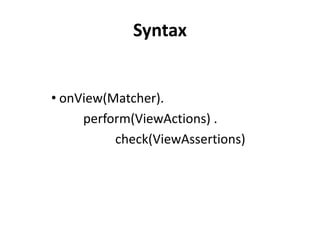

19. Syntax
• onView(Matcher).
perform(ViewActions) .
check(ViewAssertions)

20. Tap on search Icon
• onView(withId(R.id.action_search)).
perform(click());

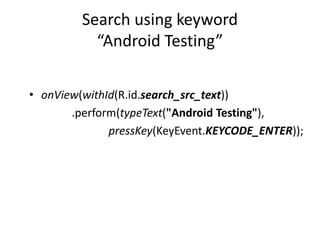

21. Search using keyword
“Android Testing”
• onView(withId(R.id.search_src_text))
.perform(typeText("Android Testing"),
pressKey(KeyEvent.KEYCODE_ENTER));

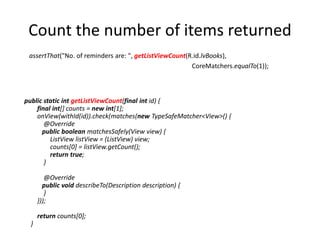

22. Count the number of items returned
public static int getListViewCount(final int id) {
final int[] counts = new int[1];
onView(withId(id)).check(matches(new TypeSafeMatcher<View>() {
@Override
public boolean matchesSafely(View view) {
ListView listView = (ListView) view;
counts[0] = listView.getCount();
return true;
}
@Override
public void describeTo(Description description) {
}
}));
return counts[0];
}
assertThat("No. of reminders are: ", getListViewCount(R.id.lvBooks),
CoreMatchers.equalTo(1));

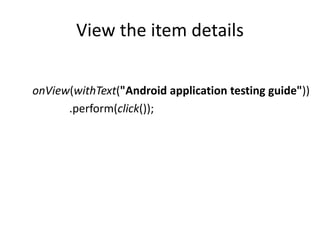

23. View the item details
onView(withText("Android application testing guide"))
.perform(click());

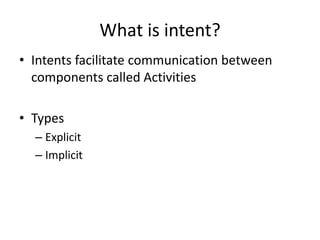

24. What is intent?
• Intents facilitate communication between
components called Activities
• Types
– Explicit
– Implicit

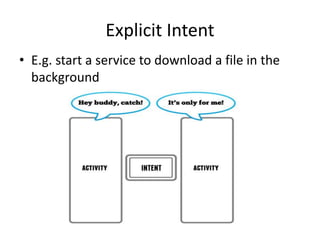

25. Explicit Intent
• E.g. start a service to download a file in the
background

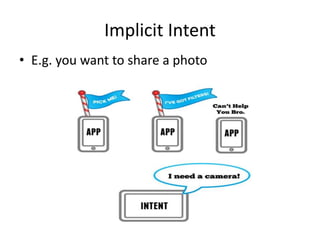

26. Implicit Intent
• E.g. you want to share a photo

27. Share the item and verify intent
Add dependencies
androidTestCompile 'com.android.support.test.espresso:espresso-intents:2.2.2'
//IntentsRule
public IntentsTestRule<BookListActivity> mActivityRule
= new IntentsTestRule(BookListActivity.class);

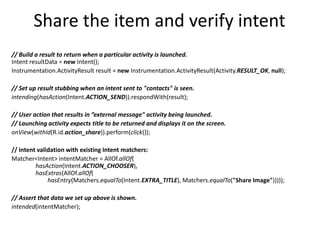

28. Share the item and verify intent
// Build a result to return when a particular activity is launched.
Intent resultData = new Intent();
Instrumentation.ActivityResult result = new Instrumentation.ActivityResult(Activity.RESULT_OK, null);
// Set up result stubbing when an intent sent to "contacts" is seen.
intending(hasAction(Intent.ACTION_SEND)).respondWith(result);
// User action that results in ”external message" activity being launched.
// Launching activity expects title to be returned and displays it on the screen.
onView(withId(R.id.action_share)).perform(click());
// intent validation with existing Intent matchers:
Matcher<Intent> intentMatcher = AllOf.allOf(
hasAction(Intent.ACTION_CHOOSER),
hasExtras(AllOf.allOf(
hasEntry(Matchers.equalTo(Intent.EXTRA_TITLE), Matchers.equalTo("Share Image")))));
// Assert that data we set up above is shown.
intended(intentMatcher);

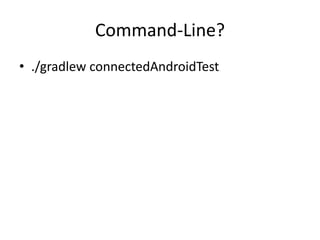

29. Command-Line?
• ./gradlew connectedAndroidTest

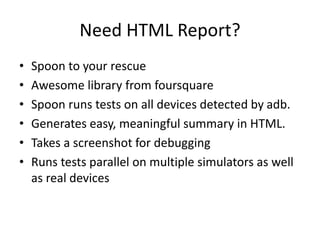

30. Need HTML Report?
• Spoon to your rescue
• Awesome library from foursquare
• Spoon runs tests on all devices detected by adb.
• Generates easy, meaningful summary in HTML.
• Takes a screenshot for debugging
• Runs tests parallel on multiple simulators as well
as real devices

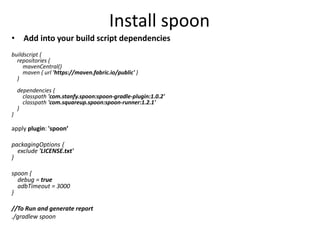

31. Install spoon
• Add into your build script dependencies
buildscript {
repositories {
mavenCentral()
maven { url 'https://maven.fabric.io/public' }
}
dependencies {
classpath 'com.stanfy.spoon:spoon-gradle-plugin:1.0.2'
classpath 'com.squareup.spoon:spoon-runner:1.2.1'
}
}
apply plugin: 'spoon’
packagingOptions {
exclude 'LICENSE.txt'
}
spoon {
debug = true
adbTimeout = 3000
}
//To Run and generate report
./gradlew spoon

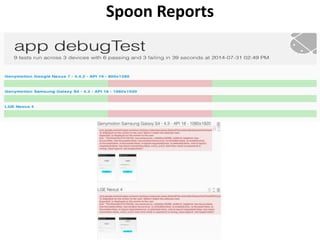

32. Spoon Reports

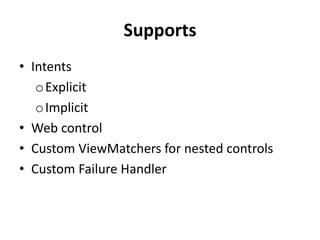

34. Supports
• Intents
oExplicit
oImplicit
• Web control
• Custom ViewMatchers for nested controls
• Custom Failure Handler

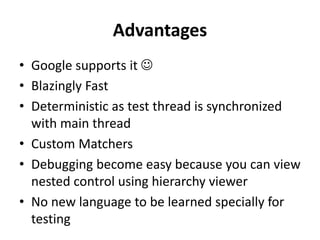

35. Advantages
• Google supports it 
• Blazingly Fast
• Deterministic as test thread is synchronized
with main thread
• Custom Matchers
• Debugging become easy because you can view
nested control using hierarchy viewer
• No new language to be learned specially for
testing

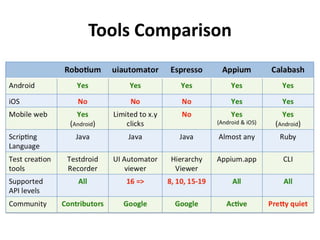

36. Tools Comparison

37. Thank you
