The document provides an overview of enterprise service buses (ESBs). It defines an ESB as a software architecture that provides integration services through messaging and standards-based integration. The key capabilities of an ESB are described as routing, transformation, choreography, orchestration, transaction management, and security. The document outlines the typical components of an ESB including a mediator, service registry, choreographer, and rules engine. It discusses how process choreography relates to the mediator and considerations for their relationship. Open source ESB projects like Mule and ServiceMix are also mentioned.

1. ESBEnterprise Service Bus

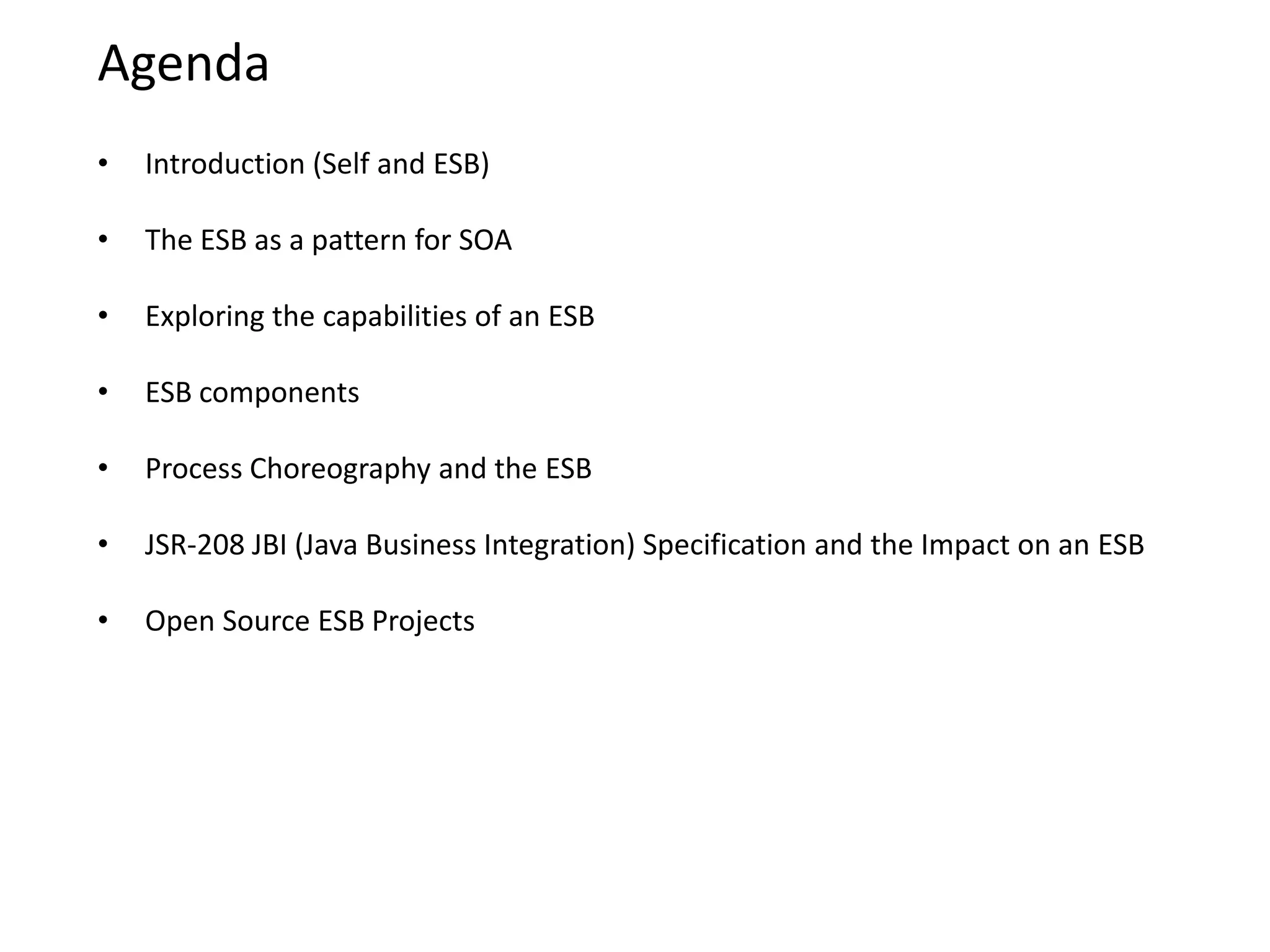

2. AgendaIntroduction (Self and ESB)

3. The ESB as a pattern for SOA

4. Exploring the capabilities of an ESB

5. ESB components

6. Process Choreography and the ESB

7. JSR-208 JBI (Java Business Integration) Specification and the Impact on an ESB

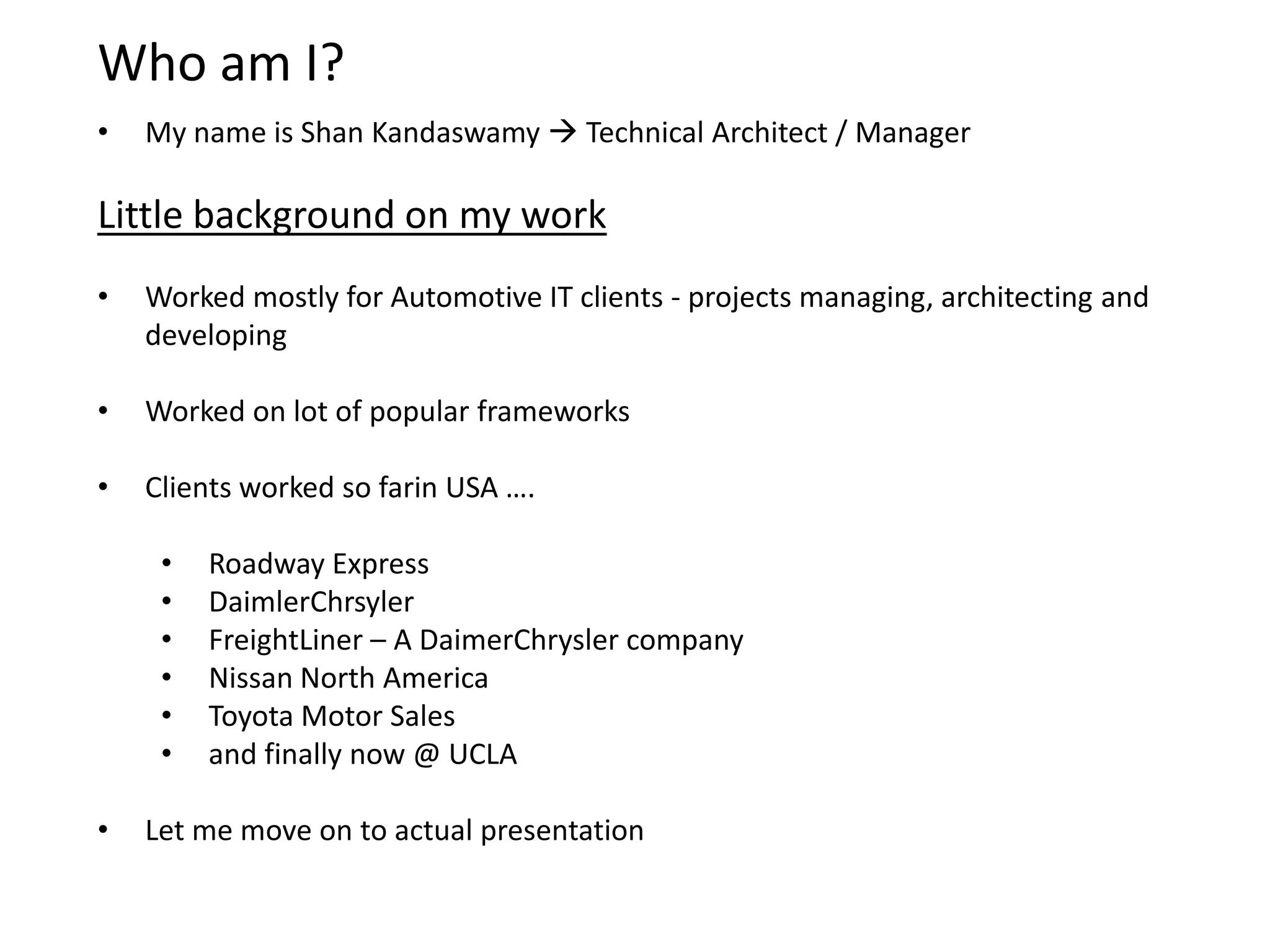

8. Open Source ESB ProjectsWho am I?My name is Shan Kandaswamy  Technical Architect / ManagerLittle background on my workWorked mostly for Automotive IT clients - projects managing, architecting and developing

9. Worked on lot of popular frameworks

10. Clients worked so farin USA ….

11. Roadway Express

12. DaimlerChrsyler

13. FreightLiner – A DaimerChrysler company

14. Nissan North America

15. Toyota Motor Sales

16. and finally now @ UCLA

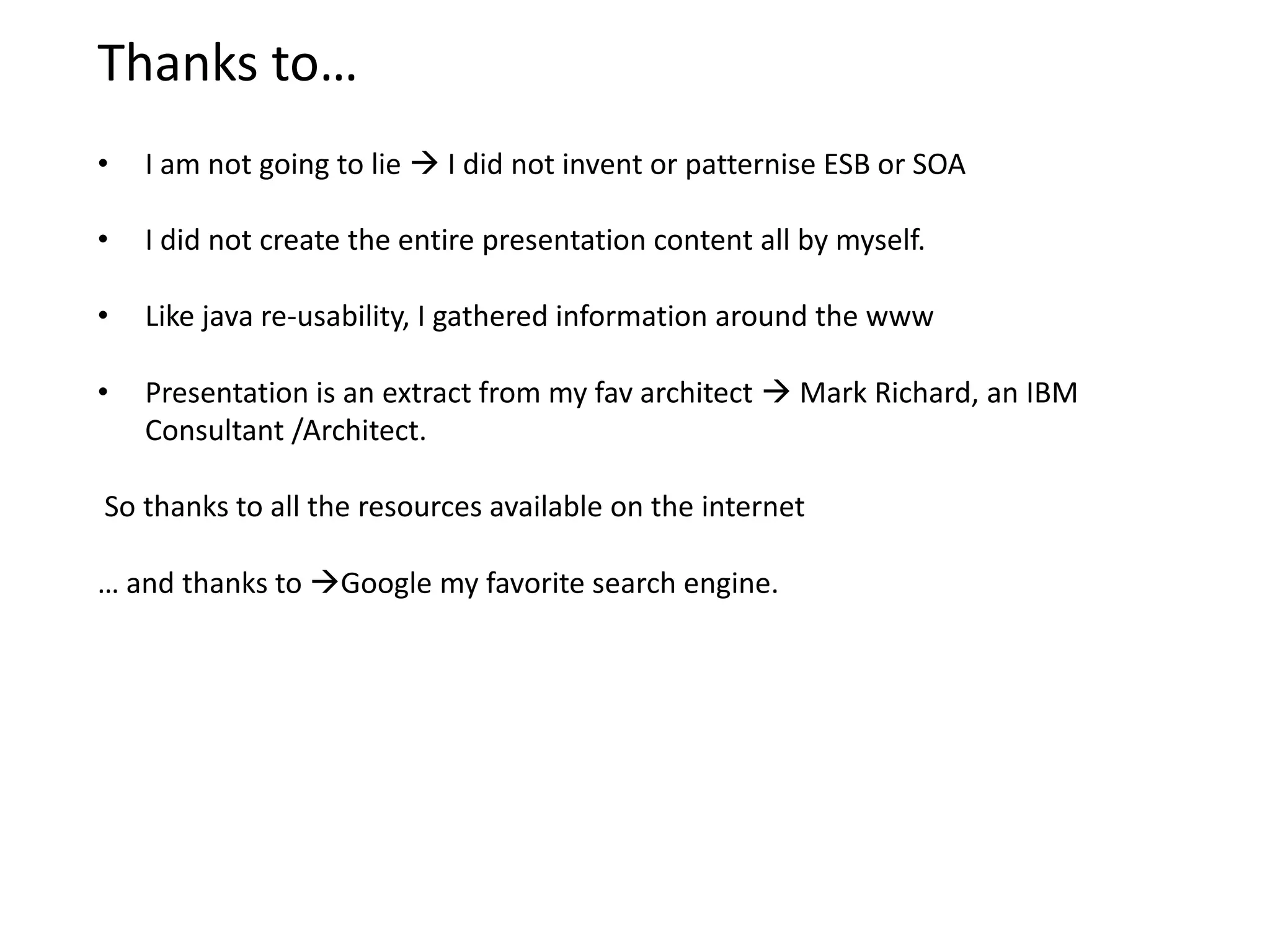

17. Let me move on to actual presentationThanks to…I am not going to lie  I did not invent or patternise ESB or SOA

18. I did not create the entire presentation content all by myself.

19. Like java re-usability, I gathered information around the www

20. Presentation is an extract from my fav architect  Mark Richard, an IBM Consultant /Architect. So thanks to all the resources available on the internet … and thanks to Google my favorite search engine.

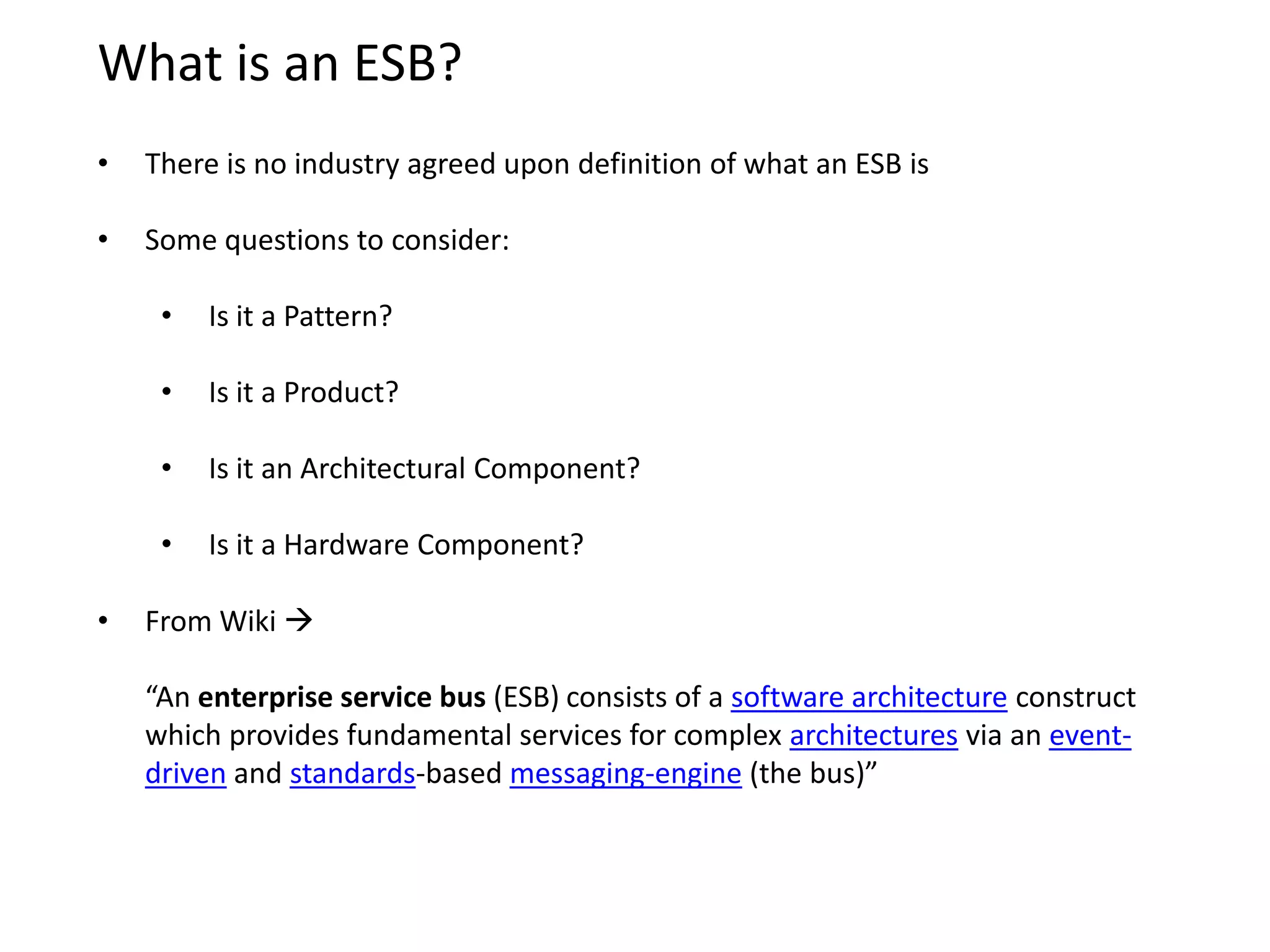

21. What is an ESB?There is no industry agreed upon definition of what an ESB is

22. Some questions to consider:

23. Is it a Pattern?

24. Is it a Product?

25. Is it an Architectural Component?

26. Is it a Hardware Component?

27. From Wiki “An enterprise service bus (ESB) consists of a software architecture construct which provides fundamental services for complex architectures via an event-driven and standards-based messaging-engine (the bus)”

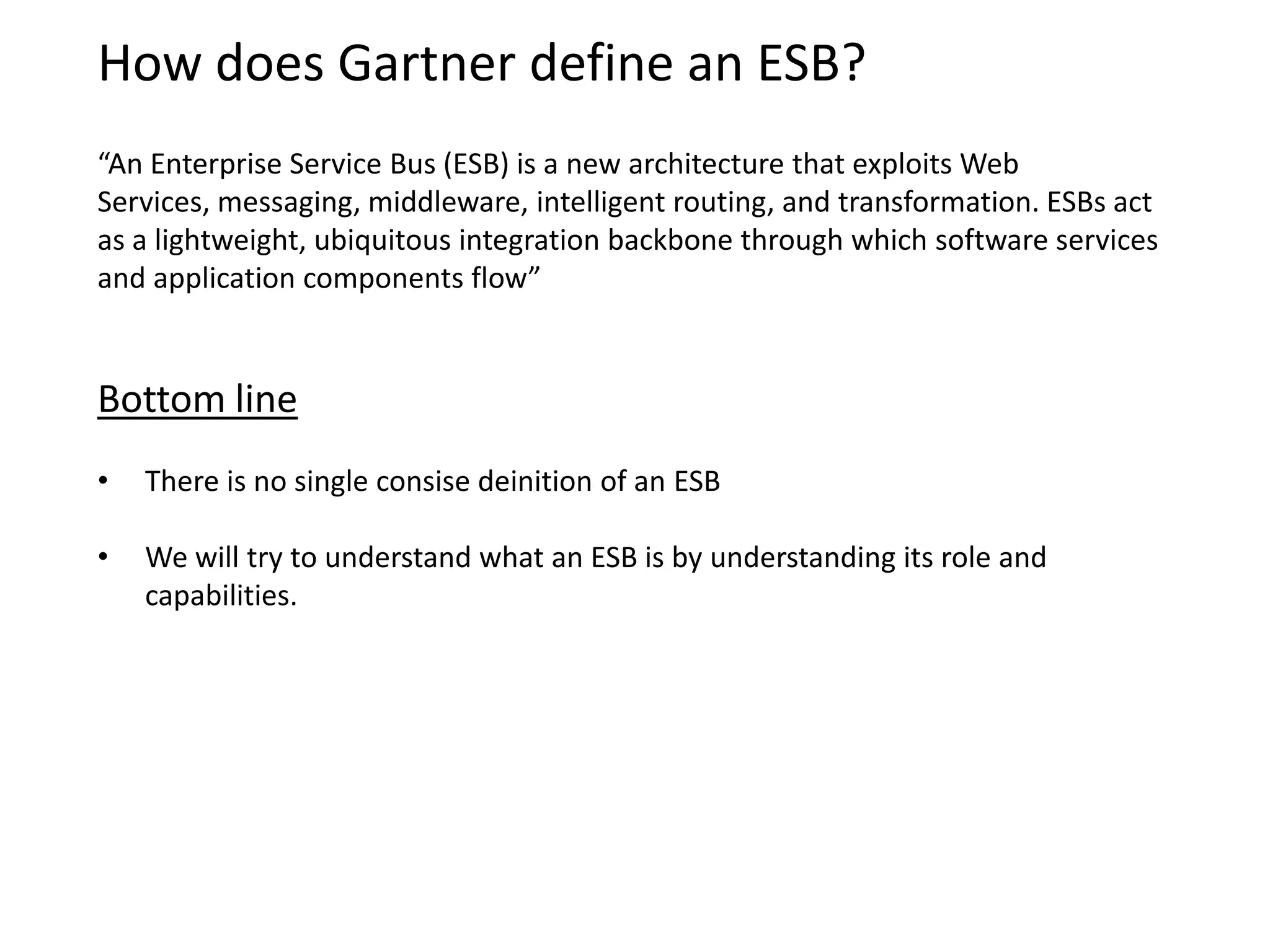

28. How does Gartner define an ESB?“An Enterprise Service Bus (ESB) is a new architecture that exploits Web Services, messaging, middleware, intelligent routing, and transformation. ESBs act as a lightweight, ubiquitous integration backbone through which software services and application components flow”Bottom lineThere is no single consise deinition of an ESB

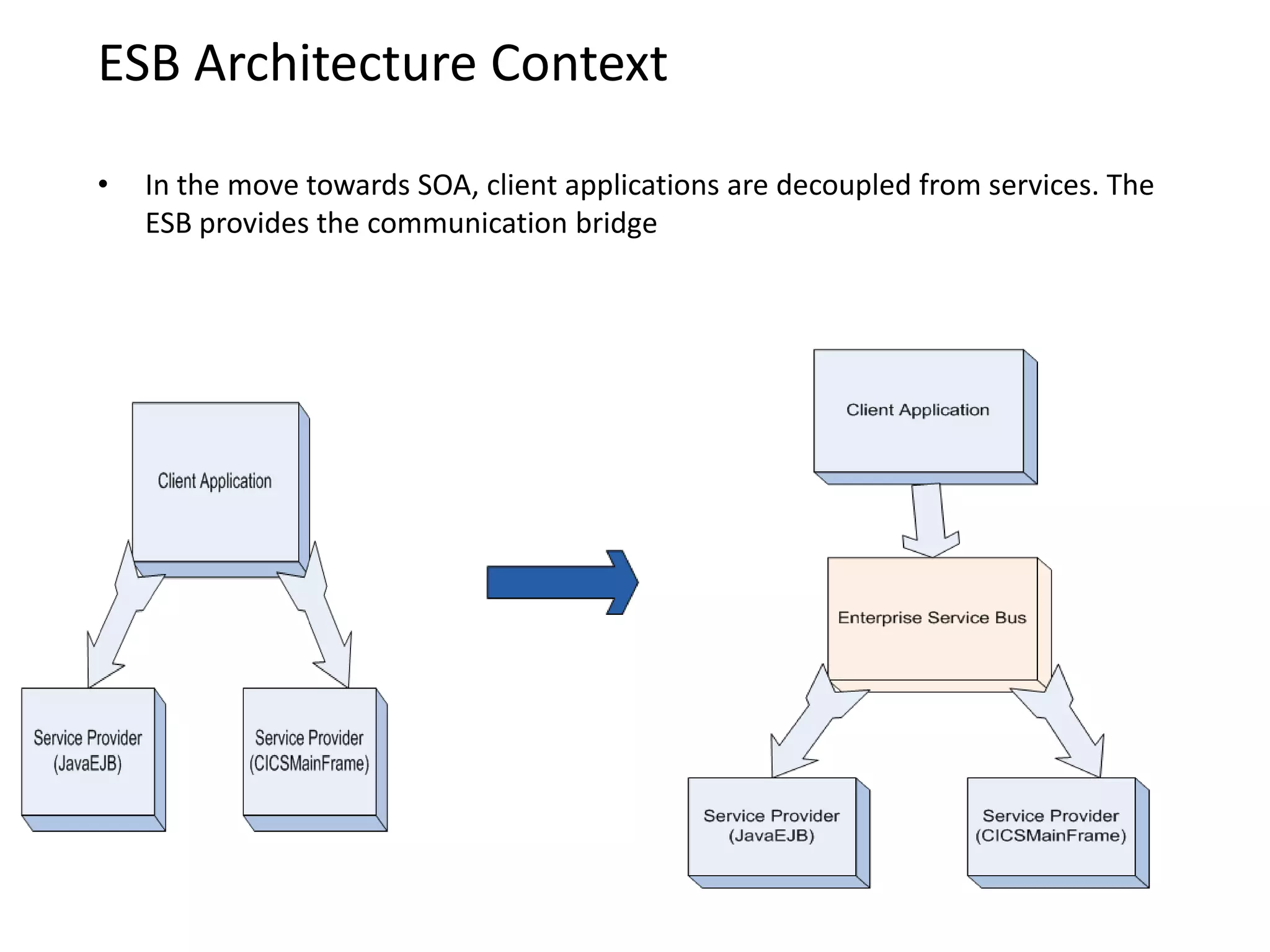

29. We will try to understand what an ESB is by understanding its role and capabilities.ESB Architecture ContextIn the move towards SOA, client applications are decoupled from services. The ESB provides the communication bridgeThe ESB helps facilitate the following:Service location transperancy

30. Sharing of services across the enterprise

31. Ability to separate Business Services from the service implementation.

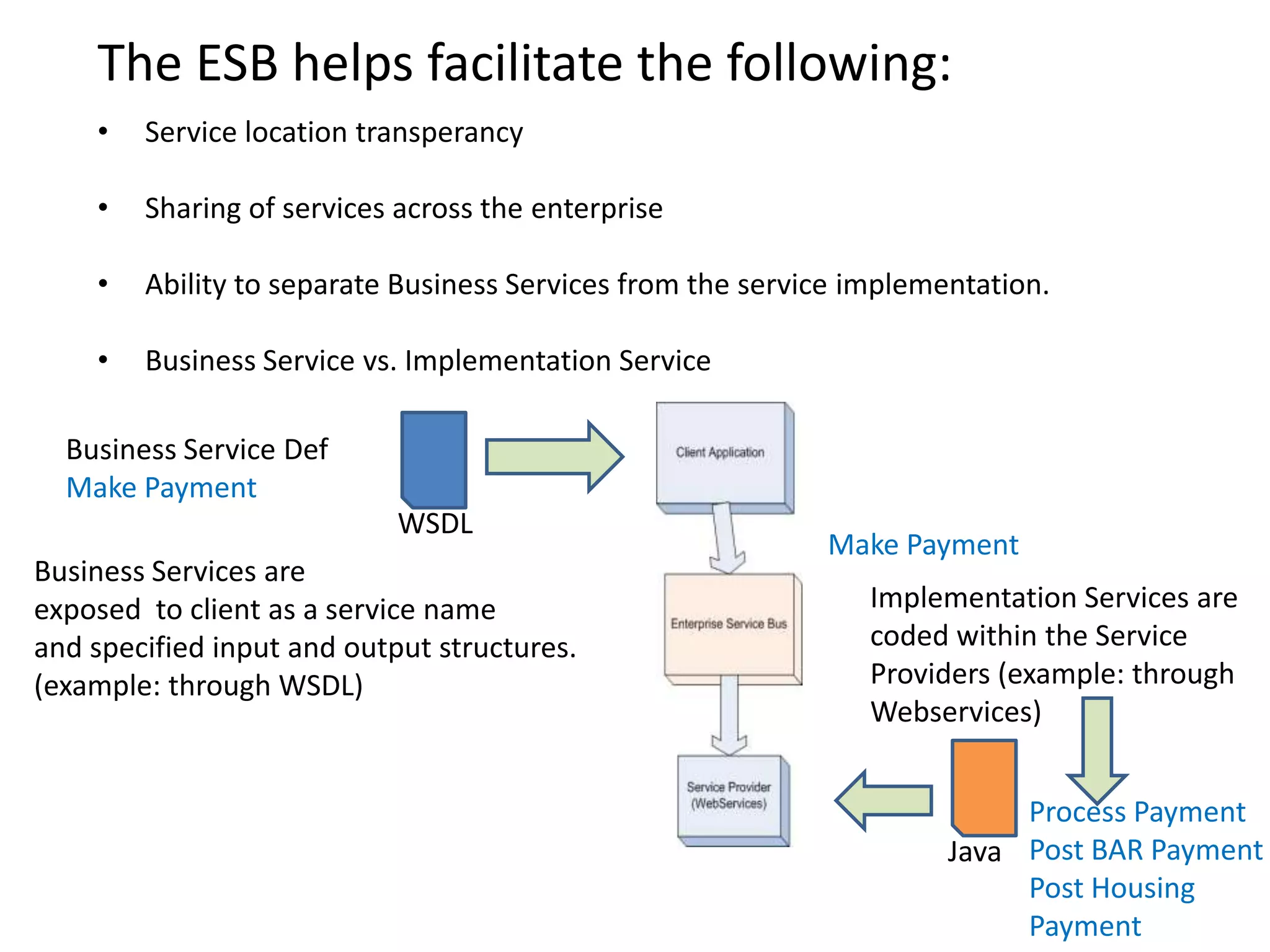

32. Business Service vs. Implementation ServiceBusiness Service DefMake PaymentWSDLMake PaymentBusiness Services are exposed to client as a service nameand specified input and output structures.(example: through WSDL)Implementation Services are coded within the Service Providers (example: through Webservices)Process PaymentPost BAR PaymentPost Housing PaymentJava

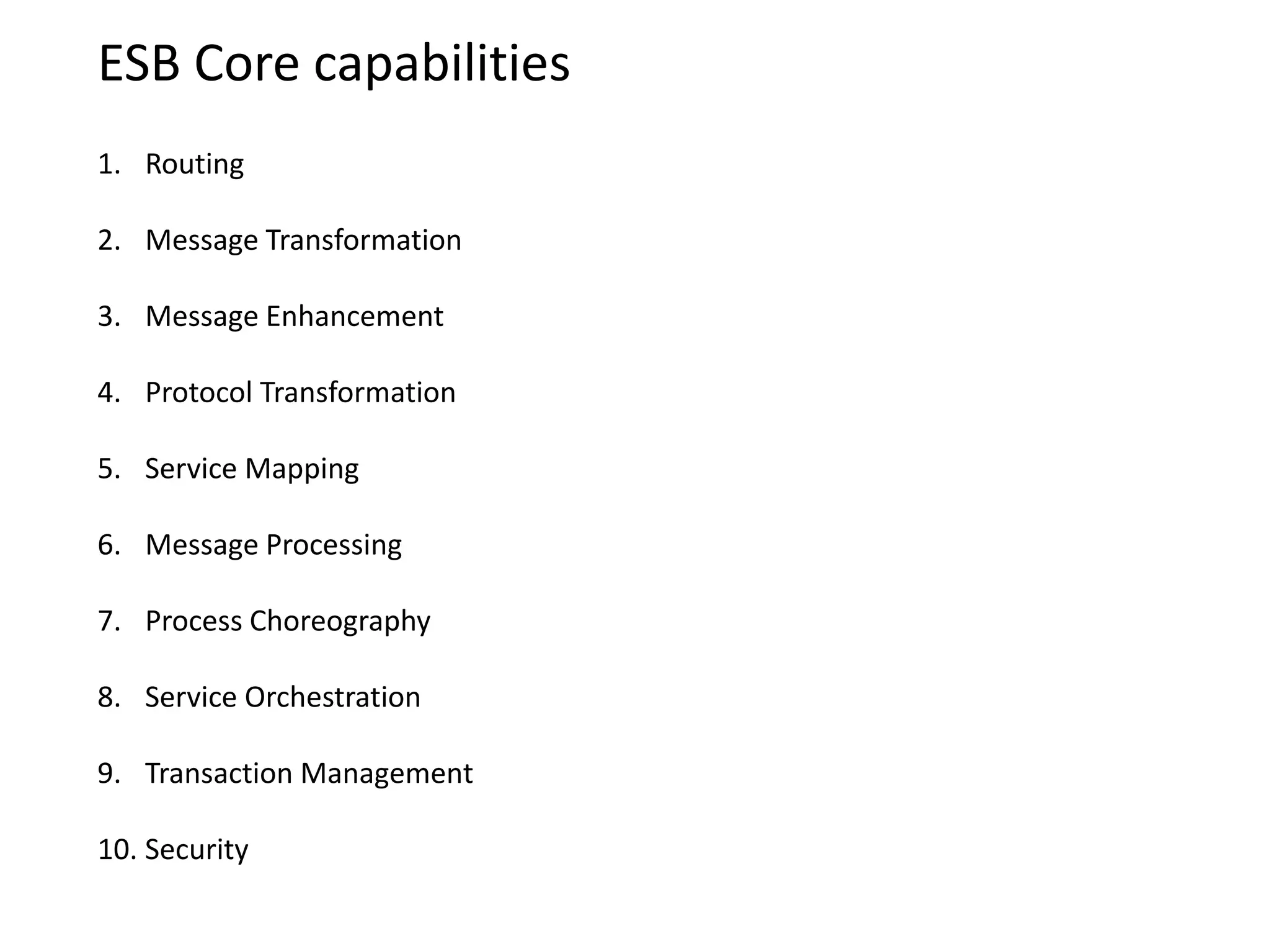

33. ESB Core capabilitiesRoutingMessage TransformationMessage EnhancementProtocol TransformationService MappingMessage ProcessingProcess ChoreographyService OrchestrationTransaction ManagementSecurity

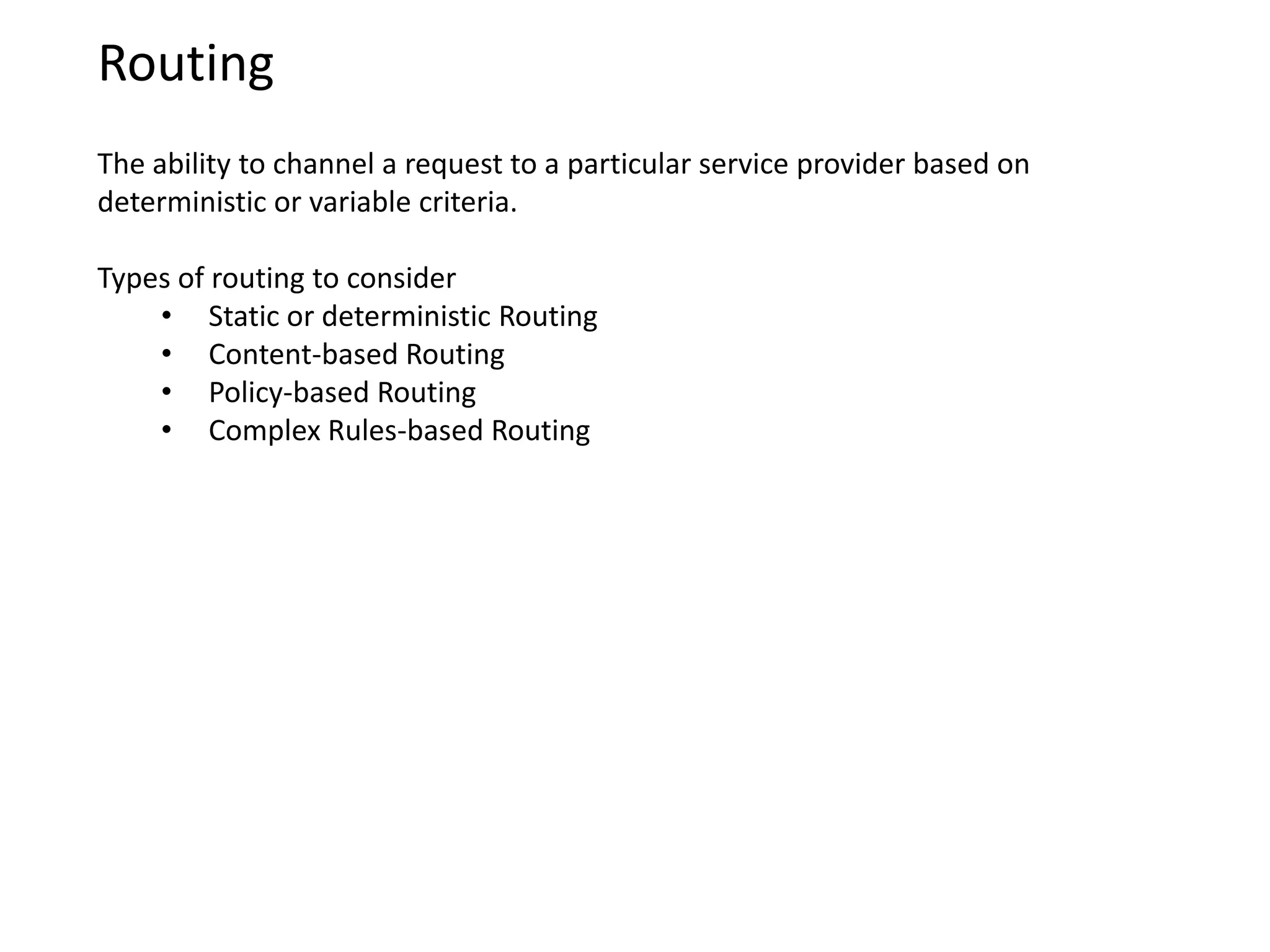

34. RoutingThe ability to channel a request to a particular service provider based on deterministic or variable criteria. Types of routing to considerStatic or deterministic Routing

35. Content-based Routing

36. Policy-based Routing

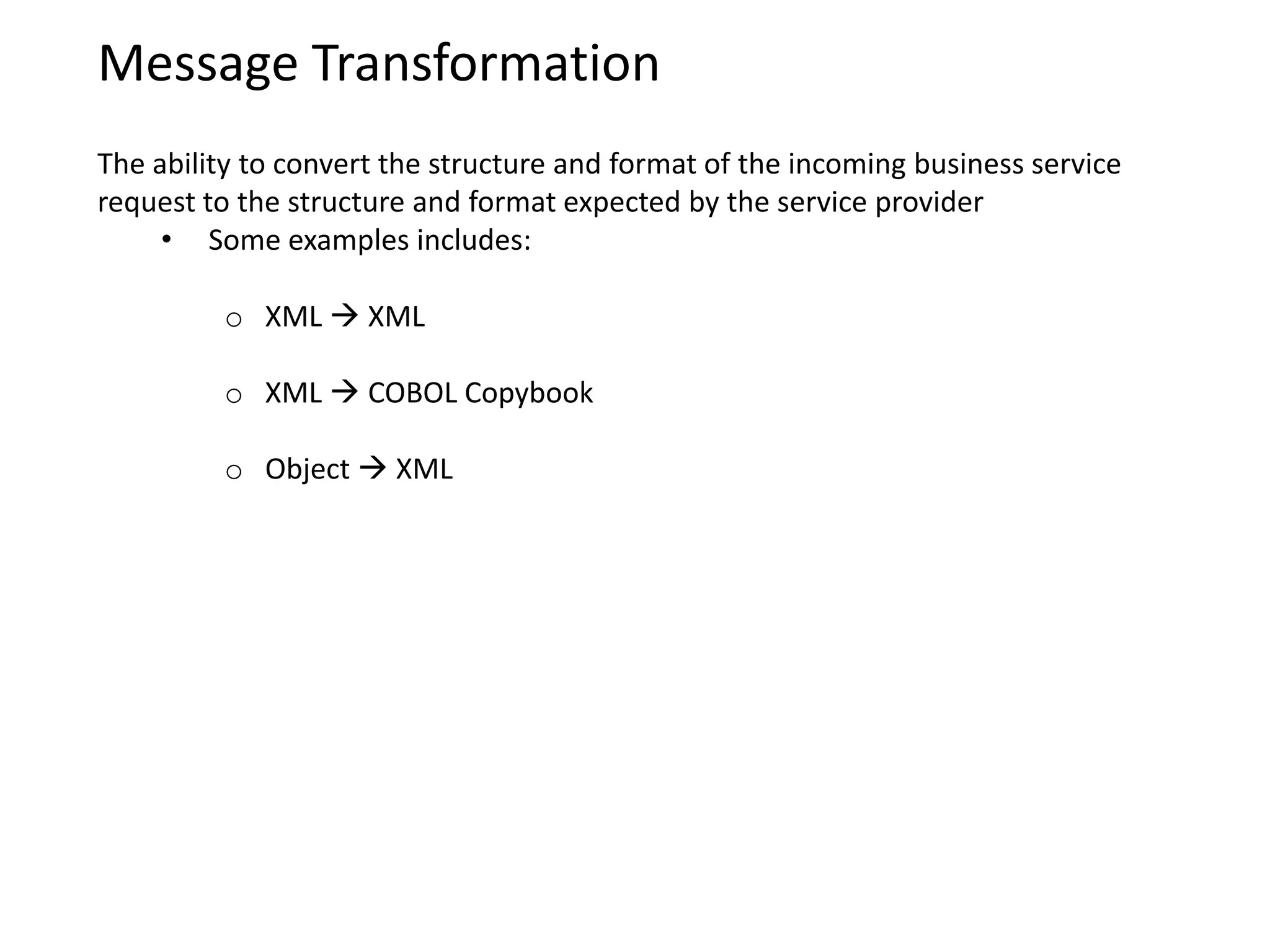

37. Complex Rules-based RoutingMessage TransformationThe ability to convert the structure and format of the incoming business service request to the structure and format expected by the service providerSome examples includes:

38. XML  XML

39. XML  COBOL Copybook

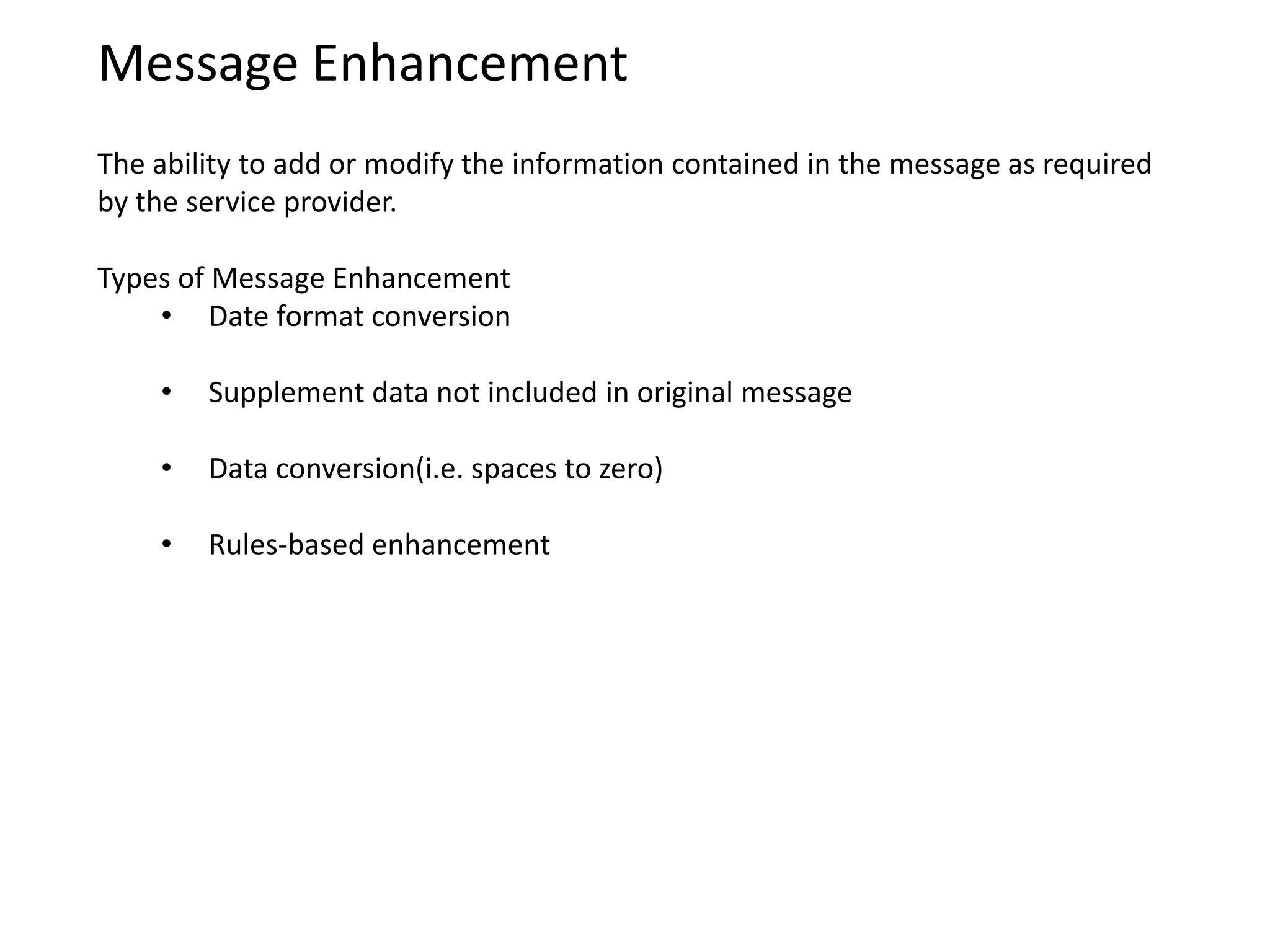

40. Object  XMLMessage EnhancementThe ability to add or modify the information contained in the message as required by the service provider. Types of Message EnhancementDate format conversion

41. Supplement data not included in original message

42. Data conversion(i.e. spaces to zero)

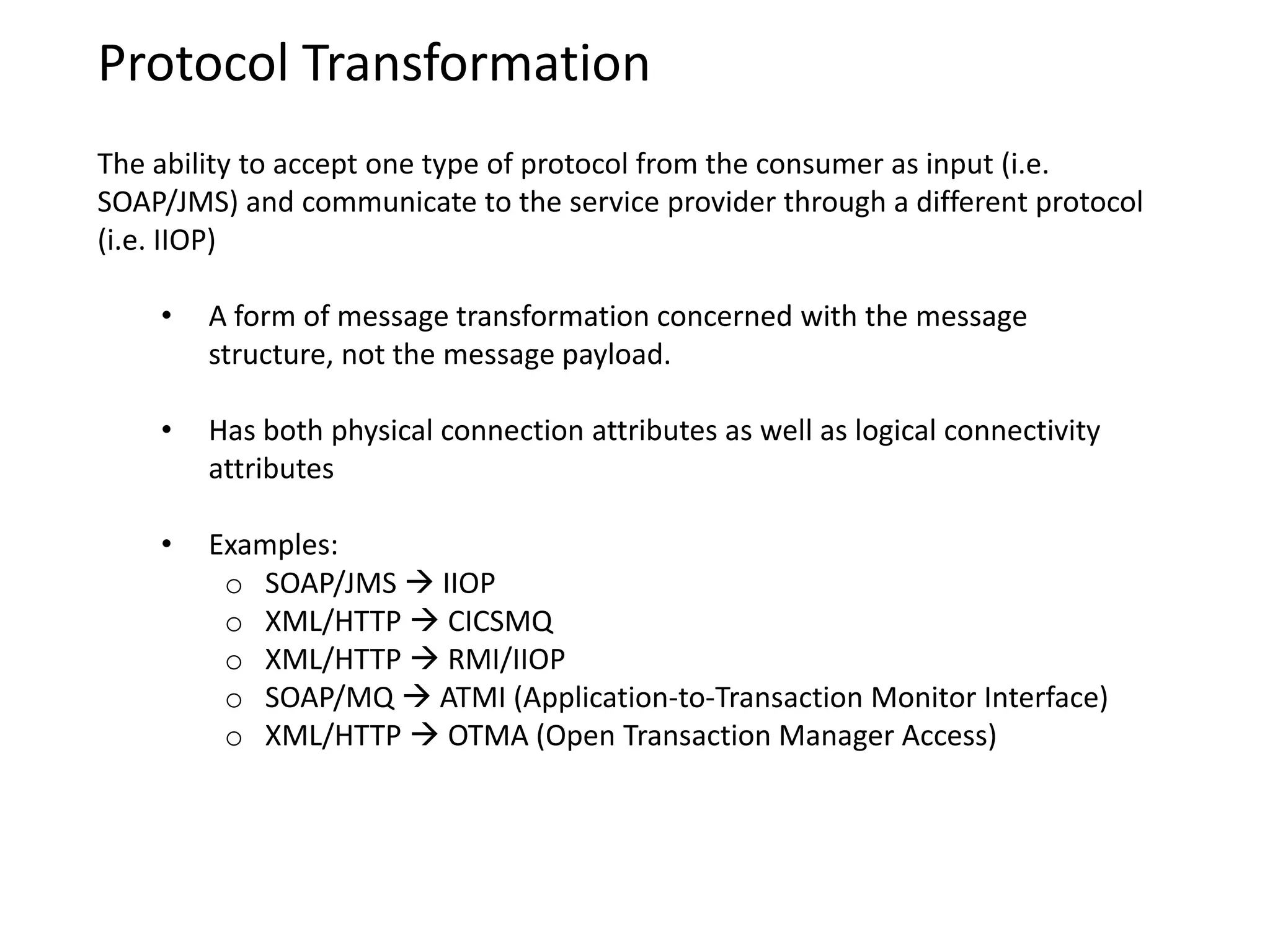

43. Rules-based enhancementProtocol TransformationThe ability to accept one type of protocol from the consumer as input (i.e. SOAP/JMS) and communicate to the service provider through a different protocol (i.e. IIOP) A form of message transformation concerned with the message structure, not the message payload.

44. Has both physical connection attributes as well as logical connectivity attributes

45. Examples:

46. SOAP/JMS  IIOP

47. XML/HTTP  CICSMQ

48. XML/HTTP  RMI/IIOP

49. SOAP/MQ ATMI (Application-to-Transaction Monitor Interface)

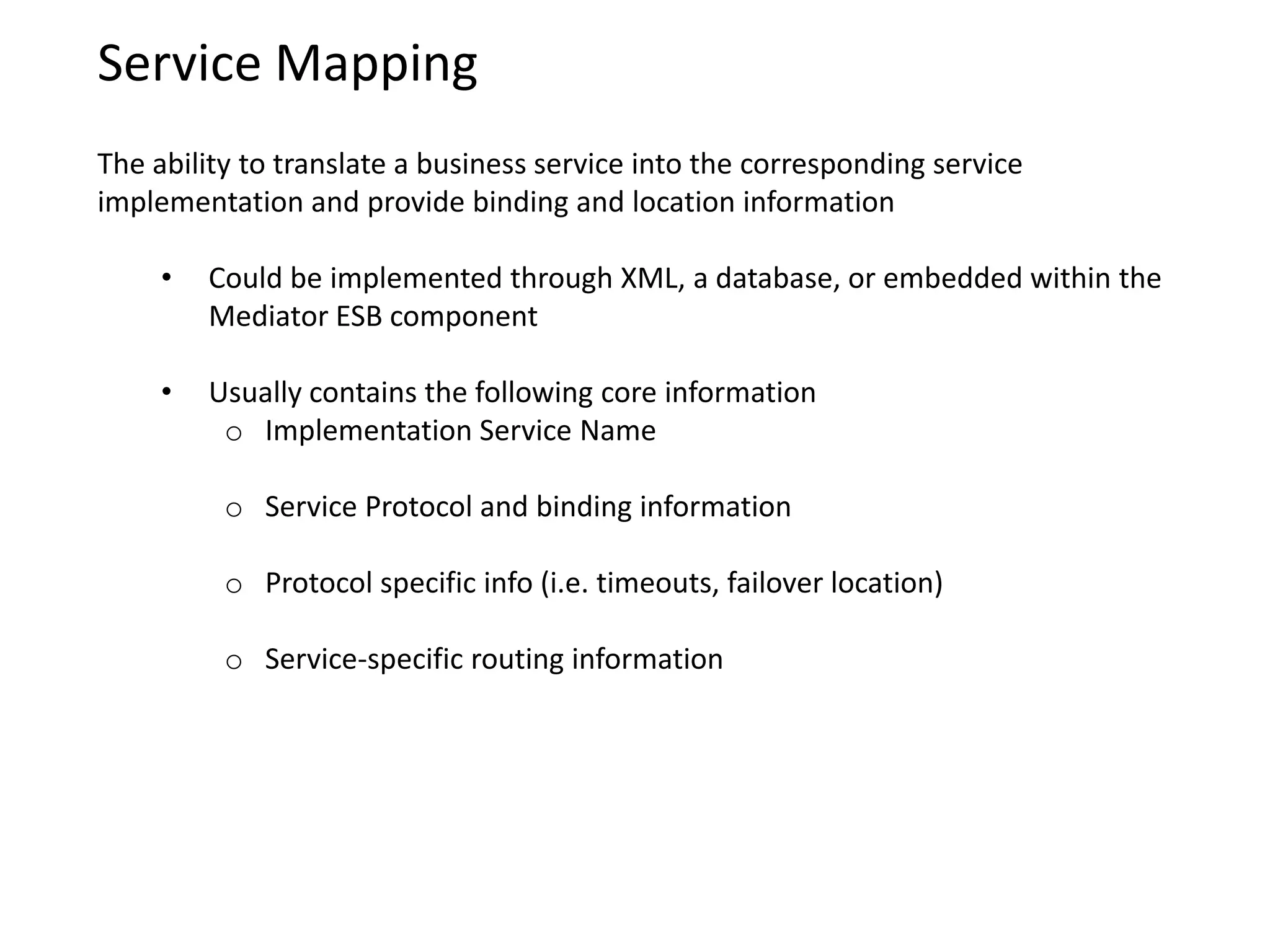

50. XML/HTTP OTMA (Open Transaction Manager Access)Service MappingThe ability to translate a business service into the corresponding service implementation and provide binding and location information Could be implemented through XML, a database, or embedded within the Mediator ESB component

51. Usually contains the following core information

52. Implementation Service Name

53. Service Protocol and binding information

54. Protocol specific info (i.e. timeouts, failover location)

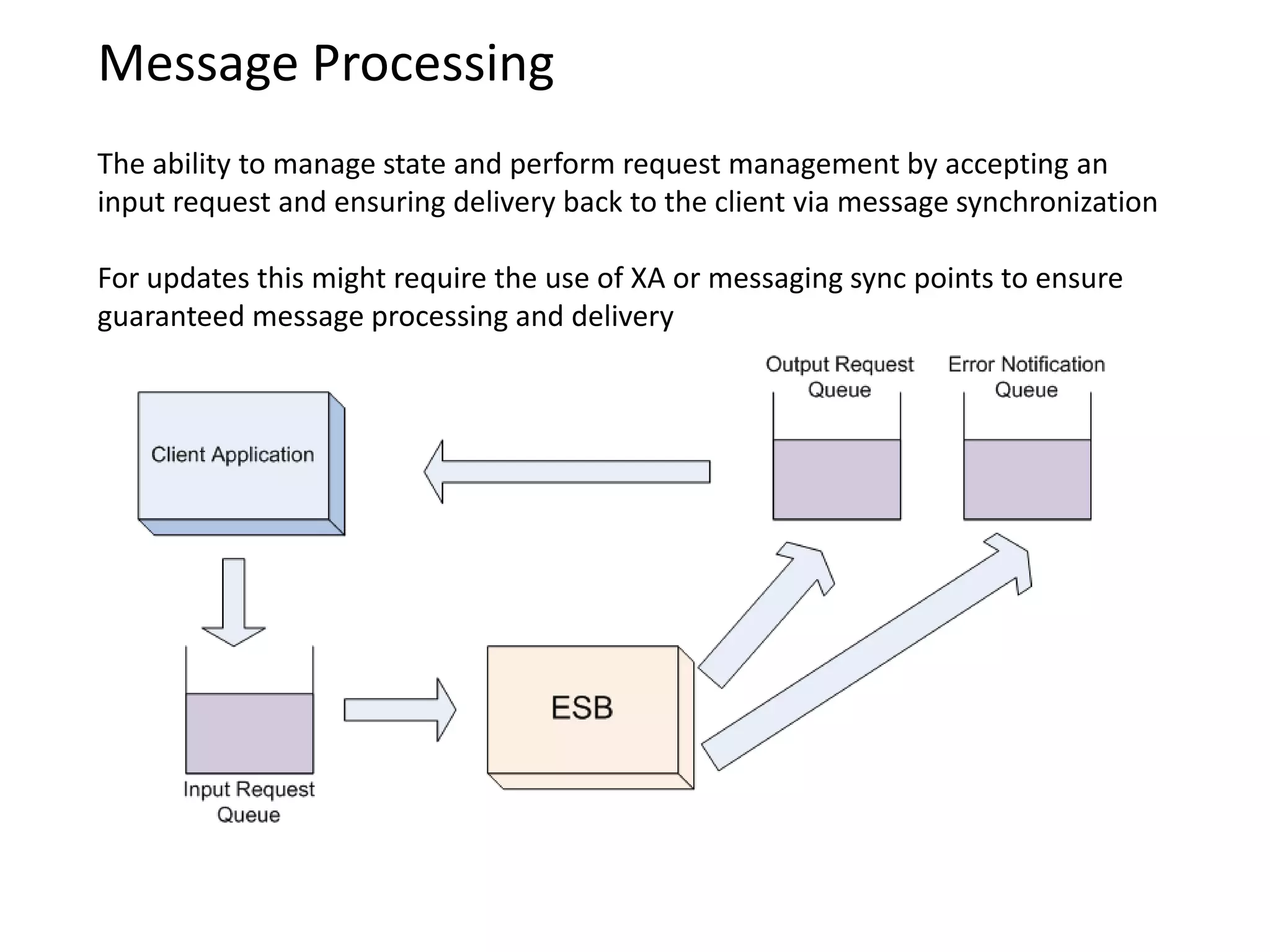

55. Service-specific routing informationMessage ProcessingThe ability to manage state and perform request management by accepting an input request and ensuring delivery back to the client via message synchronizationFor updates this might require the use of XA or messaging sync points to ensure guaranteed message processing and delivery

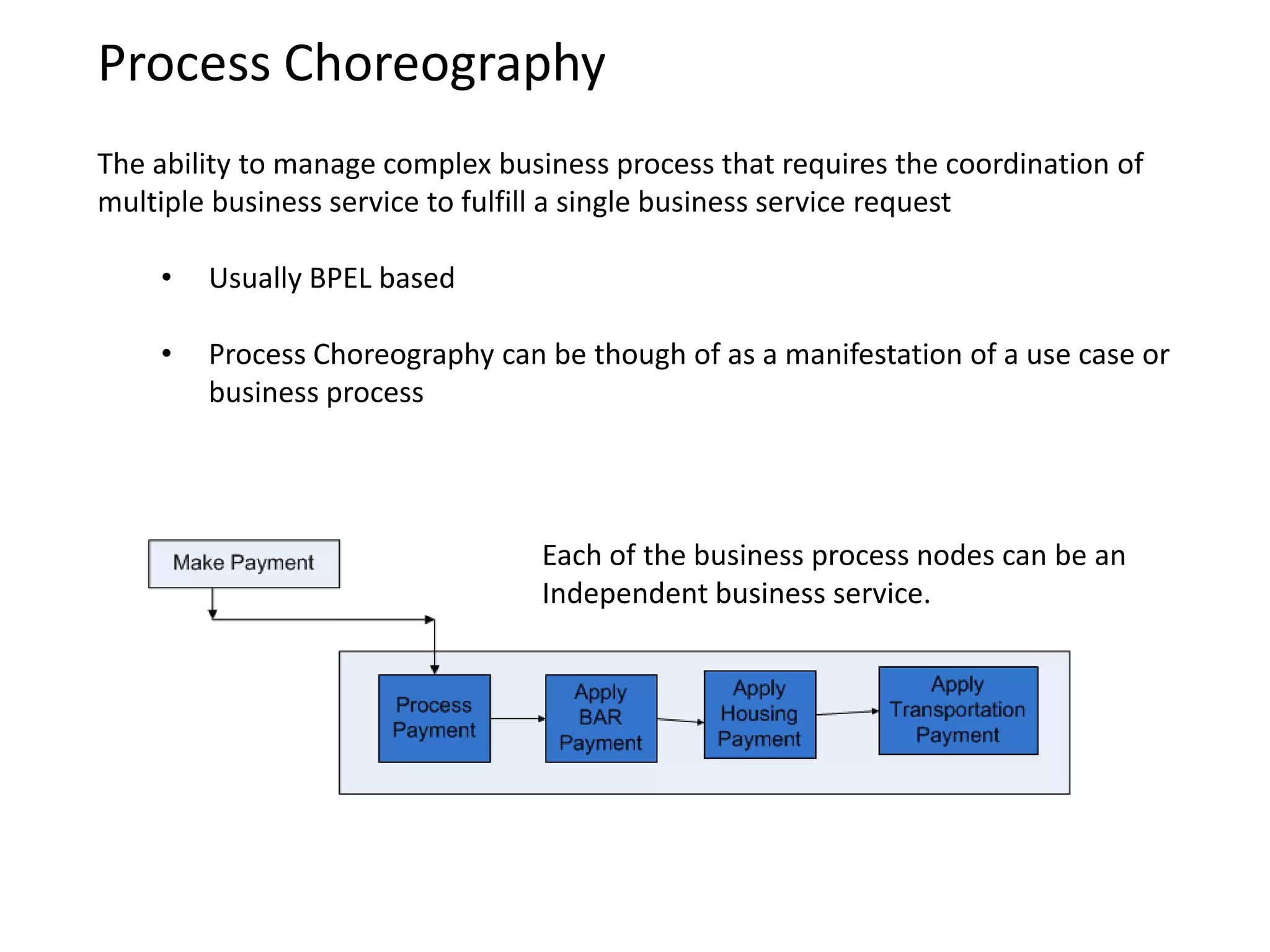

56. Process ChoreographyThe ability to manage complex business process that requires the coordination of multiple business service to fulfill a single business service request Usually BPEL based

57. Process Choreography can be though of as a manifestation of a use case or business processEach of the business process nodes can be anIndependent business service.

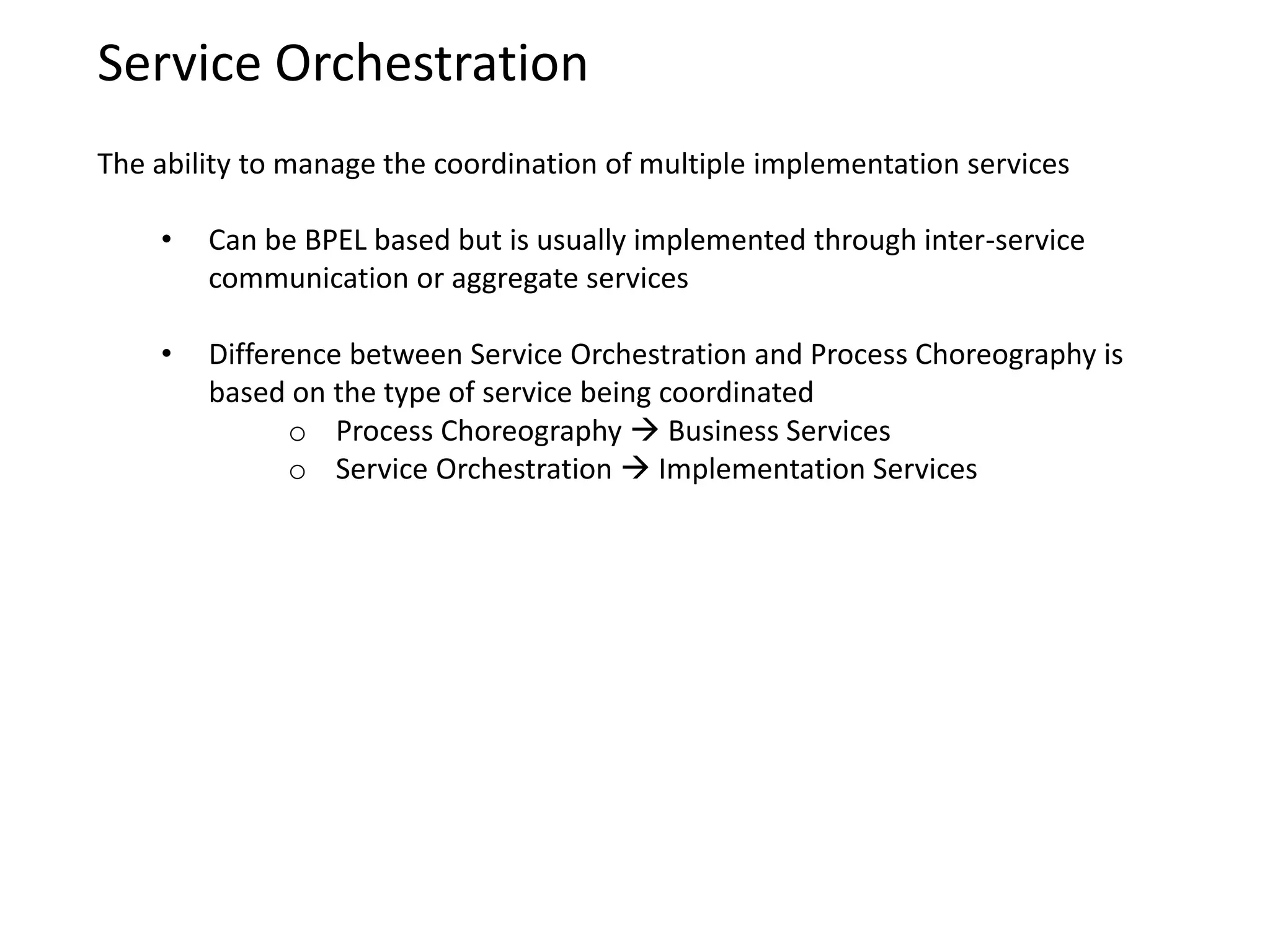

58. Service OrchestrationThe ability to manage the coordination of multiple implementation services Can be BPEL based but is usually implemented through inter-service communication or aggregate services

59. Difference between Service Orchestration and Process Choreography is based on the type of service being coordinated

60. Process Choreography  Business Services

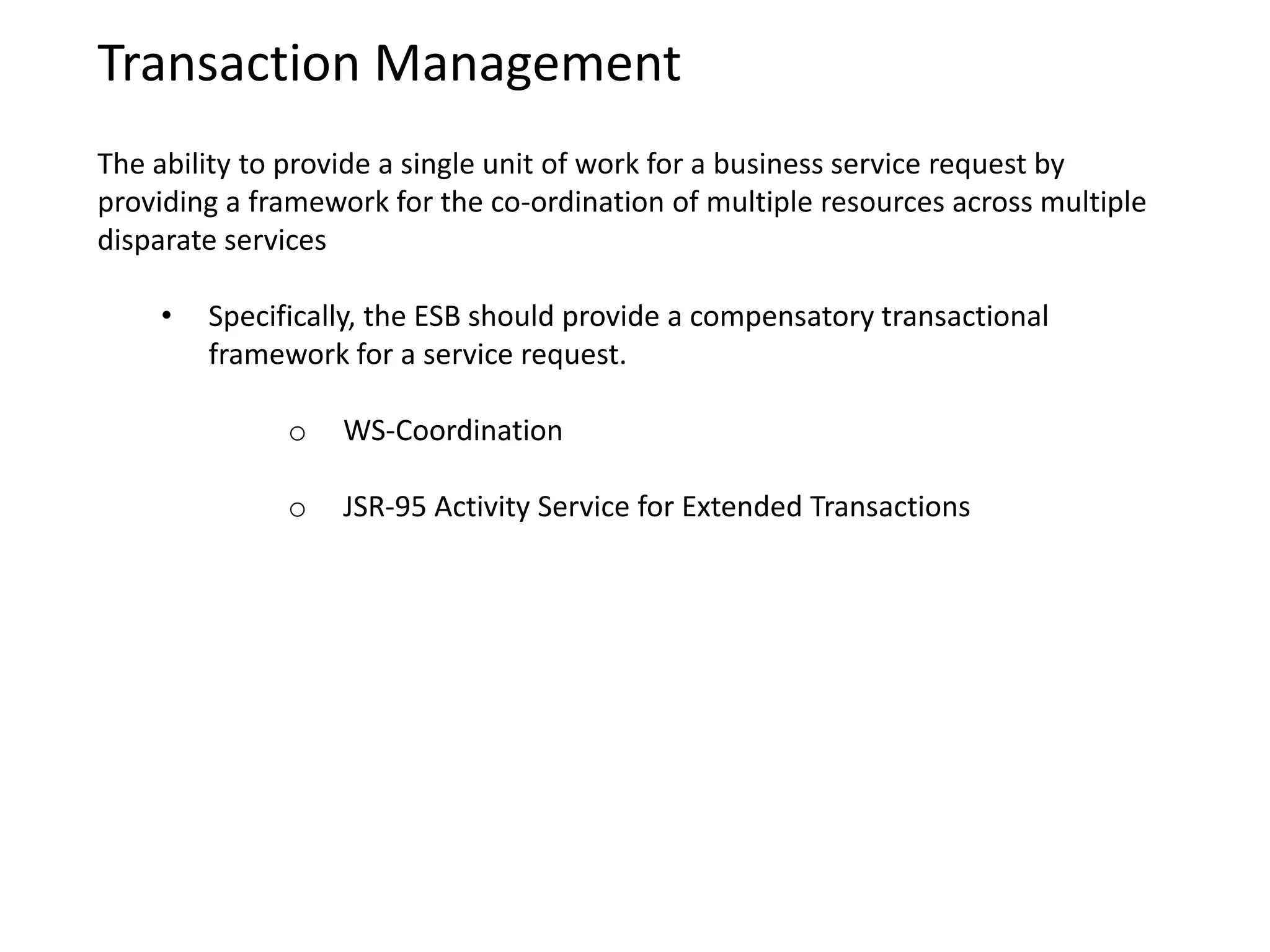

61. Service Orchestration  Implementation ServicesTransaction ManagementThe ability to provide a single unit of work for a business service request by providing a framework for the co-ordination of multiple resources across multiple disparate services Specifically, the ESB should provide a compensatory transactional framework for a service request.

62. WS-Coordination

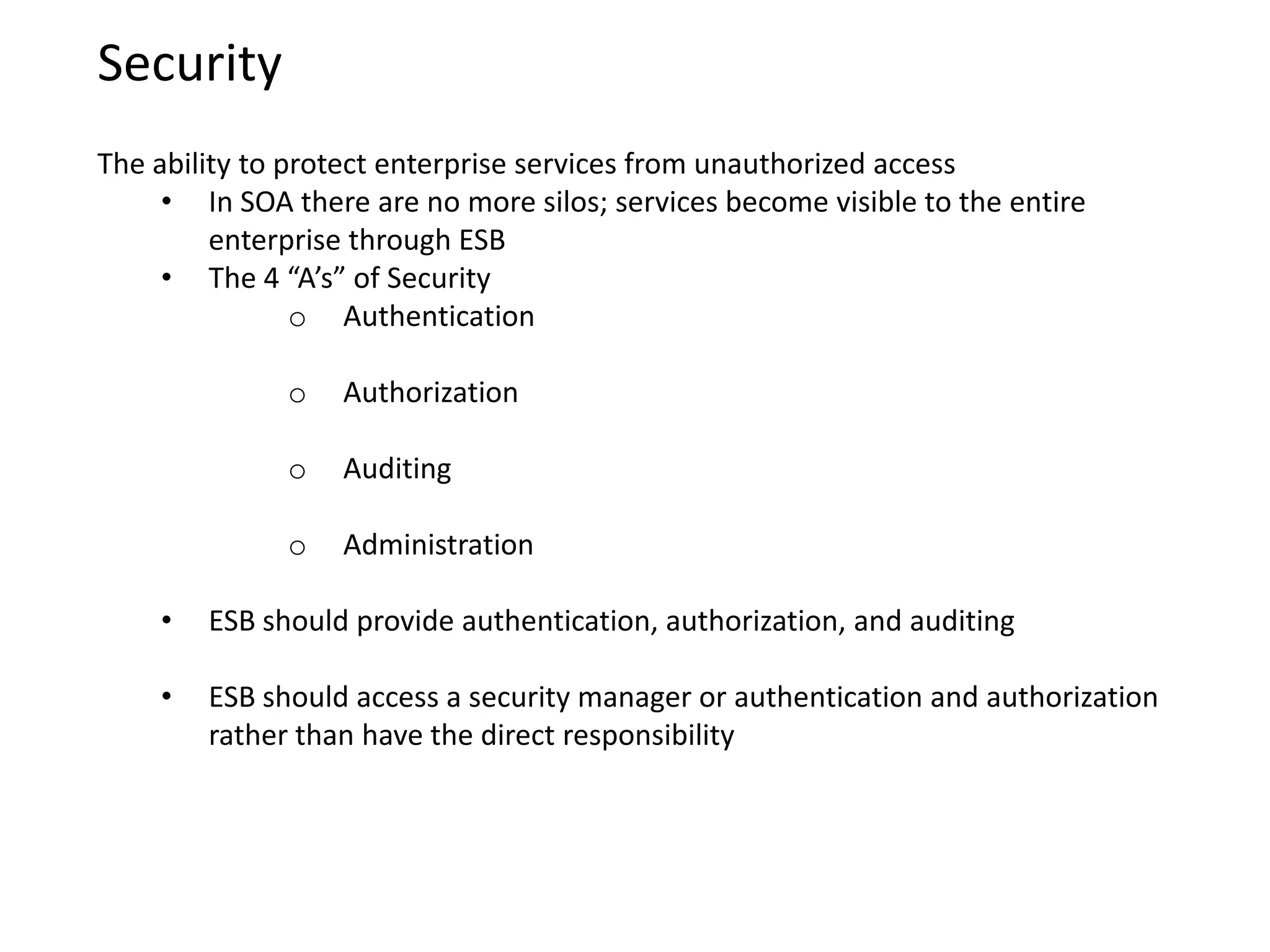

63. JSR-95 Activity Service for Extended TransactionsSecurityThe ability to protect enterprise services from unauthorized accessIn SOA there are no more silos; services become visible to the entire enterprise through ESB

64. The 4 “A’s” of Security

65. Authentication

66. Authorization

67. Auditing

68. Administration

69. ESB should provide authentication, authorization, and auditing

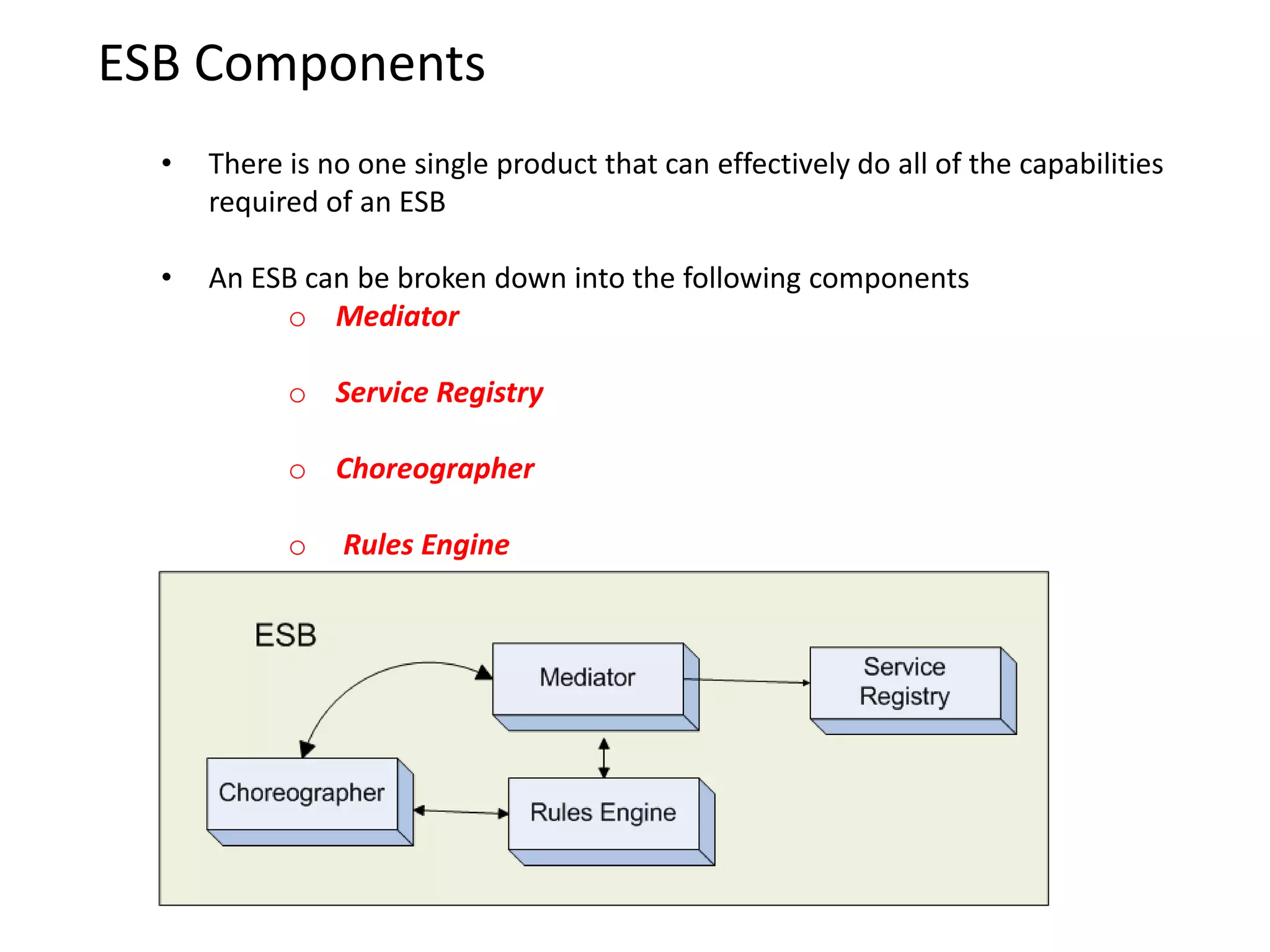

70. ESB should access a security manager or authentication and authorization rather than have the direct responsibilityESB ComponentsThere is no one single product that can effectively do all of the capabilities required of an ESB

71. An ESB can be broken down into the following components

72. Mediator

73. Service Registry

74. Choreographer

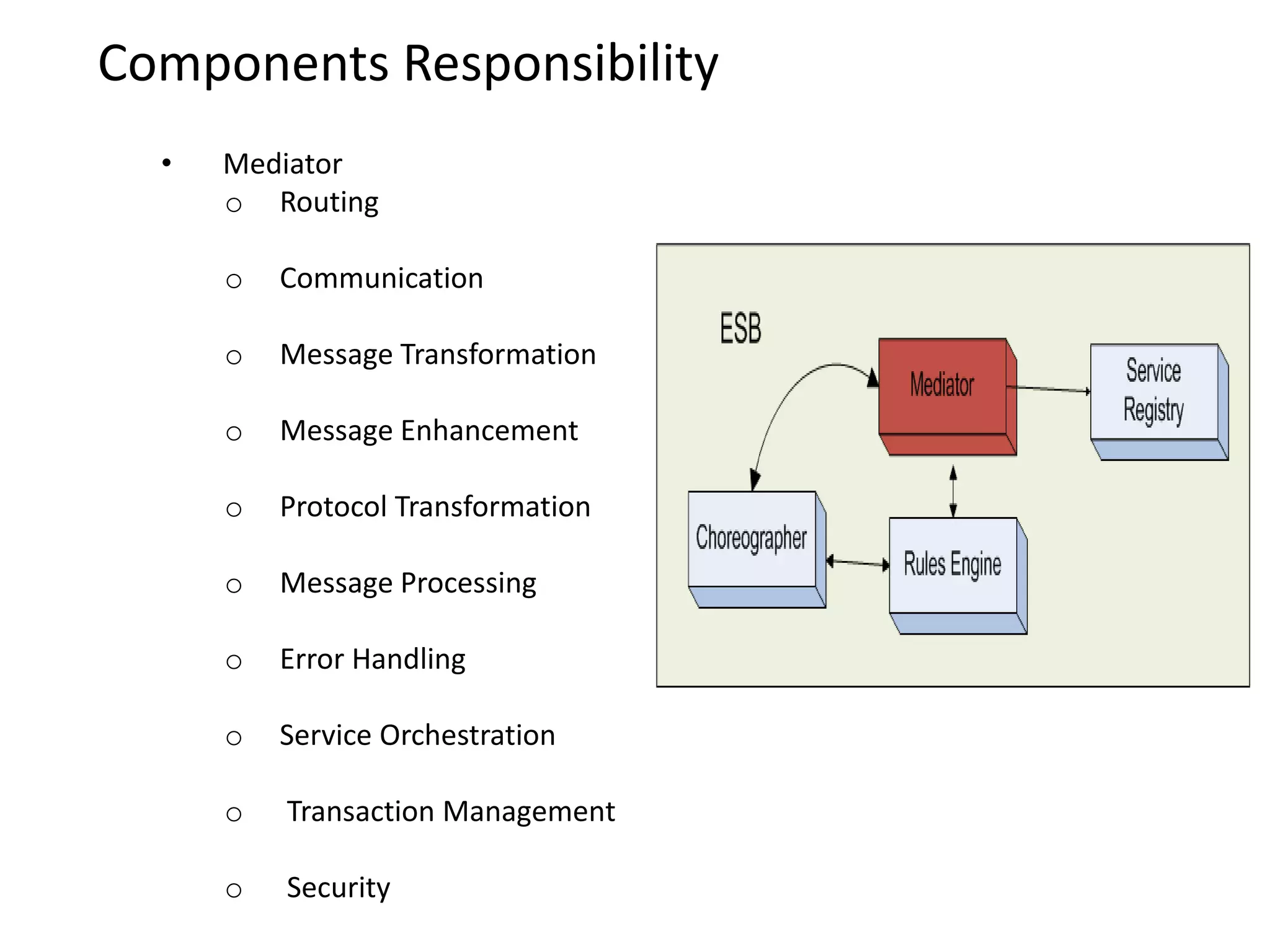

75. Rules EngineComponents Responsibility Mediator

76. Routing

77. Communication

78. Message Transformation

79. Message Enhancement

80. Protocol Transformation

81. Message Processing

82. Error Handling

83. Service Orchestration

84. Transaction Management

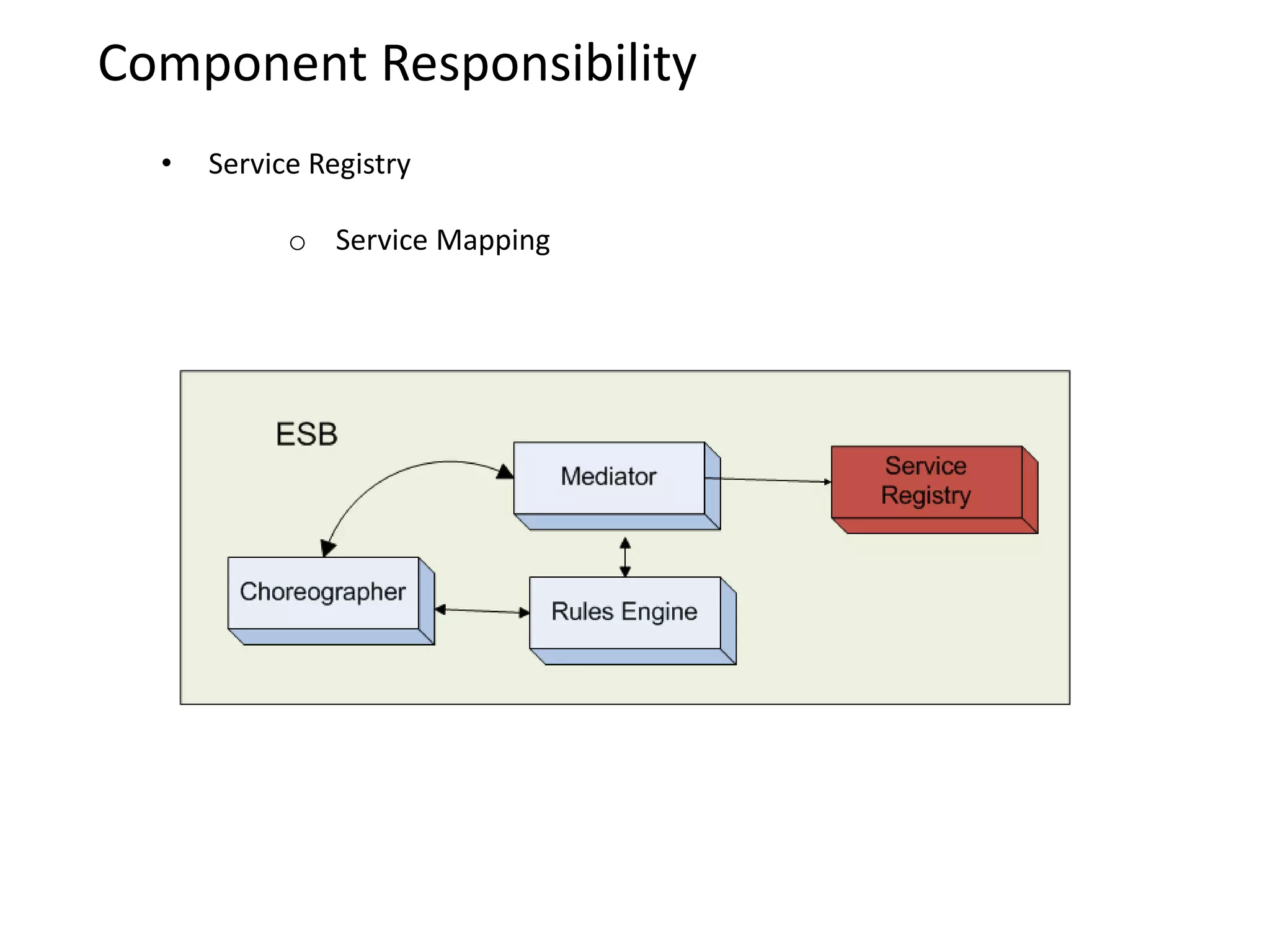

85. SecurityComponent ResponsibilityService Registry

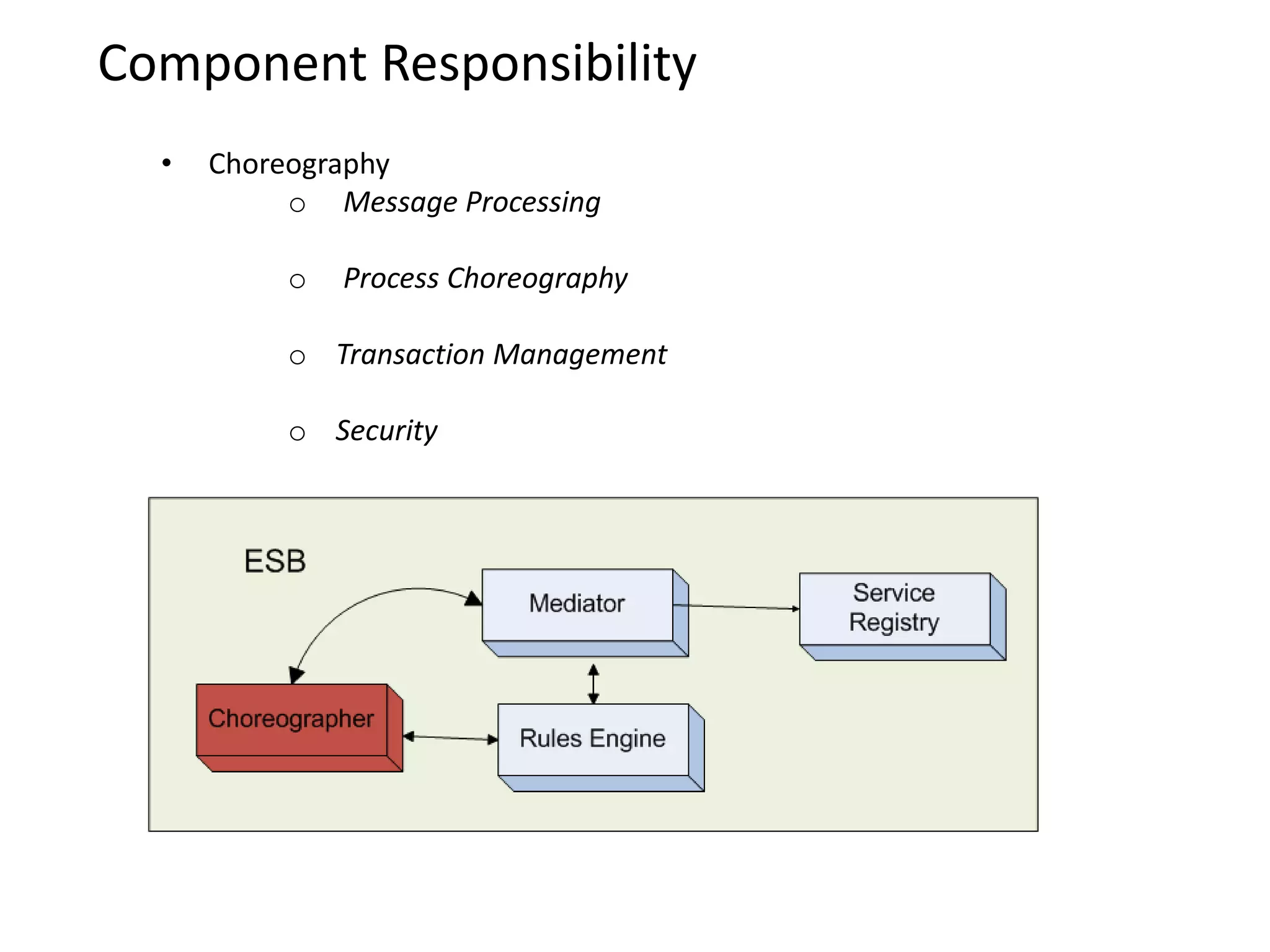

86. Service MappingComponent ResponsibilityChoreography

87. Message Processing

88. Process Choreography

89. Transaction Management

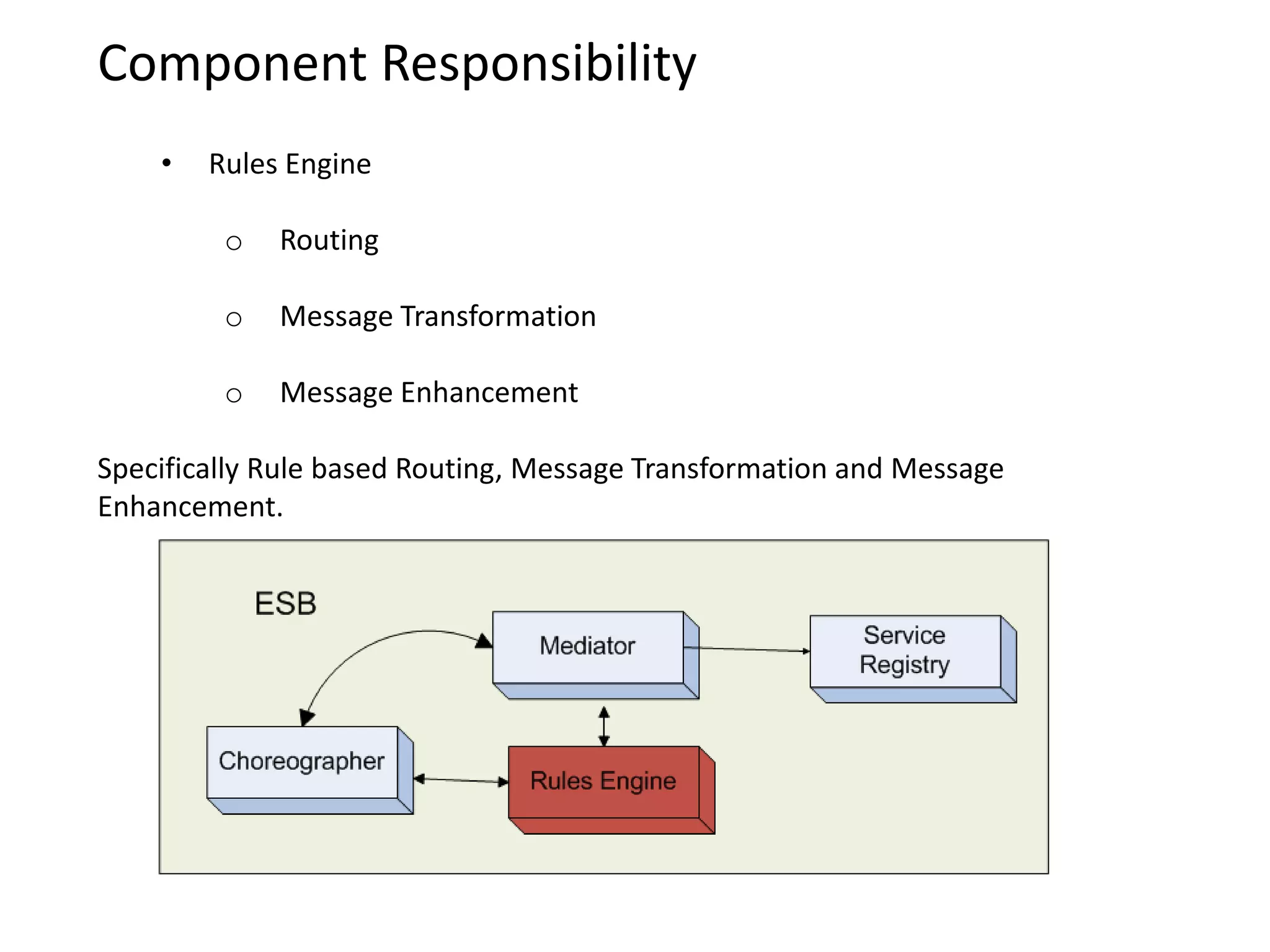

90. SecurityComponent ResponsibilityRules Engine

91. Routing

92. Message Transformation

93. Message Enhancement Specifically Rule based Routing, Message Transformation and Message Enhancement.

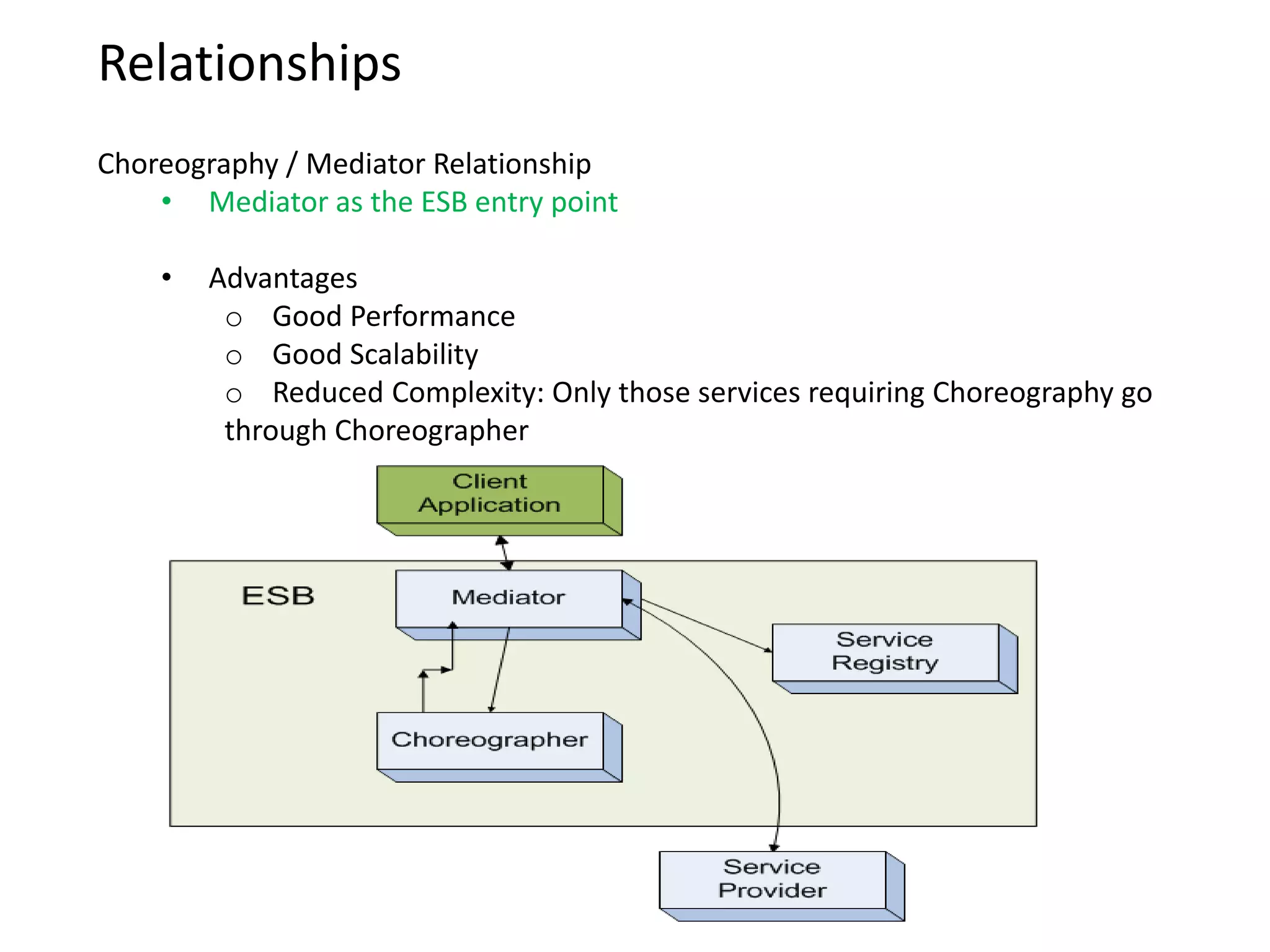

94. RelationshipsChoreography / Mediator RelationshipMediator as the ESB entry point

95. Advantages

96. Good Performance

97. Good Scalability

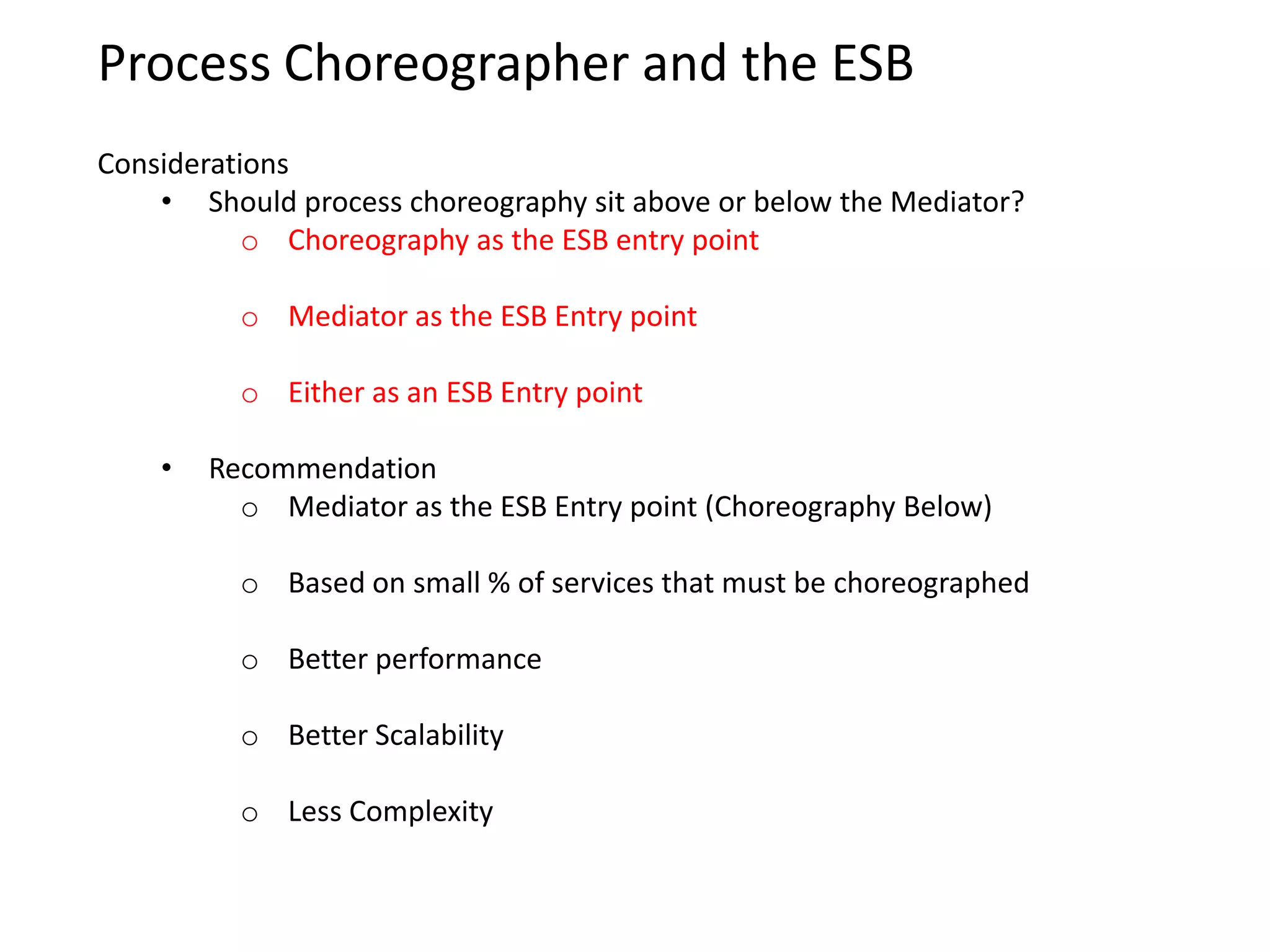

98. Reduced Complexity: Only those services requiring Choreography go through ChoreographerProcess Choreographer and the ESBConsiderationsShould process choreography sit above or below the Mediator?

99. Choreography as the ESB entry point

100. Mediator as the ESB Entry point

101. Either as an ESB Entry point

102. Recommendation

103. Mediator as the ESB Entry point (Choreography Below)

104. Based on small % of services that must be choreographed

105. Better performance

106. Better Scalability

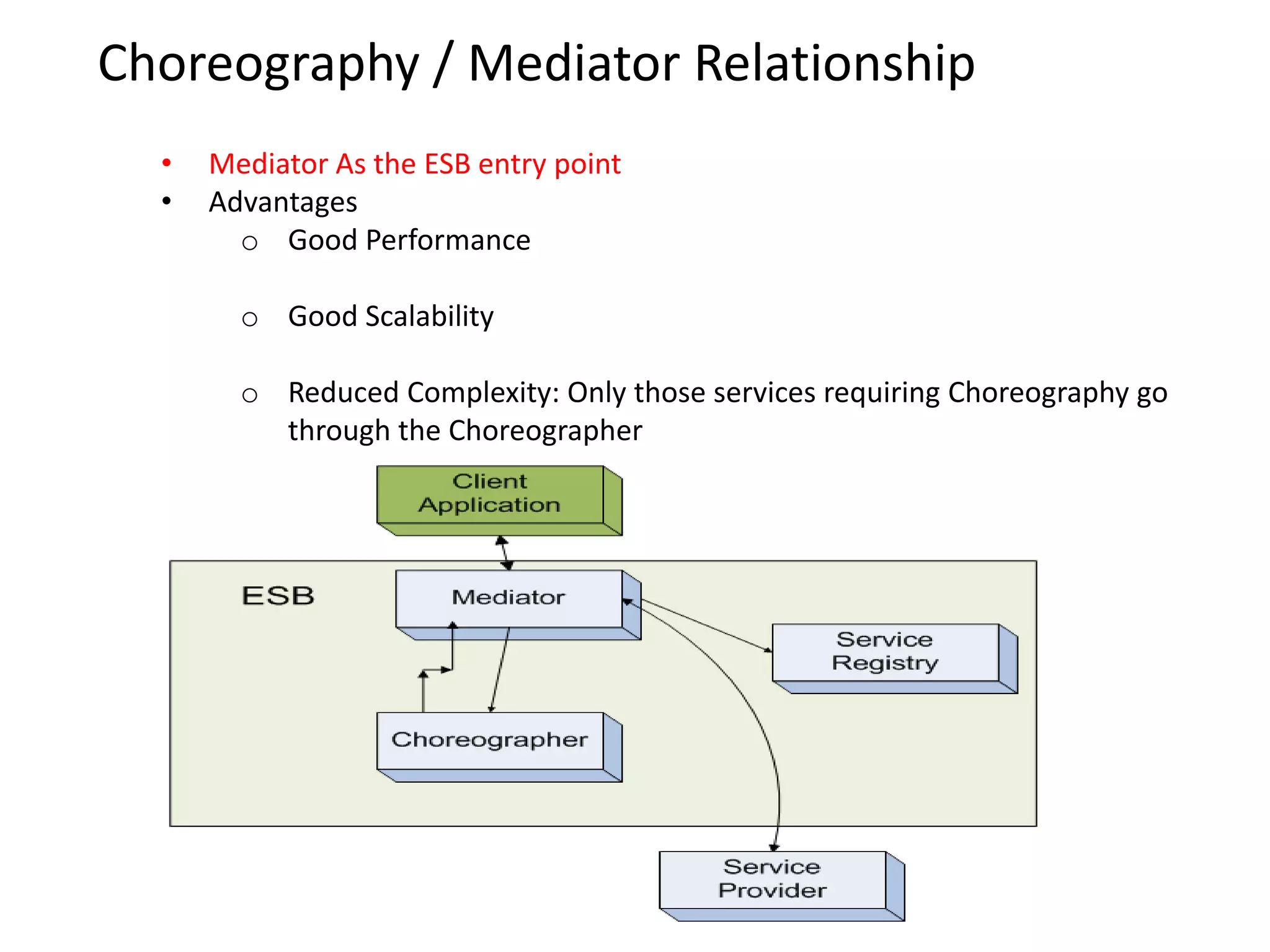

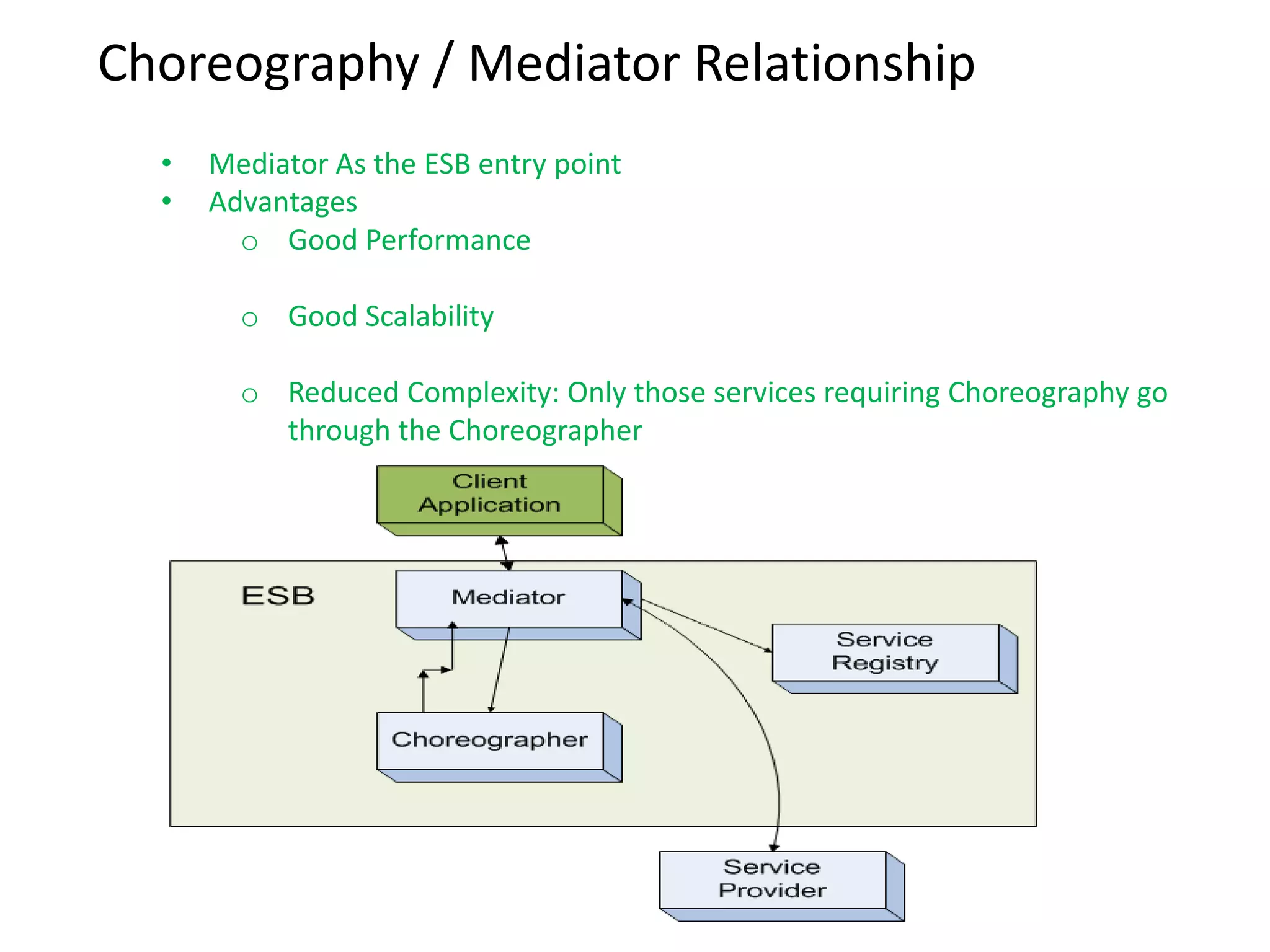

107. Less ComplexityChoreography / Mediator RelationshipMediator As the ESB entry point

108. Advantages

109. Good Performance

110. Good Scalability

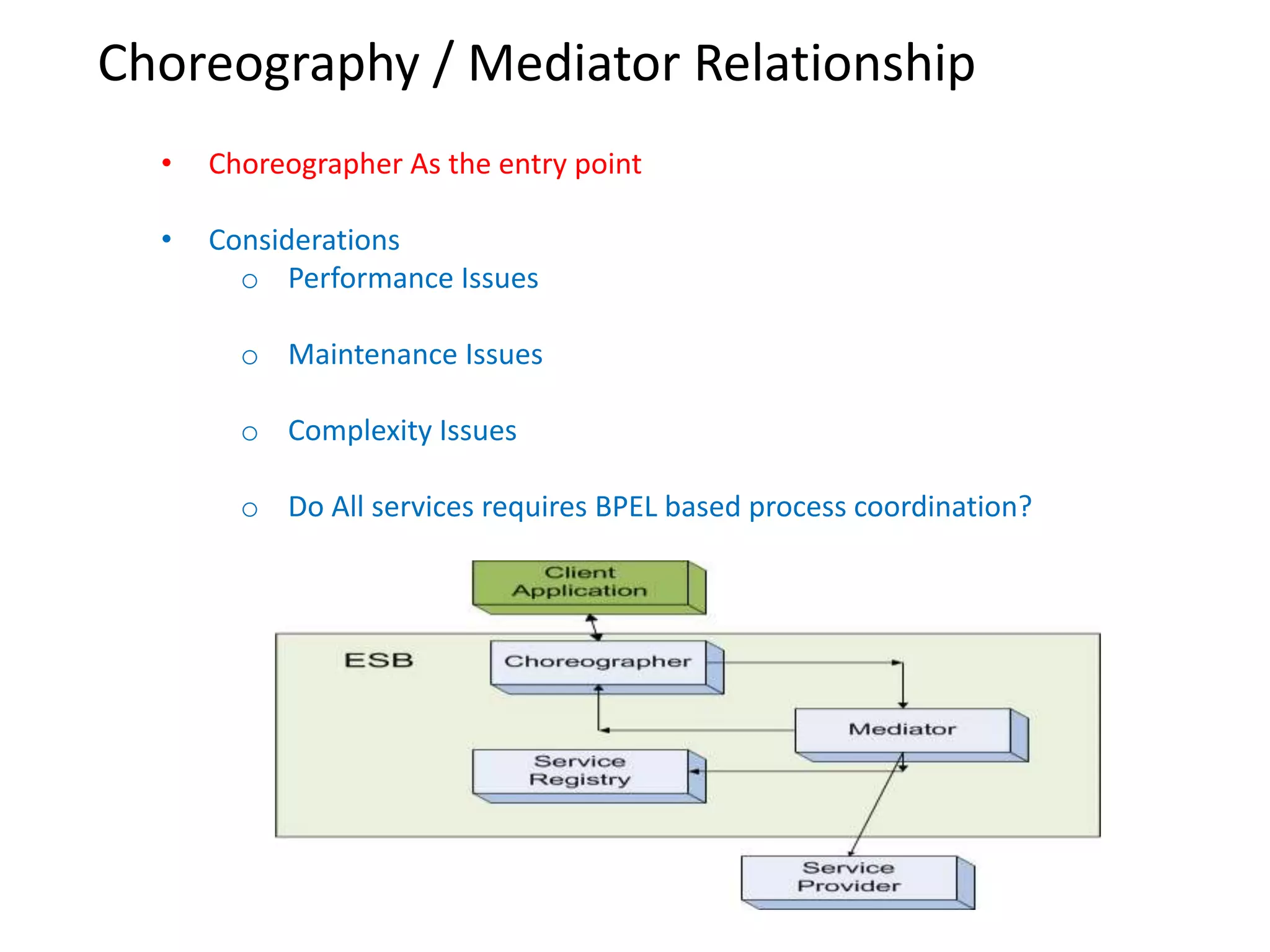

111. Reduced Complexity: Only those services requiring Choreography go through the ChoreographerChoreography / Mediator RelationshipChoreographer As the entry point

112. Considerations

113. Performance Issues

114. Maintenance Issues

115. Complexity Issues

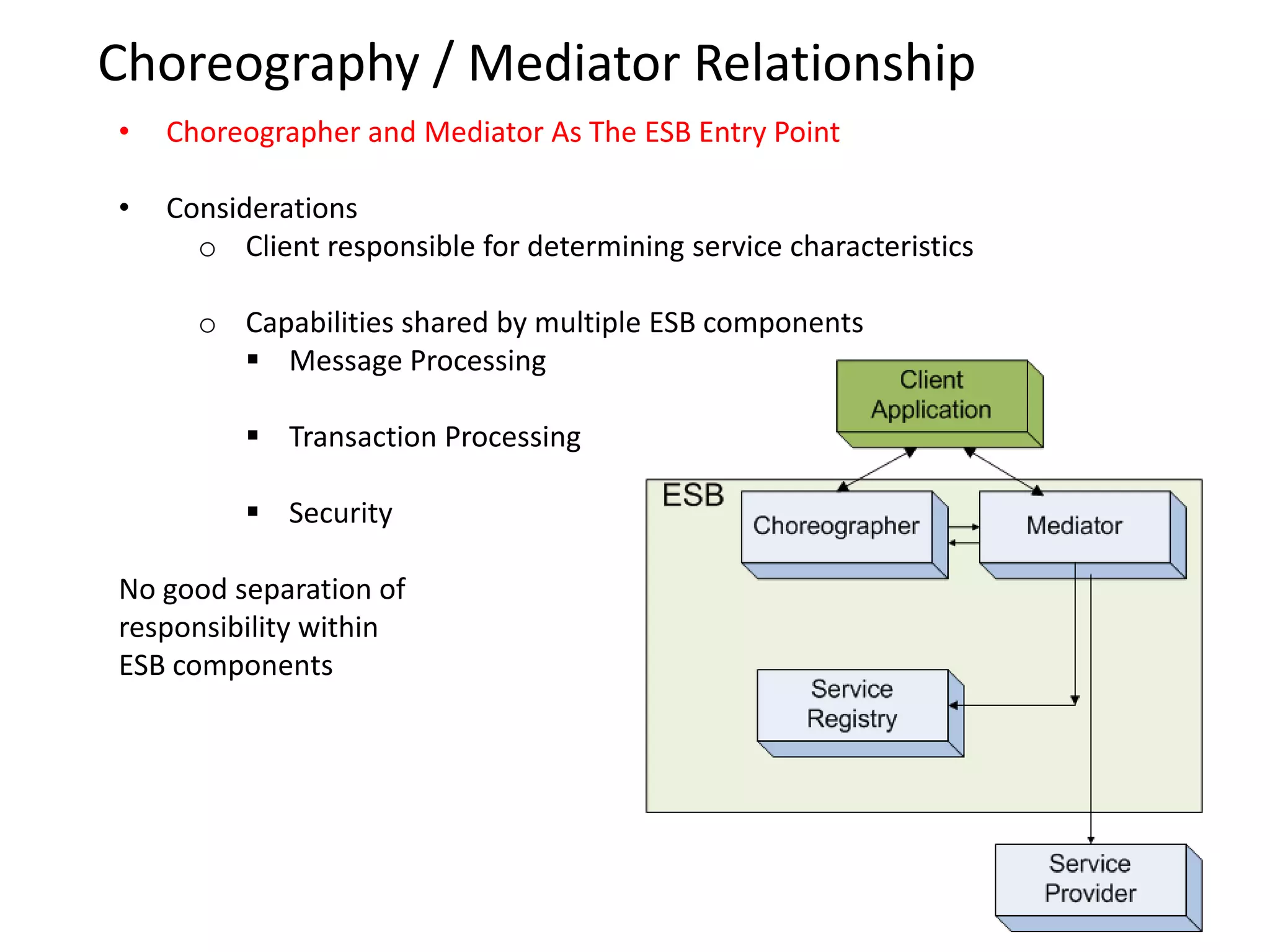

116. Do All services requires BPEL based process coordination?Choreography / Mediator RelationshipChoreographer and Mediator As The ESB Entry Point

117. Considerations

118. Client responsible for determining service characteristics

119. Capabilities shared by multiple ESB components

120. Message Processing

121. Transaction Processing

122. SecurityNo good separation of responsibility within ESB components

123. Choreography / Mediator RelationshipMediator As the ESB entry point

124. Advantages

125. Good Performance

126. Good Scalability

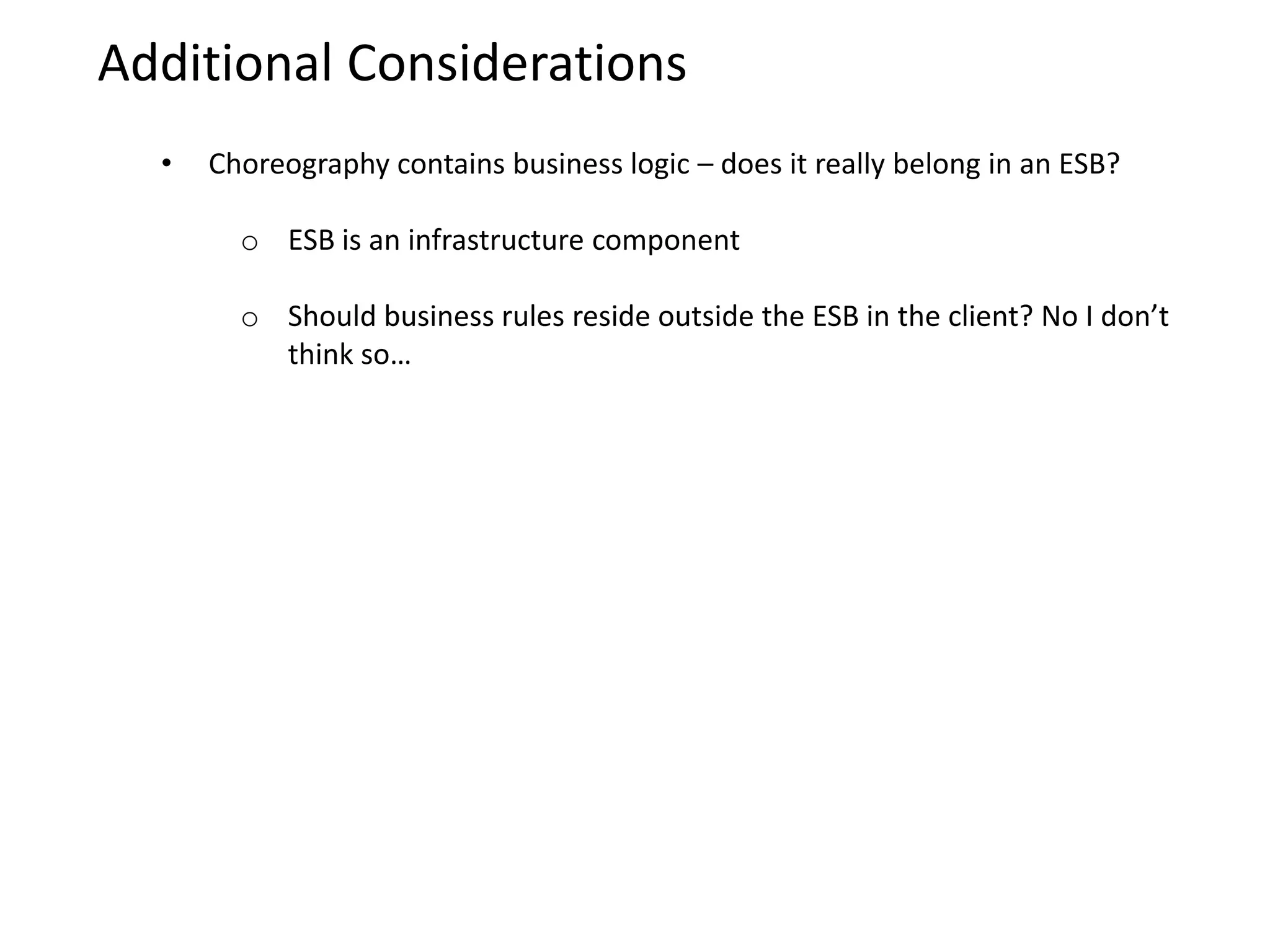

127. Reduced Complexity: Only those services requiring Choreography go through the ChoreographerAdditional ConsiderationsChoreography contains business logic – does it really belong in an ESB?

128. ESB is an infrastructure component

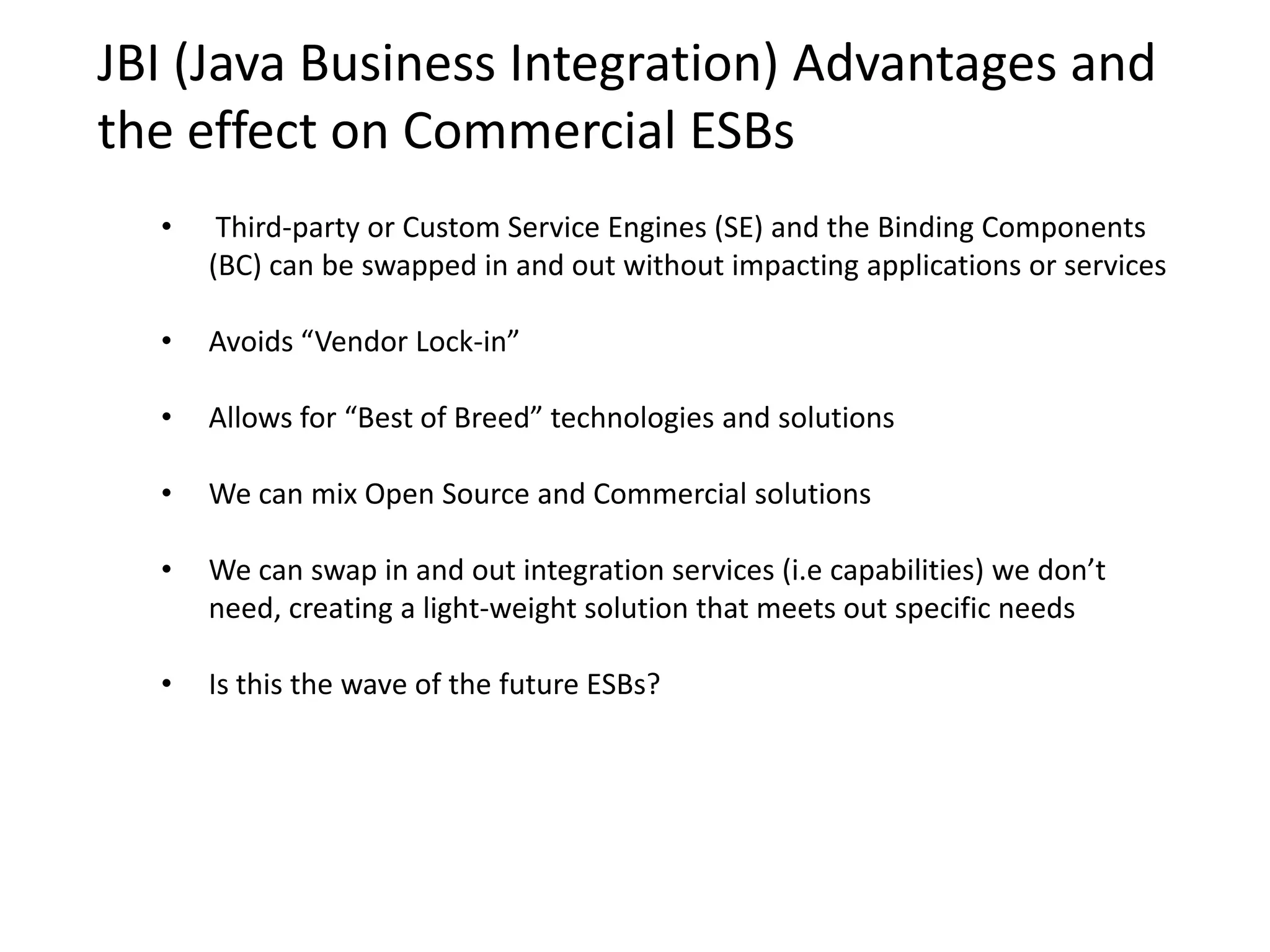

129. Should business rules reside outside the ESB in the client? No I don’t think so…JBI (Java Business Integration) Advantages and the effect on Commercial ESBs Third-party or Custom Service Engines (SE) and the Binding Components (BC) can be swapped in and out without impacting applications or services

130. Avoids “Vendor Lock-in”

131. Allows for “Best of Breed” technologies and solutions

132. We can mix Open Source and Commercial solutions

133. We can swap in and out integration services (i.e capabilities) we don’t need, creating a light-weight solution that meets out specific needs

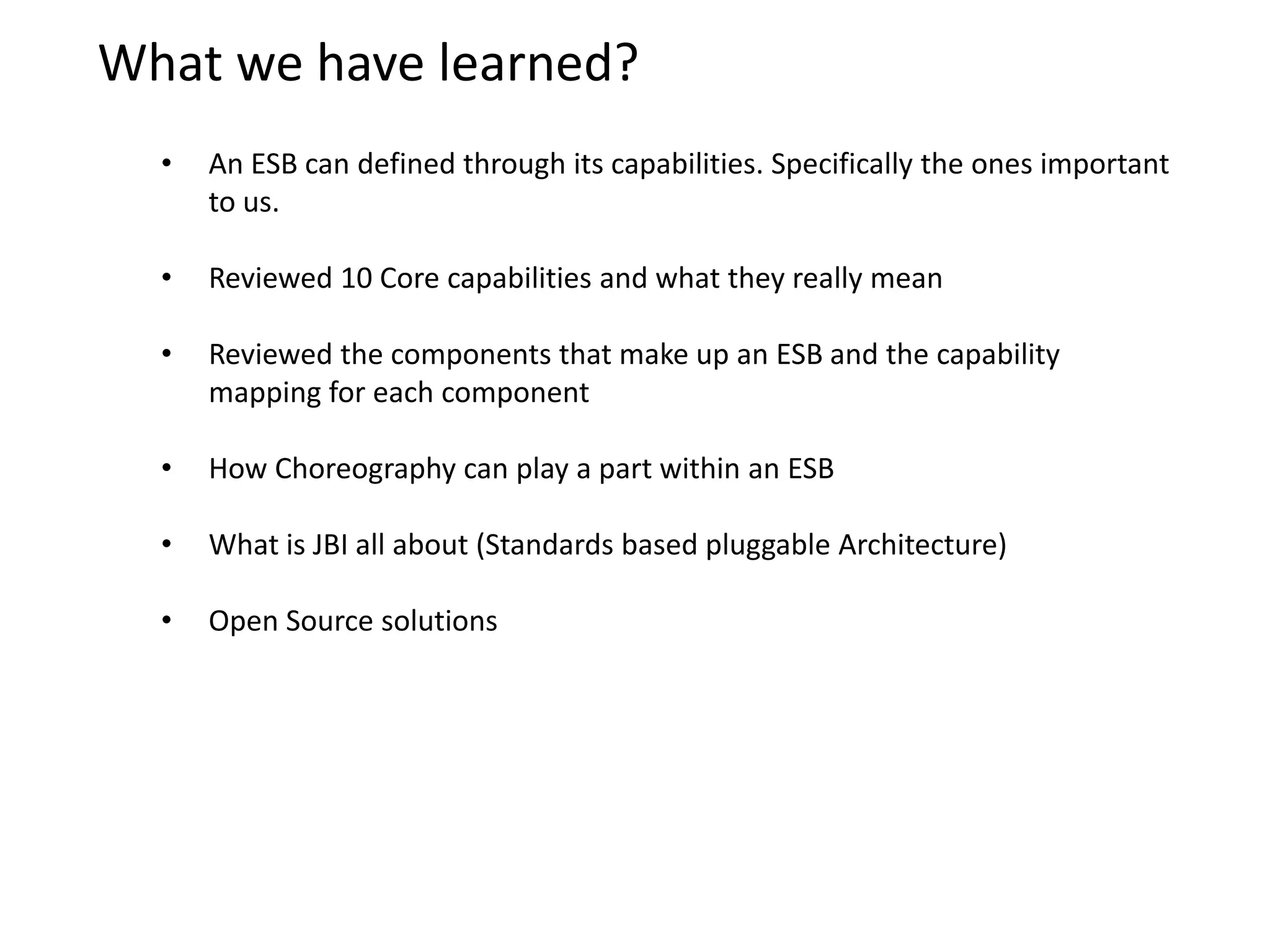

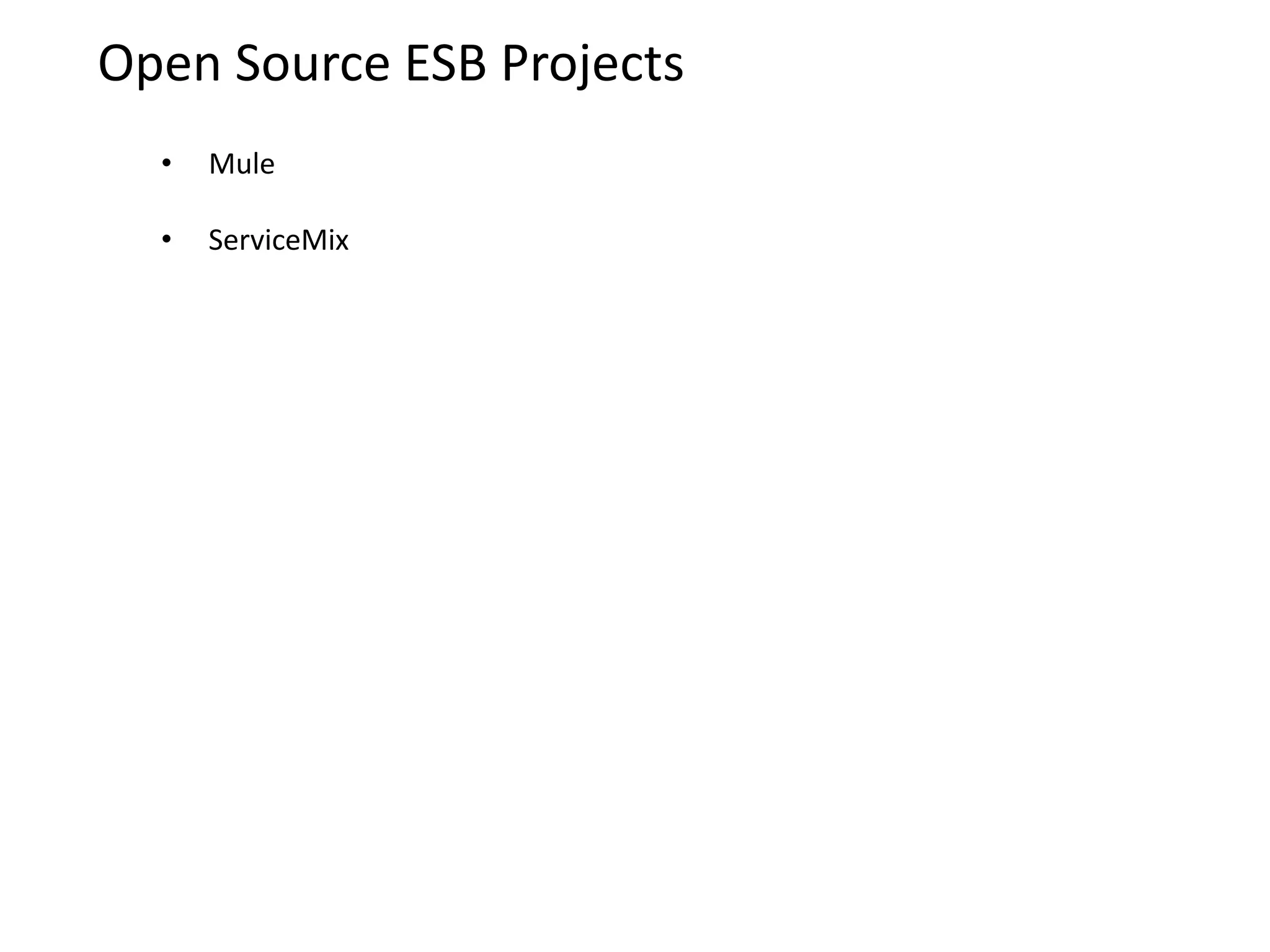

134. Is this the wave of the future ESBs?Open Source ESB ProjectsMule

135. ServiceMixWhat we have learned?An ESB can defined through its capabilities. Specifically the ones important to us.

136. Reviewed 10 Core capabilities and what they really mean

137. Reviewed the components that make up an ESB and the capability mapping for each component

138. How Choreography can play a part within an ESB

139. What is JBI all about (Standards based pluggable Architecture)

140. Open Source solutionsThank You andHappy Diwali …
