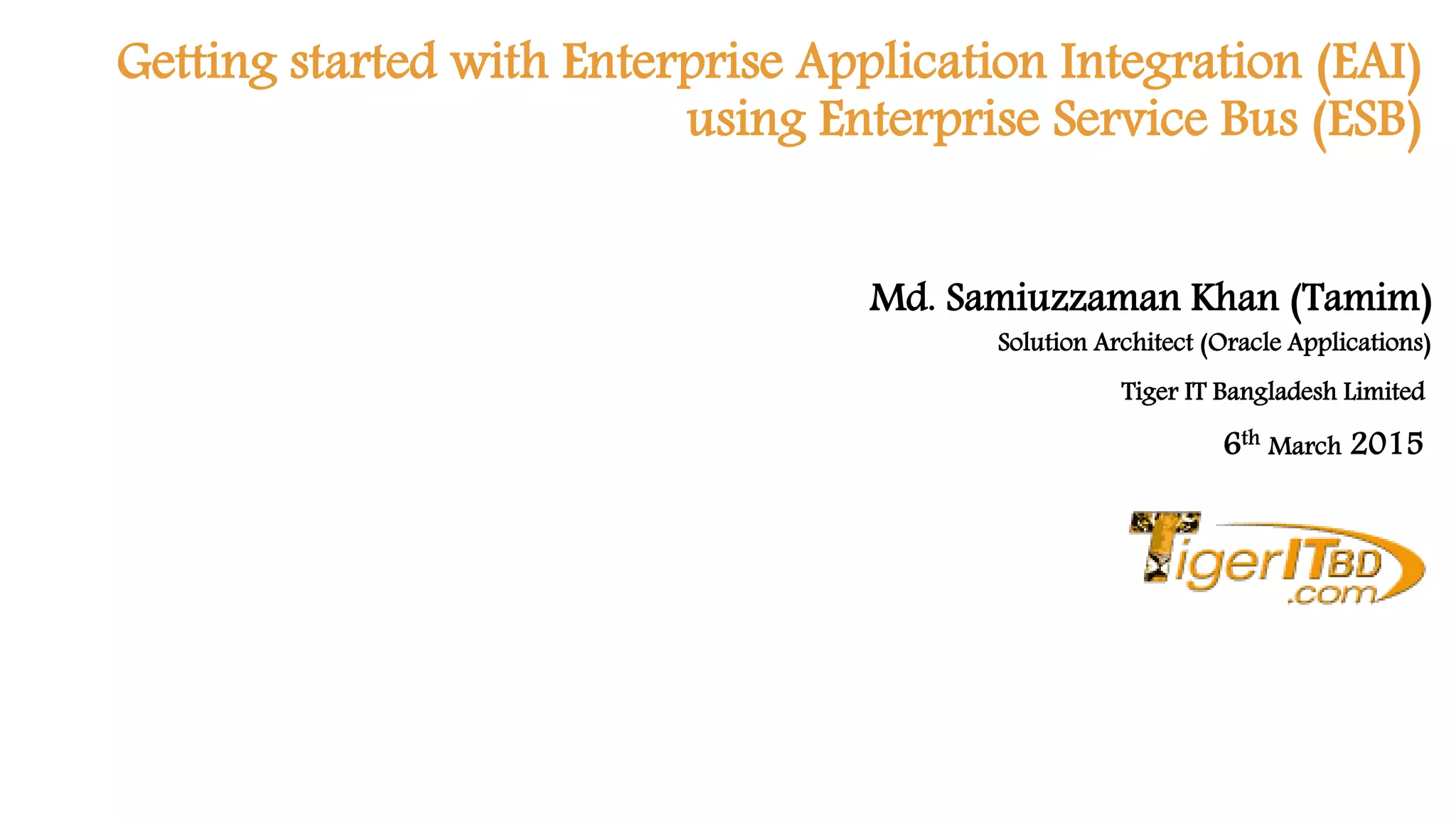

The document discusses Enterprise Application Integration (EAI) and the role of Enterprise Service Bus (ESB) in facilitating integration among heterogeneous applications. It outlines various integration architectures, such as point-to-point, hub and spoke, and distributed approaches, emphasizing the advantages and disadvantages of each. It concludes with the features and benefits of ESB, highlighting its importance in achieving a scalable, maintainable, and efficient integration solution in modern enterprise environments.

1. Getting started with Enterprise Application Integration (EAI)
using Enterprise Service Bus (ESB)
Solution Architect (Oracle Applications)
6th March 2015
Md. Samiuzzaman Khan (Tamim)
Tiger IT Bangladesh Limited

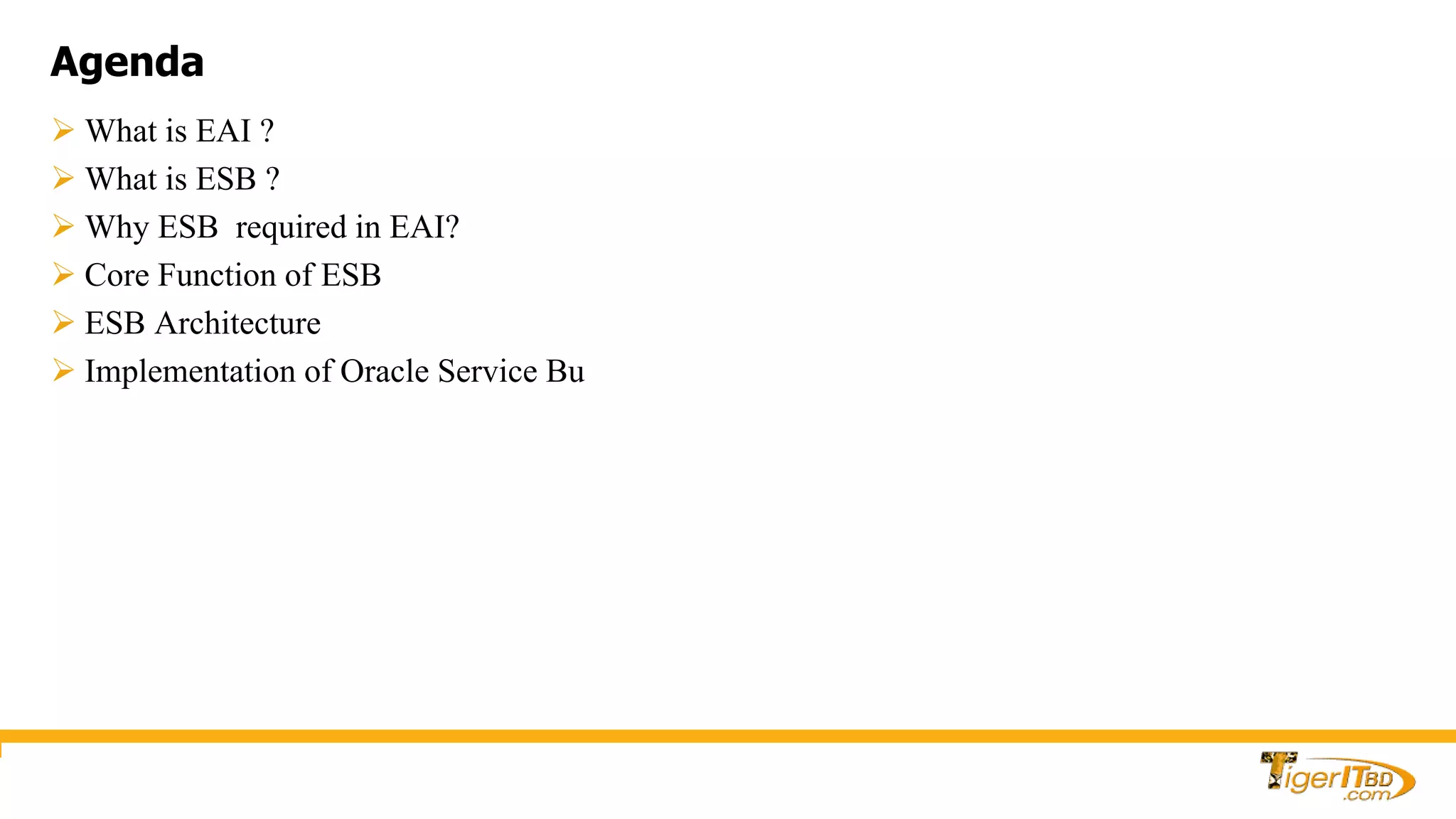

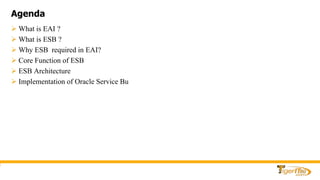

2. Agenda
 What is EAI ?
 What is ESB ?
 Why ESB required in EAI?
 Core Function of ESB
 ESB Architecture
 Implementation of Oracle Service Bu

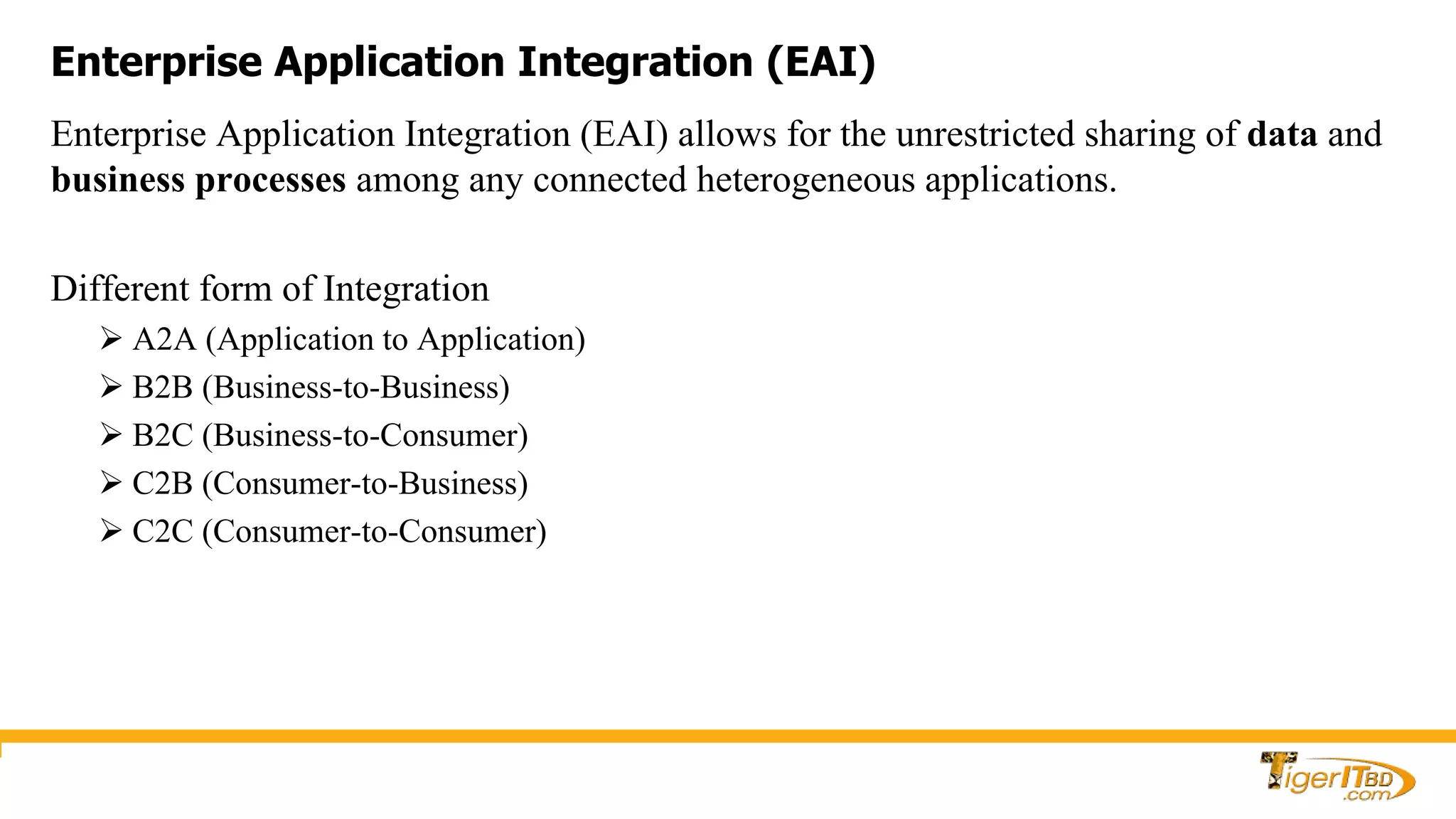

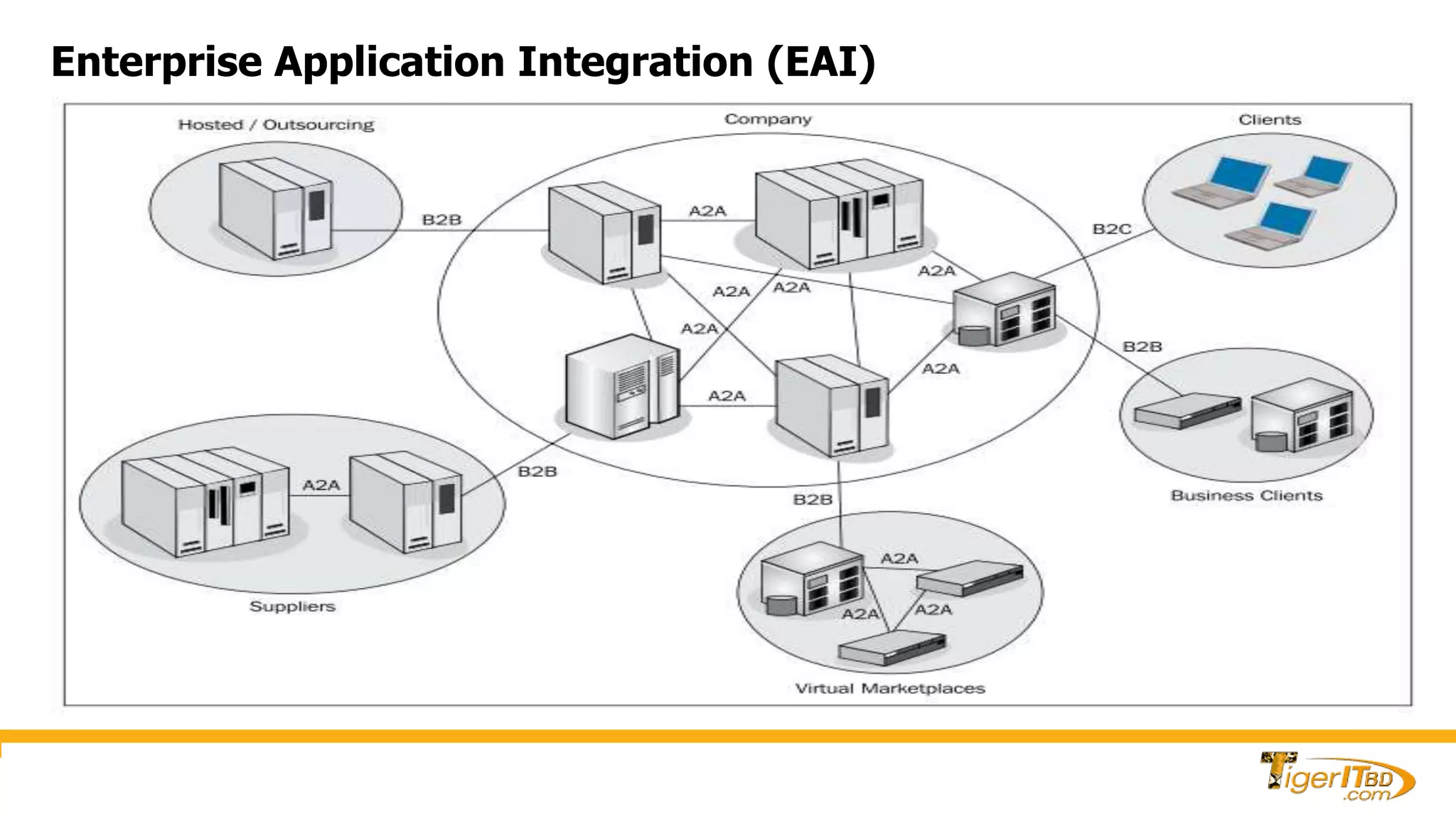

3. Enterprise Application Integration (EAI)
Enterprise Application Integration (EAI) allows for the unrestricted sharing of data and
business processes among any connected heterogeneous applications.
Different form of Integration
 A2A (Application to Application)
 B2B (Business-to-Business)
 B2C (Business-to-Consumer)
 C2B (Consumer-to-Business)
 C2C (Consumer-to-Consumer)

4. Enterprise Application Integration (EAI)

5.  Point to Point Architecture
 Hub and Spoke Architecture
 Distributed Integration Architecture or Peer to Peer Architecture
 Service Oriented Architecture

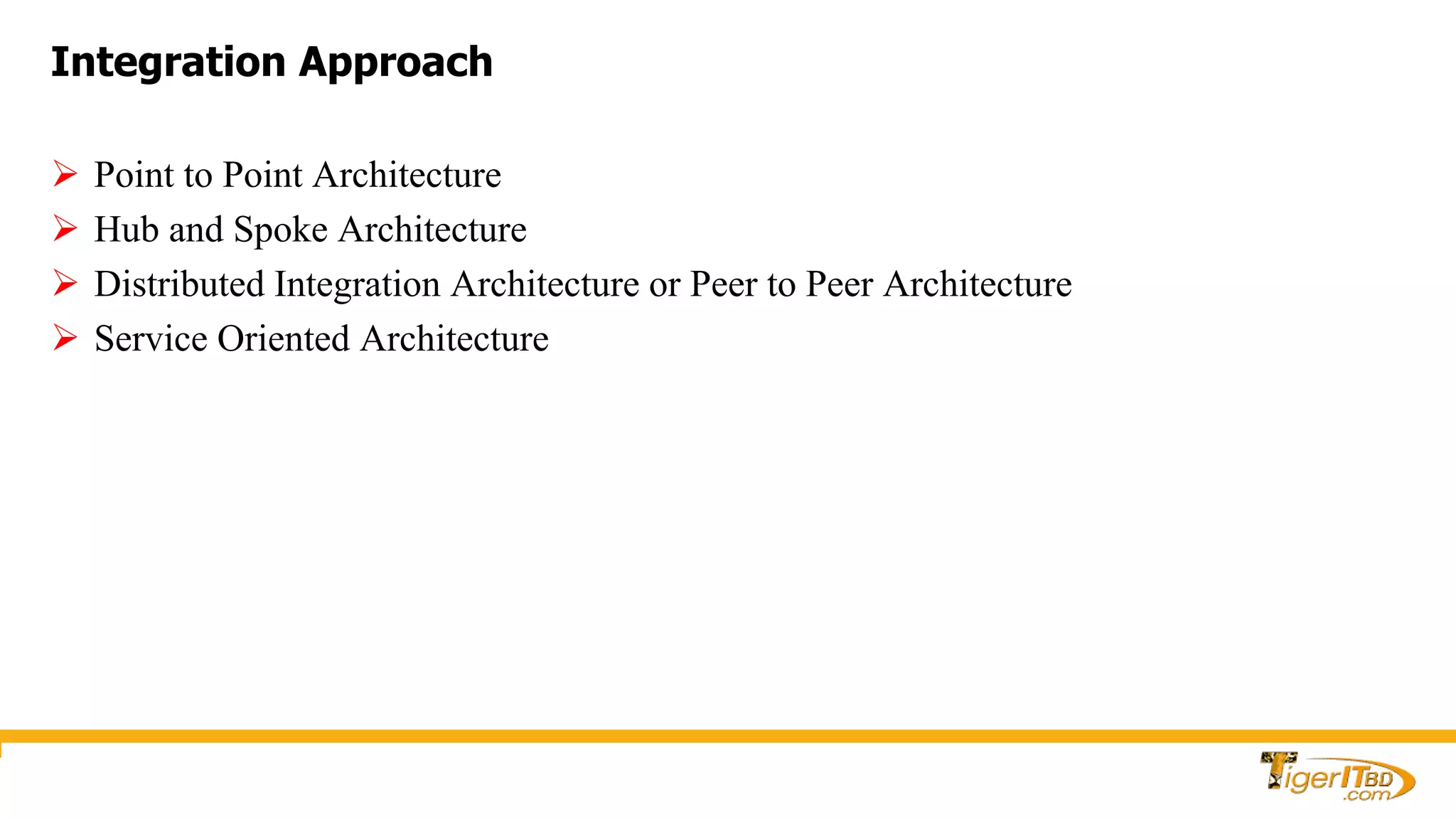

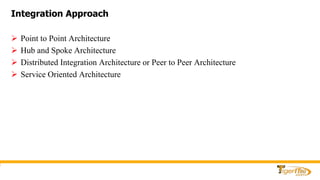

Integration Approach

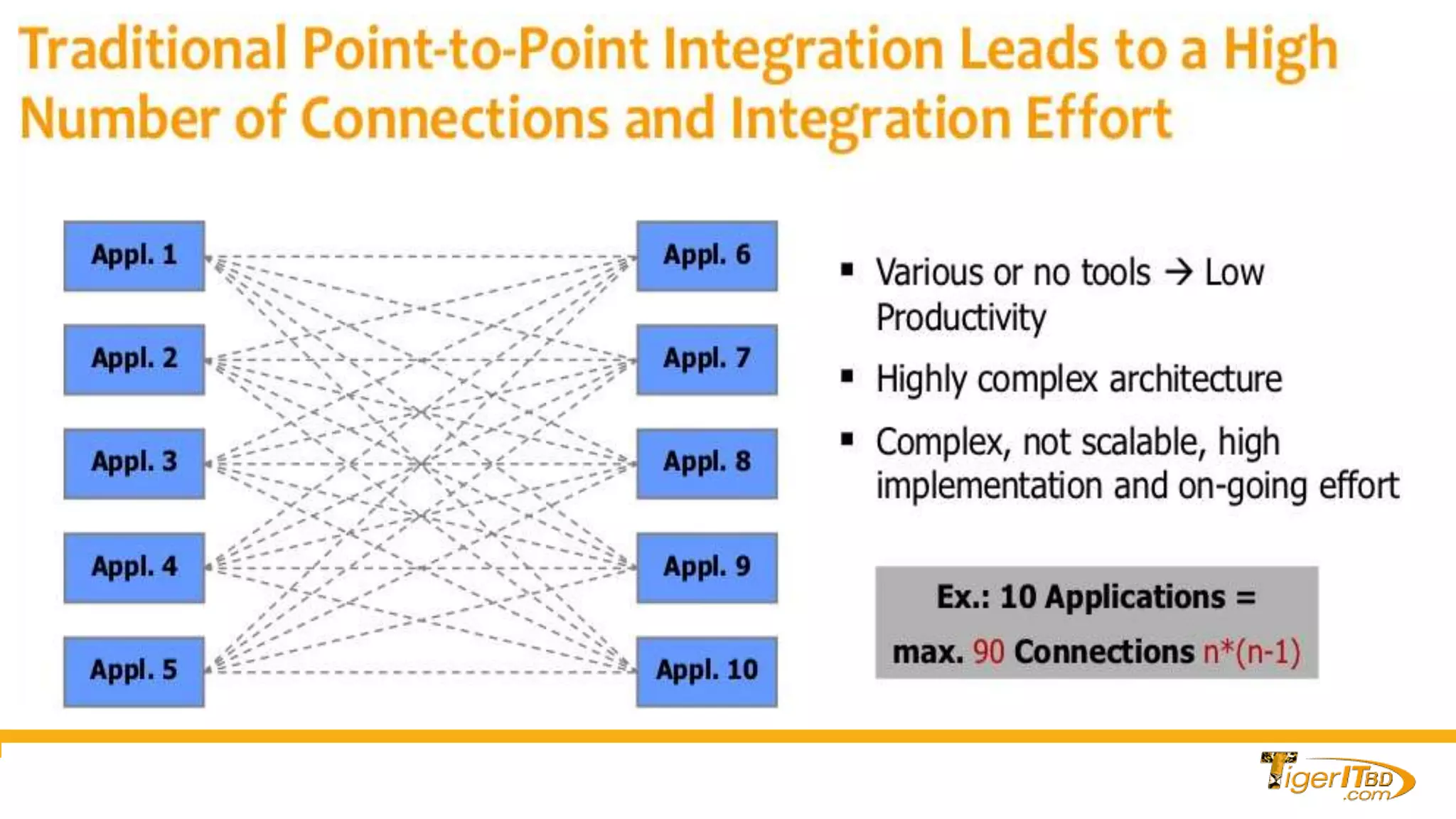

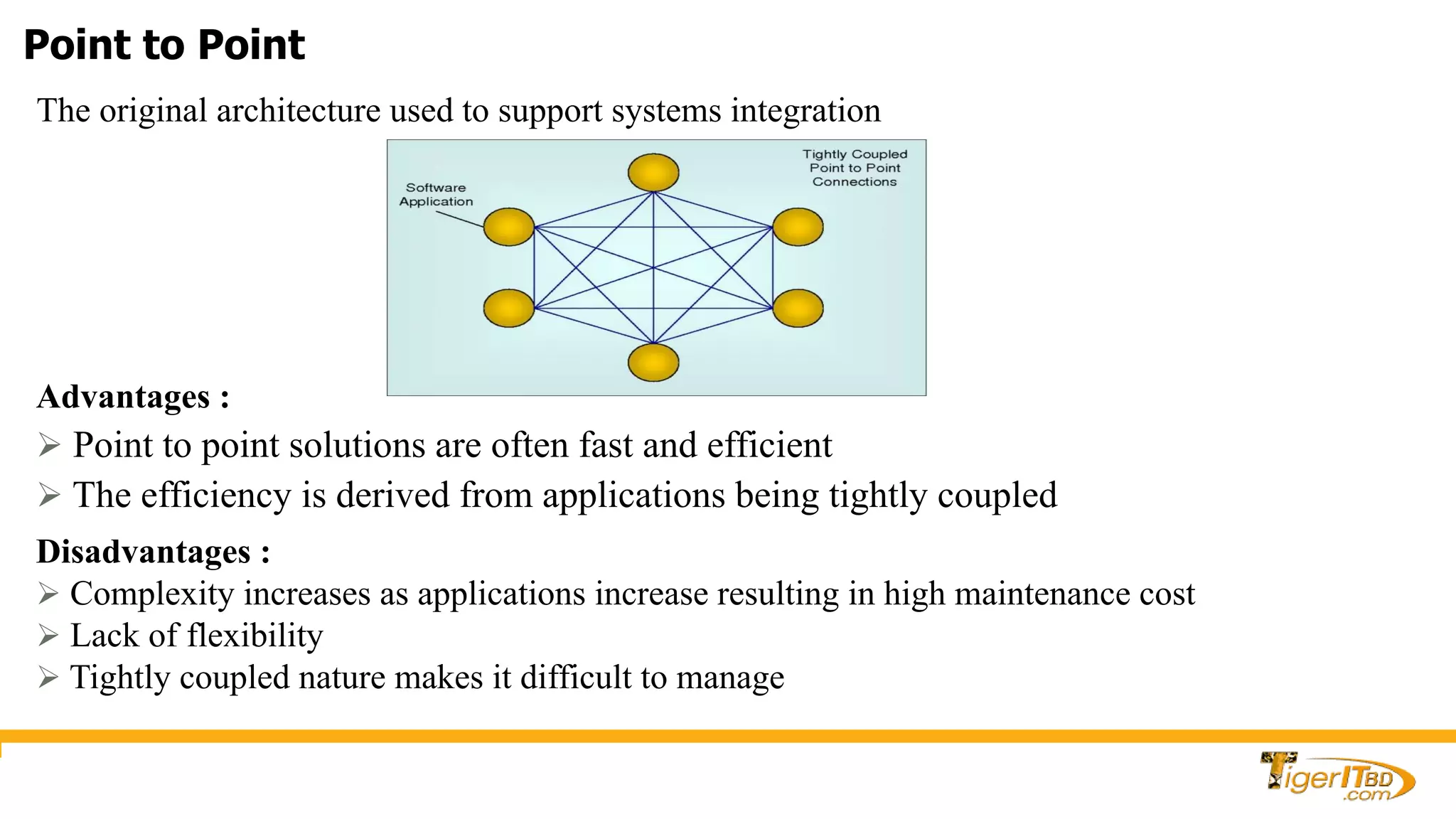

6. Point to Point
The original architecture used to support systems integration
Advantages :
 Point to point solutions are often fast and efficient
 The efficiency is derived from applications being tightly coupled
Disadvantages :
 Complexity increases as applications increase resulting in high maintenance cost
 Lack of flexibility
 Tightly coupled nature makes it difficult to manage

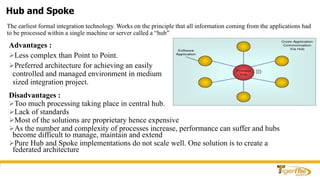

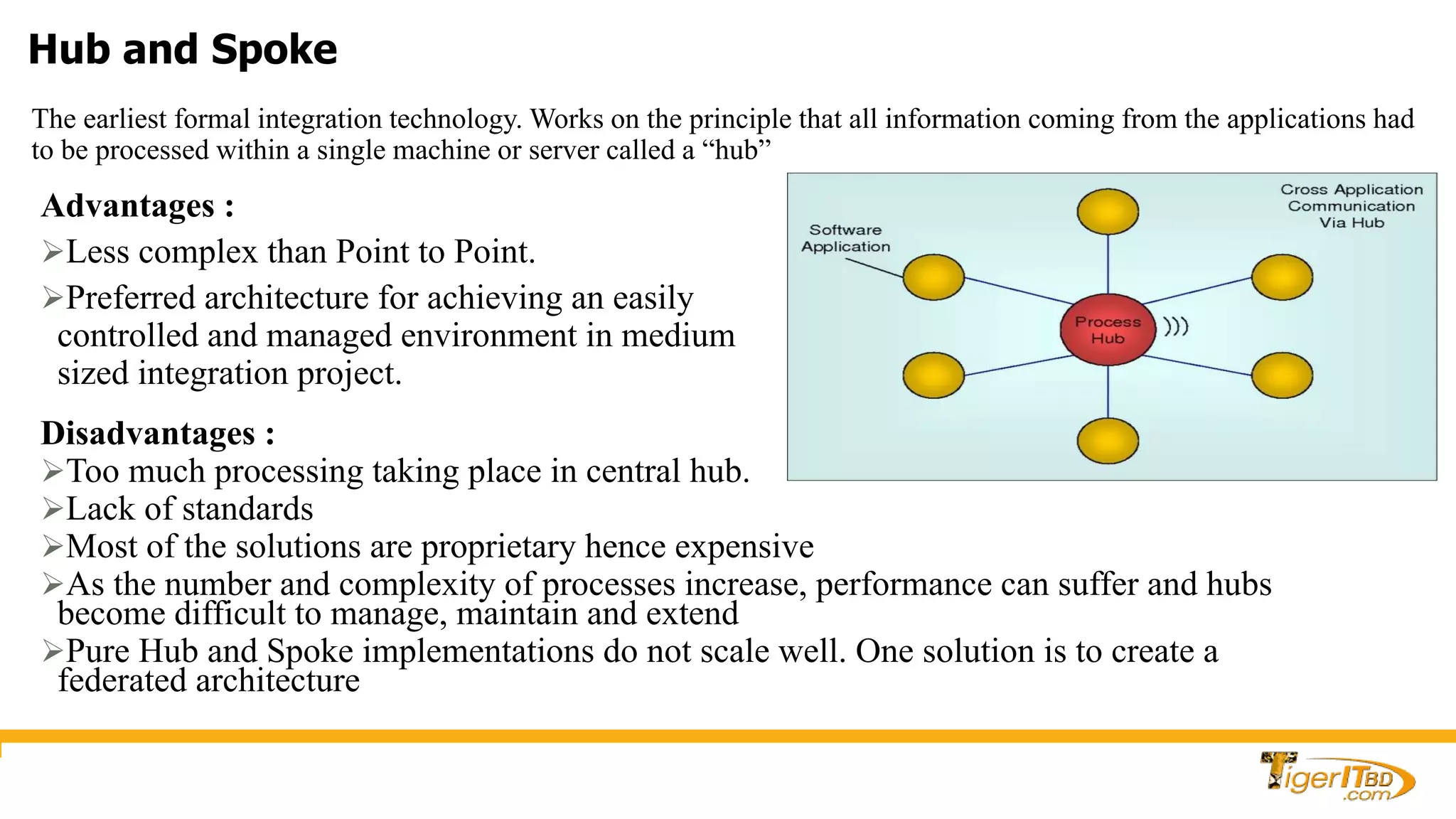

7. Hub and Spoke
The earliest formal integration technology. Works on the principle that all information coming from the applications had
to be processed within a single machine or server called a “hub”
Advantages :
Less complex than Point to Point.
Preferred architecture for achieving an easily
controlled and managed environment in medium
sized integration project.
Disadvantages :
Too much processing taking place in central hub.
Lack of standards
Most of the solutions are proprietary hence expensive
As the number and complexity of processes increase, performance can suffer and hubs
become difficult to manage, maintain and extend
Pure Hub and Spoke implementations do not scale well. One solution is to create a
federated architecture

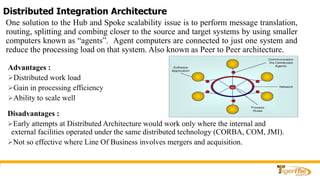

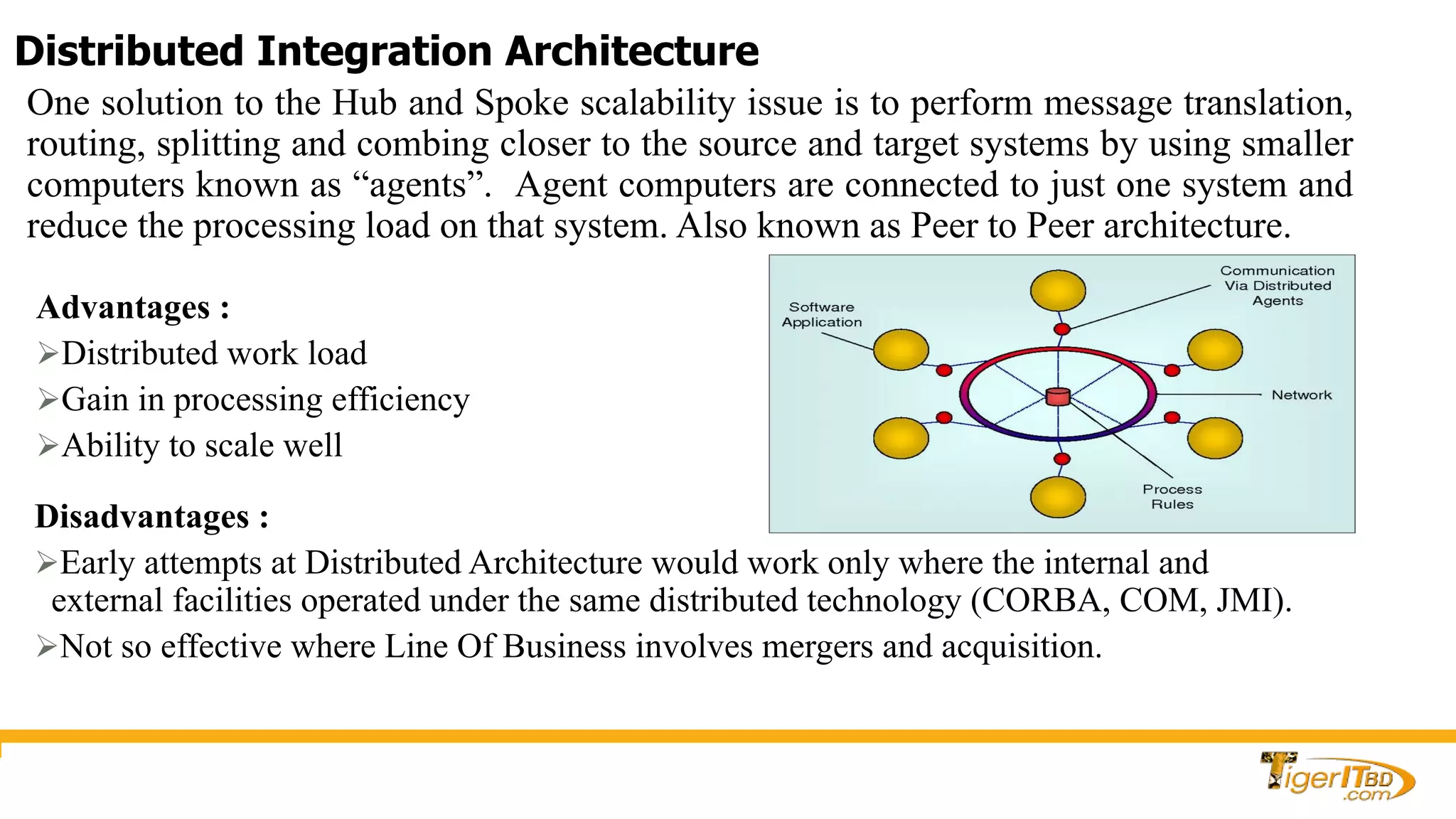

8. Distributed Integration Architecture
One solution to the Hub and Spoke scalability issue is to perform message translation,
routing, splitting and combing closer to the source and target systems by using smaller
computers known as “agents”. Agent computers are connected to just one system and
reduce the processing load on that system. Also known as Peer to Peer architecture.
Advantages :
Distributed work load
Gain in processing efficiency
Ability to scale well
Disadvantages :
Early attempts at Distributed Architecture would work only where the internal and
external facilities operated under the same distributed technology (CORBA, COM, JMI).
Not so effective where Line Of Business involves mergers and acquisition.

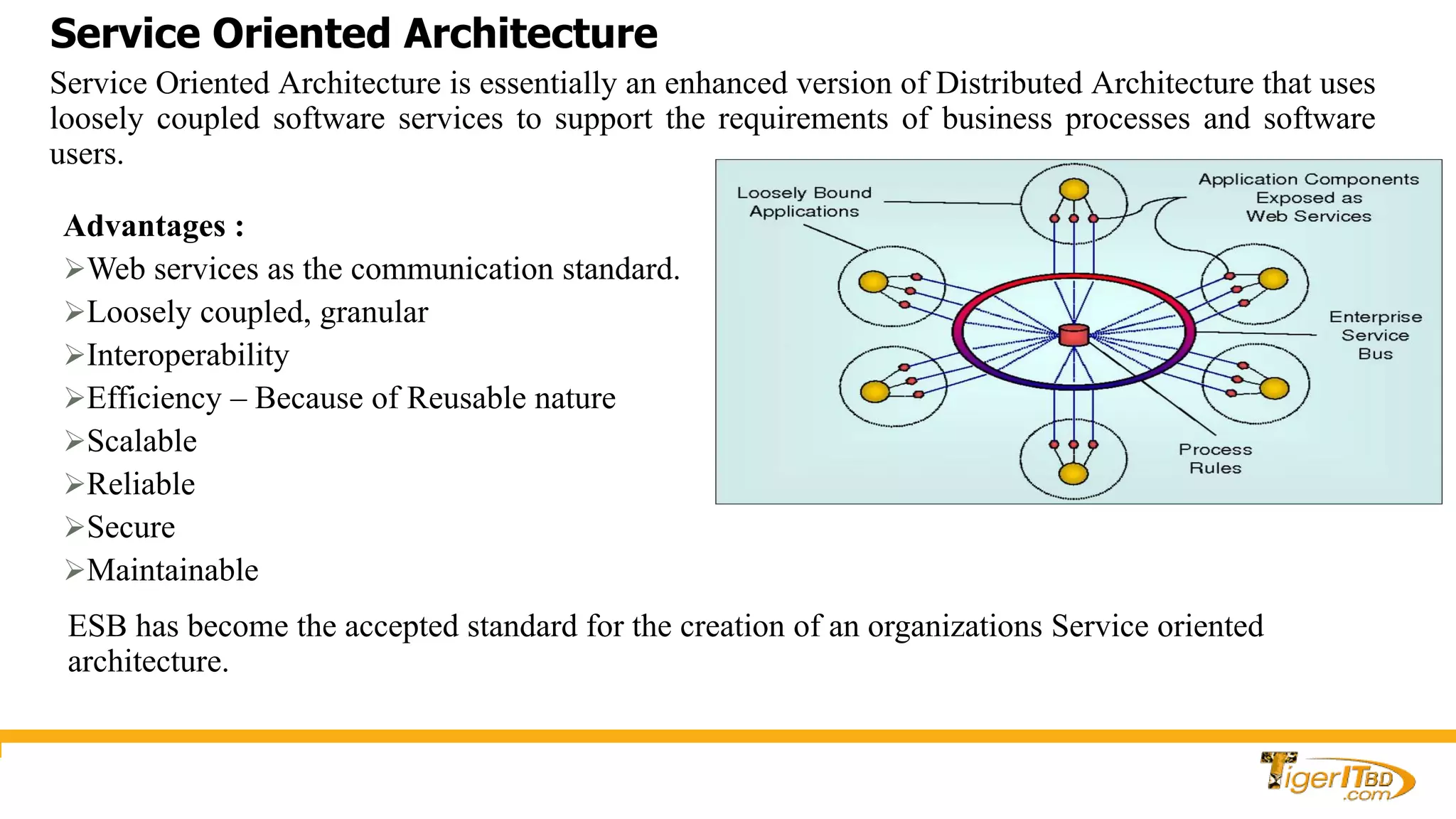

9. Service Oriented Architecture
Service Oriented Architecture is essentially an enhanced version of Distributed Architecture that uses
loosely coupled software services to support the requirements of business processes and software
users.
Advantages :
Web services as the communication standard.
Loosely coupled, granular
Interoperability
Efficiency – Because of Reusable nature
Scalable
Reliable
Secure
Maintainable
ESB has become the accepted standard for the creation of an organizations Service oriented
architecture.

10. ESB – The Next Step in EAI

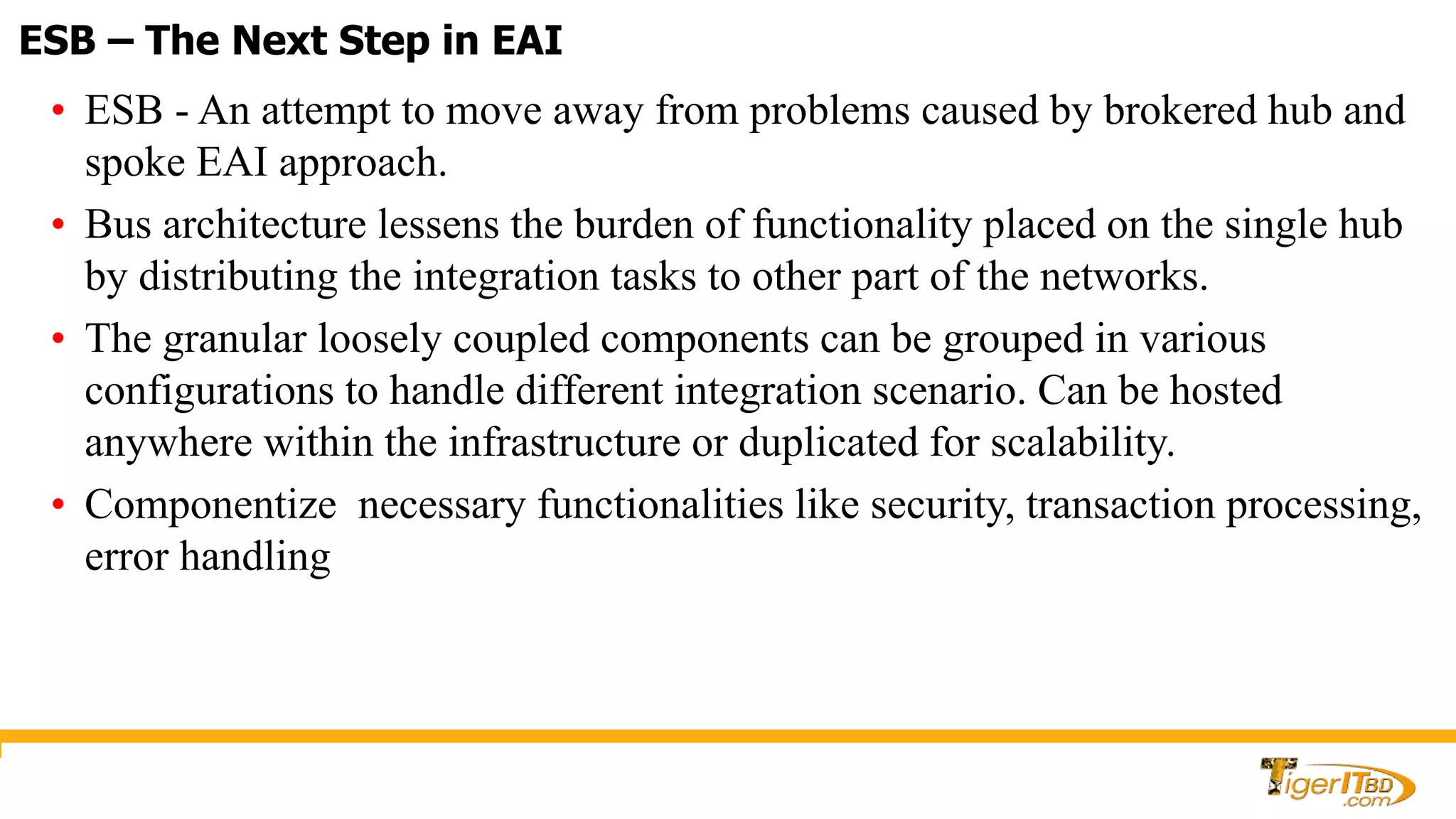

• ESB - An attempt to move away from problems caused by brokered hub and
spoke EAI approach.
• Bus architecture lessens the burden of functionality placed on the single hub
by distributing the integration tasks to other part of the networks.
• The granular loosely coupled components can be grouped in various
configurations to handle different integration scenario. Can be hosted
anywhere within the infrastructure or duplicated for scalability.
• Componentize necessary functionalities like security, transaction processing,
error handling

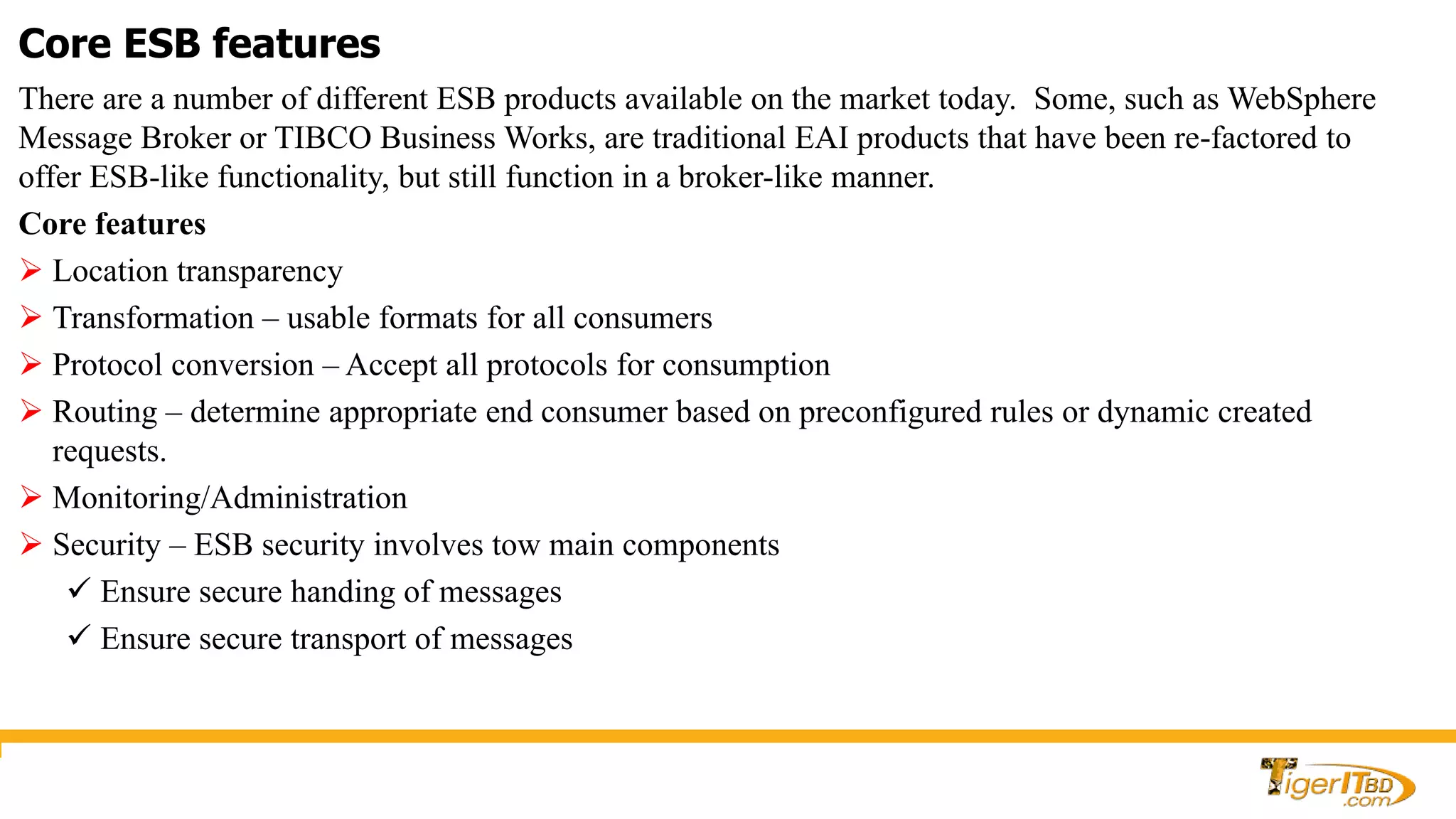

11. Core ESB features
There are a number of different ESB products available on the market today. Some, such as WebSphere
Message Broker or TIBCO Business Works, are traditional EAI products that have been re-factored to
offer ESB-like functionality, but still function in a broker-like manner.
Core features
 Location transparency
 Transformation – usable formats for all consumers
 Protocol conversion – Accept all protocols for consumption
 Routing – determine appropriate end consumer based on preconfigured rules or dynamic created
requests.
 Monitoring/Administration
 Security – ESB security involves tow main components
 Ensure secure handing of messages
 Ensure secure transport of messages

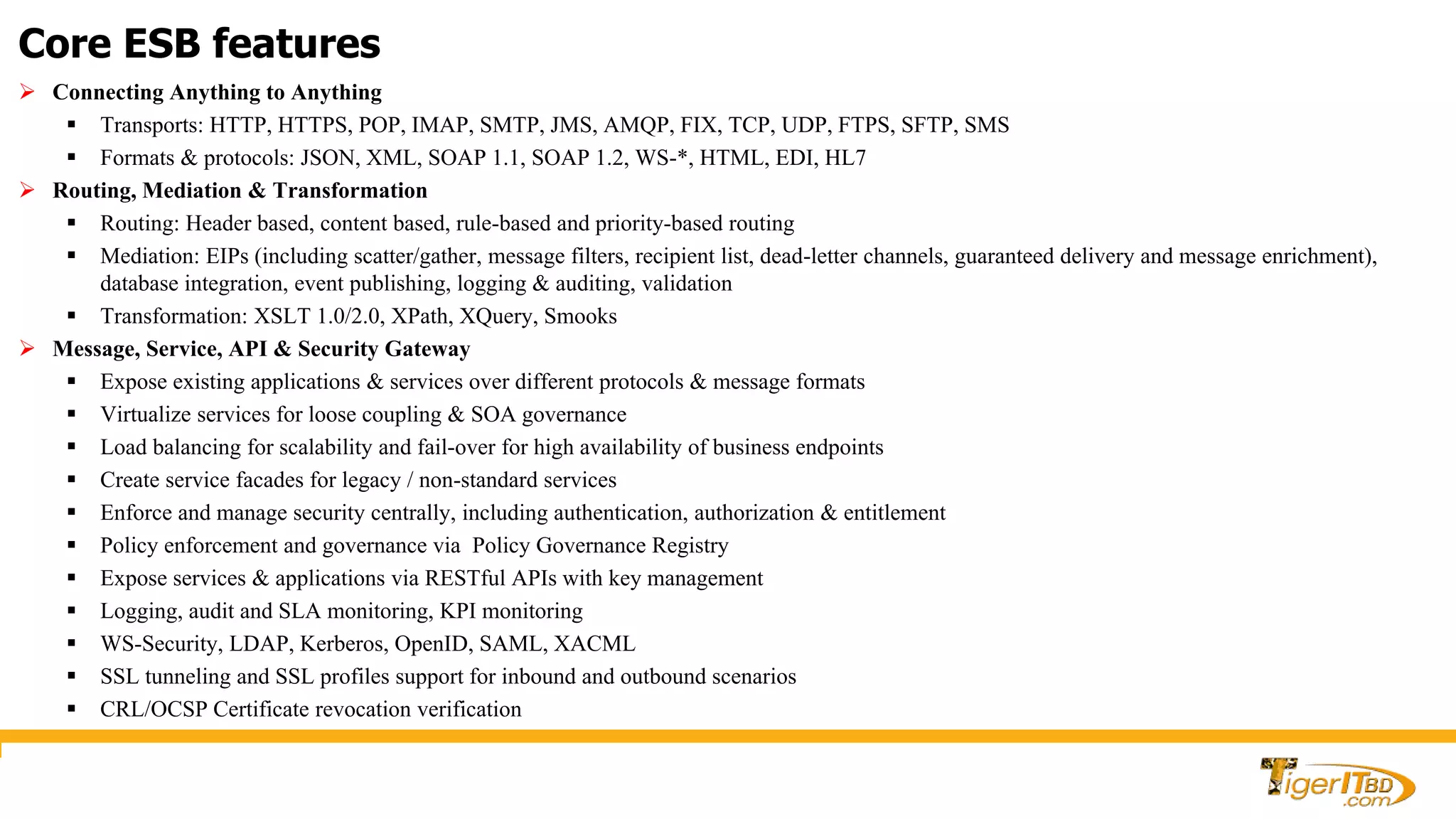

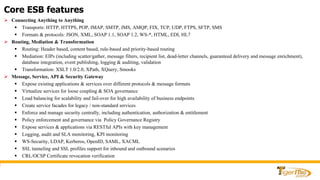

12. Core ESB features
 Connecting Anything to Anything
 Transports: HTTP, HTTPS, POP, IMAP, SMTP, JMS, AMQP, FIX, TCP, UDP, FTPS, SFTP, SMS
 Formats & protocols: JSON, XML, SOAP 1.1, SOAP 1.2, WS-*, HTML, EDI, HL7
 Routing, Mediation & Transformation
 Routing: Header based, content based, rule-based and priority-based routing
 Mediation: EIPs (including scatter/gather, message filters, recipient list, dead-letter channels, guaranteed delivery and message enrichment),
database integration, event publishing, logging & auditing, validation
 Transformation: XSLT 1.0/2.0, XPath, XQuery, Smooks
 Message, Service, API & Security Gateway
 Expose existing applications & services over different protocols & message formats
 Virtualize services for loose coupling & SOA governance
 Load balancing for scalability and fail-over for high availability of business endpoints
 Create service facades for legacy / non-standard services
 Enforce and manage security centrally, including authentication, authorization & entitlement
 Policy enforcement and governance via Policy Governance Registry
 Expose services & applications via RESTful APIs with key management
 Logging, audit and SLA monitoring, KPI monitoring
 WS-Security, LDAP, Kerberos, OpenID, SAML, XACML
 SSL tunneling and SSL profiles support for inbound and outbound scenarios
 CRL/OCSP Certificate revocation verification

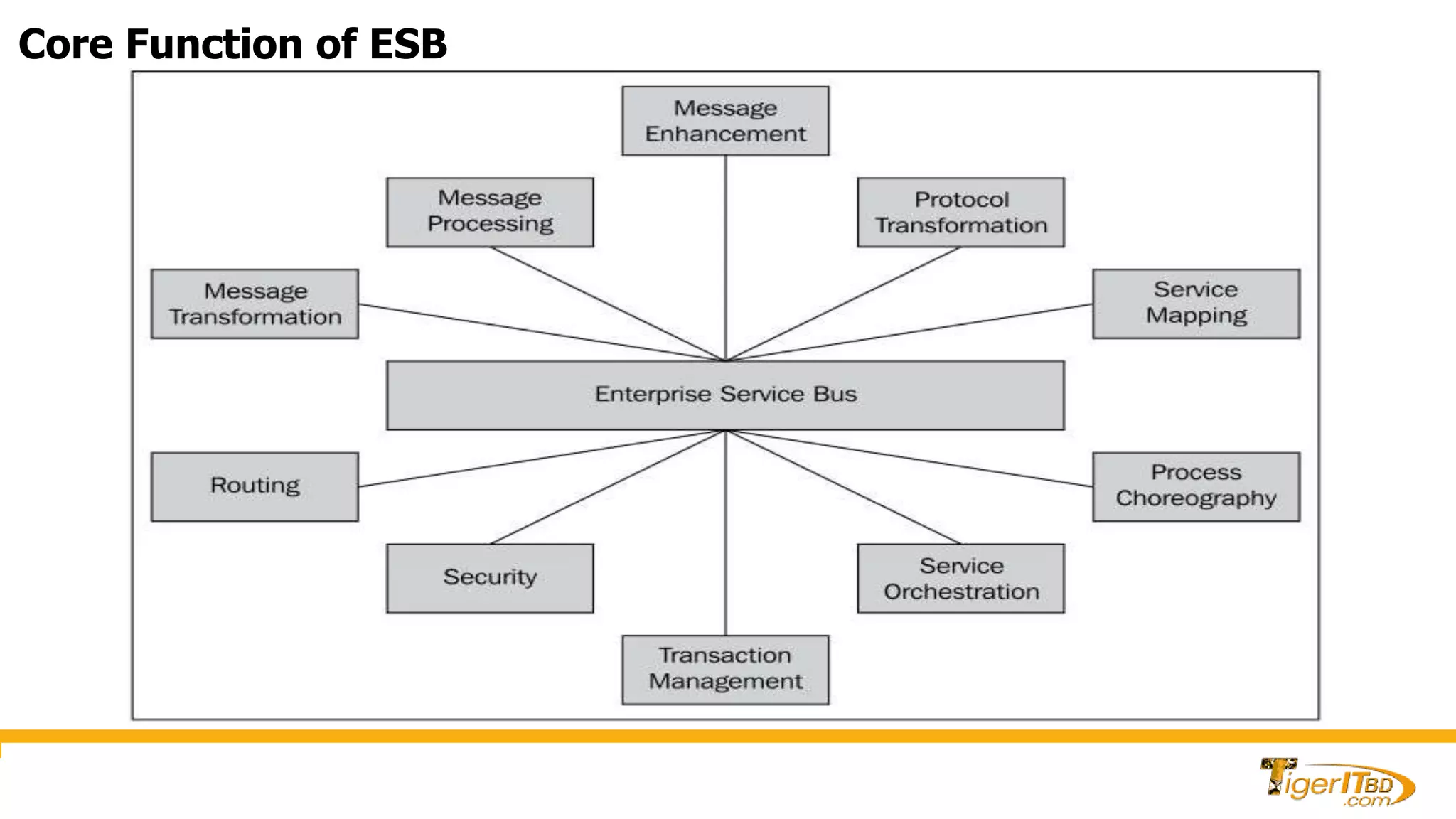

13. Core Function of ESB

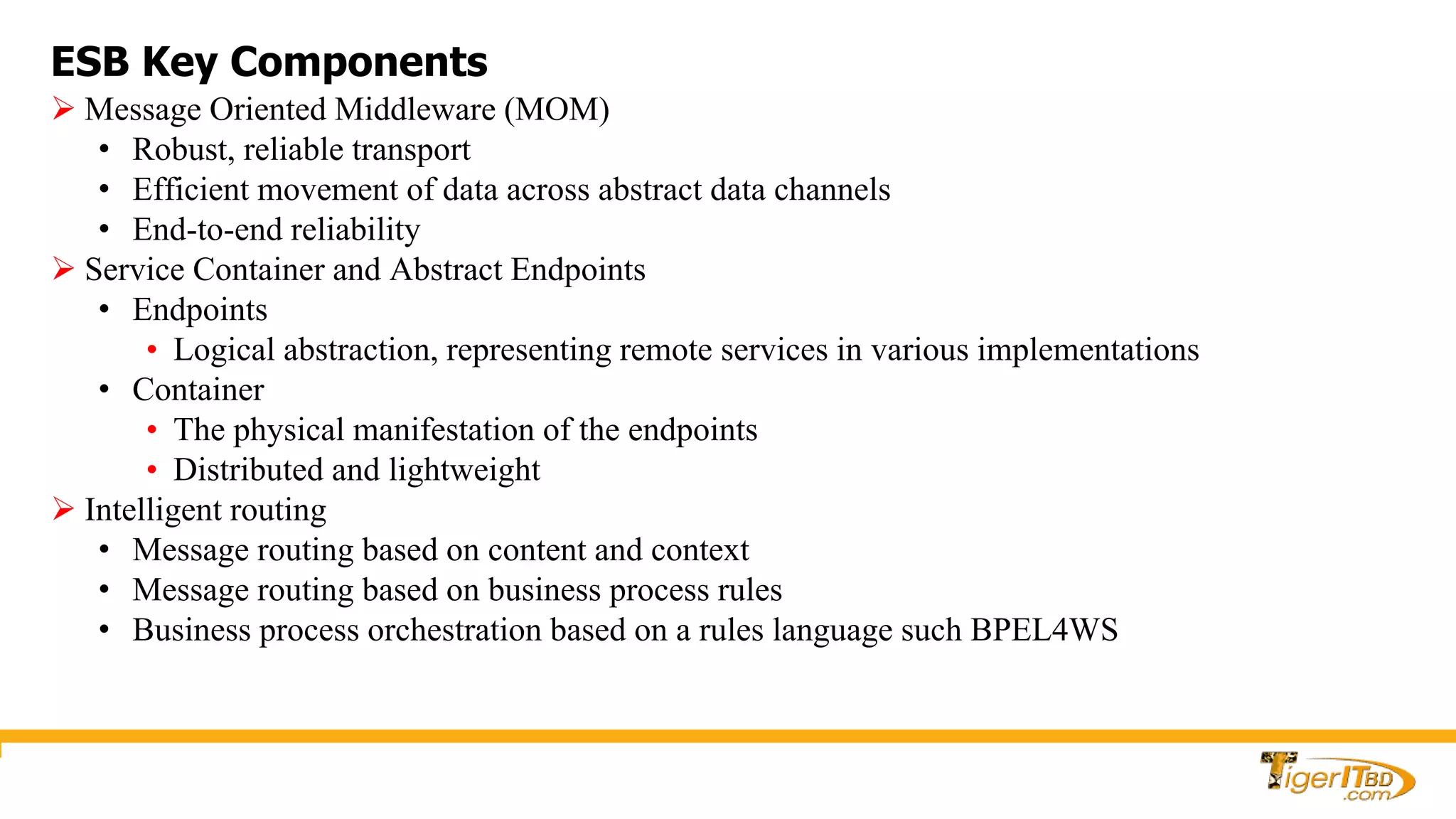

14. ESB Key Components
 Message Oriented Middleware (MOM)
• Robust, reliable transport
• Efficient movement of data across abstract data channels
• End-to-end reliability
 Service Container and Abstract Endpoints
• Endpoints
• Logical abstraction, representing remote services in various implementations
• Container
• The physical manifestation of the endpoints
• Distributed and lightweight
 Intelligent routing
• Message routing based on content and context
• Message routing based on business process rules
• Business process orchestration based on a rules language such BPEL4WS

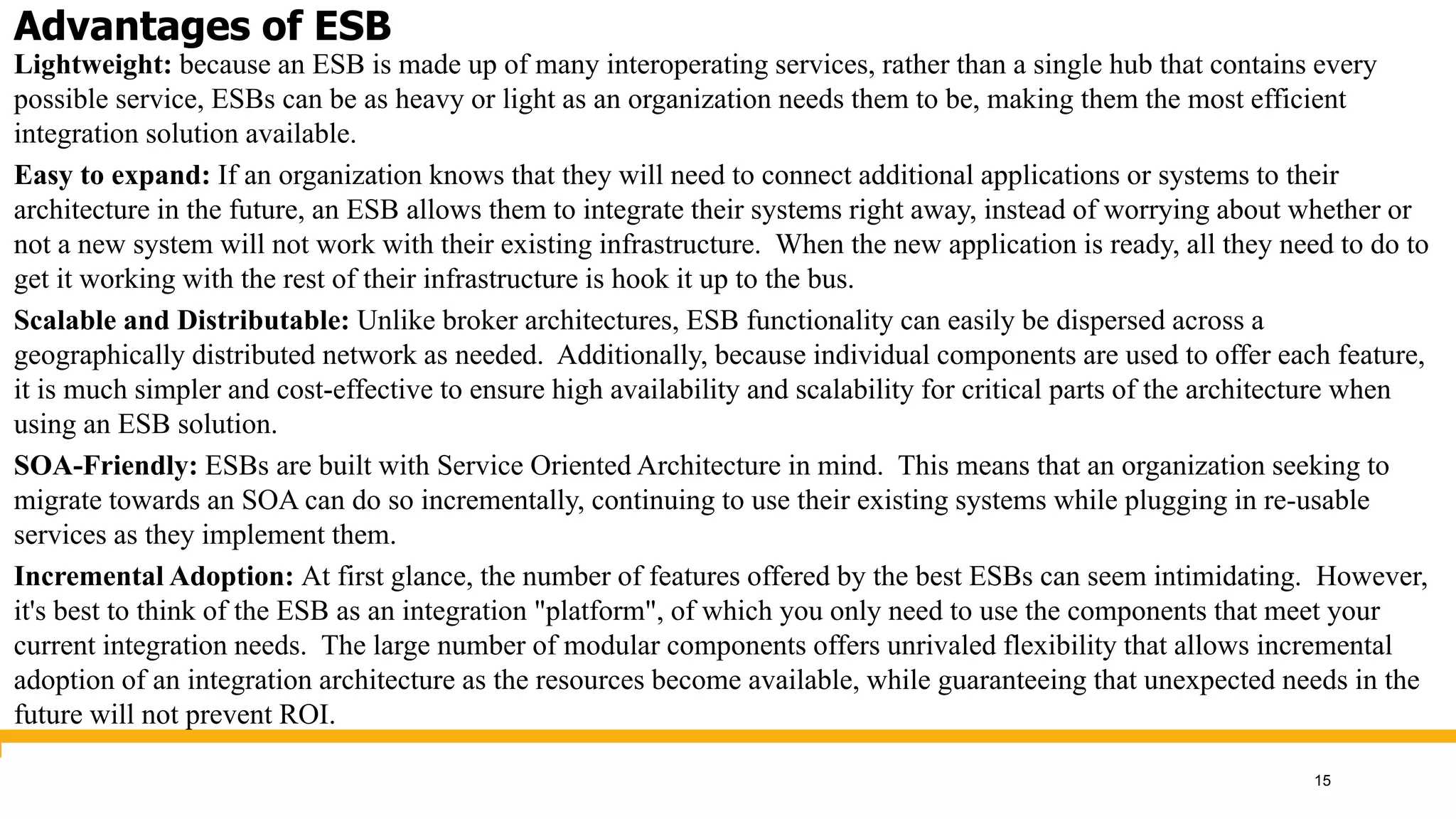

15. Advantages of ESB
Lightweight: because an ESB is made up of many interoperating services, rather than a single hub that contains every
possible service, ESBs can be as heavy or light as an organization needs them to be, making them the most efficient
integration solution available.
Easy to expand: If an organization knows that they will need to connect additional applications or systems to their
architecture in the future, an ESB allows them to integrate their systems right away, instead of worrying about whether or
not a new system will not work with their existing infrastructure. When the new application is ready, all they need to do to
get it working with the rest of their infrastructure is hook it up to the bus.
Scalable and Distributable: Unlike broker architectures, ESB functionality can easily be dispersed across a
geographically distributed network as needed. Additionally, because individual components are used to offer each feature,
it is much simpler and cost-effective to ensure high availability and scalability for critical parts of the architecture when
using an ESB solution.
SOA-Friendly: ESBs are built with Service Oriented Architecture in mind. This means that an organization seeking to
migrate towards an SOA can do so incrementally, continuing to use their existing systems while plugging in re-usable
services as they implement them.
Incremental Adoption: At first glance, the number of features offered by the best ESBs can seem intimidating. However,
it's best to think of the ESB as an integration "platform", of which you only need to use the components that meet your
current integration needs. The large number of modular components offers unrivaled flexibility that allows incremental
adoption of an integration architecture as the resources become available, while guaranteeing that unexpected needs in the
future will not prevent ROI.
15

16. Hybrid Integration

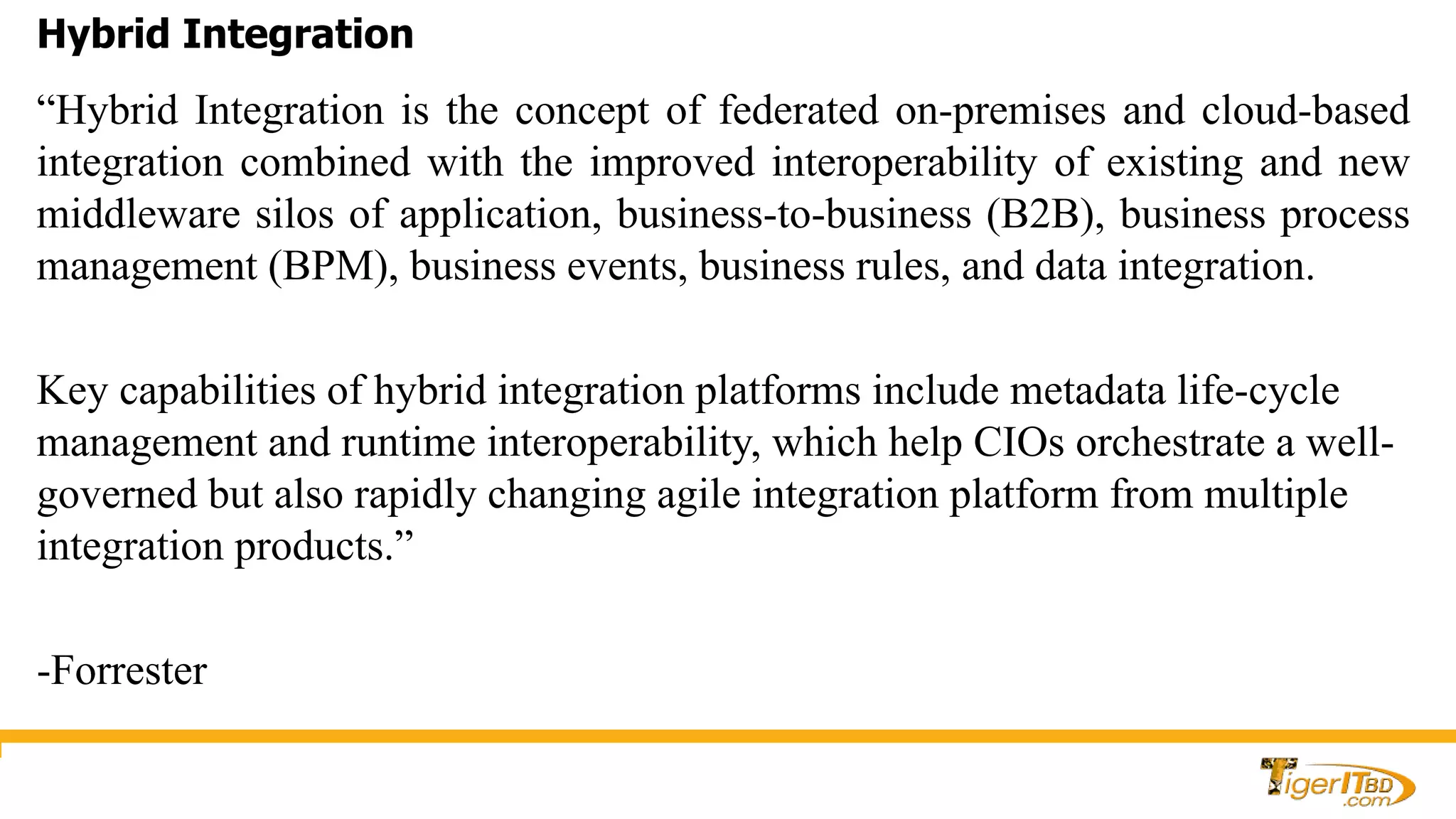

“Hybrid Integration is the concept of federated on-premises and cloud-based
integration combined with the improved interoperability of existing and new
middleware silos of application, business-to-business (B2B), business process
management (BPM), business events, business rules, and data integration.
Key capabilities of hybrid integration platforms include metadata life-cycle
management and runtime interoperability, which help CIOs orchestrate a well-
governed but also rapidly changing agile integration platform from multiple
integration products.”
-Forrester

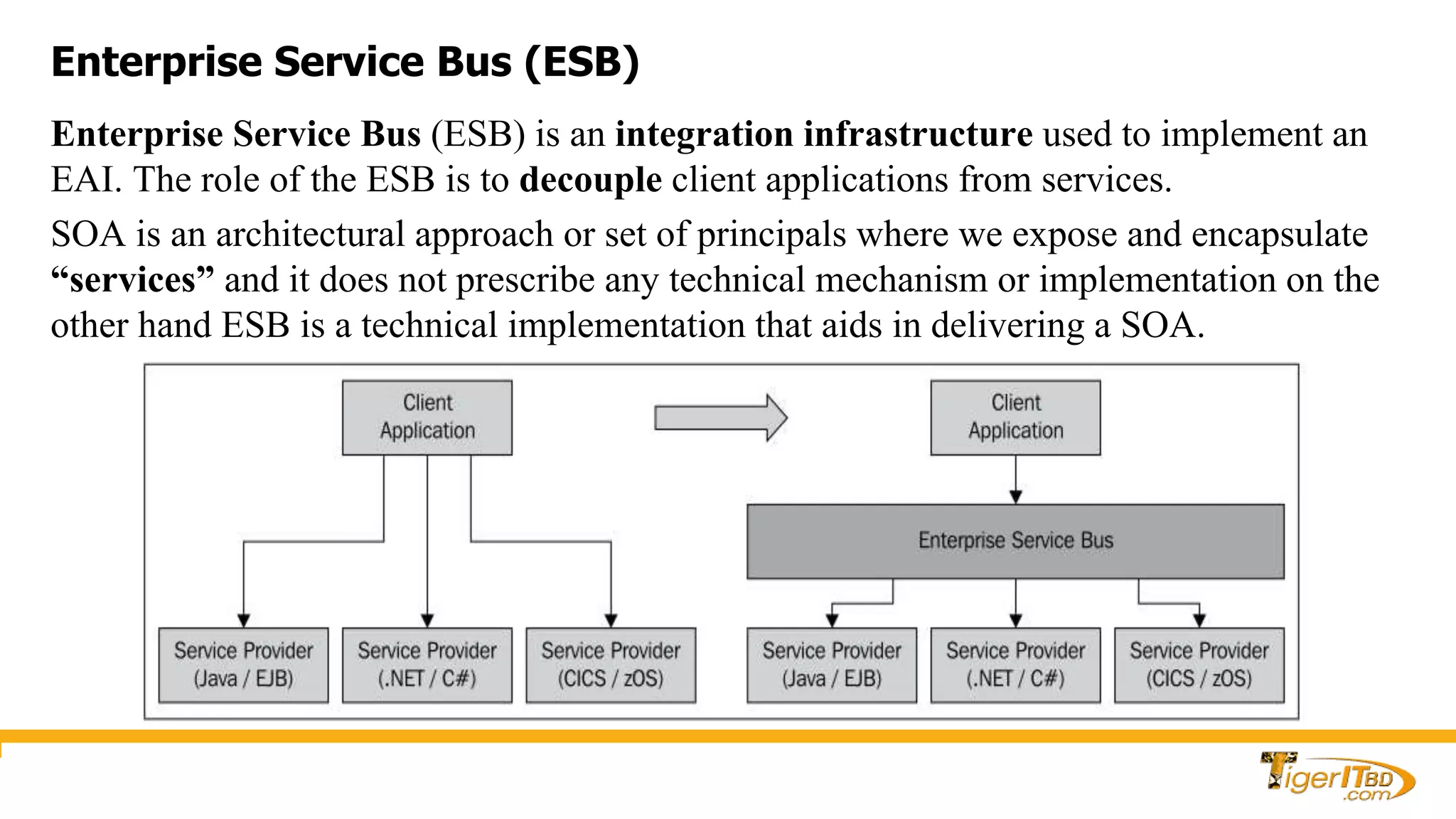

17. Enterprise Service Bus (ESB)
Enterprise Service Bus (ESB) is an integration infrastructure used to implement an
EAI. The role of the ESB is to decouple client applications from services.
SOA is an architectural approach or set of principals where we expose and encapsulate
“services” and it does not prescribe any technical mechanism or implementation on the
other hand ESB is a technical implementation that aids in delivering a SOA.

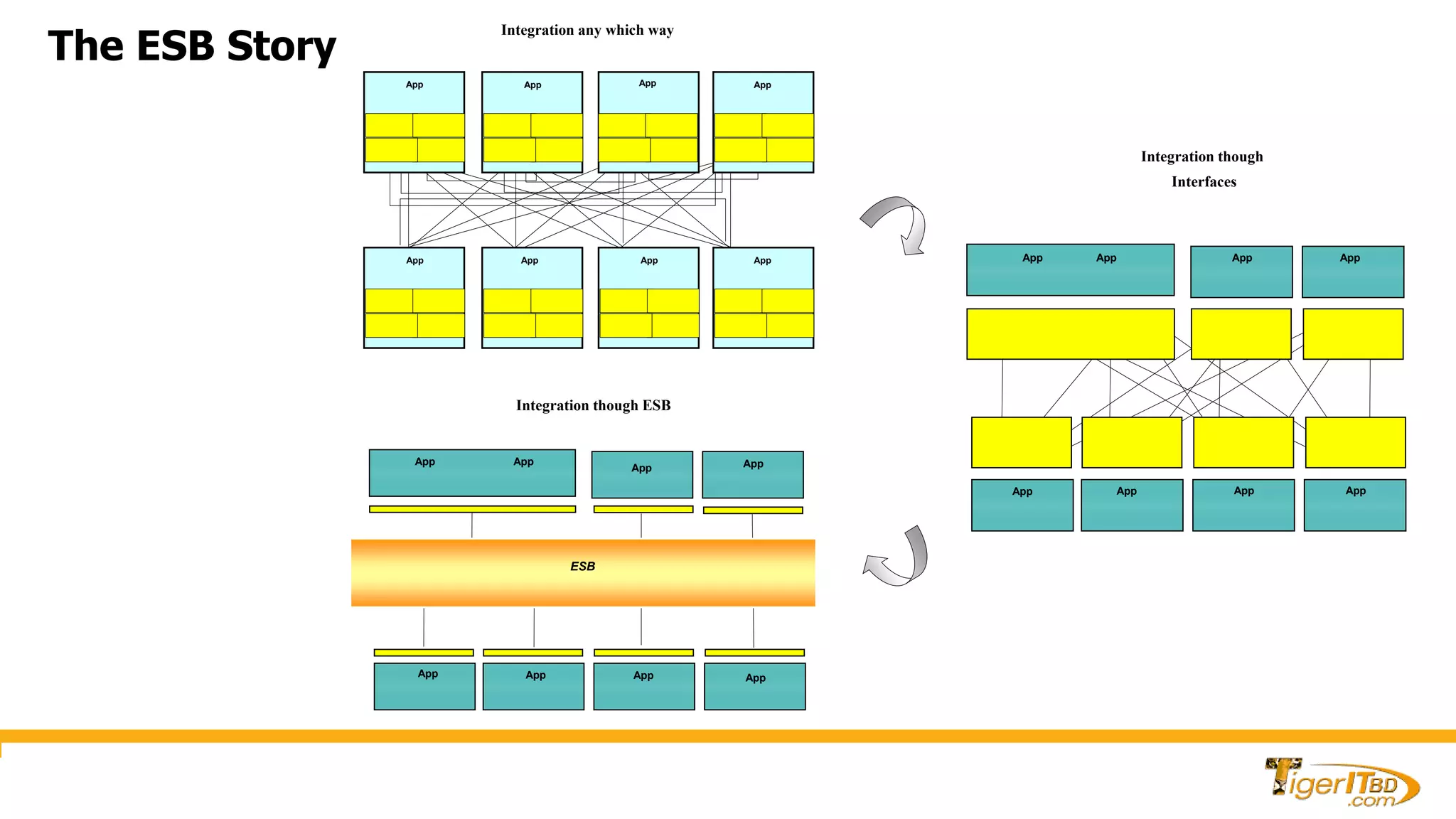

18. The ESB Story
App App App App
App App App App
Integration any which way
App AppApp
App App App App
App
Integration though
Interfaces
App
App
App App
AppApp
App App
ESB
Integration though ESB

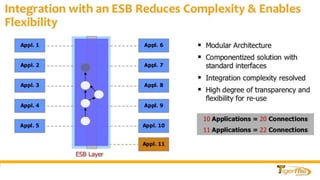

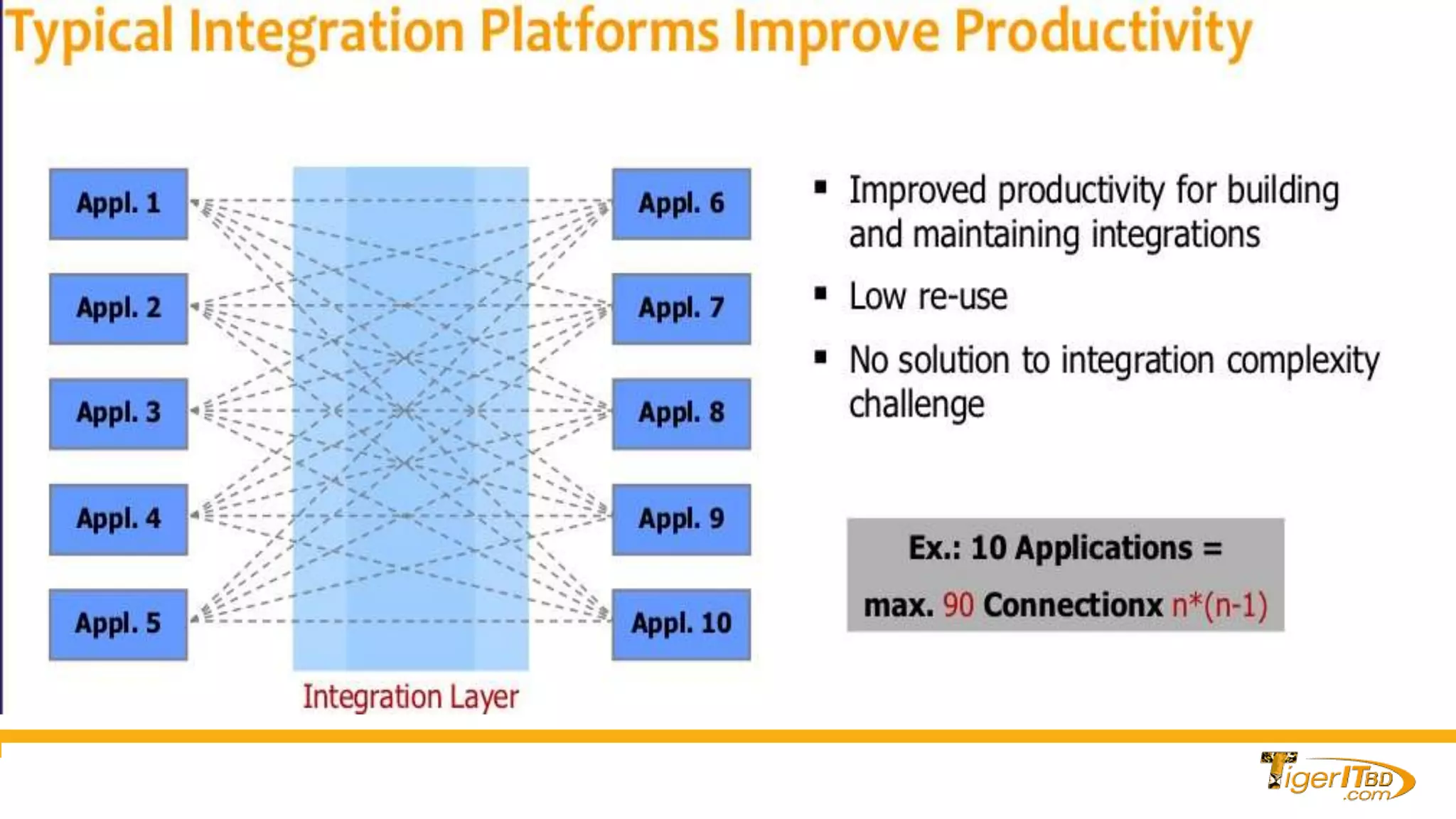

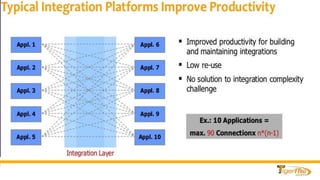

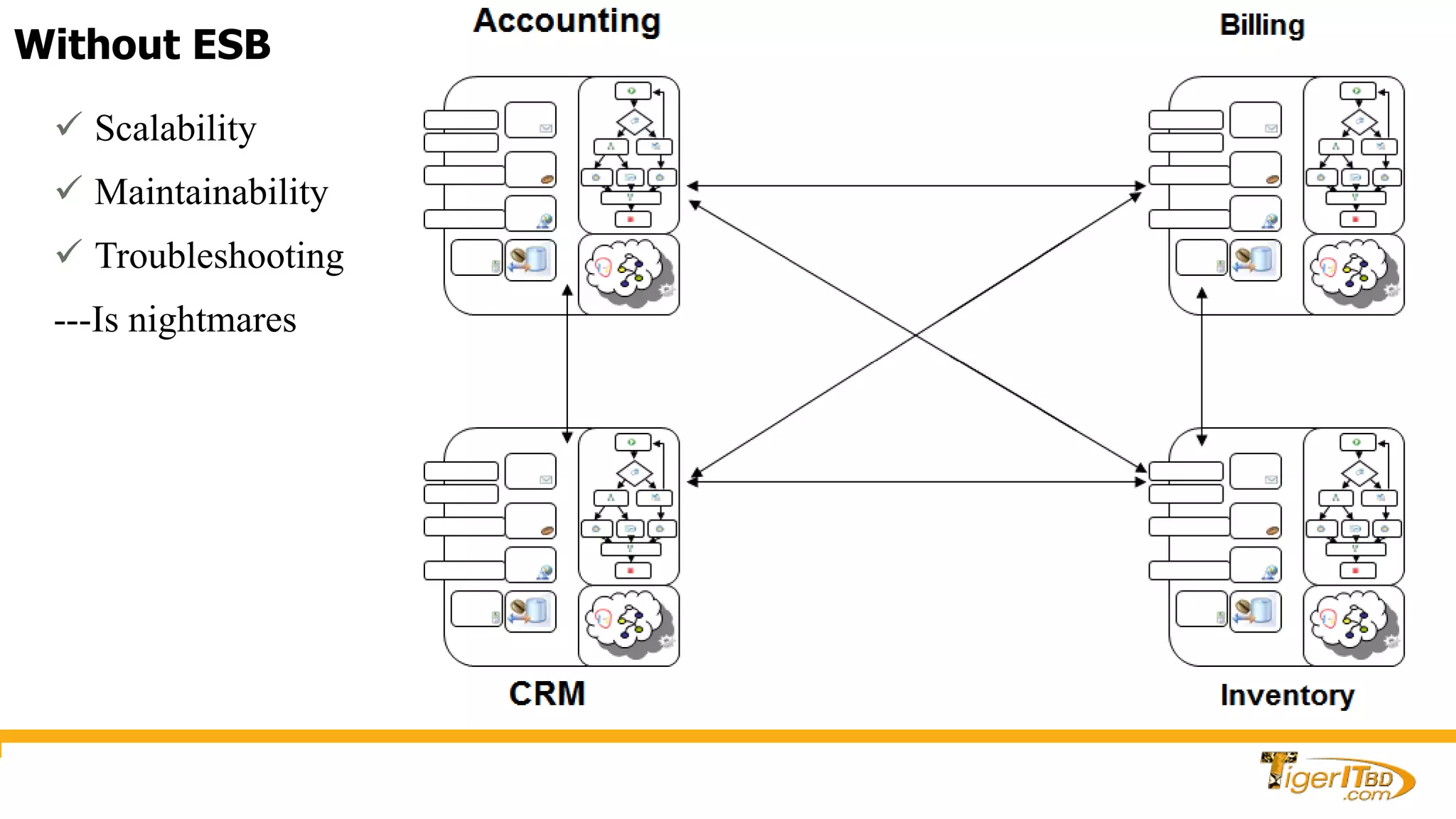

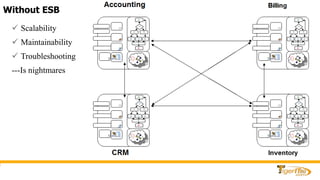

22. Without ESB
 Scalability
 Maintainability
 Troubleshooting
---Is nightmares

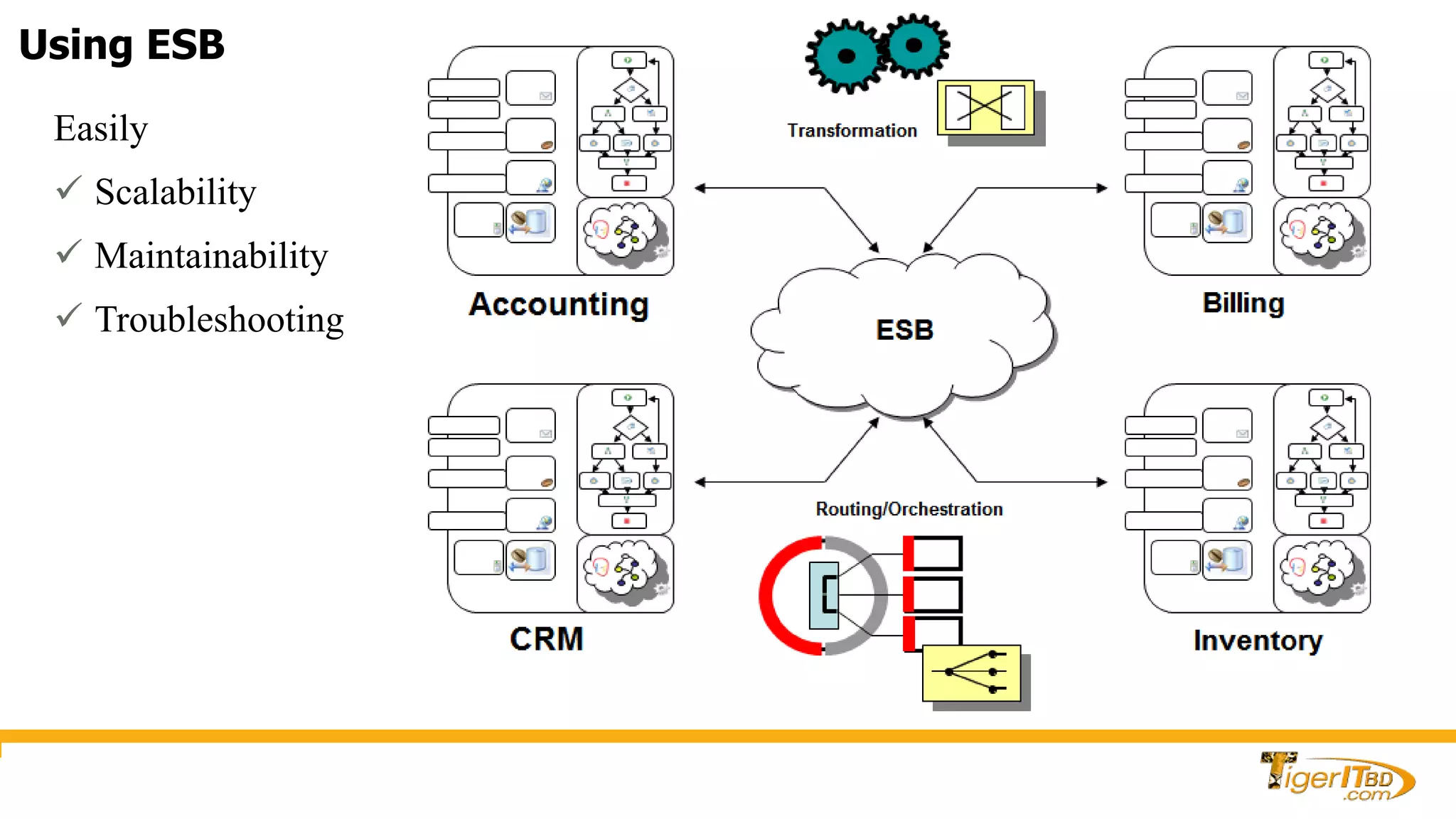

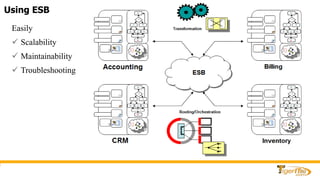

23. Using ESB
Easily
 Scalability
 Maintainability
 Troubleshooting

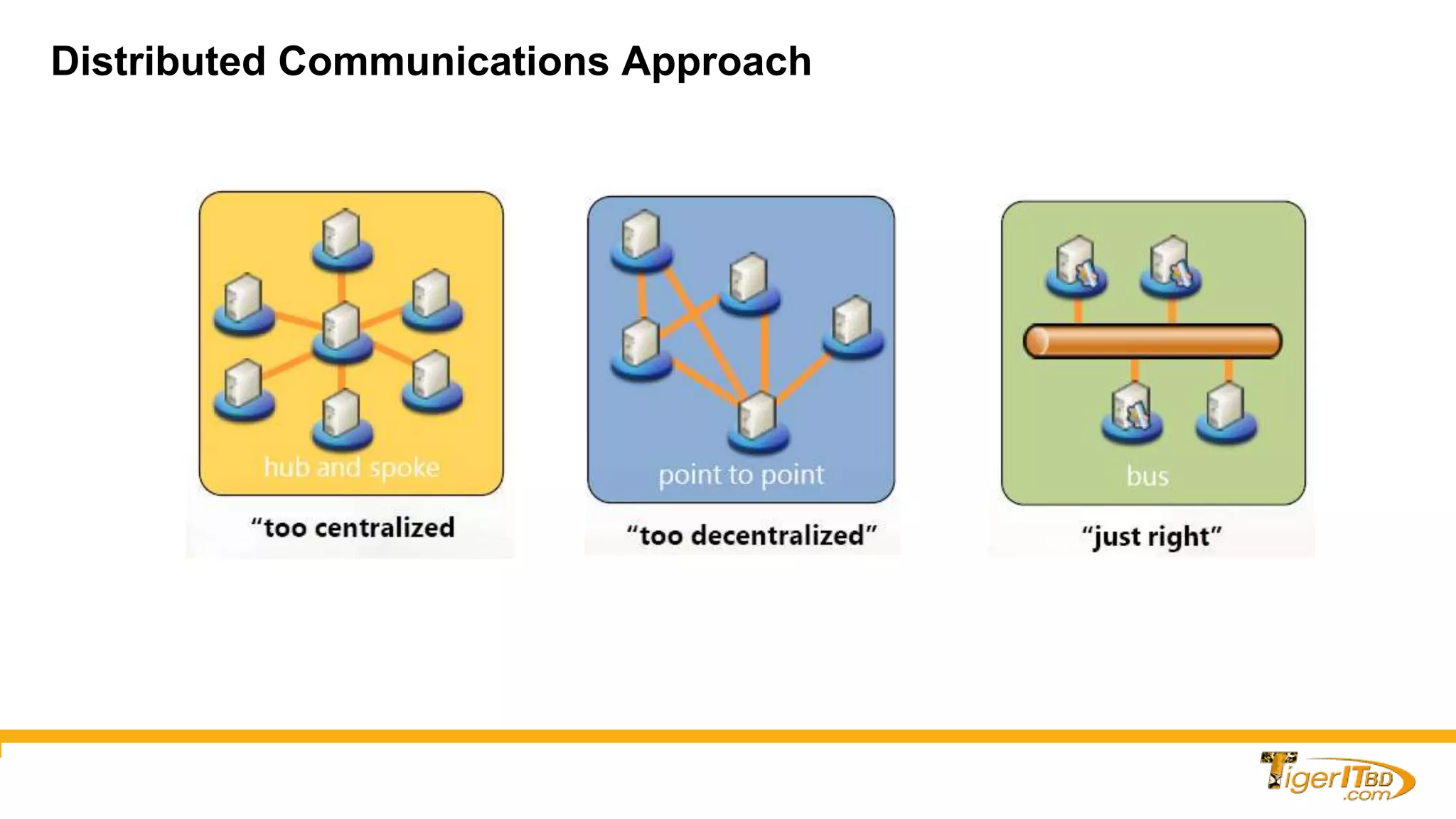

24. Distributed Communications Approach
EAI

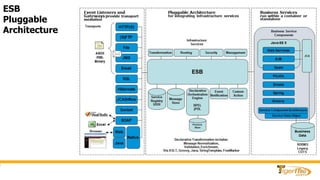

25. ESB
Pluggable
Architecture

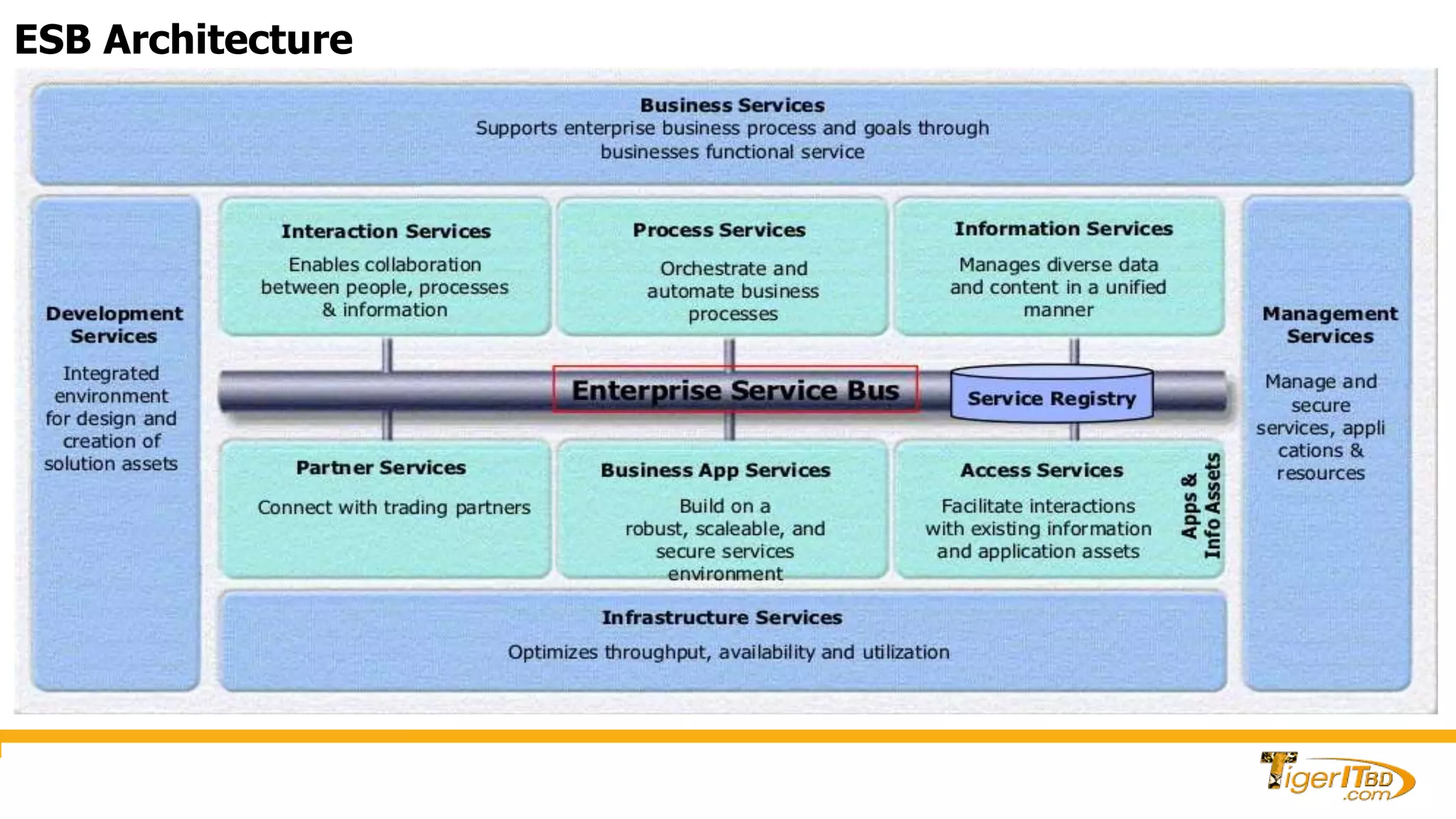

26. ESB Architecture

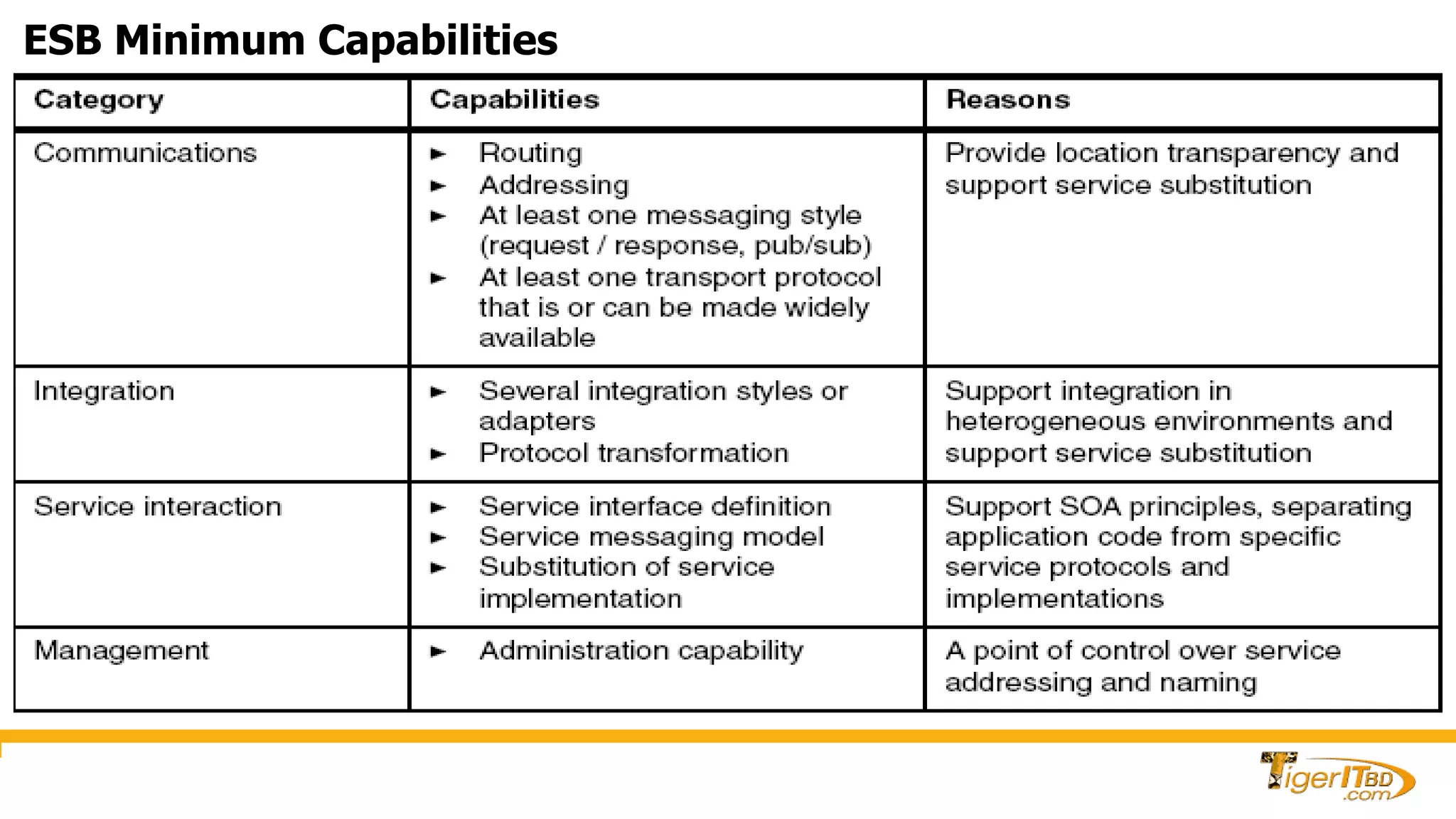

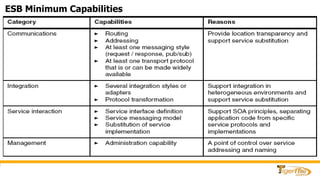

27. ESB Minimum Capabilities

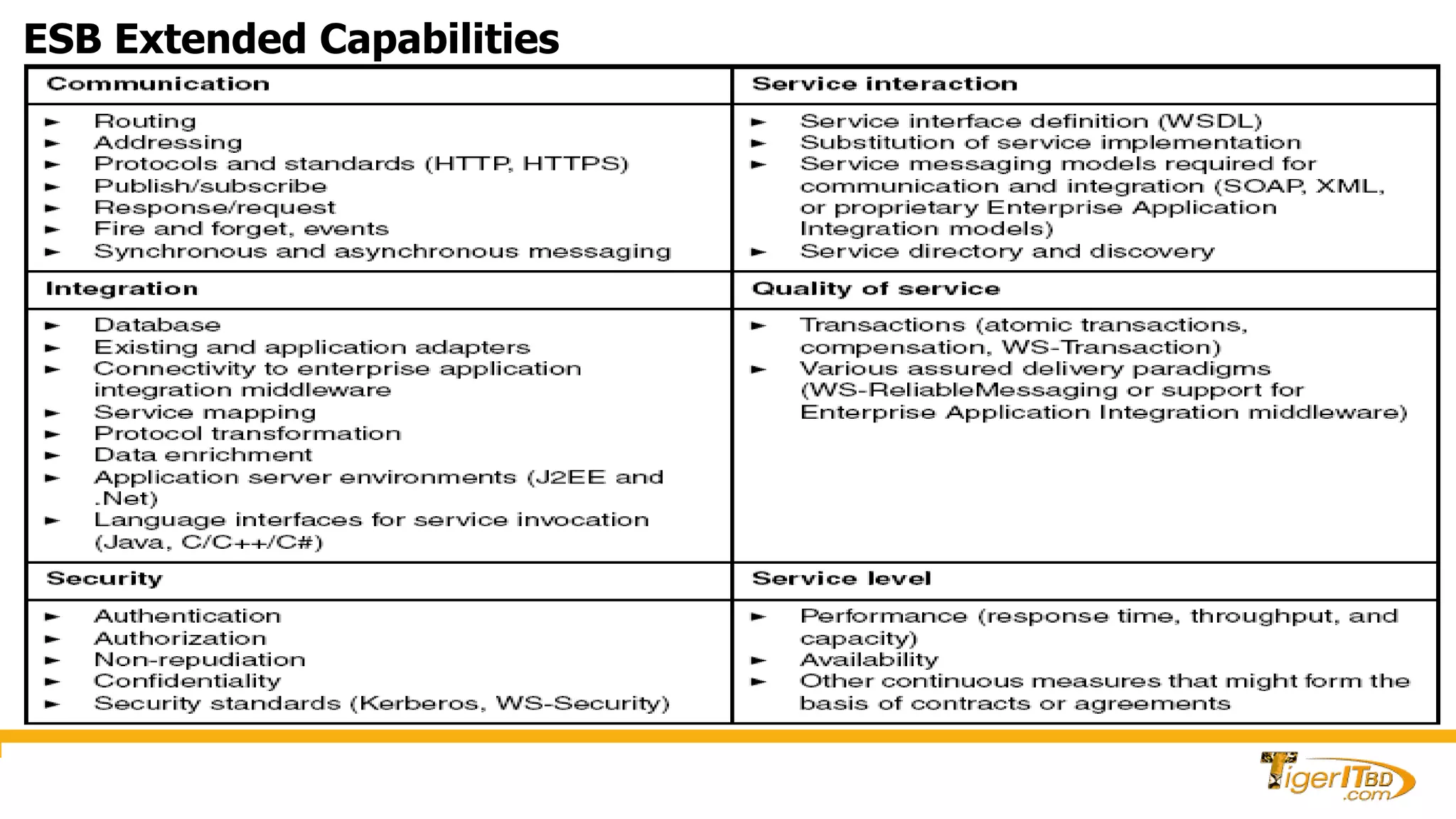

28. ESB Extended Capabilities

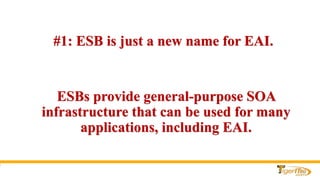

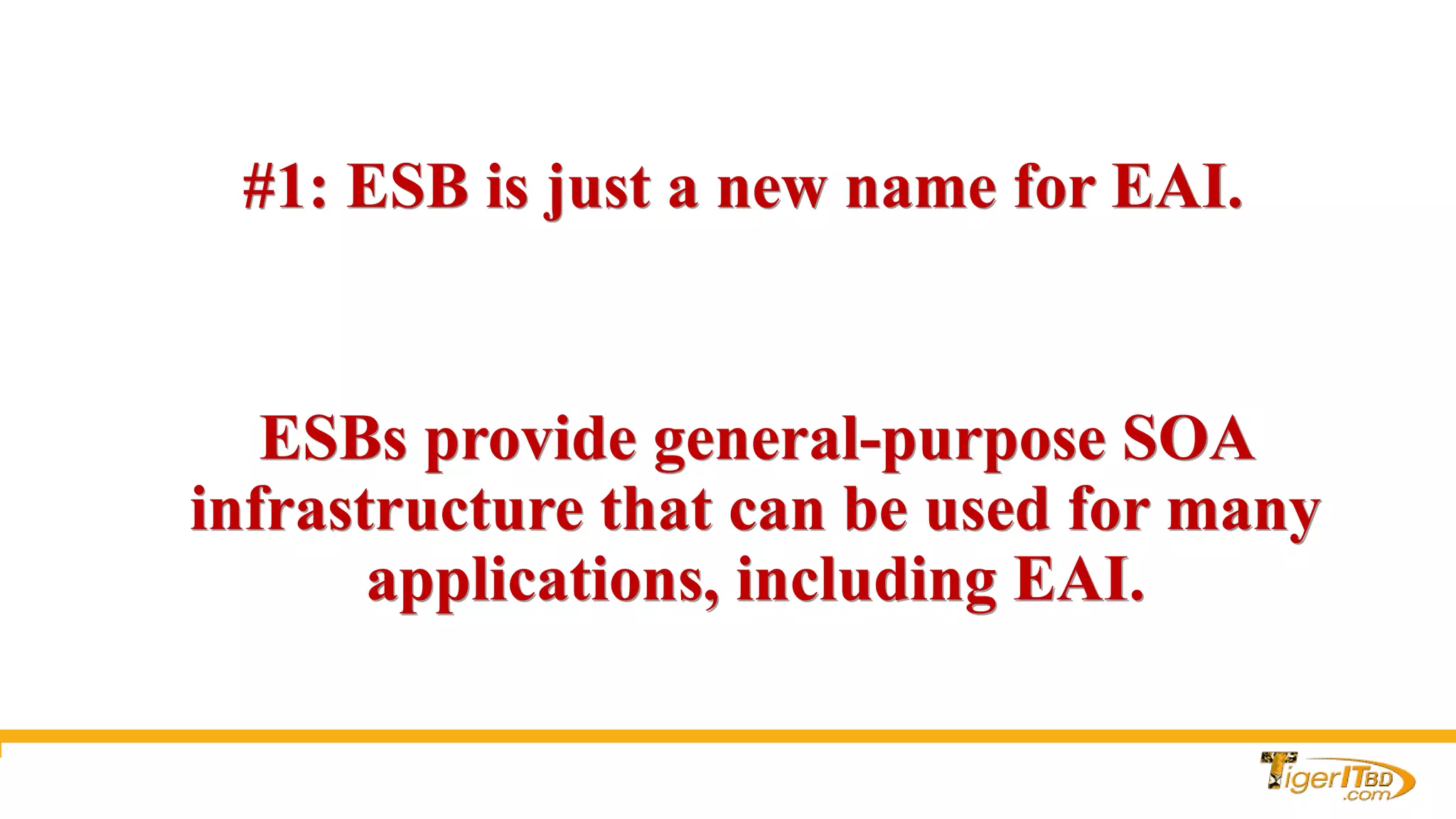

29. #1: ESB is just a new name for EAI.
ESBs provide general-purpose SOA
infrastructure that can be used for many
applications, including EAI.

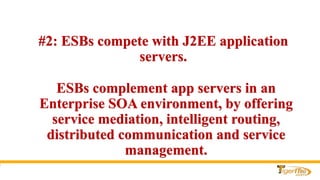

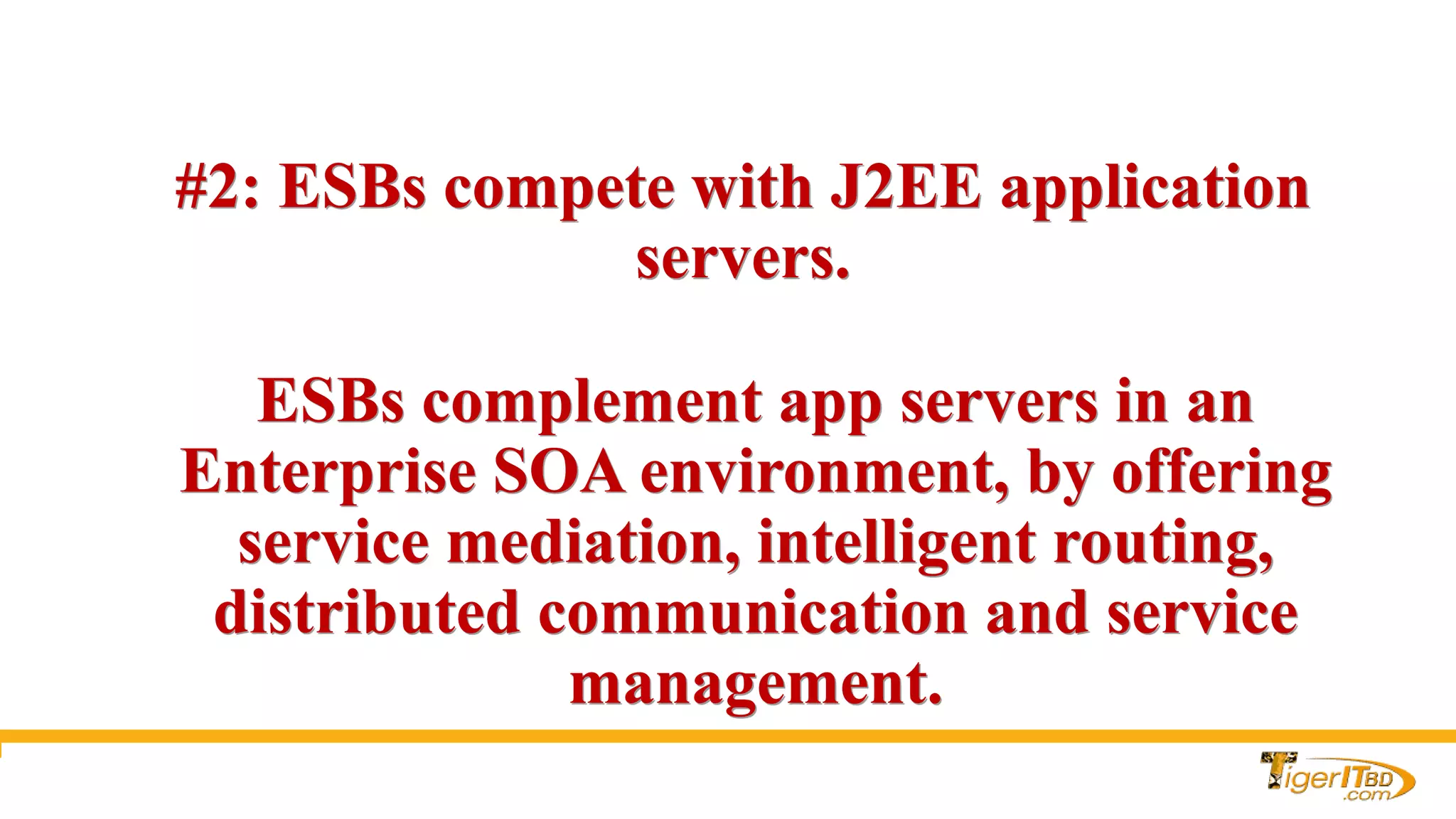

30. #2: ESBs compete with J2EE application
servers.
ESBs complement app servers in an
Enterprise SOA environment, by offering
service mediation, intelligent routing,
distributed communication and service
management.

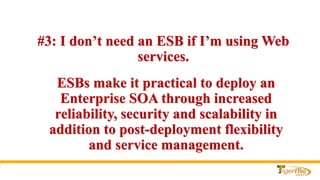

31. #3: I don’t need an ESB if I’m using Web
services.
ESBs make it practical to deploy an
Enterprise SOA through increased
reliability, security and scalability in
addition to post-deployment flexibility
and service management.

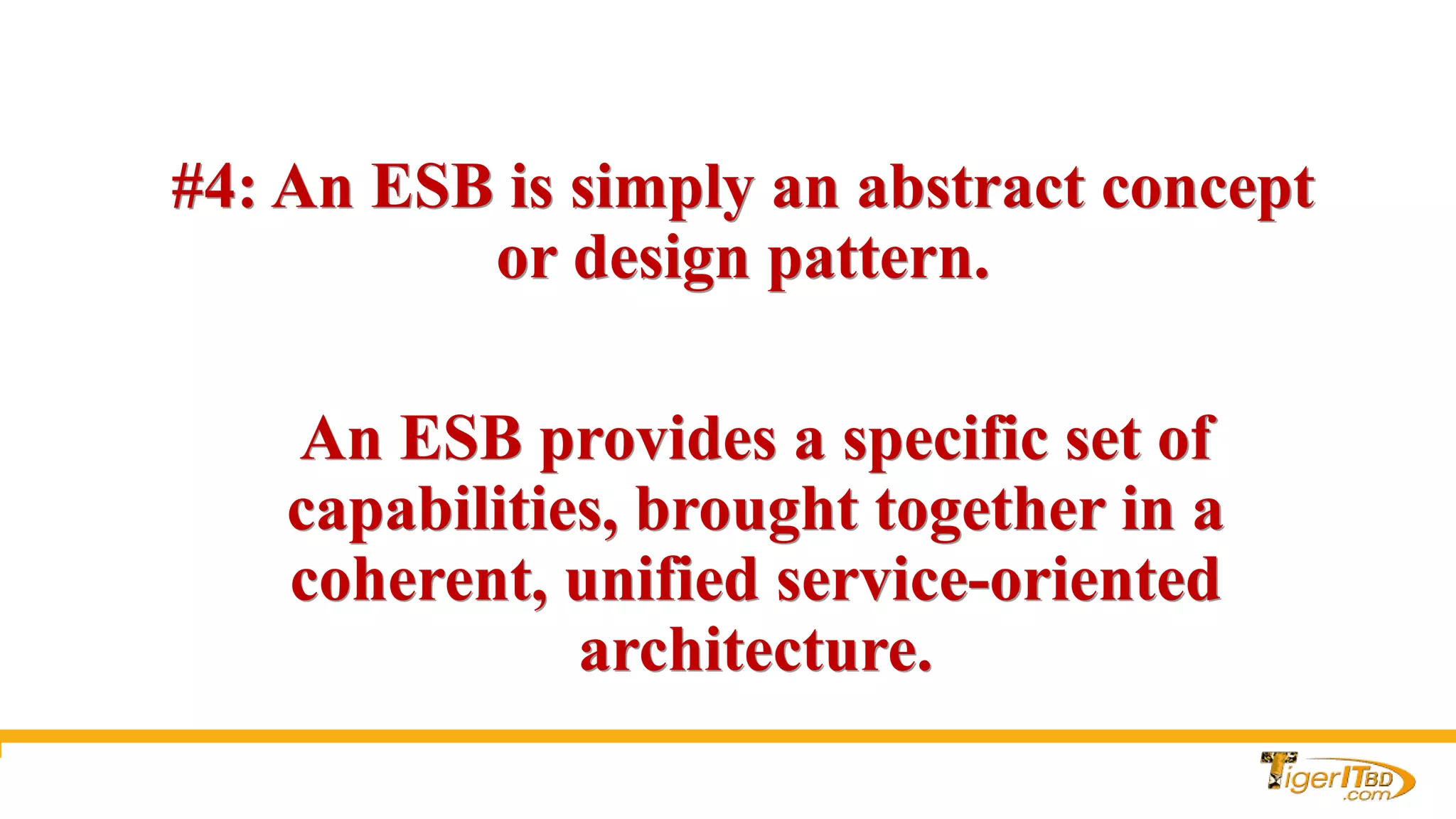

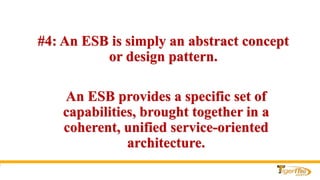

32. #4: An ESB is simply an abstract concept
or design pattern.
An ESB provides a specific set of
capabilities, brought together in a
coherent, unified service-oriented
architecture.

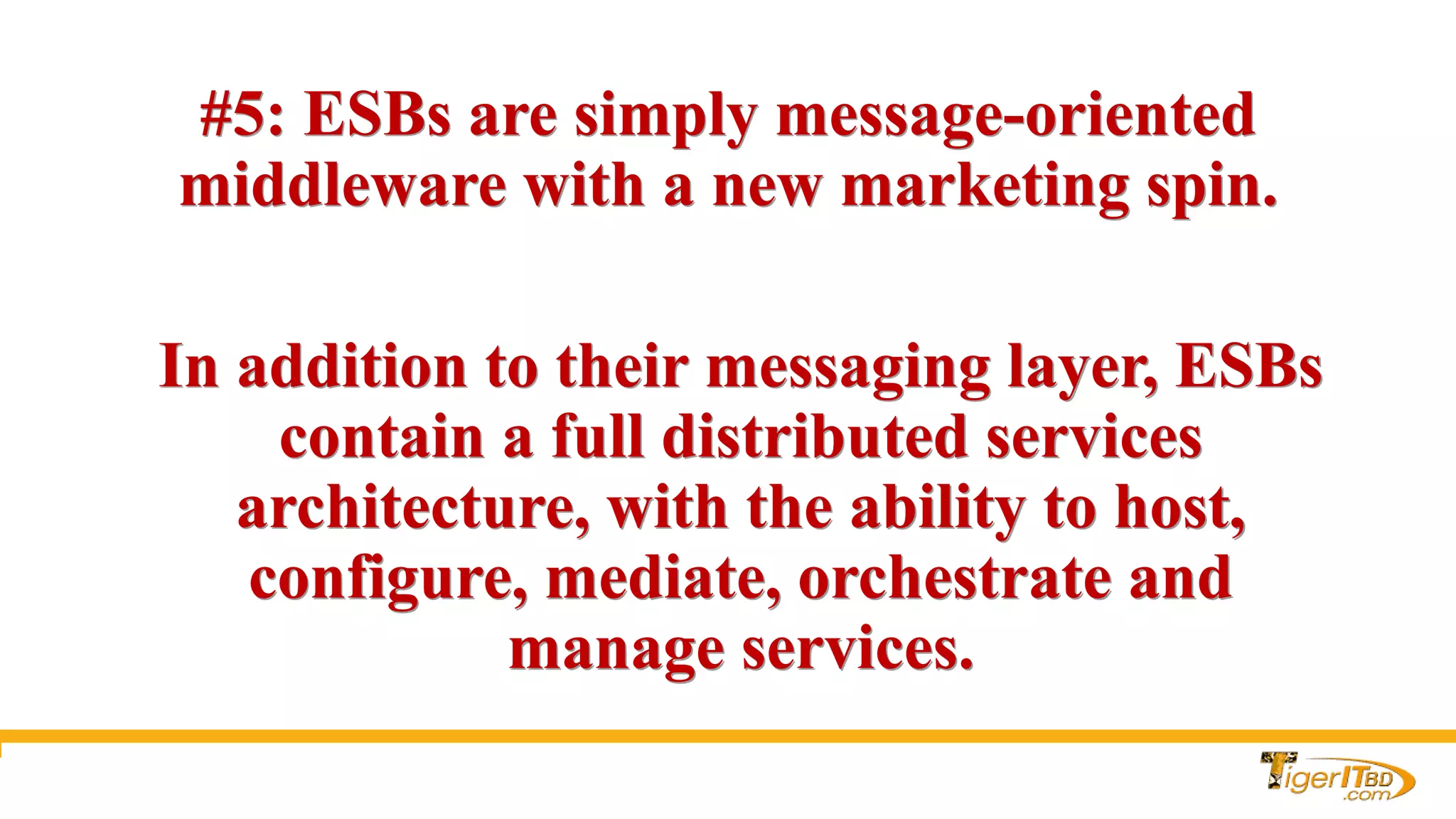

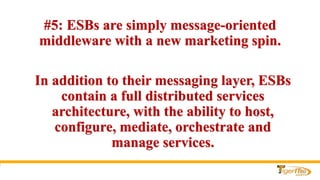

33. #5: ESBs are simply message-oriented
middleware with a new marketing spin.
In addition to their messaging layer, ESBs
contain a full distributed services
architecture, with the ability to host,
configure, mediate, orchestrate and
manage services.

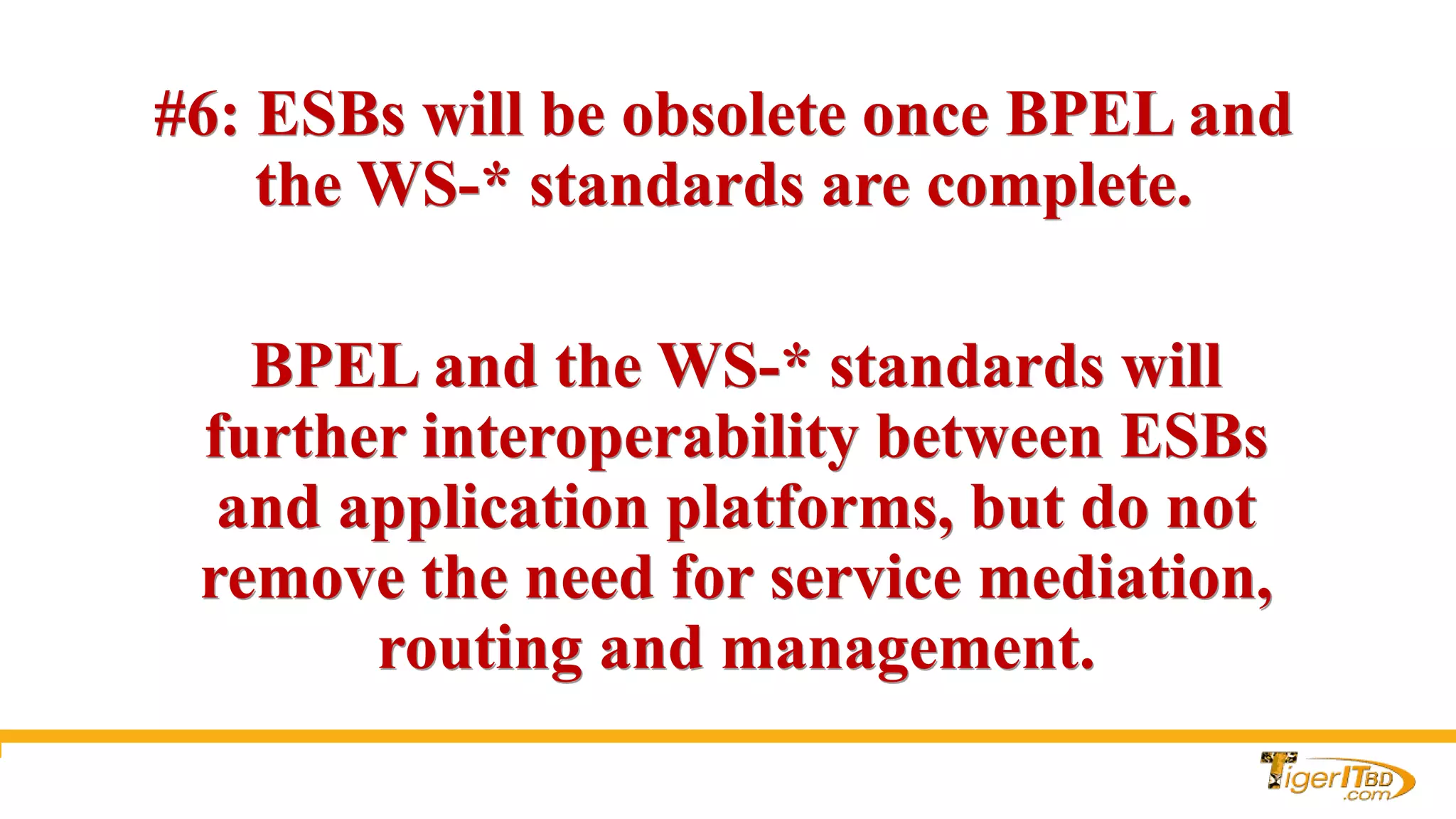

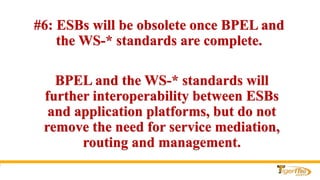

34. #6: ESBs will be obsolete once BPEL and
the WS-* standards are complete.
BPEL and the WS-* standards will
further interoperability between ESBs
and application platforms, but do not
remove the need for service mediation,
routing and management.

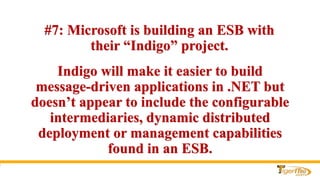

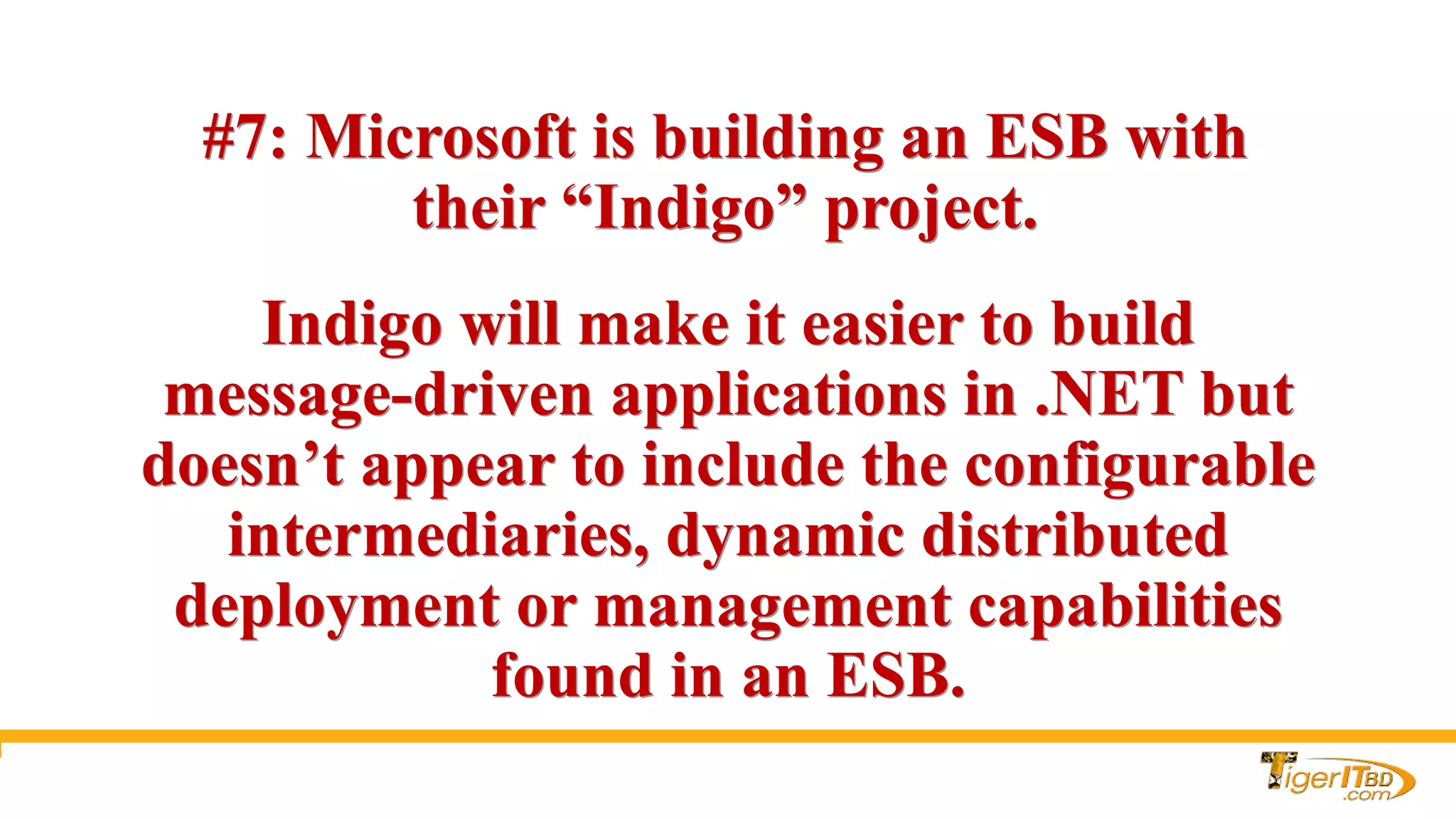

35. #7: Microsoft is building an ESB with
their “Indigo” project.
Indigo will make it easier to build
message-driven applications in .NET but
doesn’t appear to include the configurable
intermediaries, dynamic distributed
deployment or management capabilities
found in an ESB.

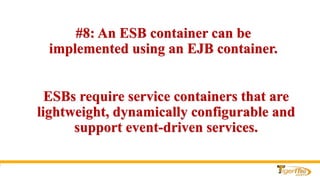

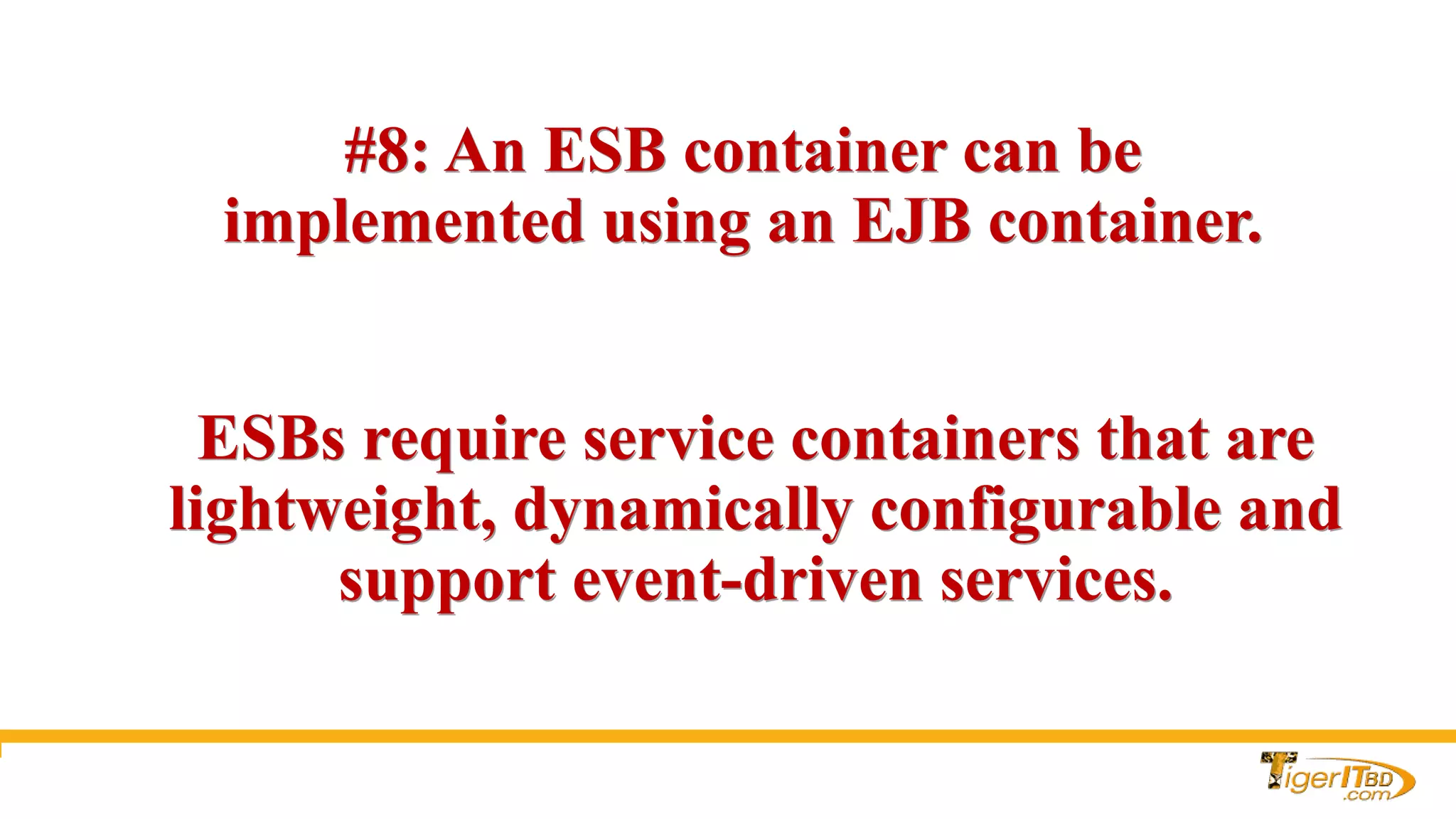

36. #8: An ESB container can be
implemented using an EJB container.
ESBs require service containers that are
lightweight, dynamically configurable and
support event-driven services.

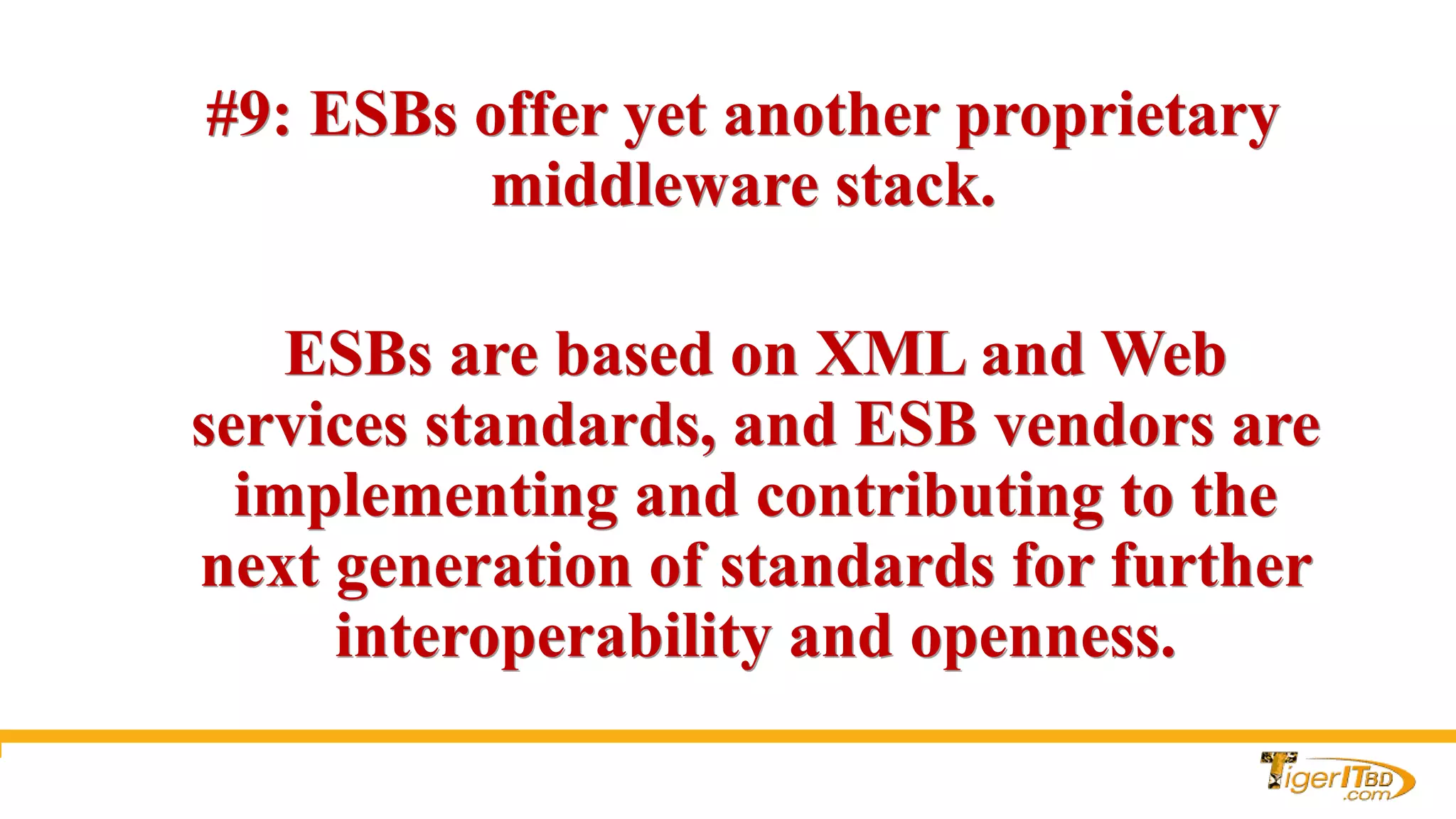

37. #9: ESBs offer yet another proprietary
middleware stack.
ESBs are based on XML and Web
services standards, and ESB vendors are
implementing and contributing to the
next generation of standards for further
interoperability and openness.

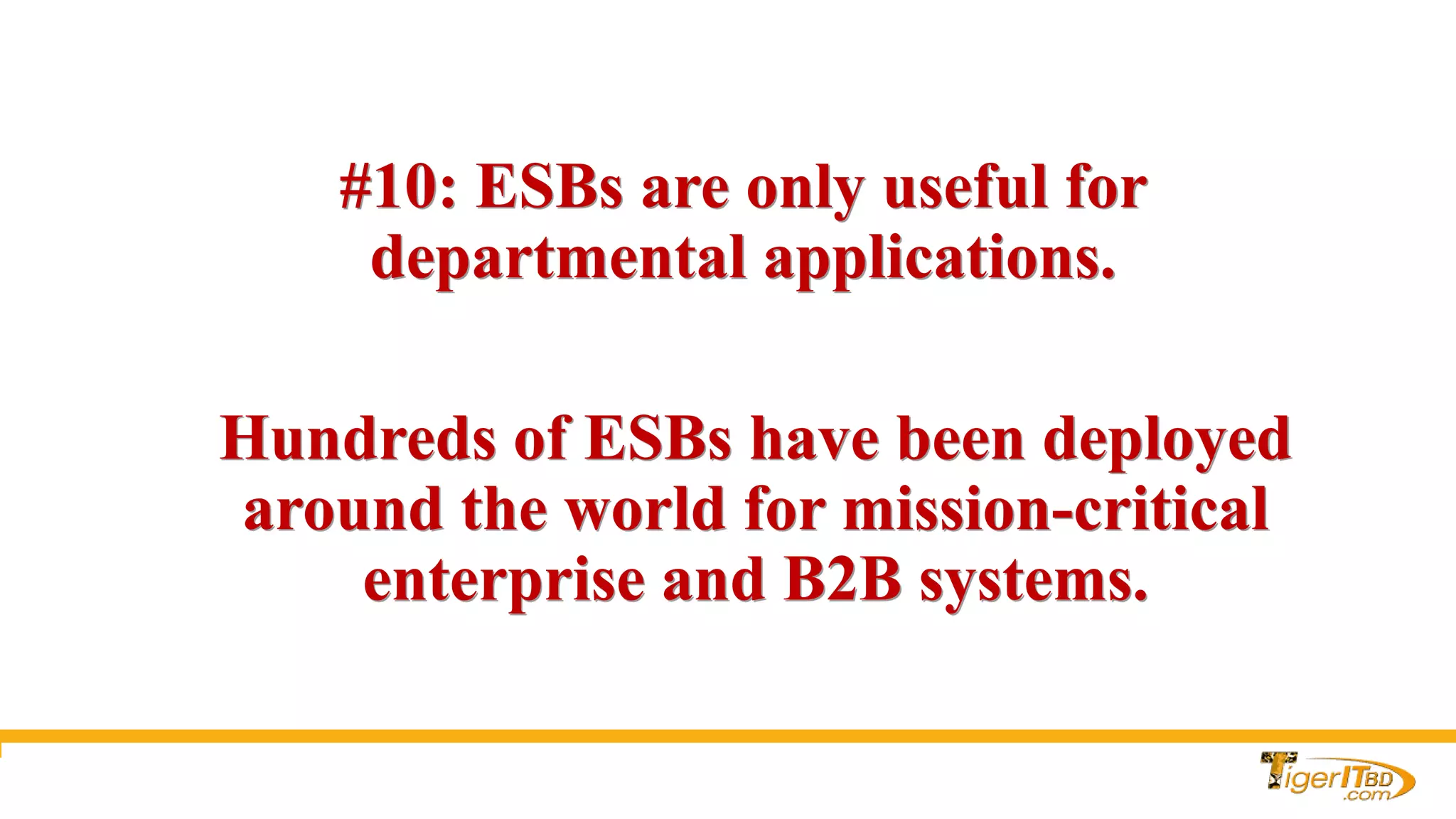

38. #10: ESBs are only useful for
departmental applications.
Hundreds of ESBs have been deployed
around the world for mission-critical
enterprise and B2B systems.

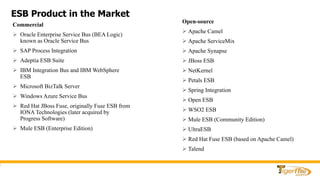

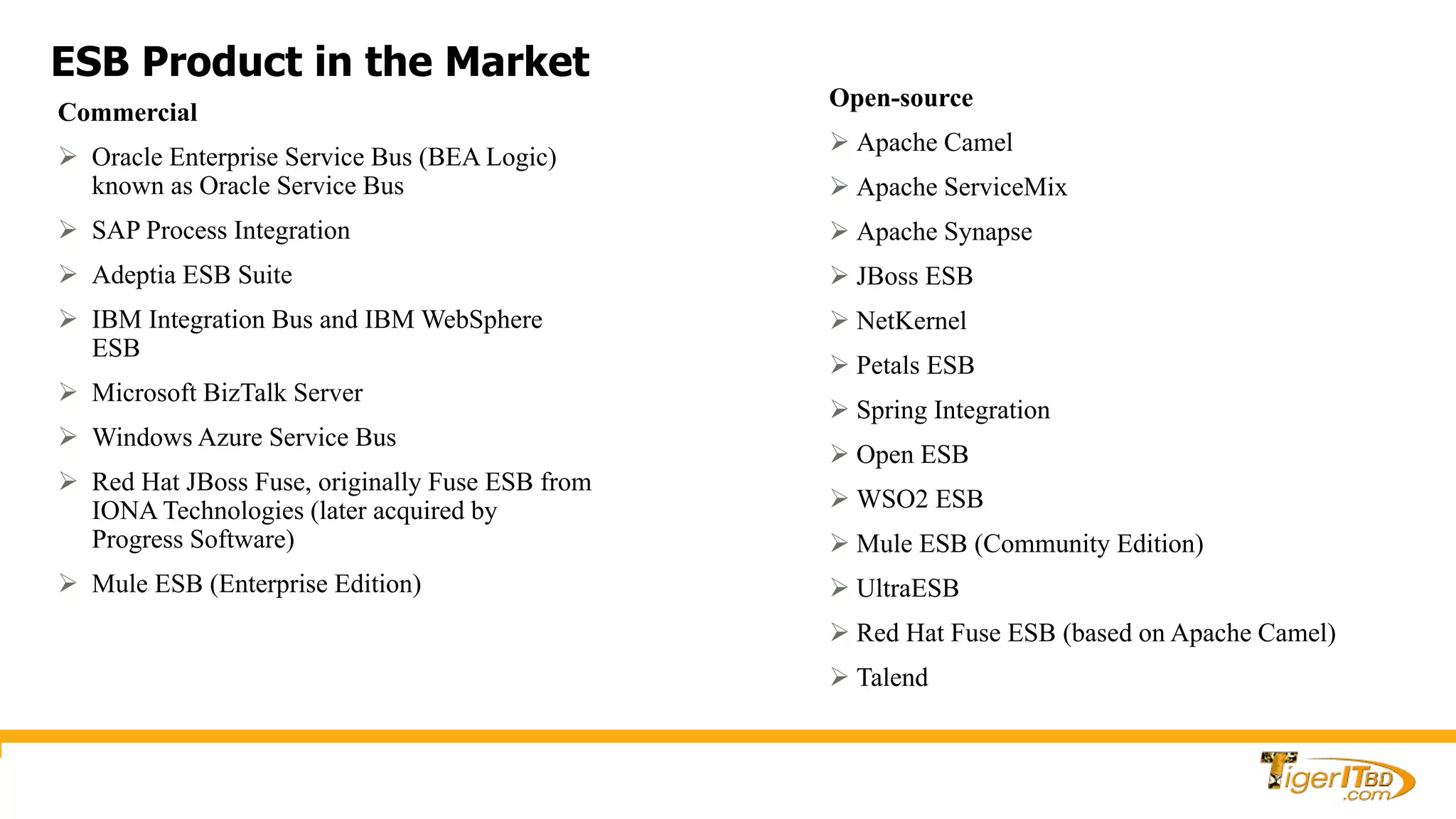

39. ESB Product in the Market
Commercial
 Oracle Enterprise Service Bus (BEA Logic)
known as Oracle Service Bus
 SAP Process Integration
 Adeptia ESB Suite
 IBM Integration Bus and IBM WebSphere
ESB
 Microsoft BizTalk Server
 Windows Azure Service Bus
 Red Hat JBoss Fuse, originally Fuse ESB from
IONA Technologies (later acquired by
Progress Software)
 Mule ESB (Enterprise Edition)
Open-source
 Apache Camel
 Apache ServiceMix
 Apache Synapse
 JBoss ESB
 NetKernel
 Petals ESB
 Spring Integration
 Open ESB
 WSO2 ESB
 Mule ESB (Community Edition)
 UltraESB
 Red Hat Fuse ESB (based on Apache Camel)
 Talend

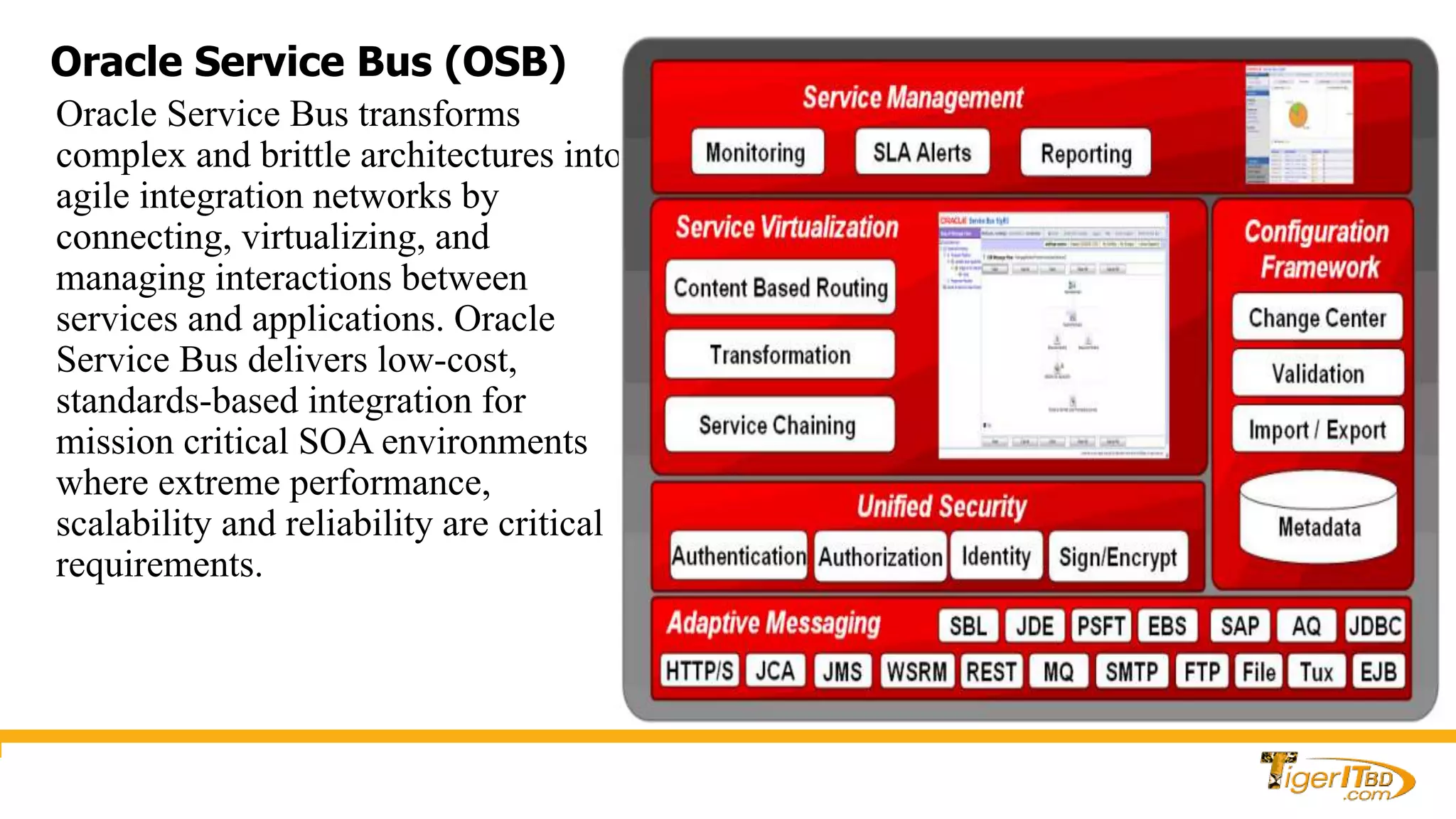

40. Oracle Service Bus (OSB)
Oracle Service Bus transforms
complex and brittle architectures into
agile integration networks by
connecting, virtualizing, and
managing interactions between
services and applications. Oracle
Service Bus delivers low-cost,
standards-based integration for
mission critical SOA environments
where extreme performance,
scalability and reliability are critical
requirements.

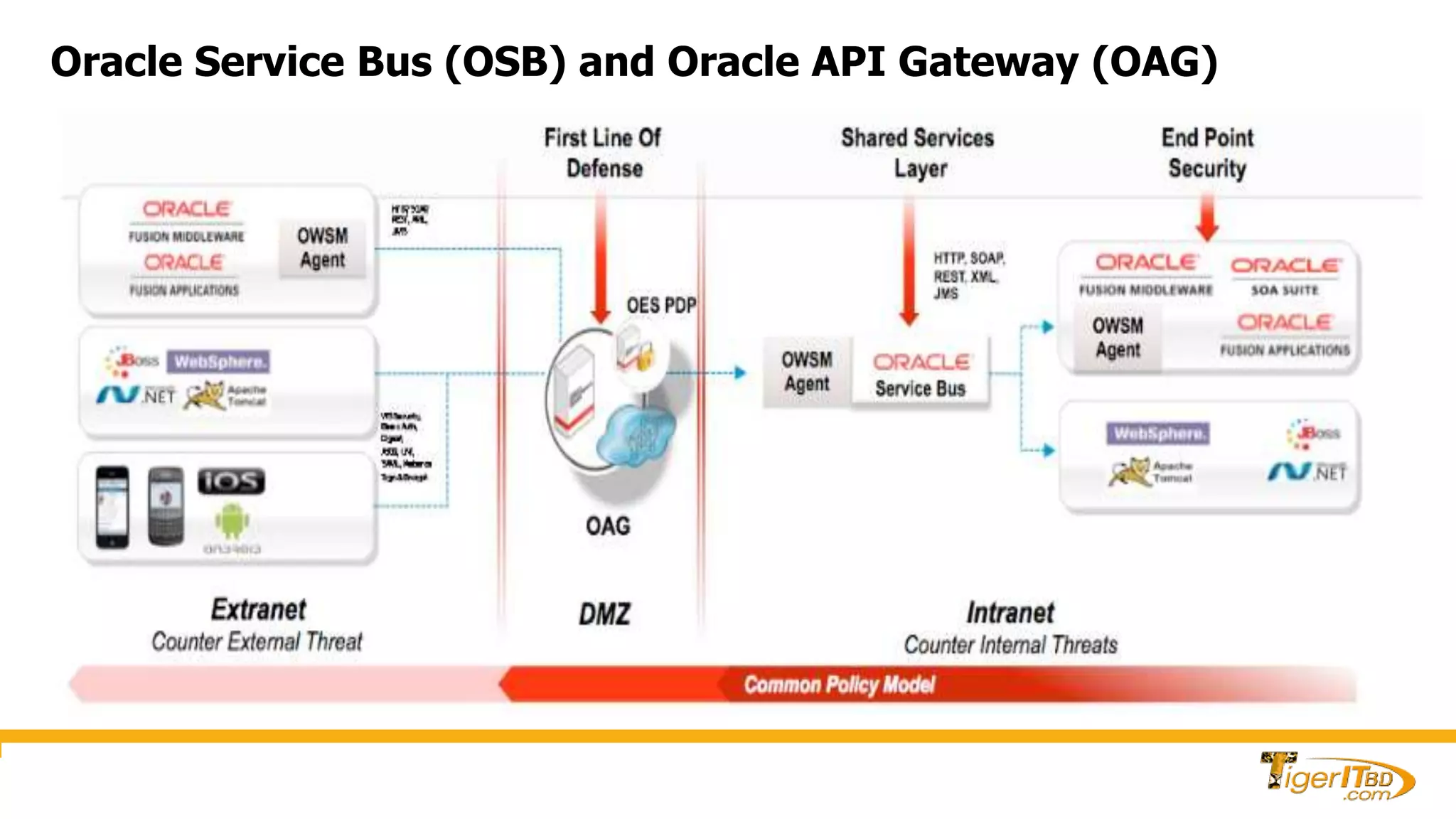

41. Oracle Service Bus (OSB) and Oracle API Gateway (OAG)

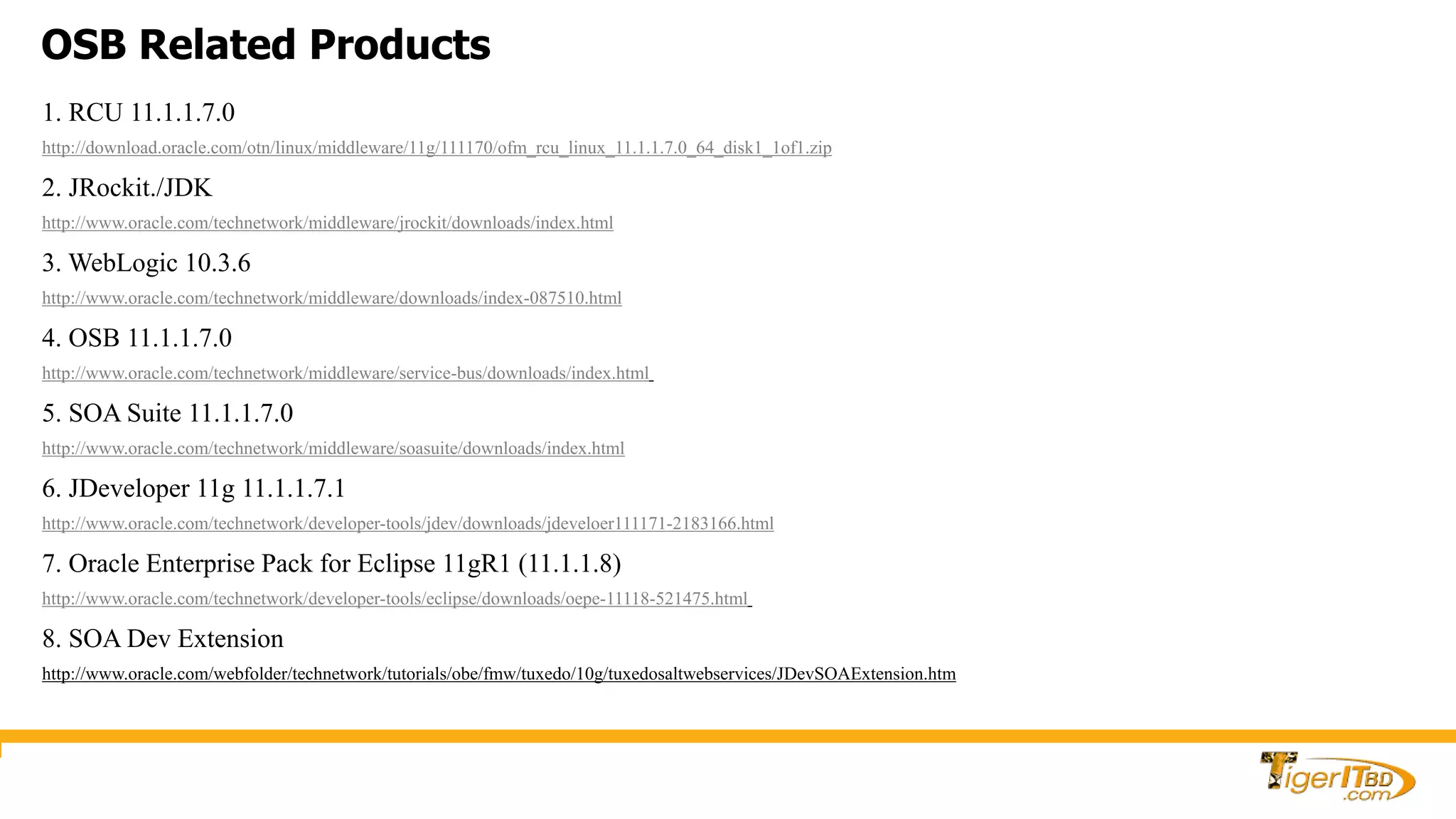

42. OSB Related Products
1. RCU 11.1.1.7.0
http://download.oracle.com/otn/linux/middleware/11g/111170/ofm_rcu_linux_11.1.1.7.0_64_disk1_1of1.zip
2. JRockit./JDK
http://www.oracle.com/technetwork/middleware/jrockit/downloads/index.html
3. WebLogic 10.3.6
http://www.oracle.com/technetwork/middleware/downloads/index-087510.html
4. OSB 11.1.1.7.0
http://www.oracle.com/technetwork/middleware/service-bus/downloads/index.html
5. SOA Suite 11.1.1.7.0
http://www.oracle.com/technetwork/middleware/soasuite/downloads/index.html
6. JDeveloper 11g 11.1.1.7.1
http://www.oracle.com/technetwork/developer-tools/jdev/downloads/jdeveloer111171-2183166.html
7. Oracle Enterprise Pack for Eclipse 11gR1 (11.1.1.8)
http://www.oracle.com/technetwork/developer-tools/eclipse/downloads/oepe-11118-521475.html
8. SOA Dev Extension
http://www.oracle.com/webfolder/technetwork/tutorials/obe/fmw/tuxedo/10g/tuxedosaltwebservices/JDevSOAExtension.htm

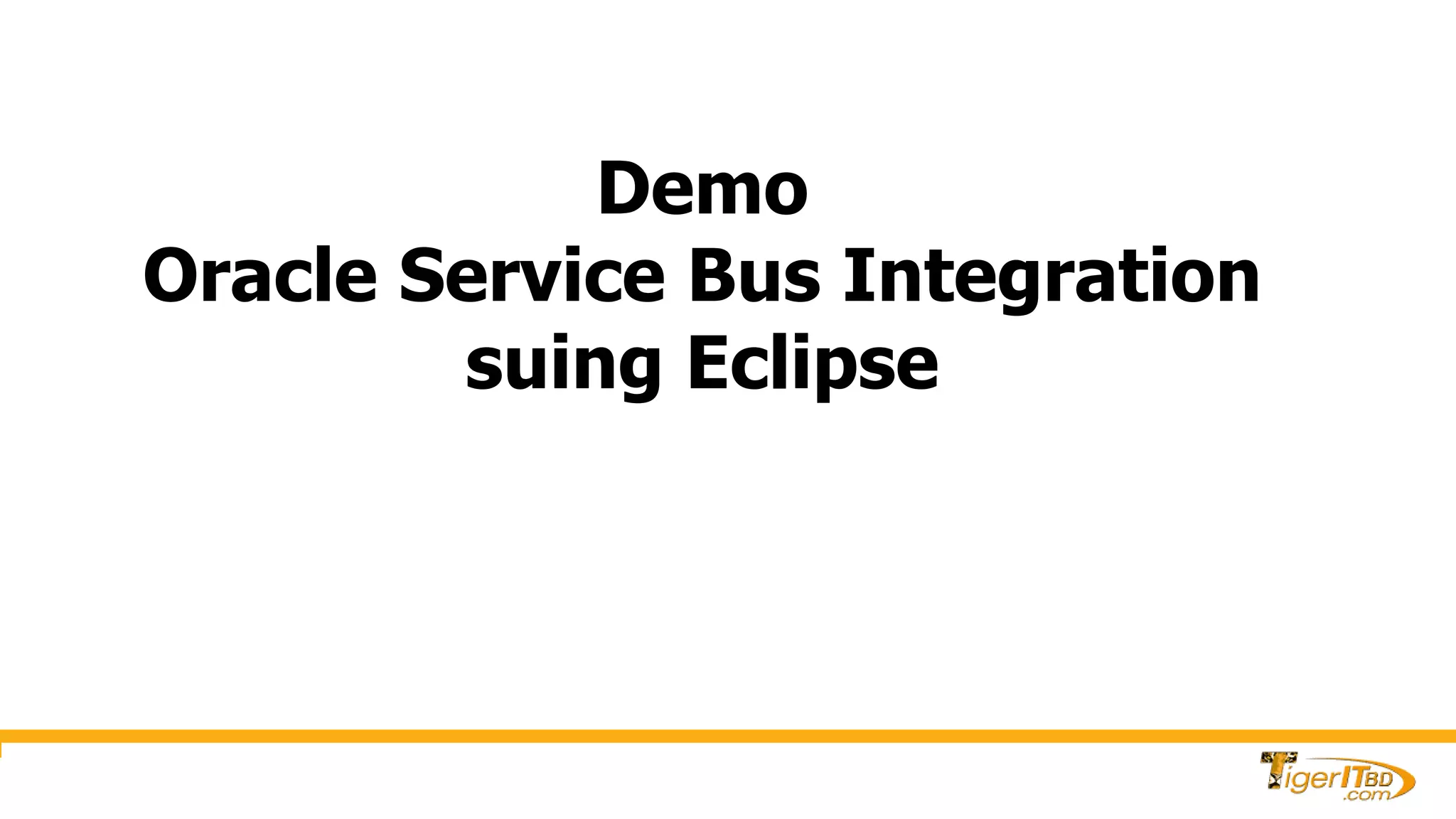

43. Demo
Oracle Service Bus Integration
suing Eclipse

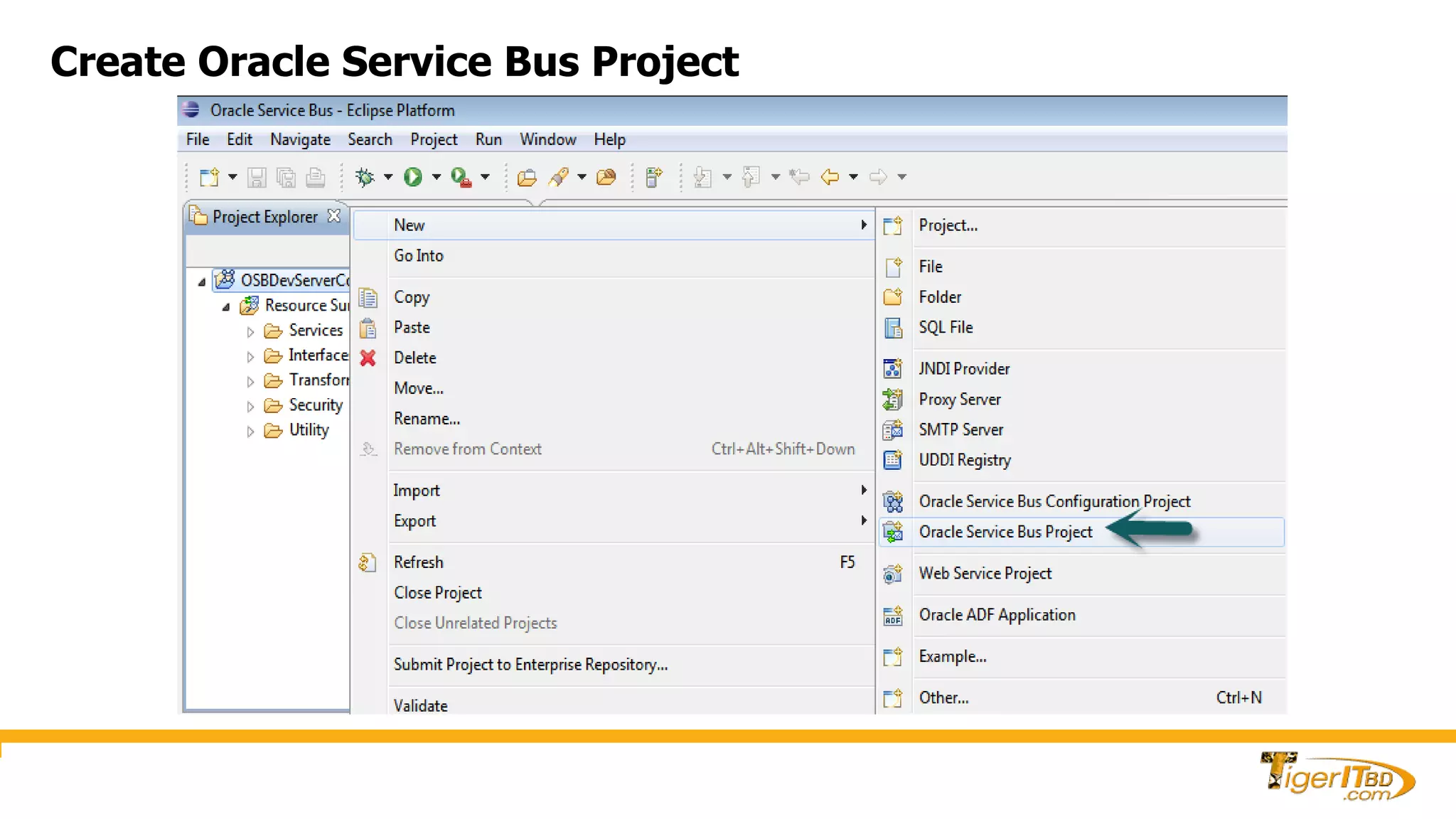

44. Create Oracle Service Bus Project

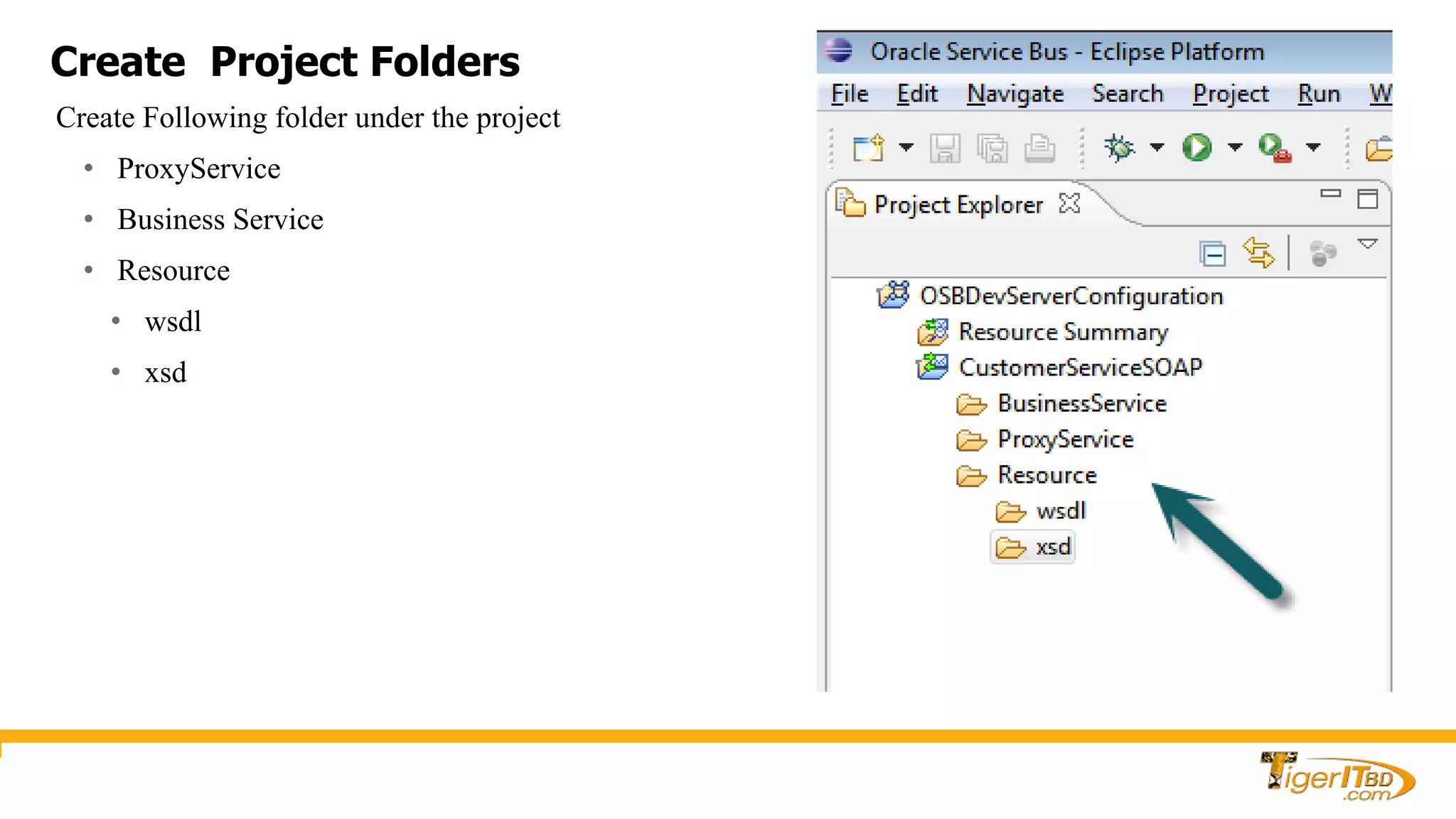

45. Create Project Folders
Create Following folder under the project
• ProxyService
• Business Service
• Resource
• wsdl
• xsd

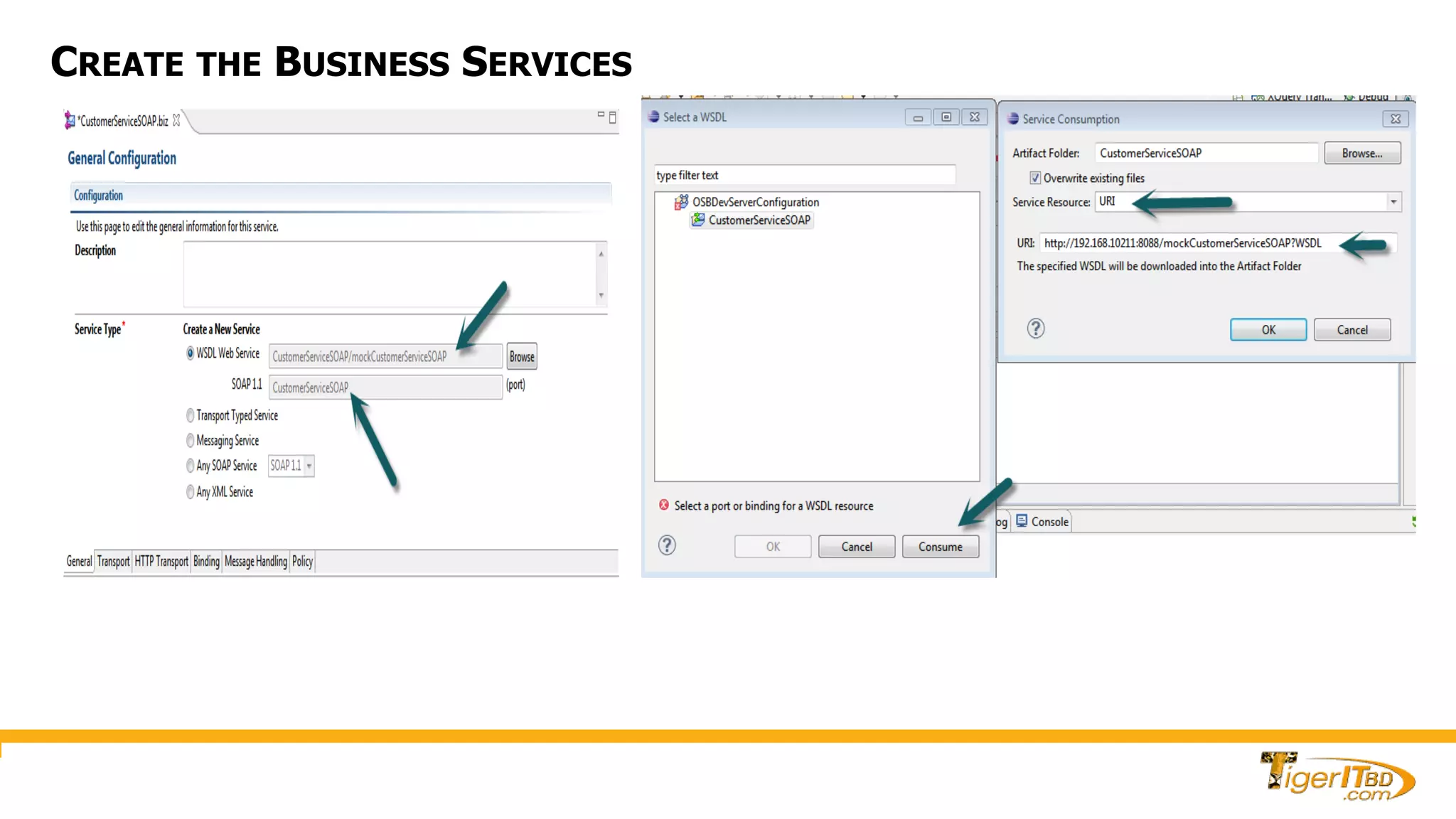

46. CREATE THE BUSINESS SERVICES

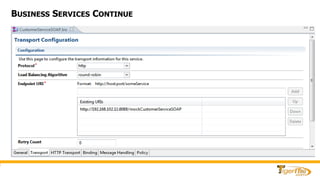

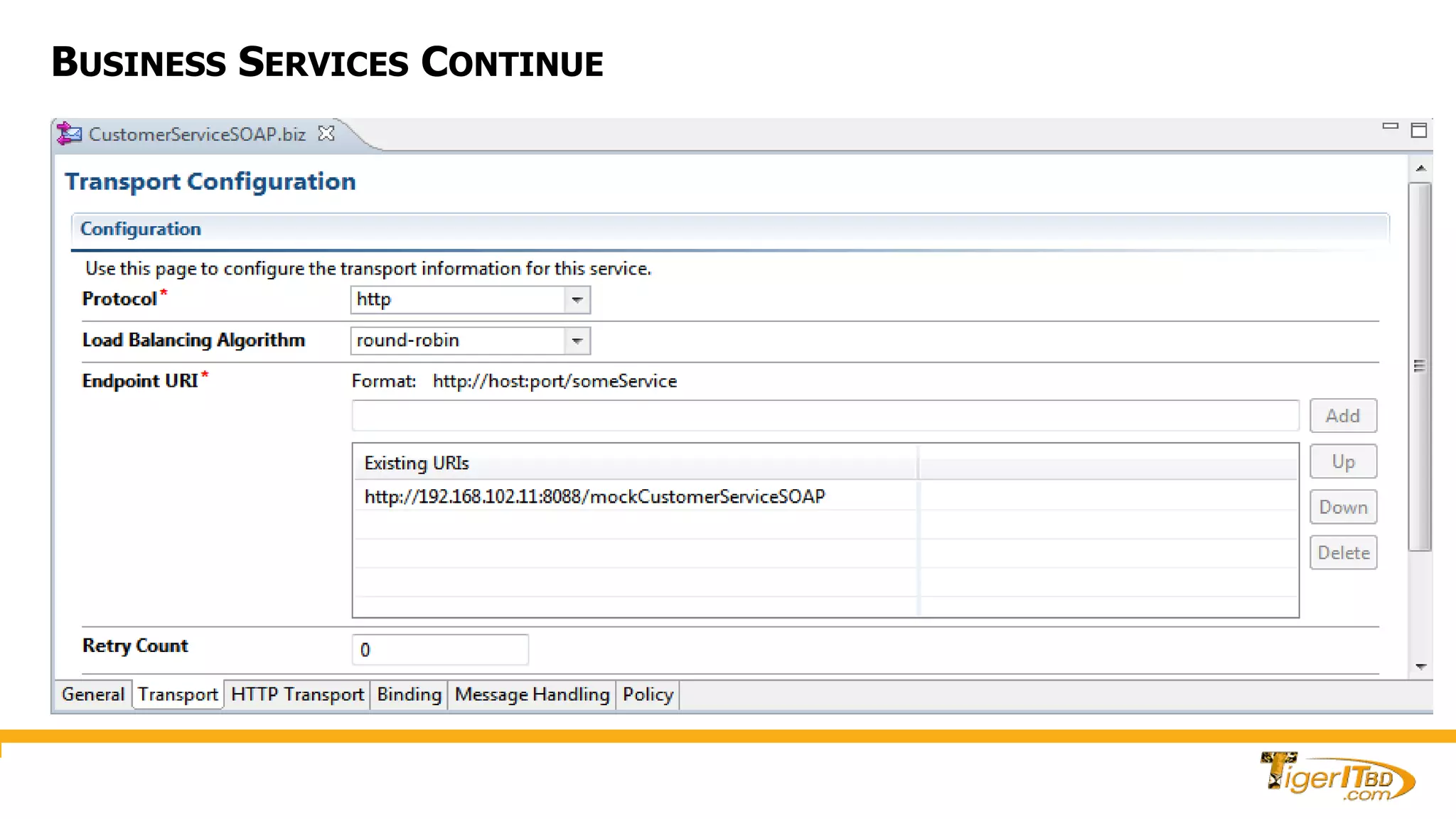

47. BUSINESS SERVICES CONTINUE

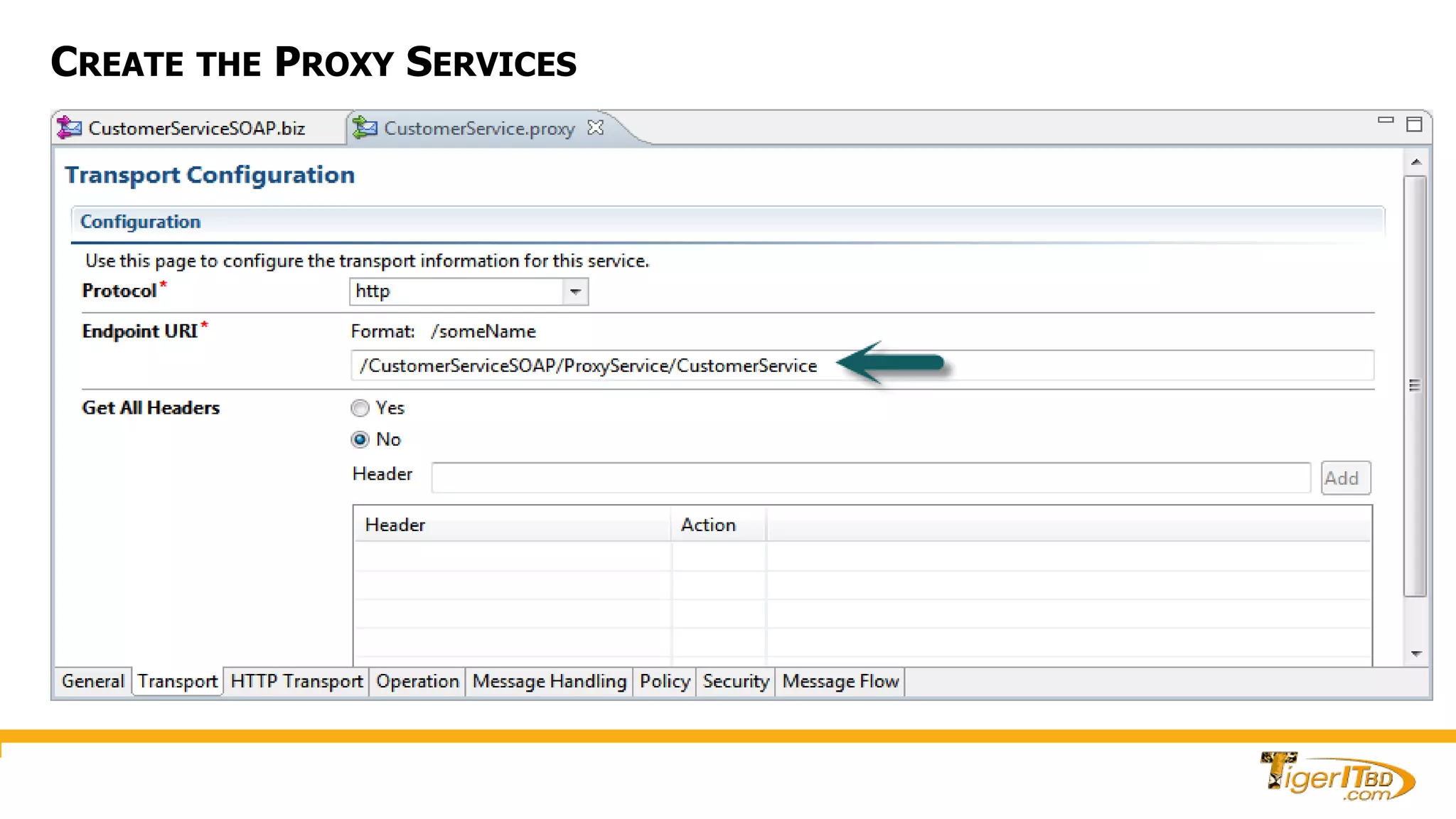

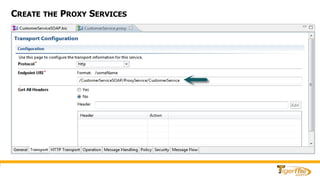

48. CREATE THE PROXY SERVICES

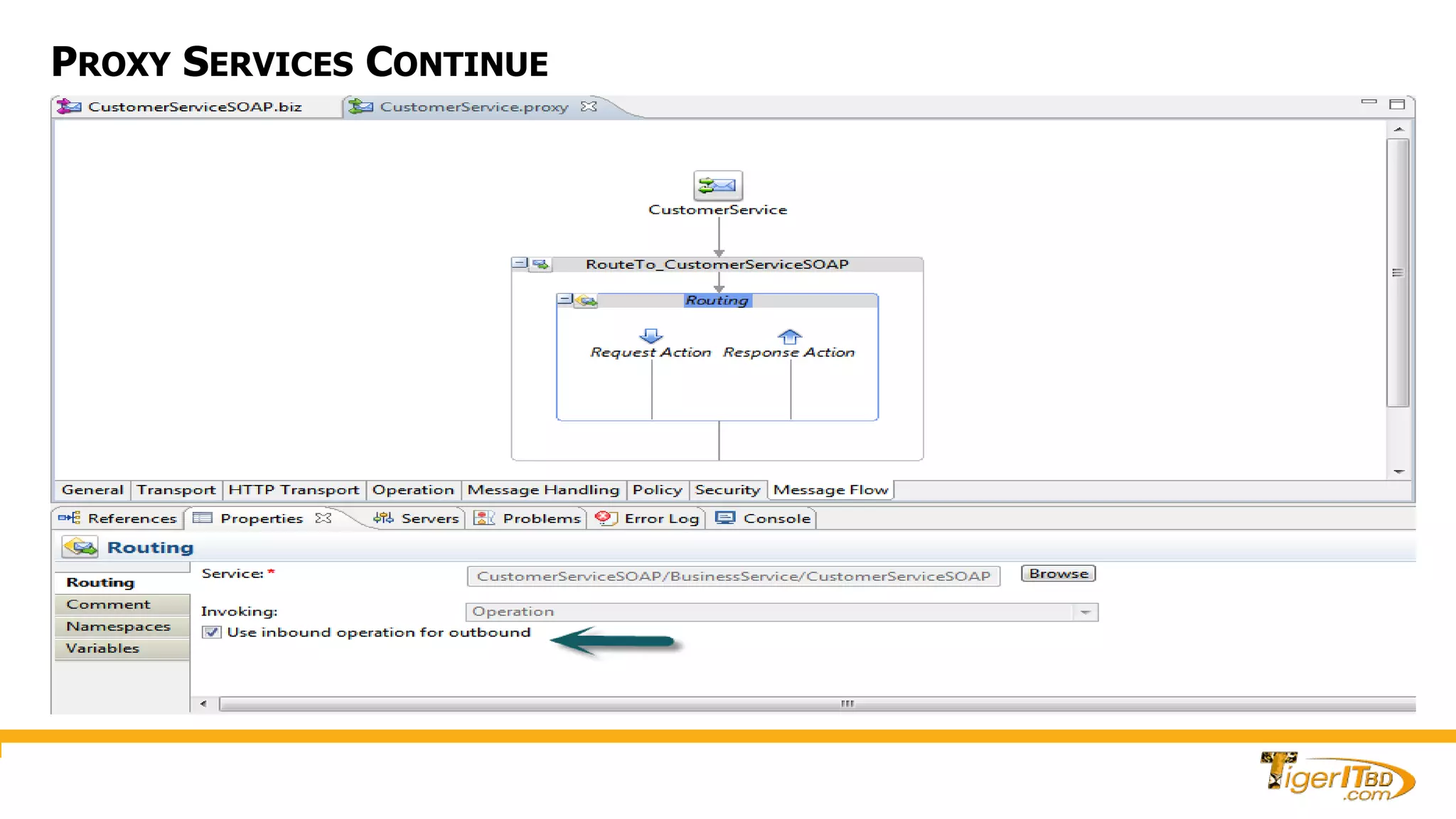

49. PROXY SERVICES CONTINUE

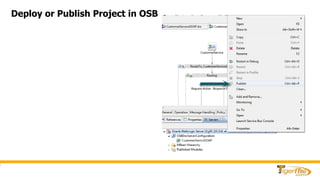

50. Deploy or Publish Project in OSB

51. Test The Web Service in OSB Console

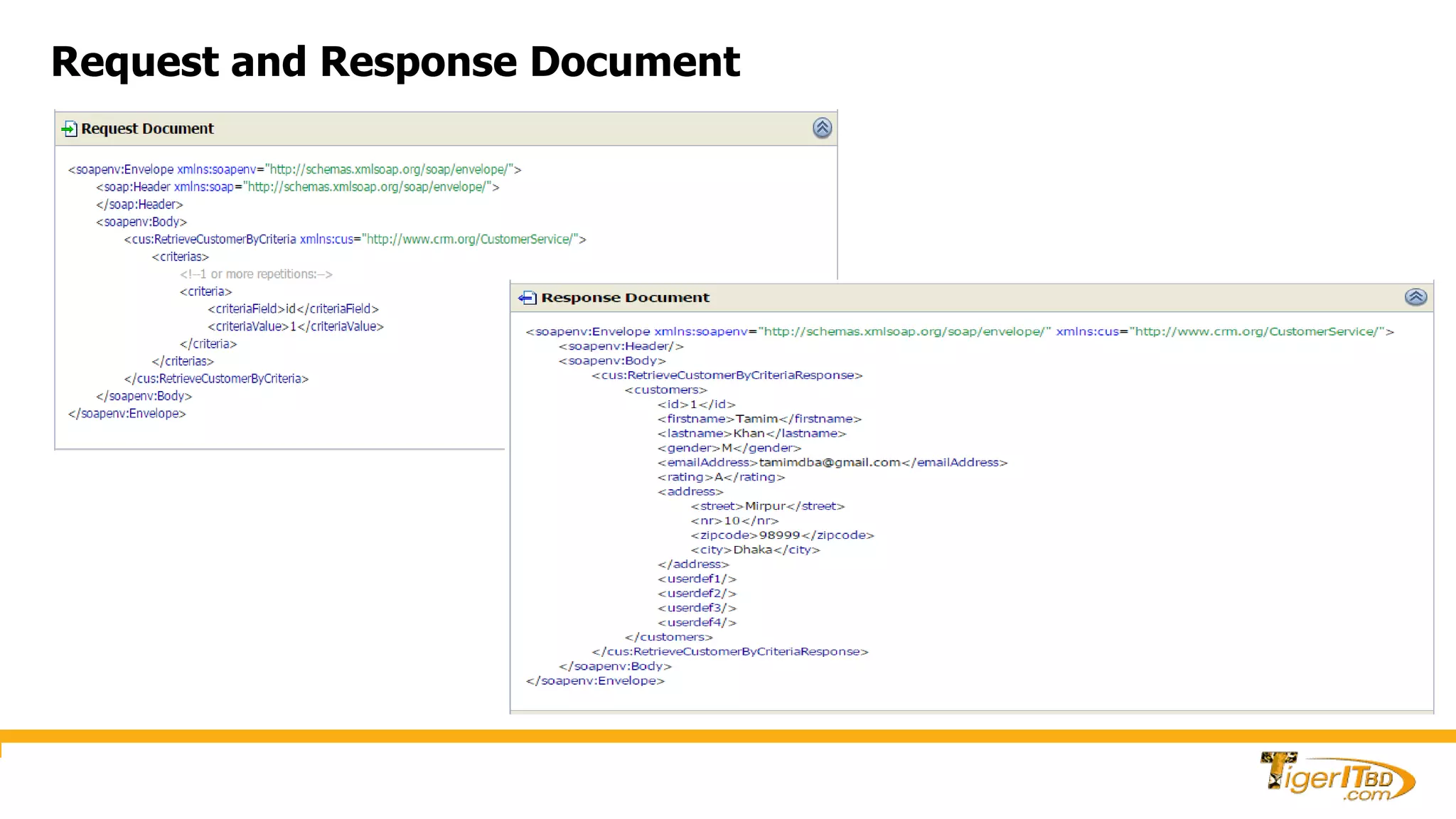

52. Request and Response Document

53. Questions ?

54. Thanks You
