- 1. Microsoft BizTalk ESBToolkit Saffieldin Ali

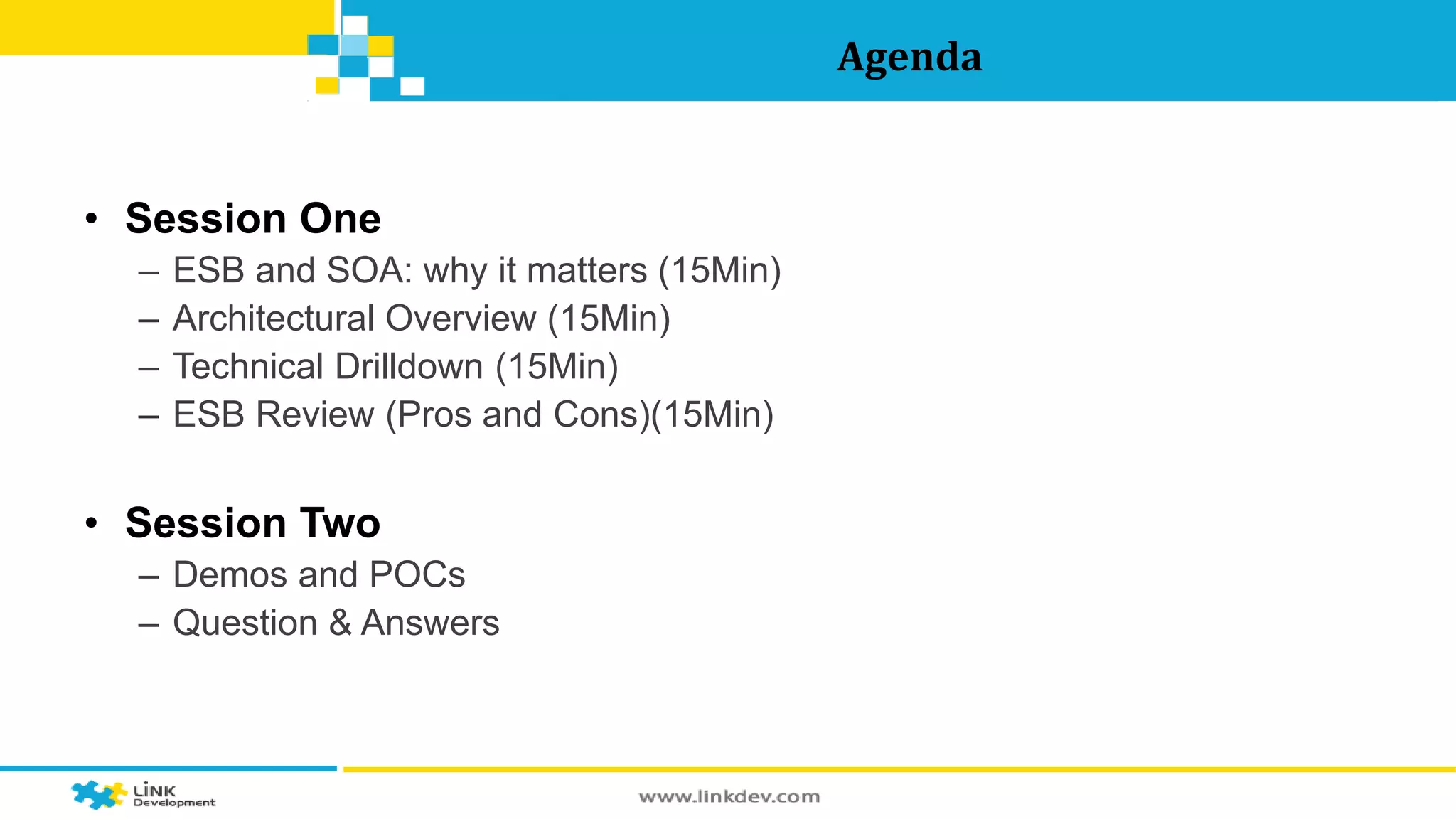

- 2. Agenda • SessionOne – ESB and SOA: why it matters (15Min) – Architectural Overview (15Min) – Technical Drilldown (15Min) – ESB Review (Pros and Cons)(15Min) • Session Two – Demos and POCs – Question & Answers

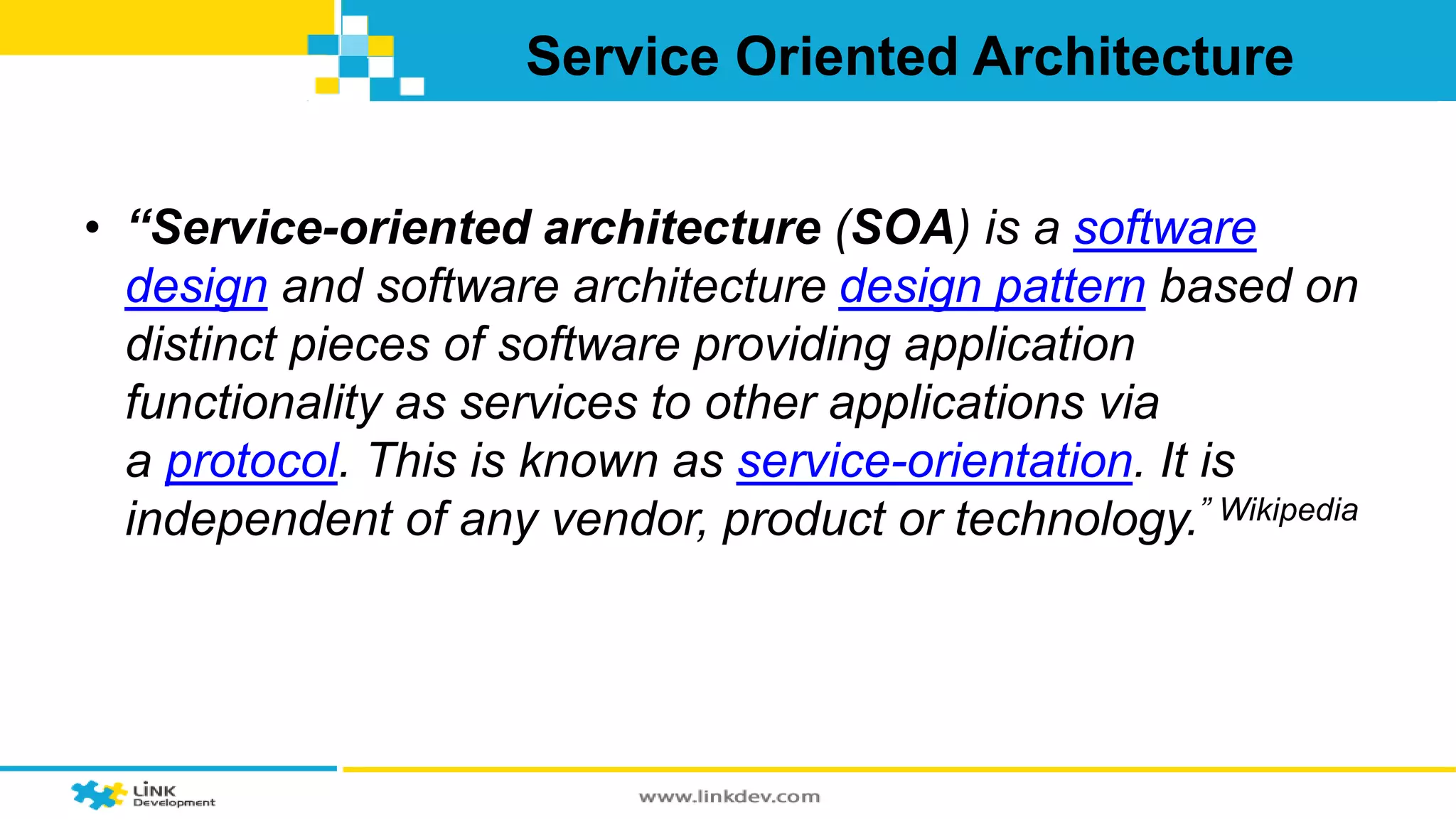

- 3. Service Oriented Architecture • “Service-oriented architecture (SOA) is a software design and software architecture design pattern based on distinct pieces of software providing application functionality as services to other applications via a protocol. This is known as service-orientation. It is independent of any vendor, product or technology.” Wikipedia

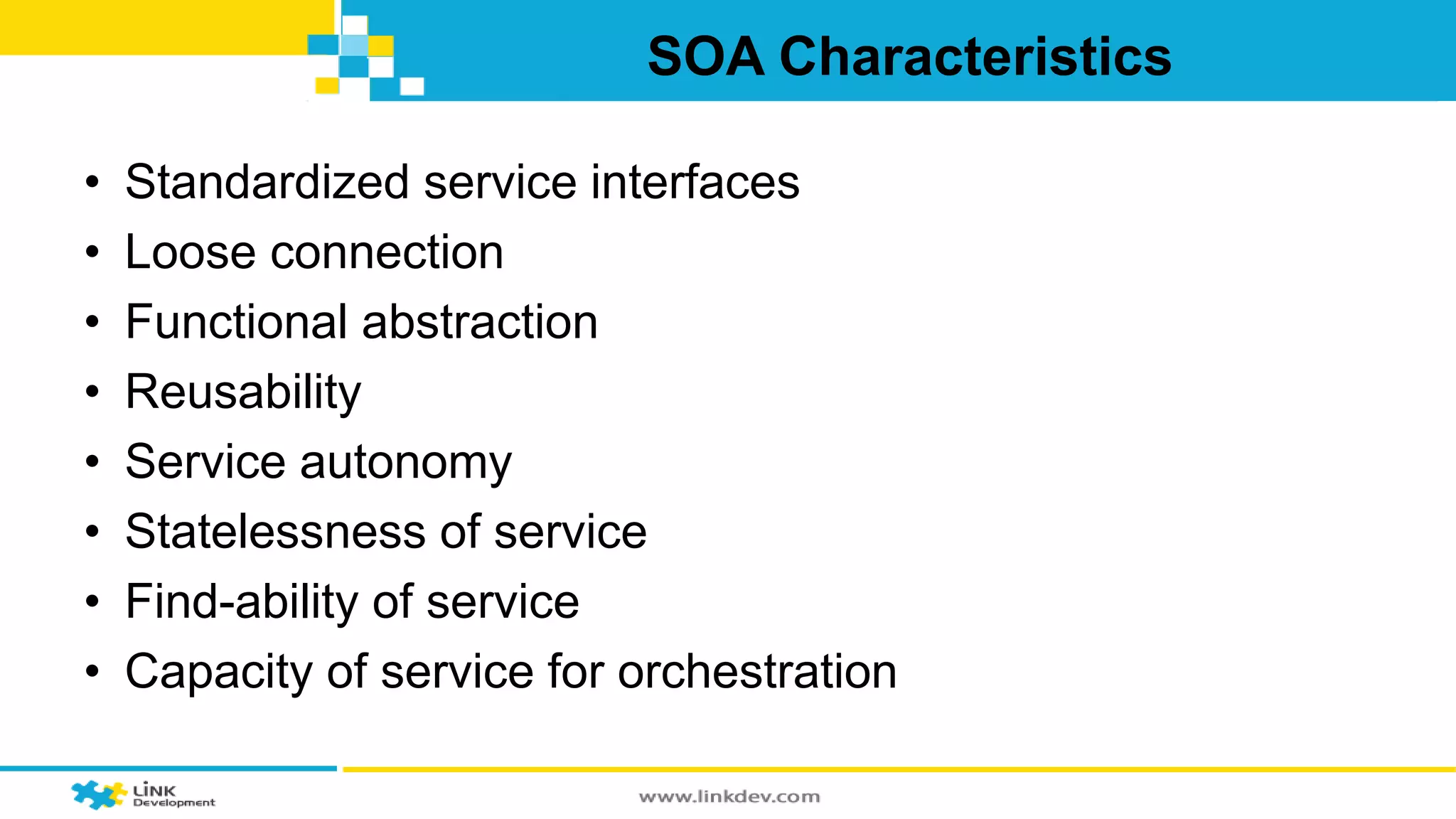

- 4. SOA Characteristics •Standardized service interfaces • Loose connection • Functional abstraction • Reusability • Service autonomy • Statelessness of service • Find-ability of service • Capacity of service for orchestration

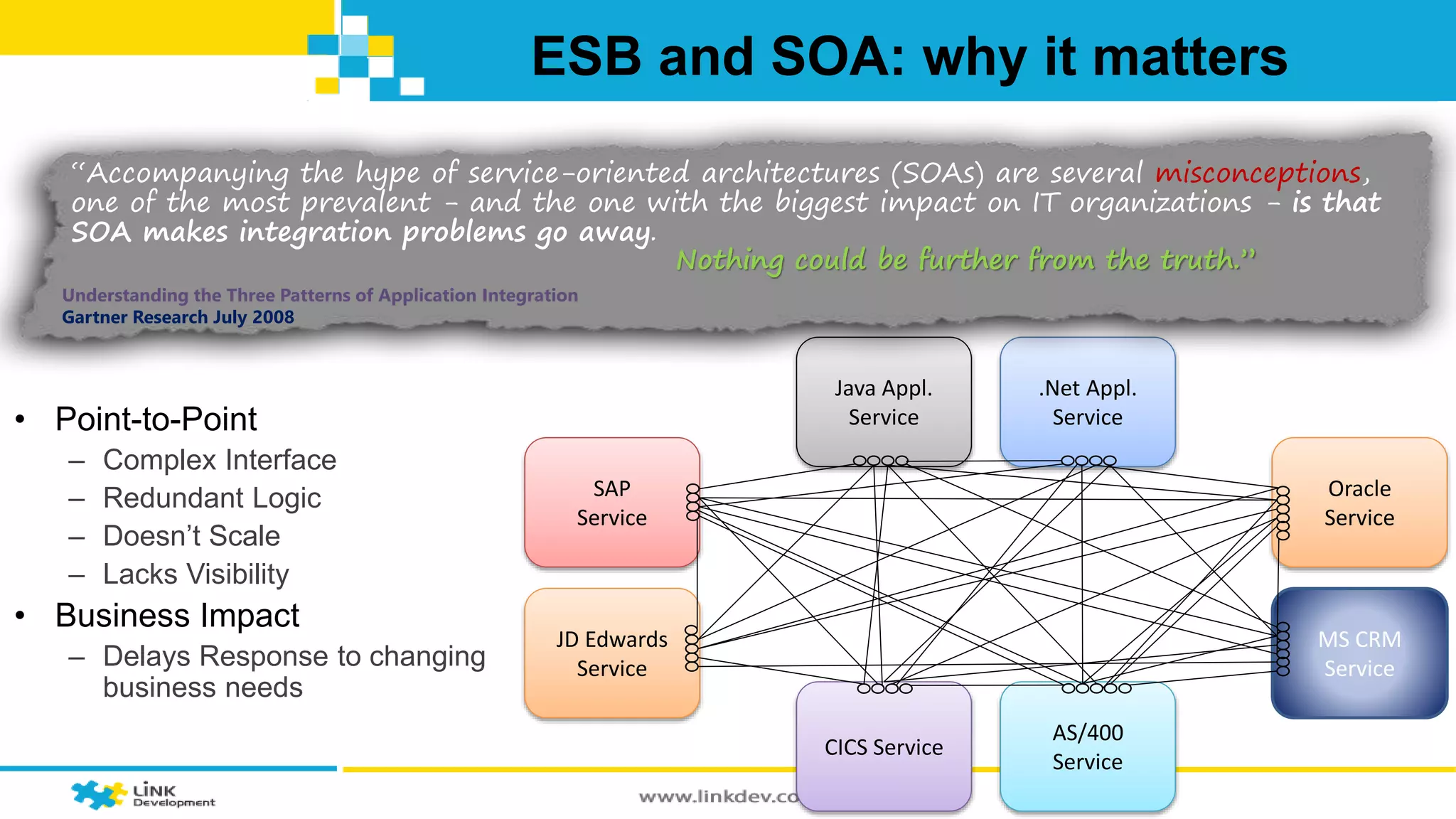

- 5. ESB and SOA:why it matters “Accompanying the hype of service-oriented architectures (SOAs) are several misconceptions, one of the most prevalent - and the one with the biggest impact on IT organizations - is that SOA makes integration problems go away. • Point-to-Point – Complex Interface – Redundant Logic – Doesn’t Scale – Lacks Visibility • Business Impact – Delays Response to changing business needs SAP Service JD Edwards Service Java Appl. Service .Net Appl. Service CICS Service AS/400 Service Oracle Service MS CRM Service Understanding the Three Patterns of Application Integration Gartner Research July 2008 Nothing could be further from the truth.”

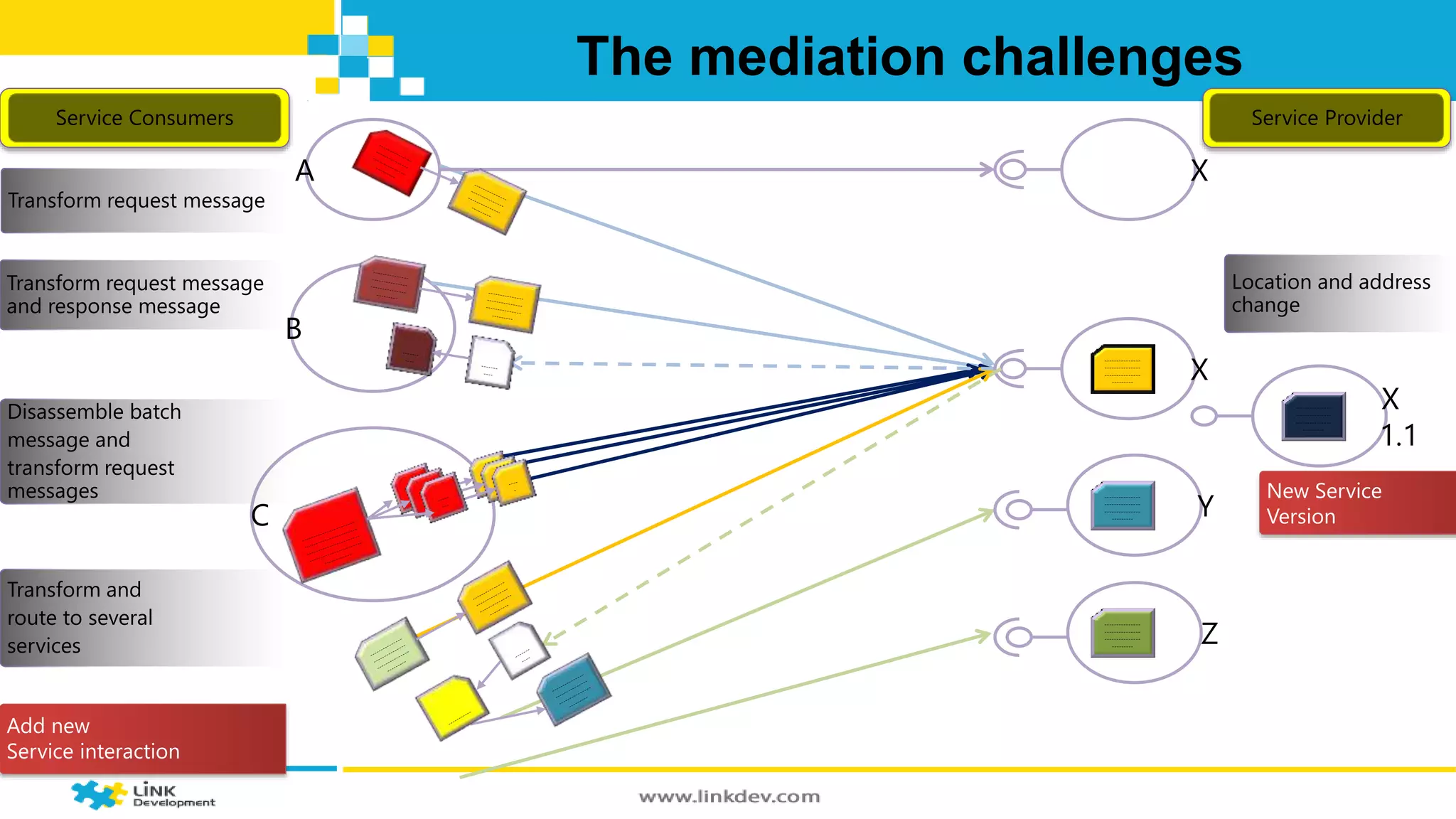

- 6. The mediation challenges Service Consumers Service Provider A --------------- --------------- X --------------- --------- B C --------------- --------------- Y --------------- --------- --------------- --------------- Z --------------- --------- X X 1.1 --------------- --------------- --------------- --------- Transform request message Transform request message and response message Disassemble batch message and transform request messages Transform and route to several services Add new Service interaction Location and address change New Service Version

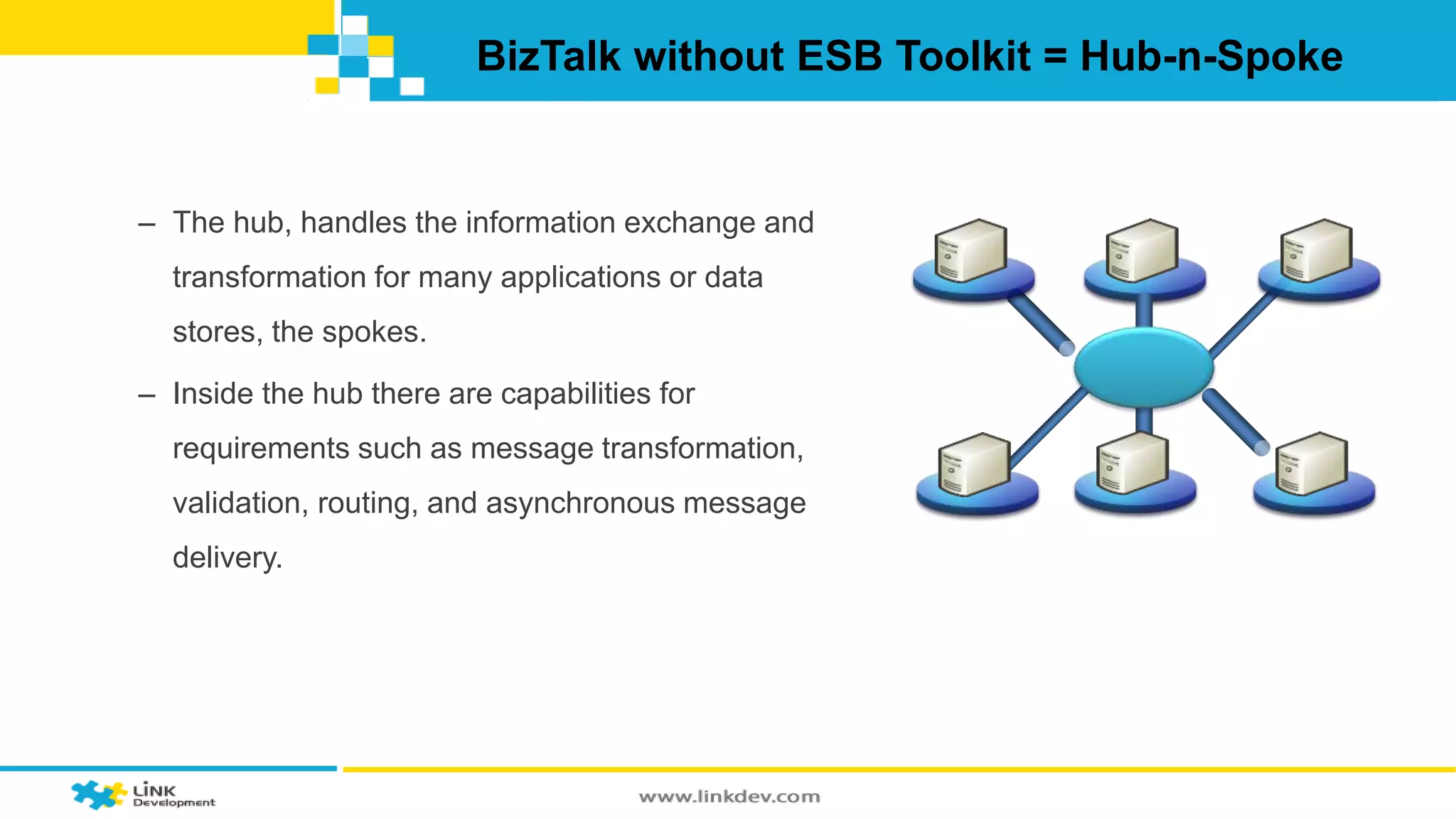

- 7. BizTalk without ESBToolkit = Hub-n-Spoke – The hub, handles the information exchange and transformation for many applications or data stores, the spokes. – Inside the hub there are capabilities for requirements such as message transformation, validation, routing, and asynchronous message delivery.

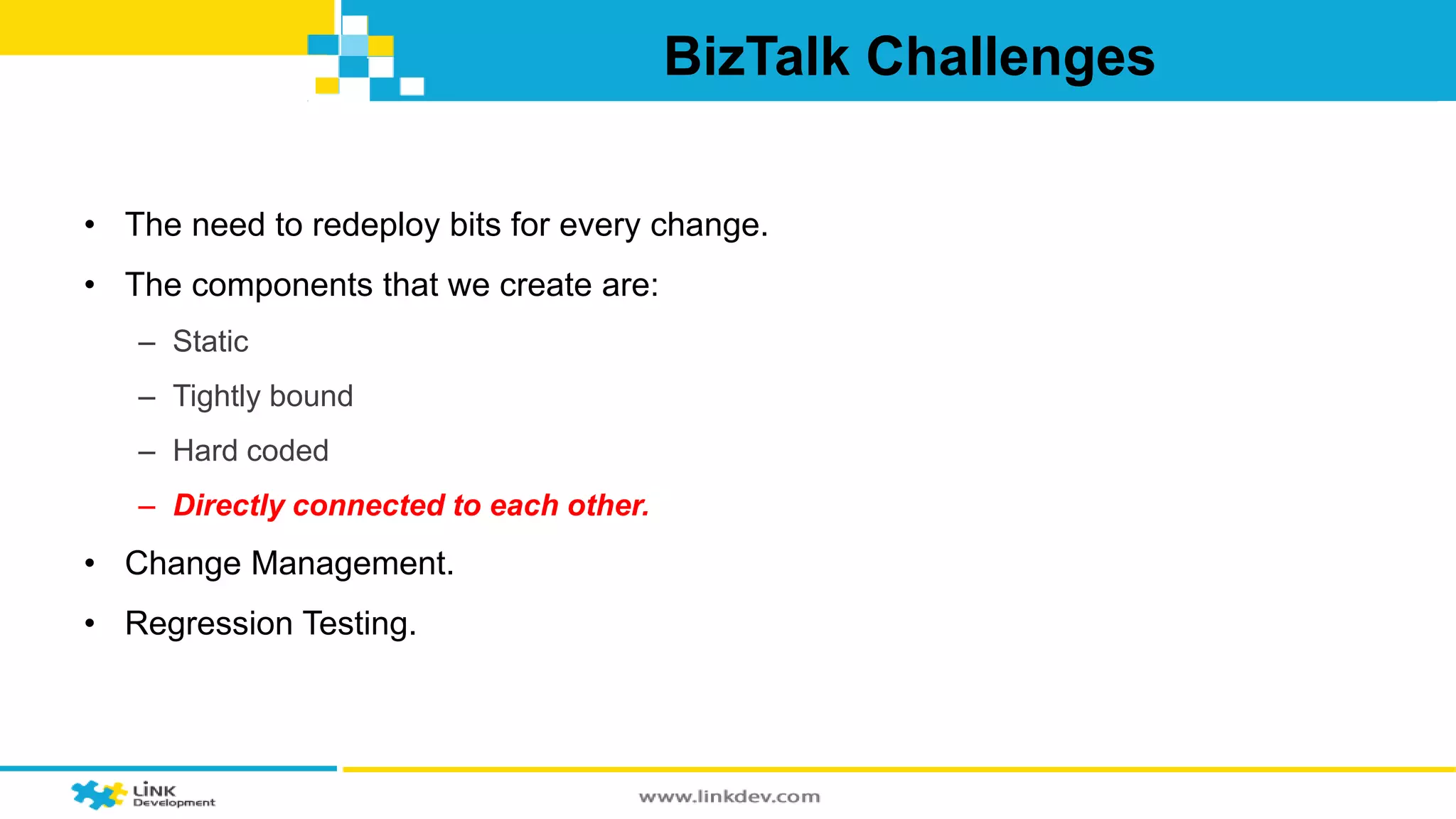

- 8. BizTalk Challenges •The need to redeploy bits for every change. • The components that we create are: – Static – Tightly bound – Hard coded – Directly connected to each other. • Change Management. • Regression Testing.

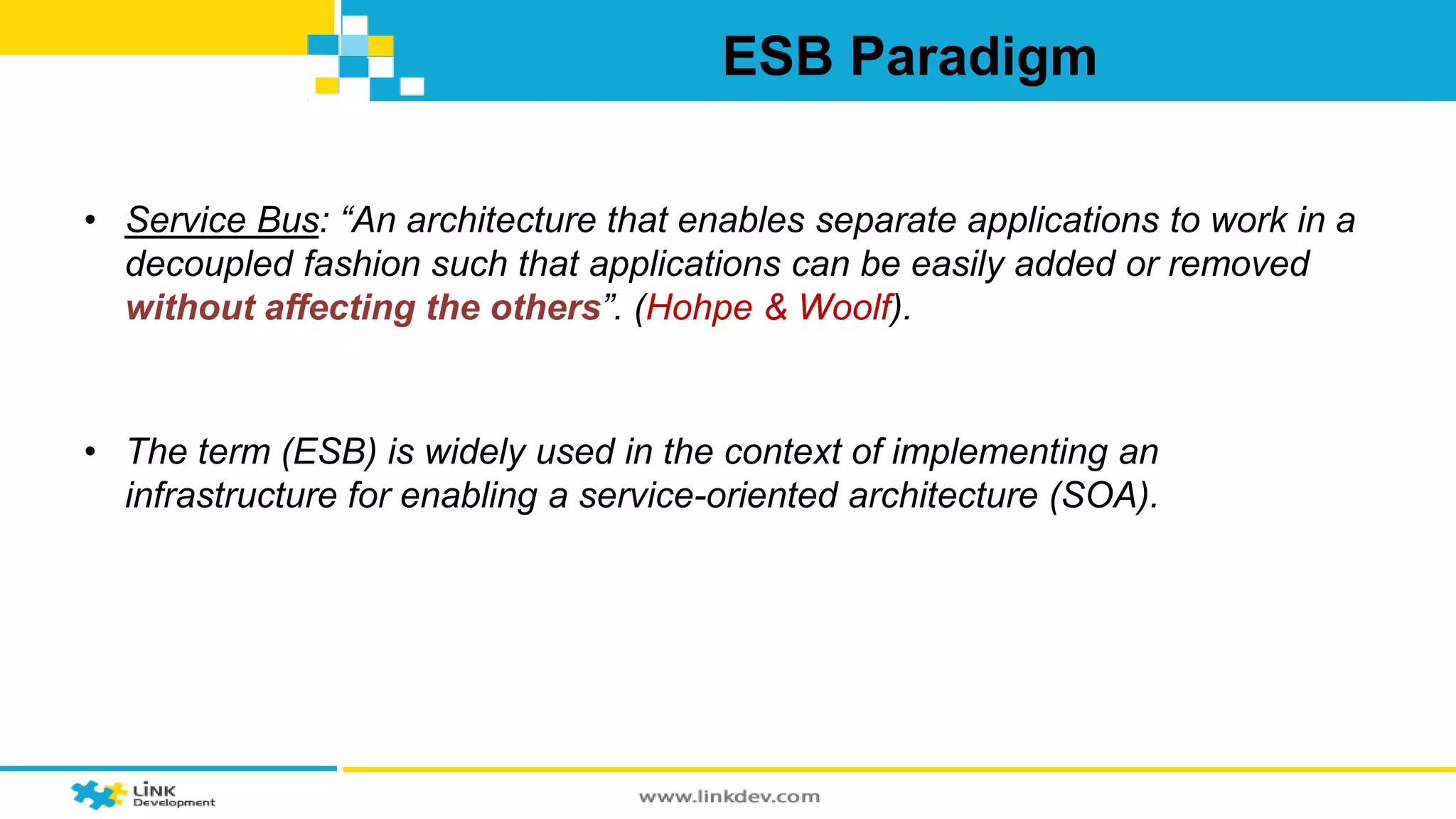

- 9. ESB Paradigm •Service Bus: “An architecture that enables separate applications to work in a decoupled fashion such that applications can be easily added or removed without affecting the others”. (Hohpe & Woolf). • The term (ESB) is widely used in the context of implementing an infrastructure for enabling a service-oriented architecture (SOA).

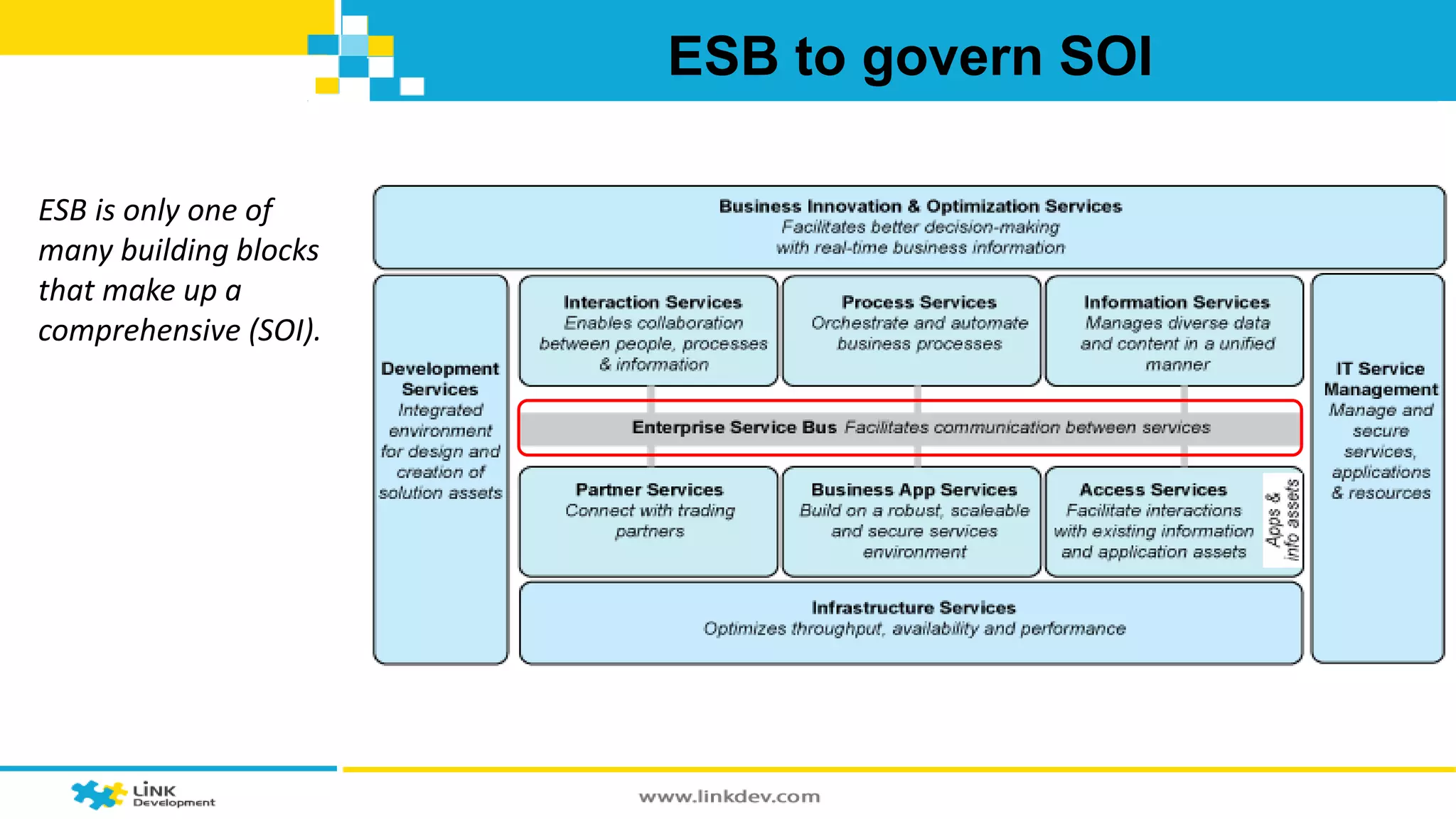

- 10. ESB to governSOI ESB is only one of many building blocks that make up a comprehensive (SOI).

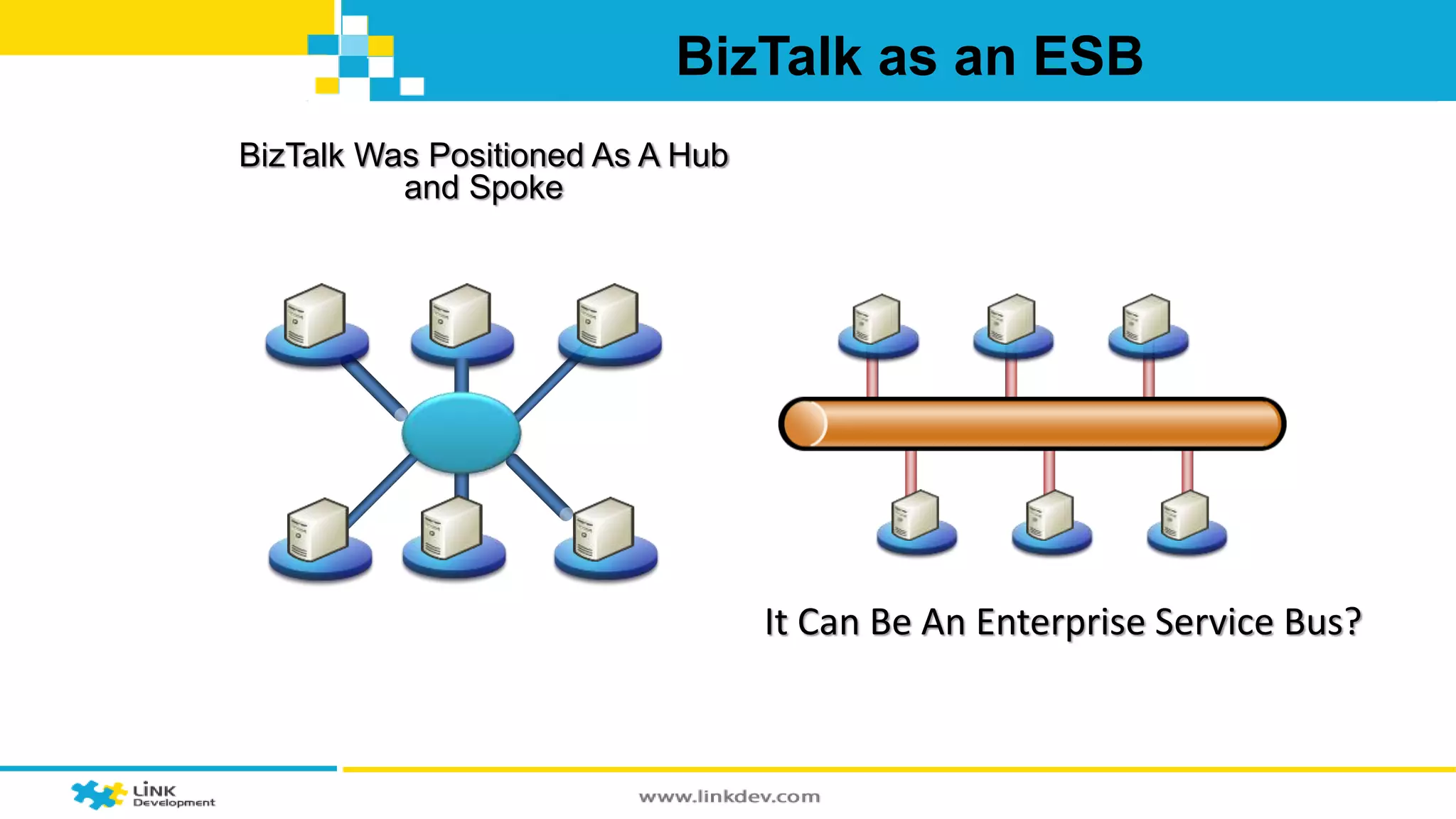

- 11. BizTalk as anESB BizTalk Was Positioned As A Hub and Spoke It Can Be An Enterprise Service Bus?

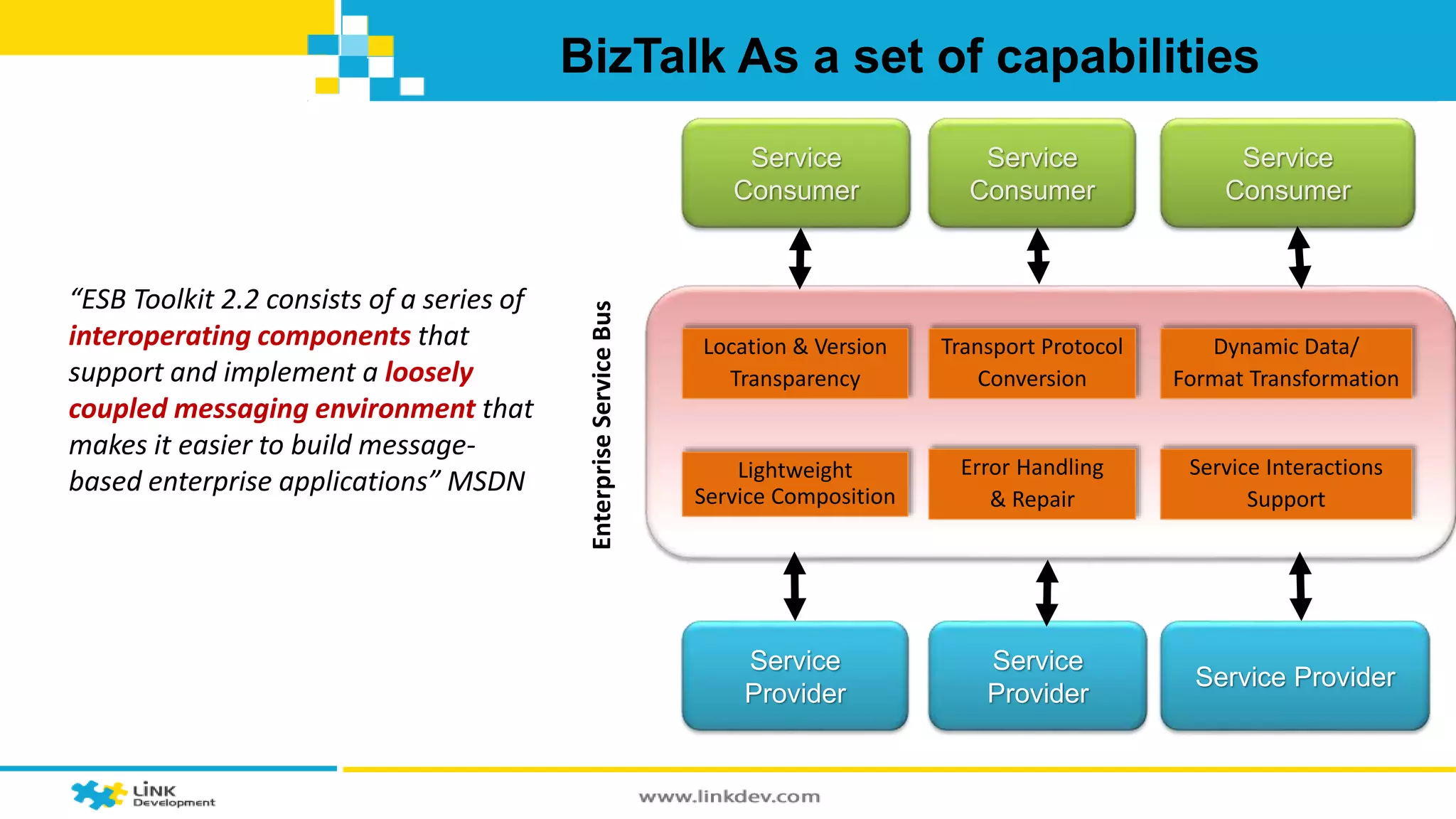

- 12. BizTalk As aset of capabilities Service Consumer Service Consumer Service Consumer Service Provider Service Provider Service Provider Lightweight Service Composition Transport Protocol Conversion Dynamic Data/ Format Transformation Location & Version Transparency Service Interactions Support Enterprise Service Bus Error Handling & Repair “ESB Toolkit 2.2 consists of a series of interoperating components that support and implement a loosely coupled messaging environment that makes it easier to build message-based enterprise applications” MSDN

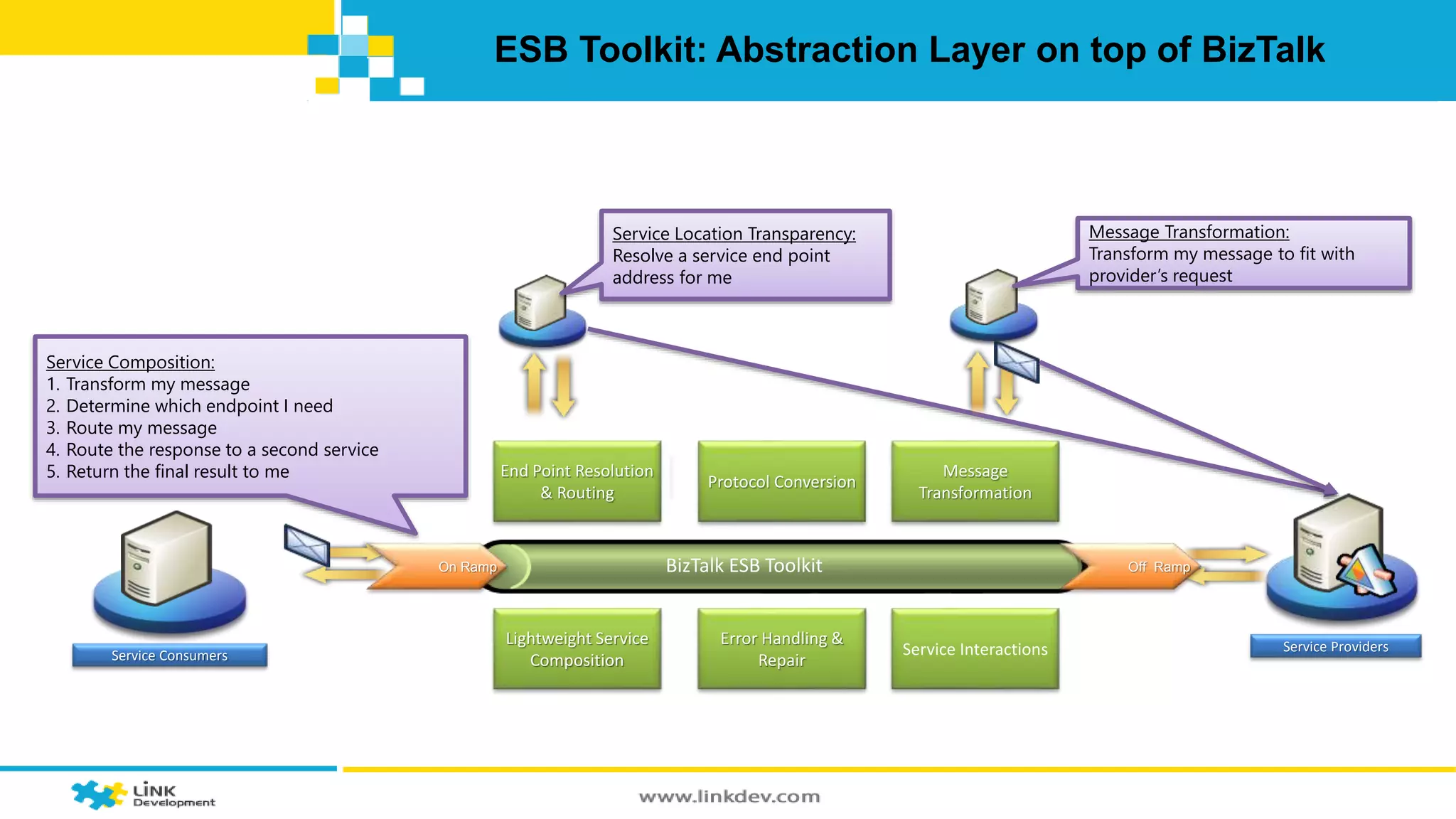

- 13. ESB Toolkit: AbstractionLayer on top of BizTalk Service Location Transparency: Resolve a service end point address for me Protocol Conversion End Point Resolution & Routing Message Transformation Lightweight Service Composition Service Interactions BizTalk ESB Toolkit Error Handling & Service Consumers Repair Message Transformation: Transform my message to fit with provider’s request Service Providers Service Composition: 1. Transform my message 2. Determine which endpoint I need 3. Route my message 4. Route the response to a second service 5. Return the final result to me On Ramp Off Ramp

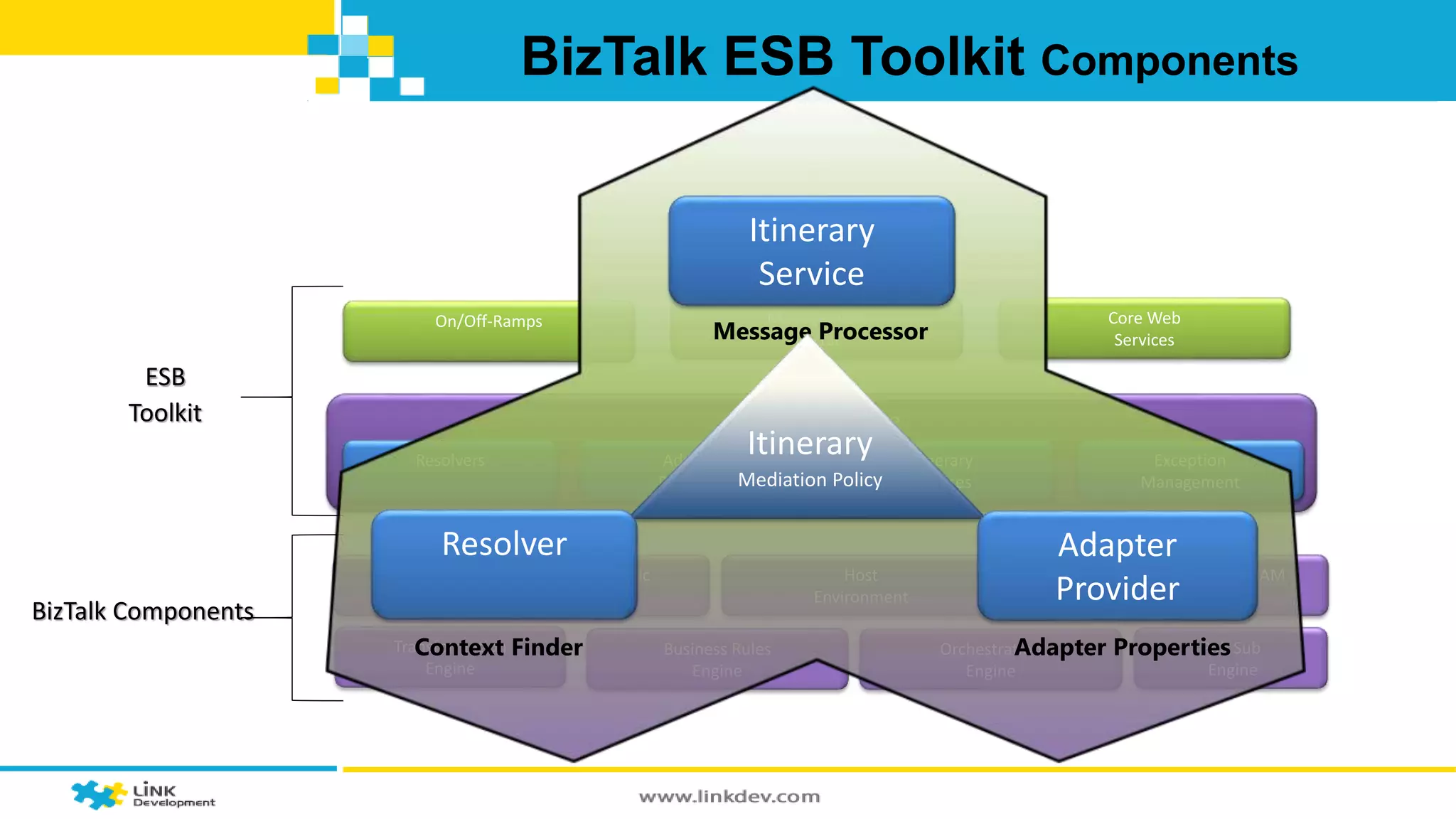

- 14. BizTalk ESB ToolkitComponents Itinerary Service Message Processor ESB Toolkit Core Resolver Adapter Adapters Dynamic Ports Pub Sub Engine Transformation Engine Itinerary Mediation Policy Business Rules Engine Host Environment Itinerary Services Resolvers BizTalk Components On/Off-Ramps Management Portal Orchestration Engine Adapter Providers Core Web Services UDDI 3.0 Exception Management BAM ESB Toolkit Provider Context Finder Adapter Properties

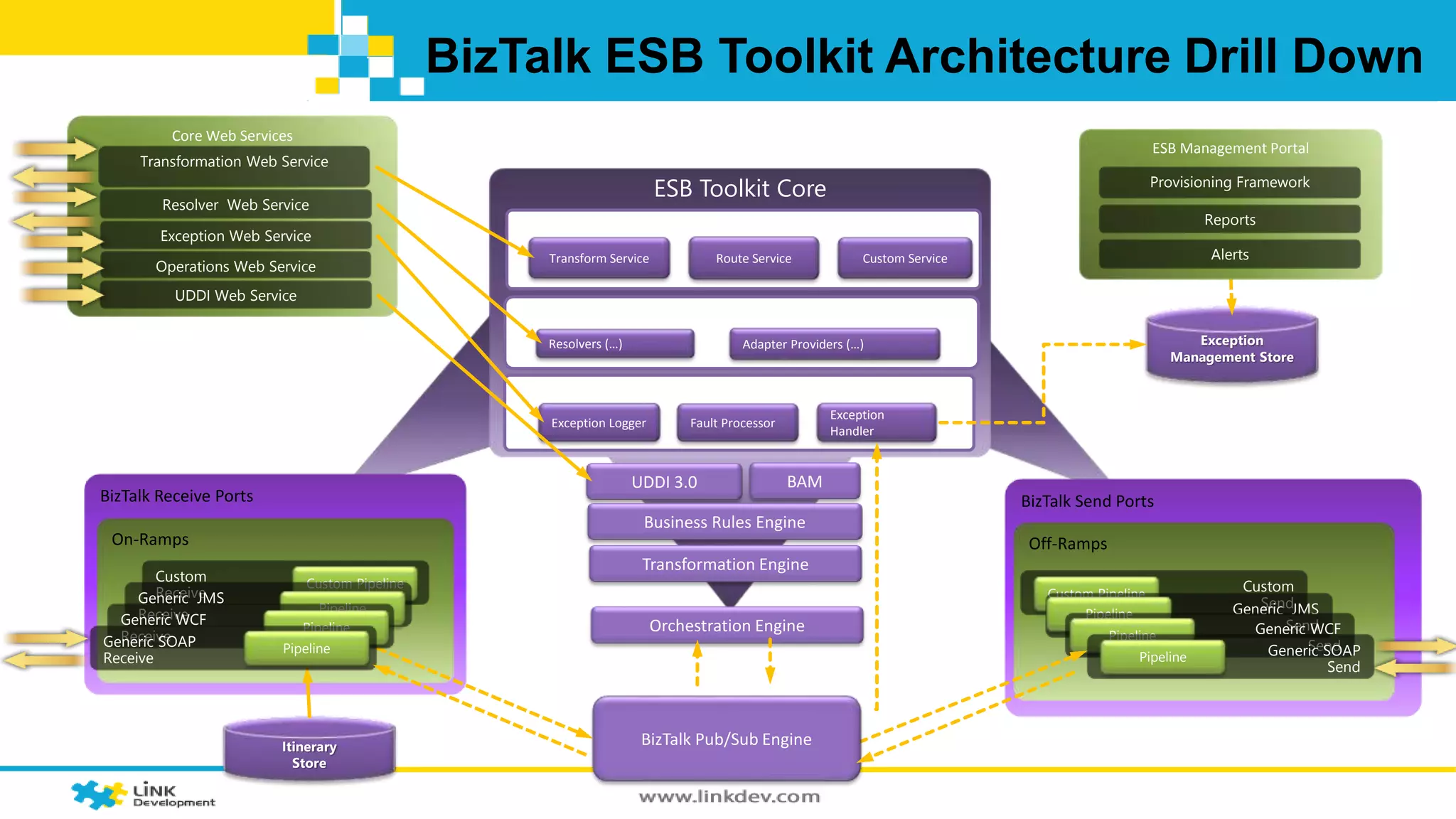

- 15. BizTalk ESB ToolkitArchitecture Drill Down ESB Toolkit Core Core Web Services Transformation Web Service Resolver Web Service Exception Web Service Operations Web Service UDDI Web Service ESB Management Portal Provisioning Framework BizTalk Send Ports Off-Ramps BizTalk Receive Ports On-Ramps Reports Alerts Exception Management Store Itinerary Services Resolver, Adapter Provider Frameworks Resolvers (…) Adapter Providers (…) Exception Management Framework Exception Logger Exception Handler Fault Processor UDDI 3.0 BAM Custom Send Custom Pipeline Generic JMS Send Pipeline Generic WCF Send Pipeline Generic SOAP Send Pipeline Itinerary Store Custom Receive Custom Pipeline Generic JMS Receive Pipeline Generic WCF Receive Pipeline Generic SOAP Receive Pipeline Transform Service Route Service Custom Service Business Rules Engine Transformation Engine Orchestration Engine BizTalk Pub/Sub Engine

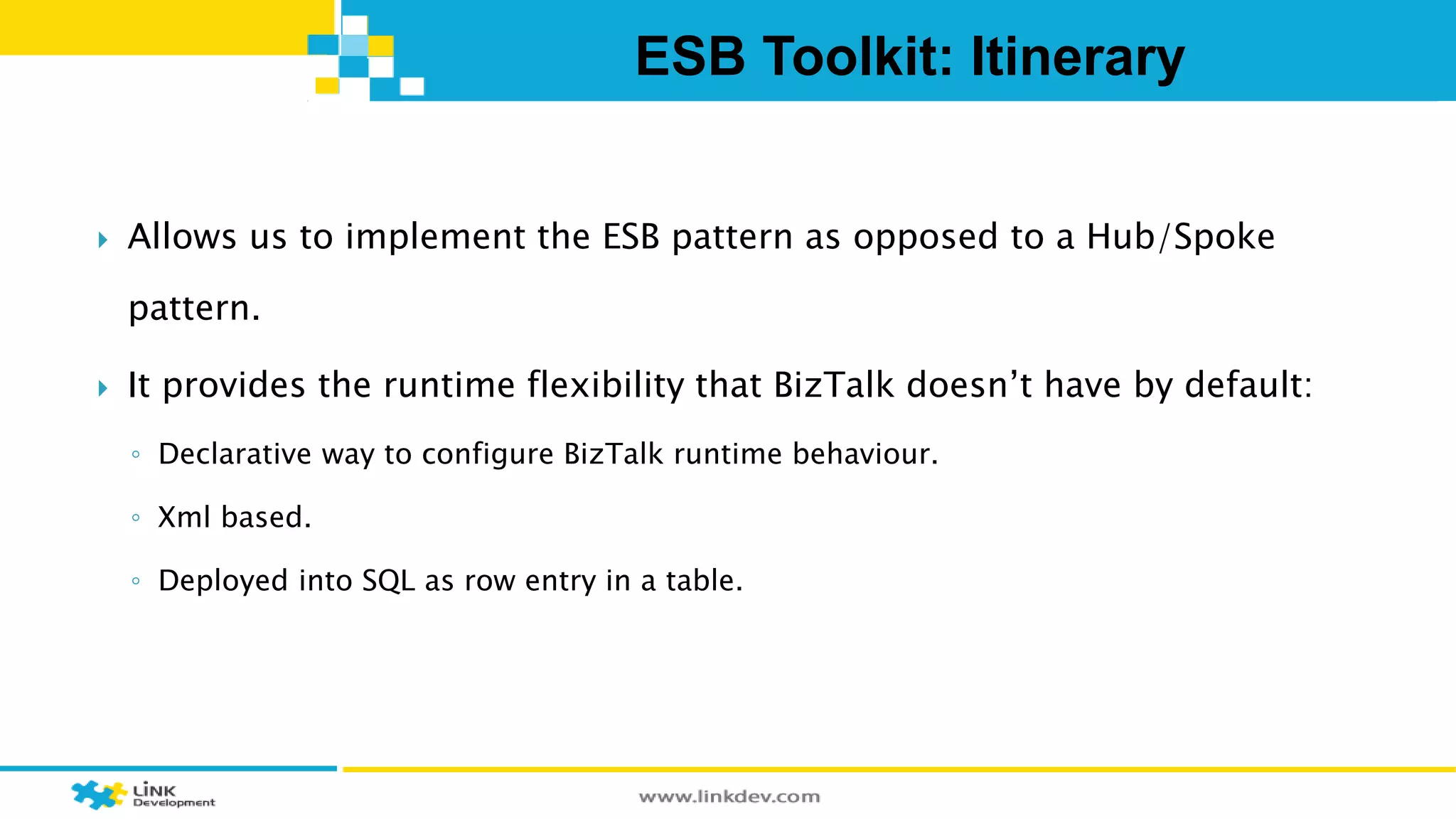

- 16. ESB Toolkit: Itinerary Allows us to implement the ESB pattern as opposed to a Hub/Spoke pattern. It provides the runtime flexibility that BizTalk doesn’t have by default: ◦ Declarative way to configure BizTalk runtime behaviour. ◦ Xml based. ◦ Deployed into SQL as row entry in a table.

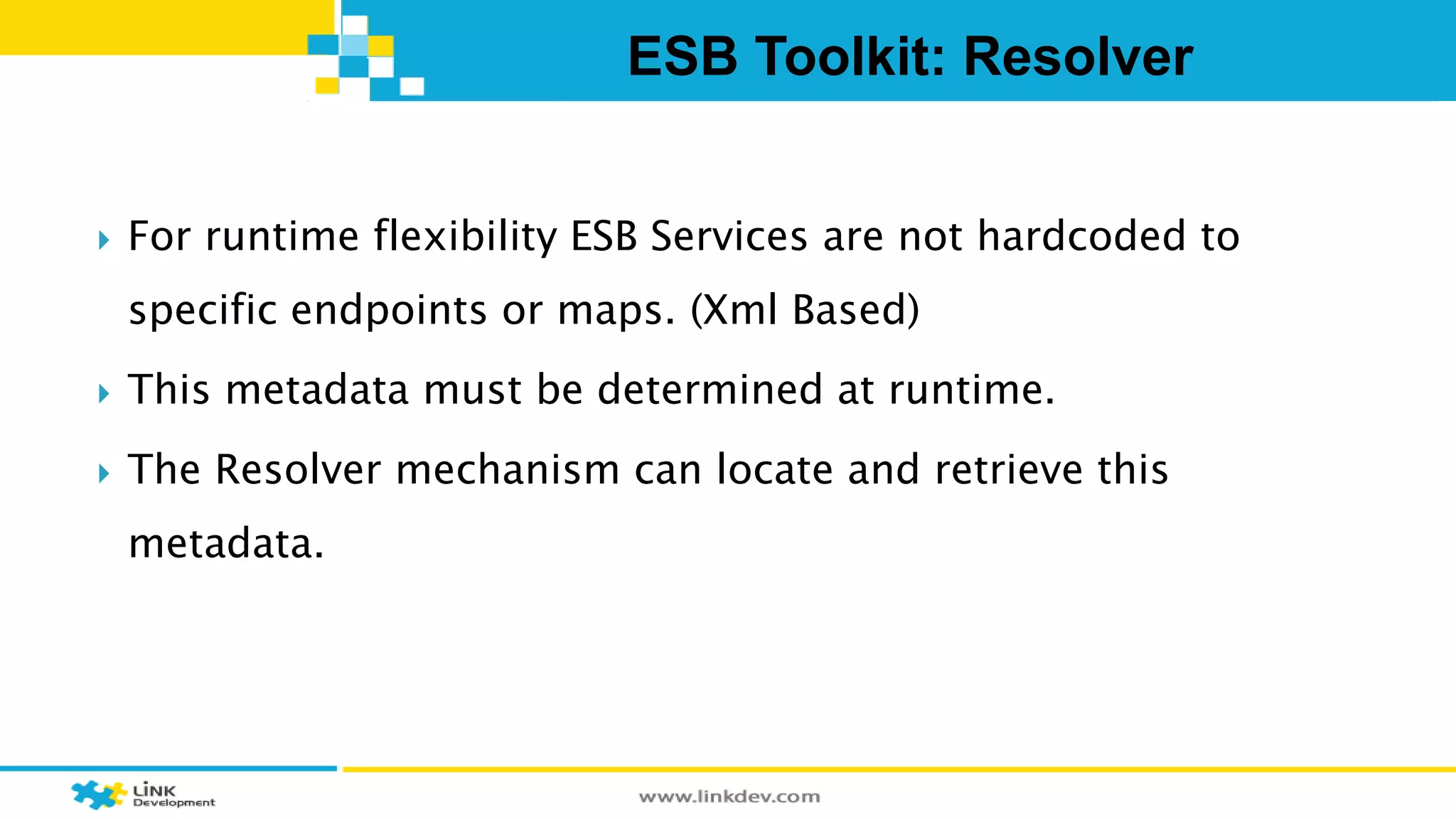

- 17. ESB Toolkit: Resolver For runtime flexibility ESB Services are not hardcoded to specific endpoints or maps. (Xml Based) This metadata must be determined at runtime. The Resolver mechanism can locate and retrieve this metadata.

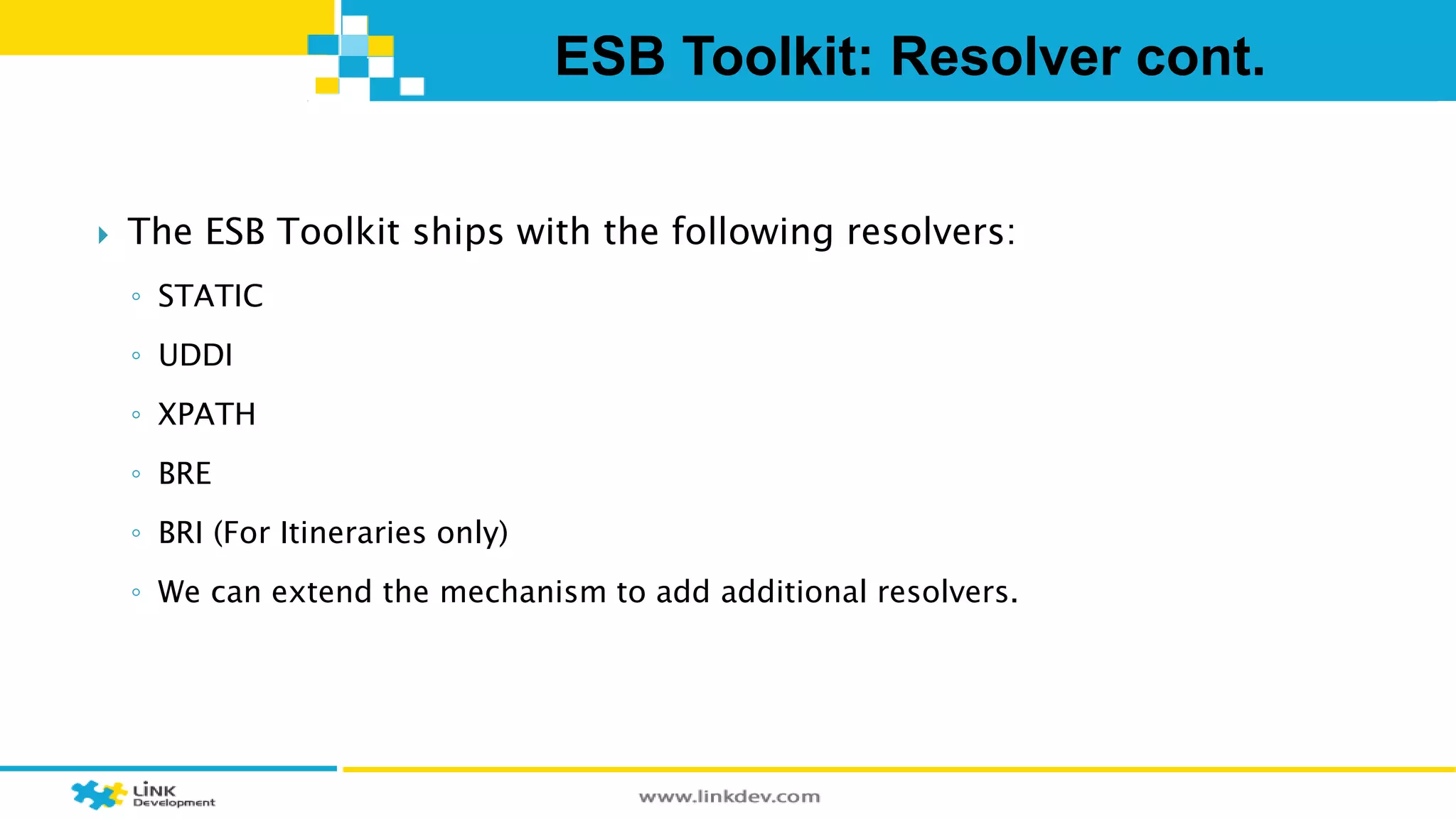

- 18. ESB Toolkit: Resolvercont. The ESB Toolkit ships with the following resolvers: ◦ STATIC ◦ UDDI ◦ XPATH ◦ BRE ◦ BRI (For Itineraries only) ◦ We can extend the mechanism to add additional resolvers.

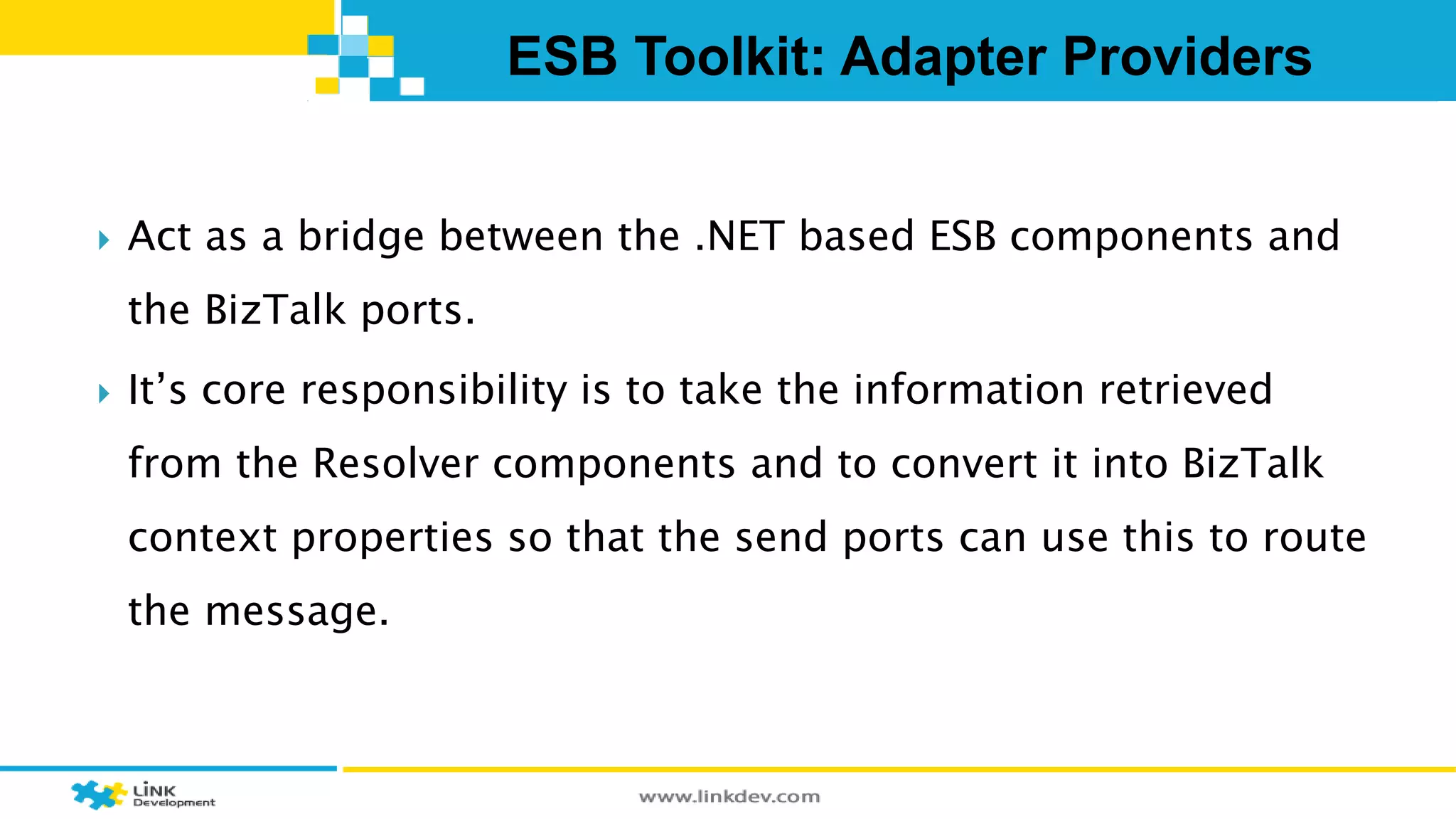

- 19. ESB Toolkit: AdapterProviders Act as a bridge between the .NET based ESB components and the BizTalk ports. It’s core responsibility is to take the information retrieved from the Resolver components and to convert it into BizTalk context properties so that the send ports can use this to route the message.

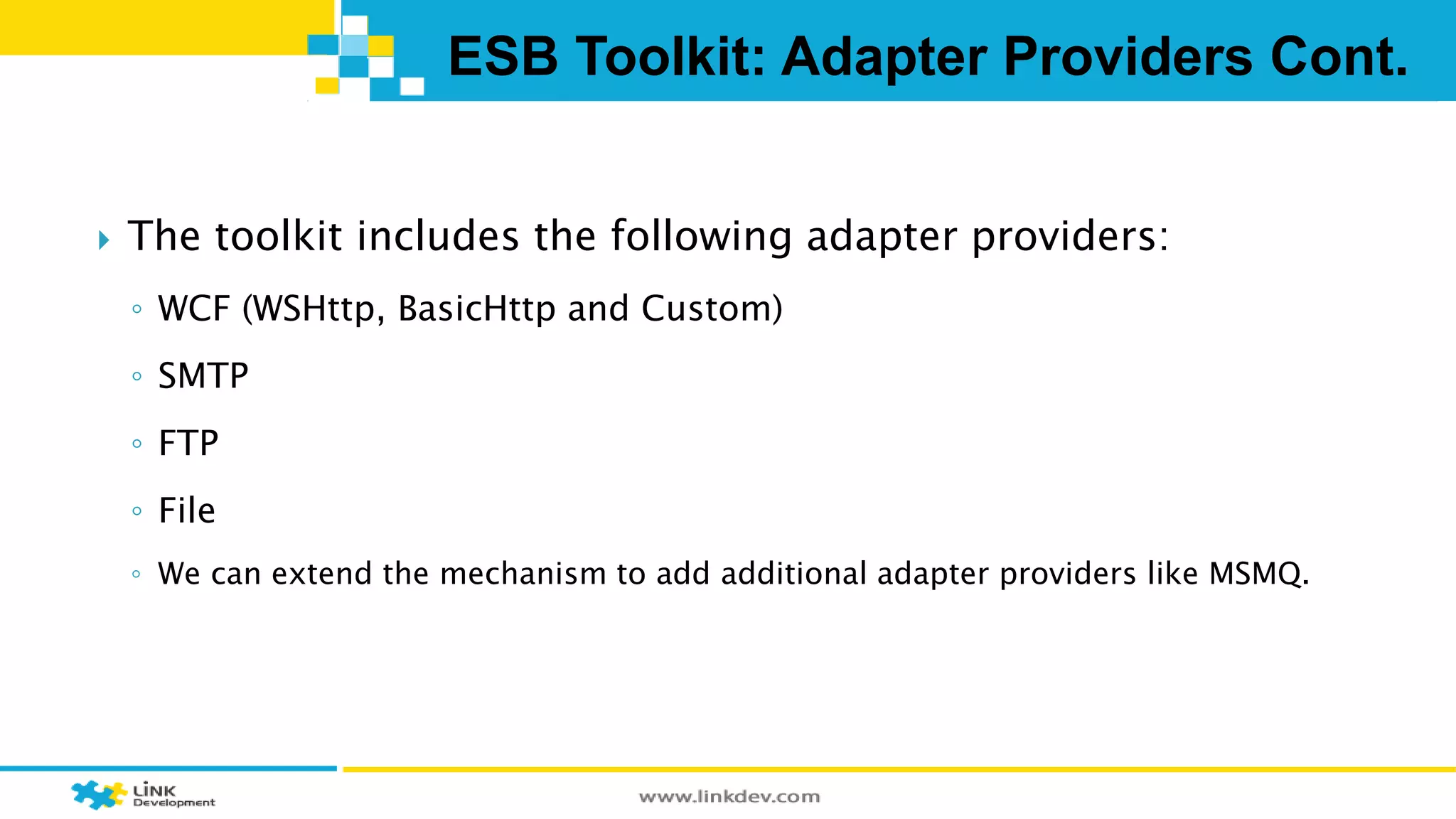

- 20. ESB Toolkit: AdapterProviders Cont. The toolkit includes the following adapter providers: ◦ WCF (WSHttp, BasicHttp and Custom) ◦ SMTP ◦ FTP ◦ File ◦ We can extend the mechanism to add additional adapter providers like MSMQ.

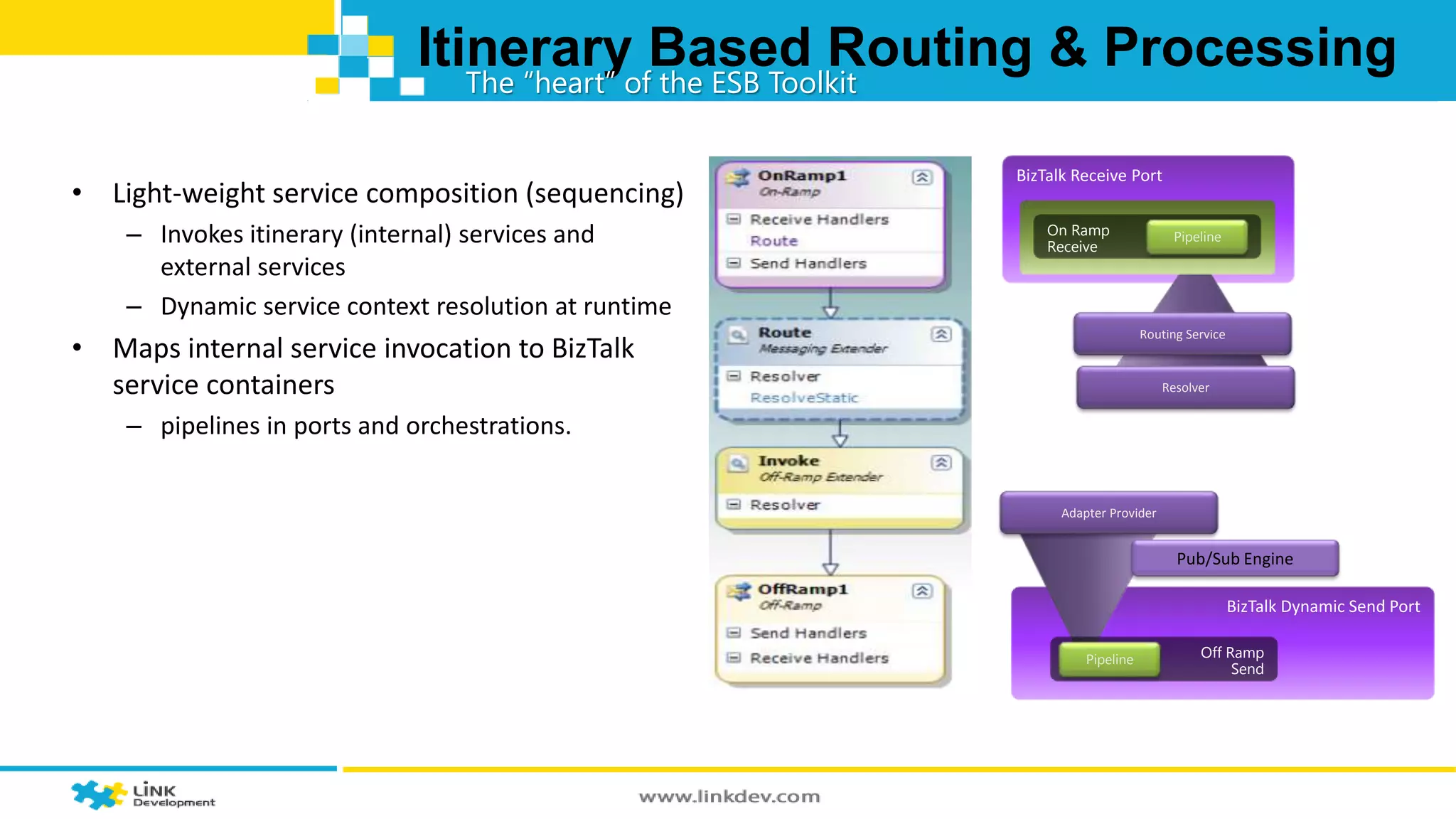

- 21. Itinerary Based Routing& Processing BizTalk Dynamic Send Port • Light-weight service composition (sequencing) – Invokes itinerary (internal) services and external services – Dynamic service context resolution at runtime • Maps internal service invocation to BizTalk service containers – pipelines in ports and orchestrations. Pub/Sub Engine BizTalk Receive Port Routing Service On Ramp Receive Pipeline Resolver Adapter Provider Off Ramp Send Pipeline The “heart” of the ESB Toolkit

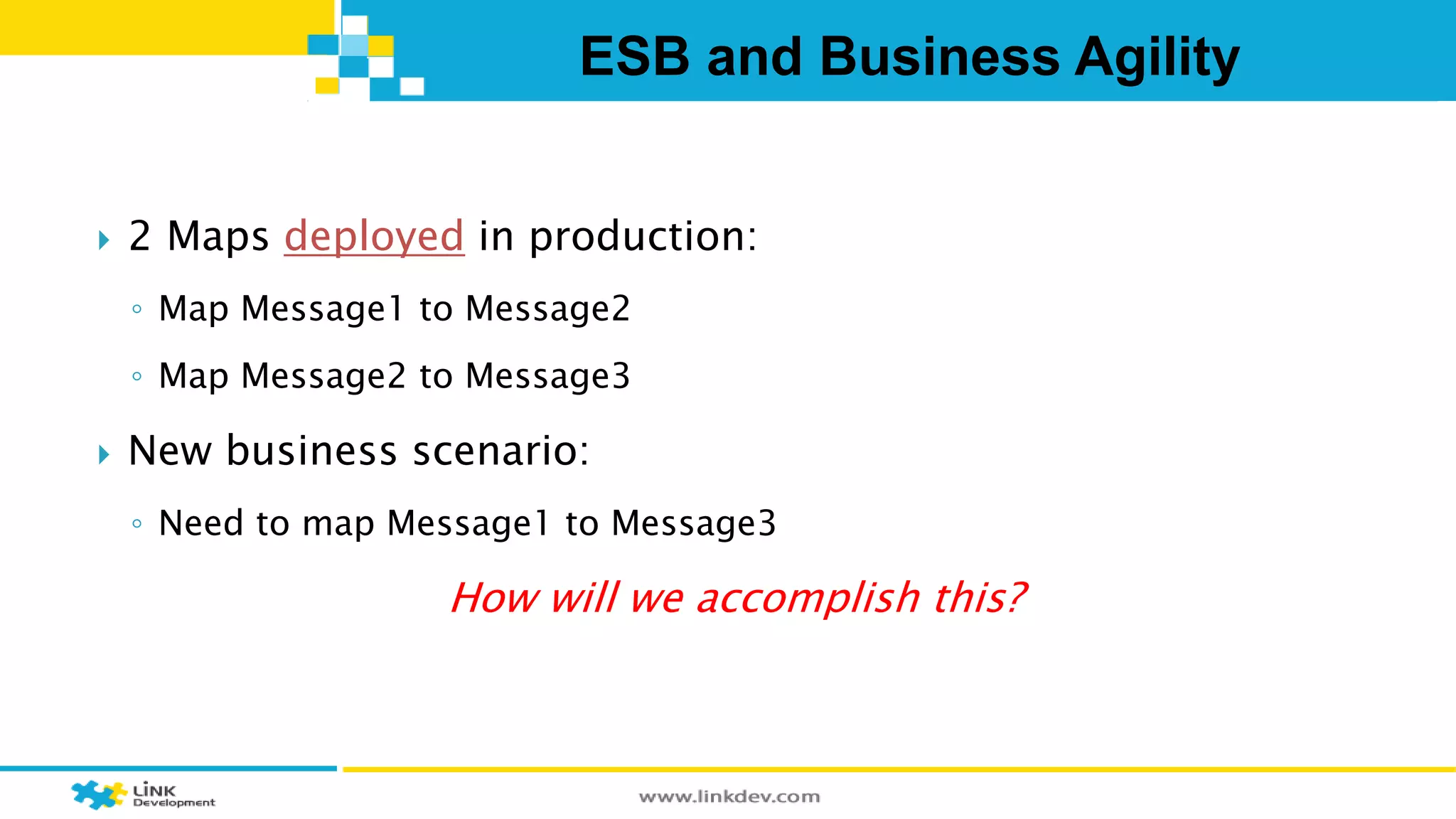

- 22. ESB and BusinessAgility 2 Maps deployed in production: ◦ Map Message1 to Message2 ◦ Map Message2 to Message3 New business scenario: ◦ Need to map Message1 to Message3 How will we accomplish this?

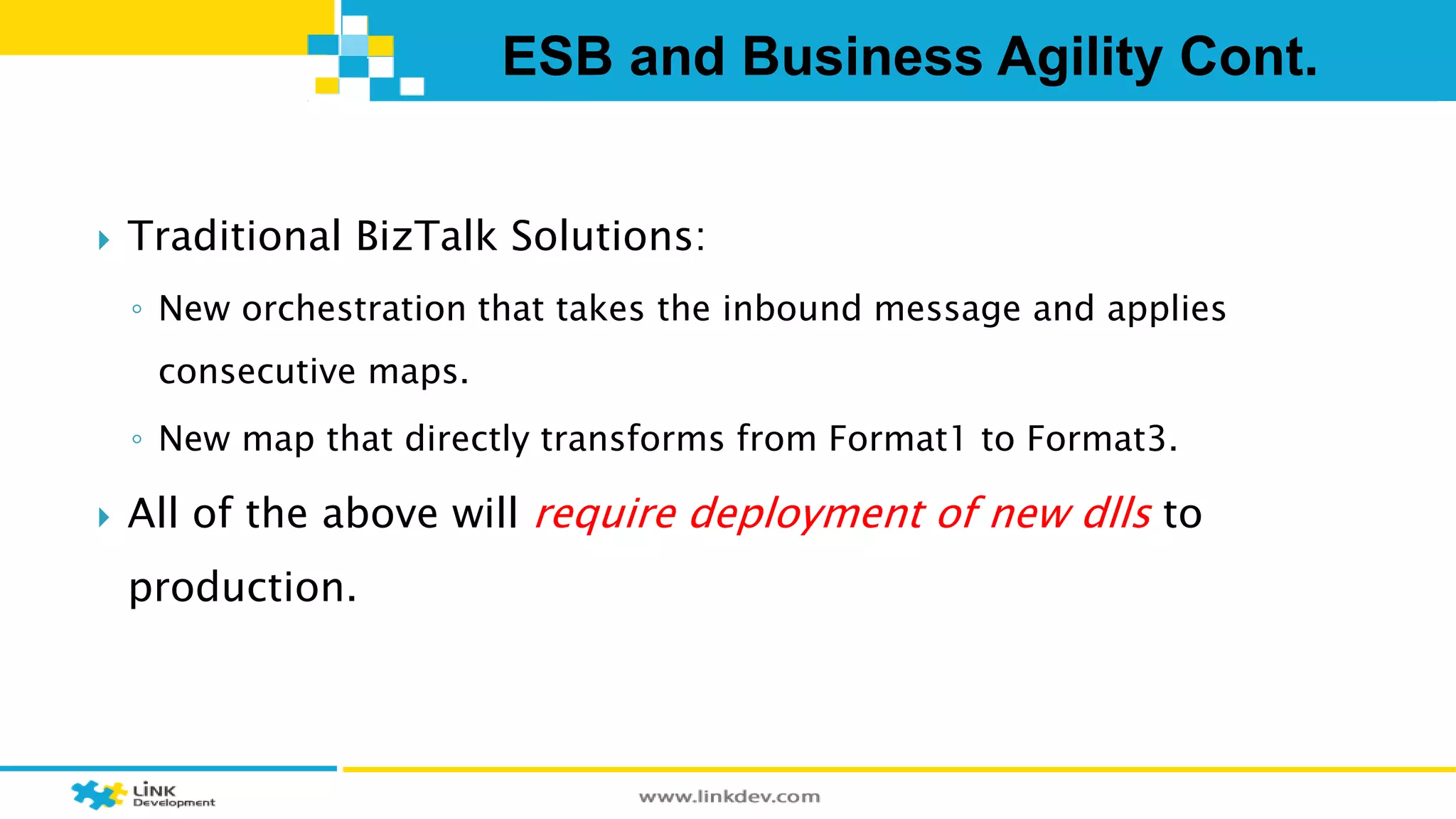

- 23. ESB and BusinessAgility Cont. Traditional BizTalk Solutions: ◦ New orchestration that takes the inbound message and applies consecutive maps. ◦ New map that directly transforms from Format1 to Format3. All of the above will require deployment of new dlls to production.

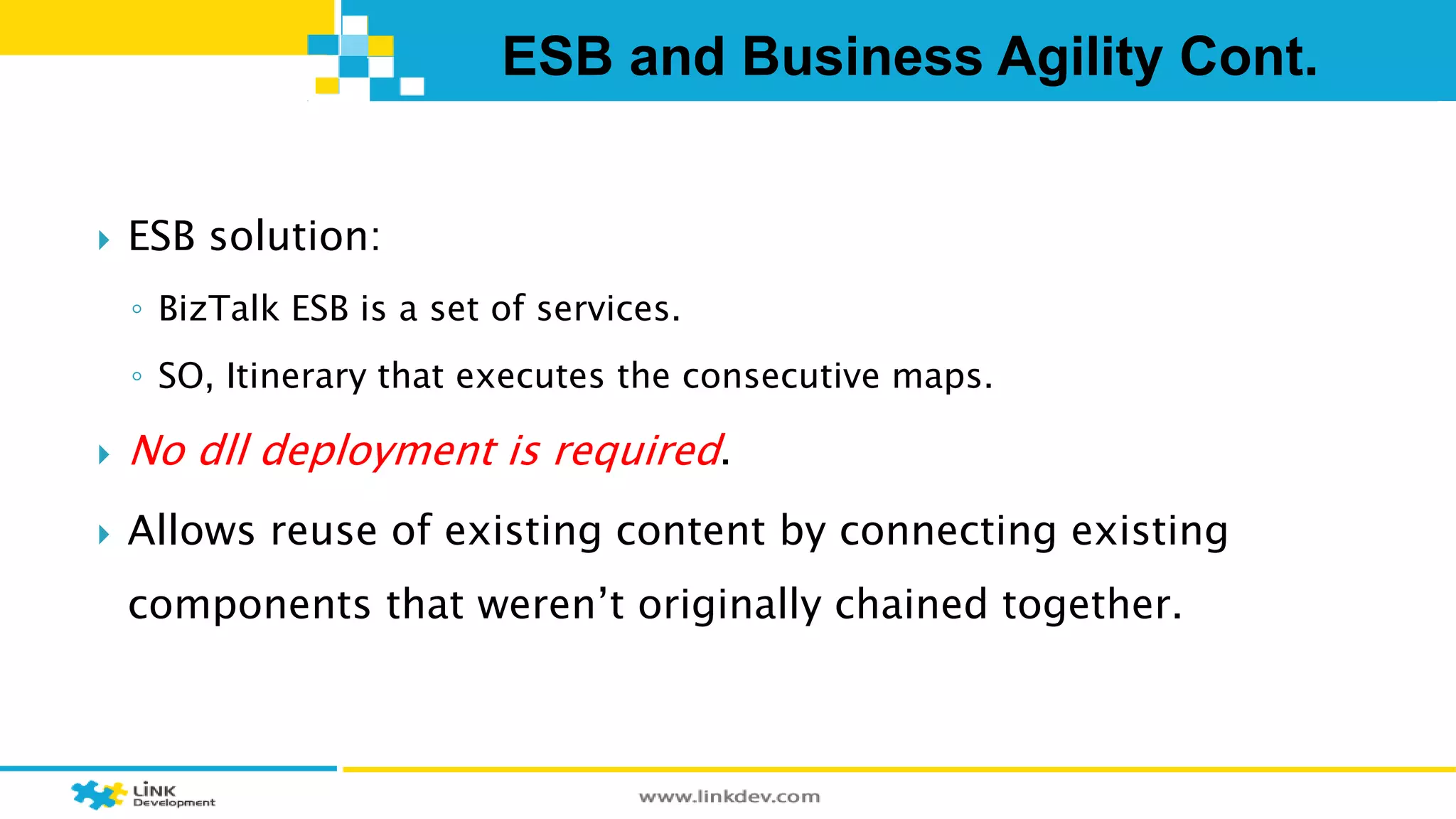

- 24. ESB and BusinessAgility Cont. ESB solution: ◦ BizTalk ESB is a set of services. ◦ SO, Itinerary that executes the consecutive maps. No dll deployment is required. Allows reuse of existing content by connecting existing components that weren’t originally chained together.

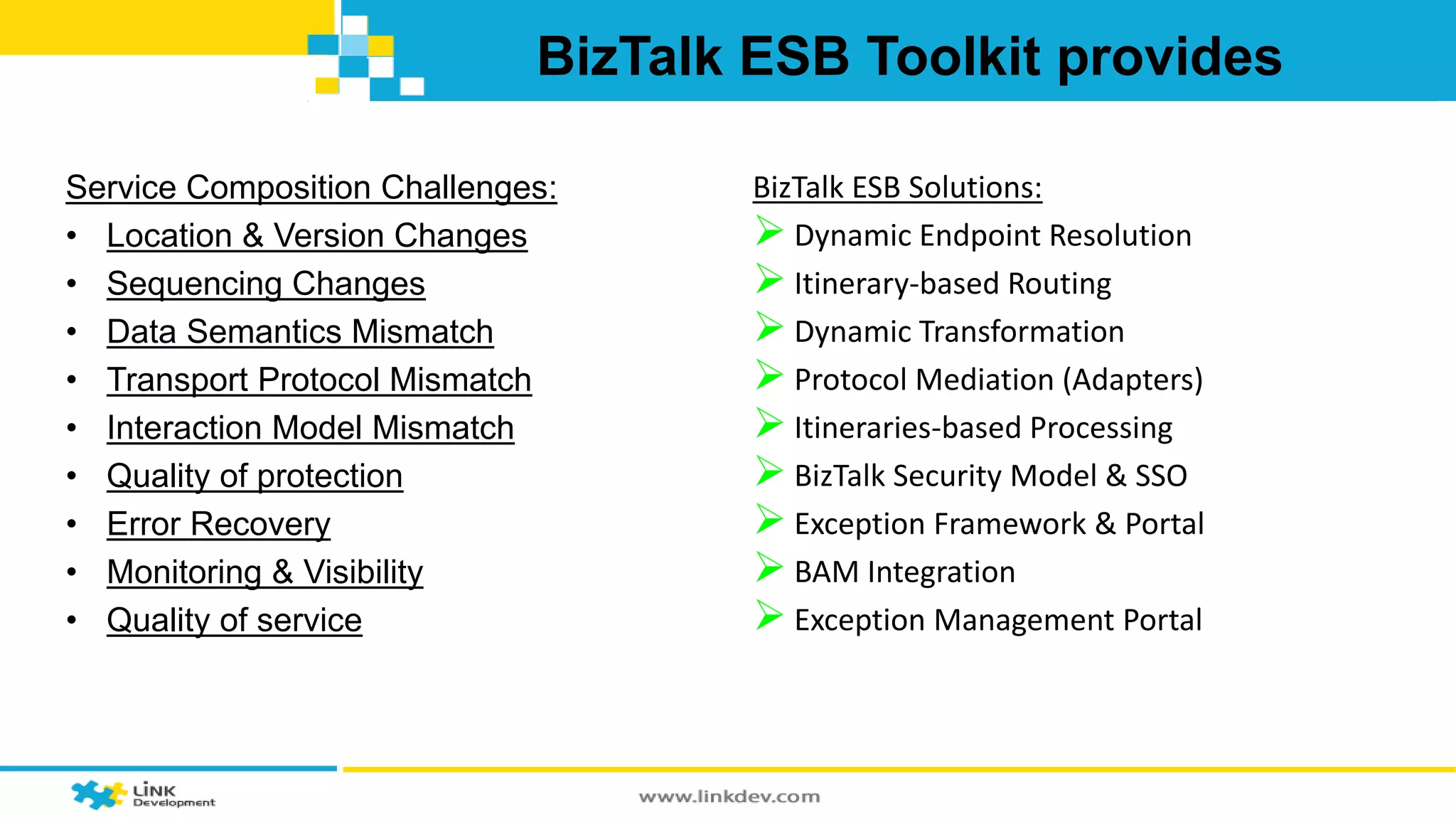

- 25. BizTalk ESB Toolkitprovides Service Composition Challenges: • Location & Version Changes • Sequencing Changes • Data Semantics Mismatch • Transport Protocol Mismatch • Interaction Model Mismatch • Quality of protection • Error Recovery • Monitoring & Visibility • Quality of service BizTalk ESB Solutions: Dynamic Endpoint Resolution Itinerary-based Routing Dynamic Transformation Protocol Mediation (Adapters) Itineraries-based Processing BizTalk Security Model & SSO Exception Framework & Portal BAM Integration Exception Management Portal

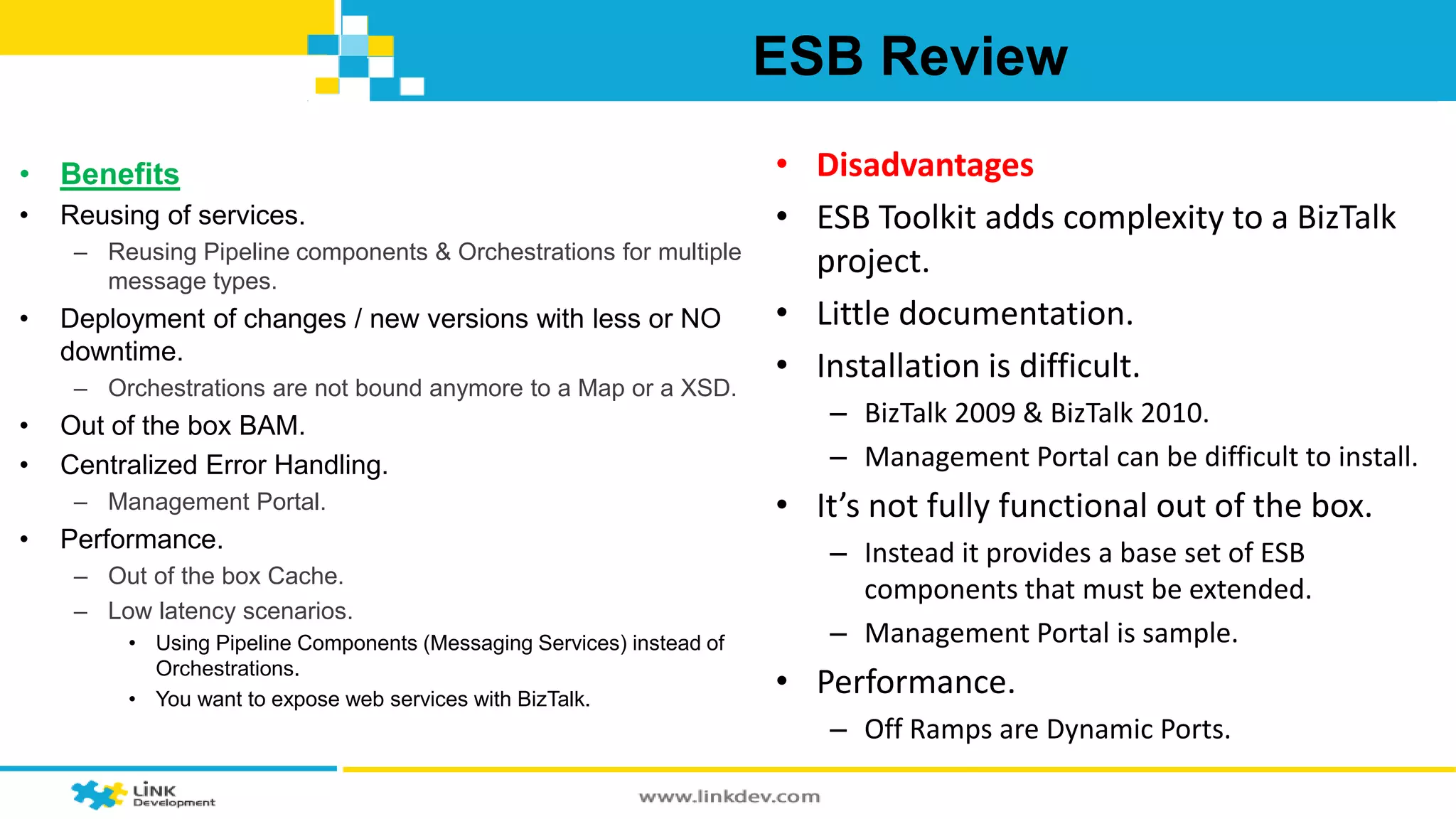

- 26. ESB Review •Benefits • Reusing of services. – Reusing Pipeline components & Orchestrations for multiple message types. • Deployment of changes / new versions with less or NO downtime. – Orchestrations are not bound anymore to a Map or a XSD. • Out of the box BAM. • Centralized Error Handling. – Management Portal. • Performance. – Out of the box Cache. – Low latency scenarios. • Using Pipeline Components (Messaging Services) instead of Orchestrations. • You want to expose web services with BizTalk. • Disadvantages • ESB Toolkit adds complexity to a BizTalk project. • Little documentation. • Installation is difficult. – BizTalk 2009 & BizTalk 2010. – Management Portal can be difficult to install. • It’s not fully functional out of the box. – Instead it provides a base set of ESB components that must be extended. – Management Portal is sample. • Performance. – Off Ramps are Dynamic Ports.
- 27. Conclusion Provides theright benefits to cope with complex and rapidly changing integration challenges Lower operational costs Higher levels of service re-use Faster response to business changes Visibility to business and exception metrics

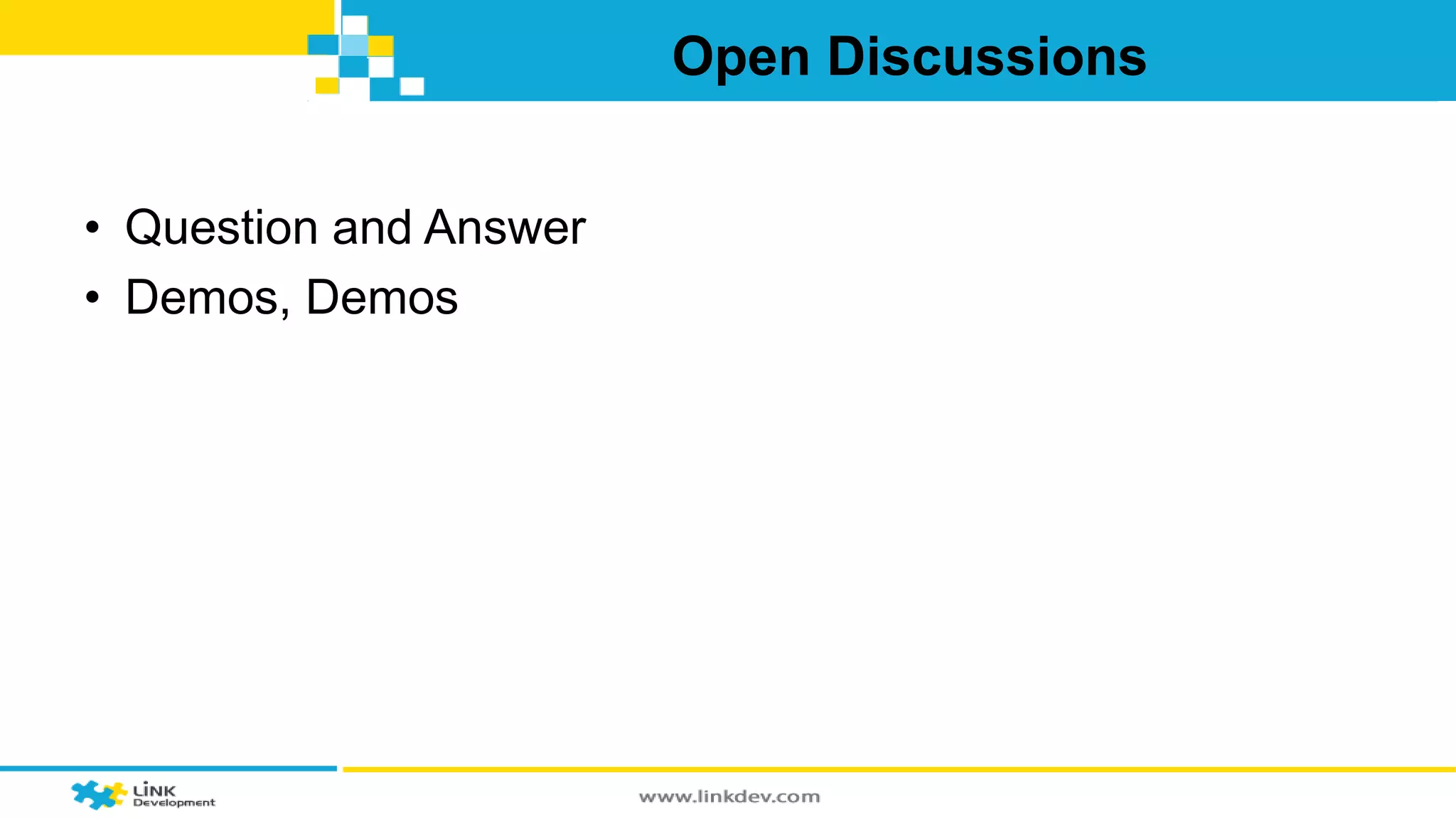

- 28. Open Discussions •Question and Answer • Demos, Demos
- 29.
Editor's Notes
- #20 When the message has been processed, it is going to be sent to its destination through a dynamic send port, (a.k.a off-ramp). Usually, when using a dynamic port, we’d set the port properties such as transport type and location programmatically in an expression shape (orchestration) or in a custom pipeline component. In the case of ESB Guidance this is all done using an Adapter Provider. In other words, the Adapter Provider serves to write and promote context properties for specific adapters. ESB Guidance comes with support for the most common adapters such as WCF-BasicHttp, WCF-WSHttp, MQSeries, FILE and FTP. But for the purpose of this article, we’ll create a SMTP provider. After a resolver executes, the dynamic resolution service checks whether the result is an endpoint (not a transformation). If it is an endpoint, the service instantiates the adapter manager, which validates and fixes the transport type and the outbound transport location.The adapter manager uses the suffix stated in the transport location (eg FTP://) to determine the appropriate adapter provider. An adapter provider is a custom assembly that must implement the IAdapterProvider interface. The adapter provider uses the properties of the Resolution structure within the Dictionary instance generated by the resolver to set all the protocol-specific properties of the message that enable the BizTalk run-time engine to perform dynamic resolution.
