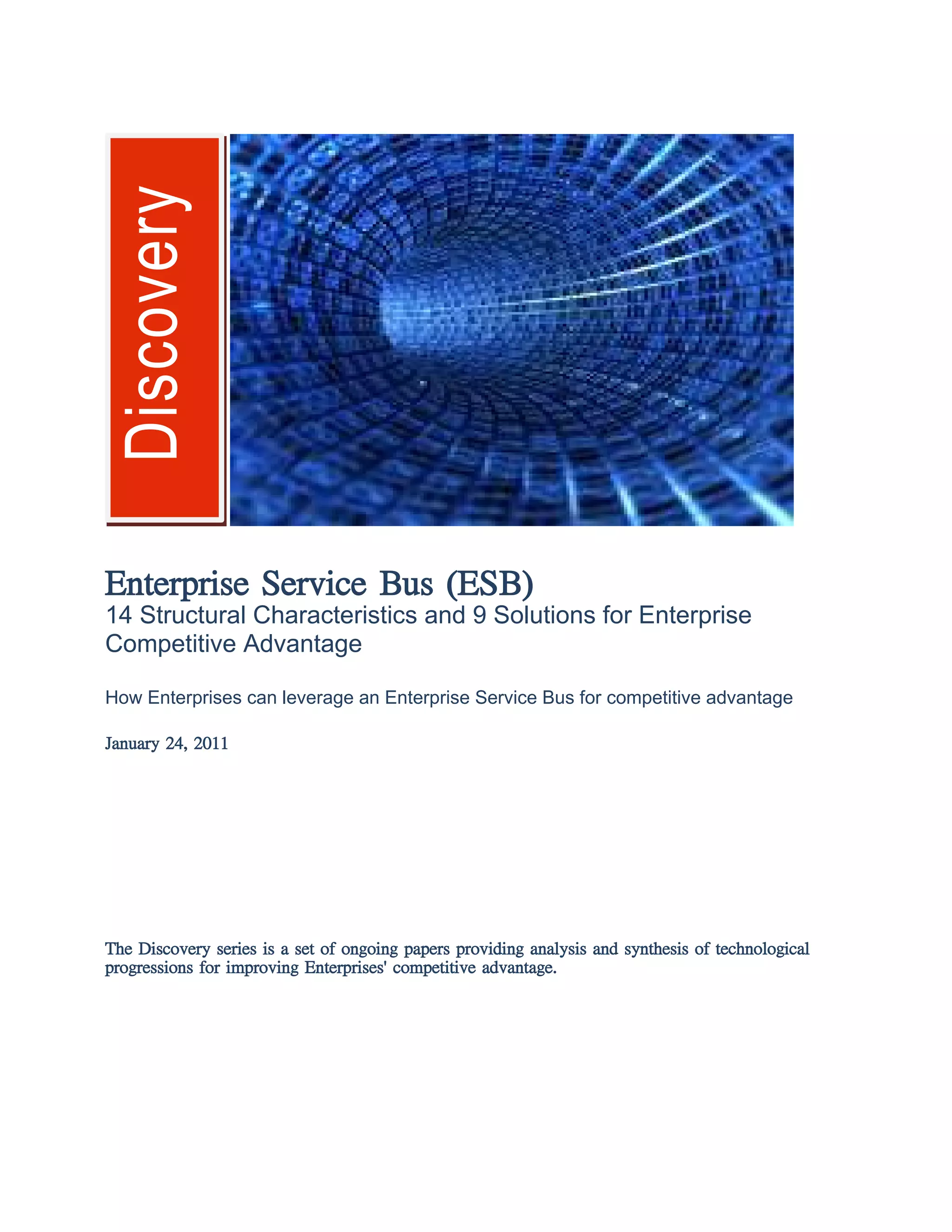

Enterprise Service Bus (ESB)
14 Structural Characteristics and 9 Solutions for Enterprise
Competitive Advantage
How Enterprises can leverage an Enterprise Service Bus for competitive advantage
January 24, 2011
The Discovery series is a set of ongoing papers providing analysis and synthesis of technological
progressions for improving Enterprises' competitive advantage.

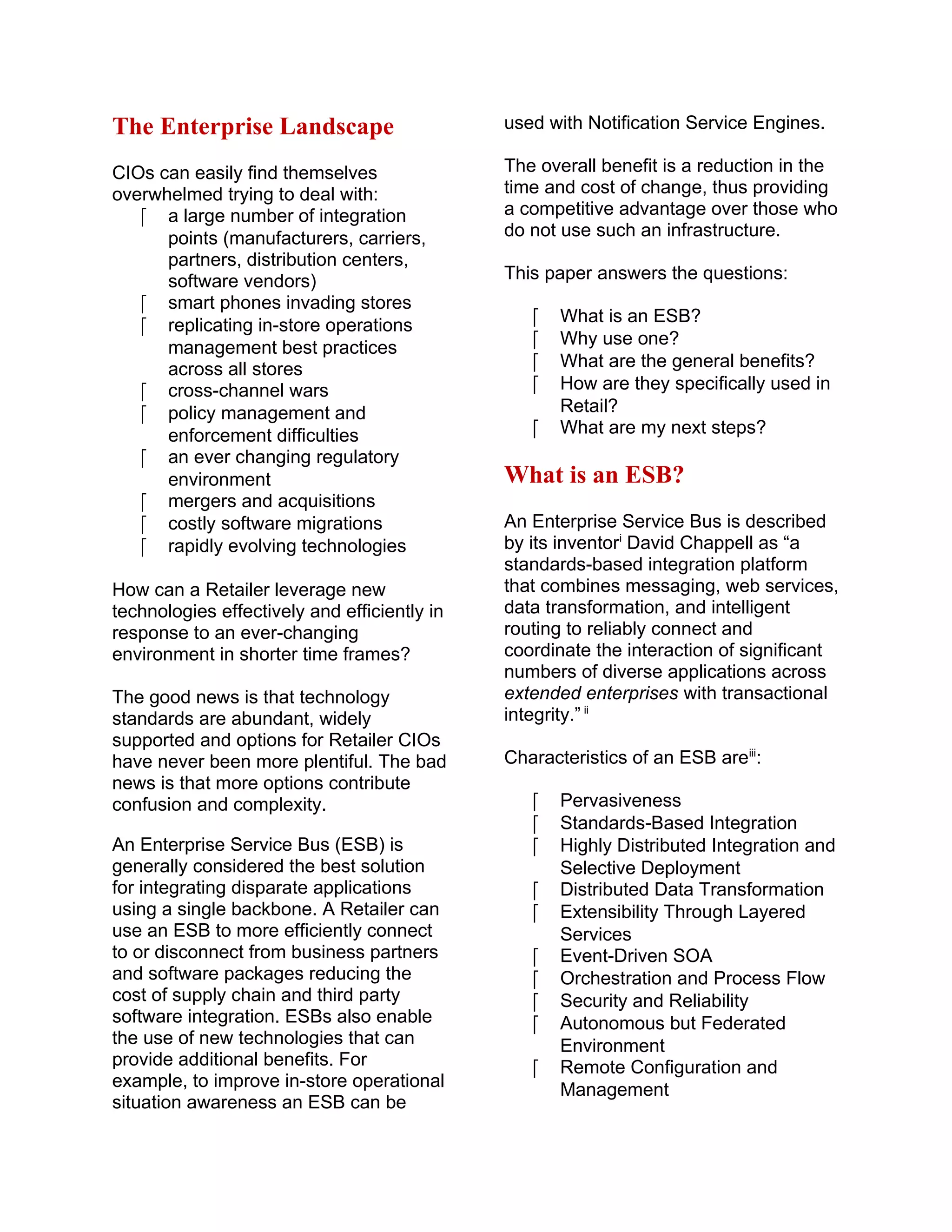

The Enterprise Landscape
CIOs can easily find themselves
overwhelmed trying to deal with:
 a large number of integration
points (manufacturers, carriers,
partners, distribution centers,
software vendors)
 smart phones invading stores
 replicating in-store operations
management best practices
across all stores
 cross-channel wars
 policy management and
enforcement difficulties
 an ever changing regulatory
environment
 mergers and acquisitions
 costly software migrations
 rapidly evolving technologies
How can a Retailer leverage new
technologies effectively and efficiently in
response to an ever-changing
environment in shorter time frames?
The good news is that technology
standards are abundant, widely
supported and options for Retailer CIOs
have never been more plentiful. The bad
news is that more options contribute
confusion and complexity.
An Enterprise Service Bus (ESB) is
generally considered the best solution
for integrating disparate applications
using a single backbone. A Retailer can
use an ESB to more efficiently connect
to or disconnect from business partners
and software packages reducing the
cost of supply chain and third party
software integration. ESBs also enable
the use of new technologies that can
provide additional benefits. For
example, to improve in-store operational
situation awareness an ESB can be
used with Notification Service Engines.
The overall benefit is a reduction in the
time and cost of change, thus providing
a competitive advantage over those who
do not use such an infrastructure.
This paper answers the questions:
 What is an ESB?
 Why use one?
 What are the general benefits?
 How are they specifically used in
Retail?
 What are my next steps?
What is an ESB?
An Enterprise Service Bus is described
by its inventori
David Chappell as “a
standards-based integration platform
that combines messaging, web services,
data transformation, and intelligent
routing to reliably connect and
coordinate the interaction of significant
numbers of diverse applications across
extended enterprises with transactional
integrity.” ii

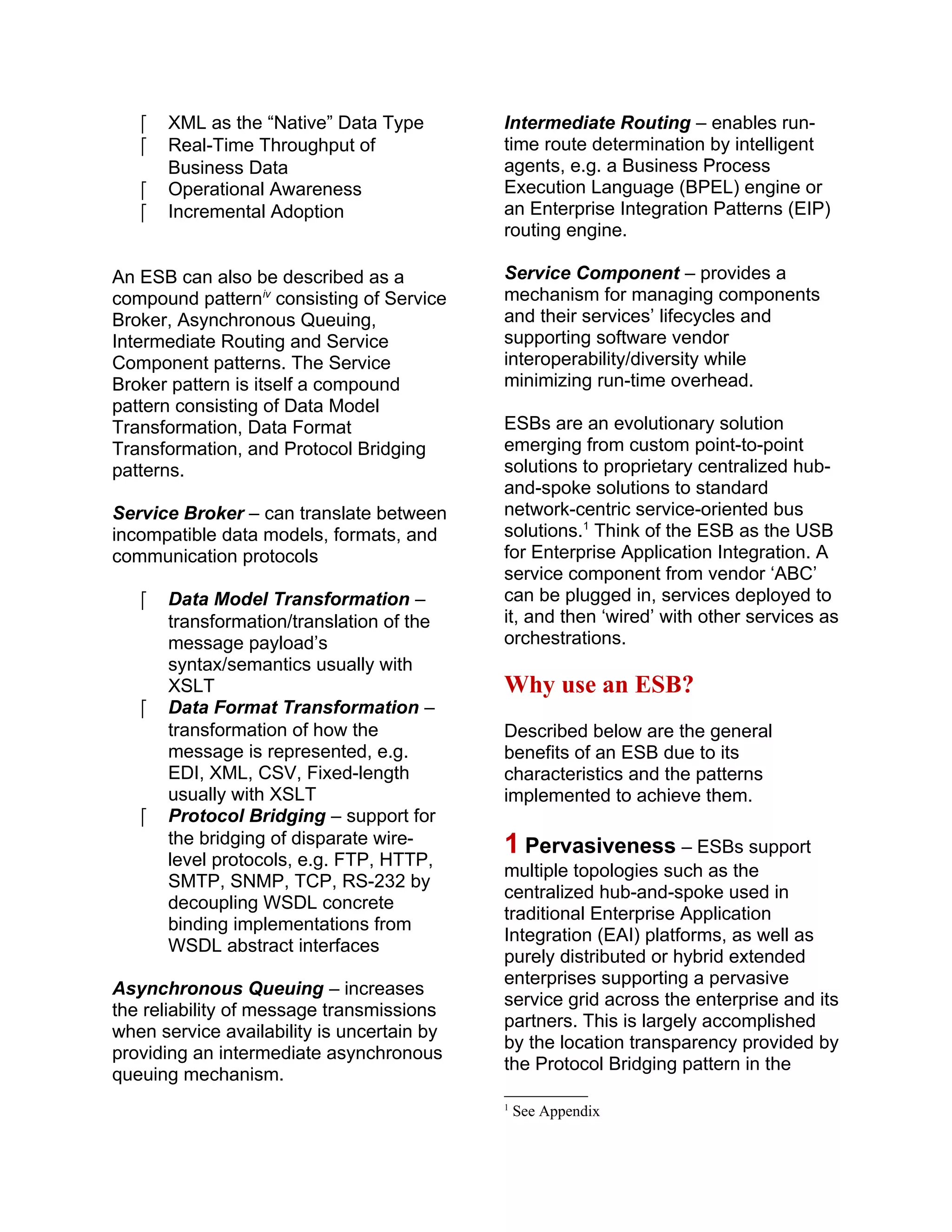

Characteristics of an ESB areiii
:
 Pervasiveness
 Standards-Based Integration
 Highly Distributed Integration and
Selective Deployment
 Distributed Data Transformation
 Extensibility Through Layered
Services
 Event-Driven SOA
 Orchestration and Process Flow
 Security and Reliability
 Autonomous but Federated
Environment
 Remote Configuration and
Management
 XML as the “Native” Data Type
 Real-Time Throughput of
Business Data
 Operational Awareness
 Incremental Adoption
An ESB can also be described as a
compound patterniv
consisting of Service
Broker, Asynchronous Queuing,
Intermediate Routing and Service
Component patterns. The Service
Broker pattern is itself a compound
pattern consisting of Data Model
Transformation, Data Format
Transformation, and Protocol Bridging
patterns.
Service Broker – can translate between
incompatible data models, formats, and
communication protocols
 Data Model Transformation –
transformation/translation of the
message payload’s
syntax/semantics usually with
XSLT
 Data Format Transformation –
transformation of how the
message is represented, e.g.
EDI, XML, CSV, Fixed-length
usually with XSLT
 Protocol Bridging – support for
the bridging of disparate wire-
level protocols, e.g. FTP, HTTP,
SMTP, SNMP, TCP, RS-232 by
decoupling WSDL concrete
binding implementations from
WSDL abstract interfaces
Asynchronous Queuing – increases
the reliability of message transmissions
when service availability is uncertain by
providing an intermediate asynchronous
queuing mechanism.
Intermediate Routing – enables run-
time route determination by intelligent
agents, e.g. a Business Process
Execution Language (BPEL) engine or
an Enterprise Integration Patterns (EIP)
routing engine.
Service Component – provides a
mechanism for managing components
and their services’ lifecycles and
supporting software vendor
interoperability/diversity while
minimizing run-time overhead.
ESBs are an evolutionary solution
emerging from custom point-to-point
solutions to proprietary centralized hub-
and-spoke solutions to standard
network-centric service-oriented bus
solutions.1
Think of the ESB as the USB
for Enterprise Application Integration. A
service component from vendor ‘ABC’
can be plugged in, services deployed to
it, and then ‘wired’ with other services as
orchestrations.
Why use an ESB?
Described below are the general
benefits of an ESB due to its
characteristics and the patterns
implemented to achieve them.
1 Pervasiveness – ESBs support
multiple topologies such as the
centralized hub-and-spoke used in
traditional Enterprise Application
Integration (EAI) platforms, as well as
purely distributed or hybrid extended
enterprises supporting a pervasive
service grid across the enterprise and its
partners. This is largely accomplished
by the location transparency provided by
the Protocol Bridging pattern in the
1
See Appendix
decoupling of protocol bindings from
functional interfaces specified by WSDL.

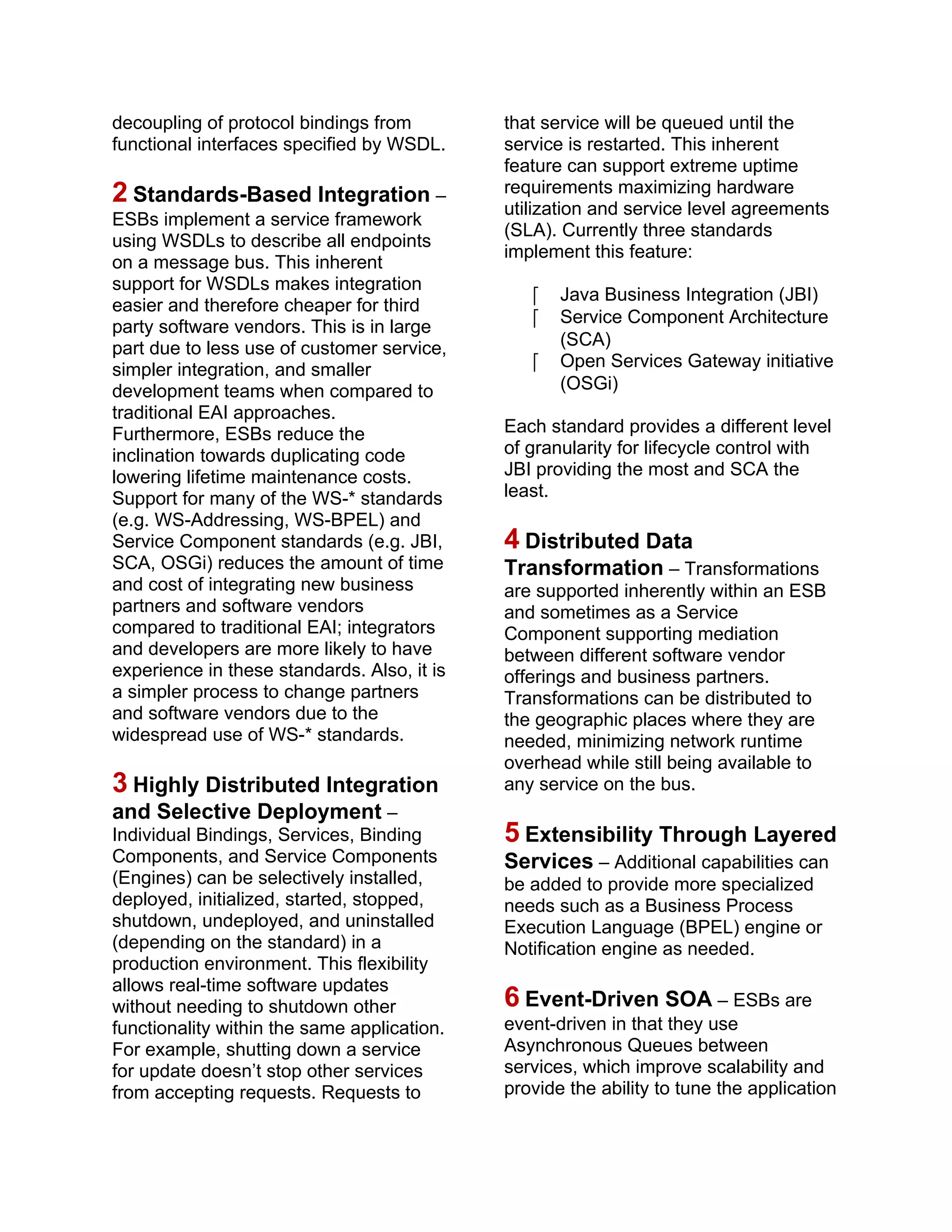

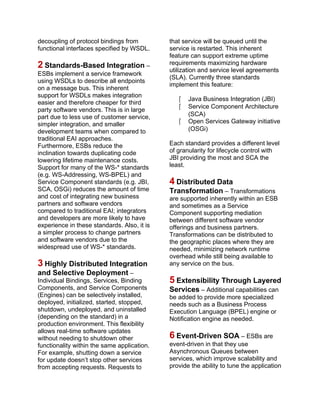

2 Standards-Based Integration –
ESBs implement a service framework
using WSDLs to describe all endpoints
on a message bus. This inherent
support for WSDLs makes integration
easier and therefore cheaper for third
party software vendors. This is in large
part due to less use of customer service,
simpler integration, and smaller
development teams when compared to
traditional EAI approaches.
Furthermore, ESBs reduce the
inclination towards duplicating code
lowering lifetime maintenance costs.
Support for many of the WS-* standards
(e.g. WS-Addressing, WS-BPEL) and
Service Component standards (e.g. JBI,
SCA, OSGi) reduces the amount of time
and cost of integrating new business
partners and software vendors
compared to traditional EAI; integrators
and developers are more likely to have
experience in these standards. Also, it is
a simpler process to change partners
and software vendors due to the
widespread use of WS-* standards.
3 Highly Distributed Integration
and Selective Deployment –
Individual Bindings, Services, Binding
Components, and Service Components
(Engines) can be selectively installed,
deployed, initialized, started, stopped,
shutdown, undeployed, and uninstalled
(depending on the standard) in a
production environment. This flexibility
allows real-time software updates
without needing to shutdown other
functionality within the same application.
For example, shutting down a service
for update doesn’t stop other services
from accepting requests. Requests to
that service will be queued until the
service is restarted. This inherent
feature can support extreme uptime
requirements maximizing hardware
utilization and service level agreements
(SLA). Currently three standards
implement this feature:
 Java Business Integration (JBI)
 Service Component Architecture
(SCA)
 Open Services Gateway initiative
(OSGi)
Each standard provides a different level
of granularity for lifecycle control with
JBI providing the most and SCA the
least.
4 Distributed Data
Transformation – Transformations
are supported inherently within an ESB
and sometimes as a Service
Component supporting mediation
between different software vendor
offerings and business partners.
Transformations can be distributed to
the geographic places where they are
needed, minimizing network runtime
overhead while still being available to
any service on the bus.
5 Extensibility Through Layered
Services – Additional capabilities can
be added to provide more specialized
needs such as a Business Process
Execution Language (BPEL) engine or
Notification engine as needed.
6 Event-Driven SOA – ESBs are
event-driven in that they use
Asynchronous Queues between
services, which improve scalability and
provide the ability to tune the application

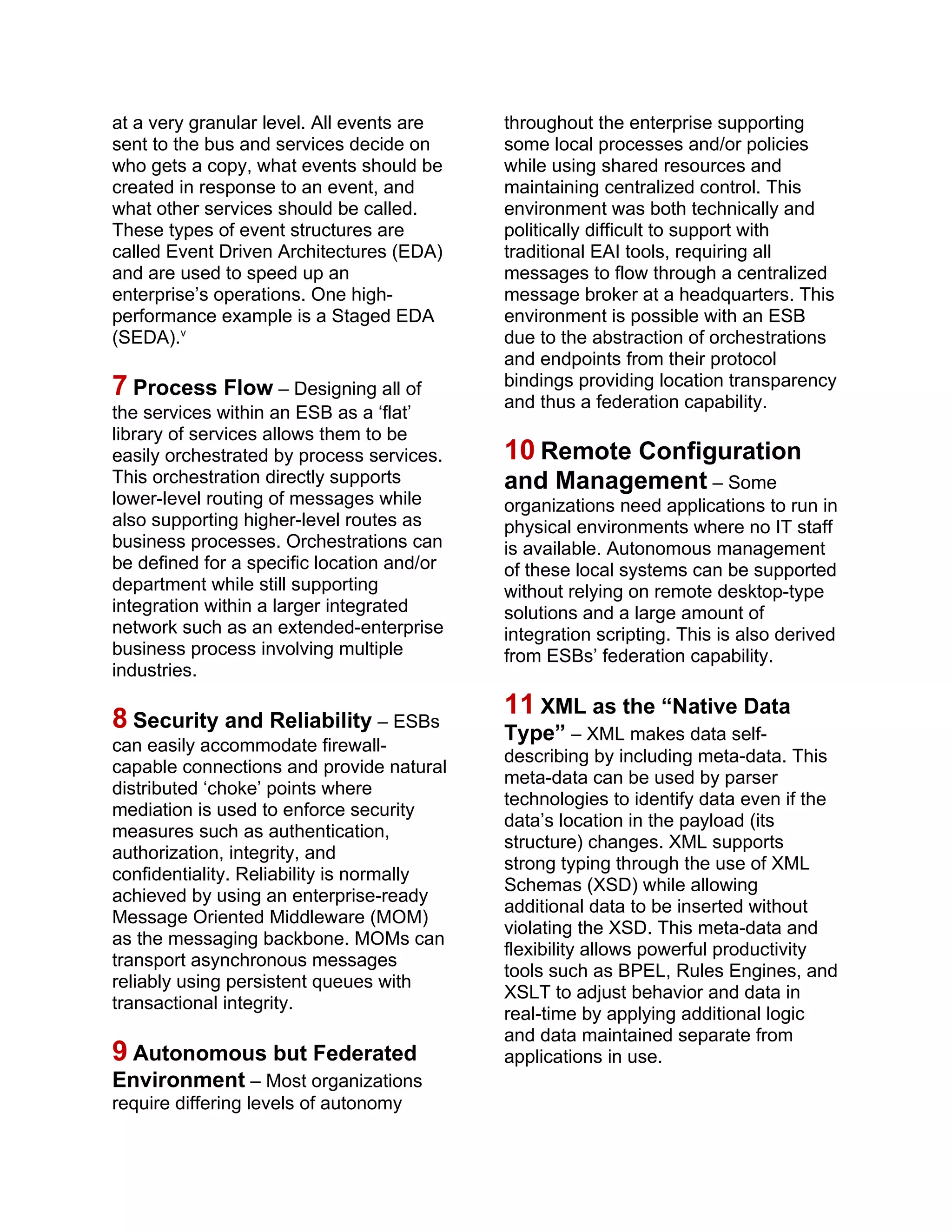

at a very granular level. All events are
sent to the bus and services decide on
who gets a copy, what events should be
created in response to an event, and
what other services should be called.
These types of event structures are
called Event Driven Architectures (EDA)
and are used to speed up an
enterprise’s operations. One high-
performance example is a Staged EDA
(SEDA).v
7 Process Flow – Designing all of
the services within an ESB as a ‘flat’
library of services allows them to be
easily orchestrated by process services.
This orchestration directly supports
lower-level routing of messages while
also supporting higher-level routes as
business processes. Orchestrations can
be defined for a specific location and/or
department while still supporting
integration within a larger integrated
network such as an extended-enterprise
business process involving multiple
industries.
8 Security and Reliability – ESBs
can easily accommodate firewall-
capable connections and provide natural
distributed ‘choke’ points where
mediation is used to enforce security
measures such as authentication,
authorization, integrity, and
confidentiality. Reliability is normally
achieved by using an enterprise-ready
Message Oriented Middleware (MOM)
as the messaging backbone. MOMs can
transport asynchronous messages
reliably using persistent queues with
transactional integrity.
9 Autonomous but Federated
Environment – Most organizations
require differing levels of autonomy
throughout the enterprise supporting
some local processes and/or policies
while using shared resources and
maintaining centralized control. This
environment was both technically and
politically difficult to support with
traditional EAI tools, requiring all
messages to flow through a centralized
message broker at a headquarters. This
environment is possible with an ESB
due to the abstraction of orchestrations
and endpoints from their protocol
bindings providing location transparency
and thus a federation capability.
10 Remote Configuration
and Management – Some
organizations need applications to run in
physical environments where no IT staff
is available. Autonomous management
of these local systems can be supported
without relying on remote desktop-type
solutions and a large amount of
integration scripting. This is also derived
from ESBs’ federation capability.
11 XML as the “Native Data
Type” – XML makes data self-
describing by including meta-data. This
meta-data can be used by parser
technologies to identify data even if the
data’s location in the payload (its
structure) changes. XML supports
strong typing through the use of XML
Schemas (XSD) while allowing
additional data to be inserted without
violating the XSD. This meta-data and
flexibility allows powerful productivity
tools such as BPEL, Rules Engines, and
XSLT to adjust behavior and data in
real-time by applying additional logic
and data maintained separate from
applications in use.

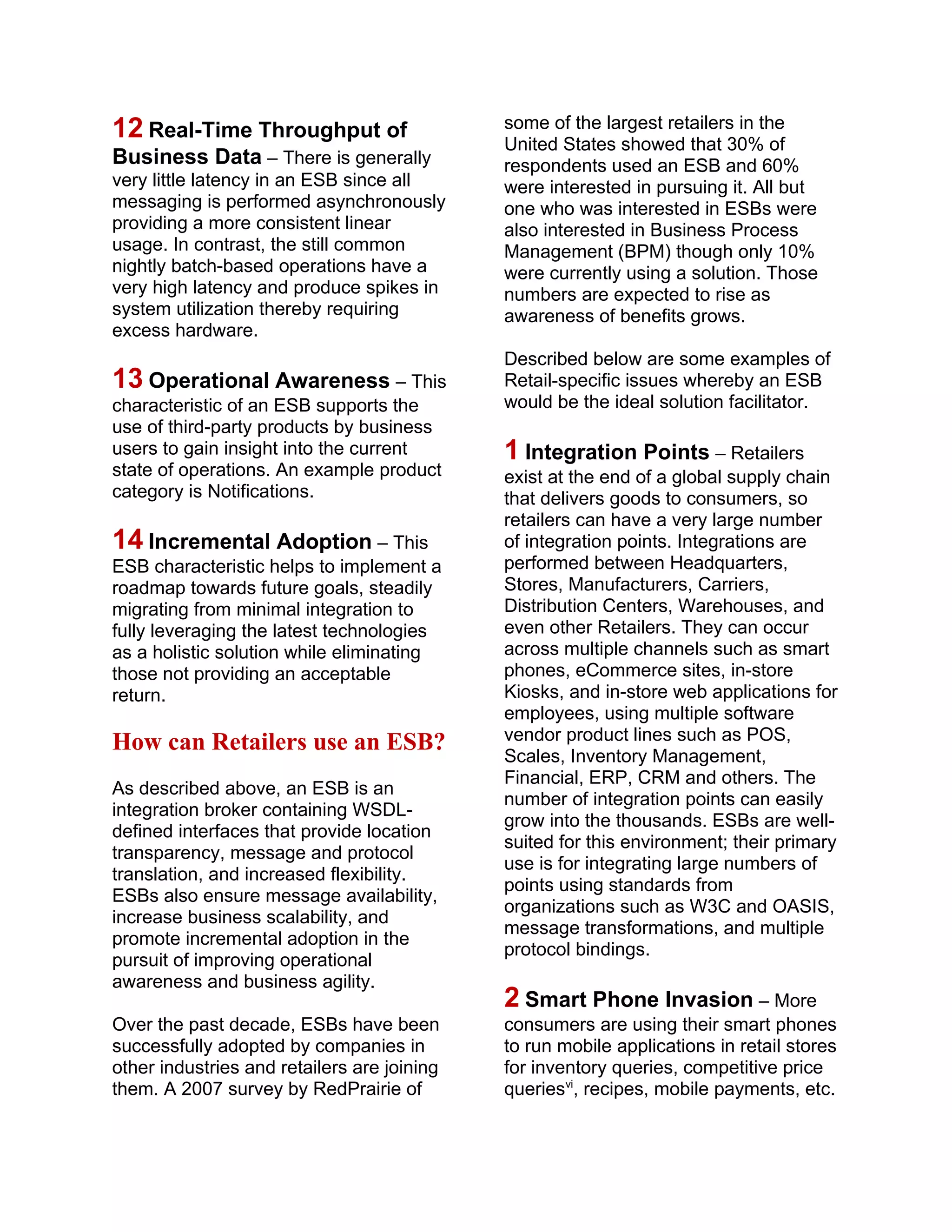

12 Real-Time Throughput of
Business Data – There is generally
very little latency in an ESB since all
messaging is performed asynchronously
providing a more consistent linear
usage. In contrast, the still common
nightly batch-based operations have a
very high latency and produce spikes in
system utilization thereby requiring
excess hardware.
13 Operational Awareness – This
characteristic of an ESB supports the
use of third-party products by business
users to gain insight into the current
state of operations. An example product
category is Notifications.
14 Incremental Adoption – This
ESB characteristic helps to implement a
roadmap towards future goals, steadily
migrating from minimal integration to
fully leveraging the latest technologies
as a holistic solution while eliminating
those not providing an acceptable
return.
How can Retailers use an ESB?
As described above, an ESB is an
integration broker containing WSDL-
defined interfaces that provide location
transparency, message and protocol
translation, and increased flexibility.
ESBs also ensure message availability,
increase business scalability, and
promote incremental adoption in the
pursuit of improving operational
awareness and business agility.
Over the past decade, ESBs have been
successfully adopted by companies in
other industries and retailers are joining
them. A 2007 survey by RedPrairie of
some of the largest retailers in the
United States showed that 30% of
respondents used an ESB and 60%
were interested in pursuing it. All but
one who was interested in ESBs were
also interested in Business Process
Management (BPM) though only 10%
were currently using a solution. Those
numbers are expected to rise as
awareness of benefits grows.
Described below are some examples of
Retail-specific issues whereby an ESB
would be the ideal solution facilitator.
1 Integration Points – Retailers
exist at the end of a global supply chain
that delivers goods to consumers, so
retailers can have a very large number
of integration points. Integrations are
performed between Headquarters,
Stores, Manufacturers, Carriers,
Distribution Centers, Warehouses, and
even other Retailers. They can occur
across multiple channels such as smart
phones, eCommerce sites, in-store
Kiosks, and in-store web applications for
employees, using multiple software
vendor product lines such as POS,
Scales, Inventory Management,
Financial, ERP, CRM and others. The
number of integration points can easily
grow into the thousands. ESBs are well-
suited for this environment; their primary
use is for integrating large numbers of
points using standards from
organizations such as W3C and OASIS,
message transformations, and multiple
protocol bindings.
2 Smart Phone Invasion – More
consumers are using their smart phones
to run mobile applications in retail stores
for inventory queries, competitive price
queriesvi

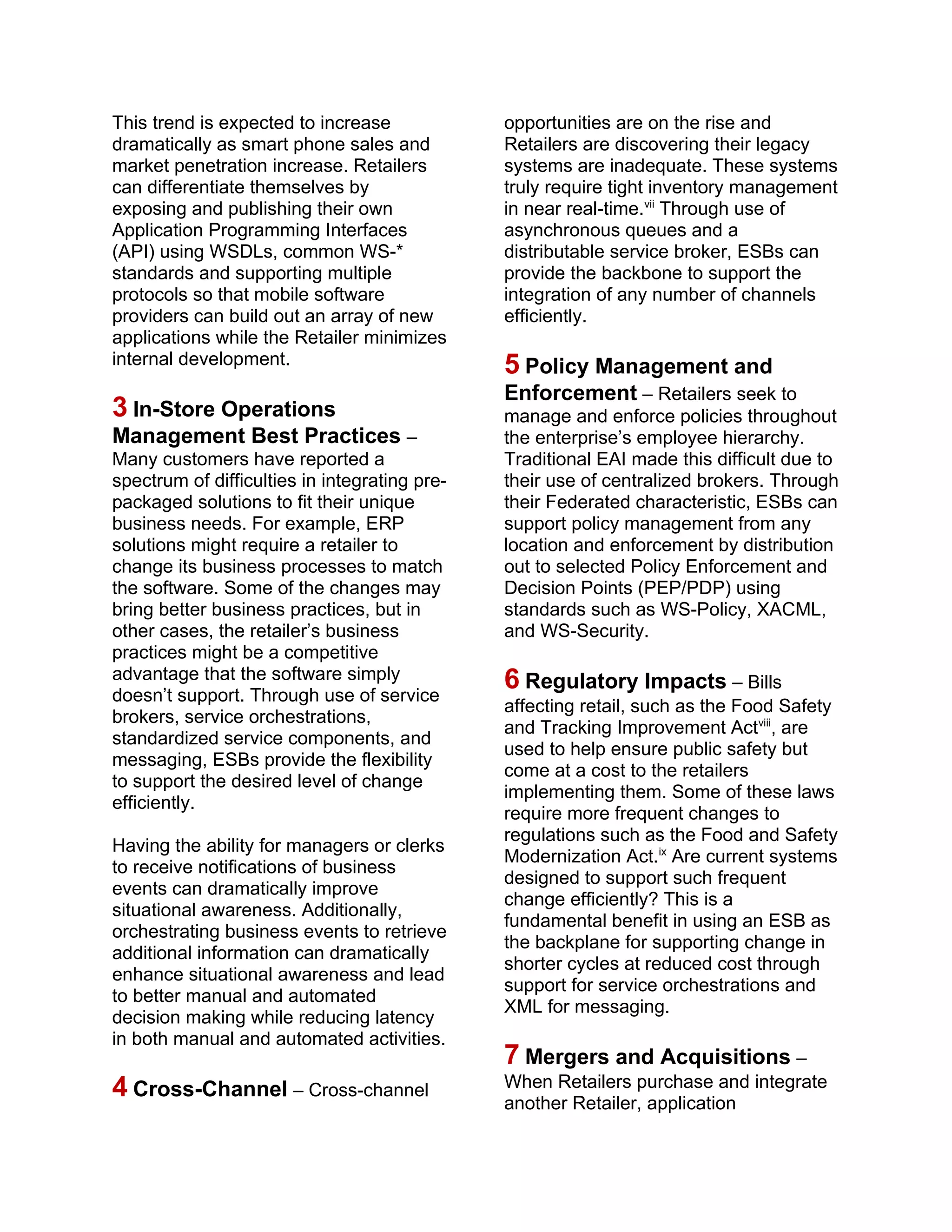

, recipes, mobile payments, etc.
This trend is expected to increase
dramatically as smart phone sales and
market penetration increase. Retailers
can differentiate themselves by
exposing and publishing their own
Application Programming Interfaces
(API) using WSDLs, common WS-*
standards and supporting multiple
protocols so that mobile software
providers can build out an array of new
applications while the Retailer minimizes
internal development.
3 In-Store Operations
Management Best Practices –
Many customers have reported a
spectrum of difficulties in integrating pre-
packaged solutions to fit their unique
business needs. For example, ERP
solutions might require a retailer to
change its business processes to match
the software. Some of the changes may
bring better business practices, but in
other cases, the retailer’s business
practices might be a competitive
advantage that the software simply
doesn’t support. Through use of service
brokers, service orchestrations,
standardized service components, and
messaging, ESBs provide the flexibility
to support the desired level of change
efficiently.
Having the ability for managers or clerks
to receive notifications of business
events can dramatically improve
situational awareness. Additionally,
orchestrating business events to retrieve
additional information can dramatically
enhance situational awareness and lead
to better manual and automated
decision making while reducing latency
in both manual and automated activities.
4 Cross-Channel – Cross-channel
opportunities are on the rise and
Retailers are discovering their legacy
systems are inadequate. These systems
truly require tight inventory management
in near real-time.vii
Through use of
asynchronous queues and a
distributable service broker, ESBs can
provide the backbone to support the
integration of any number of channels
efficiently.
5 Policy Management and
Enforcement – Retailers seek to
manage and enforce policies throughout
the enterprise’s employee hierarchy.
Traditional EAI made this difficult due to
their use of centralized brokers. Through
their Federated characteristic, ESBs can
support policy management from any
location and enforcement by distribution
out to selected Policy Enforcement and
Decision Points (PEP/PDP) using
standards such as WS-Policy, XACML,
and WS-Security.
6 Regulatory Impacts – Bills
affecting retail, such as the Food Safety
and Tracking Improvement Actviii
, are
used to help ensure public safety but
come at a cost to the retailers
implementing them. Some of these laws
require more frequent changes to
regulations such as the Food and Safety
Modernization Act.ix
Are current systems
designed to support such frequent
change efficiently? This is a
fundamental benefit in using an ESB as
the backplane for supporting change in
shorter cycles at reduced cost through
support for service orchestrations and
XML for messaging.

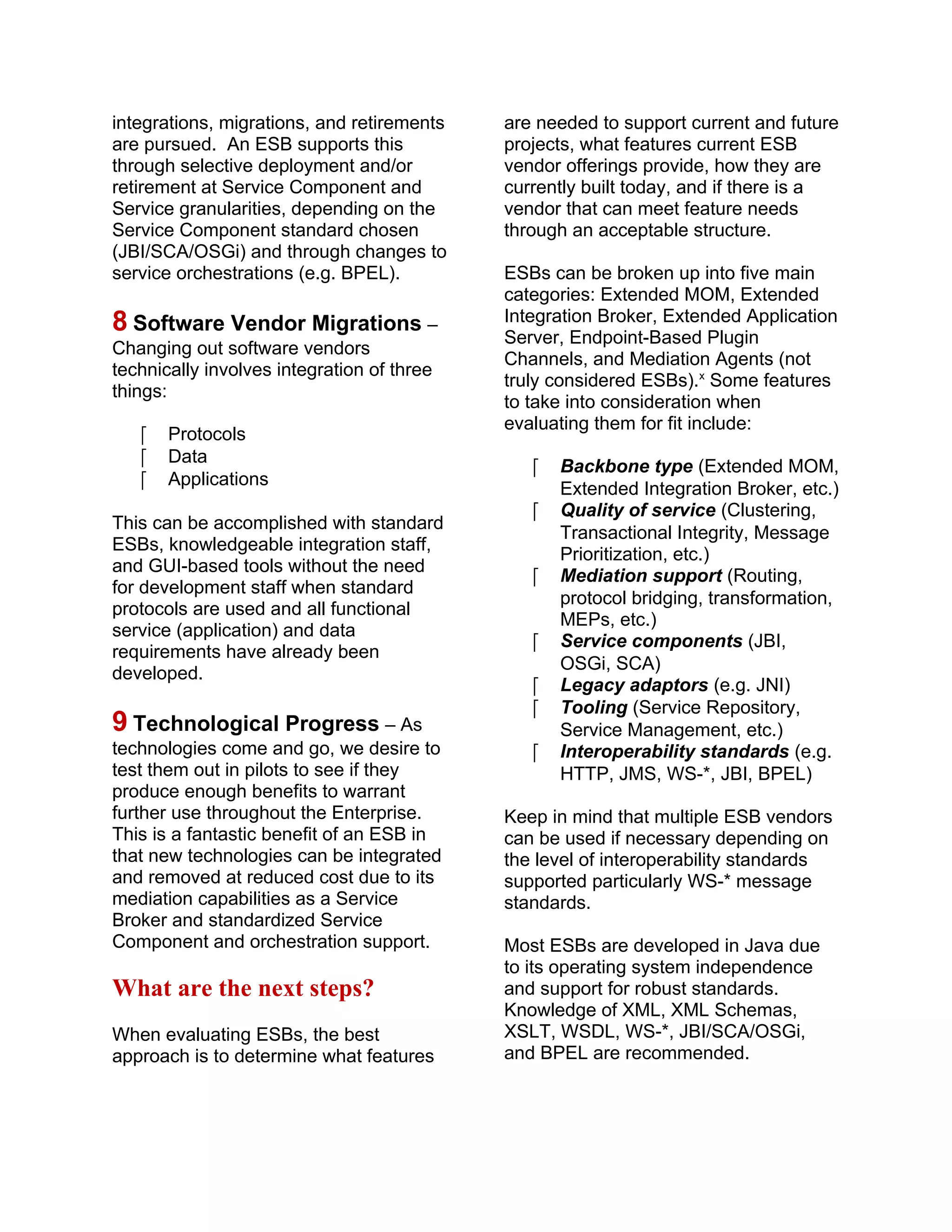

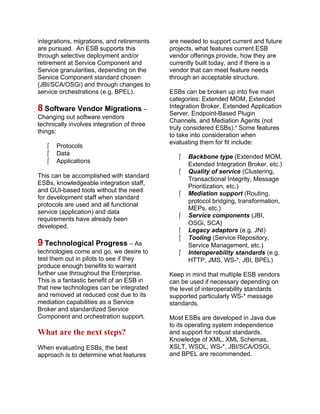

7 Mergers and Acquisitions –
When Retailers purchase and integrate
another Retailer, application
integrations, migrations, and retirements
are pursued. An ESB supports this
through selective deployment and/or
retirement at Service Component and
Service granularities, depending on the
Service Component standard chosen
(JBI/SCA/OSGi) and through changes to
service orchestrations (e.g. BPEL).
8 Software Vendor Migrations –
Changing out software vendors
technically involves integration of three
things:
 Protocols
 Data
 Applications
This can be accomplished with standard
ESBs, knowledgeable integration staff,
and GUI-based tools without the need
for development staff when standard
protocols are used and all functional
service (application) and data
requirements have already been
developed.
9 Technological Progress – As
technologies come and go, we desire to
test them out in pilots to see if they
produce enough benefits to warrant
further use throughout the Enterprise.
This is a fantastic benefit of an ESB in
that new technologies can be integrated
and removed at reduced cost due to its
mediation capabilities as a Service
Broker and standardized Service
Component and orchestration support.
What are the next steps?
When evaluating ESBs, the best
approach is to determine what features
are needed to support current and future
projects, what features current ESB
vendor offerings provide, how they are
currently built today, and if there is a
vendor that can meet feature needs
through an acceptable structure.
ESBs can be broken up into five main
categories: Extended MOM, Extended
Integration Broker, Extended Application
Server, Endpoint-Based Plugin
Channels, and Mediation Agents (not
truly considered ESBs).x
Some features
to take into consideration when
evaluating them for fit include:
 Backbone type (Extended MOM,
Extended Integration Broker, etc.)
 Quality of service (Clustering,
Transactional Integrity, Message
Prioritization, etc.)
 Mediation support (Routing,
protocol bridging, transformation,
MEPs, etc.)
 Service components (JBI,
OSGi, SCA)
 Legacy adaptors (e.g. JNI)
 Tooling (Service Repository,
Service Management, etc.)
 Interoperability standards (e.g.
HTTP, JMS, WS-*, JBI, BPEL)
Keep in mind that multiple ESB vendors
can be used if necessary depending on
the level of interoperability standards
supported particularly WS-* message
standards.
Most ESBs are developed in Java due
to its operating system independence
and support for robust standards.
Knowledge of XML, XML Schemas,
XSLT, WSDL, WS-*, JBI/SCA/OSGi,
and BPEL are recommended.
Appendix

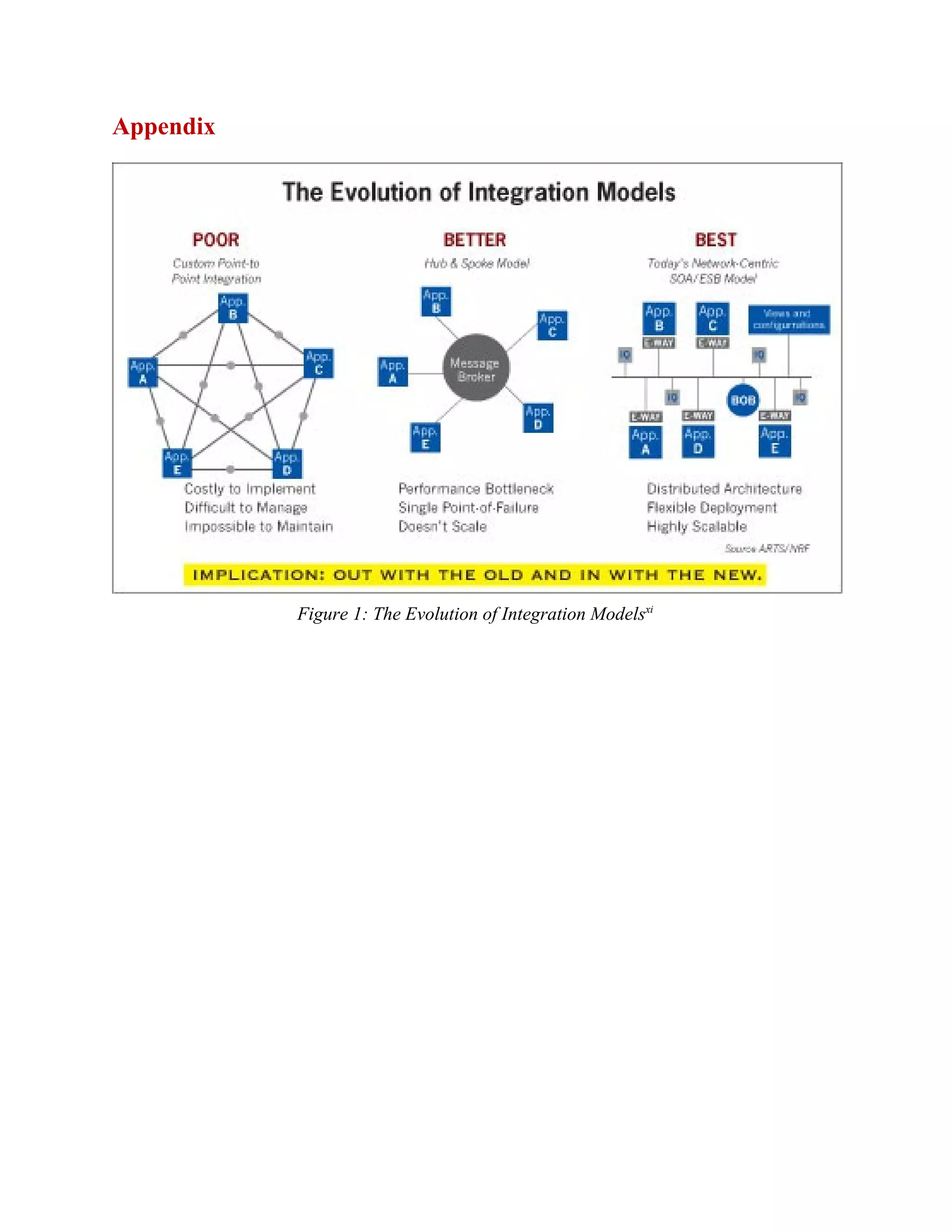

Figure 1: The Evolution of Integration Modelsxi

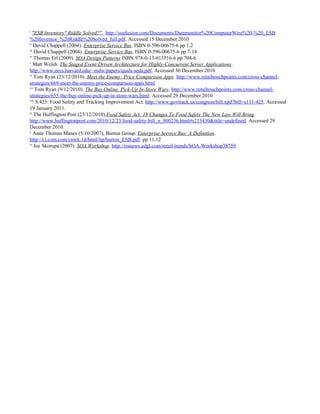

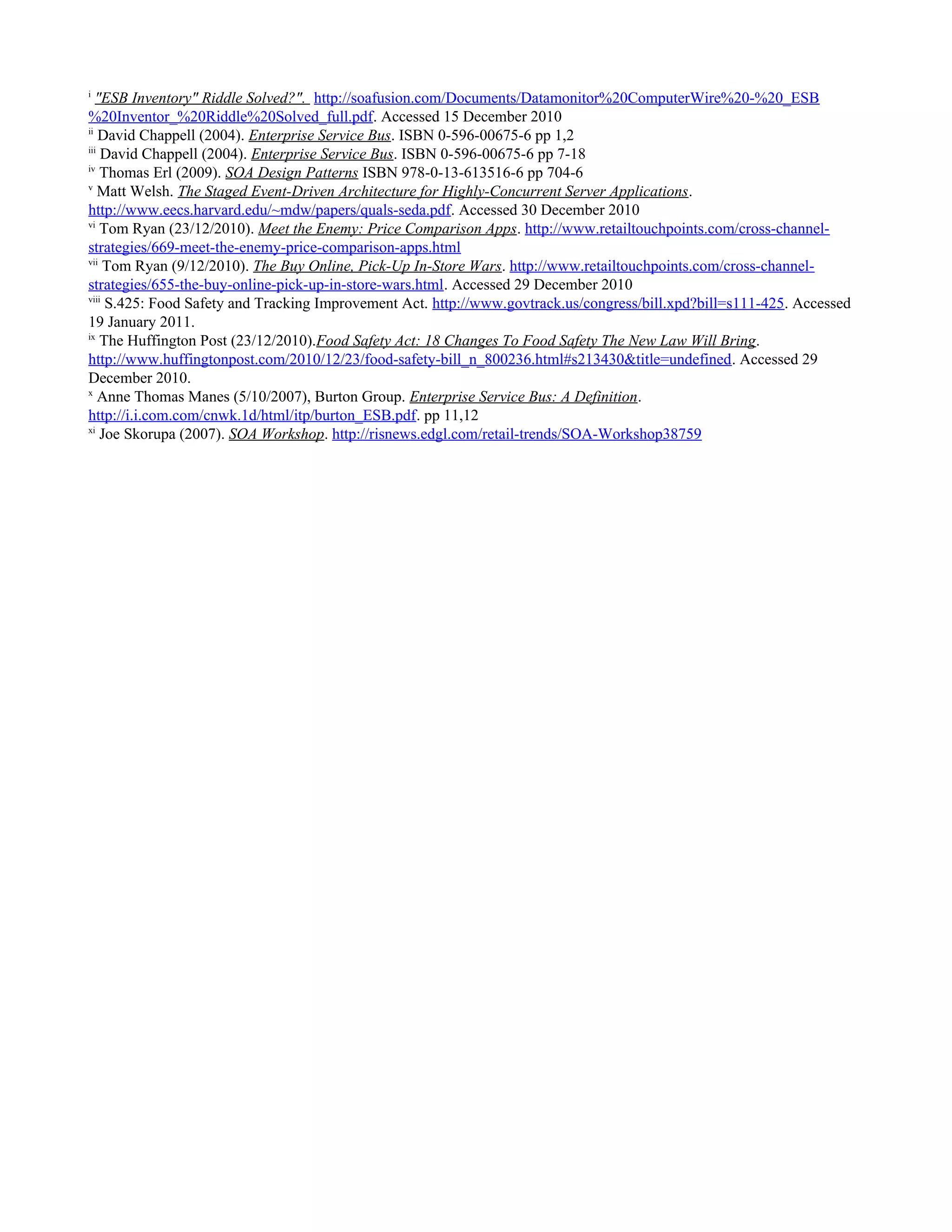

i
"ESB Inventory" Riddle Solved?". http://soafusion.com/Documents/Datamonitor%20ComputerWire%20-%20_ESB
%20Inventor_%20Riddle%20Solved_full.pdf. Accessed 15 December 2010
ii
David Chappell (2004). Enterprise Service Bus. ISBN 0-596-00675-6 pp 1,2
iii
David Chappell (2004). Enterprise Service Bus. ISBN 0-596-00675-6 pp 7-18
iv
Thomas Erl (2009). SOA Design Patterns ISBN 978-0-13-613516-6 pp 704-6
v
Matt Welsh. The Staged Event-Driven Architecture for Highly-Concurrent Server Applications.
http://www.eecs.harvard.edu/~mdw/papers/quals-seda.pdf. Accessed 30 December 2010
vi
Tom Ryan (23/12/2010). Meet the Enemy: Price Comparison Apps. http://www.retailtouchpoints.com/cross-channel-
strategies/669-meet-the-enemy-price-comparison-apps.html
vii
Tom Ryan (9/12/2010). The Buy Online, Pick-Up In-Store Wars. http://www.retailtouchpoints.com/cross-channel-
strategies/655-the-buy-online-pick-up-in-store-wars.html. Accessed 29 December 2010
viii
S.425: Food Safety and Tracking Improvement Act. http://www.govtrack.us/congress/bill.xpd?bill=s111-425. Accessed
19 January 2011.
ix
The Huffington Post (23/12/2010).Food Safety Act: 18 Changes To Food Safety The New Law Will Bring.
http://www.huffingtonpost.com/2010/12/23/food-safety-bill_n_800236.html#s213430&title=undefined. Accessed 29
December 2010.
x
Anne Thomas Manes (5/10/2007), Burton Group. Enterprise Service Bus: A Definition.
http://i.i.com.com/cnwk.1d/html/itp/burton_ESB.pdf. pp 11,12
xi
Joe Skorupa (2007). SOA Workshop. http://risnews.edgl.com/retail-trends/SOA-Workshop38759

More Related Content

What's hot

Overview of ESB at Azilen Tech Meetup
Overview of ESB at Azilen Tech MeetupOverview of ESB at Azilen Tech Meetup
Overview of ESB at Azilen Tech Meetup
Azilen Technologies Pvt. Ltd.

ESB Usage Scenarios and Patterns
ESB Usage Scenarios and PatternsESB Usage Scenarios and Patterns
ESB Usage Scenarios and Patterns
IBM Sverige

ESB and SOA
ESB and SOAESB and SOA
ESB and SOA
WSO2

Adapters and EAI
Adapters and EAIAdapters and EAI
Adapters and EAI
Rob Paok

ESB Overview
ESB OverviewESB Overview
ESB Overview
Bahaa Farouk

SOA Fundamentals
SOA  FundamentalsSOA  Fundamentals
SOA Fundamentals
abhi1112

ESB Presentation
ESB PresentationESB Presentation
ESB Presentation
F K

7 eai-patterns
7 eai-patterns7 eai-patterns
7 eai-patterns
Claudia Rosu

Enterprise service bus(esb)
Enterprise service bus(esb)Enterprise service bus(esb)
Enterprise service bus(esb)
prksh89

Enterprise Application Integration
Enterprise Application IntegrationEnterprise Application Integration
Enterprise Application Integration
Tomas Dermisek

integeration
integerationintegeration
integeration
Shuaibullah Abbasi

The New Enterprise Alphabet - .Net, XML And XBRL
The New Enterprise Alphabet - .Net, XML And XBRLThe New Enterprise Alphabet - .Net, XML And XBRL
The New Enterprise Alphabet - .Net, XML And XBRL
Jorgen Thelin

Service Oriented Architecture
Service Oriented ArchitectureService Oriented Architecture
Service Oriented Architecture
Syed Mustafa

15 falko menge--_enterpise_service_bus
15 falko menge--_enterpise_service_bus15 falko menge--_enterpise_service_bus
15 falko menge--_enterpise_service_bus
lmphuong06

SOA in practice. The sibling rivalry between ESB and BPE.
SOA in practice. The sibling rivalry between ESB and BPE.SOA in practice. The sibling rivalry between ESB and BPE.
SOA in practice. The sibling rivalry between ESB and BPE.
Greenbird Integration Technology

Employing Enterprise Application Integration (EAI)
Employing Enterprise Application Integration (EAI)Employing Enterprise Application Integration (EAI)
Employing Enterprise Application Integration (EAI)
elliando dias

EAI (Integration) and Mulesoft
EAI (Integration) and MulesoftEAI (Integration) and Mulesoft
EAI (Integration) and Mulesoft
Ponviknesh Sivakumar

Configuration inerpsaas multi tenancy
Configuration inerpsaas multi tenancyConfiguration inerpsaas multi tenancy
Configuration inerpsaas multi tenancy
ijcseit

WebServices and Workflow technologies
WebServices and Workflow technologiesWebServices and Workflow technologies
WebServices and Workflow technologies
Nitin Pande


What's hot (19)

Overview of ESB at Azilen Tech Meetup
Overview of ESB at Azilen Tech MeetupOverview of ESB at Azilen Tech Meetup
Overview of ESB at Azilen Tech Meetup

ESB Usage Scenarios and Patterns
ESB Usage Scenarios and PatternsESB Usage Scenarios and Patterns
ESB Usage Scenarios and Patterns

ESB and SOA
ESB and SOAESB and SOA
ESB and SOA

Adapters and EAI
Adapters and EAIAdapters and EAI
Adapters and EAI

ESB Overview
ESB OverviewESB Overview
ESB Overview

SOA Fundamentals
SOA  FundamentalsSOA  Fundamentals
SOA Fundamentals

ESB Presentation
ESB PresentationESB Presentation
ESB Presentation

7 eai-patterns
7 eai-patterns7 eai-patterns
7 eai-patterns

Enterprise service bus(esb)
Enterprise service bus(esb)Enterprise service bus(esb)
Enterprise service bus(esb)

Enterprise Application Integration
Enterprise Application IntegrationEnterprise Application Integration
Enterprise Application Integration

integeration
integerationintegeration
integeration

The New Enterprise Alphabet - .Net, XML And XBRL
The New Enterprise Alphabet - .Net, XML And XBRLThe New Enterprise Alphabet - .Net, XML And XBRL
The New Enterprise Alphabet - .Net, XML And XBRL

Service Oriented Architecture
Service Oriented ArchitectureService Oriented Architecture
Service Oriented Architecture

15 falko menge--_enterpise_service_bus
15 falko menge--_enterpise_service_bus15 falko menge--_enterpise_service_bus
15 falko menge--_enterpise_service_bus

SOA in practice. The sibling rivalry between ESB and BPE.
SOA in practice. The sibling rivalry between ESB and BPE.SOA in practice. The sibling rivalry between ESB and BPE.
SOA in practice. The sibling rivalry between ESB and BPE.

Employing Enterprise Application Integration (EAI)
Employing Enterprise Application Integration (EAI)Employing Enterprise Application Integration (EAI)
Employing Enterprise Application Integration (EAI)

EAI (Integration) and Mulesoft
EAI (Integration) and MulesoftEAI (Integration) and Mulesoft
EAI (Integration) and Mulesoft

Configuration inerpsaas multi tenancy
Configuration inerpsaas multi tenancyConfiguration inerpsaas multi tenancy
Configuration inerpsaas multi tenancy

WebServices and Workflow technologies
WebServices and Workflow technologiesWebServices and Workflow technologies
WebServices and Workflow technologies


Viewers also liked

Angela Constanza Buitrago
Angela Constanza Buitrago  	Angela Constanza Buitrago
Angela Constanza Buitrago
astrydquintero

Roberto rodriguez administracion-a
Roberto rodriguez administracion-aRoberto rodriguez administracion-a
Roberto rodriguez administracion-a
roberto_javier

Content marketing-lý-tính
Content marketing-lý-tínhContent marketing-lý-tính
Content marketing-lý-tính
Mèo Xù Xí Xớn

SEISMIC RESPONSE OF EXISTING RC BUILDING UNDER REVISED SEISMIC ZONE CLASSIFIC...
SEISMIC RESPONSE OF EXISTING RC BUILDING UNDER REVISED SEISMIC ZONE CLASSIFIC...SEISMIC RESPONSE OF EXISTING RC BUILDING UNDER REVISED SEISMIC ZONE CLASSIFIC...
SEISMIC RESPONSE OF EXISTING RC BUILDING UNDER REVISED SEISMIC ZONE CLASSIFIC...
IAEME Publication

Certificacion de mercadeo
Certificacion de mercadeoCertificacion de mercadeo
Certificacion de mercadeo
Jaime S Esteva

Євдокимова Ж.О
Євдокимова Ж.ОЄвдокимова Ж.О
Євдокимова Ж.О
Schoolno1Kovel

Нагорнюк
НагорнюкНагорнюк
Нагорнюк
Schoolno1Kovel

P1_E1_Internet.pdf.
P1_E1_Internet.pdf.P1_E1_Internet.pdf.
P1_E1_Internet.pdf.
martita222

Filosofia junio 2012
Filosofia junio 2012Filosofia junio 2012
Filosofia junio 2012
Oscar Herrera

Videocurriculum
VideocurriculumVideocurriculum
Videocurriculum
Ramón Galera

Power para bloger
Power para blogerPower para bloger
Power para bloger
JORGE PEREZ

Evaluación correspondiente a los foros
Evaluación correspondiente a los forosEvaluación correspondiente a los foros
Evaluación correspondiente a los foros
Mairin Cecilia Valera Jimenez

Zivilcourage lernen
Zivilcourage lernenZivilcourage lernen
Zivilcourage lernen
FESD GKr

Anuncio
Anuncio Anuncio
Anuncio
swgonyou

Suzanne Pritzker, Ph.D. - "Exploring Civic Engagement Among Immigrant Adolesc...
Suzanne Pritzker, Ph.D. - "Exploring Civic Engagement Among Immigrant Adolesc...Suzanne Pritzker, Ph.D. - "Exploring Civic Engagement Among Immigrant Adolesc...
Suzanne Pritzker, Ph.D. - "Exploring Civic Engagement Among Immigrant Adolesc...
youth_nex


Viewers also liked (16)

Angela Constanza Buitrago
Angela Constanza Buitrago  	Angela Constanza Buitrago
Angela Constanza Buitrago

Roberto rodriguez administracion-a
Roberto rodriguez administracion-aRoberto rodriguez administracion-a
Roberto rodriguez administracion-a

Content marketing-lý-tính
Content marketing-lý-tínhContent marketing-lý-tính
Content marketing-lý-tính

SEISMIC RESPONSE OF EXISTING RC BUILDING UNDER REVISED SEISMIC ZONE CLASSIFIC...
SEISMIC RESPONSE OF EXISTING RC BUILDING UNDER REVISED SEISMIC ZONE CLASSIFIC...SEISMIC RESPONSE OF EXISTING RC BUILDING UNDER REVISED SEISMIC ZONE CLASSIFIC...
SEISMIC RESPONSE OF EXISTING RC BUILDING UNDER REVISED SEISMIC ZONE CLASSIFIC...

Certificacion de mercadeo
Certificacion de mercadeoCertificacion de mercadeo
Certificacion de mercadeo

Євдокимова Ж.О
Євдокимова Ж.ОЄвдокимова Ж.О
Євдокимова Ж.О

Нагорнюк
НагорнюкНагорнюк
Нагорнюк

P1_E1_Internet.pdf.
P1_E1_Internet.pdf.P1_E1_Internet.pdf.
P1_E1_Internet.pdf.

Filosofia junio 2012
Filosofia junio 2012Filosofia junio 2012
Filosofia junio 2012

Videocurriculum
VideocurriculumVideocurriculum
Videocurriculum

Power para bloger
Power para blogerPower para bloger
Power para bloger

Evaluación correspondiente a los foros
Evaluación correspondiente a los forosEvaluación correspondiente a los foros
Evaluación correspondiente a los foros

Zivilcourage lernen
Zivilcourage lernenZivilcourage lernen
Zivilcourage lernen

Anuncio
Anuncio Anuncio
Anuncio

Etimología
EtimologíaEtimología
Etimología

Suzanne Pritzker, Ph.D. - "Exploring Civic Engagement Among Immigrant Adolesc...
Suzanne Pritzker, Ph.D. - "Exploring Civic Engagement Among Immigrant Adolesc...Suzanne Pritzker, Ph.D. - "Exploring Civic Engagement Among Immigrant Adolesc...
Suzanne Pritzker, Ph.D. - "Exploring Civic Engagement Among Immigrant Adolesc...


Similar to 2011-ESB-WP-Draft

SOA & ESB Presentation
SOA & ESB PresentationSOA & ESB Presentation
SOA & ESB Presentation
erichleipold

Getting started with Enterprise Application Integration (EAI) using Enterpris...
Getting started with Enterprise Application Integration (EAI) using Enterpris...Getting started with Enterprise Application Integration (EAI) using Enterpris...
Getting started with Enterprise Application Integration (EAI) using Enterpris...
Tamim Khan

Welcome to International Journal of Engineering Research and Development (IJERD)
Welcome to International Journal of Engineering Research and Development (IJERD)Welcome to International Journal of Engineering Research and Development (IJERD)
Welcome to International Journal of Engineering Research and Development (IJERD)
IJERD Editor

Chapter 2 - Enterprise Application Integration.pdf
Chapter 2 - Enterprise Application Integration.pdfChapter 2 - Enterprise Application Integration.pdf
Chapter 2 - Enterprise Application Integration.pdf
Khairul Anwar Sedek

Performance in soa context
Performance in soa contextPerformance in soa context
Performance in soa context
eSAT Publishing House

CBSE VS SOA Presentation
CBSE VS SOA PresentationCBSE VS SOA Presentation
CBSE VS SOA Presentation
Maulik Parikh

CBSE VS SOA SJSU Presentation
CBSE VS SOA SJSU PresentationCBSE VS SOA SJSU Presentation
CBSE VS SOA SJSU Presentation
mgp1560

Soa & Bpel With Web Sphere
Soa & Bpel With Web SphereSoa & Bpel With Web Sphere
Soa & Bpel With Web Sphere
lakshmi isukapally

Soa & Bpel With Web Sphere
Soa & Bpel With Web SphereSoa & Bpel With Web Sphere
Soa & Bpel With Web Sphere
lakshmi isukapally

M017258892
M017258892M017258892
M017258892
IOSR Journals

Continuous Testing of Service-Oriented Applications Using Service Virtualization
Continuous Testing of Service-Oriented Applications Using Service VirtualizationContinuous Testing of Service-Oriented Applications Using Service Virtualization
Continuous Testing of Service-Oriented Applications Using Service Virtualization
iosrjce

Service Oriented Computing
Service Oriented ComputingService Oriented Computing
Service Oriented Computing
Aie Sa

BUSINESS SILOS INTEGRATION USING SERVICE ORIENTED ARCHITECTURE
BUSINESS SILOS INTEGRATION USING SERVICE ORIENTED ARCHITECTUREBUSINESS SILOS INTEGRATION USING SERVICE ORIENTED ARCHITECTURE
BUSINESS SILOS INTEGRATION USING SERVICE ORIENTED ARCHITECTURE
IJCSEA Journal

Enterprise Service Bus Features and Advantages.docx
Enterprise Service Bus Features and Advantages.docxEnterprise Service Bus Features and Advantages.docx
Enterprise Service Bus Features and Advantages.docx
cirek63365

service orentation documentation
service orentation documentationservice orentation documentation
service orentation documentation
pavan nani

Mis 20021241104 20021241103_20021241148_20021241155_20021241149_eai and flexi...
Mis 20021241104 20021241103_20021241148_20021241155_20021241149_eai and flexi...Mis 20021241104 20021241103_20021241148_20021241155_20021241149_eai and flexi...
Mis 20021241104 20021241103_20021241148_20021241155_20021241149_eai and flexi...
Shaunak Gujjewar

Microservices: A Step Towards Modernizing Healthcare Applications
Microservices: A Step Towards Modernizing Healthcare ApplicationsMicroservices: A Step Towards Modernizing Healthcare Applications
Microservices: A Step Towards Modernizing Healthcare Applications
CitiusTech

Cloud based integration_and_soa_architecture
Cloud based integration_and_soa_architectureCloud based integration_and_soa_architecture
Cloud based integration_and_soa_architecture
Fiorano Software

Migration and Security in SOA | Torry Harris Whitepaper
Migration and Security in SOA | Torry Harris WhitepaperMigration and Security in SOA | Torry Harris Whitepaper
Migration and Security in SOA | Torry Harris Whitepaper
Torry Harris Business Solutions

Web Services-Enhanced Agile Modeling and Integrating Business Processes
Web Services-Enhanced Agile Modeling and Integrating Business ProcessesWeb Services-Enhanced Agile Modeling and Integrating Business Processes
Web Services-Enhanced Agile Modeling and Integrating Business Processes
Mustafa Salam


Similar to 2011-ESB-WP-Draft (20)

SOA & ESB Presentation
SOA & ESB PresentationSOA & ESB Presentation
SOA & ESB Presentation

Getting started with Enterprise Application Integration (EAI) using Enterpris...
Getting started with Enterprise Application Integration (EAI) using Enterpris...Getting started with Enterprise Application Integration (EAI) using Enterpris...
Getting started with Enterprise Application Integration (EAI) using Enterpris...

Welcome to International Journal of Engineering Research and Development (IJERD)
Welcome to International Journal of Engineering Research and Development (IJERD)Welcome to International Journal of Engineering Research and Development (IJERD)
Welcome to International Journal of Engineering Research and Development (IJERD)

Chapter 2 - Enterprise Application Integration.pdf
Chapter 2 - Enterprise Application Integration.pdfChapter 2 - Enterprise Application Integration.pdf
Chapter 2 - Enterprise Application Integration.pdf

Performance in soa context
Performance in soa contextPerformance in soa context
Performance in soa context

CBSE VS SOA Presentation
CBSE VS SOA PresentationCBSE VS SOA Presentation
CBSE VS SOA Presentation

CBSE VS SOA SJSU Presentation
CBSE VS SOA SJSU PresentationCBSE VS SOA SJSU Presentation
CBSE VS SOA SJSU Presentation

Soa & Bpel With Web Sphere
Soa & Bpel With Web SphereSoa & Bpel With Web Sphere
Soa & Bpel With Web Sphere

Soa & Bpel With Web Sphere
Soa & Bpel With Web SphereSoa & Bpel With Web Sphere
Soa & Bpel With Web Sphere

M017258892
M017258892M017258892
M017258892

Continuous Testing of Service-Oriented Applications Using Service Virtualization
Continuous Testing of Service-Oriented Applications Using Service VirtualizationContinuous Testing of Service-Oriented Applications Using Service Virtualization
Continuous Testing of Service-Oriented Applications Using Service Virtualization

Service Oriented Computing
Service Oriented ComputingService Oriented Computing
Service Oriented Computing

BUSINESS SILOS INTEGRATION USING SERVICE ORIENTED ARCHITECTURE
BUSINESS SILOS INTEGRATION USING SERVICE ORIENTED ARCHITECTUREBUSINESS SILOS INTEGRATION USING SERVICE ORIENTED ARCHITECTURE
BUSINESS SILOS INTEGRATION USING SERVICE ORIENTED ARCHITECTURE

Enterprise Service Bus Features and Advantages.docx
Enterprise Service Bus Features and Advantages.docxEnterprise Service Bus Features and Advantages.docx
Enterprise Service Bus Features and Advantages.docx

service orentation documentation
service orentation documentationservice orentation documentation
service orentation documentation

Mis 20021241104 20021241103_20021241148_20021241155_20021241149_eai and flexi...
Mis 20021241104 20021241103_20021241148_20021241155_20021241149_eai and flexi...Mis 20021241104 20021241103_20021241148_20021241155_20021241149_eai and flexi...
Mis 20021241104 20021241103_20021241148_20021241155_20021241149_eai and flexi...

Microservices: A Step Towards Modernizing Healthcare Applications
Microservices: A Step Towards Modernizing Healthcare ApplicationsMicroservices: A Step Towards Modernizing Healthcare Applications
Microservices: A Step Towards Modernizing Healthcare Applications

Cloud based integration_and_soa_architecture
Cloud based integration_and_soa_architectureCloud based integration_and_soa_architecture
Cloud based integration_and_soa_architecture

Migration and Security in SOA | Torry Harris Whitepaper
Migration and Security in SOA | Torry Harris WhitepaperMigration and Security in SOA | Torry Harris Whitepaper
Migration and Security in SOA | Torry Harris Whitepaper

Web Services-Enhanced Agile Modeling and Integrating Business Processes
Web Services-Enhanced Agile Modeling and Integrating Business ProcessesWeb Services-Enhanced Agile Modeling and Integrating Business Processes
Web Services-Enhanced Agile Modeling and Integrating Business Processes


2011-ESB-WP-Draft

  • 1. Discovery Enterprise Service Bus (ESB) 14 Structural Characteristics and 9 Solutions for Enterprise Competitive Advantage How Enterprises can leverage an Enterprise Service Bus for competitive advantage January 24, 2011 The Discovery series is a set of ongoing papers providing analysis and synthesis of technological progressions for improving Enterprises' competitive advantage.

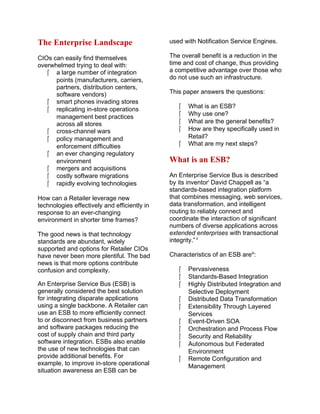

  • 2. The Enterprise Landscape CIOs can easily find themselves overwhelmed trying to deal with:  a large number of integration points (manufacturers, carriers, partners, distribution centers, software vendors)  smart phones invading stores  replicating in-store operations management best practices across all stores  cross-channel wars  policy management and enforcement difficulties  an ever changing regulatory environment  mergers and acquisitions  costly software migrations  rapidly evolving technologies How can a Retailer leverage new technologies effectively and efficiently in response to an ever-changing environment in shorter time frames? The good news is that technology standards are abundant, widely supported and options for Retailer CIOs have never been more plentiful. The bad news is that more options contribute confusion and complexity. An Enterprise Service Bus (ESB) is generally considered the best solution for integrating disparate applications using a single backbone. A Retailer can use an ESB to more efficiently connect to or disconnect from business partners and software packages reducing the cost of supply chain and third party software integration. ESBs also enable the use of new technologies that can provide additional benefits. For example, to improve in-store operational situation awareness an ESB can be used with Notification Service Engines. The overall benefit is a reduction in the time and cost of change, thus providing a competitive advantage over those who do not use such an infrastructure. This paper answers the questions:  What is an ESB?  Why use one?  What are the general benefits?  How are they specifically used in Retail?  What are my next steps? What is an ESB? An Enterprise Service Bus is described by its inventori David Chappell as “a standards-based integration platform that combines messaging, web services, data transformation, and intelligent routing to reliably connect and coordinate the interaction of significant numbers of diverse applications across extended enterprises with transactional integrity.” ii Characteristics of an ESB areiii :  Pervasiveness  Standards-Based Integration  Highly Distributed Integration and Selective Deployment  Distributed Data Transformation  Extensibility Through Layered Services  Event-Driven SOA  Orchestration and Process Flow  Security and Reliability  Autonomous but Federated Environment  Remote Configuration and Management

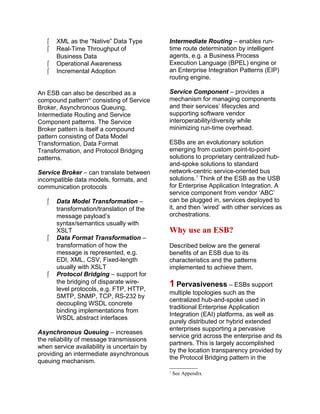

  • 3.  XML as the “Native” Data Type  Real-Time Throughput of Business Data  Operational Awareness  Incremental Adoption An ESB can also be described as a compound patterniv consisting of Service Broker, Asynchronous Queuing, Intermediate Routing and Service Component patterns. The Service Broker pattern is itself a compound pattern consisting of Data Model Transformation, Data Format Transformation, and Protocol Bridging patterns. Service Broker – can translate between incompatible data models, formats, and communication protocols  Data Model Transformation – transformation/translation of the message payload’s syntax/semantics usually with XSLT  Data Format Transformation – transformation of how the message is represented, e.g. EDI, XML, CSV, Fixed-length usually with XSLT  Protocol Bridging – support for the bridging of disparate wire- level protocols, e.g. FTP, HTTP, SMTP, SNMP, TCP, RS-232 by decoupling WSDL concrete binding implementations from WSDL abstract interfaces Asynchronous Queuing – increases the reliability of message transmissions when service availability is uncertain by providing an intermediate asynchronous queuing mechanism. Intermediate Routing – enables run- time route determination by intelligent agents, e.g. a Business Process Execution Language (BPEL) engine or an Enterprise Integration Patterns (EIP) routing engine. Service Component – provides a mechanism for managing components and their services’ lifecycles and supporting software vendor interoperability/diversity while minimizing run-time overhead. ESBs are an evolutionary solution emerging from custom point-to-point solutions to proprietary centralized hub- and-spoke solutions to standard network-centric service-oriented bus solutions.1 Think of the ESB as the USB for Enterprise Application Integration. A service component from vendor ‘ABC’ can be plugged in, services deployed to it, and then ‘wired’ with other services as orchestrations. Why use an ESB? Described below are the general benefits of an ESB due to its characteristics and the patterns implemented to achieve them. 1 Pervasiveness – ESBs support multiple topologies such as the centralized hub-and-spoke used in traditional Enterprise Application Integration (EAI) platforms, as well as purely distributed or hybrid extended enterprises supporting a pervasive service grid across the enterprise and its partners. This is largely accomplished by the location transparency provided by the Protocol Bridging pattern in the 1 See Appendix
  • 4. decoupling of protocol bindings from functional interfaces specified by WSDL. 2 Standards-Based Integration – ESBs implement a service framework using WSDLs to describe all endpoints on a message bus. This inherent support for WSDLs makes integration easier and therefore cheaper for third party software vendors. This is in large part due to less use of customer service, simpler integration, and smaller development teams when compared to traditional EAI approaches. Furthermore, ESBs reduce the inclination towards duplicating code lowering lifetime maintenance costs. Support for many of the WS-* standards (e.g. WS-Addressing, WS-BPEL) and Service Component standards (e.g. JBI, SCA, OSGi) reduces the amount of time and cost of integrating new business partners and software vendors compared to traditional EAI; integrators and developers are more likely to have experience in these standards. Also, it is a simpler process to change partners and software vendors due to the widespread use of WS-* standards. 3 Highly Distributed Integration and Selective Deployment – Individual Bindings, Services, Binding Components, and Service Components (Engines) can be selectively installed, deployed, initialized, started, stopped, shutdown, undeployed, and uninstalled (depending on the standard) in a production environment. This flexibility allows real-time software updates without needing to shutdown other functionality within the same application. For example, shutting down a service for update doesn’t stop other services from accepting requests. Requests to that service will be queued until the service is restarted. This inherent feature can support extreme uptime requirements maximizing hardware utilization and service level agreements (SLA). Currently three standards implement this feature:  Java Business Integration (JBI)  Service Component Architecture (SCA)  Open Services Gateway initiative (OSGi) Each standard provides a different level of granularity for lifecycle control with JBI providing the most and SCA the least. 4 Distributed Data Transformation – Transformations are supported inherently within an ESB and sometimes as a Service Component supporting mediation between different software vendor offerings and business partners. Transformations can be distributed to the geographic places where they are needed, minimizing network runtime overhead while still being available to any service on the bus. 5 Extensibility Through Layered Services – Additional capabilities can be added to provide more specialized needs such as a Business Process Execution Language (BPEL) engine or Notification engine as needed. 6 Event-Driven SOA – ESBs are event-driven in that they use Asynchronous Queues between services, which improve scalability and provide the ability to tune the application
  • 5. at a very granular level. All events are sent to the bus and services decide on who gets a copy, what events should be created in response to an event, and what other services should be called. These types of event structures are called Event Driven Architectures (EDA) and are used to speed up an enterprise’s operations. One high- performance example is a Staged EDA (SEDA).v 7 Process Flow – Designing all of the services within an ESB as a ‘flat’ library of services allows them to be easily orchestrated by process services. This orchestration directly supports lower-level routing of messages while also supporting higher-level routes as business processes. Orchestrations can be defined for a specific location and/or department while still supporting integration within a larger integrated network such as an extended-enterprise business process involving multiple industries. 8 Security and Reliability – ESBs can easily accommodate firewall- capable connections and provide natural distributed ‘choke’ points where mediation is used to enforce security measures such as authentication, authorization, integrity, and confidentiality. Reliability is normally achieved by using an enterprise-ready Message Oriented Middleware (MOM) as the messaging backbone. MOMs can transport asynchronous messages reliably using persistent queues with transactional integrity. 9 Autonomous but Federated Environment – Most organizations require differing levels of autonomy throughout the enterprise supporting some local processes and/or policies while using shared resources and maintaining centralized control. This environment was both technically and politically difficult to support with traditional EAI tools, requiring all messages to flow through a centralized message broker at a headquarters. This environment is possible with an ESB due to the abstraction of orchestrations and endpoints from their protocol bindings providing location transparency and thus a federation capability. 10 Remote Configuration and Management – Some organizations need applications to run in physical environments where no IT staff is available. Autonomous management of these local systems can be supported without relying on remote desktop-type solutions and a large amount of integration scripting. This is also derived from ESBs’ federation capability. 11 XML as the “Native Data Type” – XML makes data self- describing by including meta-data. This meta-data can be used by parser technologies to identify data even if the data’s location in the payload (its structure) changes. XML supports strong typing through the use of XML Schemas (XSD) while allowing additional data to be inserted without violating the XSD. This meta-data and flexibility allows powerful productivity tools such as BPEL, Rules Engines, and XSLT to adjust behavior and data in real-time by applying additional logic and data maintained separate from applications in use.
  • 6. 12 Real-Time Throughput of Business Data – There is generally very little latency in an ESB since all messaging is performed asynchronously providing a more consistent linear usage. In contrast, the still common nightly batch-based operations have a very high latency and produce spikes in system utilization thereby requiring excess hardware. 13 Operational Awareness – This characteristic of an ESB supports the use of third-party products by business users to gain insight into the current state of operations. An example product category is Notifications. 14 Incremental Adoption – This ESB characteristic helps to implement a roadmap towards future goals, steadily migrating from minimal integration to fully leveraging the latest technologies as a holistic solution while eliminating those not providing an acceptable return. How can Retailers use an ESB? As described above, an ESB is an integration broker containing WSDL- defined interfaces that provide location transparency, message and protocol translation, and increased flexibility. ESBs also ensure message availability, increase business scalability, and promote incremental adoption in the pursuit of improving operational awareness and business agility. Over the past decade, ESBs have been successfully adopted by companies in other industries and retailers are joining them. A 2007 survey by RedPrairie of some of the largest retailers in the United States showed that 30% of respondents used an ESB and 60% were interested in pursuing it. All but one who was interested in ESBs were also interested in Business Process Management (BPM) though only 10% were currently using a solution. Those numbers are expected to rise as awareness of benefits grows. Described below are some examples of Retail-specific issues whereby an ESB would be the ideal solution facilitator. 1 Integration Points – Retailers exist at the end of a global supply chain that delivers goods to consumers, so retailers can have a very large number of integration points. Integrations are performed between Headquarters, Stores, Manufacturers, Carriers, Distribution Centers, Warehouses, and even other Retailers. They can occur across multiple channels such as smart phones, eCommerce sites, in-store Kiosks, and in-store web applications for employees, using multiple software vendor product lines such as POS, Scales, Inventory Management, Financial, ERP, CRM and others. The number of integration points can easily grow into the thousands. ESBs are well- suited for this environment; their primary use is for integrating large numbers of points using standards from organizations such as W3C and OASIS, message transformations, and multiple protocol bindings. 2 Smart Phone Invasion – More consumers are using their smart phones to run mobile applications in retail stores for inventory queries, competitive price queriesvi , recipes, mobile payments, etc.
  • 7. This trend is expected to increase dramatically as smart phone sales and market penetration increase. Retailers can differentiate themselves by exposing and publishing their own Application Programming Interfaces (API) using WSDLs, common WS-* standards and supporting multiple protocols so that mobile software providers can build out an array of new applications while the Retailer minimizes internal development. 3 In-Store Operations Management Best Practices – Many customers have reported a spectrum of difficulties in integrating pre- packaged solutions to fit their unique business needs. For example, ERP solutions might require a retailer to change its business processes to match the software. Some of the changes may bring better business practices, but in other cases, the retailer’s business practices might be a competitive advantage that the software simply doesn’t support. Through use of service brokers, service orchestrations, standardized service components, and messaging, ESBs provide the flexibility to support the desired level of change efficiently. Having the ability for managers or clerks to receive notifications of business events can dramatically improve situational awareness. Additionally, orchestrating business events to retrieve additional information can dramatically enhance situational awareness and lead to better manual and automated decision making while reducing latency in both manual and automated activities. 4 Cross-Channel – Cross-channel opportunities are on the rise and Retailers are discovering their legacy systems are inadequate. These systems truly require tight inventory management in near real-time.vii Through use of asynchronous queues and a distributable service broker, ESBs can provide the backbone to support the integration of any number of channels efficiently. 5 Policy Management and Enforcement – Retailers seek to manage and enforce policies throughout the enterprise’s employee hierarchy. Traditional EAI made this difficult due to their use of centralized brokers. Through their Federated characteristic, ESBs can support policy management from any location and enforcement by distribution out to selected Policy Enforcement and Decision Points (PEP/PDP) using standards such as WS-Policy, XACML, and WS-Security. 6 Regulatory Impacts – Bills affecting retail, such as the Food Safety and Tracking Improvement Actviii , are used to help ensure public safety but come at a cost to the retailers implementing them. Some of these laws require more frequent changes to regulations such as the Food and Safety Modernization Act.ix Are current systems designed to support such frequent change efficiently? This is a fundamental benefit in using an ESB as the backplane for supporting change in shorter cycles at reduced cost through support for service orchestrations and XML for messaging. 7 Mergers and Acquisitions – When Retailers purchase and integrate another Retailer, application
  • 8. integrations, migrations, and retirements are pursued. An ESB supports this through selective deployment and/or retirement at Service Component and Service granularities, depending on the Service Component standard chosen (JBI/SCA/OSGi) and through changes to service orchestrations (e.g. BPEL). 8 Software Vendor Migrations – Changing out software vendors technically involves integration of three things:  Protocols  Data  Applications This can be accomplished with standard ESBs, knowledgeable integration staff, and GUI-based tools without the need for development staff when standard protocols are used and all functional service (application) and data requirements have already been developed. 9 Technological Progress – As technologies come and go, we desire to test them out in pilots to see if they produce enough benefits to warrant further use throughout the Enterprise. This is a fantastic benefit of an ESB in that new technologies can be integrated and removed at reduced cost due to its mediation capabilities as a Service Broker and standardized Service Component and orchestration support. What are the next steps? When evaluating ESBs, the best approach is to determine what features are needed to support current and future projects, what features current ESB vendor offerings provide, how they are currently built today, and if there is a vendor that can meet feature needs through an acceptable structure. ESBs can be broken up into five main categories: Extended MOM, Extended Integration Broker, Extended Application Server, Endpoint-Based Plugin Channels, and Mediation Agents (not truly considered ESBs).x Some features to take into consideration when evaluating them for fit include:  Backbone type (Extended MOM, Extended Integration Broker, etc.)  Quality of service (Clustering, Transactional Integrity, Message Prioritization, etc.)  Mediation support (Routing, protocol bridging, transformation, MEPs, etc.)  Service components (JBI, OSGi, SCA)  Legacy adaptors (e.g. JNI)  Tooling (Service Repository, Service Management, etc.)  Interoperability standards (e.g. HTTP, JMS, WS-*, JBI, BPEL) Keep in mind that multiple ESB vendors can be used if necessary depending on the level of interoperability standards supported particularly WS-* message standards. Most ESBs are developed in Java due to its operating system independence and support for robust standards. Knowledge of XML, XML Schemas, XSLT, WSDL, WS-*, JBI/SCA/OSGi, and BPEL are recommended.
  • 9. Appendix Figure 1: The Evolution of Integration Modelsxi
  • 10. i "ESB Inventory" Riddle Solved?". http://soafusion.com/Documents/Datamonitor%20ComputerWire%20-%20_ESB %20Inventor_%20Riddle%20Solved_full.pdf. Accessed 15 December 2010 ii David Chappell (2004). Enterprise Service Bus. ISBN 0-596-00675-6 pp 1,2 iii David Chappell (2004). Enterprise Service Bus. ISBN 0-596-00675-6 pp 7-18 iv Thomas Erl (2009). SOA Design Patterns ISBN 978-0-13-613516-6 pp 704-6 v Matt Welsh. The Staged Event-Driven Architecture for Highly-Concurrent Server Applications. http://www.eecs.harvard.edu/~mdw/papers/quals-seda.pdf. Accessed 30 December 2010 vi Tom Ryan (23/12/2010). Meet the Enemy: Price Comparison Apps. http://www.retailtouchpoints.com/cross-channel- strategies/669-meet-the-enemy-price-comparison-apps.html vii Tom Ryan (9/12/2010). The Buy Online, Pick-Up In-Store Wars. http://www.retailtouchpoints.com/cross-channel- strategies/655-the-buy-online-pick-up-in-store-wars.html. Accessed 29 December 2010 viii S.425: Food Safety and Tracking Improvement Act. http://www.govtrack.us/congress/bill.xpd?bill=s111-425. Accessed 19 January 2011. ix The Huffington Post (23/12/2010).Food Safety Act: 18 Changes To Food Safety The New Law Will Bring. http://www.huffingtonpost.com/2010/12/23/food-safety-bill_n_800236.html#s213430&title=undefined. Accessed 29 December 2010. x Anne Thomas Manes (5/10/2007), Burton Group. Enterprise Service Bus: A Definition. http://i.i.com.com/cnwk.1d/html/itp/burton_ESB.pdf. pp 11,12 xi Joe Skorupa (2007). SOA Workshop. http://risnews.edgl.com/retail-trends/SOA-Workshop38759
