1. MONTREAL 1/3 JULY 2011
ERRest
Pascal Robert
Conatus/MacTI

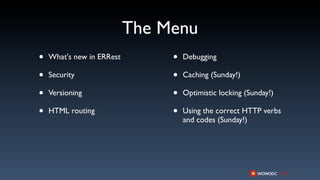

2. The Menu
• What's new in ERRest • Debugging
• Security • Caching (Sunday!)
• Versioning • Optimistic locking (Sunday!)
• HTML routing • Using the correct HTTP verbs
and codes (Sunday!)

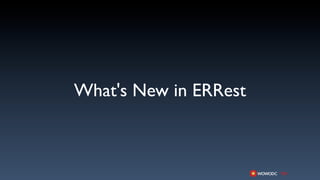

3. What's New in ERRest

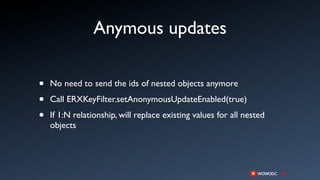

4. Anymous updates
• No need to send the ids of nested objects anymore
• Call ERXKeyFilter.setAnonymousUpdateEnabled(true)
• If 1:N relationship, will replace existing values for all nested
objects

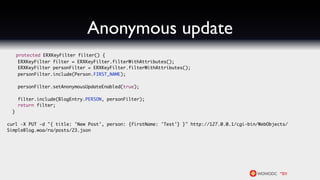

5. Anonymous update
protected ERXKeyFilter filter() {
ERXKeyFilter filter = ERXKeyFilter.filterWithAttributes();
ERXKeyFilter personFilter = ERXKeyFilter.filterWithAttributes();
personFilter.include(Person.FIRST_NAME);
personFilter.setAnonymousUpdateEnabled(true);
filter.include(BlogEntry.PERSON, personFilter);
return filter;
}
curl -X PUT -d "{ title: 'New Post', person: {firstName: 'Test'} }" http://127.0.0.1/cgi-bin/WebObjects/
SimpleBlog.woa/ra/posts/23.json

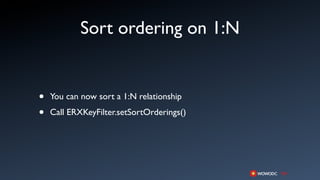

6. Sort ordering on 1:N
• You can now sort a 1:N relationship
• Call ERXKeyFilter.setSortOrderings()

7. Sort ordering
ERXKeyFilter filter = ERXKeyFilter.filterWithAttributes();
ERXKeyFilter categoryFilter = ERXKeyFilter.filterWithAttributes();
categoryFilter.setSortOrderings(BlogCategory.SHORT_NAME.ascs());
filter.include(BlogEntry.CATEGORIES, categoryFilter);

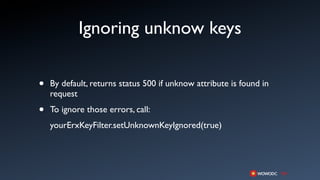

8. Ignoring unknow keys
• By default, returns status 500 if unknow attribute is found in
request
• To ignore those errors, call:
yourErxKeyFilter.setUnknownKeyIgnored(true)

9. ERXRouteController.performActi
onName
That method have been split in 5 methods to make it easier to
override on the method.

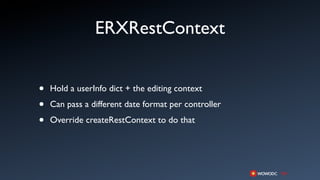

10. ERXRestContext
• Hold a userInfo dict + the editing context
• Can pass a different date format per controller
• Override createRestContext to do that

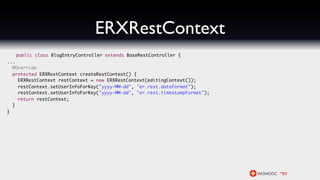

11. ERXRestContext
public class BlogEntryController extends BaseRestController {
...
@Override
protected ERXRestContext createRestContext() {
ERXRestContext restContext = new ERXRestContext(editingContext());
restContext.setUserInfoForKey("yyyy-MM-dd", "er.rest.dateFormat");
restContext.setUserInfoForKey("yyyy-MM-dd", "er.rest.timestampFormat");
return restContext;
}
}

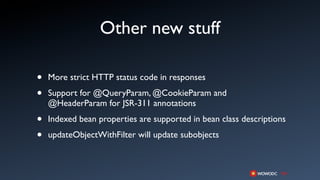

12. Other new stuff
• More strict HTTP status code in responses
• Support for @QueryParam, @CookieParam and
@HeaderParam for JSR-311 annotations
• Indexed bean properties are supported in bean class descriptions
• updateObjectWithFilter will update subobjects

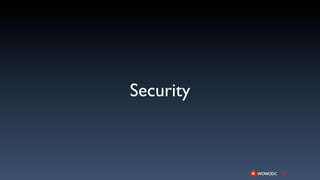

13. Security

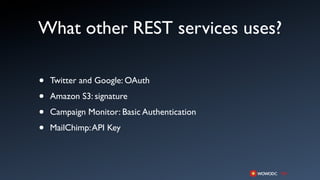

14. What other REST services uses?
• Twitter and Google: OAuth
• Amazon S3: signature
• Campaign Monitor: Basic Authentication
• MailChimp: API Key

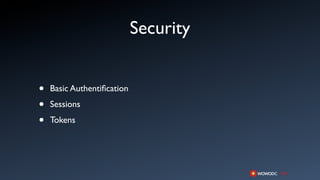

15. Security
• Basic Authentification
• Sessions
• Tokens

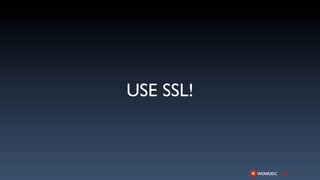

16. USE SSL!

17. Basic Auth

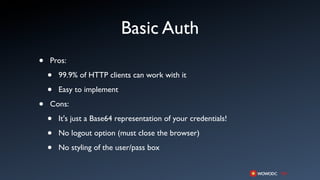

18. Basic Auth
• Pros:
• 99.9% of HTTP clients can work with it
• Easy to implement
• Cons:
• It's just a Base64 representation of your credentials!
• No logout option (must close the browser)
• No styling of the user/pass box

19. Implementing Basic Auth
protected void initAuthentication() throws MemberException, NotAuthorizedException {
String authValue = request().headerForKey( "authorization" );
if( authValue != null ) {
try {
byte[] authBytes = new BASE64Decoder().decodeBuffer( authValue.replace( "Basic ", "" ) );
String[] parts = new String( authBytes ).split( ":", 2 );
String username = parts[0];
String password = parts[1];
setAuthenticatedUser(Member.validateLogin(editingContext(), username, password));
} catch ( IOException e ) {
log.error( "Could not decode basic auth data: " + e.getMessage() );
e.printStackTrace();
}
} else {
throw new NotAuthorizedException();
}
}
public class NotAuthorizedException extends Exception {
public NotAuthorizedException() {
super();
}
}

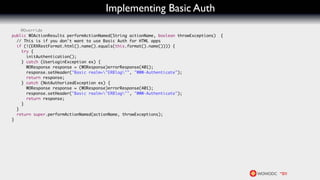

20. Implementing Basic Auth
@Override
public WOActionResults performActionNamed(String actionName, boolean throwExceptions) {
// This is if you don't want to use Basic Auth for HTML apps
if (!(ERXRestFormat.html().name().equals(this.format().name()))) {
try {
initAuthentication();
} catch (UserLoginException ex) {
WOResponse response = (WOResponse)errorResponse(401);
response.setHeader("Basic realm="ERBlog"", "WWW-Authenticate");
return response;
} catch (NotAuthorizedException ex) {
WOResponse response = (WOResponse)errorResponse(401);
response.setHeader("Basic realm="ERBlog"", "WWW-Authenticate");
return response;
}
}
return super.performActionNamed(actionName, throwExceptions);
}

21. Sessions
• Pros:
• Can store other data on the server-side (but REST is suppose to be
stateless)
• Easy to implement
• Cons:
• Timeouts...
• Sessions are bind to a specific instance of the app
• State on the server
• Non-browser clients have to store the session ID

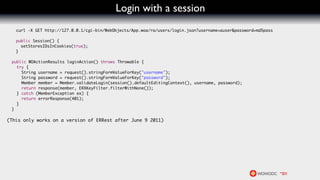

22. Login with a session
curl -X GET http://127.0.0.1/cgi-bin/WebObjects/App.woa/ra/users/login.json?username=auser&password=md5pass
public Session() {
setStoresIDsInCookies(true);
}
public WOActionResults loginAction() throws Throwable {
try {
String username = request().stringFormValueForKey("username");
String password = request().stringFormValueForKey("password");
Member member = Member.validateLogin(session().defaultEditingContext(), username, password);
return response(member, ERXKeyFilter.filterWithNone());
} catch (MemberException ex) {
return errorResponse(401);
}
}
(This only works on a version of ERRest after June 9 2011)

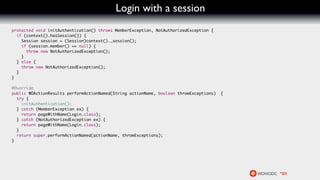

23. Login with a session
protected void initAuthentication() throws MemberException, NotAuthorizedException {
if (context().hasSession()) {
Session session = (Session)context()._session();
if (session.member() == null) {
throw new NotAuthorizedException();
}
} else {
throw new NotAuthorizedException();
}
}
@Override
public WOActionResults performActionNamed(String actionName, boolean throwExceptions) {
try {
initAuthentication();
} catch (MemberException ex) {
return pageWithName(Login.class);
} catch (NotAuthorizedException ex) {
return pageWithName(Login.class);
}
return super.performActionNamed(actionName, throwExceptions);
}

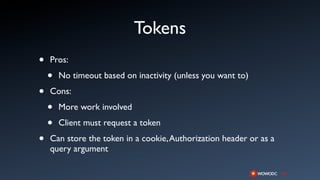

24. Tokens
• Pros:
• No timeout based on inactivity (unless you want to)
• Cons:
• More work involved
• Client must request a token
• Can store the token in a cookie, Authorization header or as a
query argument

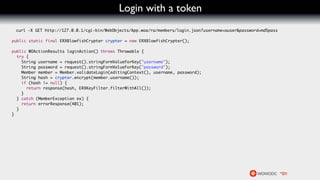

25. Login with a token
curl -X GET http://127.0.0.1/cgi-bin/WebObjects/App.woa/ra/members/login.json?username=auser&password=md5pass
public static final ERXBlowfishCrypter crypter = new ERXBlowfishCrypter();
public WOActionResults loginAction() throws Throwable {
try {
String username = request().stringFormValueForKey("username");
String password = request().stringFormValueForKey("password");
Member member = Member.validateLogin(editingContext(), username, password);
String hash = crypter.encrypt(member.username());
if (hash != null) {
return response(hash, ERXKeyFilter.filterWithAll());
}
} catch (MemberException ex) {
return errorResponse(401);
}
}

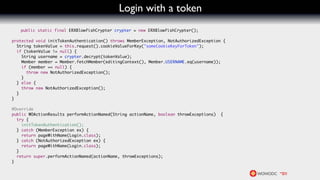

26. Login with a token
public static final ERXBlowfishCrypter crypter = new ERXBlowfishCrypter();
protected void initTokenAuthentication() throws MemberException, NotAuthorizedException {
String tokenValue = this.request().cookieValueForKey("someCookieKeyForToken");
if (tokenValue != null) {
String username = crypter.decrypt(tokenValue);
Member member = Member.fetchMember(editingContext(), Member.USERNAME.eq(username));
if (member == null) {
throw new NotAuthorizedException();
}
} else {
throw new NotAuthorizedException();
}
}
@Override
public WOActionResults performActionNamed(String actionName, boolean throwExceptions) {
try {
initTokenAuthentication();
} catch (MemberException ex) {
return pageWithName(Login.class);
} catch (NotAuthorizedException ex) {
return pageWithName(Login.class);
}
return super.performActionNamed(actionName, throwExceptions);
}

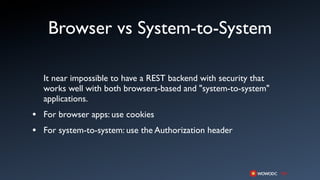

27. Browser vs System-to-System
It near impossible to have a REST backend with security that
works well with both browsers-based and "system-to-system"
applications.
• For browser apps: use cookies
• For system-to-system: use the Authorization header

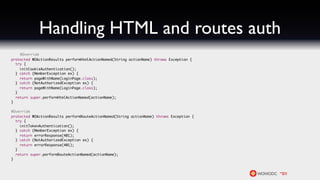

28. Handling HTML and routes auth
@Override
protected WOActionResults performHtmlActionNamed(String actionName) throws Exception {
try {
initCookieAuthentication();
} catch (MemberException ex) {
return pageWithName(LoginPage.class);
} catch (NotAuthorizedException ex) {
return pageWithName(LoginPage.class);
}
return super.performHtmlActionNamed(actionName);
}
@Override
protected WOActionResults performRouteActionNamed(String actionName) throws Exception {
try {
initTokenAuthentication();
} catch (MemberException ex) {
return errorResponse(401);
} catch (NotAuthorizedException ex) {
return errorResponse(401);
}
return super.performRouteActionNamed(actionName);
}

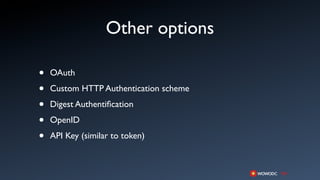

29. Other options
• OAuth
• Custom HTTP Authentication scheme
• Digest Authentification
• OpenID
• API Key (similar to token)

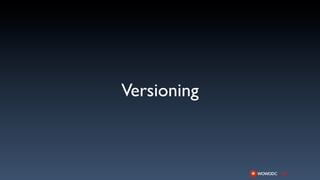

30. Versioning

31. Versioning
• Try hard to not having to version your REST services...
• ... but life is never as planified
• Use mod_rewrite and ERXApplication._rewriteURL to make it
easier
• Use mod_rewrite even if you are not versionning! It makes
shorter and nicer URLs

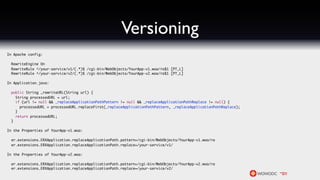

32. Versioning
In Apache config:
RewriteEngine On
RewriteRule ^/your-service/v1/(.*)$ /cgi-bin/WebObjects/YourApp-v1.woa/ra$1 [PT,L]
RewriteRule ^/your-service/v2/(.*)$ /cgi-bin/WebObjects/YourApp-v2.woa/ra$1 [PT,L]
In Application.java:
public String _rewriteURL(String url) {
String processedURL = url;
if (url != null && _replaceApplicationPathPattern != null && _replaceApplicationPathReplace != null) {
processedURL = processedURL.replaceFirst(_replaceApplicationPathPattern, _replaceApplicationPathReplace);
}
return processedURL;
}
In the Properties of YourApp-v1.woa:
er.extensions.ERXApplication.replaceApplicationPath.pattern=/cgi-bin/WebObjects/YourApp-v1.woa/ra
er.extensions.ERXApplication.replaceApplicationPath.replace=/your-service/v1/
In the Properties of YourApp-v2.woa:
er.extensions.ERXApplication.replaceApplicationPath.pattern=/cgi-bin/WebObjects/YourApp-v2.woa/ra
er.extensions.ERXApplication.replaceApplicationPath.replace=/your-service/v2/

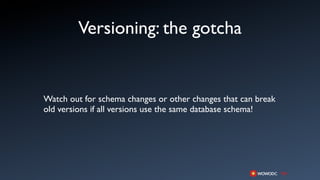

33. Versioning: the gotcha
Watch out for schema changes or other changes that can break
old versions if all versions use the same database schema!

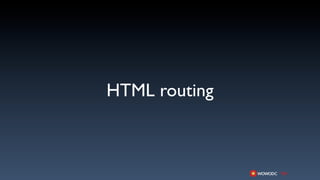

34. HTML routing

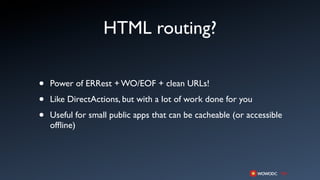

35. HTML routing?
• Power of ERRest + WO/EOF + clean URLs!
• Like DirectActions, but with a lot of work done for you
• Useful for small public apps that can be cacheable (or accessible
offline)

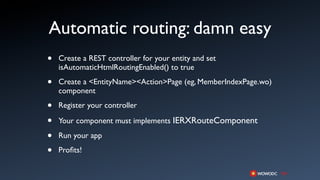

36. Automatic routing: damn easy
• Create a REST controller for your entity and set
isAutomaticHtmlRoutingEnabled() to true
• Create a <EntityName><Action>Page (eg, MemberIndexPage.wo)
component
• Register your controller
• Your component must implements IERXRouteComponent
• Run your app
• Profits!

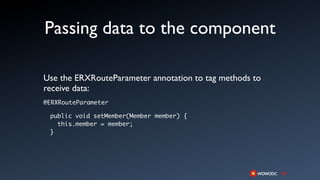

37. Passing data to the component
Use the ERXRouteParameter annotation to tag methods to
receive data:
@ERXRouteParameter
public void setMember(Member member) {
this.member = member;
}

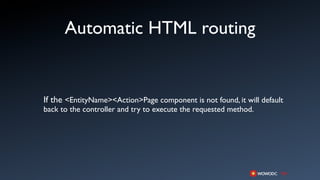

38. Automatic HTML routing
If the <EntityName><Action>Page component is not found, it will default
back to the controller and try to execute the requested method.

39. HTML routing gotchas
• When submitting forms, you're back to the stateful request
handler
• ERXRouteUrlUtils doesn't create rewritten URLs

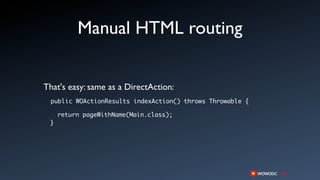

40. Manual HTML routing
That's easy: same as a DirectAction:
public WOActionResults indexAction() throws Throwable {
return pageWithName(Main.class);
}

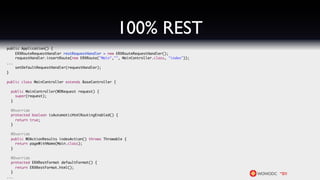

41. 100% REST
public Application() {
ERXRouteRequestHandler restRequestHandler = new ERXRouteRequestHandler();
requestHandler.insertRoute(new ERXRoute("Main","", MainController.class, "index"));
...
setDefaultRequestHandler(requestHandler);
}
public class MainController extends BaseController {
public MainController(WORequest request) {
super(request);
}
@Override
protected boolean isAutomaticHtmlRoutingEnabled() {
return true;
}
@Override
public WOActionResults indexAction() throws Throwable {
return pageWithName(Main.class);
}
@Override
protected ERXRestFormat defaultFormat() {
return ERXRestFormat.html();
}
...

42. HTML routing: demo

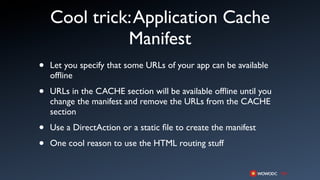

43. Cool trick: Application Cache
Manifest
• Let you specify that some URLs of your app can be available
offline
• URLs in the CACHE section will be available offline until you
change the manifest and remove the URLs from the CACHE
section
• Use a DirectAction or a static file to create the manifest
• One cool reason to use the HTML routing stuff

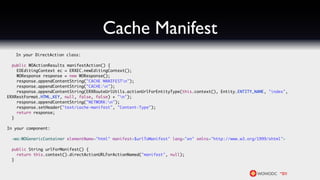

44. Cache Manifest
In your DirectAction class:
public WOActionResults manifestAction() {
EOEditingContext ec = ERXEC.newEditingContext();
WOResponse response = new WOResponse();
response.appendContentString("CACHE MANIFESTn");
response.appendContentString("CACHE:n");
response.appendContentString(ERXRouteUrlUtils.actionUrlForEntityType(this.context(), Entity.ENTITY_NAME, "index",
ERXRestFormat.HTML_KEY, null, false, false) + "n");
response.appendContentString("NETWORK:n");
response.setHeader("text/cache-manifest", "Content-Type");
return response;
}
In your component:
<wo:WOGenericContainer elementName="html" manifest=$urlToManifest" lang="en" xmlns="http://www.w3.org/1999/xhtml">
public String urlForManifest() {
return this.context().directActionURLForActionNamed("manifest", null);
}

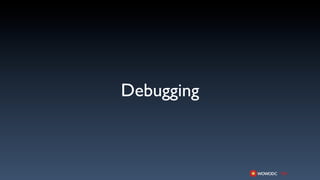

45. Debugging

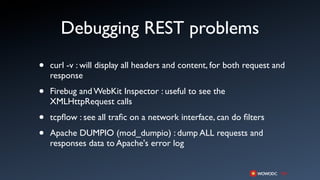

46. Debugging REST problems
• curl -v : will display all headers and content, for both request and
response
• Firebug and WebKit Inspector : useful to see the
XMLHttpRequest calls
• tcpflow : see all trafic on a network interface, can do filters
• Apache DUMPIO (mod_dumpio) : dump ALL requests and
responses data to Apache's error log

47. Debugging Demo

48. MONTREAL 1/3 JULY 2011
Q&A
