This document provides an overview of Hibernate Envers, a Hibernate module that enables easy auditing of persistent classes. It discusses how to activate Envers for an entity class, the different annotations used to configure the audit process, and how to query the audit information stored in revision tables. Envers allows tracking changes to entities and retrieving past versions through an AuditReader interface, with support for filtering, ordering and paging results. It provides an out-of-the-box solution for auditing entity data with Hibernate.

2. Easy Entity Auditing
With Hibernate Envers
Romain Linsolas
Java & Web Developer
Société Générale
@romaintaz

3. Romain Linsolas
Who am I?
■ Java & Web developer;
■ Technical architect, Software Factory gardener;
■ @ Société Générale (french bank)
http://linsolas.free.fr/wordpress
@romaintaz
https://github.com/linsolas
3

4. (1) What is Hibernate Envers?

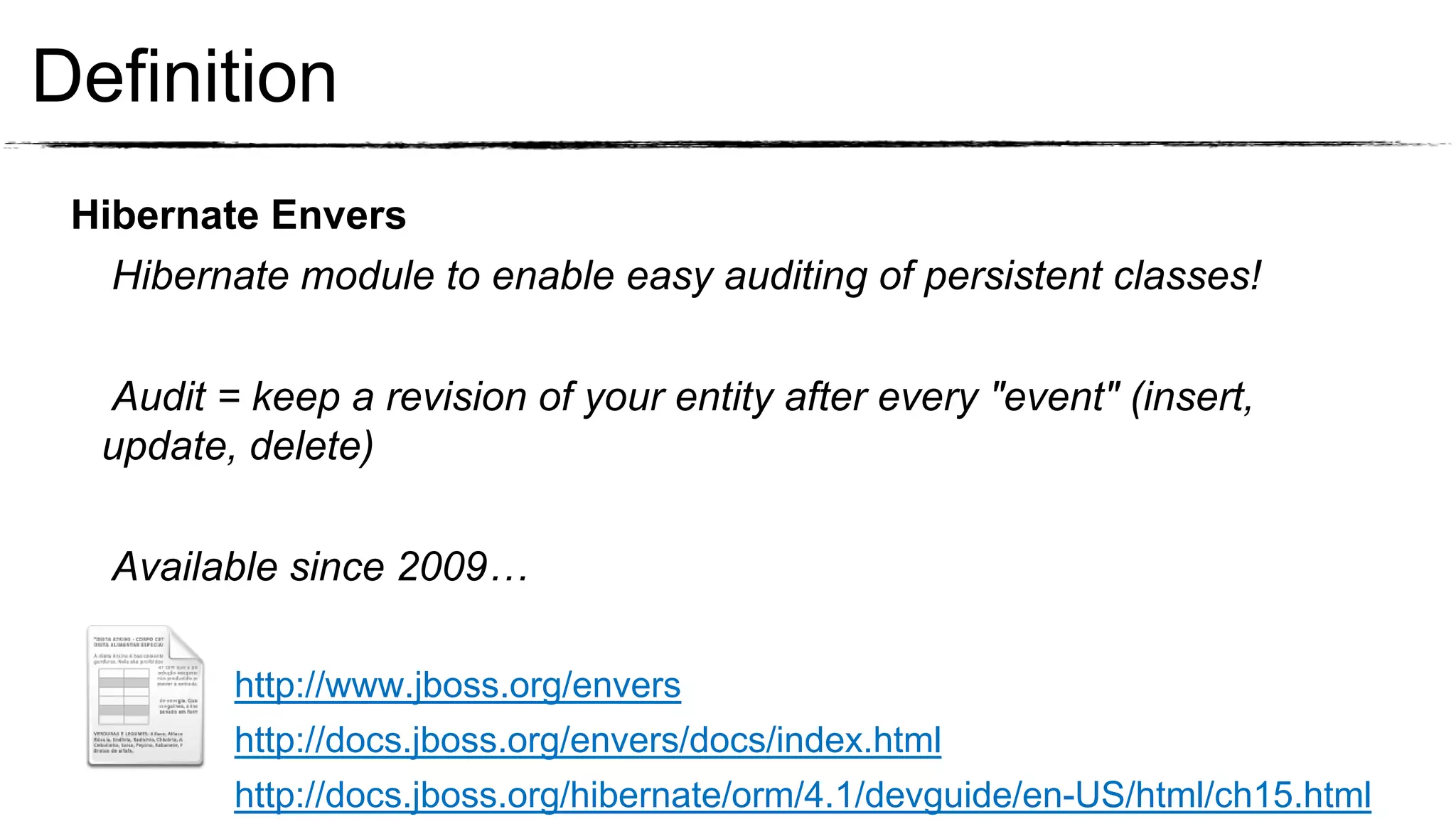

5. Definition
Hibernate Envers
Hibernate module to enable easy auditing of persistent classes!
Audit = keep a revision of your entity after every "event" (insert,
update, delete)
Available since 2009…
http://www.jboss.org/envers
http://docs.jboss.org/envers/docs/index.html
http://docs.jboss.org/hibernate/orm/4.1/devguide/en-US/html/ch15.html

6. (2) Activation

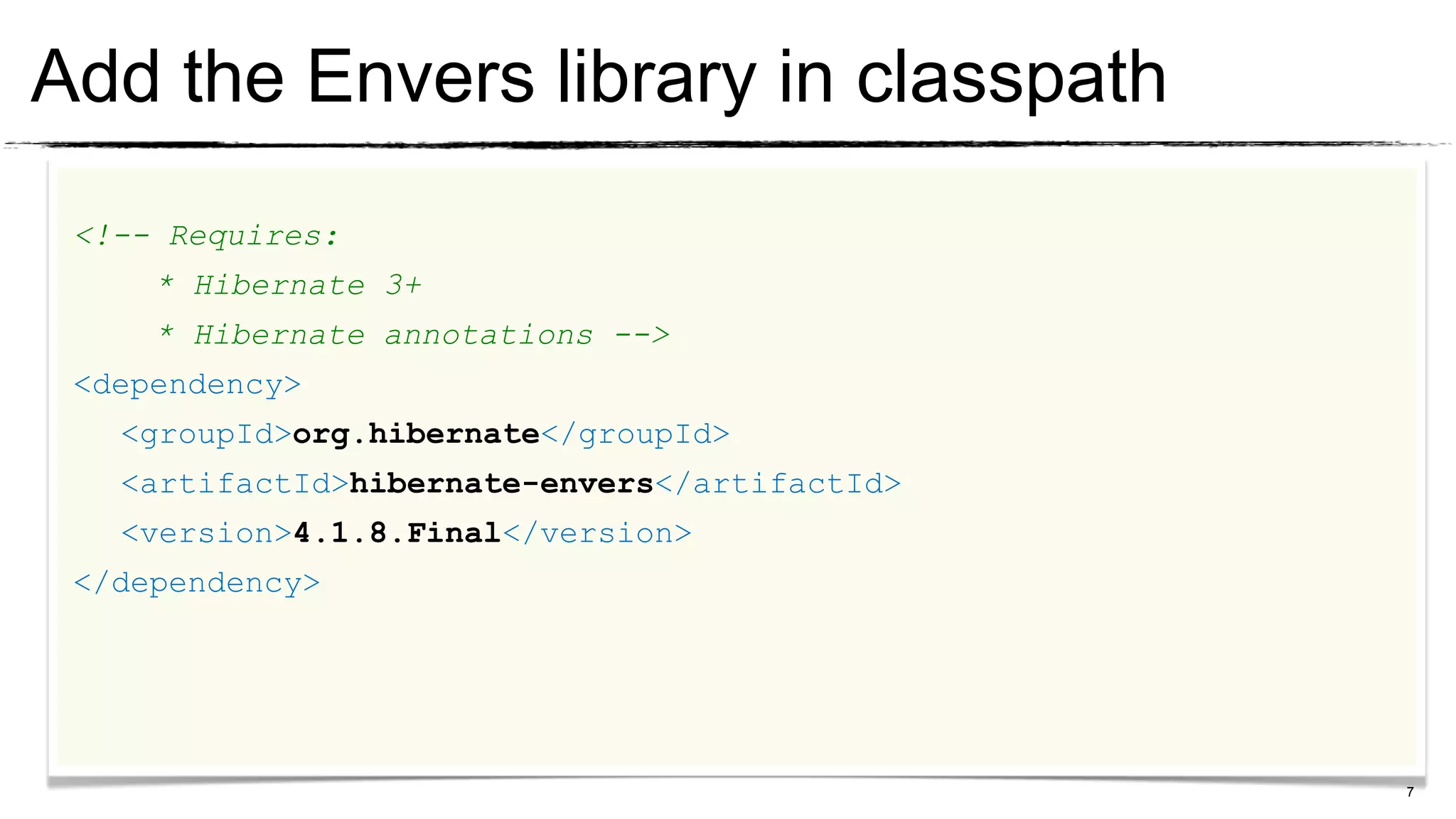

7. Add the Envers library in classpath
<!-- Requires:
* Hibernate 3+
* Hibernate annotations -->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-envers</artifactId>
<version>4.1.8.Final</version>
</dependency>
7

8. (3) Start the audit

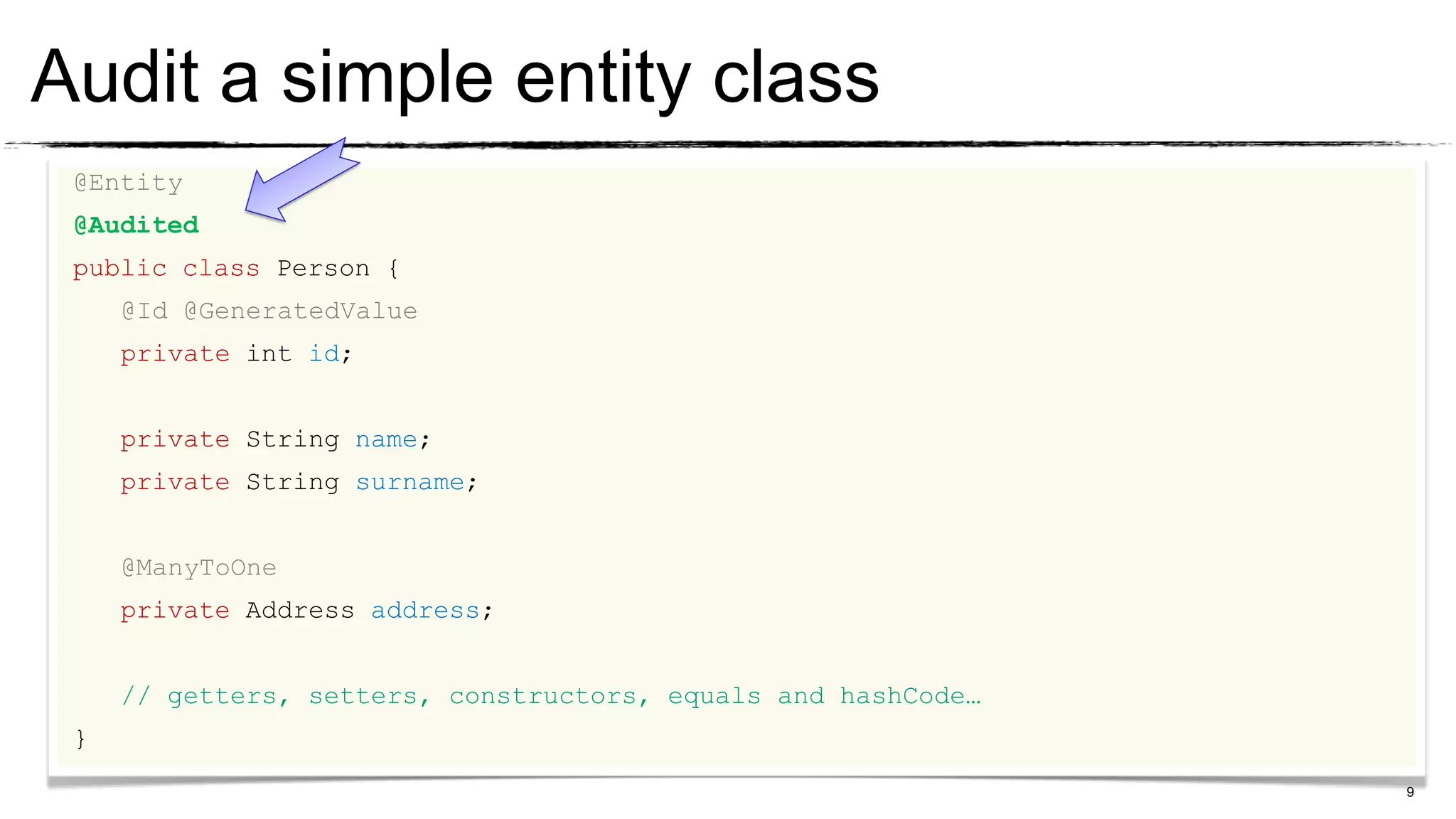

9. Audit a simple entity class
@Entity
@Audited
public class Person {
@Id @GeneratedValue
private int id;
private String name;
private String surname;
@ManyToOne
private Address address;
// getters, setters, constructors, equals and hashCode…
}
9

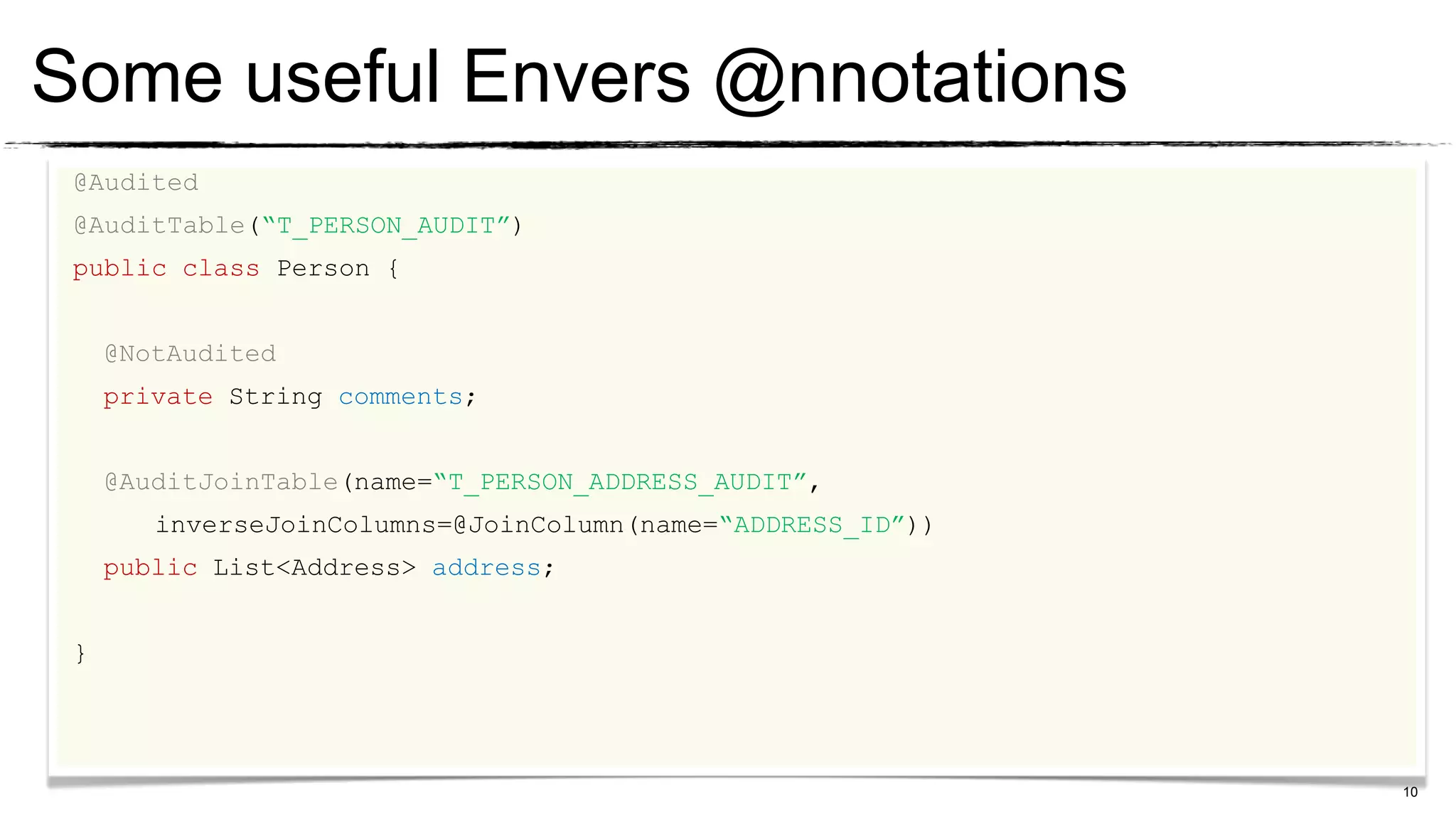

10. Some useful Envers @nnotations
@Audited
@AuditTable(“T_PERSON_AUDIT”)
public class Person {
@NotAudited
private String comments;
@AuditJoinTable(name=“T_PERSON_ADDRESS_AUDIT”,
inverseJoinColumns=@JoinColumn(name=“ADDRESS_ID”))
public List<Address> address;
}
10

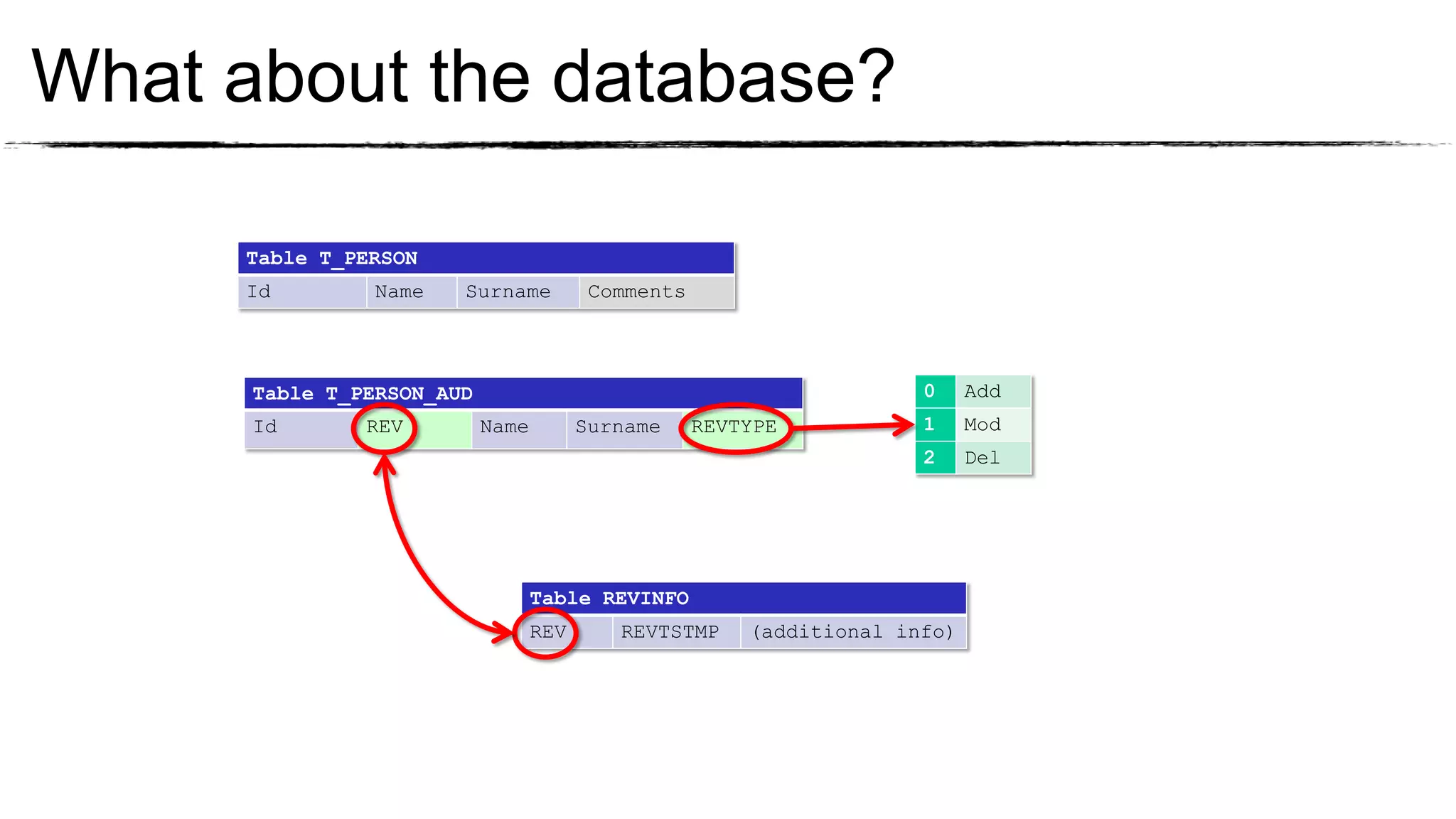

11. What about the database?
Table T_PERSON
Id Name Surname Comments
Table T_PERSON_AUD 0 Add
Id REV Name Surname REVTYPE 1 Mod
2 Del
Table REVINFO
REV REVTSTMP (additional info)

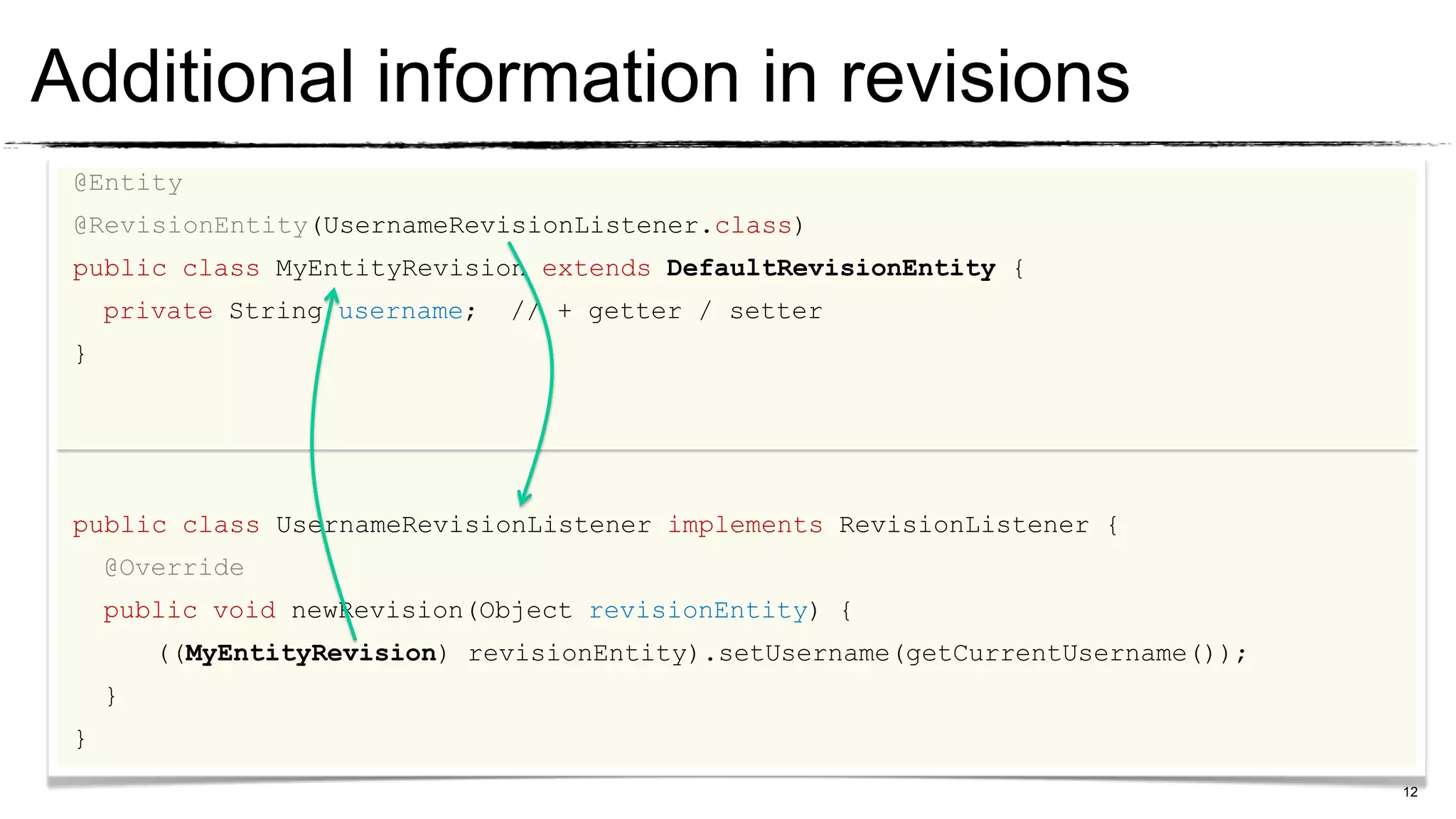

12. Additional information in revisions
@Entity
@RevisionEntity(UsernameRevisionListener.class)
public class MyEntityRevision extends DefaultRevisionEntity {
private String username; // + getter / setter
}
public class UsernameRevisionListener implements RevisionListener {
@Override
public void newRevision(Object revisionEntity) {
((MyEntityRevision) revisionEntity).setUsername(getCurrentUsername());
}
}
12

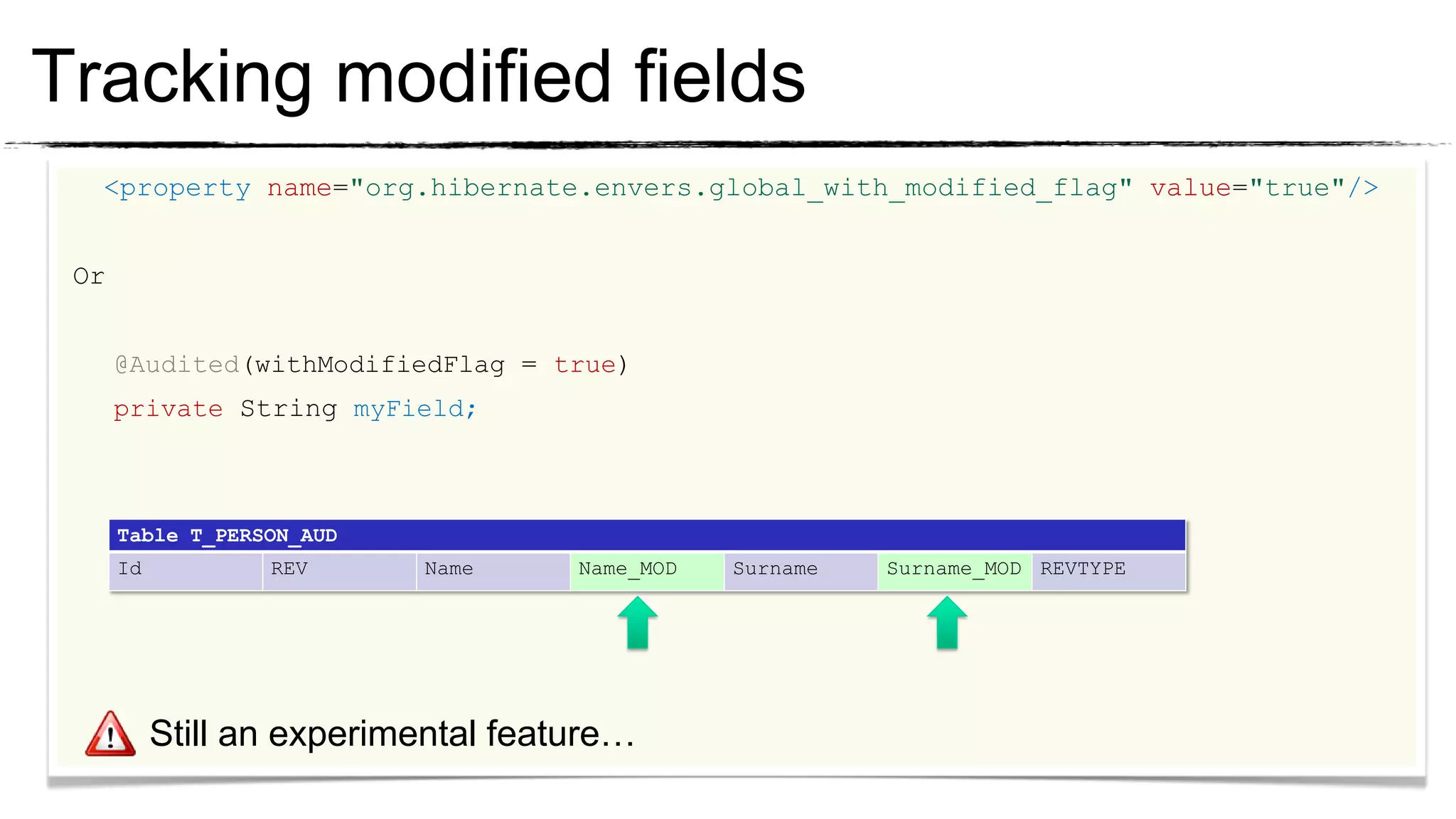

13. Tracking modified fields
<property name="org.hibernate.envers.global_with_modified_flag" value="true"/>
Or
@Audited(withModifiedFlag = true)
private String myField;
Table T_PERSON_AUD
Id REV Name Name_MOD Surname Surname_MOD REVTYPE
Still an experimental feature…

14. (4) Query audit information

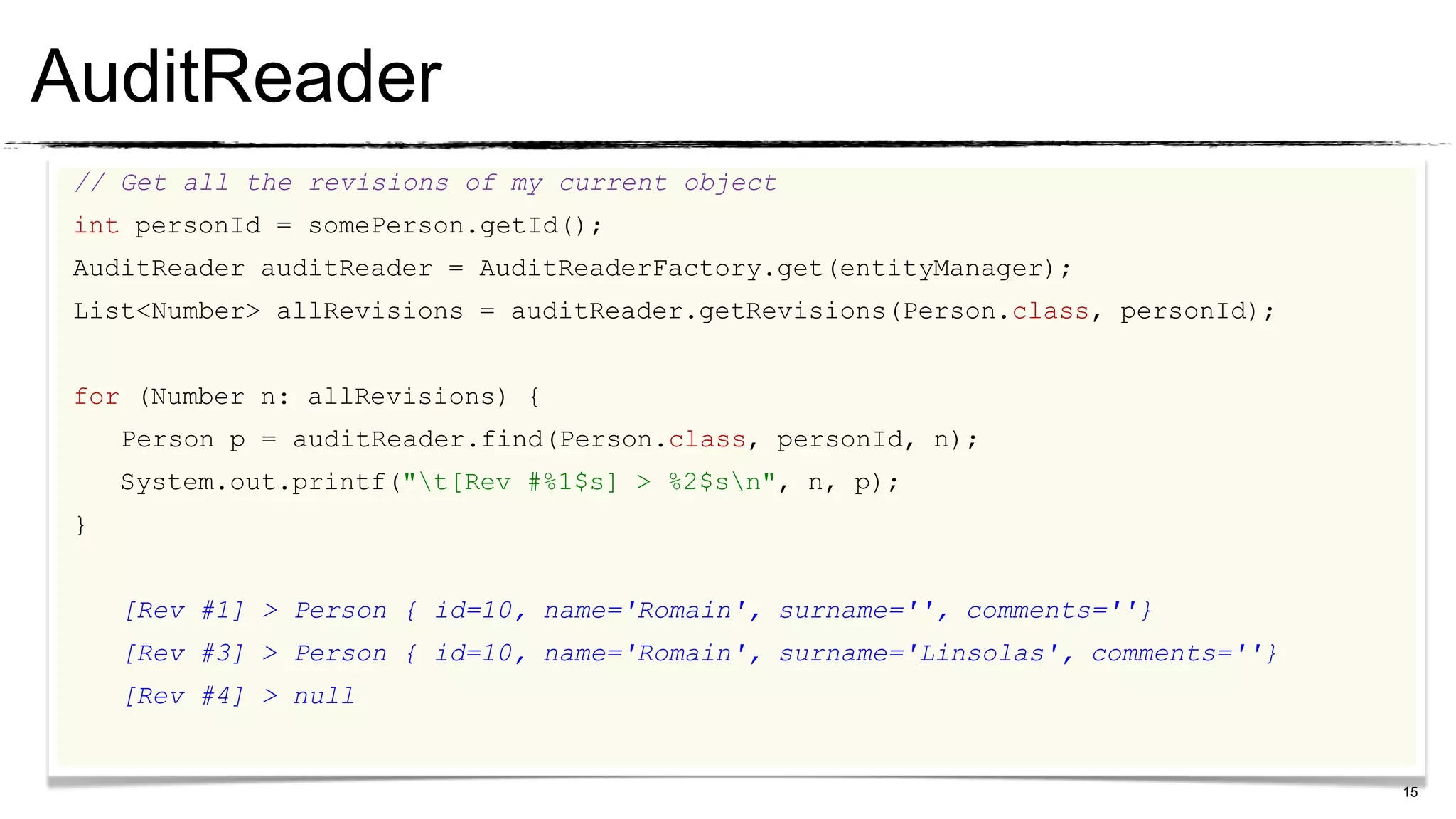

15. AuditReader
// Get all the revisions of my current object
int personId = somePerson.getId();
AuditReader auditReader = AuditReaderFactory.get(entityManager);
List<Number> allRevisions = auditReader.getRevisions(Person.class, personId);
for (Number n: allRevisions) {
Person p = auditReader.find(Person.class, personId, n);
System.out.printf("t[Rev #%1$s] > %2$sn", n, p);
}
[Rev #1] > Person { id=10, name='Romain', surname='', comments=''}
[Rev #3] > Person { id=10, name='Romain', surname='Linsolas', comments=''}
[Rev #4] > null
15

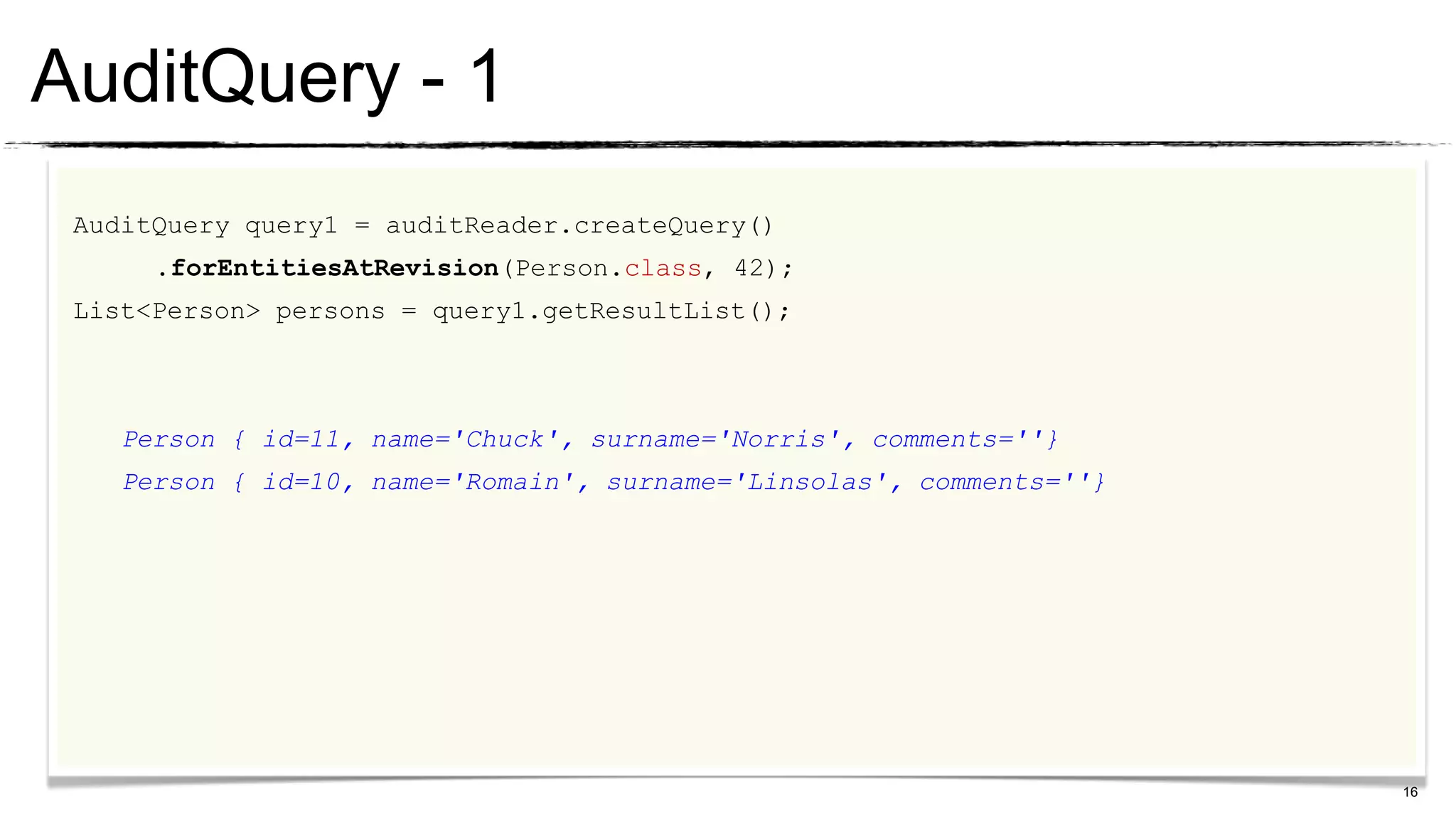

16. AuditQuery - 1
AuditQuery query1 = auditReader.createQuery()
.forEntitiesAtRevision(Person.class, 42);
List<Person> persons = query1.getResultList();
Person { id=11, name='Chuck', surname='Norris', comments=''}
Person { id=10, name='Romain', surname='Linsolas', comments=''}
16

17. AuditQuery - 2
AuditQuery query2 = auditReader.createQuery()
.forRevisionsOfEntity(Person.class, false, true);
List<Object[]> revisions = query2.getResultList();
Person EntityRevision REVTYPE
{ id=10, name='Romain', surname='', {id=1, timestamp=1352936106653, username='Devoxx'} ADD
comments='' }
{ id=11, name='Chuck', surname='Norris', {id=2, timestamp=1352936106669, username='Devoxx'} ADD
comments='' }
{ id=10, name='Romain', {id=3, timestamp=1352936106687, username='Devoxx'} MOD
surname='Linsolas', comments='' }
{ id=10, name='null', surname='', {id=4, timestamp=1352936106734, username='Devoxx'} DEL
comments='' }
17

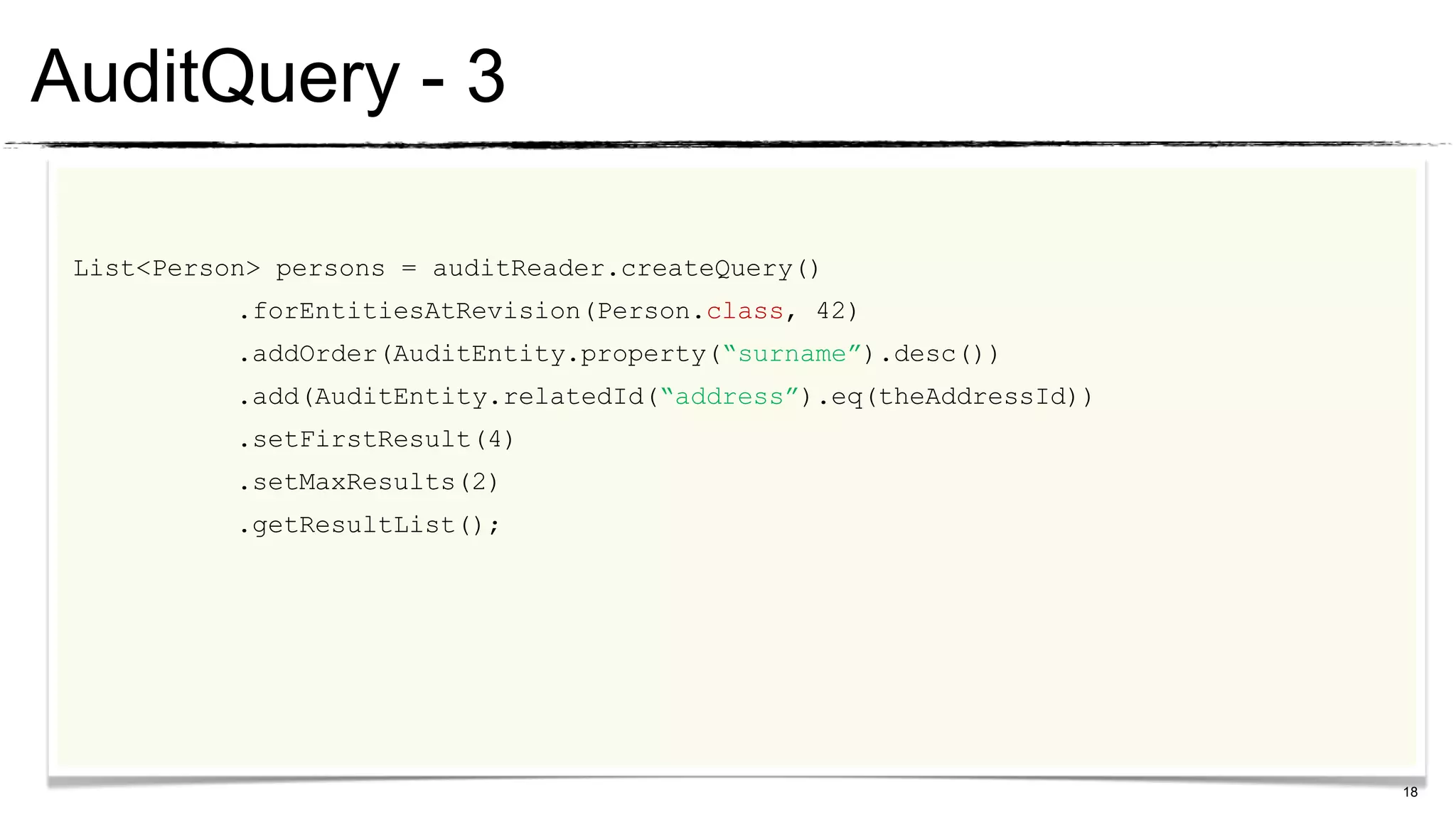

18. AuditQuery - 3
List<Person> persons = auditReader.createQuery()
.forEntitiesAtRevision(Person.class, 42)
.addOrder(AuditEntity.property(“surname”).desc())
.add(AuditEntity.relatedId(“address”).eq(theAddressId))
.setFirstResult(4)
.setMaxResults(2)
.getResultList();
18

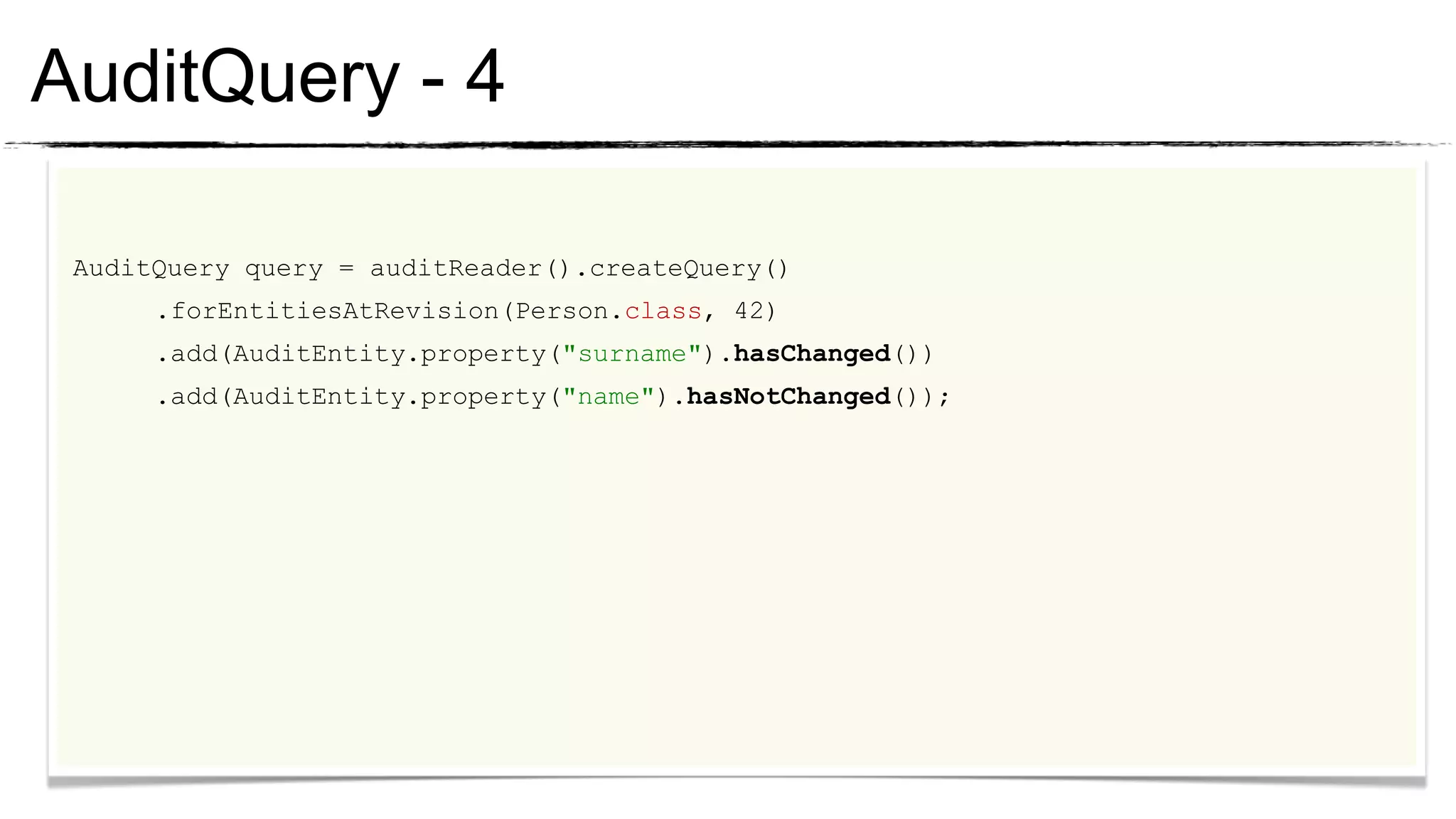

19. AuditQuery - 4
AuditQuery query = auditReader().createQuery()
.forEntitiesAtRevision(Person.class, 42)
.add(AuditEntity.property("surname").hasChanged())
.add(AuditEntity.property("name").hasNotChanged());

20. https://github.com/linsolas/devoxx-envers

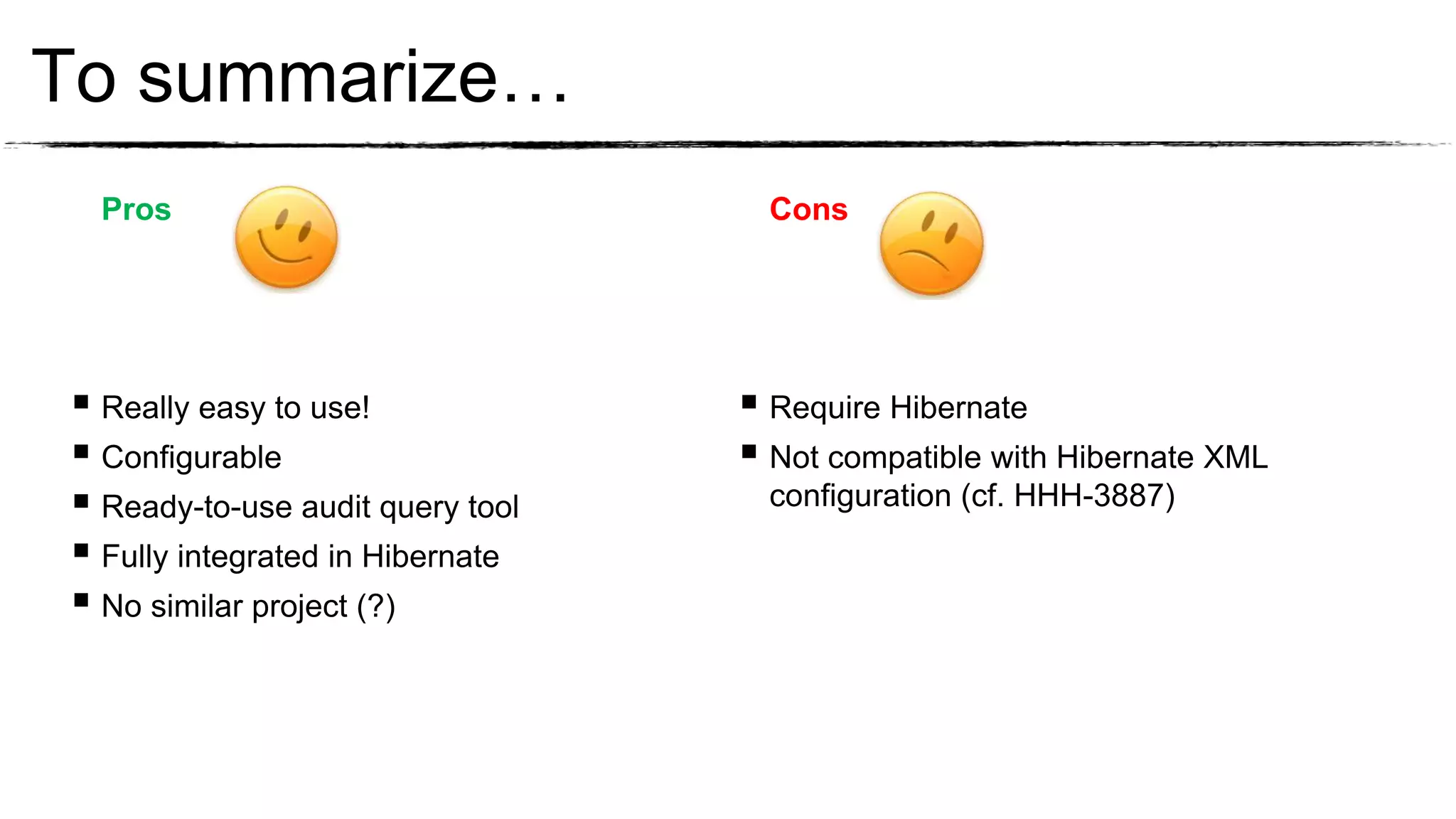

21. To summarize…
Pros Cons
 Really easy to use!  Require Hibernate
 Configurable  Not compatible with Hibernate XML
 Ready-to-use audit query tool configuration (cf. HHH-3887)
 Fully integrated in Hibernate
 No similar project (?)

22. Q&A

23. (5) Annexes

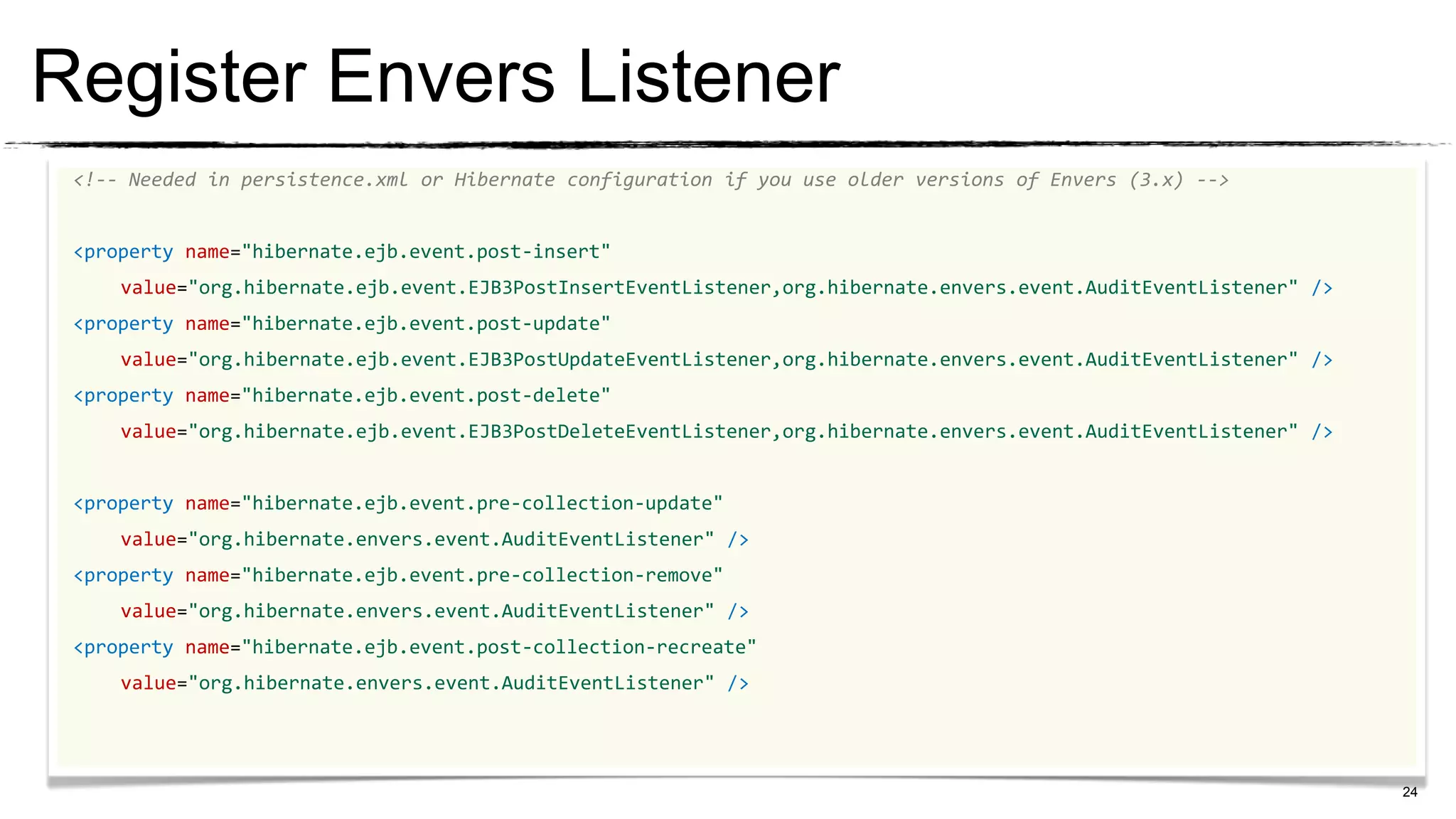

24. Register Envers Listener
<!-- Needed in persistence.xml or Hibernate configuration if you use older versions of Envers (3.x) -->
<property name="hibernate.ejb.event.post-insert"
value="org.hibernate.ejb.event.EJB3PostInsertEventListener,org.hibernate.envers.event.AuditEventListener" />
<property name="hibernate.ejb.event.post-update"
value="org.hibernate.ejb.event.EJB3PostUpdateEventListener,org.hibernate.envers.event.AuditEventListener" />
<property name="hibernate.ejb.event.post-delete"
value="org.hibernate.ejb.event.EJB3PostDeleteEventListener,org.hibernate.envers.event.AuditEventListener" />
<property name="hibernate.ejb.event.pre-collection-update"
value="org.hibernate.envers.event.AuditEventListener" />
<property name="hibernate.ejb.event.pre-collection-remove"
value="org.hibernate.envers.event.AuditEventListener" />
<property name="hibernate.ejb.event.post-collection-recreate"
value="org.hibernate.envers.event.AuditEventListener" />
24
