1. How to build simple yet
powerful API
@channaly

2. What is an API?

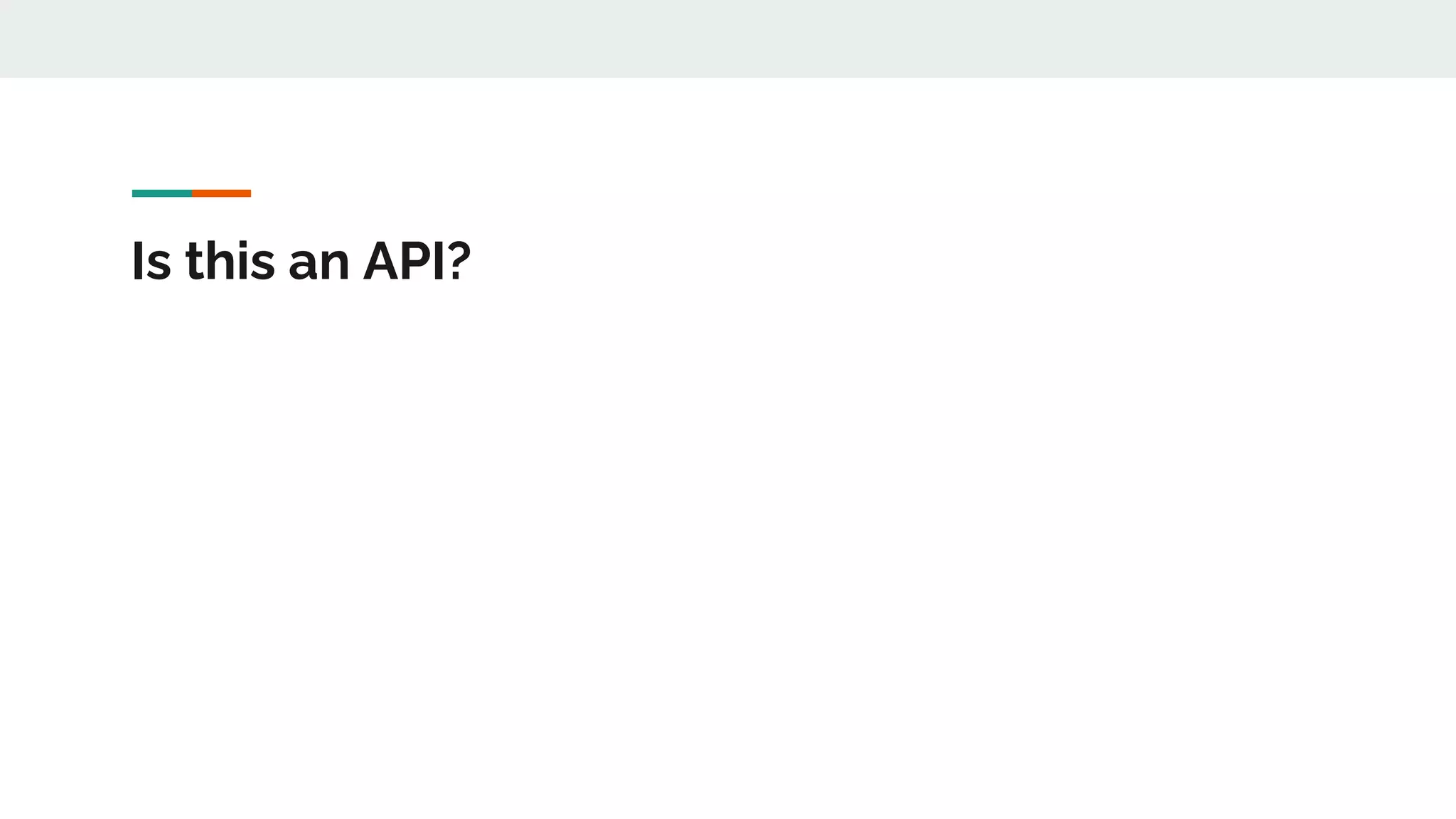

7. Is this an API?

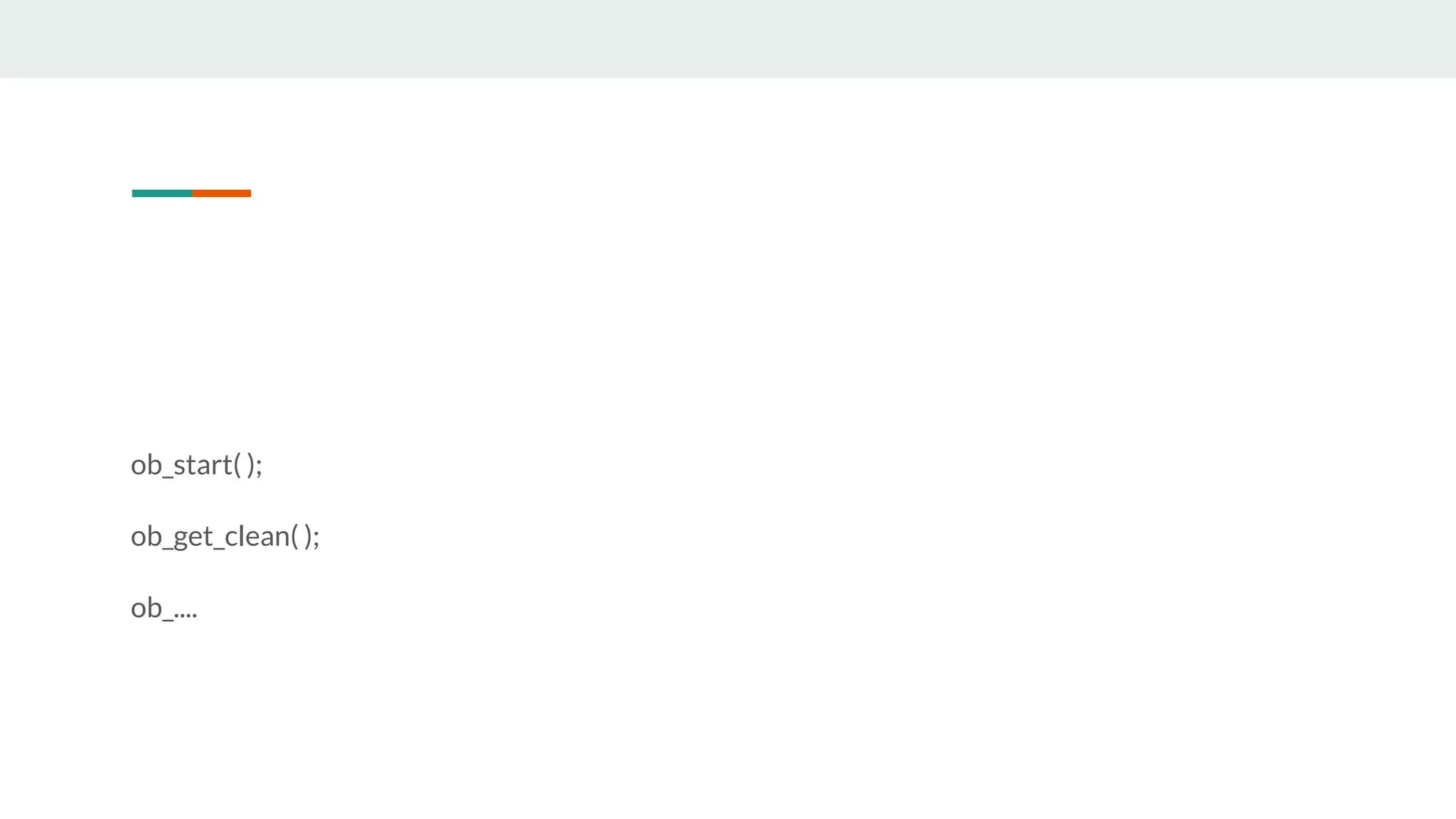

8. ob_start( );
ob_get_clean( );
ob_....

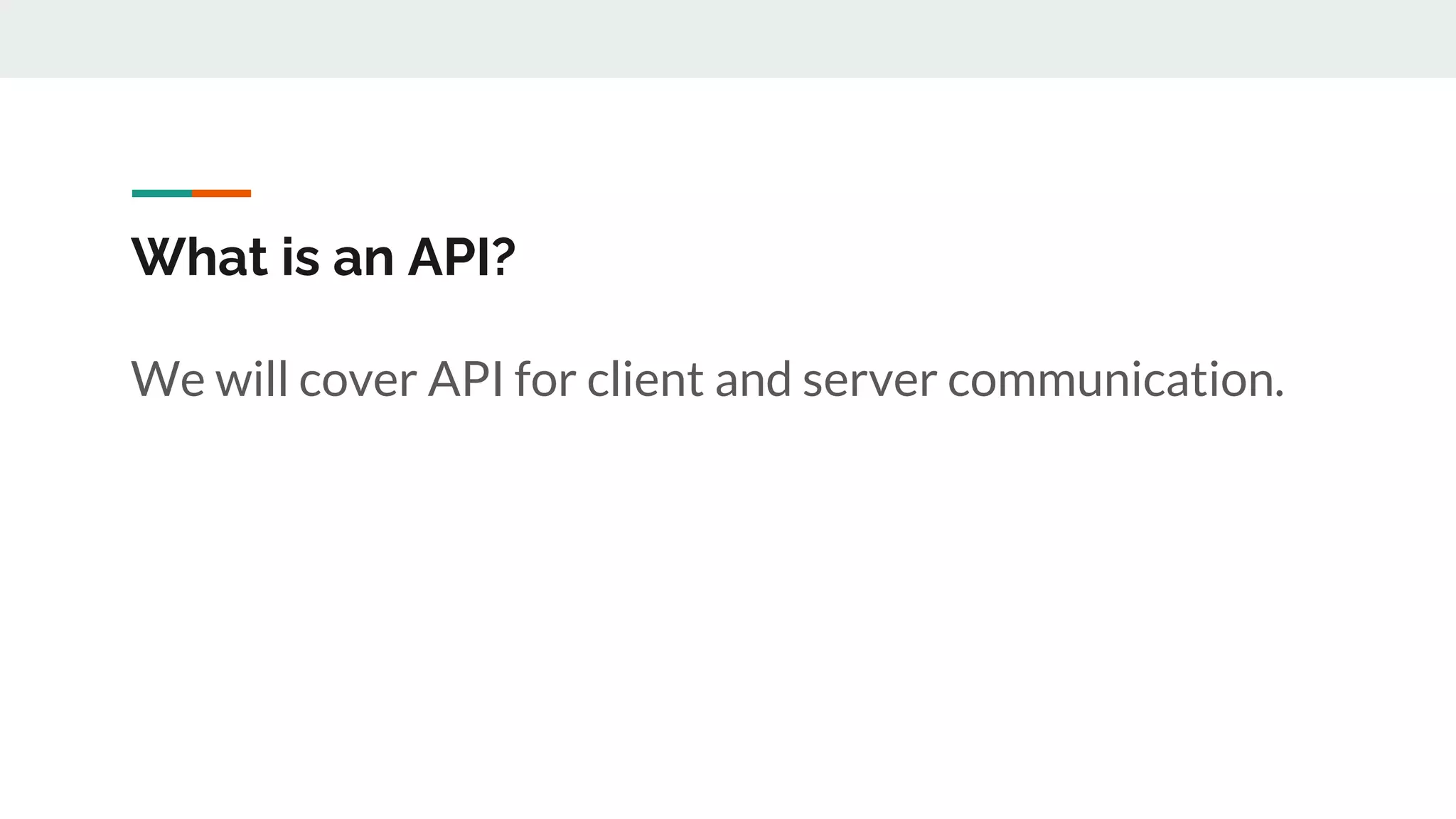

10. What is an API?
We will cover API for client and server communication.

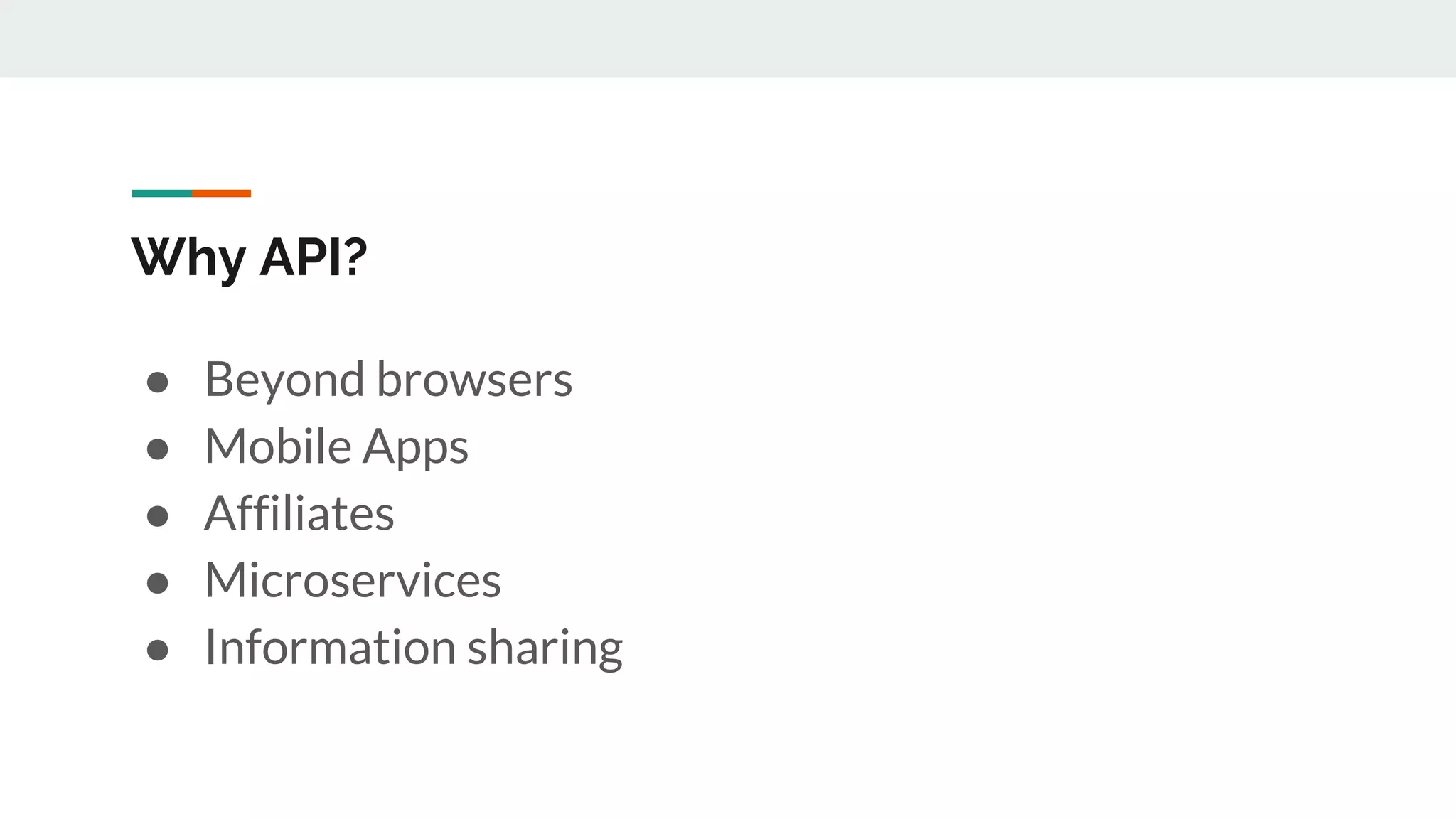

11. Why API?
● Beyond browsers
● Mobile Apps
● Affiliates
● Microservices
● Information sharing

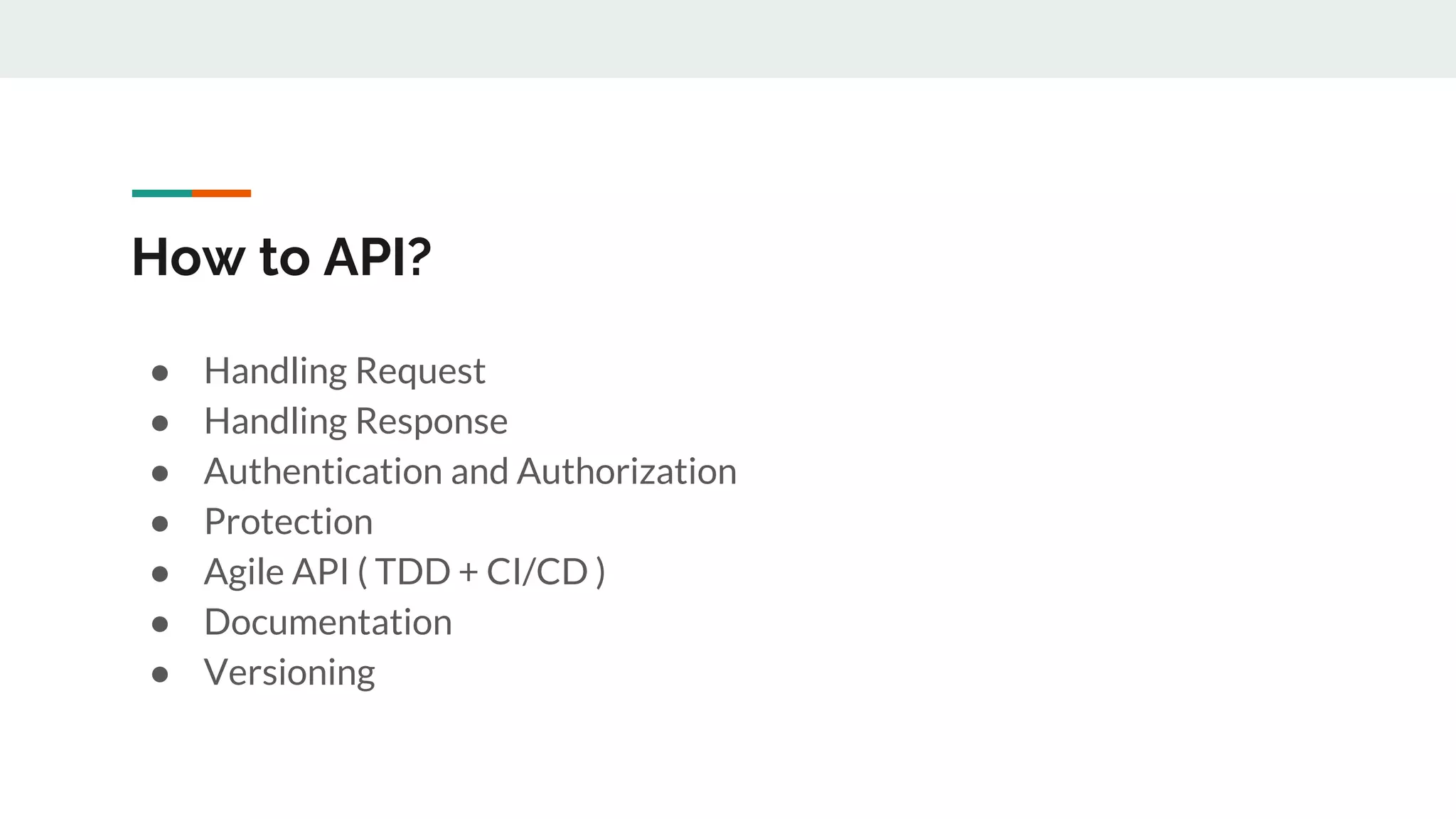

12. How to API?
● Handling Request
● Handling Response
● Authentication and Authorization
● Protection
● Agile API ( TDD + CI/CD )
● Documentation
● Versioning

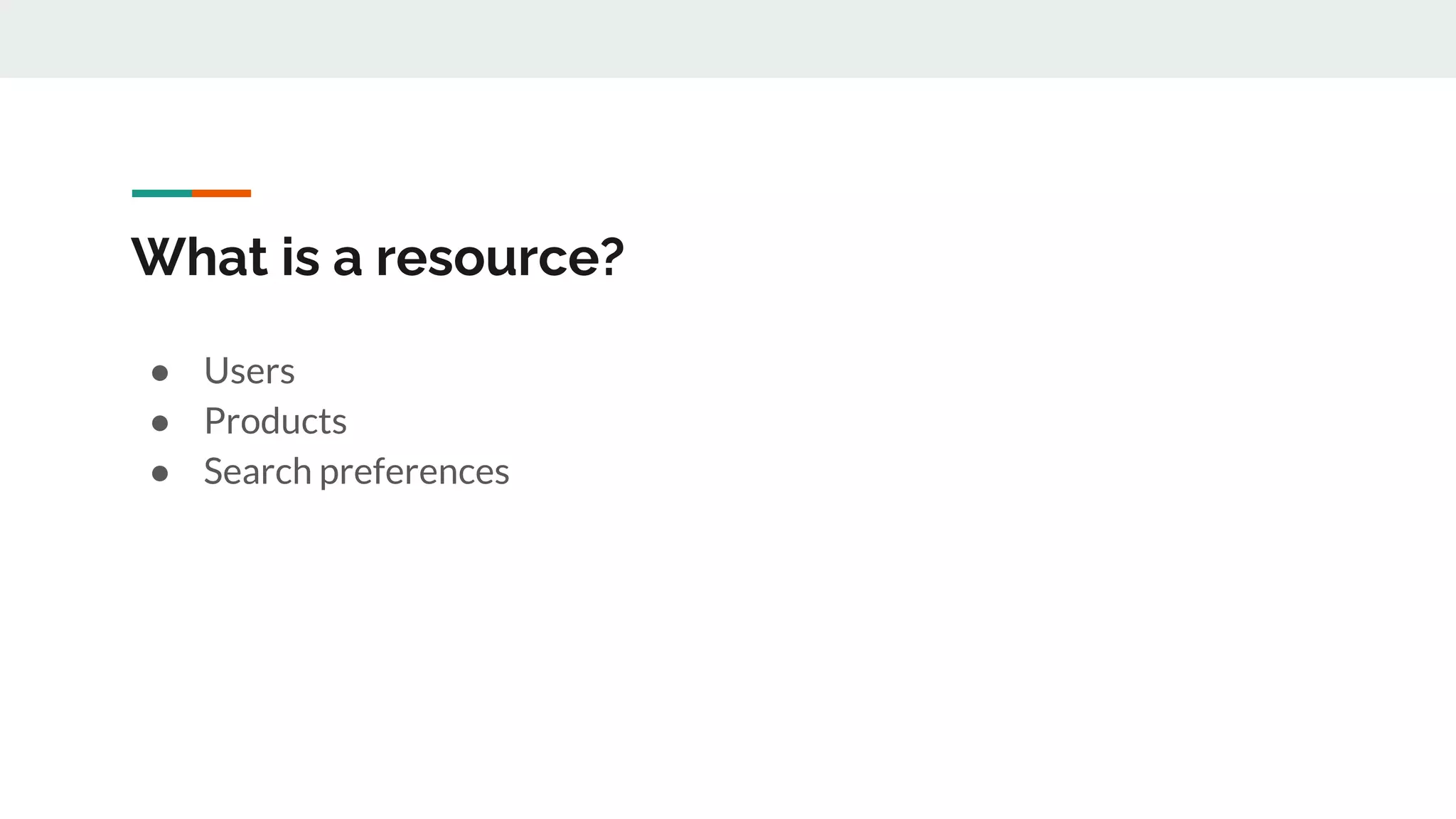

13. What is a resource?
● Users
● Products
● Search preferences

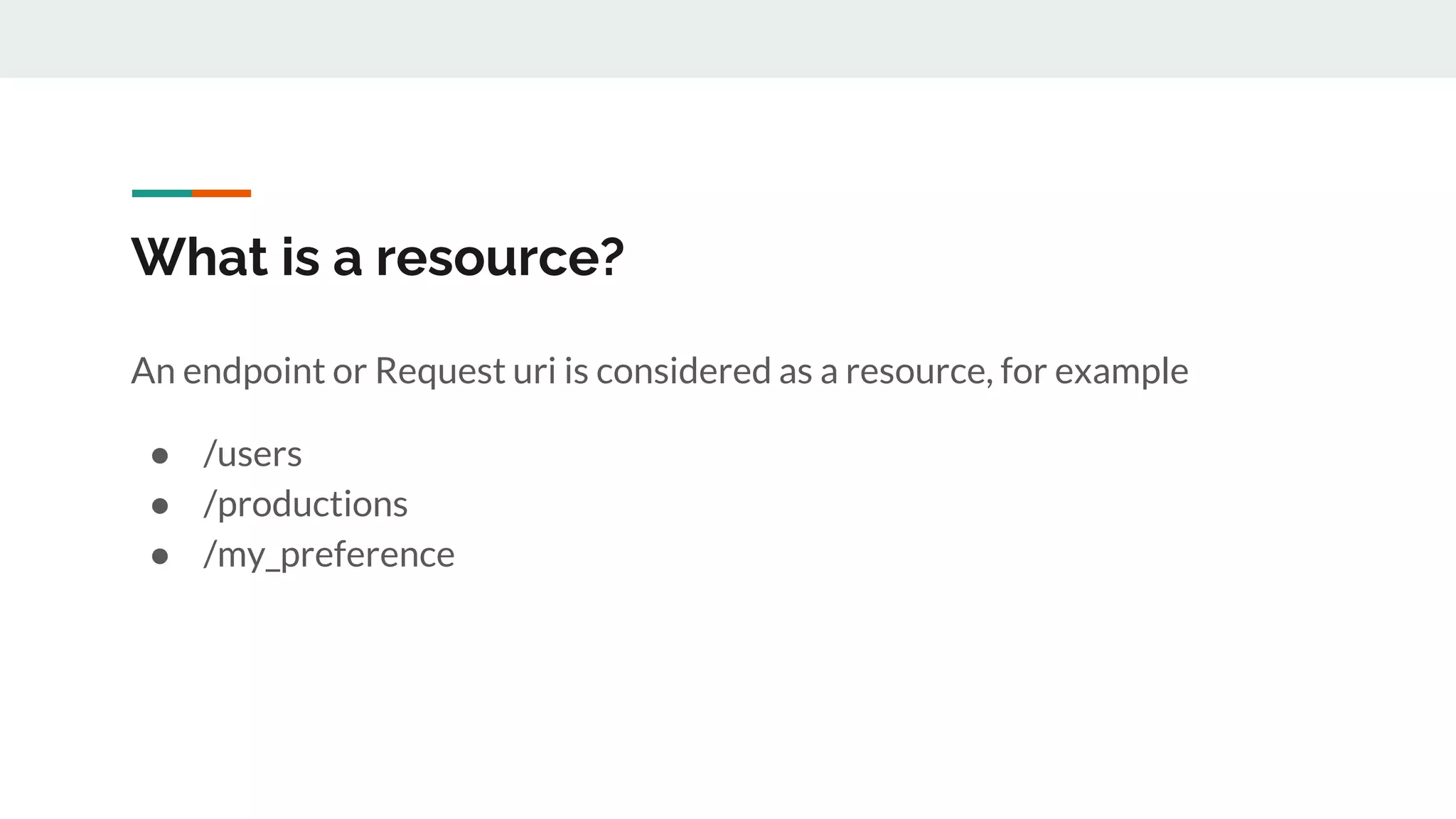

14. What is a resource?
An endpoint or Request uri is considered as a resource, for example
● /users
● /productions
● /my_preference

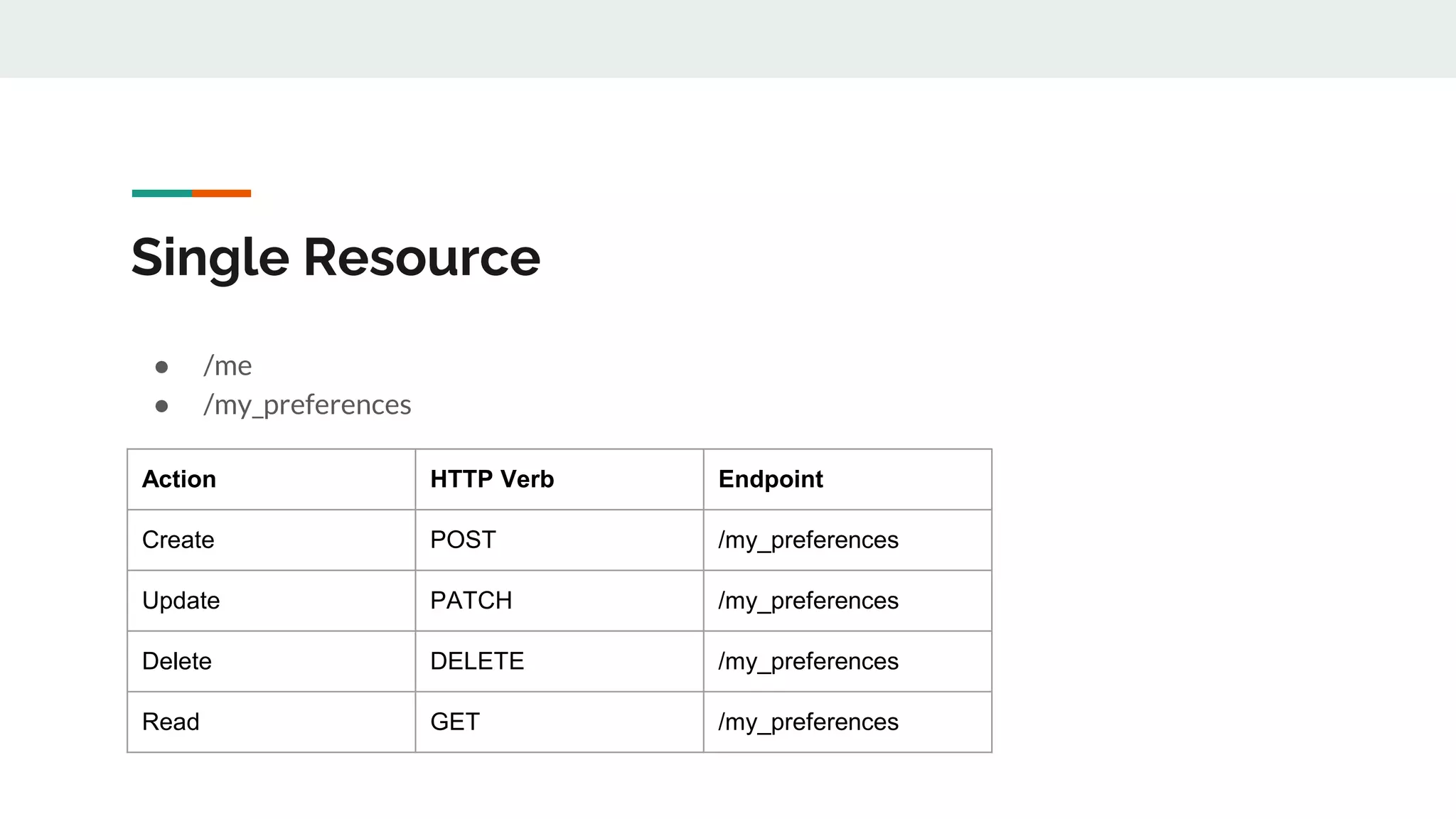

15. Single Resource
● /me
● /my_preferences
Action HTTP Verb Endpoint
Create POST /my_preferences
Update PATCH /my_preferences
Delete DELETE /my_preferences
Read GET /my_preferences

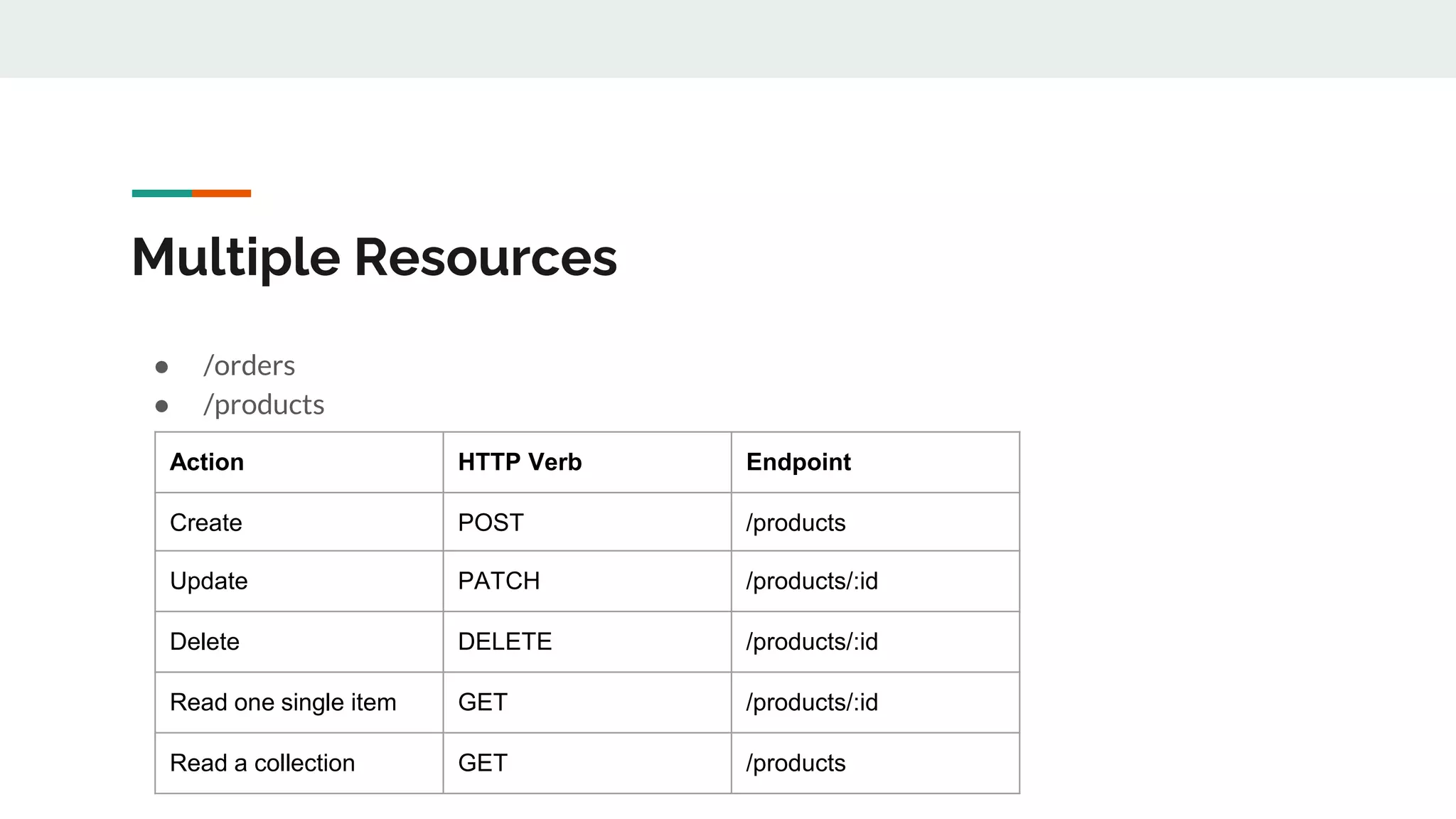

16. Multiple Resources
● /orders
● /products
Action HTTP Verb Endpoint
Create POST /products
Update PATCH /products/:id
Delete DELETE /products/:id
Read one single item GET /products/:id
Read a collection GET /products

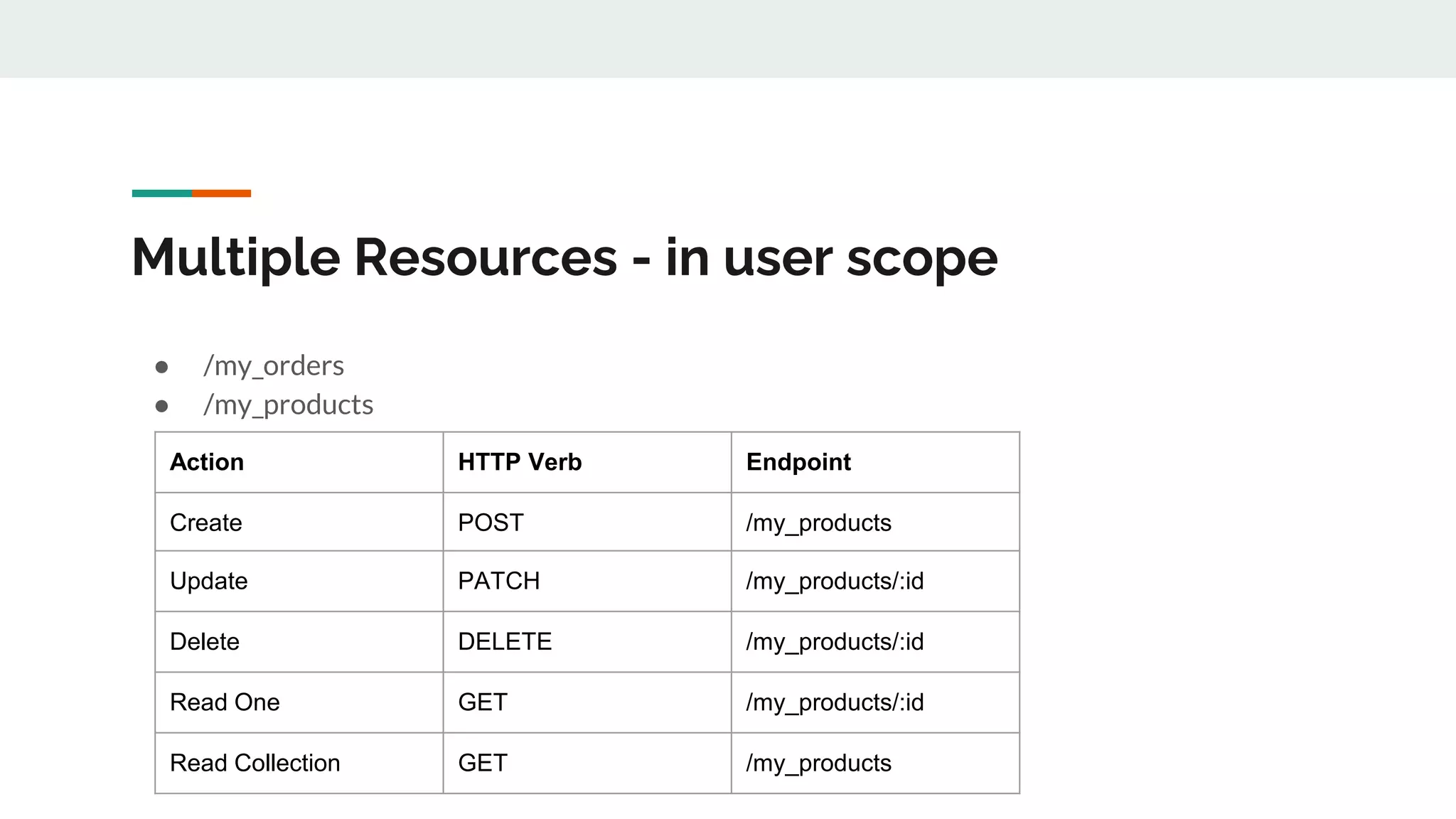

17. Multiple Resources - in user scope
● /my_orders
● /my_products
Action HTTP Verb Endpoint
Create POST /my_products
Update PATCH /my_products/:id
Delete DELETE /my_products/:id
Read One GET /my_products/:id
Read Collection GET /my_products

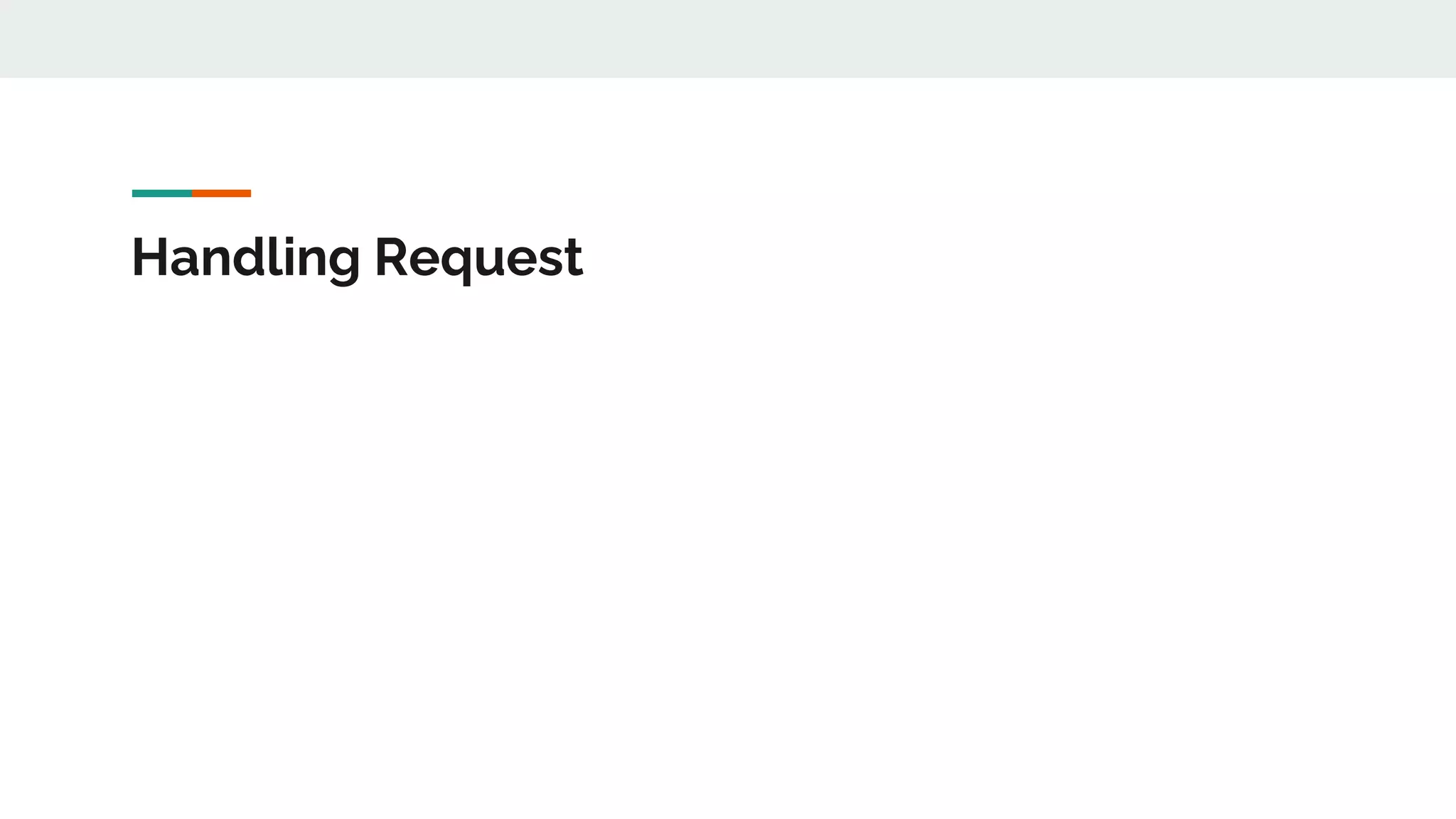

18. Handling Request

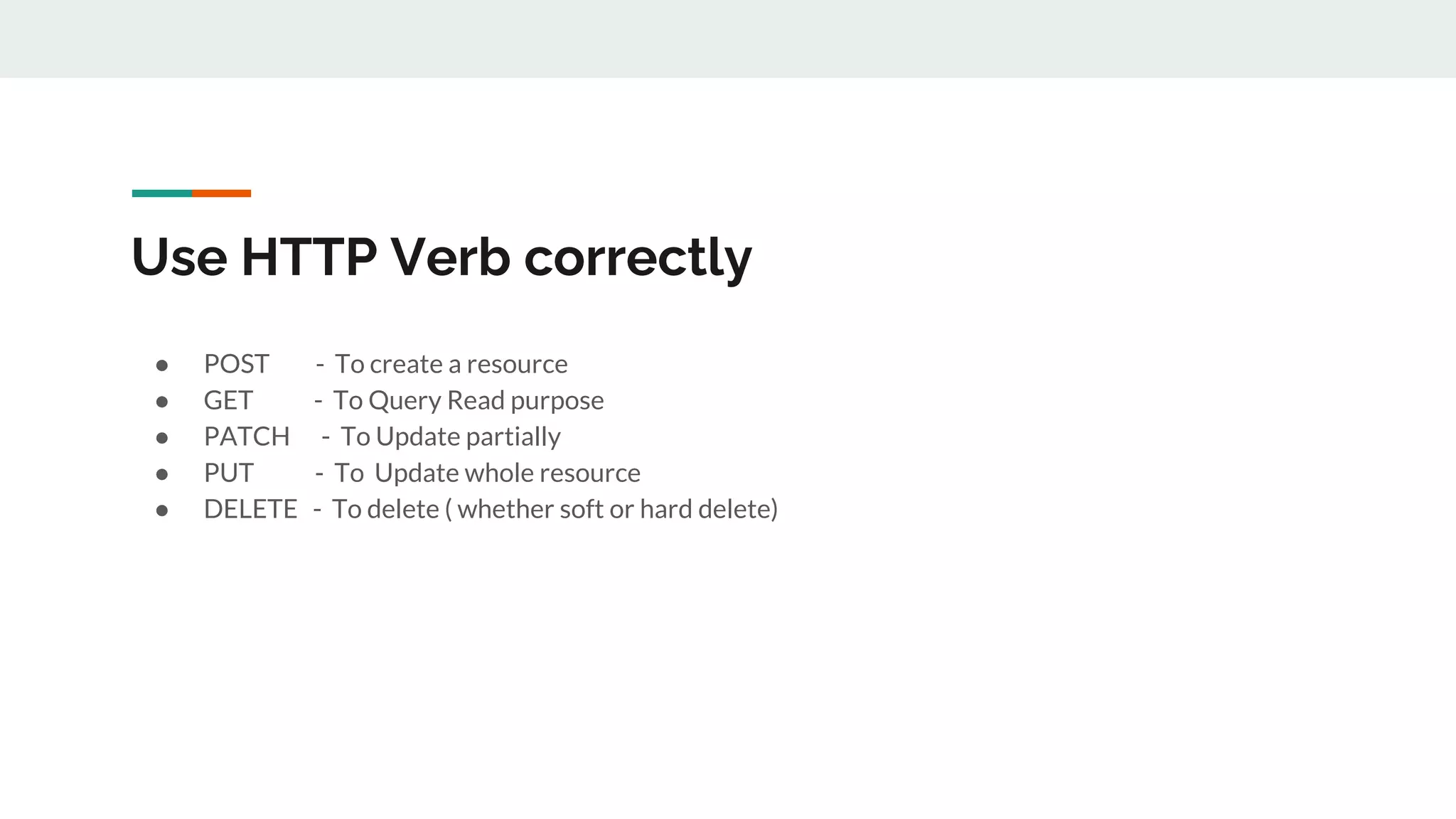

19. Use HTTP Verb correctly
● POST - To create a resource
● GET - To Query Read purpose
● PATCH - To Update partially
● PUT - To Update whole resource
● DELETE - To delete ( whether soft or hard delete)

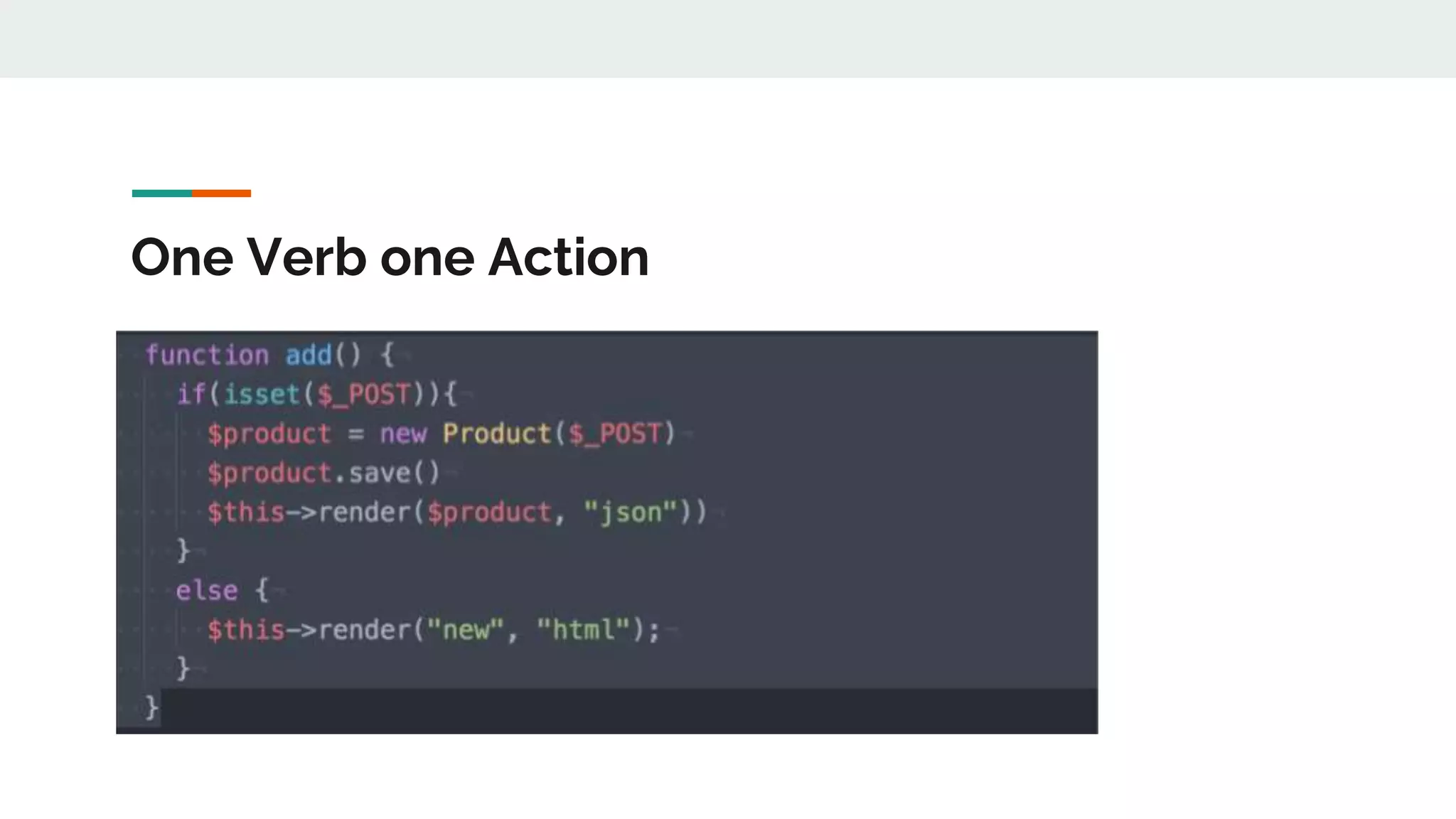

20. One Verb one Action

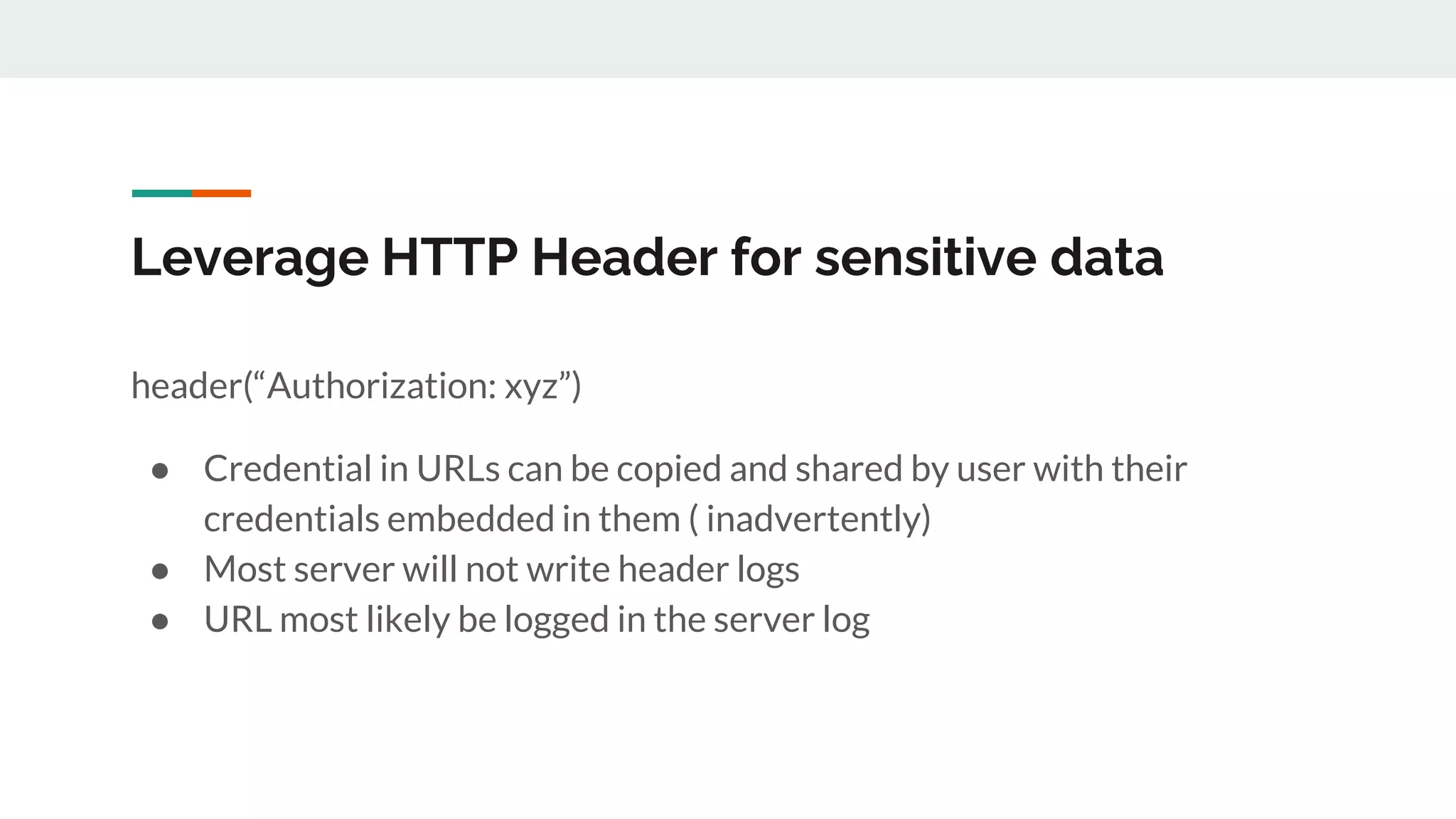

21. Leverage HTTP Header for sensitive data
header(“Authorization: xyz”)
● Credential in URLs can be copied and shared by user with their
credentials embedded in them ( inadvertently)
● Most server will not write header logs
● URL most likely be logged in the server log

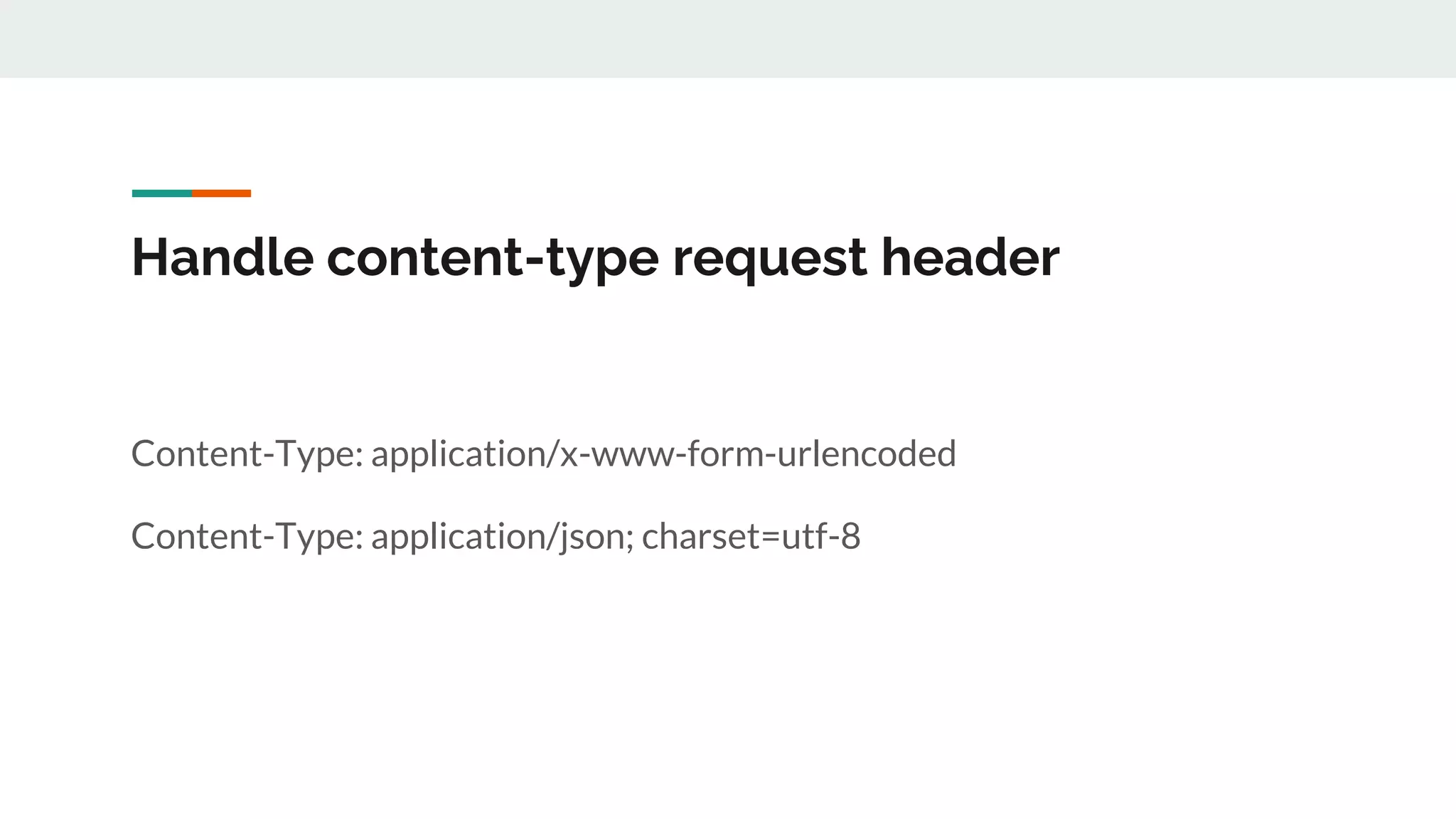

22. Handle content-type request header
Content-Type: application/x-www-form-urlencoded
Content-Type: application/json; charset=utf-8

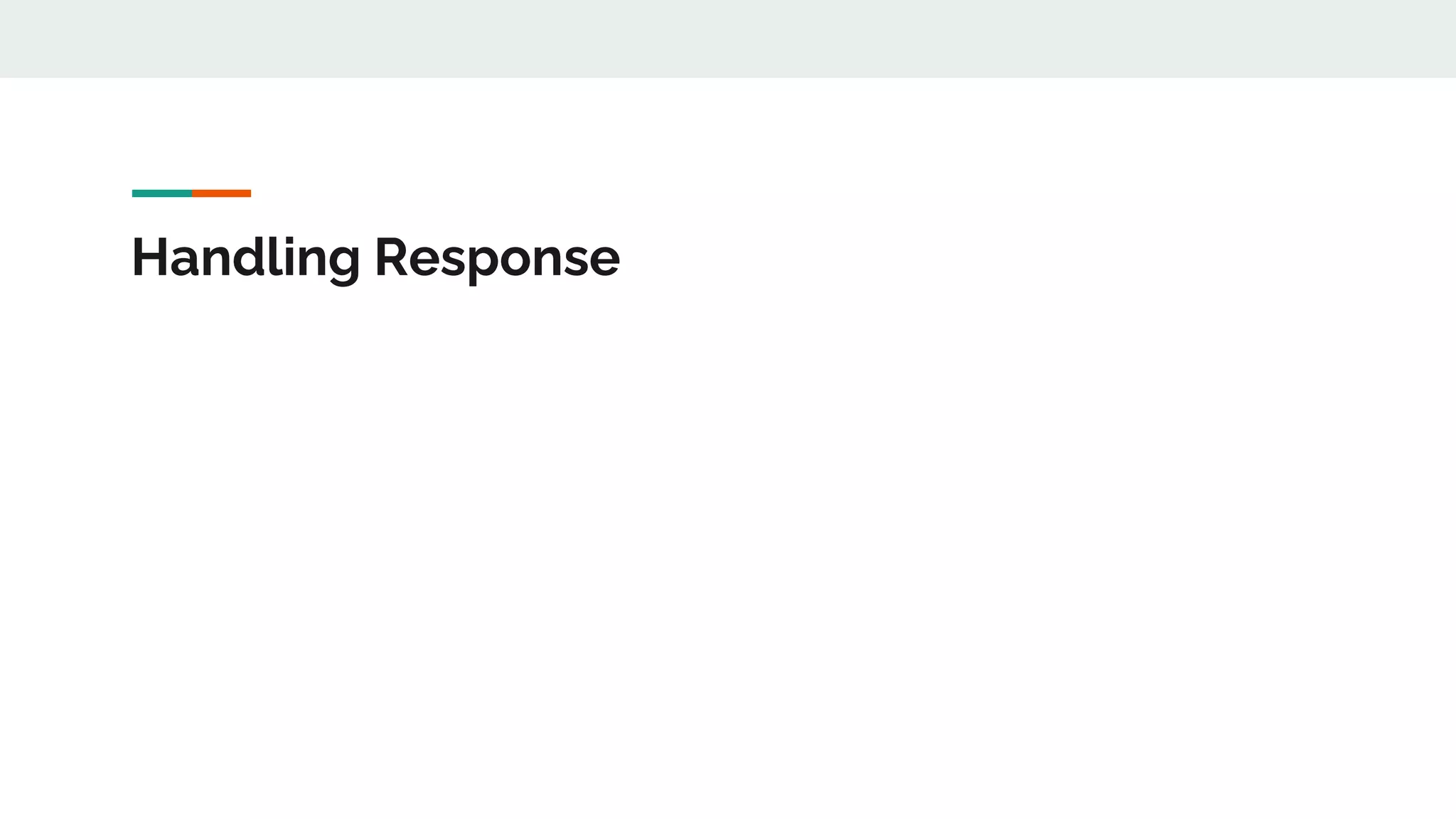

23. Handling Response

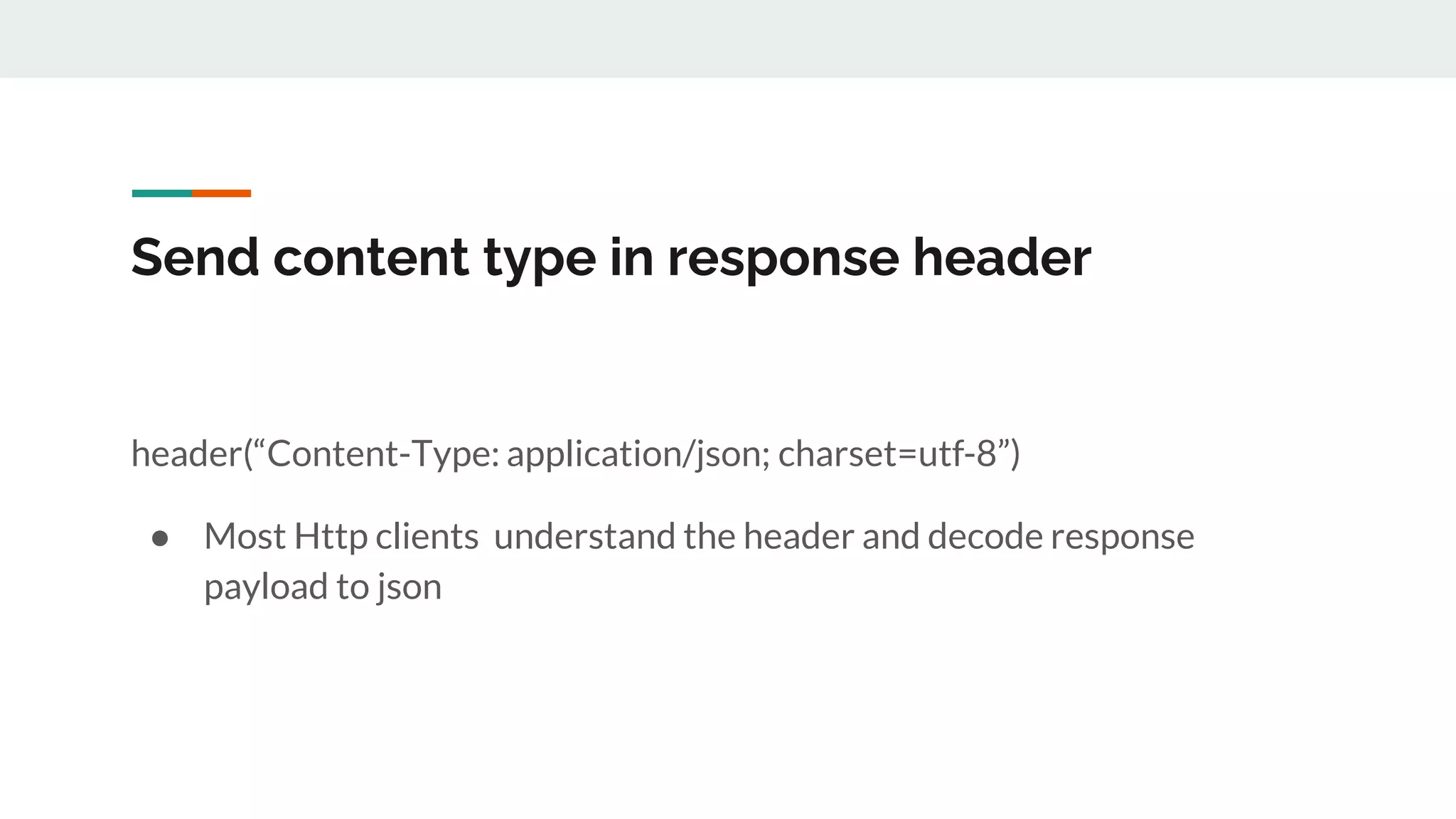

24. Send content type in response header
header(“Content-Type: application/json; charset=utf-8”)
● Most Http clients understand the header and decode response
payload to json

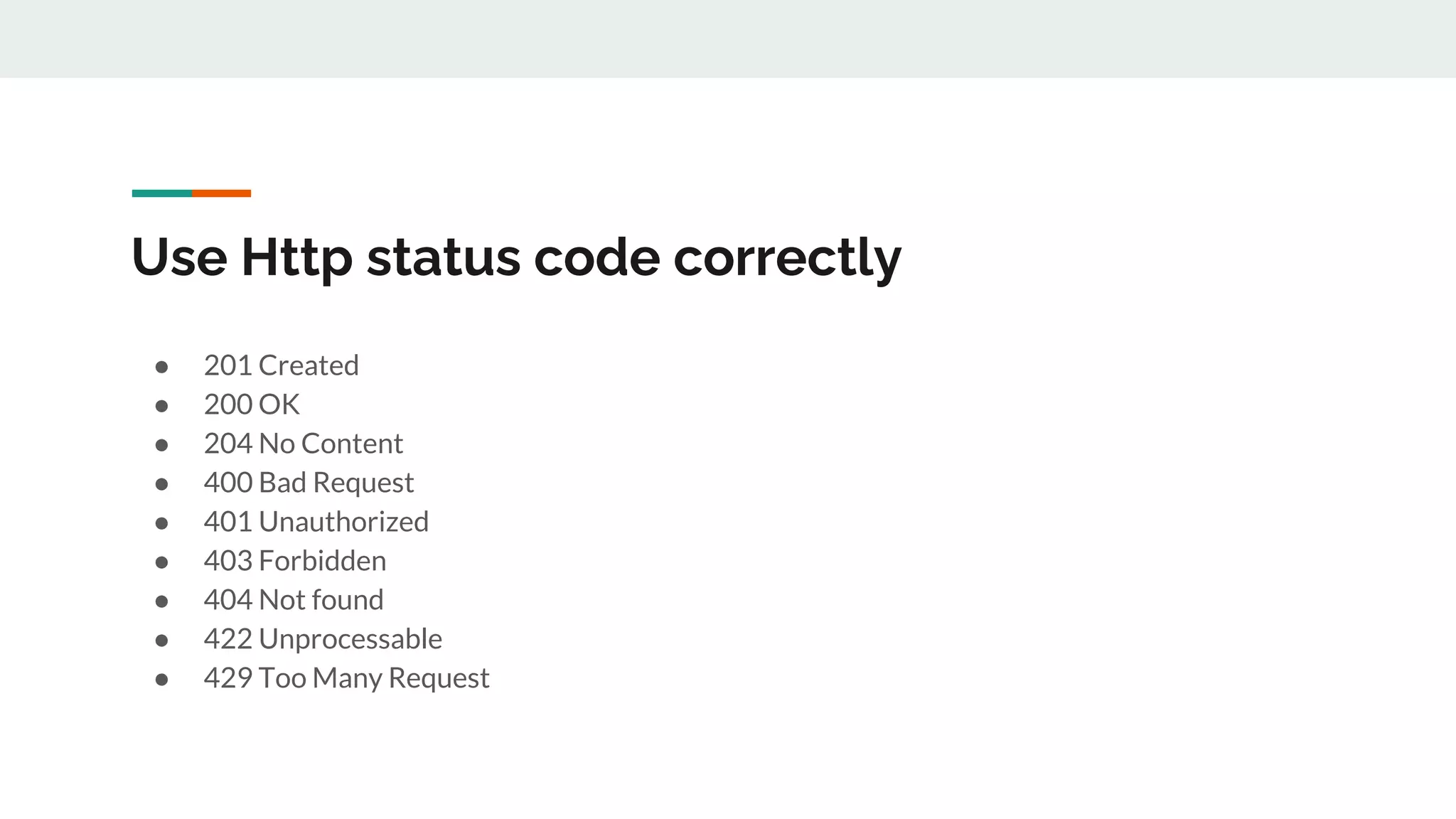

25. Use Http status code correctly
● 201 Created
● 200 OK
● 204 No Content
● 400 Bad Request
● 401 Unauthorized
● 403 Forbidden
● 404 Not found
● 422 Unprocessable
● 429 Too Many Request

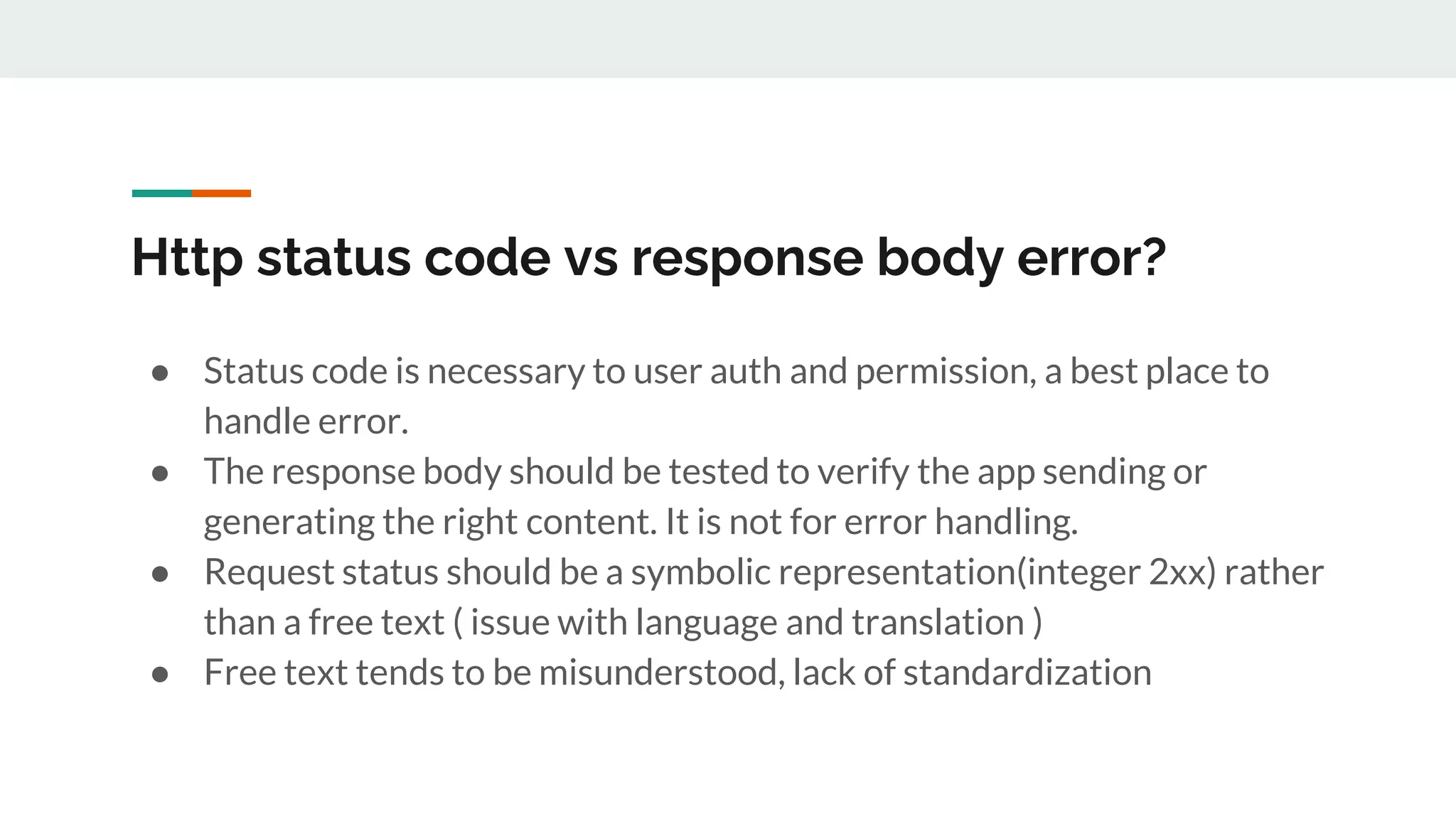

26. Http status code vs response body error?
● Status code is necessary to user auth and permission, a best place to
handle error.
● The response body should be tested to verify the app sending or
generating the right content. It is not for error handling.
● Request status should be a symbolic representation(integer 2xx) rather
than a free text ( issue with language and translation )
● Free text tends to be misunderstood, lack of standardization

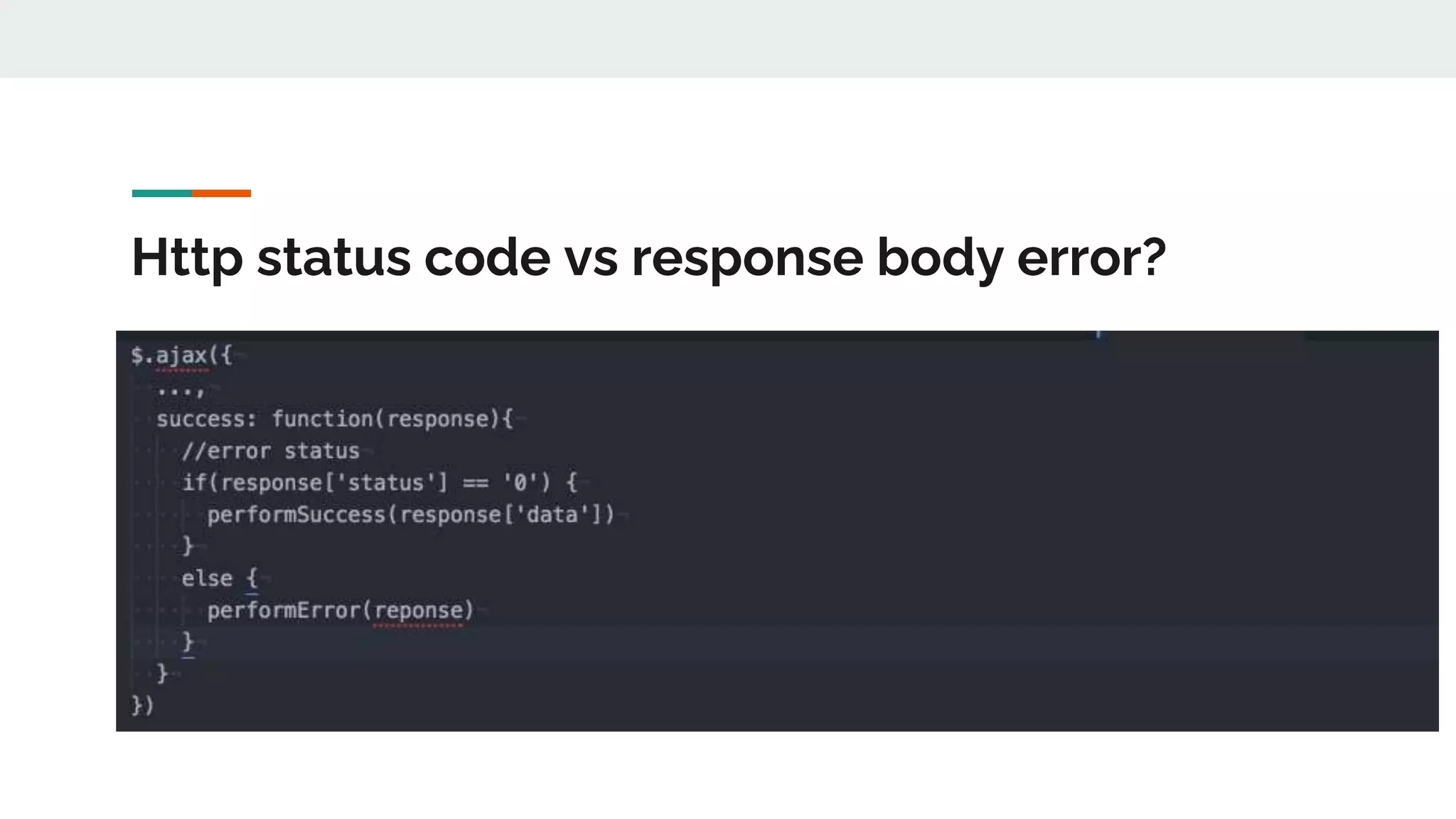

27. Http status code vs response body error?

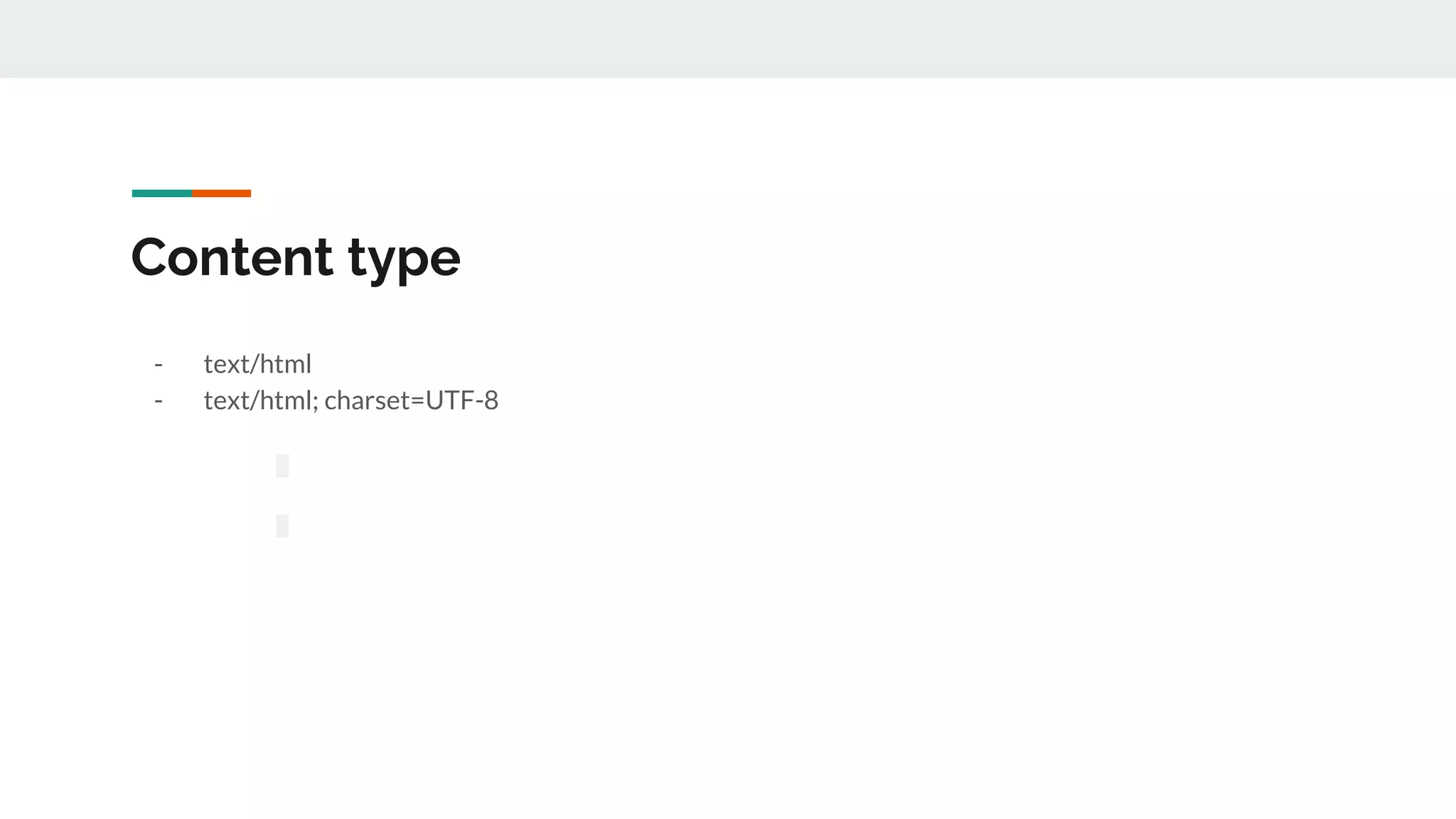

28. Content type
- text/html
- text/html; charset=UTF-8

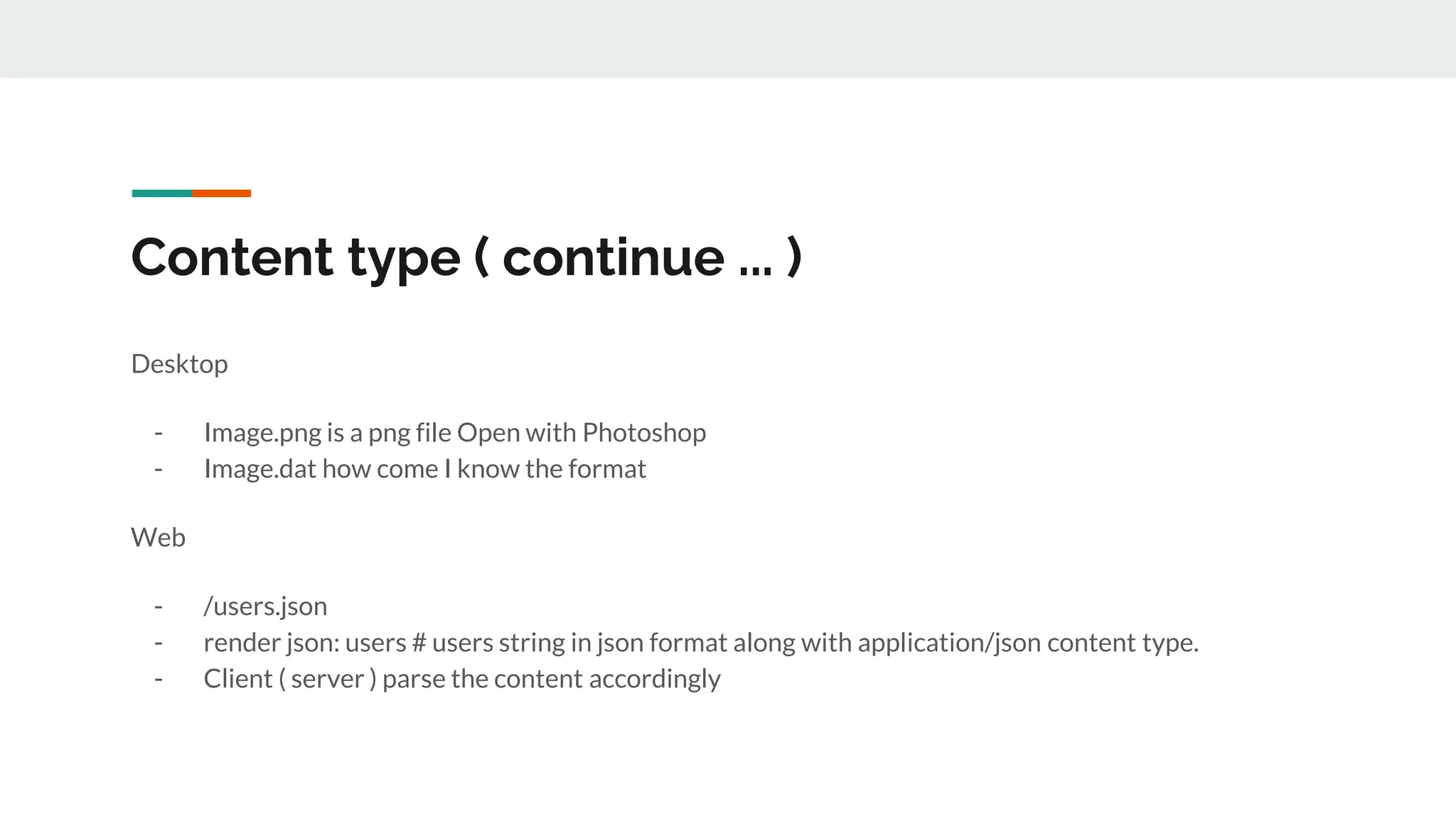

29. Content type ( continue ... )
Desktop
- Image.png is a png file Open with Photoshop
- Image.dat how come I know the format
Web
- /users.json
- render json: users # users string in json format along with application/json content type.
- Client ( server ) parse the content accordingly

30. Authentication and Authorization

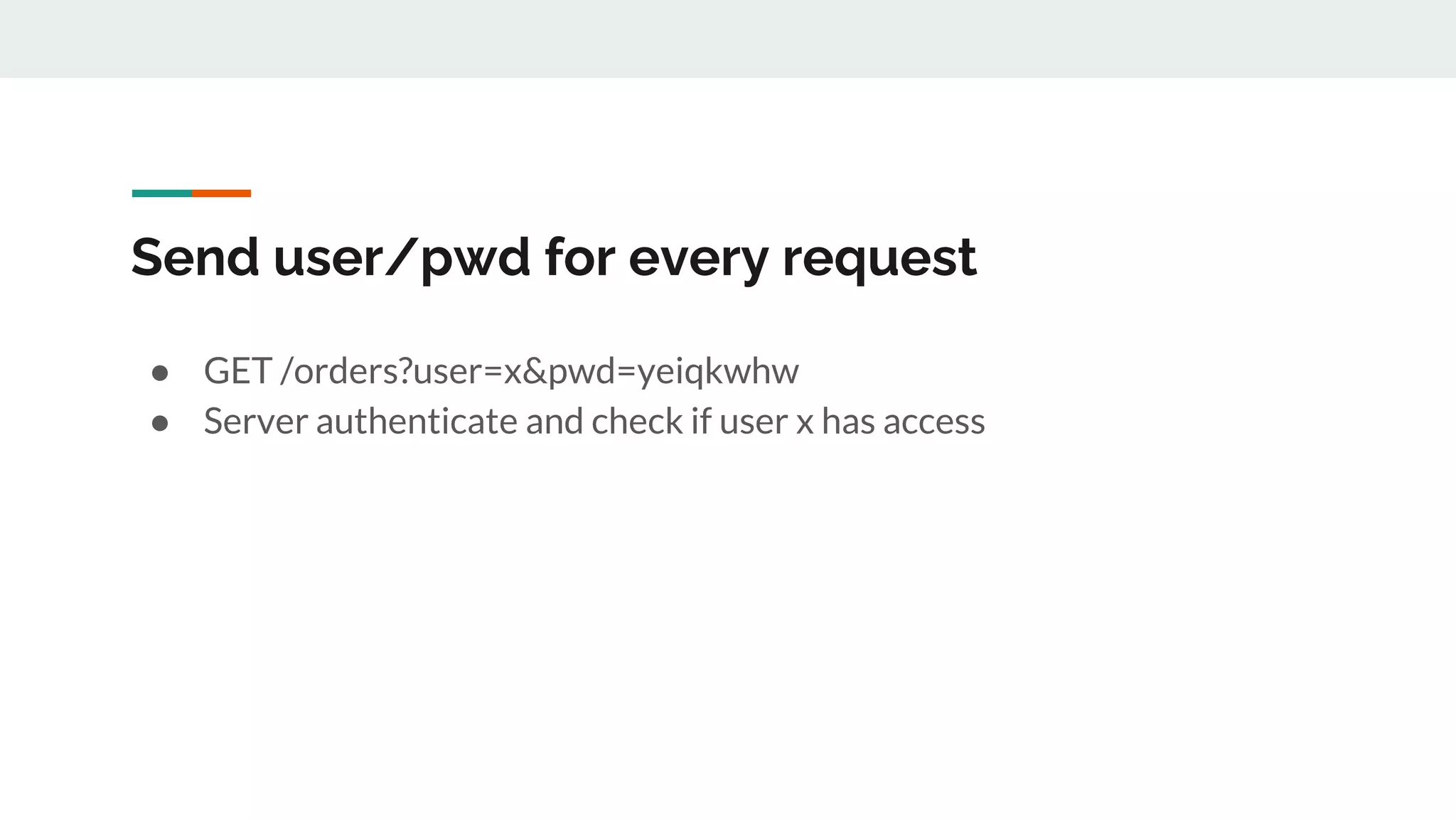

31. Send user/pwd for every request
● GET /orders?user=x&pwd=yeiqkwhw
● Server authenticate and check if user x has access

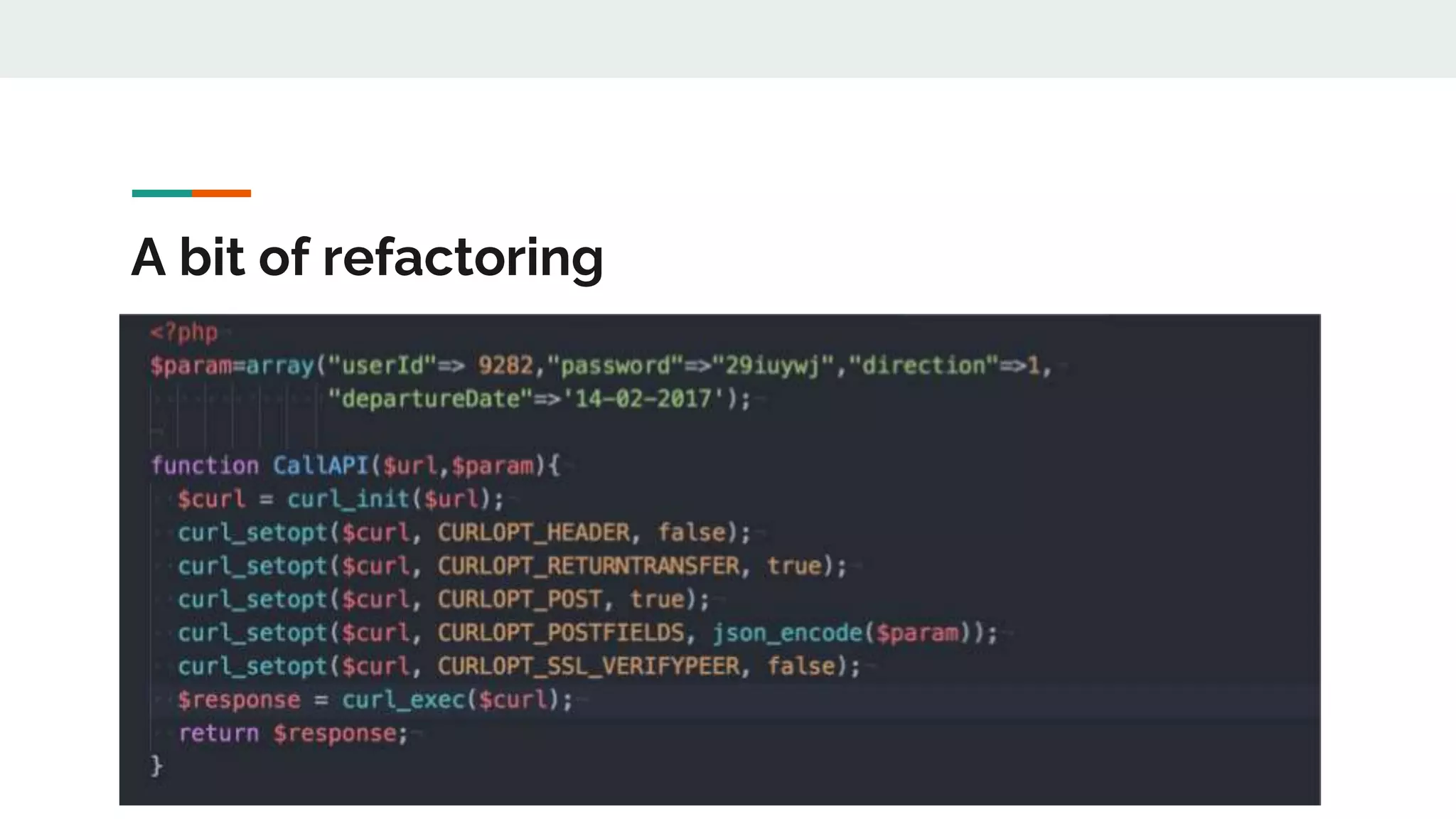

32. A bit of refactoring

33. Exchange for token

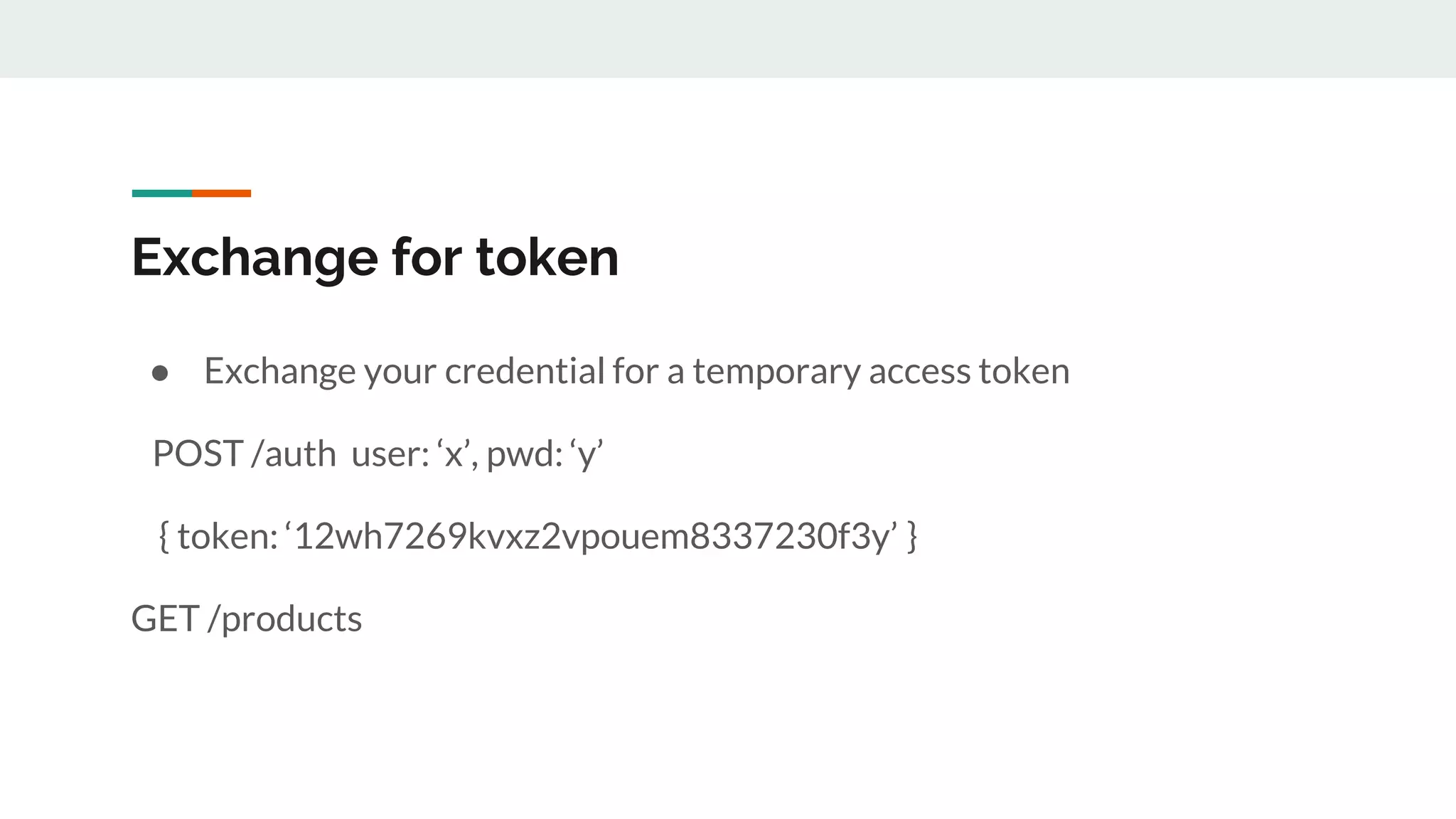

● Exchange your credential for a temporary access token
POST /auth user: ‘x’, pwd: ‘y’
{ token: ‘12wh7269kvxz2vpouem8337230f3y’ }
GET /products

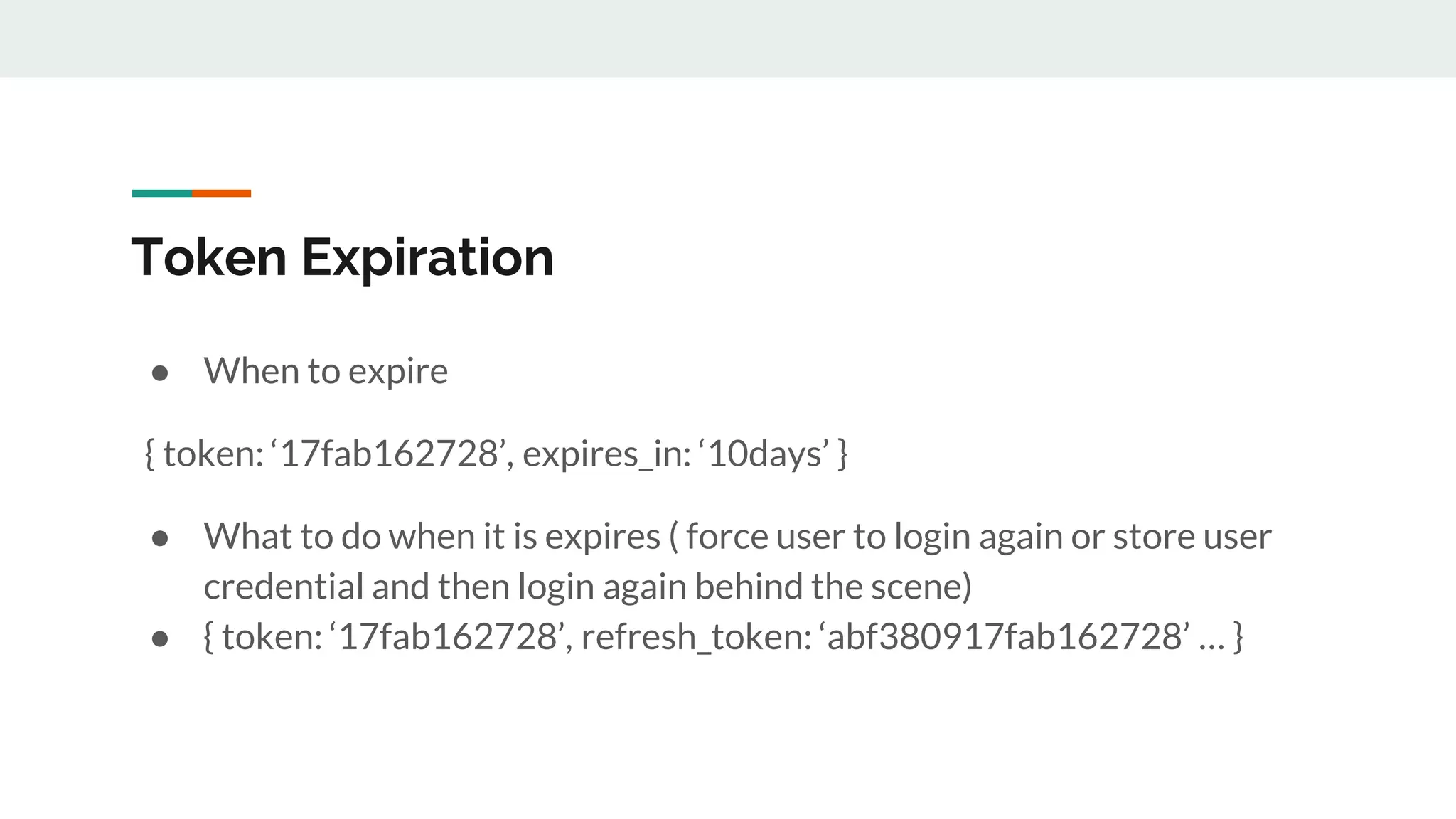

34. Token Expiration
● When to expire
{ token: ‘17fab162728’, expires_in: ‘10days’ }
● What to do when it is expires ( force user to login again or store user
credential and then login again behind the scene)
● { token: ‘17fab162728’, refresh_token: ‘abf380917fab162728’ … }

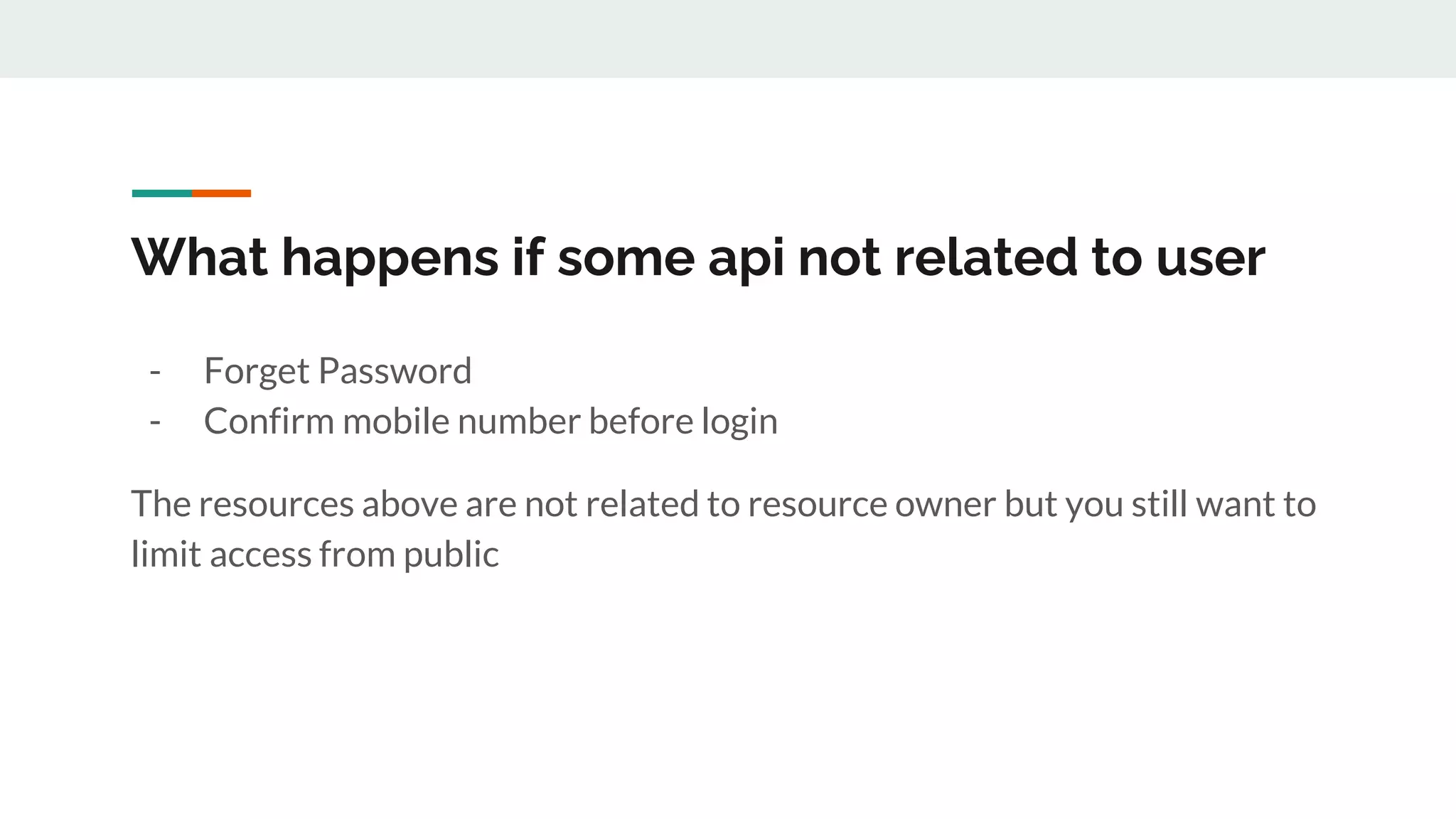

35. What happens if some api not related to user
- Forget Password
- Confirm mobile number before login
The resources above are not related to resource owner but you still want to
limit access from public

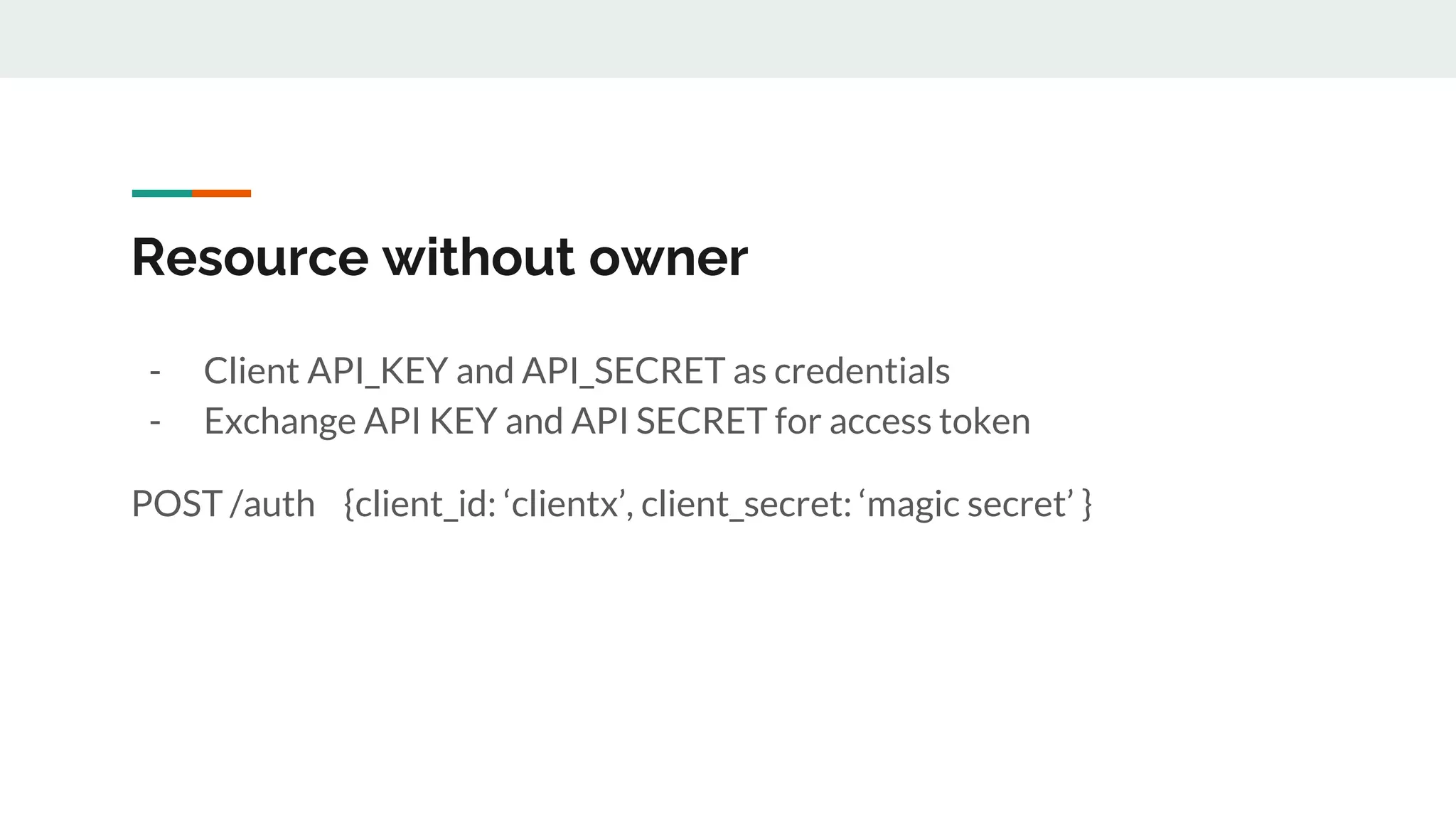

36. Resource without owner
- Client API_KEY and API_SECRET as credentials
- Exchange API KEY and API SECRET for access token
POST /auth {client_id: ‘clientx’, client_secret: ‘magic secret’ }

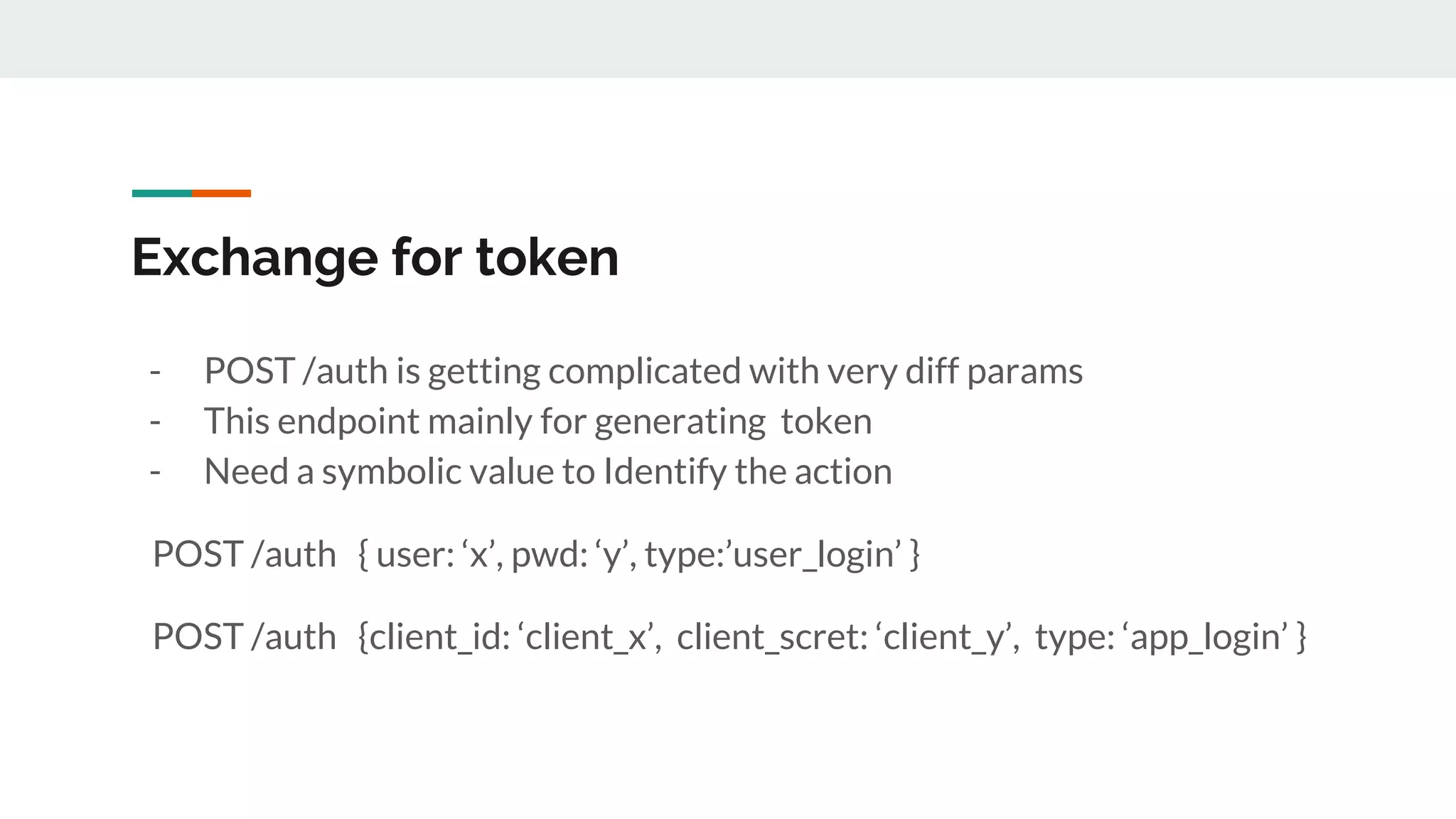

37. Exchange for token
- POST /auth is getting complicated with very diff params
- This endpoint mainly for generating token
- Need a symbolic value to Identify the action
POST /auth { user: ‘x’, pwd: ‘y’, type:’user_login’ }
POST /auth {client_id: ‘client_x’, client_scret: ‘client_y’, type: ‘app_login’ }

38. Problem?
- Who will be able to use auth type ‘user_login’?
- Who can access user info?
- The authorization server need to generate a token representing a level
of access to a client app.
POST /auth { client_id: ‘x’, client_secret: ‘y’, type: ‘authorization’ }

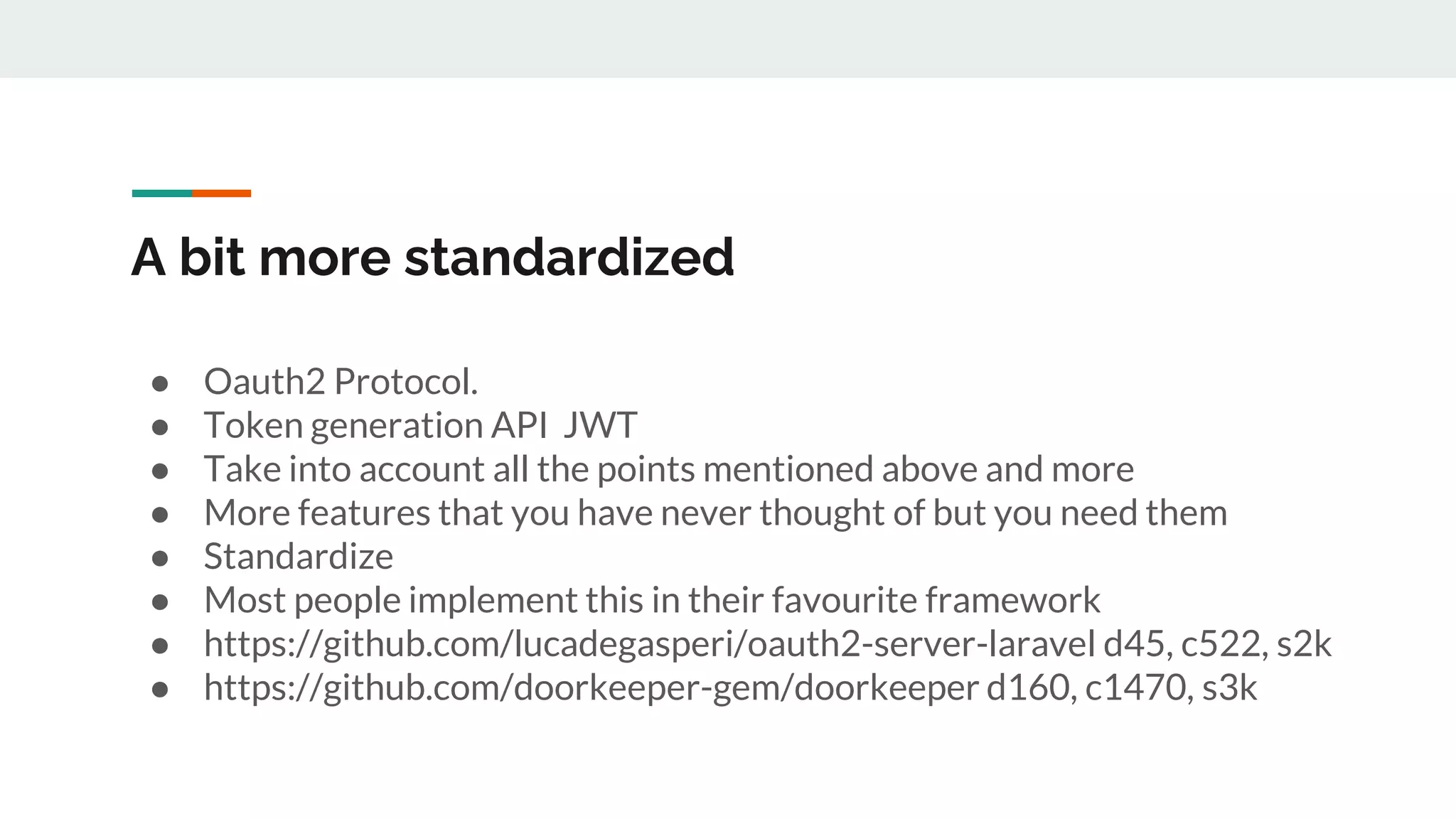

39. A bit more standardized
● Oauth2 Protocol.
● Token generation API JWT
● Take into account all the points mentioned above and more
● More features that you have never thought of but you need them
● Standardize
● Most people implement this in their favourite framework
● https://github.com/lucadegasperi/oauth2-server-laravel d45, c522, s2k
● https://github.com/doorkeeper-gem/doorkeeper d160, c1470, s3k

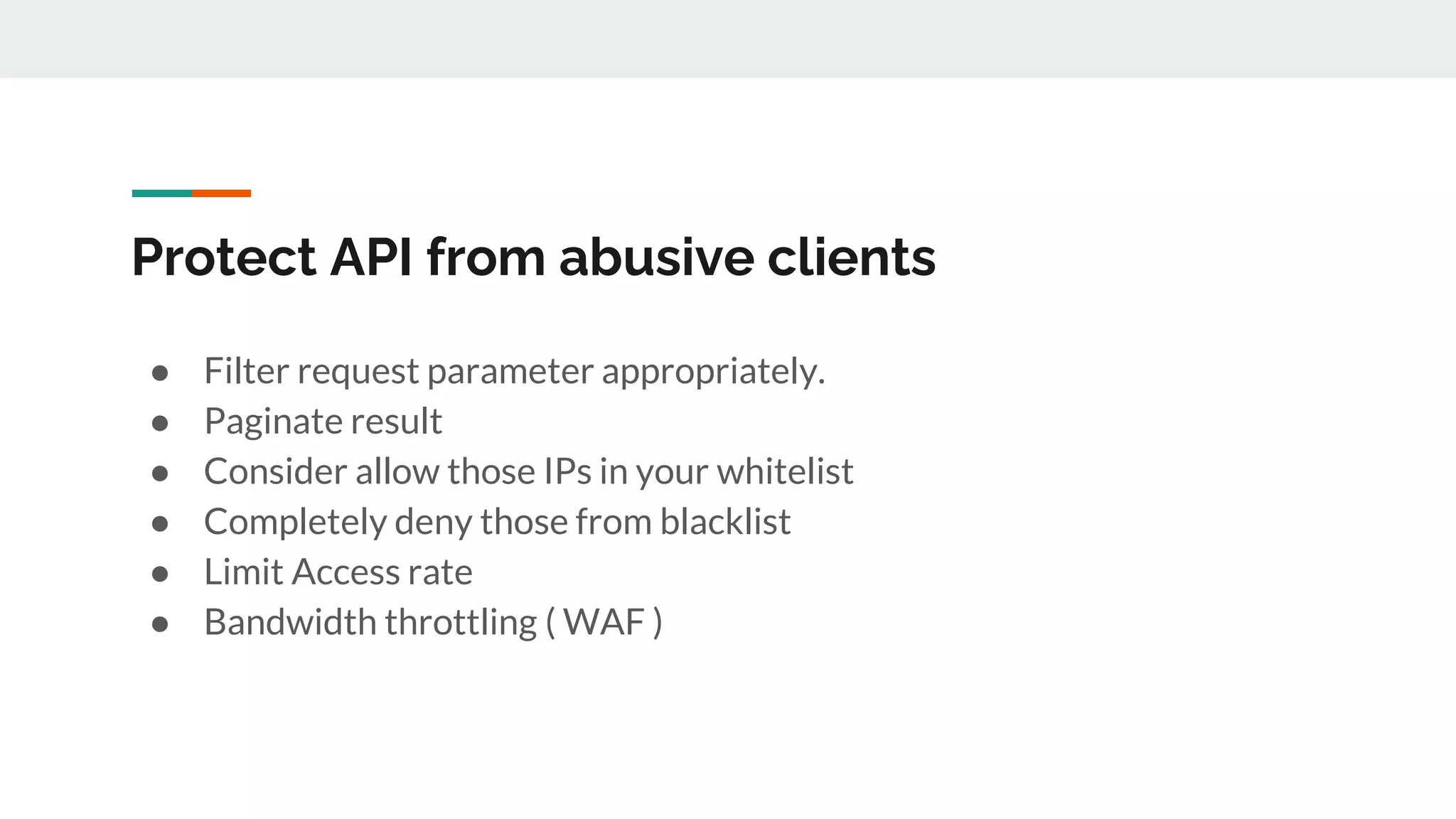

40. Protect API from abusive clients
● Filter request parameter appropriately.
● Paginate result
● Consider allow those IPs in your whitelist
● Completely deny those from blacklist
● Limit Access rate
● Bandwidth throttling ( WAF )

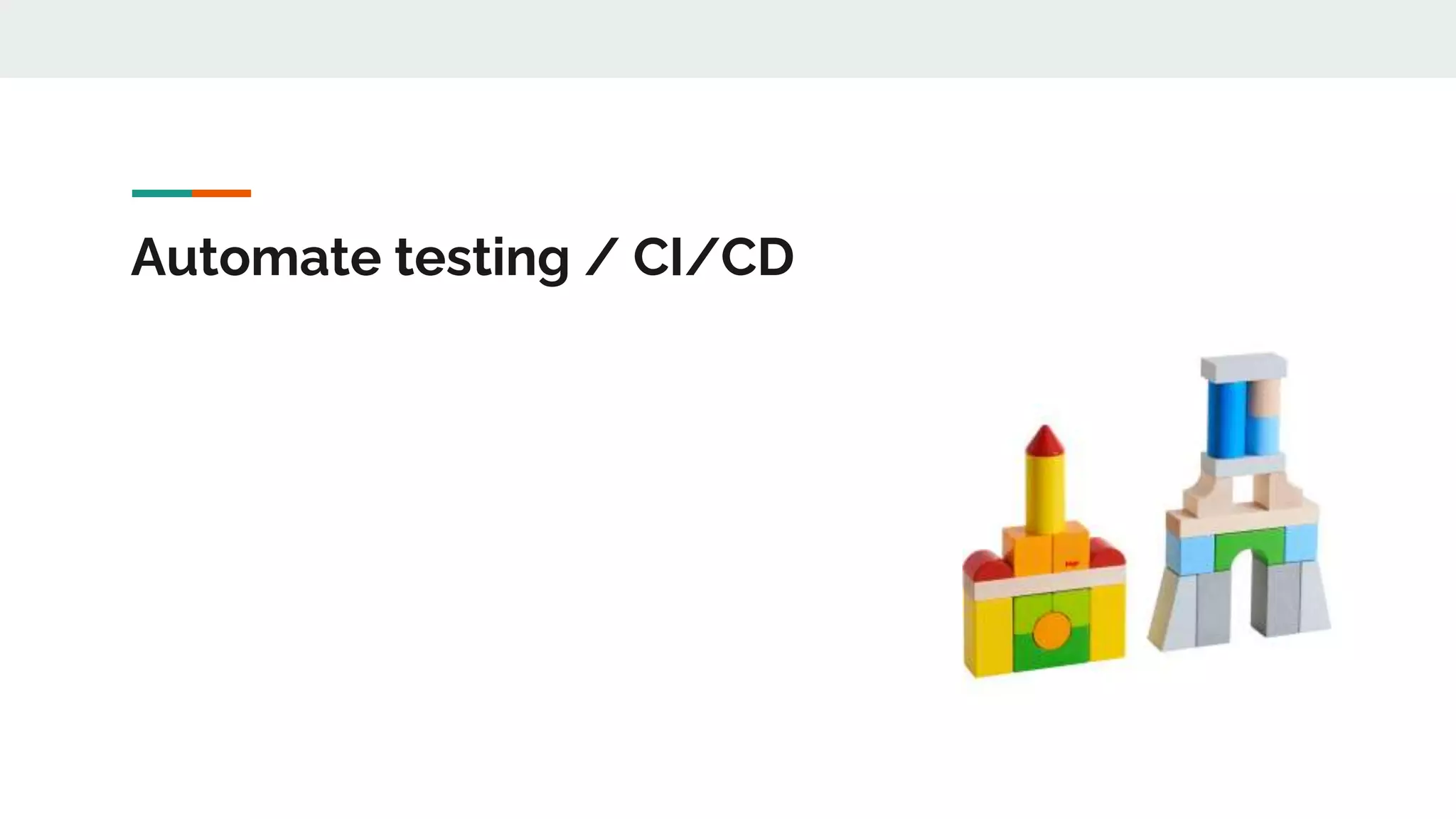

41. Automate testing / CI/CD

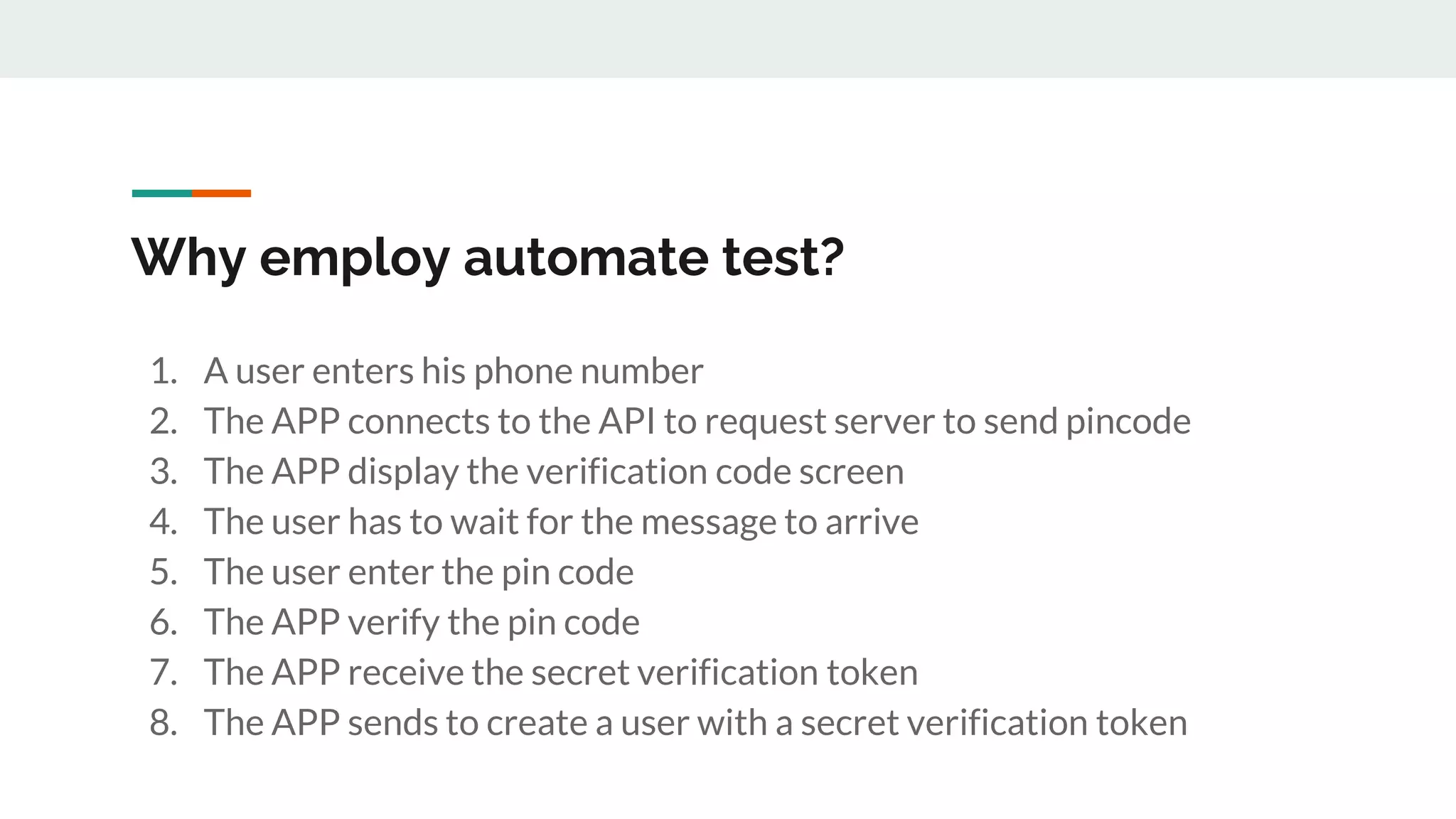

42. Why employ automate test?
1. A user enters his phone number
2. The APP connects to the API to request server to send pincode
3. The APP display the verification code screen
4. The user has to wait for the message to arrive
5. The user enter the pin code
6. The APP verify the pin code
7. The APP receive the secret verification token
8. The APP sends to create a user with a secret verification token

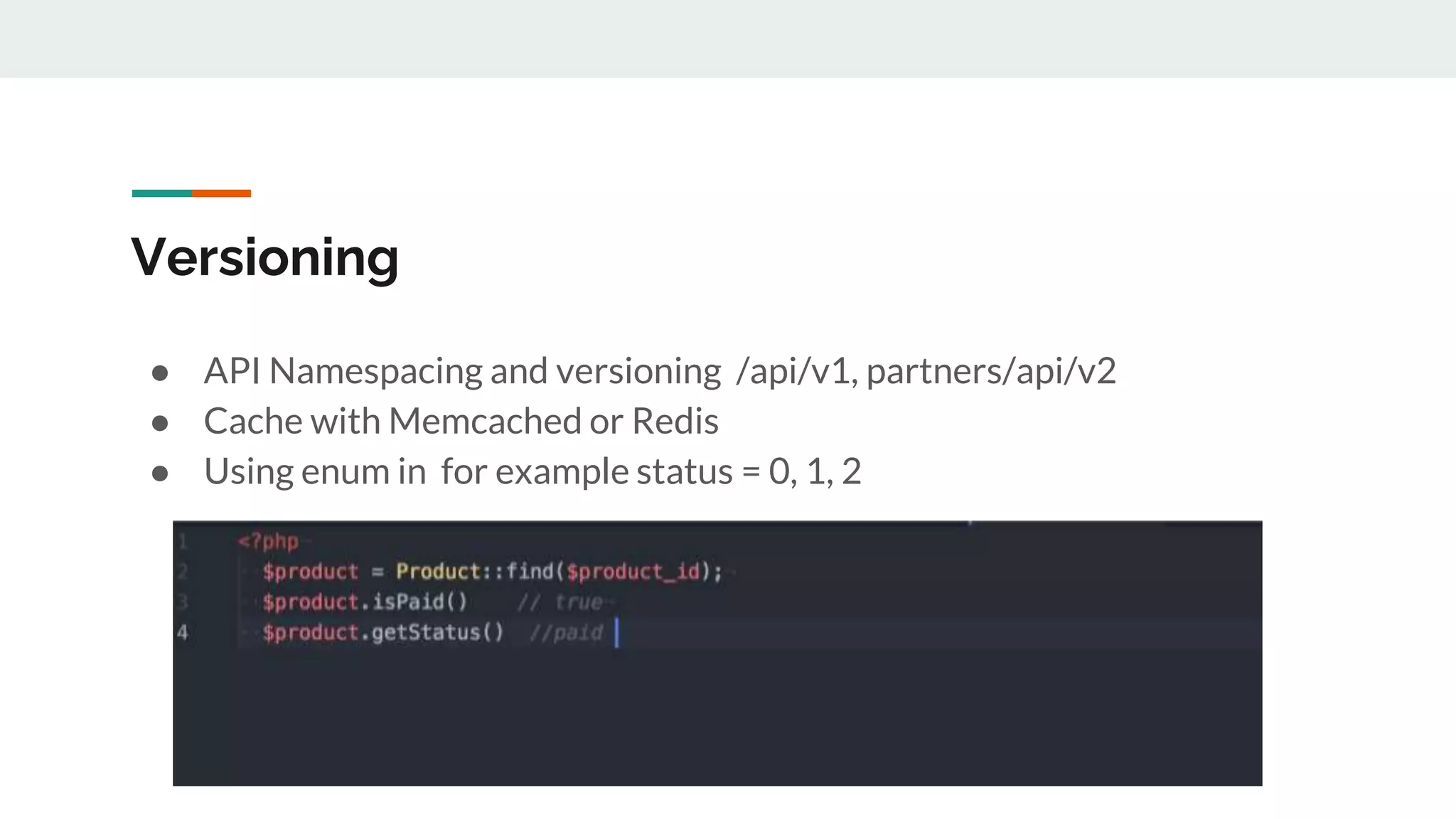

43. Versioning
● API Namespacing and versioning /api/v1, partners/api/v2
● Cache with Memcached or Redis
● Using enum in for example status = 0, 1, 2

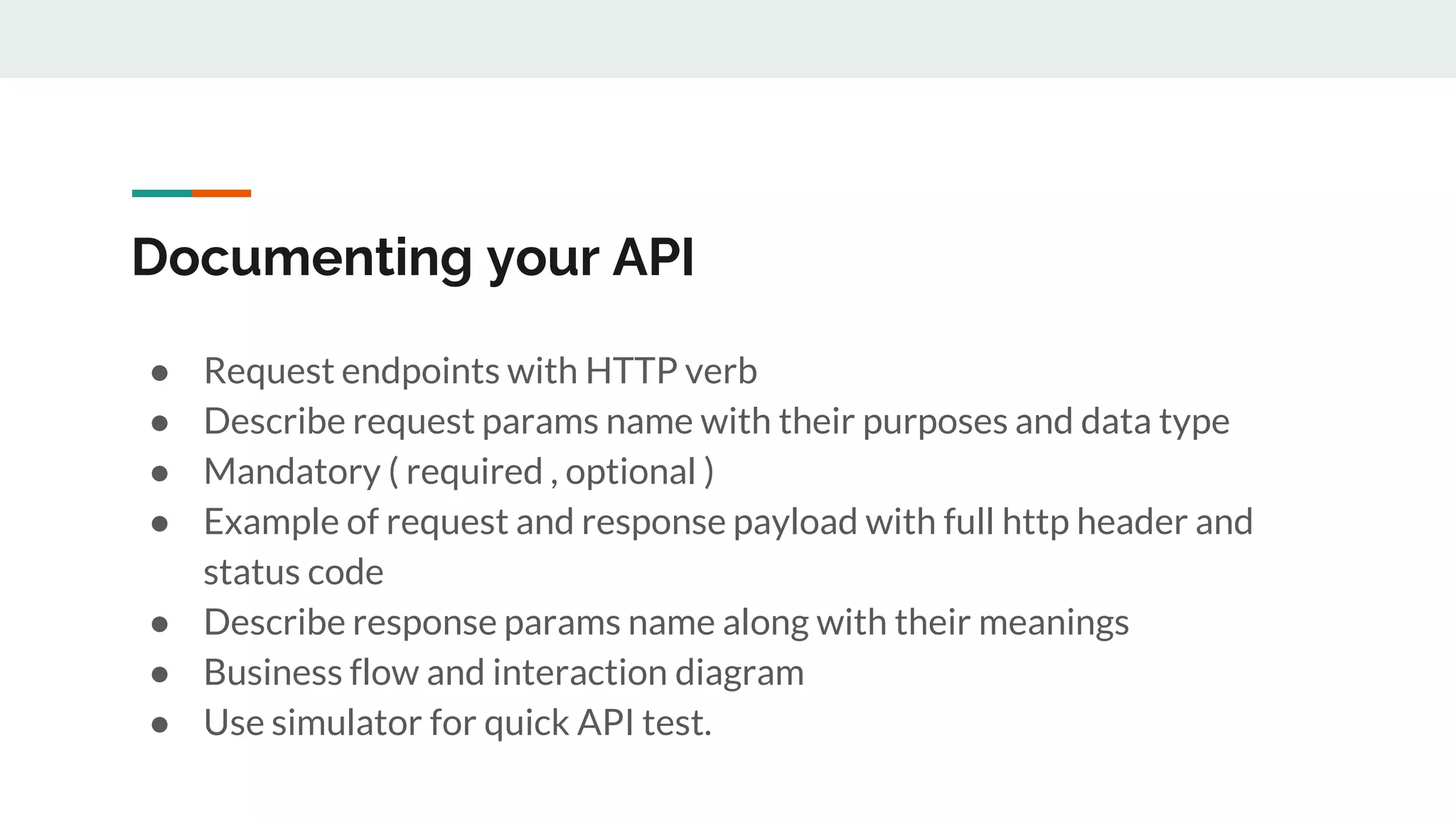

44. Documenting your API
● Request endpoints with HTTP verb
● Describe request params name with their purposes and data type
● Mandatory ( required , optional )
● Example of request and response payload with full http header and
status code
● Describe response params name along with their meanings
● Business flow and interaction diagram
● Use simulator for quick API test.

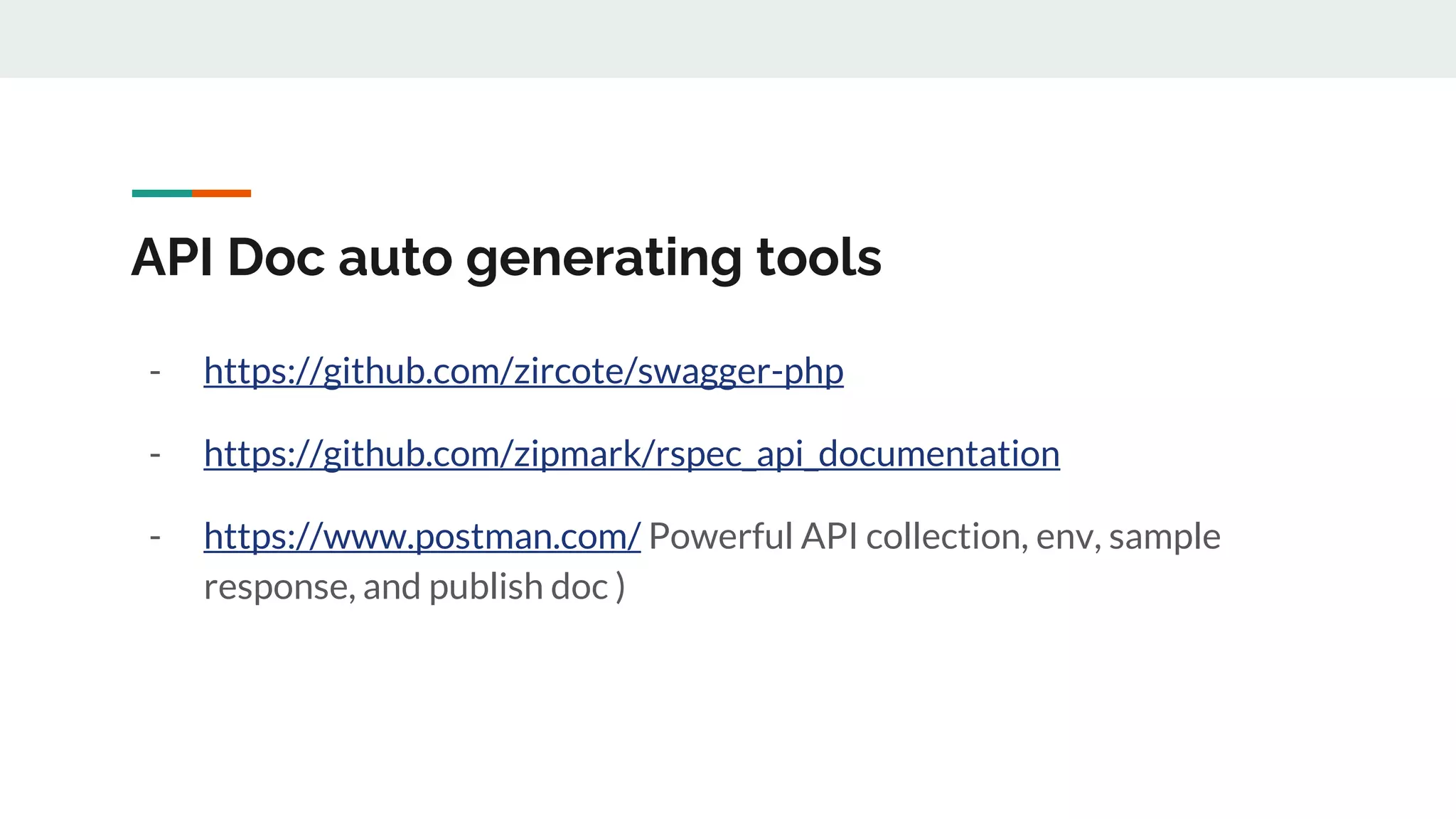

45. API Doc auto generating tools
- https://github.com/zircote/swagger-php
- https://github.com/zipmark/rspec_api_documentation
- https://www.postman.com/ Powerful API collection, env, sample
response, and publish doc )

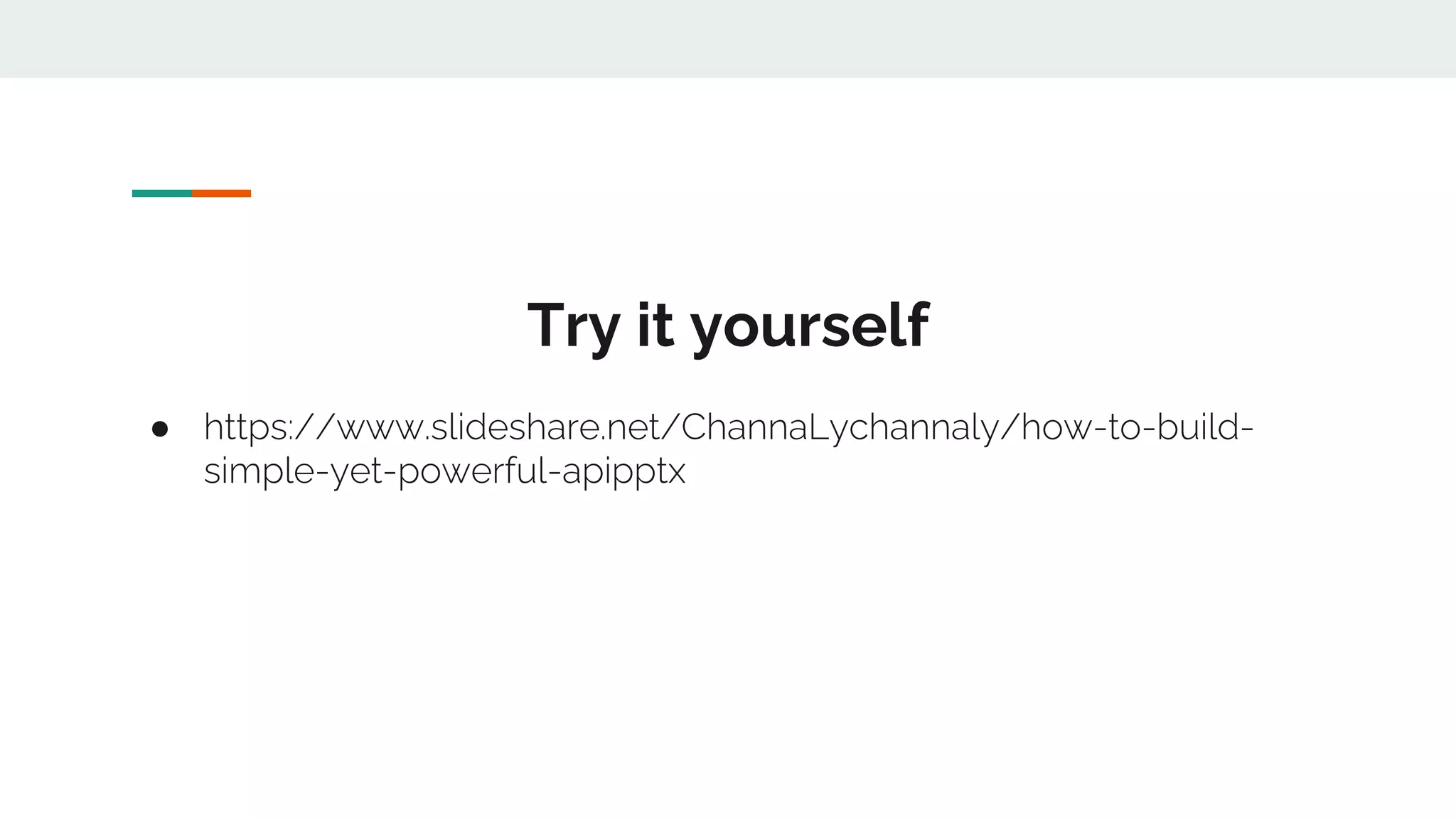

46. Try it yourself
● https://www.slideshare.net/ChannaLychannaly/how-to-build-
simple-yet-powerful-apipptx
