Endometrial histopathology-Basics

Endometrium in
surgical pathology
aj

Embryology
• The endometrium and the myometrium are of
mesodermal origin and are formed secondary to
fusion of the mullerian (paramesonephric) ducts
between the 8th and 9th postovulatory weeks.
• Until the 20th week of gestation
– Endometrium consists of a single layer of columnar
epithelium
– Supported by a thick layer of fibroblastic stroma.
• After the 20th week
– Surface epithelium invaginates into the underlying stroma
– Glandular structures formed that extend toward the
underlying myometrium. aj

• At birth
– Endometrium measures less than 0.5mm in thickness
– The surface and glands are lined by a low columnar to
cuboidal epithelium
– Epithelium is inactive.
• During the prepubertal years, the endometrium
remains inactive(similar to postmenopausal age).
aj

Layers of endometrium
• In the reproductive years, there are two regions
– Superficial functionalis (stratum spongiosum)
– Basalis (stratum basale).
• The functionalis has greatest degree of hormonal
responsiveness, while basalis is less responsive, the
morphology not varying greatly during the menstrual cycle
• A biopsy consisting entirely of basalis is not adequate for
dating of the menstrual cycle.
• Usually, the endometrial glands are regularly spaced and have
a perpendicular arrangement from the basalis to the surface.
• The basalis abuts the myometrium and regenerates the
functionalis following its shedding during menstruation. The
basalis is composed of inactive appearing glands, cellular
stroma, and spiral arteries that have thicker muscular walls
than those in the functionalis.aj

• The endometrium during the
reproductive period undergoes cyclical
morphologic changes, which are
particularly evident in the superficial
two thirds, the so-called functionalis
layer.
• Morphologic alterations are minimal
in the deeper one third, the so-called
basalis layer. Functional layer develops
from it
• A=functionalis layer
• B=basal layer
• C=myometrium
aj

Vascular anatomy
• The endometrial vascular supply
originates from the radial arteries of the
underlying myometrium.
• These arteries penetrate the
endometrium at regular intervals and
give rise to the basal arteries, which in
turn divide into
– Horizontal providing the blood supply to
the endometrial basalis
– Vertical branches supplying the overlying
functionalis layer.
• The endometrial vessels in the
functionalis layer are referred to as
spiral arteries.
aj

• A differentiating feature between the
endometrial and myometrial arteries is the
absence of subendothelial elastic tissue in the
endometrial arteries, except for those in the
basal layer.
• Uterine lymphatics drain from subserosal
uterine plexuses to the pelvic and para-aortic
lymph nodes.
aj

Epithelium of endometrium
• Epithelium of the endometrium, which is tall and columnar in
form. Some of the cells bear cilia, the remainder having surface
microvilli.
• Stromal cells have plump, spindle-shaped nuclei and scanty
cytoplasm.
aj

• Histology for pathologists, 4th ed, pg 1089
aj

• During adult reproductive age group the
endometrium is undergoing constant cyclical
changes under effects of hormones which is
termed as menstrual cycle.
aj

Sampling methods
Technique Feature
Endometrial curettage
(cervical dilation
and endometrial
curettage—D and C)
Removal of most of the uterine mucosa by scraping
with a sharp curette.
Considered the “gold standard”, as tissue amount is
good
Endometrial biopsy (EMB) Limited sample received and performed with a smaller
curette.
Single strips of endometrium are usually taken from
both the anterior and the posterior fundal surfaces.
Does not require cervical dilation.
Potential to miss focal lesions
Hysteroscopy in
combination with
endometrial sampling
aj

• Low power view of a Pipelle sample showing
what appears to be much tissue, but is actually
mostly blood.
aj

• Diagrammatic representation of the endometrial glands
and arterioles throughout the menstrual cycle.aj

Endometrium in pathology
• Basic questions
– Why endometrial sampling?
– Why interpretation important and difficult?
aj

Why do endometrial sampling?
• There are four main indications for endometrial sampling:
1. Determination of the cause of abnormal uterine
bleeding.
2. Evaluation of the status of the endometrium in infertile
patients, including histological dating.
3. Evacuation of products of conception, either
spontaneous abortions or termination of pregnancy.
4. Assessment of the response of the endometrium to
hormonal therapy, especially estrogen replacement in
perimenopausal and postmenopausal women and
Tamoxifen therapy for breast cancer.
5. Multiple overlapping reasons
aj

Endometrial dating
• Interpreting the cycle based on
histomorphology of endometrium.
• First by Noyes et al
• Current modifications of his chart are in use
for benign endometrium.
aj

Interobserver variability
• High
• Histologic endometrial dating does not have the accuracy or
the precision necessary to provide a valid method for the
diagnosis of luteal phase deficiency or to otherwise guide the
clinical management of women with reproductive failure.
aj

Accurate dating not possible
• Polyps
• Endometritis
• IUD
• Other pathological lesions
aj

Data required with biopsy
• Age
• Clinical presentation
• Obstetric history- LMP, details of cycle
• Gynecological history
• Drug history- hormone therapy?
aj

• Hypothalamus,
pituitary, ovarian
cortex, and
endometrium.
• Two major phases
– follicular
(proliferative)
– luteal (secretory)
phase
aj

Endometrial cycle
• Typical=28 days
• Range= 24-35 days
• Variation due to changes in duration of PP, SP
being constant 14 days from ovulation to
menstruation.
• 20% of women at some time experience an
irregular cycle.
• Durations of flow may range from 2 to 7 days
• Blood loss should be less than 30 ml.
• Anovulatory cycles are most common before age
20 and after age 40.
aj

Cyclic endometrium phases
based on morphology
1. Menstrual phase
2. Early proliferative phase
3. Mid- to late proliferative phase

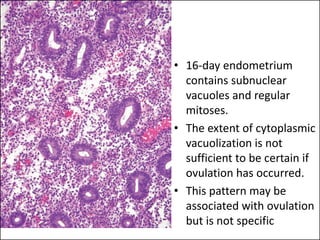

4. 16-day endometrium

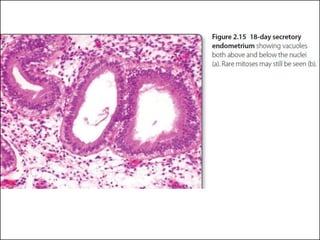

5. Vacuole phase of early secretory endometrium
6. Secretory exhausted phase (mid)
7. Predecidua phase (late)
aj

Reasons for assigning a precise date to
an endometrial biopsy
1. The need to establish that ovulation has taken place or not.
2. To determine if the assigned date falls within the expected range
based on the patient’s last menstrual period. This requires
cooperation of both the clinician and the pathologist in
determining whether a disturbance in the luteal phase has
occurred.
3. To determine if a morphologically visible maturation disturbance
exists, such as dyssynchronous maturation of endometrial glands in
relation to the stroma.
4. To become accustomed to small differences in morphology of
benign endometrial changes. An appreciation of such nuances may
facilitate the recognition of subtle neoplastic processes.
5. To determine if sufficient endometrial luteal maturation has
occurred in a preparatory cycle for potential recipients of egg
donation or frozen embryo. aj

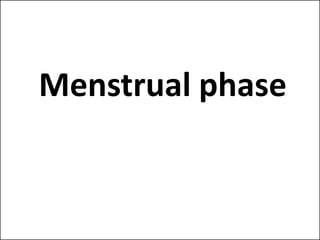

Menstrual phase
• Absence of implantation of a fertilised ovum,
degeneration of the corpus luteum results in
cessation of oestrogen and progesterone
secretion.
• In turn, this initiates spasmodic constriction in
the spiral arterioles
aj

Menstrual phase
• Morphologically it is defined by collapse of the
stroma and shedding of the functionalis.
• Usually 4 days
• Condensation of predecidual cells into
discrete aggregates or cordlike arrangements
admixed with blood and inflammatory cells.
aj

Menstrual
• Diffuse pattern of
stromal breakdown
aj

• degeneration of
the superficial
layers of the
endometrium and
leakage of blood
into the stroma
aj

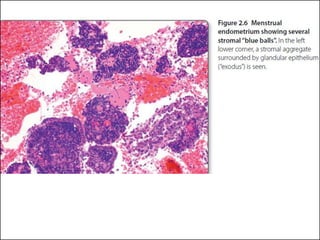

• Stroma is condensed
and collapsed, and
the stromal cells
aggregate into
tightly packed balls
(stromal blue balls)
and separate from
the glands.
aj

• Apoptotic bodies are
identified within
both the glands and
the stroma
aj

• Subsequently, a pattern of “scheduled
breakdown” begins, with coordinate collapse of
the functionalis, sheets of neutrophils, and the
characteristic plump aggregates of necrotic
predecidua.
• The debris contains exhausted secretory glands
that range from large, irregularly shaped glands
with slightly stratified nuclei (a consequence of
epithelial collapse and nuclear condensation) to
single-cell layered epithelium with a thin or
delicate appearance
aj

• The exhausted glands
contain delicate single-
layered epithelium and
cordlike aggregates of
necrotic
predecidualized stroma
aj

• Predecidual stromal aggregates or exhausted
glands typifies ovulatory breakdown and,
when encountered, this pattern of scheduled
(diffuse) breakdown with acute inflammatory
debris most commonly signifies that ovulation
has occurred.
aj

Day 3 menses
• At day 3 of the menses, the diagnosis of
ovulation can still be made provided sufficient
secretory exhausted glands are still present.
aj

Day 3 menses
• Features of
ovulation can still be
appreciated due to
presence of glands
aj

• Following this, the remainder of the
breakdown occurs in the lower functionalis
and the diagnosis of ovulation cannot be
confirmed on histologic grounds.
• The diagnosis rendered for these changes is
menstrual (ovulatory) endometrium.
aj

Variations in menstrual endometrium
• Irregular shedding
• In this, fragments of intact predecidualized
endometrium coexist with early proliferative-pattern
endometrium.
• The explanation for this picture is persistent corpus
luteum, leading to a greater range of findings in
which features of early breakdown (predecidualize
fragments) coexist with later regenerative (tubular
glands) components
aj

Irregular
shedding
• Early breakdown
of predecidualized
endometrium
aj

Irregular
shedding
• Early proliferative
pattern with star-
shaped glands
aj

Variations in menstrual endometrium
• Membranous dysmenorrhea
• Consisting of cohesive sheets of predecidualized
endometrium with scarce glands, alternating with
conventional disaggregated endometrium.
• This pattern was anecdotally associated with
dysmenorrhea in some instances, hence the term.
aj

Membranous
dysmenorrhoea
• Intact sheets of
necrotic
predecidua
(lower).
aj

Papillary syncytial metaplasia
• An inaccurate term as it is not a metaplasia but rather a
regenerative or degenerative process secondary to tissue
breakdown.
• Mitotic figures may be present within the papillary
proliferations.
• It is also seen following surface breakdown associated with
nonmenstrual conditions.
• On occasions, the micropapillary architecture is particularly
striking, and, if associated with mitotic activity, this raises the
possibility of a serous carcinoma
• Differentiated by
– background endometrium shows features of breakdown
– p53 staining which is negative here.
aj

• Florid papillary
syncytial metaplasia
aj

Papillary syncytial
metaplasia
• Following breakdown,
the endometrial glands
regenerate with a
surface micropapillary
architecture
aj

• Diagnostic Gynecologic and Obstetric Pathology, pp413aj

Microphotographs
• Menstrual endometrium
is characterized by an
– influx of inflammatory
cells into the
endometrium,
– thrombi in stromal
vessels
– Apoptosis
– gland–stromal
dissociation
aj

• The dissociation of the glands from the stroma
leads to stromal aggregates, which appear
darker and these are called “blue balls”.aj

• Menstrual endometrium.With stromal hemorrhage,
the predecidual cells collapse and they lose their
abundant cytoplasm aj

Day 3 and 4
• Menstrual
endometrium, cycle
days 3 and 4.
• Note dense stromal
cell aggregates
beneath the
regenerative
surface epithelium
(arrow)
aj

Proliferative phase
• During the proliferative phase, the
endometrium grows from about 0.5 mm up to
4.0 to 5.0 mm in thickness, so by the late
proliferative phase, a biopsy obtains a
moderate amount of tissue.
aj

Proliferative phase
• The proliferative phase usually lasts 14 days, but
under physiologic conditions may fluctuate between
10 and 20 days.
• It is therefore impossible to distinguish each day
during this phase.
• Consequently, it is subdivided only into the early,
middle, and late proliferative phases.
• Dating of proliferative endometrium is not utilized
clinically, and so a diagnosis of proliferative
endometrium is sufficient.
aj

Early proliferative
• The histologic features of endometrial breakdown described above may
overlap and persist into the early proliferative phase.
• Early proliferative endometrium is composed of straight, relatively
uncoiled glands, and confi guration may best be appreciated on a
hysterectomy specimen.
• On biopsy or curettage, the glands are most often seen in cross section,
and look like “little blue donuts”, small circular glands.
• The epithelium is pseudostratified
– while nuclei may be seen at various levels of the epithelium, all
epithelial cells are in contact with the basement membrane of the
gland, hence not truly stratified.
• Mitotic activity may be seen in the glands and stroma over the
proliferative period, increasing along the cycle
aj

• Pseudostratified
epithelium contains
prominent nuclei
with mitoses
aj

Mid proliferative phase
• There is tortuosity of glands due to their increase in
length, which exceeds the growth in height of the
endometrium.
• The glandular epithelial cells are tall columnar cells and
contain slightly enlarged oval-shaped, chromatin-rich
nuclei in a dense, sparse cytoplasm rich in RNA.
• Nucleoli are prominent, and mitoses frequent.
• The spindle-shaped stromal cells are still poorly
differentiated, but rich in DNA and RNA with occasional
mitoses and separated by interstitial edema (Harkin
1956).
• The surface epithelium has increased in height and is
now low columnar.
aj

Late proliferative phase
• Marked tortuosity of glands lined by tall columnar epithelial
cells piled up against one another with their nuclei at different
levels, giving a pseudostratified appearance.
• Nuclei -enlarged, more elongated or oval shaped.
• Nucleoli -quite prominent, mitoses are frequent.
• Cytoplasm is sparse and poorly differentiated.
• Stromal cells are enlarged. Stromal mitoses are frequent. The
cells are still of uniform size and without signs of
differentiation. The stromal edema has subsided.
• Spiral arterioles are still absent.
• The general height may be slightly lower than that of the
midproliferative phase due to decrease of edema. The surface
epithelium is distinctly columnar.
aj

• Diagnosis of endometrial biopsies and curretings 2005, pg 11aj

• The orientation and outline of proliferative
phase glands and their relationship to intact
stroma are important features for recognizing
this normal pattern, as hyperplastic glands or
glands in a polyp can have cytologic features
identical to those of glands in the proliferative
phase.
aj

Pitfalls in dating of proliferative phase
• Variable appearance of the stroma
• Include a prominent spindled appearance.
This may sometimes be misinterpreted as
predecidua or progestin effect.
aj

• The second pitfall is intraluminal material
misinterpreted as secretions.
• “Secretions” can be found in the lumen of any
endometrial gland irrespective of cycle day
and should not be used to assign a cycle date.
aj

• A third pitfall is a technical one where gland
tracts are susceptible to intussusception, also
termed “telescoping” or “gland in gland”
artifact.
• This may be misinterpreted as hyperplasia
(EIN)
• The diagnosis for this phase is simply
“proliferative endometrium.”
aj

• Gland in gland
(telescoping)
artifact
aj

• Assessing gland orientation can be complicated, by biopsy-
induced fragmentation, an especially common artifact in early
to mid-proliferative phase biopsies when the mucosa is still
thin.
• Detached and disrupted glands may appear abnormally
crowded or irregular. To separate fragmentation artifact from
true abnormalities, it is important to assess the integrity of
the stroma as well as the glands and to use surface epithelium
to help orient the tissue fragments.
• Detached and poorly oriented glands that show
pseudostratified nuclei and mitotic activity usually represent
proliferative endometrium unless better-oriented tissue
suggests otherwise.
aj

• Proliferative phase
• Constituent cells are
pseudostratified, and
the characteristically
elongated glandular
nuclei have dense
chromatin.
aj

• Proliferative phase glands with ciliated cells in the gland at the right. The
round cell with clear cytoplasm at the 3:00 o’clock position has the
characteristic appearance of ciliated cells before they have extruded their
cilia into the glandular lumen. The other ciliated cells have a pyramidal
shape aj

Day 15-16 (POD 2); Interval endometrium
• Ovulation as defined occurs on day 14 of the cycle.
• Both 15- and 16-day endometrium are technically
synonymous with the first and second days following
ovulation.
• The morphologic changes of the secretory phase begin 36 to
48 hours after ovulation.
• There is an interval phase of 36 to 48 hours between
ovulation and the first recognizable histologic changes of the
endometrium attributable to ovulation.
• The glands become more tortuous and begin to show
subnuclear vacuoles
aj

• Interval endometrium has features of both
proliferative and secretory endometrium.
• Features of interval endometrium can be seen
whether or not ovulation has occurred, and
hence the pathologist cannot confirm that
ovulation has occurred on the basis of this
morphology
aj

• Day 15 endometrium
contains rare vacuoles
aj

• 16-day endometrium
contains subnuclear
vacuoles and regular
mitoses.
• The extent of cytoplasmic
vacuolization is not
sufficient to be certain if
ovulation has occurred.
• This pattern may be
associated with ovulation
but is not specificaj

Vacuolation in proliferative phase??
Must be interval!
• Focal subnuclear vacuolization may occur in the
proliferative phase, at least 50% of the glands should
contain vacuoles to confirm ovulation.
• In addition, at least 50% of the cells in a gland should
contain vacuoles.
• If the 50% rule is not fully met, but the clinical history
and morphology suggest recent ovulation, the
endometrium may be in the interval phase.
aj

Vacuole Phase of Secretory Endometrium
(17 to 19 days; POD-4 to -6)
• The first phase of the postovulatory period.
• Low power shows glands that are larger and
slightly undulating and that appear more
eosinophilic because of the absence of
pseudostratified nuclei combined with
vacuoles and intracellular secretions
aj

• 17-day SE characterized by uniform subnuclear
vacuoles and virtually no mitotic activity.
• Piano key appearance
aj

• 18-day SE, the vacuoles are staggered toward the lumen and are
accompanied by supranuclear discharge, seen as a ragged surface
change.
• The vacuoles may or may not be conspicuous; however, the nuclei are
prominently situated in the center of each cell, forming a uniform
monolayer amidst eosinophilic cytoplasm.aj

• Day 19 SE, the nuclei have nearly migrated back to the base
and are accompanied by scattered residual subnuclear
vacuoles and the appearance of early secretory exhaustion;
mitotic activity typically is not present.aj

• The vacuoles have entirely migrated to the
luminal surface by day 19
aj

Diagnostic pitfall in vacuole phase
• Irregular random pattern of gland enlargement
leading to foci of gland crowding.
• This is sometimes erroneously interpreted as a
“secretory hyperplasia” (EIN)aj

Exhaustive Phase of Secretory Endometrium
(20 to 22 Days; POD-6 to -8)
• Conclusion of the vacuole phase is
characterized by secretory exhaustion.
• Peak secretion is seen on day 20. The apical
portions of the glands may have “snouts”.
• Rest of the secretory phase occurs in the
stroma, as the glands become exhausted, and
take on a sawtooth appearance.
aj

• SE day 20 demonstrates peak intraluminal secretions
accompanied by occasional residual subnuclear vacuoles
combined with slight gland enlargement and a compact
subsurface stroma. aj

• peak secretion is seen at day 20
aj

• SE day 21 exhibits an increase in stromal edema,
highlighting the spiral arterioles
aj

• SE day 22 is characterized by a peak in stromal edema
and exhibits the first hint of perivascular cuffing, but
conspicuous predecidual changes are lacking
aj

Predecidual Phase of Secretory Endometrium
(23 to 28 days; POD-9 to -14)
• This phase is initiated by the condensation of
predecidua around spiral arterioles.
• Predecidua is not actually decidua because it is not
the result of pregnancy; nevertheless, the term
predecidua is used because the cells bear some
morphologic resemblance to pregnancy-related
decidual change.
aj

• Predecidua characteristics
– spiral aggregates of spindled cells around vessels
– slightly basophilic cytoplasm, with distinct cell
borders(dark cytoplasm)
– nuclear changes with a reduction in basophilia
with finer chromatin texture.(lighter nuclei)
aj

• Predecidua cuffing around spiral arterioles begins at day 23.
• Cytoplasmic basophilia and nuclear hypochromasia produce a
loss of cell contrast aj

Predecidua vs mimics
• This combination of abundant darker
cytoplasm mixed with paler nuclei reduces the
nuclear–cytoplasmic contrast, making the cells
less distinct and lending a slightly “smudged”
or “out of focus” appearance to the
aggregates. This relative “softness” amid the
higher contrast of the lower functionalis
distinguishes predecidua from its mimics
aj

Diagnostic pitfall day 23 SE
• Interpretation of larger arteries as spiral
arterioles and confusing the two to three
layers of investing adventitia around these
larger arteries as predecidua.
aj

• Aggregates bridging multiple vessels are day
24 SE
aj

• day 25, predecidua is also under the surface
epithelium
aj

• Predecidua around spiral arterioles
aj

• Late secretory endometrium. Stromal cells around spiral
arteries show predecidual change with increased cytoplasm.
• The gland shows secretory exhaustion with patchy
cytoplasmic vacuolization aj

• Expanding predecidua as linear sheets beneath the
surface is seen on day 26
• Some granulocytes aj

• Day 27 SE entire stroma predecidulaized.
• Continuous subsurface with expansion of predecidua
downward and between the folds of the functionalisaj

• Extension of predecidua between glands by
day 27 SE
aj

• Peak lymphocytic infiltration by day 28 SE.
• Gland–stromal dissociation begins with hemorrhage
aj

Diagnostic pitfall in late SE
• Edematous predecidua, which may be confused with day 21.
Here predecidual cell characteristics are checked.
• Interpretation of stromal granulocytes as inflammation or
chronic endometritis.
– No plasma cells are present and the setting of late secretory
endometrium.
• Glands may be closely packed (more by tangential sectioning),
and this can superficially resemble hyperplastic endometrium
however, other features of a hyperplastic endometrium, such
as mitotic activity, are absent.
• Hypersecretory endometrium vs Arias-Stella reaction
aj

• A, Edematous predecidua
• B, Stromal changes in a 21-day secretory
endometrium may mimic predecidua
aj

• Endometritis
– Plasma cells
– Spindled stroma
aj

• Glands may be closely packed superficially
resembling a hyperplastic endometrium
aj

• Late-secretory endometrium. The glands
exhibit the Arias- Stella reaction
aj

IHC of normal endometrium
• Normal
– ER and PR positive
• Glands during proliferative and late secretory
– diffusely positive for bcl-2
• Glands
– CK 7 positive
– CK 20 negative
• Stroma
– CD 10 and bcl-2 negative
– CD 34 positive
– Active positive
– Desmin negative
aj

ER positive glands and stroma CD 10 positive stroma
aj

Some pathology for clinicians
• All clinicians may not have a sense of how
pathology works or sufficient understanding
of how important a history is in making a
determination.
• Rarely do specimens look exactly like what is
in the textbooks, and the rendering of
diagnosis is often a process of developing a
differential diagnosis.
aj

• Lack of clinical information impedes this, and may lead to a
long descriptive diagnosis rather than a concise one.
• As an example, the diagnoses below are both from the same
specimen.
• In the first case, no history of exogenous progesterone
therapy was provided, and in the second it was:
– Diagnosis 1 (in the absence of history): endometrial tissue
irregularly developed. The glands are small and inactive.
The stroma is hypercellular and focally decidualized. This
may represent exogenous progestational effect. Clinical
correlation suggested.
– Diagnosis 2 (with history): benign endometrium, with
glandular and stromal features consistent with progestin
effect.
aj

Endometrial histopathology-Basics

More Related Content

What's hot

Similar to Endometrial histopathology-Basics

Recently uploaded

Endometrial histopathology-Basics
