1. ManageIQ
Sprint 17 Report - Sprint End January 5, 2015
January 7, 2015

2. Overview
● Sprint Statistics
● Rest API VM Management Actions (A. Bellotti)
● jQuery Conversion, Pluggable UI work (D. Clarizio)
● UI for Locale Changes, Angular Repository Editor (D.
Clarizio)
● Provider Integrations (G. Blomquist)
● AWS CloudFormation (B. Wei)
● Dynamic Radio Button Support (G. McCullough)
● Improved Testing, Provider Architecture (J. Frey)
● IP V6 Scorecard (J. Rafaniello)
● Rails 4 Upgrades (A. Patterson)
● OpenStack Instance Fleecing (R. Oliveri)

3. Sprint 17 Ended January 5
● https://github.com/ManageIQ/manageiq/issues?q=milest
one%3A%22Sprint+17+Ending+Jan+5%2C+2015%22
● 97 Pull Requests Merged
○ 38 issues labeled as “bug”
○ 23 issues labeled as “enhancement”
○ 23 issues labeled as “technical debt”
○ 9 issues labeled as “refactoring”
○ 6 issues labeled as “test”

4. Rest API - VM Management Actions
❖ Closing Gap with SOAP VM management APIs
❖ 9 PRs currently in review
PR Summary SOAP API REST API /api/vms & /api/vms/#
1168 Start a VM EVMSmartStart action start
1176 Stop a VM EVMSmartStop action stop
1180 Suspend a VM EVMSmartSuspend action suspend
1190 Delete a VM EVMDeleteVmbyName action delete & HTTP DELETE verb
1197 Set Owner of a VM VMSetOwner action set_owner
1239 Manage Custom Attributes of a VM VmAddCustomAttribute(s)ByFields
VmDeleteCustomAttribute(s)
/api/vms/#/custom_attributes
actions add, edit, delete
1255 RSOP EVMVmRsop action rsop
1260 Add Event to VM EVMVmEventByProperty action add_event
1262 Add a VM Scan action EVMVmScanByProperty action scan

5. Rest API - VM Management Actions
Examples for VM actions like: start, stop, suspend, delete
❖ Targeting single VM:
POST /api/vms/#
{
“action” : “start”
}
❖ Targeting multiple VMs:
POST /api/vms
{
"action" : "start",
"resources" : [
{ "href" : "https://miq_appliance/api/vms/#1" },
{ "href" : "https://miq_appliance/api/vms/#2" },
...
]
}

6. Rest API - VM Management Actions
❖ As in earlier examples, these actions also support targeting multiple VMs via /api/vms and “resources”
VM action: set_owner
POST /api/vms/#
{
“action” : “set_owner”
“resource” : {
“owner” : “admin”
}
}
VM action: add_event
POST /api/vms
{
“action” : “add_event”
“resource” : {
“property” : “ipaddress”,
“value” : “192.168.200.11”,
“event_type” : … , “event_message” : …
}
}
VM action: delete
DELETE /api/vms/#
POST /api/vms/#
{
“action” : “delete”
}
VM action: rsop
POST /api/vms/#
{
“action” : “rsop”
“resource” : {
“policy” : “test policy”
}
}
VM action: scan
POST /api/vms
{
“action” : “scan”
“resource” : {
“property” : “ipaddress”,
“value” : “192.168.200.12”
}
}

7. Rest API - VM Management Actions
❖ Custom Attributes supported as a VM subcollection, i.e. /api/vms/#/custom_attributes
Querying:
GET /api/vms/#/custom_attributes
GET /api/vms/#/custom_attributes?expand=resources
GET /api/vms/#/custom_attributes/#
GET /api/vms/#?expand=custom_attributes
Adding: supports name, value, source and section
POST /api/vms/#/custom_attributes
{
“action” : “add”
“resources” : [
{ “name” : “name1”, “value” : “value1” },
{ “name” : “name2”, “value” : “value2” },
...
]
}
Updating:
POST /api/vms/#/custom_attributes
{
“action” : “edit”,
“resources” : [
{ “name” : “name1”, “value” : “v1” },
{ “href” : “https://miq/api/vms/#/custom_attributes/#2” , “value” : “v2” },
...
]
}
Deleting:
POST /api/vms/#/custom_attributes
{
“action” : “delete”,
“resources” : [
{ “name” : “name1” },
{ “href” : “https://miq/api/vms/#/custom_attributes/#2” },
...
]
}

8. jQuery Conversion, Pluggable UI
Prototype to jQuery Conversion
● Progress made, hope to finish in the next sprint
● Blocking full implementation of Patternfly
Pluggable UI
● Just getting started, working on prerequisites:
refactoring navigation top right menus, RBAC, etc.
● Will allow UI plugins to be dynamically added to the
Web UI

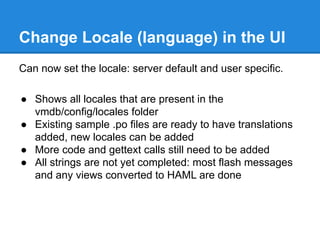

9. Change Locale (language) in the UI
Can now set the locale: server default and user specific.
● Shows all locales that are present in the
vmdb/config/locales folder
● Existing sample .po files are ready to have translations
added, new locales can be added
● More code and gettext calls still need to be added
● All strings are not yet completed: most flash messages
and any views converted to HAML are done

10. Change Server Locale

11. Change User Locale

12. Angular Repository Editor
The first conversion of an editor to use AngularJS.
● Before/after edit variables are no longer stored in the
server’s session object
● All changes are made local in the browser
● Field validation using Angular directives
● Real time validation/error messages
Still to come:
● Field messages to be displayed directly below the fields
Demo

13. Provider Integrations
● Current Sprint
○ Several bug fixes for this sprint
● Future Work
○ OpenStack Infrastructure Support
○ Kubernetes / Containers
○ Update on Pluggable Providers

14. AWS CloudFormation
● Merged PR #919 - Refresh AWS Cloudformation
● UI design is in progress
● Template parameter parsing and dialog generation
○ Merged PR #1212 - Parse parameters from
orchestration template
○ PR #1228 - Orchestration provision dialog
● Created a new service type for orchestration
provisioning (PR pending)
● Video demo

15. Dynamic Radio Button Support
● Enhance Radio Buttons to support retrieving
Options/Entries from automate

16. Dynamic Radio Button Support

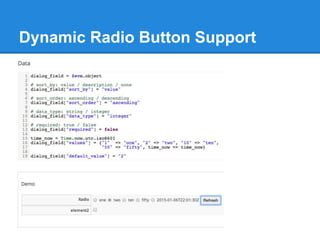

17. Dynamic Radio Button Support

18. Openstack Provision
● Support booting instance from volume
through clone_options parameter
○ Fog PR #3323 - Fix block device mappings
○ Required changes to Fog gem included in v1.26.0
○ Example Automate script:
prov = $evm.root["miq_provision"]
prov.set_option(:clone_options,
{ :image_ref => nil,
:block_device_mapping_v2 => [{
:boot_index => 0,
:uuid => "133ebbe8-817f-11e4-824a-56847afe9799",
:device_name => "vda",
:source_type => "snapshot",
:destination_type => "volume",
:delete_on_termination => true,
},]
}
)

19. Foreman Integration
● PR #947 - Modeling
● In progress - Data collection and Refresh

20. Event Switchboard
● Event routing in automate
● Refactoring ActiveRecord models

21. Testing Update
● Docker-ized Travis
○ Faster startup
● bundle caching
○ Available to Docker-ized Travis runs
○ Caches the bundled gems, so on follow-up runs, it
just downloads the cache and updates
○ rubygems.org is unreliable, S3 isn’t
○ “bundle install” times down to ~1 min from ~5 min
● Total time savings
○ vmdb test suite down to ~13 min from ~26 min

22. Provider Architecture
● https://github.com/ManageIQ/manageiq/issues/1272
● Introduce new layer above ExtManagementSystem
called “Provider” and term the EMS layer “Manager”
● Summary: A “Provider” has many “Manager”s
● Allows for creating completely new provider types and
for expansion of existing providers
○ Foreman
○ OpenStack infrastructure
○ Containers

23. IPV6 Progress
Support for IPv6 literals:
● Libraries may build URIs via:
○ “http://#{host}:#{port}...”
● Problem:
○ Need to wrap IPv6 literals: “[::1]”
■ For URIs: “http://[::1]:80/blah”
■ For http Host header: “[::1]”
○ Need to unwrap literals: “::1” for sockets:
■ TCPSocket.new("::1", 80)

24. IPV6 Progress
Support for IPv6 literals:
● VMware / handsoap / httpclient
○ Complete - ManageIQ PR #1080
● Ovirt / rest-client / net-http
○ Awaiting ruby 2.0 release with merged ruby
bug #10530 (backport #9129)
○ Awaiting rest-client release with merged PRs
332 and 333

25. IPV6 Progress
Support for IPv6 literals:
● Openstack / Fog / excon
○ Merged: Fog PR 3351 - drop ruby < 1.9.3
○ In progress: Excon PR 449, URI building to
handle IPv6 literals in Fog/Excon
● Amazon / aws-sdk
○ Not started
● Microsoft / winrm / httpclient
○ Not started (httpclient works with vmware)

26. IPV6 Progress
Future IPv6 features
● Modeling (insight)
○ Currently support adding both IPv4 and
hostname but it’s not clear to the user what is
used
○ TODO: Allow user input of one of IPv4/IPv6
literal or hostname and change ManageIQ
code to use it
● Discovery
○ IPv6 literal start address and range

27. IPV6 Progress
IPv6 Progress Summary
● Communication - 1 done, 1 nearly done, 1
started, 2 not started
● Modeling - not started
● Discovery - not started
● Provisioning - not started
● Running centos appliance with ipv6 - not
started
● https://trello.com/c/0l9v4UVW/4-13-appliance-ipv6

28. Rails 4 Upgrades
● Updated our preloader patches against Rails
● Updated virtual column / reflection code to
integrate with Rails
● Started moving ActiveRecord 2.3 hash
based finders to Relation based finders
● Backports and refactorings on master for
Rails 4 support

29. Storage and Fleecing Progress
● OpenStack Instance Fleecing (WIP)
○ Glance API not ready, proceeding without it.
○ Sidetracked by other issues.
● SCVMM Fleecing: on hold
● Fleecing Tests next steps (WIP)
○ Define image repository
○ extend fleecing tests - isolation tests of each layer.

30. Questions?
Sprint Report Schedule:
● 1/7/15
● 1/28/15
● 2/18/15
● 3/11/15
● 4/1/15
● 4/22/15
