This document summarizes an electrical installation plan for a house. It includes an introduction to electrical wiring and circuits. Sections cover electrical symbols, the panel board, notes on switch and receptacle placement heights, and a conclusion that discusses selecting the proper wiring size and protection devices based on the power needs of the house.

1. University of Balamand
Department of Mechatronics Engineering
ELECTRICAL
INSTALLATION
Submitted by: Mario El Khoury
Supervised by: Dr Ibrahim Chanbour
Spring 2019
1

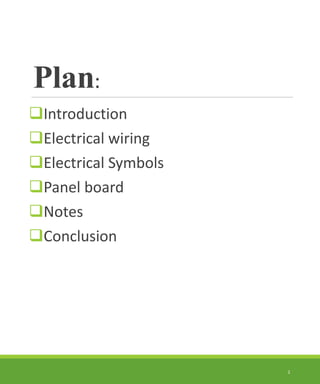

2. Plan:
❑Introduction
❑Electrical wiring
❑Electrical Symbols
❑Panel board
❑Notes
❑Conclusion
2

3. Introduction
❑Electrical wiring is an electrical installation of cabling and associated
devices such as switches, distribution boards, sockets, and light.
❑Electrical installation circuits depart from its own panelboard
allowing the circulation of electricity up to each utilization point.
❑Each circuit is protected by a circuit breaker mounted in the
panelboard.
❑These circuits consist of electrical wires or cables. Some of them
are connected directly between the protective device and the end
point (case of a receptacle, outlet for hot plates,…). Some others
are connected to the end point through a command device (switch
for lighting, pushbutton for bell,…). And others are connected by
the means of contactors or relays (case of an electric water heater
for example).
3

4. Electricalwiring
4

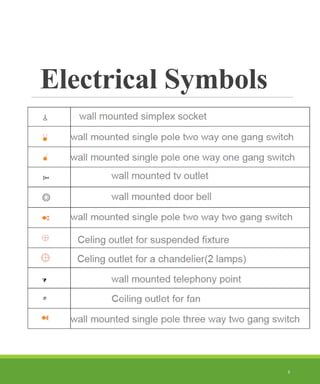

5. Electrical Symbols
5

6. Panelboard
6

7. 7

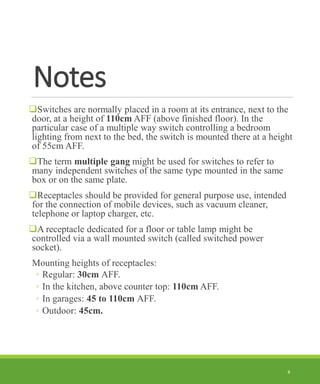

8. Notes
❑Switches are normally placed in a room at its entrance, next to the
door, at a height of 110cm AFF (above finished floor). In the
particular case of a multiple way switch controlling a bedroom
lighting from next to the bed, the switch is mounted there at a height
of 55cm AFF.
❑The term multiple gang might be used for switches to refer to
many independent switches of the same type mounted in the same
box or on the same plate.
❑Receptacles should be provided for general purpose use, intended
for the connection of mobile devices, such as vacuum cleaner,
telephone or laptop charger, etc.
❑A receptacle dedicated for a floor or table lamp might be
controlled via a wall mounted switch (called switched power
socket).
Mounting heights of receptacles:
◦ Regular: 30cm AFF.
◦ In the kitchen, above counter top: 110cm AFF.
◦ In garages: 45 to 110cm AFF.
◦ Outdoor: 45cm.
8

9. Conclusion
After studying the basic power needed for this house, we can now select
the best sizing, wiring and the type of wires, main circuit breaker and
RCD’S.
9
