This document provides an overview of various Java language concepts including enums, final, static, variable arguments, encapsulation, inheritance, polymorphism, interfaces, and abstract classes. It defines each concept and provides examples to illustrate how they work in Java code. The document is presented as part of a multi-part series on the Java language and object-oriented programming.

1. Java Language and OOP
Part IV
By Hari Christian

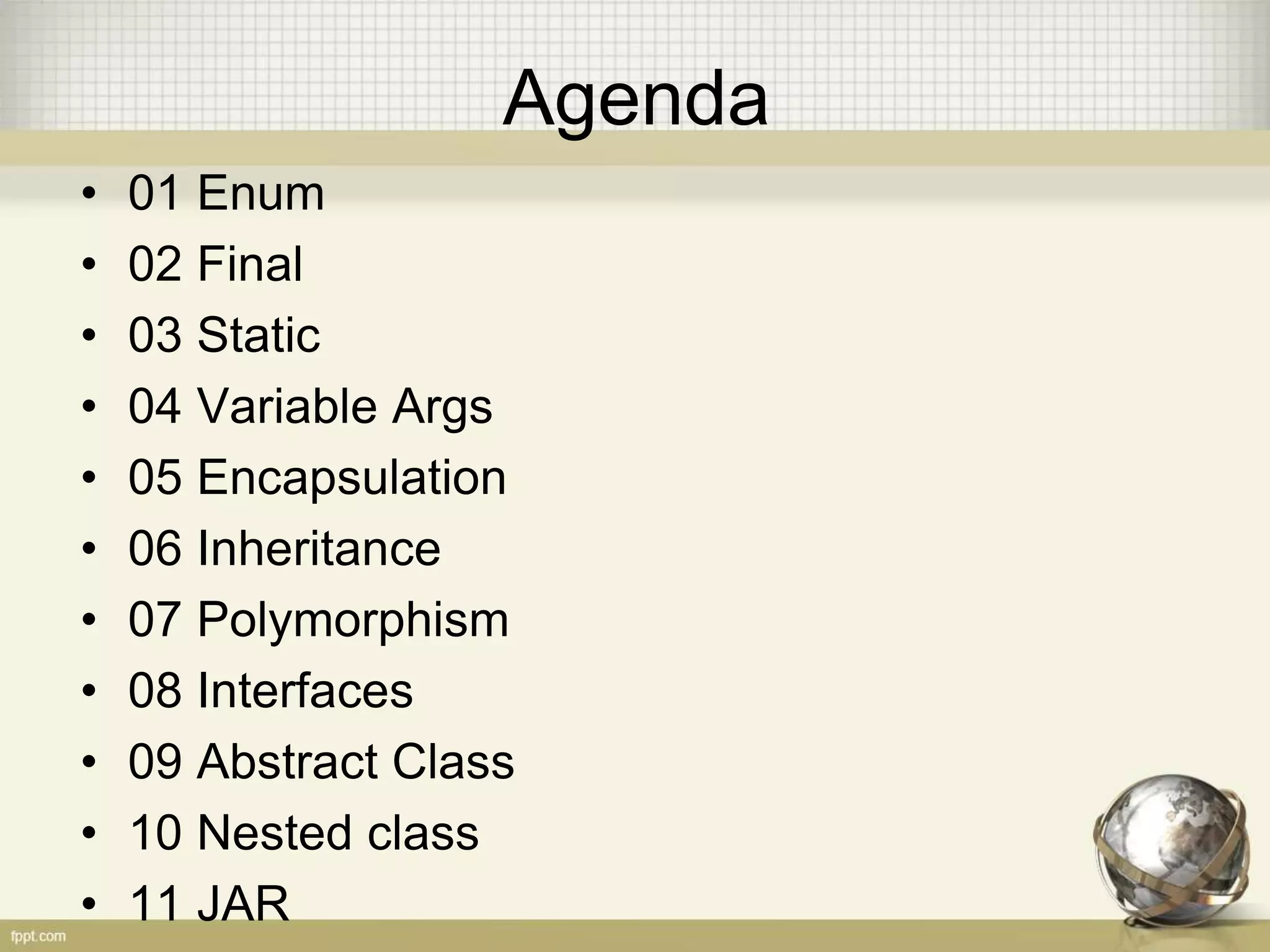

2. Agenda
• 01 Enum
• 02 Final
• 03 Static
• 04 Variable Args
• 05 Encapsulation
• 06 Inheritance
• 07 Polymorphism
• 08 Interfaces
• 09 Abstract Class
• 10 Nested class
• 11 JAR

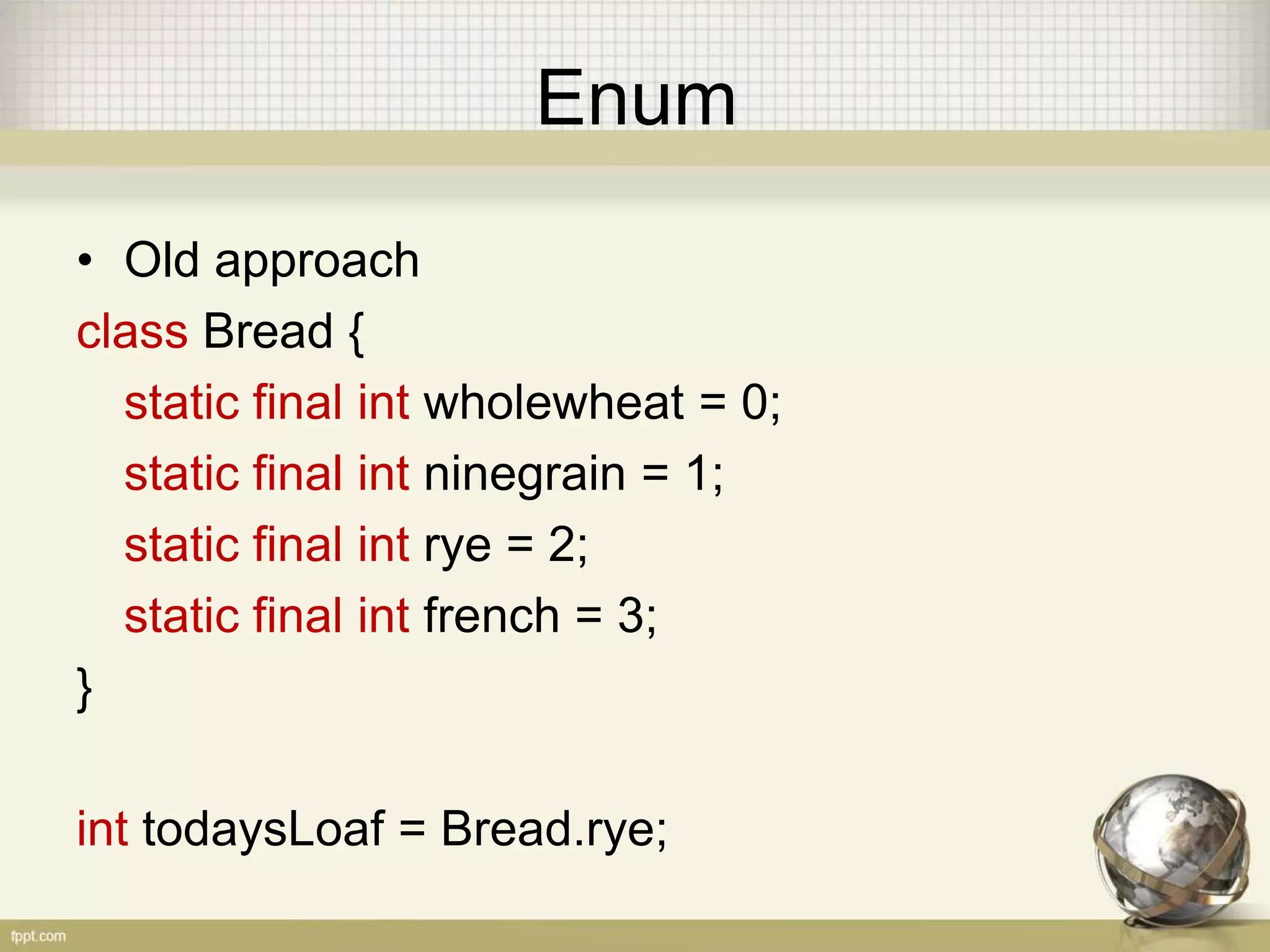

3. Enum
• Old approach
class Bread {
static final int wholewheat = 0;
static final int ninegrain = 1;
static final int rye = 2;
static final int french = 3;
}
int todaysLoaf = Bread.rye;

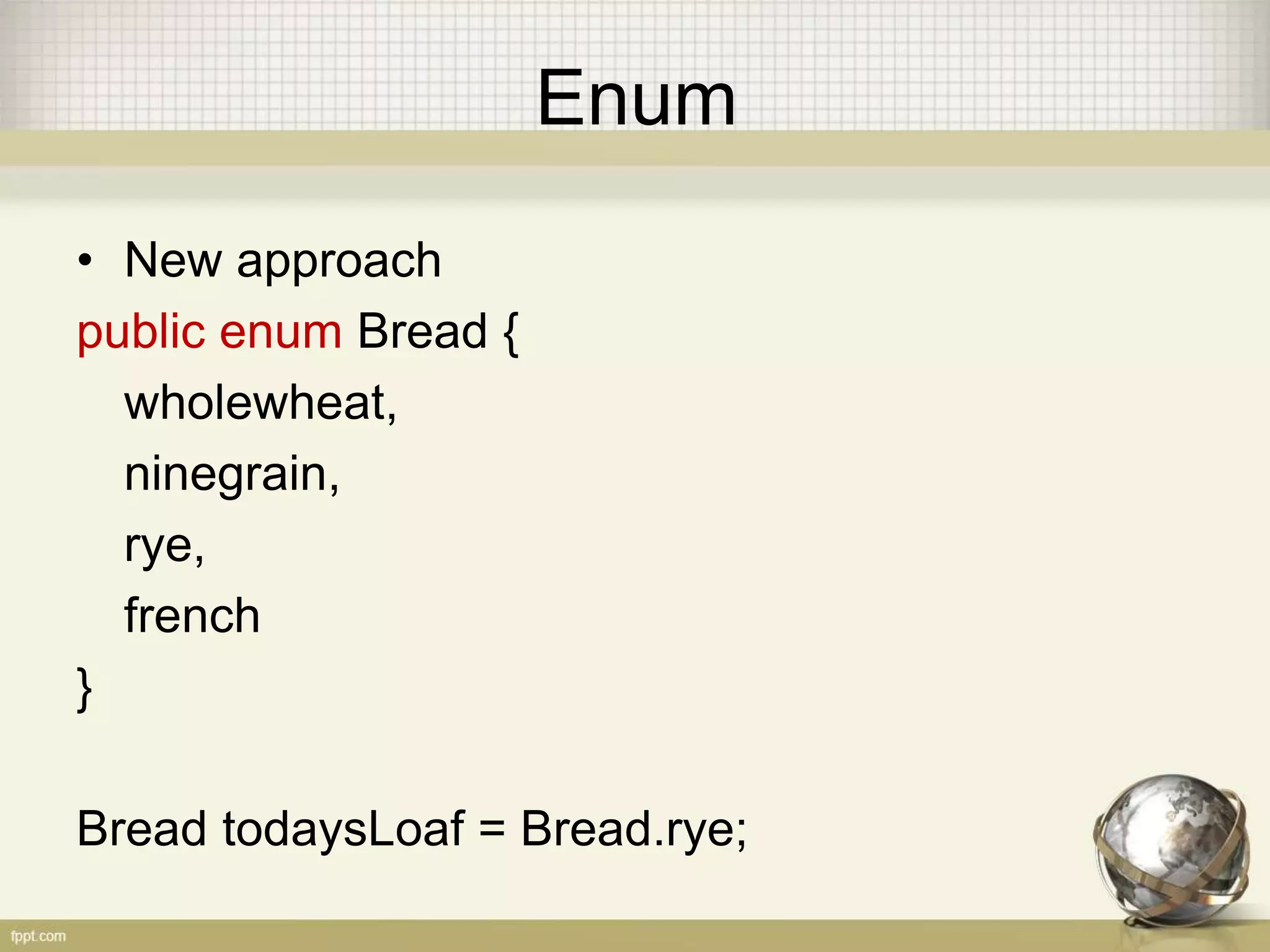

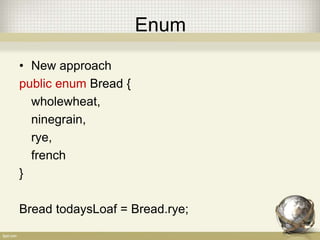

4. Enum
• New approach
public enum Bread {
wholewheat,
ninegrain,
rye,
french
}
Bread todaysLoaf = Bread.rye;

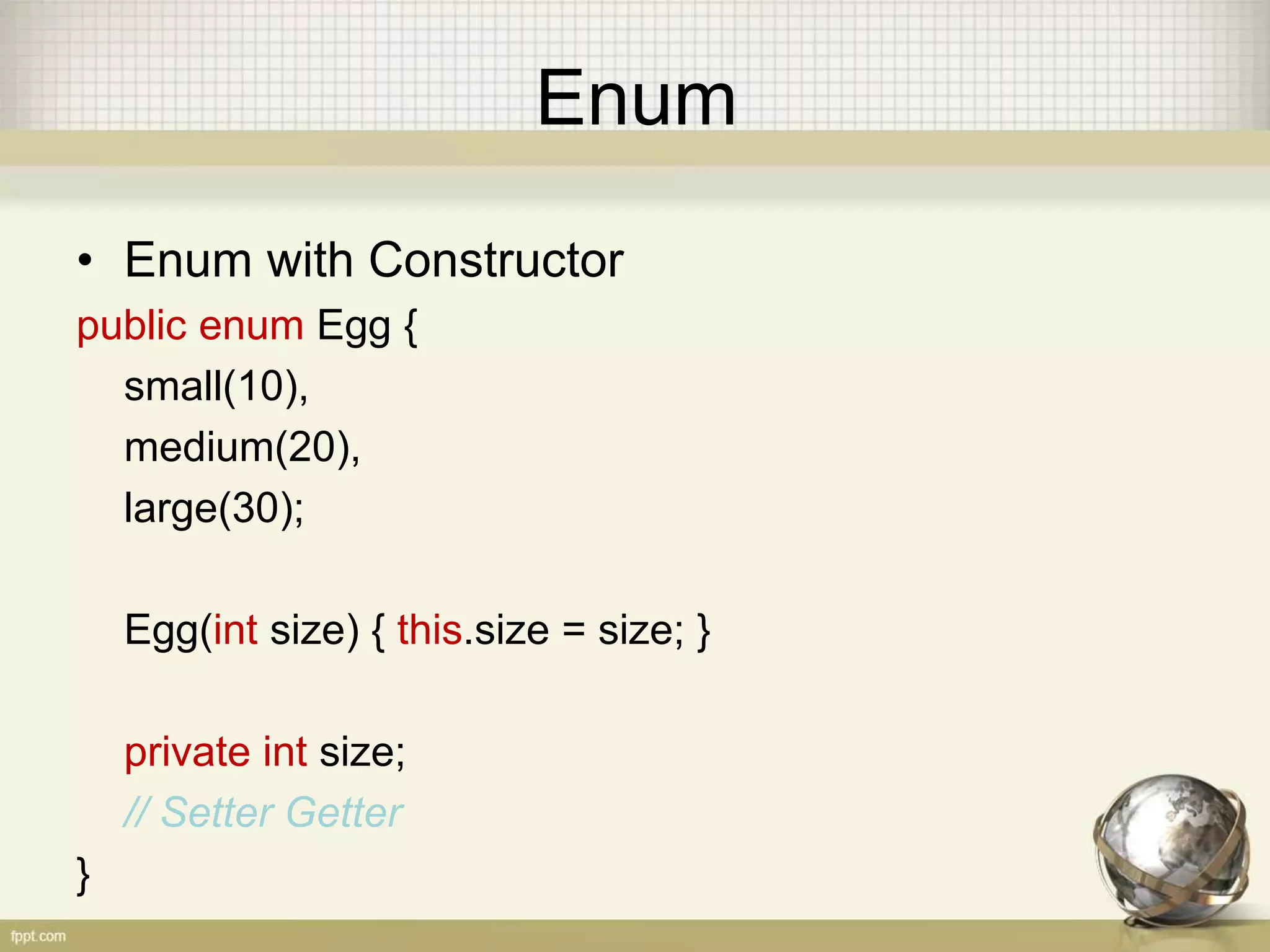

5. Enum
• Enum with Constructor
public enum Egg {
small(10),
medium(20),
large(30);
Egg(int size) { this.size = size; }
private int size;
// Setter Getter
}

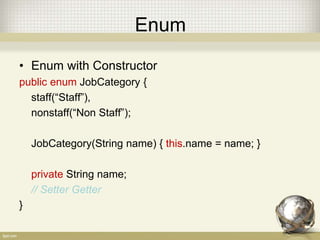

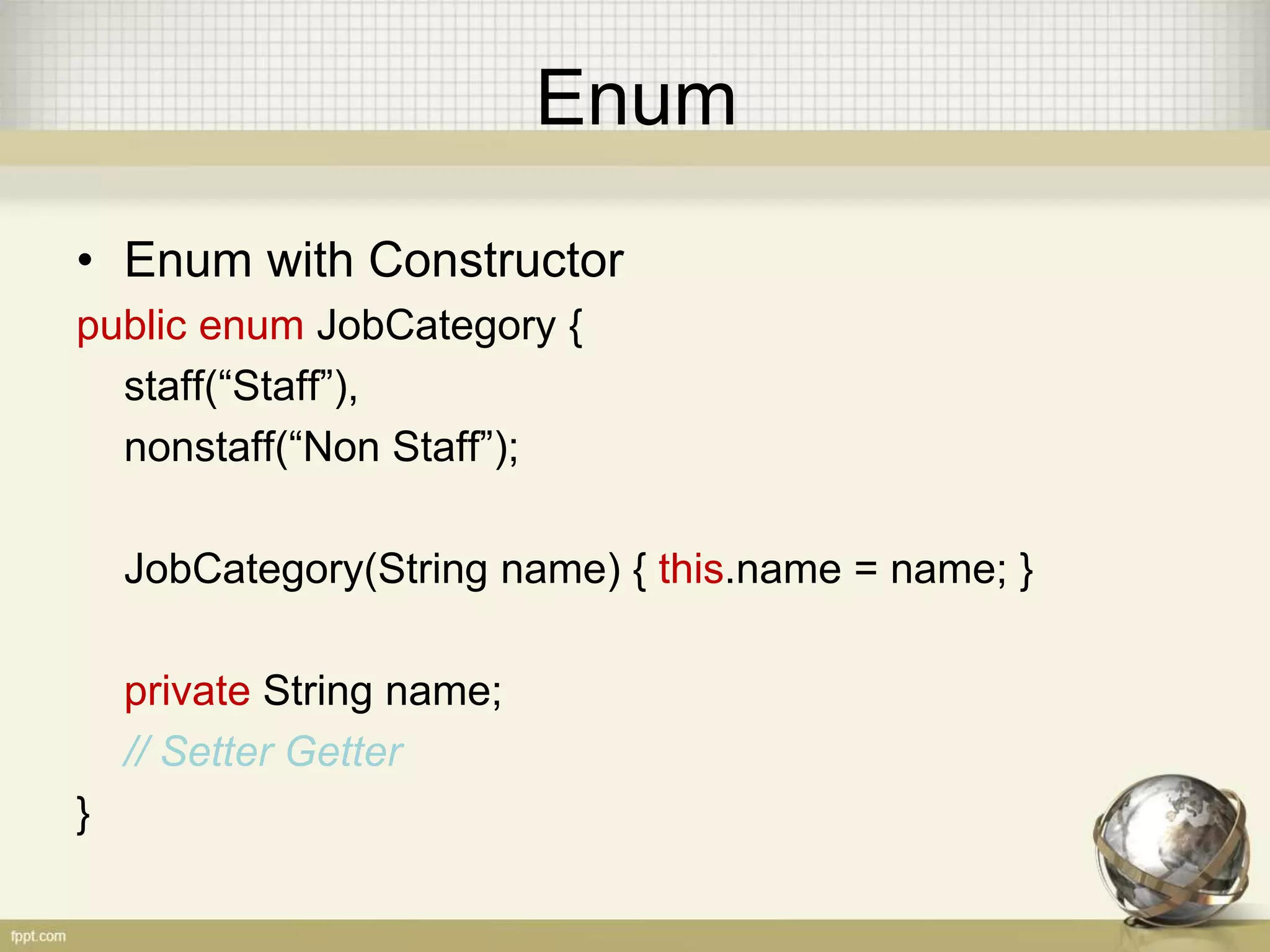

6. Enum
• Enum with Constructor
public enum JobCategory {
staff(“Staff”),
nonstaff(“Non Staff”);
JobCategory(String name) { this.name = name; }
private String name;
// Setter Getter
}

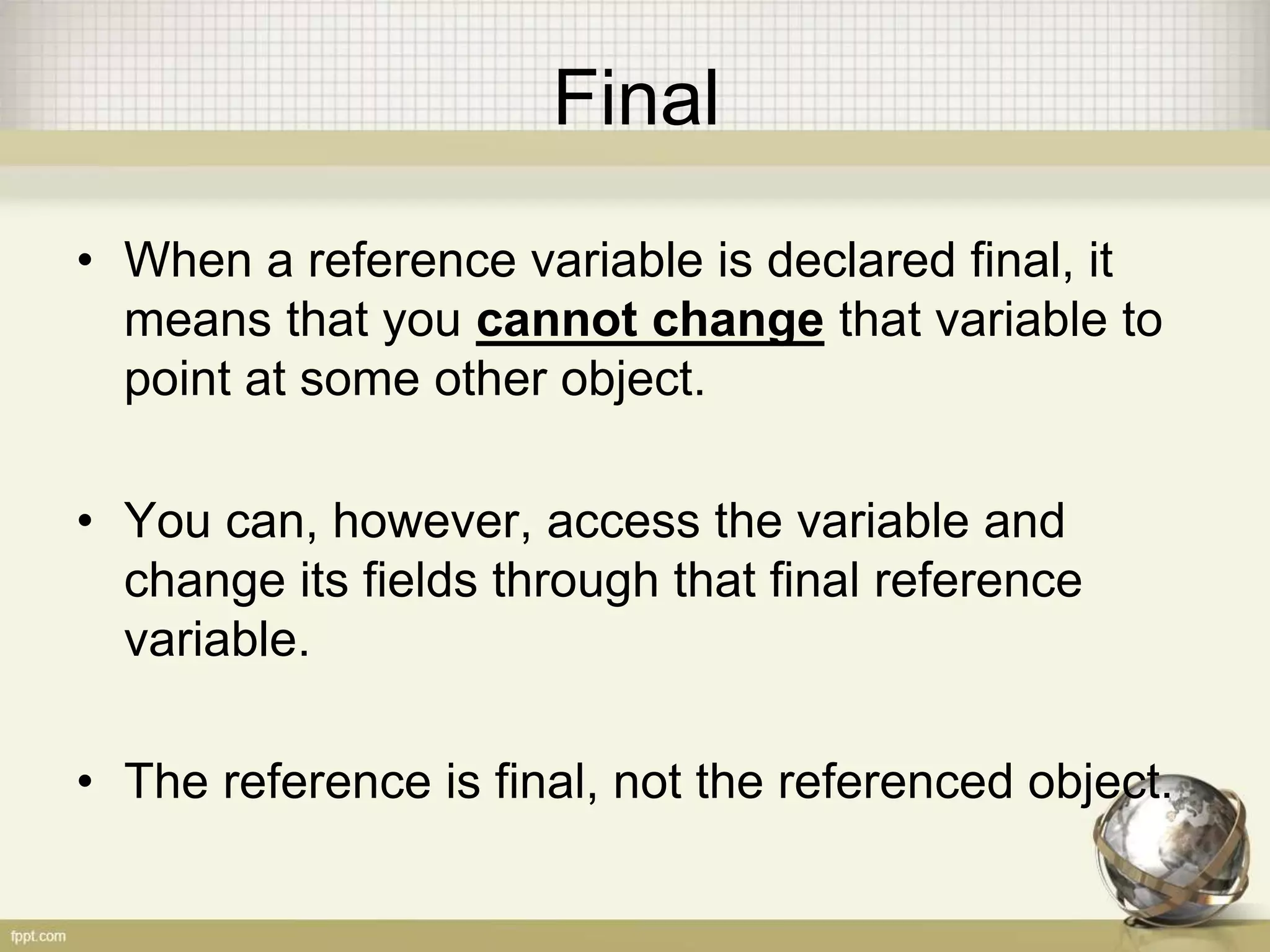

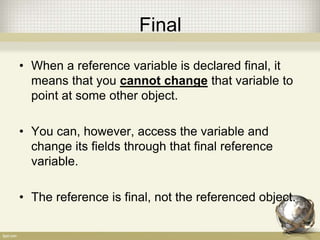

7. Final
• When a reference variable is declared final, it
means that you cannot change that variable to
point at some other object.
• You can, however, access the variable and
change its fields through that final reference
variable.
• The reference is final, not the referenced object.

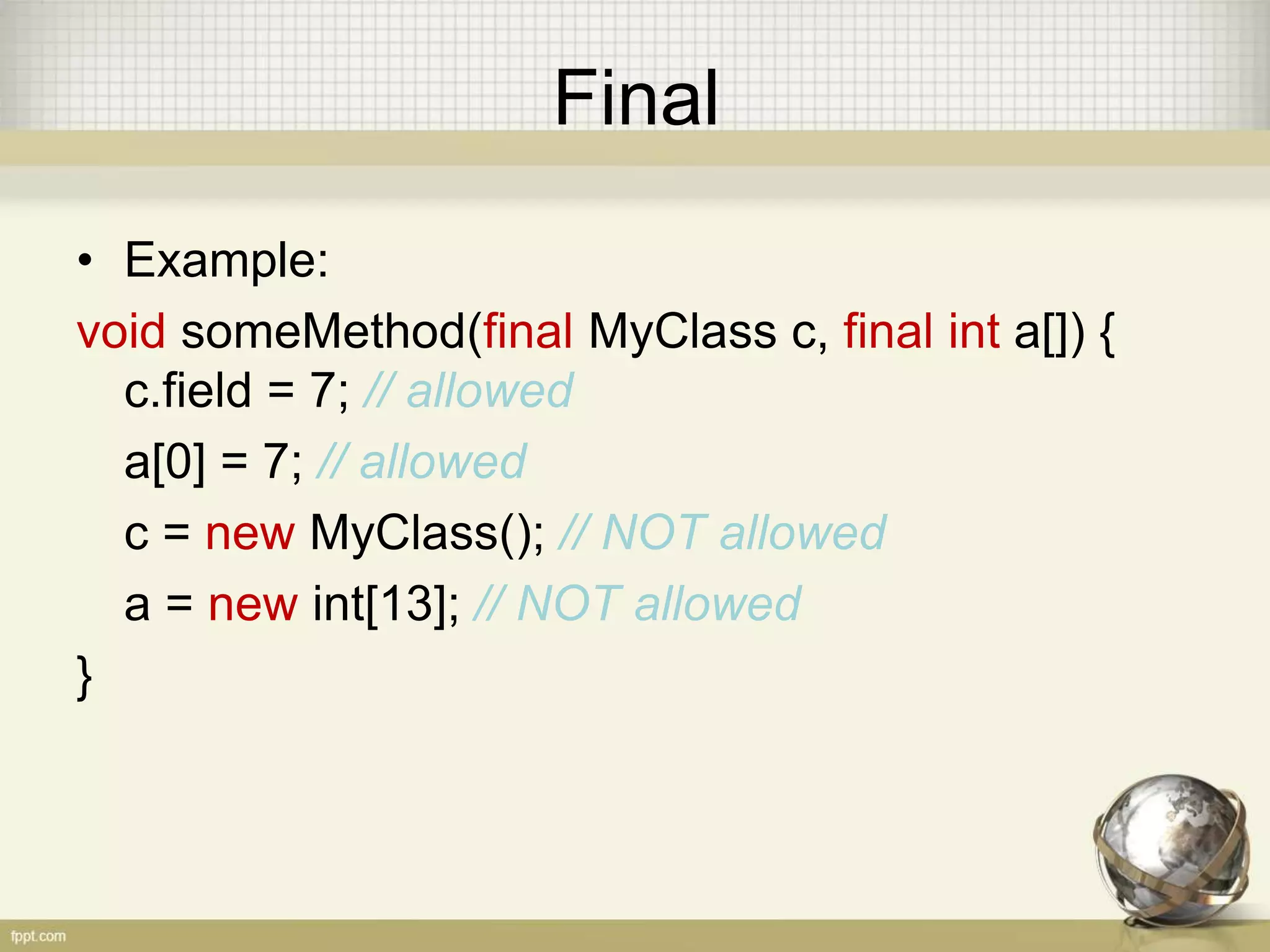

8. Final
• Example:
void someMethod(final MyClass c, final int a[]) {
c.field = 7; // allowed
a[0] = 7; // allowed
c = new MyClass(); // NOT allowed
a = new int[13]; // NOT allowed
}

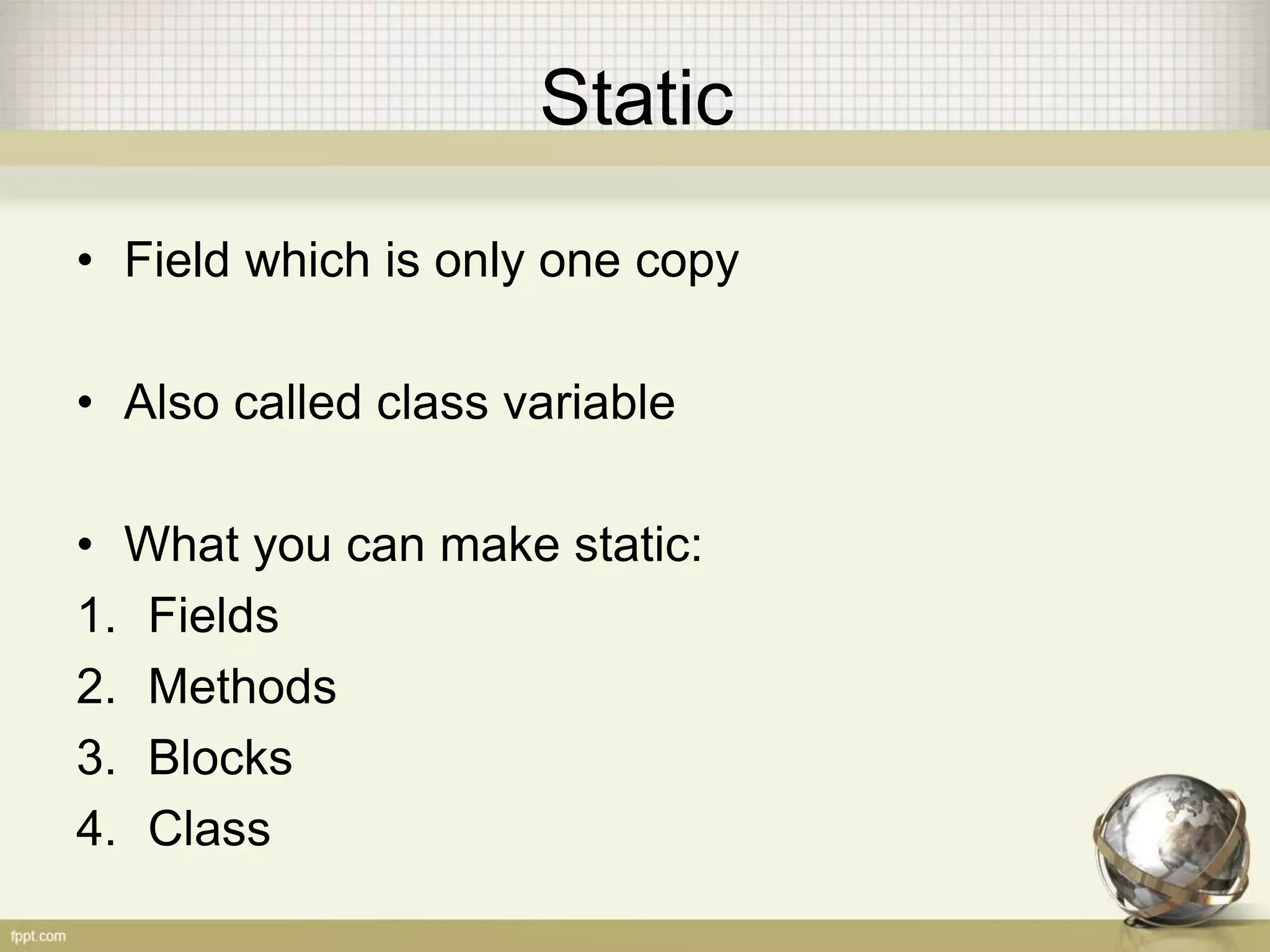

9. Static
• Field which is only one copy
• Also called class variable
• What you can make static:
1. Fields
2. Methods
3. Blocks
4. Class

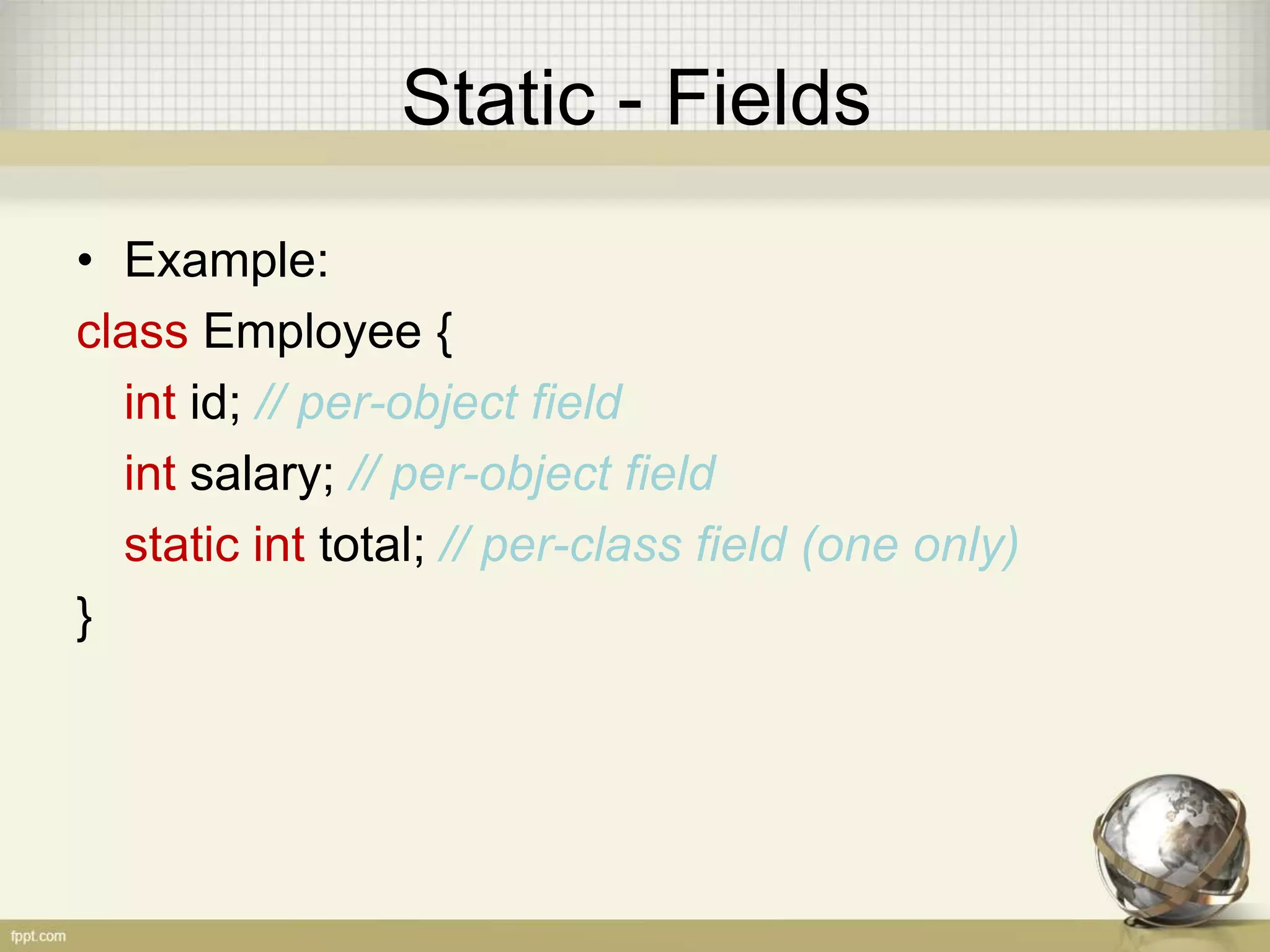

10. Static - Fields
• Example:
class Employee {
int id; // per-object field
int salary; // per-object field
static int total; // per-class field (one only)
}

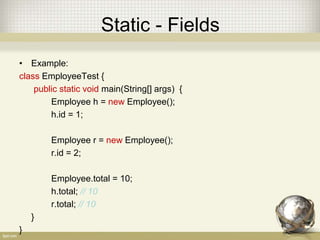

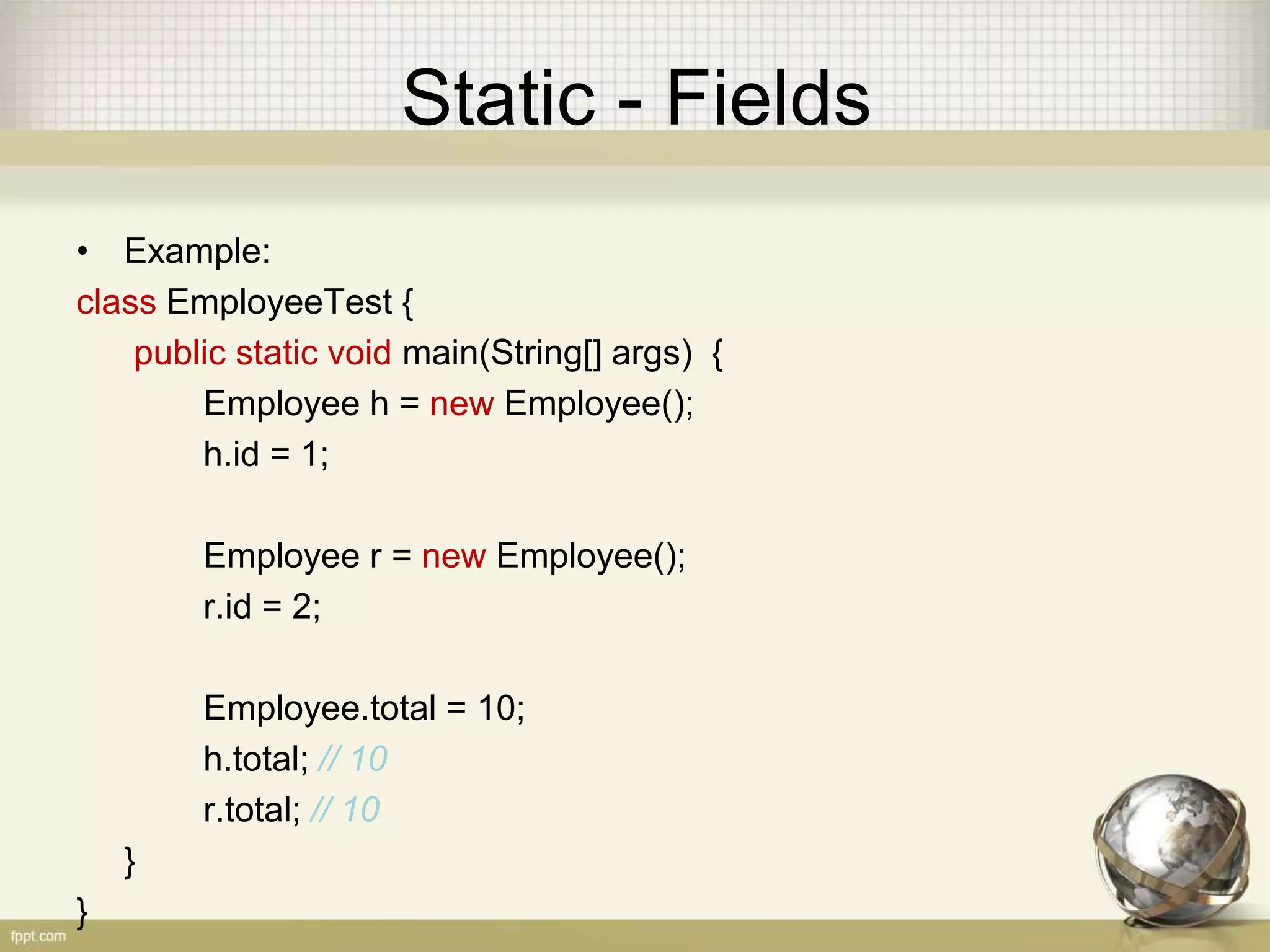

11. Static - Fields
• Example:
class EmployeeTest {
public static void main(String[] args) {
Employee h = new Employee();
h.id = 1;
Employee r = new Employee();
r.id = 2;
Employee.total = 10;
h.total; // 10
r.total; // 10
}
}

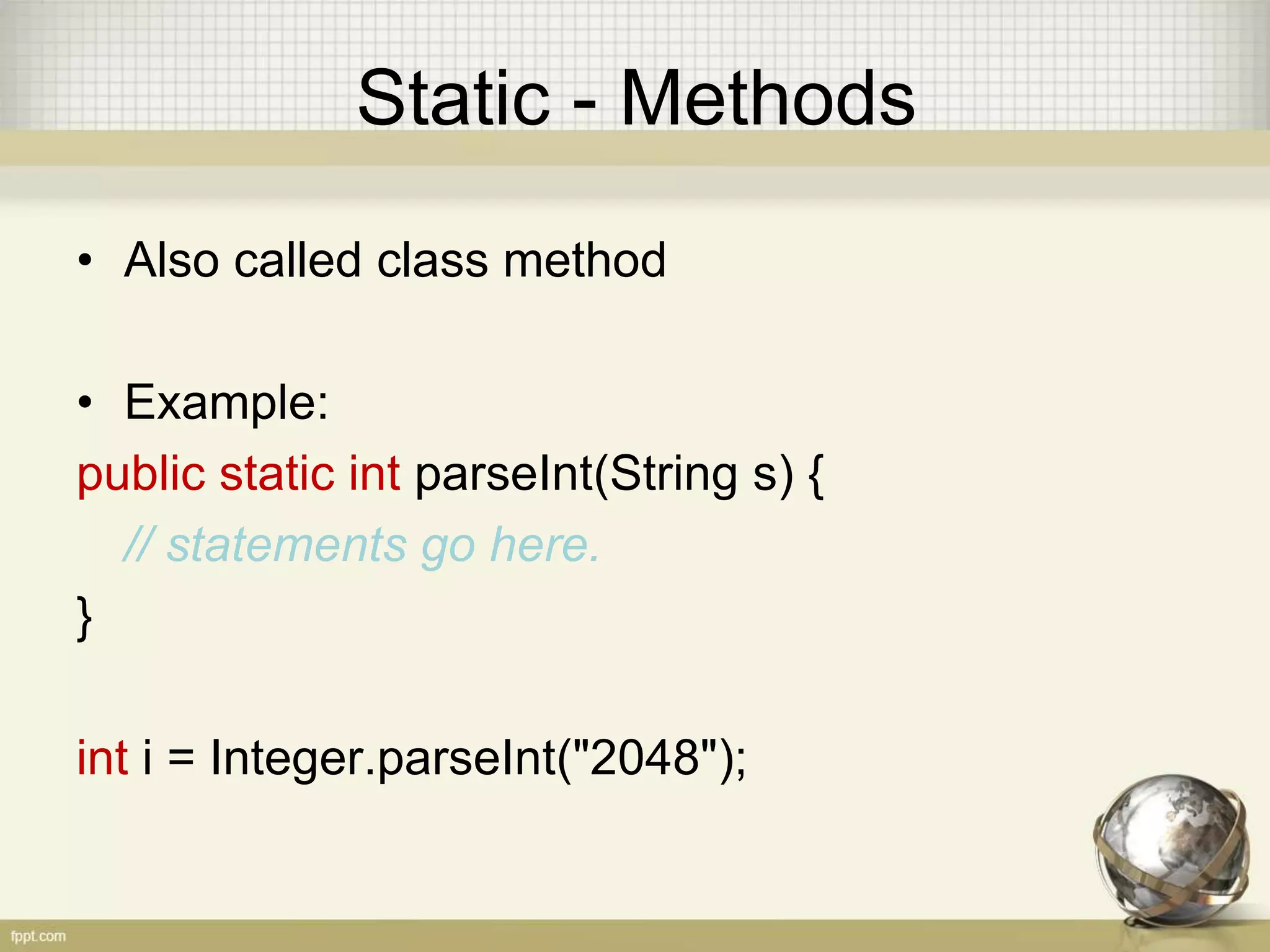

12. Static - Methods
• Also called class method
• Example:
public static int parseInt(String s) {
// statements go here.
}
int i = Integer.parseInt("2048");

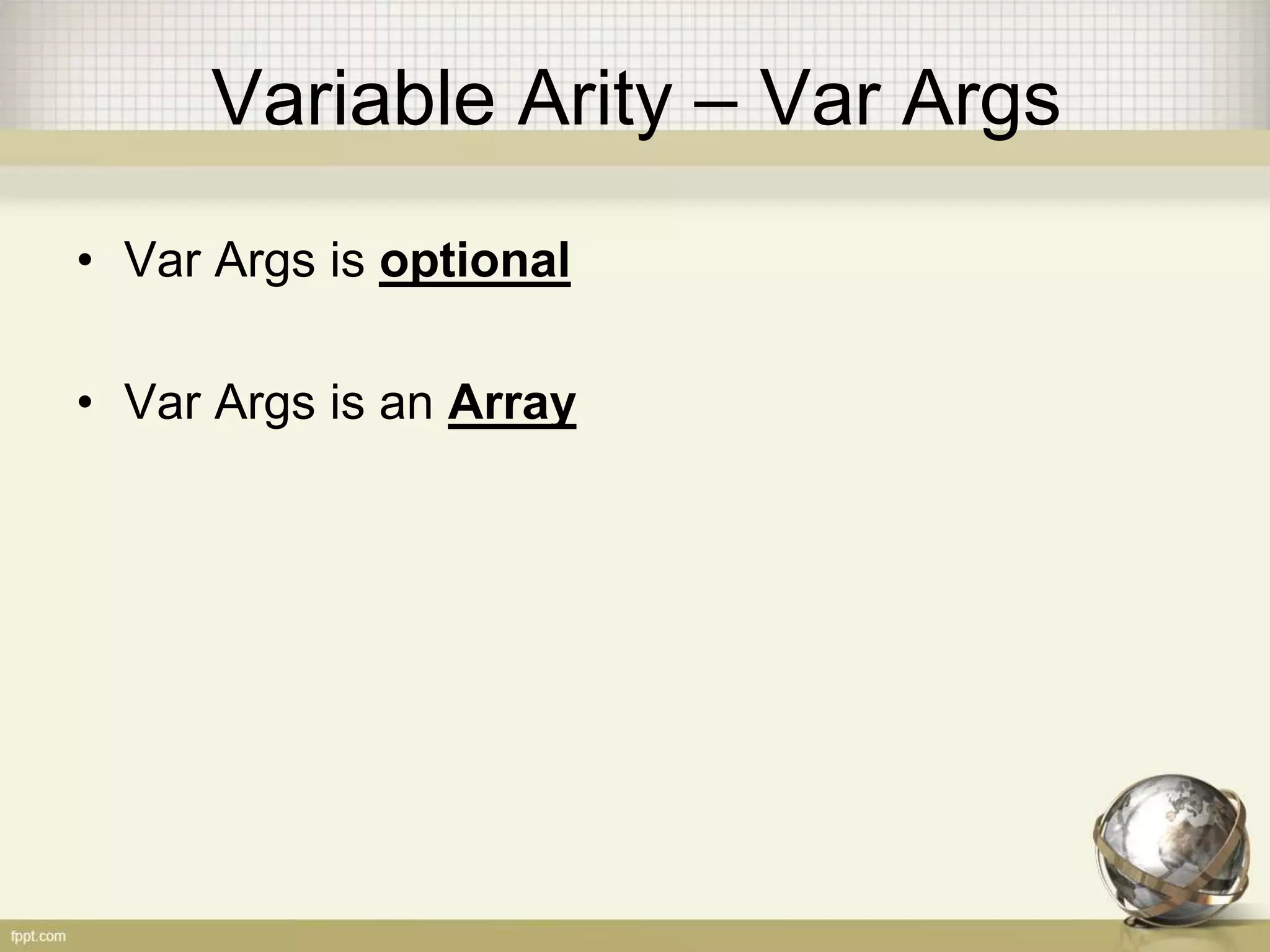

13. Variable Arity – Var Args
• Var Args is optional
• Var Args is an Array

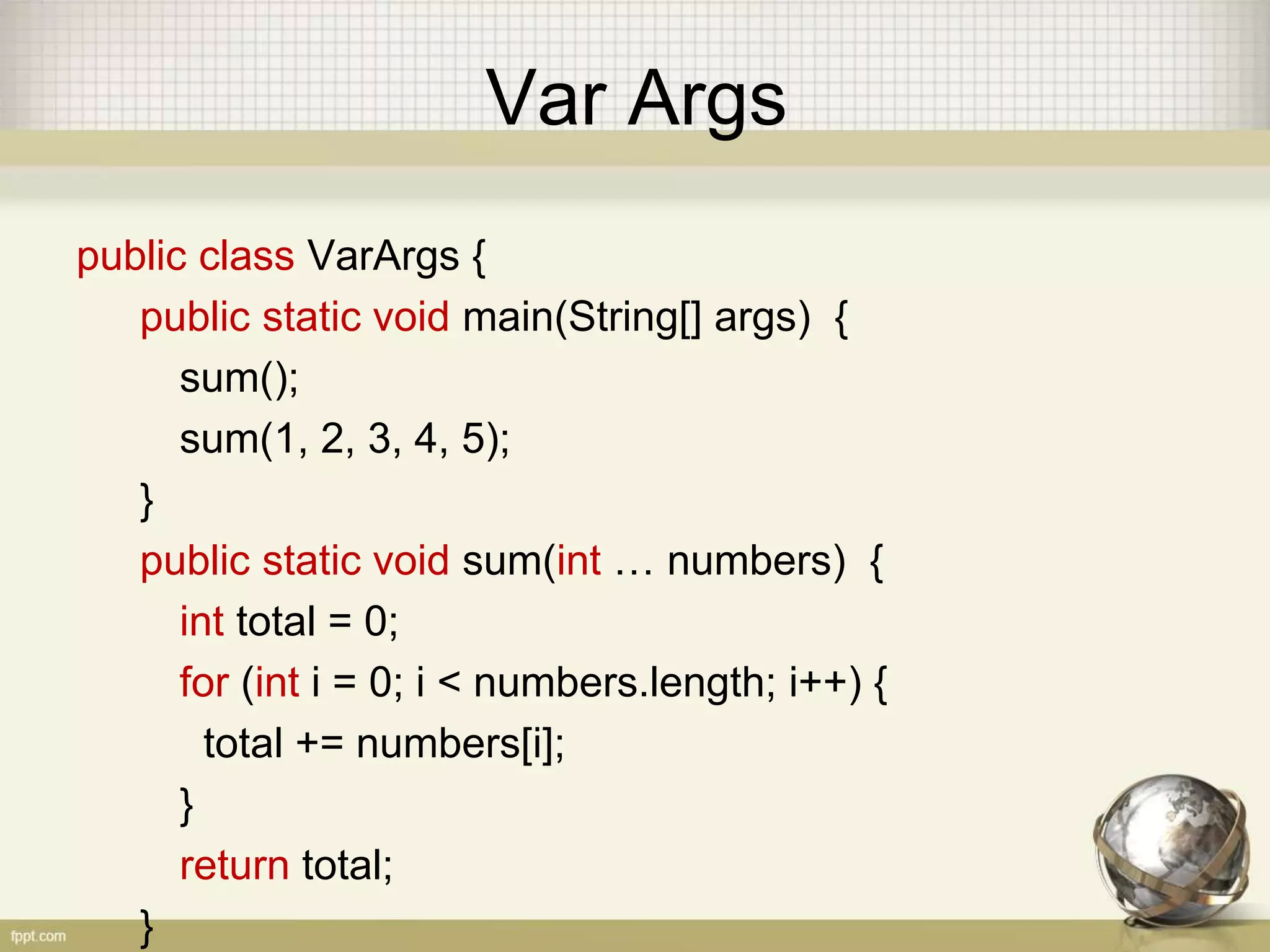

14. Var Args
public class VarArgs {
public static void main(String[] args) {
sum();
sum(1, 2, 3, 4, 5);
}
public static void sum(int … numbers) {
int total = 0;
for (int i = 0; i < numbers.length; i++) {
total += numbers[i];
}
return total;
}

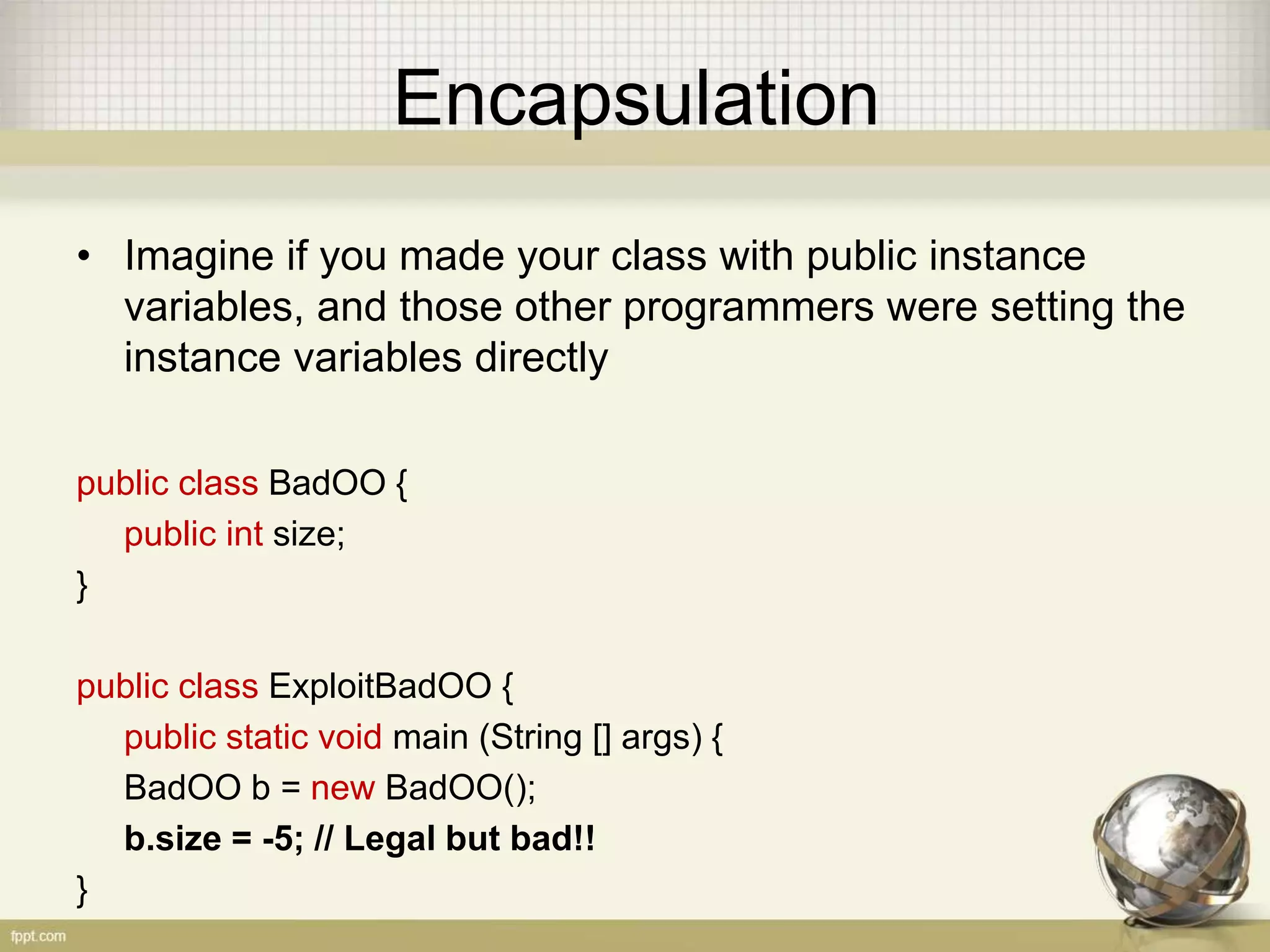

15. Encapsulation
• Imagine if you made your class with public instance
variables, and those other programmers were setting the
instance variables directly
public class BadOO {
public int size;
}
public class ExploitBadOO {
public static void main (String [] args) {
BadOO b = new BadOO();
b.size = -5; // Legal but bad!!
}

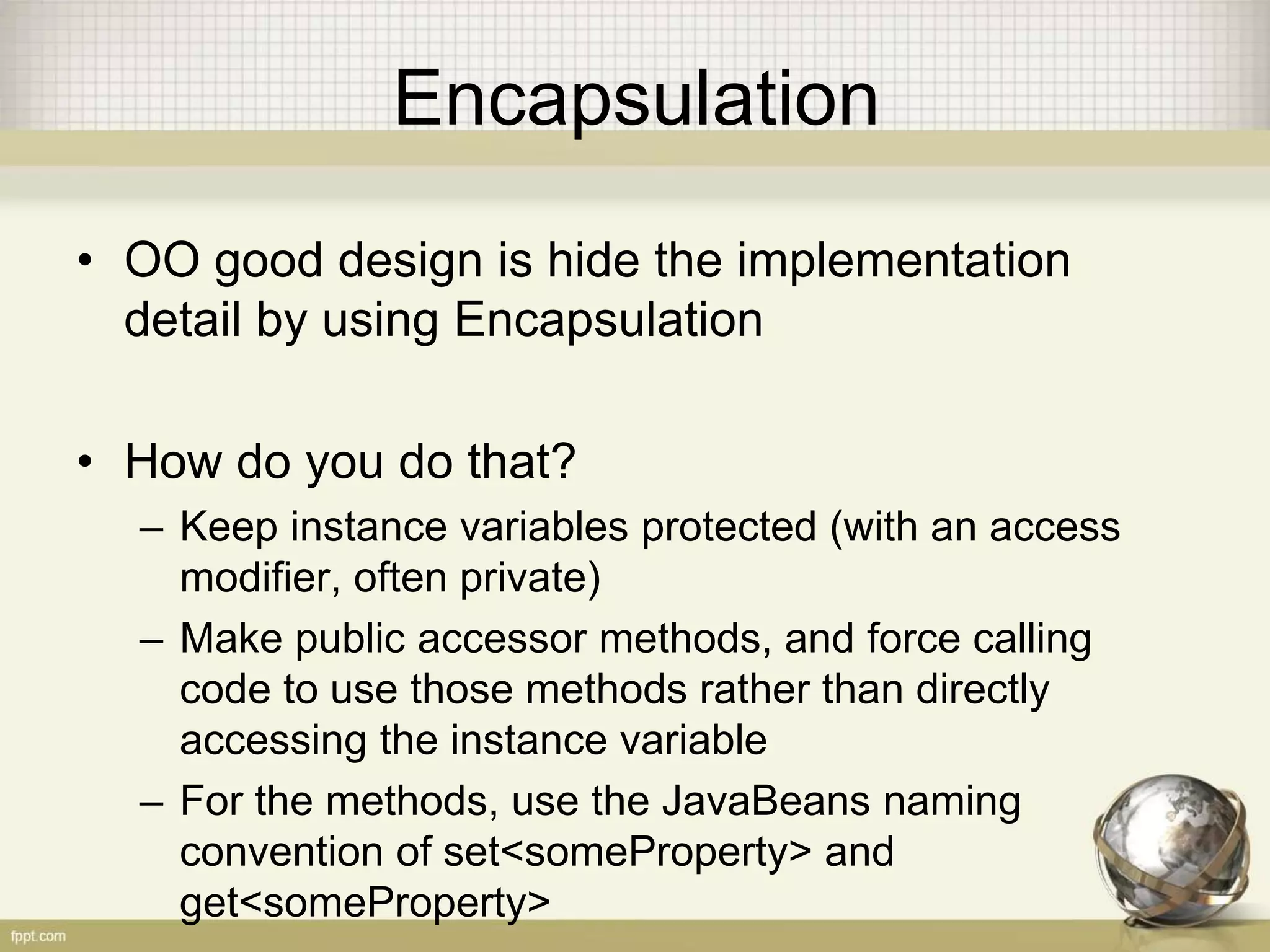

16. Encapsulation
• OO good design is hide the implementation
detail by using Encapsulation
• How do you do that?
– Keep instance variables protected (with an access
modifier, often private)
– Make public accessor methods, and force calling
code to use those methods rather than directly
accessing the instance variable
– For the methods, use the JavaBeans naming
convention of set<someProperty> and
get<someProperty>

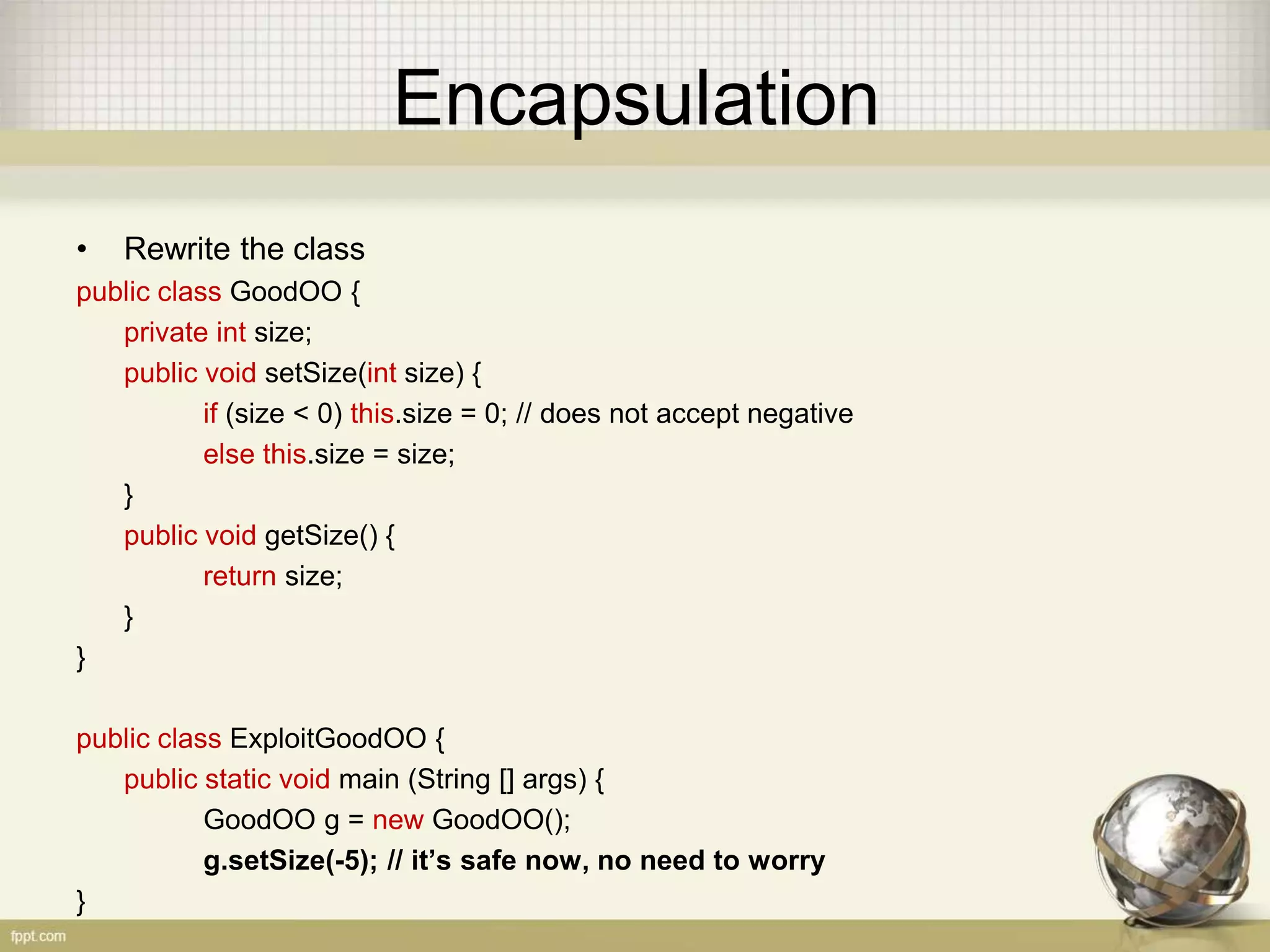

17. Encapsulation
• Rewrite the class
public class GoodOO {
private int size;
public void setSize(int size) {
if (size < 0) this.size = 0; // does not accept negative
else this.size = size;
}
public void getSize() {
return size;
}
}
public class ExploitGoodOO {
public static void main (String [] args) {
GoodOO g = new GoodOO();
g.setSize(-5); // it’s safe now, no need to worry
}

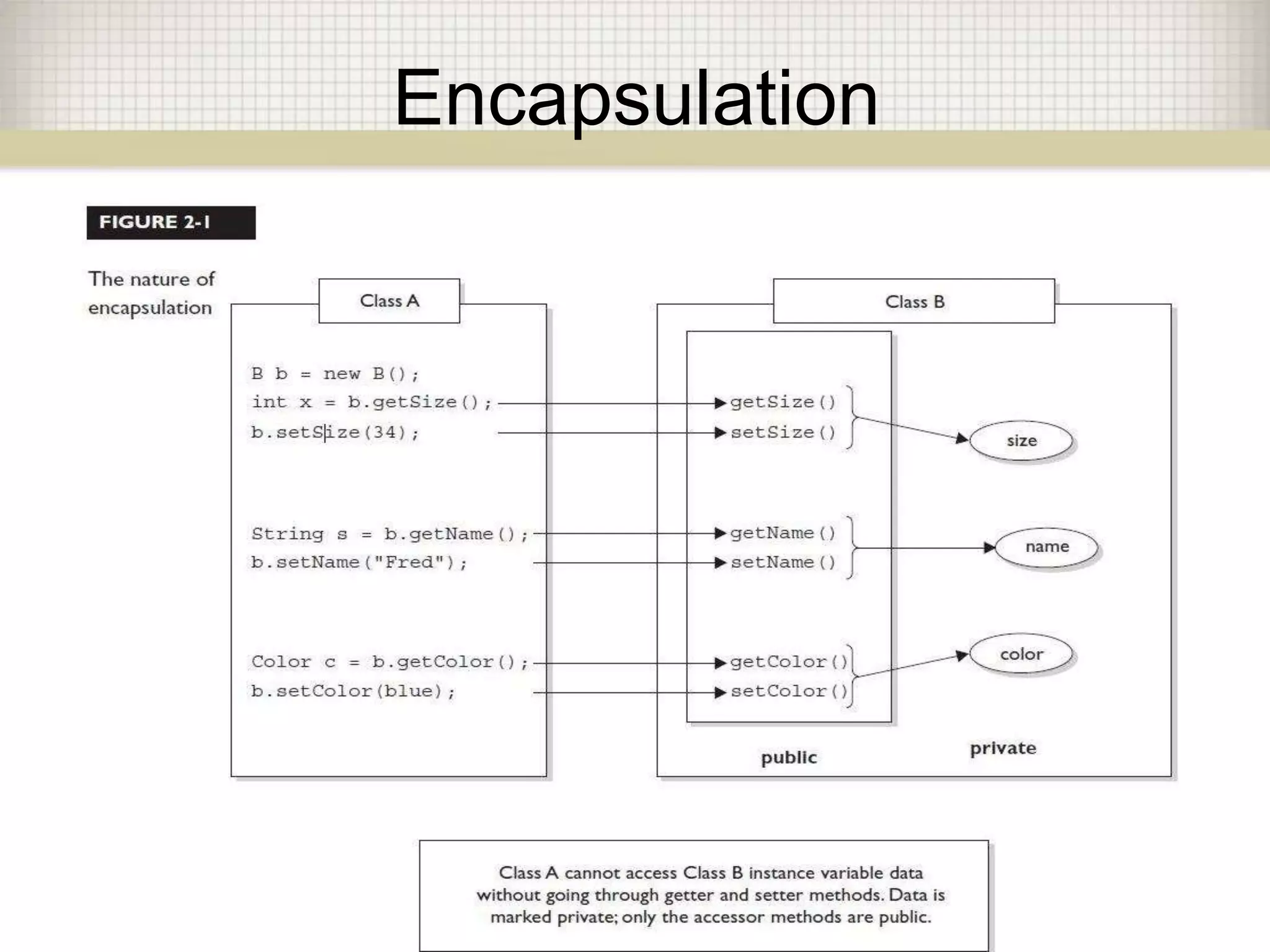

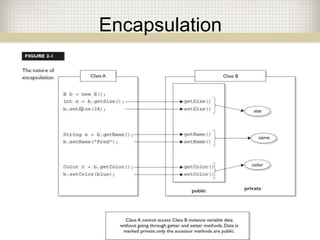

18. Encapsulation

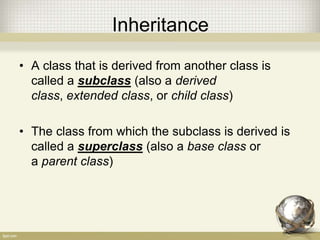

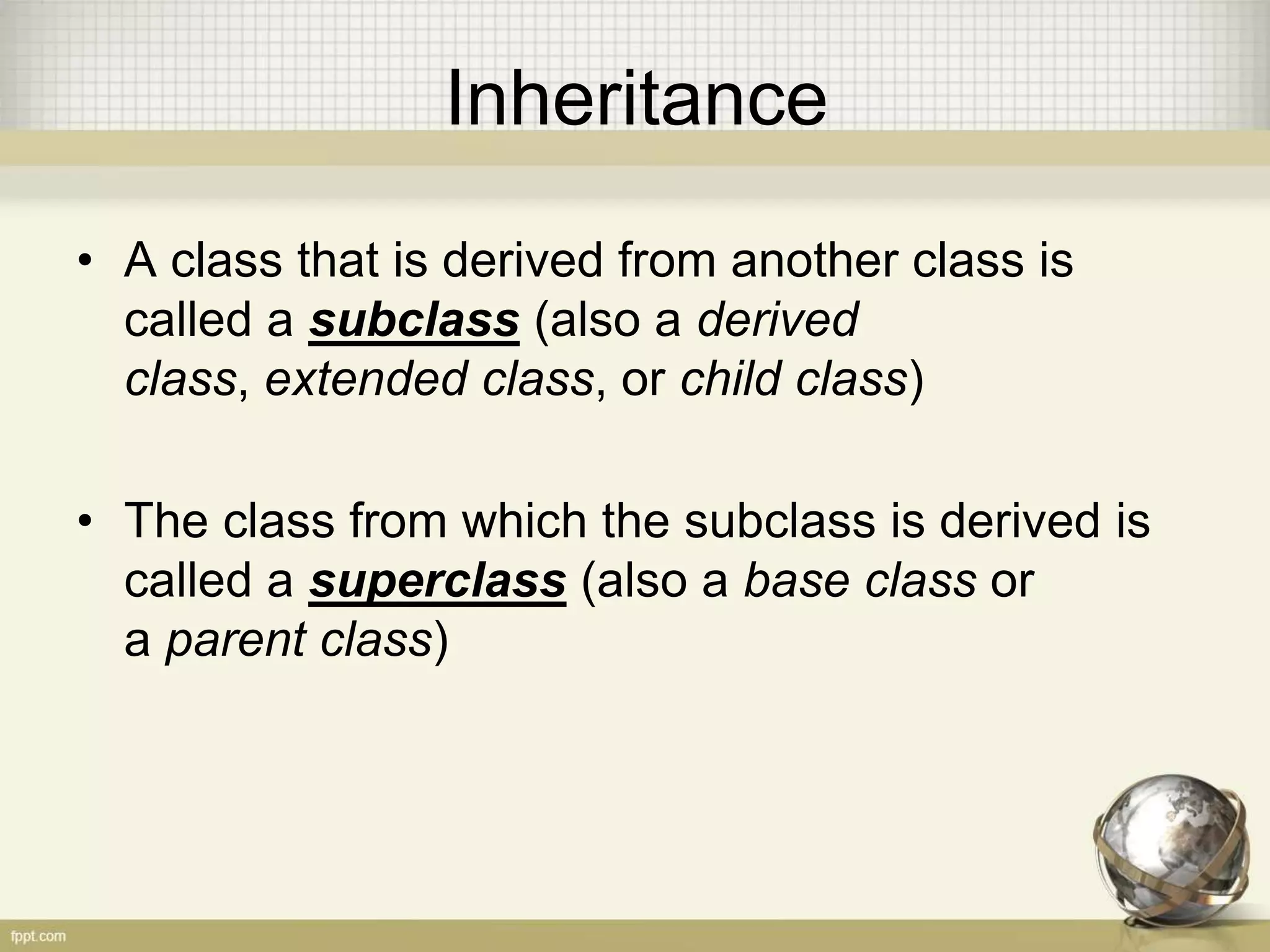

19. Inheritance
• A class that is derived from another class is
called a subclass (also a derived
class, extended class, or child class)
• The class from which the subclass is derived is
called a superclass (also a base class or
a parent class)

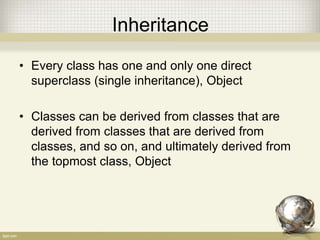

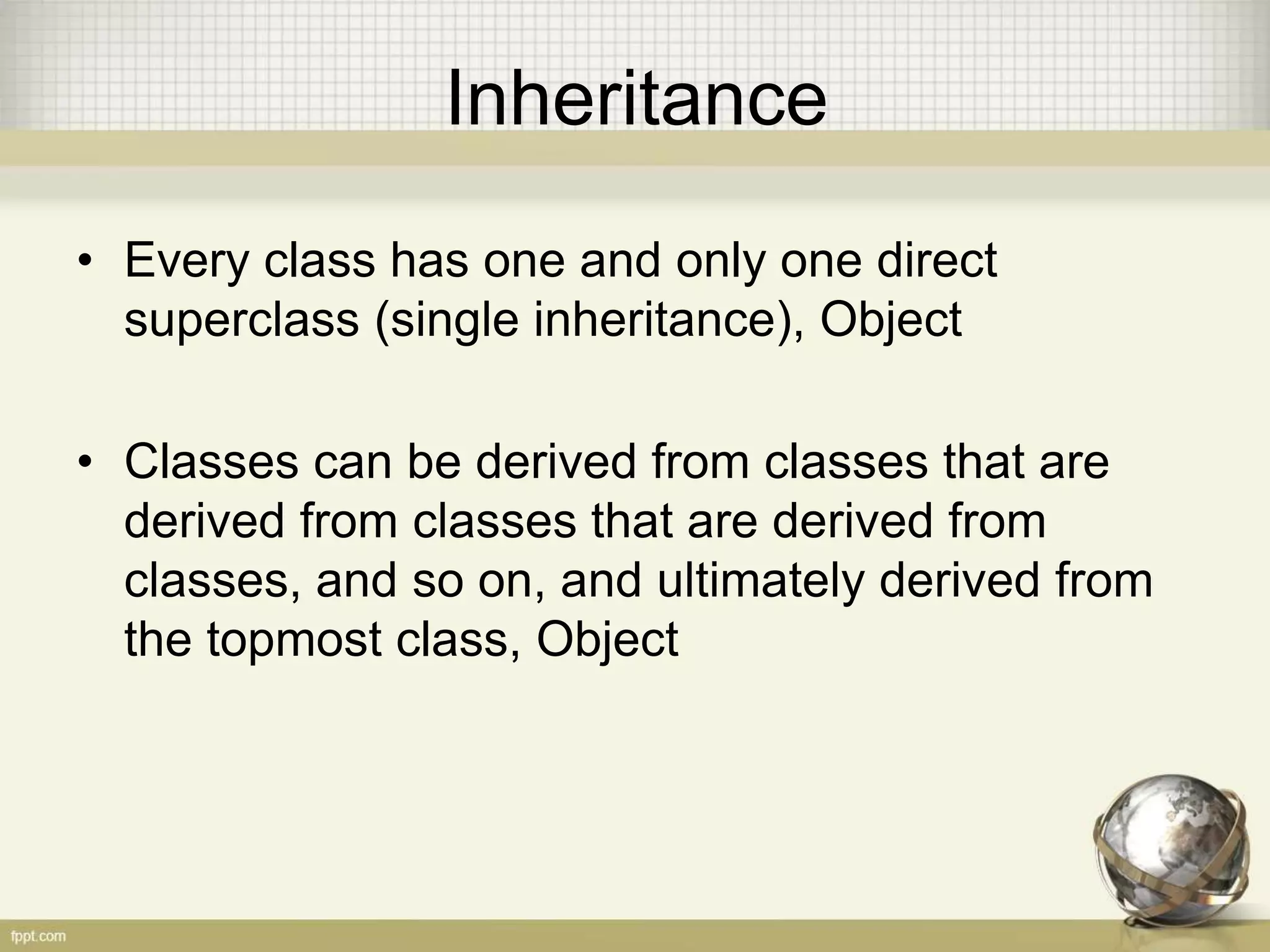

20. Inheritance
• Every class has one and only one direct
superclass (single inheritance), Object
• Classes can be derived from classes that are
derived from classes that are derived from
classes, and so on, and ultimately derived from
the topmost class, Object

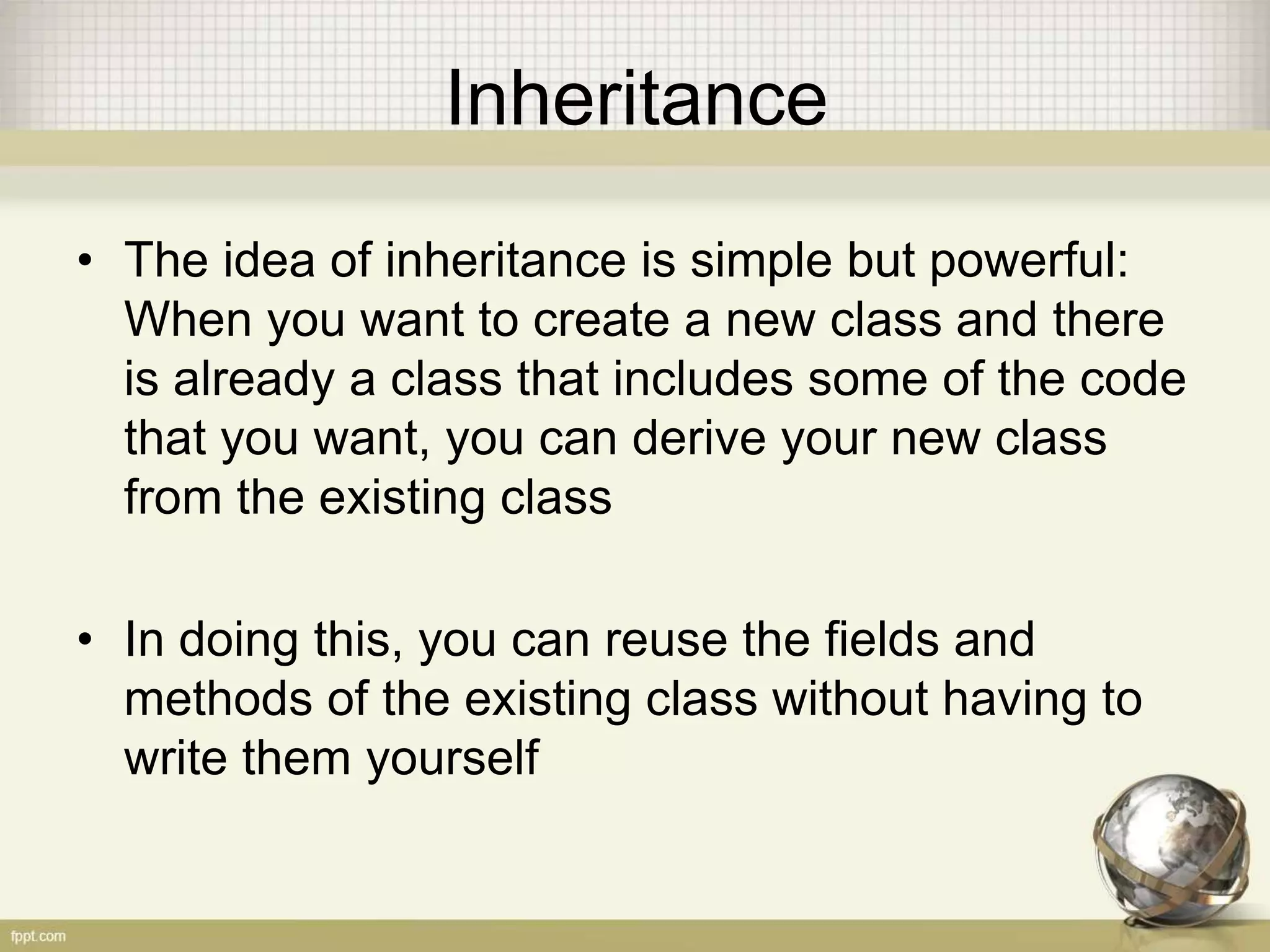

21. Inheritance
• The idea of inheritance is simple but powerful:
When you want to create a new class and there
is already a class that includes some of the code
that you want, you can derive your new class
from the existing class
• In doing this, you can reuse the fields and
methods of the existing class without having to
write them yourself

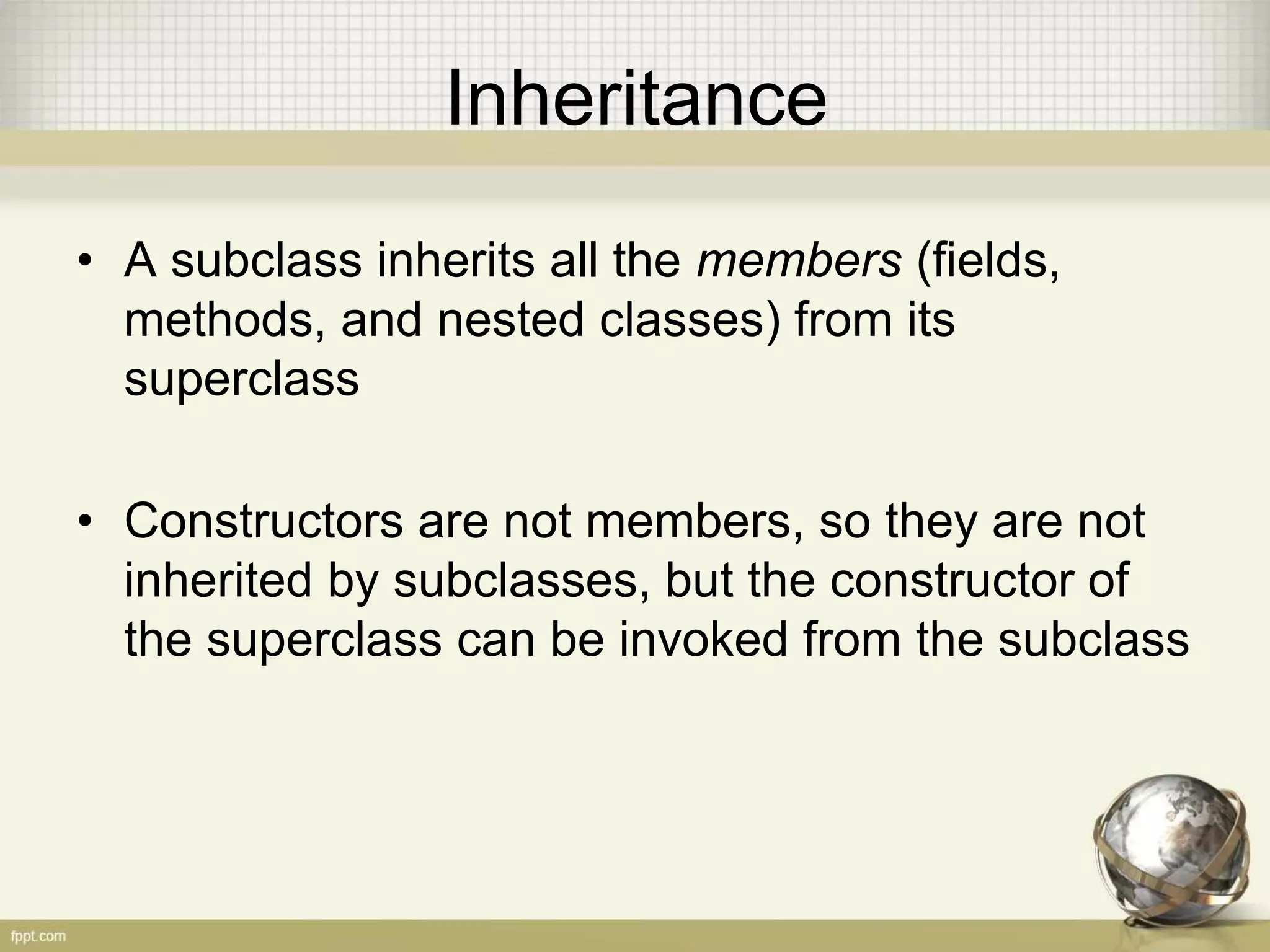

22. Inheritance
• A subclass inherits all the members (fields,
methods, and nested classes) from its
superclass
• Constructors are not members, so they are not
inherited by subclasses, but the constructor of
the superclass can be invoked from the subclass

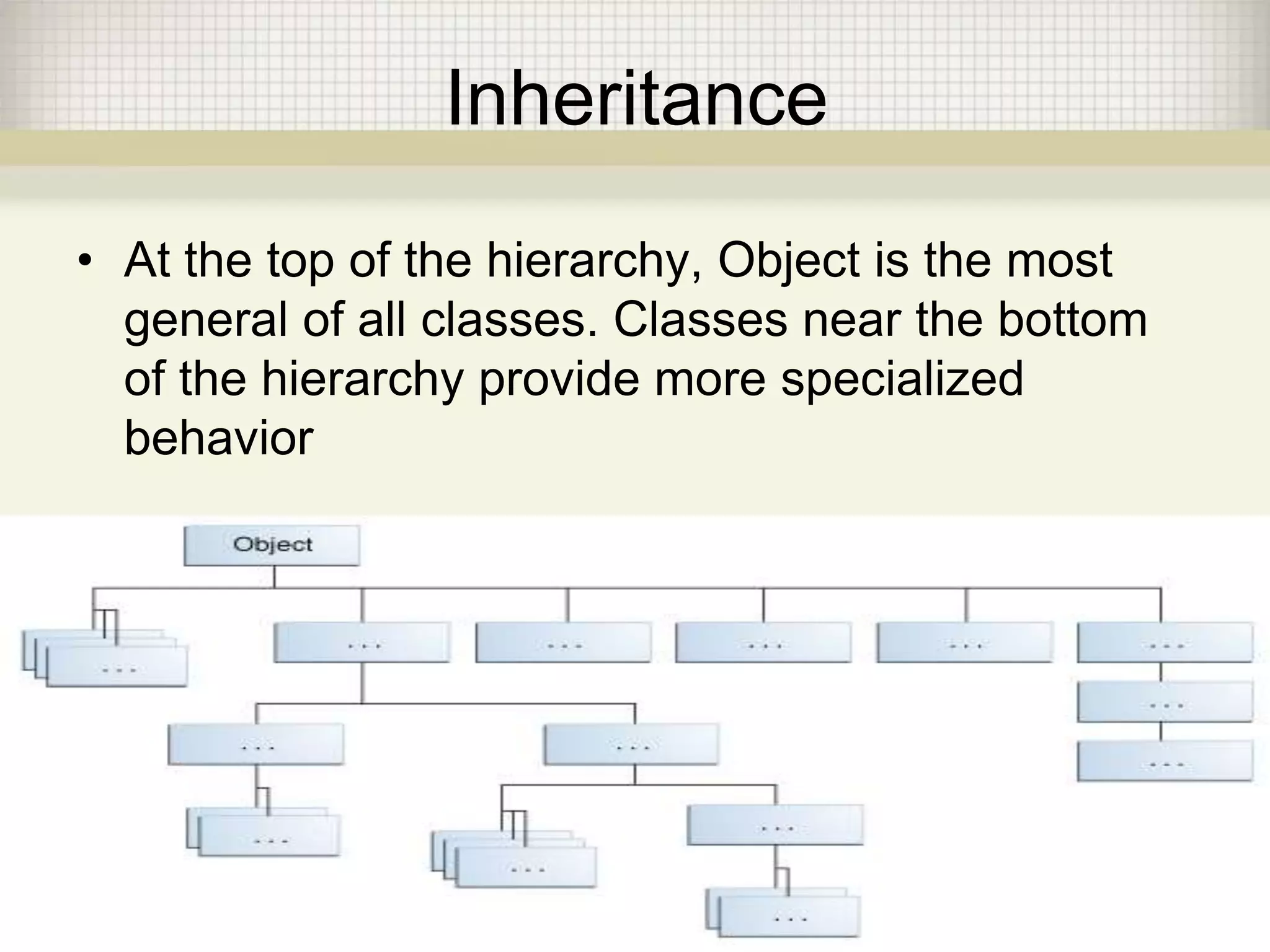

23. Inheritance
• At the top of the hierarchy, Object is the most
general of all classes. Classes near the bottom
of the hierarchy provide more specialized
behavior

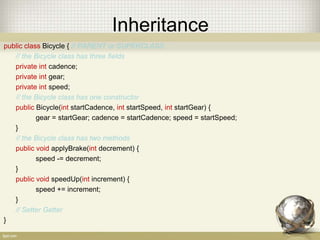

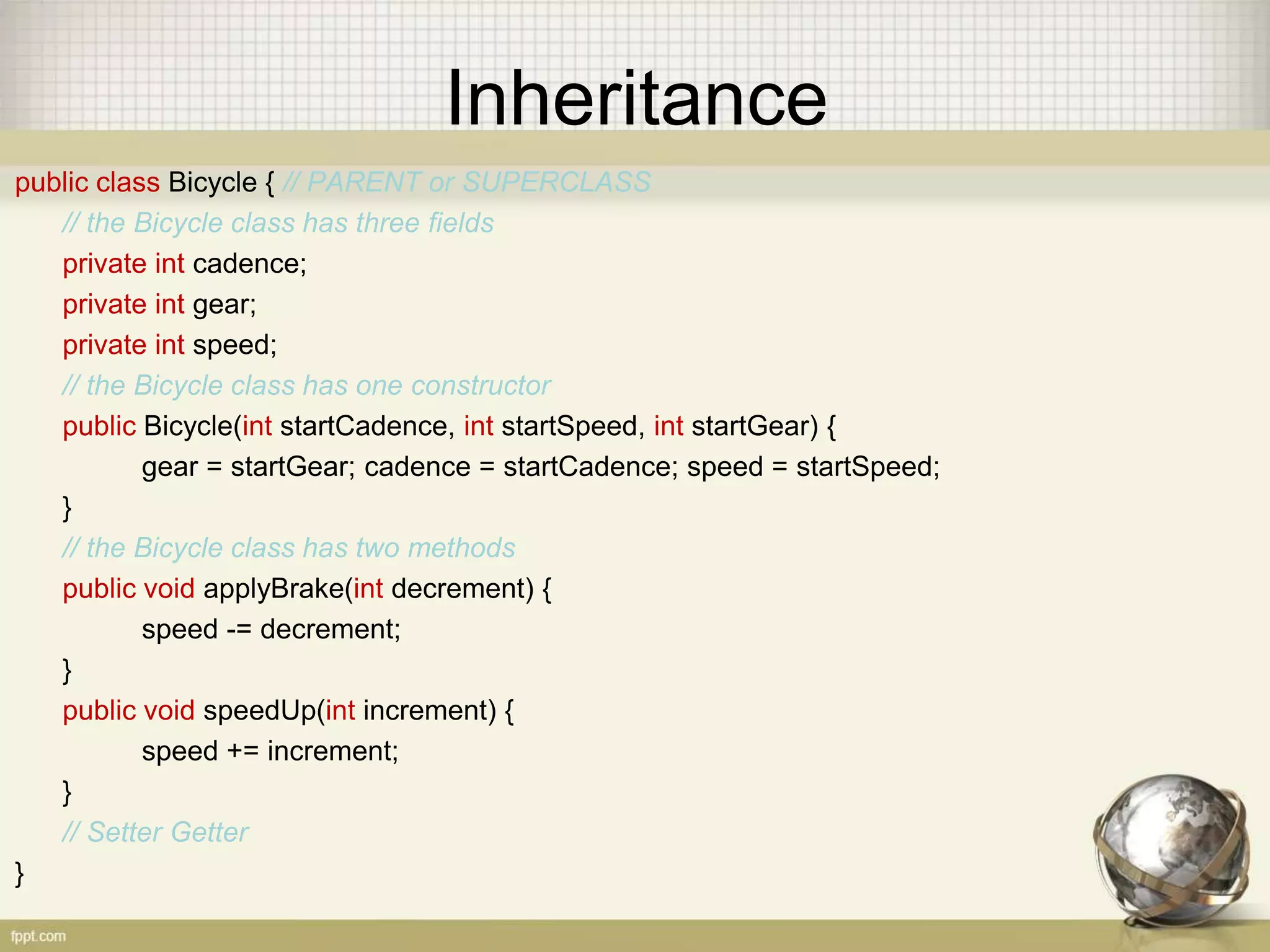

24. Inheritance
public class Bicycle { // PARENT or SUPERCLASS
// the Bicycle class has three fields
private int cadence;
private int gear;
private int speed;
// the Bicycle class has one constructor
public Bicycle(int startCadence, int startSpeed, int startGear) {
gear = startGear; cadence = startCadence; speed = startSpeed;
}
// the Bicycle class has two methods
public void applyBrake(int decrement) {
speed -= decrement;
}
public void speedUp(int increment) {
speed += increment;
}
// Setter Getter
}

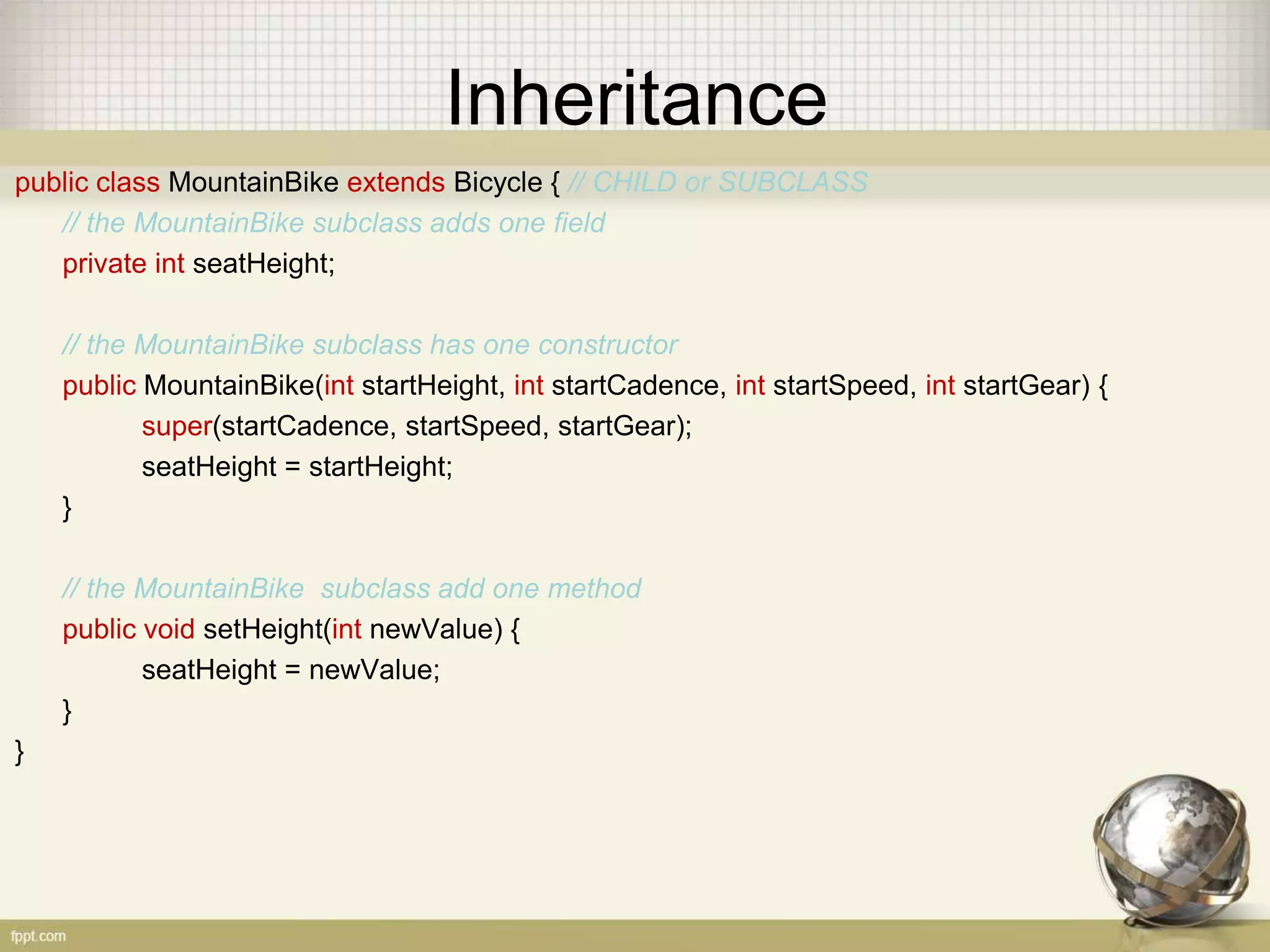

25. Inheritance
public class MountainBike extends Bicycle { // CHILD or SUBCLASS
// the MountainBike subclass adds one field
private int seatHeight;
// the MountainBike subclass has one constructor
public MountainBike(int startHeight, int startCadence, int startSpeed, int startGear) {
super(startCadence, startSpeed, startGear);
seatHeight = startHeight;
}
// the MountainBike subclass add one method
public void setHeight(int newValue) {
seatHeight = newValue;
}
}

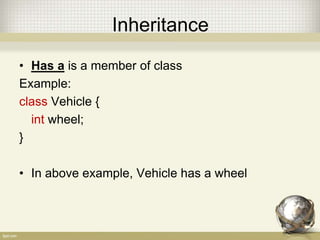

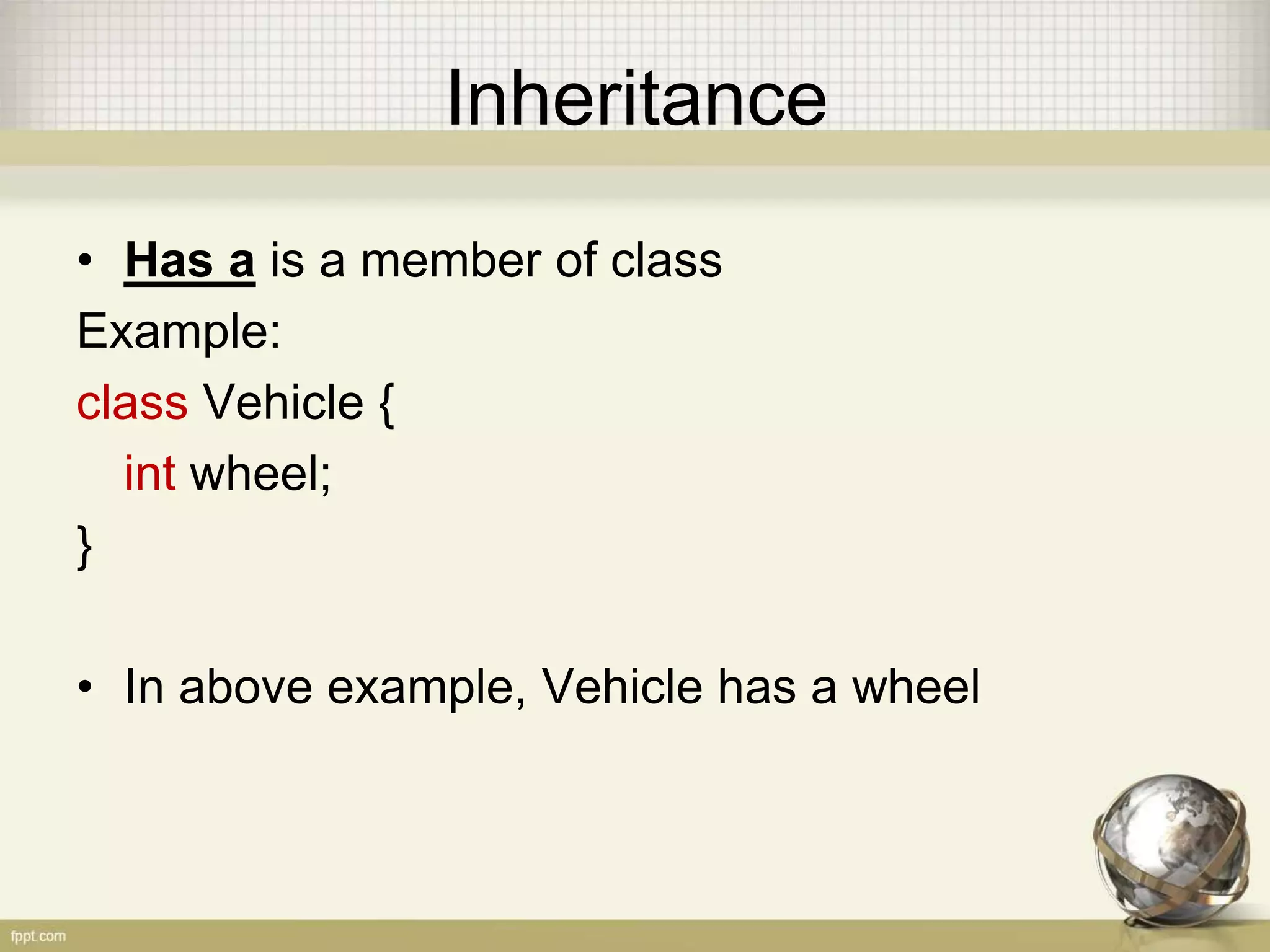

26. Inheritance
• Has a is a member of class
Example:
class Vehicle {
int wheel;
}
• In above example, Vehicle has a wheel

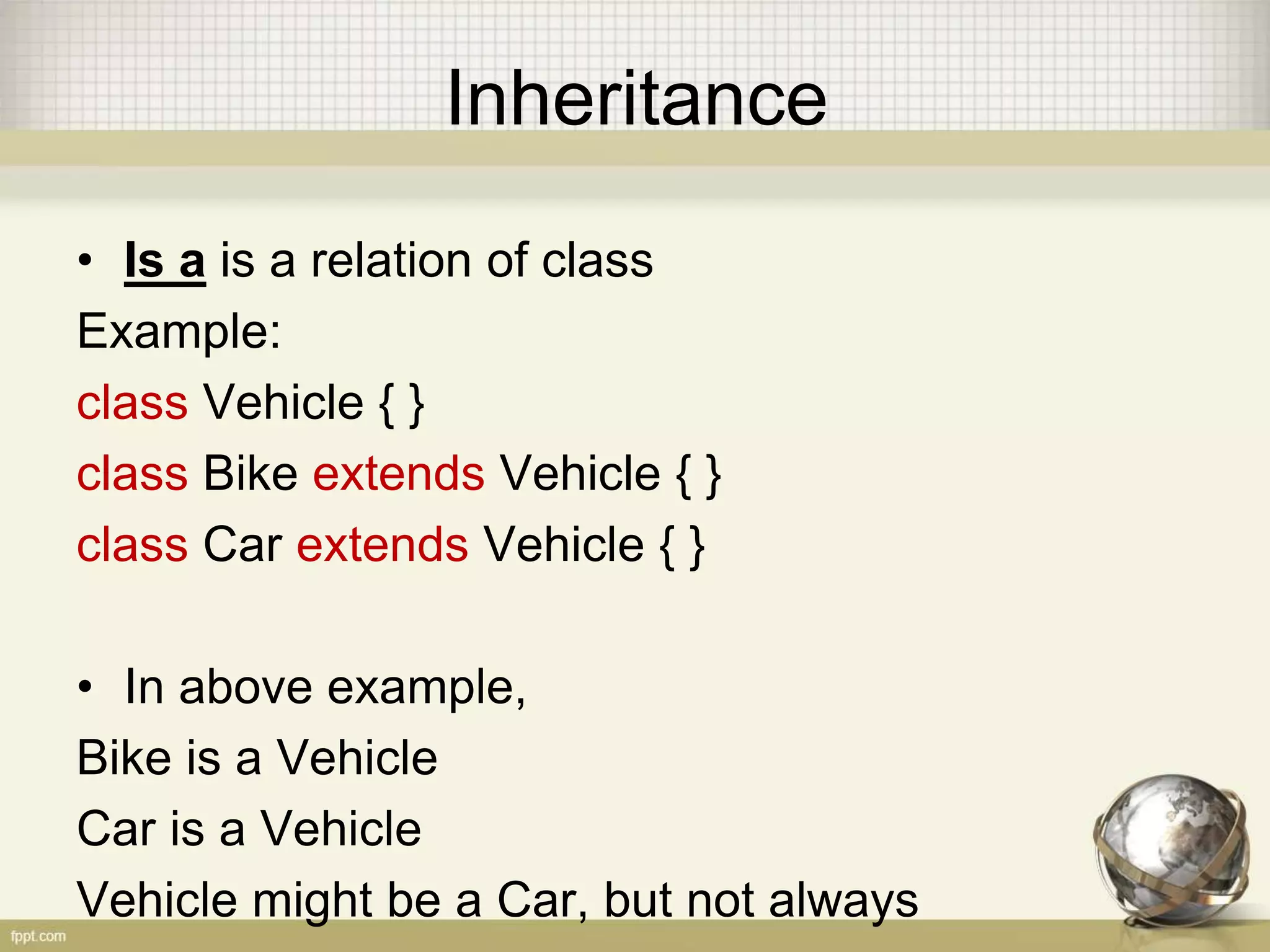

27. Inheritance
• Is a is a relation of class
Example:
class Vehicle { }
class Bike extends Vehicle { }
class Car extends Vehicle { }
• In above example,
Bike is a Vehicle
Car is a Vehicle
Vehicle might be a Car, but not always

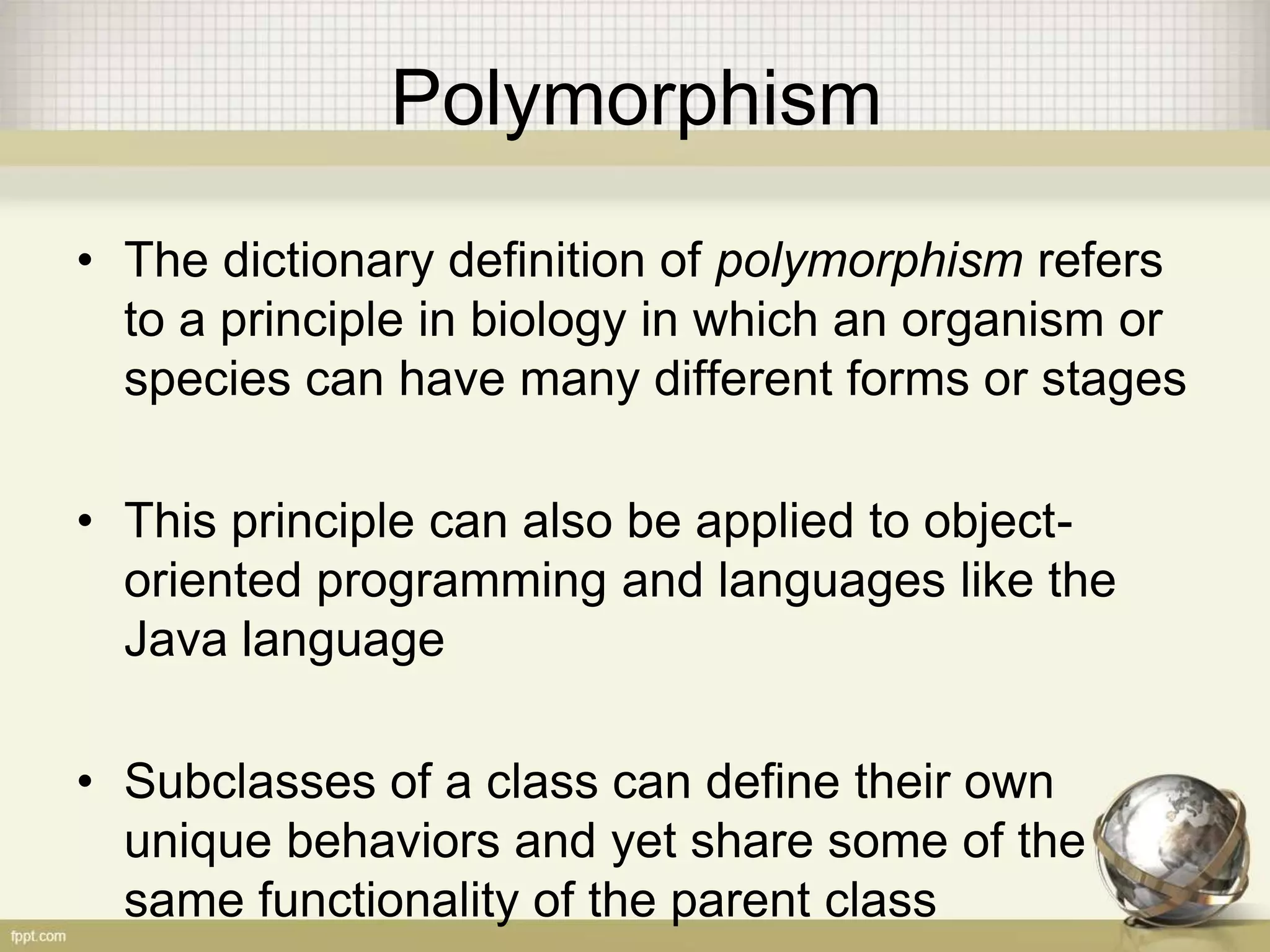

28. Polymorphism
• The dictionary definition of polymorphism refers
to a principle in biology in which an organism or
species can have many different forms or stages
• This principle can also be applied to object-
oriented programming and languages like the
Java language
• Subclasses of a class can define their own
unique behaviors and yet share some of the
same functionality of the parent class

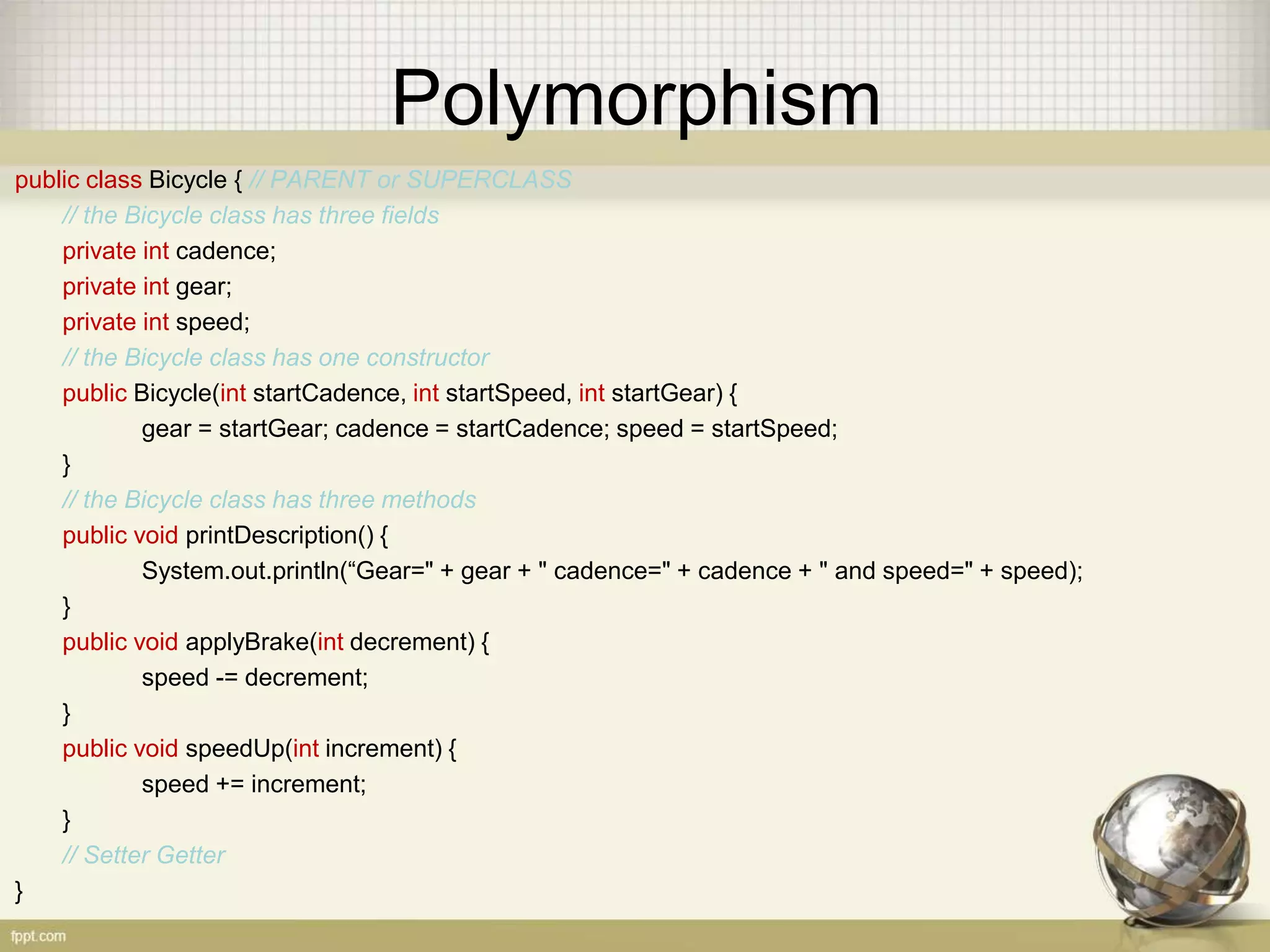

29. Polymorphism
public class Bicycle { // PARENT or SUPERCLASS
// the Bicycle class has three fields
private int cadence;
private int gear;
private int speed;
// the Bicycle class has one constructor
public Bicycle(int startCadence, int startSpeed, int startGear) {
gear = startGear; cadence = startCadence; speed = startSpeed;
}
// the Bicycle class has three methods
public void printDescription() {
System.out.println(“Gear=" + gear + " cadence=" + cadence + " and speed=" + speed);
}
public void applyBrake(int decrement) {
speed -= decrement;
}
public void speedUp(int increment) {
speed += increment;
}
// Setter Getter
}

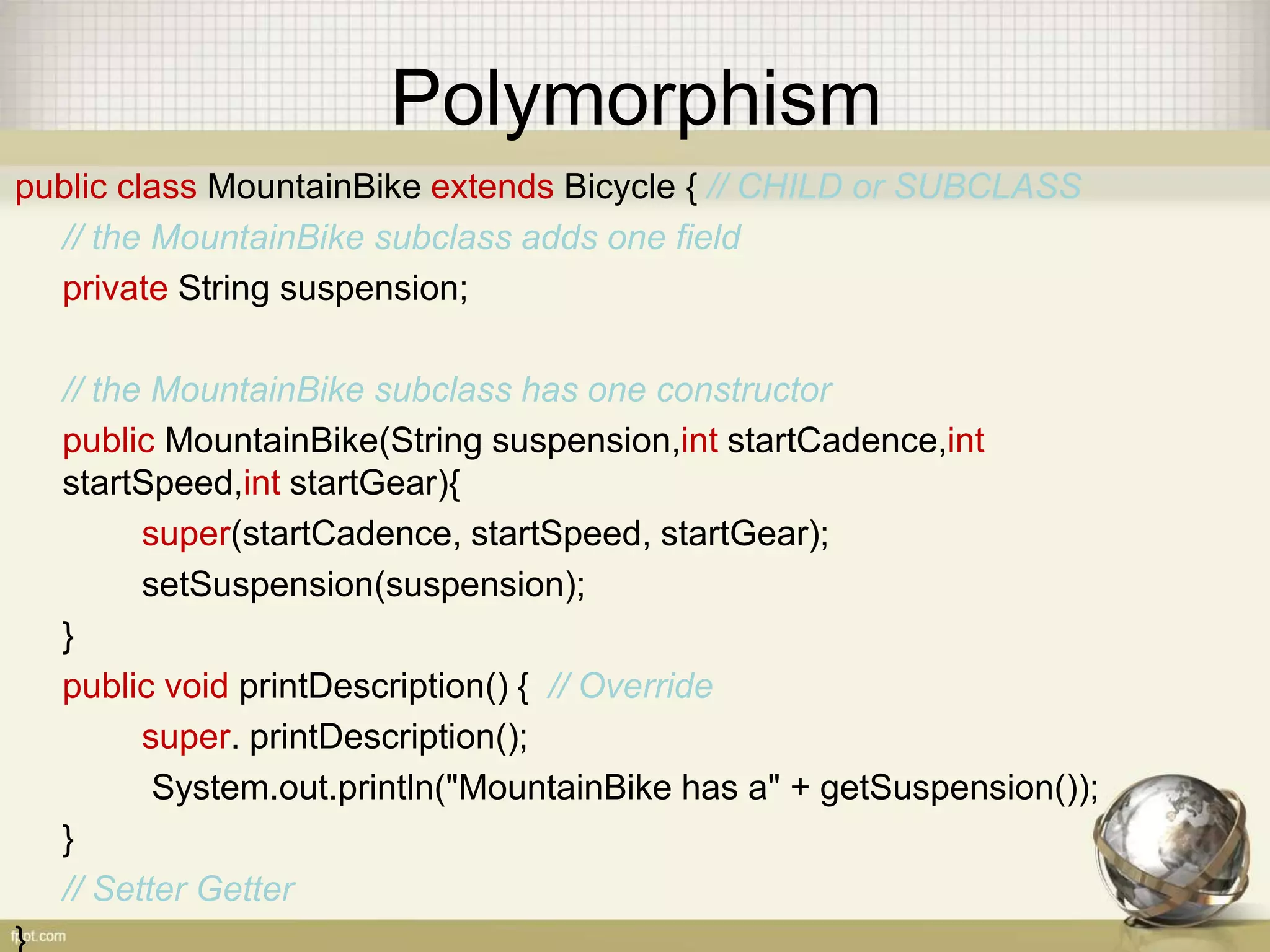

30. Polymorphism
public class MountainBike extends Bicycle { // CHILD or SUBCLASS
// the MountainBike subclass adds one field
private String suspension;
// the MountainBike subclass has one constructor
public MountainBike(String suspension,int startCadence,int
startSpeed,int startGear){
super(startCadence, startSpeed, startGear);
setSuspension(suspension);
}
public void printDescription() { // Override
super. printDescription();
System.out.println("MountainBike has a" + getSuspension());
}
// Setter Getter
}

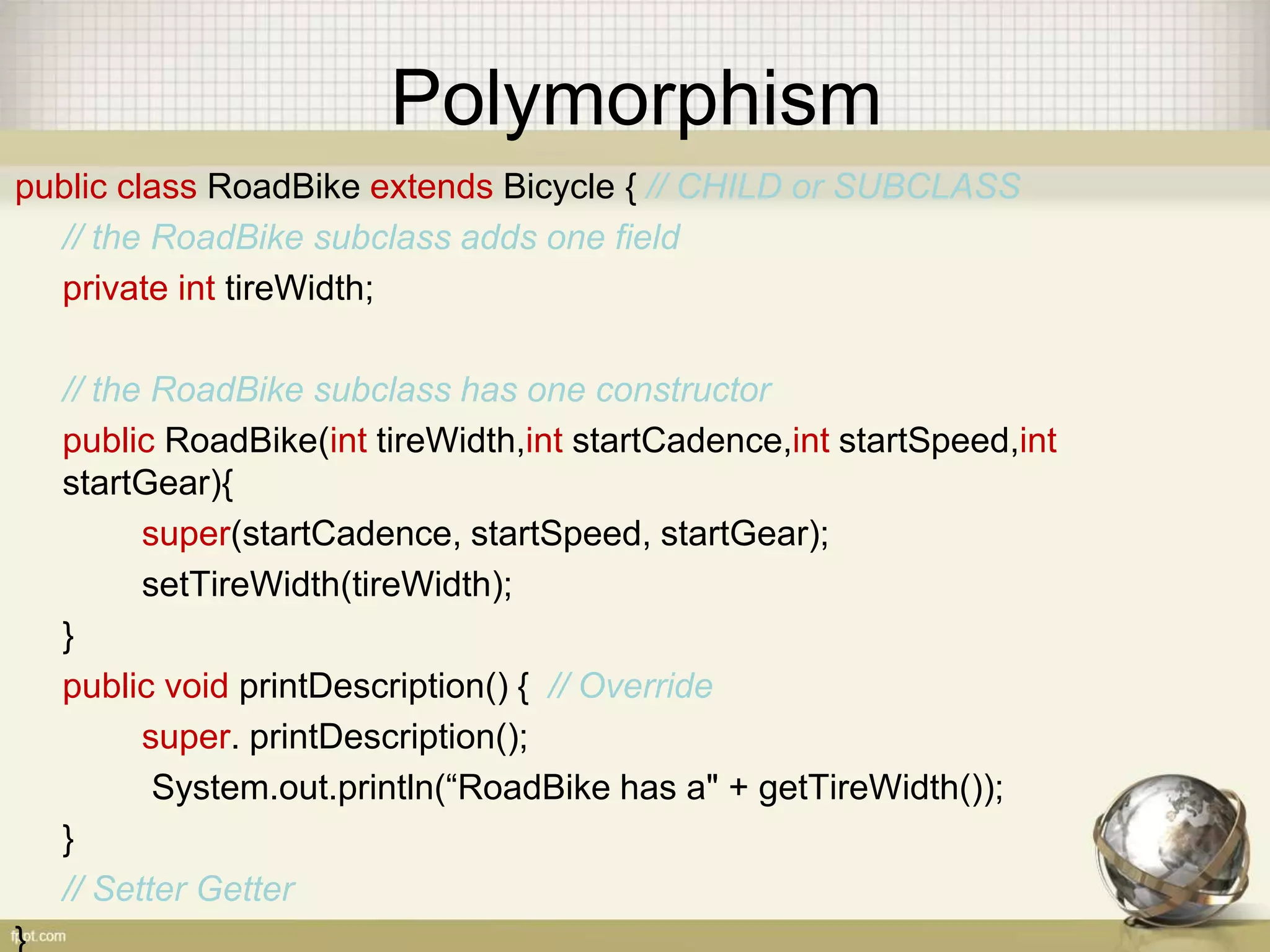

31. Polymorphism
public class RoadBike extends Bicycle { // CHILD or SUBCLASS
// the RoadBike subclass adds one field
private int tireWidth;
// the RoadBike subclass has one constructor
public RoadBike(int tireWidth,int startCadence,int startSpeed,int
startGear){
super(startCadence, startSpeed, startGear);
setTireWidth(tireWidth);
}
public void printDescription() { // Override
super. printDescription();
System.out.println(“RoadBike has a" + getTireWidth());
}
// Setter Getter
}

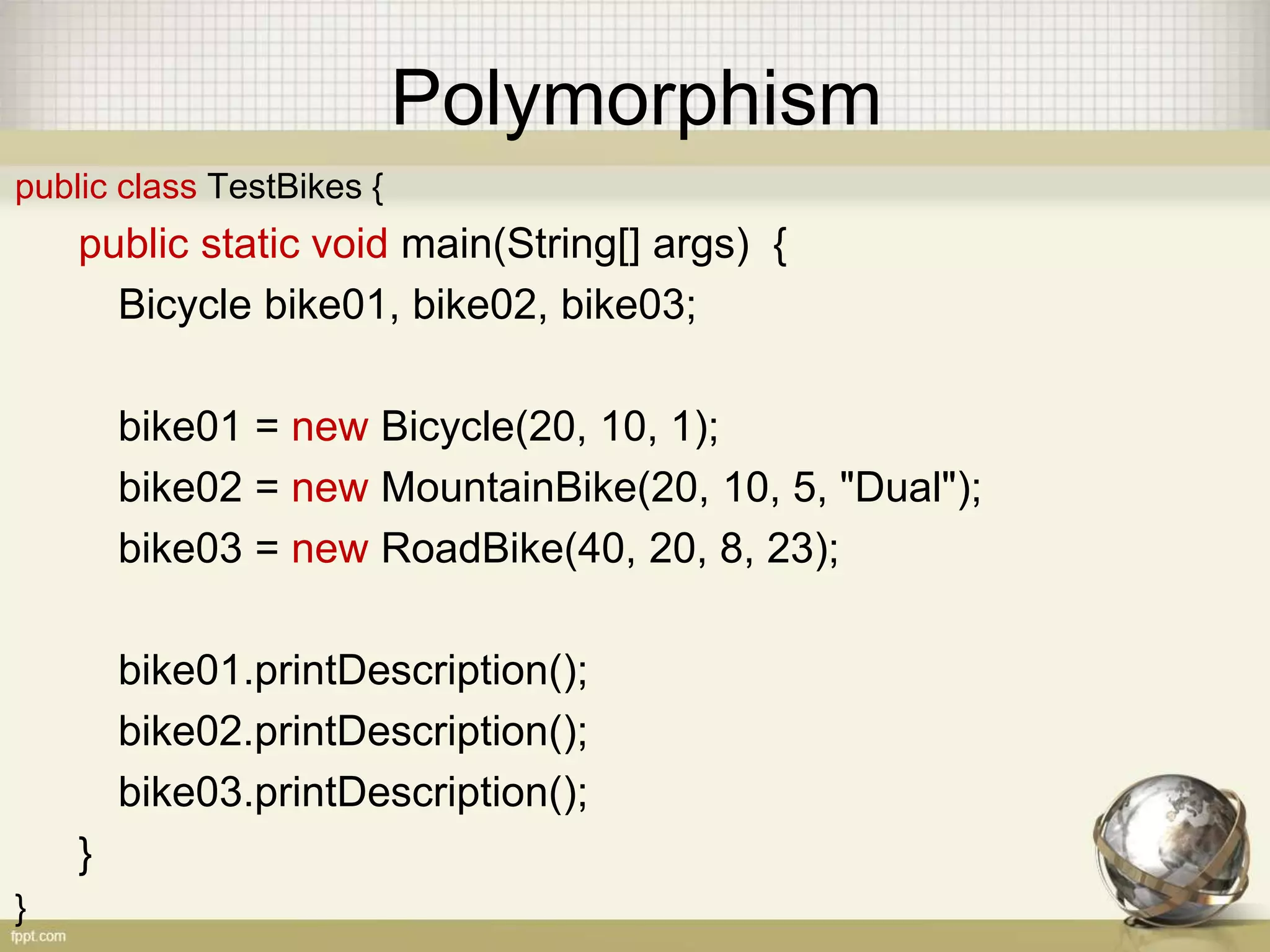

32. Polymorphism
public class TestBikes {
public static void main(String[] args) {
Bicycle bike01, bike02, bike03;
bike01 = new Bicycle(20, 10, 1);
bike02 = new MountainBike(20, 10, 5, "Dual");
bike03 = new RoadBike(40, 20, 8, 23);
bike01.printDescription();
bike02.printDescription();
bike03.printDescription();
}
}

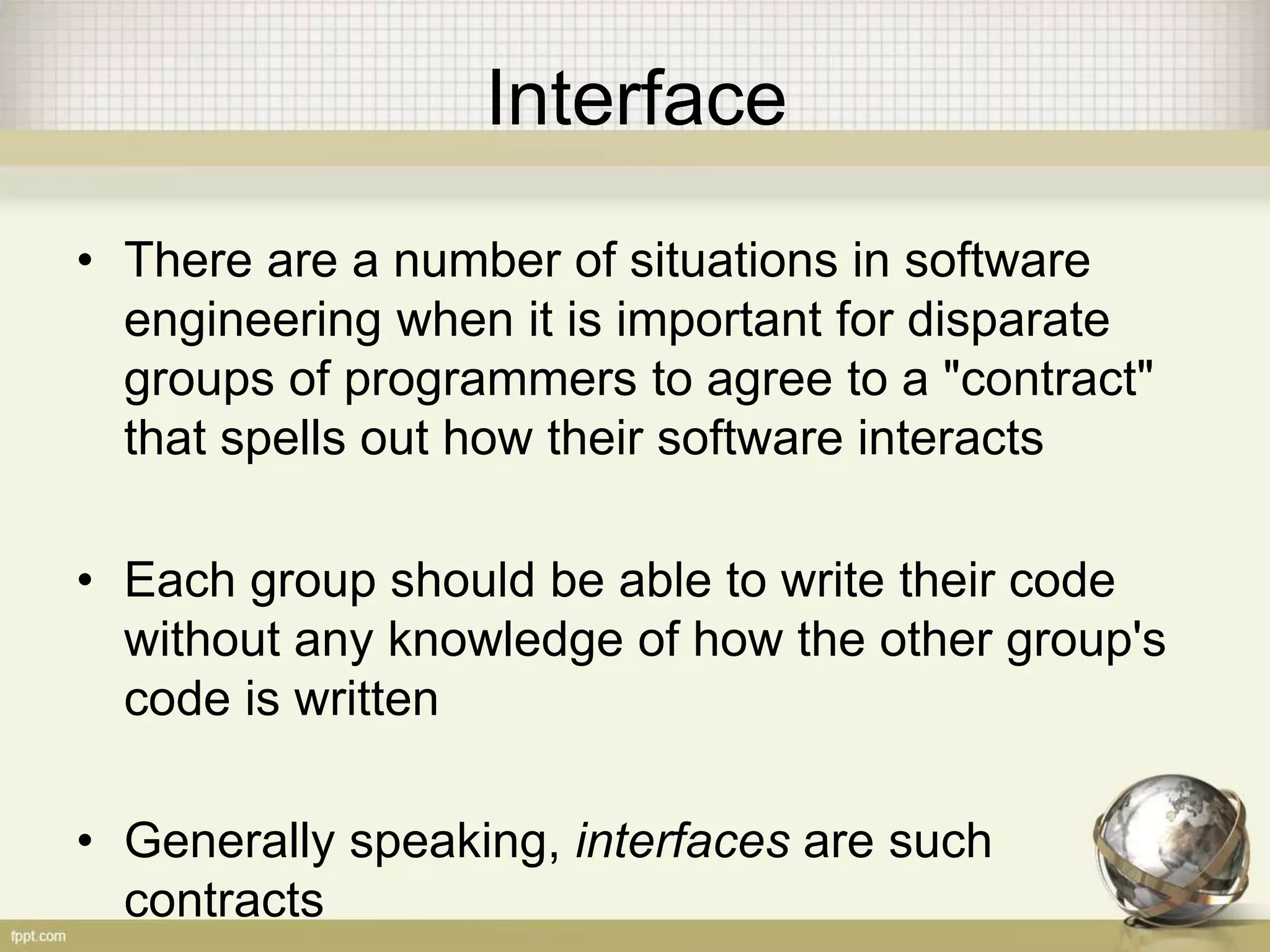

33. Interface
• There are a number of situations in software
engineering when it is important for disparate
groups of programmers to agree to a "contract"
that spells out how their software interacts
• Each group should be able to write their code
without any knowledge of how the other group's
code is written
• Generally speaking, interfaces are such
contracts

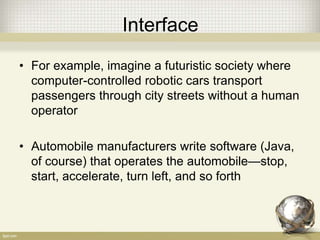

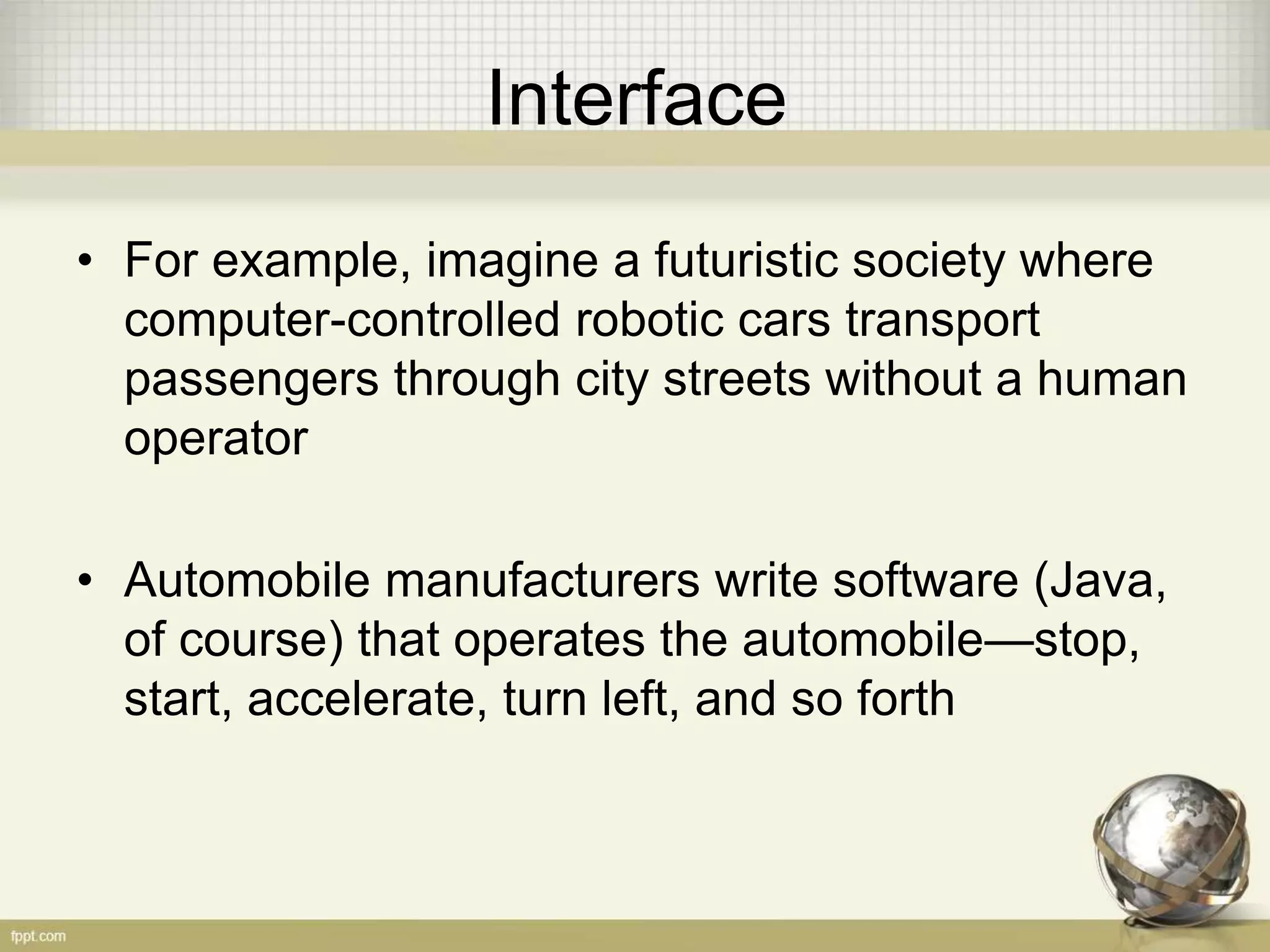

34. Interface
• For example, imagine a futuristic society where
computer-controlled robotic cars transport
passengers through city streets without a human
operator
• Automobile manufacturers write software (Java,
of course) that operates the automobile—stop,
start, accelerate, turn left, and so forth

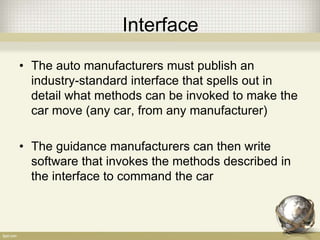

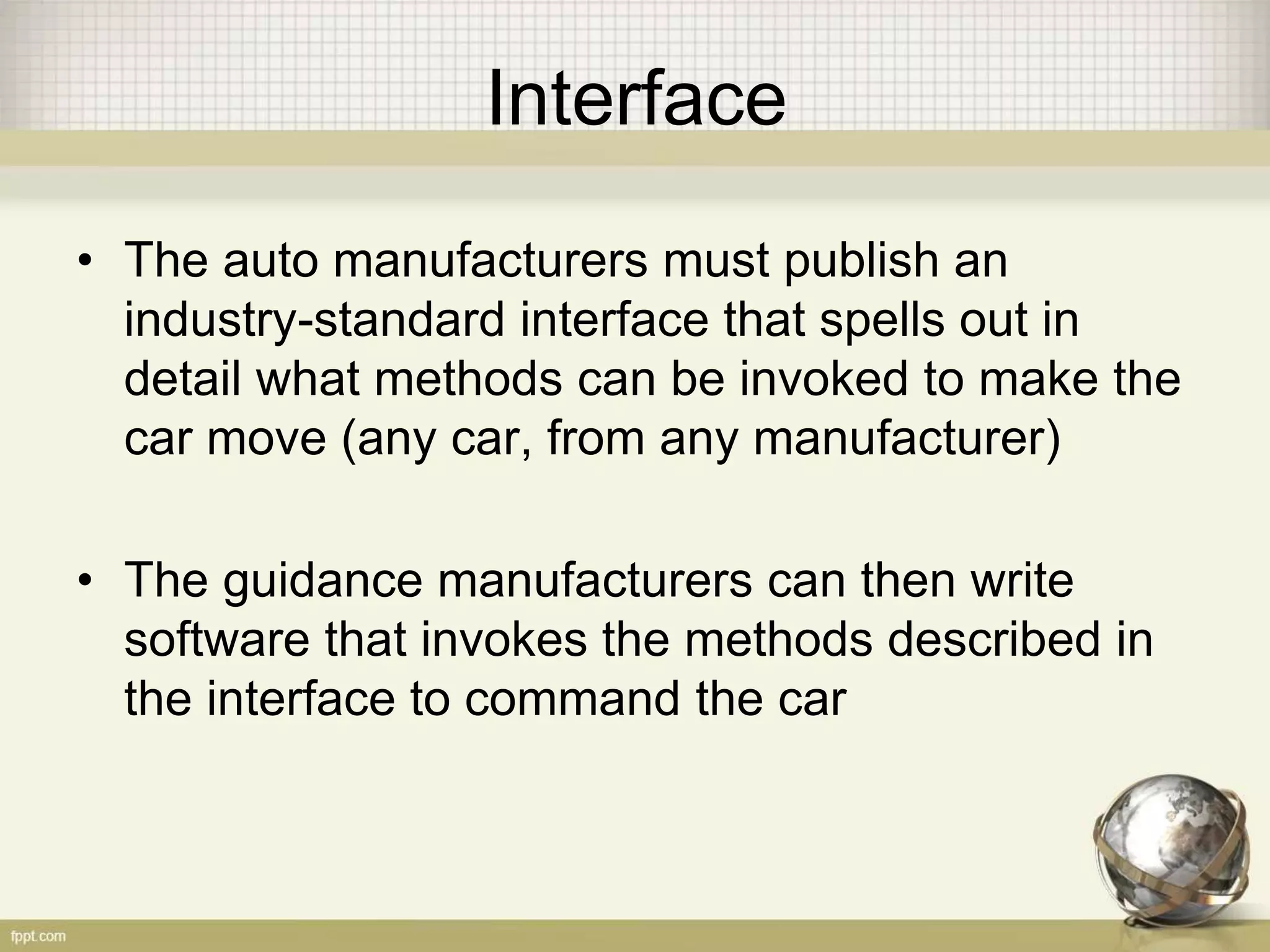

35. Interface
• The auto manufacturers must publish an
industry-standard interface that spells out in
detail what methods can be invoked to make the
car move (any car, from any manufacturer)
• The guidance manufacturers can then write
software that invokes the methods described in
the interface to command the car

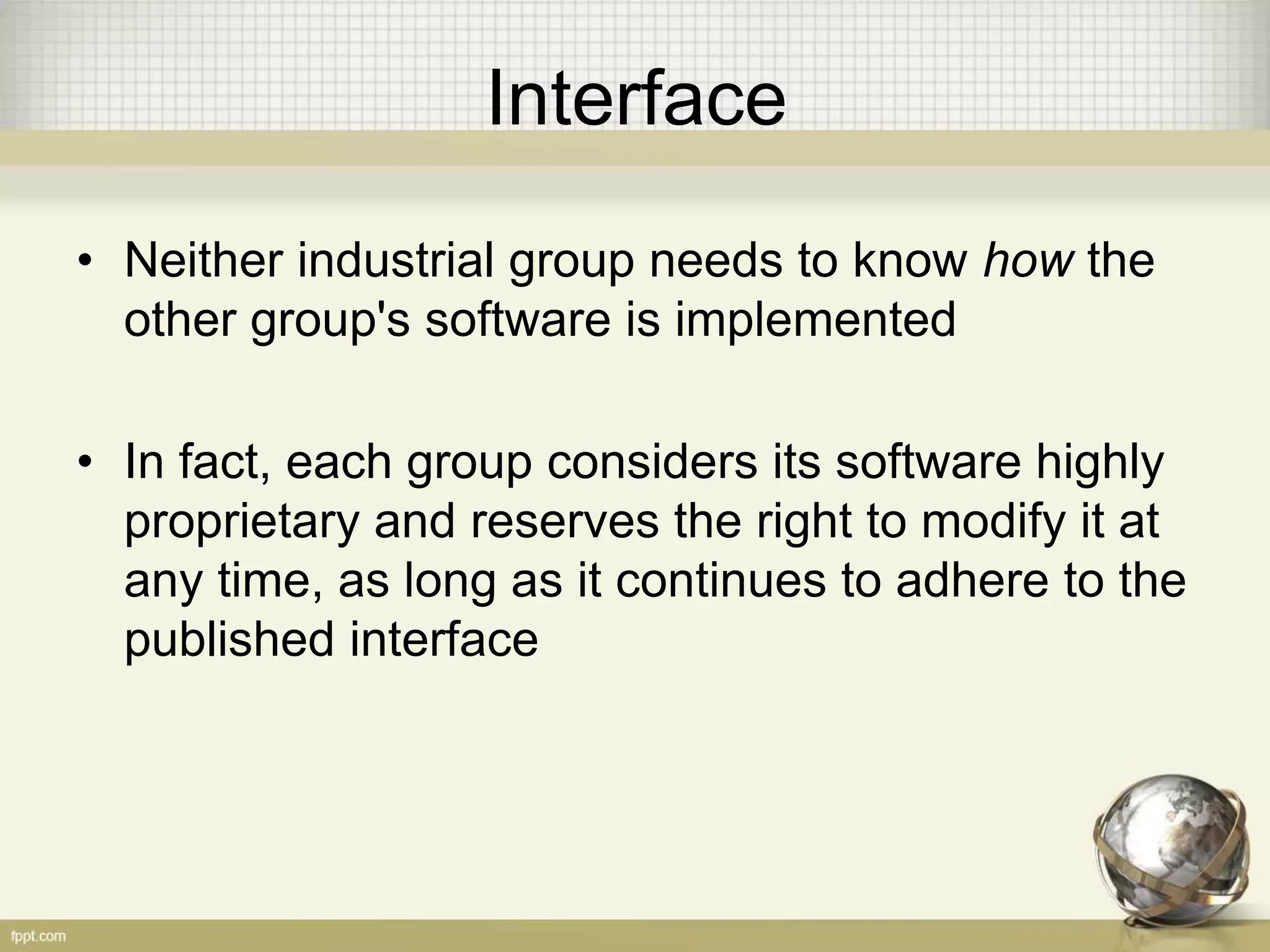

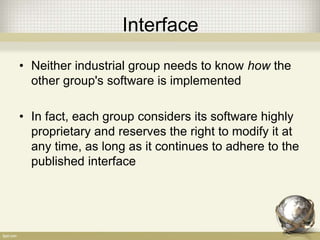

36. Interface
• Neither industrial group needs to know how the
other group's software is implemented
• In fact, each group considers its software highly
proprietary and reserves the right to modify it at
any time, as long as it continues to adhere to the
published interface

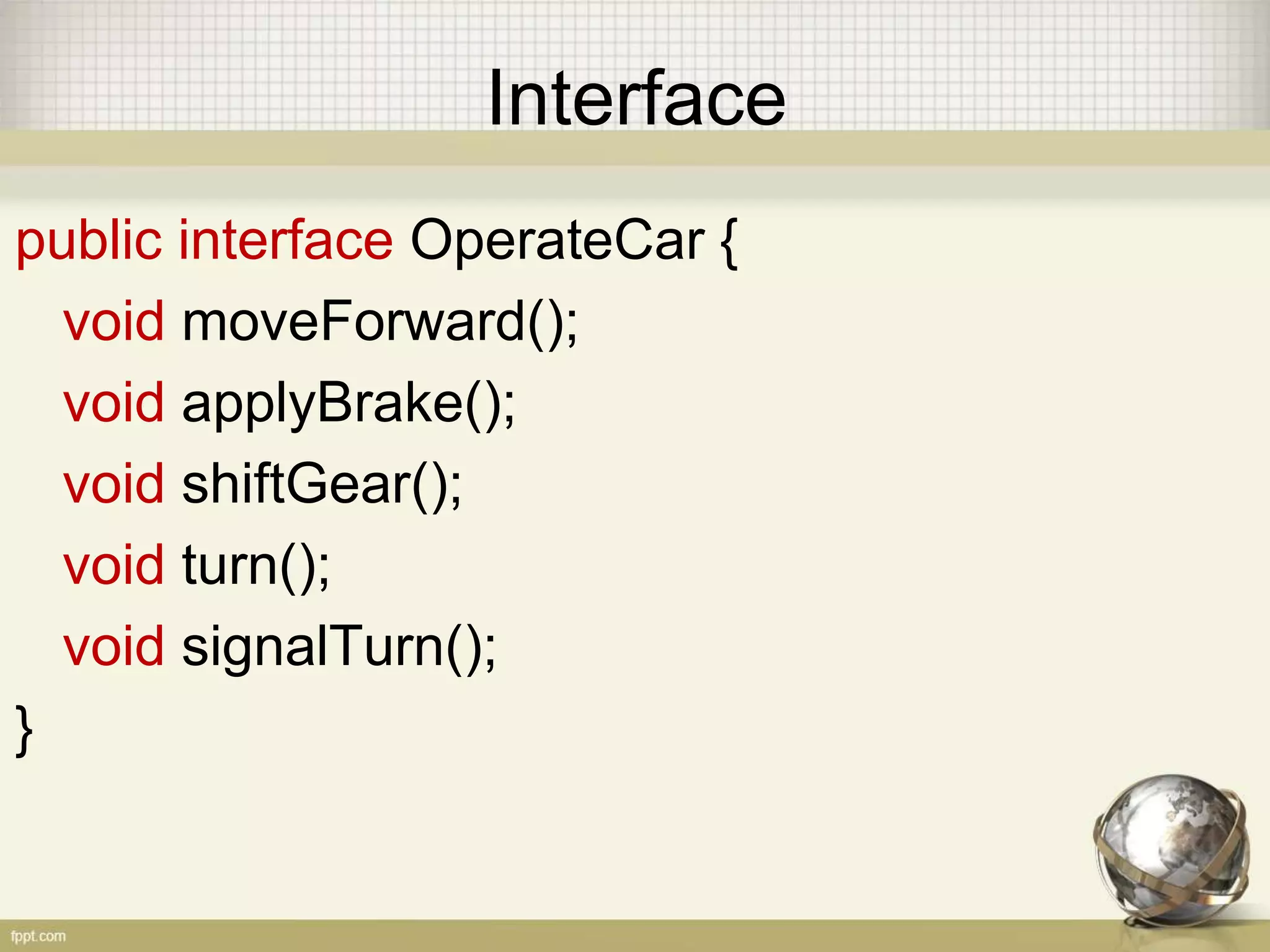

37. Interface
public interface OperateCar {
void moveForward();
void applyBrake();
void shiftGear();
void turn();
void signalTurn();
}

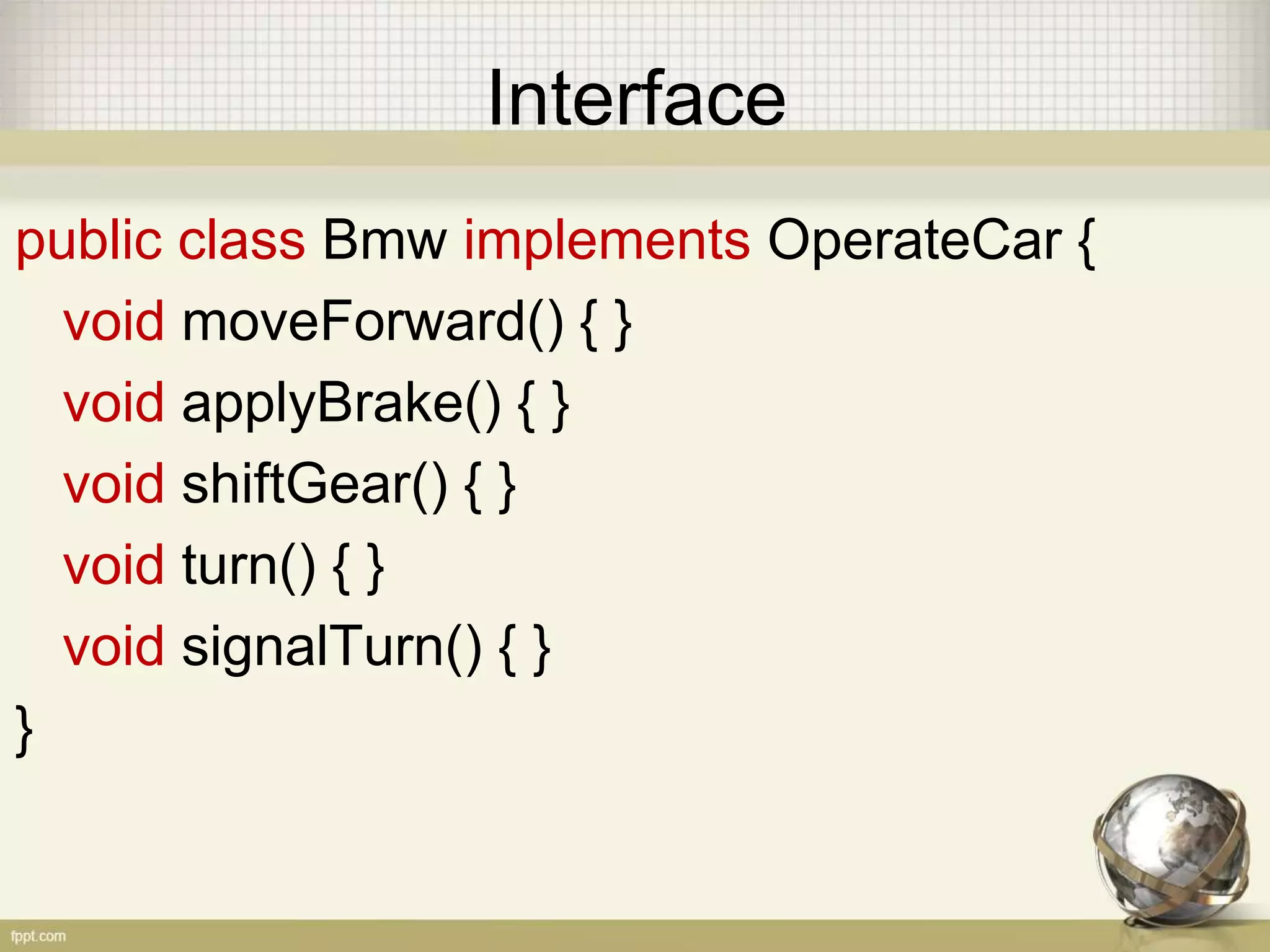

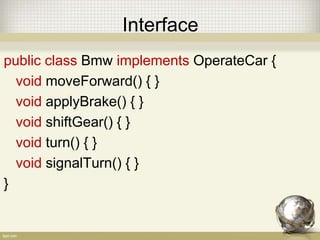

38. Interface
public class Bmw implements OperateCar {
void moveForward() { }
void applyBrake() { }
void shiftGear() { }
void turn() { }
void signalTurn() { }
}

39. Interface
public class Jeep implements OperateCar {
void moveForward() { }
void applyBrake() { }
void shiftGear() { }
void turn() { }
void signalTurn() { }
}

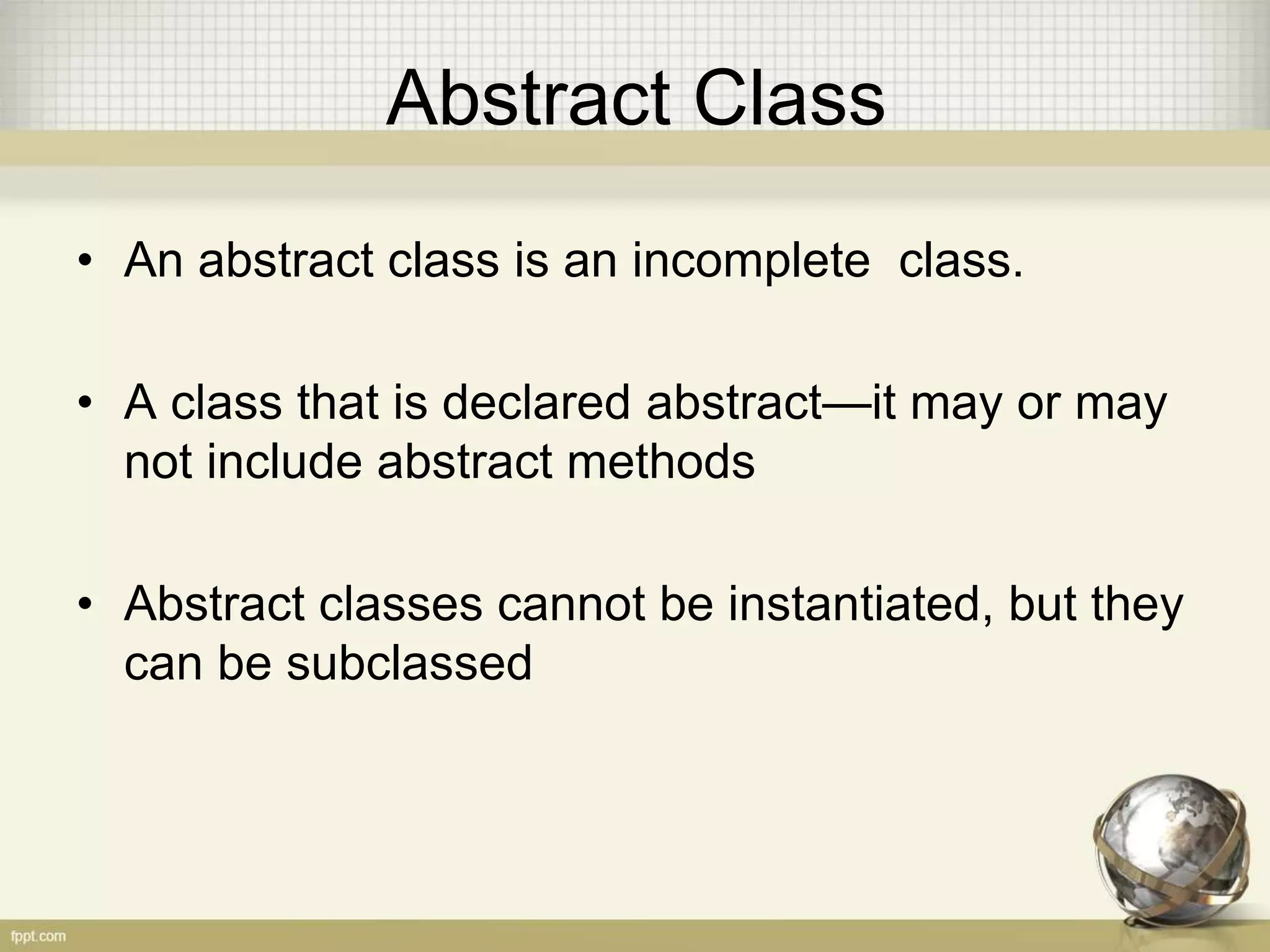

40. Abstract Class
• An abstract class is an incomplete class.
• A class that is declared abstract—it may or may
not include abstract methods
• Abstract classes cannot be instantiated, but they
can be subclassed

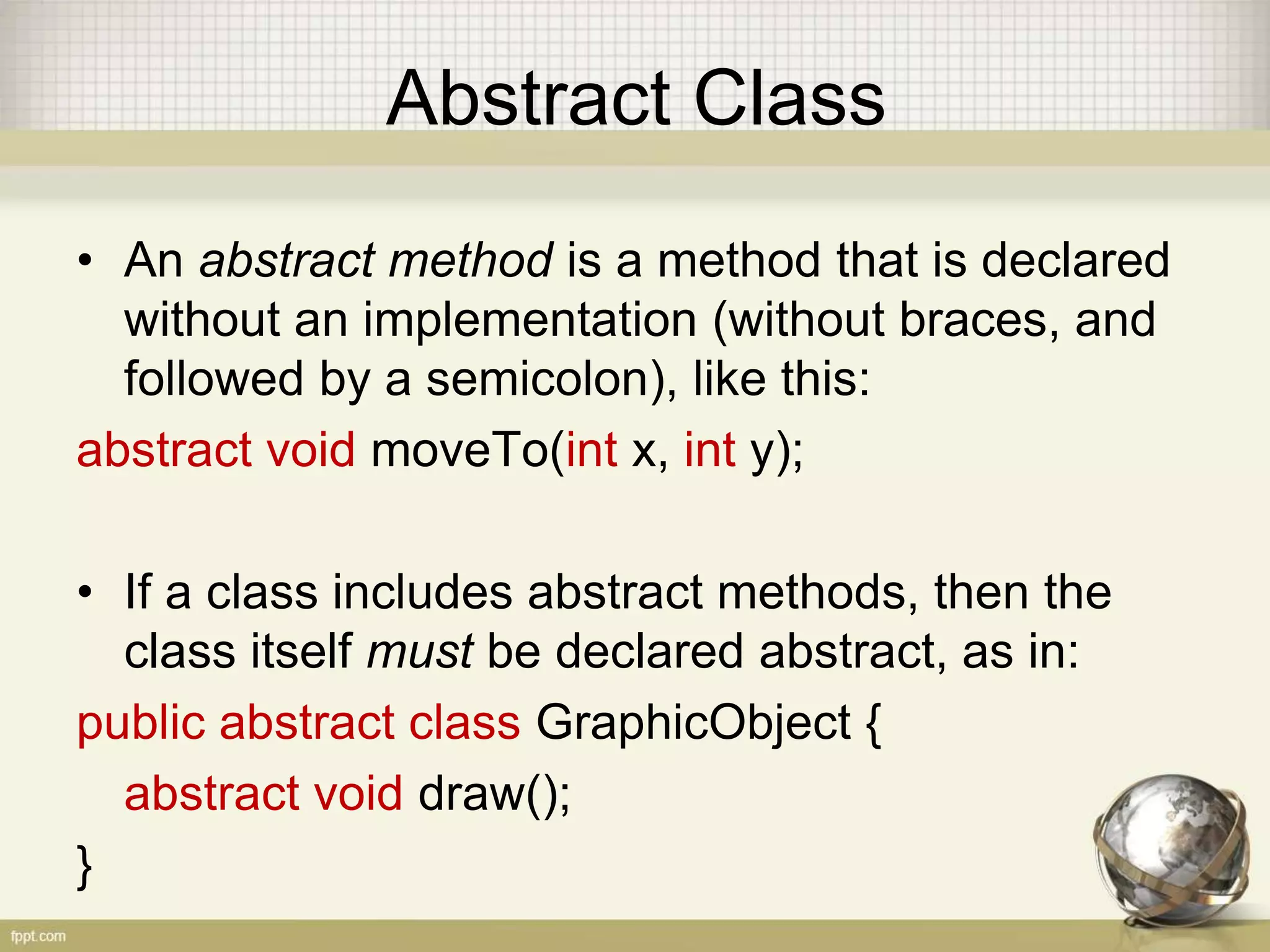

41. Abstract Class
• An abstract method is a method that is declared
without an implementation (without braces, and
followed by a semicolon), like this:
abstract void moveTo(int x, int y);
• If a class includes abstract methods, then the
class itself must be declared abstract, as in:
public abstract class GraphicObject {
abstract void draw();
}

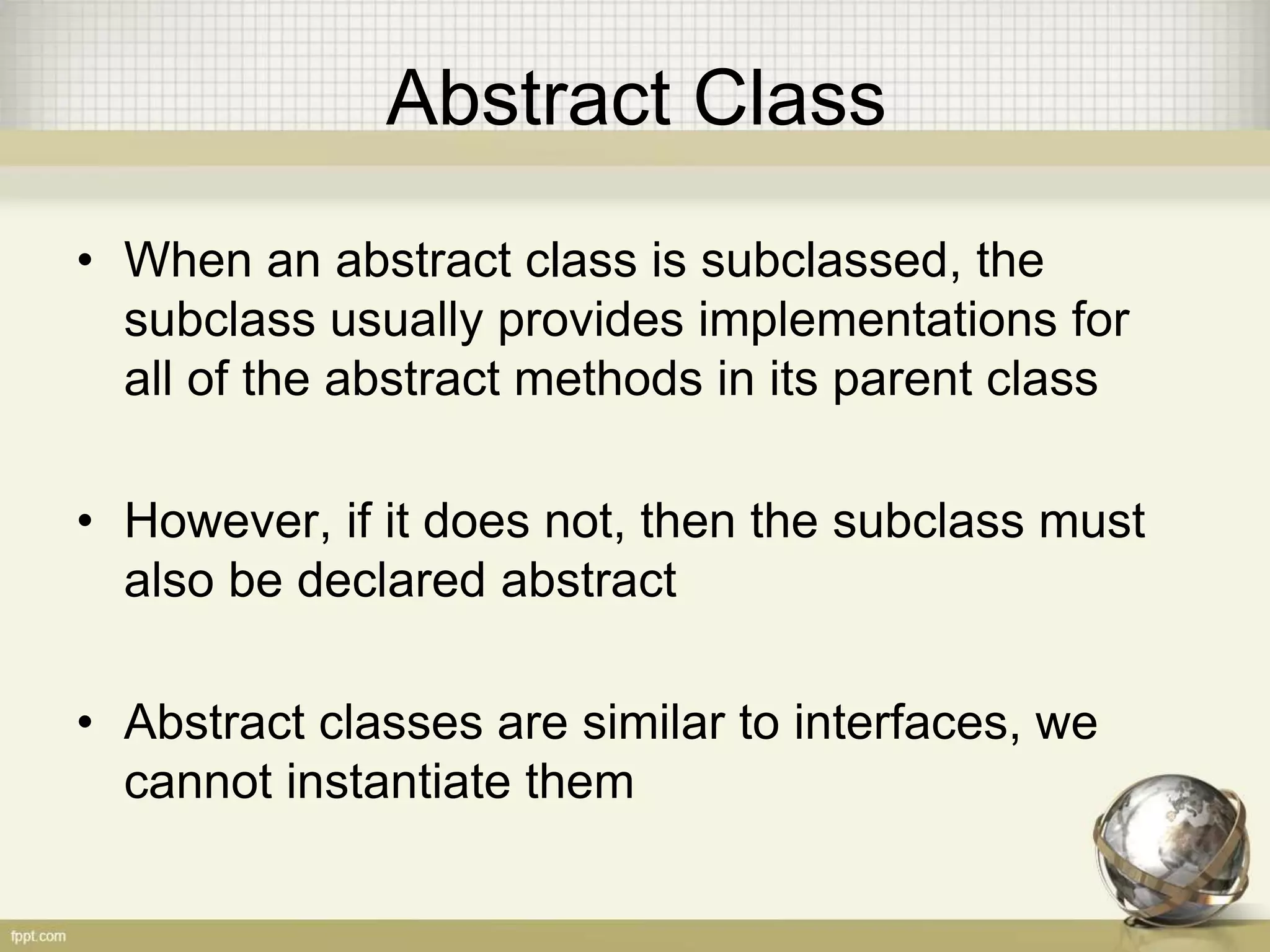

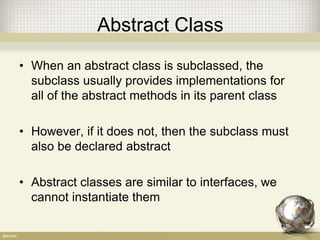

42. Abstract Class
• When an abstract class is subclassed, the
subclass usually provides implementations for
all of the abstract methods in its parent class
• However, if it does not, then the subclass must
also be declared abstract
• Abstract classes are similar to interfaces, we
cannot instantiate them

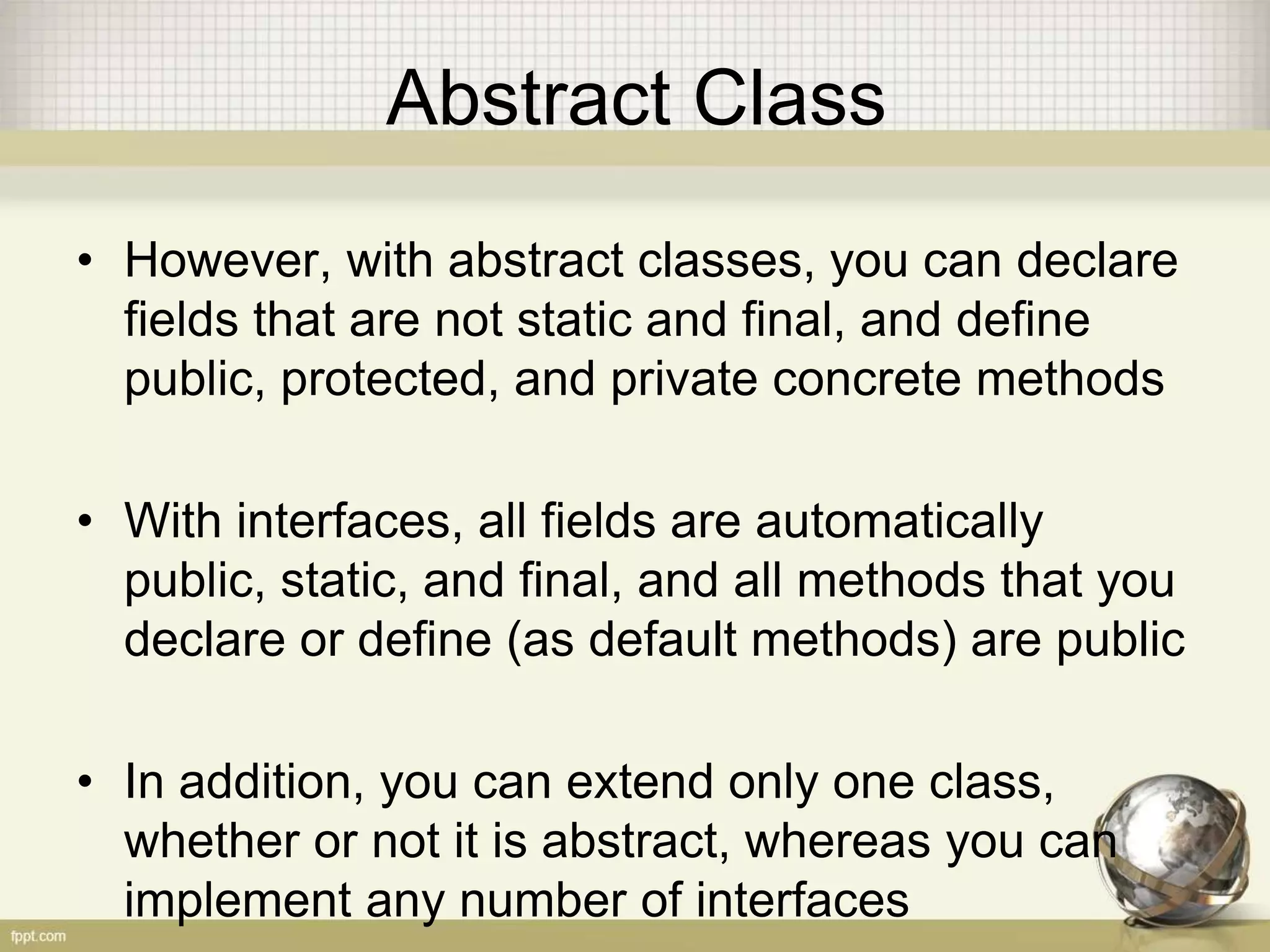

43. Abstract Class
• However, with abstract classes, you can declare
fields that are not static and final, and define
public, protected, and private concrete methods
• With interfaces, all fields are automatically
public, static, and final, and all methods that you
declare or define (as default methods) are public
• In addition, you can extend only one class,
whether or not it is abstract, whereas you can
implement any number of interfaces

44. Abstract Class

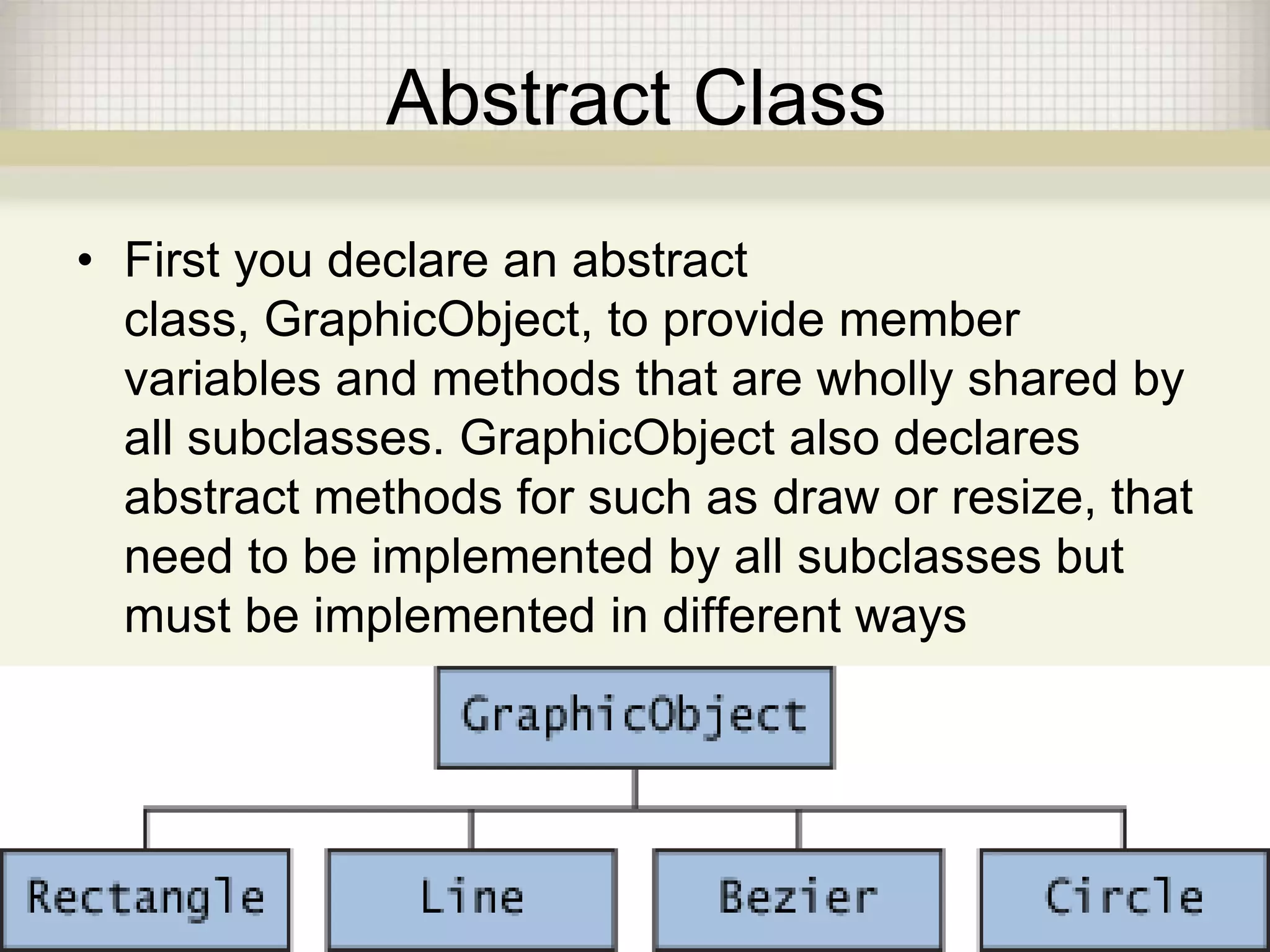

• First you declare an abstract
class, GraphicObject, to provide member
variables and methods that are wholly shared by
all subclasses. GraphicObject also declares
abstract methods for such as draw or resize, that
need to be implemented by all subclasses but
must be implemented in different ways

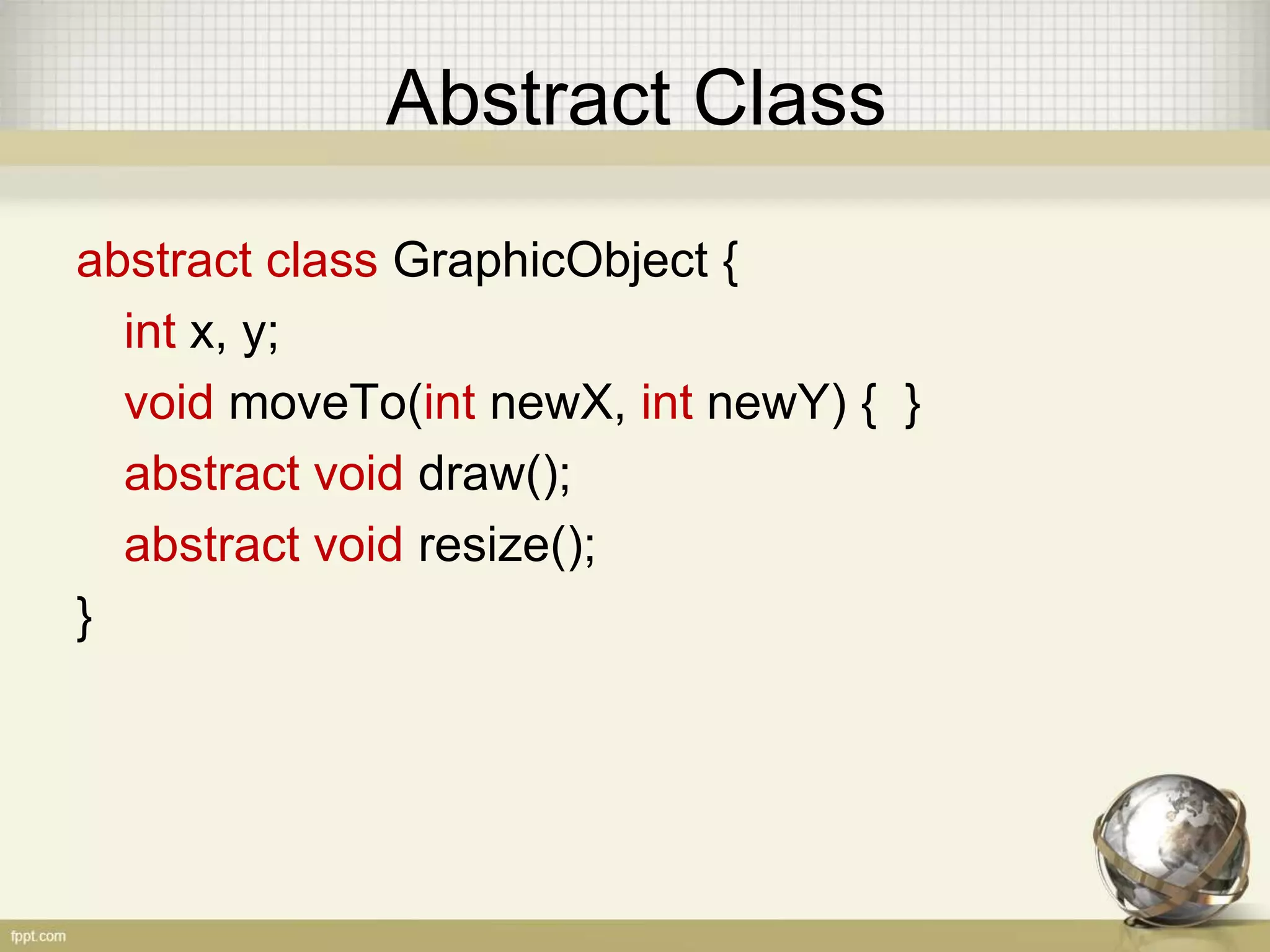

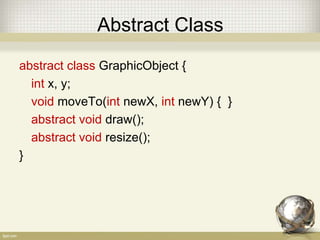

45. Abstract Class
abstract class GraphicObject {
int x, y;
void moveTo(int newX, int newY) { }
abstract void draw();
abstract void resize();
}

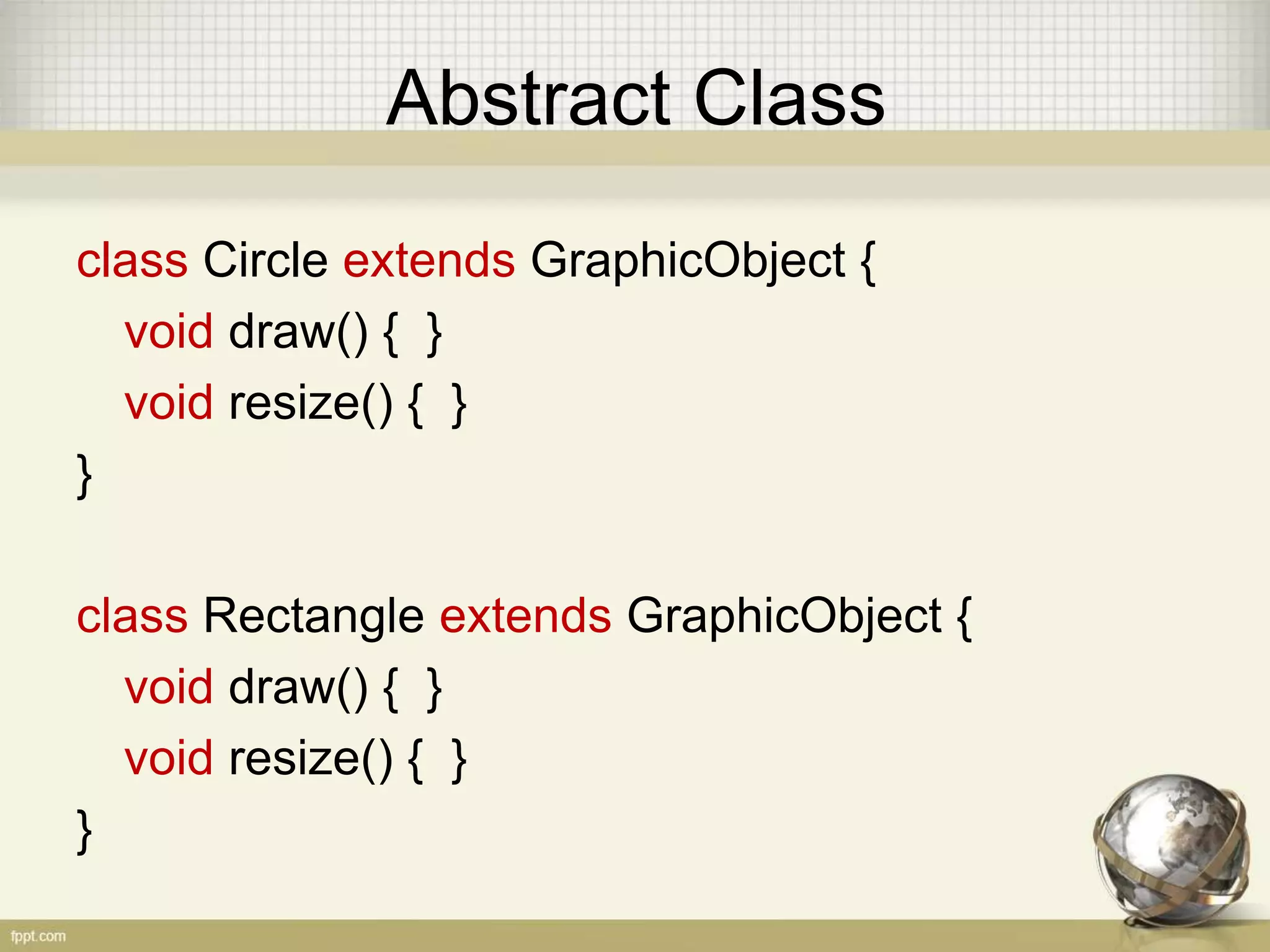

46. Abstract Class
class Circle extends GraphicObject {
void draw() { }
void resize() { }
}
class Rectangle extends GraphicObject {
void draw() { }
void resize() { }
}

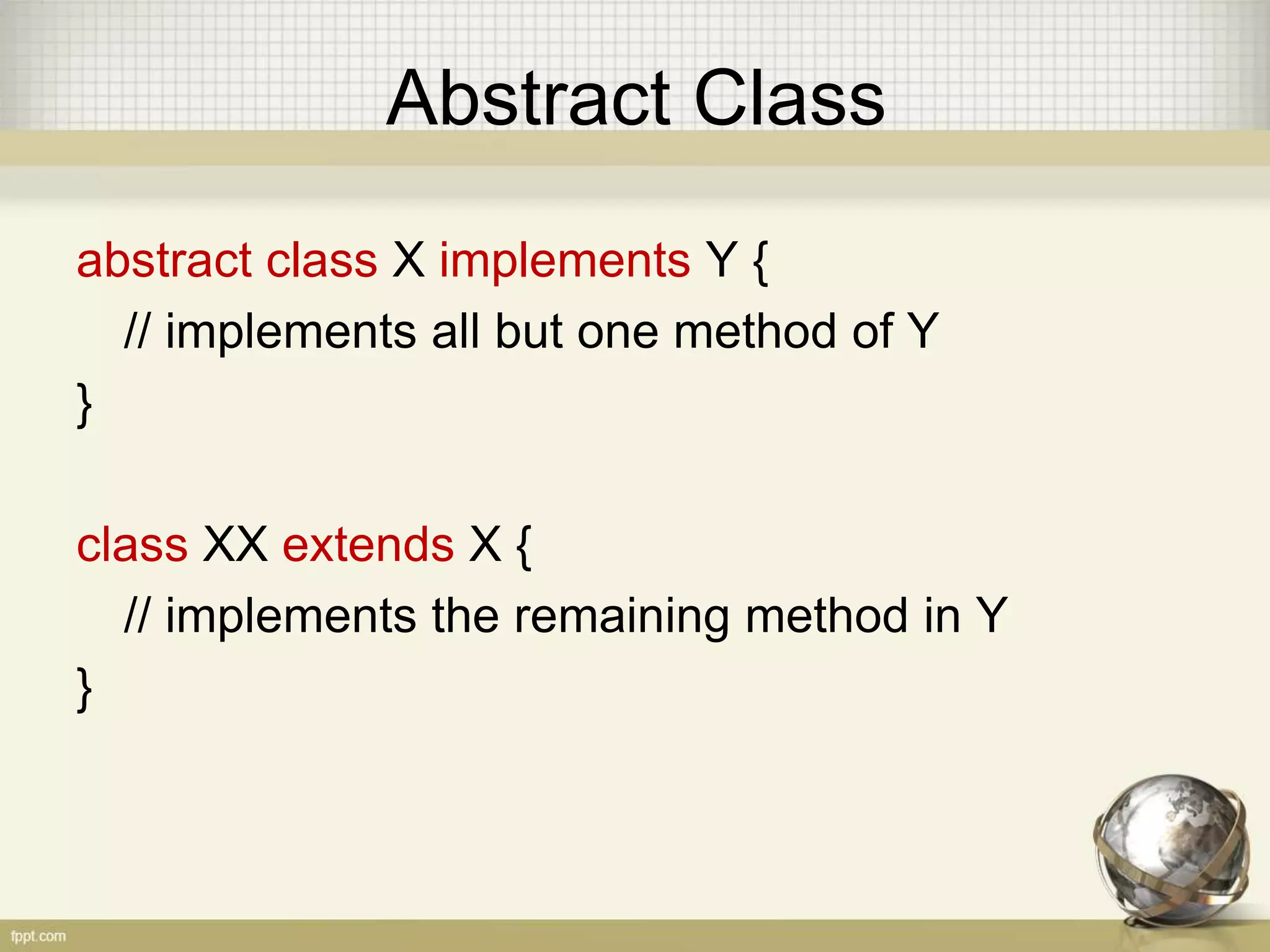

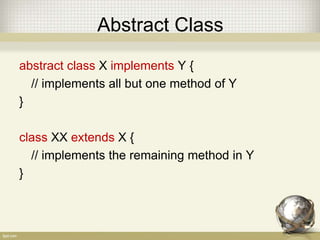

47. Abstract Class
abstract class X implements Y {
// implements all but one method of Y
}
class XX extends X {
// implements the remaining method in Y
}

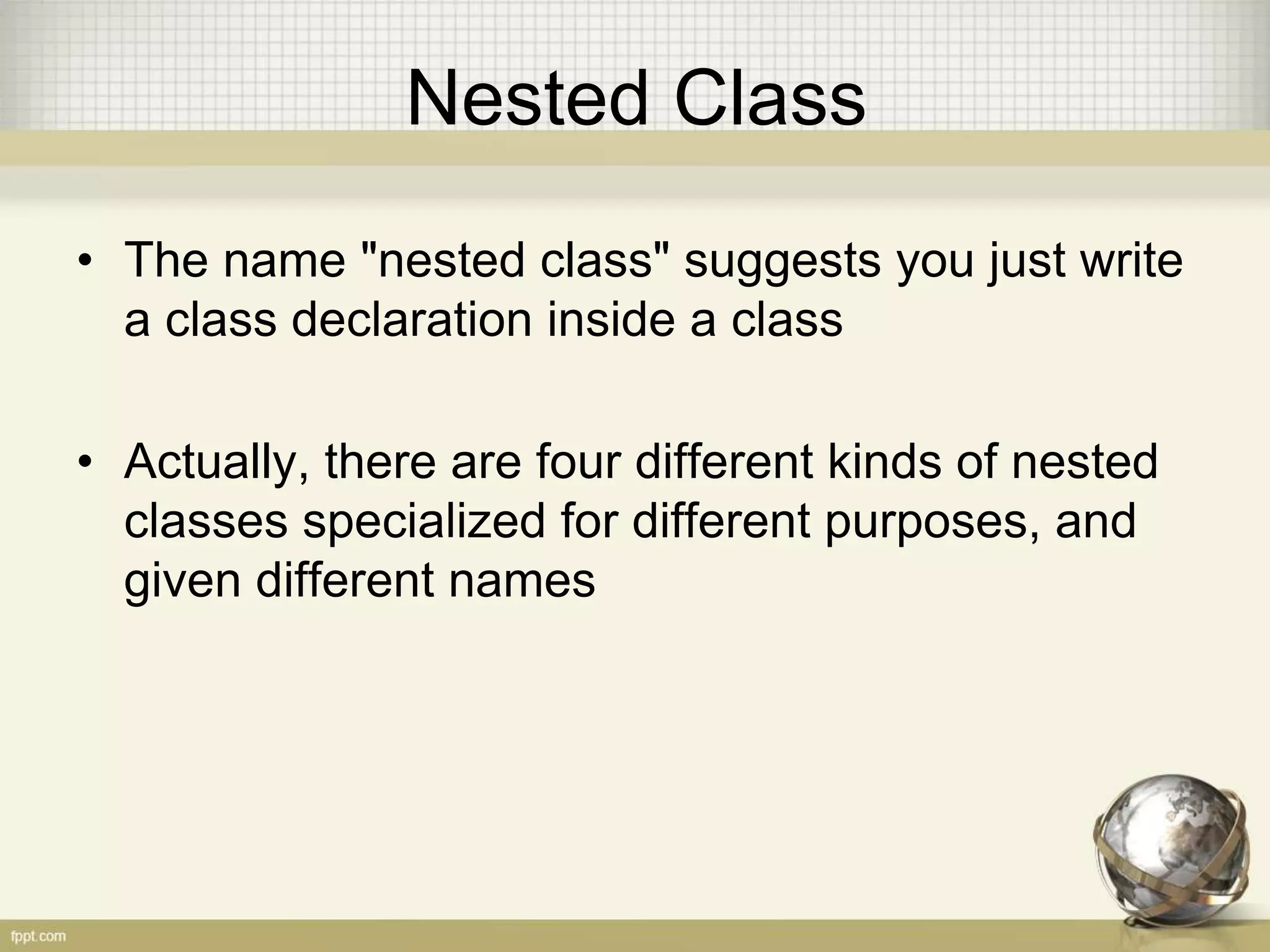

48. Nested Class
• The name "nested class" suggests you just write
a class declaration inside a class
• Actually, there are four different kinds of nested
classes specialized for different purposes, and
given different names

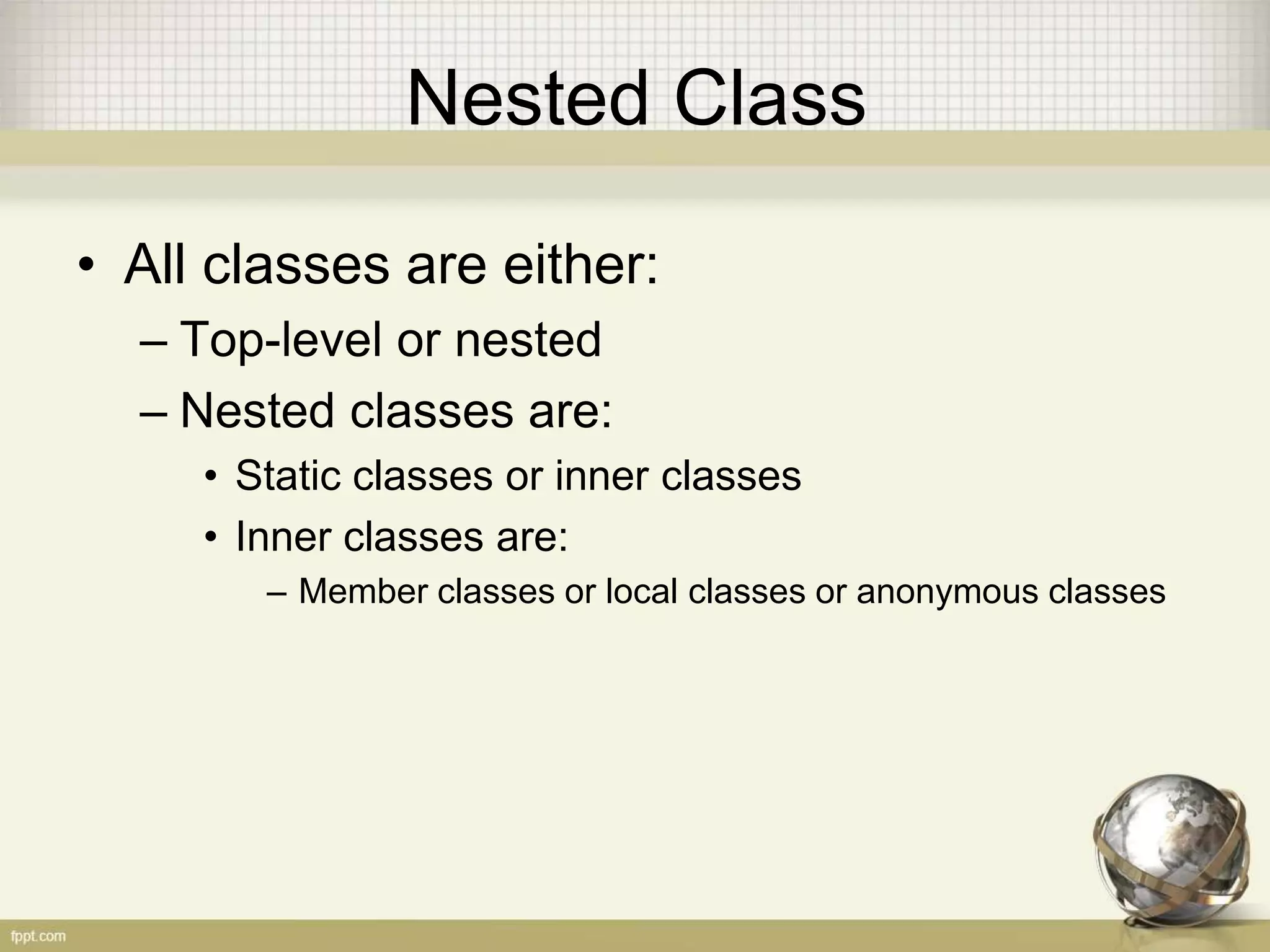

49. Nested Class
• All classes are either:
– Top-level or nested
– Nested classes are:
• Static classes or inner classes
• Inner classes are:
– Member classes or local classes or anonymous classes

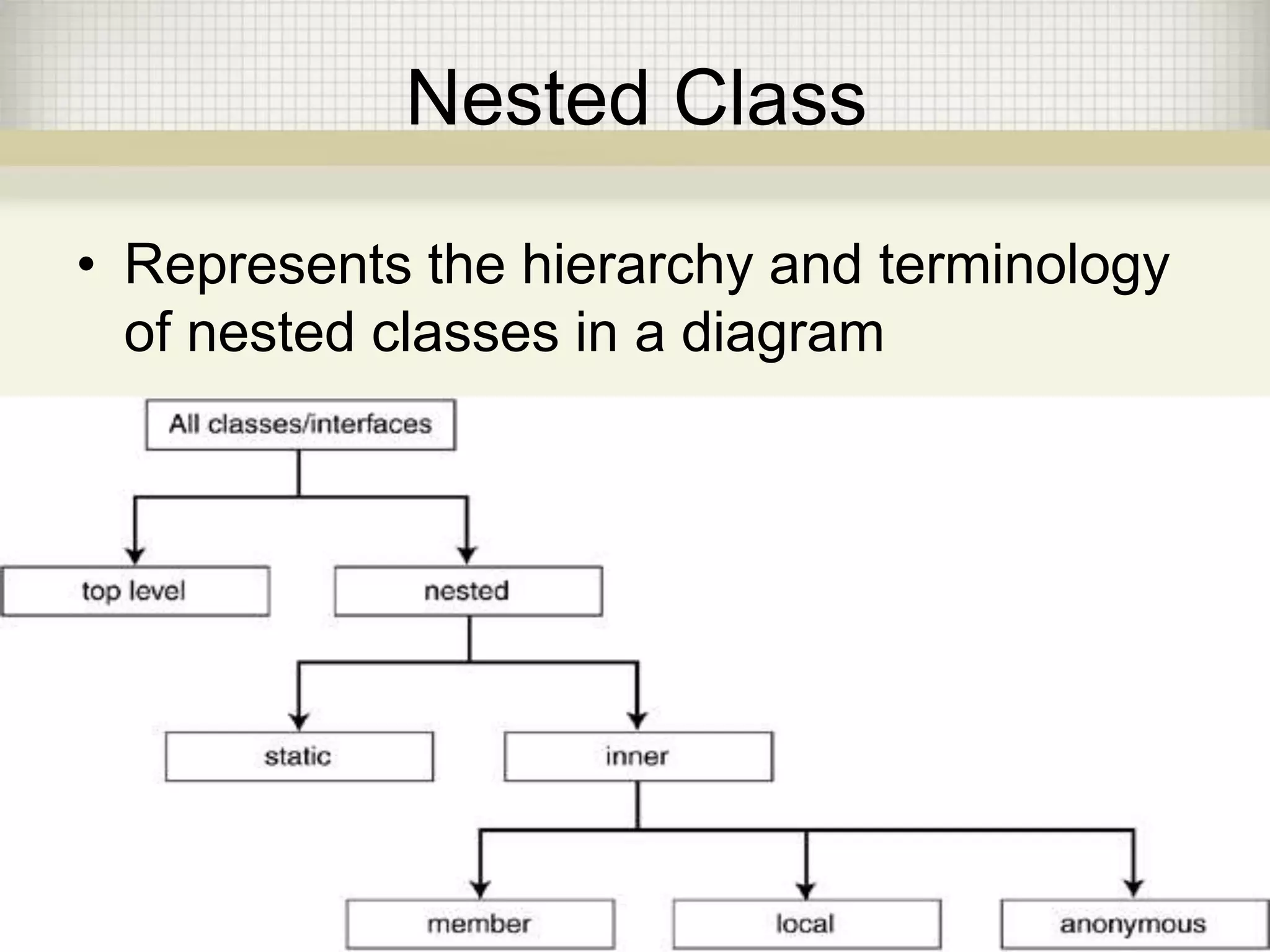

50. Nested Class
• Represents the hierarchy and terminology
of nested classes in a diagram

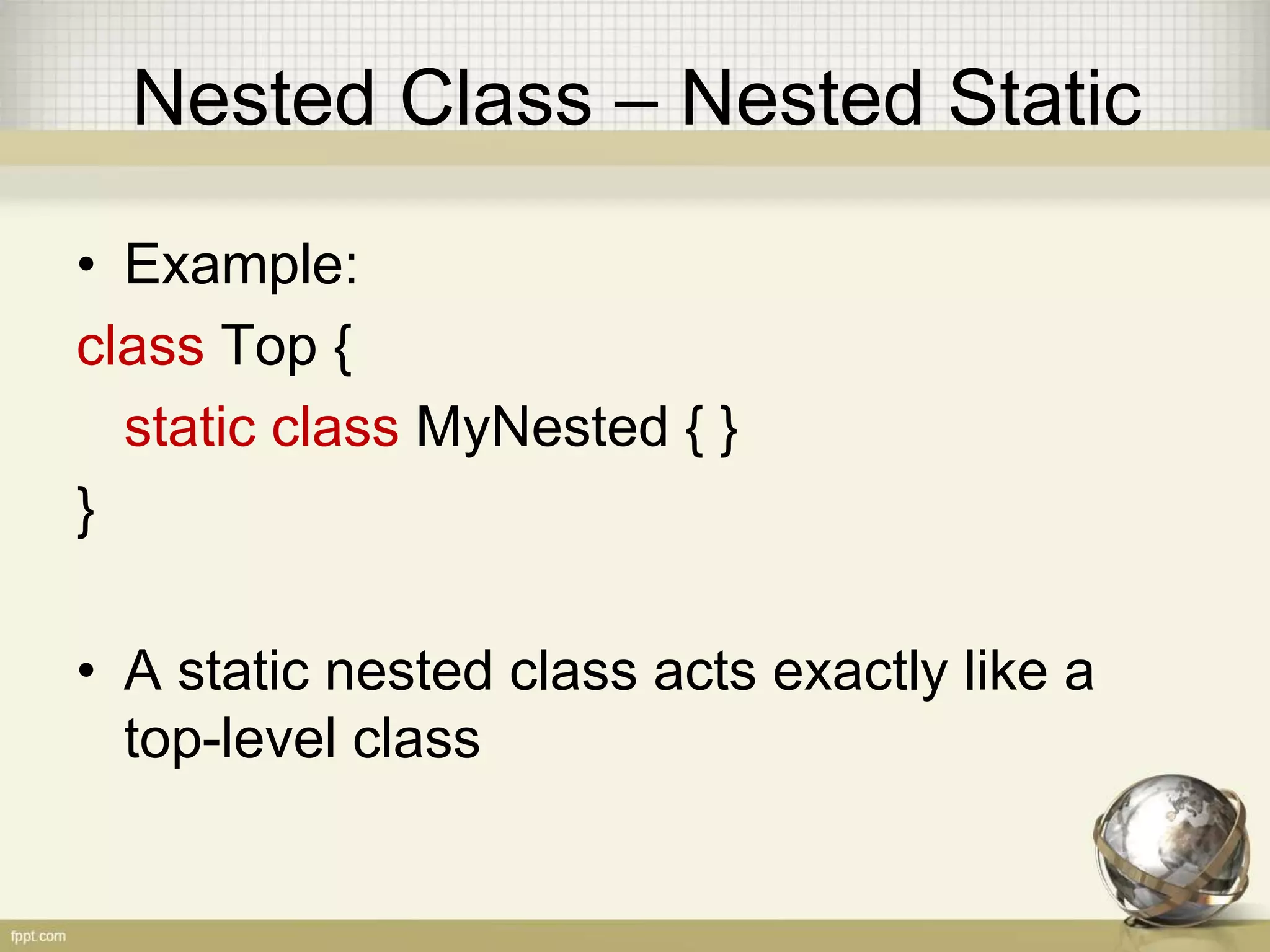

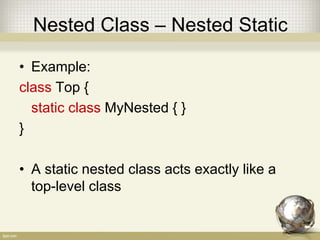

51. Nested Class – Nested Static
• Example:
class Top {
static class MyNested { }
}
• A static nested class acts exactly like a
top-level class

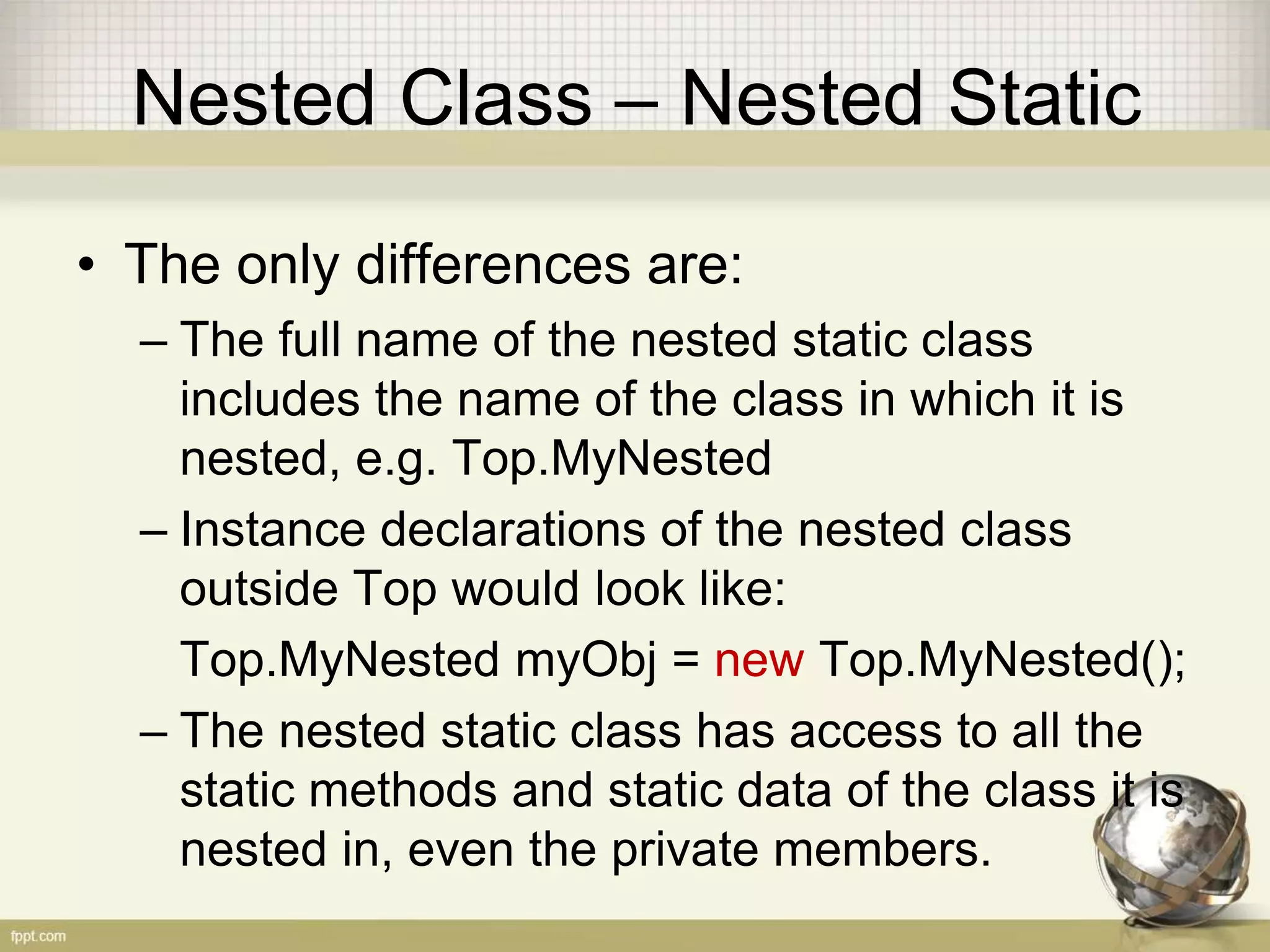

52. Nested Class – Nested Static
• The only differences are:
– The full name of the nested static class
includes the name of the class in which it is
nested, e.g. Top.MyNested
– Instance declarations of the nested class
outside Top would look like:
Top.MyNested myObj = new Top.MyNested();
– The nested static class has access to all the
static methods and static data of the class it is
nested in, even the private members.

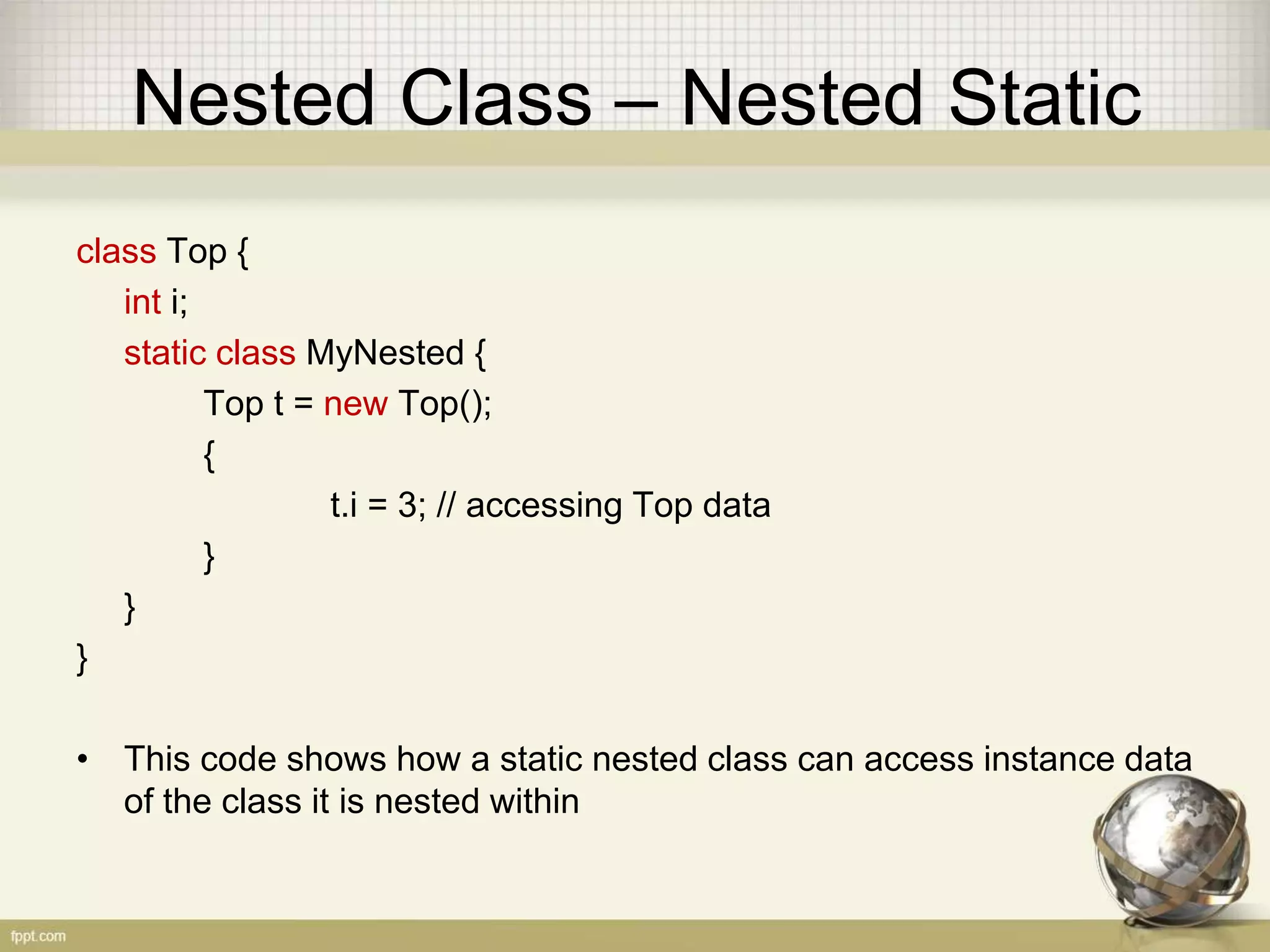

53. Nested Class – Nested Static
class Top {
int i;
static class MyNested {
Top t = new Top();
{
t.i = 3; // accessing Top data
}
}
}
• This code shows how a static nested class can access instance data
of the class it is nested within

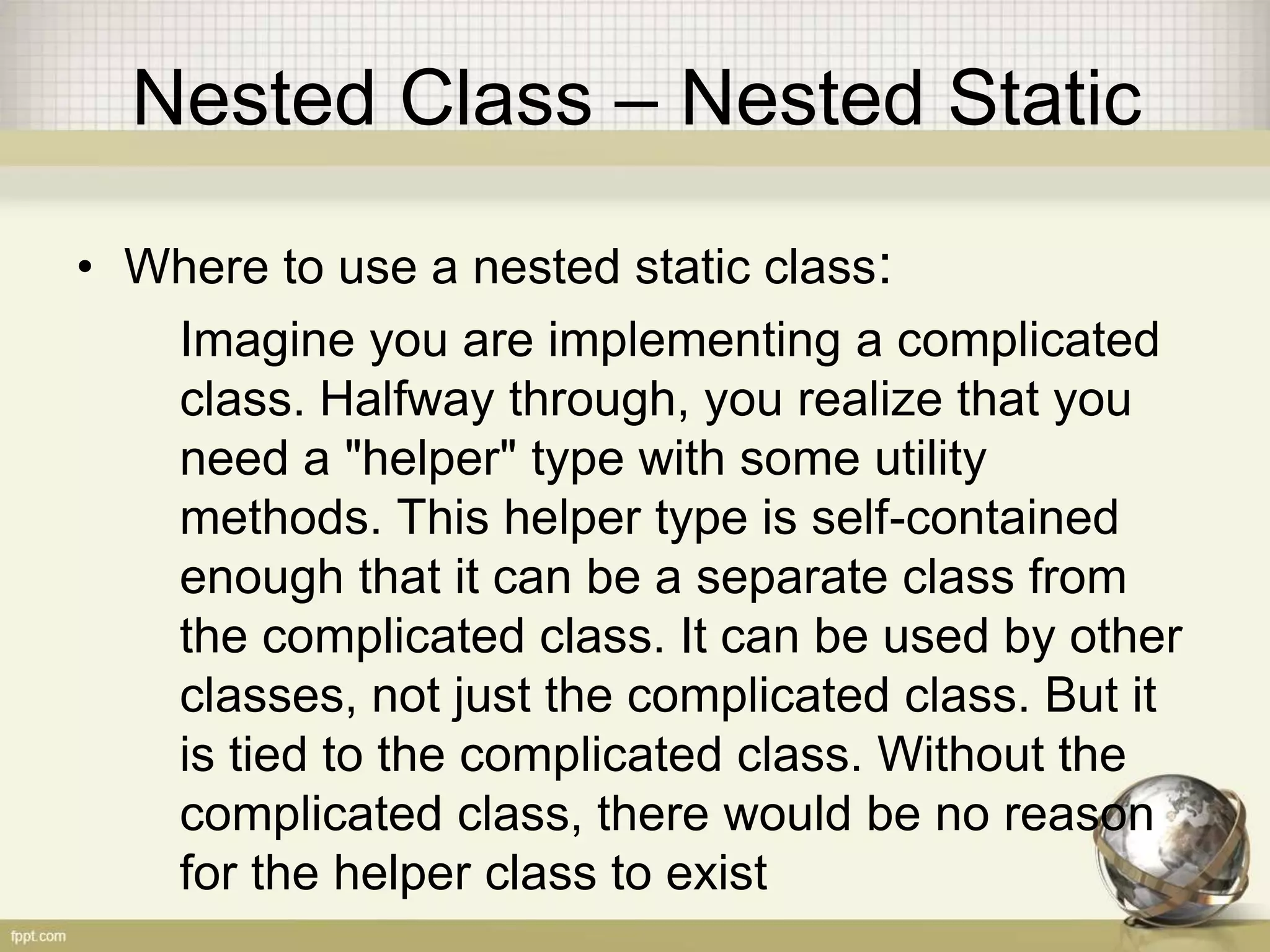

54. Nested Class – Nested Static
• Where to use a nested static class:
Imagine you are implementing a complicated
class. Halfway through, you realize that you
need a "helper" type with some utility
methods. This helper type is self-contained
enough that it can be a separate class from
the complicated class. It can be used by other
classes, not just the complicated class. But it
is tied to the complicated class. Without the
complicated class, there would be no reason
for the helper class to exist

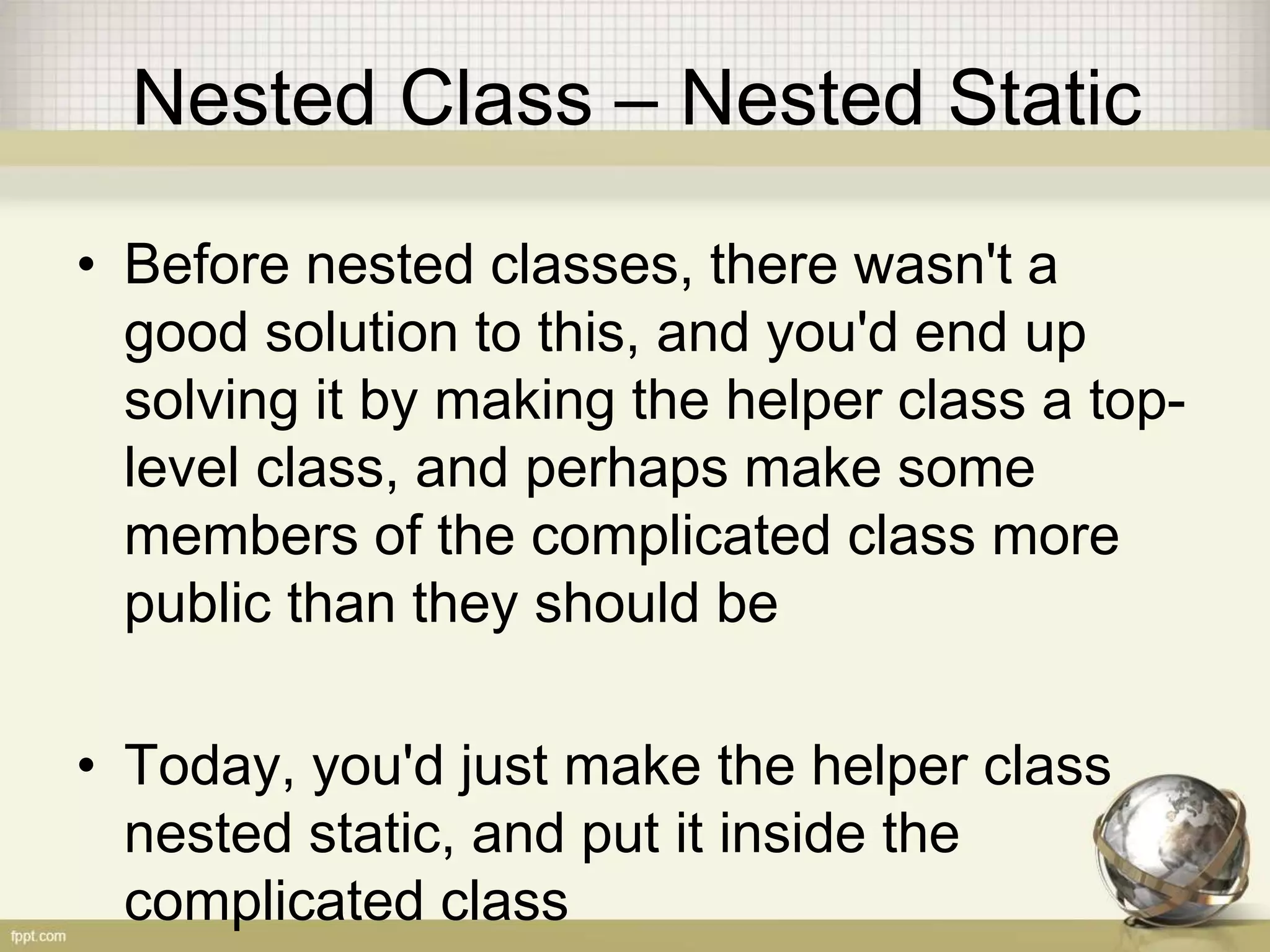

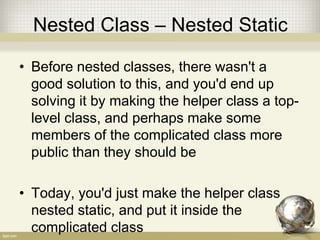

55. Nested Class – Nested Static
• Before nested classes, there wasn't a
good solution to this, and you'd end up
solving it by making the helper class a top-
level class, and perhaps make some
members of the complicated class more
public than they should be
• Today, you'd just make the helper class
nested static, and put it inside the
complicated class

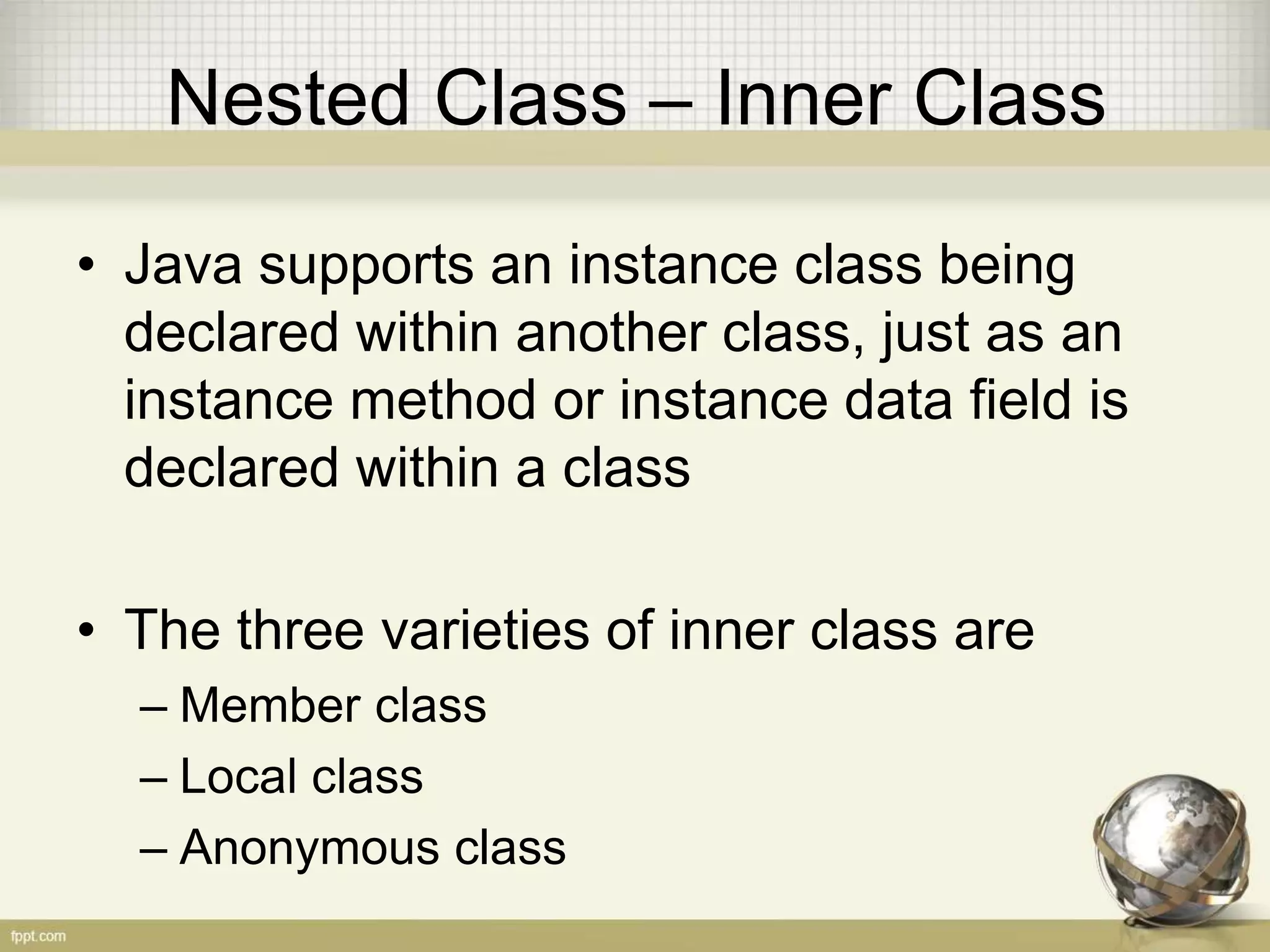

56. Nested Class – Inner Class
• Java supports an instance class being
declared within another class, just as an
instance method or instance data field is
declared within a class
• The three varieties of inner class are
– Member class
– Local class
– Anonymous class

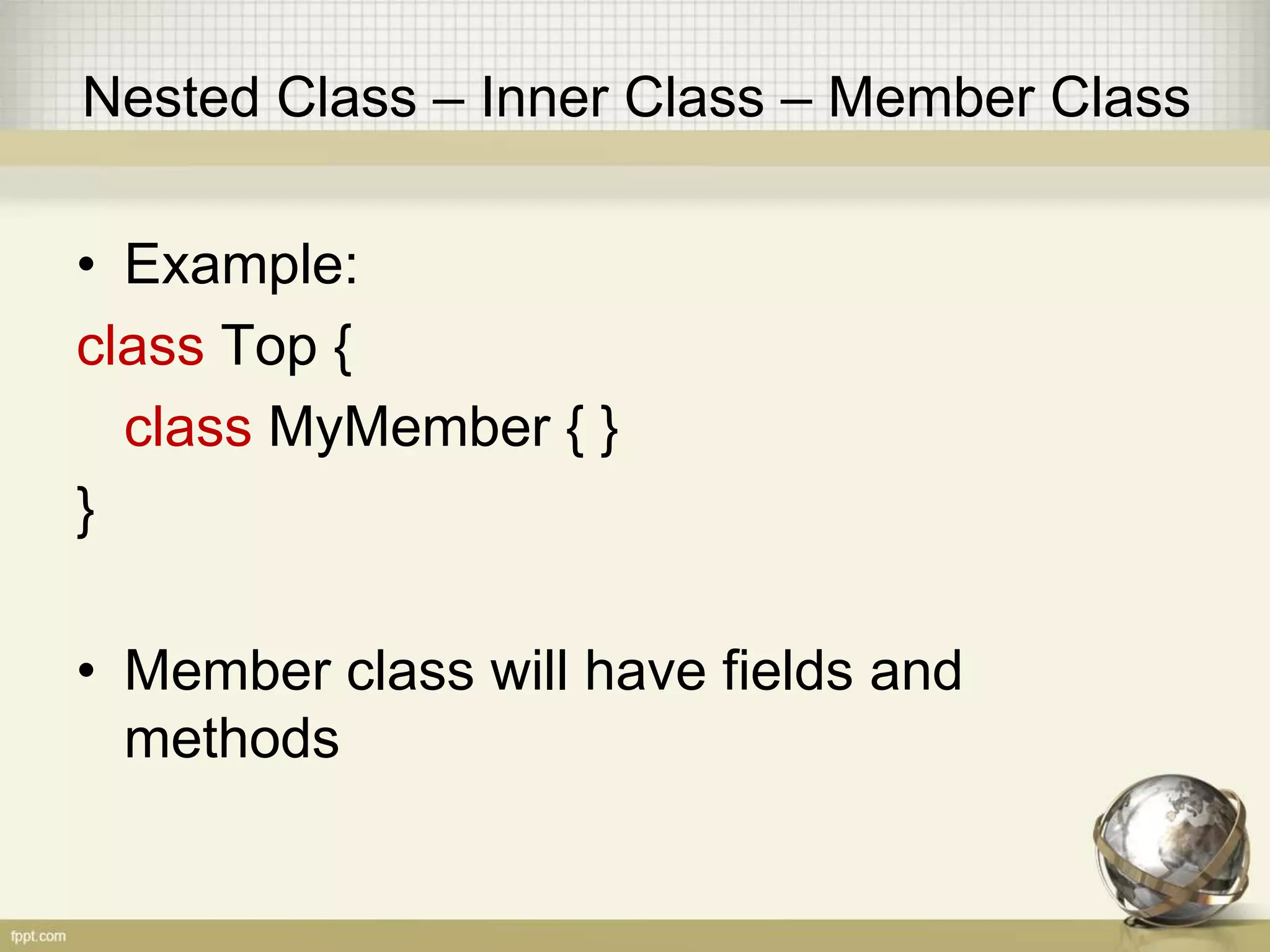

57. Nested Class – Inner Class – Member Class
• Example:
class Top {
class MyMember { }
}
• Member class will have fields and
methods

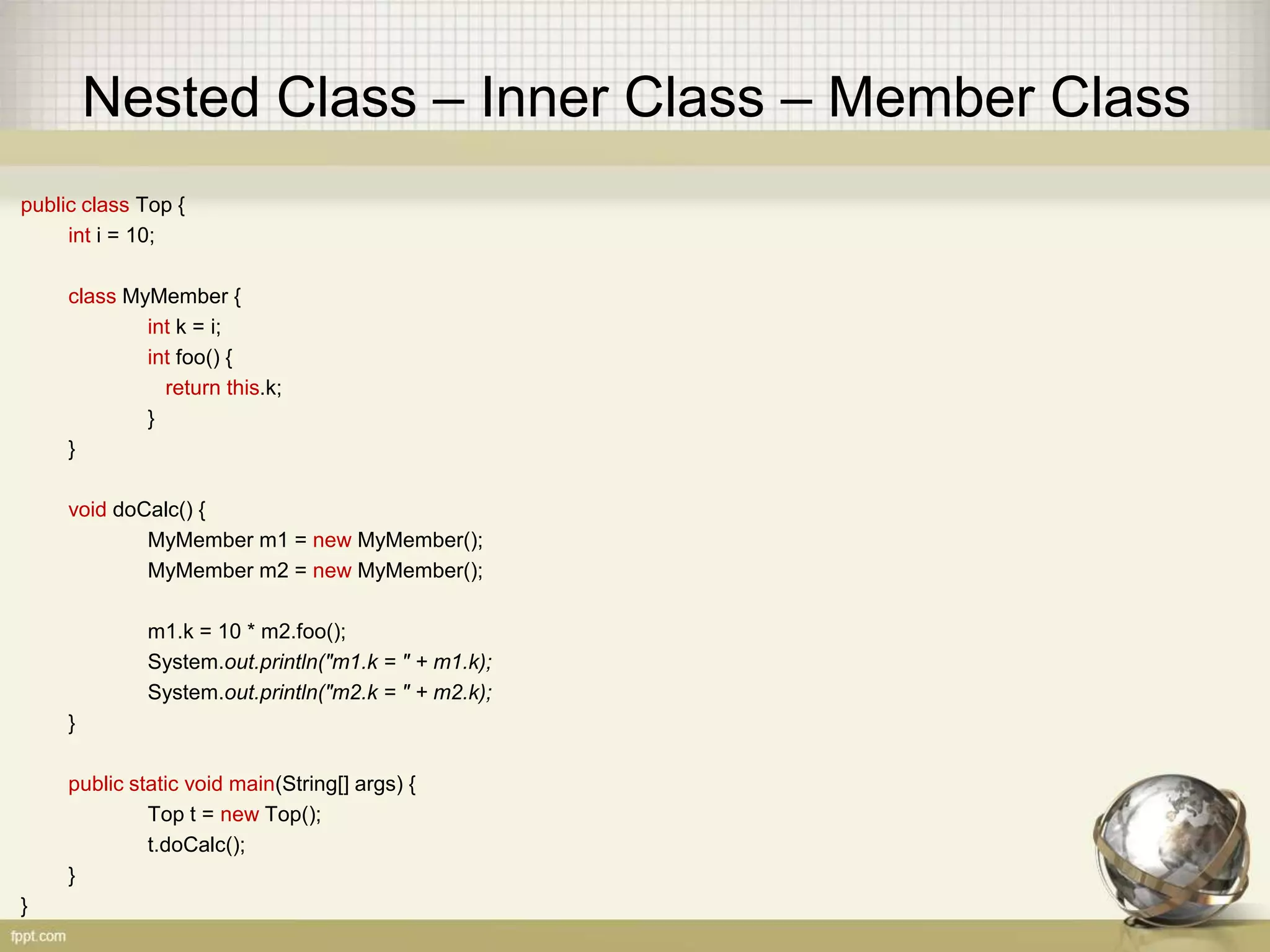

58. Nested Class – Inner Class – Member Class
public class Top {
int i = 10;
class MyMember {
int k = i;
int foo() {
return this.k;
}
}
void doCalc() {
MyMember m1 = new MyMember();
MyMember m2 = new MyMember();
m1.k = 10 * m2.foo();
System.out.println("m1.k = " + m1.k);
System.out.println("m2.k = " + m2.k);
}
public static void main(String[] args) {
Top t = new Top();
t.doCalc();
}
}

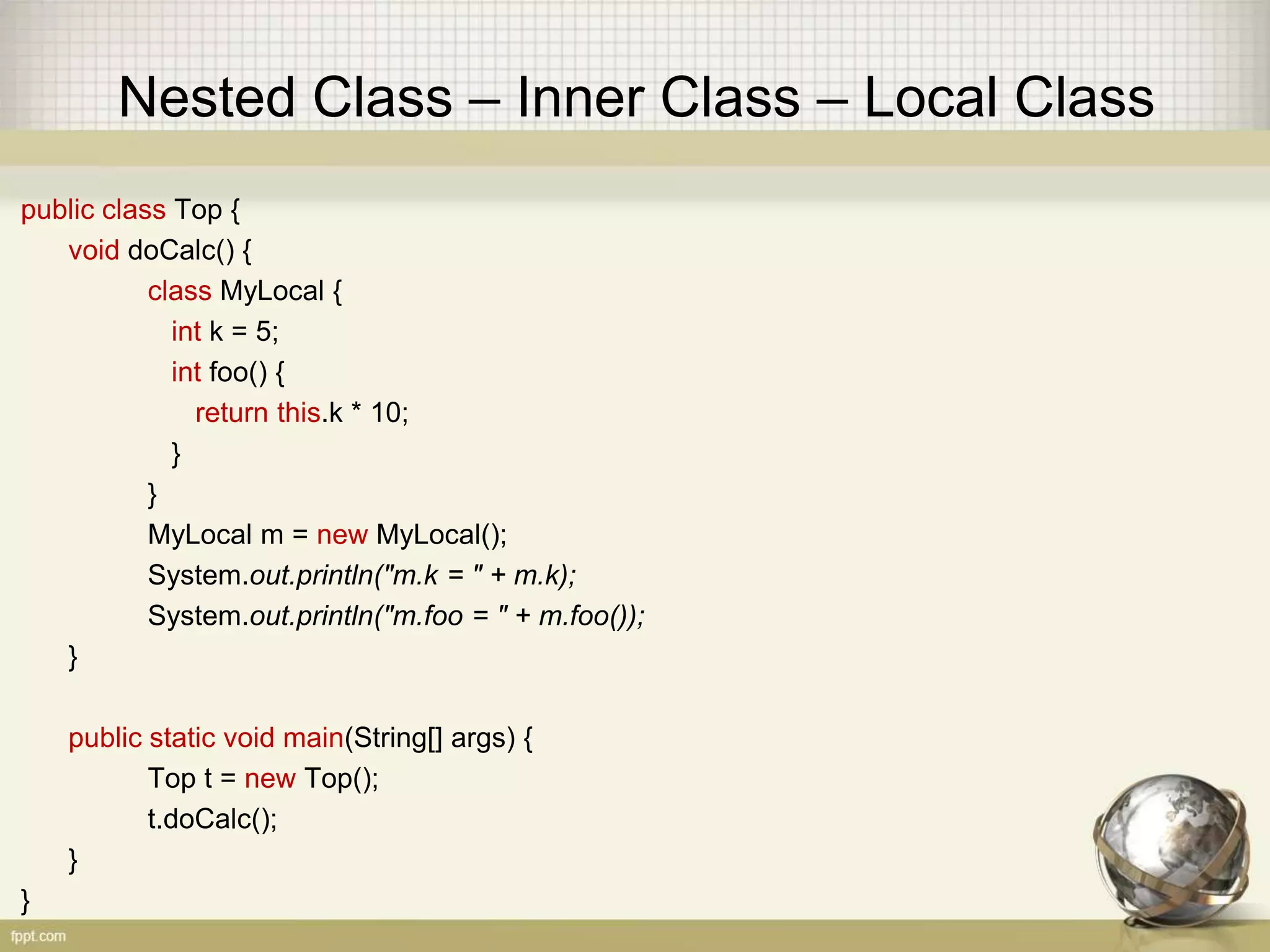

59. Nested Class – Inner Class – Local Class
public class Top {
void doCalc() {
class MyLocal {
int k = 5;
int foo() {
return this.k * 10;
}
}
MyLocal m = new MyLocal();
System.out.println("m.k = " + m.k);
System.out.println("m.foo = " + m.foo());
}
public static void main(String[] args) {
Top t = new Top();
t.doCalc();
}
}

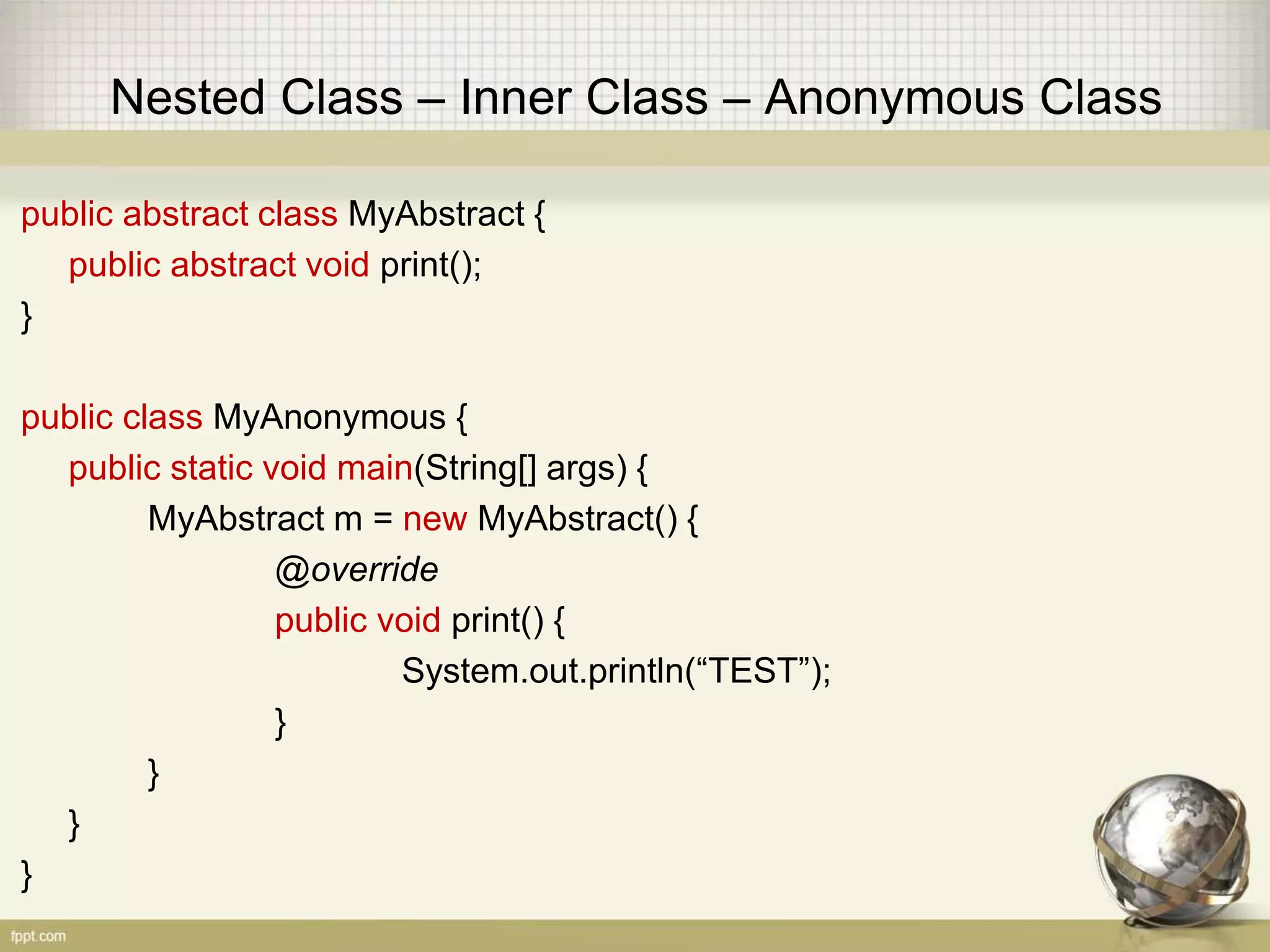

60. Nested Class – Inner Class – Anonymous Class
public abstract class MyAbstract {
public abstract void print();
}
public class MyAnonymous {
public static void main(String[] args) {
MyAbstract m = new MyAbstract() {
@override
public void print() {
System.out.println(“TEST”);
}
}
}
}

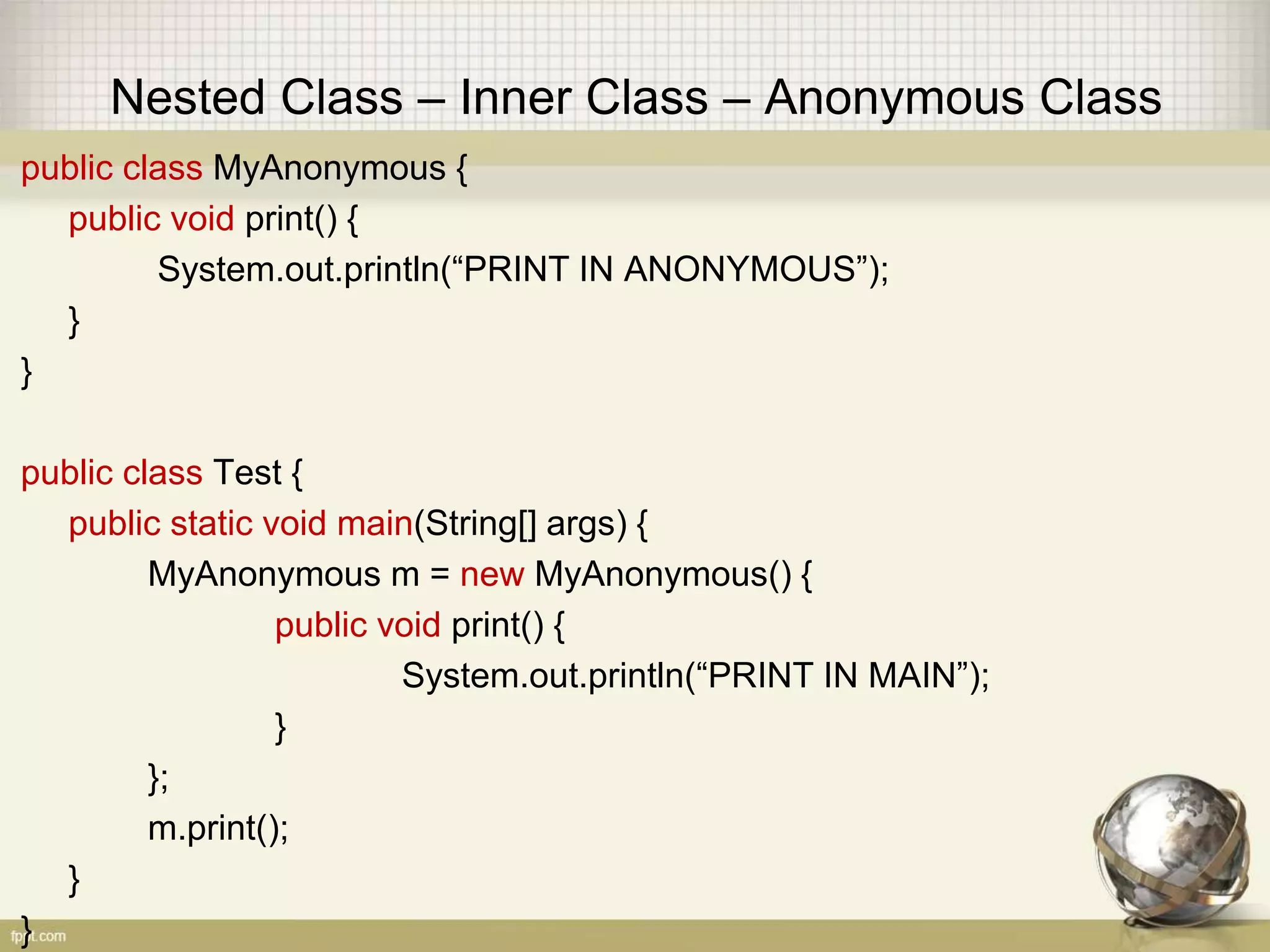

61. Nested Class – Inner Class – Anonymous Class
public class MyAnonymous {
public void print() {
System.out.println(“PRINT IN ANONYMOUS”);
}
}
public class Test {
public static void main(String[] args) {
MyAnonymous m = new MyAnonymous() {
public void print() {
System.out.println(“PRINT IN MAIN”);
}
};
m.print();
}
}

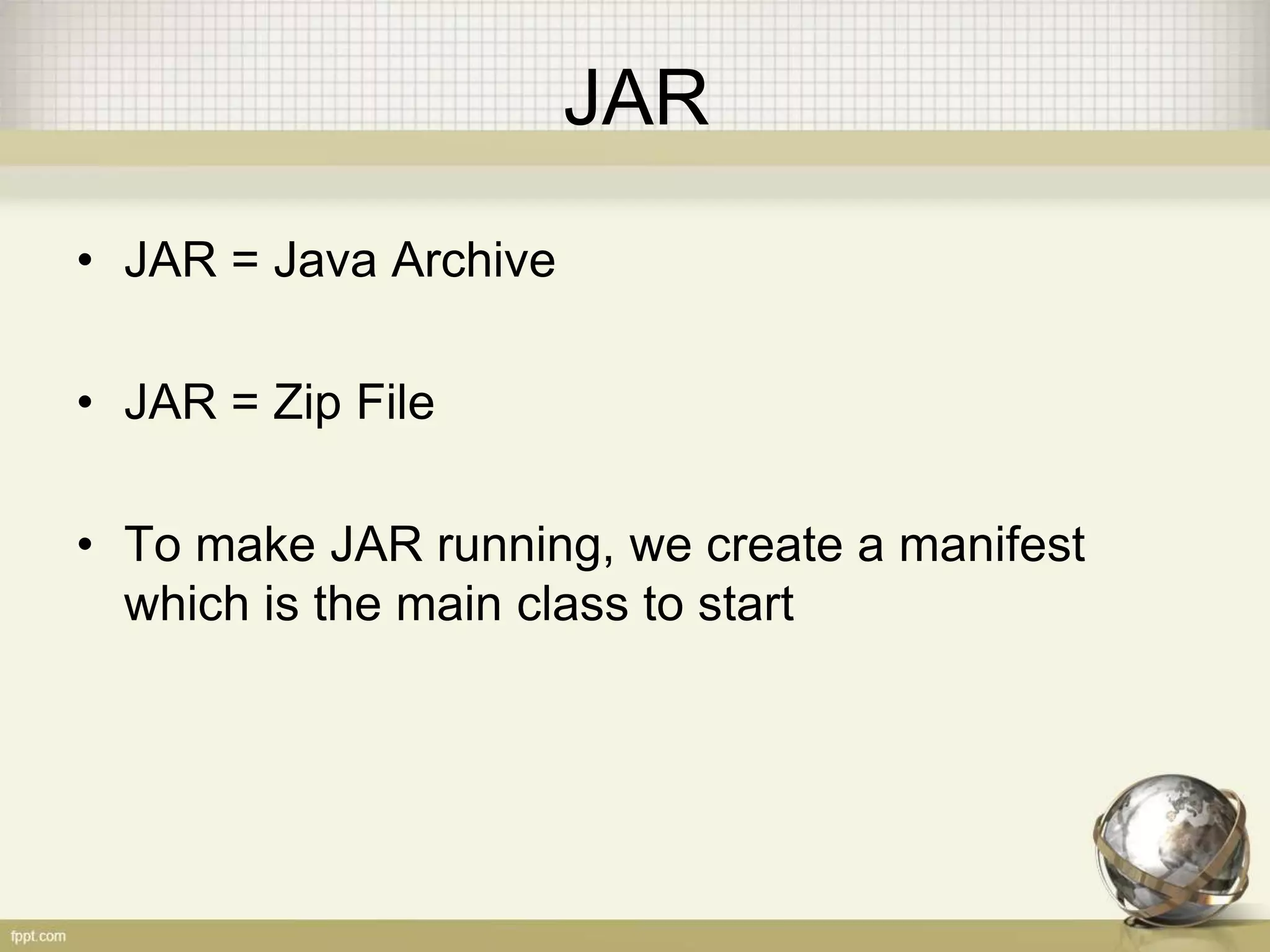

62. JAR
• JAR = Java Archive
• JAR = Zip File
• To make JAR running, we create a manifest
which is the main class to start

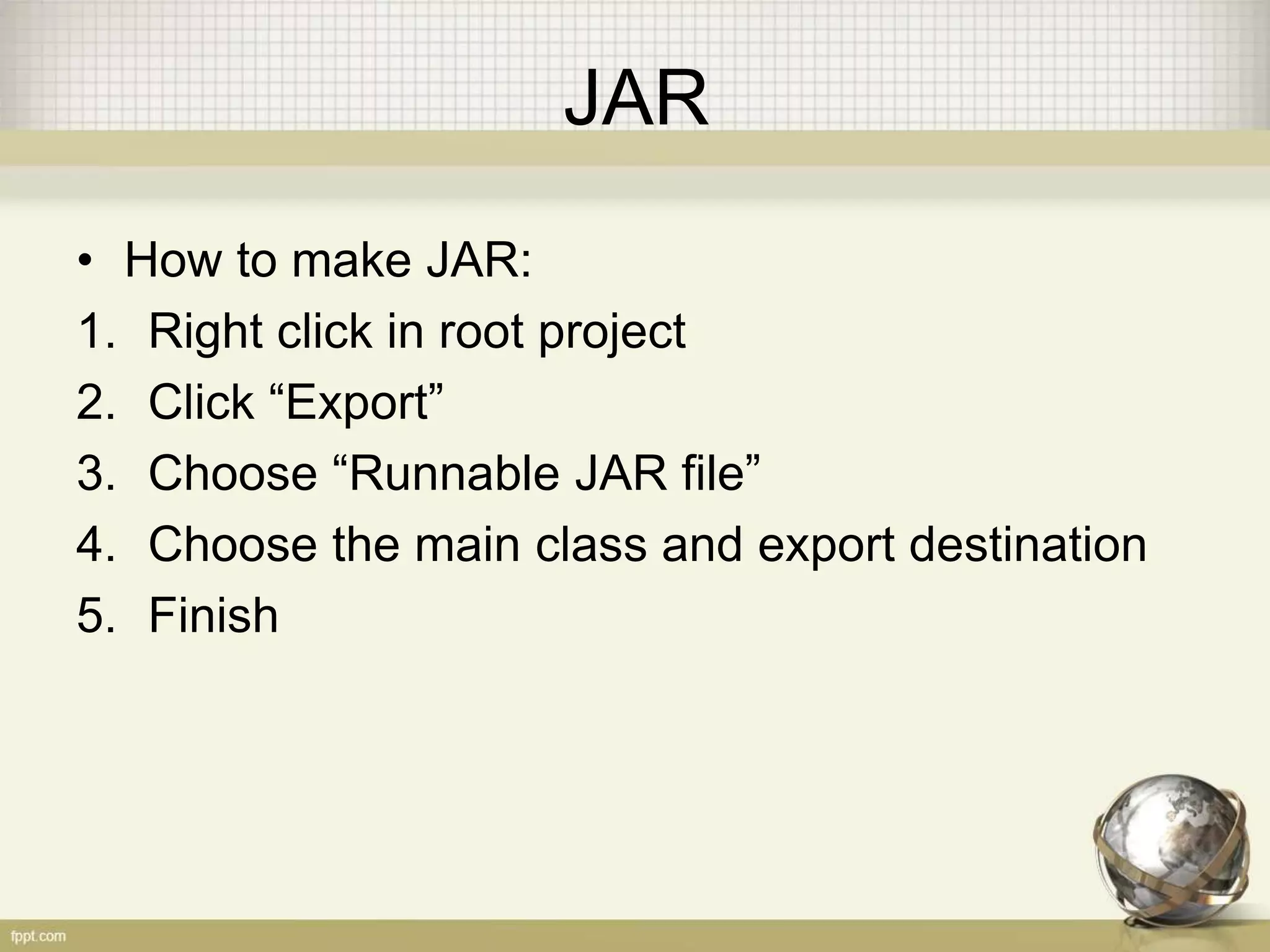

63. JAR
• How to make JAR:
1. Right click in root project
2. Click “Export”
3. Choose “Runnable JAR file”
4. Choose the main class and export destination
5. Finish

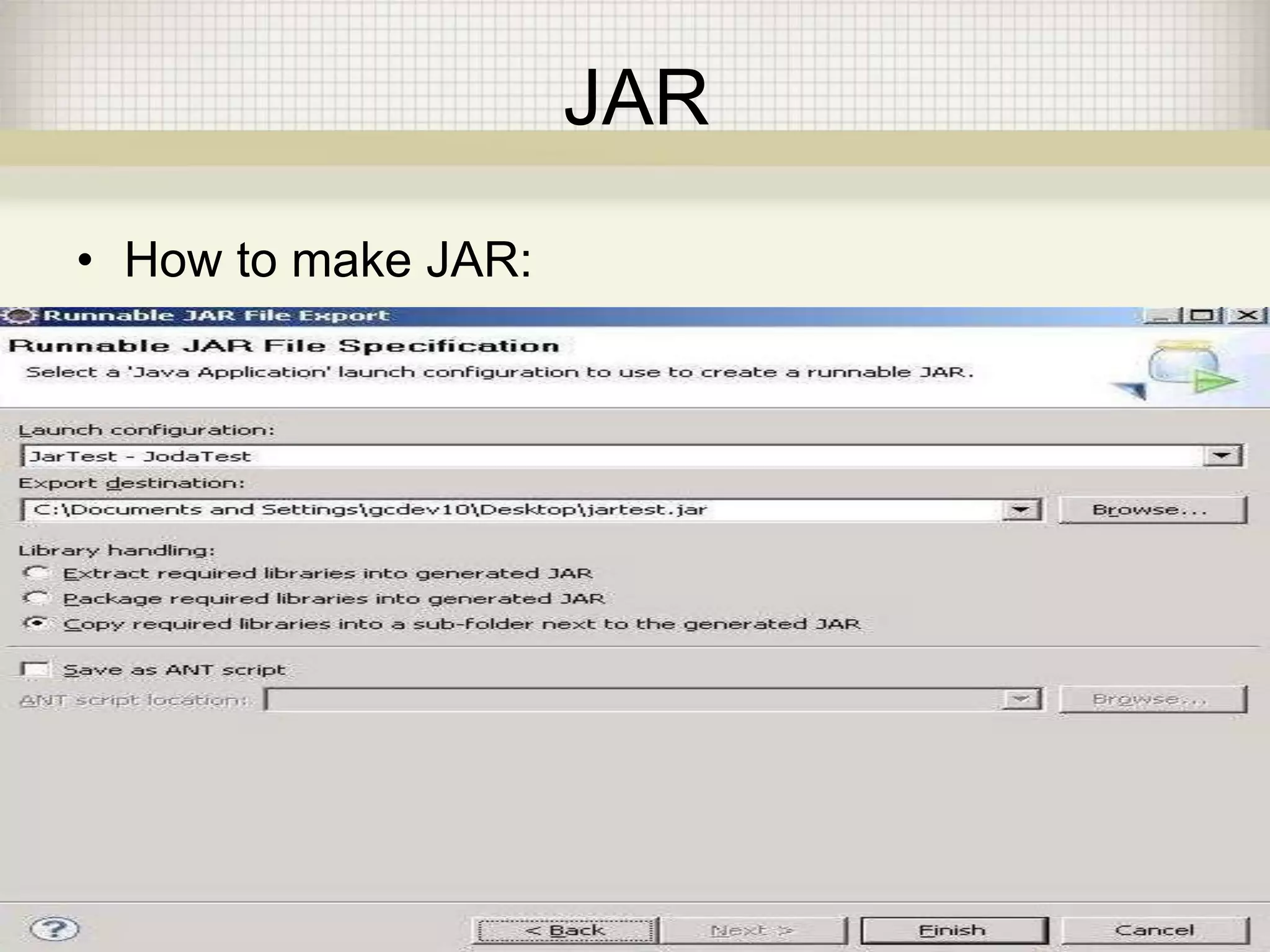

64. JAR
• How to make JAR:

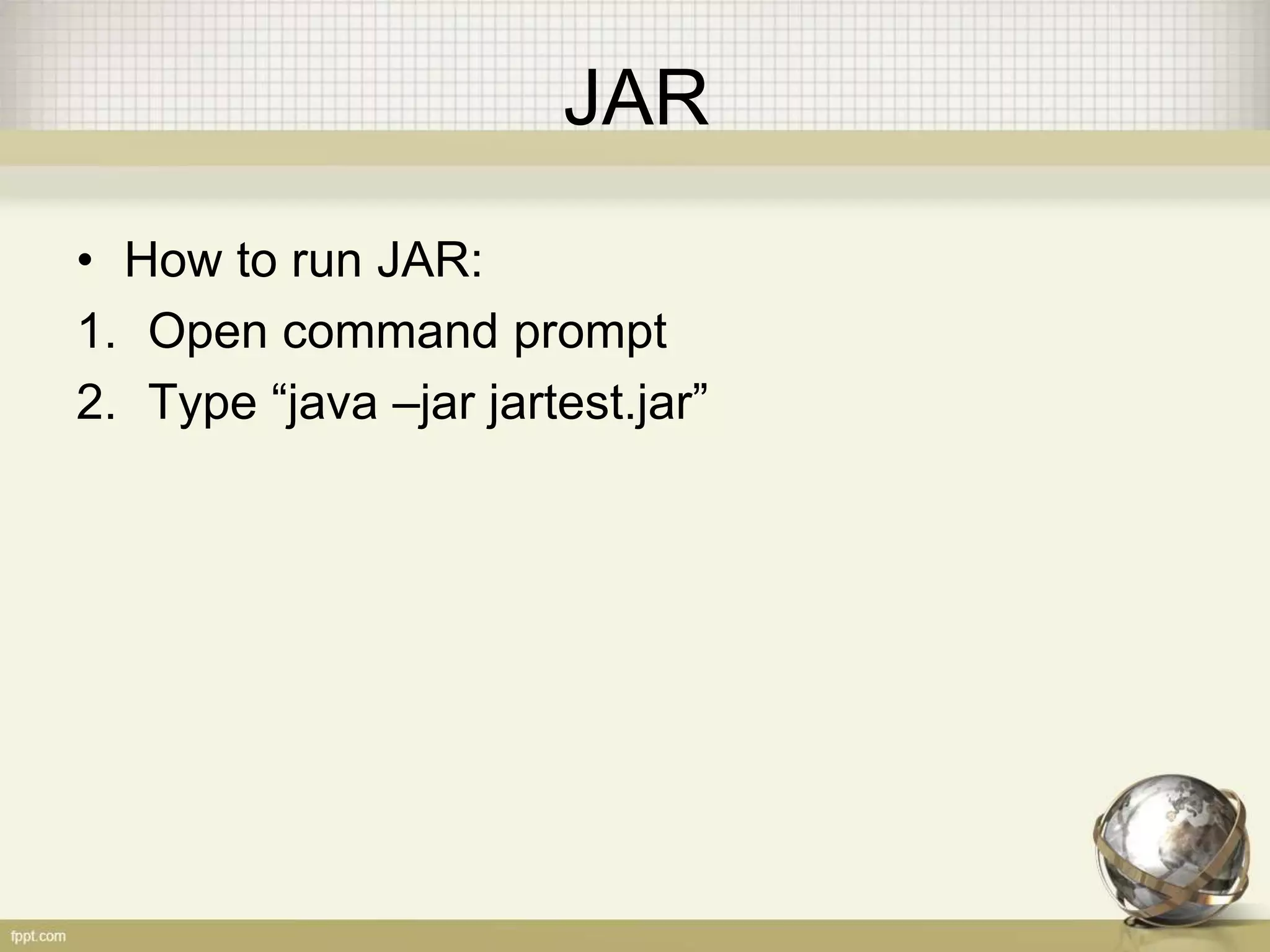

65. JAR

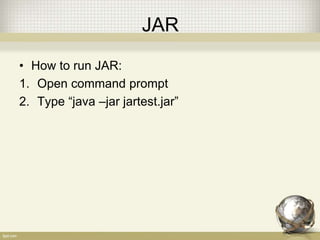

• How to run JAR:
1. Open command prompt
2. Type “java –jar jartest.jar”

66. Thank You
