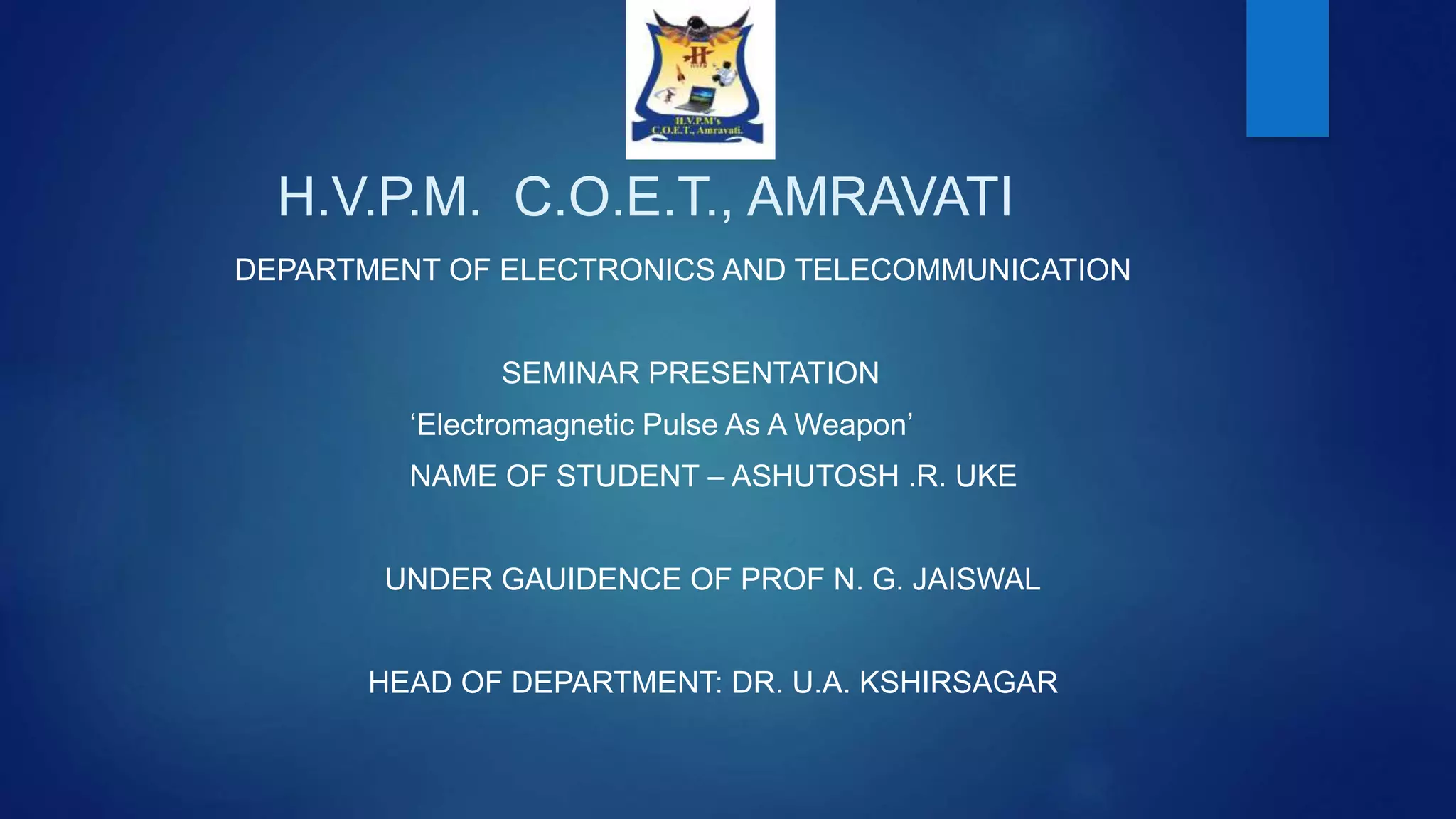

1. H.V.P.M. C.O.E.T., AMRAVATI
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
SEMINAR PRESENTATION
‘Electromagnetic Pulse As A Weapon’
NAME OF STUDENT – ASHUTOSH .R. UKE
UNDER GAUIDENCE OF PROF N. G. JAISWAL
HEAD OF DEPARTMENT: DR. U.A. KSHIRSAGAR

2. ELECTROMAGNETIC PULSE AS
A WEAPON
ELECTRONICS MASS DESTRUCTUION

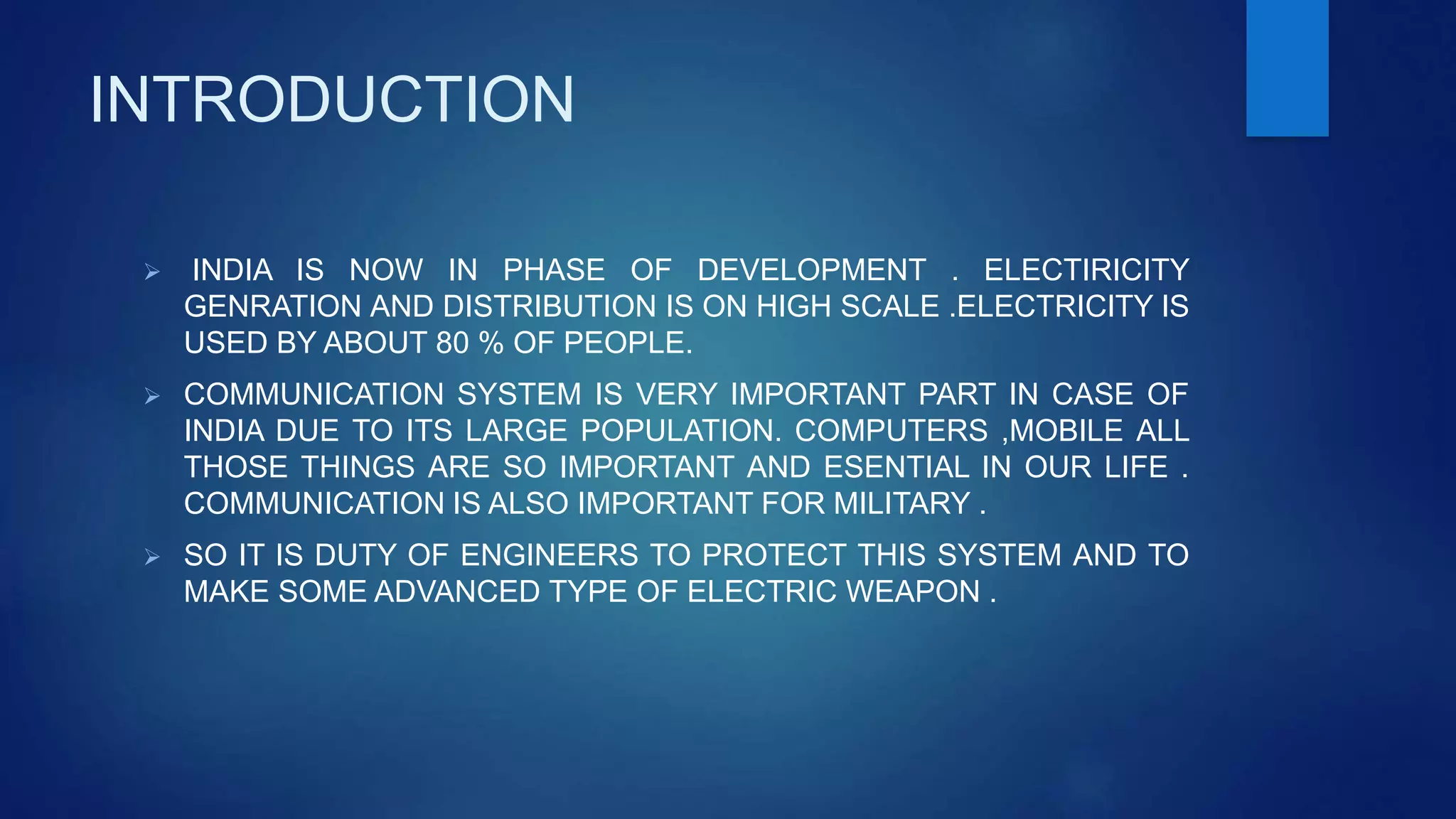

3. INTRODUCTION
 INDIA IS NOW IN PHASE OF DEVELOPMENT . ELECTIRICITY
GENRATION AND DISTRIBUTION IS ON HIGH SCALE .ELECTRICITY IS
USED BY ABOUT 80 % OF PEOPLE.
 COMMUNICATION SYSTEM IS VERY IMPORTANT PART IN CASE OF
INDIA DUE TO ITS LARGE POPULATION. COMPUTERS ,MOBILE ALL
THOSE THINGS ARE SO IMPORTANT AND ESENTIAL IN OUR LIFE .
COMMUNICATION IS ALSO IMPORTANT FOR MILITARY .
 SO IT IS DUTY OF ENGINEERS TO PROTECT THIS SYSTEM AND TO
MAKE SOME ADVANCED TYPE OF ELECTRIC WEAPON .

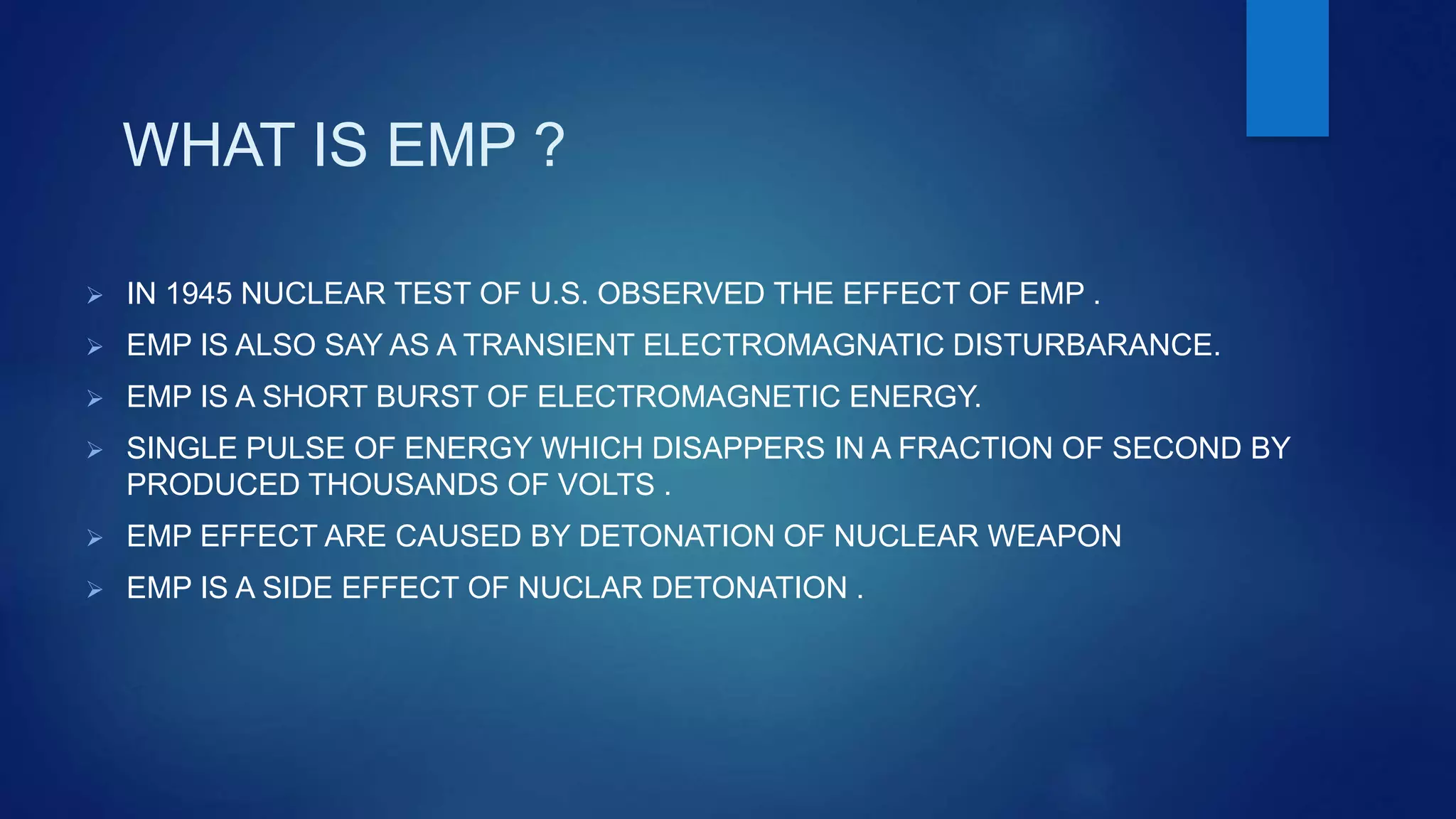

4. WHAT IS EMP ?
 IN 1945 NUCLEAR TEST OF U.S. OBSERVED THE EFFECT OF EMP .
 EMP IS ALSO SAY AS A TRANSIENT ELECTROMAGNATIC DISTURBARANCE.
 EMP IS A SHORT BURST OF ELECTROMAGNETIC ENERGY.
 SINGLE PULSE OF ENERGY WHICH DISAPPERS IN A FRACTION OF SECOND BY
PRODUCED THOUSANDS OF VOLTS .
 EMP EFFECT ARE CAUSED BY DETONATION OF NUCLEAR WEAPON
 EMP IS A SIDE EFFECT OF NUCLAR DETONATION .

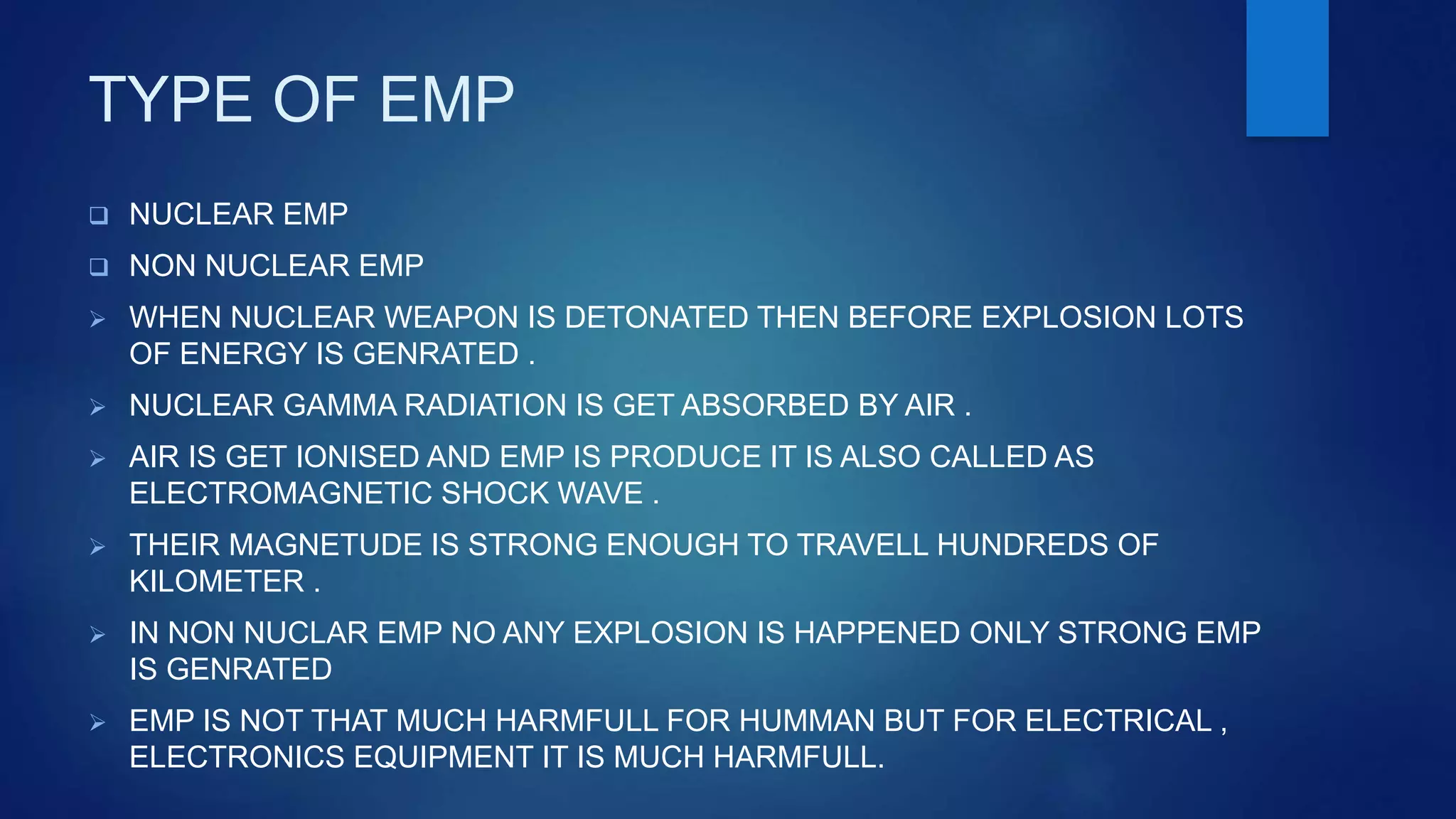

5. TYPE OF EMP
 NUCLEAR EMP
 NON NUCLEAR EMP
 WHEN NUCLEAR WEAPON IS DETONATED THEN BEFORE EXPLOSION LOTS
OF ENERGY IS GENRATED .
 NUCLEAR GAMMA RADIATION IS GET ABSORBED BY AIR .
 AIR IS GET IONISED AND EMP IS PRODUCE IT IS ALSO CALLED AS
ELECTROMAGNETIC SHOCK WAVE .
 THEIR MAGNETUDE IS STRONG ENOUGH TO TRAVELL HUNDREDS OF
KILOMETER .
 IN NON NUCLAR EMP NO ANY EXPLOSION IS HAPPENED ONLY STRONG EMP
IS GENRATED
 EMP IS NOT THAT MUCH HARMFULL FOR HUMMAN BUT FOR ELECTRICAL ,
ELECTRONICS EQUIPMENT IT IS MUCH HARMFULL.

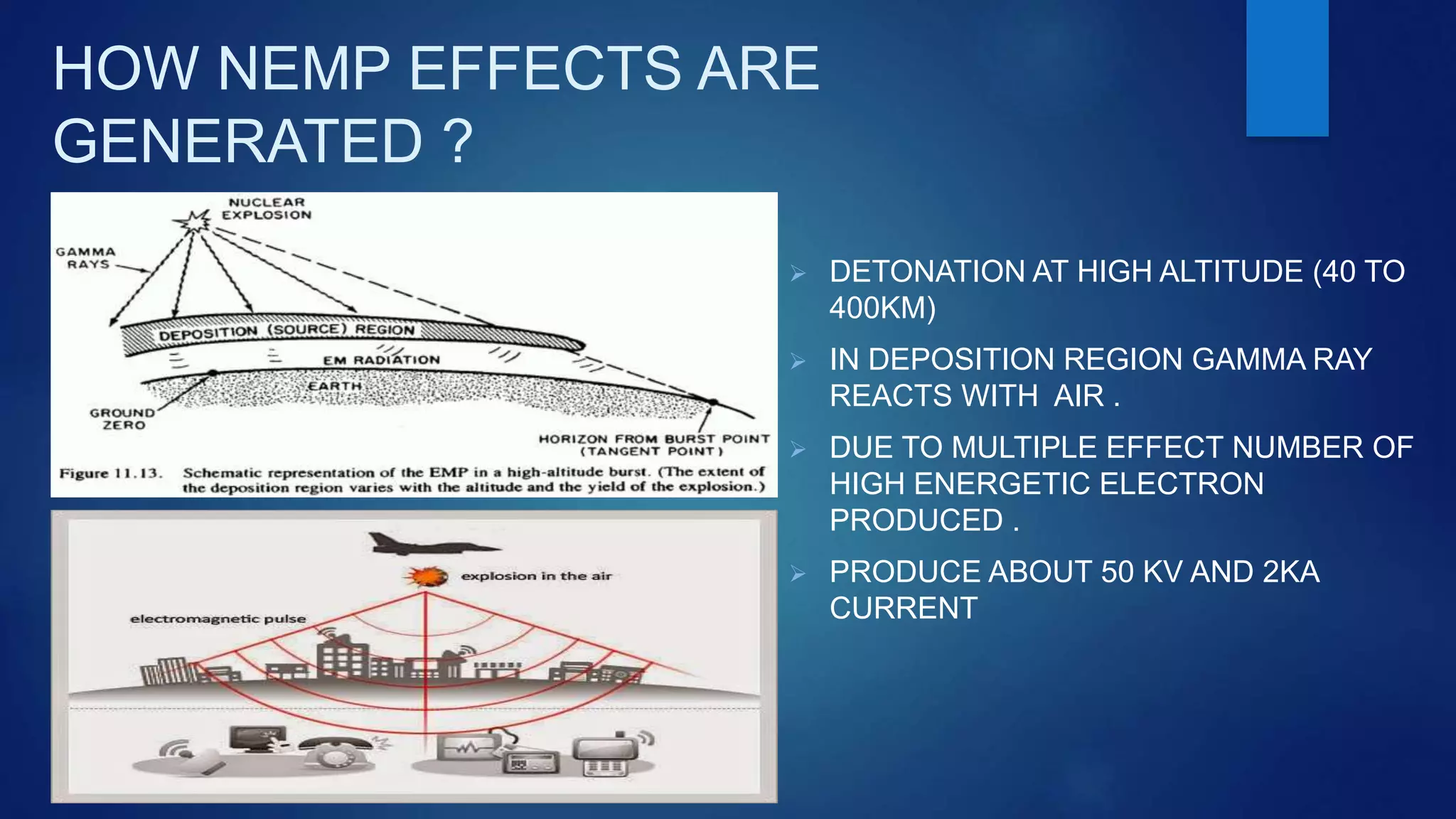

6. HOW NEMP EFFECTS ARE
GENERATED ?
 DETONATION AT HIGH ALTITUDE (40 TO
400KM)
 IN DEPOSITION REGION GAMMA RAY
REACTS WITH AIR .
 DUE TO MULTIPLE EFFECT NUMBER OF
HIGH ENERGETIC ELECTRON
PRODUCED .
 PRODUCE ABOUT 50 KV AND 2KA
CURRENT

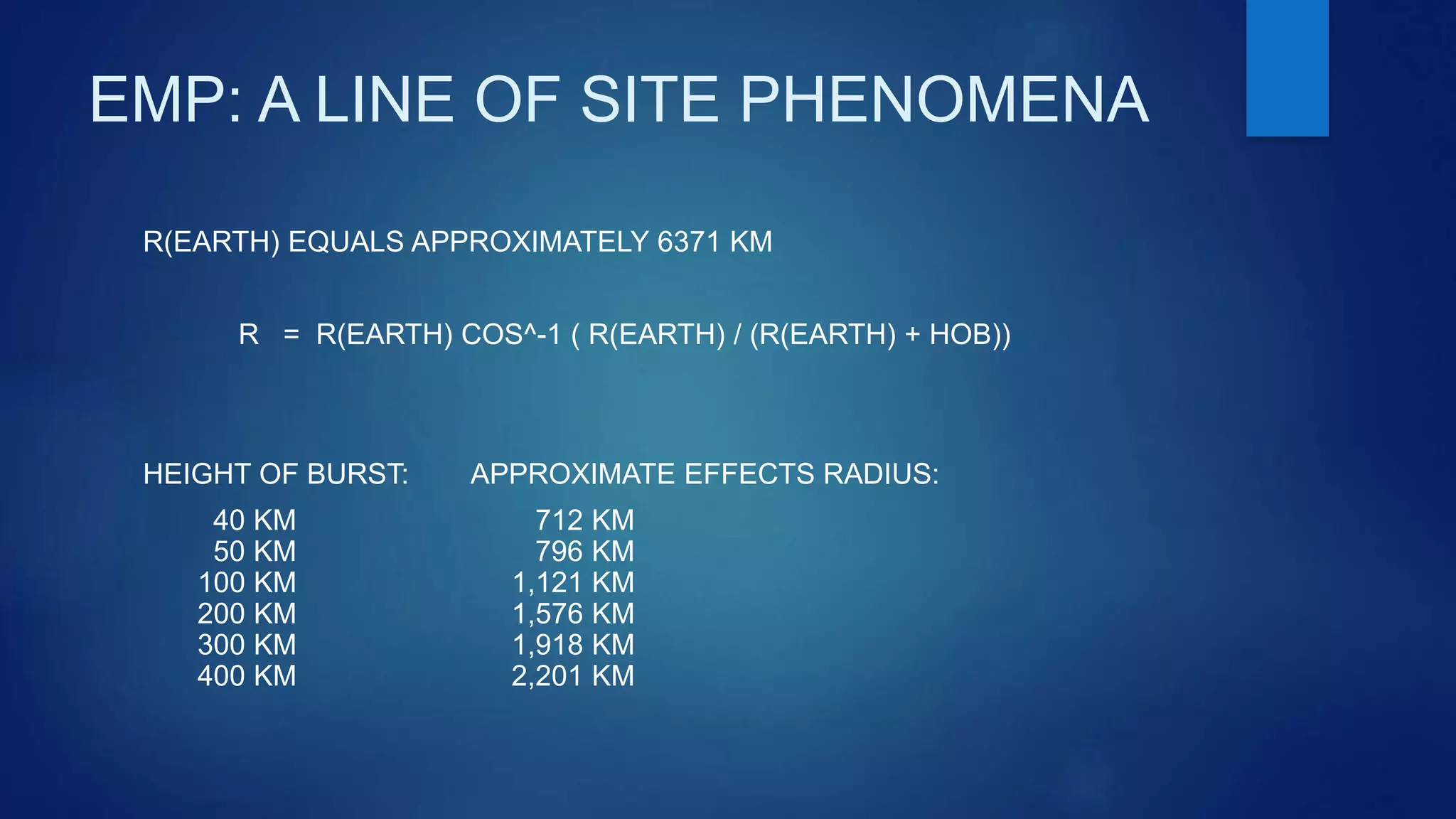

7. EMP: A LINE OF SITE PHENOMENA
R(EARTH) EQUALS APPROXIMATELY 6371 KM
R = R(EARTH) COS^-1 ( R(EARTH) / (R(EARTH) + HOB))
HEIGHT OF BURST: APPROXIMATE EFFECTS RADIUS:
40 KM 712 KM
50 KM 796 KM
100 KM 1,121 KM
200 KM 1,576 KM
300 KM 1,918 KM
400 KM 2,201 KM

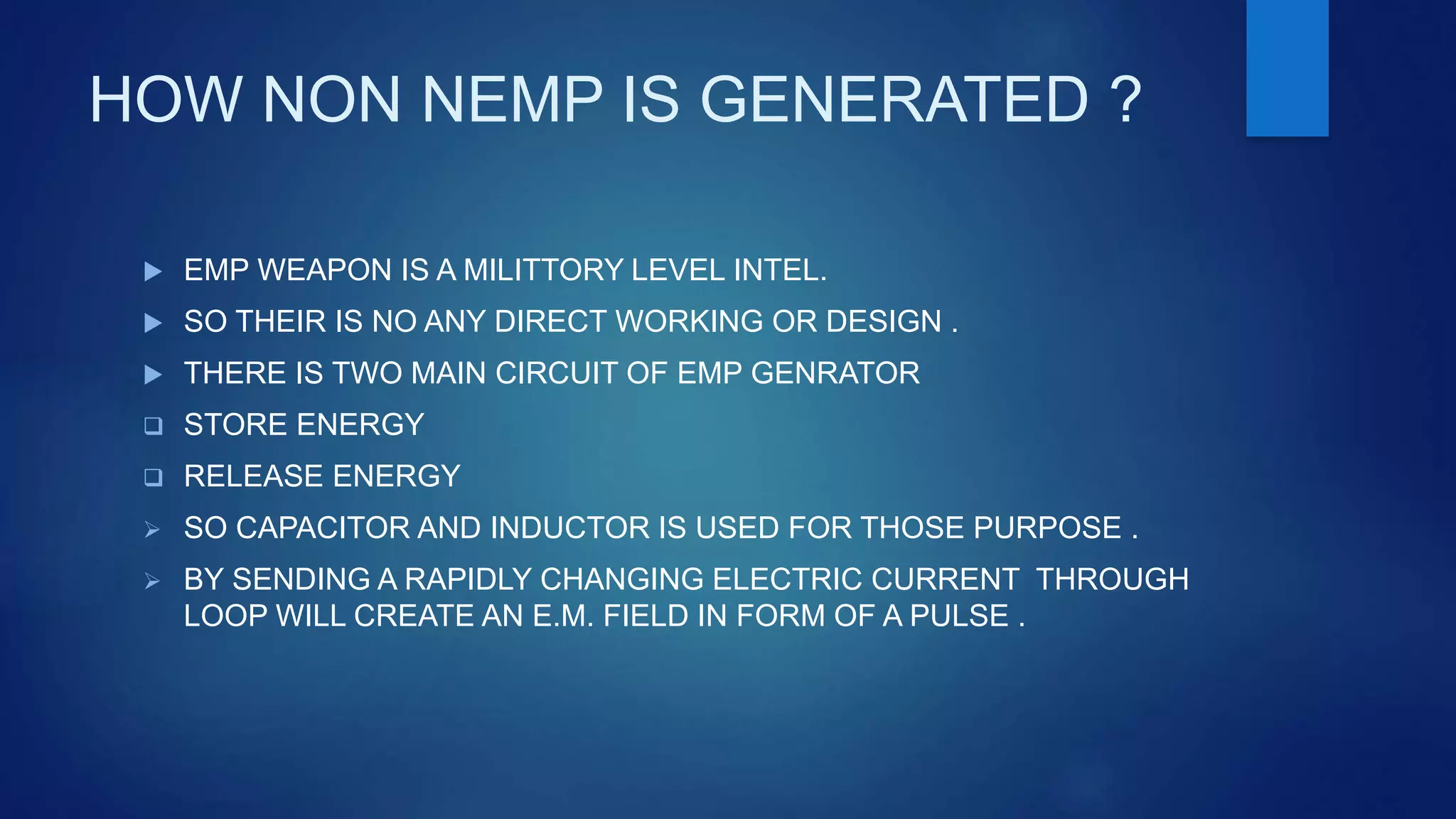

8. HOW NON NEMP IS GENERATED ?
 EMP WEAPON IS A MILITTORY LEVEL INTEL.
 SO THEIR IS NO ANY DIRECT WORKING OR DESIGN .
 THERE IS TWO MAIN CIRCUIT OF EMP GENRATOR
 STORE ENERGY
 RELEASE ENERGY
 SO CAPACITOR AND INDUCTOR IS USED FOR THOSE PURPOSE .
 BY SENDING A RAPIDLY CHANGING ELECTRIC CURRENT THROUGH
LOOP WILL CREATE AN E.M. FIELD IN FORM OF A PULSE .

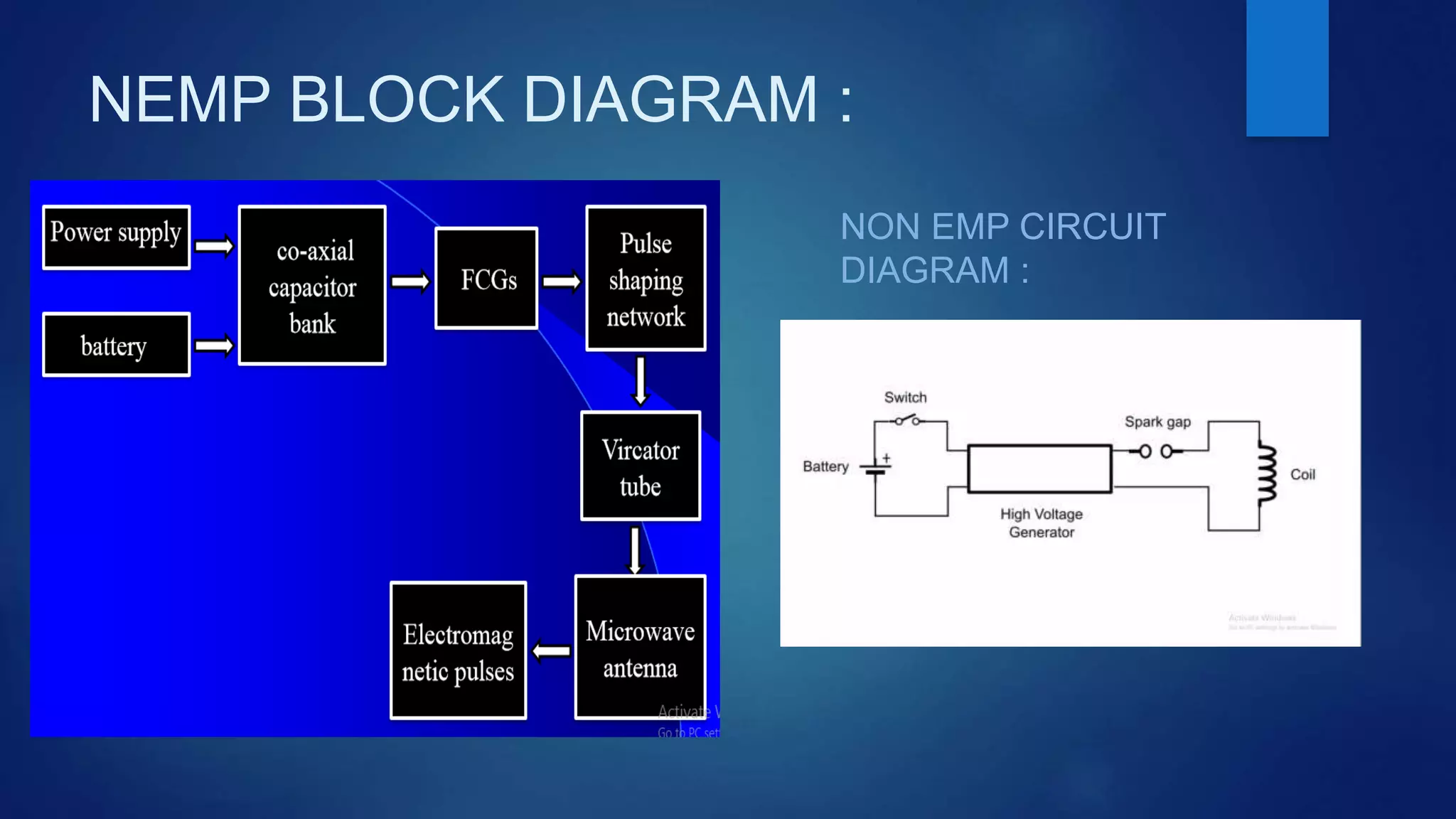

9. NEMP BLOCK DIAGRAM :
NON EMP CIRCUIT
DIAGRAM :

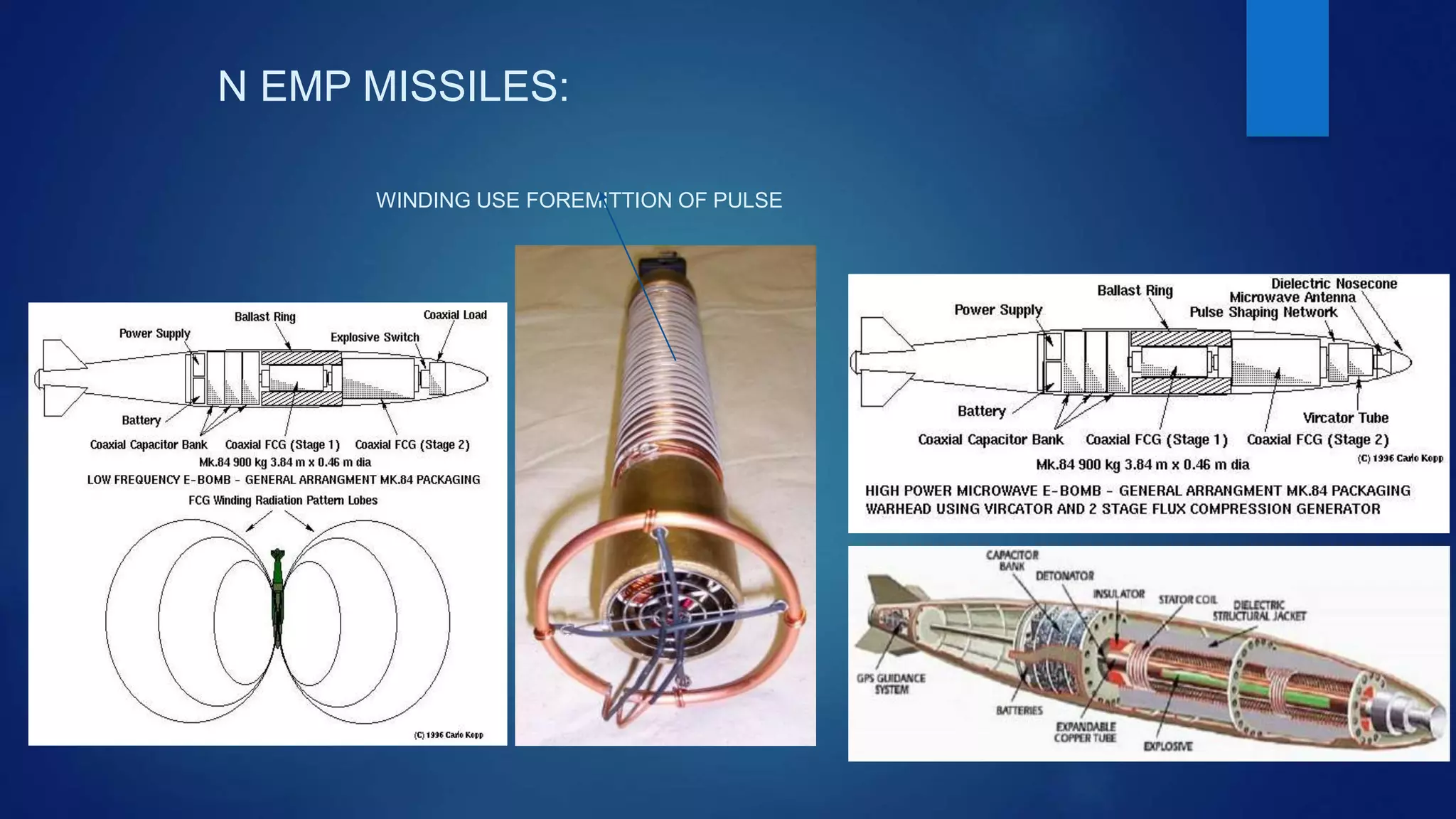

10. N EMP MISSILES:
WINDING USE FOREMITTION OF PULSE

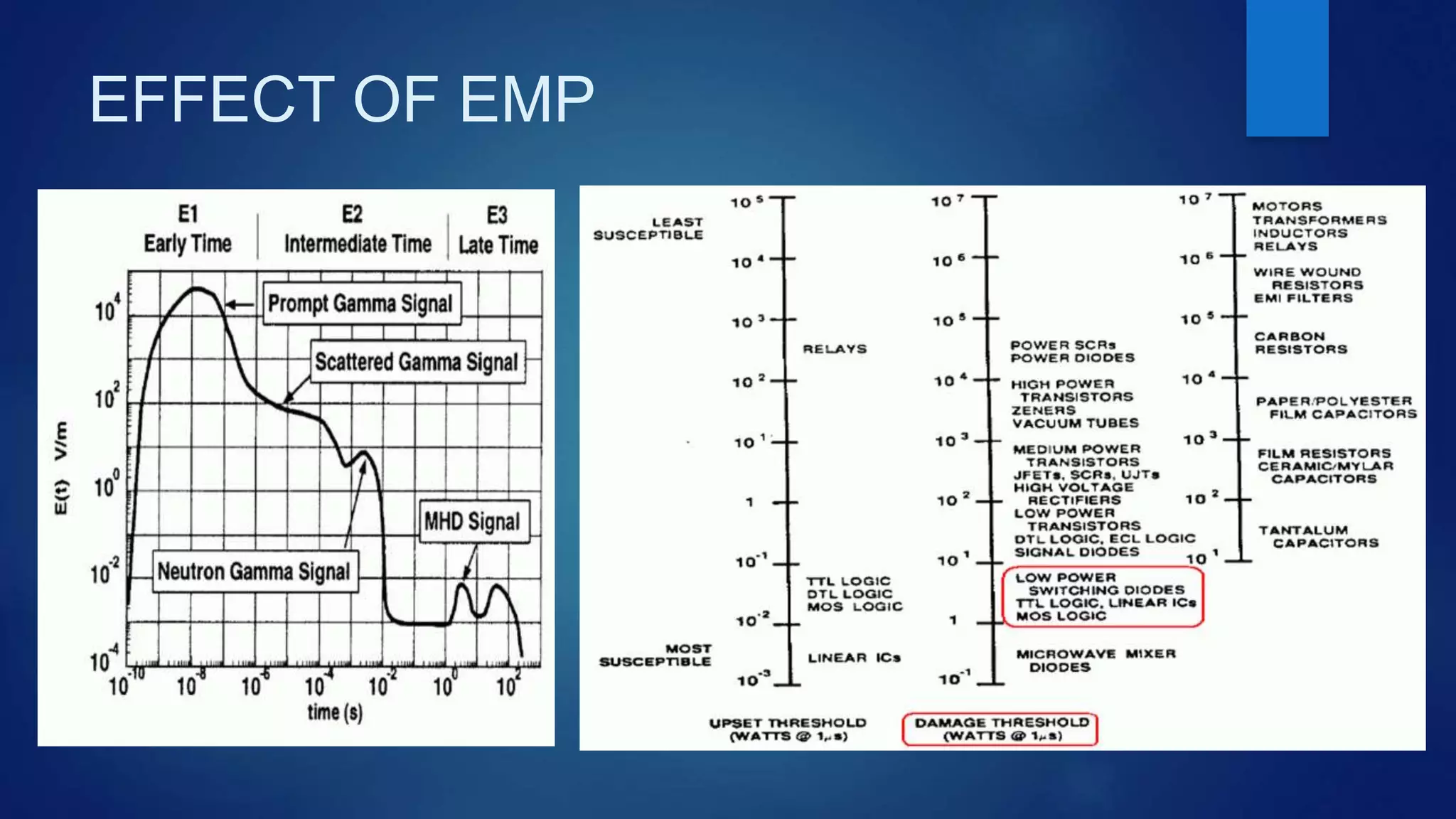

11. EFFECT OF EMP

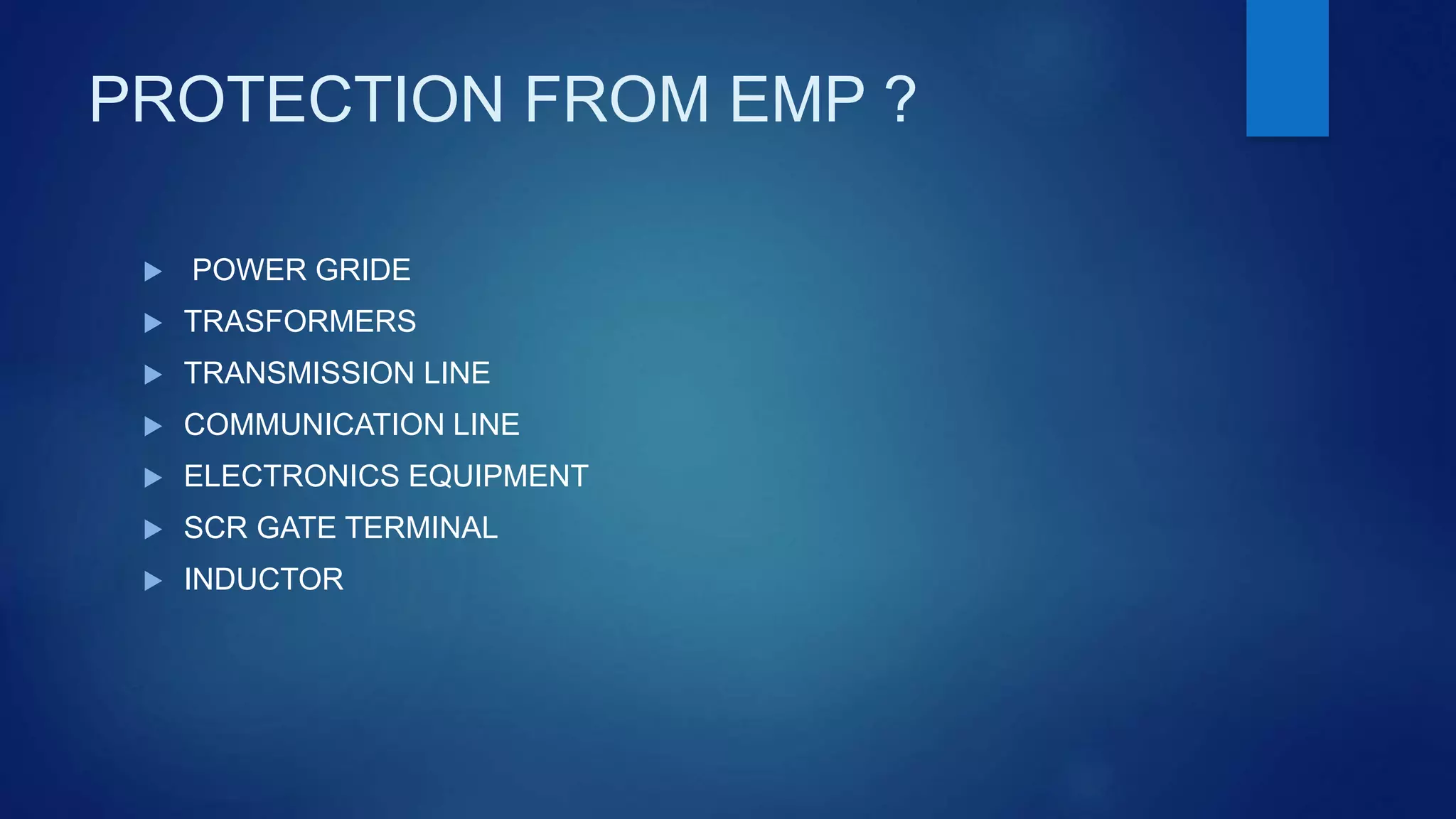

12. PROTECTION FROM EMP ?
 POWER GRIDE
 TRASFORMERS
 TRANSMISSION LINE
 COMMUNICATION LINE
 ELECTRONICS EQUIPMENT
 SCR GATE TERMINAL
 INDUCTOR

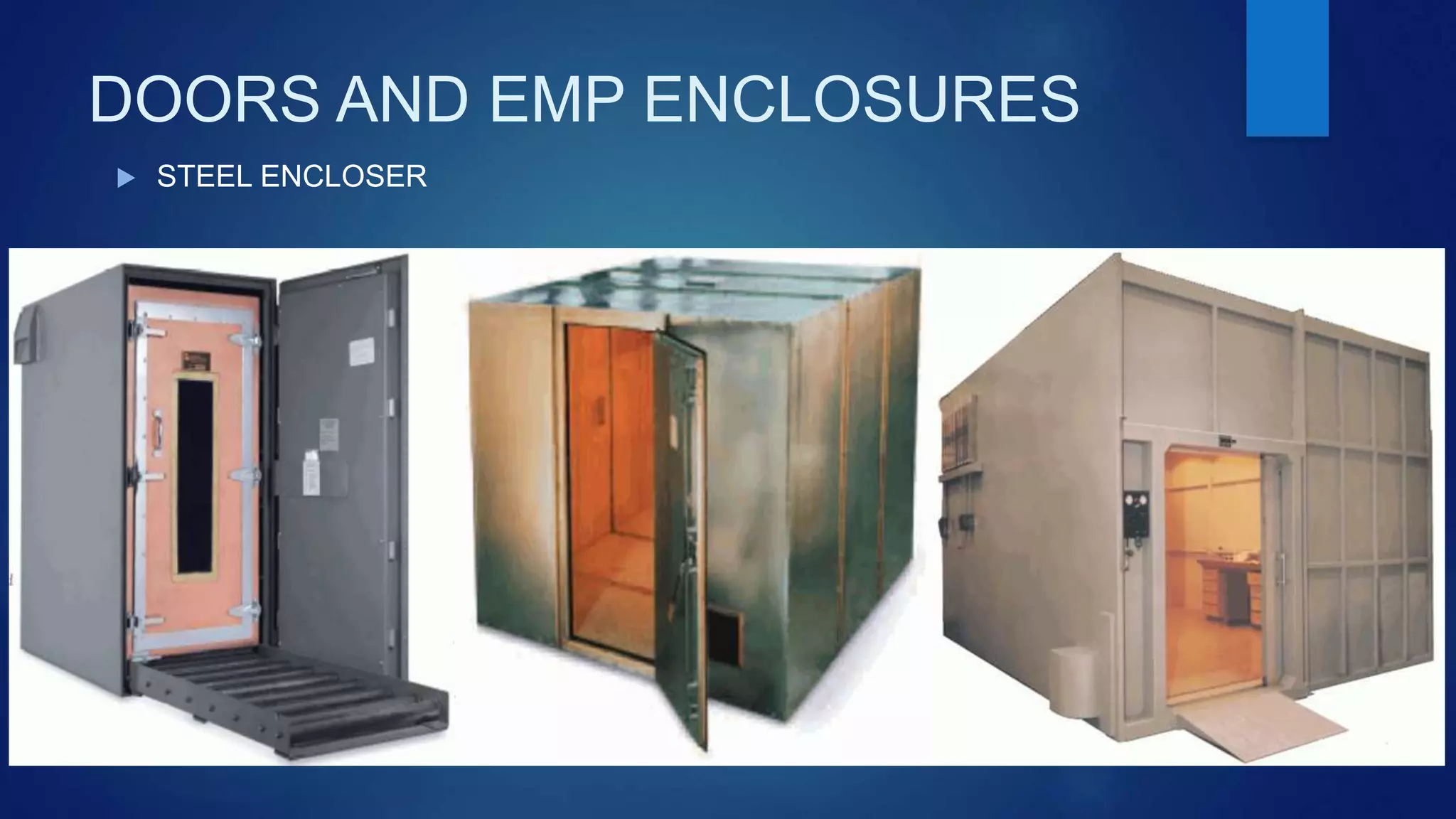

13. DOORS AND EMP ENCLOSURES
 STEEL ENCLOSER

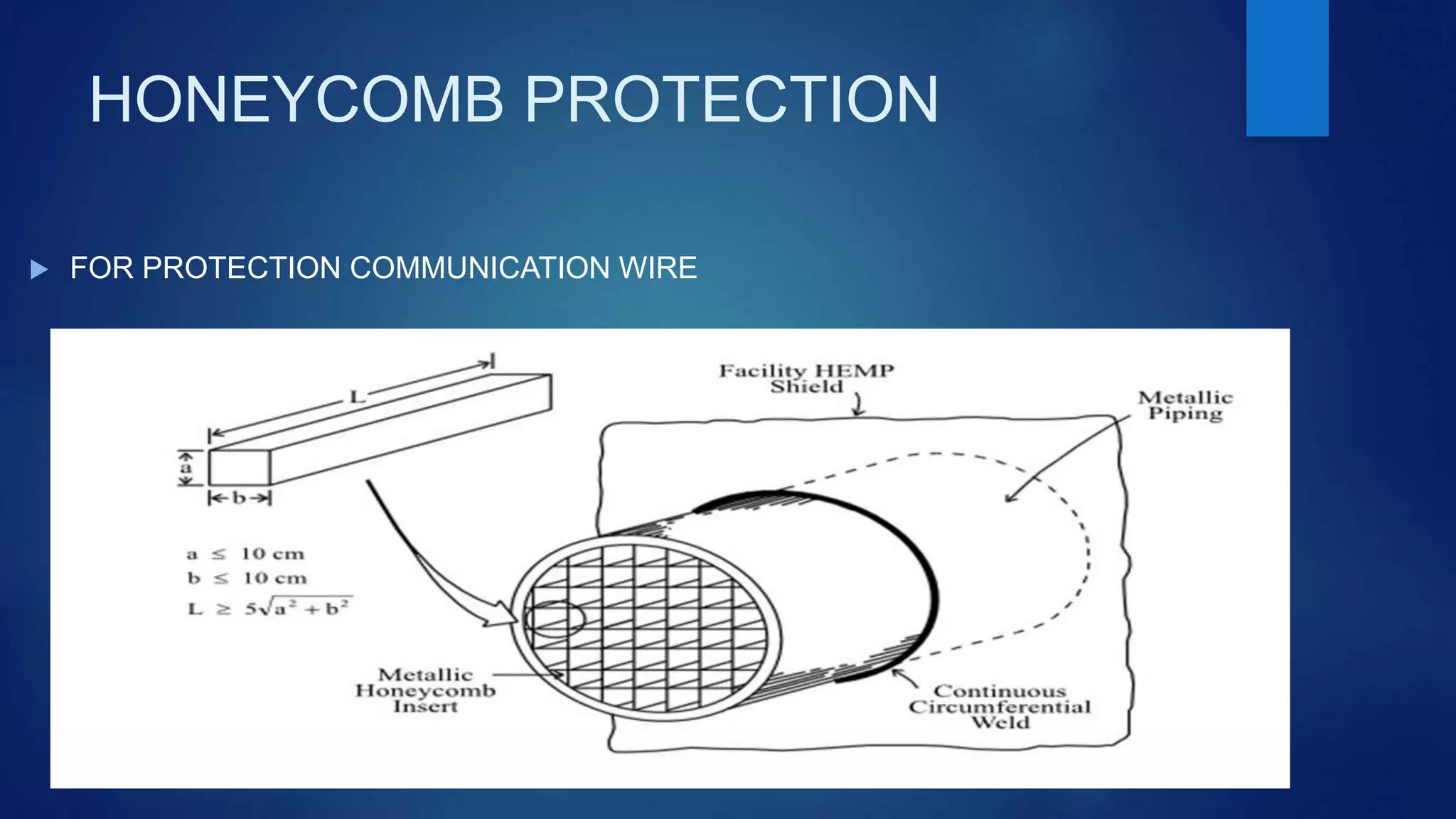

14. HONEYCOMB PROTECTION
 FOR PROTECTION COMMUNICATION WIRE

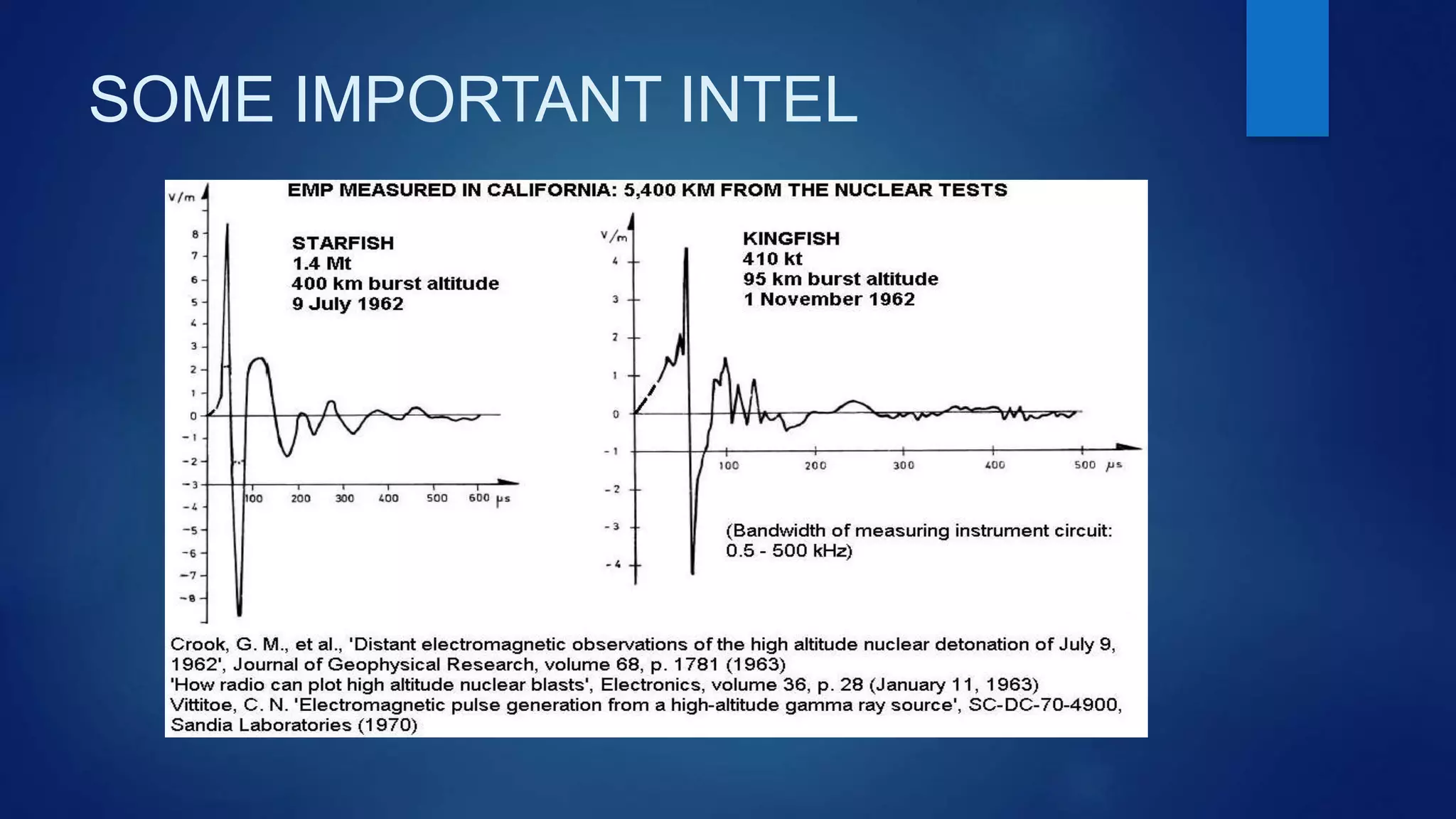

15. SOME IMPORTANT INTEL

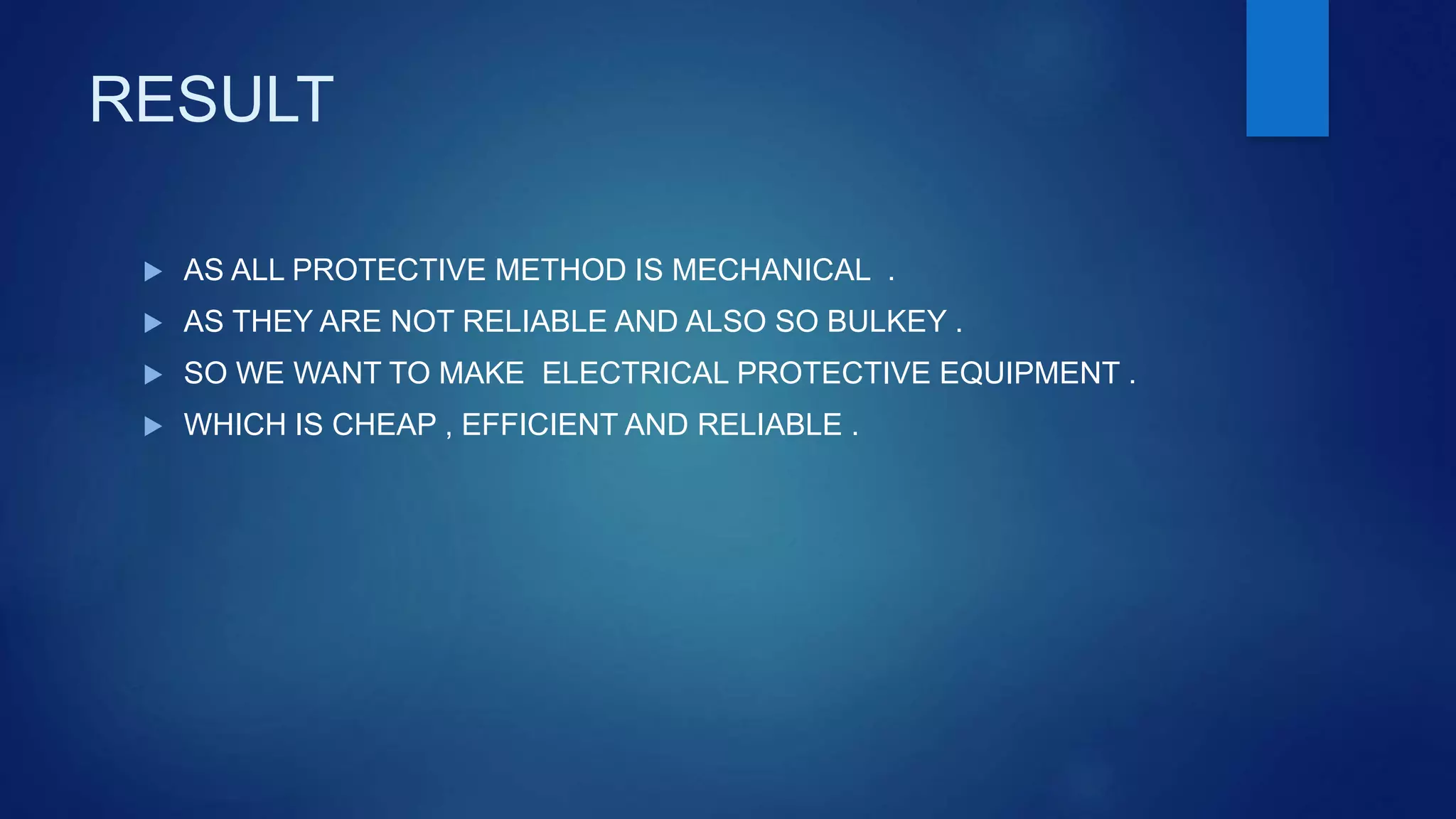

16. RESULT
 AS ALL PROTECTIVE METHOD IS MECHANICAL .
 AS THEY ARE NOT RELIABLE AND ALSO SO BULKEY .
 SO WE WANT TO MAKE ELECTRICAL PROTECTIVE EQUIPMENT .
 WHICH IS CHEAP , EFFICIENT AND RELIABLE .

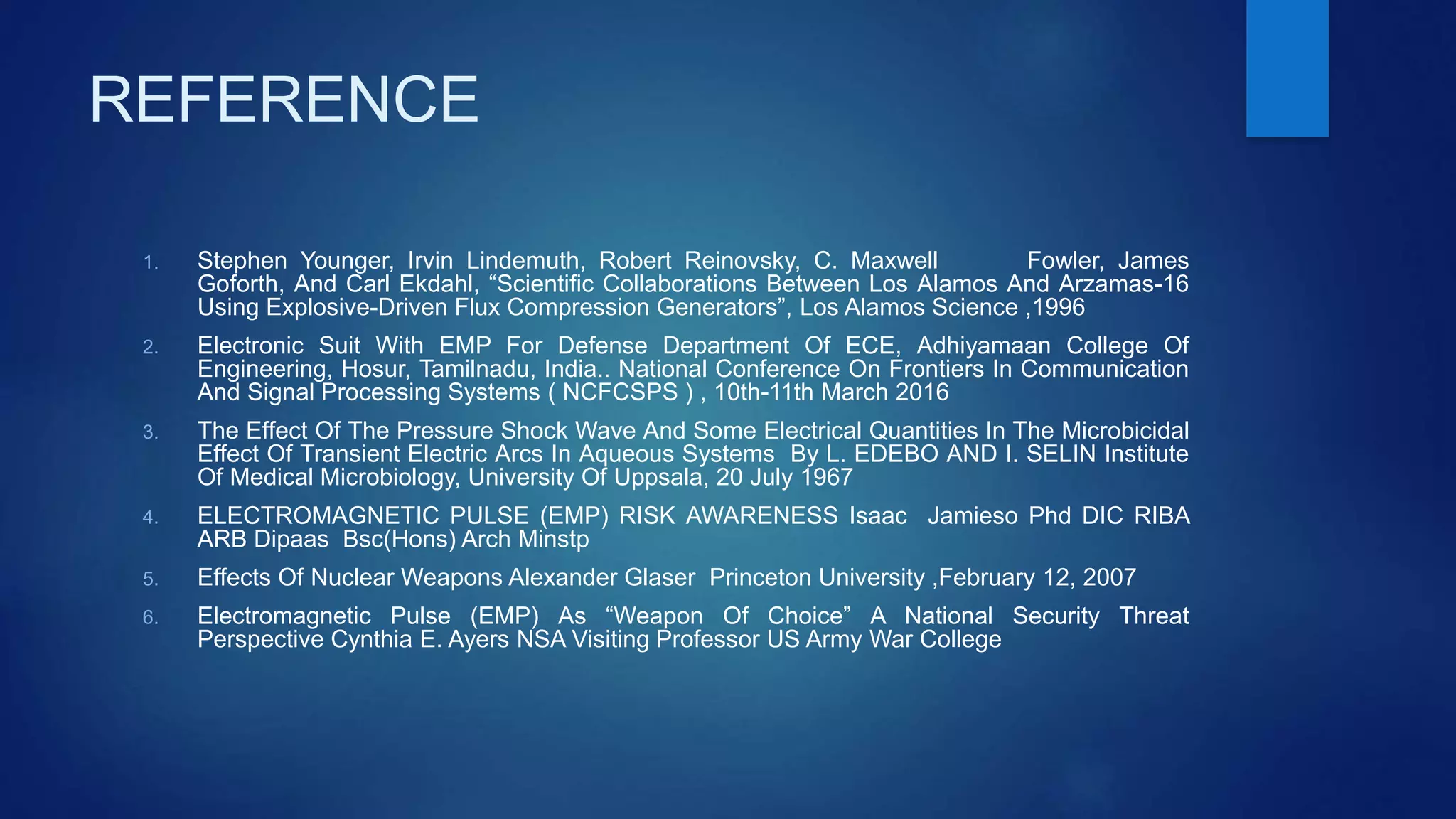

17. REFERENCE
1. Stephen Younger, Irvin Lindemuth, Robert Reinovsky, C. Maxwell Fowler, James
Goforth, And Carl Ekdahl, “Scientific Collaborations Between Los Alamos And Arzamas-16
Using Explosive-Driven Flux Compression Generators”, Los Alamos Science ,1996
2. Electronic Suit With EMP For Defense Department Of ECE, Adhiyamaan College Of
Engineering, Hosur, Tamilnadu, India.. National Conference On Frontiers In Communication
And Signal Processing Systems ( NCFCSPS ) , 10th-11th March 2016
3. The Effect Of The Pressure Shock Wave And Some Electrical Quantities In The Microbicidal
Effect Of Transient Electric Arcs In Aqueous Systems By L. EDEBO AND I. SELIN Institute
Of Medical Microbiology, University Of Uppsala, 20 July 1967
4. ELECTROMAGNETIC PULSE (EMP) RISK AWARENESS Isaac Jamieso Phd DIC RIBA
ARB Dipaas Bsc(Hons) Arch Minstp
5. Effects Of Nuclear Weapons Alexander Glaser Princeton University ,February 12, 2007
6. Electromagnetic Pulse (EMP) As “Weapon Of Choice” A National Security Threat
Perspective Cynthia E. Ayers NSA Visiting Professor US Army War College

18. THANK YOU VERY MUCH ……
