1. TECHNO INDIA NJR INSTITUTE OF TECHNOLOGY
UDAIPUR
SUBMITED TO:-
Mr. Nitin kothari
Asst. Prof,(ECE)
PRESENTED BY:-
Hemant Meena
Branch (ECE)
TOPIC:- E-BALL
21/11/2014 1

2. CONTENTS:-
 WHAT IS E-BALL
 FEATURES OF E-BALL
 WORKING OF E- BALL
 APPLICATIONS
 ADVANTAGE OF E-BALL
 DISADVANTAGE OF E-BALL
 CONCLUSION
 REFERENCES
21/11/2014 2

3.  WHAT IS E-BALL ?
A new concept of pc is coming now that is E-Ball Concept pc.
The E-Ball concept pc is a sphere shaped computer which is the
smallest design among all the laptops and desktops. E-BALL was
designed by Apostol Tnokovski , a 31 year old Macedonian product
designer.

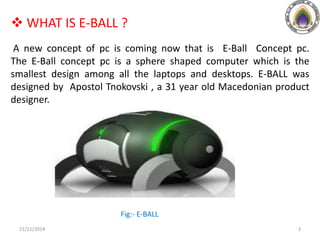

Fig:- E-BALL
21/11/2014 3

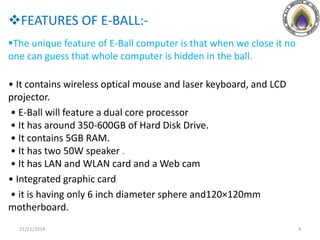

4. FEATURES OF E-BALL:-
The unique feature of E-Ball computer is that when we close it no
one can guess that whole computer is hidden in the ball.
• It contains wireless optical mouse and laser keyboard, and LCD
projector.
• E-Ball will feature a dual core processor
• It has around 350-600GB of Hard Disk Drive.
• It contains 5GB RAM.
• It has two 50W speaker .
• It has LAN and WLAN card and a Web cam
• Integrated graphic card
• it is having only 6 inch diameter sphere and120×120mm
motherboard.
21/11/2014 4

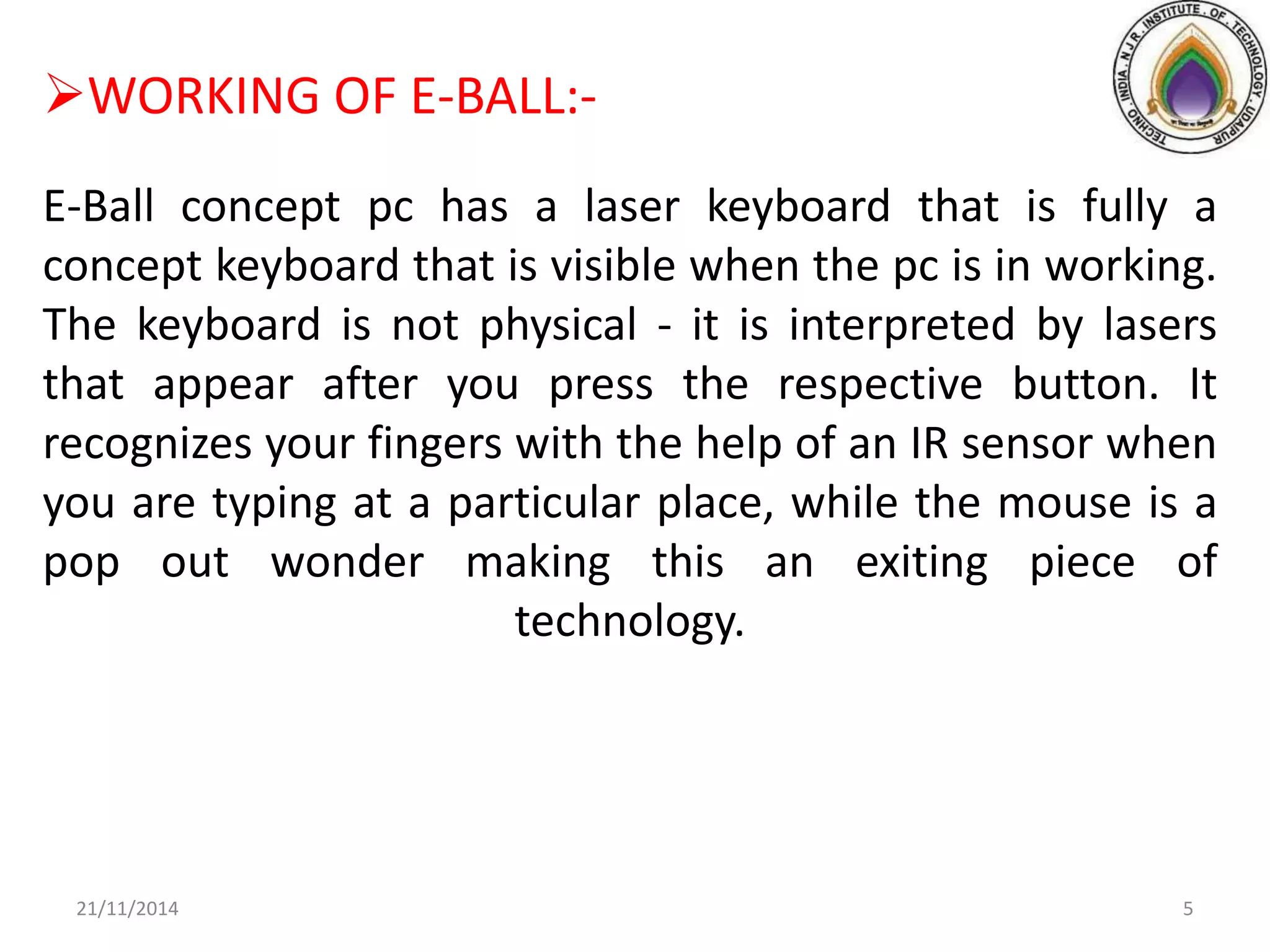

5. WORKING OF E-BALL:-
E-Ball concept pc has a laser keyboard that is fully a
concept keyboard that is visible when the pc is in working.
The keyboard is not physical - it is interpreted by lasers
that appear after you press the respective button. It
recognizes your fingers with the help of an IR sensor when
you are typing at a particular place, while the mouse is a
pop out wonder making this an exiting piece of
technology.
21/11/2014 5

6. 21/11/2014 6

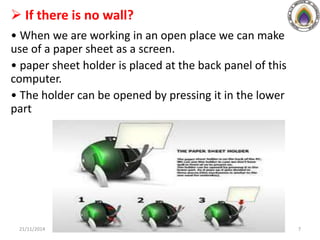

7.  If there is no wall?
• When we are working in an open place we can make
use of a paper sheet as a screen.
• paper sheet holder is placed at the back panel of this
computer.
• The holder can be opened by pressing it in the lower
part
21/11/2014 7

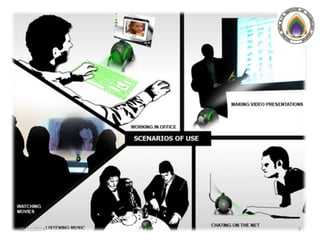

8. APPLICATION OF E- BALL:-
•Makeing video presentation
•Working in office
• Watching moveis
•Chating on the net
•Listening music
21/11/2014 8

9. 21/11/2014 9

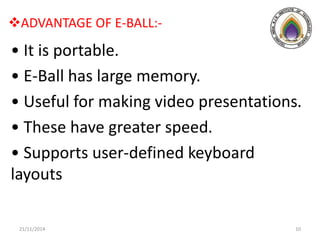

10. ADVANTAGE OF E-BALL:-
• It is portable.
• E-Ball has large memory.
• Useful for making video presentations.
• These have greater speed.
• Supports user-defined keyboard
layouts
21/11/2014 10

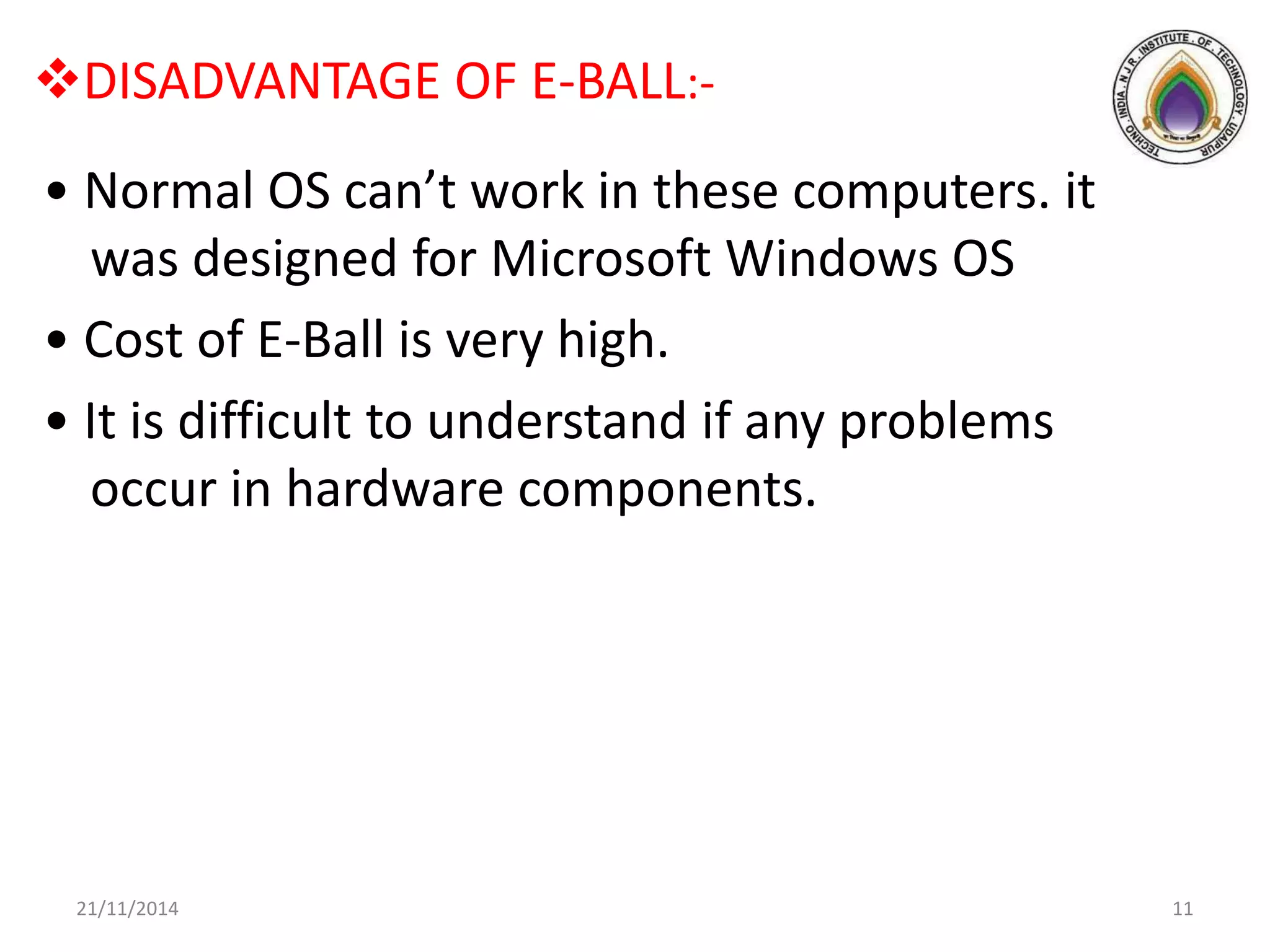

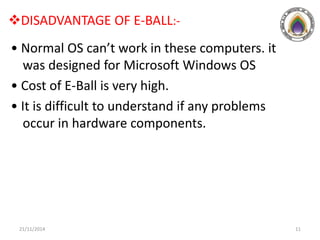

11. DISADVANTAGE OF E-BALL:-
• Normal OS can’t work in these computers. it
was designed for Microsoft Windows OS
• Cost of E-Ball is very high.
• It is difficult to understand if any problems
occur in hardware components.
21/11/2014 11

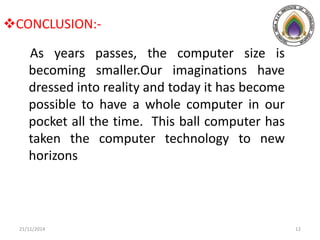

12. CONCLUSION:-
As years passes, the computer size is
becoming smaller.Our imaginations have
dressed into reality and today it has become
possible to have a whole computer in our
pocket all the time. This ball computer has
taken the computer technology to new
horizons
21/11/2014 12

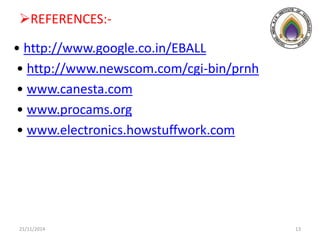

13. REFERENCES:-
• http://www.google.co.in/EBALL
• http://www.newscom.com/cgi-bin/prnh
• www.canesta.com
• www.procams.org
• www.electronics.howstuffwork.com
21/11/2014 13
