2. What’s different about XT?
In 2004, Eaton design engineers developed a
new IEC motor starter line. Given pressures on
manufacturers to increase profits, some design
new lines with one primary objective… to take
cost out of the product.
That was not what Eaton had in mind. Eaton
created the XT line to be engineered better.
99
99

3. Eaton XT. Engineered better.
Redesigned Magnet Frame
XT has a new “T-C” shape magnet
frame and armature, reducing coil Magnet Frame
consumption by up to 60%. What
does this mean for you… smaller
transformers and power supplies.
Traditional “E” frame NEW “T-C” frame
100
100

4. Eaton XT. Engineered better.

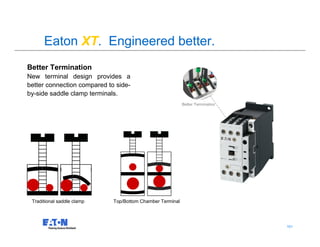

Better Termination
New terminal design provides a
better connection compared to side-
by-side saddle clamp terminals.
Better Termination
Traditional saddle clamp Top/Bottom Chamber Terminal
101
101

5. Eaton XT. Engineered better.
Relocated Coil Terminals
Ever tried to troubleshoot the coil
with 480V power circuit wires in the
way? We moved the coil terminals
to the front. Safer and Easier.
Coil Terminals
Traditional coil terminal located XT coil terminals located in the front
behind power terminals
102
102

6. Eaton XT. Engineered better.
Tool-less Assembly
Build a combination type starter or
a reversing contactor assembly or a
wye-delta assembly… without tools.
Tool-less Mechanical Interlock Tool-less wiring assembly
103
103

7. You take pride in your engineering. So do we.
Eaton’s XT IEC Motor Control was re-engineered
from the ground up. Every aspect was
reconsidered. Is there a better way? Can motor
control be easier? Simpler?
The answer is YES. Here are a few of the Magnet Frame
engineering innovations…
Better Termination
Tool-less Assembly Build a combination
type starter or a reversing contactor assembly…
without tools.
Redesigned Magnet Frame XT has a
new T-C shape magnet frame and armature,
making it up to 60% more efficient on coil
consumption. What does this mean for you…
smaller transformers and power supplies.
Relocated Coil Terminals Ever tried to
troubleshoot the coil with 480V power circuit
wires in the way? We moved the coil terminals
to the front. Safer and Easier.
Better termination New terminal design
provides a better connection compared to side-
Coil Terminals
by-side saddle clamp terminals.
Tool-less Assembly
You work hard to make your machine the best.
Use only the best motor control in your design.
Eaton XT. Engineered better.
105
105
Want more info? Go to www.eaton.com/XT
