This document provides a schematic and definitions for the electrical and hydraulic systems of a machine. It includes tables that list the location of components and connectors in the schematic and on the machine. Blue, underlined text are hyperlinks that can be used to navigate within the document. The document is best viewed at a screen resolution of 1024x768.

1. Click here to view the
Schematic Symbols
and Definitions page

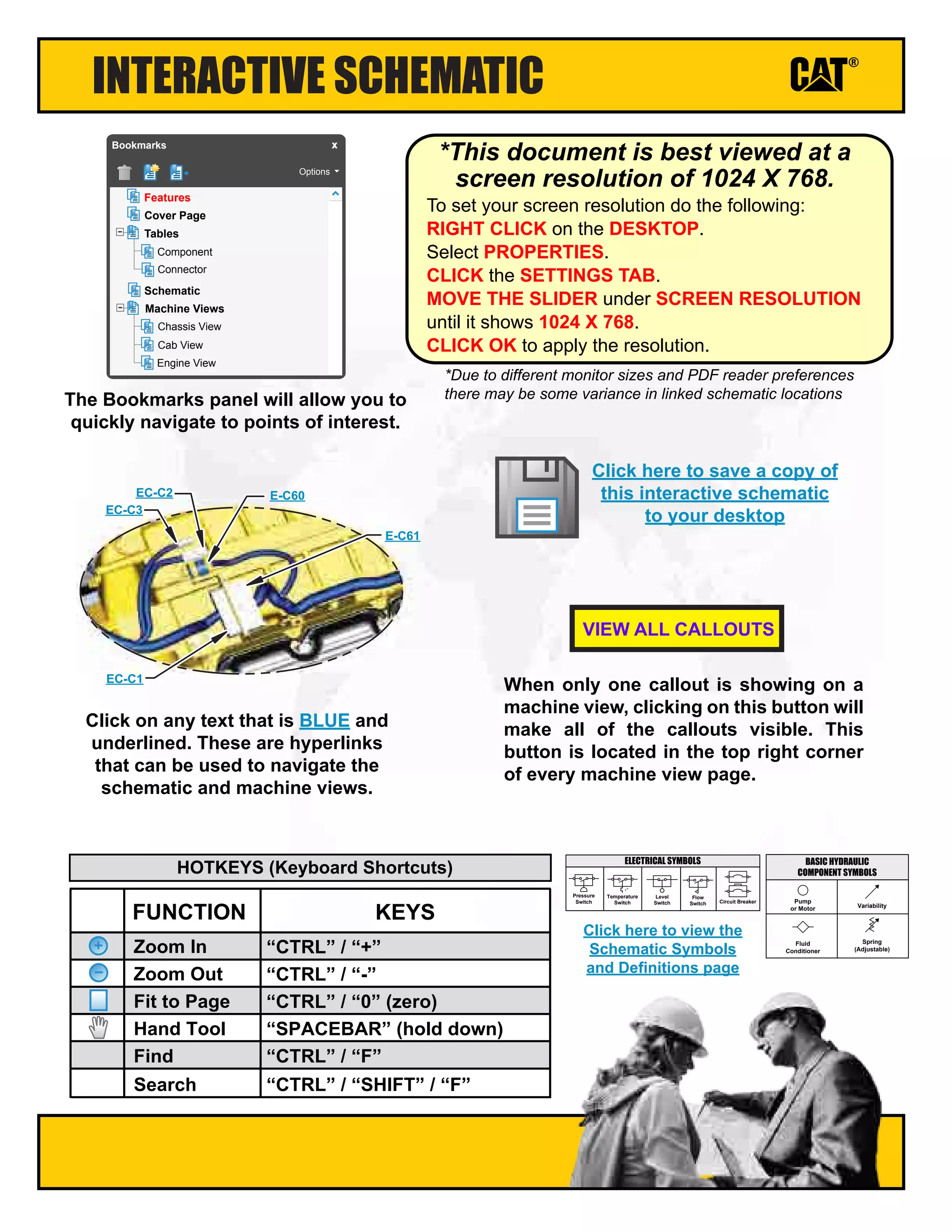

INTERACTIVE SCHEMATIC
The Bookmarks panel will allow you to
quickly navigate to points of interest.
Click on any text that is BLUE and
underlined. These are hyperlinks
that can be used to navigate the
schematic and machine views.
When only one callout is showing on a
machine view, clicking on this button will
make all of the callouts visible. This
button is located in the top right corner
of every machine view page.
VIEW ALL CALLOUTS
Cover Page
Tables
Schematic
Machine Views
Component
Connector
Chassis View
Cab View
Engine View
Features
Options
Bookmarks X
EC-C3
EC-C2 E-C60
EC-C1
E-C61
To set your screen resolution do the following:
RIGHT CLICK on the DESKTOP.
Select PROPERTIES.
CLICK the SETTINGS TAB.
MOVE THE SLIDER under SCREEN RESOLUTION
until it shows 1024 X 768.
CLICK OK to apply the resolution.
*This document is best viewed at a
screen resolution of 1024 X 768.
*Due to different monitor sizes and PDF reader preferences
there may be some variance in linked schematic locations
FUNCTION
Zoom In
HOTKEYS (Keyboard Shortcuts)
Zoom Out
Fit to Page
Hand Tool
“CTRL” / “+”
KEYS
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
Find “CTRL” / “F”
Pressure
Switch
Temperature
Switch
Level
Switch
Flow
Switch Circuit Breaker
T
ELECTRICAL SYMBOLS
Spring
(Adjustable)
Variability
Fluid
Conditioner
Pump
or Motor
BASIC HYDRAULIC
COMPONENT SYMBOLS
Click here to save a copy of
this interactive schematic
to your desktop
Search “CTRL” / “SHIFT” / “F”

2. SCHEMATIC SYMBOLS AND DEFINITIONS
HYDRAULIC SYMBOLS - ELECTRICAL
Transducer
(Fluid)
Transducer
(Gas / Air)
G
Generator Electrical
Wire
Pressure
Switch
M
Electric
Motor
Pressure Switch
(Adjustable)
Temperature
Switch
Pressure
Switch
Temperature
Switch
Level
Switch
Flow
Switch Circuit Breaker
T
ELECTRICAL SYMBOLS
Spring
Control
Valves
Restriction Line Restriction
(Fixed)
2-Section
Pump
MAIN AUX.
Spring
(Adjustable)
Variability
Line Restriction
(Variable)
Pressure
Compensation
Pump: Variable and
Pressure Compensated
Hydraulic Pneumatic
Energy Triangles
Fluid
Conditioner
Attachment
Pump
or Motor
BASIC HYDRAULIC
COMPONENT SYMBOLS
Line Restriction
Variable and Pressure
Compensated
Vented Pressurized Return Above Fluid Level Return Below Fluid Level
FLUID STORAGE RESERVOIRS
Pressure Temperature Flow
MEASUREMENT
Unidirectional Bidirectional
ROTATING SHAFTS
One Position Two Position Three Position
Two-way Three-Way Four-Way
ENVELOPES
PORTS
CONTROL
Basic
Symbol
Spring
Loaded
Normal Position
A B
P T
A B
P T
Shifted Position Infinite Position
Shuttle Pilot
Controlled
VALVES
CHECK
Solenoid
or Manual
Solenoid
and Pilot
Solenoid and
Pilot or Manual
Solenoid Servo Thermal Detent
COMBINATION CONTROLS
T

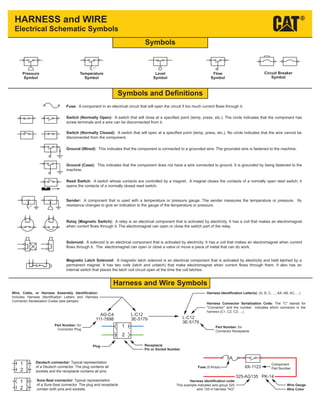

Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it.
Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates
that the component has screw terminals and a wire can be disconnected from it.
Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.).
No circle indicates that the wire cannot be disconnected from the component.
Ground (Wired): This indicates that the component is connected to a grounded wire.
The grounded wire is fastened to the machine.
Ground (Case): This indicates that the component does not have a wire connected to ground.
It is grounded by being fastened to the machine.
Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of
a normally open reed switch; it opens the contacts of a normally closed reed switch.
Sender: A component that is used with a temperature or pressure gauge.
The sender measures the temperature or pressure.
Its resistance changes to give an indication to the gauge of the temperature or pressure.
Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity.
It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close the switch part of the relay.
Solenoid: A solenoid is an electrical component that is activated by electricity.
It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close a valve or move a piece of metal that can do work.
Magnetic Latch Solenoid: An electrical component that is activated by electricity and held latched by a
permanent magnet. It has two coils (latch and unlatch) that make electromagnet
when current flows through them. It also has an internal switch that places
the latch coil circuit open at the time the coil latches.
BASIC ELECTRICAL COMPONENT SYMBOLS
Push-pull Lever Pedal
General Manual Push Button Spring
Manual Shutoff
MANUAL CONTROL
External Return Internal Return
Simplified Complete
Internal
Supply Pressure
RELEASED PRESSURE
REMOTE SUPPLY PRESSURE
PILOT CONTROL
Spring Loaded Gas Charged
ACCUMULATORS
Crossing Joining
LINES
Double Acting
Single Acting
CYLINDERS
Unidirectional
Bidirectional
FIXED DISPLACEMENT
VARIABLE DISPLACEMENT
NON- COMPENSATED
PUMPS
Unidirectional
Bidirectional
Unidirectional
Bidirectional
FIXED DISPLACEMENT
VARIABLE DISPLACEMENT
NON- COMPENSATED
MOTORS
Unidirectional
Bidirectional
Two
Position
Infinite
Positioning
FLOW IN ONE
DIRECTION
FLOW ALLOWED IN
EITHER DIRECTION
Three
Position
CROSS
FLOW
PARALLEL
FLOW
INTERNAL PASSAGEWAYS
1
2
AG-C4
111-7898
L-C12
3E-5179
9X-1123
Component
Part Number
Pin or Socket Number
Part Number: for
Connector Plug
Harness Identification Letter(s): (A, B, C, AA, AB, AC, ...)
Plug
325-AG135 PK-14
Wire Color
Wire Gauge
Receptacle
1
1
2
2
Sure-Seal connector: Typical representation
of a Sure-Seal connector. The plug and receptacle
contain both pins and sockets.
Deutsch connector: Typical representation
of a Deutsch connector. The plug contains all
sockets and the receptacle contains all pins.
Fuse (5 Amps)
5A
Harness identification code:
This example indicates wire group 325,
wire 135 in harness "AG".
L-C12
3E-5179
Wire, Cable, or Harness Assembly Identification:
Includes Harness Identification Letters and Harness
Connector Serialization Codes (see sample).
Harness Connector Serialization Code: The "C" stands for
"Connector" and the number indicates which connector in the
harness (C1, C2, C3, ...)
HARNESS AND WIRE SYMBOLS

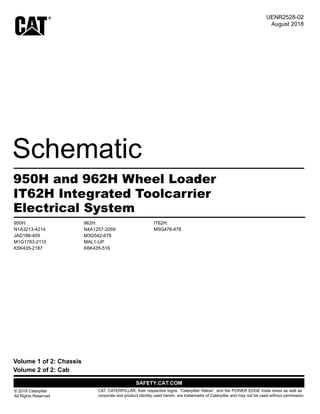

3. Electrical System
© 2018 Caterpillar
All Rights Reserved
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow”, and the POWER EDGE trade dress as well as
corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
Volume 2 of 2: Cab
Volume 1 of 2: Chassis
950H and 962H Wheel Loader
August 2018
UENR2528-02
IT62H Integrated Toolcarrier
950H: 962H: IT62H:
M5G476-478
K6K435-516
MAL1-UP
M3G542-678
N4A1257-2059
K5K435-2187
M1G1783-2110
JAD188-409
N1A3213-4214

4. Volume 1 of 2 - CHASSIS

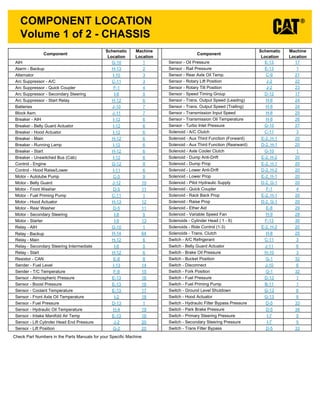

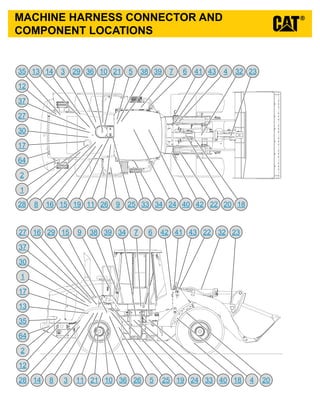

COMPONENT LOCATION
Component
Schematic
Location
Machine
Location
Component
Schematic
Location
Machine
Location
AIH G-10
Sensor - Rail Pressure E-13
Alarm - Backup H-13
Sensor - Rear Axle Oil Temp. C-9
Alternator I-10
Sensor - Rotary Lift Position J-2
Arc Suppressor - A/C C-11
Sensor - Rotary Tilt Position J-2
Arc Suppressor - Quick Coupler F-1
Sensor - Speed Timing Group D-12
Arc Suppressor - Secondary Steering I-8
Sensor - Trans. Output Speed (Leading) H-8
Arc Suppressor - Start Relay H-12
Sensor - Trans. Output Speed (Trailing) H-8
Batteries J-10
Sensor - Transmission Input Speed H-8
Block Asm. J-11
Sensor - Transmission Oil Temperature H-8
Breaker - AIH I-12
Sensor - Turbo Inlet Pressure G-10
Solenoid - A/C Clutch C-11
Breaker - Belly Guard Actuator I-12
Breaker - Hood Actuator I-12
Solenoid - Aux Third Function (Forward) E-2, H-1
Breaker - Main H-12
Solenoid - Aux Third Function (Rearward) D-2, H-1
Breaker - Running Lamp I-12
Solenoid - Axle Cooler Clutch G-10
Breaker - Start H-12
Solenoid - Dump Anti-Drift E-2, H-2
Breaker - Unswitched Bus (Cab) I-12
Solenoid - Dump Prop E-2, H-1
Control - Engine G-12
Solenoid - Lower Anti-Drift D-2, H-2
Control - Hood Raise/Lower I-11
Solenoid - Lower Prop E-2, H-1
Motor - Autolube Pump C-5
Solenoid - Pilot Hydraulic Supply D-2, G-1
Motor - Belly Guard J-12
Solenoid - Quick Coupler F-1
Motor - Front Washer D-5
Solenoid - Rack Back Prop E-2, H-1
Motor - Fuel Priming Pump C-11
Solenoid - Raise Prop D-2, G-1
Motor - Hood Actuator H-13
Solenoid - Ether Aid E-8
Motor - Rear Washer D-5
Solenoid - Variable Speed Fan H-9
Motor - Secondary Steering I-8
Solenoids - Cylinder Head ( 1 - 6) F-13
Motor - Starter I-9
Solenoids - Ride Control (1-3) E-2, H-2
Relay - AIH G-10
Solenoids - Trans. Clutch H-8
Relay - Main H-12 Switch - A/C Refrigerant C-11
Relay - Secondary Steering Intermediate I-8
Relay - Start H-12
Switch - Belly Guard Actuator J-11
Resistor - CAN E-8
Switch - Brake Oil Pressure H-10
Sender - Fuel Level I-13
Switch - Bucket Position G-1
Sender - T/C Temperature F-8
Switch - Disconnect J-10
Sensor - Atmospheric Pressure E-13
Switch - Fork Position G-1
Sensor - Boost Pressure E-13
Switch - Fuel Pressure D-13
Sensor - Coolant Temperature E-13
Switch - Fuel Priming Pump B-11
Sensor - Front Axle Oil Temperature I-2
Switch - Ground Level Shutdown G-13
Sensor - Fuel Pressure D-13
Switch - Hood Actuator G-13
Sensor - Hydraulic Oil Temperature H-4
Switch - Hydraulic Filter Bypass Pressure D-5
Sensor - Intake Manifold Air Temp E-13
Switch - Park Brake Pressure D-5
Sensor - Lift Cylinder Head End Pressure J-2
Switch - Primary Steering Pressure I-7
Sensor - Lift Position G-2
Switch - Secondary Steering Pressure I-7
Sensor - Oil Pressure E-13
1
2
3
3
4
5
6
7
7
6
6
6
6
6
6
6
8
6
9
10
11
1
12
11
5
13
1
6
5
6
8
14
15
16
16
17
18
1
19
16
20
20
17
Switch - Trans Filter Bypass D-5
1
21
22
23
17
24
24
25
26
27
3
20
20
1
20
20
20
20
20
4
20
20
29
28
30
20
25
3
6
3
32
6
32
1
1
6
6
33
34
5
5
33
Relay - Backup H-14 64
Check Part Numbers in the Parts Manuals for your Specific Machine

5. Volume 1 of 2 - CHASSIS

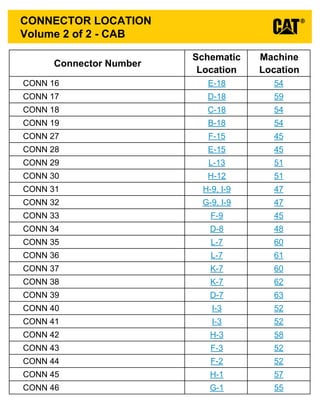

CONNECTOR LOCATION
Connector Number
Schematic
Location
Machine
Location
CONN 1 D-14, E-14
CONN 2 D-14, E-14
CONN 3 J-14
CONN 4 J-14
CONN 5 D-12
CONN 6 D-12
CONN 7 F-12
CONN 8 J-10
CONN 9 C-9
CONN 10 E-8
CONN 11 F-8
CONN 12 F-8
CONN 13 I-7
CONN 14 D-6
CONN 15 D-6
CONN 16 H-5
CONN 17 H-5
CONN 18 G-5
CONN 19 F-5
CONN 20 I-3
CONN 21 I-2, G-2
CONN 22 I-2, H-2, F-2
CONN 23 J-2
CONN 24 F-2
CONN 25 F-2, I-2
CONN 26 G-2
2
2
35
35
16
16
1
6
36
37
13
13
5
38
34
39
39
39
39
40
41
22
42
20
20
43
The connectors shown in this chart are for harness to harness connectors.
Connectors that join a harness to a component are generally located at or near
the component. See the Component Location Chart.

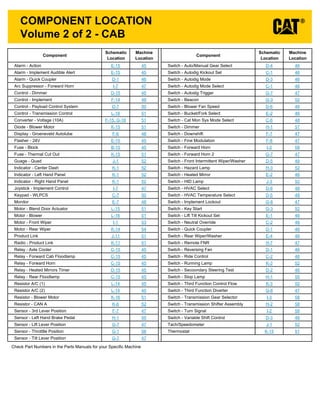

6. Volume 2 of 2 - CAB
COMPONENT LOCATION
Component
Schematic
Location
Machine
Location
Component
Schematic
Location
Machine
Location
Alarm - Action E-15 Switch - Auto/Manual Gear Select D-4
Alarm - Implement Audible Alert E-15 Switch - Autodig Kickout Set C-1
Alarm - Quick Coupler D-1 Switch - Autodig Mode D-3
Arc Suppressor - Forward Horn I-7 Switch - Autodig Mode Select C-1
Switch - Autodig Trigger G-7
Control - Dimmer D-15
Switch - Beacon G-3
Control - Implement F-14
Switch - Blower Fan Speed D-6
Control - Payload Control System D-7
Switch - Bucket/Fork Select E-2
Switch - Cat Mon Sys Mode Select C-6
Control - Transmission Control L-18
Switch - Dimmer H-1
Converter - Voltage (10A) F-15, G-16
Switch - Downshift F-7
Diode - Blower Motor K-15
Switch - Fine Modulation F-8
Display - Groeneveld Autolube F-6
Switch - Forward Horn I-3
Flasher - 24V E-15
Switch - Forward Horn 2 G-7
Fuse - Block B-15
Switch - Front Intermittent Wiper/Washer D-5
Fuse - Thermal Cut Out K-15
Switch - Hazard Lamp H-3
Guage - Quad J-1
Switch - Heated Mirror E-2
Indicator - Center Dash K-1
Switch - HID Lamp J-3
Indicator - Left Hand Panel K-1
Switch - HVAC Select D-6
Indicator - Right Hand Panel K-1
Switch - HVAC Temperature Select D-5
Joystick - Implement Control I-7
Switch - Implement Lockout G-8
Keypad - WLPCS C-7
Switch - Key Start G-3
Motor - Blend Door Actuator L-15
Switch - Lift Tilt Kickout Set E-1
Motor - Blower L-16
Switch - Neutral Override C-2
Motor - Front Wiper I-1
Switch - Quick Coupler D-1
Motor - Rear Wiper K-14
Switch - Rear Wiper/Washer E-4
Radio - Product Link K-11 Switch - Remote FNR H-7
Relay - Axle Cooler C-15 Switch - Reversing Fan D-1
Relay - Forward Cab Floodlamp C-15 Switch - Ride Control C-2
Relay - Forward Horn C-15 Switch - Running Lamp K-3
Relay - Heated Mirrors Timer D-15 Switch - Secoondary Steering Test D-2
Relay - Rear Floodlamp C-15 Switch - Stop Lamp H-1
Resistor A/C (1) L-14 Switch - Third Function Control Flow K-3
Resistor A/C (2) L-14 Switch - Third Function Diverter G-8
Resistor - Blower Motor K-16 Switch - Transmission Gear Selector I-3
Resistor - CAN A K-6 Switch - Transmission Shifter Assembly H-2
Sensor - 3rd Lever Position F-7 Switch - Turn Signal I-2
Sensor - Left Hand Brake Pedal H-1 Switch - Variable Shift Control D-3
Sensor - Lift Lever Position G-7 Tach/Speedometer J-1
Sensor - Throttlle Position G-1 Thermostat K-15
46
46
46
46
47
52
48
46
48
57
47
47
58
47
48
52
46
52
48
48
47
52
46
46
46
46
47
46
46
52
46
55
52
47
58
58
58
46
52
51
Sensor - Tilt Lever Position G-7
45
45
46
47
45
49
50
51
51
51
48
45
45
51
52
52
52
52
47
50
51
51
53
54
51
45
45
45
45
45
45
45
51
52
47
55
47
56
47
Monitor E-7
Product Link J-11
48
51
Check Part Numbers in the Parts Manuals for your Specific Machine

7. Volume 2 of 2 - CAB
CONNECTOR LOCATION
Connector Number
Schematic
Location
Machine
Location
CONN 16 E-18
CONN 17 D-18
CONN 18 C-18
CONN 19 B-18
CONN 27 F-15
CONN 28 E-15
CONN 29 L-13
CONN 30 H-12
CONN 31 H-9, I-9
CONN 32 G-9, I-9
CONN 33 F-9
CONN 34 D-8
CONN 35 L-7
CONN 36 L-7
CONN 37 K-7
CONN 38 K-7
CONN 39 D-7
CONN 40 I-3
CONN 41 I-3
CONN 42 H-3
CONN 43 F-3
CONN 44 F-2
CONN 45 H-1
CONN 46 G-1
54
59
54
54
45
45
51
51
47
47
45
48
60
61
60
62
63
52
52
58
52
52
57
55

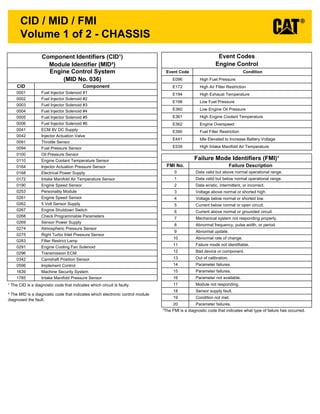

8. Volume 1 of 2 - CHASSIS
CID / MID / FMI
Component Identifiers (CID¹)
Module Identifier (MID²)
Engine Control System
(MID No. 036)
CID Component
0001 Fuel Injector Solenoid #1
0002 Fuel Injector Solenoid #2
0003 Fuel Injector Solenoid #3
0004 Fuel Injector Solenoid #4
0005 Fuel Injector Solenoid #5
0006 Fuel Injector Solenoid #6
0041 ECM 8V DC Supply
0042 Injector Actuation Valve
0091 Throttle Sensor
0094 Fuel Pressure Sensor
0100 Oil Pressure Sensor
0110 Engine Coolant Temperature Sensor
0164 Injector Actuation Pressure Sensor
0168 Electrical Power Supply
0172 Intake Manifold Air Temperature Sensor
0190 Engine Speed Sensor
0253 Personality Module
0261 Engine Speed Sensor
0262 5 Volt Sensor Supply
0267 Engine Shutdown Switch
0268 Check Programmable Parameters
0269 Sensor Power Supply
0274 Atmospheric Pressure Sensor
0275 Right Turbo Inlet Pressure Sensor
0283 Filter Restrict Lamp
0291 Engine Cooling Fan Solenoid
0296 Transmission ECM
0342 Camshaft Position Sensor
0596 Implement Control
1639 Machine Security System
1785 Intake Manifold Pressure Sensor
¹ The CID is a diagnostic code that indicates which circuit is faulty.
² The MID is a diagnostic code that indicates which electronic control module
diagnosed the fault.
Failure Mode Identifiers (FMI)¹
FMI No. Failure Description
0 Data valid but above normal operational range.
1 Data valid but below normal operational range.
2 Data erratic, intermittent, or incorrect.
3 Voltage above normal or shorted high.
4 Voltage below normal or shorted low.
5 Current below normal or open circuit.
6 Current above normal or grounded circuit.
7 Mechanical system not responding properly.
8 Abnormal frequency, pulse width, or period.
9 Abnormal update.
10 Abnormal rate of change.
11 Failure mode not identifiable.
12 Bad device or component.
13 Out of calibration.
14 Parameter failures.
15 Parameter failures.
16 Parameter not available.
17 Module not responding.
18 Sensor supply fault.
19 Condition not met.
20 Parameter failures.
¹The FMI is a diagnostic code that indicates what type of failure has occurred.
Event Codes
Engine Control
Event Code Condition
E096 High Fuel Pressure
E172 High Air Filter Restriction
E194 High Exhaust Temperature
E198 Low Fuel Pressure
E360 Low Engine Oil Pressure
E361 High Engine Coolant Temperature
E362 Engine Overspeed
E390 Fuel Filter Restriction
E441 Idle Elevated to Increase Battery Voltage
E539 High Intake Manifold Air Temperature

9. Volume 2 of 2 - CAB
CID / MID / FMI
Component Identifiers (CID¹)
Module Identifier (MID²)
Caterpillar Monitoring System
(MID No. 030)
CID Component
0096 Fuel Level Sender
0100 Engine Oil Pressure Sensor
0110 Engine Coolant Temperature Sensor
0177 Torque Converter Oil Temperature Sensor
0248 Data Link
0263 Sensor Power Supply
0271 Action Alarm
0324 Action Lamp
0600 Hydraulic Oil Temperature Sensor
0819 Display Data Link
0821 Display Power Supply
0826 T/C Oil Temperature Sensor
0830 Brake Oil Temperature Sensor
Payload Control System
(MID No. 074)
CID Component
0248 CAT Data Link
0364 Head End Lift Cylinder Pressure Sensor
0591 PCS EEPROM
0769 Rod End Lift Cylinder Pressure Sensor
1964 Lift Position Sensor
Electronic Transmission Control System
(MID No. 081)
CID Component
0041 8 Volt DC Supply
0168 Electrical System Voltage
0177 Transmission Oil Temperature Sensor
0190 Engine Speed Sensor
0262 5 Volt DC Supply
0268 Programmed Parameter Fault
0367 Ride Control Switch
0368 Transmission Auto/Manual Switch
0444 Start Relay
0562 Electronic Monitoring System
0585 Transmission Output Speed Sensor 1
0590 Engine Control Module
0596 Implement Control
0623 Directional Switch
0627 Parking Brake Pressure Sw.
0672 Transmission Input Speed Sensor
0673 Transmission Output Speed Sensor 2
0702 Lever Switch (Transmission Shifting/Direction)
0737 Left Brake Pedal Position Sensor
0793 Primary Steering Pressure Switch
0794 Secondary Steering Pressure Switch
0795 Secondary Steering Relay
0967 Machine Application
1326 ECM Location Code
1400 Rear Axle Oil Cooler Solenoid
1401 Reverse Solenoid
1402 Forward Solenoid
1403 Fourth Speed Clutch
1404 Third Speed Clutch
1405 Second Speed Clutch
1406 First Speed Clutch
1521 Part-Throttle Autoshift Selector Switch
1960 Ignition Key Reader
2129 Ride Control Solenoid (1)
2274 Transmission Direction Switch #2
2347 Ride Control Solenoid (2)
2684 Ride Control Solenoid (3)
Electronic Implement Control
(MID No. 082)
CID Component
0041 8 Volt DC Supply
0168 Electrical System Voltage
0268 Programmed Parameter Fault
0296 Transmission Control
0350 Lift Linkage Position Sensor
0351 Tilt Linkage Position Sensor
0352 Lift Lever Position Sensor
0353 Tilt Lever Position Sensor
0354 Raise Solenoid
0355 Lower Solenoid
0356 Dump Solenoid
0357 Rackback Solenoid
0358 Pilot Pressure Solenoid
0364 Lify Cylinder Head End Oil Pressure Sensor
0365 Kickout Set Switch
0487 3rd Lever Position Sensor
0490 Implement Lockout Switch
0491 3rd Function Forward Solenoid
0492 3rd Function Rearward Solenoid
0562 Caterpillar Monitoring System
0590 Engine Electronic Control Module
0965 Autodig Dig Mode Switch
0967 Machine Application
1187 Continuous Flow Rocker Switch
1324 Autodig Operation Mode Select Switch
1325 Autodig Trigger Switch
1326 ECM Location Code
1592 Autodig Kickout Set Switch
1639 Machine Security System ECM
1718 Fine Modulation Switch
2326 Lower Anti-Drift Solenoid Valve
2328 Dump Anti-Drift Solenoid Valve
Product Link Radio
(MID No. 122)
CID Component
0168 Electrical System Voltage
0254 Electronic Control Module
0269 Sensor Power Supply
1250 Remote Communication Module
1251 Alternator "R" Terminal
Machine Security System
(MID No. 124)
CID Component
0168 Electrical System Voltage
0248 Data Link
0817 ECM Internal Backup Battery
1391 Theft Deterent Output Driver #1
1392 Theft Deterent Output Driver #2
¹ The CID is a diagnostic code that indicates which circuit is faulty.
² The MID is a diagnostic code that indicates which electronic control module
diagnosed the fault.
Failure Mode Identifiers (FMI)¹
FMI No. Failure Description
0 Data valid but above normal operational range.
1 Data valid but below normal operational range.
2 Data erratic, intermittent, or incorrect.
3 Voltage above normal or shorted high.
4 Voltage below normal or shorted low.
5 Current below normal or open circuit.
6 Current above normal or grounded circuit.
7 Mechanical system not responding properly.
8 Abnormal frequency, pulse width, or period.
9 Abnormal update.
10 Abnormal rate of change.
11 Failure mode not identifiable.
12 Bad device or component.
13 Out of calibration.
14 Parameter failures.
15 Parameter failures.
16 Parameter not available.
17 Module not responding.
18 Sensor supply fault.
19 Condition not met.
20 Parameter failures.
¹The FMI is a diagnostic code that indicates what type of failure has occurred.

10. HARNESS and WIRE
Electrical Schematic Symbols
1
2
AG-C4
111-7898
L-C12
3E-5179
9X-1123
Component
Part Number
Pin or Socket Number
Part Number: for
Connector Receptacle
Part Number: for
Connector Plug
Harness Identification Letter(s): (A, B, C, ..., AA, AB, AC, ...)
Plug
325-AG135 PK-14
Wire Color
Wire Gauge
Receptacle
Pressure
Symbol
T
Temperature
Symbol
Level
Symbol
Flow
Symbol
Circuit Breaker
Symbol
Harness and Wire Symbols
1
1
2
2
Sure-Seal connector: Typical representation
of a Sure-Seal connector. The plug and receptacle
contain both pins and sockets.
Deutsch connector: Typical representation
of a Deutsch connector. The plug contains all
sockets and the receptacle contains all pins.
Symbols
Symbols and Definitions
Fuse (5 Amps)
5A
T
Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it.
Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates that the component has
screw terminals and a wire can be disconnected from it.
Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.). No circle indicates that the wire cannot be
disconnected from the component.
Ground (Wired): This indicates that the component is connected to a grounded wire. The grounded wire is fastened to the machine.
Ground (Case): This indicates that the component does not have a wire connected to ground. It is grounded by being fastened to the
machine.
Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of a normally open reed switch; it
opens the contacts of a normally closed reed switch.
Sender: A component that is used with a temperature or pressure gauge. The sender measures the temperature or pressure. Its
resistance changes to give an indication to the gauge of the temperature or pressure.
Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity. It has a coil that makes an electromagnet
when current flows through it. The electromagnet can open or close the switch part of the relay.
Solenoid: A solenoid is an electrical component that is activated by electricity. It has a coil that makes an electromagnet when current
flows through it. The electromagnet can open or close a valve or move a piece of metal that can do work.
Magnetic Latch Solenoid: A magnetic latch solenoid is an electrical component that is activated by electricity and held latched by a
permanent magnet. It has two coils (latch and unlatch) that make electromagnet when current flows through them. It also has an
internal switch that places the latch coil circuit open at the time the coil latches.
Harness identification code:
This example indicates wire group 325,
wire 135 in harness "AG".
L-C12
3E-5179
Wire, Cable, or Harness Assembly Identification:
Includes Harness Identification Letters and Harness
Connector Serialization Codes (see sample).
Harness Connector Serialization Code: The "C" stands for
"Connector" and the number indicates which connector in the
harness (C1, C2, C3, ...).

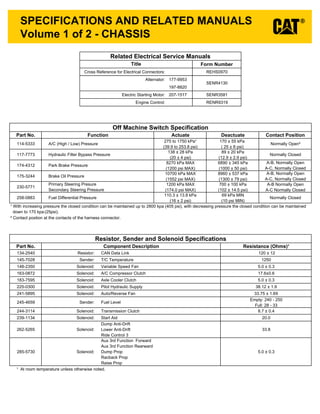

11. Volume 1 of 2 - CHASSIS
SPECIFICATIONS AND RELATED MANUALS
Off Machine Switch Specification
Part No. Function Actuate Deactuate Contact Position
114-5333 A/C (High / Low) Pressure
275 to 1750 kPa¹
(39.9 to 253.8 psi)
170 ± 55 kPa
( 25 ± 8 psi)
Normally Open²
117-7773 Hydraulic Filter Bypass Pressure
138 ± 28 kPa
(20 ± 4 psi)
89 ± 20 kPa
(12.9 ± 2.9 psi)
Normally Closed
174-4312 Park Brake Pressure
8270 kPa MAX
(1200 psi MAX)
6890 ± 345 kPa
(1000 ± 50 psi)
A-B, Normally Open
A-C, Normally Closed
175-3244 Brake Oil Pressure
10700 kPa MAX
(1552 psi MAX)
8960 ± 537 kPa
(1300 ± 79 psi)
A-B, Normally Open
A-C, Normally Closed
230-5771
Primary Steering Presure
Secondary Steering Pressure
1200 kPa MAX
(174.0 psi MAX)
700 ± 100 kPa
(102 ± 14.5 psi)
A-B Normally Open
A-C Normally Closed
258-0883 Fuel Differential Pressure
110.3 ± 13.8 kPa
(16 ± 2 psi)
69 kPa MIN
(10 psi MIN)
Normally Closed
¹ With increasing pressure the closed condition can be maintained up to 2800 kpa (405 psi), with decreasing pressure the closed condition can be maintained
down to 170 kpa (25psi).
² Contact postion at the contacts of the harness connector.
Resistor, Sender and Solenoid Specifications
Part No. Component Description Resistance (Ohms)¹
134-2540 Resistor: CAN Data Link 120 ± 12
145-7028 Sender: T/C Temperature 1250
148-2350 Solenoid: Variable Speed Fan 5.0 ± 0.3
163-0872 Solenoid: A/C Compressor Clutch 17.6±0.6
183-7595 Solenoid: Axle Cooler Clutch 5.0 ± 0.3
225-0300 Solenoid: Pilot Hydraulic Supply 38.12 ± 1.9
241-5895 Solenoid: Auto/Reverse Fan 33.75 ± 1.69
245-4659 Sender: Fuel Level
Empty: 240 - 250
Full: 28 - 33
244-3114 Solenoid: Transmission Clutch 8.7 ± 0.4
239-1134 Solenoid: Start Aid 20.0
262-5265 Solenoid:
Dump Anti-Drift
Lower Anti-Drift
Ride Control 3
33.8
285-5730 Solenoid:
Aux 3rd Function Forward
Aux 3rd Function Rearward
Dump Prop
Racback Prop
Raise Prop
5.0 ± 0.3
¹ At room temperature unless otherwise noted.
Related Electrical Service Manuals
Title Form Number
Cross Reference for Electrical Connectors: REHS0970
Alternator: 177-9953
SENR4130
197-8820
Electric Starting Motor: 207-1517 SENR3581
Engine Control: RENR9319

12. Volume 2 of 2 - CAB
SPECIFICATIONS AND RELATED MANUALS
Off Machine Switch Specification
Part No. Function Actuate Deactuate Contact Position
3E-5464 A/C Thermostat
-1.1 ± 0.8°C 2.2 ± 0.8°C
(30 ± 1.4°F) (36 ± 1.4°F)
Normally Closed
Resistor, Sender and Solenoid Specifications
Part No. Component Description Resistance (Ohms)¹
9G-1950 Resistor: Blower Motor Speed
Overall: 2.0 ± 0.1
Tap 1.0 ± .05
134-2540 Resistor: CAN 120 ± 12
¹ At room temperature unless otherwise noted.
Machine Security System: RENR2462
Product Link Radio: RENR7911
Power Train Control: RENR8846
Implement Control: RENR8858
Caterpillar Monitoring System: SENR1394
Payload Control System: RENR6293
Related Electrical Service Manuals
Title Form Number
Cross Reference for Electrical Connectors: REHS0970

13. Do not operate or work on this product unless you have
read and understood the instruction and warnings in the
relevant Operation and Maintenance Manuals and
relevant service literature. Failure to follow the instruc-
tions or heed the warnings could result in injury or
death. Proper care is your responsibility.
Components are shown installed on a fully operable machine with the key and engine off, transmission shifter
in neutral and with parking brake set.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
VOLUME 1 of 2: CHASSIS
SCHEMATIC PART NUMBER: 241-0637, CHANGE: 01, VERSION: -
THIS SCHEMATIC IS FOR THE 950H/962H WHEEL LOADER AND IT62H INTEGRATED
TOOLCARRIER ELECTRICAL SYSTEM
MEDIA NUMBER: UENR2528-02
A
B
C
D
E
F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
G
H
I
J
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
E
F
G
H
I
J
WIRE GROUP COLOR DESCRIPTIONS
GROUND CIRCUIT
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
STARTING CIRCUIT
START AID CIRCUIT
TRANSMISSION / ENGINE PUMP CONTROL CIRCUIT
MONITOR CIRCUIT
ENGINE CONTROL CIRCUIT
HEATER AND AIR CONDITIONER CIRCUIT
TURN SIGNAL / WIPER WASHER CIRCUIT
CAT DATA LINK
IMPLEMENT / VALVE / TOOL CONTROL CIRCUIT
CAN DATA LINK
PAYLOAD CONTROL CIRCUIT
OTHER COLOR DESCRIPTIONS
HIGHWAYS
CJ-T2
CJ-T8
CJ-T12
1
2
CJ-C2
1552269
1
2
CJ-C3
3E3364
1552273
CJ-C16
1
2
3
4
5
6
1
2
AT-C1
1552269
A
CJ-C33
1552267
C
B
1
2
CJ-C32
1552269
CJ-C31
3E3364
A
CJ-C8
1552267
C
B
1
2
CJ-C26
1552269
CJ-C27
3E3364
1552267
EA-C2
A
B
C
3E3364
CH-C8
1
2
UU-T1 CH-T2
JJ-T2
CJ-T4
WW-T2
KC-T1
RR-T1
RR-T2
CC-T1
EE-T1 EE-T2
GG-T1
GG-T2
HH-T1
HH-T2
JJ-T1
KK-C1
2906516
2 1
KK-T1
KK-T2
CC-T2
CJ-C11
8N1533
1
2
3
4
5
6
7
1
2
K-C10
1552269
CJ-T9
1
2
K-C3
1552269
1
2
CH-C14
1552269
1
2
K-C5
1112416
1
2
K-C6
2304011
1
2
K-C4
1003320
1
2
K-C7
2304011
1297163
CJ-C20
1
1297164
CJ-C17
1
1552269
CJ-C40
1
2
1
2
CJ-C30
1552269
CJ-M1
1552269
EA-C5
1
2
1552269
EA-C6
1
2
CH-T3
1
2
AT-C9
1552269
1
2
AT-C13
1552269
1552267
CV-C4
A
B
C
1552267
CV-C6
A
B
C
CV-T2
CV-T1
VV-T2
PP-T2
CJ-M7
1
2
CJ-C14
1552269
1
2
CJ-C28
1552269
2304011
CH-C5
1
2
1
2
CV-C1
1552269
1
5
CV-C3
2
9X1054
4
PP-T1
A
CH-C15
B
3E3370
C
CJ-T13
3E3364
CU-C1
1
2
WW-T1
CH-C13
1552267
A
B
C
1
2
X-C3
1552269
1552269
EA-C4
1
2
CV-M3
AT-C10
7X6222
1
2
3
4
9
8
7
6
5
10
15
14
13
11
12
16
17
22
21
20
19
18
23
24
3E3364
K-C14
1
K-C15
2
2370227
3
1
K-C11
2
2370227
3
1607689
CJ-C4
1
2
3
4
5
6
11
10
9
8
7
12
13
14
15
20
19
18
17
16
21
22
27
26
25
24
23
28
29
30
31
36
35
34
33
32
37
38
39
40
45
44
43
42
41
46
47
48
49
54
53
52
51
50
55
56
57
58
63
62
61
60
59
64
65
66
67
68
69
70
CJ-T17
1
2
CJ-C6
1552269
CJ-T10
1835784
CJ-C21
1
2
3
8
7
6
5
4
13
12
11
10
9
14
15
16
17
18
23
22
21
20
19
24
25
26
27
32
31
30
29
28
37
36
35
34
33
38
39
40
KC-T2
UU-T2
1
2
CJ-C36
1552272
3
4
A
CH-C9
B
1552267
C
1552269
EA-C3
1
2
1
2
CY-C1
3E3364
3E5179
CJ-C9
1
2
7
6
5
4
3
8
9
10
11
12
EA-C1
1552252
1
2
K-C2
1552269
1
2
CH-C2
3
1607689
4
5
6
11
10
9
8
7
12
13
14
15
20
19
18
17
16
21
22
27
26
25
24
23
28

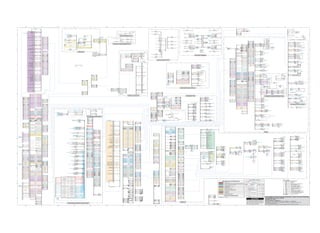

29
30
31
36
35
34
33
32
37
38
39
40
45
44
43
42
41
46
47
48
49
54
53
52
51
50
55
56
57
58
63
62
61
60
59
64
65
66
67
68
69
70
1539693
CX-C2
1539693
CX-C3
1539693
CX-C4
1539693
CX-C5
1539693
CX-C6
1539693
CX-C7
1130580
CJ-C1
1
2
3
8
7
6
5
4
13
12
11
10
9
14
15
16
17
18
23
22
21
20
19
24
29
28
27
26
25
34
33
32
31
30
35
36
37
38
39
40
1
CJ-C34
1886210
1275483
CH-C4
CH-T1 EC-T1 EC-T2
VV-T1
1
2
AT-C14
1552269
CH-C3
1552269
CH-C20
3E3364
1
2
CH-C7
1552269
1
2
CH-C19
1552269
1552269
AT-C5
1
2
1552269
AT-C4
1
2
1552269
AT-C2
1
2
1
2
1552269
AT-C6
1
2
1552269
AT-C7
1
2
1552269
AT-C8
CJ-C38
3E3364
1
2
CH-C10
1552269
CH-C11
3E3364
1
2
CJ-C12
1552252
7
6
5
4
3
8
9
10
11
12
CJ-C13
3E5179
3E5179
CV-C2
1
2
7
6
5
4
3
8
9
10
11
12
1552269
AG-C30
1
2
1552269
AG-C5
1
2
1552267
CH-C6
A
B
C
1552269
CH-C16
1
2
1
K-C1
2
2645732
3
J2
4
5
10
9
8
7
6
11
12
17
13
16
14
15
18
19
20
25
24
23
22
21
30
29
28
27
26
31
32
37
36
35
34
33
38
39
40
45
44
43
42
41
46
47
48
53
52
51
50
49
54
55
56
61
60
59
58
57
62
63
68
67
66
65
64
69
70
71
76
75
74
73
72
77
78
79
84
83
82
81
80
85
86
87
92
91
90
89
88
93
94
99
98
97
96
95
100
101
102
107
106
105
104
103
108
109
110
115
114
113
112
111
116
117
118
119
120
CH-C17
3E3364
1
2
1552264
K-C16
7
6
5
4
3
8
3E3388
X-C1
1
2
3
3E5179
K-C9
4
9
8
7
6
5
10
11
12
1552252
CX-C1
1
K-C12
2
2304013
3
A
K-C13
B
2370227
C
1552272
CJ-C18
1
2
3
4
CJ-C19
3E3376
CJ-T3
CJ-C43
3E3364
1
2
CJ-C42
1552269
1
2
GR-C1
3
3E3376
4
1552264
GR-C2
5
4
3
2
1
6
7
8
1552269
GR-C3
1
2
1552269
ET-C2
1
2
1
2
ET-C1
3E3364
1552269
AJ-C4
1
2
1552269
AJ-C2
1
2
1552269
FR-C2
1
2
1552269
FR-C3
1
2
1552273
CL-C2
1
2
3
4
5
6
1552273
CM-C2
1
2
3
4
5
6
1
2
AJ-C1
1552252
7
6
5
4
3
8
9
10
11
12
1
2
CL-C1
1552252
7
6
5
4
3
8
9
10
11
12
1
2
FR-C1
1552252
7
6
5
4
3
8
9
10
11
12
1
2
CM-C1
1552252
7
6
5
4
3
8
9
10
11
12
1552269
AG-C9
1
2
1552267
AG-C12
A
B
C
1
2
CP-C1
1552269
AG-C13
3E3364
A
AK-C7
B
1552267
C
1552269
AK-C2
1
2
1552269
AK-C1
1
2
1552269
AG-C16
1
2
1552269
AG-C8
1
2
1552269
AG-C31
1
2
1552269
AG-C3
1
2
1552269
AG-C24
1
2
3E6286
AG-C1
1552269
AG-C36
1
2
1552269
AG-C20
1
2
1552267
AM-C2
A
B
C
3E3370
AG-C7
A
B
C
1552269
AG-C4
1
2
1552269
AG-C32
1
2
1552269
AG-C34
1
2
1552269
AG-C2
1
2
AG-C26
3E5179
1
2
7
6
5
4
3
8
9
10
11
12
AG-C27
3E5179
1
2
7
6
5
4
3
8
9
10
11
12
AV-C1
1552252 1552269
AV-C2
1
2
AW-C1
1552252 1552269
AW-C2
1
2
1552267
AG-C11
A
B
C
AM-C1
3E3370
1552269
AP-C3
1
2
1552267
AP-C12
A
B
C
AP-C13
3E3364
1
2
1552269
AP-C33
1
2
1552269
AP-C34
1
2
1552269
AP-C18
1
2
1552269
AP-C20
1
2
1552269
AP-C26
1
2
1552269
AP-C27
1
2
1552269
AP-C11
1
2
1552269
AP-C32
1
2
1552269
AP-C31
1
2
1552269
AP-C29
1
2
1552269
AP-C7
1
2
AP-C36
3E3364
AP-C28
3E3364
AP-C35
3E3364
3E3376
AP-C8
1
2
3
4
AR-C1
1552272
3E3370
AR-C2
A
B
C
3E3370
AR-C3
A
B
C
AP-C45
3E3370
A
B
C
AP-C46
1552267
1552269
AP-C2
1
2
AP-C4
3E3364
AP-C5
1552269
1
2
AP-C38
3E3364
1552269
AP-C37
AP-C41
3E5179
1
2
7
6
5
4
3
8
9
10
11
12
AP-C43
3E5179
1
2
7
6
5
4
3
8
9
10
11
12
1
2
3
3E6286
AP-C1
8
7
6
5
4
13
12
11
10
9
14
15
16
17
18
23
22
21
20
19
24
25
26
27
32
31
30
29
28
37
36
35
34
33
38
39
40
AH-T2
1552273
AH-C1
1
2
3
4
5
6
1
2
AH-C2
1552269
AH-T1
A
CE-C2
B
1552267
C
1
2
CE-C4
1552269 3E3364
CE-C3
1
2
3E3370
CE-C1
A
B
C
A
X-C2
B
3E3370
C
A
CF-C2
B
1552267
C
1
2
CF-C4
1552269 3E3364
CF-C3
1
2
3E3370
CF-C1
A
B
C
1
2
CH-C12
1552269
1
2
CH-C21
2407874
1552269
CY-C2
1
2
1552269
CJ-C41
1
2
1552269
CP-C2
1
2
FF-T1 FF-T2
MM-T1 MM-T2
3198100
CH-C1
1
2
3
4
9
8
7
6
5
10
15
14
13
11
12
16
17
22
21
20
19
18
23
CJ-C10
3198101
CH-C22
3E3364
2012277
CH-C18
1
2
3
4
5
10
9
8
7
6
15
14
13
12
11
16
17
18
CJ-C5
2958961
1
2
TH-C3
1552269
3E3364
TH-C1
1
2
1
2
TH-C2
1552269
TH-T4
TH-T3
TH-T1
TH-T2
3E3364
KW-C4
1
2
1
2
KW-C5
1552269
CU-T1
CU-T2
A
CJ-C25
1552267
B
C
3E3370
KW-C1
A
B
C
KW-T1
AY-T2
KW-T2
AX-T2
AX-T1
1
5
2
3
KW-C3
4Y6136
4
1552269
AG-C38
1
2
1552269
AG-C40
1
2
AY-T1
175-CJ95RD-14
175-CJ95RD-14
175-CJ95RD-14
RELAY PANEL
J808-AT24BK-18
J808-AT24BK-18
J807-AT23BK-18
J807-AT23BK-18
J807-AT26BK-18
J807-AT26BK-18
TRANSMISSION
SHOWN WITH
BRAKE ON
SHOWN WITH
BRAKE OFF
605-CJ57YL-18
605-CJ57YL-18
605-CJ66YL-18
605-CJ66YL-18
605-CJ66YL-18
606-CJ58GY-18
606-CJ58GY-18
606-CJ69GY-18
606-CJ69GY-18
614-CJ60PU-18
614-CJ60PU-18
614-CJ70PU-18
614-CJ70PU-18
614-CJ70PU-18
617-CJ61BR-18
617-CJ61BR-18
617-CJ72BR-18
617-CJ72BR-18
617-CJ72BR-18
606-CJ69GY-18
138-CJ22GN-18
138-CJ22GN-18 138-CJ22GN-18
138-CJ22GN-18
106-CJ20WH-18
106-CJ20WH-18
106-CJ20WH-18
106-CJ20WH-18
N939-CJ47GN-18
N939-CJ47GN-18
N939-CJ47GN-18
322-CJ25GY-18
322-CJ25GY-18
322-CJ25 GY-18
322-CJ25GY-18
C529-CJ28GY-18
C529-CJ28GY-18
C529-CJ28GY-18
C529-CJ28GY-18
C530-CJ29BU-18
C530-CJ29BU-18
C530-CJ29BU-18
C530-CJ29BU-18
619-CJ3GN-14
619-CJ3GN-14
619-CJ3GN-14
619-CJ3GN-14
H713-CJ37PK-18
H713-CJ37PK-18
H713-CJ37PK-18
H713-CJ37PK-18
H714-CJ38OR-18
H714-CJ38OR-18
H714-CJ38OR-18
H714-CJ38OR-18
H717-CJ46BR-18
H717-CJ46BR-18
H717-CJ46BR-18
H717-CJ46BR-18
E919-CJ31YL-18
E919-CJ31YL-18
E919-CJ31YL-18
E919-CJ31YL-18
E920-CJ32BR-18
E920-CJ32BR-18
E920-CJ32BR-18
E920-CJ32BR-18
E921-CJ33PK-18
E921-CJ33PK-18
E921-CJ33PK-18
E921-CJ33PK-18
E922-CJ34GN-18
E922-CJ34GN-18
E922-CJ34GN-18
E922-CJ34GN-18
976-CJ27OR-18
976-CJ27OR-18
976-CJ27OR-18
611-CJ2PU-14
611-CJ2PU-14
611-CJ2PU-14
611-CJ2PU-14
CBL-EE1 RD-00 CBL-GG1 BK-00-SGX CBL-HH1 BK-00-SGX
CBL-KK2BK-00-SGX
CBL-KK1RD-00-SGX
TIMING CAL
PROBE
A982-CH10BR-18
A982-CH10BR-18
A982-CH10BR-18
944-CH7OR-18
944-CH7OR-18
944-CH7OR-18
945-CH8BR-18
945-CH8BR-18
945-CH8BR-18
150-CH6OR-18
150-CH6OR-18
150-CH6OR-18
A307-CH9GY-18
A307-CH9GY-18
A307-CH9GY-18
H795-CH49PK-18
110-CH36RD-14
110-CH36RD-14
110-CH34RD-14
110-CH34RD-14
110-CH33RD-14
110-CH33RD-14
229-CH32BK-14
229-CH31BK-14
229-CH30BK-14
G828-K92WH-18
G829-K93GN-18
G833-K47 PK-18
R747-K6GY-18
R747-K6GY-18
G827-K43BU-18
G827-K43BU-18
G829-K41GN-18
G829-K41GN-18
G829-K42GN-18
G826-K38BR-18
G828-K39WH-18
G828-K39WH-18
G828-K40WH-18
G833-K45PK-18
G833-K45PK-18
G833-K44PK-18
G833-K44PK-18
G856-K22WH-18
G856-K22WH-18
T858-K85GY-18
T858-K85GY-18
E964-K26WH-18
E964-K26WH-18
994-K10GY-18
994-K10GY-18
995-K12BU-18
995-K12BU-18
G857-K30 YL-18
G857-K30YL-18
E963-K27BK-18
E963-K27BK-18
R746-K20PK-18
R746-K20PK-18
E966-K49 YL-18
E966-K49YL-18
E965-K48BU-18
E965-K48BU-18
T961-K28GN-18
T961-K28GN-18
T962-K29WH-18
T957-K16PU-18
T958-K17YL-18
T959-K18BR-18
T959-K18BR-18
T960-K19BU-18
T960-K19BU-18
T860-K89 OR-18
T859-K87WH-18
G485-CJ35BU-18
G485-CJ35BU-18
G485-CJ35BU-18
G485-CJ35BU-18
426-CJ63BR-18
426-CJ63BR-18
426-CJ63BR-18
114-CJ21RD-18
114-CJ21RD-18
114-CJ21RD-18
114-CJ21RD-18
J815-CJ45BK-14
J815-CJ45BK-14
J815-CJ45BK-14
CBL-WW1
RD-00-SGX
CBL-CC1
RD-00-SGX
CBL-JJ
BK-00-SGX
304-CJ96WH-8
102-CJ48RD-14
102-CJ48RD-14
102-CJ48RD-14
102-CJ48RD-14
102-CJ48RD-14
174-CJ4RD-10
174-CJ4RD-10
174-CJ4RD-10
174-CJ4RD-10
174-CJ4RD-10
308-CJ52YL-18
308-CJ52YL-18
308-CJ52YL-18
308-CJ52YL-18
200-CJ88BK-18
200-CJ88BK-18
200-CJ88BK-18
306-CJ51GN-18
306-CJ51GN-18
306-CJ51GN-18
306-CJ51GN-18
P990-CJ75BR-18
P990-CJ75BR-18
112-CJ1PU-4
112-CJ1PU-4
112-CJ1PU-4
112-CJ1PU-4
112-CJ1PU-4
200-CJ89BK-14
200-CJ89BK-14
200-EA13BK-18
200-EA14BK-18
200-CJ92BK-14
200-CJ92BK-14
200-CJ91BK-14
200-CJ91BK-14
200-CJ91BK-14
H718-CJ19GY-18
H718-CJ19GY-18
H718-CJ19GY-18
H718-CJ19GY-18
202-CJ64BK-18
202-CJ64BK-18
202-CJ6BK-18
202-CJ6BK-18
419-CJ7YL-18
419-CJ7YL-18
419-CJ7YL-18
432-CJ8PK-18
432-CJ8PK-18
432-CJ8PK-18
442-CJ9GY-18
442-CJ9GY-18
442-CJ9GY-18
442-CJ9GY-18
442-CJ9GY-18
E455-CJ14BR-18
E455-CJ14BR-18
E455-CJ14BR-18
E455-CJ14BR-18
G764-CJ15PK-18
G764-CJ15PK-18
G764-CJ15PK-18
398-CJ103BU-14
398-CJ103BU-14
397-CJ104OR-14
397-CJ104OR-14
110-CH26RD-14
521-CH4YL-14
521-CH4 YL-14
521-CH4YL-14
521-CH4YL-14
522-CH5WH-14
522-CH5WH-14
522-CH5WH-14
522-CH5WH-14
326-CH1RD-16
326-CH1RD-16
326-CH1RD-16
326-CH1RD-16
A701-CX1GY-16
A701-CX1GY-16
A702-CX3PU-16
A702-CX3PU-16
A703-CX5BR-16
A703-CX5BR-16
A704-CX7GN-16
A704-CX7GN-16
A705-CX9BU-16
A705-CX9BU-16
A706-CX11GY-16
A706-CX11GY-16
L983-CX4WH-16
L984-CX6OR-16
L984-CX8OR-16
L985-CX12YL-16
ENGINE INJECTOR HARNESS
H746-CH37YL-18
H746-CH37YL-18
H747-CH35BR-18
H747-CH35BR-18
H747-CH35BR-18
H746-CH37YL-18
J808-AT25BK-18
J808-AT25BK-18
J809-AT21BK-18
J809-AT21BK-18
J807-AT22BK-18
J807-AT22BK-18
202-CJ64BK-18
202-CJ65BK-18
202-CJ65BK-18
202-CJ65BK-18
202-CJ30BK-18
202-CJ30BK-18
202-CJ30BK-18
417-CJ43GY-18
417-CJ43GY-18
417-CJ43GY-18
484-CJ16YL-18
484-CJ16YL-18
484-CJ16YL-18
416-CJ17OR-18
416-CJ17OR-18
416-CJ17OR-18
453-CJ18PK-18
453-CJ18PK-18
453-CJ18PK-18
605-CJ67YL-18
605-CJ67YL-18
200-CJ112BK-18
200-CJ113BK-18
606-CJ68GY-18
606-CJ68GY-18
200-CJ112BK-18
200-CJ109BK-18
200-CJ109BK-18
200-CJ54BK-18
321-CJ55BR-18
P990-CJ74BR-18
605-CJ67YL-18
606-CJ68GY-18
P990-CJ74BR-18
200-CJ113BK-18
200-CJ54BK-18
321-CJ55BR-18
604-CJ56OR-18
604-CJ56OR-18
604-CJ56OR-18
617-CJ73BR-18
617-CJ73BR-18
604-CJ115OR-18
604-CJ115OR-18
604-CJ115OR-18
604-CJ114OR-18
604-CJ114OR-18
604-CJ114OR-18
200-CJ110BK-16
200-CJ110BK-16
X919-CH19 WH-18
X919-CH19WH-18
X918-CH18PU-18
X918-CH18PU-18
136-CV3GN-18
136-CV3GN-18
200-CV7BK-18
200-CV7BK-18
727-CV1
GN-18
727-CV10GN-18
727-CV9GN-12
727-CV10GN-18
200-CV6BK-18
728-CV5BU-16
728-CV5 BU-16
CBL-PP1 BK-00
CBL-CC1RD-00-SGX
136-CJ53GN-18
136-CJ53GN-18
136-CJ53GN-18
728-CJ39BU-18
728-CJ39BU-18
728-CJ39BU-18
SECONDARY STEERING ATTACHMENT
CBL-RR1
BK-00
175-CJ95RD-14
L985-CX10YL-16
727-CV2GN-18
727-CV2GN-18
727-CJ40GN-18
727-CJ40GN-18
727-CJ40GN-18
727-CJ40GN-18
430-CH13BU-18
430-CH13BU-18
430-CH13BU-18
G850-CH63BU-18
G850-CH63BU-18
G850-CH63BU-18
J843-CH42BK-18
J843-CH42BK-18
J844-CH39GY-18
J844-CH39GY-18
F713-CH43OR-18
F713-CH43OR-18
F713-CH43OR-18
J844-CH39GY-18
AUXILLARY START RECEPTACLE
A893-CH14OR-16
A893-CH14OR-16
CONNECTS TO C-C2
ON THE CAB SCHEMATIC
CONNECTS TO C-C1
ON THE CAB SCHEMATIC
CONNECTS TO C-C35
ON THE CAB SCHEMATIC
617-CJ73BR-18
605-CJ67YL-18
605-CJ67YL-18
617-CJ73BR-18
606-CJ68GY-18
606-CJ68GY-18
200-CV6BK-18
426-CJ63BR-18
200-CJ54BK-18
200-CJ109BK-18
200-CJ110BK-16
200-CJ113BK-18
200-CJ112BK-18
200-CJ113BK-18
200-CJ112BK-18
200-CJ109BK-18
200-CJ110BK-16
200-CJ54BK-18
397-CJ104OR-14
398-CJ103BU-14
200-CJ89BK-14
200-CJ89BK-14
397-CJ104OR-14
398-CJ103BU-14
304-CJ96WH-8
306-CJ51GN-18
102-CJ48RD-14
200-CJ88BK-18
174-CJ4RD-10
308-CJ52YL-18
112-CJ1PU-4
P990-CJ75BR-18
P990-CJ75BR-18
P976-CJ10BR-18
P976-CJ10BR-18
P976-CJ10BR-18
728-CJ39BU-18
N939-CJ47GN-18
976-CJ27OR-18
G764-CJ15 PK-18
306-CJ51GN-18
484-CJ16YL-18
417-CJ43GY-18
416-CJ17OR-18
321-CJ55BR-18
453-CJ18PK-18
J764-AT1BR-18
J764-AT1BR-18
E906-AT6OR-18
E906-AT6OR-18
755-AT12OR-18
751-AT3GN-18
E901-AT9GN-18
E901-AT9GN-18
752-AT4YL-18
E900-AT5WH-18
E900-AT5WH-18
E909-AT11WH-18
E909-AT11WH-18
901-AT14WH-18
901-AT14WH-18
J808-AT15BK-18
J808-AT15BK-18
E908-AT7BR-18
E908-AT7BR-18
754-AT8BU-18
754-AT8BU-18
900-AT13PU-18
E907-AT10GY-18
E907-AT10GY-18
K977-AT16PK-18
K977-AT16PK-18
419-CJ7YL-18
987-CJ119WH-18
987-CJ119WH-18
987-CJ119WH-18
987-CJ119WH-18
IDENT PART NUMBER CHG LOC NOTE DESCRIPTION
AM 271-4011 04 L-3 STD TILT JUMPER
AK 271-4027 03 F-2 ATCH QUICK COUPLER
AJ 271-4029 03 K-1 ATCH LH FRONT ROADING FLOODS
AH 344-7241 00 L-15 ATCH WASTE GUARD
AG 354-2733 00 K-4 STD FRONT FRAME
X 260-4861 02 D-16 STD FUEL JUMPER
K 322-2733 01 E-15 STD ENGINE
CE 271-4035 00 I-18 ATCH LH HOOD TURN SIGNAL
AW 271-4017 02 J-3 STD LH FRONT FLOODS
AV 271-4017 02 J-3 STD RH FRONT FLOODS
AT 324-0685 02 I-10 STD TRANSMISSION
AR 218-3791 03 G-1 STD BUCKET/FORK JUMPER (IT62H)
AP 265-4407 03 F-4 STD FRONT FRAME (IT62H)
AM 275-0025 05 L-3 ATCH TILT JUMPER (HIGH LIFT)
CU 271-9448 00 I-17 ATCH LICENSE PLATE LAMP
CP 247-8475 03 K-2 STD FRONT AXLE TEMP MONITORING
CM 271-4039 02 I-1 STD RH FRONT ROADING FLOODS
CL 271-4038 02 K-1 STD LH FRONT ROADING FLOODS
CJ 354-2734 00 F-7 STD MAIN CHASSIS
CH 324-0695 01 C-14 STD ENGINE APPLICATION
CF 271-4036 00 C-18 ATCH RH HOOD TURN SIGNAL
CV 324-0676 01 K-10 ATCH SECONDARY STEERING
KW 284-5693 00 H-17 ATCH BACKUP LAMPS
GR 281-8742 00 B-8 ATCH GROENEVELD AUTOLUBE
FR 271-4030 02 J-1 ATCH RH FRONT ROADING FLOODS
ET 324-0677 01 E-10 ATCH ETHER AID JUMPER
EA 324-0691 01 C-7 STD HYDRAULIC TANK
CY 247-8474 01 A-12 STD REAR AXLE TEMP MONITORING
CX 222-5917 06 F-17 STD FUEL INJECTOR
AY 284-5702 00 H-18 ATCH BACKUP LAMP GROUND
AX 284-5702 00 H-18 ATCH BACKUP LAMP GROUND
CABLE AND WIRE ASSEMBLIES
TH 306-5352 00 B-17 ATCH VARIABLE PITCH FAN
JJ 324-0684 00 K-12 STD STARTER TO FRAME GROUND
HH 324-0681 00 L-12 STD DISCONNECT SWITCH TO FRAME
GG 324-0680 02 L-13 STD BATTERY- TO DISCONNECT SWITCH
FF 324-0693 01 I-15 STD START RELAY POWER
EE 8V-0622 00 L-13 STD BATTERY+ TO BATTERY-
EC 229-8851 02 G-13 STD AIR INLET HEATER
CC 324-0683 00 K-12 STD JUNCTION BLOCK TO STARTER
GROUND
UU 324-0701 00 K-12 STD ALTERNATOR TO BREAKER
RR 8Y-9603 01 K-12 STD STARTER TO ENGINE GROUND
PP 297-7294 00 J-10 ATCH SECONDARY STEERING TO FRAME
MM 324-0694 00 I-15 STD MAIN RELAY POWER
KK 290-6516 03 L-13 STD JUMPSTART RECEPTACLE
KC 247-4389 01 J-12 STD ALTERNATOR GROUND
VV 324-0675 02 J-10 ATCH SECONDARY STEERING POWER
GROUND
WW 324-0682 02 L-14 STD BATTERY TO JUNCTION BLOCK
200-CJ91BK-14
200-CJ91BK-14
200-CJ92BK-14
200-CJ92BK-14
200-CJ92BK-14
321-CJ55BR-18
617-CJ73BR-18
321-CJ55BR-18
605-CJ67YL-18
606-CJ68GY-18
P990-CJ74BR-18
604-CJ56OR-18
617-CJ73BR-18
398-CJ103BU-14
397-CJ104OR-14
321-CJ55BR-18
605-CJ67YL-18
606-CJ68GY-18
P990-CJ74BR-18
604-CJ56OR-18
617-CJ73BR-18
200-CJ109BK-18
200-CJ110BK-16
200-CJ54BK-18
200-CJ112BK-18
200-CJ113BK-18
200-CJ113BK-18
200-CJ109BK-18
200-CJ110BK-16
200-CJ54BK-18
200-CJ112BK-18
604-CJ56 OR-18
752-AT4YL-18
751-AT3GN-18
755-AT12OR-18
CONNECTS TO C-C26
ON THE CAB SCHEMATIC
751-AT3GN-18
752-AT4YL-18
754-AT8BU-18
755-AT12OR-18
901-AT14WH-18
900-AT13PU-18
900-AT13PU-18
321-CJ55BR-18
P990-CJ74BR-18
G486-CJ23GN-18
G486-CJ23GN-18
G486-CJ23GN-18
G486-CJ23GN-18
450-CH17YL-18
450-CH17YL-18
450-CH17YL-18
200-CH22BK-16
200-CH22BK-16
200-CH22BK-16
201-CJ41BK-18
201-CJ41BK-18
201-CJ26BK-18
201-CJ26BK-18
201-CJ26BK-18
201-CJ26BK-18
201-CJ78BK-18
201-CJ78BK-18
201-CJ78BK-18
201-CJ82BK-18
201-CJ82BK-18
H795-CH49PK-18
201-CJ83BK-18
201-CJ83BK-18
201-CJ83BK-18
201-CJ83BK-18
201-CJ83BK-18
614-CJ86PU-18
614-CJ86PU-18
614-CJ86PU-18
614-CJ86PU-18
614-CJ86 PU-18
614-CJ86PU-18
614-CJ86PU-18
403-CH58GN-18
403-CH58GN-18
403-CH58GN-18
T859-K88WH-18
T859-K88WH-18
T860-K90OR-18
T860-K90OR-18
321-CJ55BR-18
P990-CJ74BR-18
VALVE
IAP CONT
CBL-JJBK-00-SGX
P976-CJ10BR-18
201-CJ120BK-18
201-CJ120BK-18
201-CJ120BK-18
201-CJ120BK-18
306-CJ42GN-18
306-CJ71GN-18
200-CJ36 BK-18
200-CJ36BK-18
200-CJ36BK-18
200-CJ36BK-18
X919-CH19WH-18
X918-CH18PU-18
200-CH22BK-16
110-CH26RD-14
200-CJ87BK-18
200-CJ87BK-18
CBL-KC1 BK-2
CBL-UU1 RD-2
X919-CJ118WH-18
X919-CJ118WH-18
X919-CJ118WH-18
X919-CJ118WH-18
X919-CJ118WH-18
X918-CJ116PU-18
X918-CJ116PU-18
X918-CJ116PU-18
X918-CJ116PU-18
X918-CJ116PU-18
H795-CJ117PK-18
H795-CJ117PK-18
H795-CJ117PK-18
199-CJ127RD-16
199-CJ127RD-16
199-CJ127RD-16
199-CJ127RD-16
199-CJ127RD-16
199-CJ127RD-16
199-CJ127RD-16
A301-CJ126WH-16
A301-CJ126WH-16
A301-CJ126WH-16
A300-CJ128GN-16
A300-CJ128GN-16
A300-CJ128GN-16
A300-CJ128GN-16
A300-CJ128GN-16
A301-CJ126WH-16
A301-CJ126WH-16
X919-CJ118WH-18
X918-CJ116PU-18
H795-CJ117PK-18
200-CJ87BK-18
403-CH58GN-18
304-CJ96WH-8
201-CJ11BK-18
201-CJ11BK-18
201-CJ11BK-18
326-CJ44PU-18
326-CJ44PU-18
326-CJ44PU-18
326-CJ44PU-18
403-CJ50GN-18
403-CJ50GN-18
403-CJ50GN-18
403-CJ50GN-18
430-CJ59BU-18
430-CJ59BU-18
430-CJ59BU-18
430-CJ59BU-18
430-CJ59BU-18
443-CJ90YL-18
443-CJ90YL-18
443-CJ90YL-18
443-CJ90YL-18
443-CJ90YL-18
450-CJ93YL-18
450-CJ93YL-18
450-CJ93YL-18
450-CJ93YL-18
450-CJ93YL-18
521-CJ94YL-18
521-CJ94YL-18
521-CJ94YL-18
521-CJ94YL-18
521-CJ94YL-18
522-CJ97WH-18
522-CJ97WH-18
522-CJ97WH-18
522-CJ97WH-18
522-CJ97WH-18
944-CJ98OR-18
944-CJ98OR-18
944-CJ98OR-18
944-CJ98OR-18
945-CJ100BR-18
945-CJ100BR-18
945-CJ100BR-18
945-CJ100BR-18
A307-CJ101GY-18
A307-CJ101GY-18
A307-CJ101GY-18
A307-CJ101GY-18
A307-CJ101GY-18
G850-CJ108BU-18 G850-CJ108BU-18
G850-CJ108BU-18
G850-CJ108BU-18
G850-CJ108BU-18
A982-CJ111BR-18
A982-CJ111BR-18
A982-CJ111BR-18
A982-CJ111BR-18
A982-CJ111BR-18
Y794-CJ129OR-18
Y794-CJ129OR-18
Y794-CJ129OR-18
Y794-CJ129OR-18
Y794-CJ129OR-18
Y795-CJ130 GN-18
Y795-CJ130GN-18
Y795-CJ130GN-18
Y795-CJ130GN-18
Y795-CJ130GN-18
Y795-CH51GN-18
Y795-CH51GN-18
Y794-CH50OR-18
Y794-CH50OR-18
Y795-CH29GN-18
Y795-CH29GN-18
Y794-CH28OR-18
Y794-CH28OR-18
Y795-CH53 GN-18
Y795-CH53GN-18
Y794-CH52 OR-18
Y794-CH52OR-18
201-CH23BK-18
443-CH2YL-18
201-CH23BK-18
443-CH2YL-18
443-CH2YL-18
201-CH23BK-18
P945-CJ131OR-18
P945-CJ131OR-18
P945-CJ131OR-18
P945-CJ131OR-18
P946-CJ132BR-18
P946-CJ132BR-18
P946-CJ132BR-18
P946-CJ132BR-18
H795-CJ117PK-18
H795-CJ117PK-18
H795-CJ143PK-18
H795-CJ143PK-18
H795-CJ143PK-18
H795-CJ143PK-18
H795-CJ144PK-18
H795-CJ144PK-18
447-CJ145PK-18
447-CJ145PK-18
447-CJ145PK-18
447-CJ145PK-18
447-CJ145PK-18
447-CJ145PK-18
201-CH11 BK-18
201-CH11BK-18
201-CH11BK-18
201-CH11 BK-18
432-CH15PK-18
432-CH15PK-18
432-CH15PK-18
432-CH15 PK-18
432-CJ8PK-18
201-CJ82BK-18
201-CJ82BK-18
432-CJ8PK-18
229-CH32BK-14
229-CH31BK-14
229-CH30BK-14
229-CJ155BK-14
229-CJ155BK-14
229-CJ155BK-14
101-CJ106RD-2-SGX
229-CH16BK-14
229-CH16BK-14
201-CJ150BK-18
201-CJ150BK-18
G486-CY1GN-18
201-CY2BK-18
403-CJ50GN-18
945-CJ100BR-18
944-CJ98OR-18
J807-AT17BK-18 J807-AT17BK-18
J809-AT21BK-18
P990-CJ75BR-18
C216-CJ24BK-18
C216-CJ24BK-18
C216-CJ24BK-18
C216-CJ24BK-18
K927-CJ62BU-18
K927-CJ62BU-18
K927-CJ62BU-18
K927-CJ62BU-18
J814-CJ77BK-14
J814-CJ77BK-14
J814-CJ77BK-14
J814-CJ77BK-14
J813-CJ80BK-14
J813-CJ80BK-14
J813-CJ80BK-14
J813-CJ80BK-14
P990-CJ74BR-18
201-CJ150BK-18
110-CJ99RD-14
110-CJ99RD-14
110-CJ99RD-14
110-CJ99RD-14
150-CJ85OR-18
150-CJ85OR-18
150-CJ85OR-18
150-CJ85OR-18
150-CJ85OR-18
T958-K17YL-18
T962-K29WH-18
T858-K86GY-18
P990-CJ102BR-18
P990-CJ102BR-18
202-EA1BK-18
419-EA2YL-18
G764-EA3PK-18
E455-EA4BR-18
201-EA5BK-18
426-EA7BR-18
201-EA11BK-18
201-EA12BK-18
506-EA8PU-18
200-EA9BK-18
507-EA10WH-18
506-CJ12PU-18
506-CJ12PU-18
506-CJ12PU-18
506-CJ12PU-18
507-CJ13WH-18
507-CJ13WH-18
507-CJ13WH-18
507-CJ13WH-18
200-CJ5BK-18
200-CJ5BK-18
200-CJ5BK-18
200-CJ5BK-18
200-CJ5BK-18
200-CJ54BK-18
200-CJ113 BK-18
200-CJ112BK-18
200-CJ109BK-18
229-CJ155BK-14
200-CJ87BK-18
200-CJ89BK-14
200-CJ88BK-18
200-CJ36BK-18
200-CJ110BK-16
200-CJ5BK-18
200-CJ91BK-14
200-CJ92BK-14
995-K12BU-18
T957-K16PU-18
T959-K18BR-18
R746-K20PK-18
T859-K87WH-18
T860-K89OR-18
E964-K26WH-18
E963-K27BK-18
T961-K28GN-18
E966-K49YL-18
G857-K30YL-18
G856-K22WH-18
G833-K47PK-18
R747-K6GY-18
G829-K93GN-18
G828-K92WH-18
T858-K86GY-18
994-K10GY-18
T957-K16PU-18
T958-K17YL-18
T960-K19BU-18
T962-K29WH-18
E965-K48BU-18
G829-K42GN-18
G826-K38BR-18
G828-K40WH-18
L983-CX2WH-16
200-CJ91BK-14
200-CJ92BK-14
200-CJ91BK-14
200-CJ92BK-14
J843-CH42BK-18
106-CH40RD-4
106-CH40 RD-4
106-CH40RD-4
443-CH2YL-18 201-CH23BK-18
106-CH40RD-4
103-CJ79RD-4
103-CJ79RD-4
103-CJ79RD-4
133-EC1OR-2
103-CJ79RD-4
103-CJ79RD-4
101-CJ106RD-2-SGX
CBL-VV RD-00
CBL-VVRD-00
513-CH20OR-14
513-CH21 OR-14
513-CH24OR-14
522-CH25WH-14
522-CH27WH-14
P739-CH44BU-16
P739-CH44BU-16
P739-CH44BU-16
P739-CH44BU-16
200-CH45BK-16
200-CH45BK-16
200-CH45BK-16
P793-CJ158BU-18
P793-CJ158BU-18
P793-CJ158BU-18
P793-CJ158BU-18
P793-CJ158BU-18
200-CH45BK-16
614-CJ81PU-16
614-CJ81PU-16
614-CJ81PU-16
614-CJ81PU-16
614-CJ81PU-16
614-CJ81PU-16
614-CJ81PU-16
H795-CH49PK-18
202-CV8BK-18
202-CV8BK-18
417-CV11GY-18
417-CV11GY-18
484-CV12YL-18
484-CV12YL-18
202-CV13BK-18
202-CV13BK-18
453-CV14PK-18
453-CV14PK-18
416-CV15OR-18
416-CV15OR-18
202-EA1BK-18
419-EA2YL-18
G764-EA3PK-18
E455-EA4BR-18
426-EA7BR-18
506-EA8PU-18
507-EA10WH-18
201-EA5BK-18
200-EA9BK-18
201-EA11BK-18
E455-EA4BR-18
G764-EA3PK-18
419-EA2YL-18
202-EA1BK-18
426-EA7BR-18
201-EA12BK-18
506-EA8PU-18
200-EA13BK-18
507-EA10WH-18
200-EA14BK-18
CBL-UU1 RD-2
101-CJ106RD-2-SGX
150-CH6OR-18
430-CH13BU-18
450-CH17YL-18
944-CH7OR-18
945-CH8BR-18
A307-CH9GY-18
A982-CH10BR-18
G850-CH63BU-18
H795-CH49PK-18
X918-CH18PU-18
X919-CH19WH-18
229-CH16BK-14
110-CH26RD-14
Y795-CH51GN-18
Y794-CH50OR-18
200-CH45BK-16
P739-CH44BU-16
106-CH40RD-4
443-CH2YL-18
522-CH5WH-14
521-CH4YL-14
432-CH15PK-18
403-CH58GN-18
326-CH1RD-16
201-CH11BK-18
200-CH22BK-16
522-CH5WH-14
521-CH4YL-14
326-CH1RD-16
200-CH22BK-16
201-CH11BK-18
H746-CH37YL-18
H747-CH35BR-18
432-CH15PK-18
201-CH23BK-18
Y794-CH52 OR-18
Y795-CH53GN-18
J843-CH42BK-18
J844-CH39GY-18
F713-CH43OR-18
443-CH2YL-18
201-CH23BK-18
106-CH40RD-4
P739-CH44BU-16
200-CH45BK-16
403-CH58GN-18
E748-CH48BK-18
964-CJ148BU-18
964-CJ148BU-18
964-CJ148BU-18
964-CJ148BU-18
H703-CJ122YL-18
H703-CJ122YL-18
H703-CJ122YL-18
H703-CJ122YL-18
H703-CJ122YL-18
H702-CJ123PU-18
H702-CJ123PU-18
H702-CJ123PU-18
H702-CJ123PU-18
H702-CJ123 PU-18
H702-CH64PU-18
H702-CH64PU-18
H702-CH64PU-18
H702-CH64PU-18
H703-CH65YL-18
H703-CH65YL-18
H703-CH65YL-18
H703-CH65YL-18
200-CJ141BK-18
200-CJ141BK-18
200-CJ141BK-18
200-CJ141BK-18
J815-CJ45BK-14
L983-CX2WH-16
L983-CX4WH-16
L984-CX6OR-16
L984-CX8OR-16
L985-CX10YL-16
L985-CX12YL-16
C987-K99RD-18
C987-K99RD-18
C987-K99RD-18
G850-K98BU-18
G850-K98BU-18
G850-K98BU-18
G854-K100PK-18
G854-K100PK-18
G854-K100PK-18
G855-K91PU-18
G855-K91PU-18
G855-K91PU-18
C967-K15BU-18
C967-K15BU-18
C967-K15BU-18
A751-K13YL-18
A751-K13YL-18
A751-K13 YL-18
G833-K46PK-18
G833-K46 PK-18
T725-K32WH-18
T725-K32WH-18
T725-K32WH-18
N707-K31PU-18
N707-K31PU-18
N707-K31PU-18
G826-K35BR-18
G826-K35 BR-18
G827-K36BU-18
G827-K36 BU-18
C991-K33PK-18
C991-K33PK-18
C991-K33 PK-18
T858-K23GY-18
T858-K23GY-18
T859-K37WH-18
T859-K37WH-18
T860-K34OR-18
T860-K34OR-18
G826-K1BR-18
G826-K1BR-18
G827-K2BU-18
G827-K2BU-18
G849-K96BR-18
G849-K96BR-18
G849-K96BR-18
G828-K95WH-18
G828-K95WH-18
G829-K94GN-18
G829-K94GN-18
439-CJ153YL-18
439-CJ153YL-18
439-CJ153YL-18
439-CJ153YL-18
147-CJ151RD-18
147-CJ151RD-18
147-CJ151RD-18
147-CJ151RD-18
200-CJ152BK-18
200-CJ152BK-18
200-CJ152BK-18
200-CJ152BK-18
200-CJ152BK-18
136-CJ125GN-18
136-CJ125GN-18
136-CJ124GN-18
136-CJ124GN-18
136-CJ124GN-18
200-CJ156BK-14
200-CJ157 BK-14
G486-CJ23GN-18
E748-CH48BK-18
E748-CH48BK-18
H704-CJ160PK-18
H704-CJ160PK-18
H704-CJ160PK-18
H704-CJ160PK-18
H704-CJ160PK-18
H704-CJ160PK-18
H704-CJ160PK-18
H704-CJ160PK-18
H704-CH59PK-18
H704-CH59PK-18
H704-CH59PK-18
H704-CH59PK-18
GROENEVELD AUTOLUBE
136-GR1 GN-18
200-GR4 BK-18
439-GR5 YL-18
136-GR2GN-18
136-GR3GN-18
124-GR6GN-18
103-GR7YL-16
F762-CH60GY-18
F762-CH60GY-18
F762-CH60GY-18
F762-CH60 GY-18
E748-CH61BK-18
E748-CH61BK-18
E748-CH62BK-18
E748-CH62BK-18
E748-CH62 BK-18
F762-ET1GY-18
E748-ET2BK-18
136-CV17GN-12
136-CV18GN-16
136-CV17GN-12
728-CV5BU-16
136-CV18GN-16
727-CV9GN-12
200-CL2BK-14
605-CL3YL-16
606-CM3GY-16
619-CL1GN-14
619-CM1GN-14
200-CM2BK-14
606-CM3GY-16
200-CM2BK-14
619-CM1GN-14
605-CL3YL-16
619-CL1GN-14
200-CL2BK-14
RH HI/LO POS TURN TOWER
611-CL4PU-14 611-CL4PU-14
617-CL5BR-16
617-CL5BR-16
611-CM4PU-14
611-CM4PU-14
614-CM5PU-16 614-CM5PU-16
619-AJ1GN-14
200-AJ2BK-14
605-AJ3YL-16
200-AJ4BK-16
619-FR1GN-14
200-FR2BK-14
606-FR3GY-16
200-FR4BK-16
RH FLOOD/TURN SIG TOWER
LH HI/LO POS TURN TOWER
LH FLOOD/TURN SIG TOWER
INTO AG-C26
WHEN USED PLUG
INTO AG-C26
WHEN USED PLUG
INTO AG-C27
WHEN USED PLUG
INTO AG-C27
WHEN USED PLUG
J813-AG57BK-18
J813-AG43 BK-18
J814-AG61BK-18
J814-AG61 BK-18
J813-AG59BK-18
J813-AG58BK-18
J813-AG58BK-18
106-AG5WH-18
106-AG5WH-18
106-AG7WH-18
106-AG7WH-18
106-AG6WH-18
106-AG6WH-18
200-AG9BK-14
200-AG9BK-14
200-AG11BK-16
200-AG11 BK-16
200-AG12BK-14
200-AG12BK-14
200-AG14BK-14
200-AG14 BK-14
200-AG13 BK-14
200-AG13BK-14
C216-AG17BK-18
619-AG27GN-14
619-AG27GN-14 619-AG28GN-14
619-AG28GN-14
619-AG29GN-14
619-AG29GN-14
138-AG4GN-18
C529-AG23GY-18
C529-AG23 GY-18
C530-AG47BU-18
C530-AG47BU-18
C530-AG47BU-18
605-AG25 YL-16
605-AG25YL-16
605-AG25YL-16
606-AG20GY-16
606-AG20GY-16
H713-AG30PK-18
H713-AG30 PK-18
H714-AG31OR-18
H714-AG31 OR-18
E919-AG35YL-18
E919-AG35 YL-18
E921-AG37PK-18
E921-AG37 PK-18
E922-AG38GN-18
E922-AG38 GN-18
N939-AG8GN-18
N939-AG8GN-18
N939-AG8GN-18
976-AG42OR-18
976-AG42OR-18
G485-AG24BU-18
G485-AG24BU-18
G485-AG24BU-18
H718-AG45GY-18
H718-AG45GY-18
H718-AG45GY-18
200-AG10 BK-16
200-AG10 BK-16
G485-CP1BU-18
201-CP2BK-18
C216-AG18BK-18
C216-AG18BK-18
200-AG79BK-16
200-AG79BK-16
P976-AG78BR-16
P976-AG78BR-16
987-AG67WH-16
987-AG67WH-16
987-AG67WH-16
201-AG44BK-18
201-AG44BK-18
201-AG44BK-18
C216-AG17BK-18
611-AG62PU-14
611-AG62PU-14 611-AG64PU-14
611-AG64 PU-14
611-AG63PU-14
611-AG63 PU-14
614-AG66 PU-14
614-AG66 PU-14
614-AG66PU-14
617-AG65BR-16
617-AG65 BR-16
617-AG65 BR-16
200-AK22BK-16
779-AK23WH-16
200-AK21BK-16
200-AK3BK-16
779-AK20WH-16
779-AK2WH-16
138-AG4GN-18
C216-AG15BK-18
C529-AG23GY-18
H714-AG31 OR-18
E919-AG35 YL-18
E921-AG37 PK-18
E922-AG38 GN-18
976-AG42OR-18
J815-AG41BK-18
J814-AG49BK-18
P945-AG55 OR-18
P945-AG55OR-18
P946-AG56BR-18
P946-AG56 BR-18
P946-AG56BR-18
P945-AG55OR-18
J813-AG57 BK-18
H714-AG31OR-18
J814-AG50BK-18
C216-AG16BK-18
C216-AG16BK-18
C216-AG15BK-18
NORTH AND SOUTH AMERICAN FRONT FRAME
FWD DIVERTER SOL
200-AG68BK-16
200-AG68BK-16
J815-AG69BK-18
H718-AM8GY-18
146-AM2GY-18
C214-AM7BK-18
J815-AG39BK-14
J815-AG39BK-14
J815-AG40BK-18
J815-AG40BK-18
J815-AG69BK-18
J815-AG41BK-18
J813-AG43BK-18
J813-AG58 BK-18
E921-AG37PK-18
200-AV2BK-14
619-AV1GN-14
200-AW2BK-14
619-AW1GN-14
606-AG26GY-16
606-AG26GY-16
606-AG19GY-16
606-AG19GY-16
E922-AG38GN-18
J813-AG43BK-18
J814-AG48BK-14
J814-AG48BK-14 J814-AG49BK-18
J814-AG50BK-18
A958-AG70WH-18
A958-AG70WH-18
A958-AG70WH-18
J814-AG61BK-18
E919-AG35YL-18
E920-AG36BR-18
E920-AG36 BR-18
E920-AG36 BR-18
E920-AG36BR-18
J813-AG57BK-18
H713-AG30 PK-18
H713-AG30PK-18
J813-AG59BK-18
J813-AG59 BK-18
K927-AG54BU-18
K927-AG54 BU-18
K927-AG54 BU-18
K927-AG54BU-18
H717-AG53BR-18
H717-AG53 BR-18
H717-AG53 BR-18
H717-AG53BR-18
J814-AG60BK-18
J814-AG60 BK-18
J814-AG60BK-18
114-AG1 RD-16
114-AG1RD-16
322-AG21GY-16
322-AG21GY-16
J813-AG32BK-14
J813-AG32BK-14
114-AG1RD-16
322-AG21GY-16
326-CJ44PU-18
308-CJ52YL-18
E748-CJ161BK-18
E748-CJ161BK-18
E748-CJ161BK-18
E748-CJ161BK-18
E748-CJ161BK-18
E748-CJ161BK-18
E748-CJ161BK-18
E748-CJ161BK-18
J814-AP36BK-18
J813-AP25BK-18
J813-AP41BK-18
J814-AP49BK-18
J813-AP51 BK-18
J813-AP42BK-18
J815-AP63BK-18
J815-AP60BK-18
114-AP1RD-16
114-AP1RD-16
106-AP3WH-18
106-AP3WH-18
106-AP35WH-18
106-AP35WH-18
200-AP7BK-14
200-AP7BK-14
200-AP37BK-16
200-AP37BK-16
200-AP8BK-14
200-AP8BK-14
200-AP40BK-16
200-AP40BK-16
200-AP38BK-14
200-AP38BK-14
322-AP11GY-16
322-AP11GY-16
619-AP17GN-14
619-AP17GN-14 619-AP46GN-14
619-AP46GN-14
619-AP45GN-14
619-AP45GN-14
C530-AP14BU-18
C530-AP14BU-18
C530-AP14BU-18
605-AP15YL-16
605-AP15YL-16
605-AP15YL-16
606-AP16GY-16
606-AP16GY-16
H713-AP18PK-18
H713-AP18PK-18
H714-AP19OR-18
H714-AP19OR-18
J815-AP20BK-18
J815-AP20BK-18
H717-AP21BR-18
H717-AP21BR-18
E919-AP23YL-18
E919-AP23YL-18
E920-AP24BR-18
E920-AP24BR-18
E921-AP26PK-18
E921-AP26PK-18
E922-AP27GN-18
E922-AP27GN-18
N939-AP4GN-18
N939-AP4GN-18
976-AP29OR-18
976-AP29OR-18
G485-AP6BU-18
G485-AP6BU-18
G485-AP6BU-18
200-AP39BK-14
200-AP39BK-14
C216-AP30BK-18
201-AP5BK-18
201-AP5BK-18
201-AP5BK-18
611-AP50PU-14
611-AP50PU-14
611-AP56PU-14
611-AP56PU-14
611-AP55PU-14
611-AP55PU-14
617-AP54BR-16
617-AP54BR-16
617-AP54BR-16
H717-AP21BR-18
E919-AP23YL-18
E920-AP24BR-18
E921-AP26PK-18
E922-AP27GN-18
N939-AP4GN-18
976-AP29OR-18
J815-AP60BK-18
J815-AP63BK-18
P945-AP58OR-18
P945-AP58OR-18
P945-AP58OR-18
P946-AP59BR-18
P946-AP59BR-18
P946-AP59BR-18
H714-AP19OR-18
H713-AP18PK-18
K927-AP57BU-18
J813-AP31BK-18
J813-AP31BK-18
IT-62H FRAME
200-AR4BK-18
200-AR4BK-18
200-AR7BK-18
200-AR7BK-18
200-AR8BK-18
200-AR8BK-18
F766-AR2WH-18
F766-AR2WH-18
F766-AR5WH-18
F766-AR5WH-18
F766-AR6WH-18
F766-AR6WH-18
762-AR1YL-18
762-AR1YL-18
762-AR1YL-18
964-AR3BU-18
964-AR3BU-18
964-AR3BU-18
C216-AP69BK-18
C216-AP69BK-18
106-AP67WH-18
106-AP67WH-18
964-AP68BU-18
964-AP68BU-18
964-AP68BU-18
762-AP66YL-18
762-AP66YL-18
762-AP66YL-18
FWD DIVERTER SOL
114-AP1RD-16
322-AP11GY-16
C216-AP30BK-18
C216-AP10BK-18
C216-AP10BK-18
614-AP53PU-16
614-AP53PU-16
614-AP53PU-16
WHEN IN USE
CONNECT TO AW-C1,
AJ-C1, OR CL-C1
WHEN IN USE
CONNECT TO AV-C1,
FR-C1, OR CM-C1
WHEN IN USE
CONNECT TO
HA-C1
P976-AP71 BR-16
P976-AP71BR-16
P976-AP71BR-16
200-AP72BK-16
200-AP72BK-16
A958-AP73WH-18
A958-AP73WH-18
A958-AP73WH-18
J815-AP74BK-18
J814-AP13BK-18
J815-AP74BK-18
J813-AP25BK-18
J813-AP41BK-18
J813-AP42BK-18
J813-AP51BK-18
J814-AP49BK-18
J814-AP36BK-18
987-AP52WH-16
987-AP52WH-16
987-AP52WH-16
200-AP34BK-16
200-AP34BK-16 606-AP48 GY-16
606-AP48GY-16
606-AP47 GY-16
606-AP47GY-16
J814-AP13BK-18
K927-AP57BU-18
K927-AP57BU-18
J814-AP62BK-18
J814-AP62BK-18
J814-AP61BK-18
J814-AP61BK-18
138-AG4GN-18
A958-CJ164GY-18
A958-CJ164GY-18
A958-CJ164GY-18
A958-CJ164GY-18
110-CJ99RD-14
762-CJ162YL-18
762-CJ162YL-18
762-CJ162YL-18
762-CJ162YL-18
201-CJ11BK-18
110-CJ163RD-14
110-CJ163RD-14
110-CJ163RD-14
110-CJ163RD-14
110-CJ163RD-14
110-CH3RD-14
110-CH3RD-14
110-CH3RD-14
200-CJ152BK-18
439-GR5YL-18
200-GR4BK-18
324-0699
BUSS BAR
838-AH7 YL-16
839-AH6 BU-18
838-AH5 YL-16
838-AH4 YL-16
839-AH3 BU-18
839-AH2 BU-18
141-AH1RD-14
200-AH8 BK-16
200-AH8 BK-16
141-AH1RD-14
200-AH8 BK-16
200-AH8 BK-16
WASTE GUARD
LICENSE PLATE LIGHT - ATCH
HARNESS INDIA
604-CE1OR-16
200-CE2 BK-16
617-CE3 BR-16
605-CE4 YL-16
200-CE5 BK-16
MATING CONNECTOR
CJ-C33
MATING CONNECTOR
CJ-C32
MATING CONNECTOR
3 PIN CONNECTOR OF 145-6929
MATING CONNECTOR
2 PIN CONNECTOR OF 145-6929
LH HOOD TURN SIGNAL
C991-X7PK-18
G829-X6YL-18
G828-X5PU-18
N707-X4PU-18
T725-X3WH-18
604-CF1OR-16
200-CF2 BK-16
614-CF3PU-16
606-CF4GY-16
200-CF5 BK-16
MATING CONNECTOR
CJ-C8
MATING CONNECTOR
CJ-C26
MATING CONNECTOR
3 PIN CONNECTOR OF 145-6929
MATING CONNECTOR
2 PIN CONNECTOR OF 145-6929
RH HOOD TURN SIGNAL
AUX GND LVL SHUTDOWN
E960-CH12OR-18
229-CH38BK-18
229-CH38BK-18
E960-CH12OR-18
229-CH38BK-18
E960-CH12OR-18
E960-CH12OR-18
140-FF1BU-8
177-MM1 OR-4
201-CJ49BK-18
304-CJ96WH-8
304-CJ96WH-8
304-CH41WH-8
304-CH41WH-8
304-CH41WH-8
304-CH41WH-8
VARIABLE PITCH FAN
CONNECT TO CJ-C42
E947-TH7WH-18
200-TH6BK-18
E947-TH3WH-14
200-TH4BK-14
E947-TH3WH-14
200-TH4BK-14
H746-TH1YL-18
H747-TH2BR-18
H747-TH2BR-18
H746-TH1YL-18
200-TH8BK-18
E947-TH5WH-18
CONNECTS TO CJ-C4 PIN 55
CONNECTS TO CJ-C4 PIN 9
CONNECTS TO CJ-C4 PIN 10
CONNECT TO CHASSIS GROUND
E947-TH5WH-18
E947-TH7WH-18
200-TH6BK-18
200-TH8BK-18
THOMAS PUMP
THOMAS VALVE
VARIABLE PITCH FAN
A301-KW1WH-18
A300-KW4GN-18
321-KW8BR-18
P990-KW16BR-18
614-CU1PU-18
200-CU2BK-18
199-KW2RD-18
A301-KW1WH-18
A300-KW4GN-18 P990-KW16BR-18
321-KW8BR-18
A301-KW1WH-18
199-KW2RD-18
A300-KW4GN-18
199-KW3RD-18
199-KW14RD-18
321-KW5BR-18
321-KW9BR-18
P990-KW10BR-18
P990-KW15BR-18
199-KW3RD-18
P990-KW10BR-18
321-KW9BR-18
612-KW11GY-18
612-KW12GY-18
612-KW13GY-18
612-KW13 GY-18
612-KW12GY-18
321-KW5BR-18
P990-KW15BR-18
199-KW14RD-18
612-KW11GY-18
BACKUP LAMP HARNESS - ATCH
P990-KW15BR-18
HOOD ACTUATOR
CONNECT KW-C2 TO
BACKUP ALARM
CONNECT KW-C5 TO CONNECT KW-C4 TO CJ-C30
199-KW14RD-18
321-KW5BR-18
612-KW11GY-18
200-AY1BK-18
200-AX1BK-18
200-AY1BK-18
200-AX1BK-18
200-AG71BK-16
200-AG71BK-16
P976-AG72BR-16
P976-AG72BR-16
P976-AG73BR-16
P976-AG73BR-16
H747-TH2BR-18
H746-TH1YL-18
CONNECT KW-C1 TO CJ-C25
REAR VIEW CAMERA
CONNECTS
TO CAB
CJ-C1
MATING CONNECTOR
200-CJ88BK-18
200-CJ89 BK-14
200-CJ36BK-18
BK-14
GN-18
OR-14
GROUND
LOWER HOOD
MOTOR LOWER
BU-14
RD-14
WH-18
MOTOR RAISE
+28V
149-2612
RAISE HOOD
20A
288-3687
15A
248-3288
80A
171-2210
BK-18
BK-18
241-8368
BK-18
BK-18
125-1302
193-2550
BK-18
WH-18
327-4608
BU-16
RD-16
BK-16
175-3244
BU-16
RD-16
BK-16
177-9953
(197-8820 95A ATCH)
+
ALT 80A
R
G
MTR BAT
S
MOTOR
207-1551
7N-0718
RD
MOTOR
305-8958
BK
308-0788
BU-16
RD-16
BK-16
8C-6358
POS NEG
153-5710
POS NEG
153-5710
183-7595
256-6453
SIGNAL
GROUND
245-4630
SIGNAL
GROUND
SIGNAL
GROUND
256-6453
SIGNAL
GROUND
217-8339
MOTOR
165-5970
MOM
RD-18
BK-18
WH-18
30A
139-4724
213-9100
BK-18
BK-18
MOTOR
293-8835
MOTOR
293-8835
193-2550
BK-18
WH-18
193-2550
BK-18
WH-18
145-7028
GROUND
SIGNAL BK
BK
308-0788
BU-16
RD-16
BK-16
275-8544
MOTOR
322-7452
PK-18
BK-18
3E-5239
30
87a
87
85
86
LH GROUND
ENGINE GROUND
SECONDARY STEERING GROUND
RH GROUND
256-6453
GROUND
SIGNAL
+V
274-6719
SIGNAL
GROUND
+V
296-8060 SIGNAL
GROUND
GROUND
+5V
SIGNAL
OR-18
194-6722
YL-18
GN-18
50A
171-2206
ALT GROUND
301-2980
2
3
1
RD-18
WH-18
BK-18
301-2979
BK-18
RD-18
WH-18
264-4297
GROUND
SIGNAL
264-4297
GROUND
SIGNAL
BK-18
BK-18
209-5582
262-2879
AIR INLET HEATER RELAY
BOOST PRESSURE SNSR
COOLANT TEMP SNSR
CONTROL VALVE
PRESSURE SNSR RETURN
CONTROL VALVE
CRANKSHAFT SPEED TIMING SNSR +
OIL PRESSURE SNSR
TDC PROBE +
COOLANT TEMP SNSR -
CRANKSHAFT SPEED TIMING SNSR -
TDC PROBE -
FUEL PRESSURE SNSR
CAMSHAFT SPEED TIMING SNSR -
CAMSHAFT SPEED TIMING SNSR +
INTAKE MANIFOLD AIR TEMP SNSR +
PRESSURE SENSOR RETURN
ATM PRESSURE SNSR
FUEL PRESSURE SWITCH
FUEL JUMPER
SENSOR +V SUPPLY
AIH RELAY RETURN
FUEL PRESSURE SWITCH
SENSOR +V SUPPLY
RAIL PRESSURE SNSR
INJECTOR 5&6 RETURN
INJECTOR 1
INJECTOR 6
INJECTOR 3
&2 RETURN
INJECTOR 5
INJECTOR 4
INJECTOR 3
INJECTOR 1
INJECTOR 2
&4 RETURN
J2
DIGITAL SENSOR/SWITCH RETURN
THROTTLE SENSOR POWER
ANALOG SENSOR RETURN
ANALOG SENSOR POWER
J1
CAT DATA LINK -
CAT DATA LINK +
REV FAN SOL
TURBO INLET PRESSURE SENSOR SIG
GROUND LEVEL SHUTDOWN(N/C)
ETHER ON RELAY
RELAY RTN
AIR FILTER RESTRICTED INDICATOR
START AID INDICATOR
ENGINE SPEED SIGNAL TO XMSN CONTROL
GROUND LEVEL SHUTDOWN(N/O)
AUTO REV FAN (NO)
DEMAND FAN SOL +
AUTO REV FAN (NC)
DEMAND FAN SOL -
+ BATTERY
AUX GND LVL SHUTDOWN
+ BATTERY
+ BATTERY
THROTTLE PEDAL POSITION
- BATTERY
- BATTERY
- BATTERY
KEY SWITCH ON (B+)
328-2585
328-2585
328-2585
328-2585
328-2585
328-2585
294-7675
90A
171-2211
114-5333 1
2 3
BK-18
BK-18
218-4935
163-0872
GN-18
GN-18
244-3114 244-3114 244-3114
244-3114 244-3114 244-3114
183-7595
LH STOP TAIL TURN LAMP
145-6929
STOP/TAIL
T
S
BK-18
BU-18
RD-18
TURN
YL-18
WH-18
218-4935
218-4935
134-2540
239-1134
+V
276-6793
SIGNAL
GROUND
BK-18
BK-18
227-6744
LEFT FRONT FLOOD
219-6485
RIGHT FRONT FLOOD
219-6485
RD-18
BK-18
LH TURN SIGNAL
3E-6466
RD-18
BK-18
RH TURN SIGNAL
3E-6466
LH HI LO POS TURN LAMP
344-3456
BU-18
RD-18
WH-18
YL-18
BK-18
RH HI LO POS TURN LAMP
344-3455
BU-18
RD-18
WH-18
YL-18
BK-18
WH-18
BK-18
OR-18
169-0417
+24V
GROUND
SIGNAL
FORWARD HORN HIGH
174-7875
WH-18
BK-18
OR-18
169-0417
+V
SIGNAL
GROUND
GN-14
180-8585
GN-14
218-4935
264-4297
GROUND
SIGNAL
221-3416
GN-18
YL-18
OR-18
SIGNAL
GROUND
POWER
328-4314
328-4314
328-4314
313-7668
313-7668
225-0300
LH FRONT FLOOD
219-6485
RH FRONT FLOOD
219-6485
313-7668
313-7668
313-7668
313-7668
313-7668
313-7668
WH-18
BK-18
OR-18
169-0417
+24V
GROUND
SIGNAL
LH FORWARD HORN IT
174-7875
328-4314
328-4314
313-7668
313-7668
313-7668
313-7668
328-4314
313-7668
313-7668
313-7668
AP-C30
3E3364
225-0300
313-7668
BU
BK
OR
176-5459
+ BATTERY
SOLENOID
GROUND
BU
BK
OR
176-5459
+ BATTERY
SOLENOID
GROUND
BK
GN
GN
YL
277-8271
HARNESS AS.
RD
GN
277-8272
HARNESS AS.
GN
RD
PUMP
184-0704
BK-18
BK-18
227-6744
15A
248-3288
2
1
5
4
3
6
157-1364
2Q-4181
MOTOR
LH STOP TAIL LED
S
T
RD-18
WH-18
BK-18
135-0426
248-2169
+V
SIGNAL
GROUND
194-6725
GROUND
+5V
SIGNAL
OR-18
YL-18
GN-18
258-0883
BK-18
BK-18
RH STOP TAIL TURN LAMP
145-6929
STOP/TAIL
T
S
BK-18
BU-18
RD-18
TURN
YL-18
WH-18
RH STOP TAIL LED
S
T
RD-18
WH-18
BK-18
135-0426
126-9288 (JAPAN)
338-5716 (INDIA)
BACK LAMP RH
RD-20
BK-20
126-9288 (JAPAN)
338-5716 (INDIA)
BACK LAMP LH
RD-20
BK-20
A
KW-C2
1552267
B
C
GROUND
4Y-6135
QUICK COUPLER SOL
GN-14
180-8585
GN-14
QUICK COUPLER ARC SUPP
218-4935
LICENSE PLATE LAMP
5A-3808
VIDEO SIG
REAR CAMERA
VIDEO GND
347-1668
+ 12 VDC
FEED GND
CABLE AS CAMERA
266-2116
COAX CORE
COAX SAFEGUARD
RED
WHITE
(6) HOOD RAISE/LOWER MOTOR CONTROL
(6) HOOD ACTUATOR BREAKER
(6) RUNNING LAMP BREAKER
(6) MAIN BREAKER (6) MAIN RELAY
(6) START RELAY
(24) OUTPUT SPEED SNSR (LEADING)
(34) PARK BRAKE PRESS SW
(3) BRAKE OIL PRESS SW
(3) ALTERNATOR
(13) STARTER
(6) DISCONNECT SW
(12) HOOD ACTUATOR MOTOR
(5) PRIM STR PRES SW
(7) BLOCK AS
(7) 12V BATTERY 1 (7) 12V BATTERY 2
(28) VARIABLE SPEED FAN SOL
(16) INTAKE MAN AIR TEMP SNSR
(17) SPEED SENSOR GROUP
(17) COOLANT TEMP SENSOR
(1) FUEL PRIMING PUMP
(1) FUEL PRIMING PUMP SW
(6) UNSWITCHED BUSS BREAKER (CAB)
(2) BACKUP ALARM
(11) FRONT WASHER PUMP
(11) REAR WASHER PUMP
(24) OUTPUT SPEED SENSOR (TRAILING)
(25) INPUT SPEED SENSOR
(26) XSMN OIL TEMP SENSOR
(5) SEC STR PRES SW
(5) SECONDARY STEERING PUMP
(14) FUEL LEVEL SENDER
(5) SEC STEER INTERMEDIATE RELAY
(15) TORQ CONV TEMP SENDER
(17) OIL PRESSURE SENSOR
(16) ATMOSPHERIC PRESSURE SENSOR
(27) TURBO INLET PRESSURE SENSOR
(6) START BREAKER
(6) HOOD ACTUATOR SW
(6) GROUND LVL SHUTDOWN SW
(21) REAR AXLE OIL TEMP SENDER
(19) HYD OIL TEMP SENDER
(1) AIH RELAY
(8) Engine Control
A4 E4
(30) CYL HEAD 1
(30) CYL HEAD 2
(30) CYL HEAD 3
(30) CYL HEAD 4
(30) CYL HEAD 5
(30) CYL HEAD 6
(1) AIH
(6) AIH BREAKER
(3) AC PRESS SW
(3) ARC SUPPRESSOR
(3) AC CLUTCH SOL
(25) CLUTCH 1 REV (25) CLUTCH 2 FWD (25) CLUTCH 3 4TH
(25) CLUTCH 4 3RD (25) CLUTCH 5 2ND (25) CLUTCH 6 1ST
(1) AXLE COOLER CLUTCH
(6) ARC SUPPRESSOR START RLY
(5) ARC SUPPRESSOR 1
(8) DC CAN RESISTOR 1
(29) EITHER AID SOL
(16) BOOST PRESSURE SNSR
(33) HYD FILTER BYPASS SW
(22) ROTARY LIFT POS SENSOR
(23) ROTARY TILT POSITION SENSOR
(4) QUICK COUPLER SOLENOID
(4) QUICK COUPLER ARC SUPPRESSOR
(18) FRONT AXLE OIL TEMP SENDER
(20) LIFT CYL HE PRESS SNSR
(20) LOWER ANTI-DRIFT SOL
(20) DUMP ANTI-DRIFT SOL
(20) RIDE CONTROL RE CHECK SOL
(20) RIDE CONTROL BALANCE SOL
(20) RIDE CONTROL HE CHECK SOL
(20) PILOT HYD SUPP SOL
(20) RACKBACK PROP SOL
(20) DUMP PROP SOL
(20) AUX 3RD FUNCT FWD SOL
(20) AUX 3RD FUN REARWARD SOL
(20) LOWER SOL
(20) RAISE PROP SOL
(20) LIFT POS SENSOR IT
(20) LOWER ANTI-DRIFT SOL IT
(20) DUMP ANTI-DRIFT SOL IT
(20) RAISE PROP SOL IT
(20) RACKBACK PROP SOL IT
(20) DUMP PROP SOL IT
(20) LOWER PROP SOL IT
(20) RIDE CONTROL RE CHECK SOL IT
(20) AUX 3RD FUNCT FWD SOL IT
(20) RIDE CONTROL BALANCE SOL IT
(20) AUX 3RD FUN REARWARD SOL IT
(20) PILOT HYD SUPP SOL IT
(20) RIDE CONTROL HE CHECK SOL IT
(32) BUCKET POS SW
(32) FORK POS SW
(9) AUTOLUBE GROENEVELD PUMP
(33) XMSN FILTER BYPASS SW
(6) BELLY GUARD BREAKER
(6) ACTUATOR SW
(10) BELLY GUARD ACTUATOR
(1) RAIL PRESSURE SNSR
(1) FUEL PRESSURE SNSR
(1) FUEL PRESSURE SW
(64) BACKUP RELAY
CONN 3
CONN 4
CONN 3
CONN 4
CONN 1
CONN 1
CONN 2
CONN 2
CONN 5
CONN 6
CONN 7
CONN 8
CONN 9
CONN 10
CONN 11
CONN 12
CONN 13
CONN 14
CONN 15
CONN 16
CONN 17
CONN 18
CONN 19
CONN 20
CONN 20
CONN 21
CONN 22
CONN 21
CONN 21
CONN 22
CONN 22
CONN 23
CONN 26
CONN 25
CONN 24
CONN 21
CONN 22
CONN 25
CALLOUT FORMAT IF APPLICABLE
(52) VALVE GP - CONTROL
138-1234
Callout Number
(Machine Location from
Component Locations Table)
Component
Name
Part Number
SYMBOL DESCRIPTION
BLADE, SPADE, RING OR SCREW
TERMINAL
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO
MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT
CONNECTOR
ATCH WIRE, CABLE, COMPONENT
SPLICE
CIRCUIT GROUPING DESIGNATION
H#
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE

14. CONN 16
CONN 17
CONN 18
CONN 19
CONN 28
CONN 30
CONN 29
CONN 35 CONN 36
CONN 37 CONN 38
CONN 31
CONN 32
CONN 33
CONN 34
CONN 39
CONN 31
CONN 43
CONN 44
CONN 42
CONN 45
CONN 45
CONN 46
CONN 40
CONN 41
CONN 27
CONN 32
(51) TRANSMISSION CONTROL
(45) FUSE
(45) ACTION ALARM
(45) FORWARD CAB FLOODLAMP RELAY
(45) FORWARD HORN RELAY
(45) 24V FLASHER
(45) IMPLEMENT AUDIBLE ALERT
(45) REAR CAB FLOODLAMP RELAY
(51) 10A VOLTAGE CONVERTER
(51) 10A VOLTAGE CONVERTER (ATCH)
(45) DIMMER CONTROL
(45) HEATED MIRROR RELAY
(45) AXLE COOLER RLY
(49) IMPLEMENT CONTROL
(54) REAR WIPER MOTOR
(51) BLOWER MOTOR
(51) RESISTOR
(51) THERMOSTAT
(51) BEND DOOR ACTUATOR MOTOR
(51) FUSE
(45) RESISTOR 1
(45) RESISTOR 2
(51) BLOWER MOTOR DIODE
(52) CAN RESIS A
(51) PRODUCT LINK
(51) RADIO RECEIVER
(47) FINE MODULATION SW
(47) FORWARD HORN SW 2
(47) AUTODIG TRIGGER SW
(47) DOWN SHIFT SW
(47) THIRD FUNC DIV SW
(47) REMOTE FNR SW
(47) 3RD LEVER POS SNSR
(47) TILT LEVER POS SNSR
(47) LIFT LEVER POS SNSR
(47) IMPLEMENT LOCKOUT SW
(48) HVAC TEMP SELECT POTENT
(48) FRONT INTER WIPER WASHER SW
(46) REAR WIPER WASHER SW
(46) AUTODIG DIG MODE SW
(46) AUTO MANUAL GEAR SELECT CCS SW
(46) VARIABLE SHIFT CONTROL SW
(46) AUTODIG KICKOUT SET SW
(48) HVAC BLOWER FAN SPD SW
(48) HVAC SELECT SW
(48) MODE SELECT SW
(46) NEUTRALIZER OVERRIDE SW
(46) LIFT TILT KICKOUT SET SW
(50) PCS KEYPAD
(50) PAYLOAD CONTROL SYSTEM CONTROL
(48) MONITOR
(46) AUTO MAN GEAR SEL HMU SW
(46) RIDE CONTROL SW (46) AUTODIG MODE SELECT SW
(46) AUTOREV FAN SW
(46) QUICK COUPLER ALARM
(46) QUICK COUPLER SW
(48) GROENEVELD AUTOLUBE DISPLAY
(47) IMPLEMENT JOYSTICK
(47) FORWARD HORN ARC SUP
(58) XMSN SHIFTER SW AS
(58) FORWARD HORN SW
(57) DIMMER SW
(53) FRONT WIPER MOTOR
(58) TURN SIGNAL SW
(52) RUNNING LAMP SW
(52) TACH SPEEDOMETER
(52) QUAD GAGE
(52) CENTER DASH IND
(52) LH INDICATOR PANEL
(52) RH INDICATOR PANEL
(58) XMSN GEAR SELECTOR
(52) HID LAMP SW
(52) THIRD FUNC CONT FLOW SW
(52) KEY START SW
(46) SECONDARY STEERING TEST SW
(46) HEATED MIRROR SW
(46) BUCKET FORK SEL SW
(55) STOP LAMP SW
(55) LH BRAKE PEDAL SENSOR
(56) THROTTLE POSITION SENSOR
(52) HAZARD LAMPS SW
(52) BEACON SWITCH
Components are shown installed on a fully operable machine with the key and engine off, transmission shifter
in neutral and with parking brake set.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
VOLUME 2 of 2: CAB
SCHEMATIC PART NUMBER: 237-5752, CHANGE: 01, VERSION: -
THIS SCHEMATIC IS FOR THE 950H AND 962H WHEEL LOADER AND IT62H INTEGRATED
TOOLCARRIER ELECTRICAL SYSTEM
MEDIA NUMBER: UENR2528-02
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
WIRE GROUP COLOR DESCRIPTIONS
GROUND CIRCUIT
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
VOLTAGE CONVERTER OUTPUT CIRCUIT
STARTING CIRCUIT
TRANSMISSION CONTROL CIRCUIT
MONITOR CIRCUIT
ENGINE CONTROL CIRCUIT
HEATER AND AIR CONDITIONER CIRCUIT
TURN SIGNAL / WIPER WASHER CIRCUIT
CAT DATA LINK
CAN DATA LINK
PRODUCT LINK
IMPLEMENT CONTROL CIRCUIT
PAYLOAD CONTROL CIRCUIT
OTHER COLOR DESCRIPTIONS
HIGHWAYS
HARNESS ASSEMBLIES
IDENT PART NUMBER CHG LOC DESCRIPTION
A 260-9602 01 F-3 SERVICE TOOL
C 273-0274 00 G-18 MAIN CAB
E 246-0578 03 G-9 IMPLEMENT POD
F 192-2823 01 L-15 HVAC
G 245-8335 04 L-15 IMPLEMENT POD JOYSTICK (ATTACHMENT)
H 280-1436 00 L-6 CAB FLOOD LAMPS (ATTACHMENT)
J 236-7775 01 L-10 BEACON (ATTACHMENT)
K 280-1436 00 K-6 CAB FLOOD LAMPS (ATTACHMENT)
L 280-1437 00 L-8 CAB FLOOD LAMPS (ATTACHMENT)
M 280-1437 00 K-8 CAB FLOOD LAMPS (ATTACHMENT)
N 188-1421 02 B-9 PAYLOAD CONTROL SYSTEM (ATTACHMENT)
T 146-1892 01 H-1 LH PEDAL STOP LAMP SWITCH
W 121-8039 01 H-1 DIMMER SWITCH (JAPAN ATTACHMENT)
Y 235-5506 03 K-7 CAB FLOOD LAMPS (STANDARD)
AT 192-7805 00 F-10 AIR SEAT
AY 154-4563 01 H-3 TURN SIGNAL SWITCH (ATTACHMENT)
CA 152-6432 06 H-3 COMMAND CONTROL STEERING (ATTACHMENT)
CE 236-7773 01 K-9 CAB HID LIGHTING (ATTACHMENT)
CF 236-6207 01 L-10 HEATED OUTSIDE MIRRORS (ATTACHMENT)
CR 118-2943 04 H-3 HORN SWITCH/COMMAND CONTROL STEERING
EG 236-7772 01 G-15 10A VOLT CONVERTER (ATTACHMENT)
WA 276-0031 01 I-10 PRODUCT LINK (ATTACHMENT)
WIRE ASSEMBLIES
X 121-8038 02 F-2 DIMMER SWITCH JUMPER
CONN 41
HVAC UNIT
FUSE PANEL/ELECTRICAL INSTALLATION
HEATED OUTSIDE MIRRORS ATCH
BEACON HARNESS ATCH
PRODUCT LINK ATCH
CAB HID LIGHTS ATCH
IMPLEMENT POD (JOYSTICK)
IMPLEMENT POD
PANEL B
DASH
COMMAND CONTROL STEERING WHEEL
LH BRAKE PEDAL 178-3186
TO COMMUNICATIONS RADIO
CAB LIGHT HARNESS
STRAP AS A272-C35 BK-14
CONTROL MOUNT BOLT
262-1408
C-C31
1471445
202-C113 BK-16
202-C113 BK-16
202-C19 BK-18
751-C115 GN-18
751-C115 GN-18
752-C111 YL-18
752-C111 YL-18
E900-C207 WH-18
E900-C207 WH-18
E906-C221 OR-18
E906-C221 OR-18
E908-C227 BR-18
E908-C227 BR-18
754-C142 BU-18
754-C142 BU-18
E901-C203 GN-18
E901-C203 GN-18
E907-C246 GY-18
E907-C246 GY-18
E909-C218 WH-18
E909-C218 WH-18
755-C120 OR-18
755-C120 OR-18
900-C147 PU-18
900-C147 PU-18
901-C121 WH-18
901-C121 WH-18
K977-C205 PK-18
K977-C205 PK-18
944-C110 OR-18
945-C105 BR-18
945-C105 BR-18
G763-C185 PU-18
G763-C185 PU-18
G755-C186 GY-18
G755-C186 GY-18
G768-C187 GN-18
G768-C187 GN-18
X972-C188 GN-18
X972-C188 GN-18
G766-C189 GN-18
G766-C189 GN-18
G767-C190 WH-18
G767-C190 WH-18
G760-C191 WH-18
G760-C191 WH-18
X973-C192 BU-18
X973-C192 BU-18
973-C195 BR-18
973-C195 BR-18
G750-C196 BU-18
G750-C196 BU-18
977-C197 YL-18
977-C197 YL-18
H728-C198 GN-18
H728-C198 GN-18
H729-C63 WH-18
H729-C63 WH-18
720-C234 PU-18
720-C234 PU-18
X974-C200 BR-18
X974-C200 BR-18
P910-C38 BR-18
P910-C38 BR-18
H730-C201 BR-18
H730-C201 BR-18
G746-C13 WH-18
G746-C13 WH-18
728-C106 BU-18
728-C106 BU-18
306-C109 GN-18
306-C109 GN-18
N939-C112 GN-18
N939-C112 GN-18
976-C116 OR-18
976-C116 OR-18
G764-C117 PK-18
G764-C117 PK-18
453-C119 PK-18
453-C119 PK-18
484-C140 YL-18
484-C140 YL-18
417-C183 GY-18
417-C183 GY-18
416-C184 OR-18
416-C184 OR-18
321-C249 BR-18
321-C249 BR-18
450-C263 YL-18
450-C263 YL-18
307-C3 OR-18
307-C3 OR-18
944-C110 OR-18
170-C70 RD-14
170-C70 RD-14
170-C107 RD-14
170-C107 RD-14
A272-C35 BK-14
419-C118 YL-18
419-C118 YL-18
910-C15 YL-18
910-C15 YL-18
436-C47 OR-18
436-C47 OR-18
G480-C316 GN-18
G480-C316 GN-18
G848-C378 GN-18
G848-C378 GN-18
E701-C405 PK-18
E701-C405 PK-18
C583-C395 GN-18
C583-C395 GN-18
C543-C407 GY-18
C543-C407 GY-18
150-C97 OR-16
150-C97 OR-16
170-C99 RD-14
170-C99 RD-14
A273-C408 BK-14
A273-C408 BK-14
A273-C409 BK-14
A273-C409 BK-14
A273-C417 BK-14
A273-C417 BK-14
J764-C273 BR-18
J764-C273 BR-18
G787-C418 GN-18
G787-C418 GN-18
P916-C421 OR-18
P916-C421 OR-18
P915-C422 PK-18
P915-C422 PK-18
G788-C423 YL-18
G788-C423 YL-18
Y794-C374 OR-18
Y794-C374 OR-18
Y795-C375 GN-18
Y795-C375 GN-18
G761-C229 YL-18
G761-C229 YL-18
G762-C231 BR-18
G762-C231 BR-18
E746-C44 GN-18
E746-C44 GN-18
J809-C460 BK-18
J809-C460 BK-18
J808-C194 BK-18
J808-C194 BK-18
J807-C193 BK-18
J807-C193 BK-18
403-C123 GN-18
403-C123 GN-18
P990-C461 BR-18
P990-C461 BR-18
J815-C84 BK-14
J887-C490 PU-18
J887-C490 PU-18
J815-C492 BK-14
J815-C492 BK-14
J815-C491 BK-18
202-C27 BK-18
202-C27 BK-18
202-C19 BK-18
A958-C518 WH-18
A958-C518 WH-18
J1
C-C2
8N1532
C-C35
1835785
C-C26
9X0145
C-C33
1471446
C-C1
2144208
C216-C22 BK-16
C216-C22 BK-16
308-C87 YL-18
308-C87 YL-18
138-C20 GN-18
138-C20 GN-18
C529-C48 GY-18
C529-C48 GY-18
C529-C59 GY-18
C529-C59 GY-18
C530-C49 BU-18
C530-C49 BU-18 C530-C61 BU-18
C530-C61 BU-18
945-C128 BR-18
945-C128 BR-18
945-C128 BR-18
944-C127 OR-18
944-C127 OR-18
944-C127 OR-18
604-C78 OR-16
604-C78 OR-16
614-C82 PU-16
614-C82 PU-16
614-C96 PU-18
614-C96 PU-18
605-C79 YL-16
605-C79 YL-16
605-C91 YL-16
605-C91 YL-16
606-C80 GY-16
606-C80 GY-16
606-C89 GY-16
606-C89 GY-16
320-C319 OR-16
320-C319 OR-16
202-C4 BK-18
202-C4 BK-18
202-C31 BK-16
202-C31 BK-16
611-C32 PU-14
611-C32 PU-14
403-C123 GN-18
403-C123 GN-18
320-C317 OR-16
320-C317 OR-16
322-C39 GY-16
322-C39 GY-16
322-C39 GY-16
199-C72 RD-16
199-C72 RD-16
199-C72 RD-16
150-C126 OR-16
150-C126 OR-16
150-C126 OR-16
106-C18 WH-18
106-C18 WH-18
106-C18 WH-18
112-C1 PU-4
112-C1 PU-4
112-C1 PU-4
619-C40 GN-14
619-C40 GN-14
A523-C236 PU-18
A523-C236 PU-18
A524-C237 BR-18
A524-C237 BR-18
A524-C237 BR-18
A525-C238 GN-18
A525-C238 GN-18
A525-C238 GN-18
517-C240 BU-14
517-C240 BU-14
517-C240 BU-14
516-C241 GN-14
516-C241 GN-14
516-C241 GN-14
515-C235 GY-14
515-C235 GY-14
515-C235 GY-14
522-C125 WH-18
522-C125 WH-18
522-C125 WH-18
504-C255 YL-18
504-C255 YL-18
504-C255 YL-18
503-C256 BR-18
503-C256 BR-18
503-C256 BR-18
505-C254 BU-18
505-C254 BU-18
505-C254 BU-18
A982-C130 BR-18
A982-C130 BR-18
A982-C130 BR-18
A307-C129 GY-18
A307-C129 GY-18
A307-C129 GY-18
521-C124 YL-14
521-C124 YL-14
521-C124 YL-14
506-C10 PU-18
506-C10 PU-18
506-C10 PU-18
507-C11 WH-18
507-C11 WH-18
507-C11 WH-18
617-C83 BR-16
617-C83 BR-16
617-C83 BR-16
102-C69 RD-14
102-C69 RD-14
102-C69 RD-14
604-C78 OR-16
174-C2 RD-10
174-C2 RD-10
174-C2 RD-10
138-C20 GN-18
118-C274 GY-18
118-C274 GY-18
118-C274 GY-18
114-C41 RD-16
114-C41 RD-16
114-C41 RD-16
200-C210 BK-18
200-C210 BK-18
200-C210 BK-18
200-C209 BK-14
200-C209 BK-14
200-C209 BK-14
136-C75 GN-16
136-C75 GN-16
136-C75 GN-16
727-C289 GN-16
727-C289 GN-16
727-C289 GN-16
C216-C314 BK-18
C216-C314 BK-18
C216-C24 BK-18
C216-C24 BK-18
619-C40 GN-14
G746-C13 WH-18
G746-C13 WH-18
G746-C13 WH-18
611-C32 PU-14
973-C195 BR-18
973-C195 BR-18
973-C195 BR-18
977-C197 YL-18
977-C197 YL-18
977-C197 YL-18
H728-C198 GN-18
H728-C198 GN-18
H728-C198 GN-18
720-C234 PU-18
720-C234 PU-18
720-C234 PU-18
X973-C192 BU-18
X973-C192 BU-18
X973-C192 BU-18
X974-C200 BR-18
X974-C200 BR-18
X974-C200 BR-18
H730-C201 BR-18
H730-C201 BR-18
H730-C201 BR-18
X972-C188 GN-18
X972-C188 GN-18
X972-C188 GN-18
G767-C190 WH-18
G767-C190 WH-18
G767-C190 WH-18
P910-C38 BR-18
P910-C38 BR-18
P910-C38 BR-18
G766-C189 GN-18
G766-C189 GN-18
G766-C189 GN-18
592-C8 BU-16
592-C8 BU-16
G755-C186 GY-18
G755-C186 GY-18
G755-C186 GY-18
G750-C196 BU-18
G750-C196 BU-18
G750-C196 BU-18
G763-C185 PU-18
G763-C185 PU-18
G763-C185 PU-18
G768-C187 GN-18
G768-C187 GN-18
G768-C187 GN-18
G760-C191 WH-18
G760-C191 WH-18
G760-C191 WH-18
H729-C63 WH-18
H729-C63 WH-18
H729-C63 WH-18
P976-C77 BR-16
P976-C77 BR-16
P976-C77 BR-16
E920-C52 BR-18
E920-C52 BR-18
E920-C52 BR-18
E919-C51 YL-18
E919-C51 YL-18
E919-C51 YL-18
E921-C53 PK-18
E921-C53 PK-18
E921-C53 PK-18
E922-C54 GN-18
E922-C54 GN-18
E922-C54 GN-18
H713-C57 PK-18
H713-C57 PK-18
H713-C57 PK-18
H717-C67 BR-18
H717-C67 BR-18
H717-C67 BR-18
H714-C58 OR-18
H714-C58 OR-18
H714-C58 OR-18
C216-C26 BK-16
C216-C26 BK-16
C529-C60 GY-18
C529-C60 GY-18
C530-C62 BU-18
C530-C62 BU-18
202-C113 BK-16
751-C115 GN-18
751-C115 GN-18
752-C111 YL-18
752-C111 YL-18
E900-C207 WH-18
E900-C207 WH-18
E906-C221 OR-18
E906-C221 OR-18
E908-C227 BR-18
E908-C227 BR-18
754-C142 BU-18
754-C142 BU-18
E901-C203 GN-18
E901-C203 GN-18
E907-C246 GY-18
E907-C246 GY-18
E909-C218 WH-18
E909-C218 WH-18
755-C120 OR-18
755-C120 OR-18
900-C147 PU-18
900-C147 PU-18
901-C121 WH-18
901-C121 WH-18
K977-C205 PK-18
K977-C205 PK-18
944-C110 OR-18
944-C110 OR-18
945-C105 BR-18
728-C106 BU-18
728-C106 BU-18
306-C109 GN-18
306-C109 GN-18
N939-C112 GN-18
N939-C112 GN-18
976-C116 OR-18
976-C116 OR-18
G764-C117 PK-18
G764-C117 PK-18
453-C119 PK-18
453-C119 PK-18
484-C140 YL-18
484-C140 YL-18
417-C183 GY-18
417-C183 GY-18
416-C184 OR-18
416-C184 OR-18
321-C249 BR-18
321-C249 BR-18
450-C263 YL-18
450-C263 YL-18
326-C287 PU-18
326-C287 PU-18
326-C287 PU-18
J2
H795-C222 PK-18
H795-C222 PK-18
202-C143 BK-18
202-C143 BK-18
308-C87 YL-18
104-C30 YL-16
104-C30 YL-16
201-C304 BK-16
307-C3 OR-18
307-C3 OR-18
307-C3 OR-18
A523-C236 PU-18
592-C392 BU-16
592-C392 BU-16
592-C272 BU-16
592-C272 BU-16
945-C105 BR-18
944-C110 OR-18
945-C105 BR-18
170-C70 RD-14
170-C70 RD-14
170-C107 RD-14
170-C107 RD-14
A272-C35 BK-14
A272-C35 BK-14
A272-C35 BK-14
606-C88 GY-16
606-C88 GY-16
605-C90 YL-16
605-C90 YL-16
615-C291 YL-14
615-C291 YL-14
C583-C395 GN-18
320-C390 OR-16
320-C390 OR-16
419-C118 YL-18
419-C118 YL-18
615-C318 YL-18
615-C318 YL-18
910-C15 YL-18
910-C15 YL-18
910-C15 YL-18
436-C47 OR-18
436-C47 OR-18
436-C47 OR-18
G480-C316 GN-18
G480-C316 GN-18
G480-C316 GN-18
430-C313 BU-18
430-C313 BU-18
430-C313 BU-18
G850-C29 BU-18
G850-C29 BU-18
G850-C29 BU-18
G479-C315 WH-18
G479-C315 WH-18
G479-C315 WH-18
614-C137 PU-16
614-C137 PU-16
614-C145 PU-16
614-C199 PU-18
614-C199 PU-18
614-C321 PU-18
614-C321 PU-18
G848-C378 GN-18
G848-C378 GN-18
G848-C378 GN-18
447-C380 PK-18
447-C380 PK-18
447-C380 PK-18
442-C381 GY-18
442-C381 GY-18
442-C381 GY-18
G485-C385 BU-18
G485-C385 BU-18
G485-C385 BU-18
432-C387 PK-18
432-C387 PK-18
432-C387 PK-18
G486-C388 GN-18
G486-C388 GN-18
G486-C388 GN-18
443-C399 YL-18
443-C399 YL-18
443-C399 YL-18
403-C401 GN-18
403-C401 GN-18
426-C402 BR-18
426-C402 BR-18
426-C402 BR-18
E455-C403 BR-18
E455-C403 BR-18
E455-C403 BR-18
E701-C405 PK-18
E701-C405 PK-18
E701-C405 PK-18
C583-C395 GN-18
C583-C395 GN-18
C543-C407 GY-18
C543-C407 GY-18
C543-C407 GY-18
110-C66 RD-14
110-C66 RD-14
110-C66 RD-14
150-C97 OR-16
150-C97 OR-16
150-C97 OR-16
170-C99 RD-14
170-C99 RD-14
104-C46 YL-16
104-C46 YL-16
E746-C44 GN-18
E746-C44 GN-18
G762-C231 BR-18
G762-C231 BR-18
G761-C229 YL-18
G761-C229 YL-18
H718-C225 GY-18
H718-C225 GY-18
H718-C225 GY-18
P945-C270 OR-18
P945-C270 OR-18
P945-C270 OR-18
P946-C303 BR-18
P946-C303 BR-18
P946-C303 BR-18
A273-C408 BK-14
A273-C408 BK-14
A273-C408 BK-14
A273-C409 BK-14
A273-C409 BK-14
A273-C409 BK-14
A273-C417 BK-14
A273-C417 BK-14
A273-C417 BK-14
J764-C273 BR-18
202-C71 BK-18
202-C71 BK-18
G787-C418 GN-18
G787-C418 GN-18
G787-C418 GN-18
P916-C421 OR-18
P916-C421 OR-18
P916-C421 OR-18
P915-C422 PK-18
P915-C422 PK-18
P915-C422 PK-18
G788-C423 YL-18
G788-C423 YL-18
G788-C423 YL-18
Y794-C425 OR-18
Y794-C425 OR-18
Y795-C426 GN-18
Y795-C426 GN-18
Y794-C431 OR-18
Y795-C434 GN-18
Y794-C374 OR-18
Y794-C374 OR-18
Y795-C375 GN-18
Y795-C375 GN-18
Y794-C435 OR-18
Y794-C435 OR-18
Y795-C444 GN-18
Y795-C444 GN-18
Y795-C447 GN-18
Y794-C445 OR-18
Y794-C450 OR-18
Y794-C450 OR-18
Y795-C451 GN-18
Y795-C451 GN-18
105-C455 RD-16
105-C455 RD-16
104-C456 YL-16
104-C456 YL-16
105-C455 RD-16
944-C458 OR-18
944-C458 OR-18
944-C458 OR-18
944-C458 OR-18
945-C459 BR-18
945-C459 BR-18
945-C459 BR-18
201-C304 BK-16
201-C304 BK-16
Y794-C25 OR-18
Y794-C25 OR-18
Y795-C114 GN-18
Y795-C114 GN-18
G761-C229 YL-18
G762-C231 BR-18
E746-C44 GN-18
J809-C460 BK-18
J809-C460 BK-18
J808-C194 BK-18
J808-C194 BK-18
J807-C193 BK-18
J807-C193 BK-18
403-C457 GN-18
403-C457 GN-18
614-C181 PU-18
614-C181 PU-18
P990-C461 BR-18
P990-C461 BR-18
403-C81 GN-18
403-C81 GN-18
J815-C84 BK-14
J815-C84 BK-14
K927-C108 BU-18
K927-C108 BU-18
K927-C108 BU-18
201-C135 BK-18
201-C135 BK-18
201-C135 BK-18
J813-C226 BK-14
J813-C226 BK-14
J813-C226 BK-14
J814-C286 BK-14
J814-C286 BK-14
J814-C286 BK-14
567-C360 WH-14
567-C360 WH-14
567-C473 WH-14
567-C473 WH-14
567-C364 WH-14
567-C364 WH-14
567-C372 WH-14
567-C372 WH-14
C216-C373 BK-18
C216-C217 BK-18
C216-C217 BK-18
614-C322 PU-18
614-C322 PU-18
614-C325 PU-16
614-C325 PU-16
614-C462 PU-18
614-C462 PU-18
614-C469 PU-18
614-C469 PU-18
H703-C478 YL-18
H703-C478 YL-18
H703-C478 YL-18
H702-C479 PU-18
H702-C479 PU-18
H702-C479 PU-18
H795-C480 PK-18
H795-C480 PK-18
H795-C481 PK-18
H795-C481 PK-18
P739-C493 BU-16
P739-C493 BU-16
P739-C493 BU-16
J887-C490 PU-18
J887-C490 PU-18
J887-C490 PU-18
J815-C491 BK-18
J815-C491 BK-18 J815-C491 BK-18
964-C496 BU-18
964-C496 BU-18
964-C496 BU-18
762-C494 YL-18
762-C494 YL-18
762-C494 YL-18
J764-C273 BR-18
J764-C273 BR-18
592-C202 BU-16
592-C202 BU-16
987-C160 WH-16
987-C160 WH-16
987-C160 WH-16
C216-C508 BK-18
C216-C508 BK-18
439-C510 YL-18
439-C510 YL-18 439-C512 YL-18
439-C512 YL-18
439-C511 YL-18
439-C511 YL-18
439-C513 YL-18
439-C513 YL-18
592-C122 BU-16
592-C122 BU-16
202-C27 BK-18
202-C27 BK-18
202-C19 BK-18
202-C19 BK-18
202-C544 BK-18
202-C544 BK-18
C216-C545 BK-18
C216-C545 BK-18
C216-C148 BK-18
C216-C148 BK-18
C216-C149 BK-18
C216-C149 BK-18
202-C113 BK-16
170-C101 RD-14
170-C101 RD-14
170-C146 RD-14
170-C146 RD-14
110-C472 RD-14
110-C472 RD-14
110-C472 RD-14
A958-C518 WH-18
A958-C518 WH-18
147-C36 RD-16
147-C36 RD-16
147-C36 RD-16
105-C455 RD-16
201-C304 BK-16
945-C459 BR-18
EG-C1
1552273
EG-C2
3E3376
EG-C3
1552272
EG-C4
1552272
C-C11
1965330
C-C5
9X1054
C-C9
1552269
C-C28
1552273
C-C13
9X1054
C-C12
1552269
C-C29
9X1054
C-C30
1886253
UNSWITCHED BUS
SWITCHED BUS
C-C34
1552272
C-C22
1552273
C-C24
1552272
C-C16
1552273
C-C87
1195094
C-C96
1195094
C-C100
3E3376
945-C128 BR-18
945-C128 BR-18
944-C127 OR-18
944-C127 OR-18
691-C326 GY-16
131-C266 BR-16
322-C39 GY-16
322-C39 GY-16
322-C39 GY-16
127-C267 OR-14
199-C72 RD-16
199-C72 RD-16
199-C72 RD-16
106-C18 WH-18
106-C18 WH-18
106-C18 WH-18
112-C1 PU-4
112-C1 PU-4
112-C1 PU-4
131-C266 BR-16
127-C267 OR-14
691-C326 GY-16
174-C2 RD-10
174-C2 RD-10
201-C224 BK-18
201-C224 BK-18
134-C268 YL-14
200-C220 BK-18
200-C220 BK-18
200-C220 BK-18
608-C294 GN-14
608-C294 GN-14
608-C294 GN-14
114-C41 RD-16
114-C41 RD-16
114-C41 RD-16
114-C42 RD-16
200-C213 BK-16
200-C213 BK-16
200-C213 BK-16
200-C212 BK-18
200-C212 BK-18
200-C212 BK-18
200-C211 BK-16
200-C211 BK-16
200-C211 BK-16
134-C268 YL-14
114-C42 RD-16
136-C75 GN-16
136-C75 GN-16
CONNECTS TO CJ-C11
CONNECTS TO CJ-C4
CONNECTS TO CJ-C21
142 BU IS A 12 VOLT CIRCUIT
115 PK IS A 24 VOLT CIRCUIT
201-C102 BK-18
201-C102 BK-18
201-C102 BK-18
10 AMP (9W-1442)
15 AMP (9W-1441)
20 AMP (9W-1446)
T866-C174 YL-18
T866-C174 YL-18
T866-C174 YL-18
944-C141 OR-18
944-C141 OR-18
945-C134 BR-18
945-C134 BR-18
944-C110 OR-18
944-C110 OR-18
945-C105 BR-18
945-C105 BR-18
CONNECTS TO AT-C10
537-C56 GN-16
537-C56 GN-16
537-C56 GN-16
104-C30 YL-16
104-C30 YL-16
104-C30 YL-16
201-C224 BK-18
200-C312 BK-16
200-C312 BK-16
200-C312 BK-16
148-C282 RD-16
148-C282 RD-16
115-C103 PK-16
115-C103 PK-16
115-C283 PK-16
115-C283 PK-16
200-C219 BK-16
200-C219 BK-16
200-C219 BK-16
120-C281 RD-16
120-C281 RD-16
120-C281 RD-16
A513-C339 RD-16
A513-C339 RD-16
A513-C339 RD-16
592-C272 BU-16
592-C272 BU-16
592-C272 BU-16
139-C277 RD-16
139-C277 RD-16
139-C277 RD-16
131-C265 BR-18
131-C265 BR-18
131-C265 BR-18
141-C285 PK-16
105-C259 RD-16
105-C259 RD-16
105-C259 RD-16
168-C68 GN-16
168-C68 GN-16
168-C68 GN-16
164-C264 WH-18
164-C264 WH-18
164-C264 WH-18
115-C280 PK-16
130-C5 RD-16
130-C5 RD-16
130-C5 RD-16
147-C73 RD-18
147-C73 RD-18
518-C329 OR-16
518-C329 OR-16
518-C329 OR-16
538-C331 BR-16
538-C331 BR-16
538-C331 BR-16
606-C88 GY-16
606-C88 GY-16
606-C88 GY-16
605-C90 YL-16
605-C90 YL-16
605-C90 YL-16
615-C291 YL-14
615-C291 YL-14
615-C291 YL-14
646-C293 OR-18
646-C293 OR-18
646-C293 OR-18
647-C290 GN-18
647-C290 GN-18
647-C290 GN-18
944-C144 OR-18
944-C144 OR-18
944-C28 OR-18
944-C28 OR-18
945-C136 BR-18
945-C136 BR-18
945-C17 BR-18
945-C17 BR-18
136-C310 GN-16
136-C310 GN-16
A541-C327 PU-16
A541-C327 PU-16
A541-C327 PU-16
122-C279 RD-16
122-C279 RD-16
122-C279 RD-16
122-C278 RD-16
122-C278 RD-16
122-C278 RD-16
164-C276 WH-18
164-C276 WH-18
164-C276 WH-18
108-C271 BU-14
108-C271 BU-14
108-C271 BU-14
124-C23 GN-14
124-C23 GN-14
124-C23 GN-14
C542-C393 GN-16
C542-C393 GN-16
141-C397 PK-16
141-C397 PK-16
134-C337 YL-14
134-C337 YL-14
134-C337 YL-14
127-C336 OR-14
127-C336 OR-14
127-C336 OR-14
320-C390 OR-16
320-C390 OR-16
320-C390 OR-16
C542-C393 GN-16
121-EG1 RD-18
121-EG1 RD-18
121-EG1 RD-18
115-EG2 PK-18
115-EG2 PK-18
115-EG4 PK-18
115-EG4 PK-18
200-EG3 BK-18
200-EG3 BK-18
200-EG5 BK-18
200-EG5 BK-18
200-EG10 BK-18
200-EG6 BK-18
115-EG9 PK-18
115-EG12 PK-18
142-EG8 BU-18
142-EG8 BU-18
142-EG11 BU-18
142-EG7 BU-18
200-EG10 BK-18
142-EG11 BU-18
115-EG9 PK-18
115-EG12 PK-18
142-EG7 BU-18
200-EG6 BK-18
126-C299 PK-16
126-C299 PK-16
126-C299 PK-16
147-C177 RD-16
147-C177 RD-16
633-C328 BU-18
633-C328 BU-18
633-C328 BU-18
661-C296 GN-18
661-C296 GN-18
661-C296 GN-18
662-C295 YL-18
662-C295 YL-18
662-C295 YL-18
663-C262 GY-18
663-C262 GY-18
663-C262 GY-18
113-C12 OR-16
113-C12 OR-16
113-C12 OR-16
944-C379 OR-18
944-C379 OR-18
410-C382 WH-18
410-C382 WH-18
410-C382 WH-18
945-C383 BR-18
945-C383 BR-18
290-C391 BK-18
290-C391 BK-18
290-C391 BK-18
291-C404 BK-18
291-C404 BK-18
291-C404 BK-18
C543-C407 GY-18
C543-C407 GY-18
C543-C407 GY-18
110-C66 RD-14
110-C66 RD-14
110-C66 RD-14
200-C21 BK-18
200-C21 BK-18
200-C21 BK-18
A273-C408 BK-14
A273-C408 BK-14
A273-C408 BK-14
A273-C408 BK-14
A273-C409 BK-14
A273-C409 BK-14
A273-C409 BK-14
A273-C409 BK-14
A273-C417 BK-14
A273-C417 BK-14
A273-C417 BK-14
A273-C417 BK-14
105-C455 RD-16
105-C455 RD-16
105-C455 RD-16
944-C458 OR-18
944-C458 OR-18
945-C459 BR-18
945-C459 BR-18
E735-C86 PU-18
E735-C86 PU-18
E735-C86 PU-18
113-C389 OR-16
113-C389 OR-16
200-C454 BK-16
200-C454 BK-16
200-C454 BK-16
614-C462 PU-18
614-C462 PU-18
614-C462 PU-18
124-C464 GN-14
124-C464 GN-14
124-C464 GN-14
141-C14 PK-18
141-C14 PK-18
151-C489 GN-16
151-C489 GN-16
P739-C493 BU-16
P739-C493 BU-16
P739-C493 BU-16
J887-C490 PU-18
J887-C490 PU-18
J887-C490 PU-18
J815-C491 BK-18
J815-C491 BK-18
J815-C491 BK-18
AUTOLUBE
CONNECTION
151-C159 GN-16
151-C159 GN-16
151-C159 GN-16
200-C509 BK-18
200-C509 BK-18
200-C509 BK-18
200-C509 BK-18
439-C512 YL-18
439-C512 YL-18
439-C512 YL-18
439-C512 YL-18
439-C511 YL-18
439-C511 YL-18
439-C511 YL-18
439-C511 YL-18
147-C65 RD-16
147-C65 RD-16
147-C514 RD-18
147-C514 RD-18
136-C515 GN-16
136-C515 GN-16
200-C529 BK-16
200-C529 BK-16
200-C529 BK-16
170-C101 RD-14
170-C101 RD-14
170-C101 RD-14
170-C146 RD-14
170-C146 RD-14
170-C146 RD-14
138-C214 GN-16
138-C214 GN-16
138-C214 GN-16
121-C228 RD-14
121-C228 RD-14
121-C228 RD-14
121-C361 RD-14
121-C361 RD-14
121-C361 RD-14
115-C283 PK-16
115-C103 PK-16
115-C368 PK-16
115-C368 PK-16
115-C368 PK-16
118-C463 GY-14
118-C463 GY-14
118-C463 GY-14
141-C397 PK-16
141-C14 PK-18
141-C470 PK-16
141-C470 PK-16
141-C470 PK-16
150-C471 OR-16
150-C471 OR-16
150-C471 OR-16
110-C472 RD-14
110-C472 RD-14
110-C472 RD-14
136-C517 GN-16
136-C517 GN-16
147-C36 RD-16
147-C36 RD-16
133-C427 RD-18
133-C427 RD-18
133-C427 RD-18
133-C428 OR-16
133-C428 OR-16
133-C428 OR-16
3E6328 BK-18
3E5239
3E5239
2178166
1239694
TURN SIGNAL DIODES
1729200
TURN SIGNAL DIODE
189-3158
3E5239
2090381
2090381
1035526
3E5239
3E5239
C-C98
2469371
C-C99
2469371
174-C2 RD-10
PK-18
C-C7
1471445
J1
C-C8
1471446
J2
200-C220 BK-18
201-C224 BK-18
200-C213 BK-16
200-C212 BK-18
200-C211 BK-16
201-C102 BK-18
C216-C148 BK-18
C216-C149 BK-18
121-C133 RD-14
121-C150 RD-14
121-C170 RD-14
T866-C174 YL-18
944-C141 OR-18
945-C134 BR-18
H709-C158 BU-18
H708-C157 OR-18
T859-C176 WH-18
T858-C175 GY-18
T857-C156 GN-18
T856-C155 WH-18
T855-C166 BU-18
T853-C164 OR-18
T852-C163 GY-18
T854-C165 YL-18
E920-C52 BR-18
E919-C51 YL-18
E921-C53 PK-18
E922-C54 GN-18
H713-C57 PK-18
H717-C67 BR-18
H714-C58 OR-18
C216-C26 BK-16
C529-C60 GY-18
C530-C62 BU-18
T860-C161 OR-18
T861-C162 YL-18
T869-C168 WH-18
H711-C172 GN-18
E917-C152 WH-18
E918-C153 GN-18
T870-C167 BR-18
H710-C171 PK-18
200-C219 BK-16
A513-C339 RD-16
200-C311 BK-18
200-C204 BK-14
200-C309 BK-16
STRAP
AS
CONTROL MOUNT BOLT
H722-C301 GN-18
C542-C393 GN-16
T864-C180 BR-18
T862-C182 BU-18
T863-C179 PU-18
200-C369 BK-18
200-C370 BK-18
150-C98 OR-16
X998-C154 BR-18
A105-C151 OR-18
H718-C225 GY-18
210-C178 BK-14
200-C21 BK-18
413-C33 BR-18
210-C173 BK-14
210-C269 BK-14
P945-C270 OR-18
P946-C303 BR-18
A273-C408 BK-14
A273-C409 BK-14
A273-C417 BK-14
Y794-C25 OR-18
Y795-C114 GN-18
K927-C108 BU-18
J813-C226 BK-14
J814-C286 BK-14
200-C260 BK-12
200-C230 BK-12
E735-C86 PU-18
201-C347 BK-18
201-C348 BK-16
200-C320 BK-18
200-C454 BK-16
200-C468 BK-18
961-C495 BR-18
T969-C307 YL-18
T970-C308 GY-18
200-C509 BK-18
200-C519 BK-14
201-C524 BK-16
200-C528 BK-14
200-C529 BK-16
201-C525 BK-16
A273-C476 BK-14
A273-C475 BK-14
200-C312 BK-16
200-C521 BK-12
200-C520 BK-14
200-C208 BK-16
200-C206 BK-16
200-C534 BK-12
200-C535 BK-12
200-C546 BK-16
200-C547 BK-12
A272-C233 BK-14
200-C209 BK-14
200-C210 BK-18
201-C135 BK-18
201-C304 BK-16
C542-C323 GN-18
C542-C506 GN-16
CAB GROUND 2
CAB GROUND 1
262-1408
608-C294 GN-14
A272-C233 BK-14
C216-C148 BK-18
C216-C149 BK-18
T866-C174 YL-18
944-C141 OR-18
945-C134 BR-18
H709-C158 BU-18
H709-C158 BU-18
H708-C157 OR-18
H708-C157 OR-18
T859-C176 WH-18
T859-C176 WH-18
T858-C175 GY-18
T858-C175 GY-18
T857-C156 GN-18
T857-C156 GN-18
T856-C155 WH-18
T856-C155 WH-18
T855-C166 BU-18
T855-C166 BU-18
T853-C164 OR-18
T853-C164 OR-18
T852-C163 GY-18
T852-C163 GY-18
T854-C165 YL-18
T854-C165 YL-18
A272-C233 BK-14
E920-C52 BR-18
E919-C51 YL-18
E921-C53 PK-18
E922-C54 GN-18
H713-C57 PK-18
H717-C67 BR-18
H714-C58 OR-18
C216-C26 BK-16
C529-C60 GY-18
C530-C62 BU-18
T860-C161 OR-18
T861-C162 YL-18
T869-C168 WH-18
H711-C172 GN-18
E917-C152 WH-18
E918-C153 GN-18
T870-C167 BR-18
537-C56 GN-16
537-C56 GN-16
A513-C339 RD-16
A272-C35 BK-14
139-C277 RD-16
139-C277 RD-16
131-C265 BR-18
131-C265 BR-18
141-C285 PK-16
141-C285 PK-16
105-C259 RD-16
105-C259 RD-16
168-C68 GN-16
168-C68 GN-16
164-C264 WH-18
164-C264 WH-18
115-C280 PK-16
115-C280 PK-16 130-C5 RD-16
130-C5 RD-16
118-C258 GY-16
118-C258 GY-16
147-C73 RD-18
147-C73 RD-18
518-C329 OR-16
518-C329 OR-16
538-C331 BR-16
538-C331 BR-16
646-C293 OR-18
646-C293 OR-18
647-C290 GN-18
647-C290 GN-18
944-C144 OR-18
944-C144 OR-18
944-C28 OR-18
944-C28 OR-18
945-C136 BR-18
945-C136 BR-18
945-C17 BR-18
945-C17 BR-18
136-C310 GN-16
136-C310 GN-16
A541-C327 PU-16
A541-C327 PU-16
138-C37 GN-18
138-C37 GN-18
138-C43 GN-18
138-C43 GN-18
200-C311 BK-18
200-C204 BK-14
200-C309 BK-16
122-C279 RD-16
122-C279 RD-16
122-C278 RD-16
122-C278 RD-16
164-C276 WH-18
164-C276 WH-18
108-C271 BU-14
108-C271 BU-14
118-C275 GY-18
118-C275 GY-18
H722-C301 GN-18
H722-C301 GN-18
124-C23 GN-14
124-C23 GN-14
134-C337 YL-14
134-C337 YL-14
127-C336 OR-14
127-C336 OR-14
H710-C171 PK-18
126-C299 PK-16
126-C299 PK-16
147-C177 RD-16
147-C177 RD-16
T864-C180 BR-18
T864-C180 BR-18
T862-C182 BU-18
T862-C182 BU-18
T863-C179 PU-18
T863-C179 PU-18
633-C328 BU-18
633-C328 BU-18
661-C296 GN-18
661-C296 GN-18
662-C295 YL-18
662-C295 YL-18
663-C262 GY-18
663-C262 GY-18
200-C369 BK-18
200-C370 BK-18
113-C12 OR-16
113-C12 OR-16
944-C379 OR-18
944-C379 OR-18
410-C382 WH-18
410-C382 WH-18
945-C383 BR-18
945-C383 BR-18
290-C391 BK-18
290-C391 BK-18
291-C404 BK-18
291-C404 BK-18
X998-C154 BR-18
A105-C151 OR-18
H718-C225 GY-18
210-C178 BK-14
413-C33 BR-18
413-C33 BR-18
210-C173 BK-14
210-C269 BK-14
P945-C270 OR-18
P946-C303 BR-18
Y794-C25 OR-18
Y795-C114 GN-18
K927-C108 BU-18
J813-C226 BK-14
J814-C286 BK-14
512-C223 GN-18
512-C223 GN-18
511-C306 BR-18
511-C306 BR-18
511-C306 BR-18
200-C208 BK-16
200-C230 BK-12
200-C260 BK-12
512-C223 GN-18
C542-C323 GN-18
E735-C86 PU-18
201-C347 BK-18
201-C348 BK-16
200-C320 BK-18
124-C464 GN-14
124-C464 GN-14
200-C468 BK-18
961-C495 BR-18
961-C495 BR-18
151-C159 GN-16
151-C159 GN-16
T969-C307 YL-18
T969-C307 YL-18
T970-C308 GY-18
T970-C308 GY-18
136-C515 GN-16
136-C515 GN-16
201-C525 BK-16
A272-C35 BK-14
A273-C476 BK-14
A273-C475 BK-14
210-C533 BK-14
210-C533 BK-14
210-C532 BK-14
210-C532 BK-14
200-C519 BK-14
200-C528 BK-14
200-C521 BK-12
200-C520 BK-14
200-C206 BK-16
200-C534 BK-12
200-C535 BK-12
201-C524 BK-16
201-C524 BK-16
200-C546 BK-16
200-C547 BK-12
200-C547 BK-12
200-C546 BK-16
X998-C154 BR-18
T870-C167 BR-18
T869-C168 WH-18
T861-C162 YL-18
T860-C161 OR-18
H711-C172 GN-18
H710-C171 PK-18
E918-C153 GN-18
E917-C152 WH-18
A105-C151 OR-18
Y795-C114 GN-18
Y794-C25 OR-18
P946-C303 BR-18
P945-C270 OR-18
K927-C108 BU-18
J814-C286 BK-14
J813-C226 BK-14
H718-C225 GY-18
H717-C67 BR-18
H714-C58 OR-18
H713-C57 PK-18
E922-C54 GN-18
E921-C53 PK-18
E920-C52 BR-18
E919-C51 YL-18
C530-C62 BU-18
C529-C60 GY-18
C216-C26 BK-16
C216-C148 BK-18
C216-C149 BK-18
T866-C174 YL-18
945-C134 BR-18
944-C141 OR-18
150-C98 OR-16
121-C150 RD-14
121-C133 RD-14
121-C170 RD-14
138-C214 GN-16
138-C20 GN-18
138-C20 GN-18
121-C228 RD-14 121-C228 RD-14
121-C361 RD-14
121-C361 RD-14
118-C274 GY-18
118-C274 GY-18
118-C463 GY-14
150-C97 OR-16
150-C97 OR-16
150-C126 OR-16
150-C126 OR-16
150-C471 OR-16
150-C471 OR-16
200-C209 BK-14
200-C210 BK-18
A272-C35 BK-14
201-C135 BK-18
201-C304 BK-16
C542-C506 GN-16
608-C294 GN-14
133-C427 RD-18
133-C427 RD-18
133-C428 OR-16
133-C428 OR-16
WA-C3
1607690
WA-C1
3E5179
C-C37
1552252
GND STRAP
8X-5802
A523-C236 PU-18
A523-C236 PU-18
A524-C237 BR-18
A524-C237 BR-18
A525-C238 GN-18
A525-C238 GN-18
517-C240 BU-14
517-C240 BU-14
516-C241 GN-14
516-C241 GN-14
515-C235 GY-14
515-C235 GY-14
522-C125 WH-18
522-C125 WH-18
504-C255 YL-18
504-C255 YL-18
503-C256 BR-18
503-C256 BR-18
505-C254 BU-18
505-C254 BU-18
118-C274 GY-18
118-C274 GY-18
200-C210 BK-18
200-C210 BK-18
200-C209 BK-14
200-C209 BK-14
592-C392 BU-16
592-C392 BU-16
Y794-C435 OR-18
Y794-C435 OR-18
Y794-C435 OR-18
Y795-C444 GN-18
Y795-C444 GN-18
Y795-C444 GN-18
105-C455 RD-16
105-C455 RD-16
105-C455 RD-16
104-C456 YL-16
104-C456 YL-16
104-C456 YL-16
944-C458 OR-18
944-C458 OR-18
944-C458 OR-18
945-C459 BR-18
945-C459 BR-18
945-C459 BR-18
201-C304 BK-16
201-C304 BK-16
201-C304 BK-16
403-C457 GN-18
403-C457 GN-18
403-C457 GN-18
125-WA18 RD-18
125-WA18 RD-18
308-WA22 YL-18
308-WA22 YL-18
200-WA20 BK-18
200-WA20 BK-18
403-WA24 GN-18
403-WA24 GN-18
308-WA21 YL-18
308-WA21 YL-18
403-WA23 GN-18
403-WA23 GN-18
200-WA19 BK-18
200-WA19 BK-18
125-WA17 RD-18
125-WA17 RD-18
403-WA11 GN-18
403-WA11 GN-18
403-WA11 GN-18
200-WA15 BK-18
200-WA15 BK-18
200-WA15 BK-18
200-WA15 BK-18
125-WA10 RD-18
125-WA10 RD-18
125-WA10 RD-18
125-WA10 RD-18
403-WA11 GN-18
944-WA1 OR-18
944-WA1 OR-18
944-WA1 OR-18
945-WA2 BR-18
945-WA2 BR-18
945-WA2 BR-18
Y794-WA9 OR-18
Y794-WA9 OR-18
Y794-WA9 OR-18
Y795-WA8 GN-18
Y795-WA8 GN-18
Y795-WA8 GN-18
308-WA16 YL-18
308-WA16 YL-18
308-WA16 YL-18
308-WA16 YL-18
N957-WA3 PK-18
N957-WA3 PK-18
N957-WA3 PK-18
N957-WA3 PK-18
N960-WA4 OR-18
N960-WA4 OR-18
N960-WA4 OR-18
N960-WA4 OR-18
N979-WA7 GN-18
N979-WA7 GN-18
N979-WA7 GN-18
N979-WA7 GN-18
N970-WA5 YL-18
N970-WA5 YL-18
N970-WA5 YL-18
N970-WA5 YL-18
N973-WA6 BR-18
N973-WA6 BR-18
N973-WA6 BR-18
N973-WA6 BR-18
200-WA25 BK-16
200-WA25 BK-16
200-WA25 BK-16
200-WA25 BK-16
N981-WA14 GN-18
N981-WA14 GN-18
N981-WA14 GN-18
N963-WA12 OR-18
N963-WA12 OR-18
N963-WA12 OR-18
N959-WA13 PK-18
N959-WA13 PK-18
N959-WA13 PK-18
CAB GROUND 4
ENG END FRAME GND
F-C1
3E5179
F-C4
1698668
C-C21
1552252
C-C45
1552273
A523-C236 PU-18
A524-C237 BR-18
A525-C238 GN-18
517-C240 BU-14
516-C241 GN-14
515-C235 GY-14
522-C125 WH-18
504-C255 YL-18
503-C256 BR-18
505-C254 BU-18
118-C274 GY-18
200-C210 BK-18
200-C209 BK-14
200-F2 BK-18
592-C392 BU-16
135-F16 BU-18
135-F16 BU-18
135-A17 BU-16
135-F18 BU-18
F525-F15 GN-18
F525-F15 GN-18
F524-F14 BR-18
F524-F14 BR-18
517-F10 BU-14
517-F10 BU-14
F523-F13 PU-18
F523-F13 PU-18
516-F9 GN-14
516-F9 GN-14
516-F9 GN-14
550-F11 GY-14
515-F6 GY-14
515-F6 GY-14
200-F1 BK-14
200-F1 BK-14
522-F12 WH-14
522-F12 WH-14
522-F12 WH-14 200-F4 BK-14
200-F4 BK-14
135-A17 BU-16
200-F5 BK-18
200-F3 BK-14
200-F3 BK-14
515-F7XX GY-14
200-F2 BK-18
522-F12 WH-14
515-F7 GY-14
515-F7 GY-14
515-F8 GY-14
515-F8 GY-14
517-F10 BU-14
1555789
1741497
9G1950
3E5464
1776727
TC
133-9012
F-C3
135-F18 BU-18
F524-F14 BR-18
200-F5 BK-18
Y-C2
1552269
Y-C5
1552269
Y-C1
1552269
Y-C6
1552269
WA-C2
1552252
M-C1
3E3364
M-C2
1552269
M-C3
1552269
L-C1
3E3364
L-C2
1552269
L-C3
1552269
K-C1
3E3364
K-C2
1552269
K-C3
1552269
J-C1
1552269
H-C1
3E3364
H-C2
1552269
H-C3
1552269
C-C81
1552264
C-C83
1552273
C-C42
7T5957
C-C78
1552264
C-C66
2234778
C-C88
1552267
C-C102
2234778
200-C334 BK-16
200-C416 BK-18
200-C416 BK-18
537-C56 GN-16
102-C248 RD-14
611-C32 PU-14
508-C302 PU-18
617-C83 BR-16
200-C334 BK-16
200-C341 BK-16
592-C202 BU-16
200-C335 BK-16
200-C288 BK-18
200-C288 BK-18
611-C100 PU-14
604-C78 OR-16
509-C340 WH-18
606-C89 GY-16
605-C91 YL-16
502-C253 OR-18
500-C252 BR-18
501-C257 GN-18
537-C16 GN-16
102-C69 RD-14
619-C40 GN-14
611-C100 PU-14
202-C143 BK-18
G746-C13 WH-18
A982-C130 BR-18
A307-C129 GY-18
A513-C339 RD-16
139-C277 RD-16
139-C277 RD-16
139-C277 RD-16
131-C265 BR-18
131-C265 BR-18
131-C265 BR-18
141-C285 PK-16
141-C285 PK-16
105-C259 RD-16
105-C259 RD-16
164-C264 WH-18
115-C280 PK-16
115-C280 PK-16
115-C280 PK-16
130-C5 RD-16
130-C5 RD-16
147-C73 RD-18
147-C73 RD-18
646-C293 OR-18
647-C290 GN-18
A541-C327 PU-16
118-C275 GY-18
118-C275 GY-18
200-C288 BK-18
102-C248 RD-14
614-C330 PU-16
614-C330 PU-16
H795-C222 PK-18
102-C248 RD-14
102-C131 RD-16
102-C131 RD-16
537-C16 GN-16
537-C305 GN-16
134-C337 YL-14
134-C337 YL-14
134-C337 YL-14
127-C336 OR-14 127-C336 OR-14
127-C336 OR-14
A629-C300 BU-14
651-C239 YL-14
126-C299 PK-16
126-C299 PK-16
200-C415 BK-16
200-C415 BK-16
615-C318 YL-18
910-C15 YL-18
436-C47 OR-18
G480-C316 GN-18
147-C177 RD-16
147-C177 RD-16
200-C413 BK-16
200-C413 BK-16
411-C243 PK-18
611-C424 PU-18
611-C424 PU-18
200-C414 BK-16
200-C414 BK-16
430-C313 BU-18
G850-C29 BU-18
G479-C315 WH-18
T864-C180 BR-18
T862-C182 BU-18
T863-C179 PU-18
633-C328 BU-18
E707-C440 GN-18
E707-C440 GN-18
201-C419 BK-18
E708-C443 PK-18
E708-C443 PK-18
C413-C436 YL-18
C413-C436 YL-18
C414-C438 BU-18
C414-C438 BU-18
663-C433 GY-18
663-C433 GY-18
200-C411 BK-18
200-C411 BK-18
200-C406 BK-18
200-C406 BK-18
661-C296 GN-18
662-C295 YL-18
200-C412 BK-18
200-C412 BK-18
E707-C441 GN-18
E707-C441 GN-18
201-C420 BK-18
E708-C442 PK-18
E708-C442 PK-18
C413-C437 YL-18
C413-C437 YL-18
C414-C439 BU-18
C414-C439 BU-18
663-C432 GY-18
663-C432 GY-18
200-C410 BK-18
200-C410 BK-18
663-C262 GY-18
E708-C247 PK-18
C413-C251 YL-18
C414-C244 BU-18
E707-C250 GN-18
614-C6 PU-18
614-C232 PU-18
200-C332 BK-18
200-C332 BK-18
200-C261 BK-18
200-C261 BK-18
614-C93 PU-18
614-C93 PU-18
G848-C378 GN-18
E701-C405 PK-18
104-C46 YL-16
104-C46 YL-16
413-C33 BR-18
Y795-C448 GN-18
Y794-C449 OR-18
Y794-C450 OR-18
Y795-C451 GN-18
Y795-C453 GN-18
540-C430 WH-18
540-C430 WH-18
539-C429 BU-18
539-C429 BU-18
538-C446 BR-18
538-C446 BR-18
610-C333 OR-14
610-C333 OR-14
512-C223 GN-18
511-C306 BR-18
538-C331 BR-16
614-C325 PU-16
538-C465 BR-16
Y794-C95 OR-18
Y795-C139 GN-18 Y795-C503 GN-18
Y794-C466 OR-18
200-C341 BK-16
200-C504 BK-18
200-C504 BK-18
614-C505 PU-18
614-C505 PU-18
T969-C307 YL-18
T970-C308 GY-18
C216-C508 BK-18
C542-CF1 GN-14
C542-CF3 GN-14
200-CF2 BK-14
200-CF4 BK-14
C542-CF1 GN-14
200-CF2 BK-14
C542-CF3 GN-14
200-CF4 BK-14
200-CE2 BK-14
200-CE8 BK-14
200-CE3 BK-14
200-CE4 BK-14
200-CE3 BK-14
200-CE4 BK-14
651-CE1 YL-14
651-CE7 PK-14
A629-CE5 BU-14
A629-CE5 BU-14
A629-CE6 BU-14
A629-CE6 BU-14
615-CE9 YL-14
615-CE9 YL-14
615-CE11 YL-14
615-CE11 YL-14
608-CE15 GN-14
608-CE13 GN-14
200-CE14 BK-14
200-CE12 BK-14
200-CE12 BK-14
200-CE10 BK-14
200-CE10 BK-14
200-CE16 BK-14
200-Y10 BK-14
200-Y7 BK-14
651-Y6 PK-14
651-Y9 PK-14
603-J1 PK-14
200-J2 BK-14
200-Y10 BK-14
200-Y7 BK-14
651-Y6 PK-14
651-Y9 PK-14
200-Y2 BK-14
200-Y4 BK-14
608-Y3 GN-14
608-Y1 GN-14
603-J1 PK-14
200-J2 BK-14
ELECTRICAL STUDS PASS
THROUGH THE CAB ROOF
CONNECT TO TERMINALS
ON THE CAB SCHEMATIC
PART NUMBERS:
PILOT/HMU 186-0696
EH/CCS 186-0623
ONE STUD FOR EACH CIRCUIT
200,615,608(ATTACH),603(ATTACH)
200-Y2 BK-14
200-Y4 BK-14
608-Y1 GN-14
608-Y3 GN-14
592-C122 BU-16
200-C548 BK-16
200-C546 BK-16
200-C547 BK-12
Y794-C452 OR-18
Y794-C452 OR-18
Y795-C453 GN-18
200-H1 BK-14
200-H3 BK-14
200-H2 BK-14
200-K1 BK-14
200-K2 BK-14
200-K3 BK-14
615-H4 YL-14
615-H5 YL-14
615-H6 YL-14
615-K4 YL-14
615-K6 YL-14
615-K5 YL-14
200-K3 BK-14
615-K5 YL-14
615-K6 YL-14
200-K2 BK-14
615-K5 YL-14
615-K6 YL-14
200-K3 BK-14
200-K2 BK-14
200-H2 BK-14
615-H6 YL-14
615-H5 YL-14
200-H3 BK-14
200-H2 BK-14
615-H6 YL-14
615-H5 YL-14
200-H3 BK-14
608-Y1 GN-14
608-Y3 GN-14
200-Y4 BK-14
200-Y2 BK-14
200-L2 BK-14
200-L4 BK-14
200-L4 BK-14
200-L6 BK-14
200-L6 BK-14
200-M2 BK-14
200-M4 BK-14
200-M6 BK-14
608-M1 GN-14
608-L1 GN-14
608-L3 GN-14
608-L3 GN-14 608-L5 GN-14
608-L5 GN-14
608-M3 GN-14
608-M5 GN-14
200-L4 BK-14
200-L6 BK-14
608-L3 GN-14
608-L5 GN-14
608-M3 GN-14
608-M5 GN-14
200-M4 BK-14
200-M6 BK-14
608-M3 GN-14
608-M5 GN-14
200-M6 BK-14
200-M4 BK-14
133-C427 RD-18
133-C427 RD-18
133-C428 OR-16
CF-C1
1552269
CF-C2
1552269
CE-C1
1552269
CE-C2
1552269
CE-C3
1552269
CE-C4
1552269
CE-C5
1552269
CE-C6
1552269
CE-C7
1552269
CE-C8
1552269
1342540
2399954
2639088
ANTENNA
263-8948
LH FRONT CAB FLOOD
2196487
LH FWD HID FLOOD
2108422
RH FWD HID FLOOD
2108422
RH FRONT CAB FLOOD
2196487
LH REAR CAB FLOOD
2196487
LH REAR HID FLOOD
2108423
RH REAR HID FLOOD
2108423
RH HEATED MIRROR
2001173
LH HEATED MIRROR
2001173
RH REAR CAB FLOOD
2196487
BEACON
1286983
LH RR CAB FLOOD
2196487
RH RR CAB FLOOD
2196487
LH FR CAB FLOOD
2196487
RH FR CAB FLOOD
2196487
LH FR CAB FLOOD 2
2196485
RH FR WORK LAMP 2
2196485
LH RR CAB FLOOD 2
2196485
RH RR CAB FLOOD 2
2196485
E-C2
1552252
E-C11
1552269
E-C13
1552267
E-C6
2234778
E-C7
1552272
E-C9
1552272
E-C10
1552272
E-C3
1552264
E-C4
3E3370
C-C20
3E5179
C-C23
1552269
C-C94
2234778
C-C46
2234778
C-C39
2234778
C-C19
3E3388
2364622
C216-E11 BK-18
C216-E11 BK-18
C216-E15 BK-18
C216-E17 BK-18
C216-E16 BK-18
164-E7 WH-18
164-E7 WH-18
164-E19 WH-18
164-E20 WH-18
164-E21 WH-18
320-E12 OR-16
320-E12 OR-16
H722-E9 GN-18
H722-E9 GN-18
H711-E2 GN-18
H711-E2 GN-18
H710-E1 PK-18
H710-E1 PK-18
614-C96 PU-18
614-C96 PU-18
508-C302 PU-18
320-C317 OR-16
608-C294 GN-14
164-E20 WH-18
C216-E16 BK-18
H722-E9 GN-18
164-E19 WH-18
C216-E15 BK-18
H711-E2 GN-18
164-E21 WH-18
C216-E17 BK-18
H710-E1 PK-18
320-E12 OR-16
C216-C314 BK-18
C216-C24 BK-18
C216-C24 BK-18
T860-C161 OR-18
T861-C162 YL-18
T869-C168 WH-18
T869-C168 WH-18
H711-C172 GN-18
E917-C152 WH-18
E917-C152 WH-18
E918-C153 GN-18
E918-C153 GN-18
T870-C167 BR-18
T870-C167 BR-18
H710-C171 PK-18
200-C311 BK-18
200-C311 BK-18
200-C204 BK-14
200-C309 BK-16
122-C278 RD-16
164-C276 WH-18
108-C271 BU-14
509-C340 WH-18
H722-C301 GN-18
A629-C300 BU-14
651-C239 YL-14
603-C297 PK-16
614-C199 PU-18
614-C199 PU-18
614-C321 PU-18
614-C321 PU-18
200-C369 BK-18
200-C369 BK-18
200-C370 BK-18
200-C370 BK-18
X998-C154 BR-18
A105-C151 OR-18
E746-C44 GN-18 202-E3 BK-18
202-E3 BK-18
E746-E23 GN-18
E746-E23 GN-18
E746-E23 GN-18
P915-C422 PK-18
G788-C423 YL-18
G787-C418 GN-18
202-C71 BK-18
P916-C421 OR-18
G787-E5 GN-18
G787-E5 GN-18
G787-E5 GN-18
202-E6 BK-18
202-E6 BK-18
P916-E10 OR-18
P916-E10 OR-18
P916-E10 OR-18
P915-E13 PK-18
P915-E13 PK-18
P915-E13 PK-18
G788-E14 YL-18
G788-E14 YL-18
G788-E14 YL-18
614-E4 PU-18
614-E4 PU-18
200-E18 BK-18
200-E18 BK-18
200-E22 BK-16
200-E22 BK-16
200-E8 BK-16
200-E8 BK-16
614-C181 PU-18
T861-E24 YL-18
T861-E24 YL-18
T861-E24 YL-18
T860-E25 OR-18
T860-E25 OR-18
T860-E25 OR-18
C216-E26 BK-18
C216-E26 BK-18
200-C208 BK-16
200-C230 BK-12
200-C260 BK-12
202-E27 BK-18
202-E27 BK-18
202-E28 BK-18
202-E28 BK-18
614-E29 PU-18
614-E29 PU-18
614-E30 PU-18
614-E30 PU-18
200-E31 BK-18
200-E31 BK-18
C216-C217 BK-18
C216-C217 BK-18
200-C320 BK-18
200-C320 BK-18
614-C322 PU-18
614-C322 PU-18
108-AT1 BU-14
200-AT2 BK-14
200-C468 BK-18
200-C468 BK-18
614-C469 PU-18
614-C469 PU-18
987-C160 WH-16
987-C160 WH-16
151-C159 GN-16
151-C159 GN-16
C542-C506 GN-16
AT-C1
3E3364
1701821
2658171
OPERATOR SEAT HEATER COMPRESSOR
2373970
2631493
256-7822
2462642
2433166
2433166
2433166
AIR SEAT COMPRESSOR
2373970
2511197
N-C4
3E5178
N-C1
7X6222
N-C3
3E5136
N-C5
3T3158
N-C2
1698669
C-C18
1552267
C-C51
1552267
C-C52
1552264
C-C53
1552264
C-C55
1552273
C-C57
1552273
C-C54
1552273
C-C65
2234778
C-C61
2234778
C-C59
2234778
C-C60
2234778
C-C62
2234778
C-C64
2234778
C-C43
2234778
C-C49
2234778
C-C50
2234778
C-C40
1552252
C-C3
8T9834
C-C95
2234778
C-C103
1552267
118-C355 GY-18
118-C355 GY-18
118-C352 GY-18
118-C352 GY-18
202-C350 BK-18
202-C350 BK-18
C529-C59 GY-18
200-C344 BK-18
200-C344 BK-18
200-C343 BK-18
200-C343 BK-18
200-C345 BK-18
200-C345 BK-18
200-C342 BK-18
X973-C192 BU-18
X974-C200 BR-18
X972-C188 GN-18
P910-C38 BR-18
P976-C77 BR-16
H709-C158 BU-18
H708-C157 OR-18
T859-C176 WH-18
T858-C175 GY-18
T858-C175 GY-18
T857-C156 GN-18
T856-C155 WH-18
T855-C166 BU-18
T853-C164 OR-18
T852-C163 GY-18
T854-C165 YL-18
200-C346 BK-18
200-C346 BK-18
516-C241 GN-14
517-C240 BU-14
A525-C238 GN-18
A524-C237 BR-18
515-C235 GY-14
521-C124 YL-14
A525-C238 GN-18
A524-C237 BR-18
517-C240 BU-14
516-C241 GN-14
515-C235 GY-14
521-C124 YL-14
502-C253 OR-18
500-C252 BR-18
506-C10 PU-18
501-C257 GN-18
H729-C63 WH-18
505-C254 BU-18
H728-C198 GN-18
977-C197 YL-18
973-C195 BR-18
504-C255 YL-18
503-C256 BR-18
507-C11 WH-18
720-C234 PU-18
500-C252 BR-18
502-C253 OR-18
506-C10 PU-18
501-C257 GN-18
503-C256 BR-18
977-C197 YL-18
507-C11 WH-18
505-C254 BU-18
504-C255 YL-18
973-C195 BR-18
H728-C198 GN-18
H729-C63 WH-18
T855-C166 BU-18
T852-C163 GY-18
T854-C165 YL-18
T853-C164 OR-18
720-C234 PU-18
C530-C61 BU-18
C529-C59 GY-18
P910-C38 BR-18
T857-C156 GN-18
G767-C190 WH-18
727-C289 GN-16
G766-C189 GN-18 T856-C155 WH-18
C529-C59 GY-18
C530-C61 BU-18
H730-C201 BR-18
X973-C192 BU-18
X974-C200 BR-18
X972-C188 GN-18
P910-C38 BR-18
T858-C175 GY-18
T857-C156 GN-18
G767-C190 WH-18
H709-C158 BU-18
T859-C176 WH-18
T856-C155 WH-18
G766-C189 GN-18
614-C94 PU-18
727-C289 GN-16
H708-C157 OR-18
200-C344 BK-18
200-C346 BK-18
200-C342 BK-18
200-C343 BK-18
200-C345 BK-18
200-C206 BK-16
H730-C201 BR-18
A523-C236 PU-18
A523-C236 PU-18
168-C68 GN-16
168-C68 GN-16
118-C258 GY-16
118-C258 GY-16
944-C144 OR-18
944-C144 OR-18
944-C144 OR-18
944-C144 OR-18
945-C136 BR-18
945-C136 BR-18
945-C136 BR-18
945-C136 BR-18
136-C310 GN-16
136-C310 GN-16
136-C310 GN-16
136-C310 GN-16
138-C37 GN-18
138-C37 GN-18
138-C37 GN-18
138-C43 GN-18
138-C43 GN-18
138-C43 GN-18
122-C279 RD-16
122-C279 RD-16
124-C23 GN-14
124-C23 GN-14
124-C23 GN-14
C583-C395 GN-18
C583-C395 GN-18
202-C396 BK-18
202-C396 BK-18
T859-C176 WH-18
T858-C175 GY-18
C216-C365 BK-18
202-C358 BK-18
202-C358 BK-18
202-C358 BK-18
202-C351 BK-18
202-C351 BK-18
200-N4 BK-18
200-N4 BK-18
251-N6 BK-18
251-N6 BK-18
138-N11 GN-18
138-N11 GN-18
138-N5 GN-18
138-N5 GN-18
C529-N8 GY-18
C529-N8 GY-18
C530-N9 BU-18
C530-N9 BU-18
614-N3 PU-18
614-N3 PU-18
944-N1 OR-18
944-N1 OR-18
945-N2 BR-18
945-N2 BR-18
E416-N7 PU-18
E416-N7 PU-18
818-N12 BR-18
250-N14 BK-18
819-N13 GY-18
251-N15 BK-18
251-N15 BK-18
188-N16 WH-18
188-N16 WH-18
E955-N10
E955-N10 OR-18
118-C352 GY-18
118-C355 GY-18
C530-C61 BU-18
A525-C238 GN-18
A524-C237 BR-18
517-C240 BU-14
614-C94 PU-18
503-C256 BR-18
504-C255 YL-18
515-C235 GY-14
516-C241 GN-14
502-C253 OR-18
720-C234 PU-18
T857-C156 GN-18
G766-C189 GN-18
P976-C77 BR-16
G767-C190 WH-18
H709-C158 BU-18
168-C68 GN-16
138-C37 GN-18
138-C43 GN-18
124-C23 GN-14
C216-C365 BK-18
C583-C395 GN-18
505-C254 BU-18
506-C10 PU-18
500-C252 BR-18
507-C11 WH-18
202-C396 BK-18
A523-C236 PU-18
202-C350 BK-18
H708-C157 OR-18
727-C289 GN-16
T856-C155 WH-18
501-C257 GN-18
T859-C176 WH-18
973-C195 BR-18
977-C197 YL-18
521-C124 YL-14
X974-C200 BR-18
X972-C188 GN-18
H728-C198 GN-18
H729-C63 WH-18
T855-C166 BU-18
T852-C163 GY-18
H730-C201 BR-18
T854-C165 YL-18
T853-C164 OR-18
X973-C192 BU-18
P910-C38 BR-18
118-C354 GY-18
118-C354 GY-18
118-C354 GY-18
118-C353 GY-18
118-C353 GY-18
118-C353 GY-18
200-C384 BK-18
200-C384 BK-18
200-C384 BK-18
614-C7 PU-18
614-C7 PU-18
614-C7 PU-18
E708-C247 PK-18
C413-C251 YL-18
C414-C244 BU-18
E707-C250 GN-18
411-C243 PK-18
E707-C250 GN-18
C413-C251 YL-18
C414-C244 BU-18
411-C243 PK-18
E708-C247 PK-18
411-C243 PK-18
C413-C251 YL-18
E708-C247 PK-18
C414-C244 BU-18
E707-C250 GN-18
614-C76 PU-18
614-C76 PU-18
614-C76 PU-18
614-C92 PU-18
614-C92 PU-18
614-C92 PU-18
614-C74 PU-18
614-C74 PU-18
614-C137 PU-16
614-C169 PU-18
614-C169 PU-18
614-C169 PU-18
614-C215 PU-18
614-C215 PU-18
614-C215 PU-18
614-C216 PU-18
614-C216 PU-18
614-C216 PU-18
614-C242 PU-18
614-C242 PU-18
614-C242 PU-18
614-C245 PU-18
614-C245 PU-18
614-C245 PU-18
200-C324 BK-18
200-C324 BK-18
200-C324 BK-18
200-C356 BK-18
200-C356 BK-18
200-C356 BK-18
200-C357 BK-18
200-C357 BK-18
200-C357 BK-18
200-C363 BK-18
200-C363 BK-18
200-C363 BK-18
200-C362 BK-18
200-C362 BK-18
200-C362 BK-18
200-C138 BK-18
200-C138 BK-18
200-C138 BK-18
200-C104 BK-18
200-C104 BK-18
200-C104 BK-18
200-C359 BK-18
200-C359 BK-18
200-C359 BK-18
200-C338 BK-18
200-C338 BK-18
200-C338 BK-18
113-C12 OR-16
113-C12 OR-16
113-C12 OR-16
113-C12 OR-16
944-C379 OR-18
944-C379 OR-18
944-C379 OR-18
944-C379 OR-18
447-C380 PK-18
447-C380 PK-18
447-C380 PK-18
442-C381 GY-18
442-C381 GY-18
442-C381 GY-18
410-C382 WH-18
410-C382 WH-18
410-C382 WH-18
410-C382 WH-18
945-C383 BR-18
945-C383 BR-18
945-C383 BR-18
945-C383 BR-18
G485-C385 BU-18
G485-C385 BU-18
G485-C385 BU-18
432-C387 PK-18
432-C387 PK-18
432-C387 PK-18
G486-C388 GN-18
G486-C388 GN-18
G486-C388 GN-18
290-C391 BK-18
290-C391 BK-18
290-C391 BK-18
290-C391 BK-18
291-C404 BK-18
291-C404 BK-18
291-C404 BK-18
291-C404 BK-18
443-C399 YL-18
443-C399 YL-18
443-C399 YL-18
403-C401 GN-18
403-C401 GN-18
403-C401 GN-18
426-C402 BR-18
426-C402 BR-18
426-C402 BR-18
E455-C403 BR-18
E455-C403 BR-18
E455-C403 BR-18
202-C284 BK-18
202-C284 BK-18
202-C284 BK-18
614-C371 PU-18
614-C371 PU-18
614-C371 PU-18
512-C223 GN-18
512-C223 GN-18
511-C306 BR-18
511-C306 BR-18
C542-C323 GN-18
C542-C323 GN-18
C542-C323 GN-18
C542-C323 GN-18
E735-C86 PU-18
E735-C86 PU-18
E735-C132 PU-18
E735-C132 PU-18
E735-C132 PU-18
E735-C55 PU-18
E735-C55 PU-18
E735-C55 PU-18
200-C45 BK-18
200-C45 BK-18
614-C64 PU-18
614-C64 PU-18
201-C347 BK-18
201-C347 BK-18
201-C347 BK-18
201-C347 BK-18
201-C348 BK-16
201-C348 BK-16
201-C348 BK-16
201-C348 BK-16
567-C360 WH-14
567-C360 WH-14
567-C360 WH-14
567-C473 WH-14
567-C473 WH-14
567-C473 WH-14
567-C364 WH-14
567-C364 WH-14
567-C364 WH-14
567-C372 WH-14
567-C372 WH-14
567-C372 WH-14
C216-C367 BK-18
C216-C367 BK-18
C216-C367 BK-18
C216-C349 BK-18
C216-C349 BK-18
C216-C349 BK-18
C216-C376 BK-18
C216-C376 BK-18
C216-C376 BK-18
C216-C386 BK-18
C216-C386 BK-18
124-C464 GN-14
124-C464 GN-14
124-C464 GN-14
124-C464 GN-14
200-C467 BK-18
200-C467 BK-18
200-C467 BK-18
202-C85 BK-18
202-C85 BK-18
202-C85 BK-18
202-C366 BK-18
202-C366 BK-18
202-C366 BK-18
200-C474 BK-18
200-C474 BK-18
200-C474 BK-18
614-C477 PU-18
614-C477 PU-18
614-C477 PU-18
H703-C478 YL-18
H703-C478 YL-18
H703-C478 YL-18
H703-C478 YL-18
H702-C479 PU-18
H702-C479 PU-18
H702-C479 PU-18
H795-C481 PK-18
H795-C481 PK-18
H795-C481 PK-18
H795-C481 PK-18
614-C482 PU-18
614-C482 PU-18
614-C482 PU-18
200-C483 BK-18
200-C483 BK-18
200-C483 BK-18
P976-C485 BR-16
P976-C486 BR-16
200-C484 BK-16
200-C484 BK-16
961-C495 BR-18
961-C495 BR-18
961-C495 BR-18
961-C495 BR-18
200-C499 BK-18
200-C499 BK-18
200-C499 BK-18
200-C498 BK-18
200-C498 BK-18
200-C498 BK-18
200-C502 BK-18
200-C502 BK-18
200-C502 BK-18
614-C497 PU-18
614-C497 PU-18
614-C497 PU-18
614-C500 PU-18
614-C500 PU-18
614-C500 PU-18
614-C501 PU-18
614-C501 PU-18
614-C501 PU-18
964-C496 BU-18
964-C496 BU-18
762-C494 YL-18
762-C494 YL-18
762-C494 YL-18
964-C496 BU-18
439-C513 YL-18
439-C513 YL-18
439-C513 YL-18
200-C516 BK-16
200-C516 BK-16
200-C516 BK-16
136-C515 GN-16
136-C515 GN-16
136-C515 GN-16
136-C515 GN-16
AUOTDIG NOT
AVAILABLE ON IT62H
200-C527 BK-18
200-C527 BK-18
614-C526 PU-18
614-C526 PU-18
200-C206 BK-16
200-C536 BK-16
200-C536 BK-16
200-C536 BK-16
200-C536 BK-16
200-C537 BK-18
200-C537 BK-18
200-C537 BK-18
200-C537 BK-18
200-C538 BK-18
200-C538 BK-18
200-C538 BK-18
200-C538 BK-18
200-C539 BK-18
200-C539 BK-18
200-C539 BK-18
200-C539 BK-18
200-C540 BK-18
200-C540 BK-18
200-C540 BK-18
200-C540 BK-18
614-C541 PU-18
614-C541 PU-18
614-C541 PU-18
614-C542 PU-16
614-C543 PU-16
202-C544 BK-18
C216-C545 BK-18
P976-C485 BR-16
P976-C486 BR-16
614-C74 PU-18
127-4540
110-7886
RH DOME LAMP
3E-6389
112-6174
106-0107
RH REAR SPEAKER
168-8772
201-7952
185-6335
UPPER CAB GROUND
236-4621
236-4611
236-4610
236-4608
236-4609
236-4619
149-3253
PANEL LAMP 5
7N-5876
165-4077
154-7443
185-6335
236-4612 236-4620
236-4623
1321829
248-5081
221-6803
C529-C59 GY-18
C530-C61 BU-18
508-C302 PU-18
A524-C237 BR-18
A525-C238 GN-18
517-C240 BU-14
516-C241 GN-14
515-C235 GY-14
504-C255 YL-18
503-C256 BR-18
505-C254 BU-18
521-C124 YL-14
500-C252 BR-18
506-C10 PU-18
507-C11 WH-18
501-C257 GN-18
502-C253 OR-18
608-C294 GN-14
727-C289 GN-16
973-C195 BR-18
977-C197 YL-18
H728-C198 GN-18
720-C234 PU-18
H730-C201 BR-18
G767-C190 WH-18
G766-C189 GN-18
H729-C63 WH-18
T860-C161 OR-18
T861-C162 YL-18
T869-C168 WH-18
H711-C172 GN-18
E917-C152 WH-18
E918-C153 GN-18
T870-C167 BR-18
H710-C171 PK-18
A523-C236 PU-18
200-C311 BK-18
200-C204 BK-14
200-C309 BK-16
122-C278 RD-16
164-C276 WH-18
108-C271 BU-14
509-C340 WH-18
H722-C301 GN-18
A629-C300 BU-14
651-C239 YL-14
CUSTOMER
DATA
CONNECTION
OR-18
603-C297 PK-16
E708-C247 PK-18
C413-C251 YL-18
C414-C244 BU-18
E707-C250 GN-18
411-C243 PK-18
614-C137 PU-16
200-C369 BK-18
200-C370 BK-18
447-C380 PK-18
442-C381 GY-18
G485-C385 BU-18
432-C387 PK-18
G486-C388 GN-18
443-C399 YL-18
403-C401 GN-18
426-C402 BR-18
E455-C403 BR-18
C583-C395 GN-18
X998-C154 BR-18
A105-C151 OR-18
200-C208 BK-16
200-C230 BK-12
200-C260 BK-12
567-C360 WH-14
567-C473 WH-14
567-C364 WH-14
567-C372 WH-14
200-C320 BK-18
200-C468 BK-18
H702-C479 PU-18
964-C496 BU-18
762-C494 YL-18
151-C159 GN-16
439-C513 YL-18
202-C544 BK-18
C216-C545 BK-18
C542-C506 GN-16
G-C1
1552252
G-C2
1552252
G-C6
1552269
G-C4
1552273
G-C3
1552264
G-C5
1552267
G-C7
2234778
164-G8 WH-18
164-G8 WH-18
C216-G9 BK-18
C216-G9 BK-18
H711-G10 GN-18
H711-G10 GN-18
H711-G10 GN-18
H710-G13 PK-18
H710-G13 PK-18
H710-G13 PK-18 H722-G3 GN-18
H722-G3 GN-18
H722-G3 GN-18
200-G4 BK-16
320-G7 OR-16
320-G7 OR-16
200-G17 BK-16
200-G17 BK-16
320-G18 OR-16
320-G18 OR-16
320-G19 OR-16
320-G19 OR-16
164-G8 WH-18
A105-G1 OR-18
A105-G1 OR-18
A105-G1 OR-18
X998-G5 BR-18
X998-G5 BR-18
X998-G5 BR-18
200-G4 BK-16
C216-G2 BK-18
C216-G2 BK-18
E746-G6 GN-18
E746-G6 GN-18
E746-G6 GN-18
T861-G11 YL-18
T861-G11 YL-18
T861-G11 YL-18
T860-G12 OR-18 T860-G12 OR-18 T860-G12 OR-18
C216-G14 BK-18
C216-G14 BK-18
G787-G15 GN-18
202-G16 BK-18
P916-G20 OR-18
P915-G21 PK-18
G788-G22 YL-18
614-G24 PU-18
614-G24 PU-18
200-G23 BK-18
200-G23 BK-18
G788-G22 YL-18
P915-G21 PK-18
P916-G20 OR-18
202-G16 BK-18
G787-G15 GN-18
G788-G22 YL-18
P915-G21 PK-18
P916-G20 OR-18
G787-G15 GN-18
200-G25 BK-16
200-G25 BK-16
202-G26 BK-18
202-G26 BK-18
200-G27 BK-18
200-G27 BK-18
614-G28 PU-18
614-G28 PU-18
614-G29 PU-18
614-G29 PU-18
202-G30 BK-18
202-G30 BK-18
202-G31 BK-18
202-G31 BK-18
223-6306
2184935
REMOTE FNR SW JY
2462642
614-C96 PU-18
320-C317 OR-16
C216-C314 BK-18
C216-C24 BK-18
614-C199 PU-18
614-C321 PU-18
E746-C44 GN-18
202-C71 BK-18
G787-C418 GN-18
P916-C421 OR-18
P915-C422 PK-18
G788-C423 YL-18
614-C181 PU-18
C216-C217 BK-18
614-C322 PU-18
614-C469 PU-18
987-C160 WH-16
W-C1
3E3370
C-C10
1552273
C-C85
1552252
C-C14
1552273
C-C15
1552273
C-C68
3T3158
C-C69
3T3158
C-C71
3T3158
C-C70
3T3158
C-C44
1552252
C-C93
1552273
C-C73
1552252
610-W2 OR-14
619-W3 GN-14
611-W1 PU-14
CABLE AS. 124-4885 CABLE AS. 124-4883
CABLE AS. 124-4884
202-CR1 BK-16
202-CR1 BK-16
322-CR2 GY-16
G768-CR5 GN-16 G768-CR5 GN-16
G760-CR6 WH-16 G760-CR6 WH-16
G761-CR7 YL-16 G761-CR7 YL-16
G762-CR8 BR-16
G762-CR8 BR-16
G763-CR9 PU-16
G763-CR9 PU-16
200-C334 BK-16
200-C416 BK-18
537-AY1 GN-14
537-AY1 GN-14
539-AY2 BU-18
539-AY2 BU-18
540-AY3 WH-18
540-AY3 WH-18
605-AY4 YL-14 605-AY4 YL-14
606-AY5 GY-14
606-AY5 GY-14
A541-AY6 PU-18
A541-AY6 PU-18
537-C56 GN-16
604-C78 OR-16
202-C31 BK-16
320-C319 OR-16
606-C89 GY-16
605-C91 YL-16
509-C340 WH-18
619-C40 GN-14
A982-C130 BR-18
500-C252 BR-18
500-C252 BR-18
501-C257 GN-18
501-C257 GN-18
502-C253 OR-18
502-C253 OR-18
617-C83 BR-16
608-C294 GN-14
G763-CA1PU 20
202-CA2 BK-20
G750-CA3BU 20
G755-CA4GY 20
G768-CA5 GN-20
G760-CA6WH 20
G761-CA7YL 20
G762-CA8BR 18
ELECTRICAL STUDS PASS
THROUGH THE CAB ROOF
CONNECTING TO TERMINALS
ON THE CHASSIS
AND ENGINE DIAGRAMS
FOR PART NUMBERS SEE THE
TITLE BLOCK
A307-C129 GY-18
200-C335 BK-16
201-C292 BK-18
201-C292 BK-18
G746-C13 WH-18
592-C8 BU-16
G755-C186 GY-18
G750-C196 BU-18
202-C143 BK-18
326-C287 PU-18
617-C83 BR-16
509-C340 WH-18
308-C87 YL-18
592-C8 BU-16
320-C319 OR-16
G750-C196 BU-18
G755-C186 GY-18
G768-C187 GN-18
G760-C191 WH-18
G763-C185 PU-18
320-C319 OR-16
G750-C196 BU-18
G755-C186 GY-18
G763-C185 PU-18
G768-C187 GN-18
G760-C191 WH-18
606-C89 GY-16
605-C91 YL-16
326-C287 PU-18
501-C257 GN-18
502-C253 OR-18
500-C252 BR-18
508-C302 PU-18
508-C302 PU-18
202-C31 BK-16
202-C31 BK-16
307-C3 OR-18
307-C3 OR-18
A513-C339 RD-16
A513-C339 RD-16
A513-C339 RD-16
139-C277 RD-16
131-C265 BR-18
141-C285 PK-16
105-C259 RD-16
164-C264 WH-18
164-C264 WH-18
115-C280 PK-16
130-C5 RD-16
147-C73 RD-18
518-C329 OR-16
518-C329 OR-16
518-C329 OR-16
518-C329 OR-16
538-C331 BR-16
646-C293 OR-18
646-C293 OR-18
646-C293 OR-18
647-C290 GN-18
647-C290 GN-18
647-C290 GN-18
944-C28 OR-18
944-C28 OR-18
944-C28 OR-18
945-C17 BR-18
945-C17 BR-18
945-C17 BR-18
A541-C327 PU-16
A541-C327 PU-16
A541-C327 PU-16
118-C275 GY-18
118-C275 GY-18
102-C131 RD-16
537-C16 GN-16
537-C305 GN-16
537-C305 GN-16
134-C337 YL-14
127-C336 OR-14
A629-C300 BU-14
A629-C300 BU-14
A629-C300 BU-14
651-C239 YL-14
651-C239 YL-14
651-C239 YL-14
126-C299 PK-16
126-C299 PK-16
G750-CR3 BU-16 G750-CR3 BU-16
G755-CR4 GY-16 G755-CR4 GY-16
603-C297 PK-16
603-C297 PK-16
603-C297 PK-16
200-C415 BK-16
615-C318 YL-18
615-C318 YL-18
910-C15 YL-18
910-C15 YL-18
436-C47 OR-18
436-C47 OR-18
G480-C316 GN-18
G480-C316 GN-18
147-C177 RD-16
147-C177 RD-16
200-C413 BK-16
411-C243 PK-18
411-C243 PK-18
411-C243 PK-18
611-C424 PU-18
200-C414 BK-16
430-C313 BU-18
430-C313 BU-18
G850-C29 BU-18
G479-C315 WH-18
G479-C315 WH-18
T864-C180 BR-18
T864-C180 BR-18
T862-C182 BU-18
T862-C182 BU-18
T863-C179 PU-18
T863-C179 PU-18
633-C328 BU-18
633-C328 BU-18
633-C328 BU-18
E707-C440 GN-18
201-C419 BK-18
201-C419 BK-18
E708-C443 PK-18
C413-C436 YL-18
C414-C438 BU-18
663-C433 GY-18
200-C411 BK-18
200-C406 BK-18
661-C296 GN-18
661-C296 GN-18
661-C296 GN-18
662-C295 YL-18
662-C295 YL-18
662-C295 YL-18
200-C412 BK-18
E707-C441 GN-18
201-C420 BK-18
201-C420 BK-18
E708-C442 PK-18
C413-C437 YL-18
C414-C439 BU-18
663-C432 GY-18
200-C410 BK-18
663-C262 GY-18
E708-C247 PK-18
C413-C251 YL-18
C414-C244 BU-18
E707-C250 GN-18
614-C330 PU-16
614-C6 PU-18
614-C6 PU-18
614-C232 PU-18
200-C332 BK-18
614-C93 PU-18
201-C9 BK-16
201-C9 BK-16
E701-C405 PK-18
E701-C405 PK-18
322-CR2 GY-16
G762-C231 BR-18
G762-C231 BR-18
G761-C229 YL-18
G761-C229 YL-18
413-C33 BR-18
413-C33 BR-18
413-C33 BR-18
Y795-C448 GN-18
Y794-C449 OR-18
Y794-C450 OR-18
Y795-C451 GN-18
540-C430 WH-18
540-C430 WH-18
539-C429 BU-18
539-C429 BU-18
538-C446 BR-18
610-C333 OR-14
512-C223 GN-18
512-C223 GN-18
512-C223 GN-18
511-C306 BR-18
511-C306 BR-18
511-C306 BR-18
200-C230 BK-12
200-C260 BK-12
308-C87 YL-18
538-C465 BR-16
538-C465 BR-16
G848-C378 GN-18
Y795-C503 GN-18
Y794-C466 OR-18
200-C341 BK-16
592-C202 BU-16
592-C202 BU-16
200-C504 BK-18
614-C505 PU-18
T969-C307 YL-18
T969-C307 YL-18
T970-C308 GY-18
T970-C308 GY-18
C216-C508 BK-18
C216-C508 BK-18
592-C122 BU-16
592-C122 BU-16
201-C524 BK-16
201-C524 BK-16
200-C546 BK-16
200-C547 BK-12
C542-C506 GN-16
133-C427 RD-18
133-C427 RD-18
133-C428 OR-16
133-C428 OR-16
133-C428 OR-16
CR-C1
3E5179
CR-C3
1552264
CA-C2
3E3388
CA-C1
1711653
AY-C1
3E3381
151-7007
2T-3360
NOTE:FOR JAPAN ROADING
2H-1855
ANTENNA
(C.B. RADIO)
9U-2332
ANTENNA 1
(AM/FM RADIO)
9U-2331
189-8622
134-9569
ATCH RADIO
173-6530
12 VOLT CIGAR LIGHTER
198-6570
HEATER ELEMENT
198-6571
108-3320
192-7049
166-6928
2492775
2492763
2492763
201-0212
CCS FORWARD HORN SW
2T-3360
251-5849
XXXXXXX
C-C90
1552272
C-C72
7T5957
C-C48
1552273
C-C67
2234778
C-C38
2234778
C-C25
1552264
C-C91
1552269
C-C92
1552269
C-C97
2234778
SERVICE
TOOL CONNECTOR
CAP PART NUMBER
8C-6354
200-C342 BK-18
200-C335 BK-16
T855-C166 BU-18
T852-C163 GY-18
T854-C165 YL-18
T853-C164 OR-18
X973-C192 BU-18
X972-C188 GN-18
X974-C200 BR-18
592-C8 BU-16
326-C287 PU-18
147-A1 RD-18
200-A2 BK-18
944-A3 OR-18
945-A4 BR-18
201-C292 BK-18
307-C3 OR-18
105-C259 RD-16
168-C68 GN-16
147-C73 RD-18
944-C28 OR-18
945-C17 BR-18
H709-C158 BU-18
H708-C157 OR-18
614-C94 PU-18
C216-C365 BK-18
202-C351 BK-18
T901-C487 YL-18
T902-C488 PK-18
201-C9 BK-16
104-C46 YL-16
Y795-C448 GN-18
Y794-C449 OR-18
540-C430 WH-18
540-C430 WH-18
539-C429 BU-18
539-C429 BU-18
610-C333 OR-14
610-C333 OR-14
308-C87 YL-18
200-C45 BK-18
614-C64 PU-18
C216-C386 BK-18 P976-C485 BR-16
P976-C486 BR-16
200-C484 BK-16
944-A3 OR-18
945-A4 BR-18
200-A2 BK-18
147-A1 RD-18
Y795-C503 GN-18
Y794-C466 OR-18
Y794-A6 OR-18
Y794-A6 OR-18
Y795-A5 GN-18
Y795-A5 GN-18
IT62H ONLY
200-C527 BK-18
614-C526 PU-18
A-C1
9W1951
A-C2
3E3382
110-7887
MACHINE SECURITY SYSTEM ANTENNA
206-5208
12 VOLT ACCESSORY OUTLET
117-2311
236-4615
236-4630
MSS TRANSPONDER READER MODULE
218-0404
2364625
X-C1
3E3370
T-C1
1552269
C-C74
1552267
C-C75
2304013
C-C76
3E3364
C-C77
1552267
200-X1 BK-14
NOTE: JUMPER 610-OR TO 619-GN
ON MACHINES NOT EQUIPPED WITH
ROADING LIGHTS.
619-C40 GN-14
A307-C129 GY-18
102-T2 RD-16
604-T1 OR-16
202-C143 BK-18
611-C100 PU-14
604-C78 OR-16
G746-C13 WH-18
A982-C130 BR-18
164-C264 WH-18
130-C5 RD-16
H795-C222 PK-18
610-C333 OR-14
G750-BU-18
G768-GN-18
G760-WH-18
G761-YL-18
G755-GY-18
G763-PU-18
G762-BR-18
202-BK-18
105-6117
2675222
204-7949
236-4616
237-9736
C-C79
2234778
C-C80
2234778
STEERING GROUP
141-C285 PK-16
603-C297 PK-16
614-C232 PU-18
200-C261 BK-18
308-C87 YL-18
605-C91 YL-16
606-C89 GY-16
320-C319 OR-16
202-C31 BK-16
611-C32 PU-14
508-C302 PU-18
617-C83 BR-16
102-C69 RD-14
A982-C130 BR-18
A307-C129 GY-18
604-C78 OR-16
619-C40 GN-14
G746-C13 WH-18
592-C8 BU-16
G755-C186 GY-18
G750-C196 BU-18
G763-C185 PU-18
G768-C187 GN-18
G760-C191 WH-18
326-C287 PU-18
202-C143 BK-18
307-C3 OR-18
H795-C222 PK-18
509-C340 WH-18
A629-C300 BU-14
651-C239 YL-14
603-C297 PK-16
615-C318 YL-18
910-C15 YL-18
436-C47 OR-18
G480-C316 GN-18
430-C313 BU-18
G850-C29 BU-18
G479-C315 WH-18
G848-C378 GN-18
E701-C405 PK-18
104-C46 YL-16
G762-C231 BR-18
G761-C229 YL-18
614-C325 PU-16
592-C202 BU-16
C216-C508 BK-18
592-C122 BU-16
C-C6
1552267
508-C302 PU-18
608-C294 GN-14
122-C278 RD-16
509-C340 WH-18
A629-C300 BU-14
651-C239 YL-14
603-C297 PK-16
200-C208 BK-16
200-C230 BK-12
200-C260 BK-12
C542-C506 GN-16
LH REAR SPEAKER
168-8772
LH DOME LAMP
3E-6389
G763-C185 PU-18
G768-C187 GN-18
G760-C191 WH-18
H795-C222 PK-18
G850-C29 BU-18
T864-C180 BR-18
T862-C182 BU-18
T863-C179 PU-18
G848-C378 GN-18
G762-C231 BR-18
G761-C229 YL-18
T969-C307 YL-18
T970-C308 GY-18
+
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
KEYSWITCH ON
TOS SENSOR (A) +
TOS SENSOR (A) -
TOS SENSOR (B) +
TOS SENSOR (B) -
CAT DATA LINK +
BACKUP ALARM
BAT- (1)
CONVERTER OUTPUT SPD SNSR +
CONVERTER OUTPUT SPD SNSR -
CAT DATA LINK -
XSMN OIL TEMP SENSOR
BAT- (2)
GROUND
HMU 2-4 OR CCS AUTO 4
AUTO/MANUAL SW - MANUAL
HMU 1-4 OR CCS AUTO 3
BAT+ (2)
HMU 1 OR UPSHIFT SW(N/C)
HMU 2 OR UPSHIFT SW(N/O)
HMU 3 OR DOWNSHIFT SW(N/C)
HMU 4 OR DOWNSHIFT SW(N/O)
BAT+ (3)
CLUTCH 6 (SPEED1)
CLUTCH 4 (SPEED3)
RET FOR SPD CLUTCHES #1-3
CLUTCH 5 (SPEED2)
RET FOR SPD CLUTCH 4 & REV
8V SENSOR RETURN
BAT- (3)
RETURN FOR FORWARD
CLUTCH 2 FORWARD
IMPL POD DOWN SHIFT N/O
CLUTCH 3 (SPEED 4)
BAT- (4)
ID CODE 1(GND)
BAT+ (1)
CLUTCH 1 REVERSE
KEYSWITCH START
AXLE COOLER SOLENOID
RIDE CNTL SOL ON/OFF #3
RIDE CNTL/AXLE COOLER RET
RIDE CTRL SOL ON/OFF #1
RIDE CTRL SOL ON/OFF #2
START RELAY
START RELAY/BAC M
M
M
M
M
W W
M
W
W
W
M W
W
M
M
W
W
M W
M W
M
M
M
M
W
W
W W
W
W
W
W
M M W
M
M
M
W W M
M
M
M
M W W
M
M M
M M
M
M M
M
M M
M
W
W
W
M M
W
W
W
M M
M M
M
W
M W
M W
W
W
M W
W
W
M
W
M
M W
W
M
M
M W
M W
W
M
M
W
M W
M W
M W
M W
W
W
W
M
W
M
M
W
W
M M
W
M M
M W
M
M
W
W
W
M M
M
M
W
M
M M
W
W
M W
M
M
M M
M
M
M
M
M
W
M
W
M
W
W
MM
W
W
M
M
M
M
W
W
W
W
W
W
W W
W
W
W
M
W
W
M
W
M
M M
W
W
M
W
M
M M
M M
M M
M M
M M
M M
W
W
W W
W
W
W
M
M M
M M
M M
W
W
W
W
W W
W W
Do no ope a e o wo k on h s p oduc un ess you have
ead and unde s ood he ns uc on and wa n ngs n he
e evan Ope a on and Ma n enance Manua s and
e evan se v ce e a u e Fa u e o o ow he ns uc
ons o heed he wa n ngs cou d esu n n u y o
dea h P ope ca e s you espons b y
CALLOUT FORMAT F APPL CABLE
52 VALVE GP CONTROL
138 1234
Ca ou Numbe
M m
C m
C m
N m
N m
SYMBOL DESCR PT ON
B ADE SPADE R NG OR SCREW
TERM NA
C RCU T CONNECTED
C RCU T NOT CONNECTED
E ECTR CA CONNECT ON TO
MACH NE STRUCTURE
NTERNA E ECTR CA CONNECT ON
TO SURFACE OF COMPONENT
CONNECTOR
ATCH W RE CAB E COMPONENT
SP CE
C RCU T GROUP NG DES GNAT ON
H
ABBREV
RD
WH
OR
Y
PK
BK
GY
PU
BR
GN
BU
COLOR
RED
WH TE
ORANGE
YE OW
P NK
B ACK
GRAY
PURP E
BROWN
GREEN
B UE

15. MACHINE HARNESS CONNECTOR AND
COMPONENT LOCATIONS
64
64
43
43
42
42
41
41
40
40
39
39
38
38
37
37
36
36
35
35
34
34
33
33
32
32
30
30
29
29
28
28
27
27
26
26
25
25
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
VIEW ALL CALLOUTS

16. MACHINE HARNESS CONNECTOR AND
COMPONENT LOCATIONS
63
63
62
62
61
61
60
60
59
59
58
58
57
57
56
56
55
55
54
54
53
53
52
52
51
51
50
50
49
49
48
48
47
47
46
46
45
45
VIEW ALL CALLOUTS
