Dynamodb ppt
- 1. REALTIME RECORDIN G OF DATA INAWS DYNAMO DB BY: Shelly & Sagar
- 2. overview ■ BRIEF HISTORYOF DATA PROCESSING ■ RELATIONAL (SQL)VS. NONRELATIONAL (NOSQL) ■ Why noSQL? ■ ACIDVS CAP ■ DynamoDB- what is it? ■ DynamoDB ARCHITECTURE ■ Conditional Writes ■ Provisioned throughput ■ QUERYVS SCAN ■ Operations ■ Benefits ■ Limitations ■ DEMO

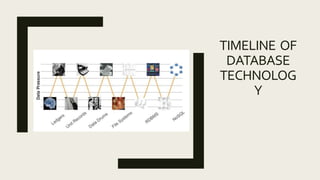

- 3.
- 4. RELATIONAL (SQL)VS. NONRELATIONAL (NOSQL) Optimisedfor storage Optimised for compute Normalized/relational Denormalized/hierarchical Ad hoc queries Instantiated views Scale vertically Scale horizontally Good for OLAP Built for OLTP at scale SQL NOSQL
- 5. DATA STORAGE FORMATIN SQL
- 6. DATA STORAGE FORMATIN SQL
- 7. Why noSQL? ■ DataVelocity– Huge data getting generated in less time ■ DataVariety – Structured, semi-structures and unstructured ■ DataVolume –Terabytes and petabytes of data ■ Dynamic Schema – Flexible data model ■ Auto-sharding – Horizontal scalability ■ Continuous Availability ■ Integrated Caching ■ Replication – Automatic replication to support high availability ■ Dynamic provisioned throughput
- 8. Acid vs CAP ■ACID properties relates to relational databases • Atomicity – Requires each transaction to be all or nothing • Consistency – Brings databases from one valid state to another • Isolation –Takes care of concurrent execution and avoid overwriting • Durability – Committed transactions will remain so in the event of power loss, crashes etc. ■ CAP theorem relates to noSQL database • Consistency – All nodes see the same data at the same time • Availability – A guarantee that every request receives a response about whether it was successful or failed • Partition tolerance –The system continues to operate despite arbitrary message loss or failure of part of the system)
- 9. DynamoDB- what is it? ■Fully managed nosql database service on AWS ■ Data model in the form of tables ■ Data stored in the form of items (name – value attributes) ■ Automatic scaling ■ – Provisioned throughput – Storage scaling – Distributed architecture ■ Easy Administration ■ Monitoring of tables using CloudWatch ■ Integration with EMR (Elastic MapReduce) ■ – Analyze data and store in S3

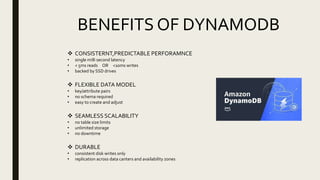

- 10. BENEFITS OF DYNAMODB CONSISTERNT,PREDICTABLE PERFORAMNCE • single milli second latency • < 5ms reads OR <10ms writes • backed by SSD drives FLEXIBLE DATA MODEL • key/attribute pairs • no schema required • easy to create and adjust SEAMLESS SCALABILITY • no table size limits • unlimited storage • no downtime DURABLE • consistent disk writes only • replication across data canters and availability zones
- 11. DynamoDB ARCHITECTURE PRIMARY KEY (MANDATO RY FOR EVERY TABLE)– HASH OR HASH + RANGE DATA MODEL IN THE FORM OF TABLES DATA STORED IN THE FORM OF ITEMS (NAME – VALUE ATTRIBUTE S) SECONDAR Y INDEXES FOR IMPROVED PERFORMA NCE – LOCALSEC ONDARYIN DEX – GLOBALSE CONDARYI NDEX • SCALAR DATA TYPE (NUMBER, STRING ETC) OR
- 12. QUERYVS SCAN • Query – Searchbased on primary key and examines only matching data – Maximum 1MB result – Query result sorted by range key – Query result can be opted to give strong consistency – Query can be done based on secondary index – Requires less provisioned throughput – Query performance depends on amount of data retrieved • Scan – Examines every item and then applies filter – Maximum 1MB result – Scan result is always eventually consistent – Required high provisioned throughput – Scan performance depends on table size – Secondary index does not have any impact on scan performance – Parallel scan can be performed usingTotalSegments

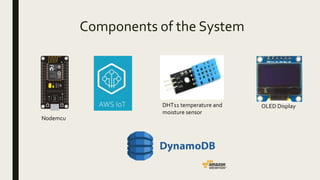

- 13. Components of theSystem Nodemcu DHT11 temperature and moisture sensor OLED Display
- 14. Architecture of thesystem

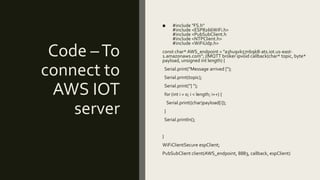

- 15. Code –To connect to AWSIOT server ■ #include "FS.h" #include <ESP8266WiFi.h> #include <PubSubClient.h #include <NTPClient.h> #include <WiFiUdp.h> const char* AWS_endpoint = "a3hu9vk57nb9k8-ats.iot.us-east- 1.amazonaws.com"; //MQTT broker ipvoid callback(char* topic, byte* payload, unsigned int length) { Serial.print("Message arrived ["); Serial.print(topic); Serial.print("] "); for (int i = 0; i < length; i++) { Serial.print((char)payload[i]); } Serial.println(); } WiFiClientSecure espClient; PubSubClient client(AWS_endpoint, 8883, callback, espClient)

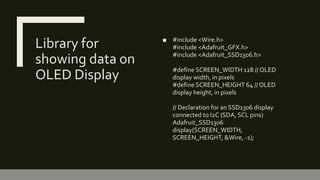

- 16. Library for showing dataon OLED Display ■ #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 64 // OLED display height, in pixels // Declaration for an SSD1306 display connected to I2C (SDA, SCL pins) Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

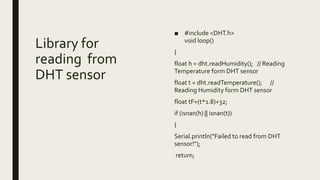

- 17. Library for reading from DHTsensor ■ #include <DHT.h> void loop() { float h = dht.readHumidity(); // Reading Temperature form DHT sensor float t = dht.readTemperature(); // Reading Humidity form DHT sensor float tF=(t*1.8)+32; if (isnan(h) || isnan(t)) { Serial.println("Failed to read from DHT sensor!"); return;
- 18.

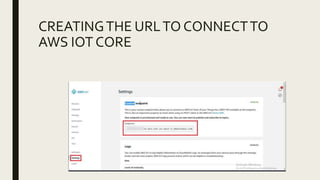

- 19. CREATINGTHE URLTO CONNECTTO AWSIOT CORE
- 20.
- 21.

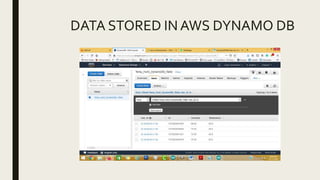

- 22. DATA STORED INAWS DYNAMO DB

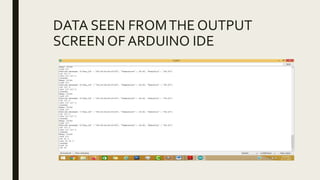

- 23. DATA SEEN FROMTHEOUTPUT SCREEN OF ARDUINO IDE
- 24.

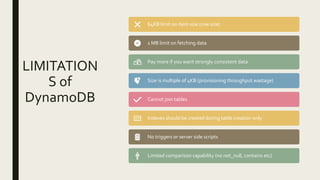

- 25. LIMITATION S of DynamoDB 64KB limiton item size (row size) 1 MB limit on fetching data Pay more if you want strongly consistent data Size is multiple of 4KB (provisioning throughput wastage) Cannot join tables Indexes should be created during table creation only No triggers or server side scripts Limited comparison capability (no not_null, contains etc)
- 26. References ■ https://docs.aws.amazon.com/amazondyn amodb/ ■http://en.wikipedia.org/wiki/Consistent_ha shing ■ https://youtu.be/vCRXqVld8_c ■ https://youtu.be/28FS2qix2u4 ■ https://electronicsinnovation.com/storing- esp8266-data-into-amazon-dynamodb- using-aws-iot-coremqtt-arduino/ ■ https://www.slideshare.net/AmazonWebSe rvices/introduction-to-amazon-dynamodb- 73191648
