1. Baris Kanlica
Ramon Tebar
New Features &
Deprecations in
Version 9

2. Baris Kanlica
• CEO & CRM Solution Architect of
Mawens Business Solutions
• Design & Development of Dynamics 365
Solutions and related technologies
• Over 10 years experience with Dynamics
CRM & Microsoft Technology Stack
Mawens Business Solutions

3. Ramon Tebar
• CRM Solution Architect working for
Investec Bank in London
• Design & Development of Dynamics 365
Solutions and related technologies
• Over 10 years experience with Dynamics
CRM & Microsoft Technology Stack

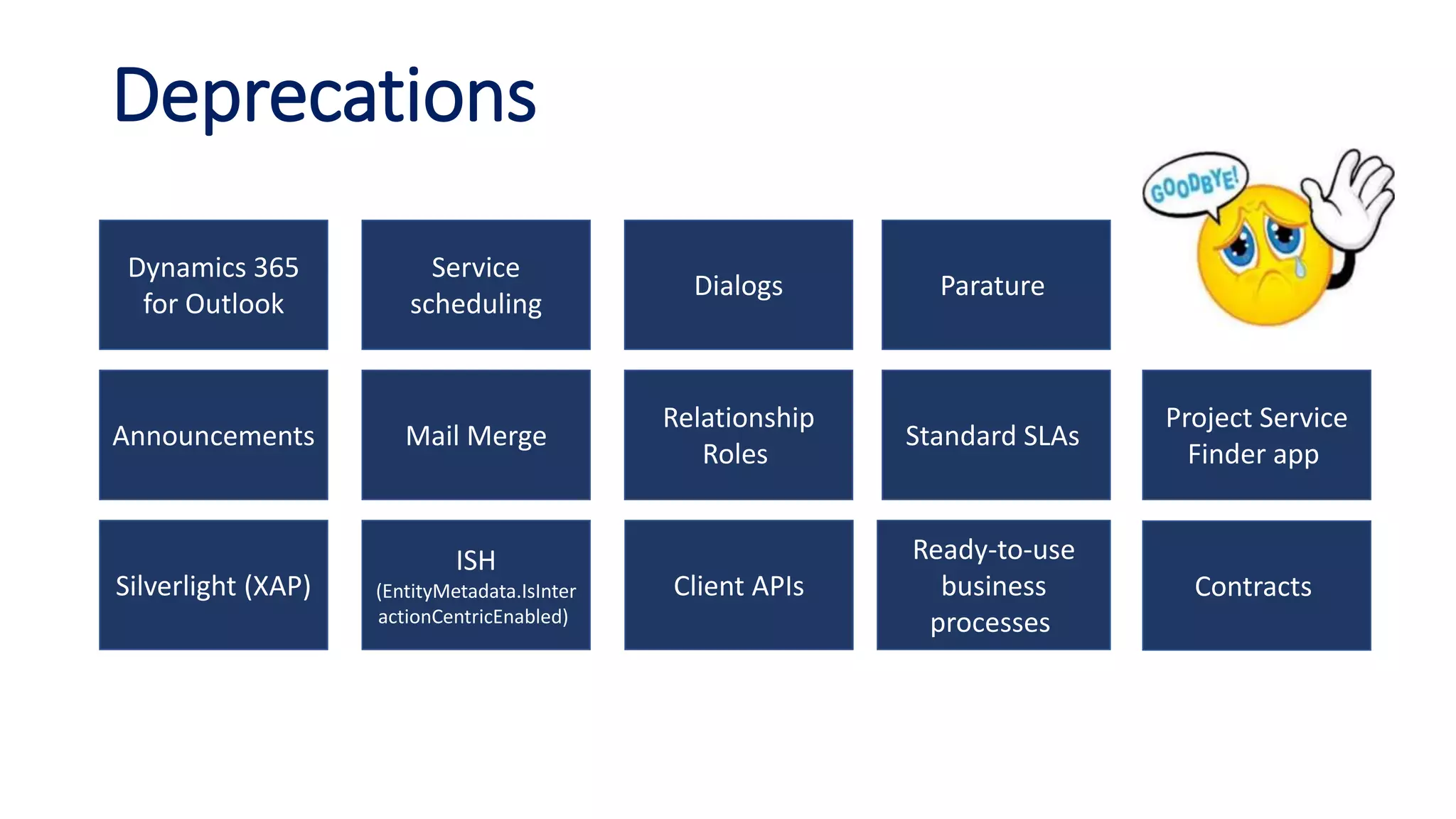

5. Dynamics 365
for Outlook
Service
scheduling
Dialogs Parature
Project Service
Finder app
Contracts
Standard SLAs
Relationship
Roles
Mail MergeAnnouncements
Ready-to-use
business
processes
Client APIs
ISH
(EntityMetadata.IsInter
actionCentricEnabled)
Silverlight (XAP)
Deprecations

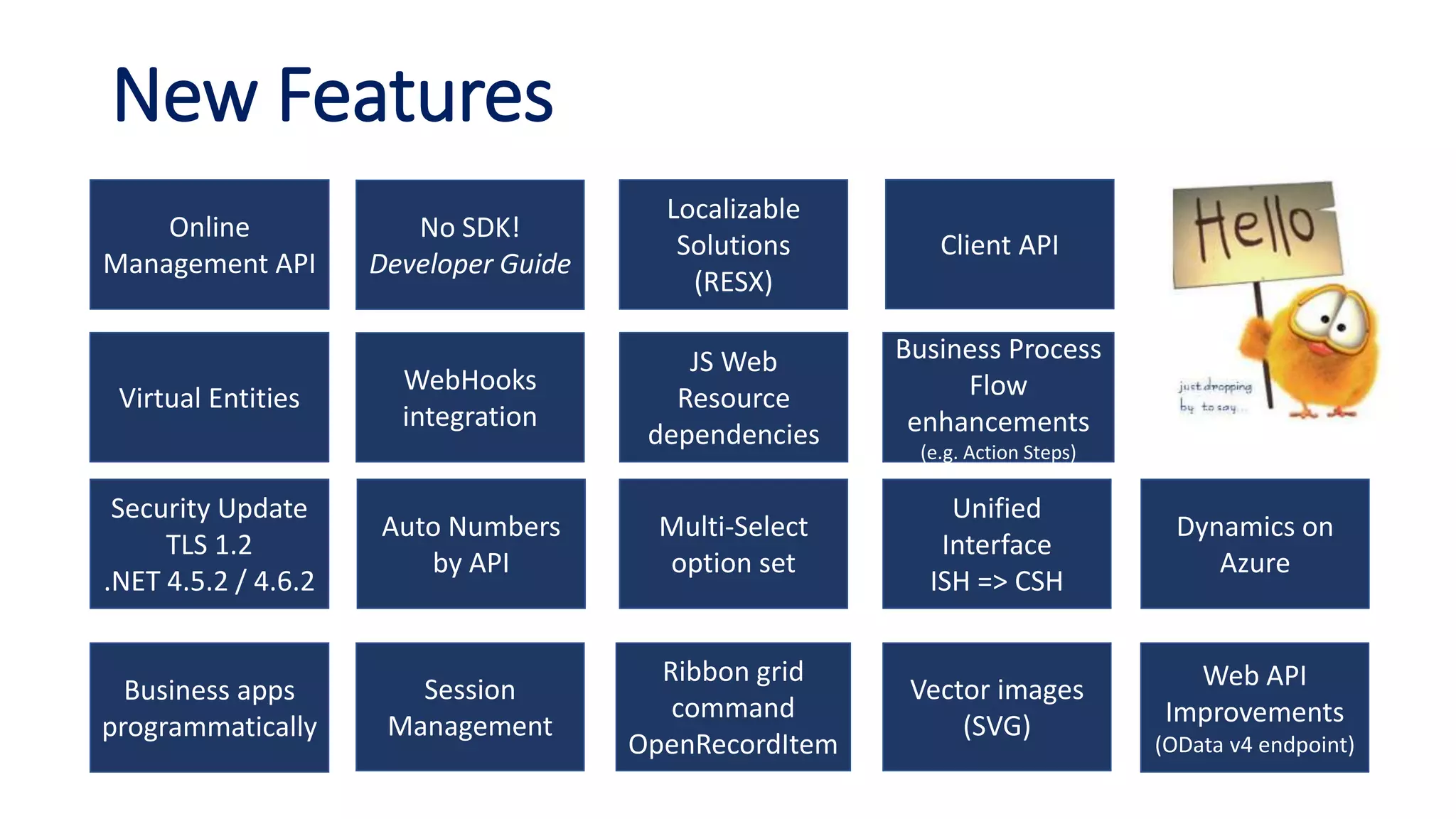

6. Security Update
TLS 1.2
.NET 4.5.2 / 4.6.2
No SDK!
Developer Guide
Dynamics on
Azure
Virtual Entities
Web API
Improvements
(OData v4 endpoint)
Client API
Business apps
programmatically
Multi-Select
option set
WebHooks
integration
Vector images
(SVG)
Localizable
Solutions
(RESX)
JS Web
Resource
dependencies
Session
Management
Ribbon grid
command
OpenRecordItem
Business Process
Flow
enhancements
(e.g. Action Steps)
Auto Numbers
by API
Online
Management API
New Features
Unified
Interface
ISH => CSH

7. Admin API

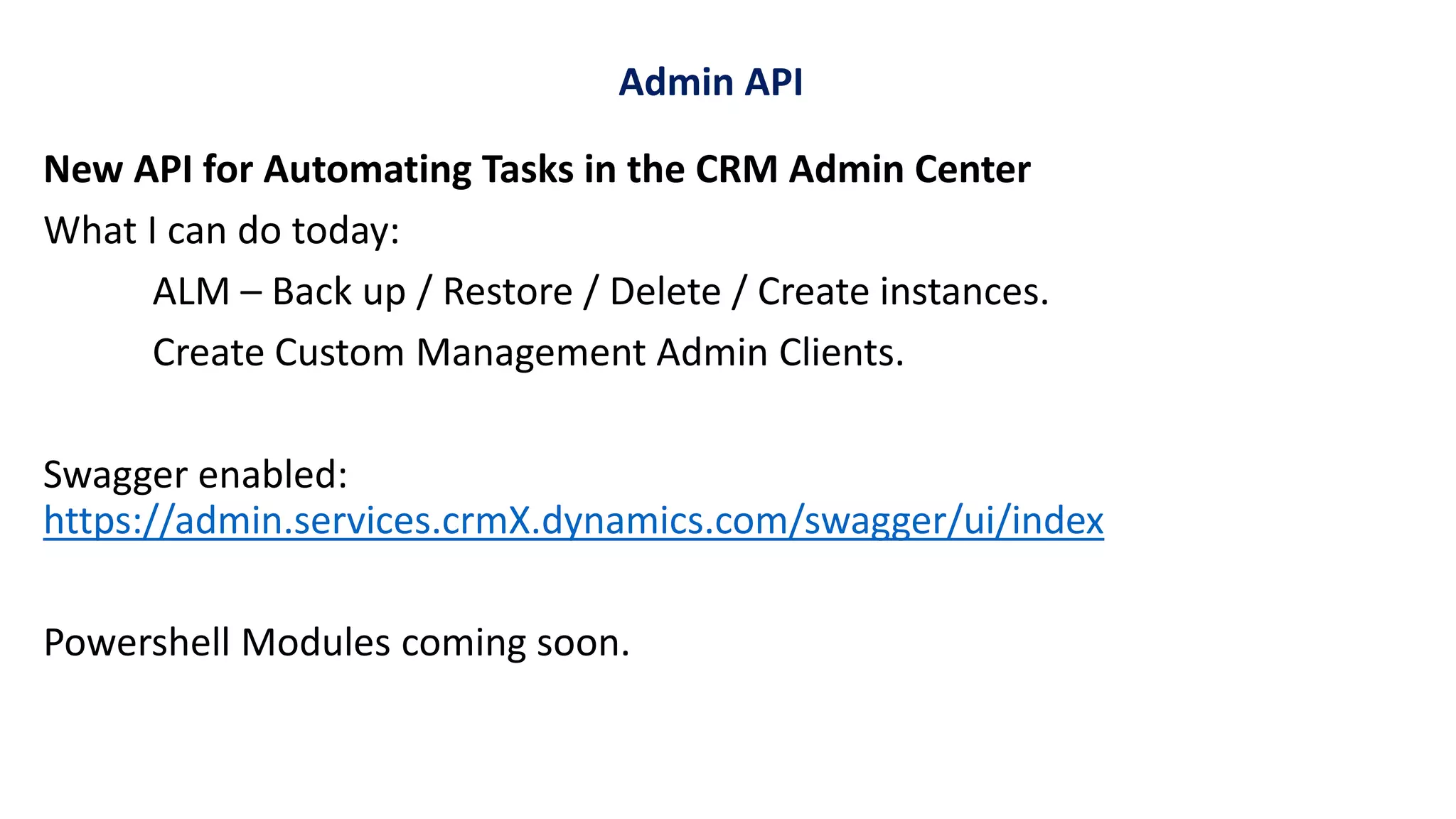

8. New API for Automating Tasks in the CRM Admin Center
What I can do today:
ALM – Back up / Restore / Delete / Create instances.
Create Custom Management Admin Clients.
Swagger enabled:
https://admin.services.crmX.dynamics.com/swagger/ui/index
Powershell Modules coming soon.
Admin API

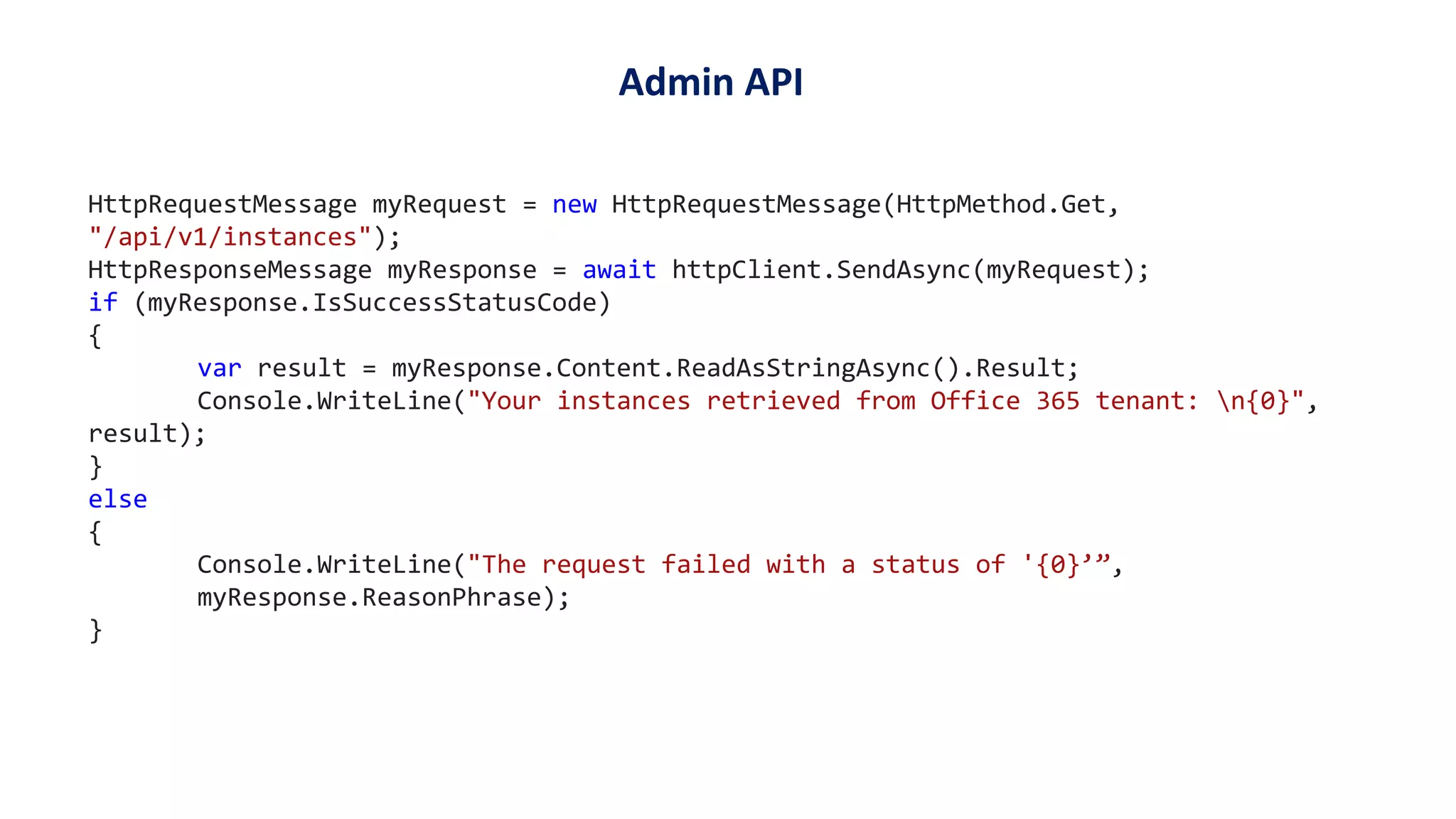

9. HttpRequestMessage myRequest = new HttpRequestMessage(HttpMethod.Get,
"/api/v1/instances");
HttpResponseMessage myResponse = await httpClient.SendAsync(myRequest);
if (myResponse.IsSuccessStatusCode)
{
var result = myResponse.Content.ReadAsStringAsync().Result;
Console.WriteLine("Your instances retrieved from Office 365 tenant: n{0}",
result);
}
else
{
Console.WriteLine("The request failed with a status of '{0}’”,
myResponse.ReasonPhrase);
}
Admin API

10. No SDK!!

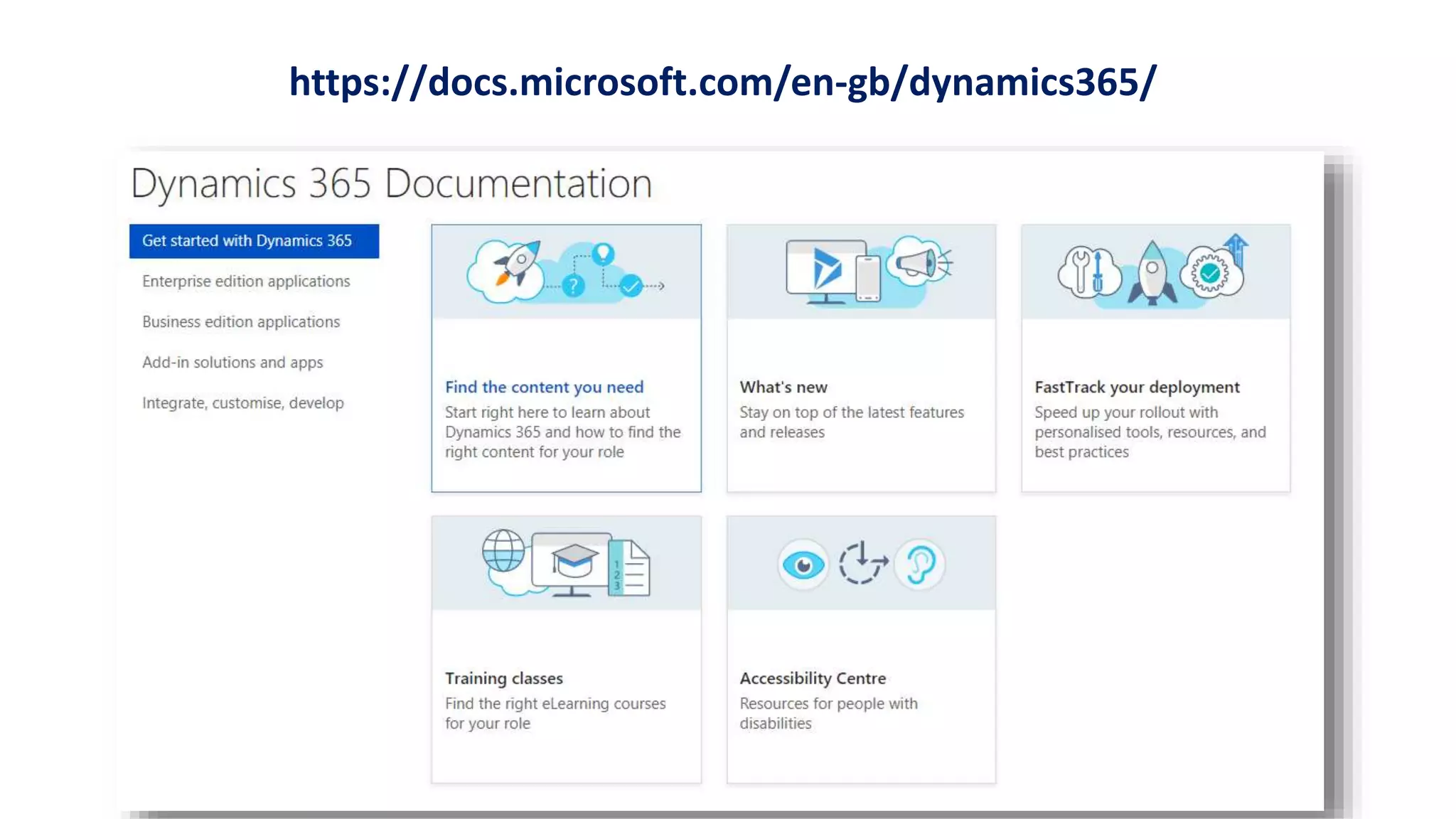

11. https://docs.microsoft.com/en-gb/dynamics365/

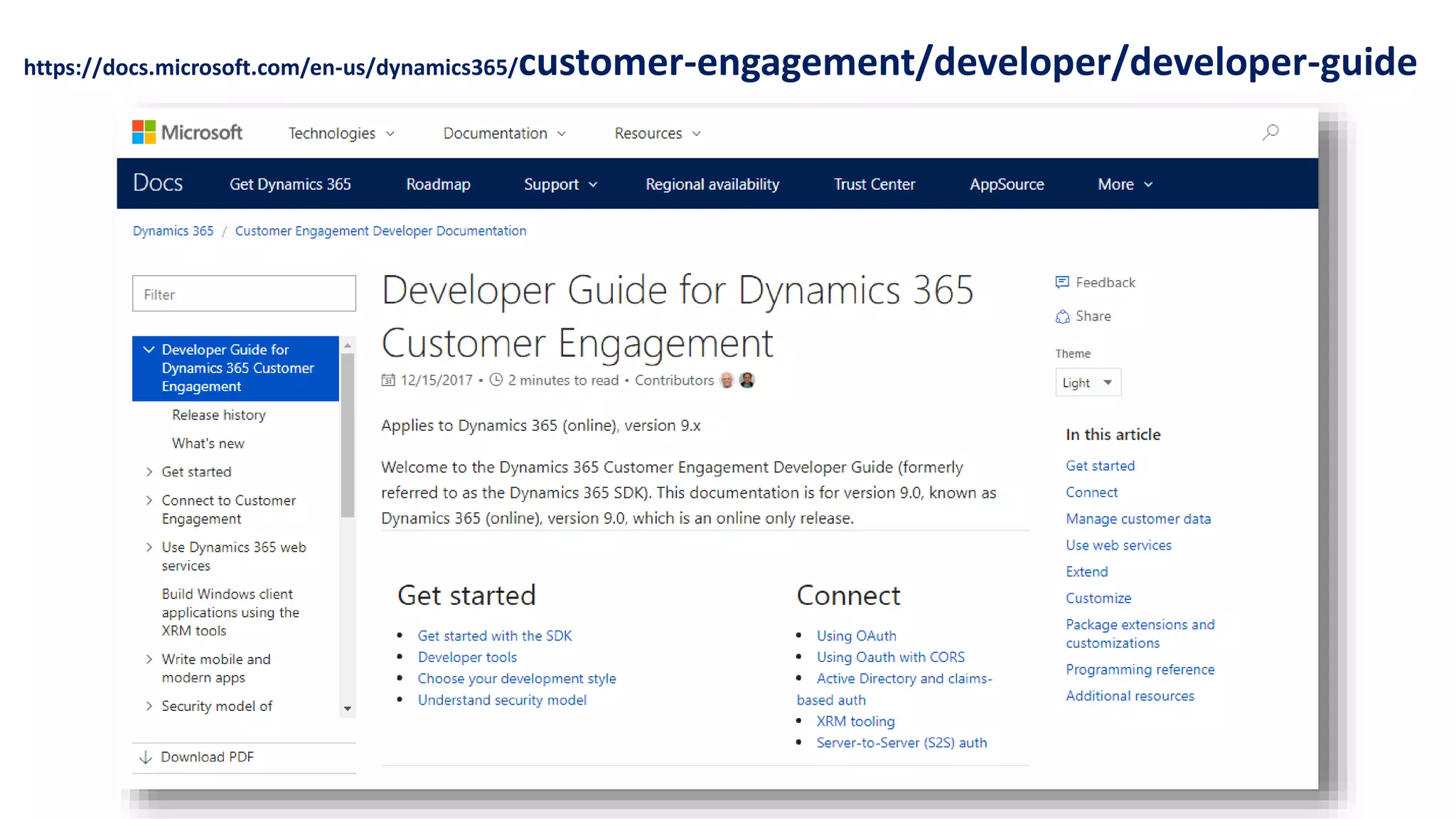

12. https://docs.microsoft.com/en-us/dynamics365/customer-engagement/developer/developer-guide

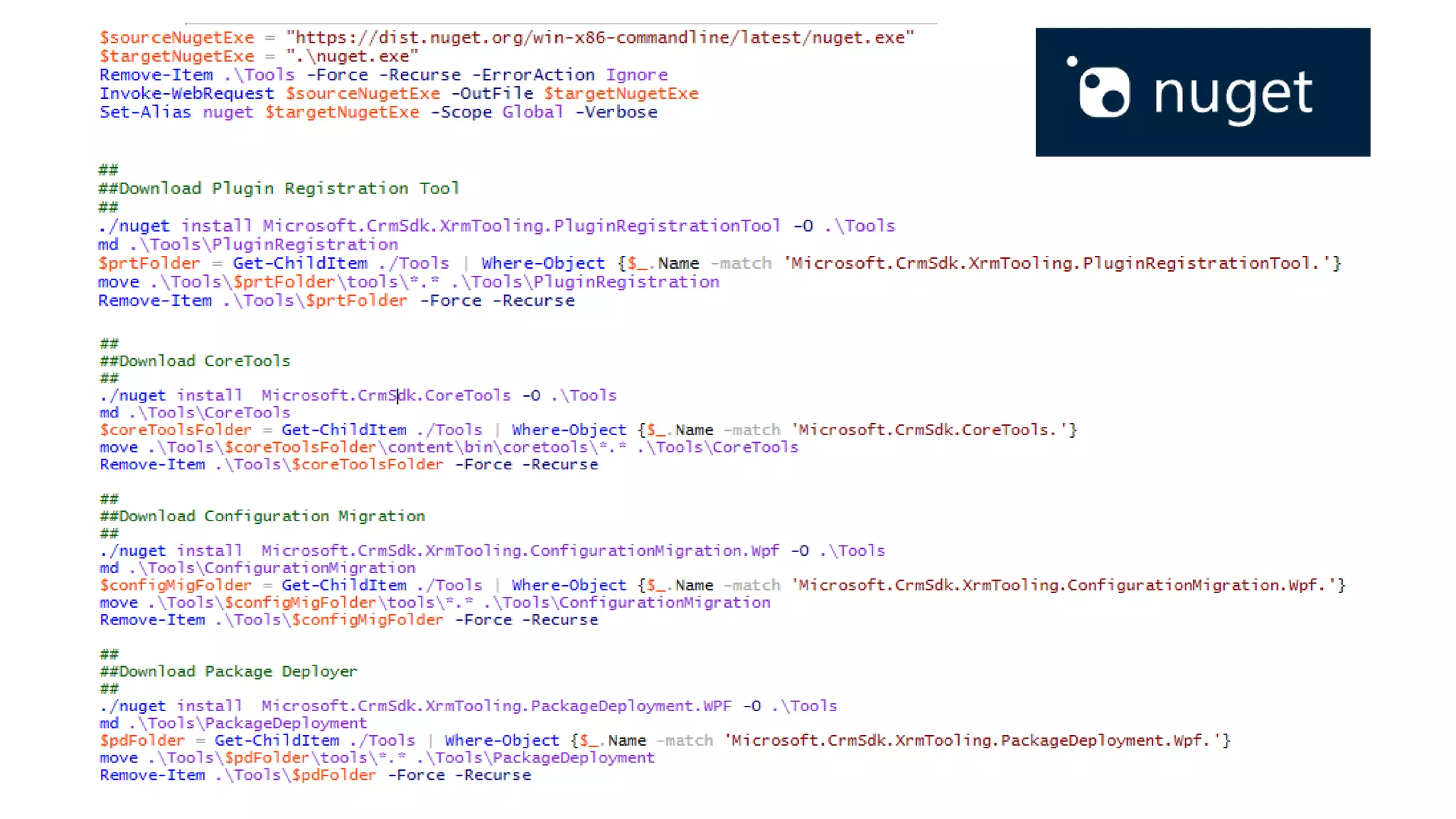

13. Assemblies and tools??

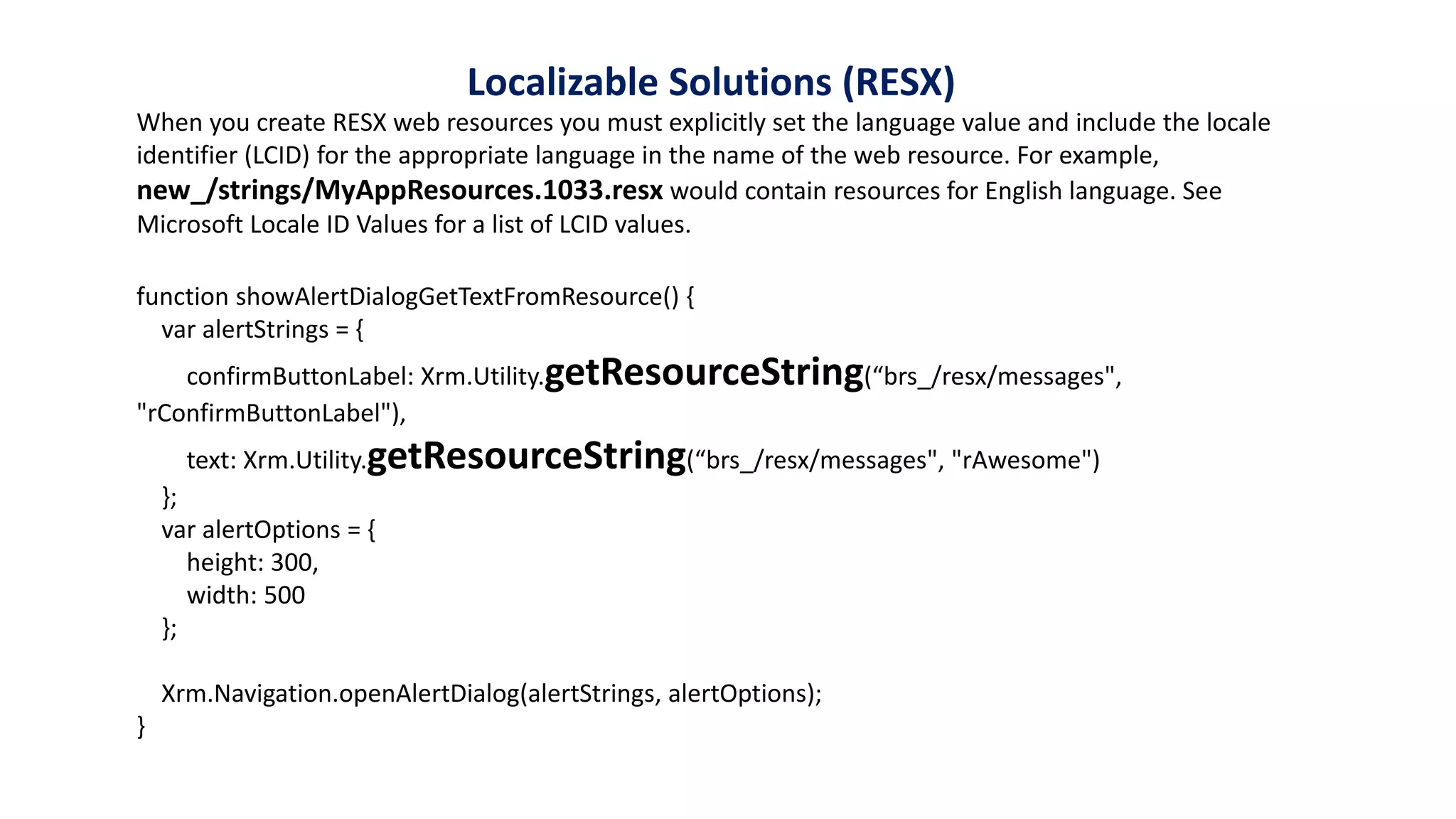

15. Localizable Solutions
(RESX)

16. function showAlertDialogGetTextFromResource() {
var alertStrings = {
confirmButtonLabel: Xrm.Utility.getResourceString(“brs_/resx/messages",
"rConfirmButtonLabel"),
text: Xrm.Utility.getResourceString(“brs_/resx/messages", "rAwesome")
};
var alertOptions = {
height: 300,
width: 500
};
Xrm.Navigation.openAlertDialog(alertStrings, alertOptions);
}
When you create RESX web resources you must explicitly set the language value and include the locale
identifier (LCID) for the appropriate language in the name of the web resource. For example,
new_/strings/MyAppResources.1033.resx would contain resources for English language. See
Microsoft Locale ID Values for a list of LCID values.
Localizable Solutions (RESX)

17. Client API

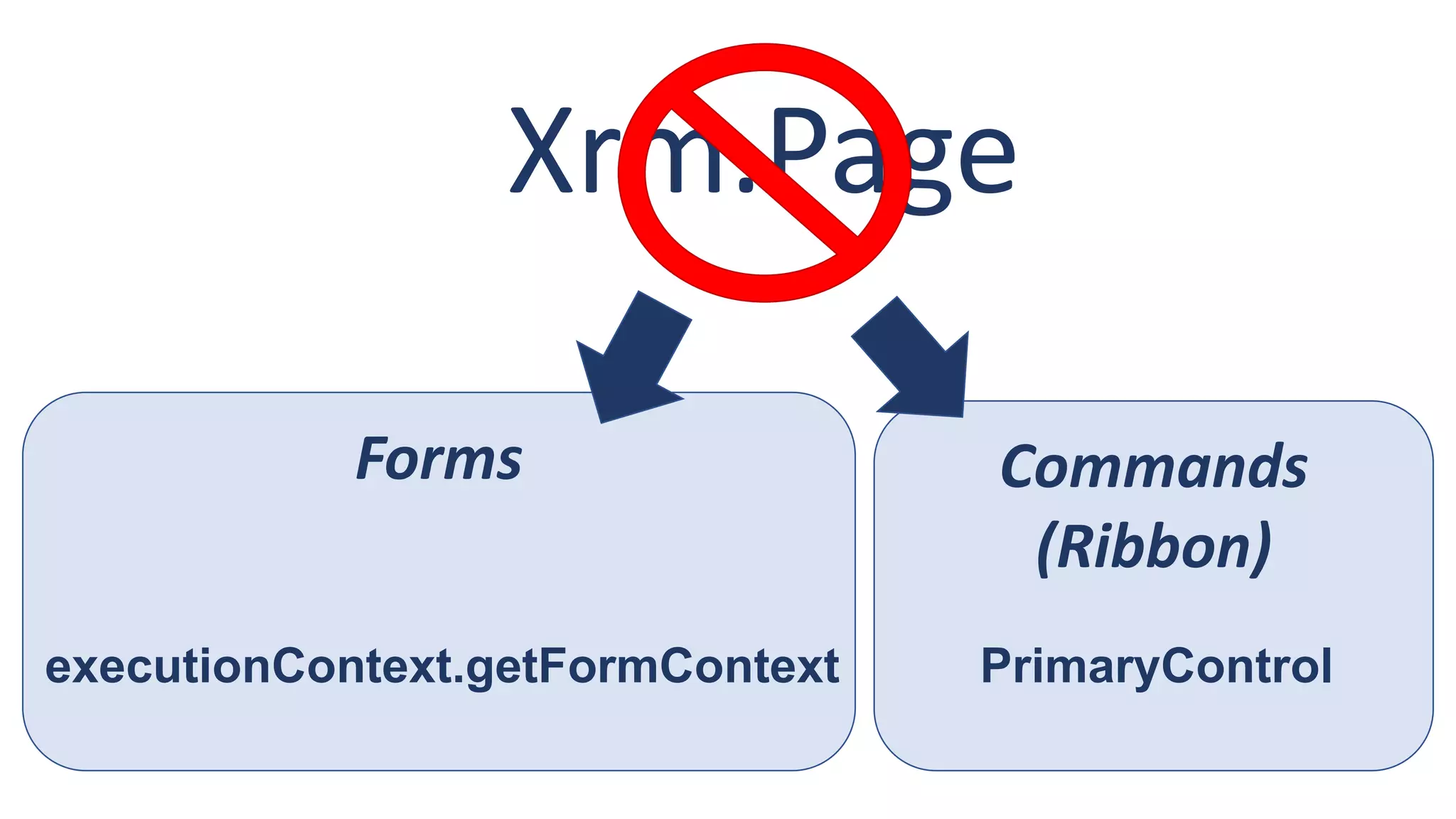

18. Xrm.Page
Forms
executionContext.getFormContext
Commands
(Ribbon)
PrimaryControl

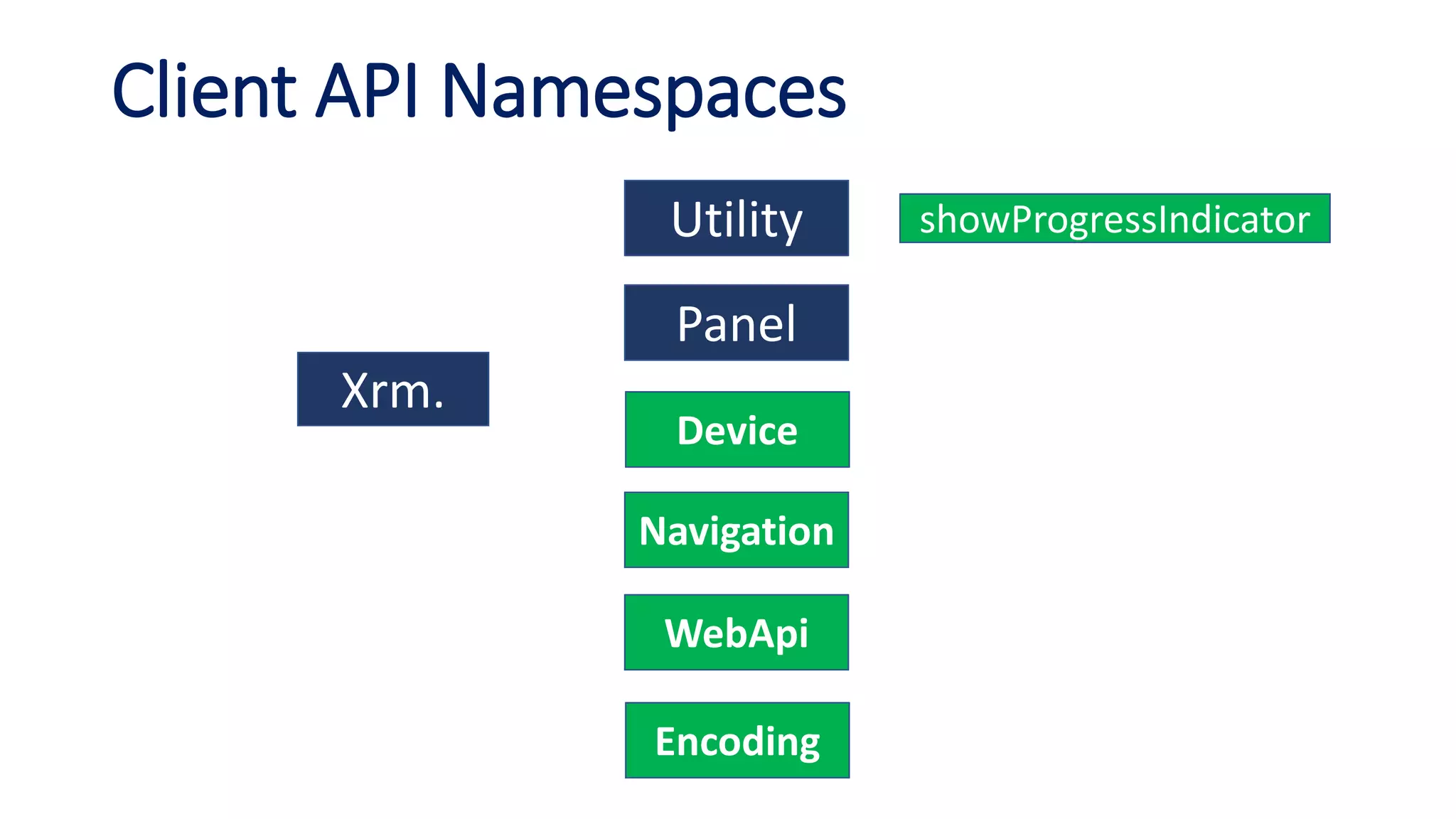

19. Client API Namespaces
Xrm.
Utility
Panel
Device
Navigation
WebApi
Encoding

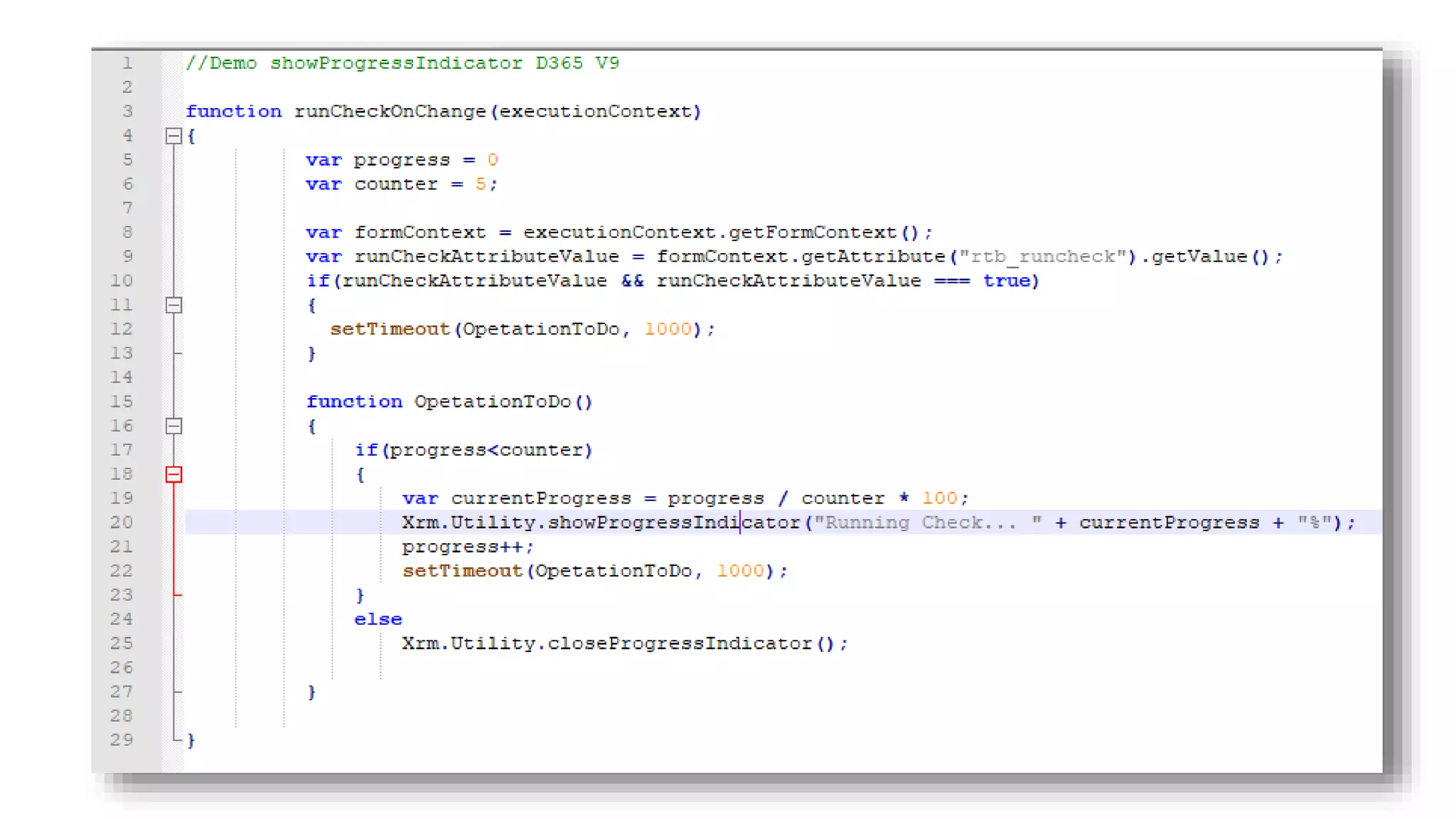

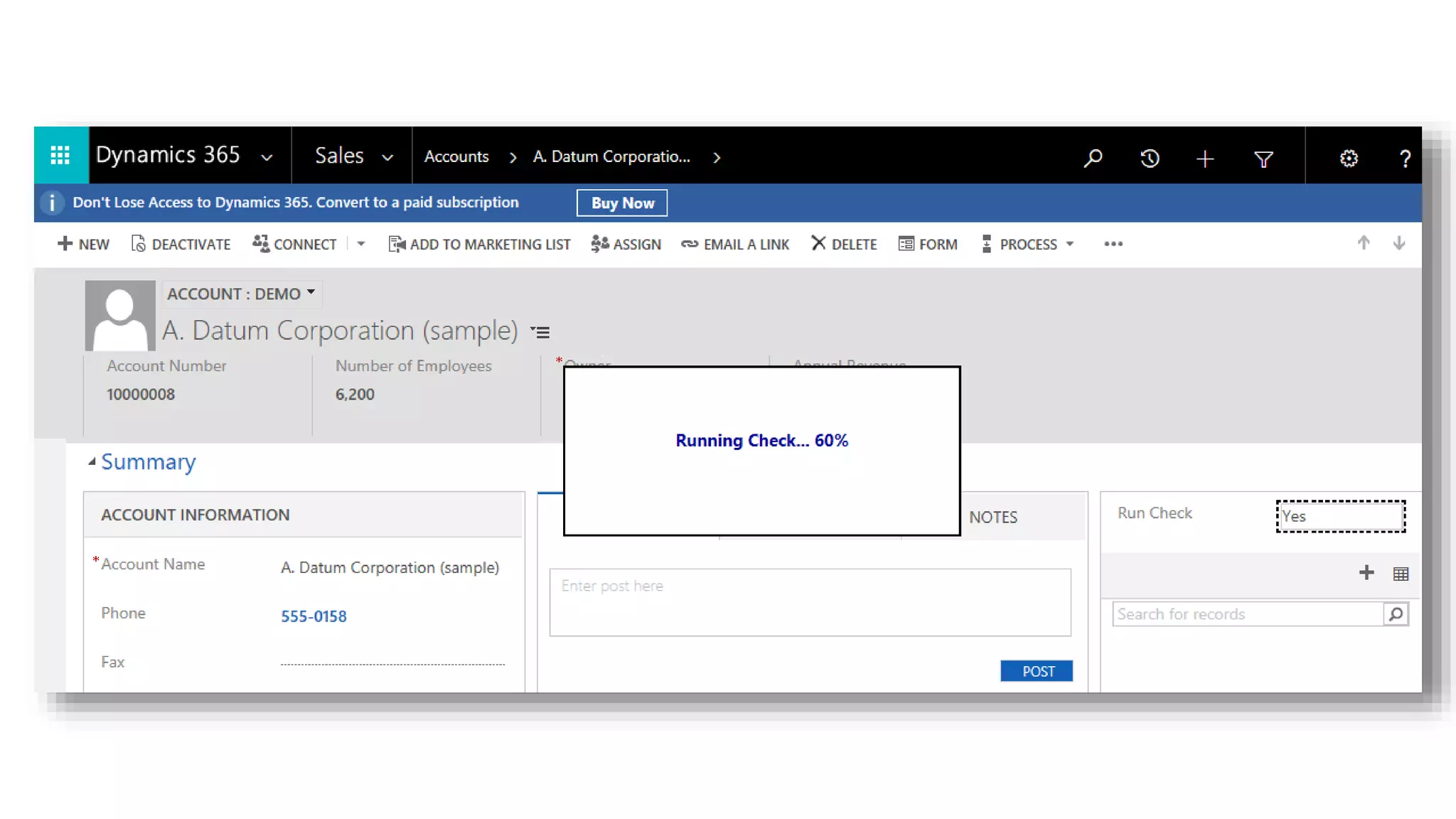

showProgressIndicator

25. Virtual Entities

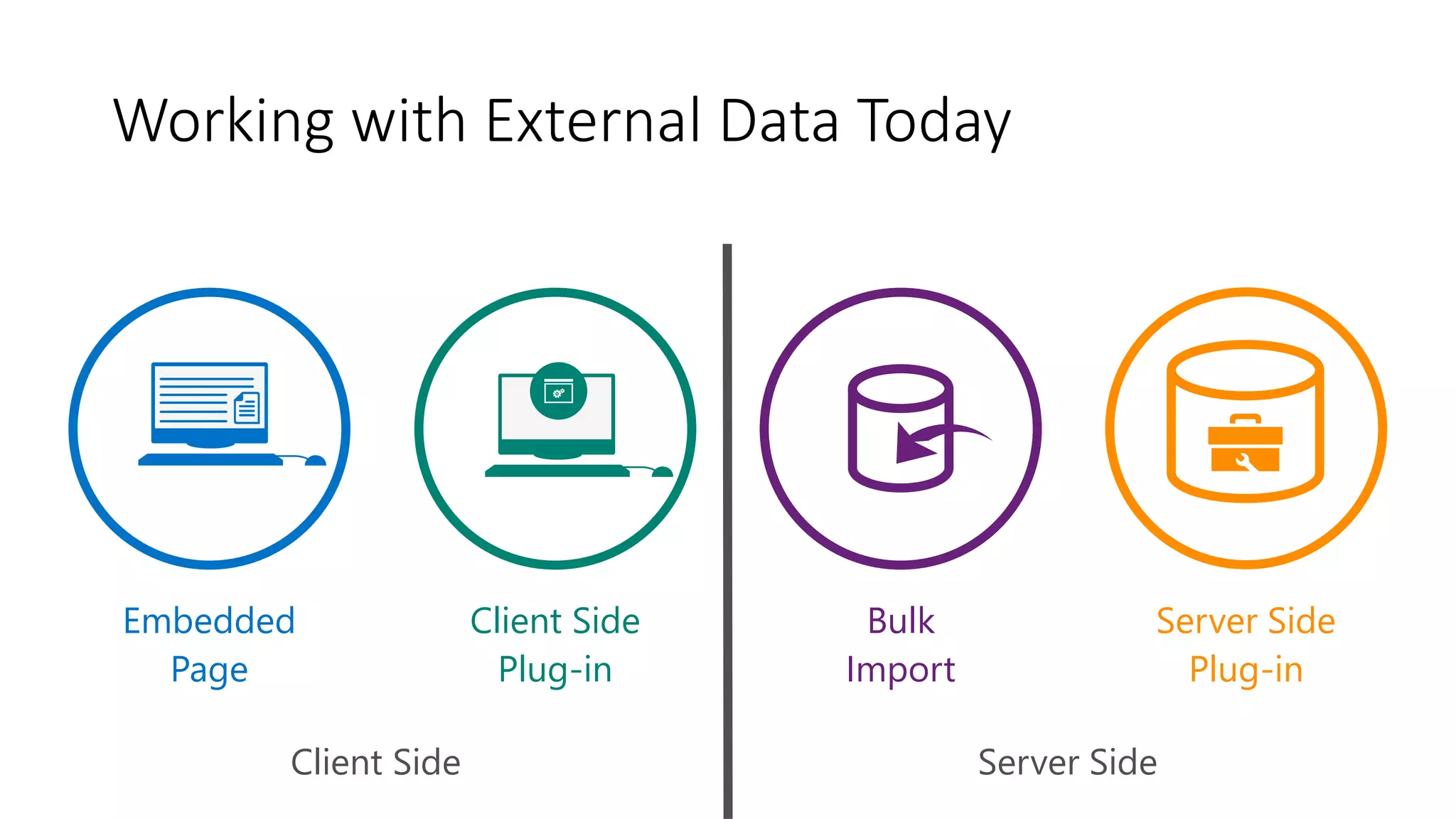

26. Bulk
Import
Server Side
Plug-in
Server SideClient Side
Client Side
Plug-in
Embedded
Page
Working with External Data Today

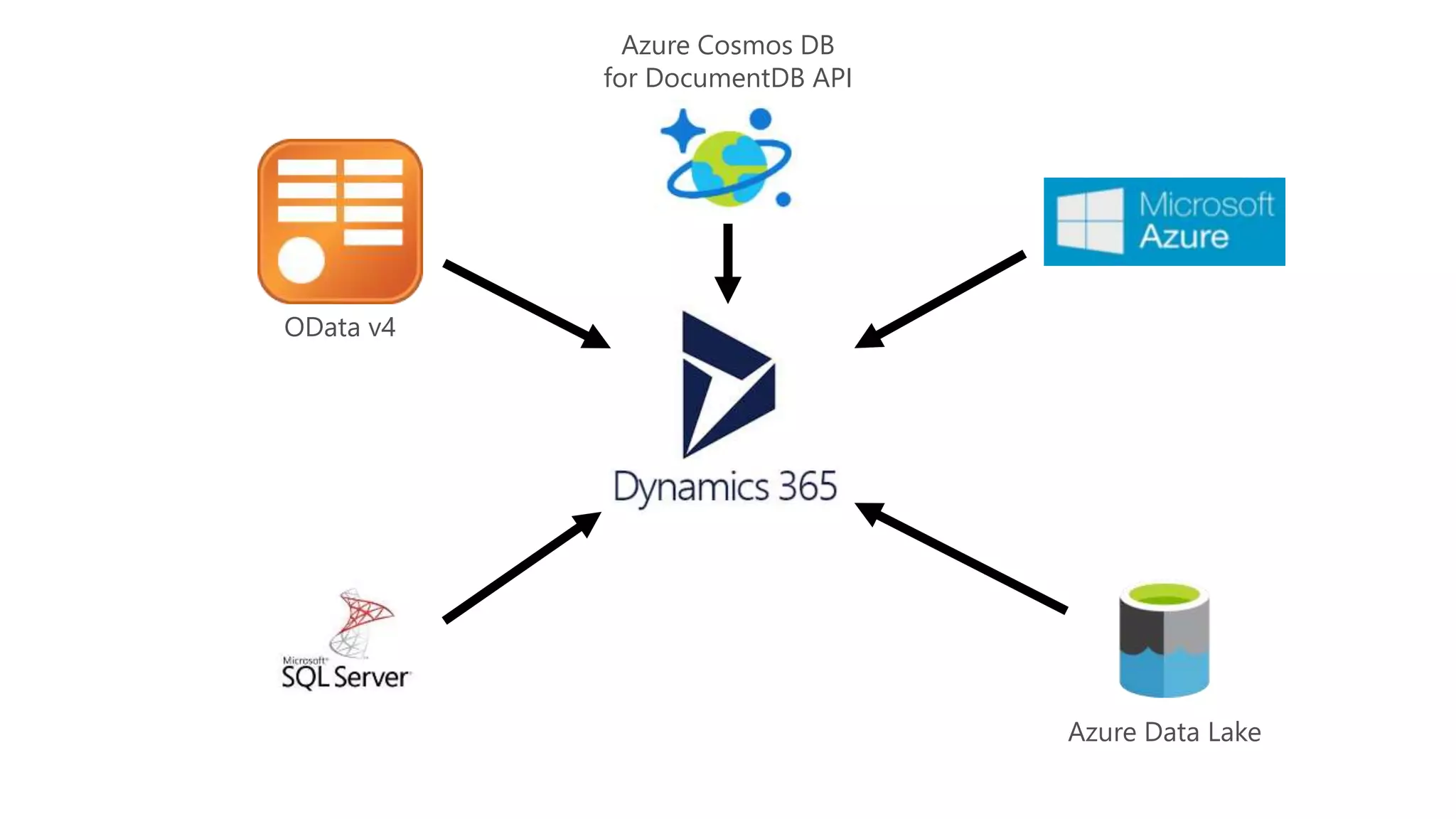

27. OData v4
Azure Cosmos DB
for DocumentDB API
Azure Data Lake

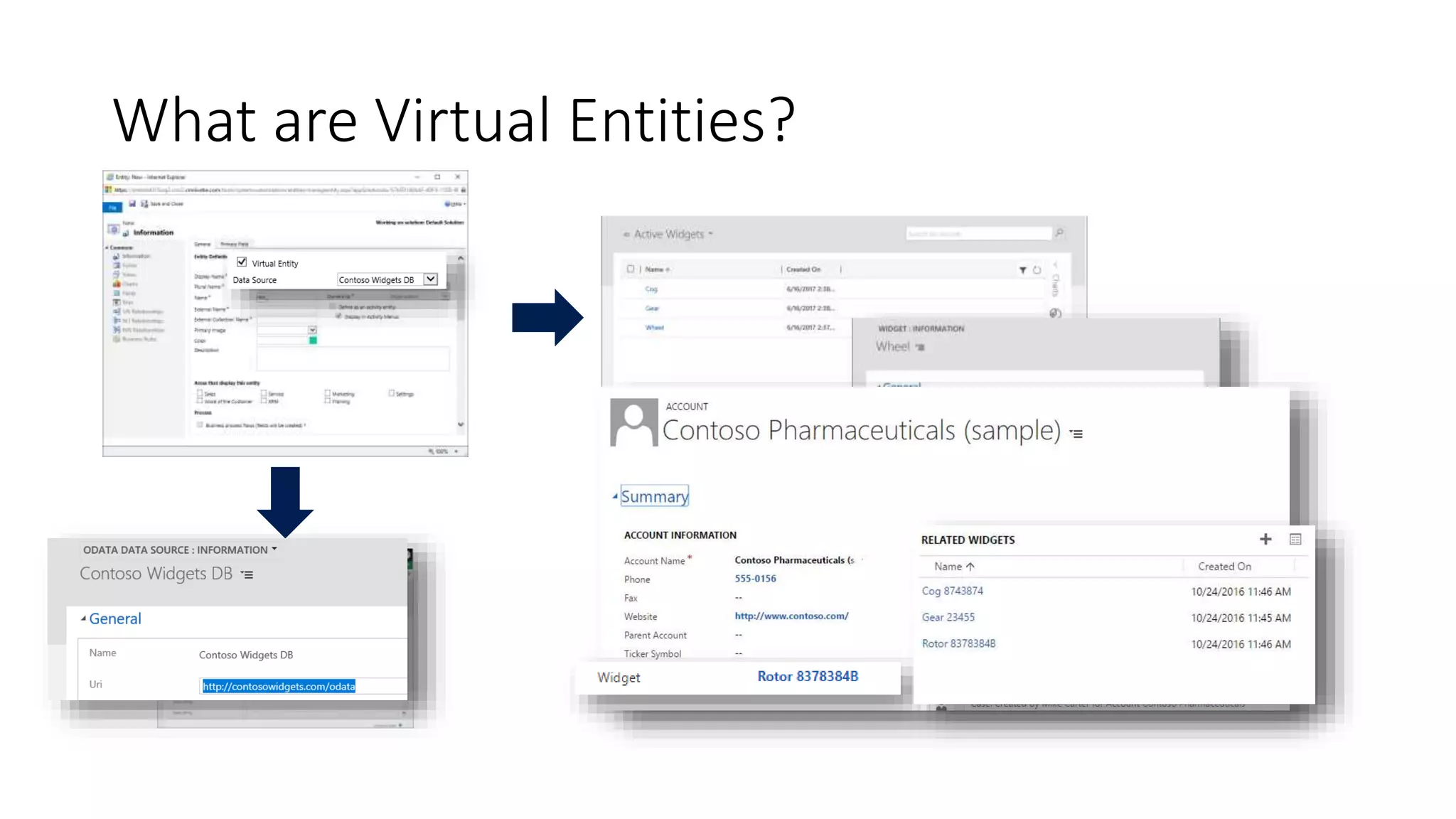

28. What are Virtual Entities?

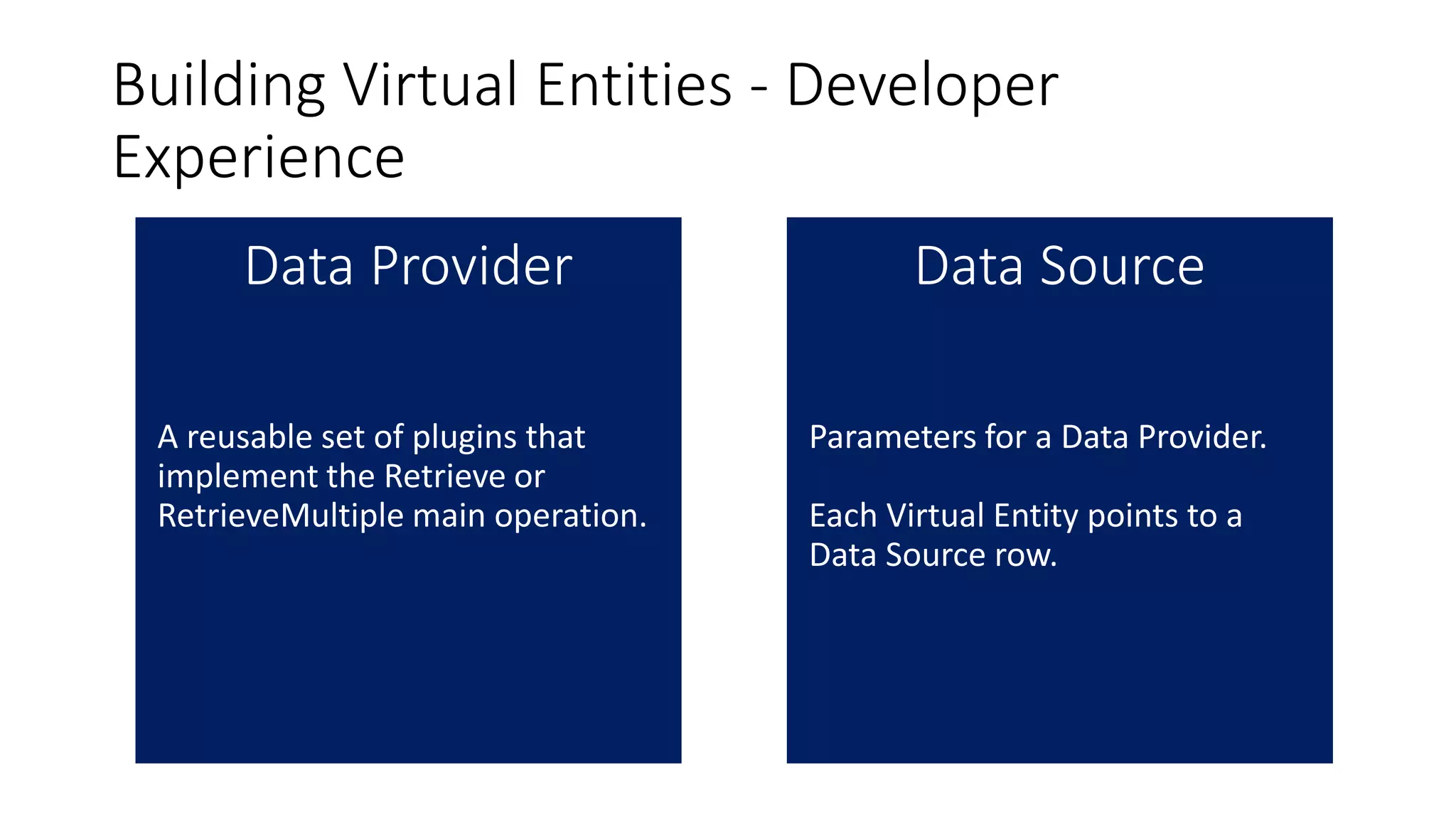

29. Building Virtual Entities - Developer
Experience

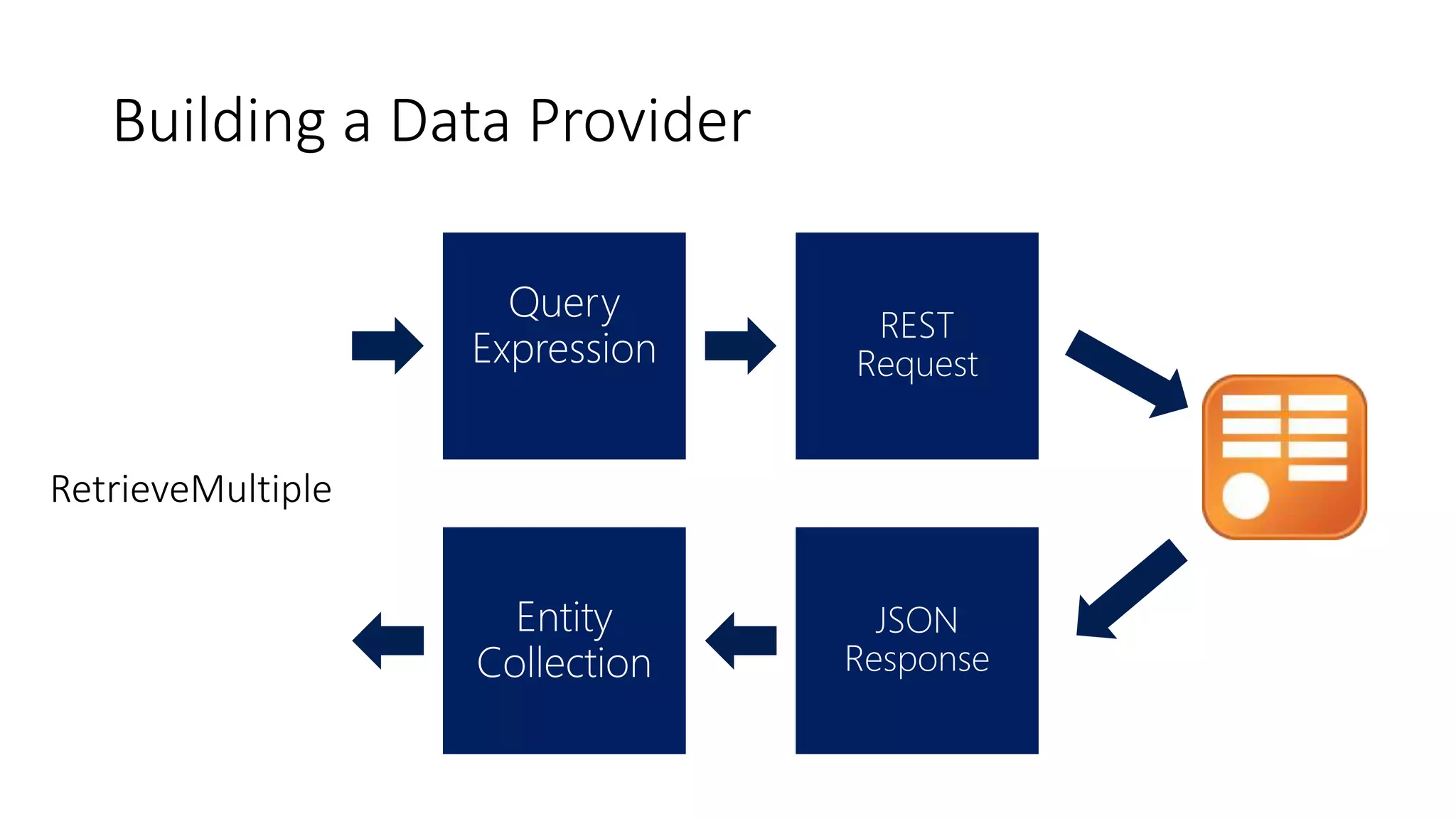

30. Building a Data Provider

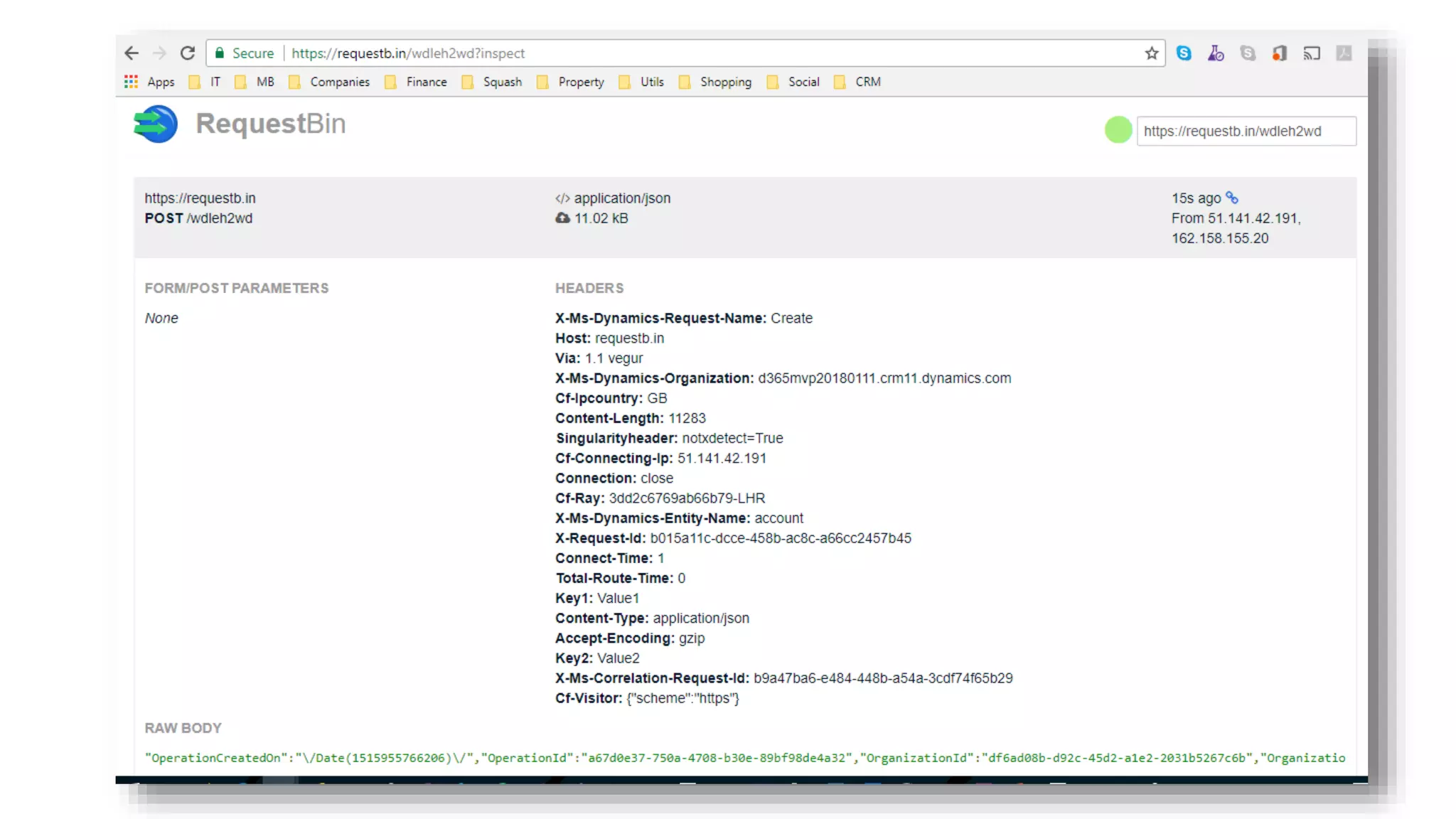

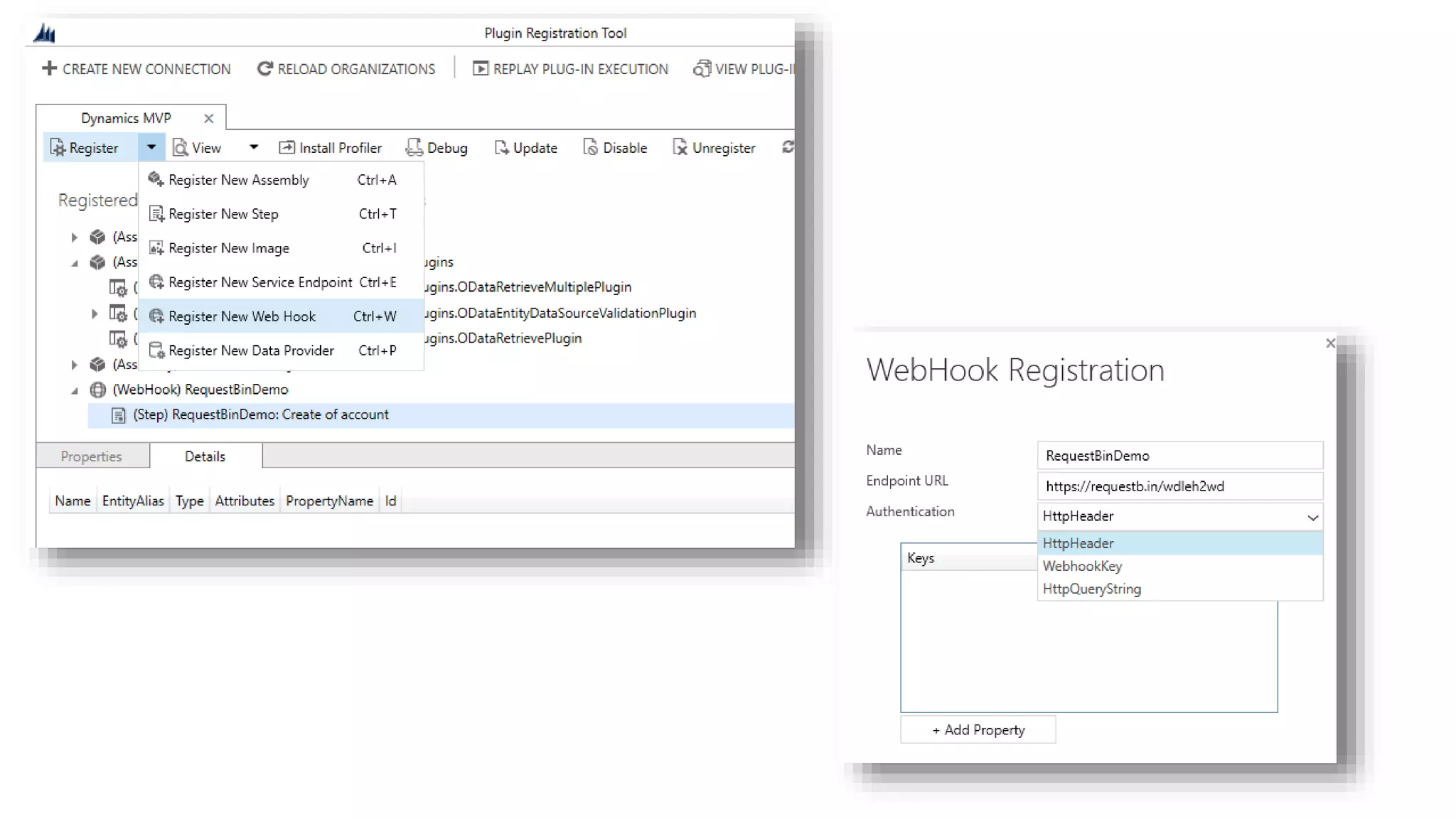

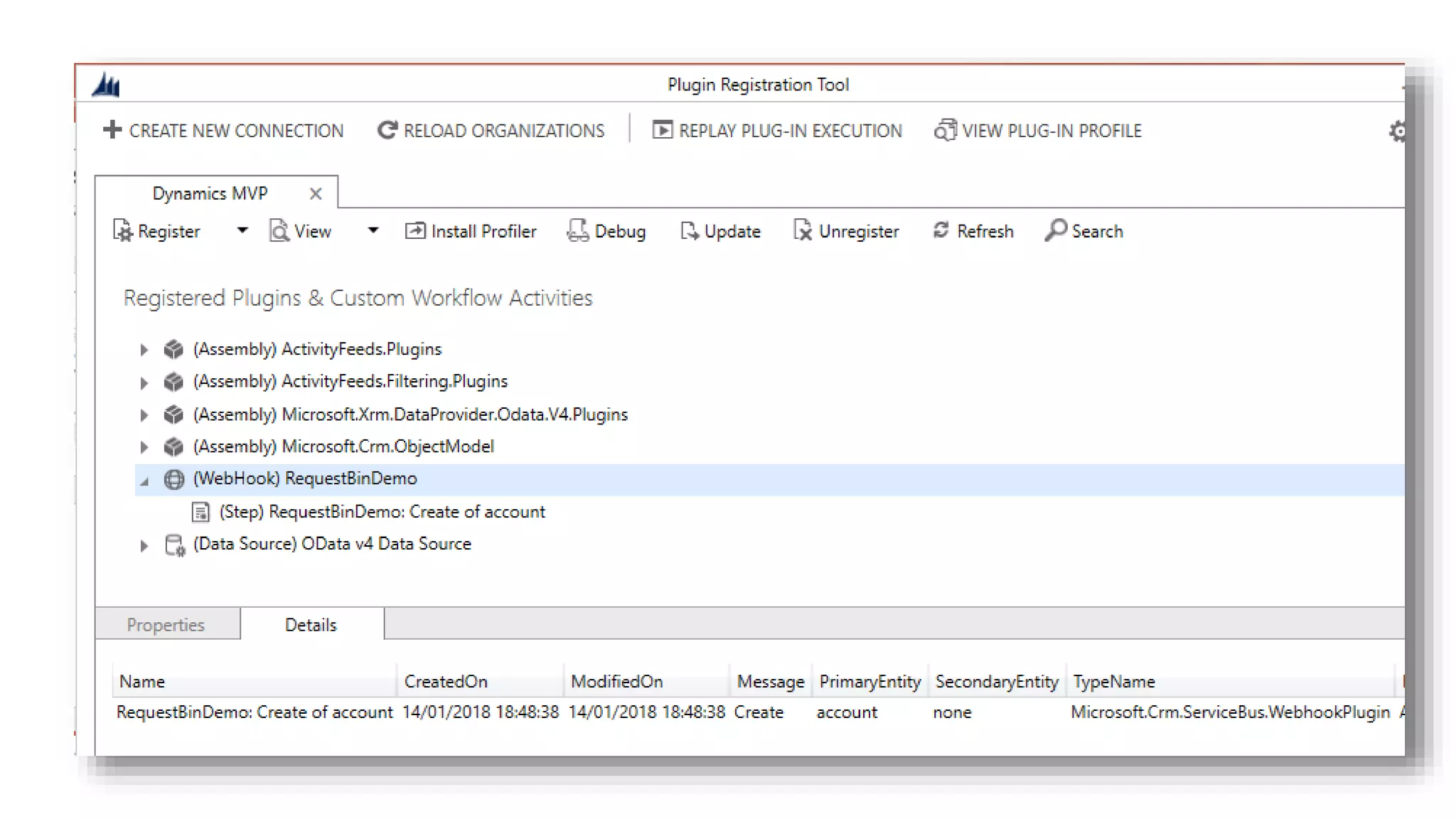

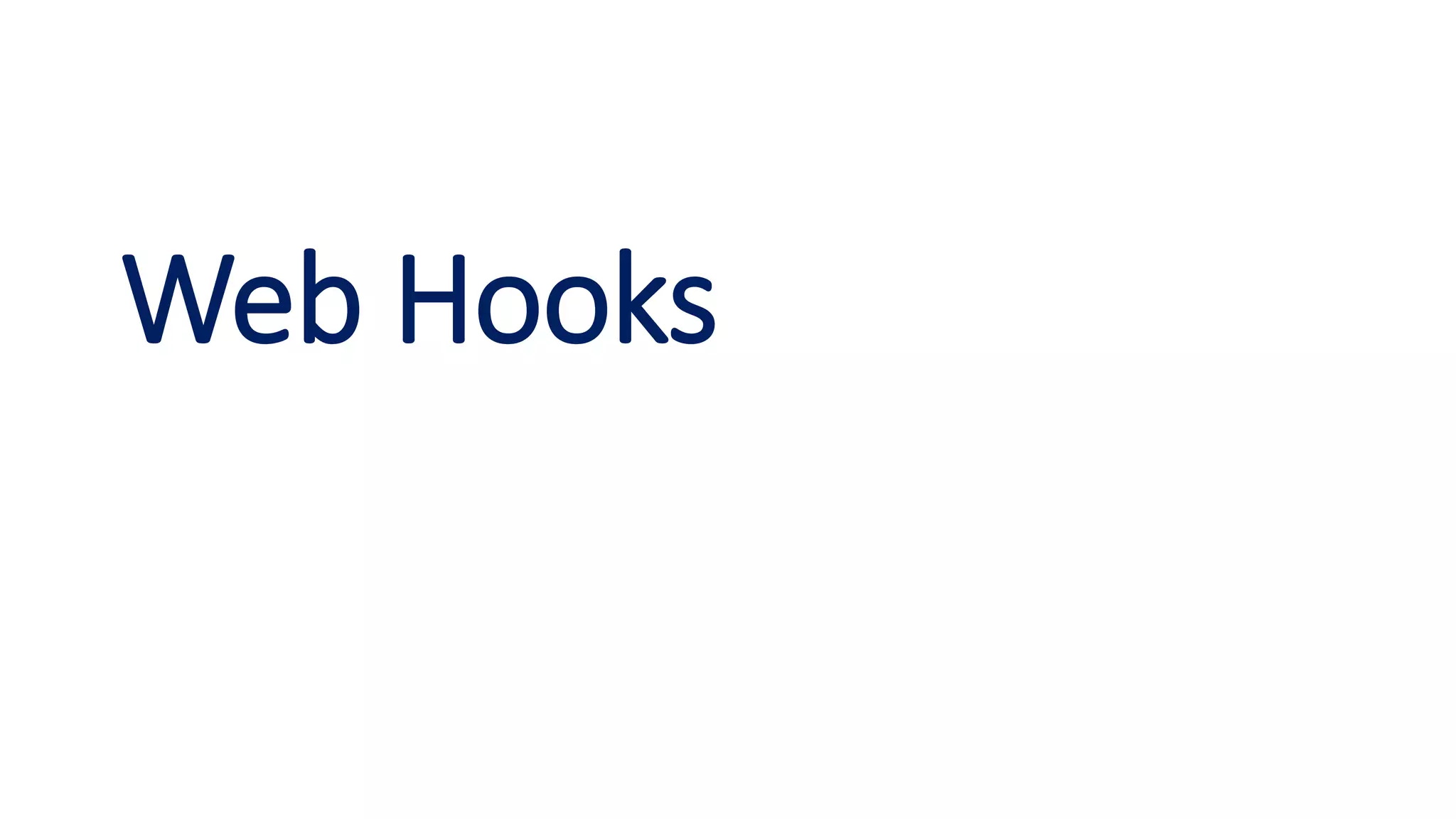

31. Web Hooks

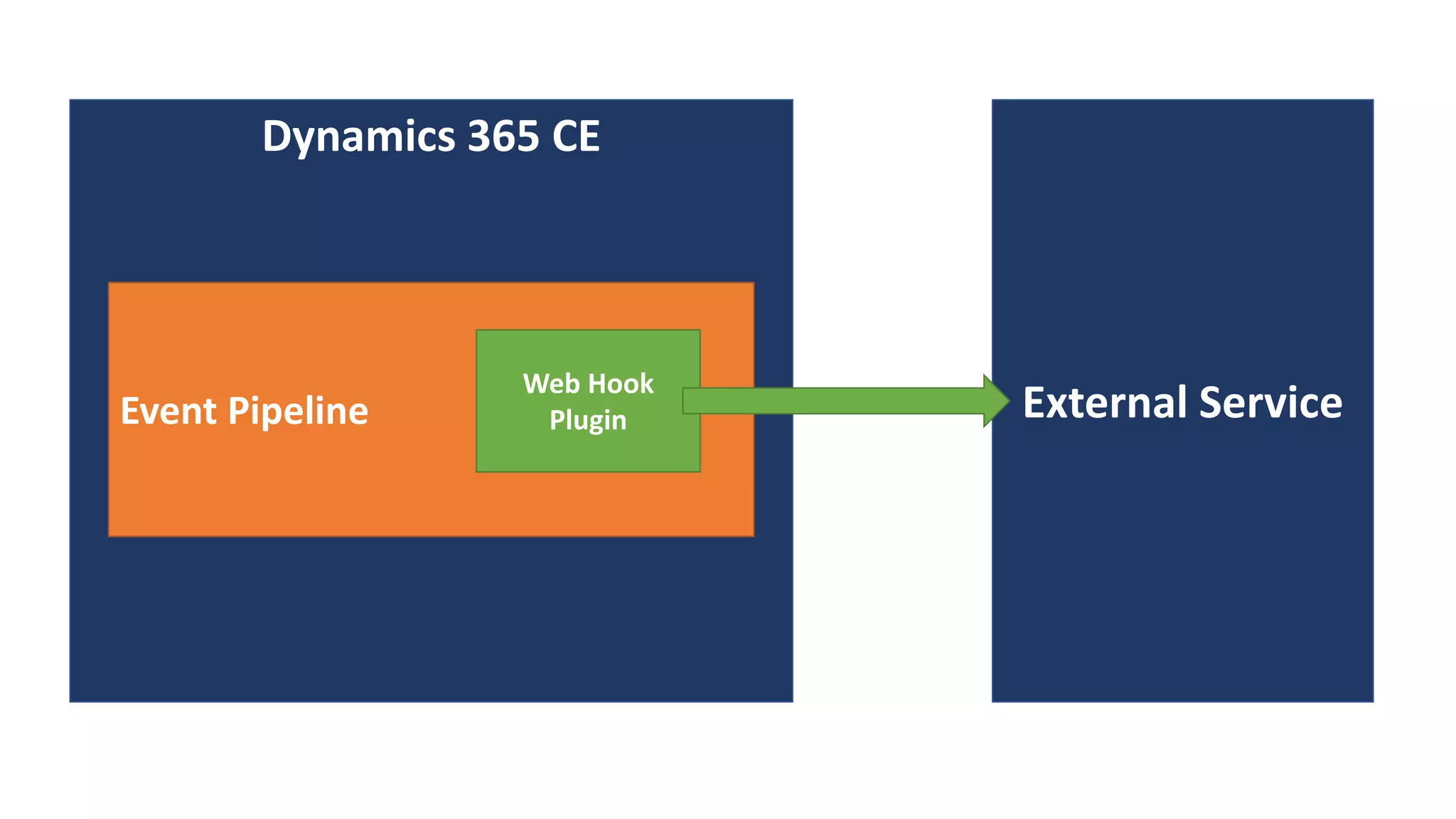

32. Dynamics 365 CE
Event Pipeline External Service
Web Hook
Plugin

36. JS Web Resource
Dependencies

37. You can define dependencies
between other web
resources.

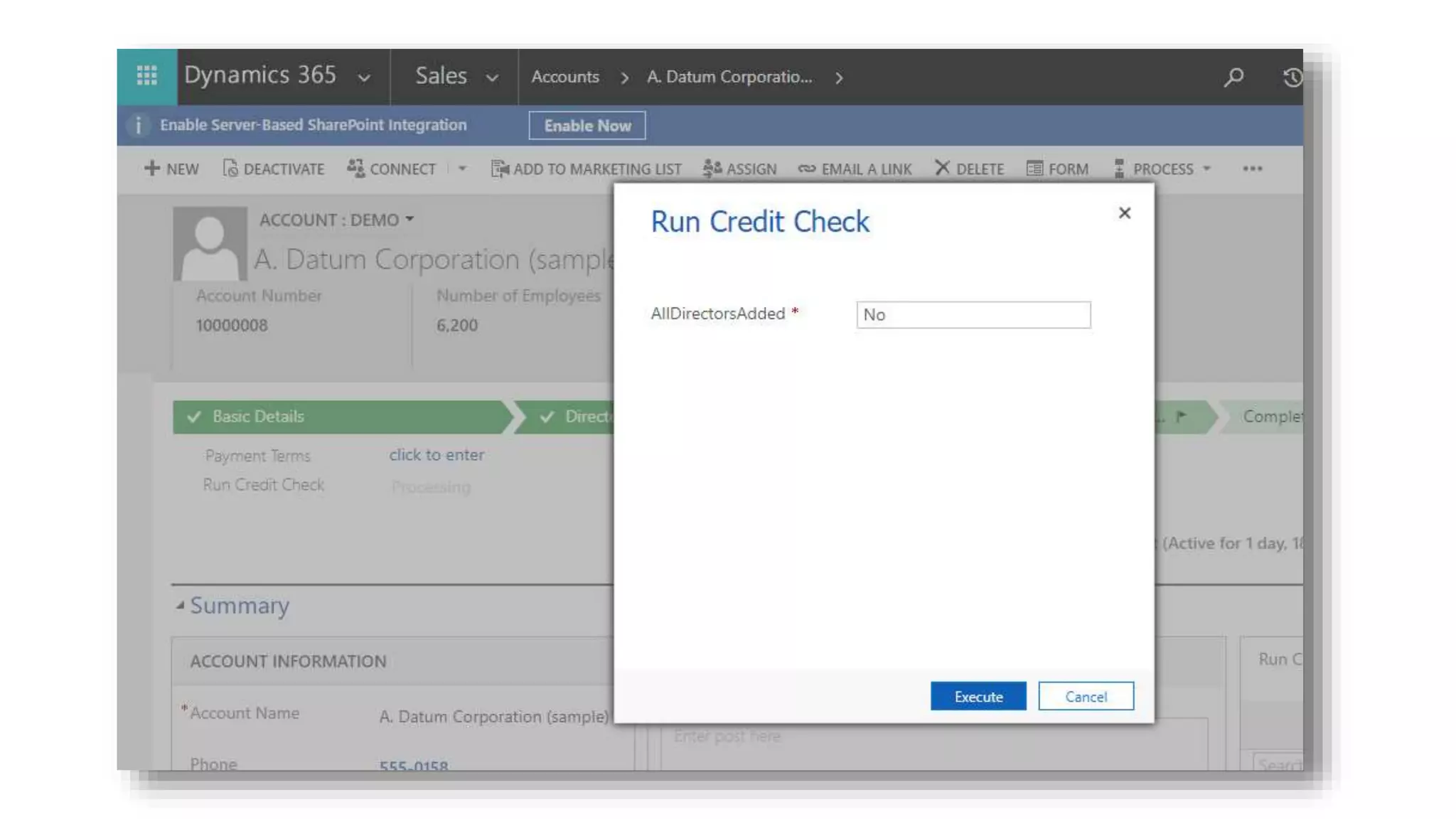

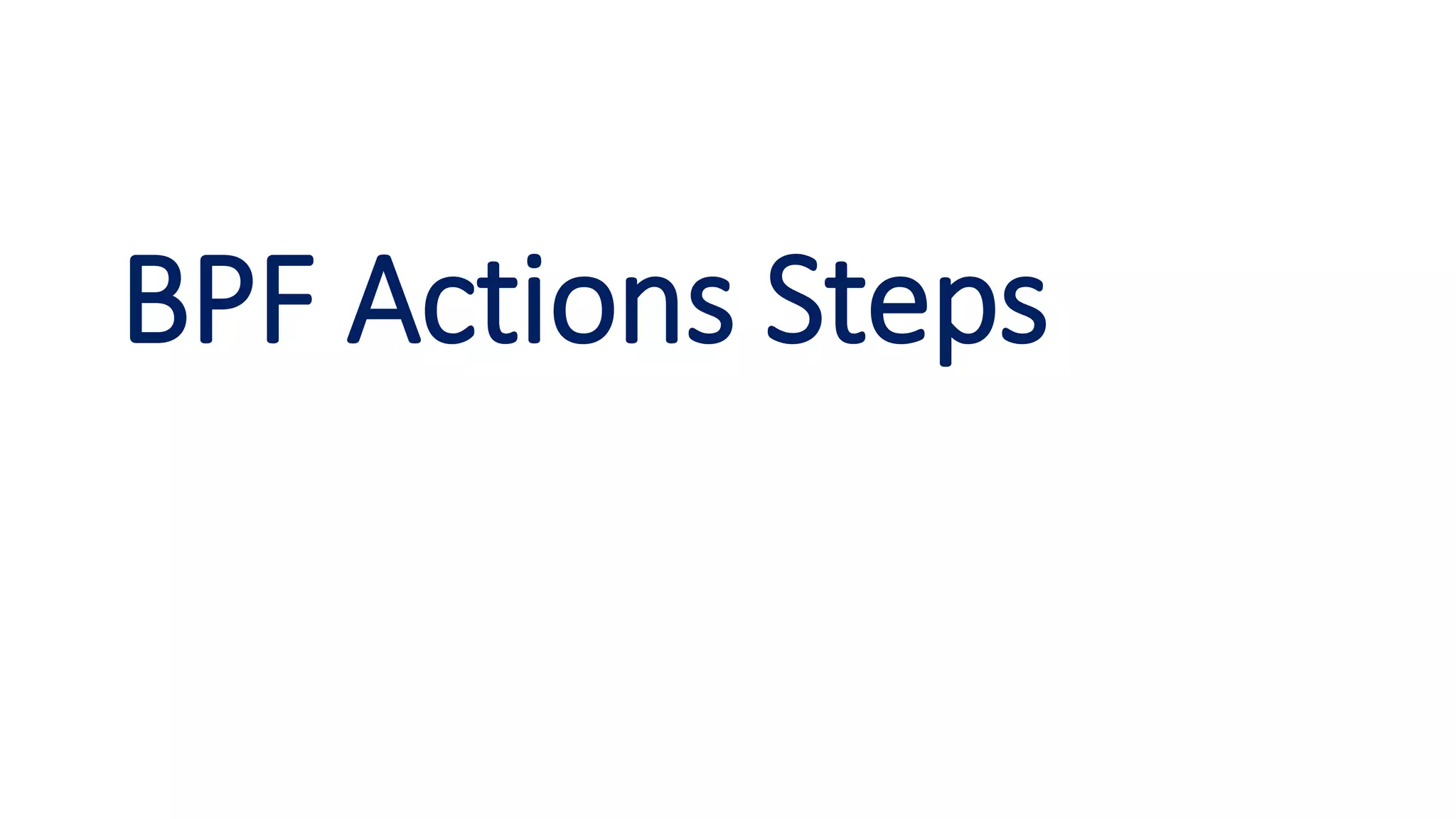

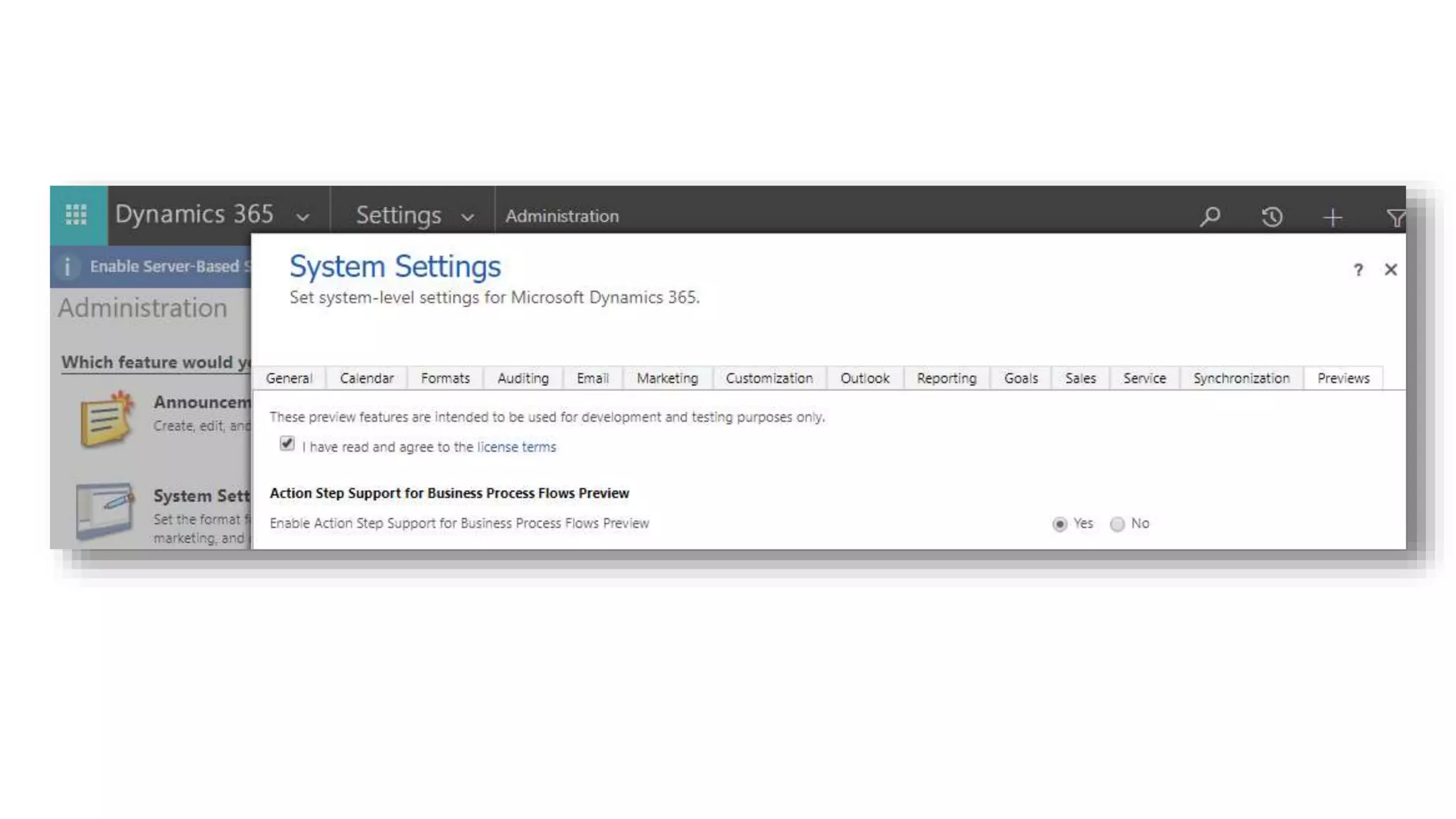

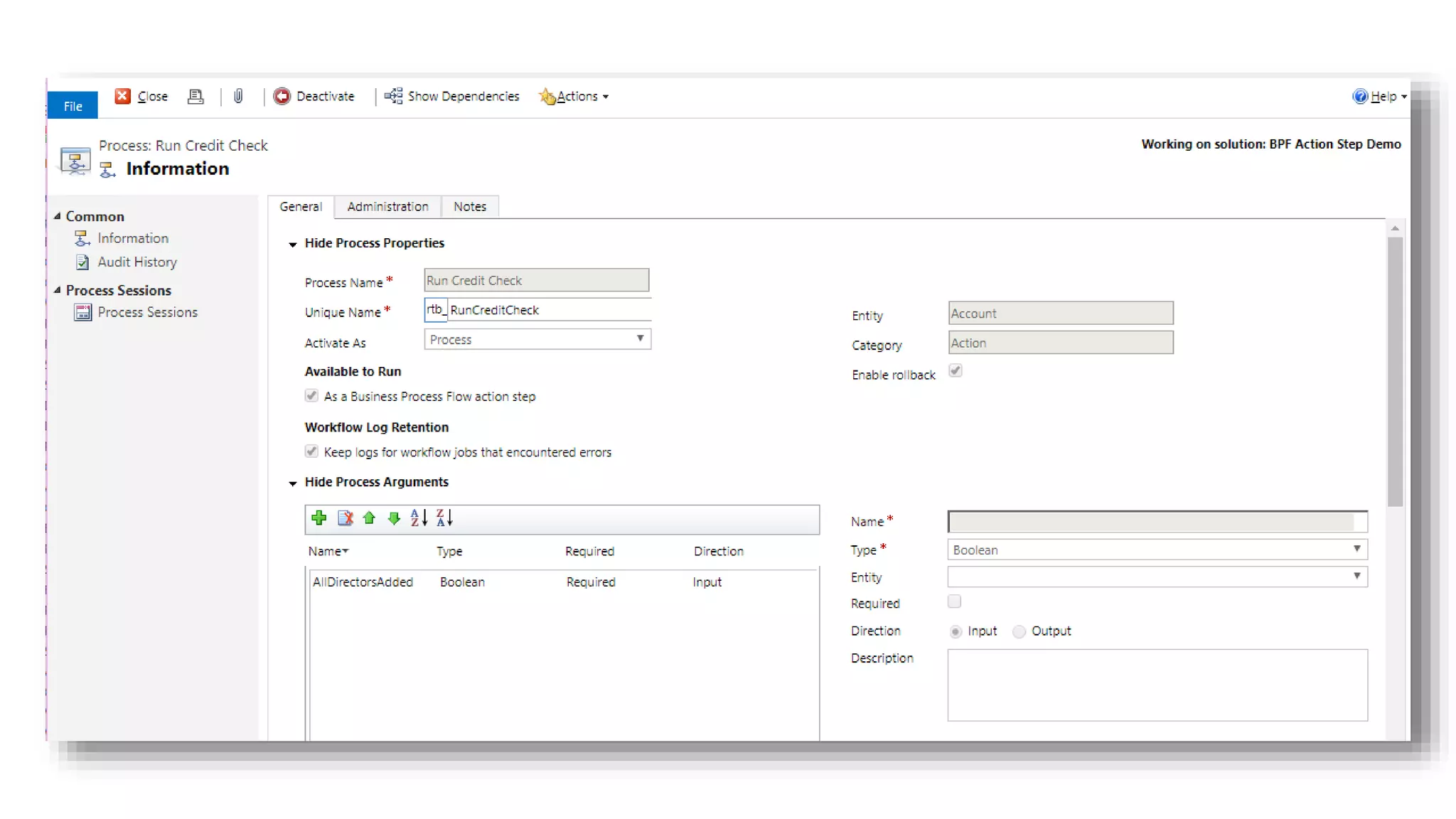

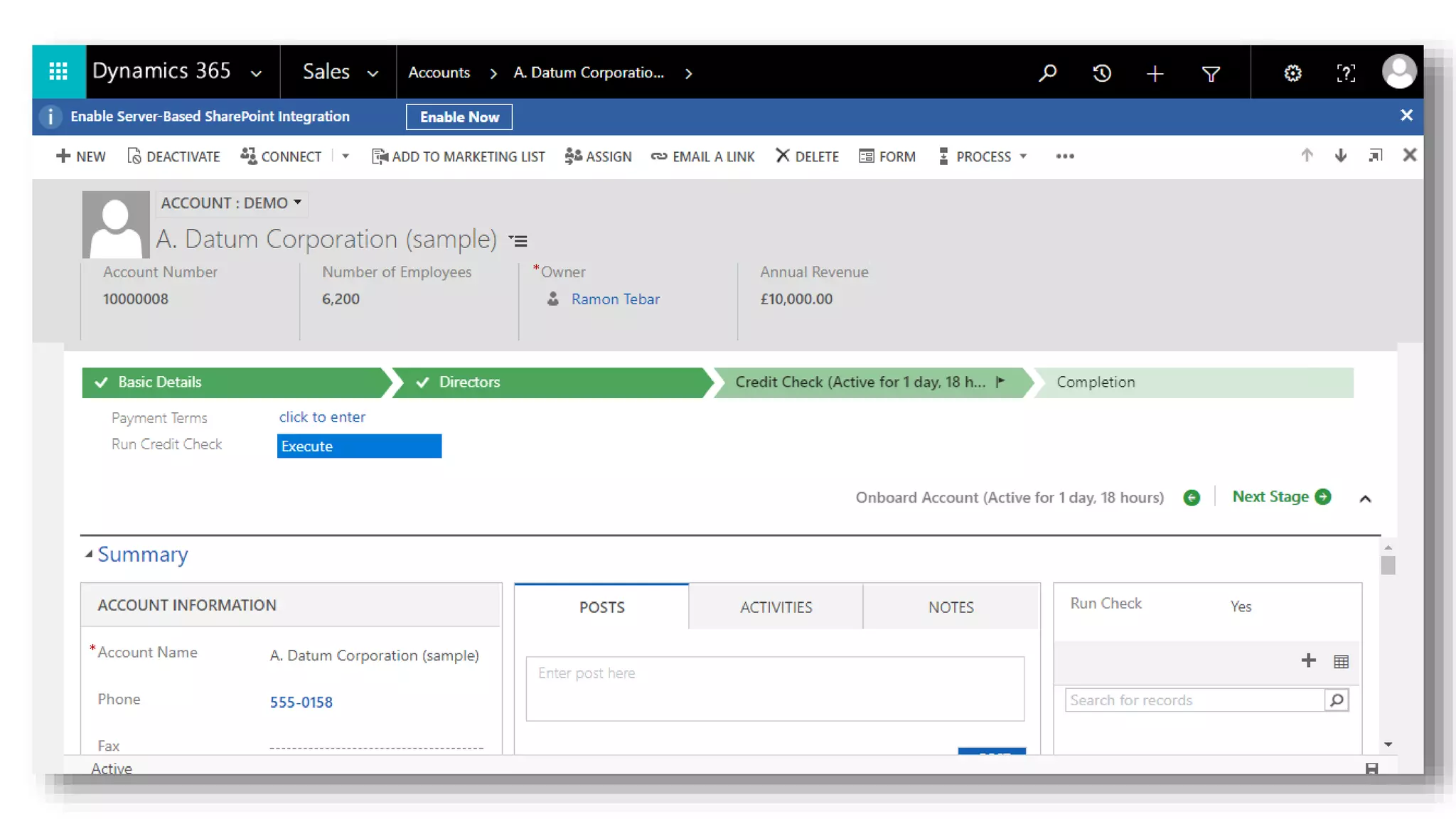

38. BPF Actions Steps

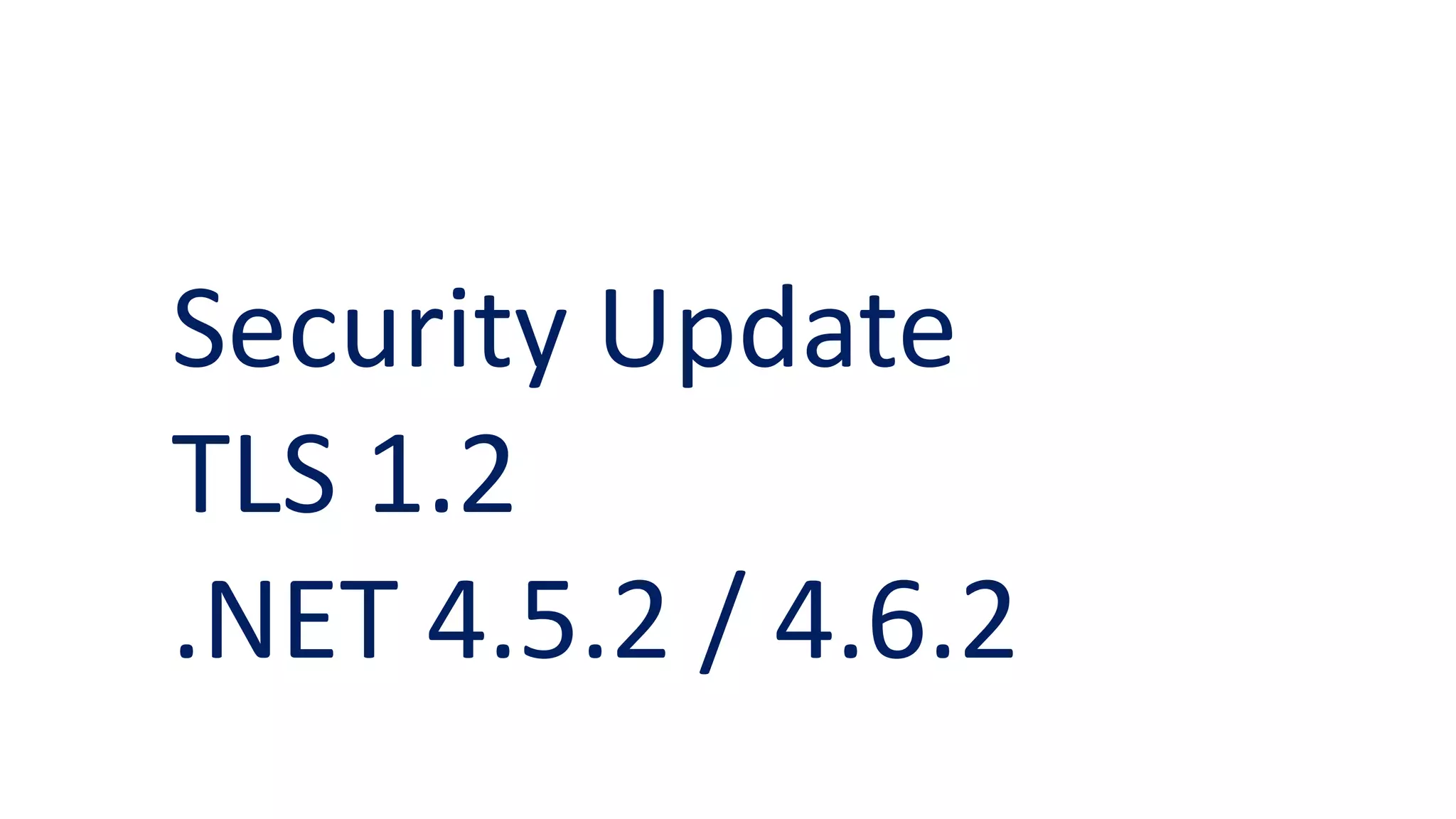

43. Security Update
TLS 1.2
.NET 4.5.2 / 4.6.2

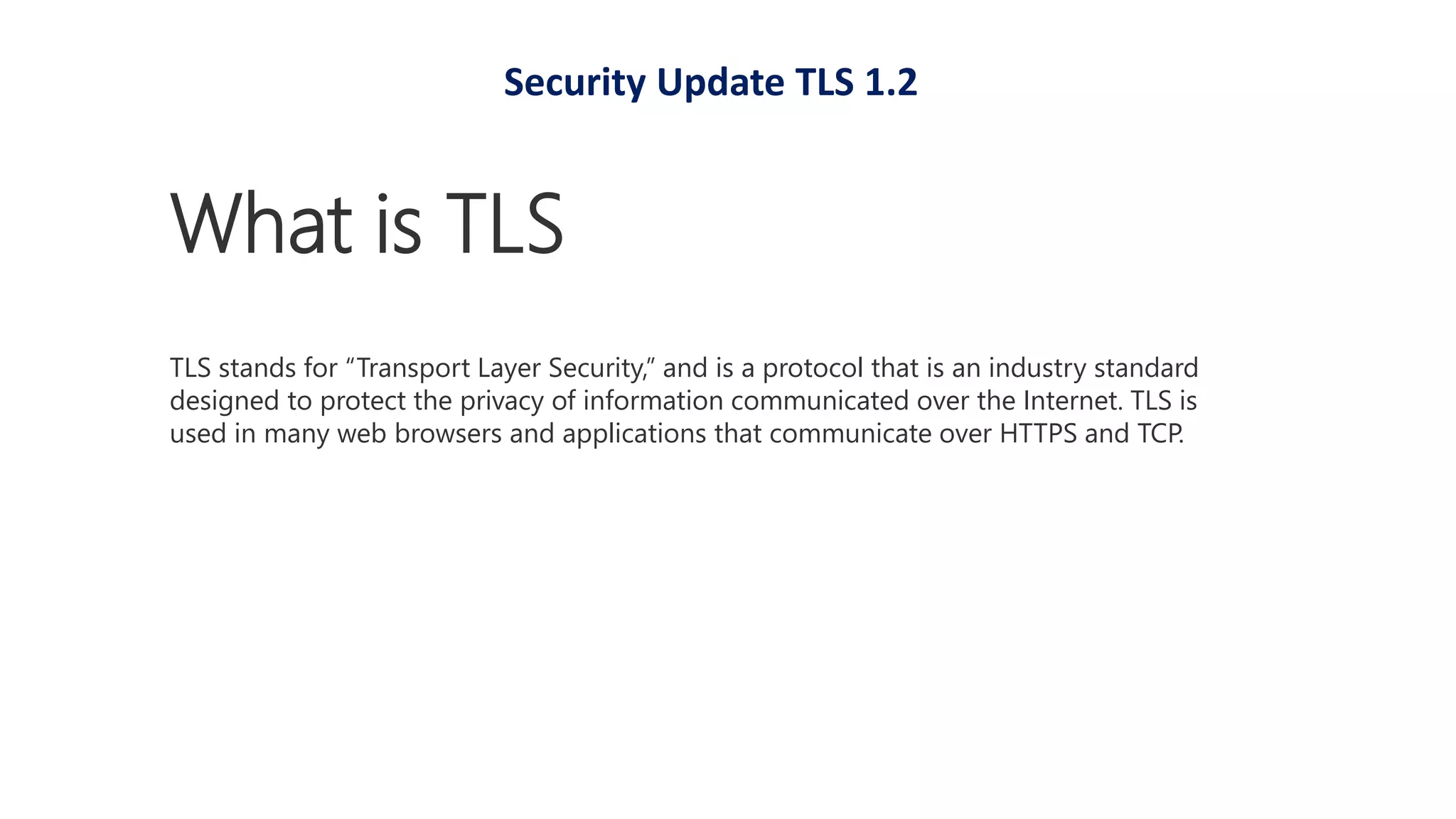

44. What is TLS
TLS stands for “Transport Layer Security,” and is a protocol that is an industry standard
designed to protect the privacy of information communicated over the Internet. TLS is
used in many web browsers and applications that communicate over HTTPS and TCP.
Security Update TLS 1.2

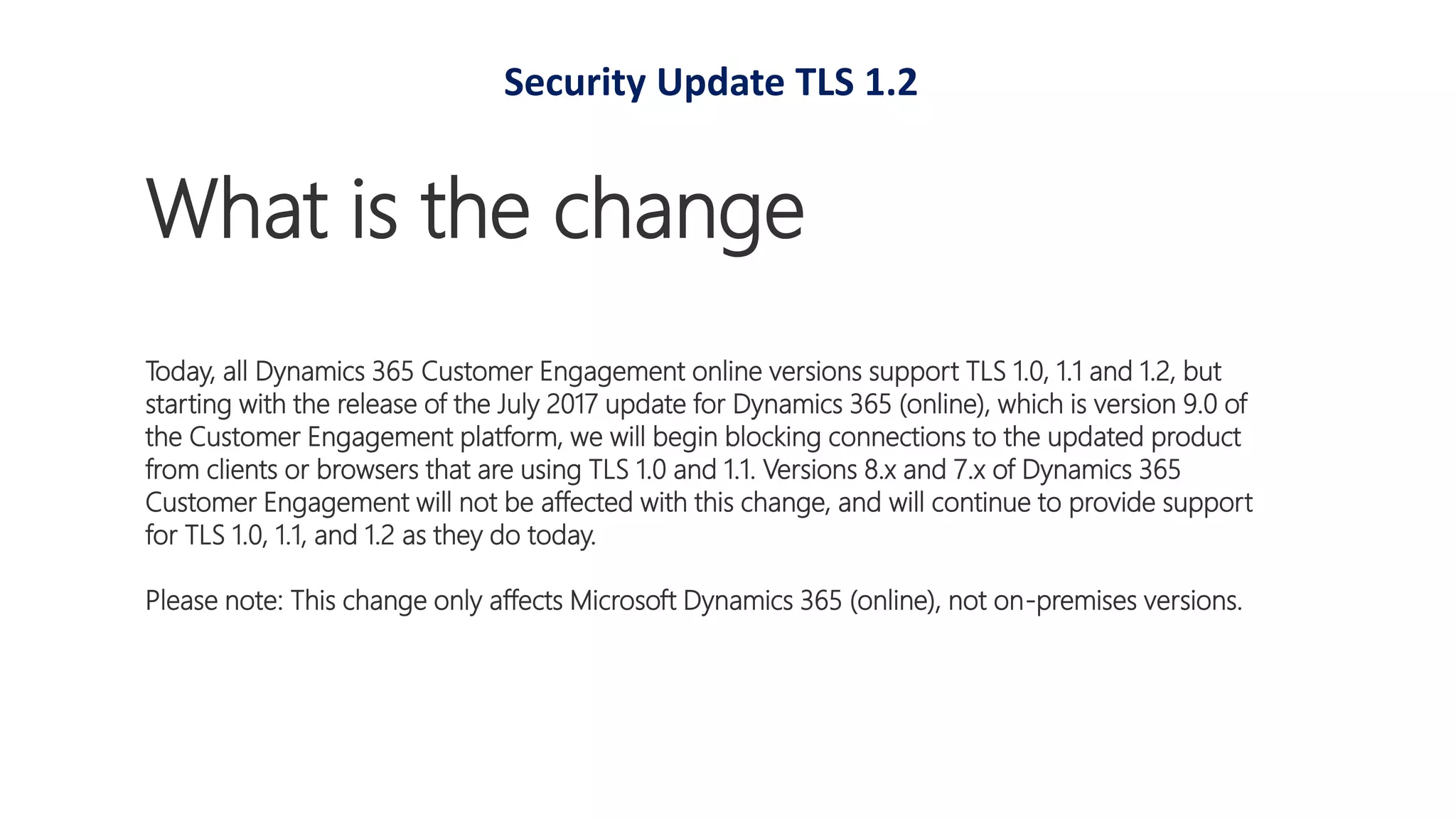

45. What is the change
Today, all Dynamics 365 Customer Engagement online versions support TLS 1.0, 1.1 and 1.2, but
starting with the release of the July 2017 update for Dynamics 365 (online), which is version 9.0 of
the Customer Engagement platform, we will begin blocking connections to the updated product
from clients or browsers that are using TLS 1.0 and 1.1. Versions 8.x and 7.x of Dynamics 365
Customer Engagement will not be affected with this change, and will continue to provide support
for TLS 1.0, 1.1, and 1.2 as they do today.
Please note: This change only affects Microsoft Dynamics 365 (online), not on-premises versions.
Security Update TLS 1.2

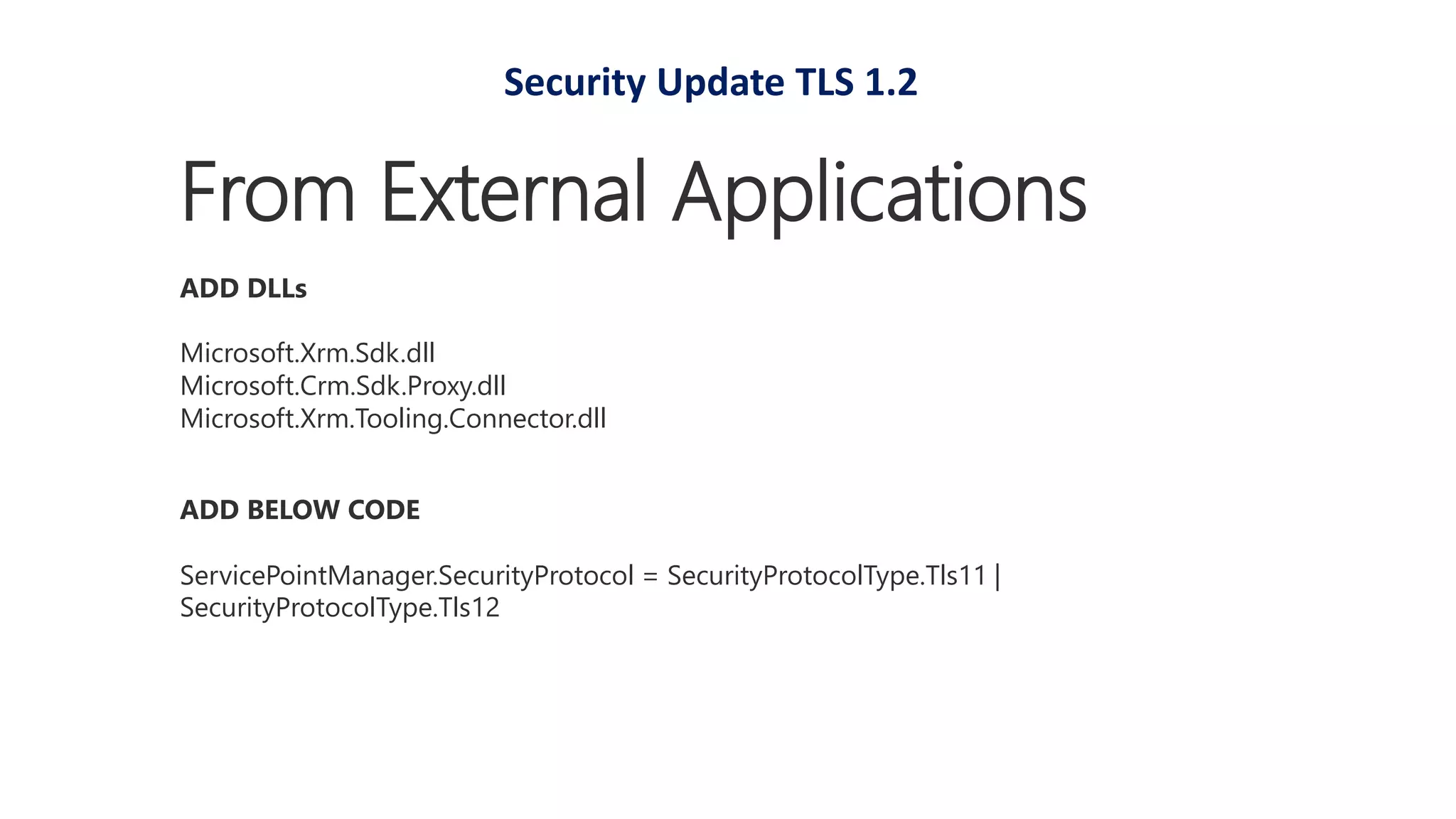

46. ADD BELOW CODE
ServicePointManager.SecurityProtocol = SecurityProtocolType.Tls11 |
SecurityProtocolType.Tls12
From External Applications
ADD DLLs
Microsoft.Xrm.Sdk.dll
Microsoft.Crm.Sdk.Proxy.dll
Microsoft.Xrm.Tooling.Connector.dll
Security Update TLS 1.2

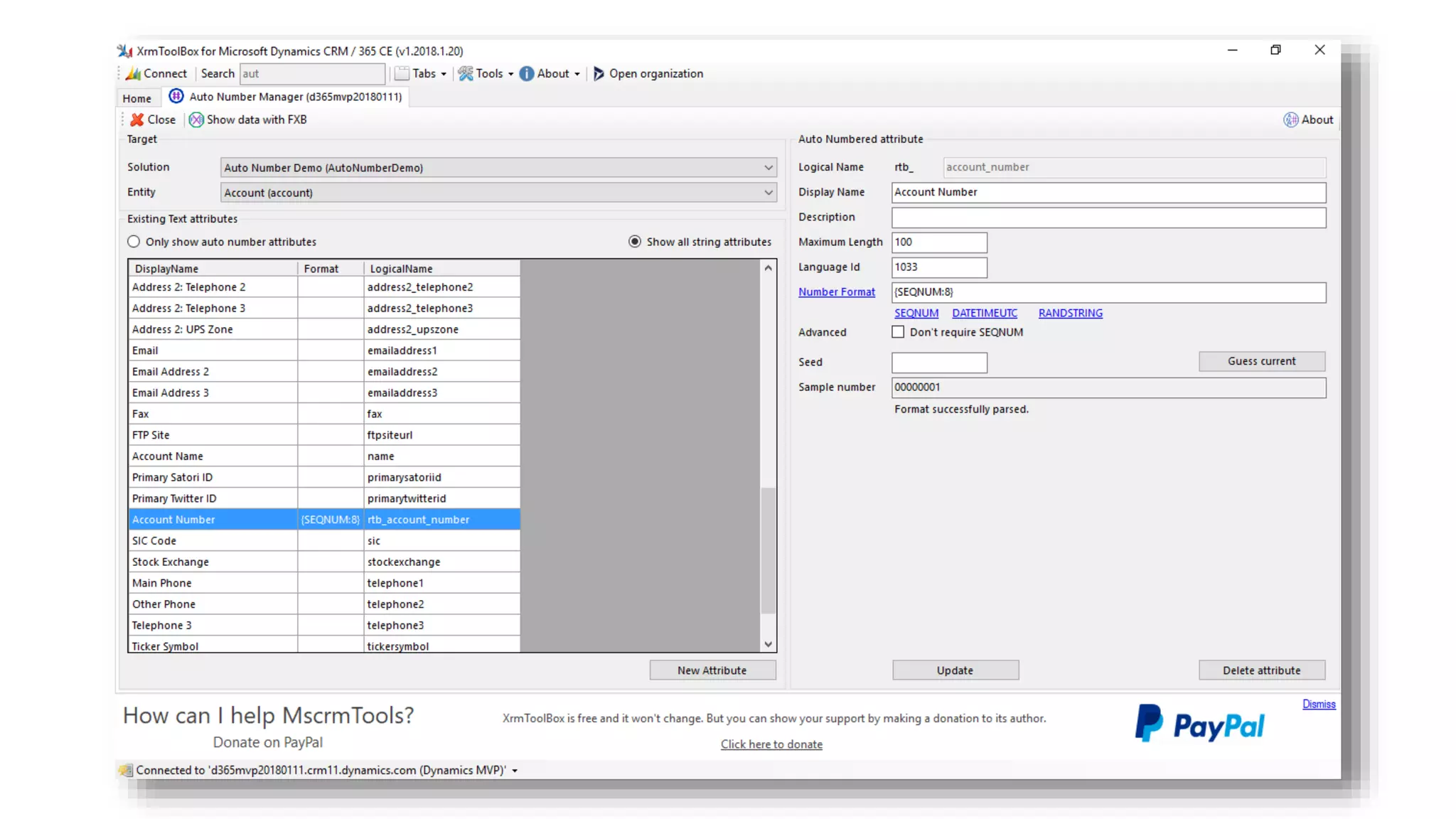

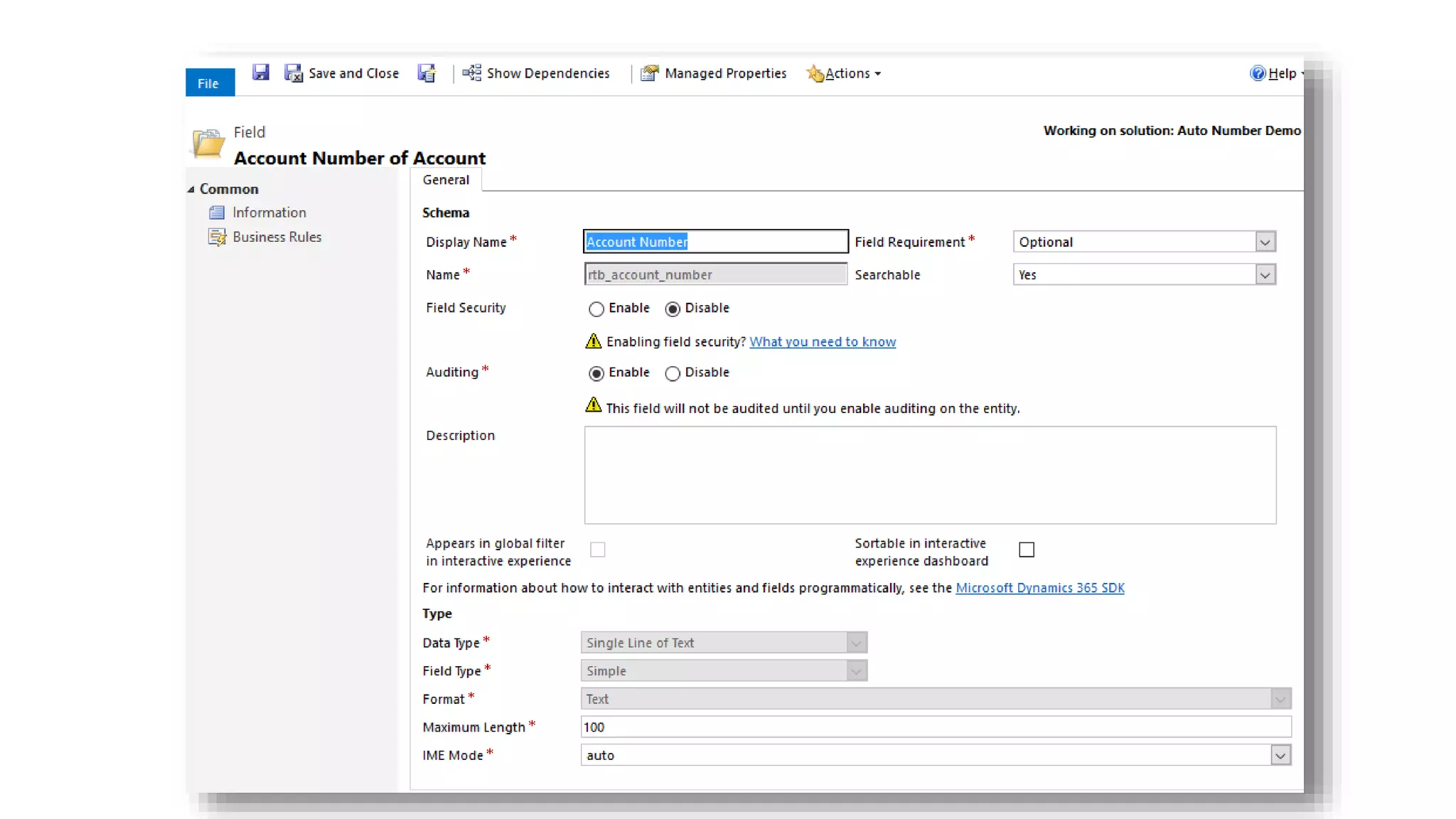

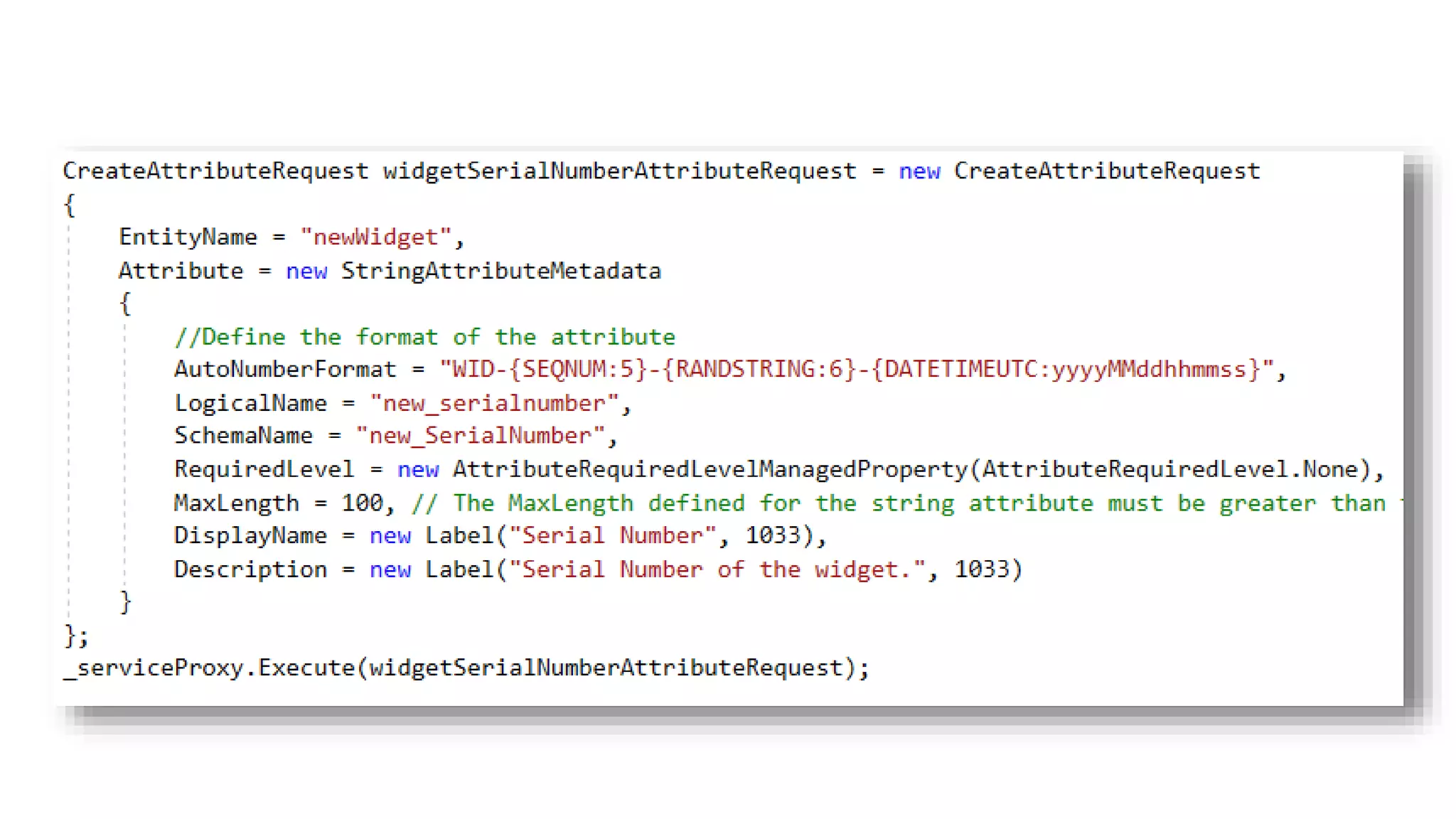

47. Auto Number for
Any Entity

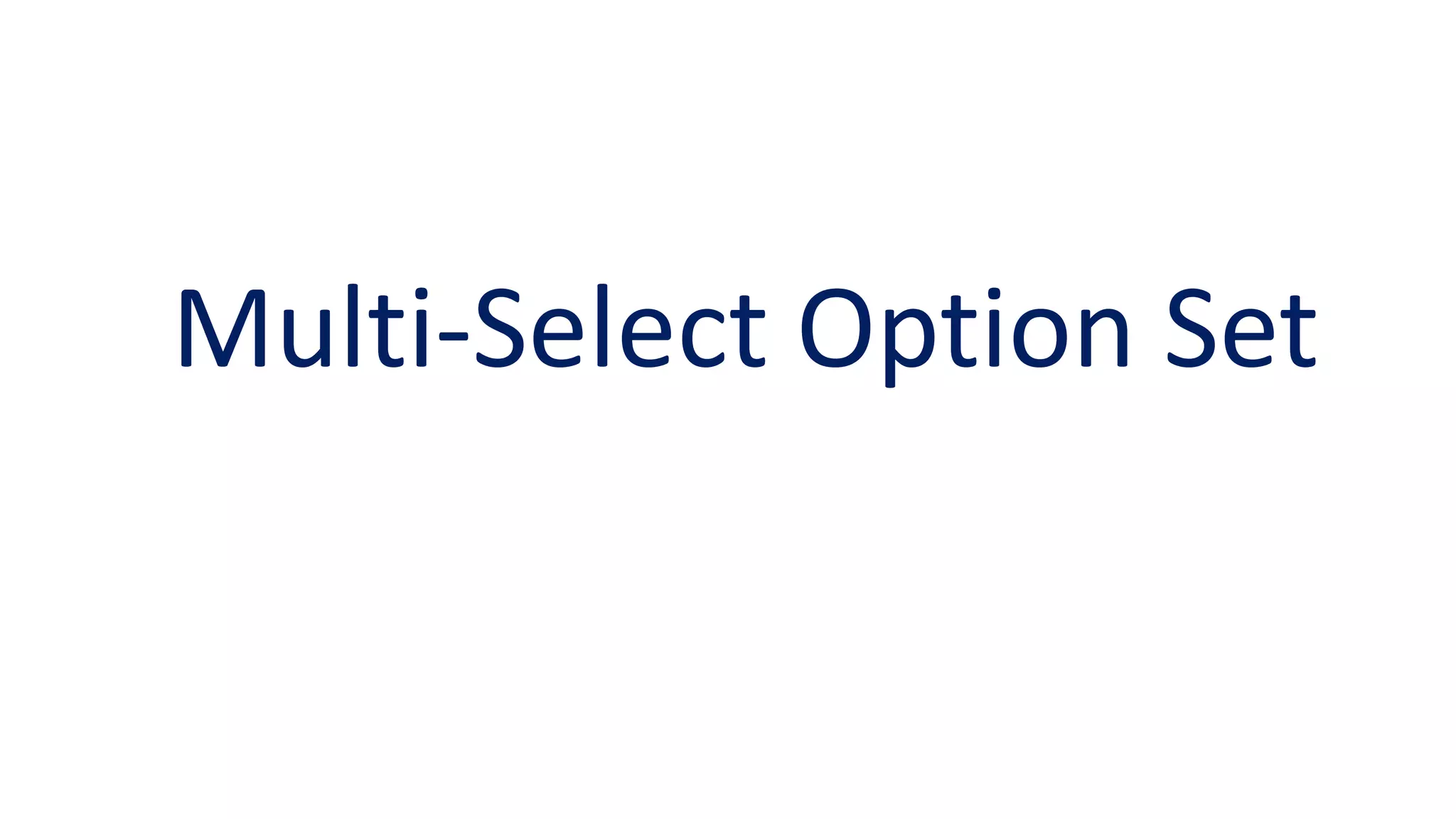

52. Multi-Select Option Set

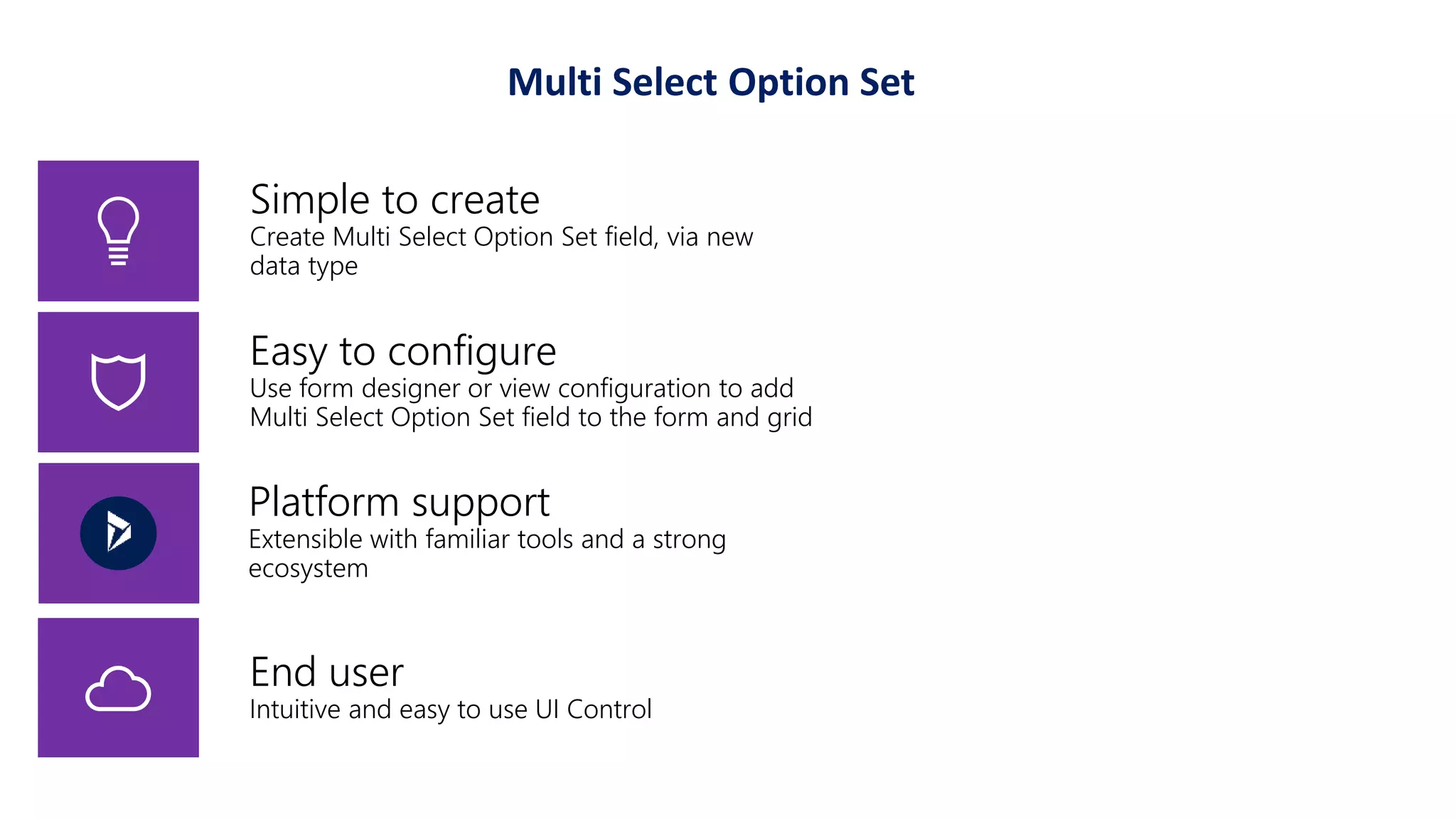

53. Easy to configure
Use form designer or view configuration to add
Multi Select Option Set field to the form and grid
End user
Intuitive and easy to use UI Control
Simple to create
Create Multi Select Option Set field, via new
data type
Platform support
Extensible with familiar tools and a strong
ecosystem
Multi Select Option Set

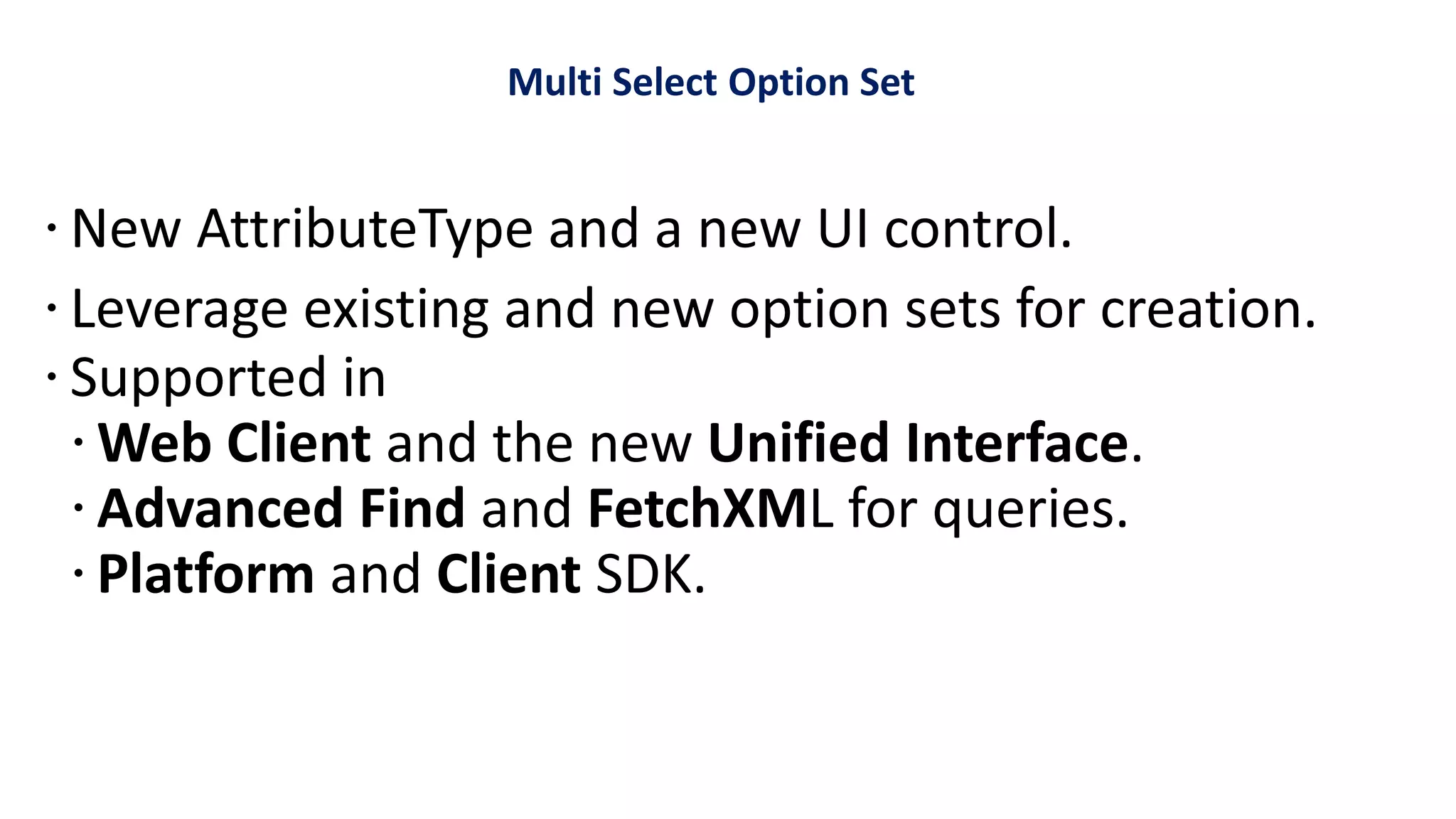

54. Multi Select Option Set

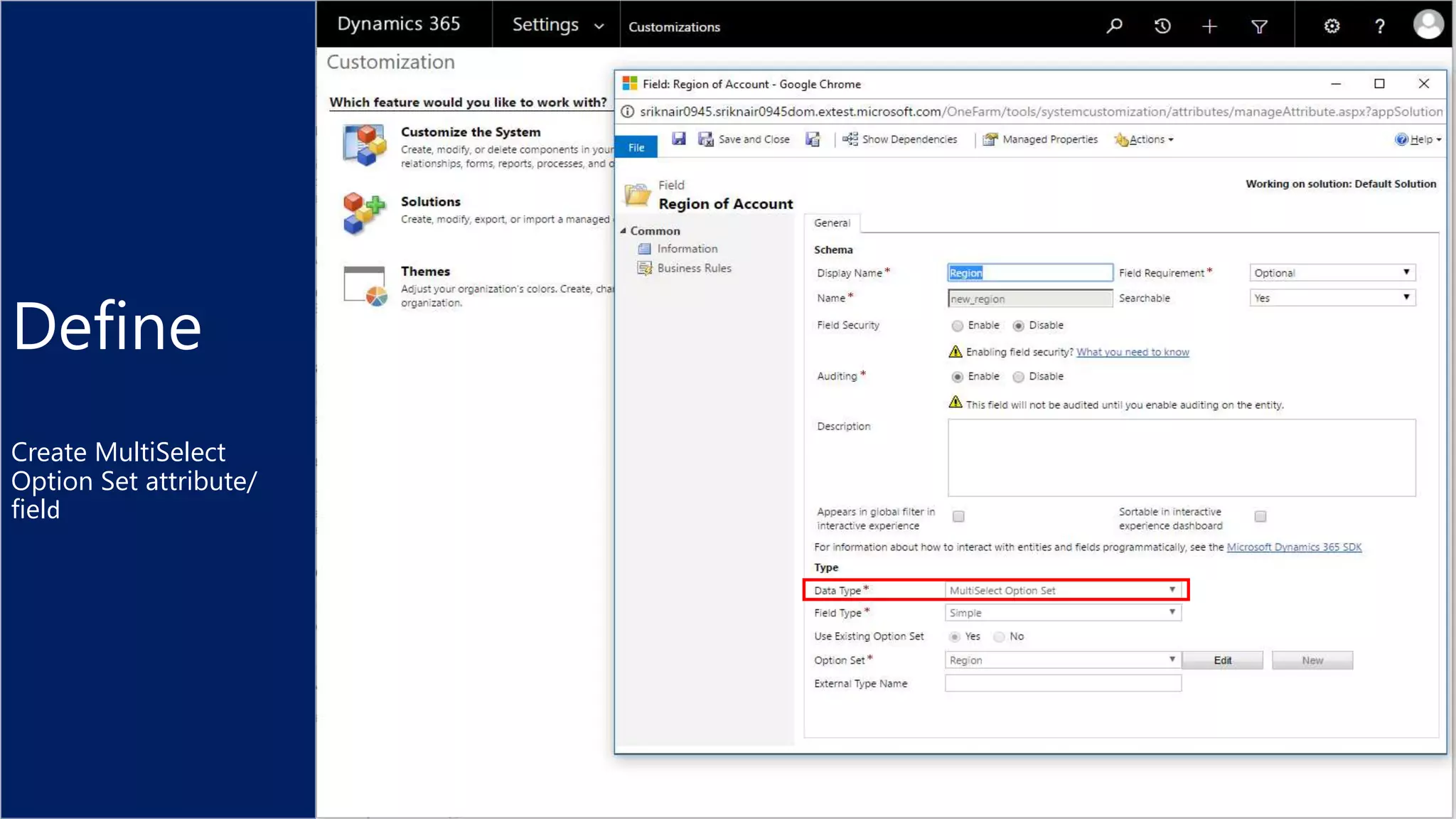

55. Define
Create MultiSelect
Option Set attribute/
field

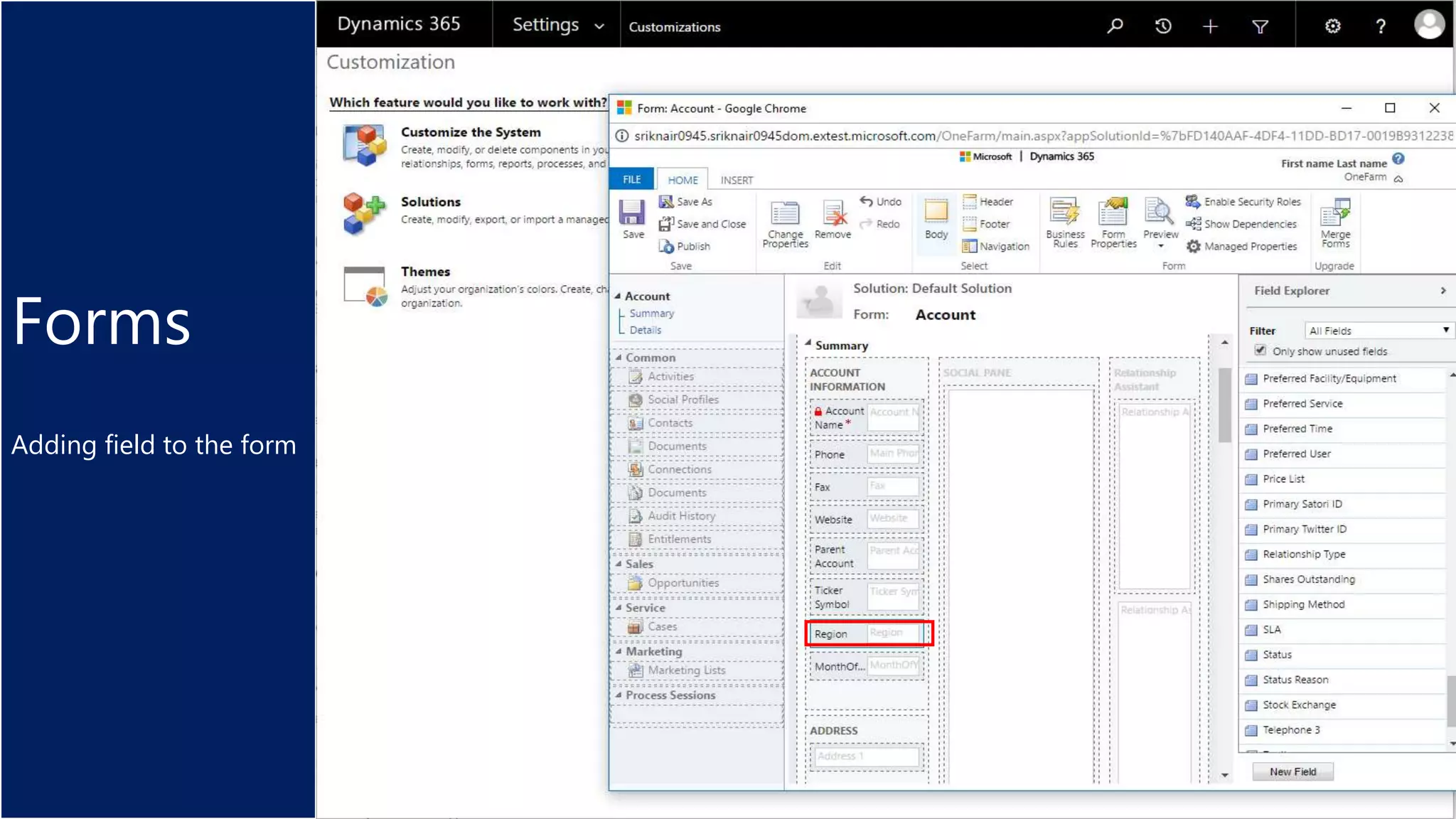

56. Forms
Adding field to the form

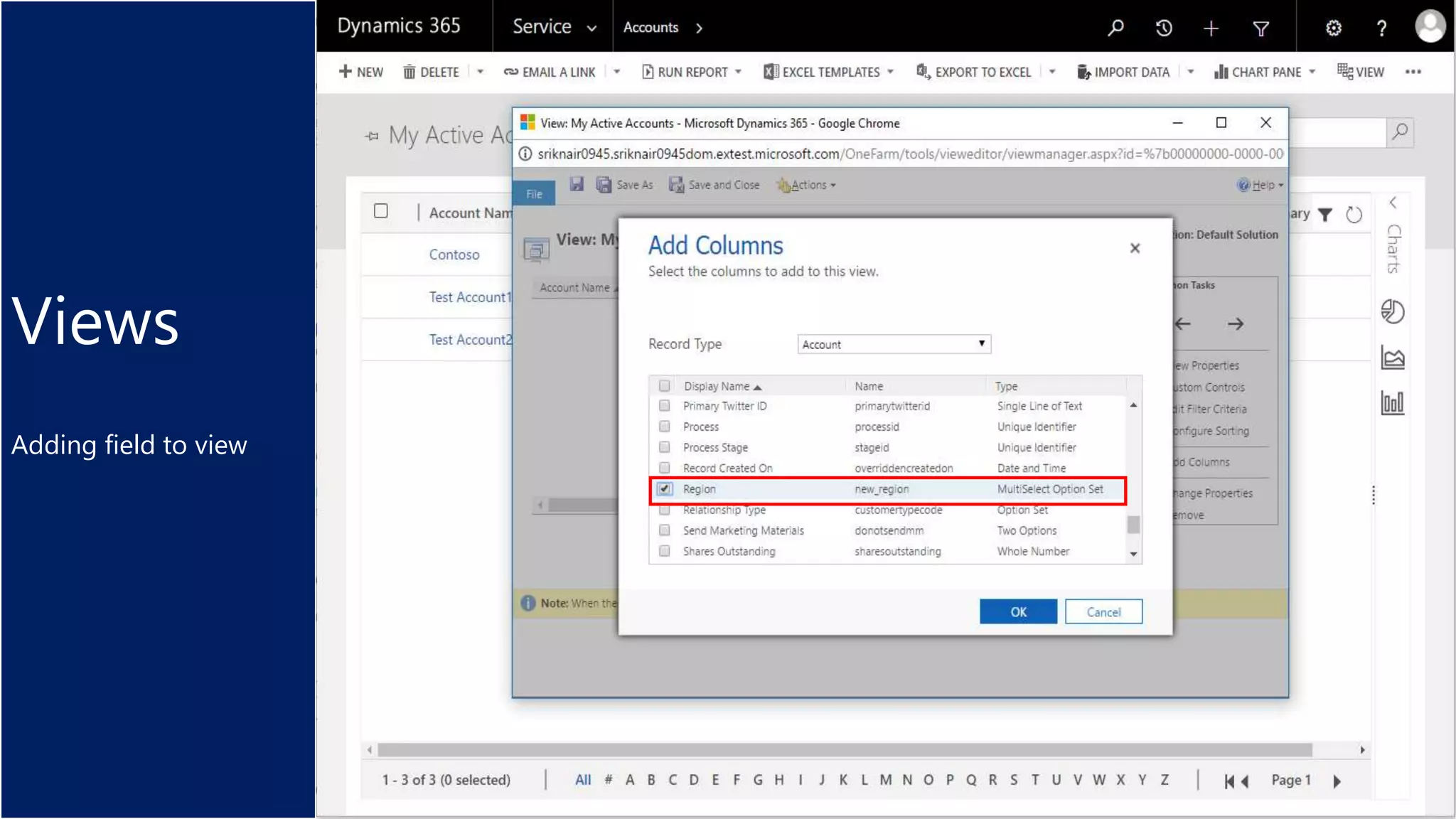

57. Views
Adding field to view

58. Find
Operators and query
experience

59. Views
Rendering values in
client

60. Forms
Multi Select Option Set
Control in Form

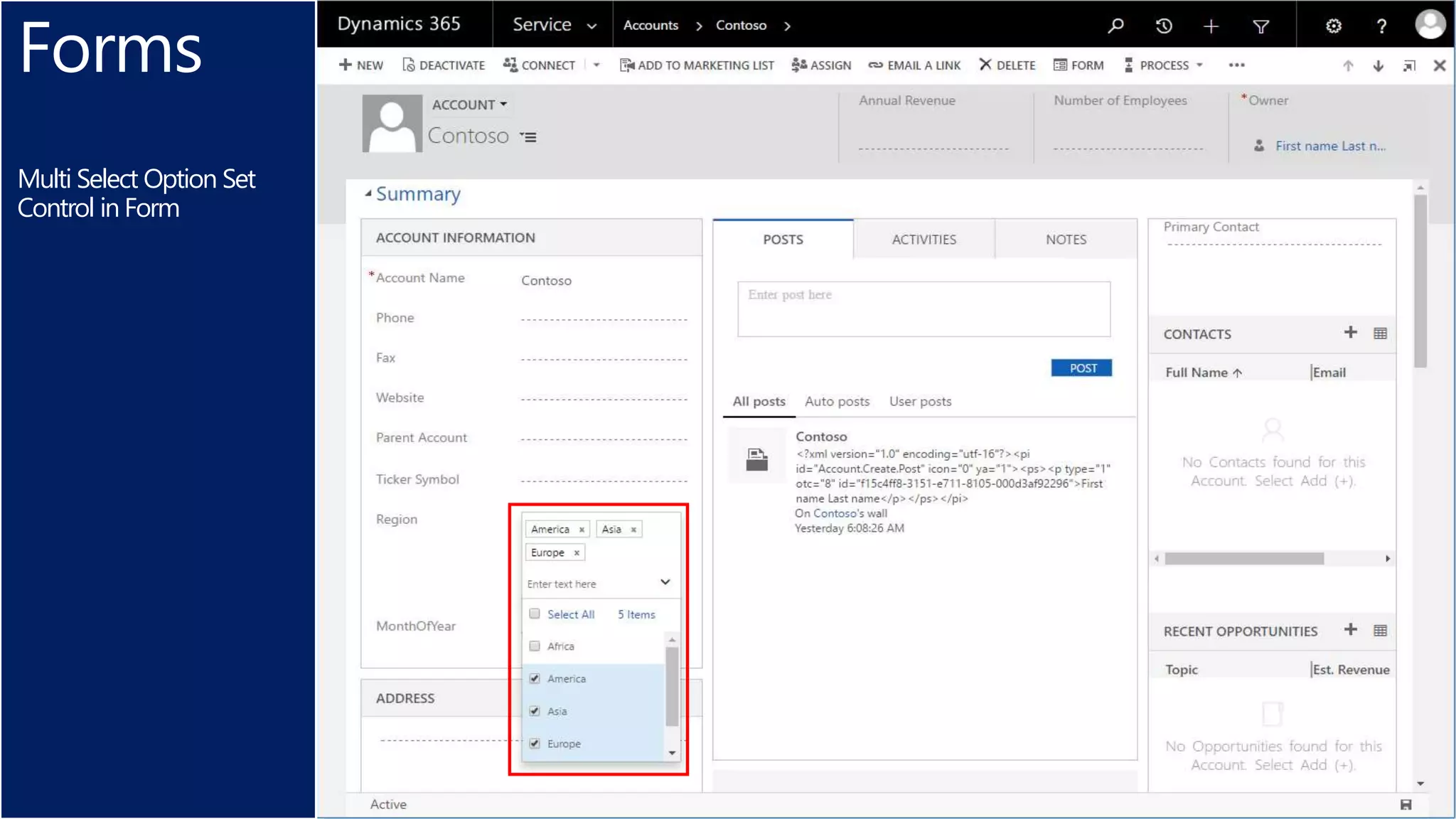

61. Forms
Multi Select Option Set
Control in Form

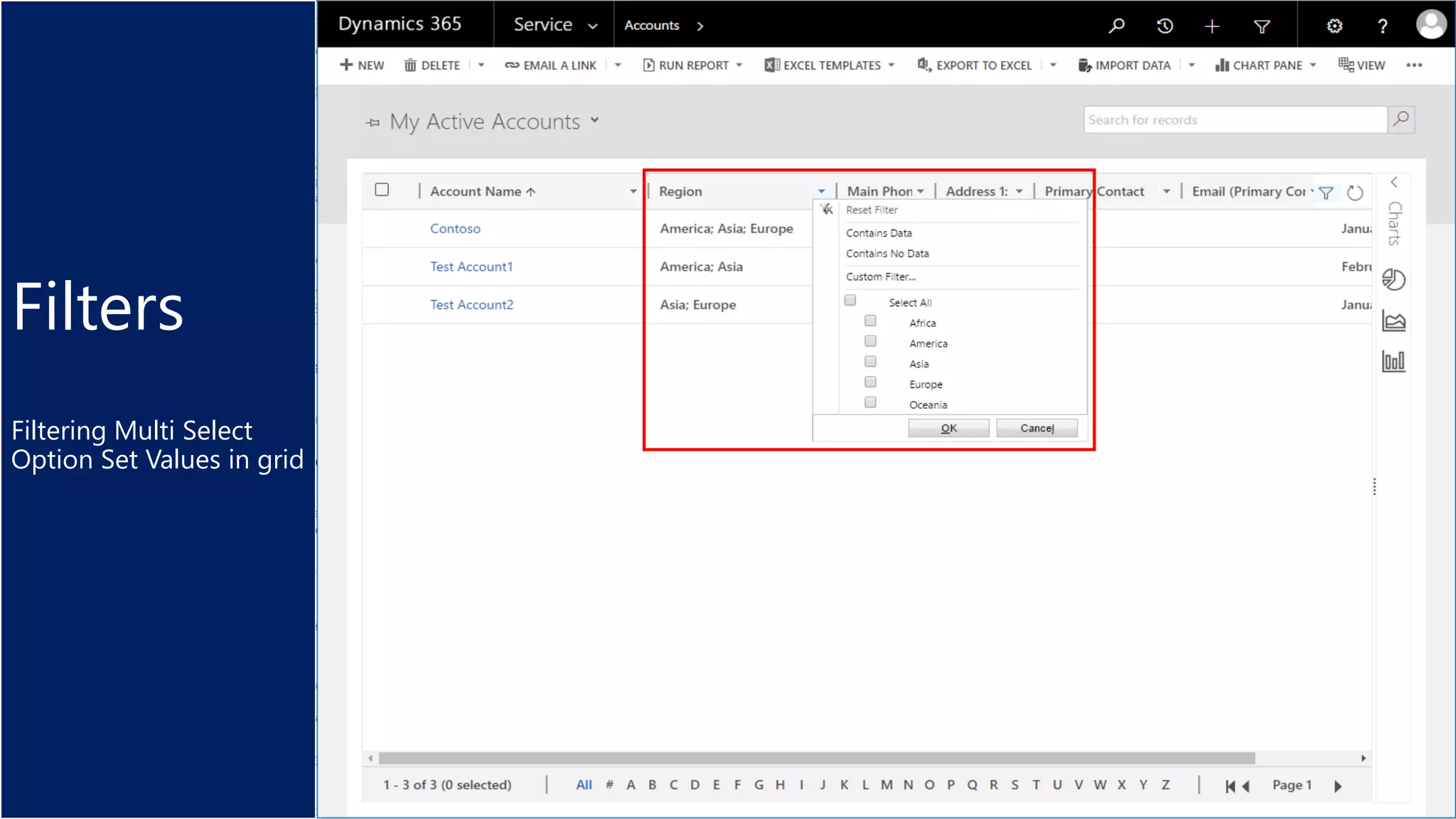

62. Filters
Filtering Multi Select
Option Set Values in grid

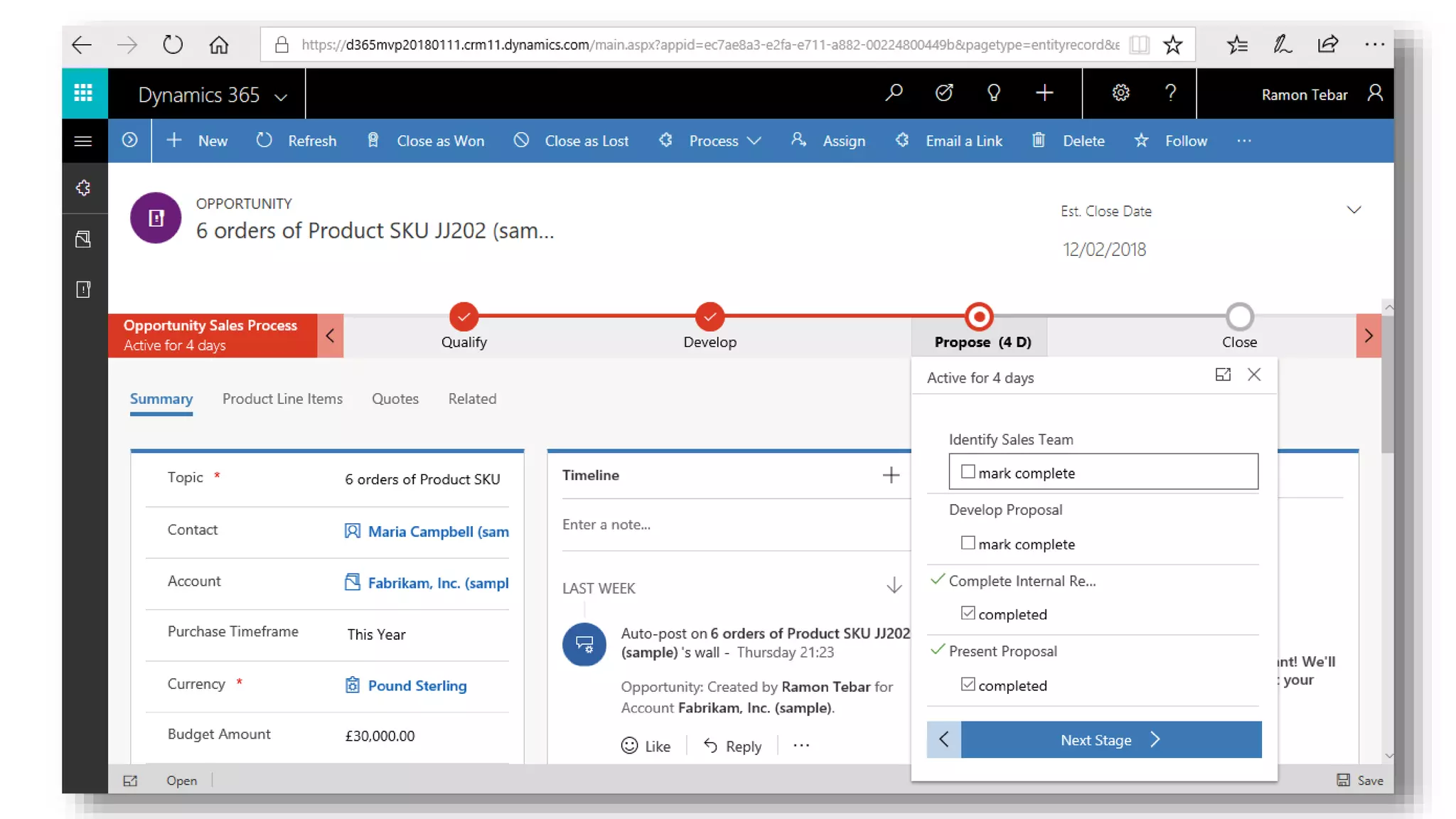

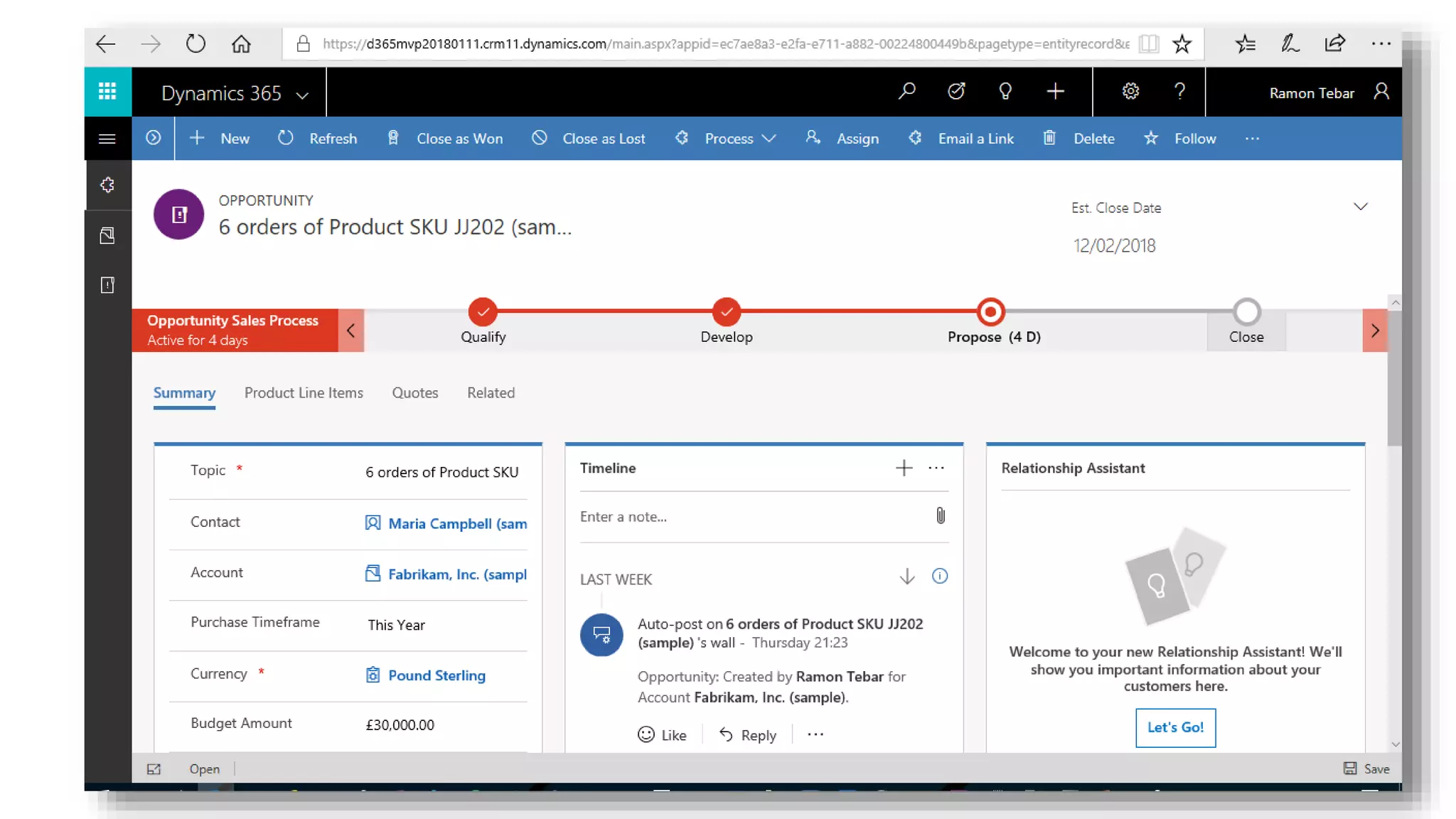

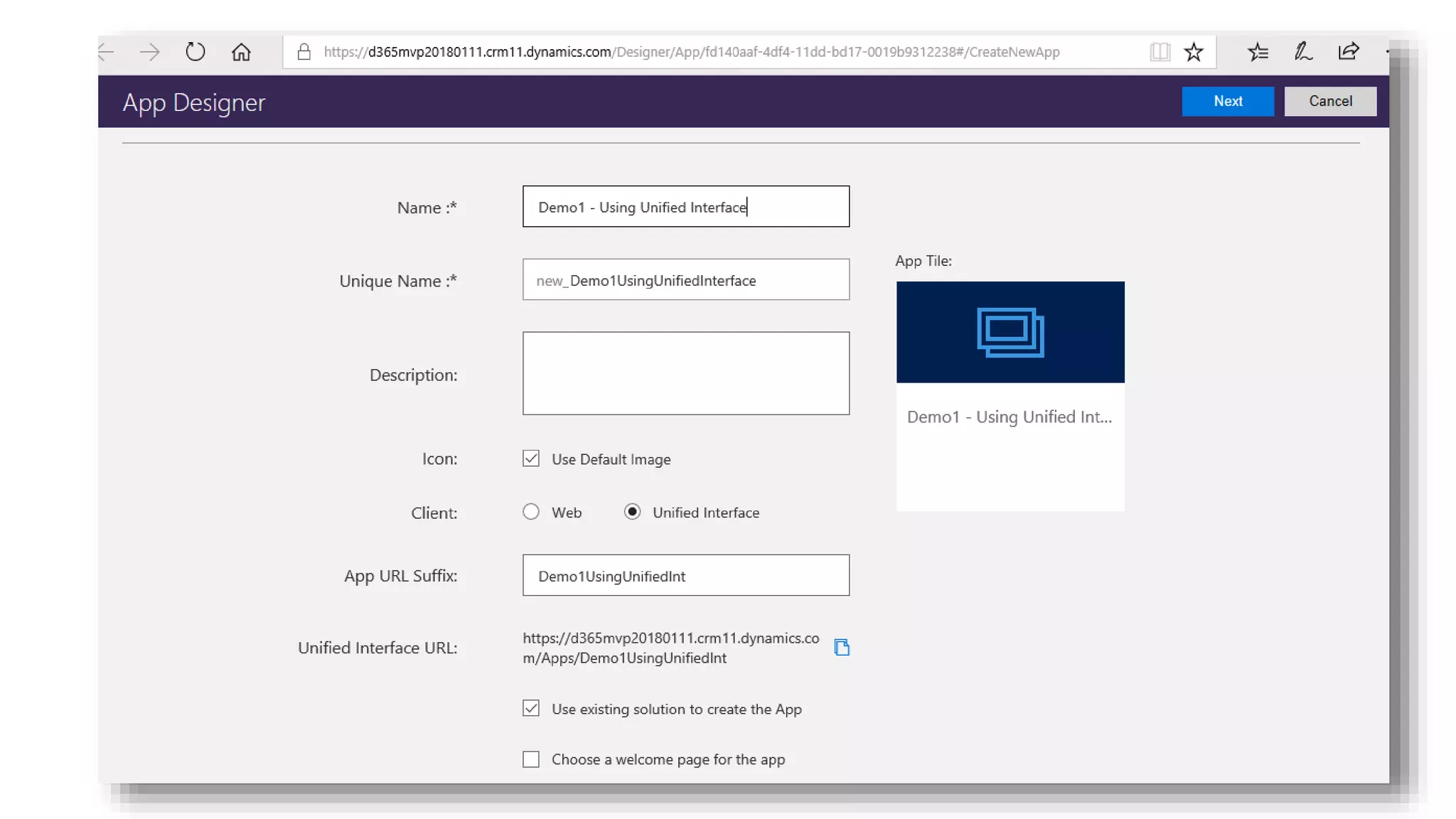

63. Unified Interface

68. Q&A

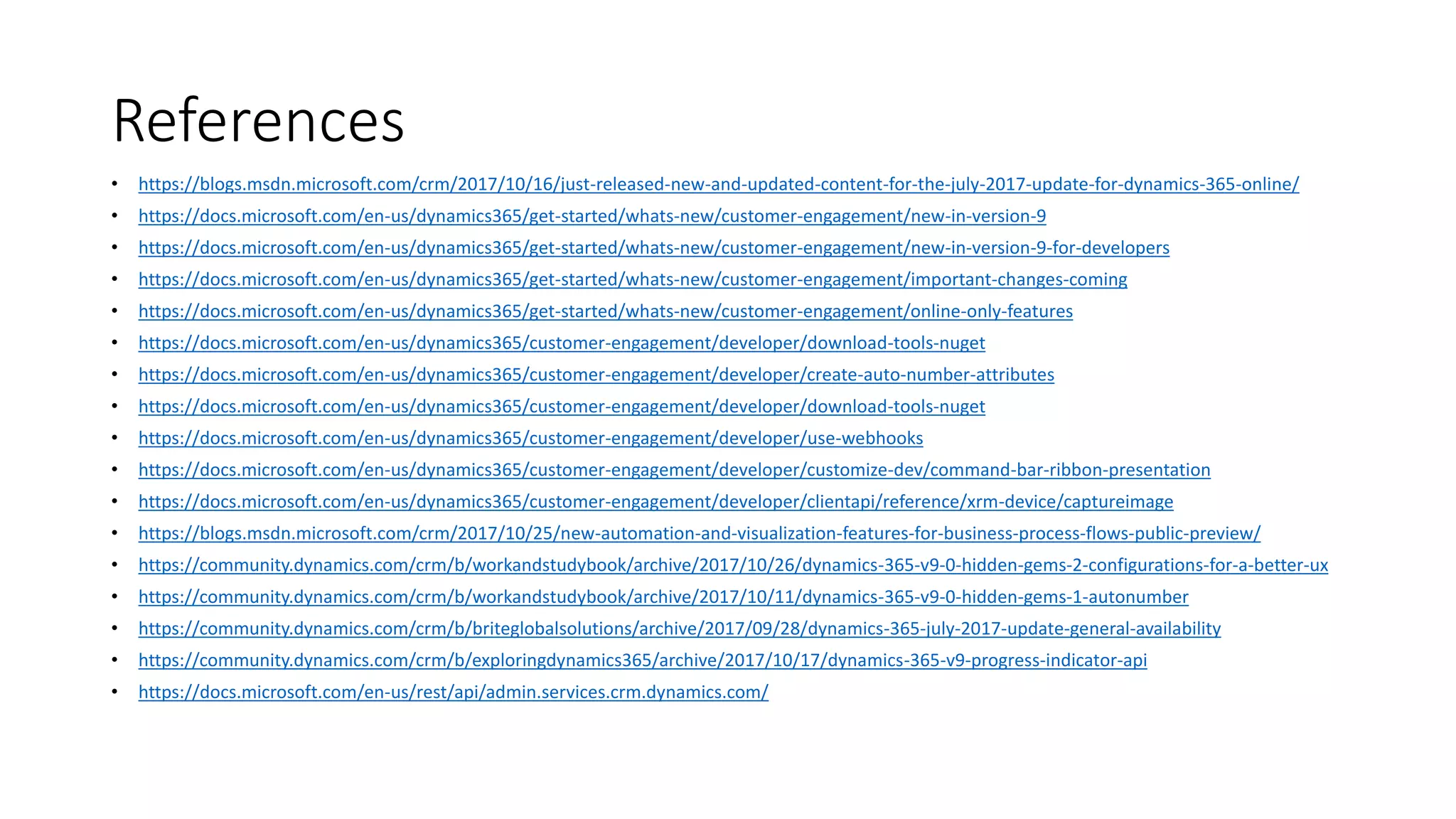

70. References
• https://blogs.msdn.microsoft.com/crm/2017/10/16/just-released-new-and-updated-content-for-the-july-2017-update-for-dynamics-365-online/
• https://docs.microsoft.com/en-us/dynamics365/get-started/whats-new/customer-engagement/new-in-version-9
• https://docs.microsoft.com/en-us/dynamics365/get-started/whats-new/customer-engagement/new-in-version-9-for-developers
• https://docs.microsoft.com/en-us/dynamics365/get-started/whats-new/customer-engagement/important-changes-coming
• https://docs.microsoft.com/en-us/dynamics365/get-started/whats-new/customer-engagement/online-only-features
• https://docs.microsoft.com/en-us/dynamics365/customer-engagement/developer/download-tools-nuget
• https://docs.microsoft.com/en-us/dynamics365/customer-engagement/developer/create-auto-number-attributes
• https://docs.microsoft.com/en-us/dynamics365/customer-engagement/developer/download-tools-nuget
• https://docs.microsoft.com/en-us/dynamics365/customer-engagement/developer/use-webhooks
• https://docs.microsoft.com/en-us/dynamics365/customer-engagement/developer/customize-dev/command-bar-ribbon-presentation
• https://docs.microsoft.com/en-us/dynamics365/customer-engagement/developer/clientapi/reference/xrm-device/captureimage
• https://blogs.msdn.microsoft.com/crm/2017/10/25/new-automation-and-visualization-features-for-business-process-flows-public-preview/
• https://community.dynamics.com/crm/b/workandstudybook/archive/2017/10/26/dynamics-365-v9-0-hidden-gems-2-configurations-for-a-better-ux
• https://community.dynamics.com/crm/b/workandstudybook/archive/2017/10/11/dynamics-365-v9-0-hidden-gems-1-autonumber
• https://community.dynamics.com/crm/b/briteglobalsolutions/archive/2017/09/28/dynamics-365-july-2017-update-general-availability
• https://community.dynamics.com/crm/b/exploringdynamics365/archive/2017/10/17/dynamics-365-v9-progress-indicator-api
• https://docs.microsoft.com/en-us/rest/api/admin.services.crm.dynamics.com/
