2008 - TechDays PT: Building Software + Services with Volta

Daniel Fisher
daniel.fisher@devcoach.de
Software Architect | CTO
devcoach®
Michael Willers
michael.willers@devcoach.de
Software Architect | CTO
devcoach®

 Experts each with 10+ years experience
 Development
 Architecture
 Consulting & Coaching
 Community activists
 Annual Software Developer Community Event
 Deep knowledge and skills on
 Service Orientation & Agile Methods
 Web & Data access
 Security & Deployment
 Real Projects – Not just cool demos!

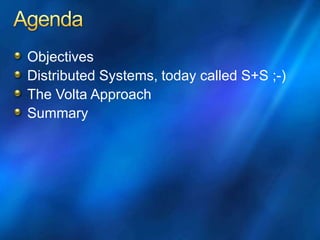

Objectives
Distributed Systems, today called S+S ;-)
The Volta Approach
Summary

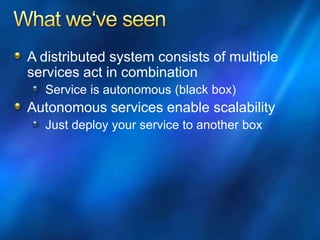

A distributed system consists of multiple
services act in combination
Service is autonomous (black box)
Autonomous services enable scalability
Just deploy your service to another box

Yet another bookstore – revisited

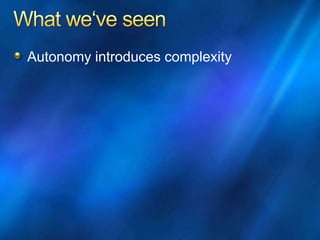

Autonomy introduces complexity

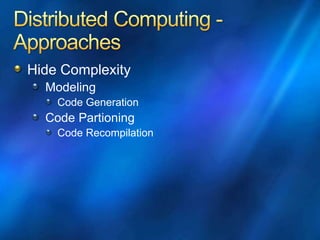

Hide Complexity
Modeling
Code Generation
Code Partioning
Code Recompilation

It is a toolset that allows you to build
distributed applications much easier
It‘s NOT a product (yet)!
Microsoft want‘s your feedback!

Use familiar technologies and Languages
Design and Build „like just for one Client“
Decide declarativly where your code will live

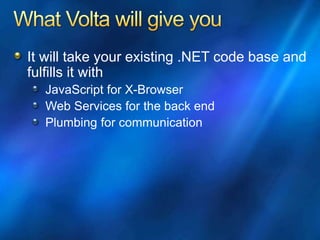

It will take your existing .NET code base and
fulfills it with
JavaScript for X-Browser
Web Services for the back end
Plumbing for communication

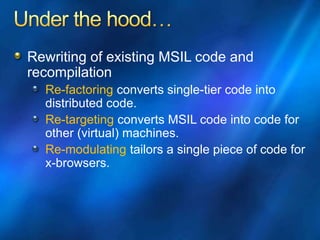

Rewriting of existing MSIL code and
recompilation
Re-factoring converts single-tier code into
distributed code.
Re-targeting converts MSIL code into code for
other (virtual) machines.
Re-modulating tailors a single piece of code for
x-browsers.

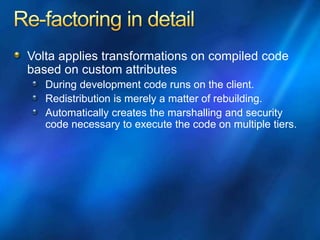

Volta applies transformations on compiled code
based on custom attributes
During development code runs on the client.
Redistribution is merely a matter of rebuilding.
Automatically creates the marshalling and security
code necessary to execute the code on multiple tiers.

CLR BrowserApplication Code
CLR
BrowserClient Script
Server Code
JSE

using System;
using Microsoft.LiveLabs.Volta.Html;
namespace VoltaApplication1
{
class Program
{
static void Main(string[] args)
{
Browser.Load(new VoltaPage1());
}
}
}

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01
Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<title>VoltaApplication1</title>
<link rel="shortcut icon" href="/favicon.ico"/>
<style type="text/css">
</style>
</head>
<body>
<p>Your name:</p>
<p><input id="Text1" type="text" /></p>
<p><button id="Button1">Greet</button></p>
<div id="Greeting"></div>
</body>
</html>

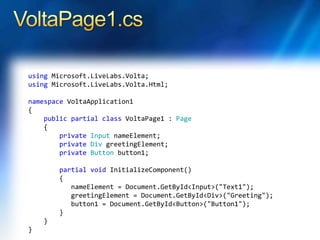

using Microsoft.LiveLabs.Volta;
using Microsoft.LiveLabs.Volta.Html;
{
public partial class VoltaPage1 : Page
{
private Input nameElement;
private Div greetingElement;
private Button button1;
partial void InitializeComponent()
{
nameElement = Document.GetById<Input>("Text1");
greetingElement = Document.GetById<Div>("Greeting");
button1 = Document.GetById<Button>("Button1");
}
}
}

{

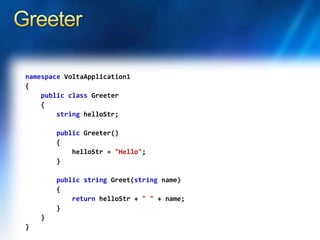

public class Greeter
{
string helloStr;
public Greeter()
{
helloStr = "Hello";
}
public string Greet(string name)
{
return helloStr + " " + name;
}
}
}

…
{
{
…
public VoltaPage1()
{
InitializeComponent();
var greeter = new Greeter();
button1.Click += delegate
{
var name = nameElement.Value;
greetingElement.InnerText = greeter.Greet(name);
};
}
}
}

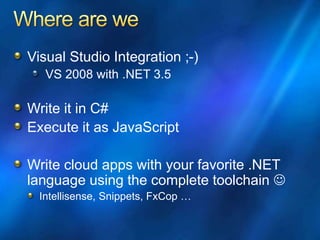

Visual Studio Integration ;-)
VS 2008 with .NET 3.5
Write it in C#
Execute it as JavaScript
Write cloud apps with your favorite .NET
language using the complete toolchain 
Intellisense, Snippets, FxCop …

The HTML library provides programmatic
access to the HTML DOM.
Query their contents
such as the text typed in an input field
Respond to events
such as fire off a method when a button is clicked
Update them
such as a status message

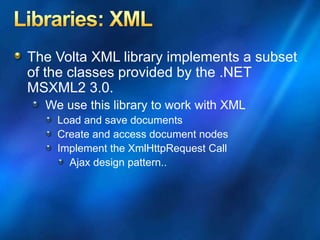

The Volta XML library implements a subset
of the classes provided by the .NET
MSXML2 3.0.
We use this library to work with XML
Load and save documents
Create and access document nodes
Implement the XmlHttpRequest Call
Ajax design pattern..

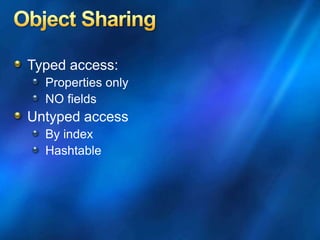

Typed access:
Properties only
NO fields
Untyped access
By index
Hashtable

{"weatherObservation":{"stationName":"Redmond, Roberts Field
Airport","datetime":"2007-08-27 13:56:00"}}
public class WeatherObservation{
[Import]
public extern string datetime{get;}
[Import]
public extern string stationName{get;}
}
public class WeatherService
{
[Import]
public extern WeatherObservation weatherObservation{get; }
}

namespace Microsoft.LiveLabs.Volta.VirtualEarth
{
[Import(
ScriptMemberNameCasing = Casing.Pascal,
PassInstanceAsArgument = false)]
public class Map
{
private static int s_counter;
[Import("onLoadMap",PassInstanceAsArgument = true)]
public extern event HtmlEventHandler MapLoaded;
}
}

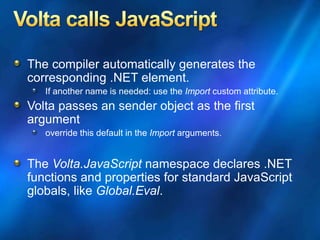

The compiler automatically generates the
corresponding .NET element.
If another name is needed: use the Import custom attribute.
Volta passes an sender object as the first
argument
override this default in the Import arguments.
The Volta.JavaScript namespace declares .NET
functions and properties for standard JavaScript
globals, like Global.Eval.

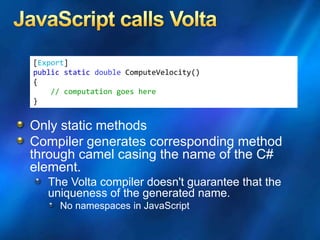

[Export]
public static double ComputeVelocity()
{
// computation goes here
}
Only static methods
Compiler generates corresponding method
through camel casing the name of the C#
element.
The Volta compiler doesn't guarantee that the
uniqueness of the generated name.
No namespaces in JavaScript

{

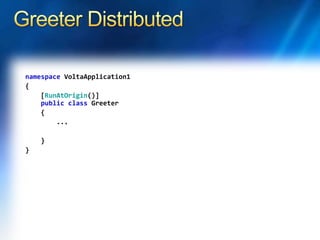

[RunAtOrigin()]
{
...
}
}

{
[RunAtOrigin()]
{
...
[Async]
public extern void Greet(
string name, Callback<string> callback);
}
}

…
{
{
…
public VoltaPage1()
{
…
button1.Click += delegate
{
var name = nameElement.Value;
greeter.Greet(
name,
message => {
greetingElement.InnerText = "async: " + message; });
};
…

Volta tier splitting automates the creation of
the communication plumbing code,
serialization, and remoting.
Simply mark classes or methods with a
custom attribute that tells the Volta compiler
where they should run.
Unmarked classes and methods continue to
run on the client.

Volta applications run virtually anywhere,
even where an CLR is not available.
Web application can run in most standards-
compliant browsers.
Other applications can be targeted to take
advantage of the CLR.

Volta extends the reach of the .NET platform to
cover the cloud.
The only differences at the source-code level are
the presence and positions of custom attributes.
It DOES NOT eliminate the intellectual challenges
of distributed computing.
We must still formulate strategies for partitioning functionality and
dealing with network latency and availability.
Volta does, however, radically simplify the error-
prone plumbing and re-plumbing of
communication code.

Volta enables to prototype and refine
designs through refactoring DURING
development
Offers the same programming model on the
browser and the server.
A really cool approach on building
distributed apps.
But you still have to architect your system ;-)
