This document discusses using a PID controller to dynamically limit the rate of MySQL backups using innobackupex to avoid overloading the storage servers. It describes setting up pv to monitor and rate limit the backup, with a remote PID controller adjusting the limit in real time based on iostat metrics to keep the storage servers optimally utilized during backups. The controller aims to keep the average queue size around 1.0 on the storage devices containing MySQL data files.

1. dw-tpain
Gordon Klok
Demonware, Inc

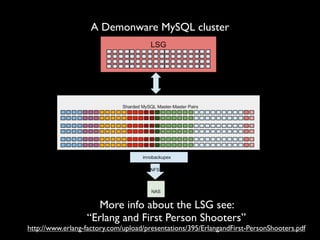

2. A Demonware MySQL cluster
More info about the LSG see:
“Erlang and First Person Shooters”
http://www.erlang-factory.com/upload/presentations/395/ErlangandFirst-PersonShooters.pdf

3. backup process
• innobackupex from Percona http://
www.percona.com/doc/percona-xtrabackup/
2.1/innobackupex/innobackupex_script.html
• Allows hot backup of database
• backups the underlying MySQL files
replays a transaction log for changes
occurring during the backup
• much faster to restore then SQL dumps.

5. Not good

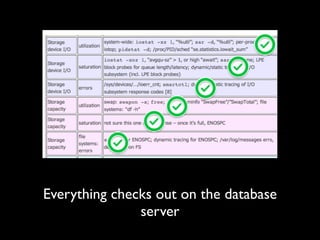

6. Everything checks out on the database
server

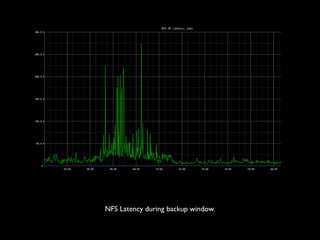

7. NFS Latency during backup window.

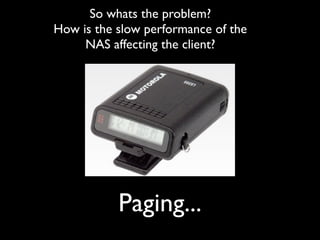

8. So whats the problem?
How is the slow performance of the
NAS affecting the client?

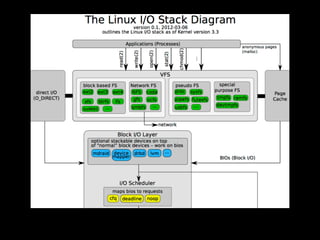

Paging...

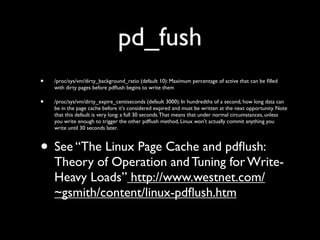

10. pd_fush
•
/proc/sys/vm/dirty_background_ratio (default 10): Maximum percentage of active that can be filled
with dirty pages before pdflush begins to write them
•
/proc/sys/vm/dirty_expire_centiseconds (default 3000): In hundredths of a second, how long data can
be in the page cache before it's considered expired and must be written at the next opportunity. Note
that this default is very long: a full 30 seconds. That means that under normal circumstances, unless
you write enough to trigger the other pdflush method, Linux won't actually commit anything you
write until 30 seconds later.
• See “The Linux Page Cache and pdflush:
Theory of Operation and Tuning for WriteHeavy Loads” http://www.westnet.com/
~gsmith/content/linux-pdflush.htm

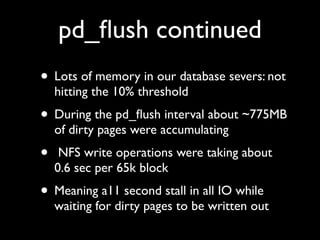

11. pd_flush continued
• Lots of memory in our database severs: not
hitting the 10% threshold
• During the pd_flush interval about ~775MB
of dirty pages were accumulating
•
NFS write operations were taking about
0.6 sec per 65k block
• Meaning a11 second stall in all IO while
waiting for dirty pages to be written out

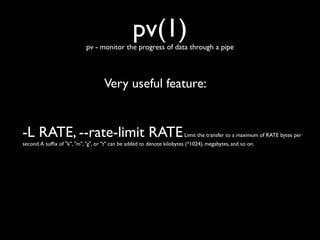

12. pv(1)
pv - monitor the progress of data through a pipe
Very useful feature:
-L RATE, --rate-limit RATE
Limit the transfer to a maximum of RATE bytes per
second. A suffix of "k", "m", "g", or "t" can be added to denote kilobytes (*1024), megabytes, and so on.

13. Fixed limit problem
• If the pv rate limit is set to high we still
interfere with MySQL by stealing IO to the
database servers attached storage
• if the pv rate limit is set lower then the
rate of incoming writes to mysql
innobackupex will not finish until it fills the
volume holding the xtrabackup logs.
• Need a dynamic rate limiter

14. pv(1)
pv - monitor the progress of data through a pipe
Making pv dynamic
-R PID, --remote PID If PID is an instance of pv that is already running, -R PID will cause that
instance to act as though it had been given this instance's command line instead. For example, if pv -L 123k is running with
process ID 9876, then running pv -R 9876 -L 321k will cause it to start using a rate limit of 321k instead of 123k. Note that
some options cannot be changed while running, such as -c, -l, -f, -E, and -S.

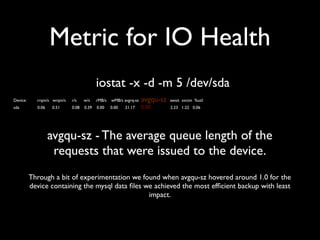

15. Metric for IO Health
iostat -x -d -m 5 /dev/sda
Device:
rrqm/s wrqm/s
r/s
w/s
rMB/s
wMB/s avgrq-sz
avgqu-sz
await svctm %util
sda
0.06
0.08
0.39
0.00
0.00
0.00
2.23 1.22 0.06
0.51
21.17
avgqu-sz - The average queue length of the
requests that were issued to the device.
Through a bit of experimentation we found when avgqu-sz hovered around 1.0 for the
device containing the mysql data files we achieved the most efficient backup with least
impact.

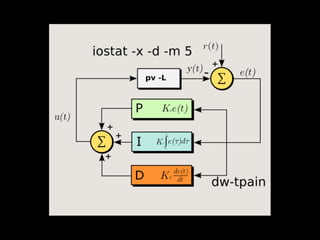

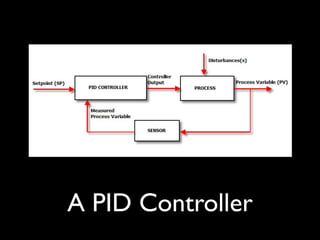

16. A PID Controller

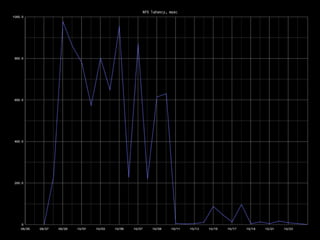

18. Success!

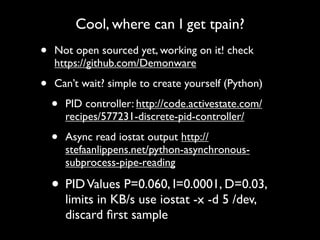

20. Cool, where can I get tpain?
•
Not open sourced yet, working on it! check
https://github.com/Demonware
•
Can’t wait? simple to create yourself (Python)
•
PID controller: http://code.activestate.com/
recipes/577231-discrete-pid-controller/
•
Async read iostat output http://
stefaanlippens.net/python-asynchronoussubprocess-pipe-reading
• PID Values P=0.060, I=0.0001, D=0.03,
limits in KB/s use iostat -x -d 5 /dev,
discard first sample
