Durisol is a building system that uses recycled wood to form insulating concrete wall units. The wood is "mineralized" and formed into durable blocks with an open cell structure that provides insulation but does not burn, rot, or support insects. The lightweight blocks are dry stacked without mortar, then filled with concrete to form a monolithic concrete frame. Durisol walls can achieve high insulative values while offering construction cost and time savings compared to traditional methods. The blocks have been used internationally for over 60 years to construct a variety of buildings from houses to schools to high-rises.

1. Woodcrete: Cost Effective
Sustainable Walling

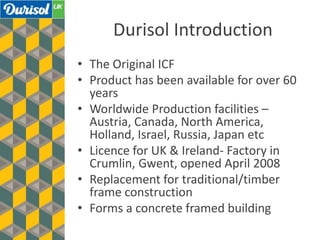

2. Durisol Introduction
• The Original ICF
• Product has been available for over 60
years
• Worldwide Production facilities –
Austria, Canada, North America,
Holland, Israel, Russia, Japan etc
• Licence for UK & Ireland- Factory in
Crumlin, Gwent, opened April 2008
• Replacement for traditional/timber
frame construction
• Forms a concrete framed building

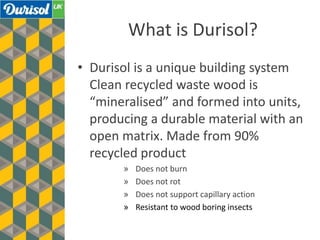

3. What is Durisol?
• Durisol is a unique building system
Clean recycled waste wood is
“mineralised” and formed into units,
producing a durable material with an
open matrix. Made from 90%
recycled product
» Does not burn
» Does not rot
» Does not support capillary action
» Resistant to wood boring insects

4. Forming Durisol Walling
• Durisol is cast into wall form units
• Uniform and consistent sizing (engineered finish)
• 4 unit sizes (170 – 365mm wide) - Lightweight
under CDM regs - only 8 units required per m2
• Dry stacked without mortar from foundations
• Use of high slump concrete fill guarantees void
free fill of units creating a concrete frame
structure
• Easily modified on site using simple tools

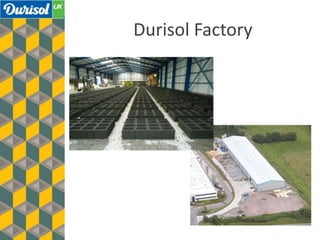

5. Durisol Factory

6. Why use Durisol Block?
• U values of 0.15 easily achievable
• Construction cost savings attainable
• High thermal mass
• Rapid build times
• High recycled material content
• Low embodied energy process
• Units arrive on site with insulation pre-
installed
• Lead times 4-6 weeks
• Proven built up to 26 storeys – Hilton
• Fully UK Certified – BBA, NHBC, BRE A Rating

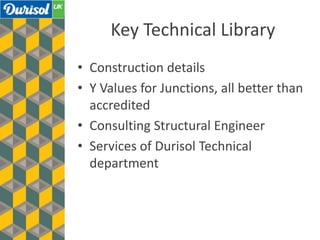

7. Key Technical Library
• Construction details
• Y Values for Junctions, all better than
accredited
• Consulting Structural Engineer
• Services of Durisol Technical
department

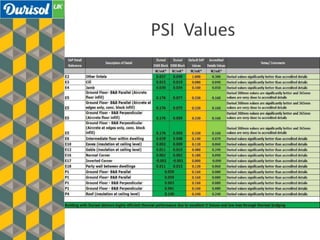

8. PSI Values

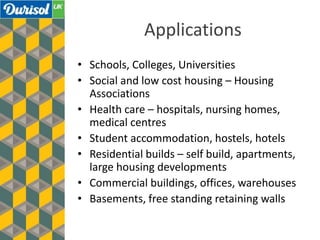

9. Applications
• Schools, Colleges, Universities
• Social and low cost housing – Housing
Associations
• Health care – hospitals, nursing homes,
medical centres
• Student accommodation, hostels, hotels
• Residential builds – self build, apartments,
large housing developments
• Commercial buildings, offices, warehouses
• Basements, free standing retaining walls

10. How the System Works

11. How the System Works
KEY:
S STANDARD FORM
SM STANDARD FORM MODIFIED ON SITE
F FACE FORM
FM FACE FORM MODIFIED ON SITE

12. How the System Works

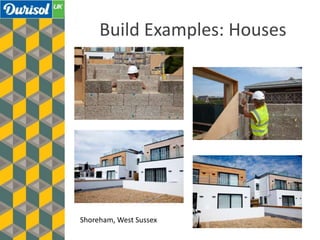

13. Build Examples: Houses
Shoreham, West Sussex

14. Build Examples: Houses
Poole, Dorset

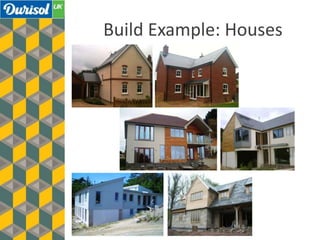

15. Build Example: Houses

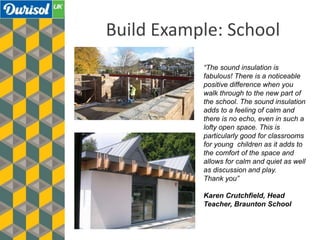

16. Build Example: School
“The sound insulation is
fabulous! There is a noticeable
positive difference when you
walk through to the new part of
the school. The sound insulation
adds to a feeling of calm and
there is no echo, even in such a
lofty open space. This is
particularly good for classrooms
for young children as it adds to
the comfort of the space and
allows for calm and quiet as well
as discussion and play.
Thank you”
Karen Crutchfield, Head
Teacher, Braunton School

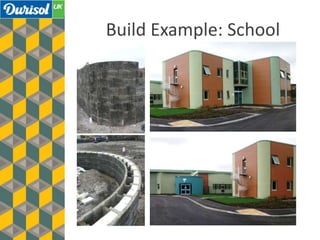

17. Build Example: School

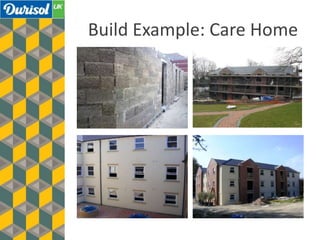

18. Build Example: Care Home

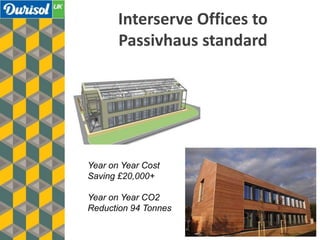

19. Interserve Offices to
Passivhaus standard
Year on Year Cost
Saving £20,000+
Year on Year CO2
Reduction 94 Tonnes

20. Library

21. Storage

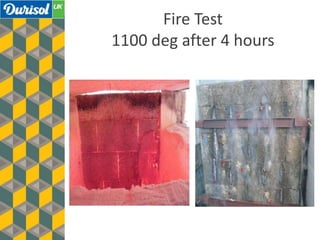

23. Fire Test
1100 deg after 4 hours

24. Durisol Customers

25. Any Questions?
www.durisoluk.com
www.durisol.net
Follow us @DurisolUK
Like us www.facebook.com/UKDurisol
Watch more www.youtube.com/UKDurisol
