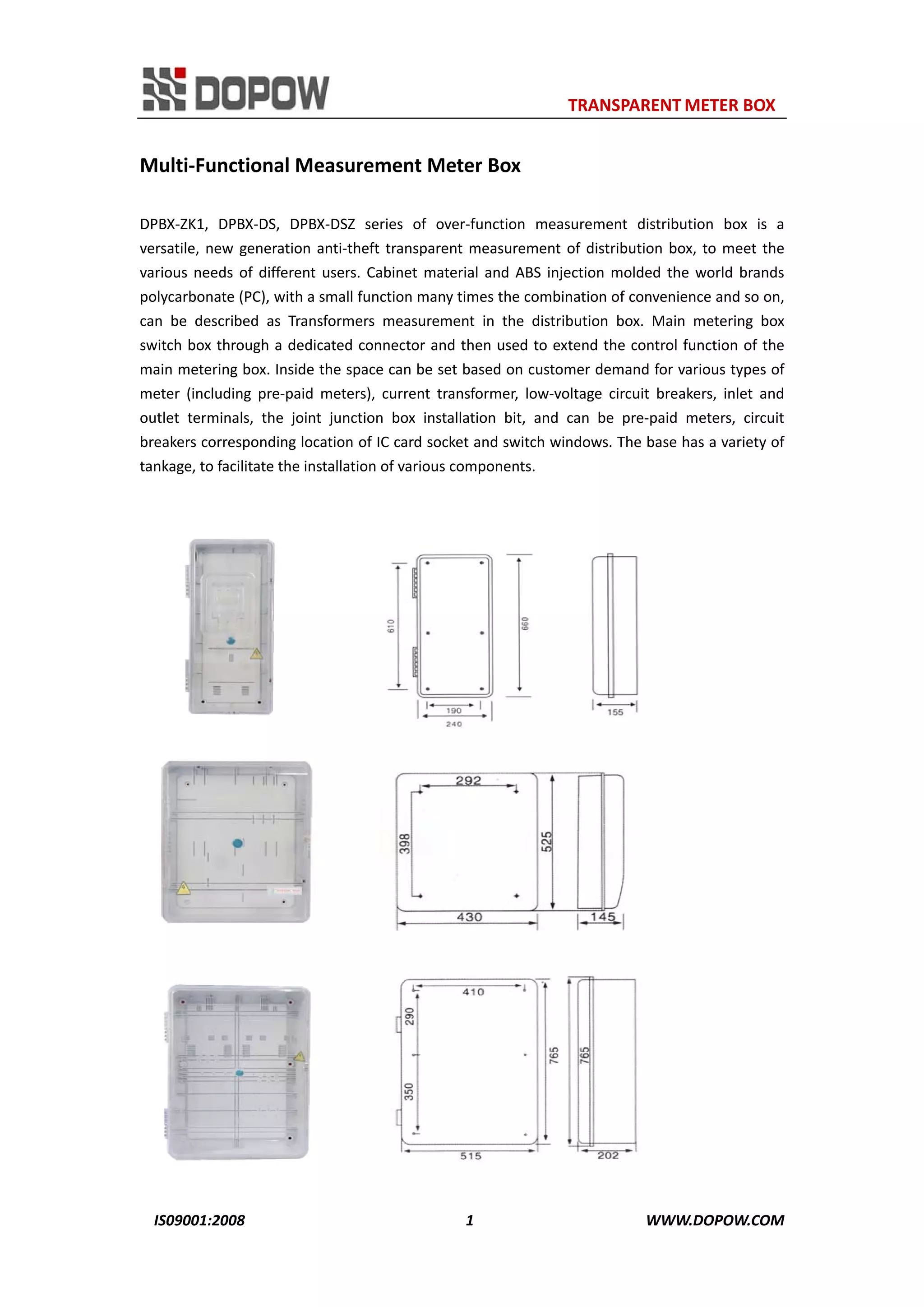

Multi‐Functional Measurement Meter Box
DPBX‐ZK1, DPBX‐DS, DPBX‐DSZ series of over‐function measurement distribution box is a
versatile, new generation anti‐theft transparent measurement of distribution box, to meet the
various needs of different users. Cabinet material and ABS injection molded the world brands
polycarbonate (PC), with a small function many times the combination of convenience and so on,
can be described as Transformers measurement in the distribution box. Main metering box
switch box through a dedicated connector and then used to extend the control function of the
main metering box. Inside the space can be set based on customer demand for various types of
meter (including pre‐paid meters), current transformer, low‐voltage circuit breakers, inlet and
outlet terminals, the joint junction box installation bit, and can be pre‐paid meters, circuit
breakers corresponding location of IC card socket and switch windows. The base has a variety of
tankage, to facilitate the installation of various components.

2. TRANSPARENT METER BOX
IS09001:2008 2 WWW.DOPOW.COM

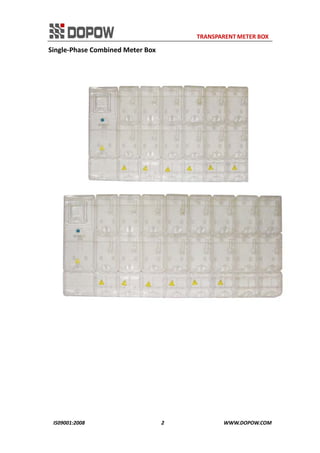

Single‐Phase Combined Meter Box

3. TRANSPARENT METER BOX
IS09001:2008 3 WWW.DOPOW.COM
Single‐phase Eight Household Electric Meter Box (Card Type, Take
Control Box)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐801Z
main in line Circuit breaker NM1‐225S/3300 1
out line Isolating switch NH2‐100/1 8
in line Circuit breaker DZ47‐60/2 8
DPBX‐802Z
main in line Circuit breaker NM1‐225S/3300 1
out line terminals 3 in 9 out 1 in 8 out 1
in line Circuit breaker DZ47‐60/2 8
DPBX‐803Z
main in line Circuit breaker NM1‐225S/3300 1
out line terminals 3 in 9 out 1 in 8 out 1
in line terminals 16 in 16 out 1
Note: Main switch cables BV16mm2 BV25mm2 watt‐hour meter cable BV6mm2 or BV10mm2

4. TRANSPARENT METER BOX
IS09001:2008 4 WWW.DOPOW.COM

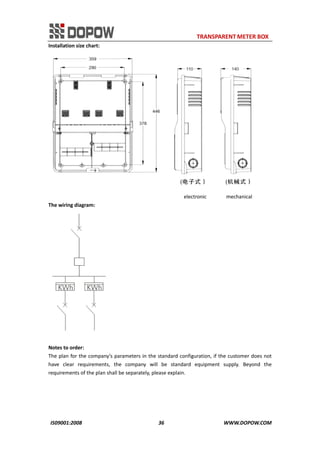

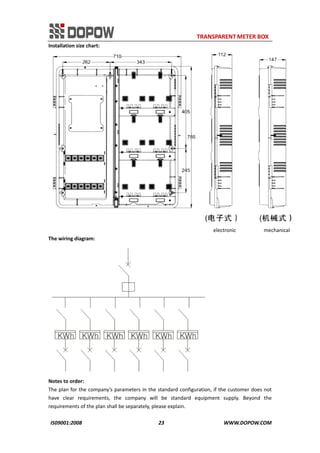

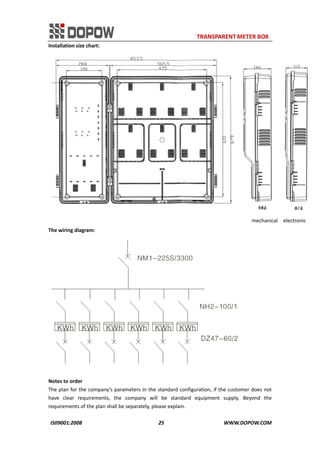

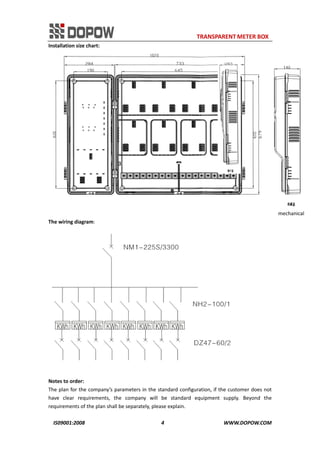

Installation size chart:
mechanical
The wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

5. TRANSPARENT METER BOX
IS09001:2008 5 WWW.DOPOW.COM
Single‐phase Eight Meter Box (Card Type, Up and Down Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐801
Bus configuration terminals Three‐phase four‐wire nine households 1
Table former configuration terminals 8 in 8 out 1
Table configuration Circuit breaker DZ47‐60/1P 8
DPBX‐802
main switch configuration terminals 2 in 16 out 1
Table configuration Circuit breaker DZ47‐60/2P 8
DPBX‐803
main switch configuration Circuit breaker DZ158‐125/2P 1
Table former configuration terminals 1 in 8 out 2
Table configuration terminals 16 in 16 out 1
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

6. TRANSPARENT METER BOX
IS09001:2008 6 WWW.DOPOW.COM

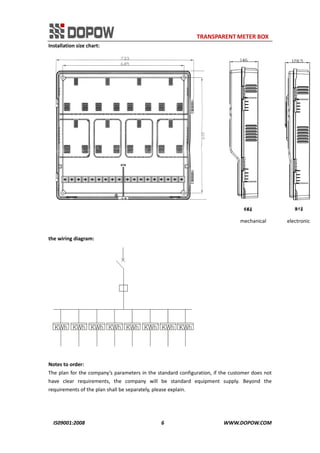

Installation size chart:
mechanical electronic
the wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

7. TRANSPARENT METER BOX
IS09001:2008 7 WWW.DOPOW.COM
Single Phase Four Households Meter Box (Card Type, Take Control Box)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐401Z
Total into line Circuit breaker NM1‐100H/3300 1
out line Isolating switch NH2‐100/1 4
into line Circuit breaker DZ47‐60/2 4
DPBX‐402Z
Circuit breaker into line Circuit breaker NM1‐100H/3300 1
out line terminals 2 in 8 out 1
into line Circuit breaker DZ47‐60/2 4
DPBX‐403Z
total into line Circuit breaker NM1‐100H/3300 1
out line terminals 2 in 8 out 1
into line terminals 8 in 8 out 1
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

8. TRANSPARENT METER BOX
IS09001:2008 8 WWW.DOPOW.COM

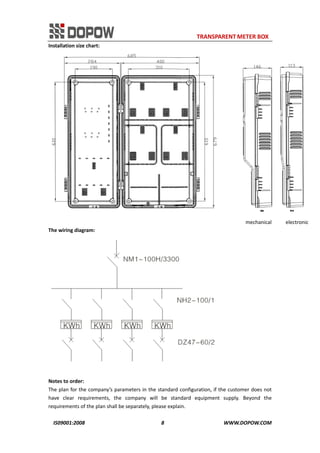

Installation size chart:
mechanical electronic
The wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

9. TRANSPARENT METER BOX
IS09001:2008 9 WWW.DOPOW.COM
Single Phase Four Meter Box (Card Type, Structure Around)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐401L
main switch configuration Circuit breaker DZ158‐125/2P 2
Table former configuration Isolating switch NH2‐100/2P 4
Table configuration Circuit breaker DZ47‐60/2P 4
DPBX‐402L
main switch configuration Circuit breaker DZ158‐125/2P 1
Table former configuration Isolating switch NH2‐100/1P 4
Table configuration Circuit breaker DZ267LE 4
DPBX‐403L
main switch configuration Circuit breaker DZ158‐125/2P 1
Table former configuration Circuit breaker DZ47‐60/2P 4
Table configuration Circuit breaker DZ47‐60/2P 4
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

10. TRANSPARENT METER BOX
IS09001:2008 10 WWW.DOPOW.COM

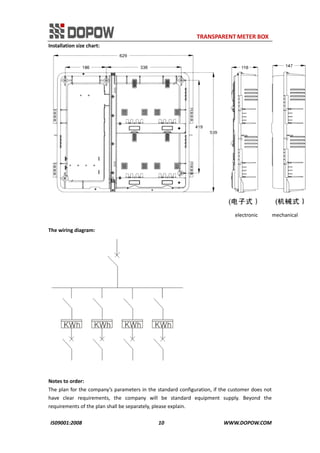

Installation size chart:
electronic mechanical
The wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

11. TRANSPARENT METER BOX
IS09001:2008 11 WWW.DOPOW.COM

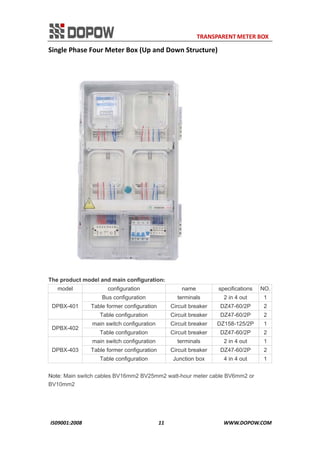

Single Phase Four Meter Box (Up and Down Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX-401
Bus configuration terminals 2 in 4 out 1
Table former configuration Circuit breaker DZ47-60/2P 2
Table configuration Circuit breaker DZ47-60/2P 2
DPBX-402
main switch configuration Circuit breaker DZ158-125/2P 1
Table configuration Circuit breaker DZ47-60/2P 2
DPBX-403
main switch configuration terminals 2 in 4 out 1
Table former configuration Circuit breaker DZ47-60/2P 2
Table configuration Junction box 4 in 4 out 1
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

12. TRANSPARENT METER BOX
IS09001:2008 12 WWW.DOPOW.COM

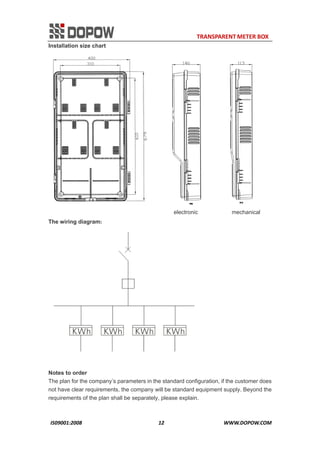

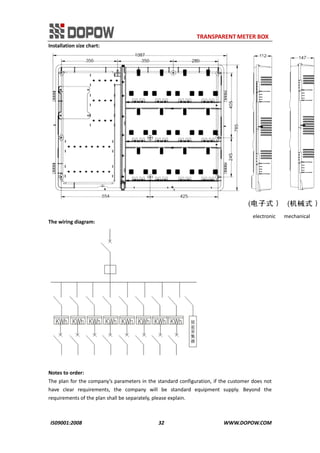

Installation size chart
electronic mechanical
The wiring diagram:
Notes to order
The plan for the company’s parameters in the standard configuration, if the customer does
not have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

13. TRANSPARENT METER BOX
IS09001:2008 13 WWW.DOPOW.COM
Single Phase Four Tables
This product USES transparent polycarbonate (PC) and ABS project plastic, with preventing
electricity‐stolen, electric safety protection, users control, data acquisition and separate function,
maximize meter box preventing electricity‐stolen reliability, components, level of integration,
security and installation operation electricity convenience, the product has a sound transparency,
electrical insulation, and flame retardancy and the weathering resistance, light weight, small
volume, impact resistance, resistance to ultraviolet rays, anti‐aging.

14. TRANSPARENT METER BOX
IS09001:2008 14 WWW.DOPOW.COM
Single‐phase Nine Meter Box (Card Type, Left Right Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐901L
main switch configuration Circuit breaker NM1‐225S/3300 1
Table former configuration Isolating switch NH2‐100/2P 9
Table configuration Circuit breaker DZ47‐60/2P 9
DPBX‐902L
main switch configuration Circuit breaker NM1‐225S/3300 1
Table former configuration Circuit breaker DZ47‐60/1P 9
Table configuration Circuit breaker DZ47‐60/2P 9
DPBX‐903L
main switch configuration Circuit breaker NM1‐225S/3300 1
Table former configuration terminals 1 in 3 out 9
Table configuration Circuit breaker DZ47‐60/2P 9
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

15. TRANSPARENT METER BOX
IS09001:2008 15 WWW.DOPOW.COM

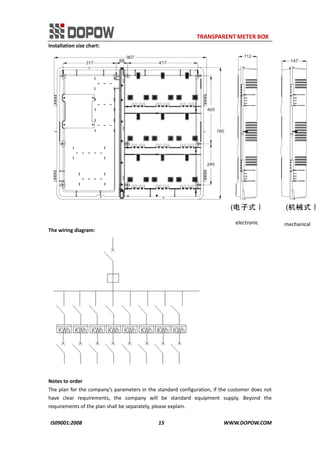

Installation size chart:
electronic
mechanical
The wiring diagram:
Notes to order
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

16. TRANSPARENT METER BOX
IS09001:2008 16 WWW.DOPOW.COM
Single‐phase One Meter Box (Card Type, Up and Down Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐101
Table former configuration Isolating switch NH2‐100/2P 1
Table configuration Circuit breaker DZ47‐60/2P 1
DPBX‐102
Table former configuration Isolating switch NH2‐100/2P 1
Table configuration Junction box Two into Two out 1
DPBX‐103
Table former configuration Circuit breaker DZ47‐60/2P 1
Table configuration Leakage protector DZ47LE‐60/2P 1
Note: the total switch connectionsBV16mm2BV25mm2Watt‐hour meter connectionsBV6mm2
BV10mm2

17. TRANSPARENT METER BOX
IS09001:2008 17 WWW.DOPOW.COM
Installation size chart:
electronic mechanical
The wiring diagram:
Notes to order
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

18. TRANSPARENT METER BOX
IS09001:2008 18 WWW.DOPOW.COM

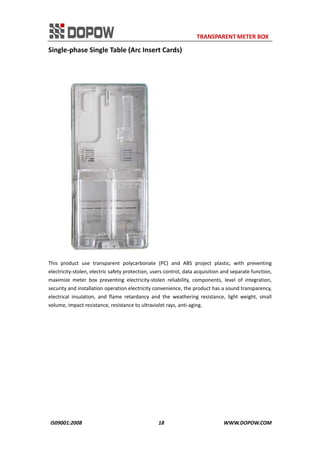

Single‐phase Single Table (Arc Insert Cards)
This product use transparent polycarbonate (PC) and ABS project plastic, with preventing
electricity‐stolen, electric safety protection, users control, data acquisition and separate function,
maximize meter box preventing electricity‐stolen reliability, components, level of integration,
security and installation operation electricity convenience, the product has a sound transparency,
electrical insulation, and flame retardancy and the weathering resistance, light weight, small
volume, impact resistance, resistance to ultraviolet rays, anti‐aging.

19. TRANSPARENT METER BOX
IS09001:2008 19 WWW.DOPOW.COM

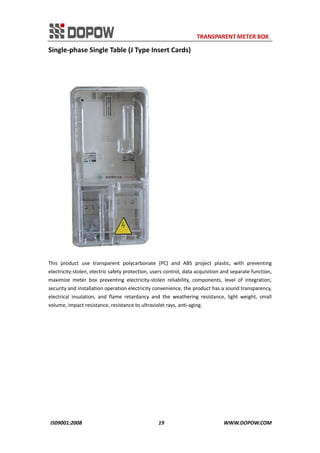

Single‐phase Single Table (J Type Insert Cards)
This product use transparent polycarbonate (PC) and ABS project plastic, with preventing
electricity‐stolen, electric safety protection, users control, data acquisition and separate function,
maximize meter box preventing electricity‐stolen reliability, components, level of integration,
security and installation operation electricity convenience, the product has a sound transparency,
electrical insulation, and flame retardancy and the weathering resistance, light weight, small
volume, impact resistance, resistance to ultraviolet rays, anti‐aging.

20. TRANSPARENT METER BOX
IS09001:2008 20 WWW.DOPOW.COM
Single‐phase Single Table (Mechanical Type)
This product use transparent polycarbonate (PC) and ABS project plastic, with preventing
electricity‐stolen, electric safety protection, users control, data acquisition and separate function,
maximize meter box preventing electricity‐stolen reliability, components, level of integration,
security and installation operation electricity convenience, the product has a sound transparency,
electrical insulation, and flame retardancy and the weathering resistance, light weight, small
volume, impact resistance, resistance to ultraviolet rays, anti‐aging.

21. TRANSPARENT METER BOX
IS09001:2008 21 WWW.DOPOW.COM

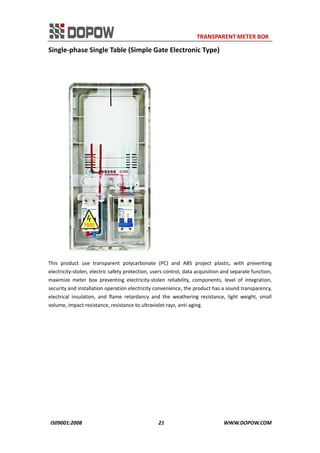

Single‐phase Single Table (Simple Gate Electronic Type)
This product use transparent polycarbonate (PC) and ABS project plastic, with preventing
electricity‐stolen, electric safety protection, users control, data acquisition and separate function,
maximize meter box preventing electricity‐stolen reliability, components, level of integration,
security and installation operation electricity convenience, the product has a sound transparency,
electrical insulation, and flame retardancy and the weathering resistance, light weight, small
volume, impact resistance, resistance to ultraviolet rays, anti‐aging.

22. TRANSPARENT METER BOX
IS09001:2008 22 WWW.DOPOW.COM

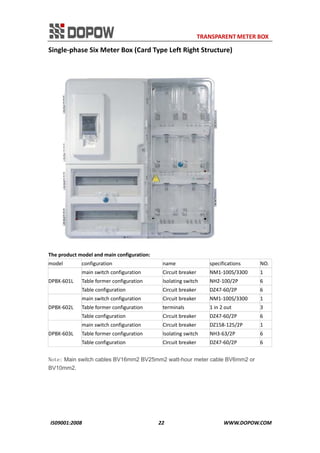

Single‐phase Six Meter Box (Card Type Left Right Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐601L
main switch configuration Circuit breaker NM1‐100S/3300 1
Table former configuration Isolating switch NH2‐100/2P 6
Table configuration Circuit breaker DZ47‐60/2P 6
DPBX‐602L
main switch configuration Circuit breaker NM1‐100S/3300 1
Table former configuration terminals 1 in 2 out 3
Table configuration Circuit breaker DZ47‐60/2P 6
DPBX‐603L
main switch configuration Circuit breaker DZ158‐125/2P 1
Table former configuration Isolating switch NH3‐63/2P 6
Table configuration Circuit breaker DZ47‐60/2P 6
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2.

23. TRANSPARENT METER BOX
IS09001:2008 23 WWW.DOPOW.COM
Installation size chart:
electronic mechanical
The wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

24. TRANSPARENT METER BOX
IS09001:2008 24 WWW.DOPOW.COM
Single Phase Six Meter Box (Card type, Take Control Box)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐601Z
main in line Circuit breaker NM1‐225S/3300 1
out line Isolating switch NH2‐100/1 6
in line Circuit breaker DZ47‐60/2 6
DPBX‐602Z
main in line Circuit breaker NM1‐225S/3300 1
out line terminals 3 in 6 out 1 in 6 out 1
in line Circuit breaker DZ47‐60/2 6
DPBX‐603Z
main in line Circuit breaker NM1‐225S/3300 1
out line terminals 3 in 6 out 1 in 6 out 1
in line terminals 12 in 12 out 1
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

25. TRANSPARENT METER BOX
IS09001:2008 25 WWW.DOPOW.COM
Installation size chart:
mechanical electronic
The wiring diagram:
Notes to order
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

26. TRANSPARENT METER BOX
IS09001:2008 26 WWW.DOPOW.COM

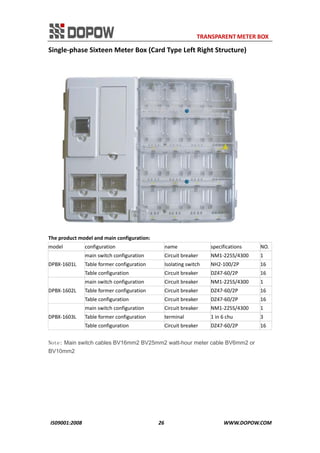

Single‐phase Sixteen Meter Box (Card Type Left Right Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐1601L
main switch configuration Circuit breaker NM1‐225S/4300 1
Table former configuration Isolating switch NH2‐100/2P 16
Table configuration Circuit breaker DZ47‐60/2P 16
DPBX‐1602L
main switch configuration Circuit breaker NM1‐225S/4300 1
Table former configuration Circuit breaker DZ47‐60/2P 16
Table configuration Circuit breaker DZ47‐60/2P 16
DPBX‐1603L
main switch configuration Circuit breaker NM1‐225S/4300 1
Table former configuration terminal 1 in 6 chu 3
Table configuration Circuit breaker DZ47‐60/2P 16
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

27. TRANSPARENT METER BOX
IS09001:2008 27 WWW.DOPOW.COM
Installation size chart:
electronic mechanical
The wiring diagram:
Notes to order
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

28. TRANSPARENT METER BOX
IS09001:2008 28 WWW.DOPOW.COM
Single Phase Three Table
This product use transparent polycarbonate (PC) and ABS project plastic, with preventing
electricity‐stolen, electric safety protection, users control, data acquisition and separate function,
maximize meter box preventing electricity‐stolen reliability, components, level of integration,
security and installation operation electricity convenience, the product has a sound transparency,
electrical insulation, and flame retardancy and the weathering resistance, light weight, small
volume, impact resistance, resistance to ultraviolet rays, anti‐aging.

29. TRANSPARENT METER BOX
IS09001:2008 29 WWW.DOPOW.COM
Single Phase Six Meter Box (Card Type, Take Control Box)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐601Z
main in line Circuit breaker NM1‐225S/3300 1
out line Isolating switch NH2‐100/1 6
in line Circuit breaker DZ47‐60/2 6
DPBX‐602Z
main in line Circuit breaker NM1‐225S/3300 1
out line terminals 3 in 6 out 1 in 6 out 1
in line Circuit breaker DZ47‐60/2 6
DPBX‐603Z
main in line Circuit breaker NM1‐225S/3300 1
out line terminals 3 in 6 out 1 in 6 out 1
in line terminals 12 in 12 out 1
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

30. TRANSPARENT METER BOX
IS09001:2008 30 WWW.DOPOW.COM
Installation size chart:
mechanical electronic
The wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

31. TRANSPARENT METER BOX
IS09001:2008 31 WWW.DOPOW.COM

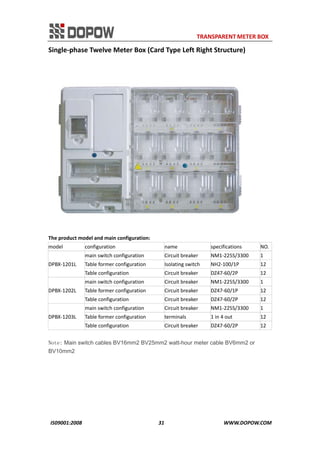

Single‐phase Twelve Meter Box (Card Type Left Right Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐1201L
main switch configuration Circuit breaker NM1‐225S/3300 1
Table former configuration Isolating switch NH2‐100/1P 12
Table configuration Circuit breaker DZ47‐60/2P 12
DPBX‐1202L
main switch configuration Circuit breaker NM1‐225S/3300 1
Table former configuration Circuit breaker DZ47‐60/1P 12
Table configuration Circuit breaker DZ47‐60/2P 12
DPBX‐1203L
main switch configuration Circuit breaker NM1‐225S/3300 1
Table former configuration terminals 1 in 4 out 12
Table configuration Circuit breaker DZ47‐60/2P 12
Note: Main switch cables BV16mm2 BV25mm2 watt-hour meter cable BV6mm2 or
BV10mm2

32. TRANSPARENT METER BOX
IS09001:2008 32 WWW.DOPOW.COM
Installation size chart:
electronic mechanical
The wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

33. TRANSPARENT METER BOX
IS09001:2008 33 WWW.DOPOW.COM

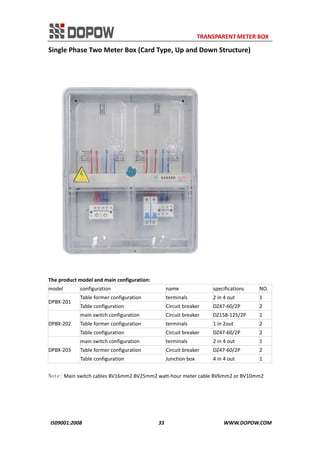

Single Phase Two Meter Box (Card Type, Up and Down Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐201
Table former configuration terminals 2 in 4 out 1
Table configuration Circuit breaker DZ47‐60/2P 2
DPBX‐202
main switch configuration Circuit breaker DZ158‐125/2P 1
Table former configuration terminals 1 in 2out 2
Table configuration Circuit breaker DZ47‐60/2P 2
DPBX‐203
main switch configuration terminals 2 in 4 out 1
Table former configuration Circuit breaker DZ47‐60/2P 2
Table configuration Junction box 4 in 4 out 1
Note: Main switch cables BV16mm2 BV25mm2 watt‐hour meter cable BV6mm2 or BV10mm2

34. TRANSPARENT METER BOX
IS09001:2008 34 WWW.DOPOW.COM
Installation size chart:
electronic mechanical
The wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

35. TRANSPARENT METER BOX
IS09001:2008 35 WWW.DOPOW.COM

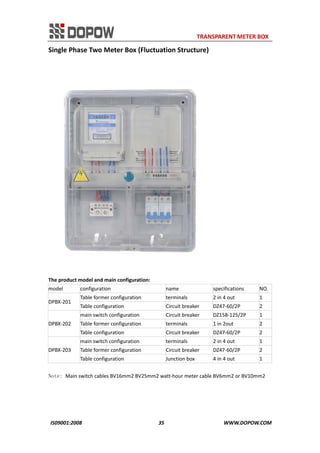

Single Phase Two Meter Box (Fluctuation Structure)
The product model and main configuration:
model configuration name specifications NO.
DPBX‐201
Table former configuration terminals 2 in 4 out 1
Table configuration Circuit breaker DZ47‐60/2P 2
DPBX‐202
main switch configuration Circuit breaker DZ158‐125/2P 1
Table former configuration terminals 1 in 2out 2
Table configuration Circuit breaker DZ47‐60/2P 2
DPBX‐203
main switch configuration terminals 2 in 4 out 1
Table former configuration Circuit breaker DZ47‐60/2P 2
Table configuration Junction box 4 in 4 out 1
Note: Main switch cables BV16mm2 BV25mm2 watt‐hour meter cable BV6mm2 or BV10mm2

36. TRANSPARENT METER BOX
IS09001:2008 36 WWW.DOPOW.COM
Installation size chart:
electronic mechanical
The wiring diagram:
Notes to order:
The plan for the company’s parameters in the standard configuration, if the customer does not
have clear requirements, the company will be standard equipment supply. Beyond the
requirements of the plan shall be separately, please explain.

37. TRANSPARENT METER BOX
IS09001:2008 37 WWW.DOPOW.COM
Single‐phase Two Tables (Electronic)
This product use transparent polycarbonate (PC) and ABS project plastic, with preventing
electricity‐stolen, electric safety protection, users control, data acquisition and separate function,
maximize meter box preventing electricity‐stolen reliability, components, level of integration,
security and installation operation electricity convenience, the product has a sound transparency,
electrical insulation, and flame retardancy and the weathering resistance, light weight, small
volume, impact resistance, resistance to ultraviolet rays, anti‐aging.

38. TRANSPARENT METER BOX
IS09001:2008 38 WWW.DOPOW.COM

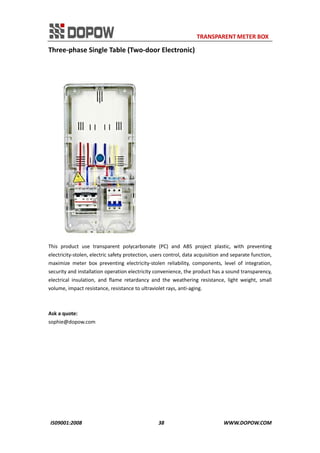

Three‐phase Single Table (Two‐door Electronic)
This product use transparent polycarbonate (PC) and ABS project plastic, with preventing
electricity‐stolen, electric safety protection, users control, data acquisition and separate function,
maximize meter box preventing electricity‐stolen reliability, components, level of integration,
security and installation operation electricity convenience, the product has a sound transparency,
electrical insulation, and flame retardancy and the weathering resistance, light weight, small
volume, impact resistance, resistance to ultraviolet rays, anti‐aging.
Ask a quote:
sophie@dopow.com
