This document discusses using domain modeling with types in Python using the static type checker Mypy. It motivates the use of types for domain-driven design and functional programming concepts. It then provides examples of building blocks for Mypy's type system algebra, including simple values with new types, combinations of values, modeling choices with unions, type functions, classes, generics, and putting the concepts together in a workflow. It also discusses limitations of Mypy and resources for further learning. The overall goal is to leave the reader inspired to learn more about applying type systems to domain modeling.

1. Domain modelling with
types using mypy
Jean Carlo Machado

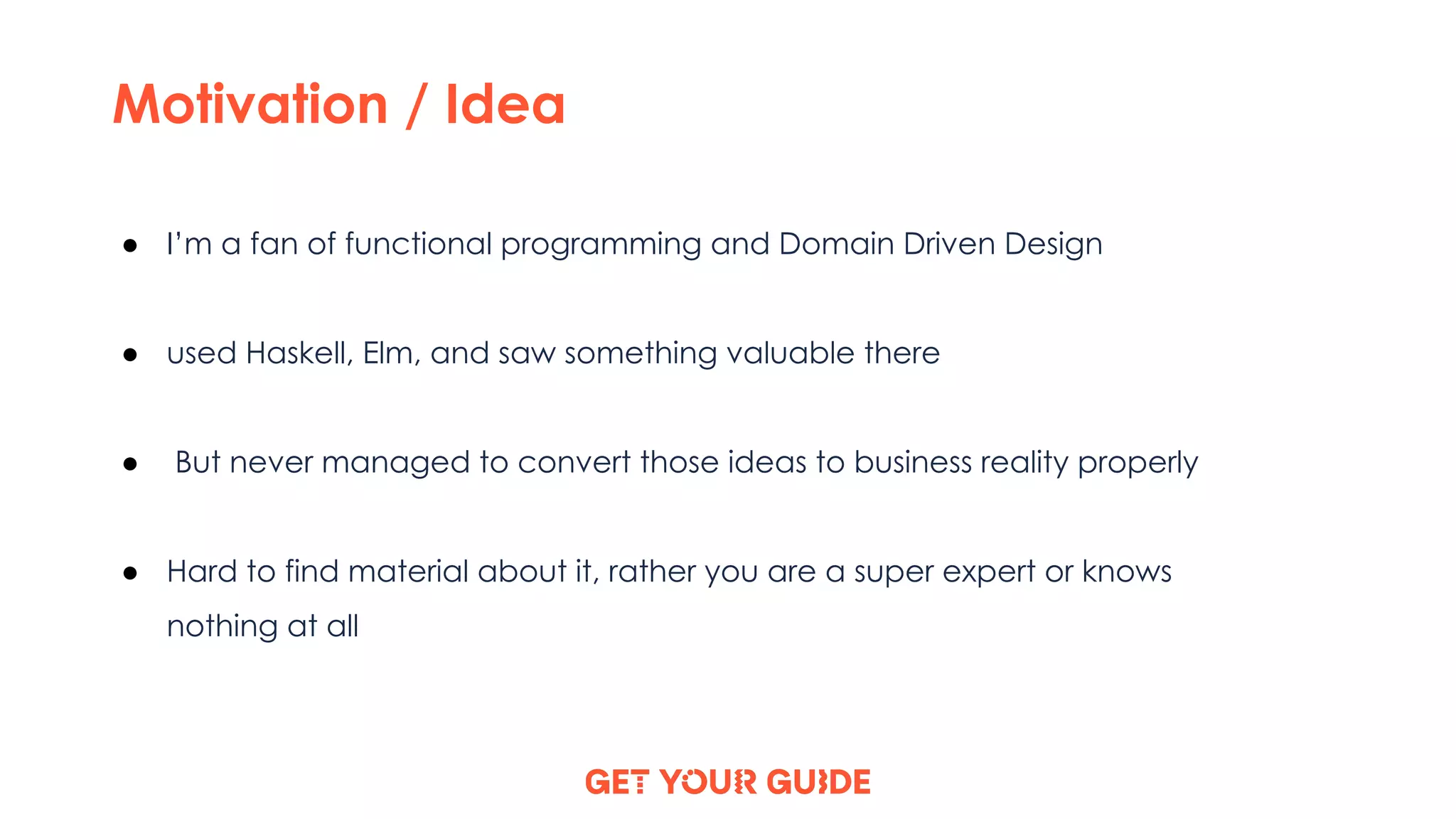

2. Motivation / Idea
● I’m a fan of functional programming and Domain Driven Design
● used Haskell, Elm, and saw something valuable there
● But never managed to convert those ideas to business reality properly
● Hard to find material about it, rather you are a super expert or knows
nothing at all

3. Motivation / Idea
Until...

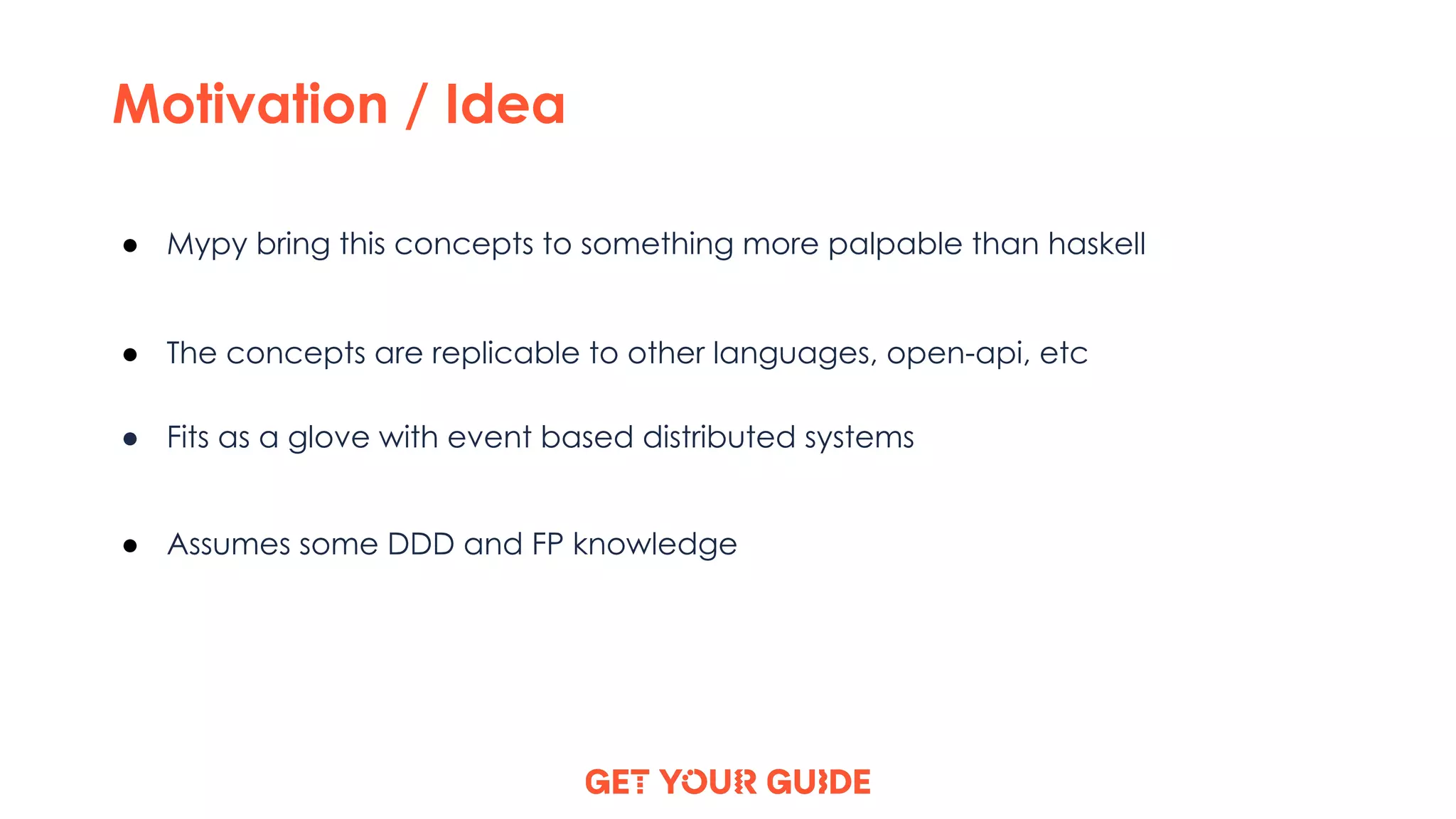

4. Motivation / Idea
● Mypy bring this concepts to something more palpable than haskell
● The concepts are replicable to other languages, open-api, etc
● Fits as a glove with event based distributed systems
● Assumes some DDD and FP knowledge

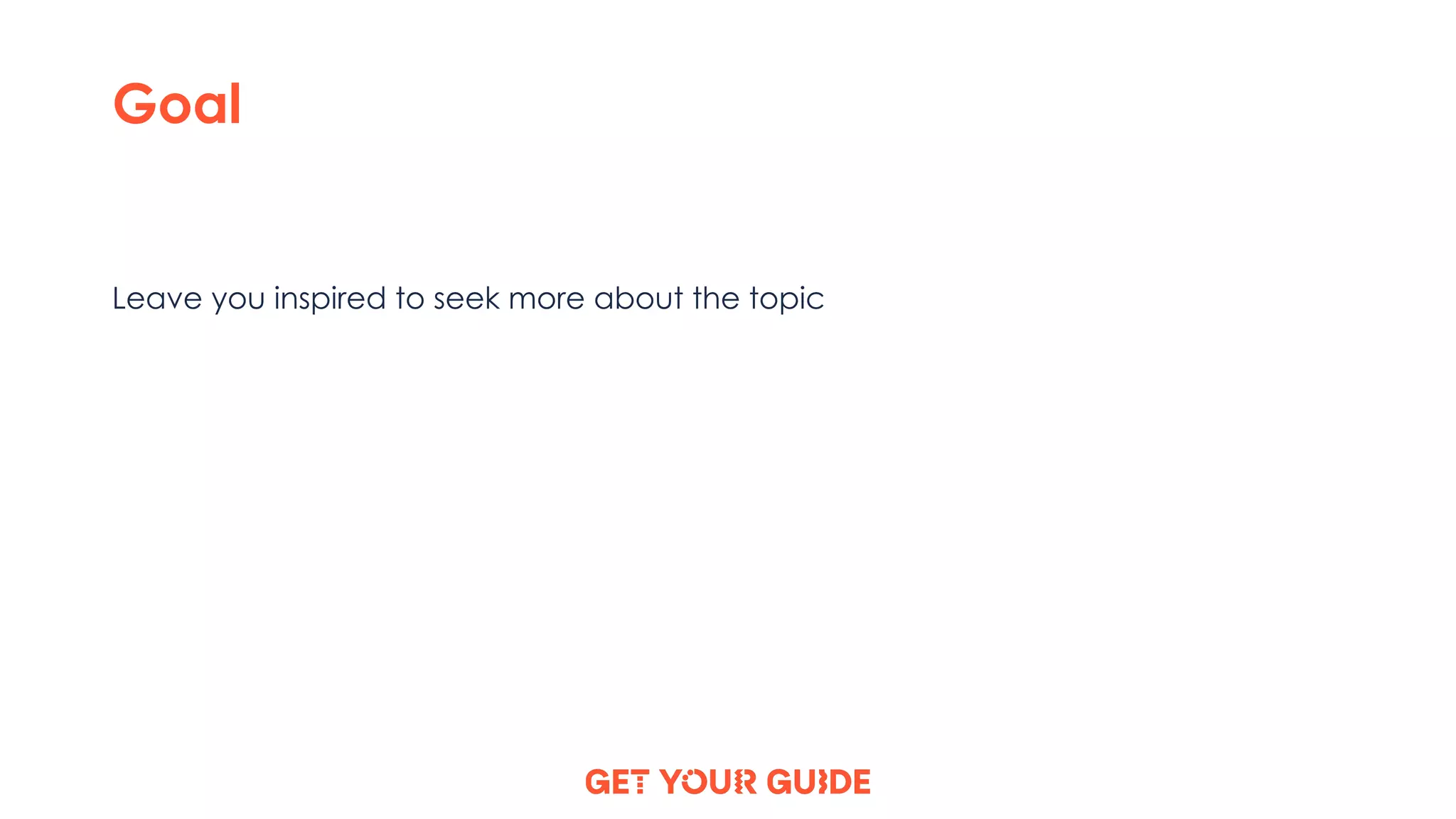

5. Goal
Leave you inspired to seek more about the topic

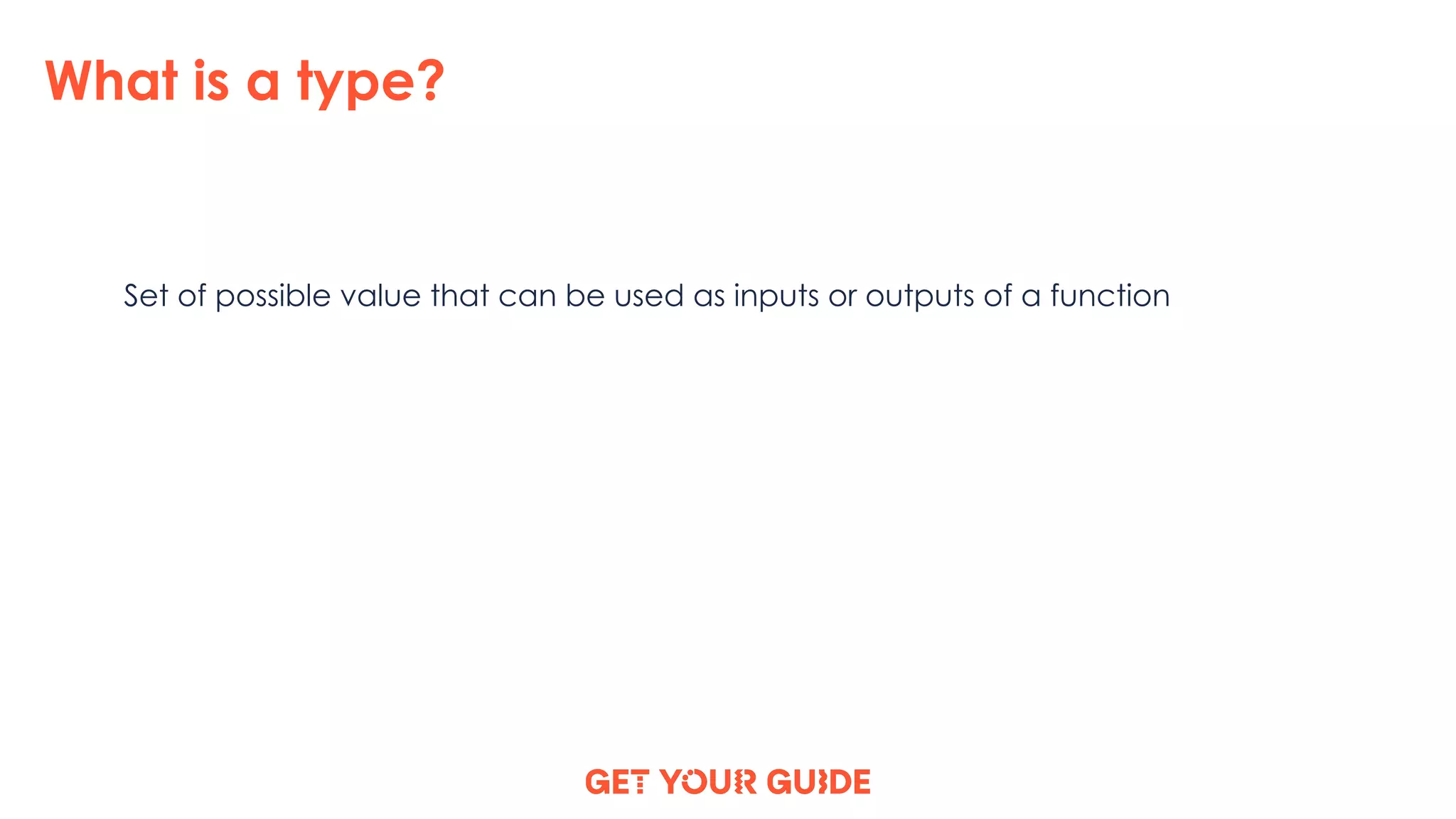

6. What is a type?
Set of possible value that can be used as inputs or outputs of a function

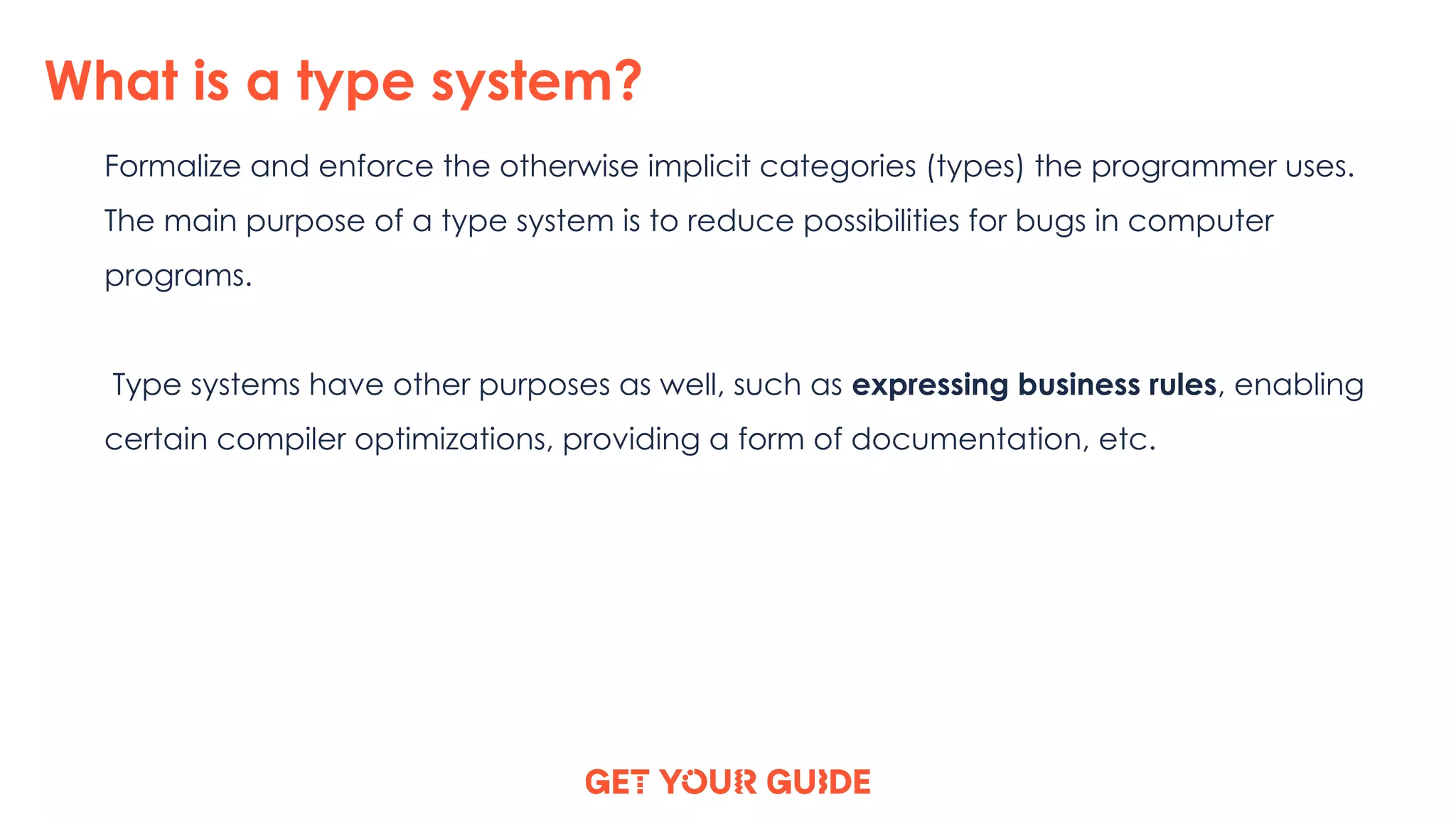

7. What is a type system?
Formalize and enforce the otherwise implicit categories (types) the programmer uses.
The main purpose of a type system is to reduce possibilities for bugs in computer
programs.
Type systems have other purposes as well, such as expressing business rules, enabling
certain compiler optimizations, providing a form of documentation, etc.

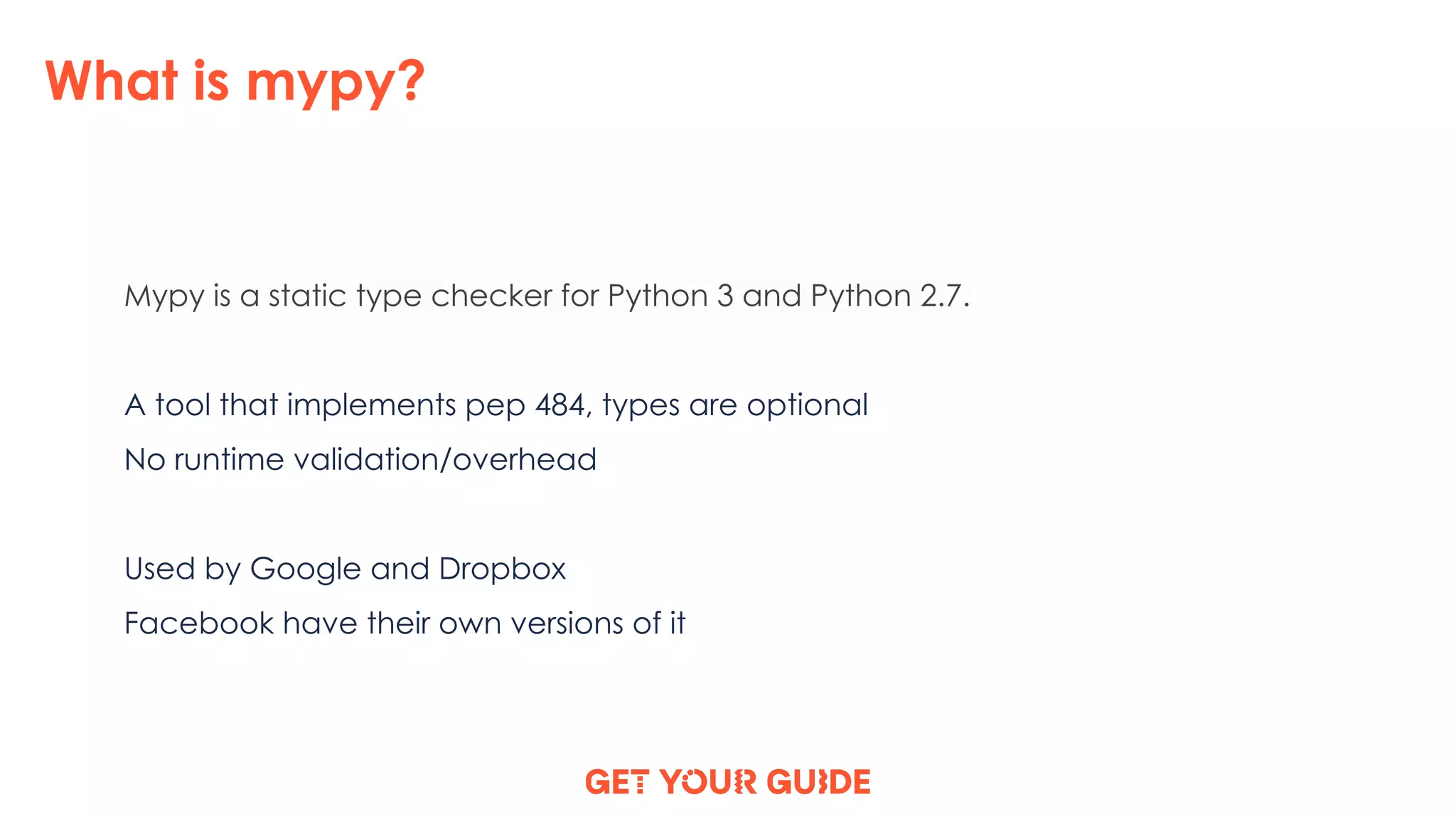

8. What is mypy?
Mypy is a static type checker for Python 3 and Python 2.7.
A tool that implements pep 484, types are optional
No runtime validation/overhead
Used by Google and Dropbox
Facebook have their own versions of it

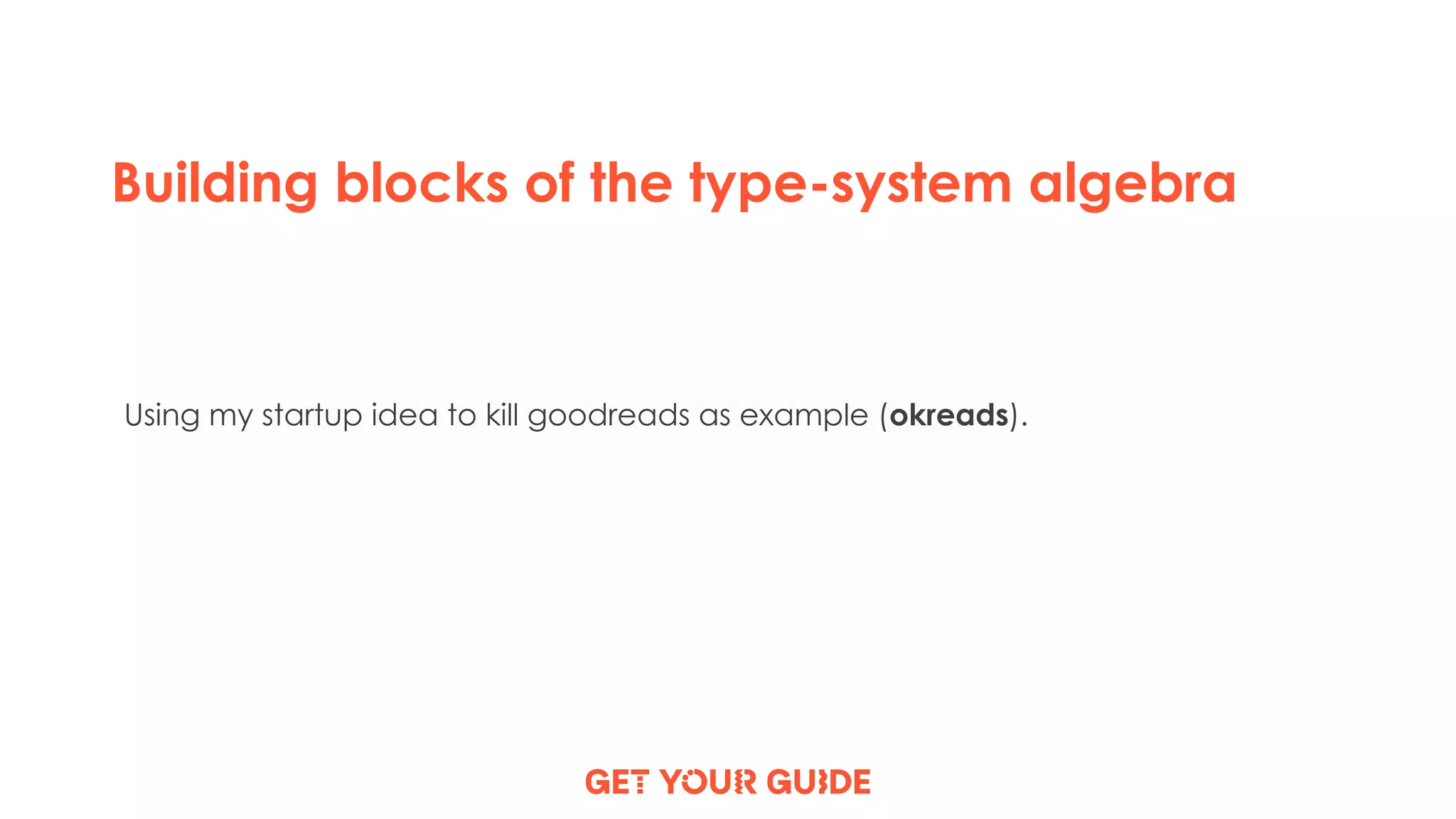

9. Building blocks of the type-system algebra
Using my startup idea to kill goodreads as example (okreads).

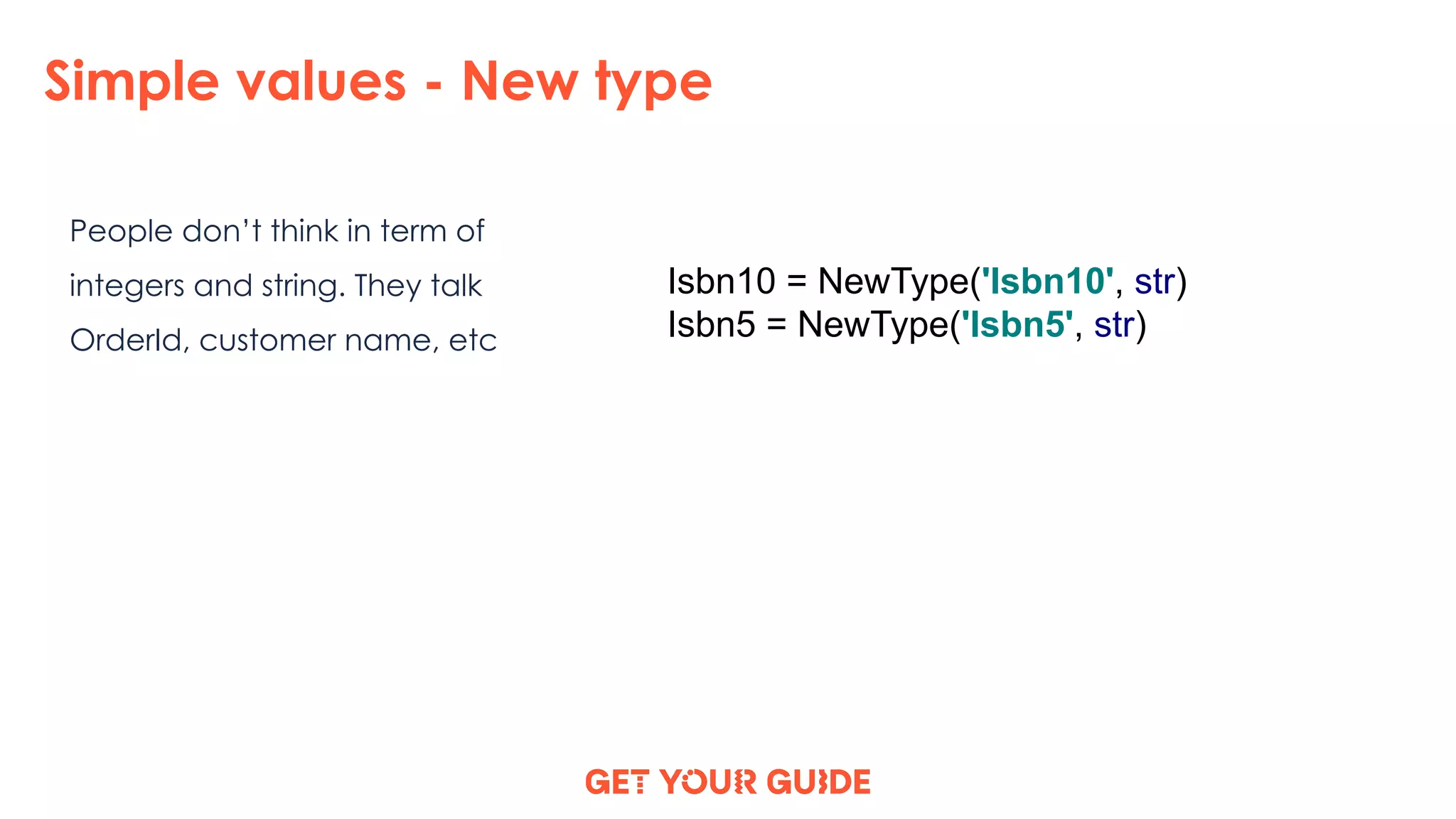

10. Simple values - New type
People don’t think in term of
integers and string. They talk
OrderId, customer name, etc
Isbn10 = NewType('Isbn10', str)
Isbn5 = NewType('Isbn5', str)

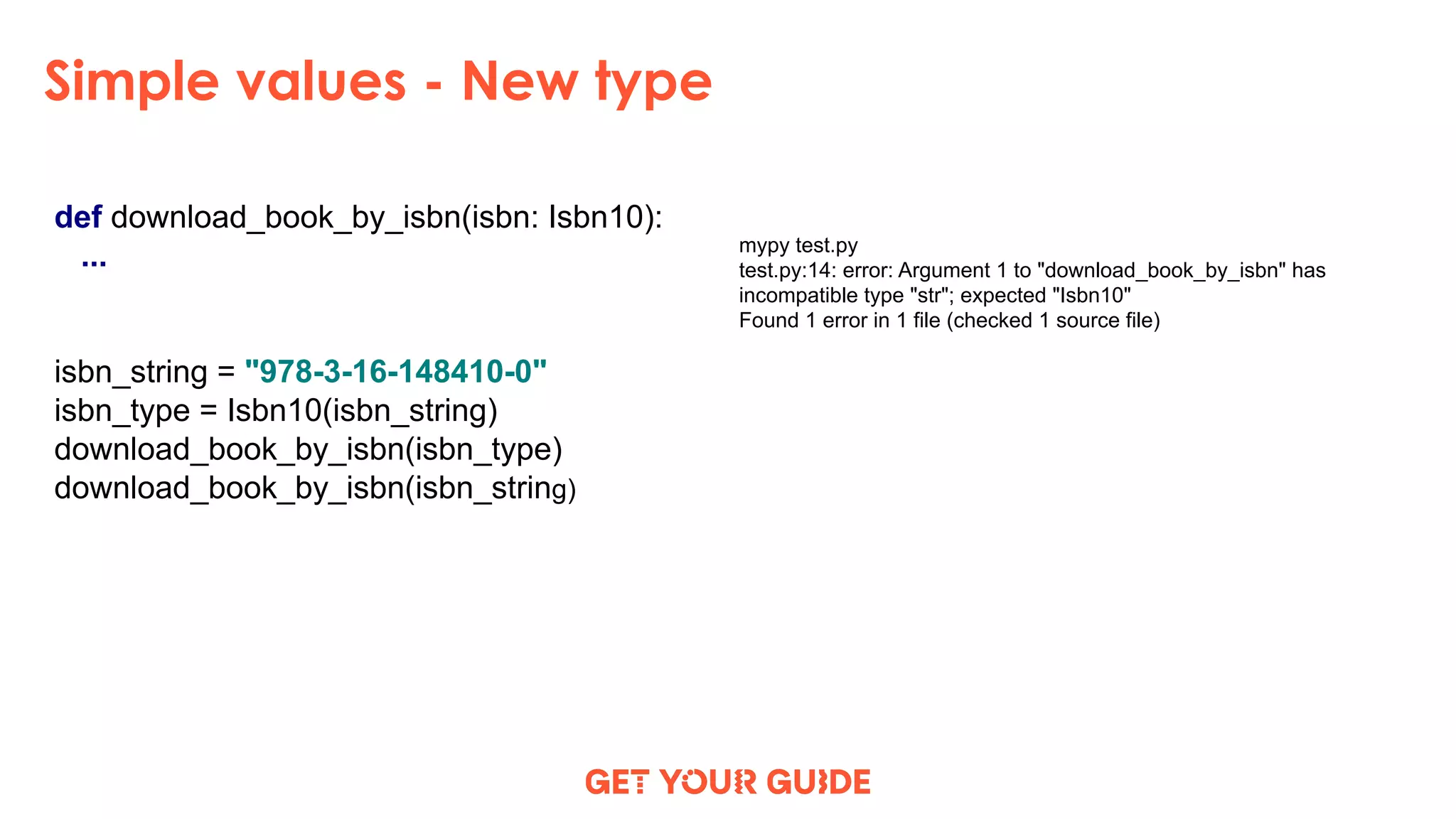

11. Simple values - New type
def download_book_by_isbn(isbn: Isbn10):
...
isbn_string = "978-3-16-148410-0"
isbn_type = Isbn10(isbn_string)
download_book_by_isbn(isbn_type)
download_book_by_isbn(isbn_string)
mypy test.py
test.py:14: error: Argument 1 to "download_book_by_isbn" has
incompatible type "str"; expected "Isbn10"
Found 1 error in 1 file (checked 1 source file)

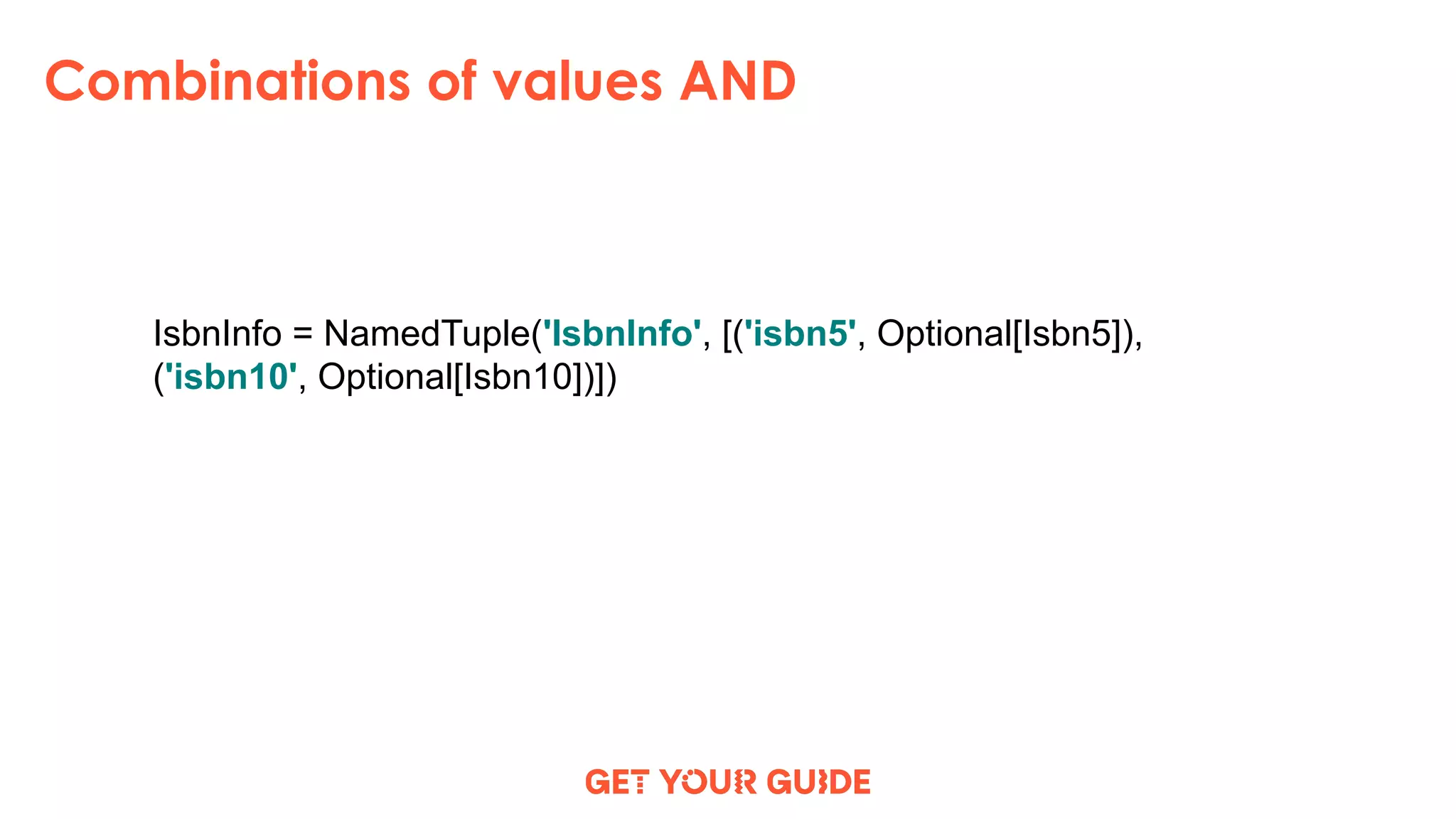

12. Combinations of values AND
IsbnInfo = NamedTuple('IsbnInfo', [('isbn5', Optional[Isbn5]),
('isbn10', Optional[Isbn10])])

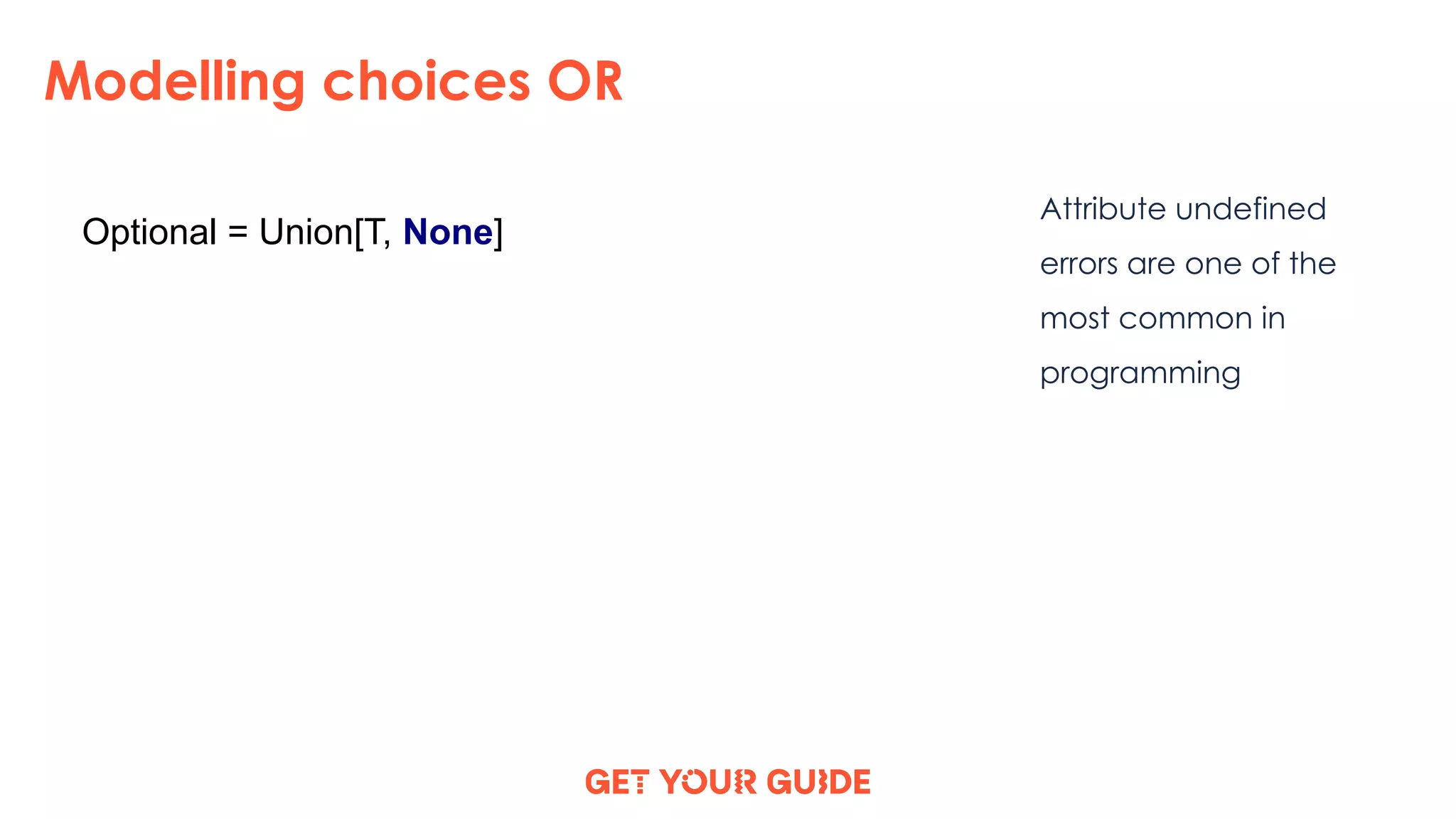

13. Modelling choices OR
Attribute undefined
errors are one of the
most common in
programming
Optional = Union[T, None]

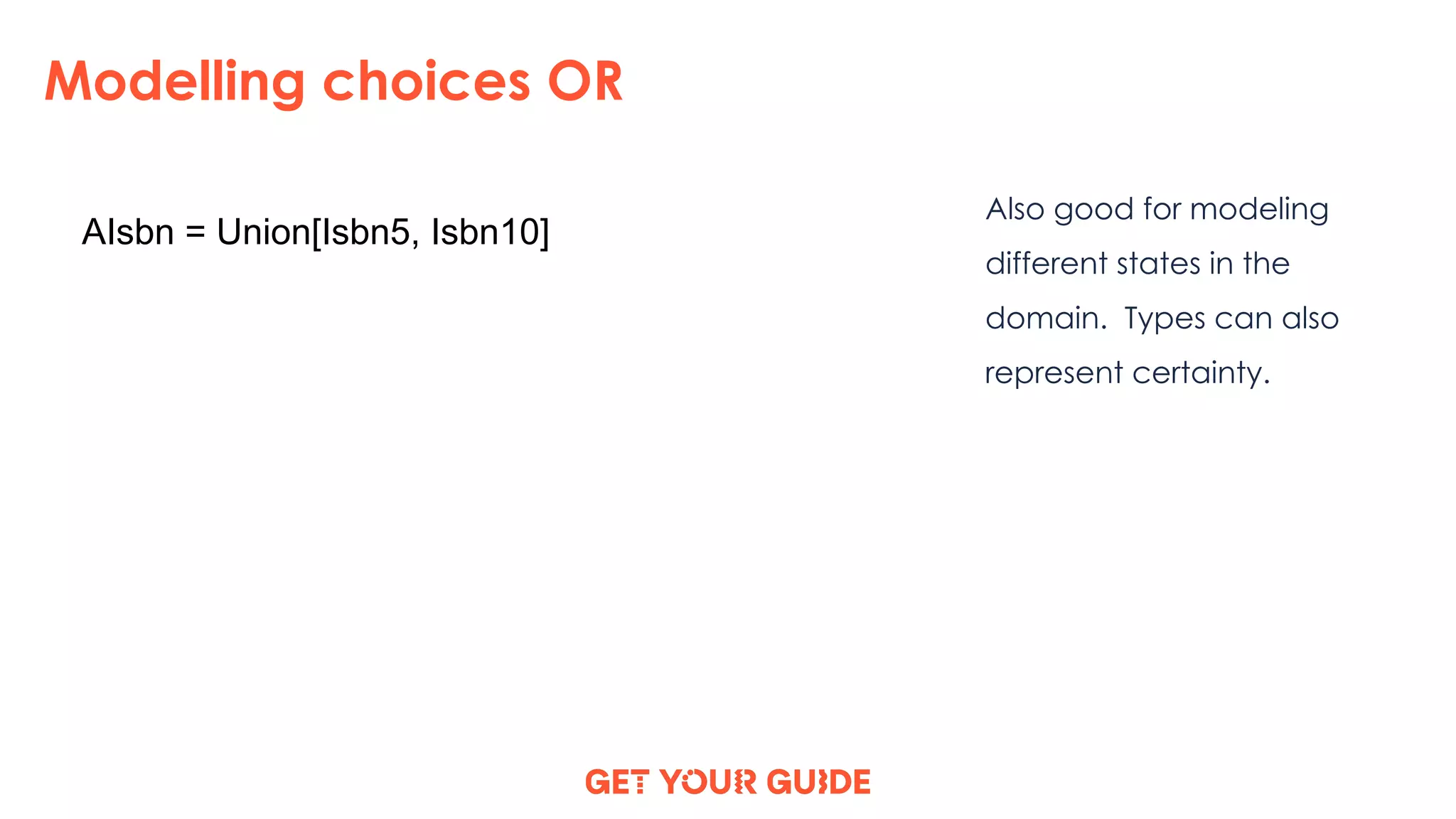

14. Modelling choices OR
Also good for modeling
different states in the
domain. Types can also
represent certainty.
AIsbn = Union[Isbn5, Isbn10]

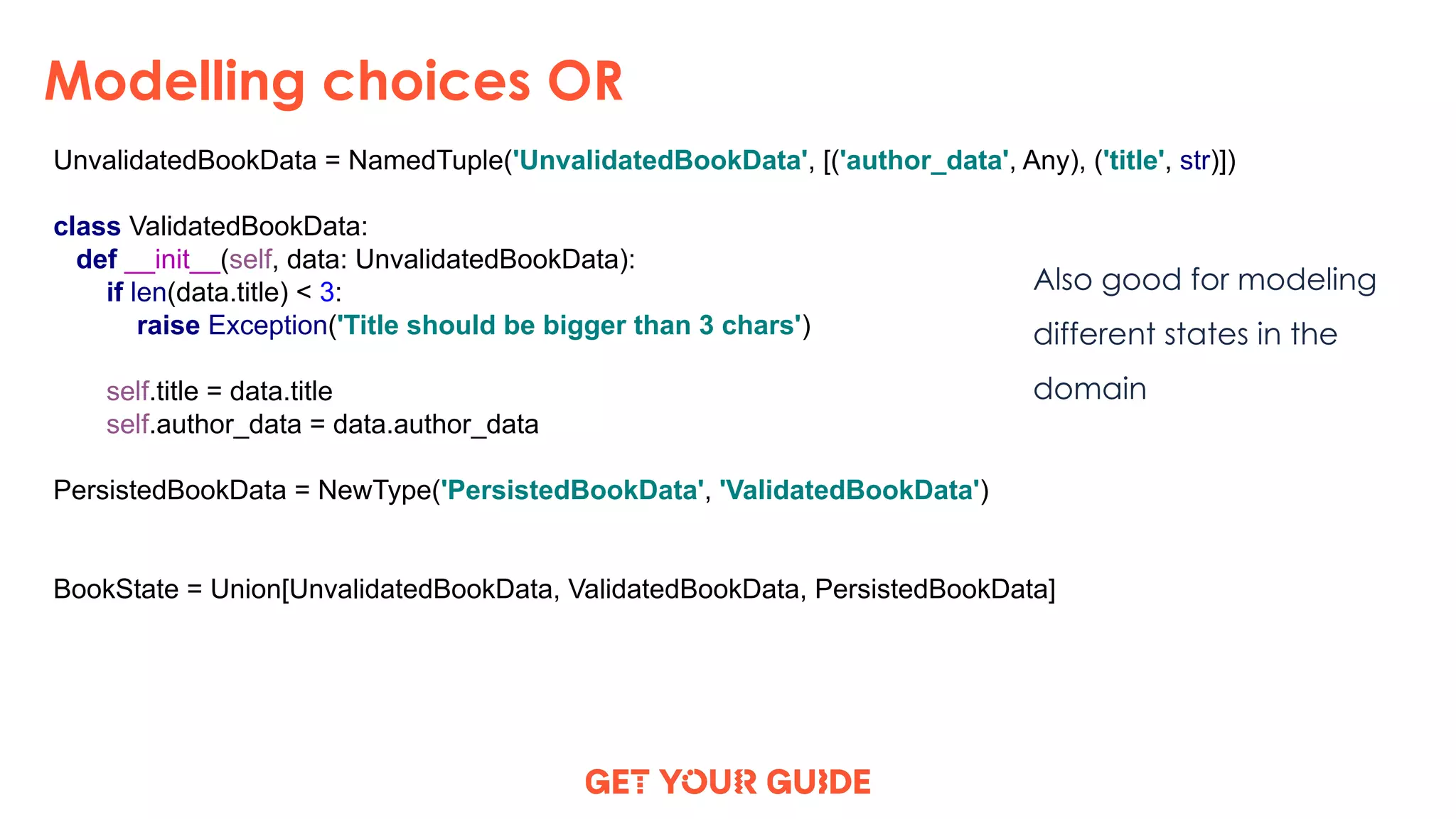

15. Modelling choices OR
Also good for modeling
different states in the
domain
UnvalidatedBookData = NamedTuple('UnvalidatedBookData', [('author_data', Any), ('title', str)])
class ValidatedBookData:
def __init__(self, data: UnvalidatedBookData):
if len(data.title) < 3:
raise Exception('Title should be bigger than 3 chars')
self.title = data.title
self.author_data = data.author_data
PersistedBookData = NewType('PersistedBookData', 'ValidatedBookData')
BookState = Union[UnvalidatedBookData, ValidatedBookData, PersistedBookData]

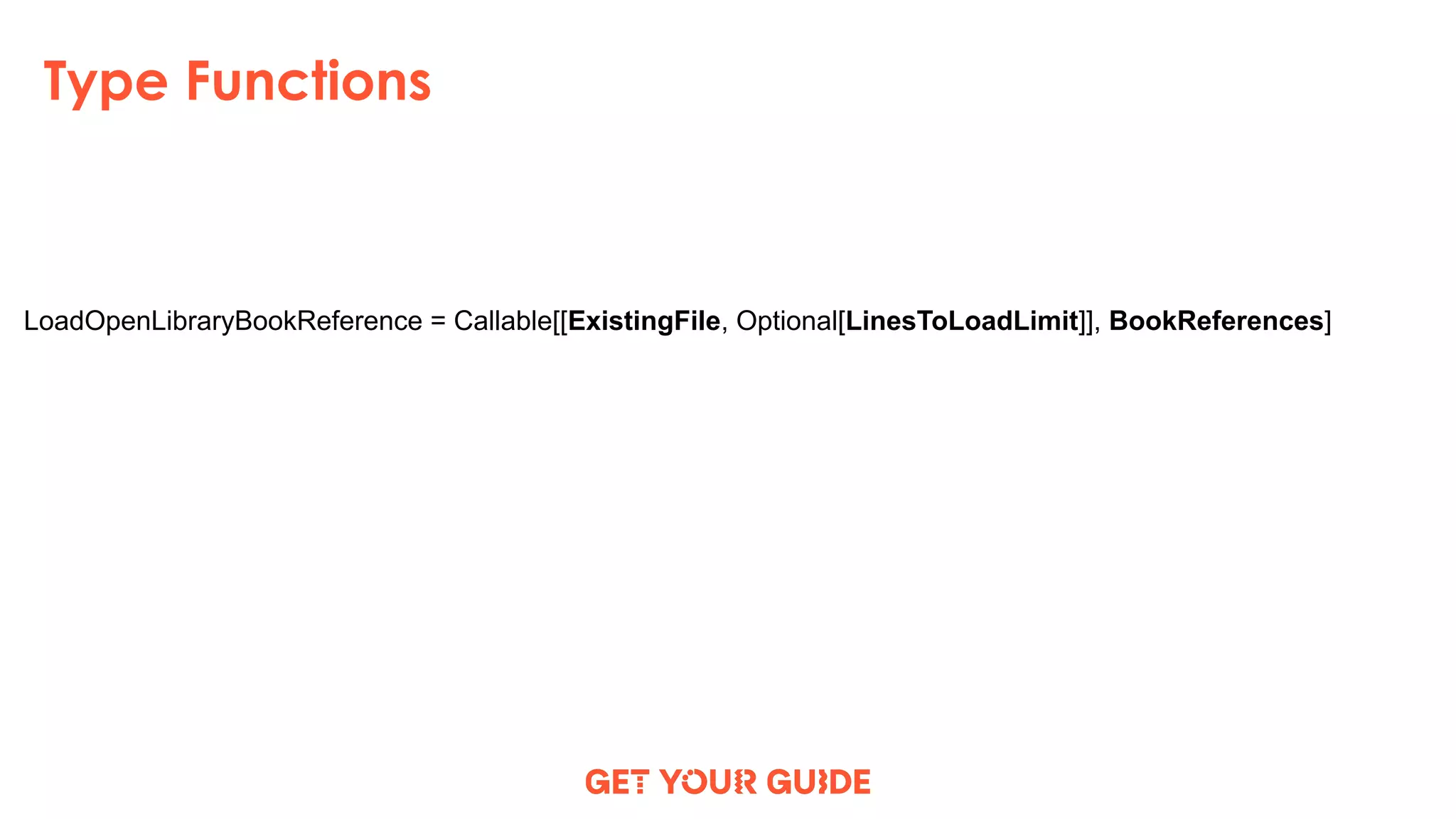

16. Type Functions
LoadOpenLibraryBookReference = Callable[[ExistingFile, Optional[LinesToLoadLimit]], BookReferences]

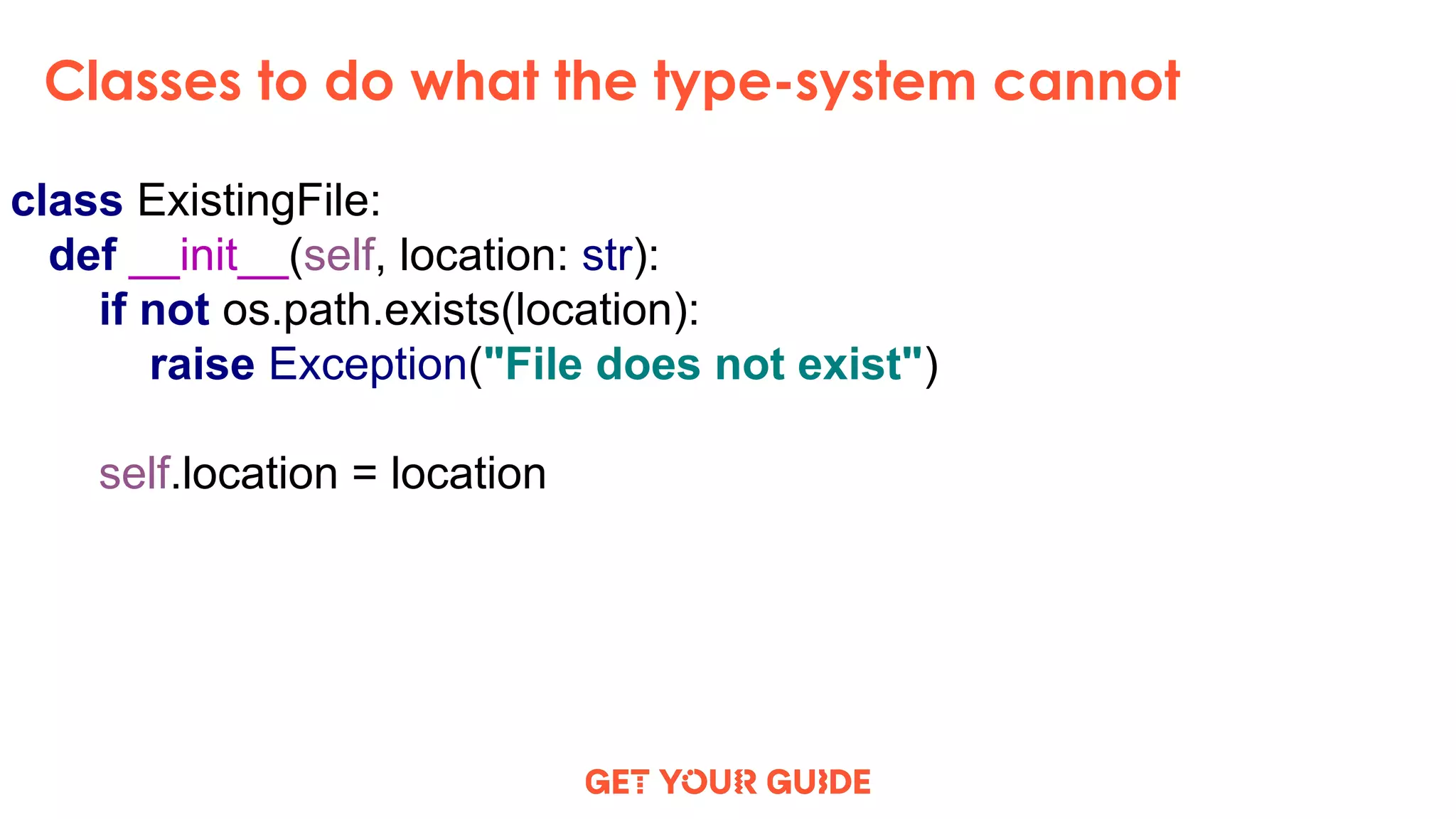

17. Classes to do what the type-system cannot
class ExistingFile:
def __init__(self, location: str):
if not os.path.exists(location):
raise Exception("File does not exist")
self.location = location

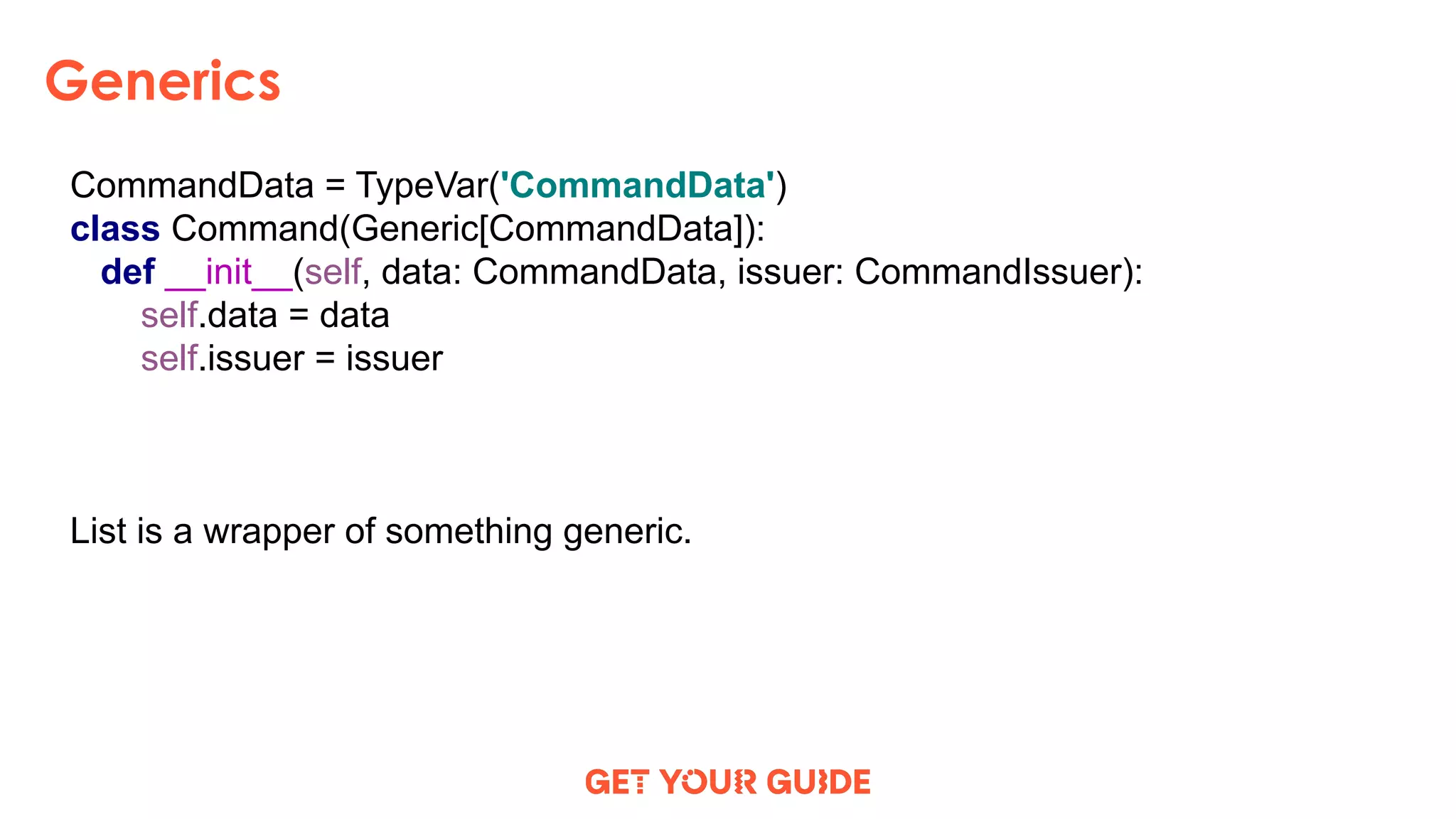

18. Generics
CommandData = TypeVar('CommandData')
class Command(Generic[CommandData]):
def __init__(self, data: CommandData, issuer: CommandIssuer):
self.data = data
self.issuer = issuer
List is a wrapper of something generic.

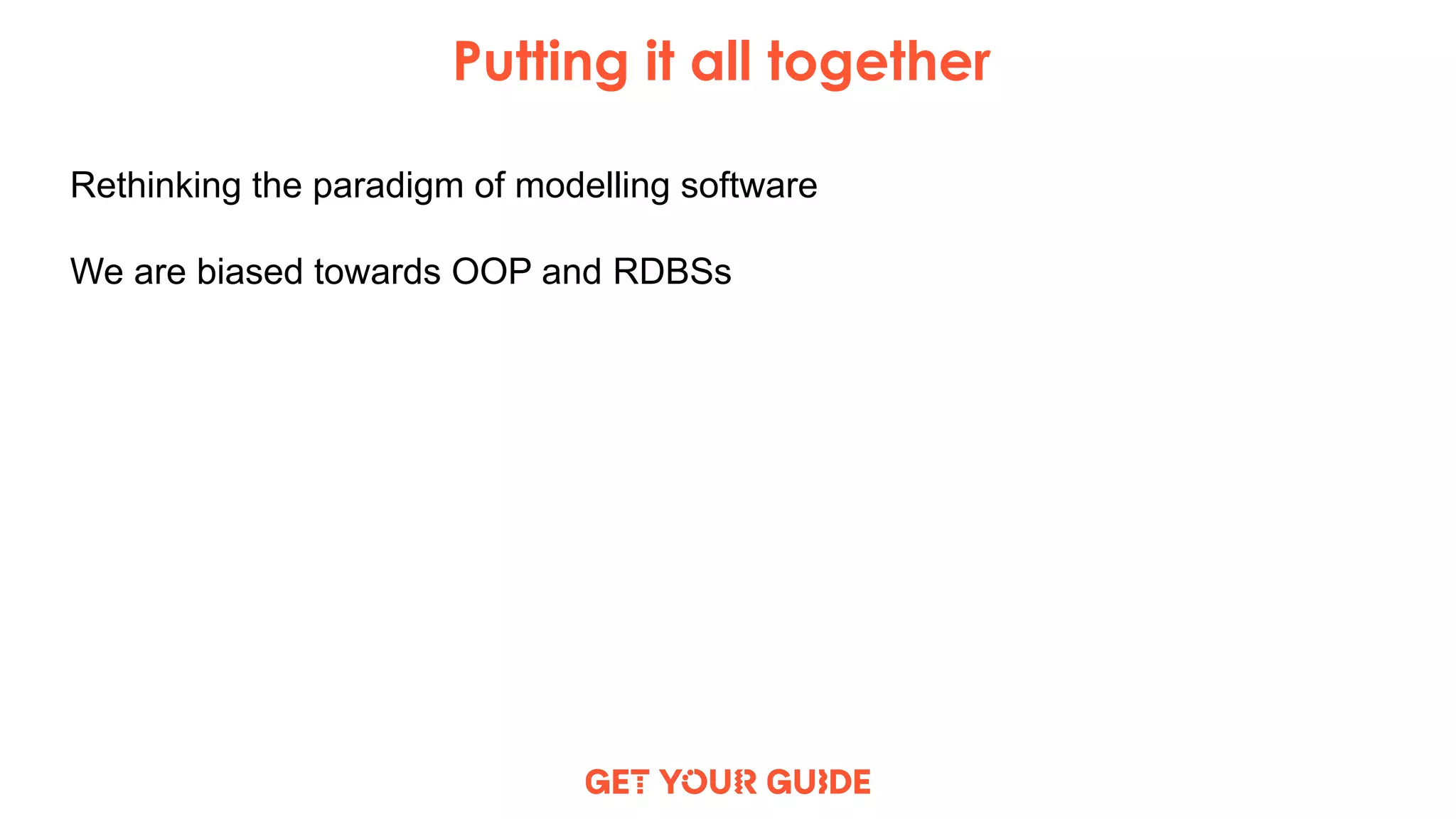

19. Putting it all together
Rethinking the paradigm of modelling software
We are biased towards OOP and RDBSs

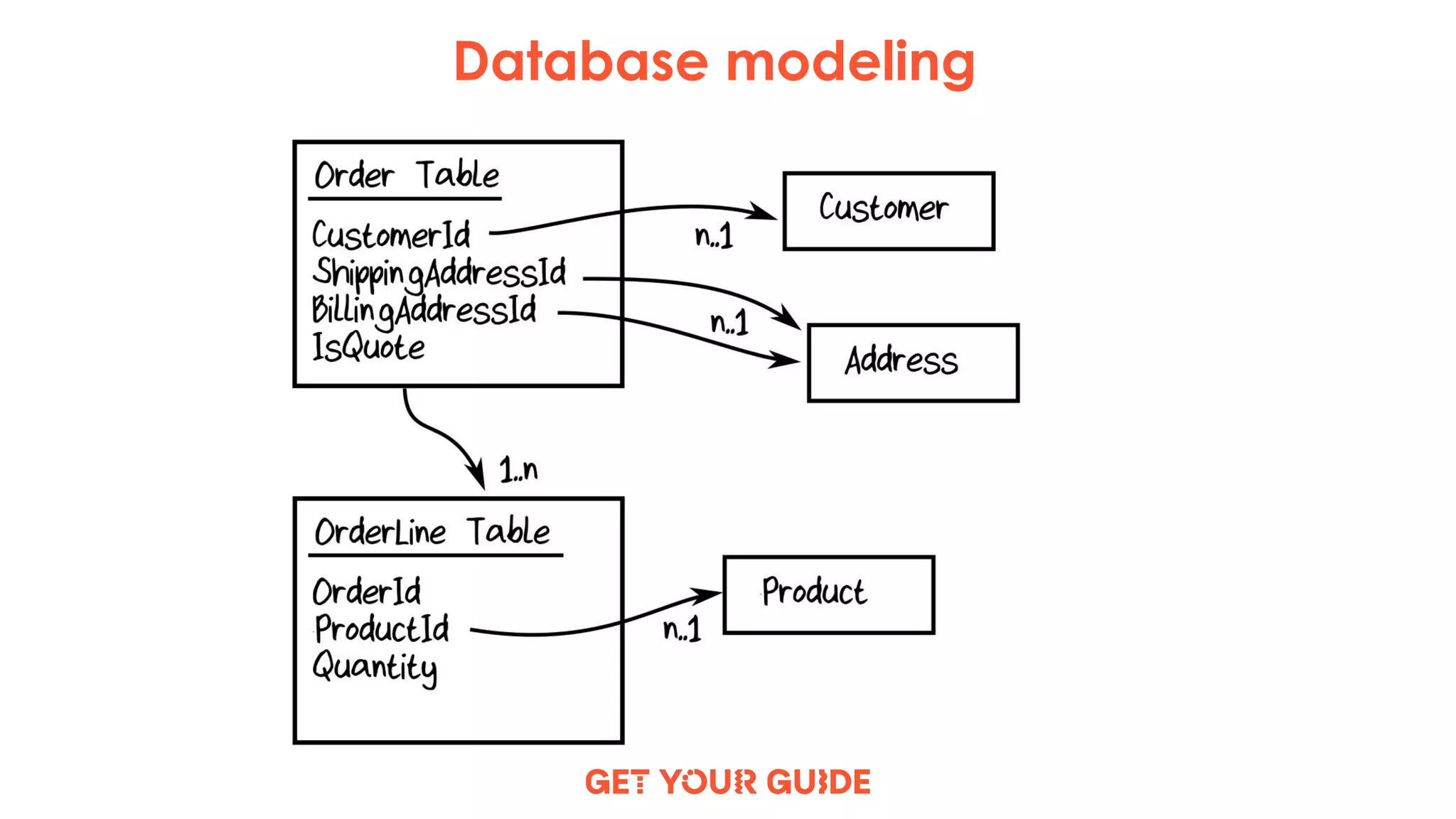

20. Database modeling

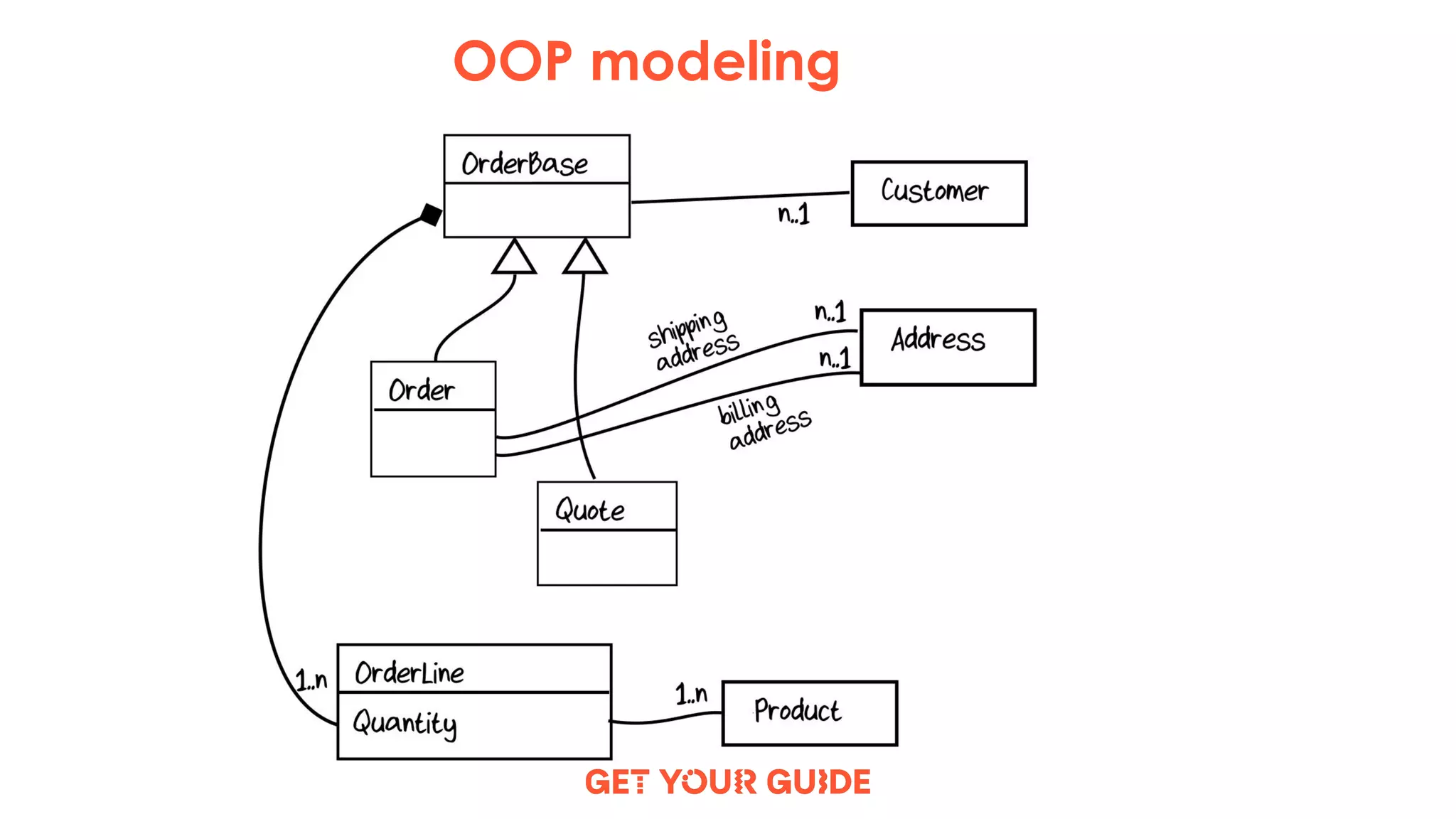

21. OOP modeling

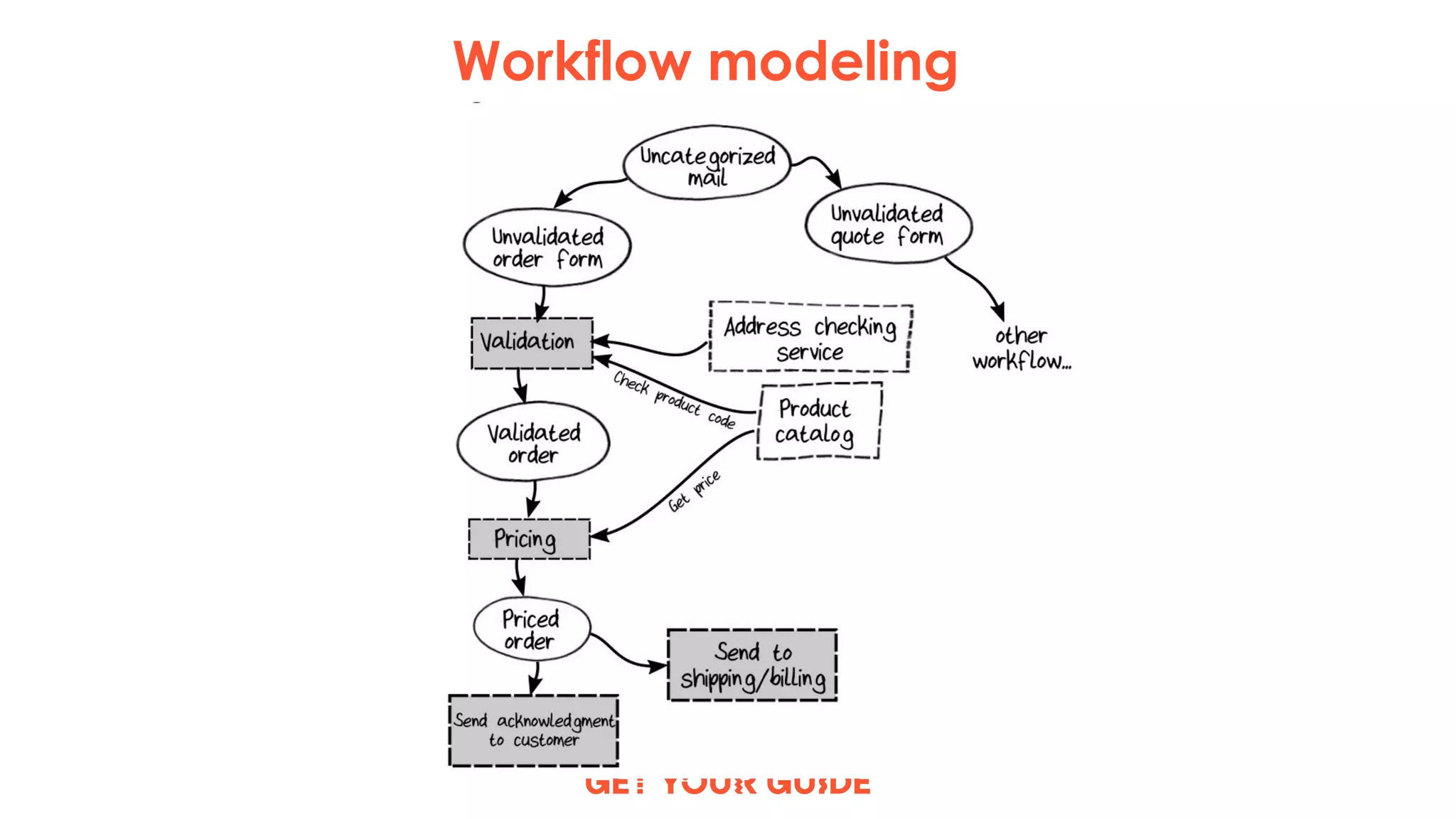

22. Workflow modeling

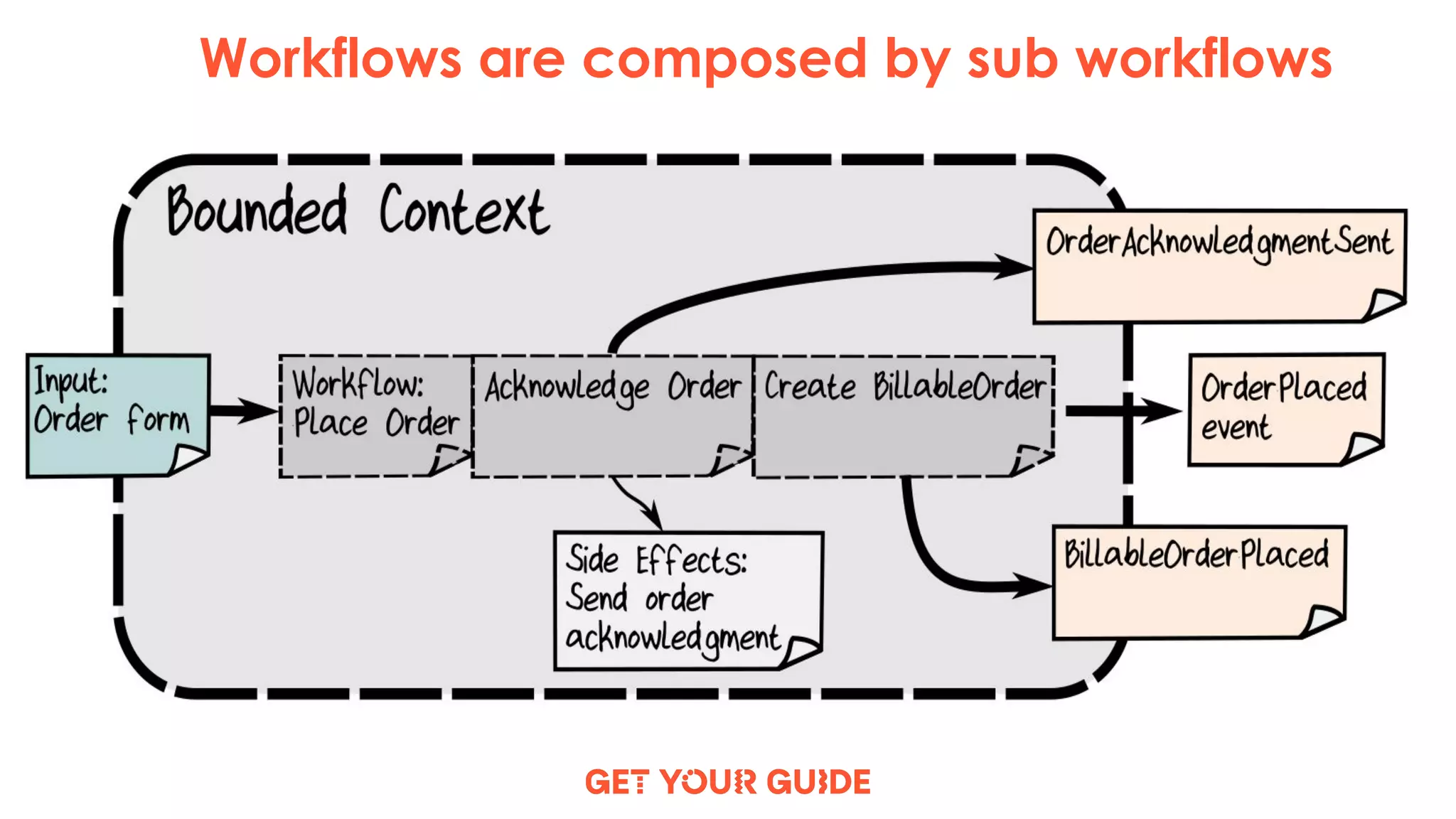

23. Workflows are composed by sub workflows

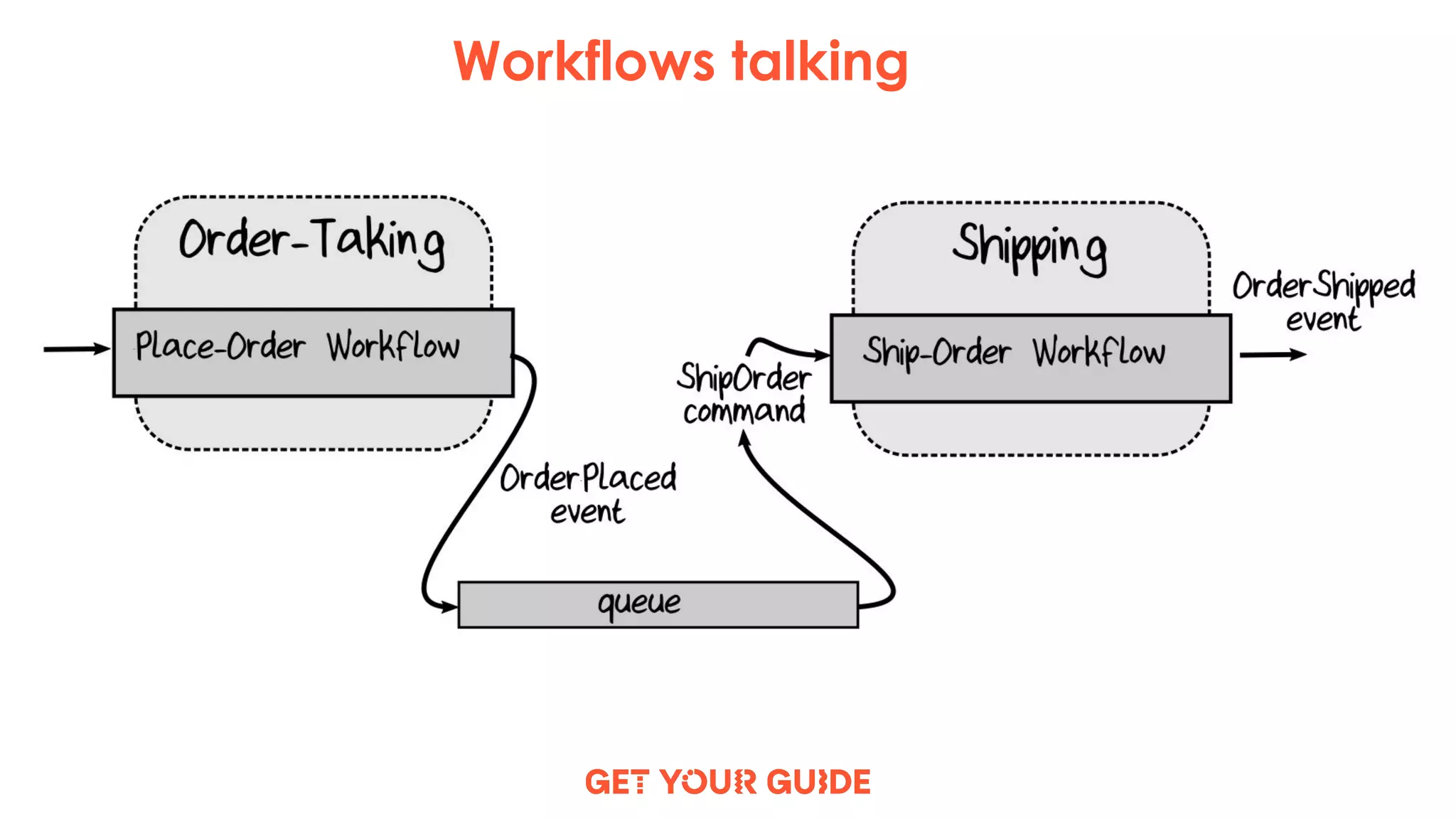

24. Workflows talking

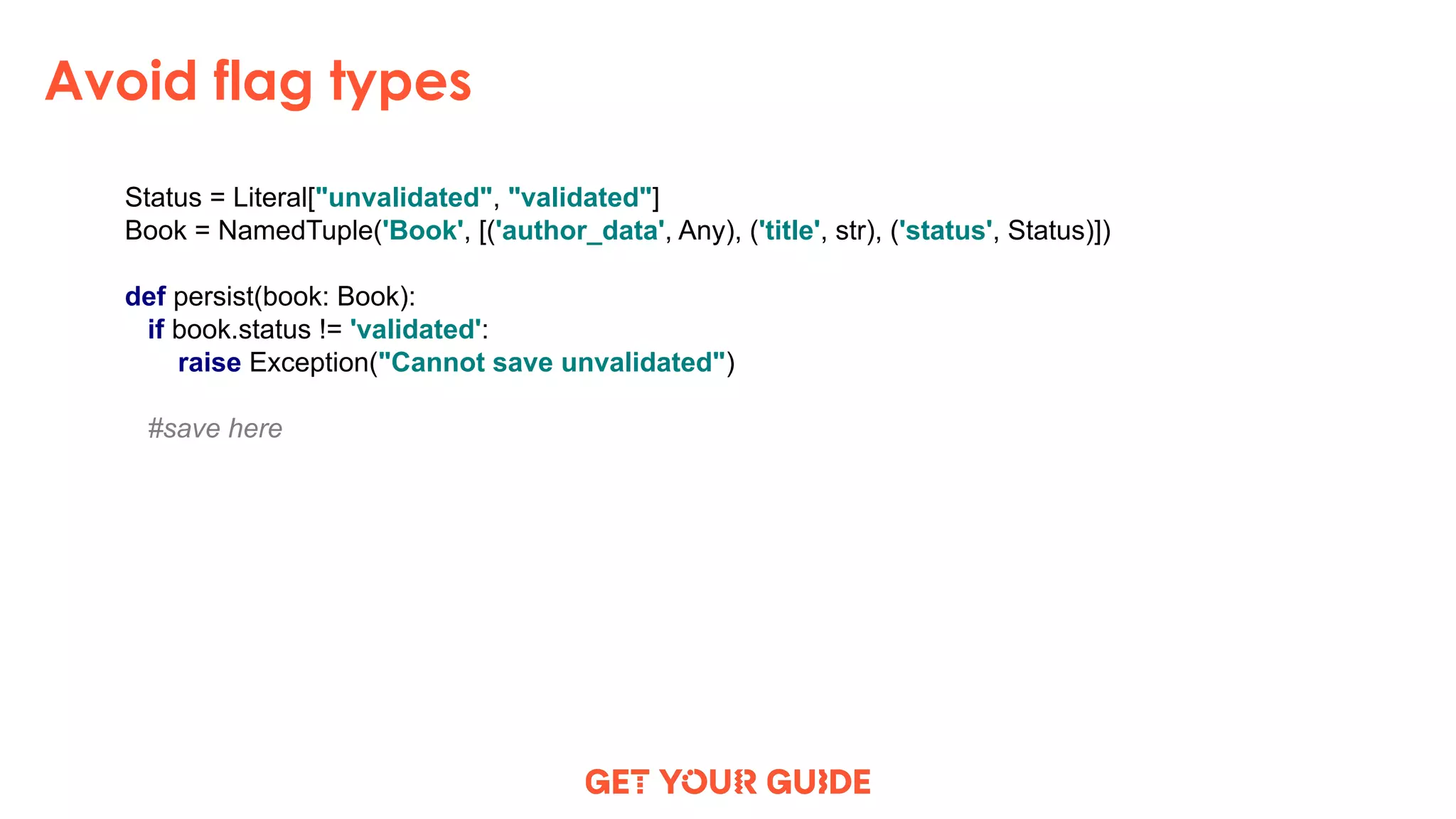

25. Avoid flag types
Status = Literal["unvalidated", "validated"]
Book = NamedTuple('Book', [('author_data', Any), ('title', str), ('status', Status)])
def persist(book: Book):
if book.status != 'validated':
raise Exception("Cannot save unvalidated")
#save here

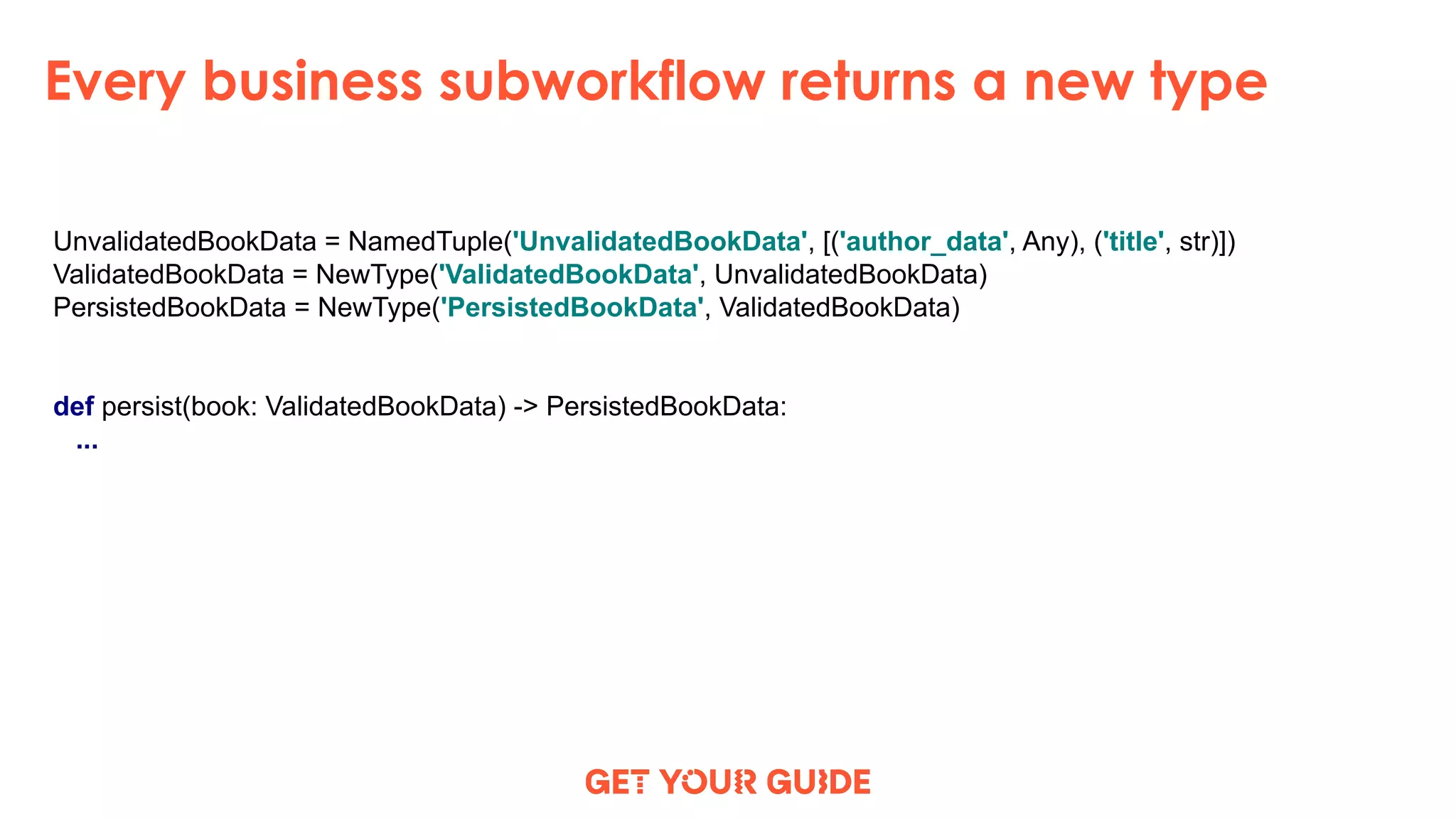

26. Every business subworkflow returns a new type
UnvalidatedBookData = NamedTuple('UnvalidatedBookData', [('author_data', Any), ('title', str)])
ValidatedBookData = NewType('ValidatedBookData', UnvalidatedBookData)
PersistedBookData = NewType('PersistedBookData', ValidatedBookData)
def persist(book: ValidatedBookData) -> PersistedBookData:
...

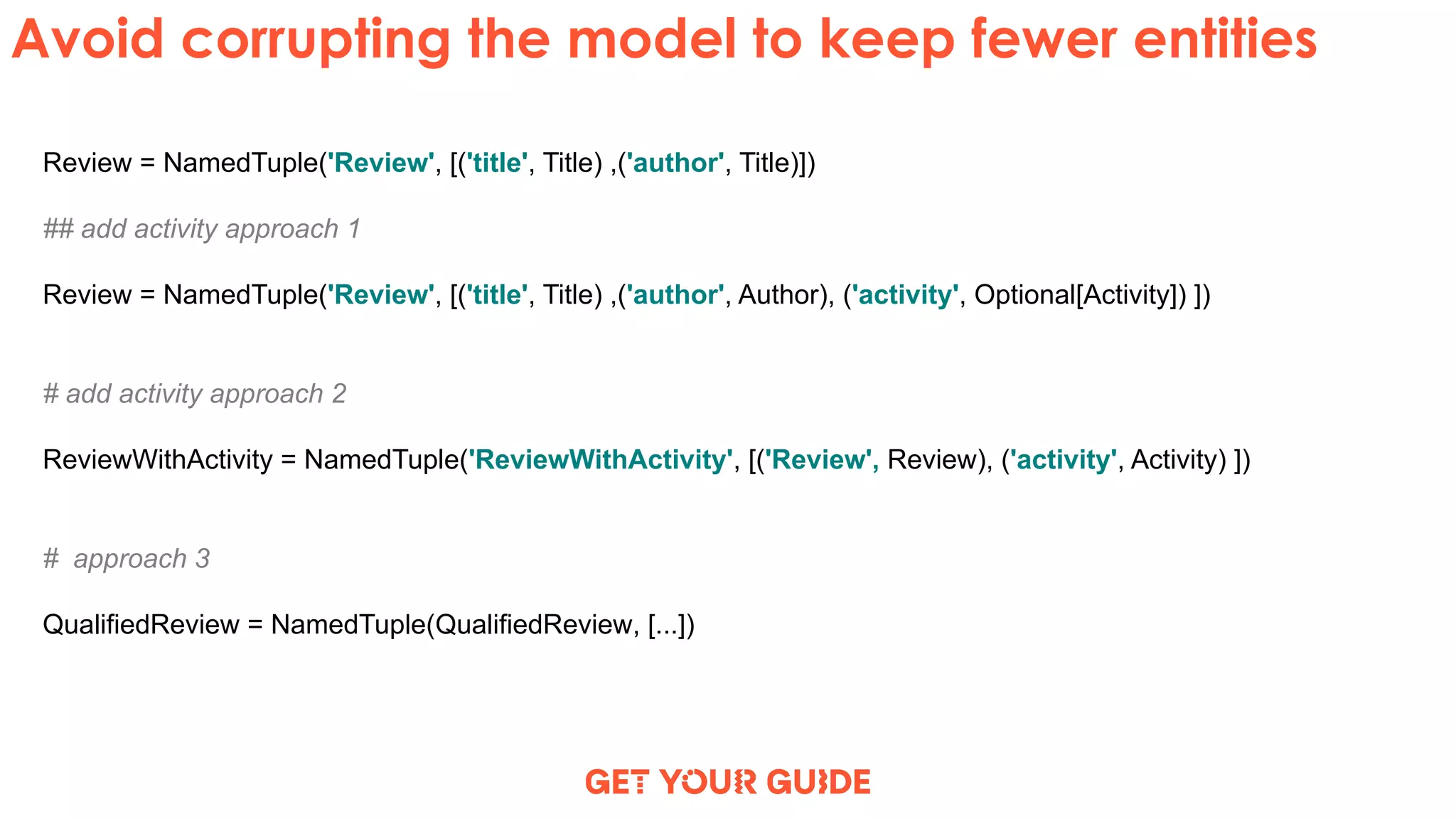

27. Avoid corrupting the model to keep fewer entities
Review = NamedTuple('Review', [('title', Title) ,('author', Title)])
## add activity approach 1
Review = NamedTuple('Review', [('title', Title) ,('author', Author), ('activity', Optional[Activity]) ])
# add activity approach 2
ReviewWithActivity = NamedTuple('ReviewWithActivity', [('Review', Review), ('activity', Activity) ])
# approach 3
QualifiedReview = NamedTuple(QualifiedReview, [...])

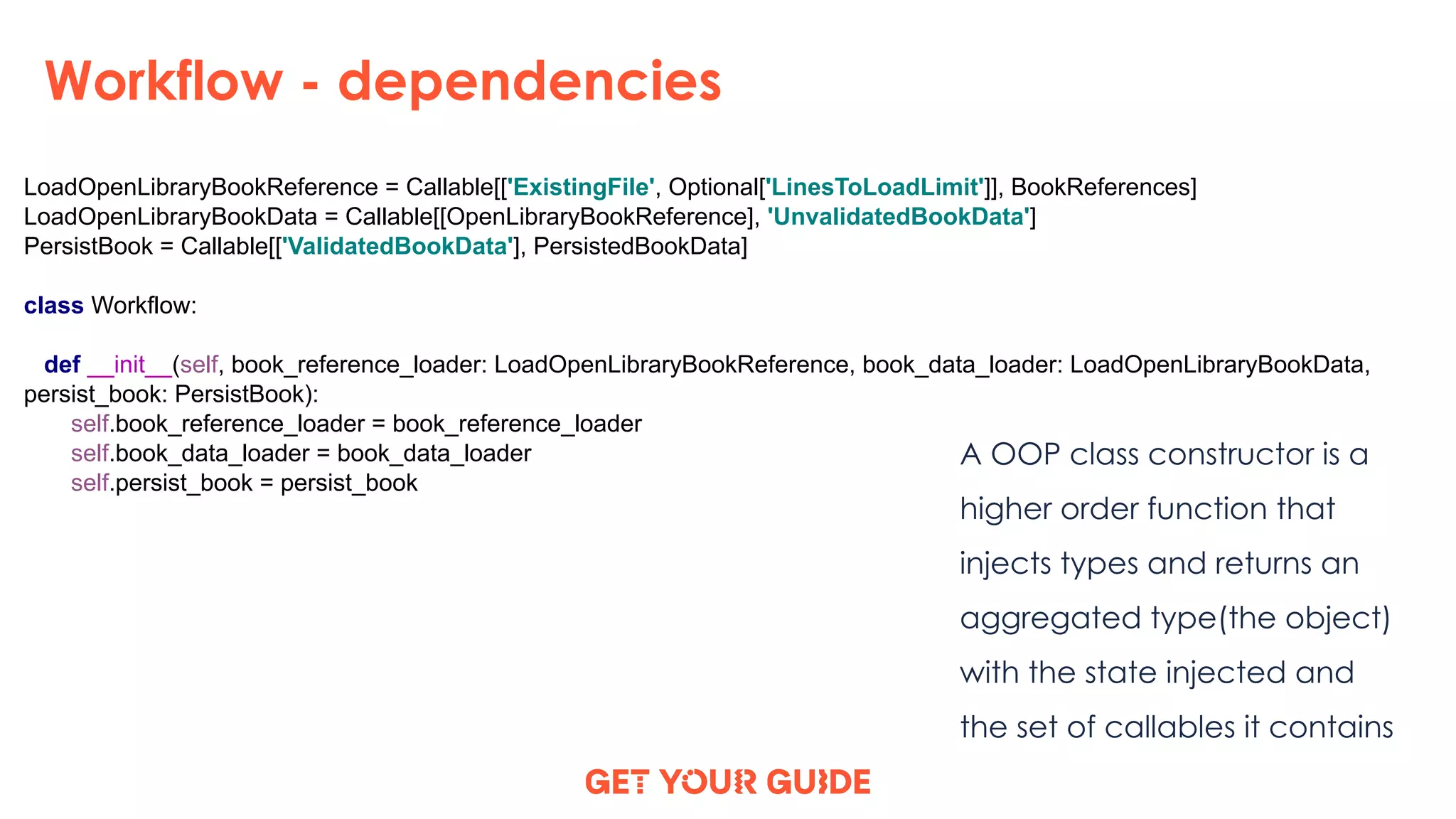

28. Workflow - dependencies
LoadOpenLibraryBookReference = Callable[['ExistingFile', Optional['LinesToLoadLimit']], BookReferences]
LoadOpenLibraryBookData = Callable[[OpenLibraryBookReference], 'UnvalidatedBookData']
PersistBook = Callable[['ValidatedBookData'], PersistedBookData]
class Workflow:
def __init__(self, book_reference_loader: LoadOpenLibraryBookReference, book_data_loader: LoadOpenLibraryBookData,
persist_book: PersistBook):
self.book_reference_loader = book_reference_loader
self.book_data_loader = book_data_loader
self.persist_book = persist_book
A OOP class constructor is a
higher order function that
injects types and returns an
aggregated type(the object)
with the state injected and
the set of callables it contains

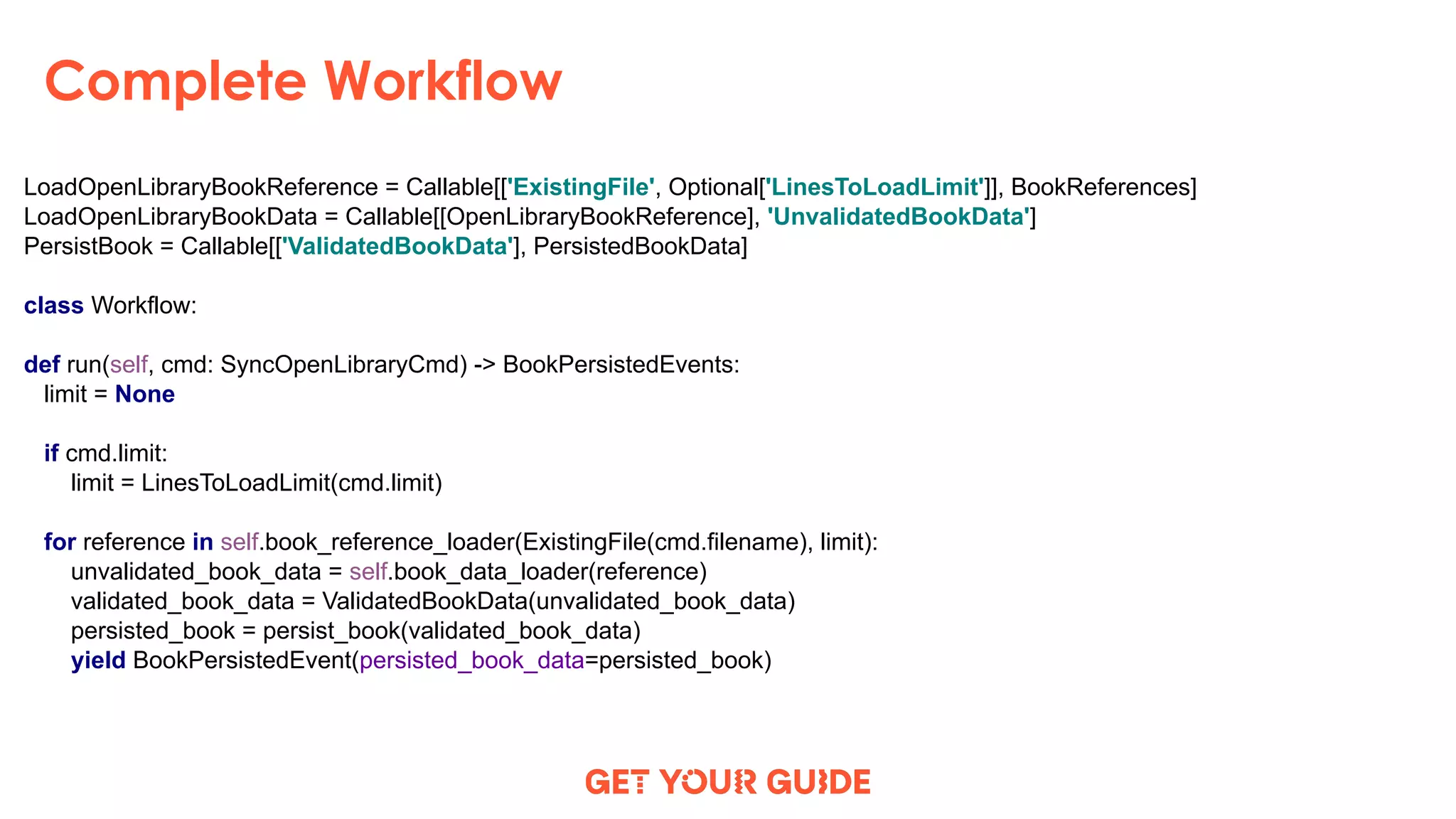

29. Complete Workflow
LoadOpenLibraryBookReference = Callable[['ExistingFile', Optional['LinesToLoadLimit']], BookReferences]
LoadOpenLibraryBookData = Callable[[OpenLibraryBookReference], 'UnvalidatedBookData']
PersistBook = Callable[['ValidatedBookData'], PersistedBookData]
class Workflow:
def run(self, cmd: SyncOpenLibraryCmd) -> BookPersistedEvents:
limit = None
if cmd.limit:
limit = LinesToLoadLimit(cmd.limit)
for reference in self.book_reference_loader(ExistingFile(cmd.filename), limit):
unvalidated_book_data = self.book_data_loader(reference)
validated_book_data = ValidatedBookData(unvalidated_book_data)
persisted_book = persist_book(validated_book_data)
yield BookPersistedEvent(persisted_book_data=persisted_book)

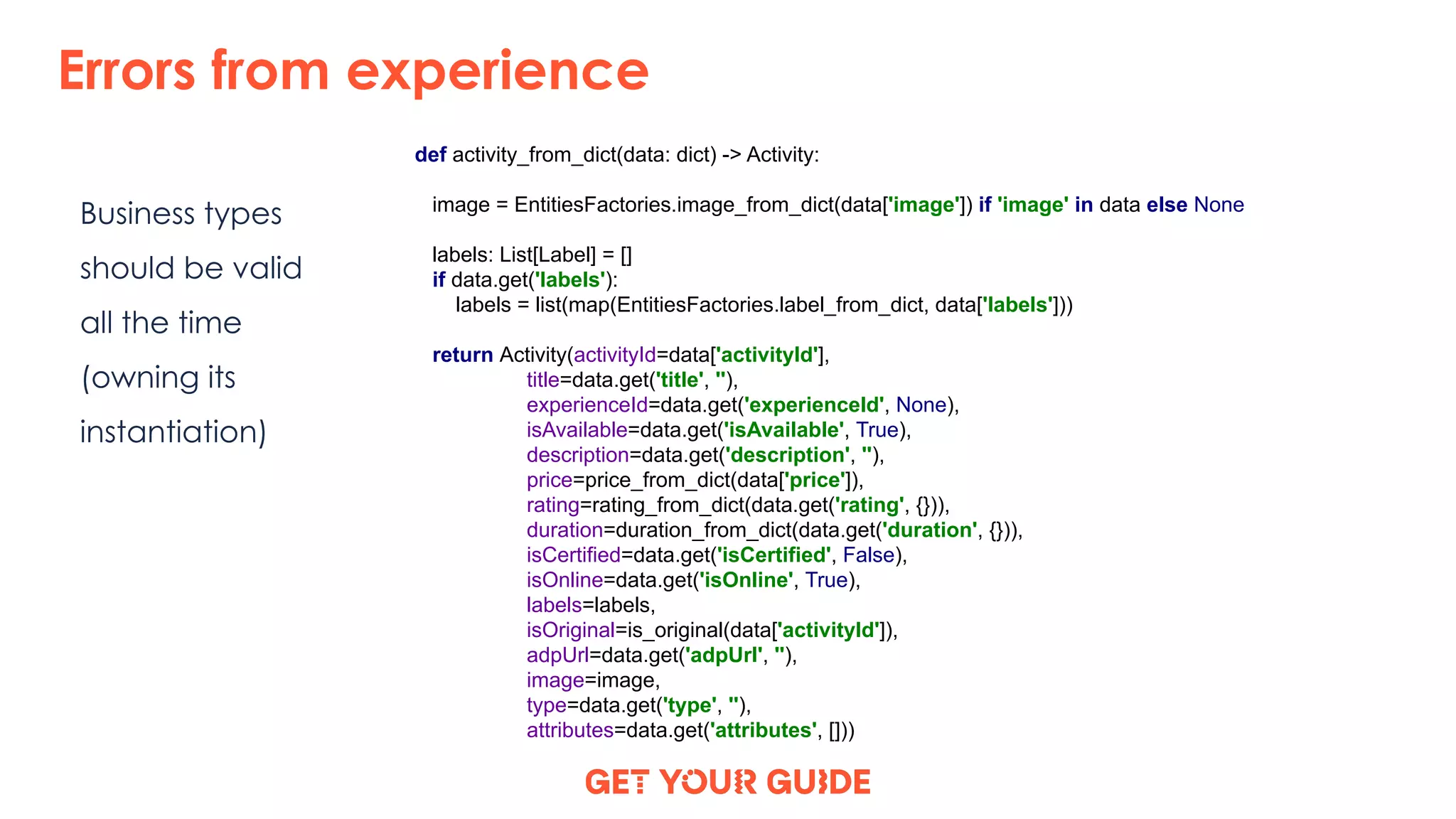

30. Errors from experience
Business types
should be valid
all the time
(owning its
instantiation)
def activity_from_dict(data: dict) -> Activity:
image = EntitiesFactories.image_from_dict(data['image']) if 'image' in data else None
labels: List[Label] = []
if data.get('labels'):
labels = list(map(EntitiesFactories.label_from_dict, data['labels']))
return Activity(activityId=data['activityId'],
title=data.get('title', ''),
experienceId=data.get('experienceId', None),
isAvailable=data.get('isAvailable', True),
description=data.get('description', ''),
price=price_from_dict(data['price']),
rating=rating_from_dict(data.get('rating', {})),
duration=duration_from_dict(data.get('duration', {})),
isCertified=data.get('isCertified', False),
isOnline=data.get('isOnline', True),
labels=labels,
isOriginal=is_original(data['activityId']),
adpUrl=data.get('adpUrl', ''),
image=image,
type=data.get('type', ''),
attributes=data.get('attributes', []))

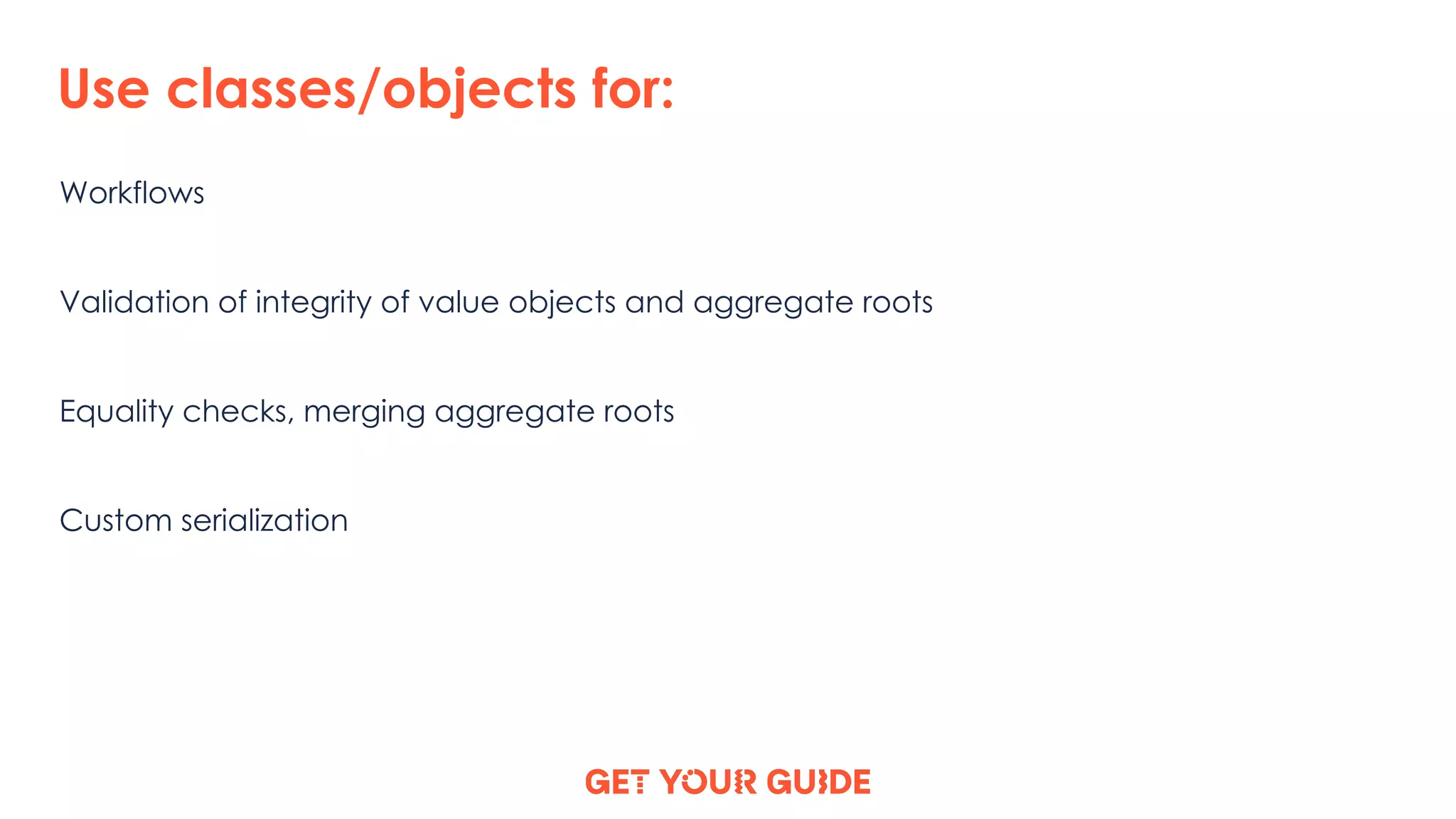

31. Use classes/objects for:
Workflows
Validation of integrity of value objects and aggregate roots
Equality checks, merging aggregate roots
Custom serialization

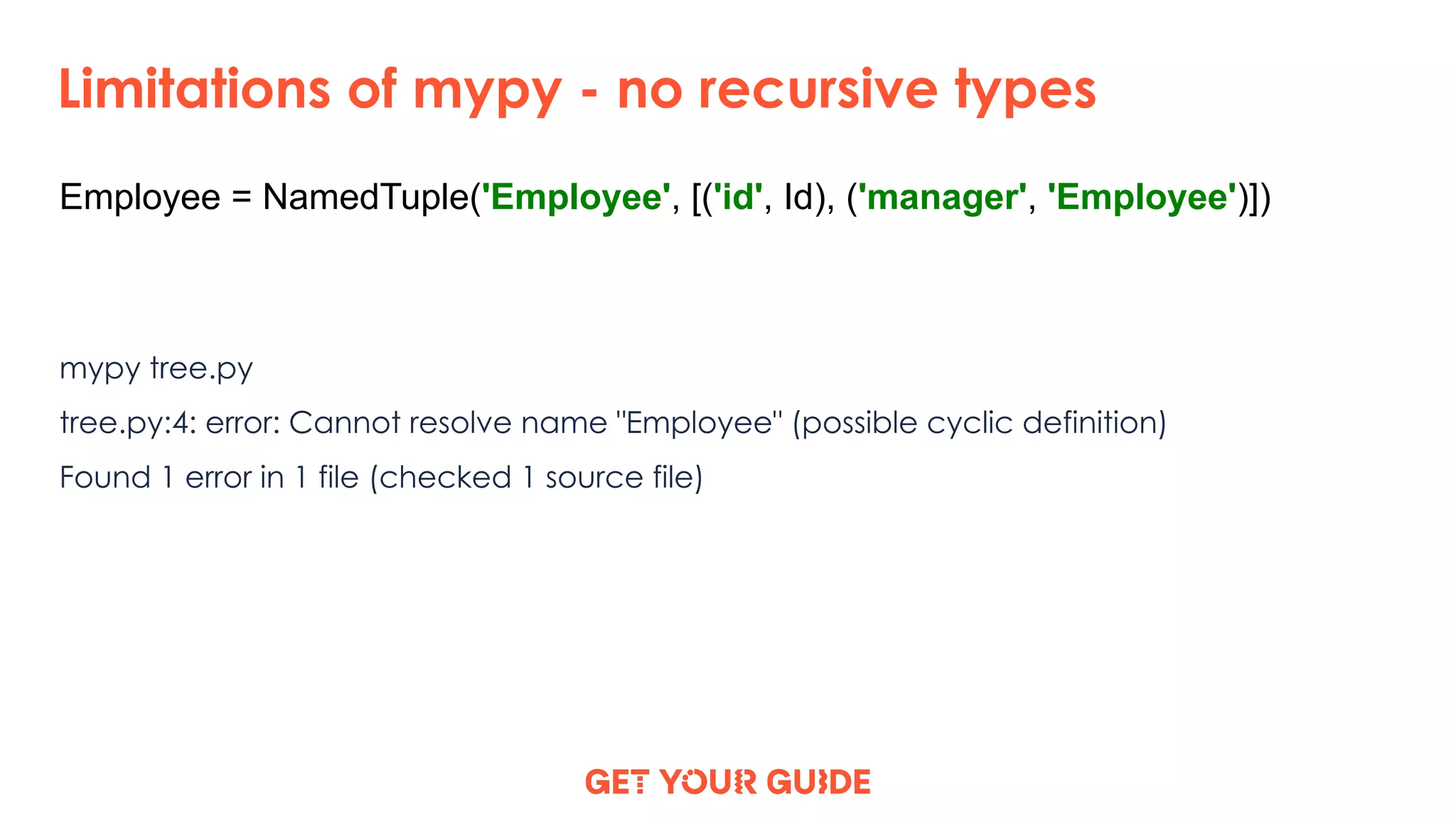

32. Limitations of mypy - no recursive types
Employee = NamedTuple('Employee', [('id', Id), ('manager', 'Employee')])
mypy tree.py
tree.py:4: error: Cannot resolve name "Employee" (possible cyclic definition)
Found 1 error in 1 file (checked 1 source file)

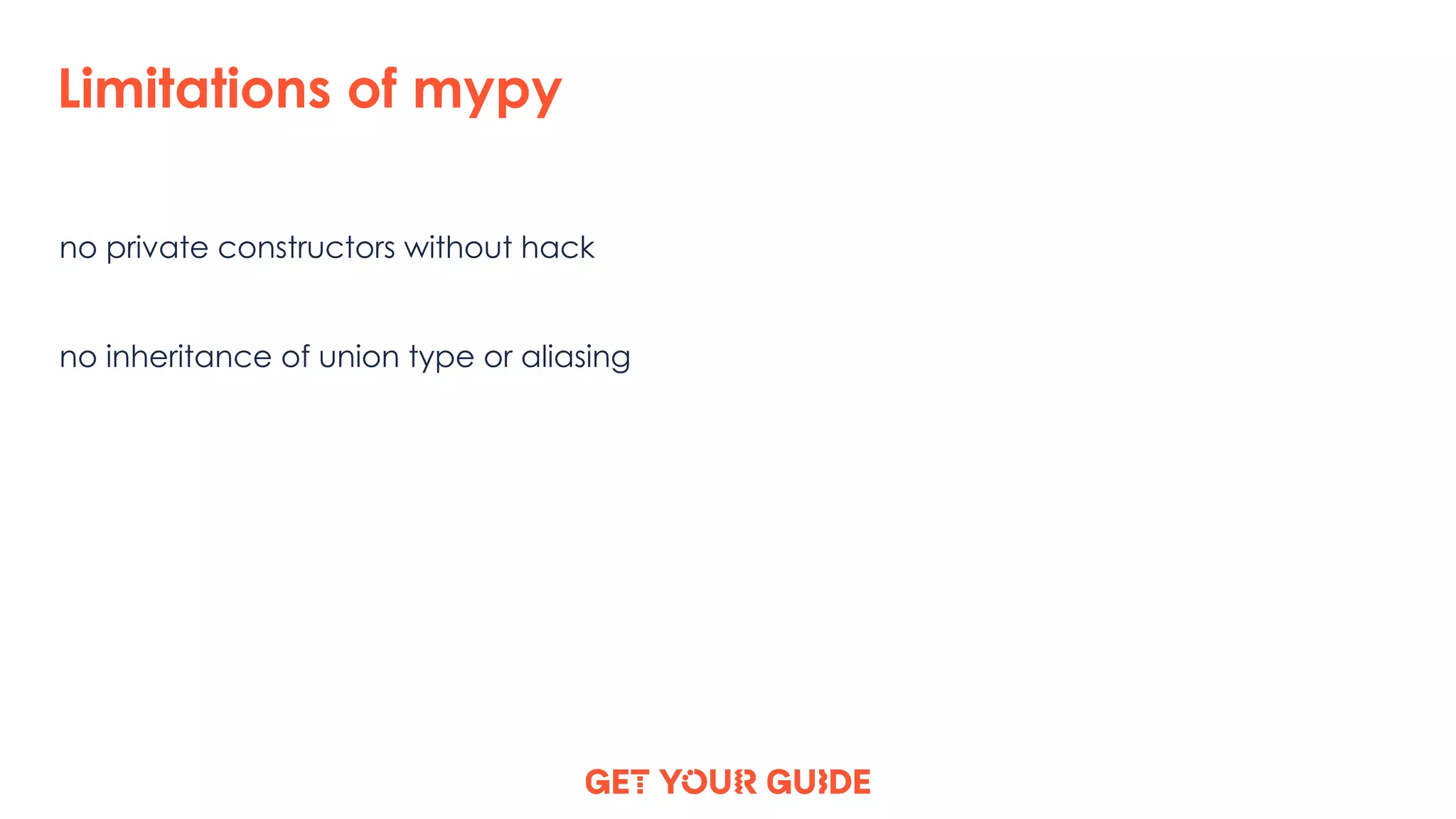

33. Limitations of mypy
no private constructors without hack
no inheritance of union type or aliasing

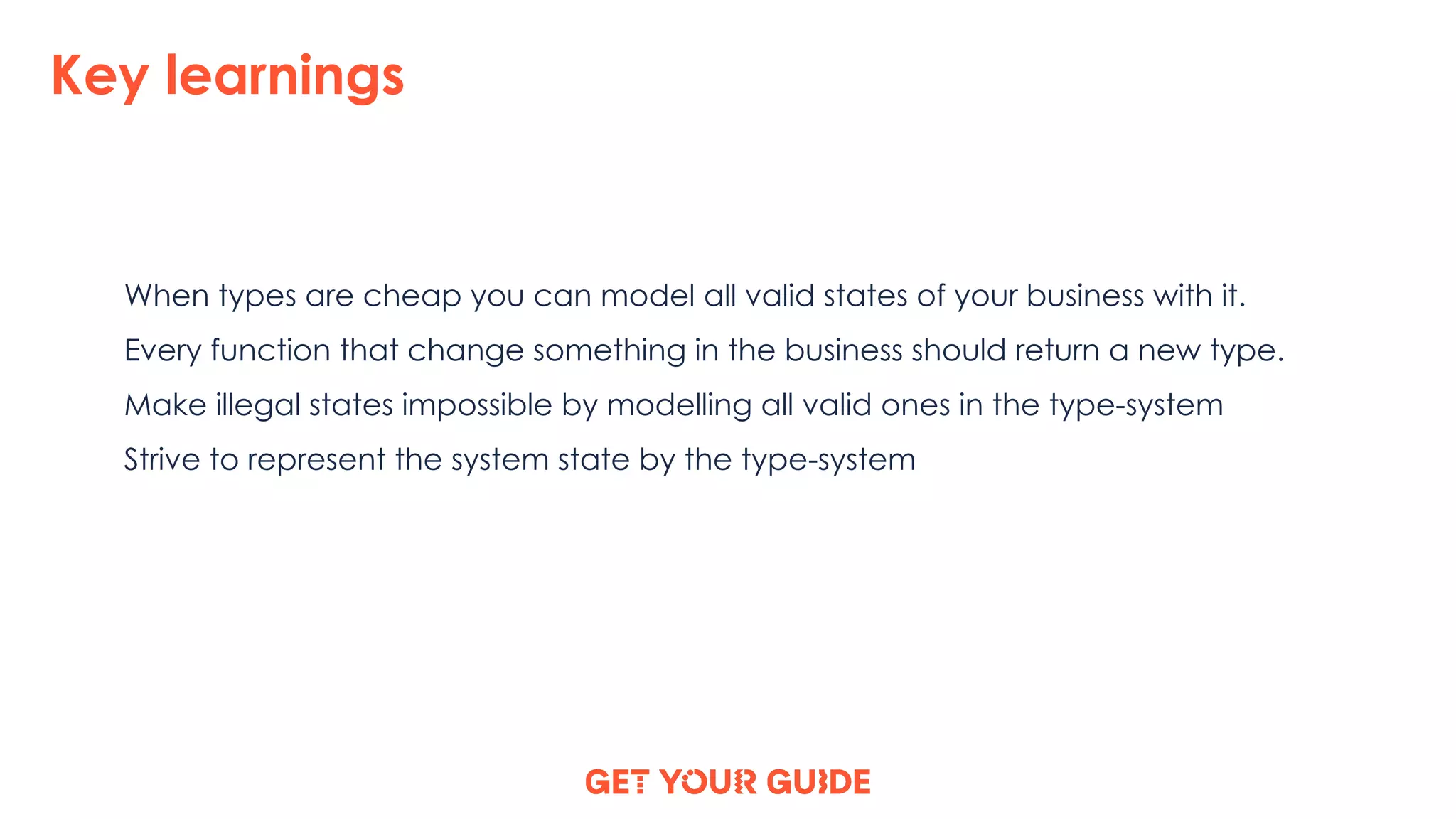

34. Key learnings
When types are cheap you can model all valid states of your business with it.
Every function that change something in the business should return a new type.
Make illegal states impossible by modelling all valid ones in the type-system
Strive to represent the system state by the type-system

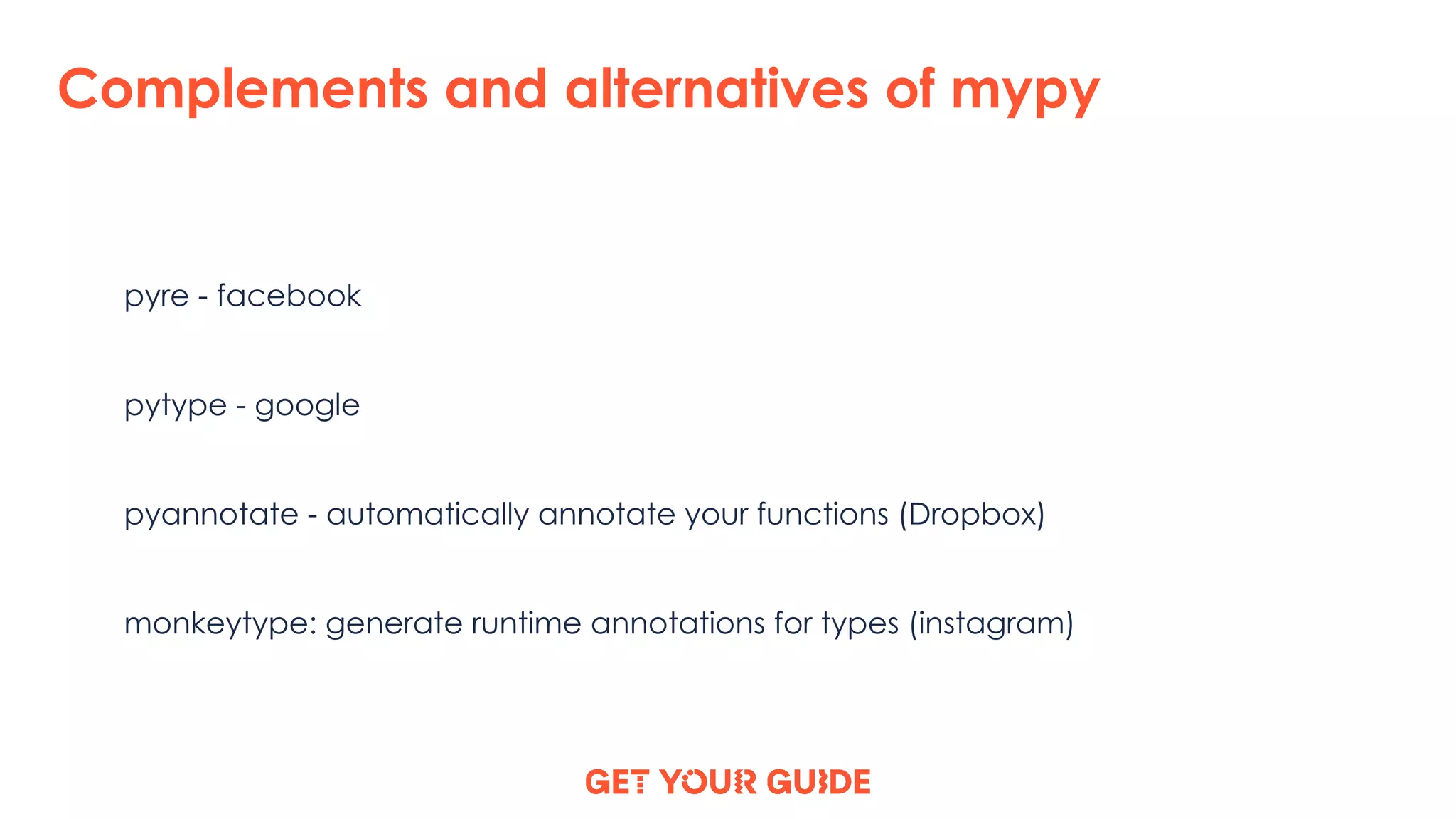

35. Complements and alternatives of mypy
pyre - facebook
pytype - google
pyannotate - automatically annotate your functions (Dropbox)
monkeytype: generate runtime annotations for types (instagram)

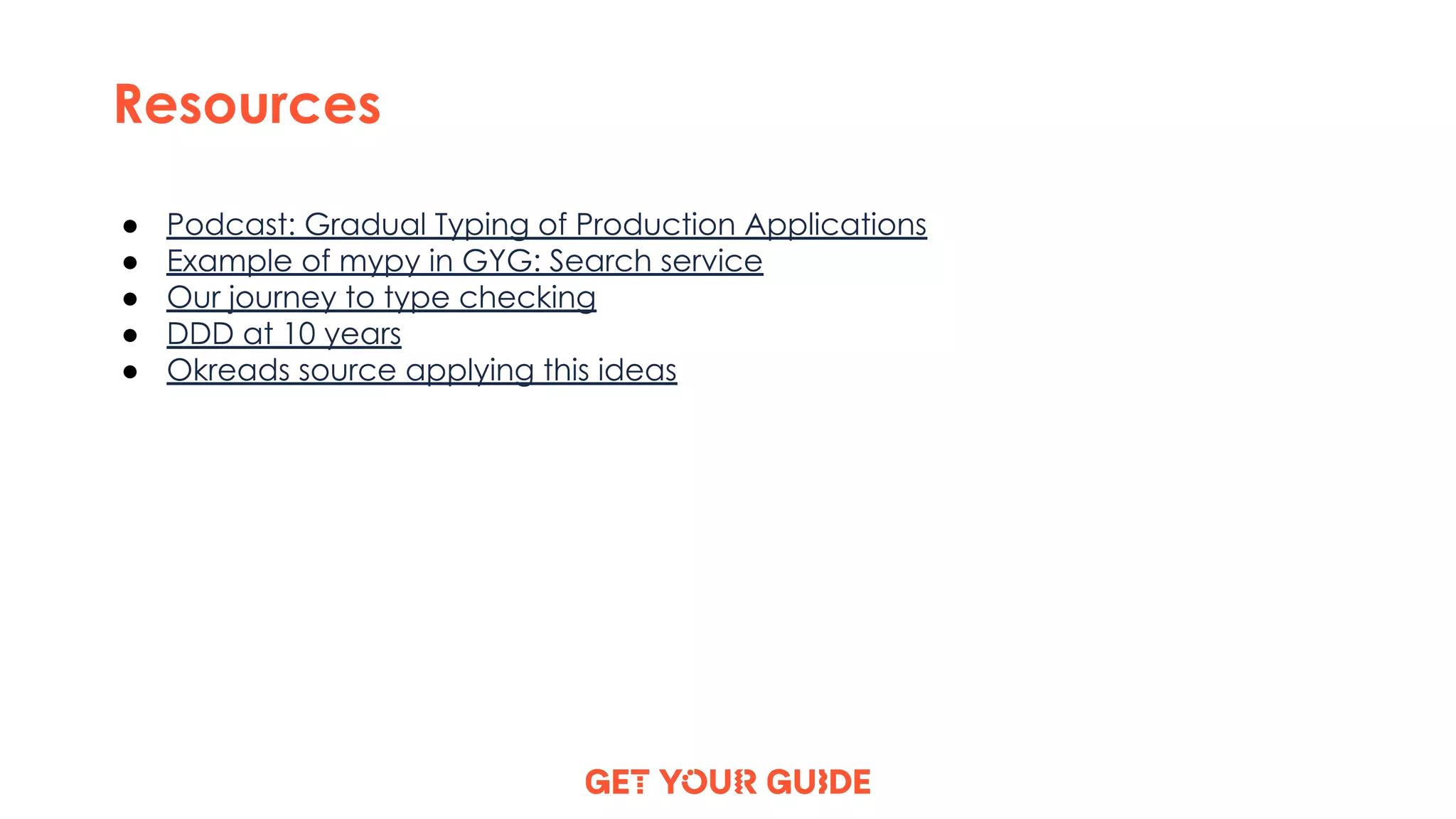

36. Resources
● Podcast: Gradual Typing of Production Applications
● Example of mypy in GYG: Search service
● Our journey to type checking
● DDD at 10 years
● Okreads source applying this ideas

37. The end
Thanks for listening
Just like the builders of Europe’s great Gothic cathedrals we’ve been honing our craft to the limits of material and structure. There is
an unfinished Gothic cathedral in Beauvais, France, that stands witness to this deeply human struggle with limitations. It was intended
to beat all previous records of height and lightness, but it suffered a series of collapses. Ad hoc measures like iron rods and wooden
supports keep it from disintegrating, but obviously a lot of things went wrong. From a modern perspective, it’s a miracle that so many
Gothic structures had been successfully completed without the help of modern material science, computer modelling, finite element
analysis, and general math and physics. I hope future generations will be as admiring of the programming skills we’ve been displaying
in building complex operating systems, web servers, and the internet infrastructure. And, frankly, they should, because we’ve done all
this based on very flimsy theoretical foundations. We have to fix those foundations if we want to move forward. - Bartosz Milewski’s
