The document discusses using LaTeX/TeX to create professional documents. It covers topics like the need for LaTeX, LaTeX distributions, installing LaTeX and related tools, document layout and structure, illustrations, report format, beamer for presentations, and key references. Hands-on sessions are included to demonstrate document setup, formatting, tables, and including multiple files.

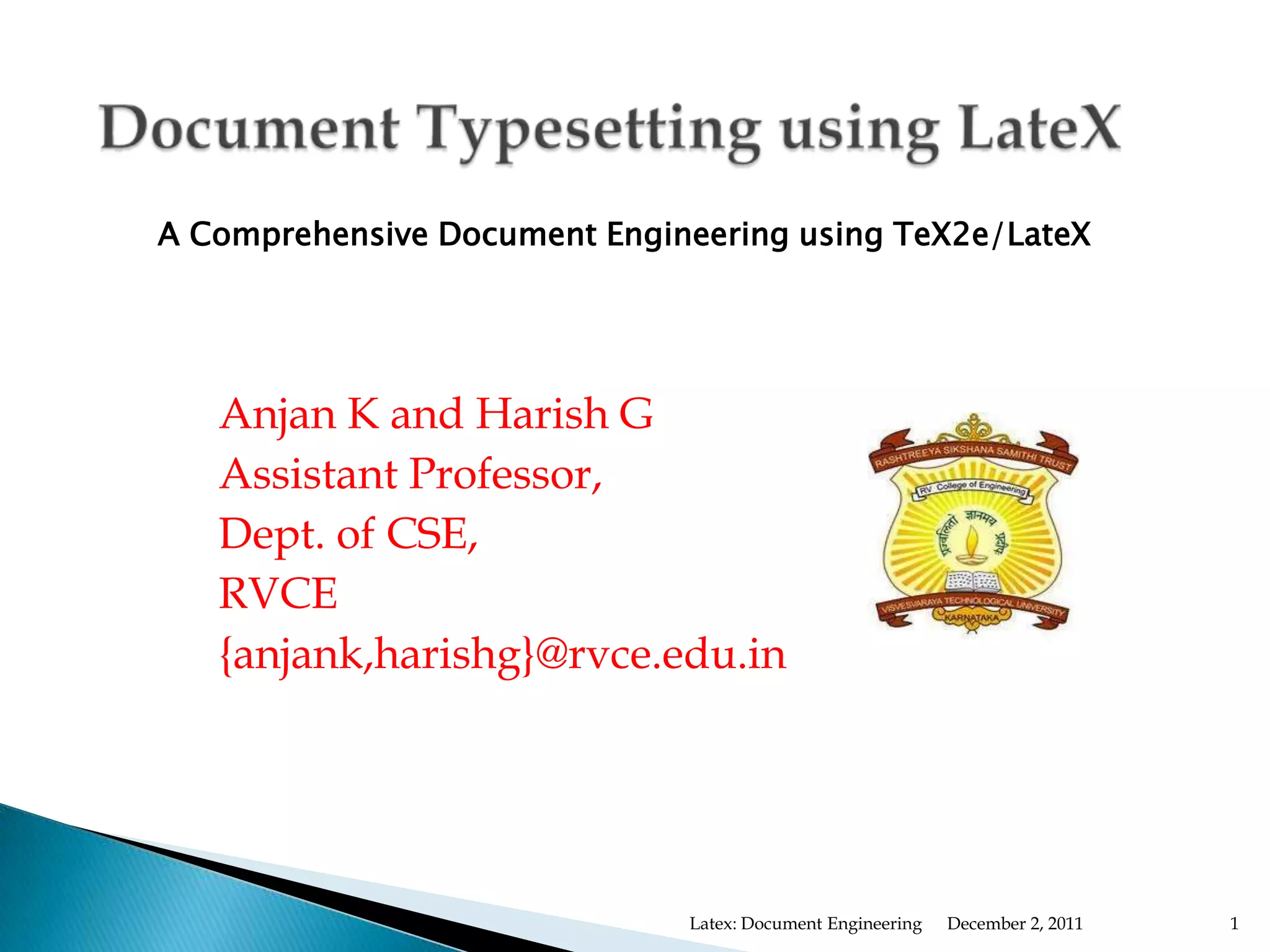

1. A Comprehensive Document Engineering using TeX2e/LateX
Anjan K and Harish G
Assistant Professor,
Dept. of CSE,
RVCE
{anjank,harishg}@rvce.edu.in
Latex: Document Engineering December 2, 2011 1

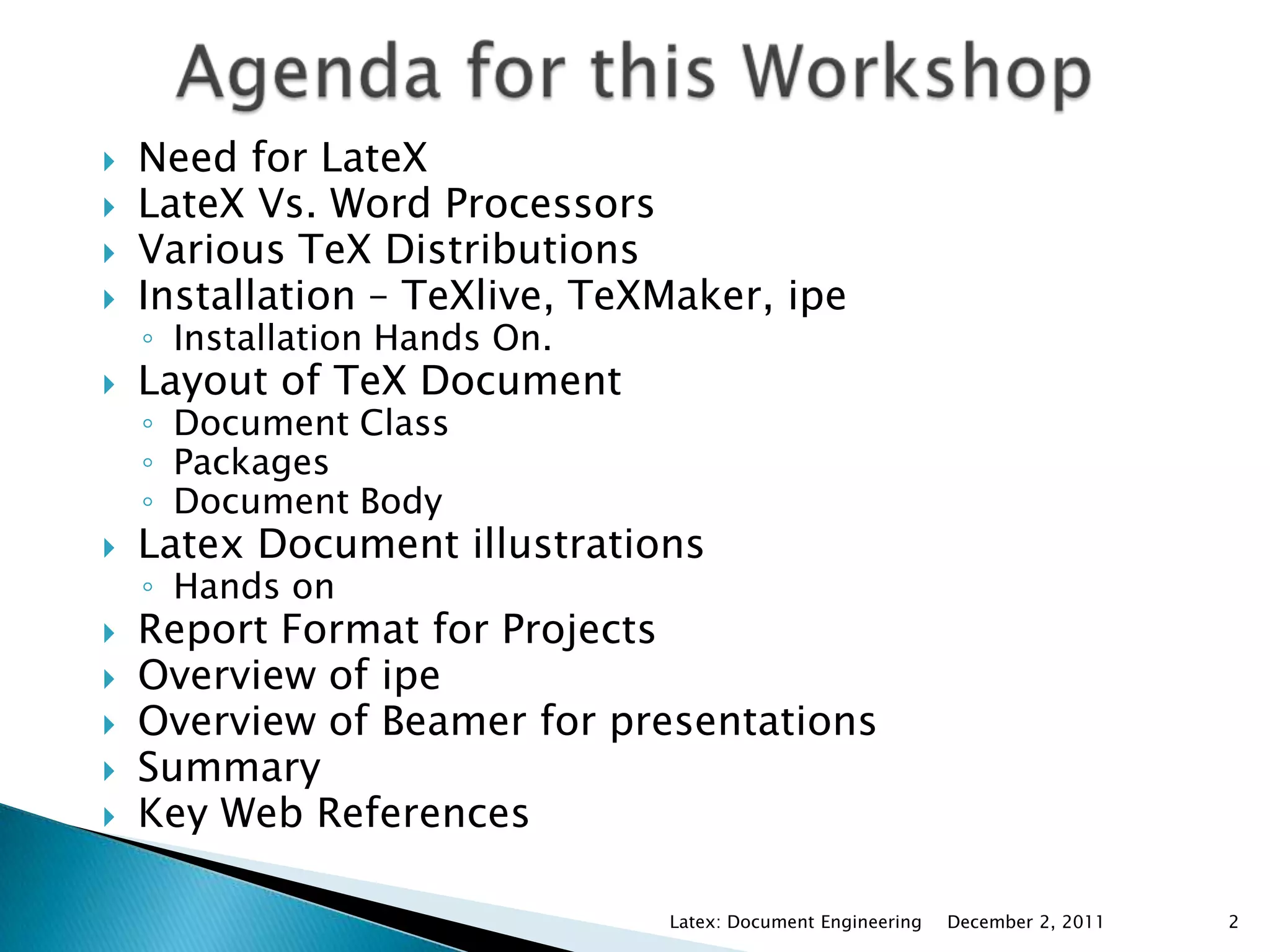

2.  Need for LateX
 LateX Vs. Word Processors
 Various TeX Distributions
 Installation – TeXlive, TeXMaker, ipe
◦ Installation Hands On.
 Layout of TeX Document
◦ Document Class
◦ Packages
◦ Document Body
 Latex Document illustrations
◦ Hands on
 Report Format for Projects
 Overview of ipe
 Overview of Beamer for presentations
 Summary
 Key Web References
Latex: Document Engineering December 2, 2011 2

3.  Pronounced as (Lah-tek, or Lay-tek)
 TeX is essentially a Markup Language (like HTML,
XML and RTF)
 A typesetting program, not a word-processor
 TeX written by Donald Knuth in 70´s
◦ A revolution in typesetting
 Latex is an extension of TeX
◦ Macro packages to make TeX easier to use
 Designed for producing professional books,
thesis's, technical papers ,articles.
 De facto standard for writing academic papers
and project reports
 Current version LaTeX2
Latex: Document Engineering December 2, 2011 3

4.  De facto standard for scientific publishing
 Good for large documents- Can compile very big books
(unless your document is more than 70,000 pages!)
 Can run even on lower version of computer
configuration.
 Platform, version independent (Unix, Windows…)
 Pre-set standard formats (for paper, thesis…)
 Bibliography management
 Fast, professional math equations typesetting
 Open source
 Never crash, never lose your file
Outcome: Professional documentation.
Latex: Document Engineering December 2, 2011 4

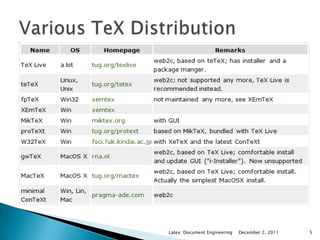

5. Latex: Document Engineering December 2, 2011 5

6.  lEDBeta  pdfTeX
 LateX Editor  LuaTeX – latest of
 Kile PDFLatex
 TeXnic Center  XeTeX – Unicode and
 TeXMaker BMP, OTF
 TeXshop on Mac  NTS –OO Based
 Winshell  ExTeX - Hybrid
 LateXila  Aleph –Omega eTeX
 TeXStudios  BibTeX – Bib
 TeXWorks management
IDE for LateX LateX Engines
Latex: Document Engineering December 2, 2011 6

7. Latex: Document Engineering December 2, 2011 7

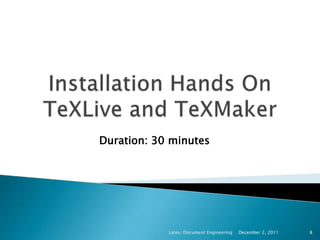

8. Duration: 30 minutes
Latex: Document Engineering December 2, 2011 8

9.  Document Class
◦ Predefined Formats (article, report, book,..).
◦ Syntax:
 documentclass[options]{class}
 Options = a4paper, 11pt, 12pt, 10pt, twocolumn,
landscape,...
 class = article, report, book,…
 Packages -
◦ Added Functionality (graphics, reference style,...).
◦ Syntax:
 usepackage{package name}
◦ Package name examples
 epsfig - insert PS pictures into the document
 fancyhdr - easy definition of footer and header
Latex: Document Engineering December 2, 2011 9

10.  Main Body
◦ Text and Bibliography References.
◦ Body is wrapped with begin and end statements
begin{document}
Body of Text
end{document}
◦ Typesetting the text
 Bold - textbf{ text } or {bf text}
 Italics - textit{ Text } or {bf text}
 Newline -
 Underline - ul { text } or underline{ text }
Latex: Document Engineering December 2, 2011 10

11. % my first LaTeX file
documentclass{article}
% preamble
usepackage{graphicx}
begin{document}
section{This is a section}
subsection{This is a subsection}
First paragraph is here.
Second paragraph is here.
end{document}
11

12. documentclass{article}
title{Simple Example}
author{Anjan}
date{Nov 2011}
begin{document}
maketitle
Hello world!
end{document}
Latex: Document Engineering December 2, 2011 12

13. Duration: 30 minutes
Latex: Document Engineering December 2, 2011 13

14. • Columns
o begin{tabular}{|…|…|} Columns
Two
o end{tabular}
• Rows l = automatically adjust
size, left justify
o & - Split text into columns r = automatically adjust
size, right justify
o - End a row p = set size
o hline - Draw line under row e.g p{4.7cm}
o e.g. 123123 & 34.00 hline c = centre text

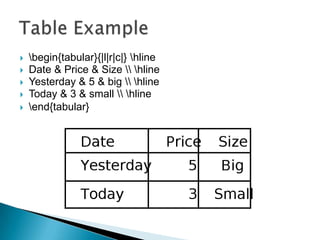

15.  begin{tabular}{|l|r|c|} hline
 Date & Price & Size hline
 Yesterday & 5 & big hline
 Today & 3 & small hline
 end{tabular}

16. SubFigure and Longtable
Duration: 30 minutes
Latex: Document Engineering December 2, 2011 16

17.  Including Multiple Files
◦ Syntax - input{filename.tex}
◦ Example - input{SRS.tex}
 Formatting
◦ Creating Sections and Chapters
◦ chapter{…}
 To be used with book and report document classes
◦ Syntax - section{name}
◦ Syntax - subsection{name}
◦ Syntax - subsubsection{name}
◦ Syntax - appendix
 changes numbering scheme
Latex: Document Engineering December 2, 2011 17

18.  Font Size
 tiny scriptsize footnotesize
 small normalsize
 large Large
 LARGE huge
Huge
Latex: Document Engineering December 2, 2011 18

19.  TexLive Distribution
◦ www.tug.org/texlive/
 MikTex Distribution
◦ www.miktex.org/
 LateX Wiki
◦ en.wikibooks.org/wiki/LaTeX
◦ www.latexwiki.org/
 Math LateX Wiki
◦ en.wikibooks.org/wiki/LaTeX/Mathematics
Latex: Document Engineering December 2, 2011 19
