1. Docker at Shopify
From This-Looks-Fun to Production

2. Simon Eskildsen
Infrastructure @ Shopify
@Sirupsen

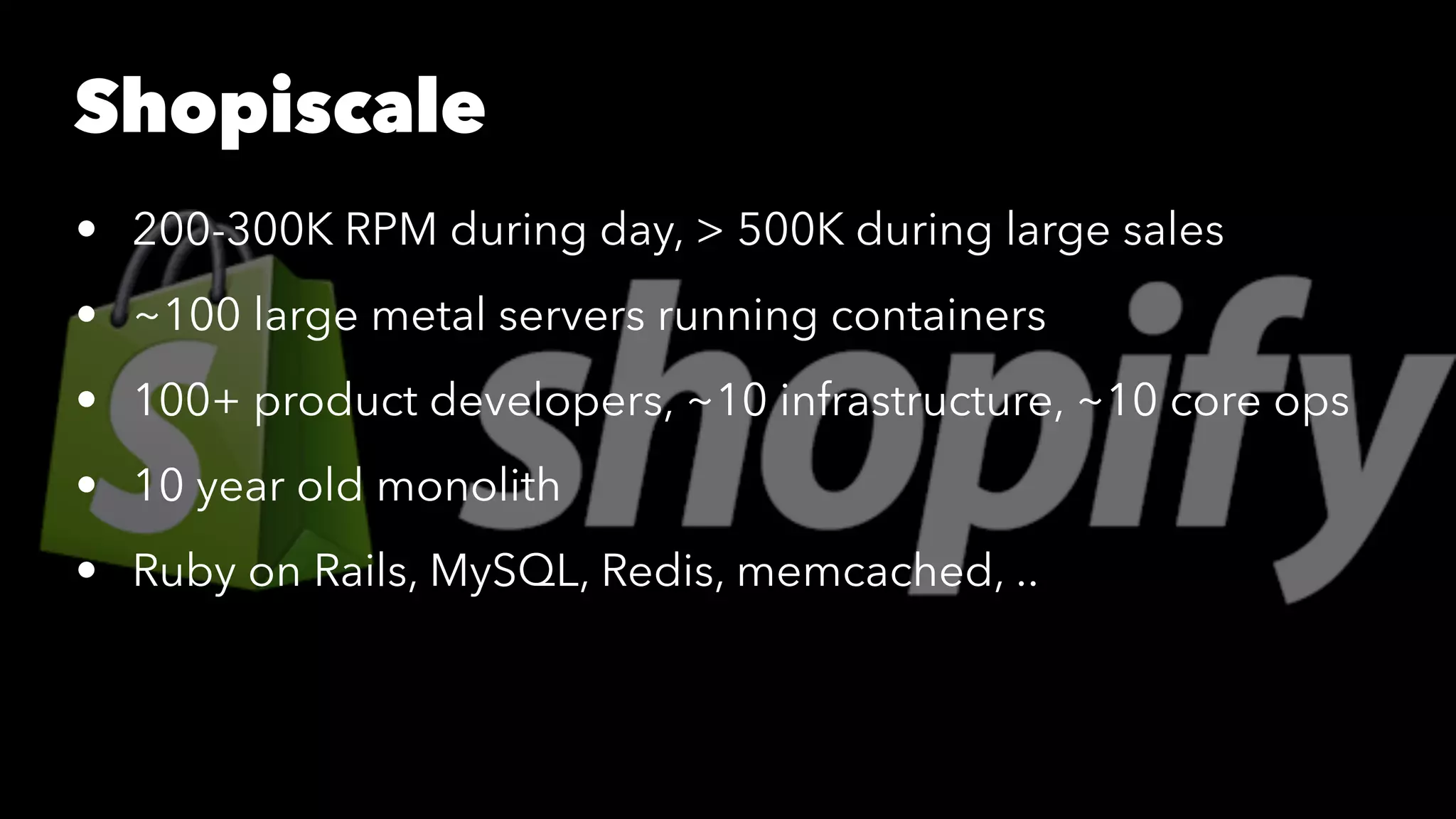

3. Shopiscale
• 200-300K RPM during day, > 500K during large sales
• ~100 large metal servers running containers
• 100+ product developers, ~10 infrastructure, ~10 core ops
• 10 year old monolith
• Ruby on Rails, MySQL, Redis, memcached, ..

4. Make it easier to
solve problems at
Shopify

5. Container
-------
Platform

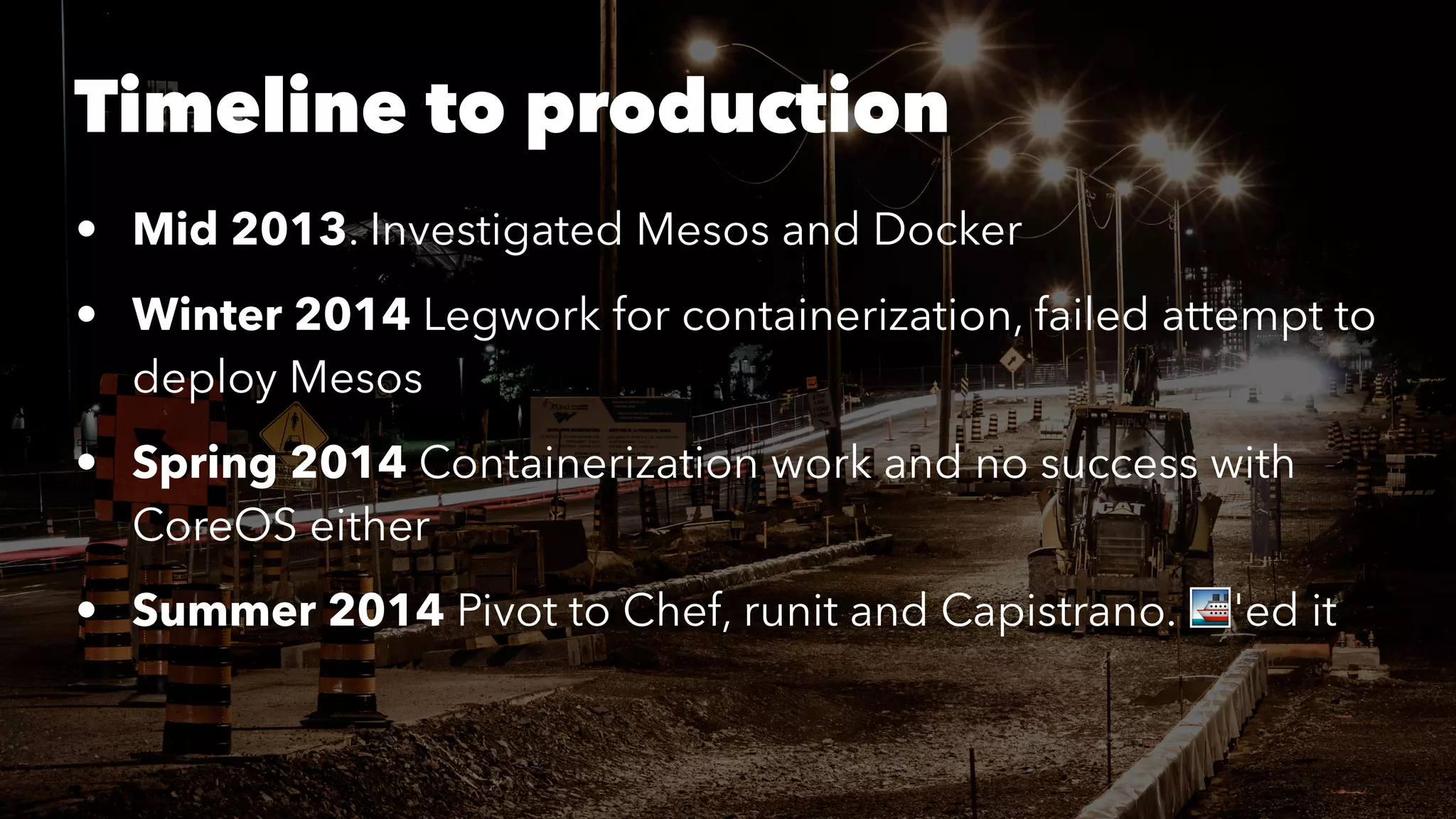

6. Timeline to production
• Mid 2013. Investigated Mesos and Docker
• Winter 2014 Legwork for containerization, failed attempt to
deploy Mesos
• Spring 2014 Containerization work and no success with
CoreOS either
• Summer 2014 Pivot to Chef, runit and Capistrano. !'ed it

7. Ship Docker as the only
change

8. Successfully shipping Docker
1. Play
2. Prepare
3. Containerize
4. Feature

9. 1. Play stage
• Develop feel for Docker
• Study namespaces, companies, cgroups, ..
• Prototyping
• Don't get stuck or starstruck

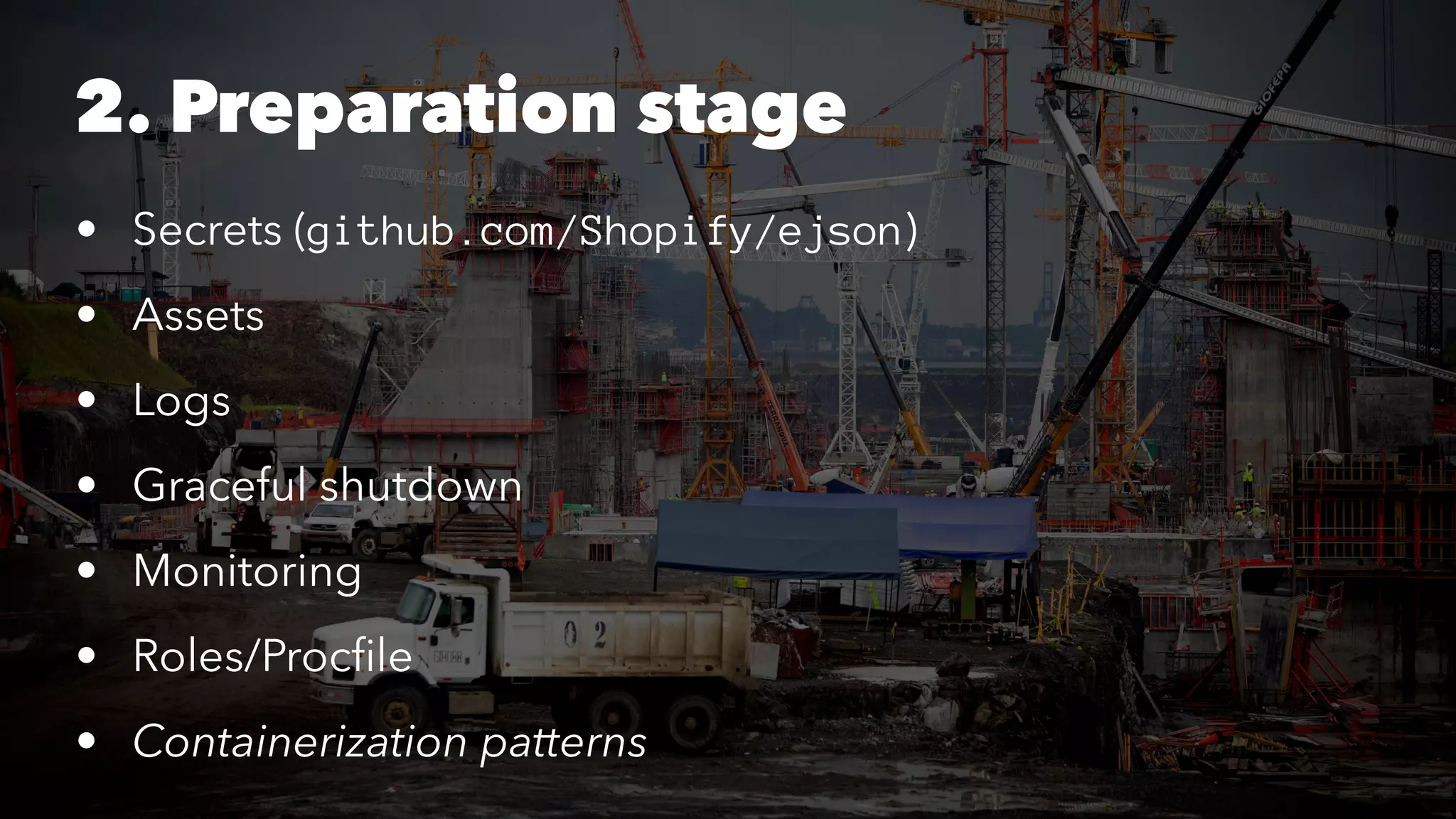

10. 2. Preparation stage
• Secrets (github.com/Shopify/ejson)
• Assets
• Logs
• Graceful shutdown
• Monitoring
• Roles/Procfile
• Containerization patterns

11. 3. Containerization stage
• Don't add new features to your infrastructure
• Building images/CI/dev
• Deployment
• Static orchestration
• Union filesystems
• init in container, Linux namespaces, cgroups, routing,
monitoring, security updates, registry..

12. 4. Feature stage !
• Buttons
• Distributed orchestration
• Service discovery
• Routing
• CoreOS
• PaaS
• ..

13. Verschlimmbesserung

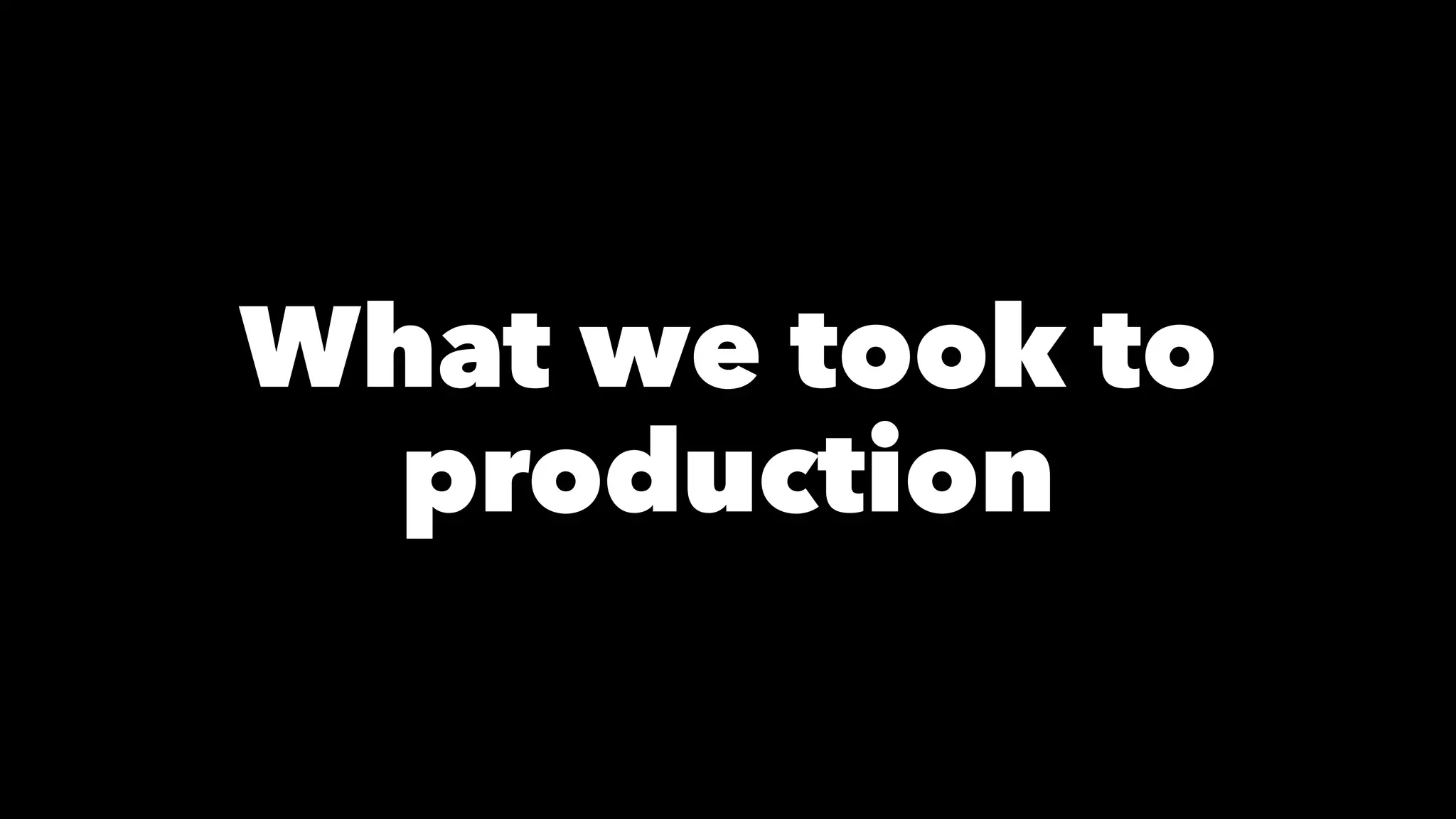

14. What we took to
production

15. Image Builds

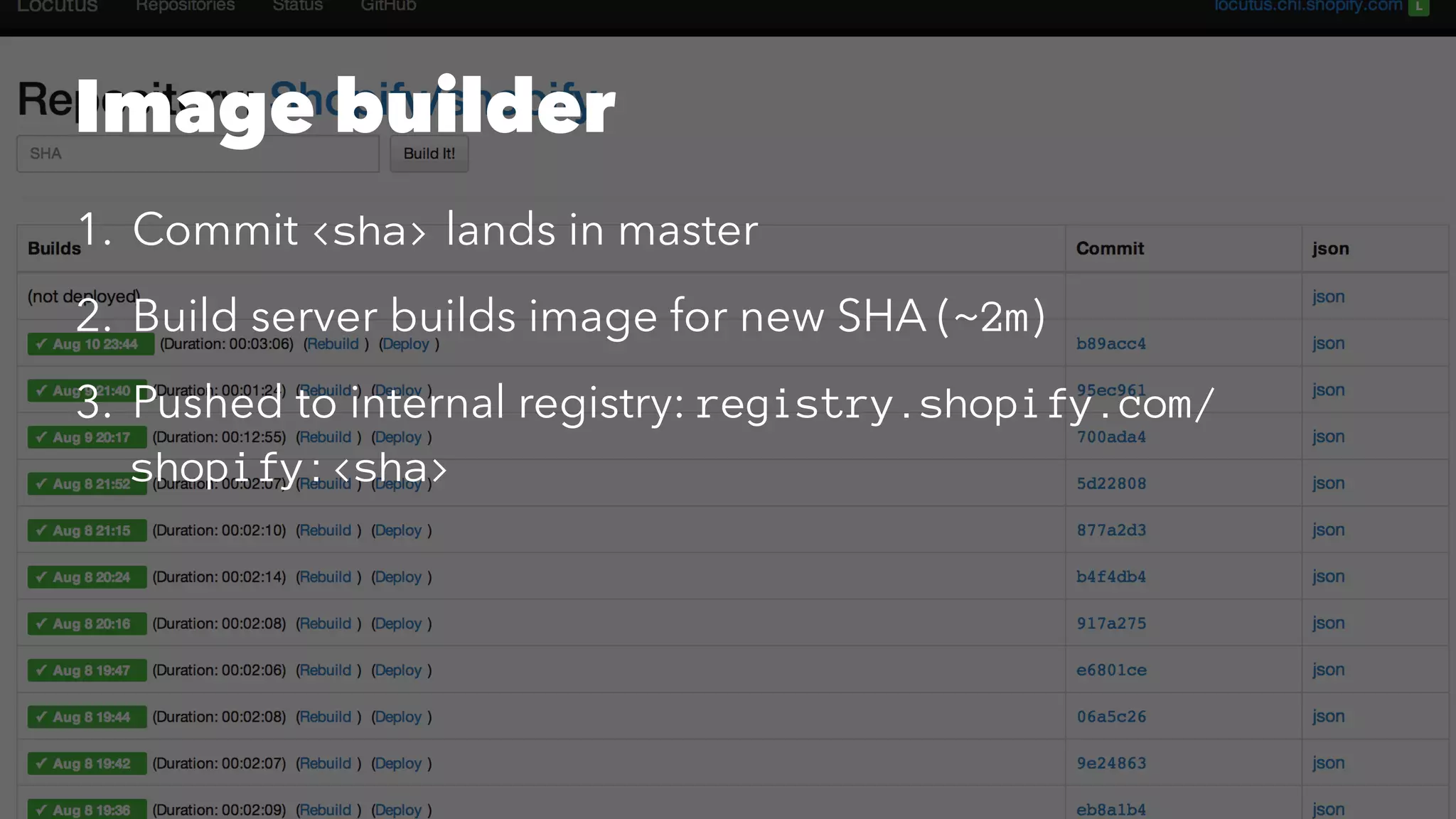

16. Image builder
1. Commit <sha> lands in master
2. Build server builds image for new SHA (~2m)
3. Pushed to internal registry: registry.shopify.com/
shopify:<sha>

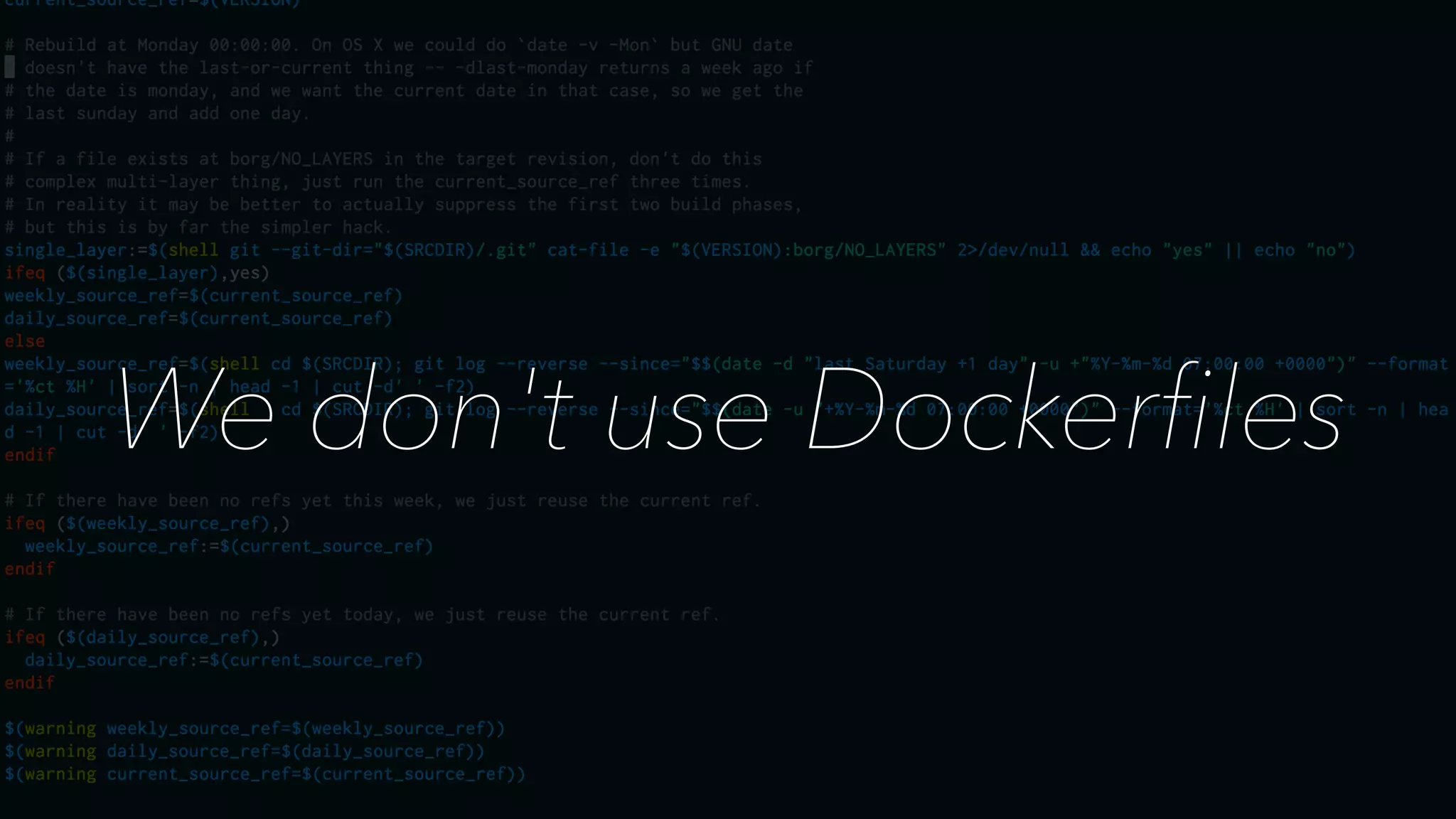

17. We don't use Dockerfiles

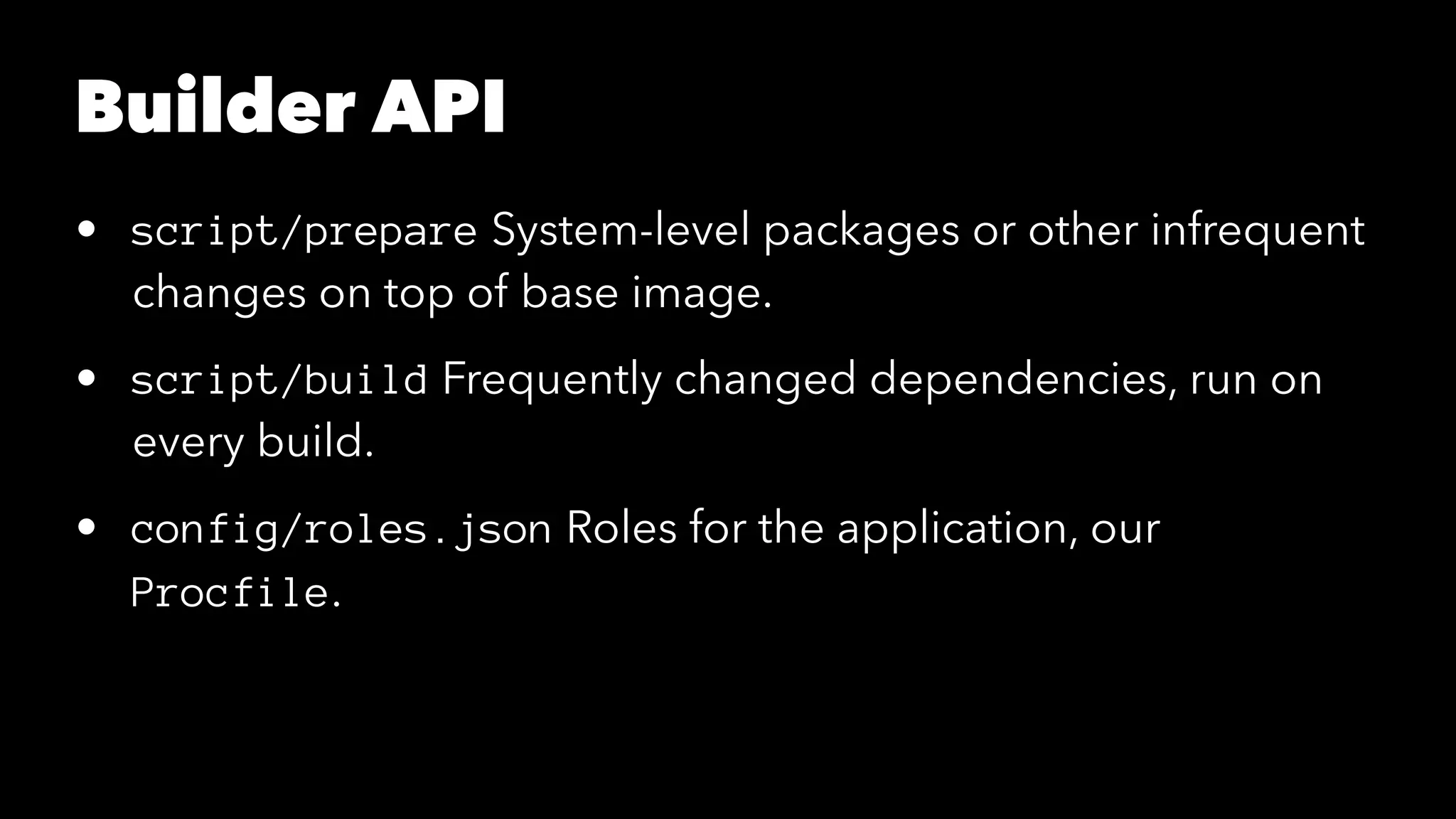

18. Builder API
• script/prepare System-level packages or other infrequent
changes on top of base image.
• script/build Frequently changed dependencies, run on
every build.
• config/roles.json Roles for the application, our
Procfile.

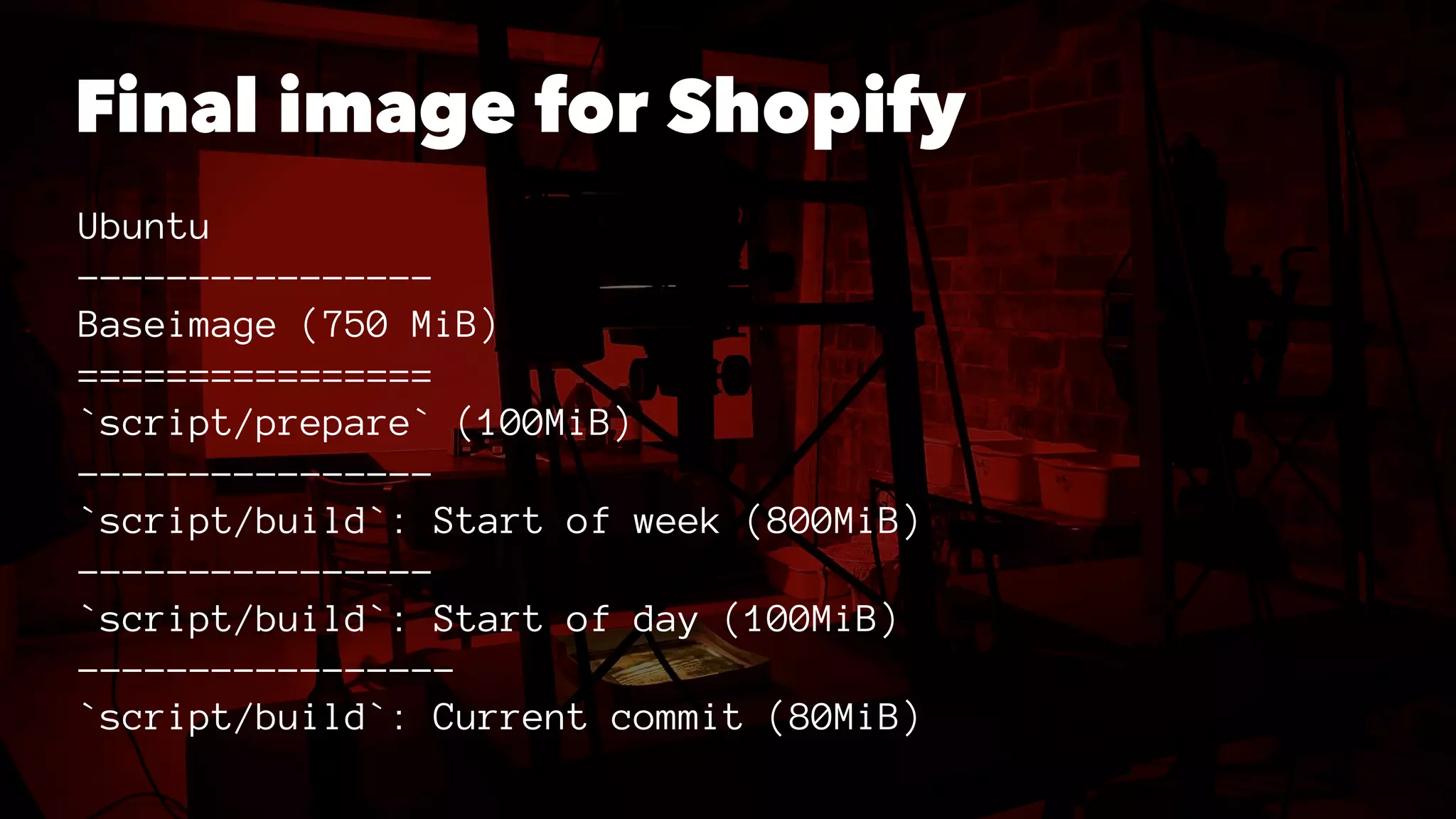

19. Final image for Shopify
Ubuntu
----------------
Baseimage (750 MiB)
================
`script/prepare` (100MiB)
----------------
`script/build`: Start of week (800MiB)
----------------
`script/build`: Start of day (100MiB)
-----------------
`script/build`: Current commit (80MiB)

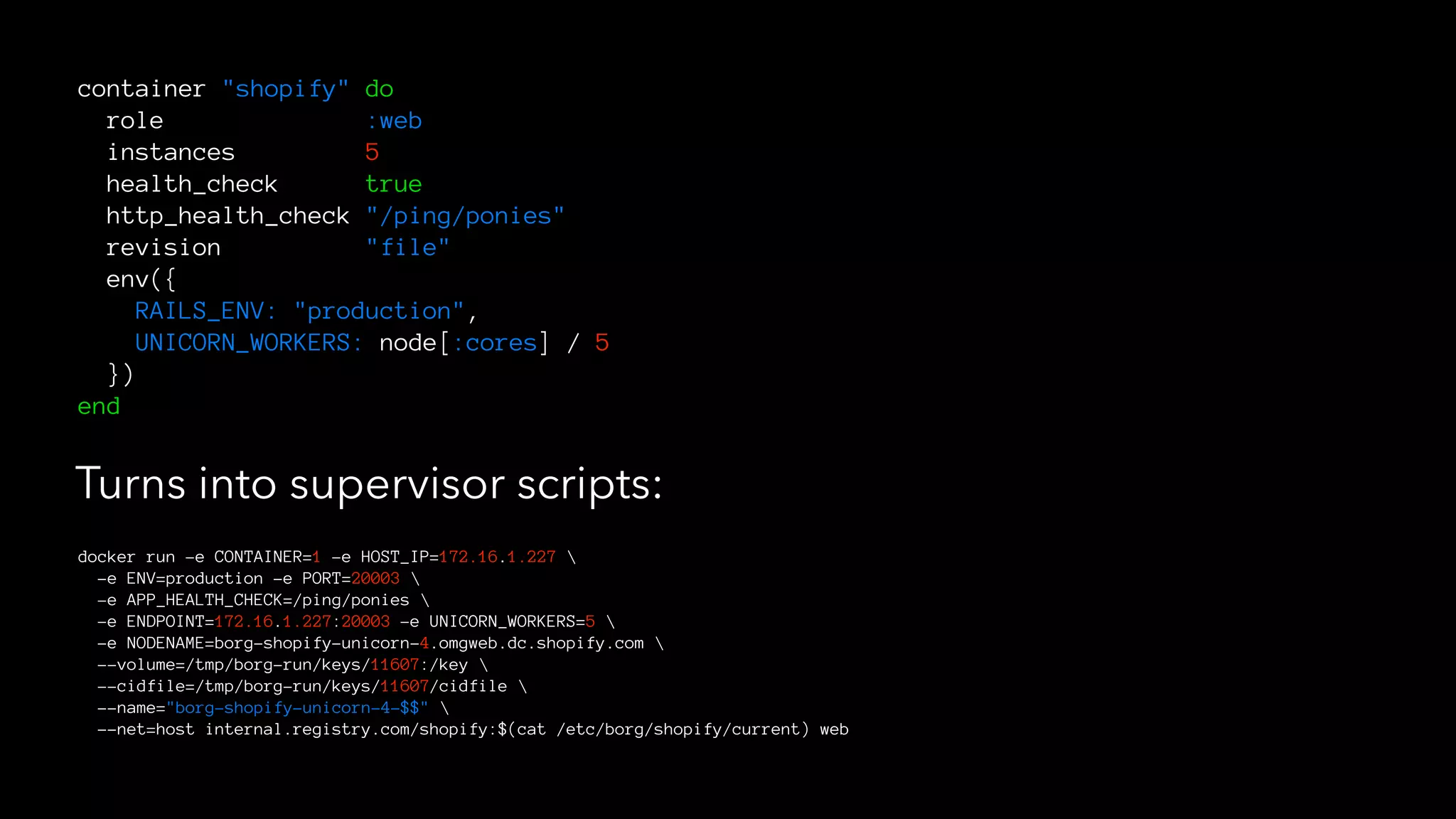

20. container "shopify" do
role :web
instances 5
health_check true
http_health_check "/ping/ponies"
revision "file"
env({
RAILS_ENV: "production",
UNICORN_WORKERS: node[:cores] / 5
})
end
Turns into supervisor scripts:
docker run -e CONTAINER=1 -e HOST_IP=172.16.1.227
-e ENV=production -e PORT=20003
-e APP_HEALTH_CHECK=/ping/ponies
-e ENDPOINT=172.16.1.227:20003 -e UNICORN_WORKERS=5
-e NODENAME=borg-shopify-unicorn-4.omgweb.dc.shopify.com
--volume=/tmp/borg-run/keys/11607:/key
--cidfile=/tmp/borg-run/keys/11607/cidfile
--name="borg-shopify-unicorn-4-$$"
--net=host internal.registry.com/shopify:$(cat /etc/borg/shopify/current) web

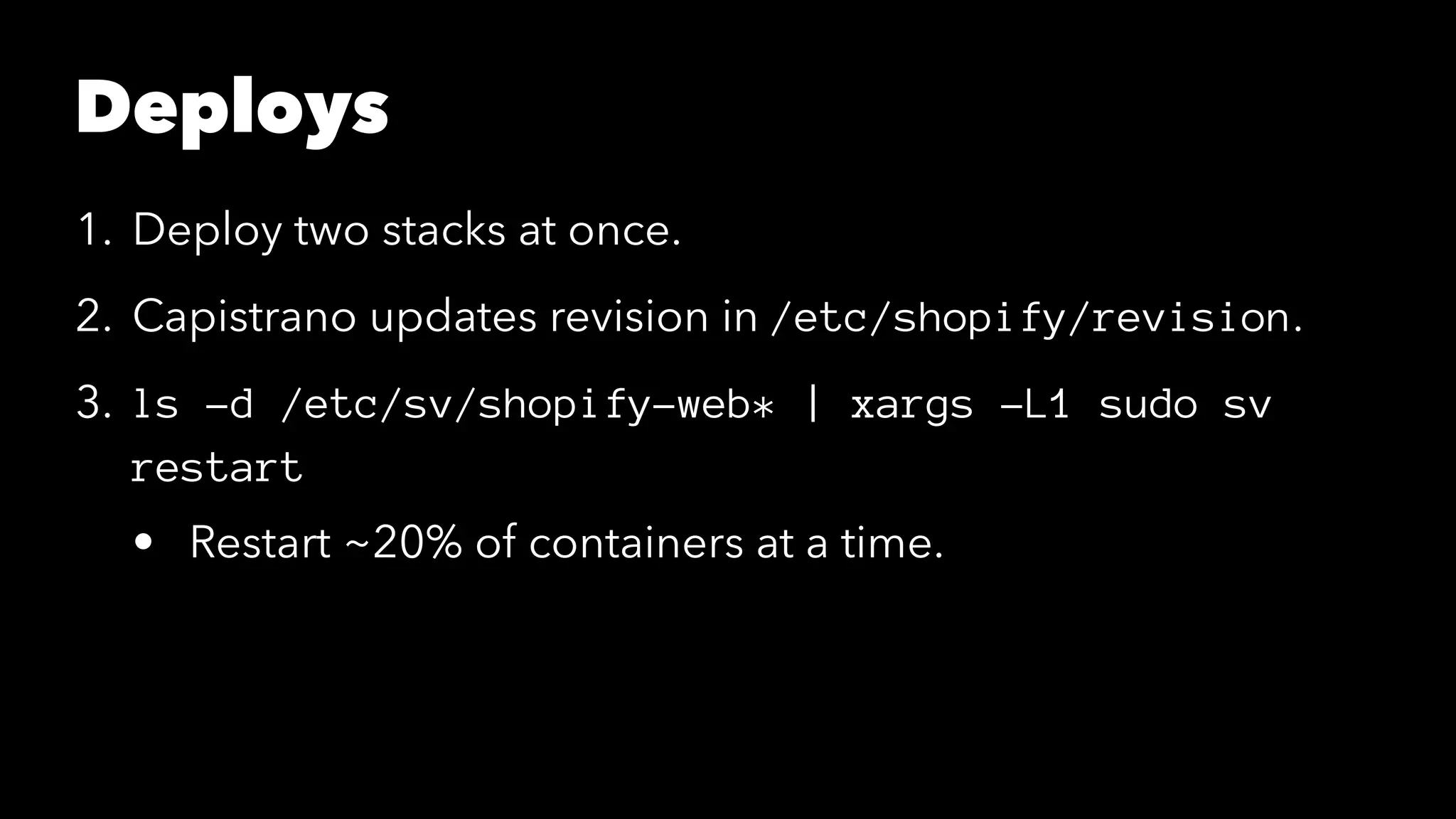

21. Deploys
1. Deploy two stacks at once.
2. Capistrano updates revision in /etc/shopify/revision.
3. ls -d /etc/sv/shopify-web* | xargs -L1 sudo sv
restart
• Restart ~20% of containers at a time.

22. Containers are the future,
but it's still hard in
production

24. Simon Eskildsen, Infrastructure @ Shopify
@Sirupsen

25. Thank You.

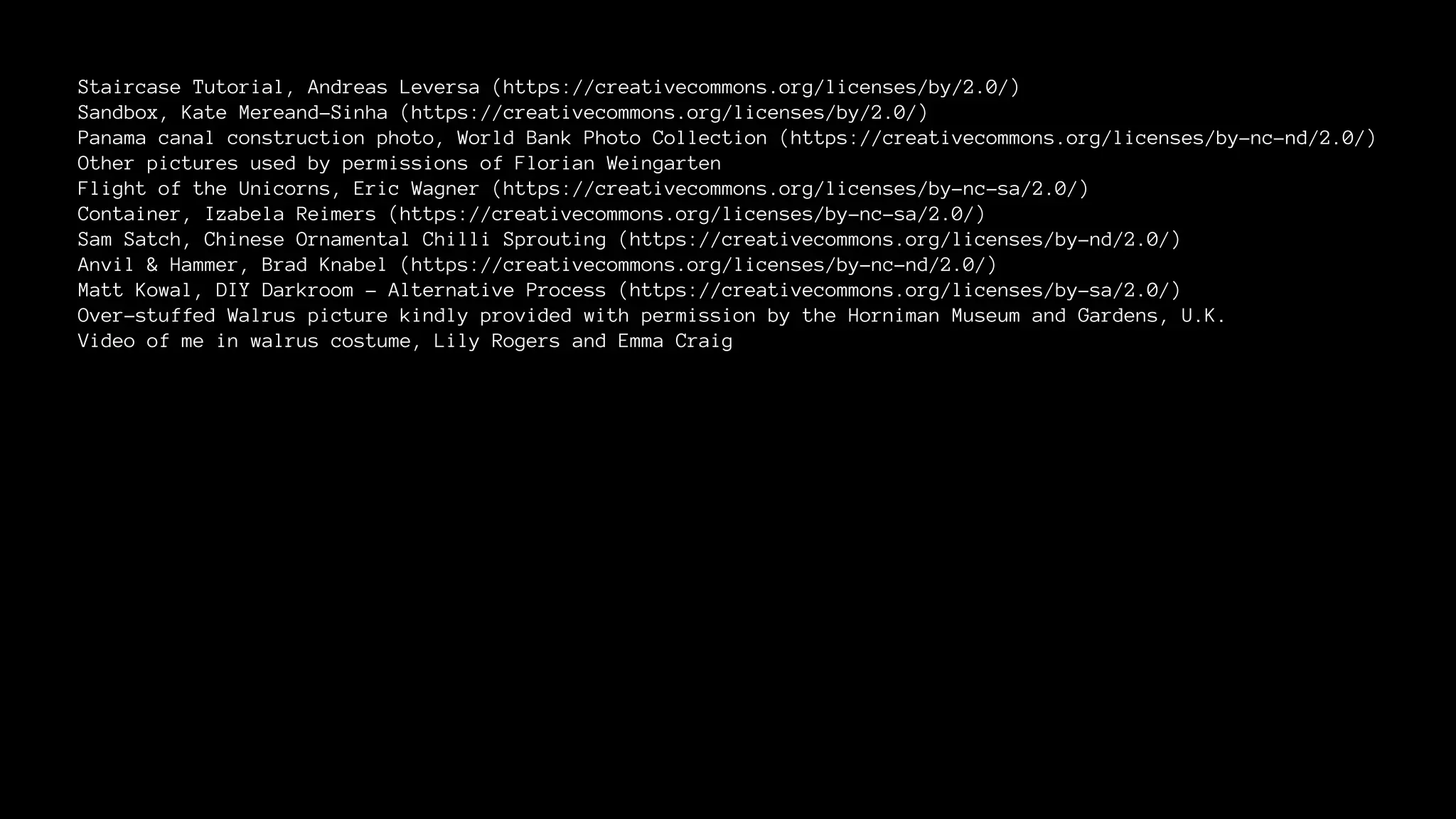

26. Staircase Tutorial, Andreas Leversa (https://creativecommons.org/licenses/by/2.0/)
