D-NAT
FIREWALLS

2. DESTINATION NAT
FIREWALLS
1. PUBLIC IP VS PRIVATE IP
2. WHAT IS NAT?
3. TYPES OF NAT
4. NAT PROCESSING ORDER
5. HOW DOES DESTINATION NAT WITH A SINGLE IP TRANSLATION WORK?
6. CONFIGURING D-NAT WITH WITH SINGLE IP TRANSLATION
7. HOW DOES D-NAT WITH SUBNET TRANSLATION WORK?
8. CONFIGURING D-NAT WITH SUBNET TRANSLATION
8. HOW DOES D-NAT WITH PORT TRANSLATION WORK?
10. CONFIGURING D-NAT WITH PORT TRANSLATION

3. NAT

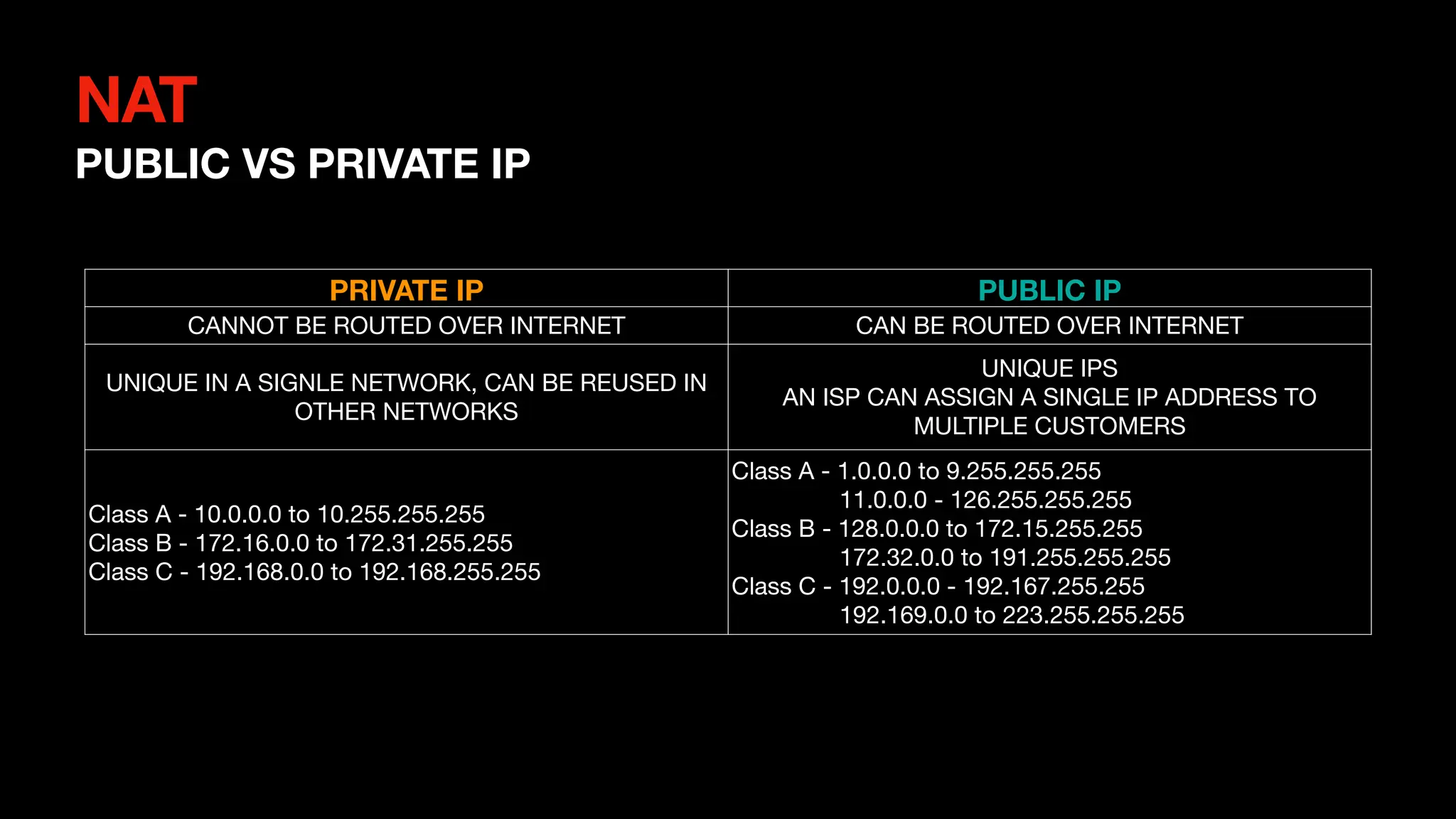

PUBLIC VS PRIVATE IP
PRIVATE IP PUBLIC IP
CANNOT BE ROUTED OVER INTERNET CAN BE ROUTED OVER INTERNET
UNIQUE IN A SIGNLE NETWORK, CAN BE REUSED IN
OTHER NETWORKS
UNIQUE IPS
AN ISP CAN ASSIGN A SINGLE IP ADDRESS TO
MULTIPLE CUSTOMERS
Class A - 10.0.0.0 to 10.255.255.255
Class B - 172.16.0.0 to 172.31.255.255
Class C - 192.168.0.0 to 192.168.255.255
Class A - 1.0.0.0 to 9.255.255.255
11.0.0.0 - 126.255.255.255
Class B - 128.0.0.0 to 172.15.255.255
172.32.0.0 to 191.255.255.255
Class C - 192.0.0.0 - 192.167.255.255
192.169.0.0 to 223.255.255.255

4. NAT

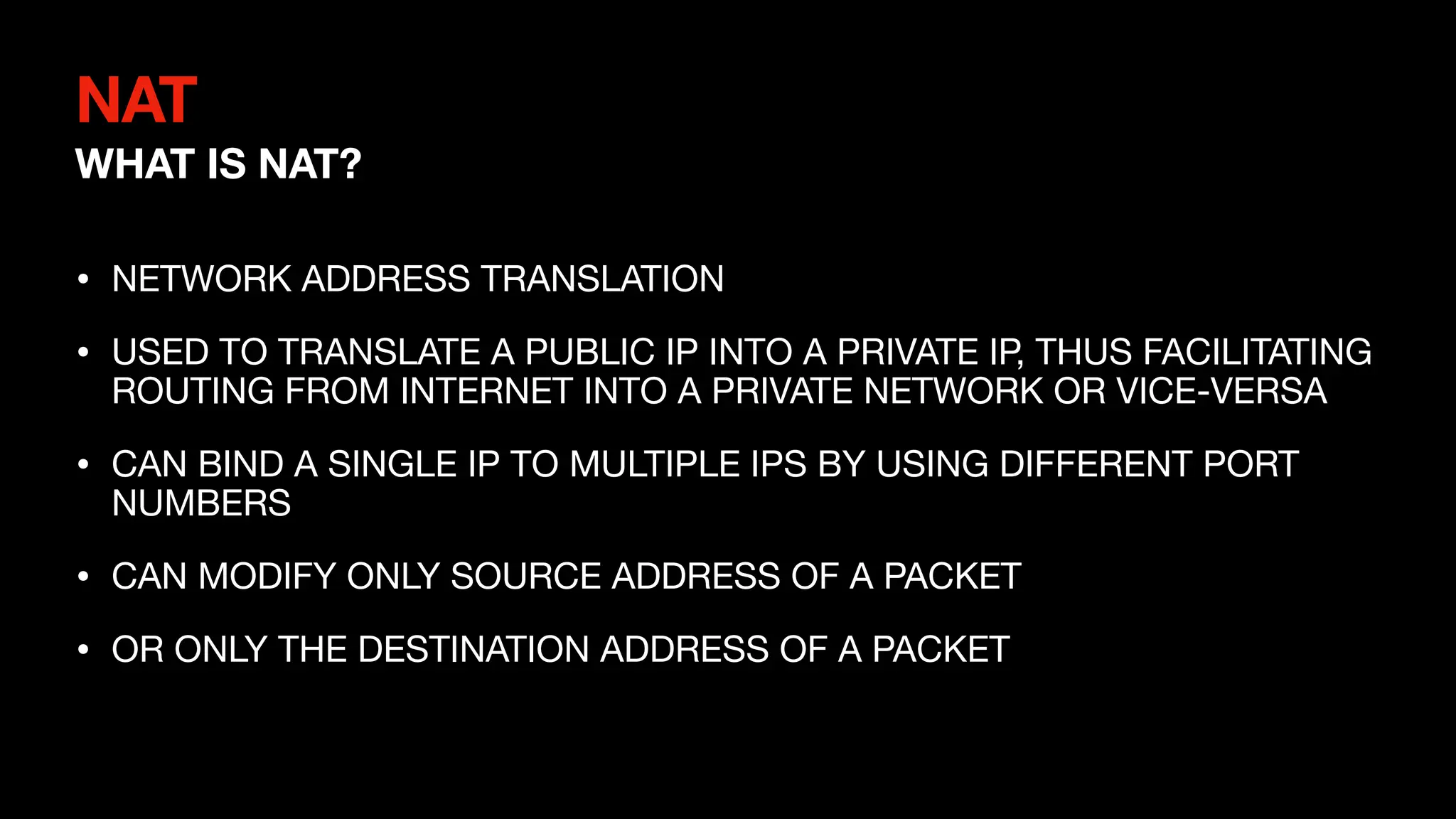

WHAT IS NAT?
• NETWORK ADDRESS TRANSLATION
• USED TO TRANSLATE A PUBLIC IP INTO A PRIVATE IP, THUS FACILITATING
ROUTING FROM INTERNET INTO A PRIVATE NETWORK OR VICE-VERSA
• CAN BIND A SINGLE IP TO MULTIPLE IPS BY USING DIFFERENT PORT
NUMBERS
• CAN MODIFY ONLY SOURCE ADDRESS OF A PACKET
• OR ONLY THE DESTINATION ADDRESS OF A PACKET

5. NAT

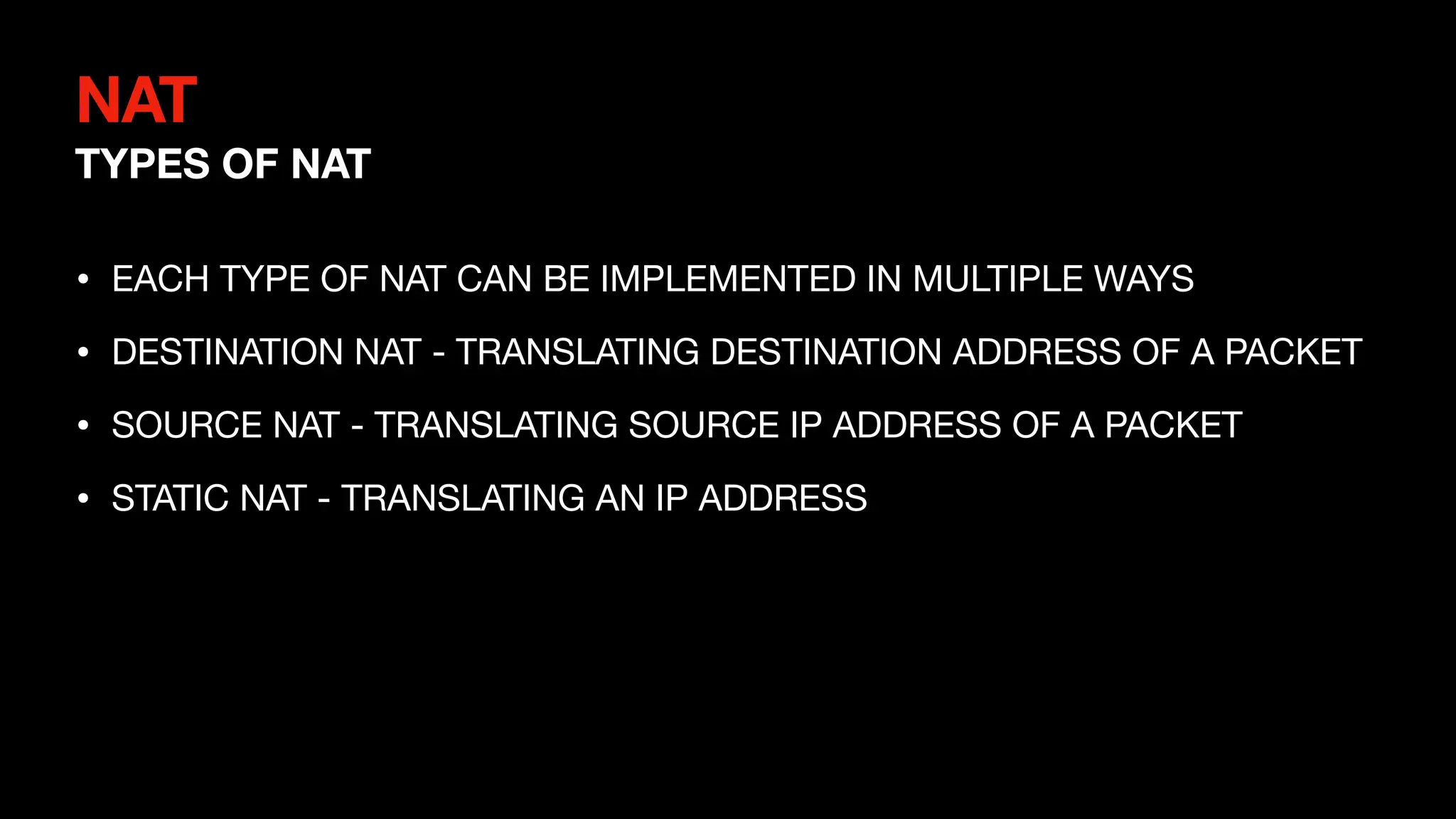

TYPES OF NAT
• EACH TYPE OF NAT CAN BE IMPLEMENTED IN MULTIPLE WAYS
• DESTINATION NAT - TRANSLATING DESTINATION ADDRESS OF A PACKET
• SOURCE NAT - TRANSLATING SOURCE IP ADDRESS OF A PACKET
• STATIC NAT - TRANSLATING AN IP ADDRESS

6. NAT

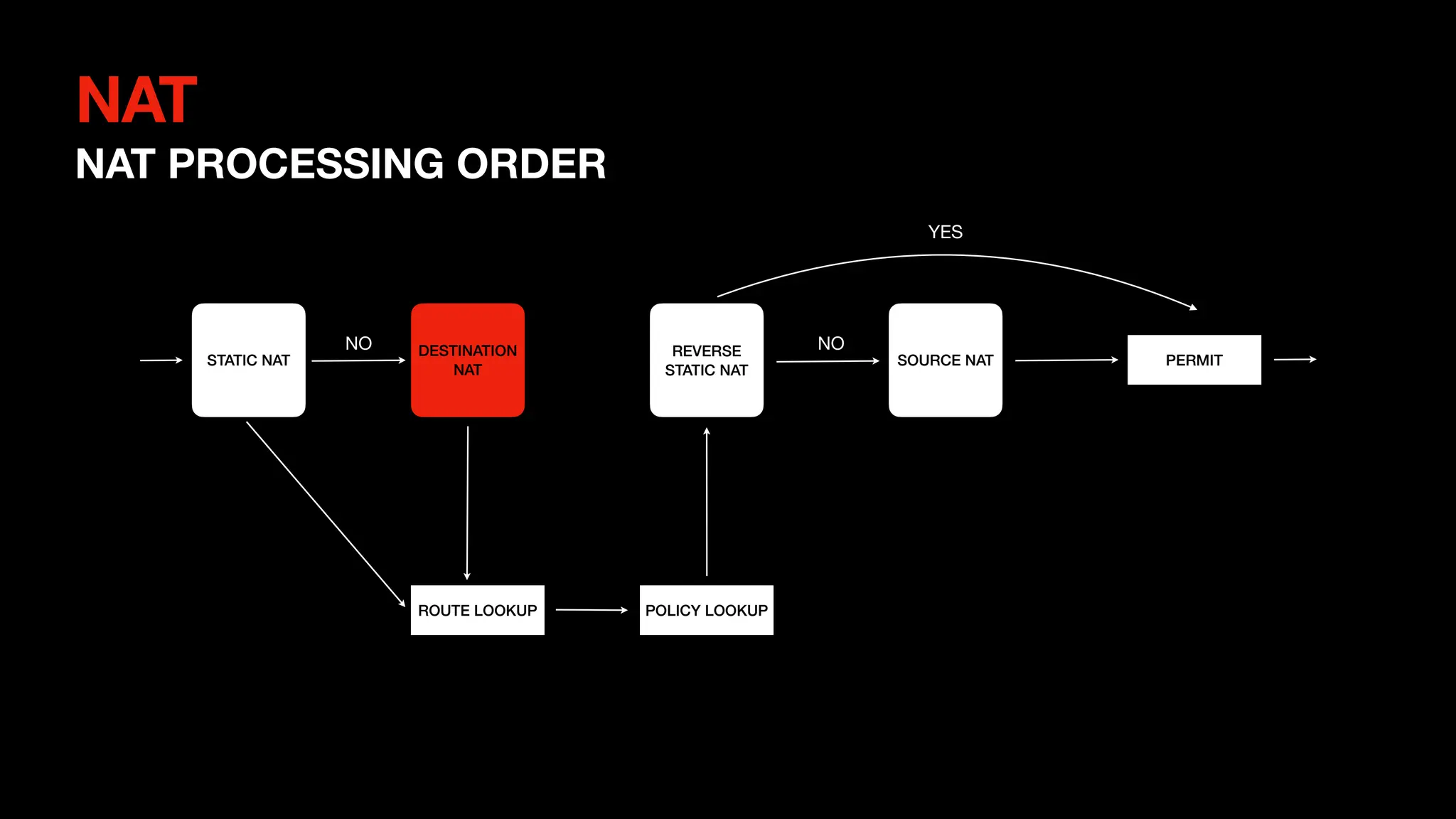

NAT PROCESSING ORDER
STATIC NAT
ROUTE LOOKUP
DESTINATION
NAT
REVERSE
STATIC NAT
SOURCE NAT
POLICY LOOKUP
PERMIT
NO NO
YES

7. D-NAT

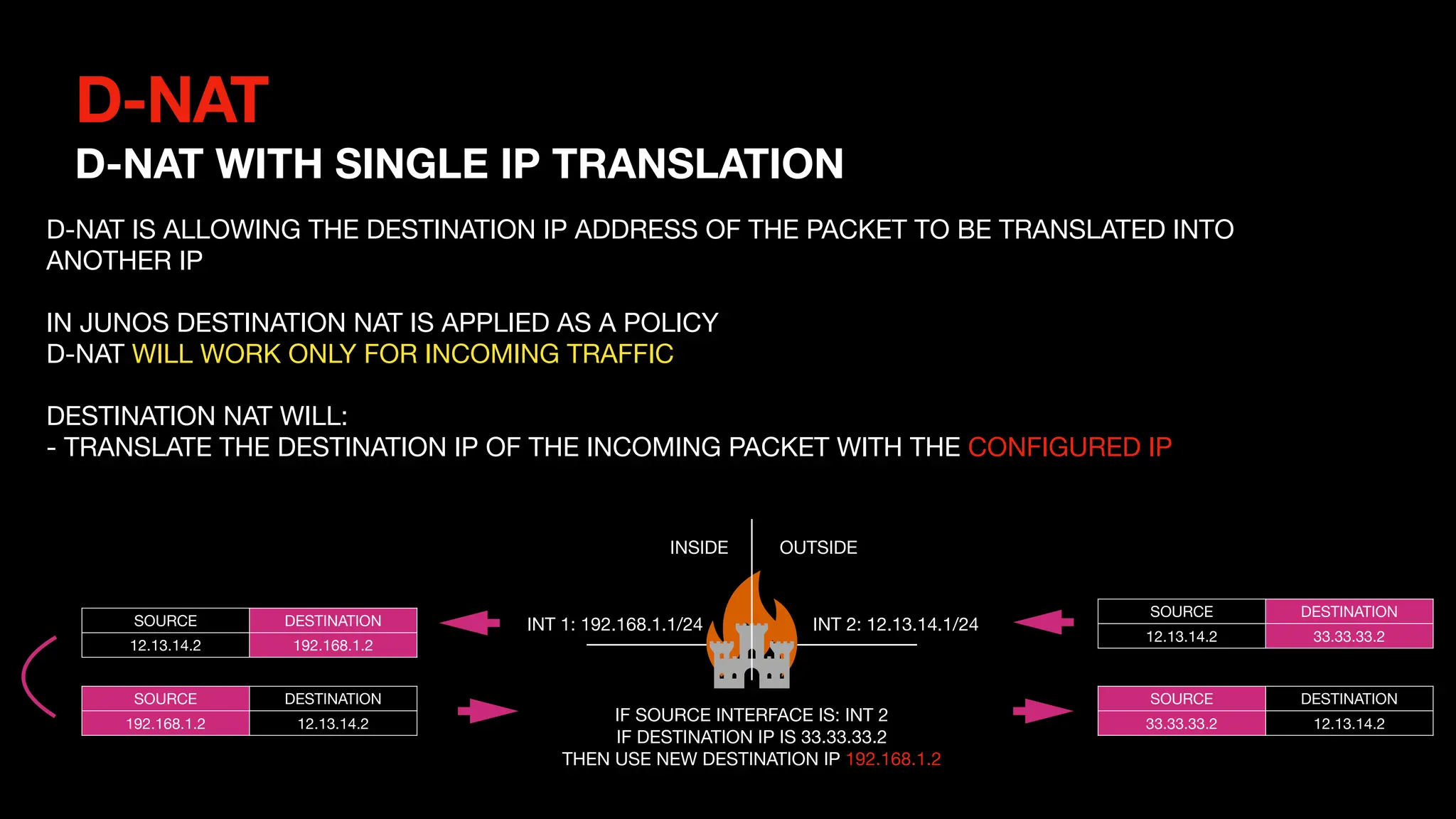

D-NAT WITH SINGLE IP TRANSLATION
INSIDE OUTSIDE
INT 1: 192.168.1.1/24 INT 2: 12.13.14.1/24
SOURCE DESTINATION
12.13.14.2 33.33.33.2
SOURCE DESTINATION
12.13.14.2 192.168.1.2
D-NAT IS ALLOWING THE DESTINATION IP ADDRESS OF THE PACKET TO BE TRANSLATED INTO
ANOTHER IP
IN JUNOS DESTINATION NAT IS APPLIED AS A POLICY
D-NAT WILL WORK ONLY FOR INCOMING TRAFFIC
DESTINATION NAT WILL:
- TRANSLATE THE DESTINATION IP OF THE INCOMING PACKET WITH THE CONFIGURED IP
IF SOURCE INTERFACE IS: INT 2
IF DESTINATION IP IS 33.33.33.2
THEN USE NEW DESTINATION IP 192.168.1.2
SOURCE DESTINATION
192.168.1.2 12.13.14.2
SOURCE DESTINATION
33.33.33.2 12.13.14.2

8. D-NAT

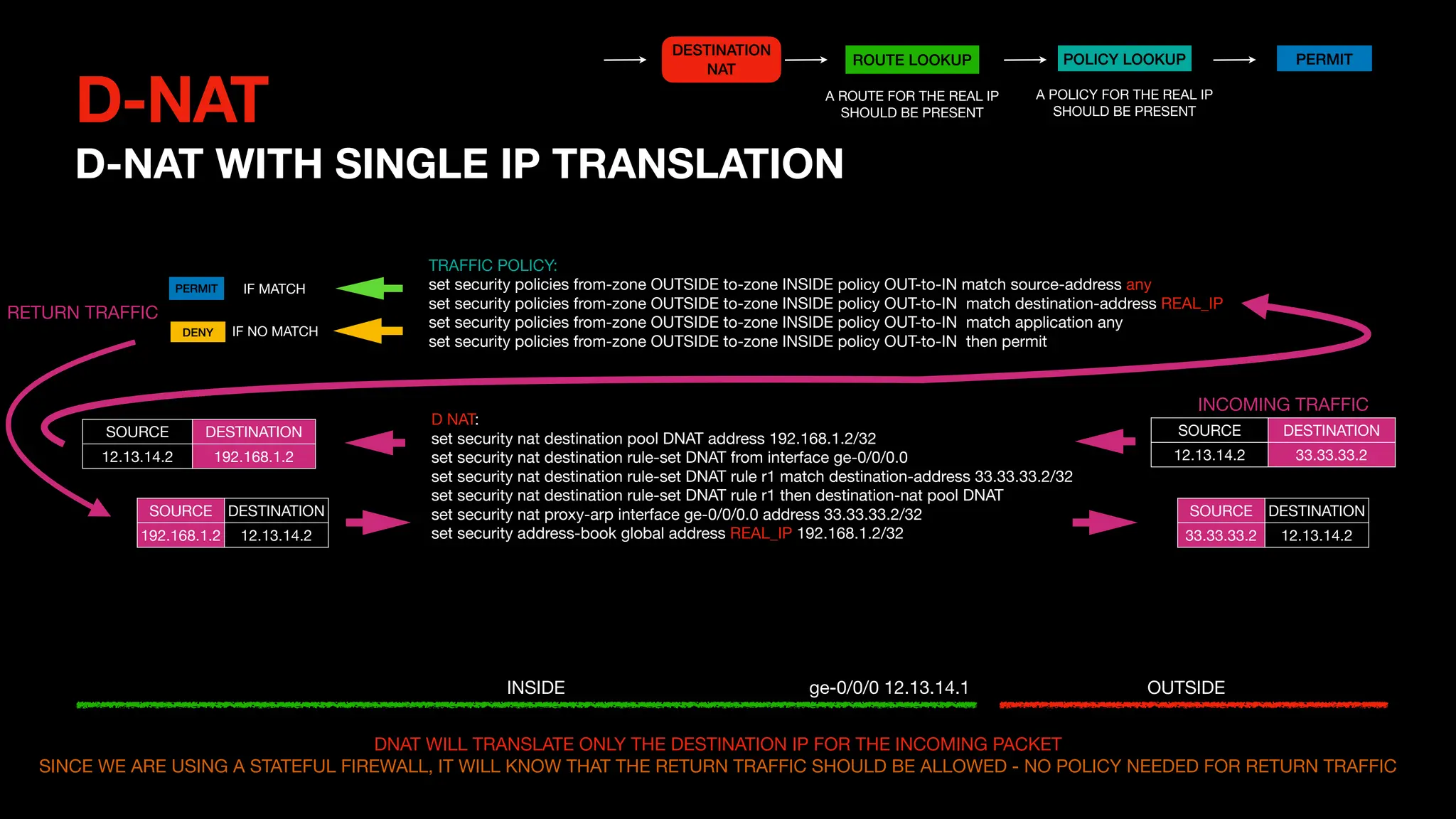

D-NAT WITH SINGLE IP TRANSLATION
D NAT:
set security nat destination pool DNAT address 192.168.1.2/32
set security nat destination rule-set DNAT from interface ge-0/0/0.0
set security nat destination rule-set DNAT rule r1 match destination-address 33.33.33.2/32
set security nat destination rule-set DNAT rule r1 then destination-nat pool DNAT
set security nat proxy-arp interface ge-0/0/0.0 address 33.33.33.2/32
set security address-book global address REAL_IP 192.168.1.2/32
TRAFFIC POLICY:
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match source-address any
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match destination-address REAL_IP
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match application any
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN then permit
ROUTE LOOKUP POLICY LOOKUP PERMIT
A ROUTE FOR THE REAL IP
SHOULD BE PRESENT
A POLICY FOR THE REAL IP
SHOULD BE PRESENT
SOURCE DESTINATION
12.13.14.2 33.33.33.2
IF MATCH
IF NO MATCH
PERMIT
DENY
SOURCE DESTINATION
12.13.14.2 192.168.1.2
INCOMING TRAFFIC
DNAT WILL TRANSLATE ONLY THE DESTINATION IP FOR THE INCOMING PACKET
SINCE WE ARE USING A STATEFUL FIREWALL, IT WILL KNOW THAT THE RETURN TRAFFIC SHOULD BE ALLOWED - NO POLICY NEEDED FOR RETURN TRAFFIC
OUTSIDE
INSIDE ge-0/0/0 12.13.14.1
DESTINATION
NAT
SOURCE DESTINATION
192.168.1.2 12.13.14.2
SOURCE DESTINATION
33.33.33.2 12.13.14.2
RETURN TRAFFIC

9. D-NAT

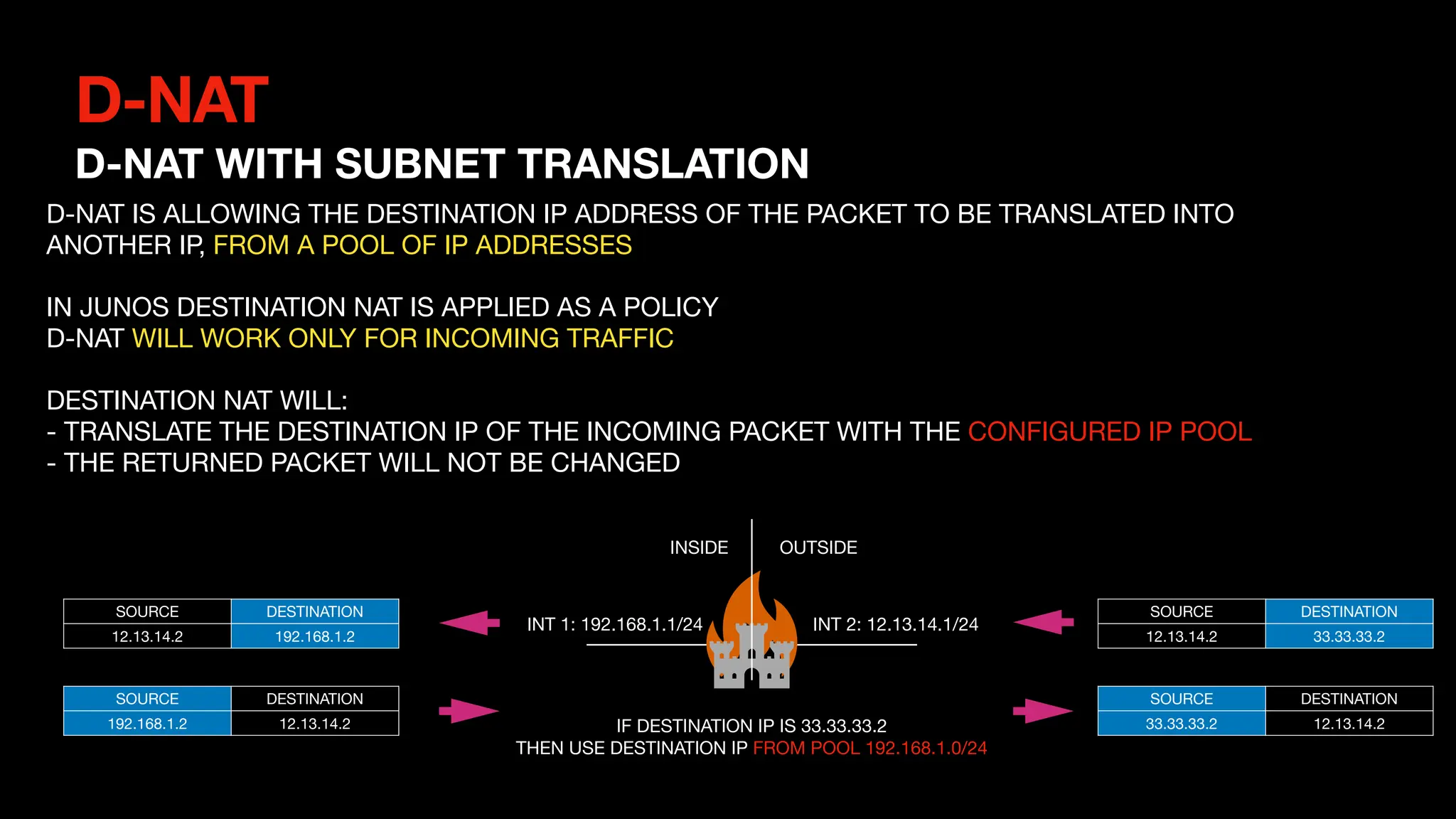

D-NAT WITH SUBNET TRANSLATION
INSIDE OUTSIDE
INT 1: 192.168.1.1/24 INT 2: 12.13.14.1/24
SOURCE DESTINATION
12.13.14.2 33.33.33.2
SOURCE DESTINATION
12.13.14.2 192.168.1.2
D-NAT IS ALLOWING THE DESTINATION IP ADDRESS OF THE PACKET TO BE TRANSLATED INTO
ANOTHER IP, FROM A POOL OF IP ADDRESSES
IN JUNOS DESTINATION NAT IS APPLIED AS A POLICY
D-NAT WILL WORK ONLY FOR INCOMING TRAFFIC
DESTINATION NAT WILL:
- TRANSLATE THE DESTINATION IP OF THE INCOMING PACKET WITH THE CONFIGURED IP POOL
- THE RETURNED PACKET WILL NOT BE CHANGED
IF DESTINATION IP IS 33.33.33.2
THEN USE DESTINATION IP FROM POOL 192.168.1.0/24
SOURCE DESTINATION
192.168.1.2 12.13.14.2
SOURCE DESTINATION
33.33.33.2 12.13.14.2

10. D-NAT

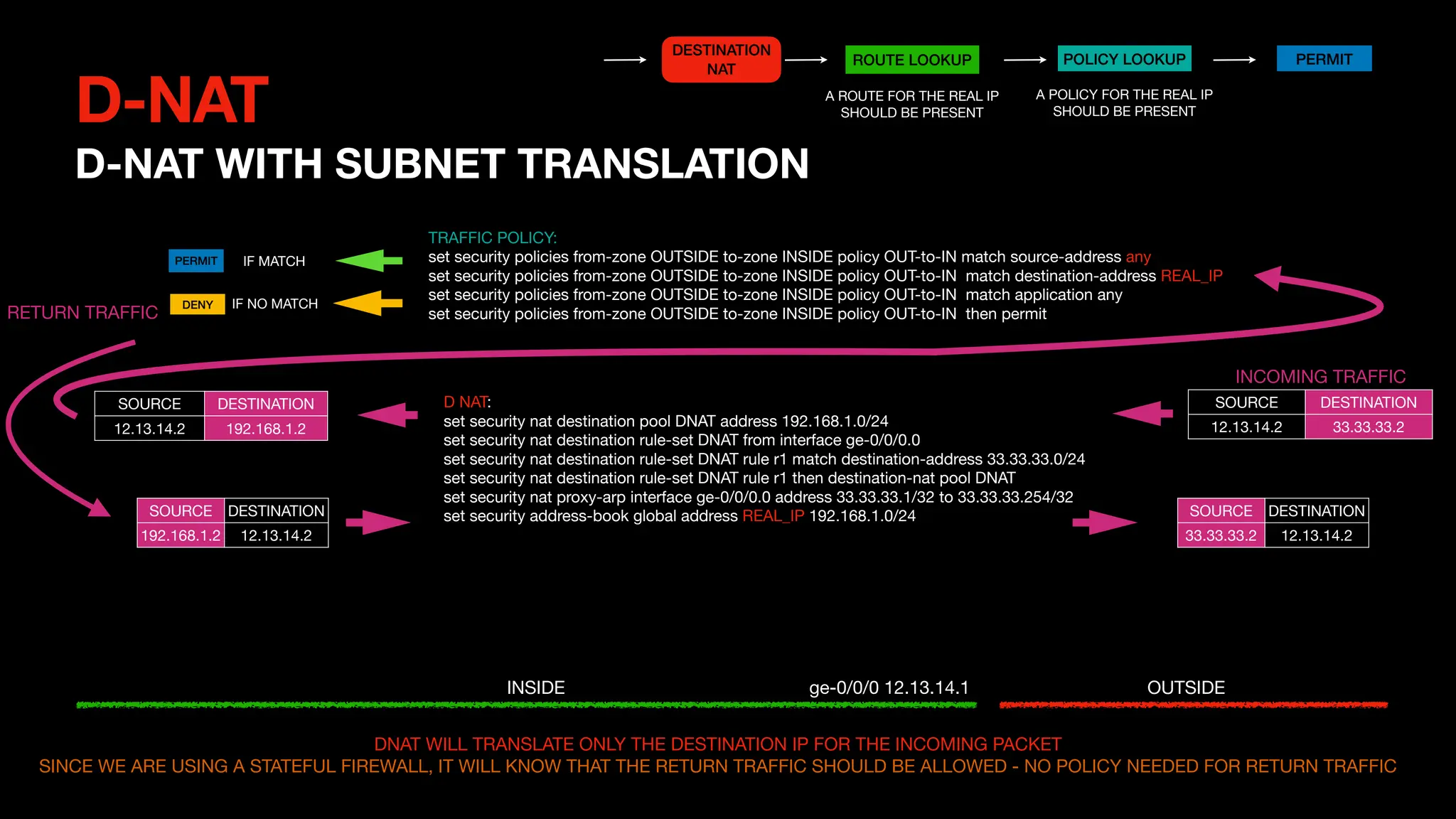

D-NAT WITH SUBNET TRANSLATION
D NAT:
set security nat destination pool DNAT address 192.168.1.0/24
set security nat destination rule-set DNAT from interface ge-0/0/0.0
set security nat destination rule-set DNAT rule r1 match destination-address 33.33.33.0/24
set security nat destination rule-set DNAT rule r1 then destination-nat pool DNAT
set security nat proxy-arp interface ge-0/0/0.0 address 33.33.33.1/32 to 33.33.33.254/32
set security address-book global address REAL_IP 192.168.1.0/24
TRAFFIC POLICY:
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match source-address any
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match destination-address REAL_IP
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match application any
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN then permit
SOURCE DESTINATION
12.13.14.2 33.33.33.2
IF MATCH
IF NO MATCH
PERMIT
DENY
SOURCE DESTINATION
12.13.14.2 192.168.1.2
INCOMING TRAFFIC
ROUTE LOOKUP POLICY LOOKUP PERMIT
A ROUTE FOR THE REAL IP
SHOULD BE PRESENT
A POLICY FOR THE REAL IP
SHOULD BE PRESENT
DNAT WILL TRANSLATE ONLY THE DESTINATION IP FOR THE INCOMING PACKET
SINCE WE ARE USING A STATEFUL FIREWALL, IT WILL KNOW THAT THE RETURN TRAFFIC SHOULD BE ALLOWED - NO POLICY NEEDED FOR RETURN TRAFFIC
OUTSIDE
INSIDE ge-0/0/0 12.13.14.1
DESTINATION
NAT
SOURCE DESTINATION
192.168.1.2 12.13.14.2
SOURCE DESTINATION
33.33.33.2 12.13.14.2
RETURN TRAFFIC

11. D-NAT

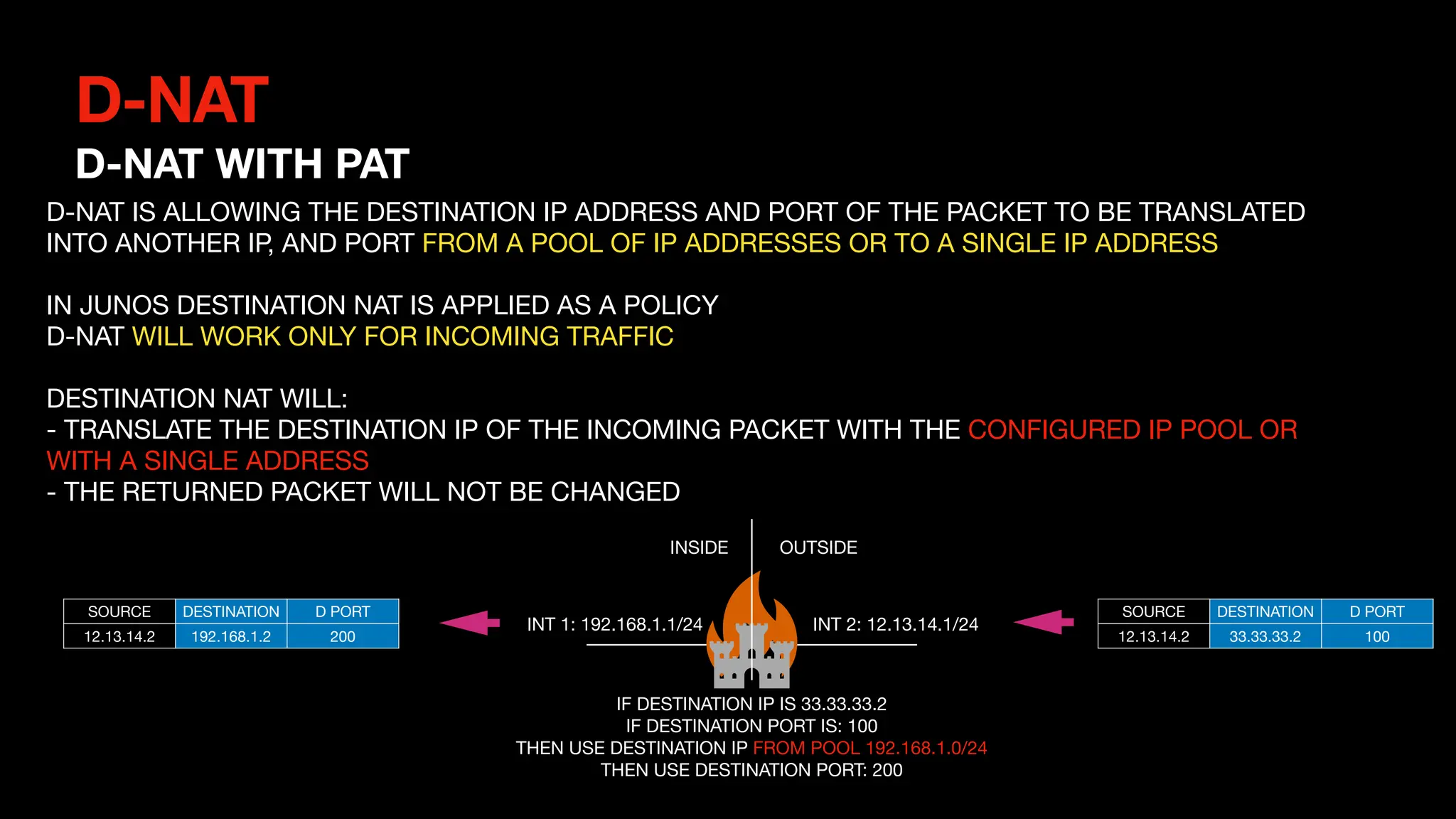

D-NAT WITH PAT
INSIDE OUTSIDE
INT 1: 192.168.1.1/24 INT 2: 12.13.14.1/24
SOURCE DESTINATION D PORT
12.13.14.2 33.33.33.2 100
SOURCE DESTINATION D PORT
12.13.14.2 192.168.1.2 200
D-NAT IS ALLOWING THE DESTINATION IP ADDRESS AND PORT OF THE PACKET TO BE TRANSLATED
INTO ANOTHER IP, AND PORT FROM A POOL OF IP ADDRESSES OR TO A SINGLE IP ADDRESS
IN JUNOS DESTINATION NAT IS APPLIED AS A POLICY
D-NAT WILL WORK ONLY FOR INCOMING TRAFFIC
DESTINATION NAT WILL:
- TRANSLATE THE DESTINATION IP OF THE INCOMING PACKET WITH THE CONFIGURED IP POOL OR
WITH A SINGLE ADDRESS
- THE RETURNED PACKET WILL NOT BE CHANGED
IF DESTINATION IP IS 33.33.33.2
IF DESTINATION PORT IS: 100
THEN USE DESTINATION IP FROM POOL 192.168.1.0/24
THEN USE DESTINATION PORT: 200

12. D-NAT

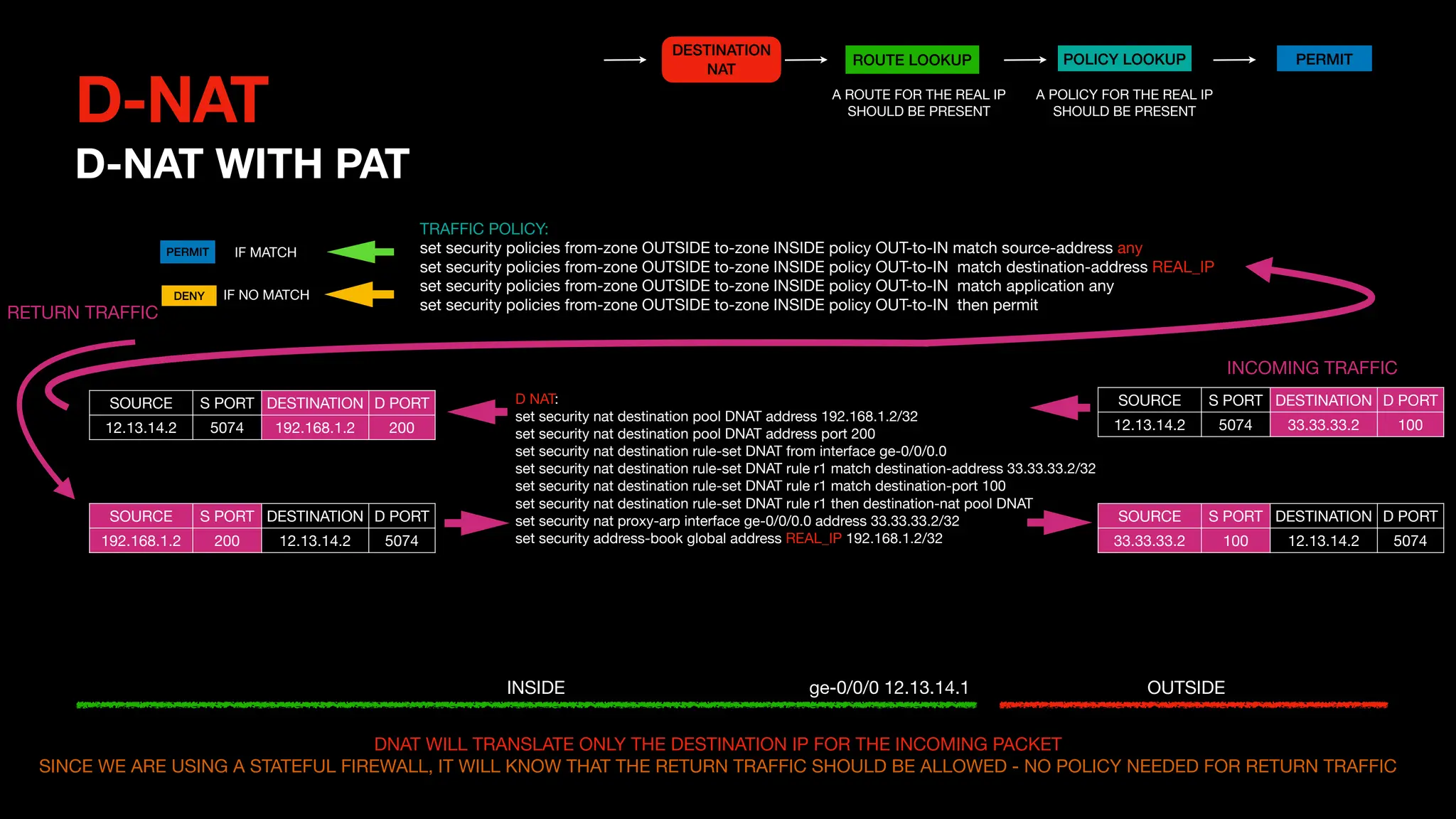

D-NAT WITH PAT
D NAT:
set security nat destination pool DNAT address 192.168.1.2/32
set security nat destination pool DNAT address port 200
set security nat destination rule-set DNAT from interface ge-0/0/0.0
set security nat destination rule-set DNAT rule r1 match destination-address 33.33.33.2/32
set security nat destination rule-set DNAT rule r1 match destination-port 100
set security nat destination rule-set DNAT rule r1 then destination-nat pool DNAT
set security nat proxy-arp interface ge-0/0/0.0 address 33.33.33.2/32
set security address-book global address REAL_IP 192.168.1.2/32
SOURCE S PORT DESTINATION D PORT
12.13.14.2 5074 33.33.33.2 100
DNAT WILL TRANSLATE ONLY THE DESTINATION IP FOR THE INCOMING PACKET
SINCE WE ARE USING A STATEFUL FIREWALL, IT WILL KNOW THAT THE RETURN TRAFFIC SHOULD BE ALLOWED - NO POLICY NEEDED FOR RETURN TRAFFIC
TRAFFIC POLICY:
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match source-address any
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match destination-address REAL_IP
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN match application any
set security policies from-zone OUTSIDE to-zone INSIDE policy OUT-to-IN then permit
IF MATCH
IF NO MATCH
PERMIT
DENY
INCOMING TRAFFIC
ROUTE LOOKUP POLICY LOOKUP PERMIT
A ROUTE FOR THE REAL IP
SHOULD BE PRESENT
A POLICY FOR THE REAL IP
SHOULD BE PRESENT
OUTSIDE
INSIDE ge-0/0/0 12.13.14.1
DESTINATION
NAT
RETURN TRAFFIC
SOURCE S PORT DESTINATION D PORT
12.13.14.2 5074 192.168.1.2 200
SOURCE S PORT DESTINATION D PORT
192.168.1.2 200 12.13.14.2 5074
SOURCE S PORT DESTINATION D PORT
33.33.33.2 100 12.13.14.2 5074

13. D-NAT

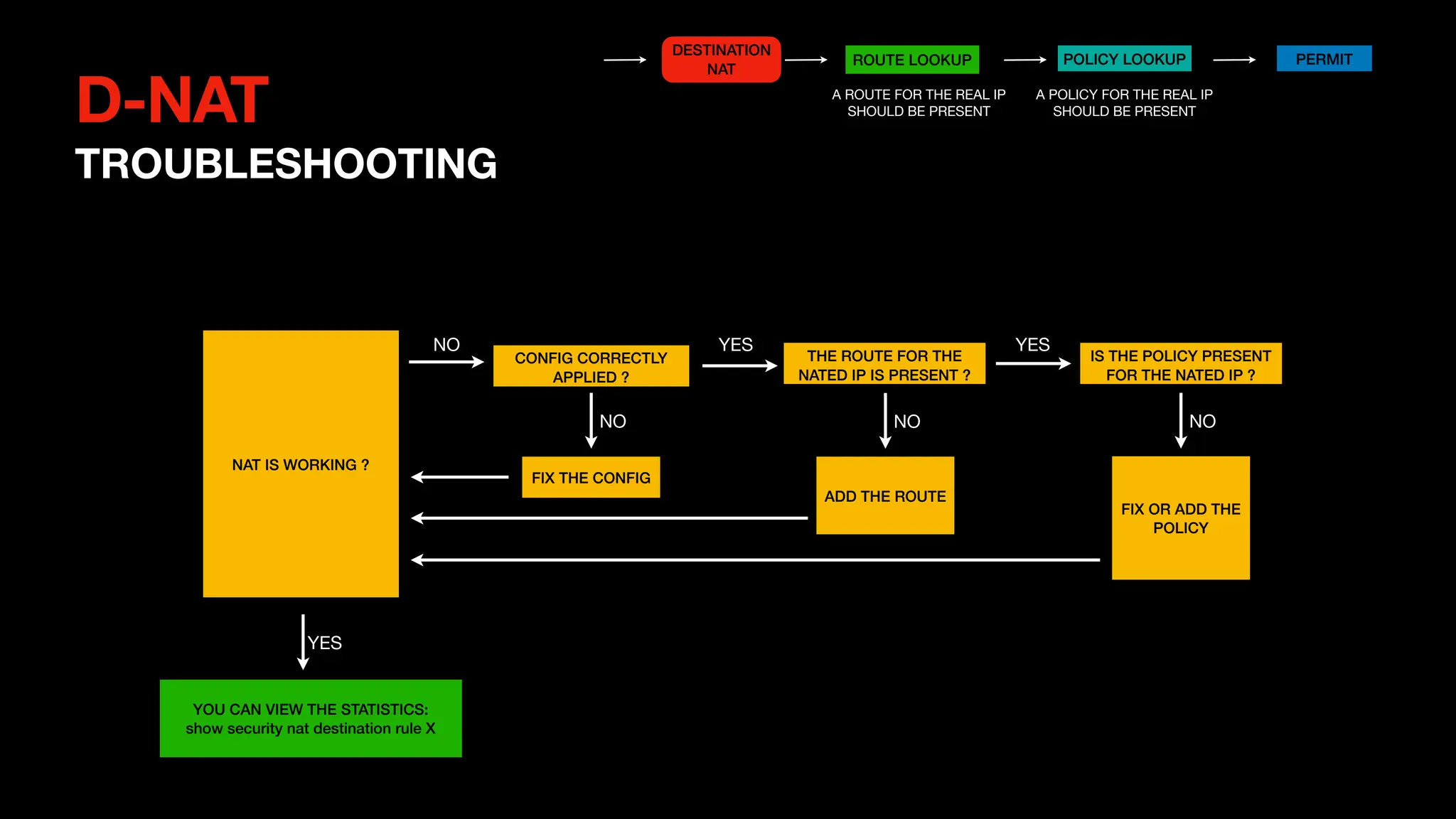

TROUBLESHOOTING
DESTINATION
NAT
ROUTE LOOKUP POLICY LOOKUP PERMIT
A ROUTE FOR THE REAL IP
SHOULD BE PRESENT
A POLICY FOR THE REAL IP
SHOULD BE PRESENT
CONFIG CORRECTLY
APPLIED ?
NO
YES
YOU CAN VIEW THE STATISTICS:
show security nat destination rule X
YES
FIX THE CONFIG
THE ROUTE FOR THE
NATED IP IS PRESENT ?
NO
ADD THE ROUTE
IS THE POLICY PRESENT
FOR THE NATED IP ?
YES
NO
FIX OR ADD THE
POLICY
NAT IS WORKING ?
NO

14. LETS JUMP TO THE LAB
