Digital Electronics
Introduction
Kashif Janjua
Lecturer NSU
BS (EE), MS (ESE),
PhD (EE)(enrolled)

Grading Policy
2
Components Marks
Sessional 25
Mid Term Exam 25
Final Exam 50
Total 100

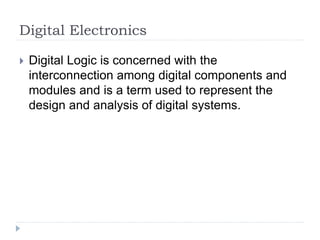

Digital Electronics
 Digital Logic is concerned with the
interconnection among digital components and
modules and is a term used to represent the
design and analysis of digital systems.

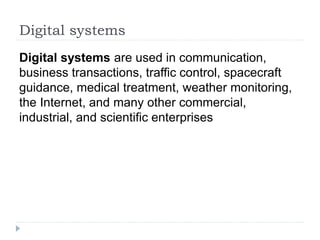

Digital systems
Digital systems are used in communication,
business transactions, traffic control, spacecraft
guidance, medical treatment, weather monitoring,
the Internet, and many other commercial,
industrial, and scientific enterprises

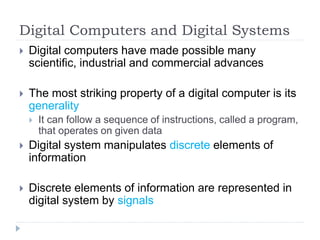

Digital Computers and Digital Systems
 Digital computers have made possible many
scientific, industrial and commercial advances
 The most striking property of a digital computer is its
generality
 It can follow a sequence of instructions, called a program,
that operates on given data
 Digital system manipulates discrete elements of
information
 Discrete elements of information are represented in
digital system by signals

Digital Computers and Digital Systems
 The signals in all present day electronic digital
systems have only two discrete values and are said
to be binary.
 Discrete quantities of information emerge either from
the nature of the process or may be purposely
quantized from a continuous process
 Any set that is restricted to a finite number of
elements contains discrete information.

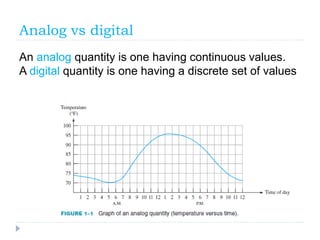

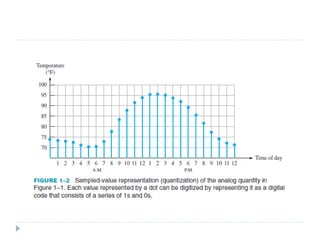

Analog vs digital
An analog quantity is one having continuous values.
A digital quantity is one having a discrete set of values

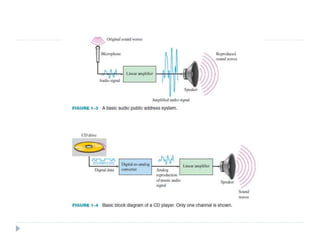

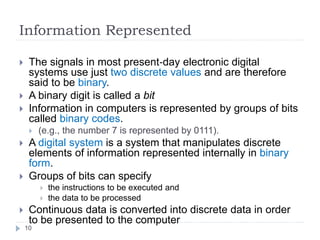

Information Represented
10
 The signals in most present‐day electronic digital
systems use just two discrete values and are therefore
said to be binary.
 A binary digit is called a bit
 Information in computers is represented by groups of bits
called binary codes.
 (e.g., the number 7 is represented by 0111).
 A digital system is a system that manipulates discrete
elements of information represented internally in binary
form.
 Groups of bits can specify
 the instructions to be executed and
 the data to be processed
 Continuous data is converted into discrete data in order
to be presented to the computer

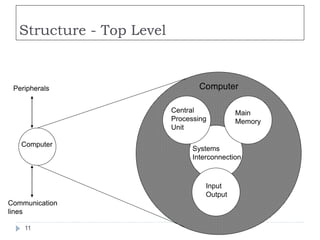

Structure - Top Level
Computer
Main
Memory
Input
Output
Systems
Interconnection
Peripherals
Communication
lines
Central
Processing
Unit
Computer
11

Structure - The CPU
Computer Arithmetic
and
Login Unit
Control
Unit
Internal CPU
Interconnection
Registers
CPU
I/O
Memory
System
Bus
CPU
12

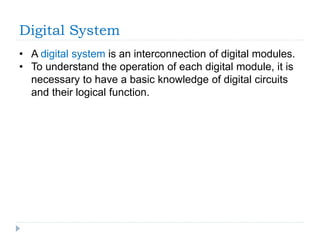

Digital System
• A digital system is an interconnection of digital modules.
• To understand the operation of each digital module, it is
necessary to have a basic knowledge of digital circuits
and their logical function.

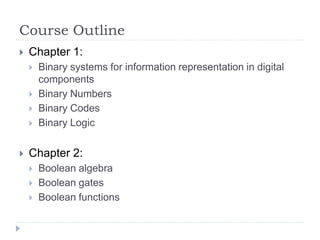

Course Outline
 Chapter 1:
 Binary systems for information representation in digital
components
 Binary Numbers
 Binary Codes
 Binary Logic
 Chapter 2:
 Boolean algebra
 Boolean gates
 Boolean functions

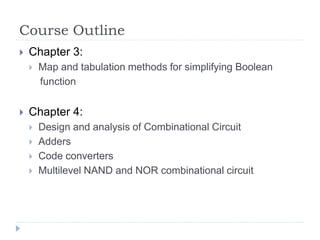

Course Outline
 Chapter 3:
 Map and tabulation methods for simplifying Boolean
function
 Chapter 4:
 Design and analysis of Combinational Circuit
 Adders
 Code converters
 Multilevel NAND and NOR combinational circuit

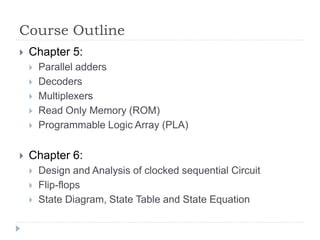

Course Outline
 Chapter 5:
 Parallel adders
 Decoders
 Multiplexers
 Read Only Memory (ROM)
 Programmable Logic Array (PLA)
 Chapter 6:
 Design and Analysis of clocked sequential Circuit
 Flip-flops
 State Diagram, State Table and State Equation

Course Outline

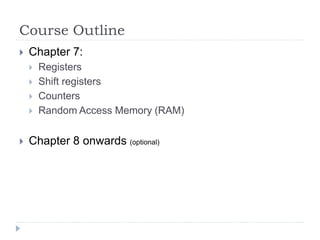

 Chapter 7:
 Registers
 Shift registers
 Counters
 Random Access Memory (RAM)
 Chapter 8 onwards (optional)

https://sites.google.com/view/bilawalrehman/ho
me

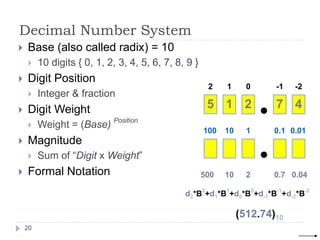

Decimal Number System
 Base (also called radix) = 10
 10 digits { 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 }
 Digit Position
 Integer & fraction
 Digit Weight
 Weight = (Base) Position
 Magnitude
 Sum of “Digit x Weight”
 Formal Notation
1 0 -1
2 -2
5 1 2 7 4
10 1 0.1
100 0.01
500 10 2 0.7 0.04
d2*B2
+d1*B1
+d0*B0
+d-1*B-1
+d-2*B-2
(512.74)10
20

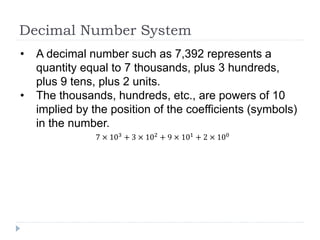

Decimal Number System
• A decimal number such as 7,392 represents a
quantity equal to 7 thousands, plus 3 hundreds,
plus 9 tens, plus 2 units.
• The thousands, hundreds, etc., are powers of 10
implied by the position of the coefficients (symbols)
in the number.
7 × 103 + 3 × 102 + 9 × 101 + 2 × 100

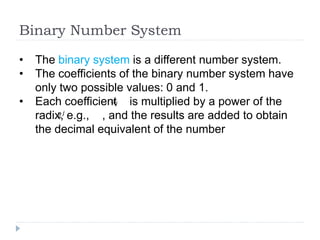

Binary Number System
• The binary system is a different number system.
• The coefficients of the binary number system have
only two possible values: 0 and 1.
• Each coefficient is multiplied by a power of the
radix, e.g., , and the results are added to obtain
the decimal equivalent of the number
𝑎𝑗
2𝑗

 Base = 2
 2 digits { 0, 1 }, called binary digits or “bits”
 Weights
 Magnitude
 Sum of “Bit x Weight”
 Formal Notation
 Groups of bits 4 bits = Nibble
8 bits = Byte
1 0 -1
2 -2
2 1 1/2
4 1/4
1 0 1 0 1
1 *22
+0 *21
+1 *20
+0 *2-1
+1 *2-2
=(5.25)10
(101.01)2
23

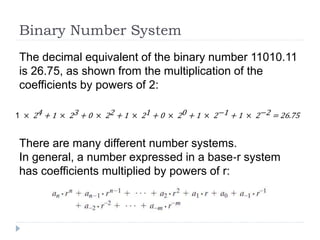

The decimal equivalent of the binary number 11010.11
is 26.75, as shown from the multiplication of the
coefficients by powers of 2:
1 × 24 + 1 × 23 + 0 × 22 + 1 × 21 + 0 × 20 + 1 × 2−1 + 1 × 2−2 = 26.75
There are many different number systems.
In general, a number expressed in a base‐r system
has coefficients multiplied by powers of r:

The coefficients range in value from 0 to r - 1.
aj

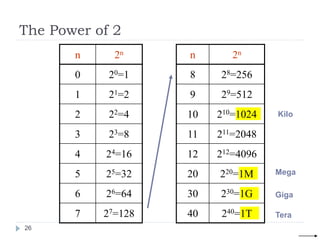

The Power of 2
n 2n
0 20=1
1 21=2
2 22=4
3 23=8
4 24=16
5 25=32
6 26=64
7 27=128
n 2n
8 28=256
9 29=512
10 210=1024
11 211=2048
12 212=4096
20 220=1M
30 230=1G
40 240=1T
Mega
Giga
Tera
Kilo
26

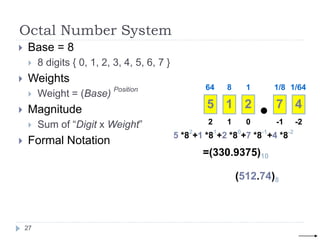

Octal Number System
 Base = 8
 8 digits { 0, 1, 2, 3, 4, 5, 6, 7 }
 Weights
 Magnitude
 Formal Notation
1 0 -1
2 -2
8 1 1/8
64 1/64
5 1 2 7 4
5 *82
+1 *81
+2 *80
+7 *8-1
+4 *8-2
=(330.9375)10
(512.74)8
27

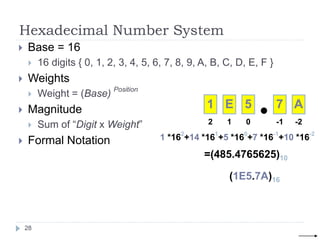

Hexadecimal Number System
 Base = 16
 16 digits { 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F }
 Weights
 Magnitude
 Formal Notation
1 0 -1
2 -2
1 E 5 7 A
1 *162
+14 *161
+5 *160
+7 *16-1
+10 *16-2
=(485.4765625)10
(1E5.7A)16
28

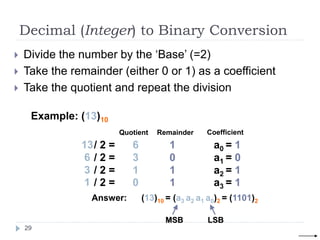

Decimal (Integer) to Binary Conversion
 Divide the number by the ‘Base’ (=2)
 Take the remainder (either 0 or 1) as a coefficient
 Take the quotient and repeat the division
Example: (13)10
Quotient Remainder Coefficient
Answer: (13)10 = (a3 a2 a1 a0)2 = (1101)2
MSB LSB
13/ 2 = 6 1 a0 = 1
6 / 2 = 3 0 a1 = 0
3 / 2 = 1 1 a2 = 1
1 / 2 = 0 1 a3 = 1
29

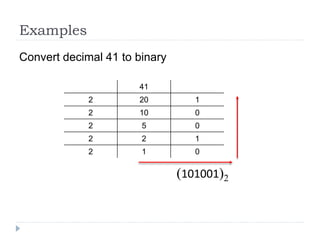

Examples
Convert decimal 41 to binary
41
2 20 1
2 10 0
2 5 0
2 2 1
2 1 0
(101001)2

Examples
Convert decimal 51 to binary
51

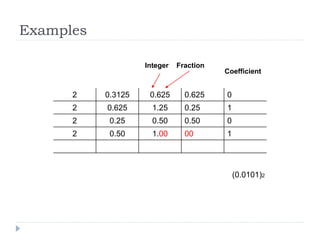

Examples
2 0.3125 0.625 0.625 0
2 0.625 1.25 0.25 1
2 0.25 0.50 0.50 0
2 0.50 1.00 00 1
Integer Fraction
Coefficient
(0.0101)2

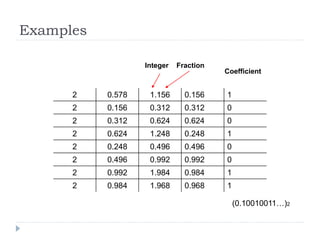

Examples
2 0.578 1.156 0.156 1
2 0.156 0.312 0.312 0
2 0.312 0.624 0.624 0
2 0.624 1.248 0.248 1
2 0.248 0.496 0.496 0
2 0.496 0.992 0.992 0
2 0.992 1.984 0.984 1
2 0.984 1.968 0.968 1
Integer Fraction
Coefficient
(0.10010011…)2

Examples

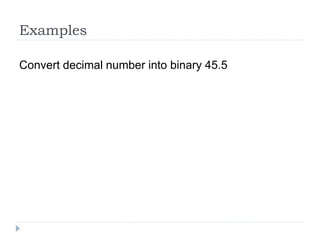

Convert decimal number into binary 45.5

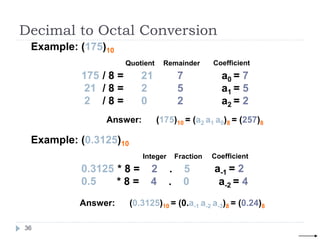

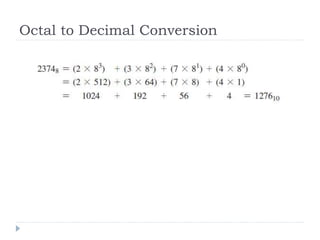

Decimal to Octal Conversion
Example: (175)10
Quotient Remainder Coefficient
Answer: (175)10 = (a2 a1 a0)8 = (257)8
175 / 8 = 21 7 a0 = 7
21 / 8 = 2 5 a1 = 5
2 / 8 = 0 2 a2 = 2
Example: (0.3125)10
Integer Fraction Coefficient
Answer: (0.3125)10 = (0.a-1 a-2 a-3)8 = (0.24)8
0.3125 * 8 = 2 . 5
0.5 * 8 = 4 . 0 a-2 = 4
a-1 = 2
36

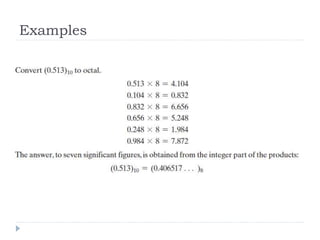

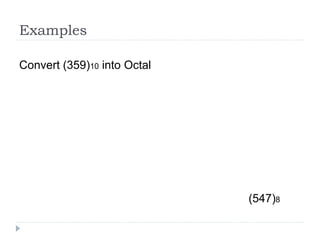

Examples
Convert (359)10 into Octal
(547)8

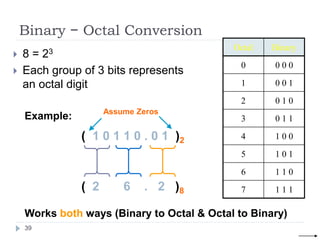

Binary − Octal Conversion
 8 = 23
 Each group of 3 bits represents
an octal digit
Octal Binary
0 0 0 0
1 0 0 1
2 0 1 0
3 0 1 1
4 1 0 0
5 1 0 1
6 1 1 0
7 1 1 1
Example:
( 1 0 1 1 0 . 0 1 )2
( 2 6 . 2 )8
Assume Zeros
Works both ways (Binary to Octal & Octal to Binary)
39

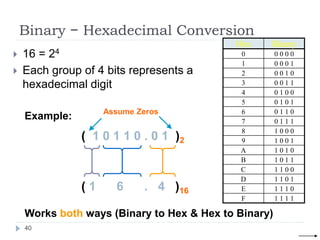

Binary − Hexadecimal Conversion
 16 = 24
 Each group of 4 bits represents a
hexadecimal digit
Hex Binary
0 0 0 0 0
1 0 0 0 1
2 0 0 1 0
3 0 0 1 1
4 0 1 0 0
5 0 1 0 1
6 0 1 1 0
7 0 1 1 1
8 1 0 0 0
9 1 0 0 1
A 1 0 1 0
B 1 0 1 1
C 1 1 0 0
D 1 1 0 1
E 1 1 1 0
F 1 1 1 1
Example:
( 1 0 1 1 0 . 0 1 )2
( 1 6 . 4 )16
Assume Zeros
Works both ways (Binary to Hex & Hex to Binary)
40

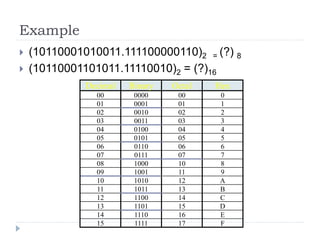

Example
 (10110001010011.111100000110)2 = (?) 8
 (10110001101011.11110010)2 = (?)16
Decimal Binary Octal Hex
00 0000 00 0
01 0001 01 1
02 0010 02 2
03 0011 03 3
04 0100 04 4
05 0101 05 5
06 0110 06 6
07 0111 07 7
08 1000 10 8
09 1001 11 9
10 1010 12 A
11 1011 13 B
12 1100 14 C
13 1101 15 D
14 1110 16 E
15 1111 17 F

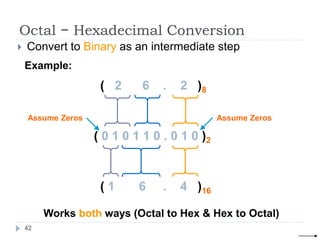

Octal − Hexadecimal Conversion
 Convert to Binary as an intermediate step
Example:
( 0 1 0 1 1 0 . 0 1 0 )2
( 1 6 . 4 )16
Assume Zeros
Works both ways (Octal to Hex & Hex to Octal)
( 2 6 . 2 )8
Assume Zeros
42

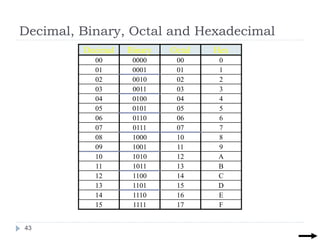

Decimal, Binary, Octal and Hexadecimal
Decimal Binary Octal Hex
00 0000 00 0
01 0001 01 1
02 0010 02 2
03 0011 03 3
04 0100 04 4
05 0101 05 5
06 0110 06 6
07 0111 07 7
08 1000 10 8
09 1001 11 9
10 1010 12 A
11 1011 13 B
12 1100 14 C
13 1101 15 D
14 1110 16 E
15 1111 17 F
43

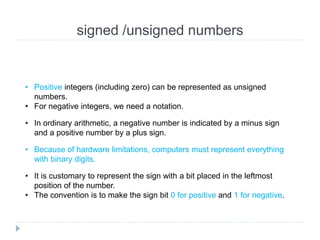

signed /unsigned numbers
• Positive integers (including zero) can be represented as unsigned
numbers.
• For negative integers, we need a notation.
• In ordinary arithmetic, a negative number is indicated by a minus sign
and a positive number by a plus sign.
• Because of hardware limitations, computers must represent everything
with binary digits.
• It is customary to represent the sign with a bit placed in the leftmost
position of the number.
• The convention is to make the sign bit 0 for positive and 1 for negative.

• The user determines whether the number is signed or unsigned.
• If the binary number is signed, then the leftmost bit represents the sign
and the rest of the bits represent the number.
• If the binary number is assumed to be unsigned, then the leftmost bit is
the most significant bit of the number.
• the string of bits 01001 can be considered as 9 (unsigned binary) or as
+9 (signed binary) because the leftmost bit is 0.
• The string of bits 11001 represents the binary equivalent of 25 when
considered as an unsigned number and the binary equivalent of -9 when
considered as a signed number.
• This is because the 1 that is in the leftmost position designates a
negative and the other four bits represent binary 9.

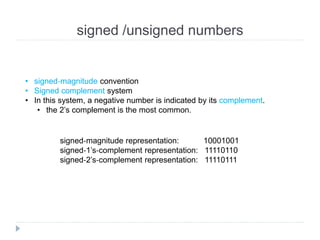

• signed‐magnitude convention
• Signed complement system
• In this system, a negative number is indicated by its complement.
• the 2’s complement is the most common.

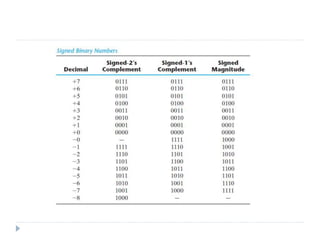

signed‐magnitude representation: 10001001
signed‐1’s‐complement representation: 11110110

• In signed‐magnitude, -9 is obtained from +9 by changing only the sign bit
in the leftmost position from 0 to 1.
• In signed‐1’s-complement, -9 is obtained by complementing all the
• bits of +9, including the sign bit.
• The signed‐2’s‐complement representation of -9 is obtained by taking the
2’s complement of the positive number, including the sign bit.
(+9)
00001001
signed‐magnitude representation: 10001001

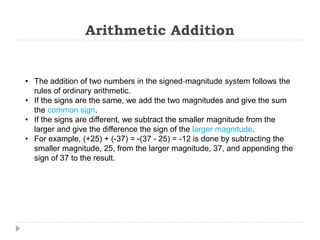

Arithmetic Addition
• The addition of two numbers in the signed‐magnitude system follows the
rules of ordinary arithmetic.
• If the signs are the same, we add the two magnitudes and give the sum
the common sign.
• If the signs are different, we subtract the smaller magnitude from the
larger and give the difference the sign of the larger magnitude.
• For example, (+25) + (-37) = -(37 - 25) = -12 is done by subtracting the
smaller magnitude, 25, from the larger magnitude, 37, and appending the
sign of 37 to the result.

Arithmetic Addition
The addition of two signed binary numbers with negative numbers
represented in signed‐ 2’s‐complement form is obtained from the addition of
the two numbers, including their sign bits. A carry out of the sign‐bit position
is discarded.
Note that negative numbers must be initially in 2’s‐complement form and that if
the sum obtained after the addition is negative, it is in 2’s‐complement form.

Arithmetic Addition
In each of the four cases, the
operation performed is addition
with the sign bit included. Any
carry out of the sign‐bit position
is discarded, and negative
results are automatically in
2’s‐complement form.

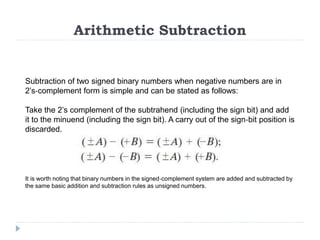

Arithmetic Subtraction
Subtraction of two signed binary numbers when negative numbers are in
2’s‐complement form is simple and can be stated as follows:
Take the 2’s complement of the subtrahend (including the sign bit) and add
it to the minuend (including the sign bit). A carry out of the sign‐bit position is
discarded.
It is worth noting that binary numbers in the signed‐complement system are added and subtracted by
the same basic addition and subtraction rules as unsigned numbers.

Addition Rules
 0 + 0 = 00 ( 0 with a 0 carry )
 0 + 1 = 01 ( 1 with a 0 carry )
 1 + 0 = 01 ( 1 with a 0 carry )
 1 + 1 = 10 ( 0 with a 1 carry )

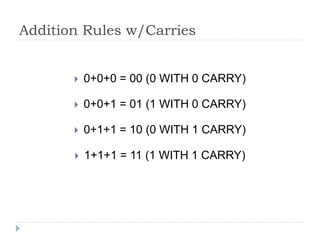

Addition Rules w/Carries
 0+0+0 = 00 (0 WITH 0 CARRY)
 0+0+1 = 01 (1 WITH 0 CARRY)
 0+1+1 = 10 (0 WITH 1 CARRY)
 1+1+1 = 11 (1 WITH 1 CARRY)

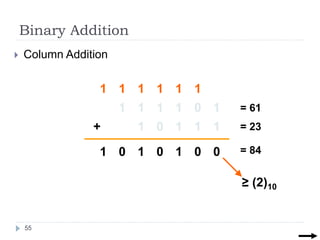

Binary Addition
 Column Addition
1 0 1
1
1
1
1
1
1
1 0
+
0
0
0
0 1 1
1
≥ (2)10
1
1
1
1
1
1
= 61
= 23
= 84
55

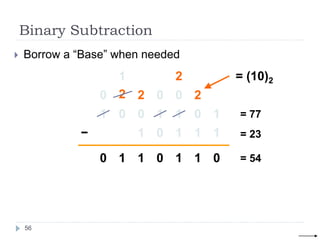

Binary Subtraction
 Borrow a “Base” when needed
0 0 1
1
1
0
1
1
1
1 0
−
0
1
0
1 1 1
0
= (10)2
2
2
2 2
1
0
0
0
1
= 77
= 23
= 54
56

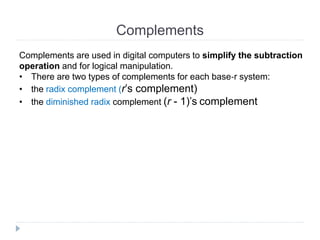

Complements
Complements are used in digital computers to simplify the subtraction
operation and for logical manipulation.
• There are two types of complements for each base‐r system:
• the radix complement (r’s complement)
• the diminished radix complement (r - 1)’s complement

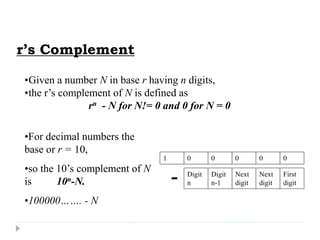

r’s Complement
•Given a number N in base r having n digits,
•the r’s complement of N is defined as
rn - N for N!= 0 and 0 for N = 0
•For decimal numbers the
base or r = 10,
•so the 10’s complement of N
is 10n-N.
•100000……. - N
Digit
n
Digit
n-1
Next
digit
Next
digit
First
digit
0 0 0 0 0
-
1

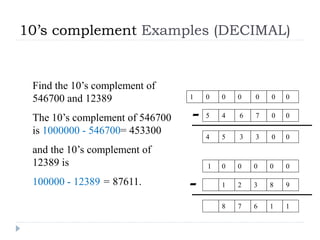

10’s complement Examples (DECIMAL)
Find the 10’s complement of
546700 and 12389
The 10’s complement of 546700
is 1000000 - 546700= 453300
and the 10’s complement of
12389 is
100000 - 12389 = 87611.
5 4 6 7 0
- 0
0 0 0 0 0 0
4 5 3 3 0 0
1 2 3 8
- 9
1 0 0 0 0 0
8 7 6 1 1
1

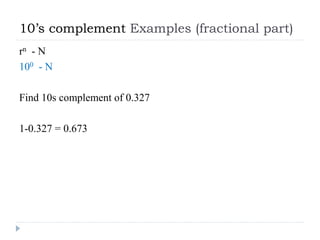

10’s complement Examples (fractional part)
rn - N
100 - N
Find 10s complement of 0.327
1-0.327 = 0.673

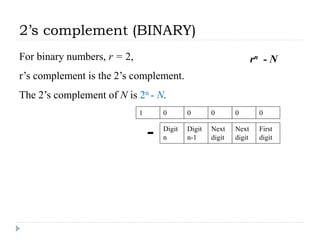

For binary numbers, r = 2,
r’s complement is the 2’s complement.
The 2’s complement of N is 2n - N.
2’s complement (BINARY)
Digit
n
Digit
n-1
Next
digit
Next
digit
First
digit
0 0 0 0 0
-
1
rn - N

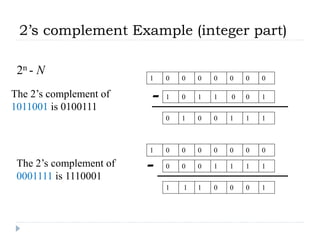

2’s complement Example (integer part)
The 2’s complement of
1011001 is 0100111
0001111 is 1110001
0 1 1 0 0
- 1
0 0 0 0 0 0
1 0 0 1 1 1
0 0 1 1 1
- 1
1 1 0 0 0 1
1
0
0
0
1
1
0 0 0 0 0 0
0
1
2n - N

2’s complement Example (fractional part)
 The 2’s complement of (0.0110)2

2’s complement Example (fractional part)
 The 2’s complement of (0.0110)2
20 - N
 0.1010

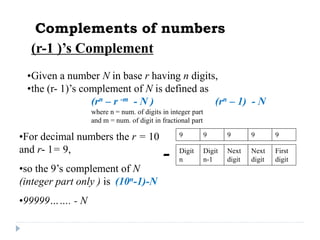

Complements of numbers
(r-1 )’s Complement
•Given a number N in base r having n digits,
•the (r- 1)’s complement of N is defined as
(rn – r -m - N ) (rn – 1) - N
where n = num. of digits in integer part
and m = num. of digit in fractional part
•For decimal numbers the r = 10
and r- 1= 9,
•so the 9’s complement of N
(integer part only ) is (10n-1)-N
•99999……. - N
Digit
n
Digit
n-1
Next
digit
Next
digit
First
digit
9 9 9 9 9
-

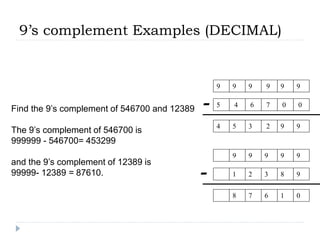

Find the 9’s complement of 546700 and 12389
The 9’s complement of 546700 is
999999 - 546700= 453299
and the 9’s complement of 12389 is
99999- 12389 = 87610.
5 4 6 7 0
- 0
9 9 9 9 9 9
4 5 3 2 9 9
1 2 3 8
- 9
9 9 9 9 9
8 7 6 1 0

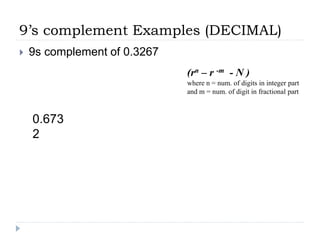

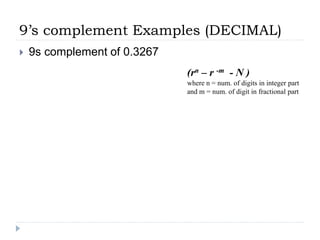

 9s complement of 0.3267
(rn – r -m - N )

 9s complement of 0.3267
(rn – r -m - N )
0.673
2

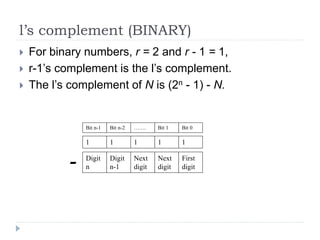

l’s complement (BINARY)
 For binary numbers, r = 2 and r - 1 = 1,
 r-1’s complement is the l’s complement.
 The l’s complement of N is (2n - 1) - N.
Digit
n
Digit
n-1
Next
digit
Next
digit
First
digit
1 1 1 1 1
Bit n-1 Bit n-2 ……. Bit 1 Bit 0
-

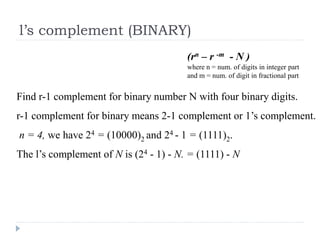

Find r-1 complement for binary number N with four binary digits.
r-1 complement for binary means 2-1 complement or 1’s complement.
n = 4, we have 24 = (10000)2 and 24 - 1 = (1111)2.
The l’s complement of N is (24 - 1) - N. = (1111) - N
(rn – r -m - N )

The complement 1’s of
1011001 is 0100110
0 1 1 0 0
- 1
1 1 1 1 1 1
1 0 0 1 1 0
0 0 1 1 1
- 1
1 1 1 1 1 1
1 1 0 0 0 0
1
1
0
0001111 is 1110000
0
1
1

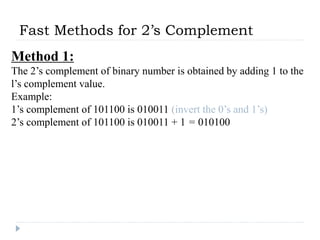

Fast Methods for 2’s Complement
Method 1:
The 2’s complement of binary number is obtained by adding 1 to the
l’s complement value.
Example:
1’s complement of 101100 is 010011 (invert the 0’s and 1’s)
2’s complement of 101100 is 010011 + 1 = 010100

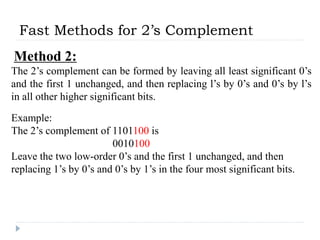

Fast Methods for 2’s Complement
Method 2:
The 2’s complement can be formed by leaving all least significant 0’s
and the first 1 unchanged, and then replacing l’s by 0’s and 0’s by l’s
in all other higher significant bits.
Example:
The 2’s complement of 1101100 is
0010100
Leave the two low-order 0’s and the first 1 unchanged, and then
replacing 1’s by 0’s and 0’s by 1’s in the four most significant bits.

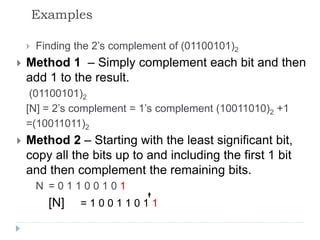

Examples
 Finding the 2’s complement of (01100101)2
 Method 1 – Simply complement each bit and then
add 1 to the result.
(01100101)2
[N] = 2’s complement = 1’s complement (10011010)2 +1
=(10011011)2
 Method 2 – Starting with the least significant bit,
copy all the bits up to and including the first 1 bit
and then complement the remaining bits.
N = 0 1 1 0 0 1 0 1
[N] = 1 0 0 1 1 0 1 1

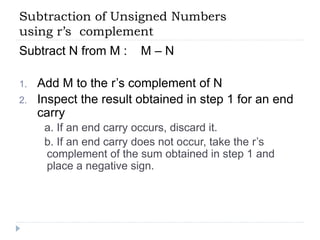

Subtraction of Unsigned Numbers
using r’s complement
Subtract N from M : M – N
1. Add M to the r’s complement of N
2. Inspect the result obtained in step 1 for an end
carry
a. If an end carry occurs, discard it.
b. If an end carry does not occur, take the r’s
complement of the sum obtained in step 1 and
place a negative sign.

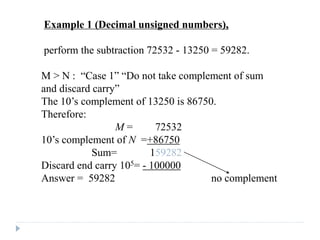

Example 1 (Decimal unsigned numbers),
perform the subtraction 72532 - 13250 = 59282.
M > N : “Case 1” “Do not take complement of sum
and discard carry”
The 10’s complement of 13250 is 86750.
Therefore:
M = 72532
10’s complement of N =+86750
Sum= 159282
Discard end carry 105= - 100000
Answer = 59282 no complement

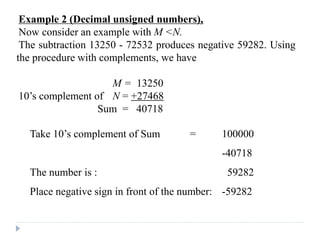

Example 2 (Decimal unsigned numbers),
Now consider an example with M <N.
The subtraction 13250 - 72532 produces negative 59282. Using
the procedure with complements, we have
M = 13250
10’s complement of N = +27468
Sum = 40718
Take 10’s complement of Sum = 100000
-40718
The number is : 59282
Place negative sign in front of the number: -59282

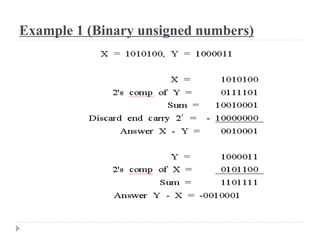

Example 1 (Binary unsigned numbers)

Subtraction of Unsigned Numbers
using (r -1)’s complement
Subtract N from M : M – N
1. Add M to the (r-1)’s complement of N
2. Inspect the result obtained in step 1 for an end
carry
a. If an end carry occurs, add 1 to the least
significant digit(end-around carry)
b. If an end carry does not occur, take the (r-1)’s
complement of the sum obtained in step 1 and
place a negative sign.

Examples (Decimal unsigned numbers)
 M = 72532 N = 3250

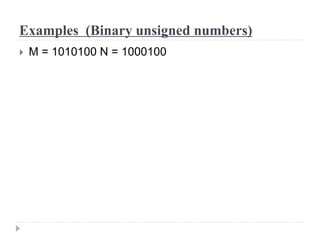

Examples (Binary unsigned numbers)
 M = 1010100 N = 1000100

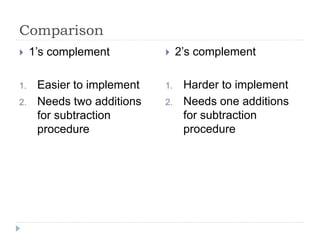

Comparison
 1’s complement
1. Easier to implement
2. Needs two additions
for subtraction
procedure
 2’s complement
1. Harder to implement
2. Needs one additions
for subtraction
procedure

Combinational Logical Circuits
Binary Logic and Gates, Boolean Algebra

Overview
Chapter 2 - Part 1
84
 Part 1 – Gate Circuits and Boolean Equations
 Binary Logic and Gates
 Boolean Algebra
 Standard Forms
 Part 2 – Circuit Optimization
 Two-Level Optimization
 Map Manipulation
 Practical Optimization (Espresso)
 Multi-Level Circuit Optimization
 Part 3 – Additional Gates and Circuits
 Other Gate Types

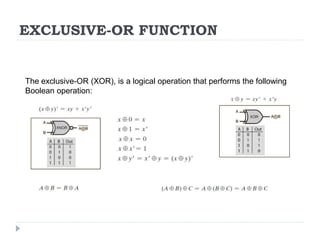

 Exclusive-OR Operator and Gates
 High-Impedance Outputs

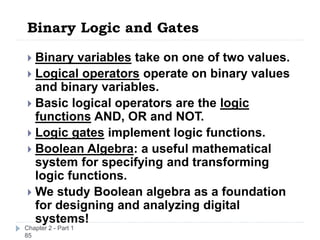

Binary Logic and Gates
Chapter 2 - Part 1
85
 Binary variables take on one of two values.
 Logical operators operate on binary values
and binary variables.
 Basic logical operators are the logic
functions AND, OR and NOT.
 Logic gates implement logic functions.
 Boolean Algebra: a useful mathematical
system for specifying and transforming
logic functions.
 We study Boolean algebra as a foundation
for designing and analyzing digital
systems!

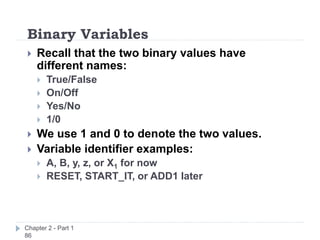

Binary Variables
Chapter 2 - Part 1
86
 Recall that the two binary values have
different names:
 True/False
 On/Off
 Yes/No
 1/0
 We use 1 and 0 to denote the two values.
 Variable identifier examples:
 A, B, y, z, or X1 for now
 RESET, START_IT, or ADD1 later

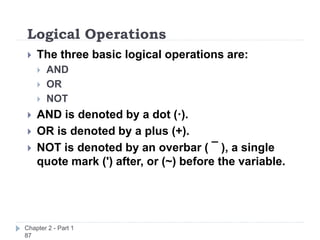

Logical Operations
Chapter 2 - Part 1
87
 The three basic logical operations are:
 AND
 OR
 NOT
 AND is denoted by a dot (·).
 OR is denoted by a plus (+).
 NOT is denoted by an overbar ( ¯ ), a single
quote mark (') after, or (~) before the variable.

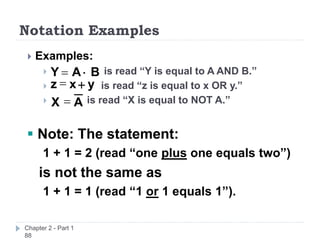

Notation Examples
Chapter 2 - Part 1
88
 Examples:
 is read “Y is equal to A AND B.”
 is read “z is equal to x OR y.”
 is read “X is equal to NOT A.”
 Note: The statement:
1 + 1 = 2 (read “one plus one equals two”)
is not the same as
1 + 1 = 1 (read “1 or 1 equals 1”).
= B
A
Y 
y
x
z +
=
A
X =

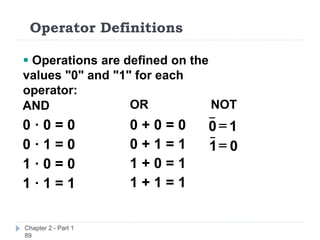

Operator Definitions
Chapter 2 - Part 1
89
 Operations are defined on the
values "0" and "1" for each
operator:
AND
0 · 0 = 0
0 · 1 = 0
1 · 0 = 0
1 · 1 = 1
OR
0 + 0 = 0
0 + 1 = 1
1 + 0 = 1
1 + 1 = 1
NOT
1
0 =
0
1=

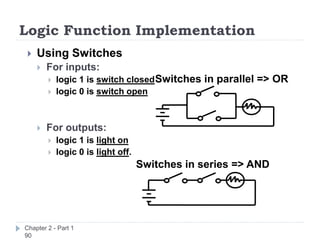

Logic Function Implementation
Chapter 2 - Part 1
90
 Using Switches
 For inputs:
 logic 1 is switch closed
 logic 0 is switch open
 For outputs:
 logic 1 is light on
 logic 0 is light off.
Switches in series => AND
Switches in parallel => OR

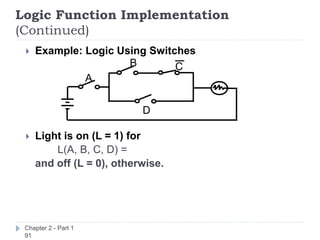

Logic Function Implementation
(Continued)
Chapter 2 - Part 1
91
 Example: Logic Using Switches
 Light is on (L = 1) for
L(A, B, C, D) =
and off (L = 0), otherwise.
B
A
D
C

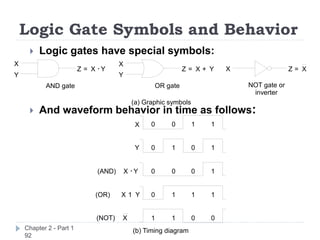

Logic Gate Symbols and Behavior
Chapter 2 - Part 1
92
 Logic gates have special symbols:
 And waveform behavior in time as follows:
(b) Timing diagram
X 0 0 1 1
Y 0 1 0 1
X · Y
(AND) 0 0 0 1
X 1 Y
(OR) 0 1 1 1
(NOT) X 1 1 0 0
(a) Graphic symbols
OR gate
X
Y
Z = X + Y
X
Y
Z = X · Y
AND gate
X Z = X
NOT gate or
inverter

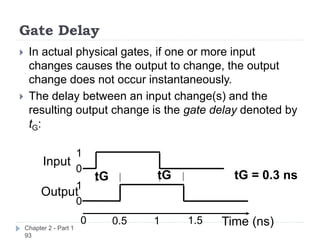

Gate Delay
Chapter 2 - Part 1
93
 In actual physical gates, if one or more input
changes causes the output to change, the output
change does not occur instantaneously.
 The delay between an input change(s) and the
resulting output change is the gate delay denoted by
tG:
tG tG
Input
Output
Time (ns)
0
0
1
1
0 0.5 1 1.5
tG = 0.3 ns

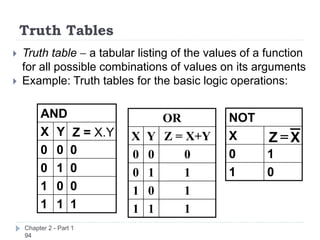

Truth Tables
Chapter 2 - Part 1
94
 Truth table - a tabular listing of the values of a function
for all possible combinations of values on its arguments
 Example: Truth tables for the basic logic operations:
0
1
1
0
X
NOT
X
Z =
1
1
1
0
0
1
0
1
0
0
0
0
Z = X.Y
Y
X
AND OR
X Y Z = X+Y
0 0 0
0 1 1
1 0 1
1 1 1

Logic Diagrams and Expressions
Chapter 2 - Part 1
95
 Boolean equations, truth tables and logic diagrams describe the same
function!
 Truth tables are unique; expressions and logic diagrams are not. This
gives flexibility in implementing functions.
X
Y F
Z
Logic Diagram
Equation
Z
Y
X
F +
=
Truth Table
1
1 1 1
1
1 1 0
1
1 0 1
1
1 0 0
0
0 1 1
0
0 1 0
1
0 0 1
0
0 0 0
X Y Z Z
Y
X
F 
+
=

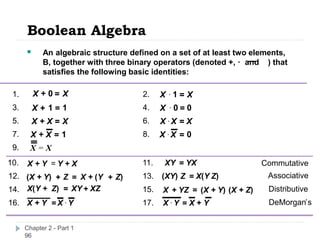

Boolean Algebra
Chapter 2 - Part 1
96
1.
3.
5.
7.
9.
11.
13.
15.
17.
Commutative
Associative
Distributive
DeMorgan’s
2.
4.
6.
8.
X . 1 X
=
X . 0 0
=
X . X X
=
0
=
X . X
 An algebraic structure defined on a set of at least two elements,
B, together with three binary operators (denoted +, · and ) that
satisfies the following basic identities:
10.
12.
14.
16.
X + Y Y + X
=
(X + Y) Z
+ X + (Y Z)
+
=
X(Y + Z) XY XZ
+
=
X + Y X . Y
=
XY YX
=
(XY) Z X(Y Z)
=
X + YZ (X + Y) (X + Z)
=
X . Y X + Y
=
X + 0 X
=
+
X 1 1
=
X + X X
=
1
=
X + X
X = X

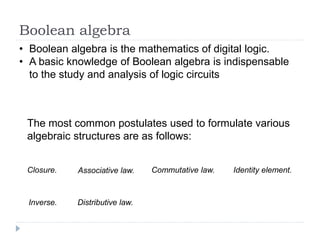

Boolean algebra
• Boolean algebra is the mathematics of digital logic.
• A basic knowledge of Boolean algebra is indispensable
to the study and analysis of logic circuits
The most common postulates used to formulate various
algebraic structures are as follows:
Closure. Associative law. Commutative law. Identity element.
Inverse. Distributive law.

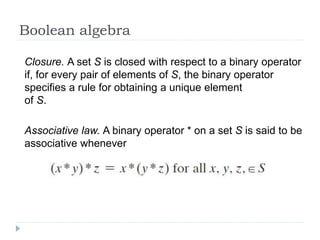

Boolean algebra
Closure. A set S is closed with respect to a binary operator
if, for every pair of elements of S, the binary operator
specifies a rule for obtaining a unique element
of S.
Associative law. A binary operator * on a set S is said to be
associative whenever

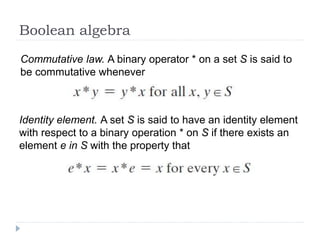

Boolean algebra
Commutative law. A binary operator * on a set S is said to
be commutative whenever
Identity element. A set S is said to have an identity element
with respect to a binary operation * on S if there exists an
element e in S with the property that

Boolean algebra

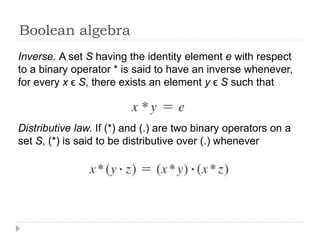

Inverse. A set S having the identity element e with respect
to a binary operator * is said to have an inverse whenever,
for every x ϵ S, there exists an element y ϵ S such that
Distributive law. If (*) and (.) are two binary operators on a
set S, (*) is said to be distributive over (.) whenever

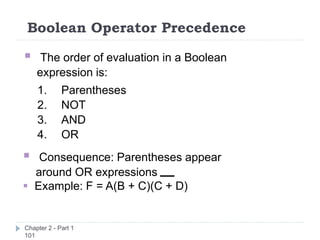

Boolean Operator Precedence
Chapter 2 - Part 1
101
 The order of evaluation in a Boolean
expression is:
1. Parentheses
2. NOT
3. AND
4. OR
 Consequence: Parentheses appear
around OR expressions
 Example: F = A(B + C)(C + D)

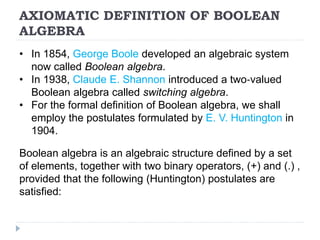

AXIOMATIC DEFINITION OF BOOLEAN
ALGEBRA
• In 1854, George Boole developed an algebraic system
now called Boolean algebra.
• In 1938, Claude E. Shannon introduced a two‐valued
Boolean algebra called switching algebra.
• For the formal definition of Boolean algebra, we shall
employ the postulates formulated by E. V. Huntington in
1904.
Boolean algebra is an algebraic structure defined by a set
of elements, together with two binary operators, (+) and (.) ,
provided that the following (Huntington) postulates are
satisfied:

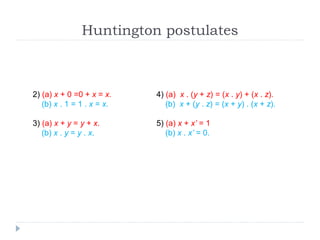

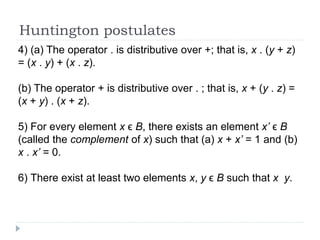

Huntington postulates
1) (a) The structure is closed with respect to the operator
(+).
(b) The structure is closed with respect to the operator
(.) .
2) (a) The element 0 is an identity element with respect to
+; that is, x + 0 =0 + x = x.
(b) The element 1 is an identity element with respect to
(.) ; that is, x . 1 = 1 . x = x.
3) (a) The structure is commutative with respect to +; that
is, x + y = y + x.
(b) The structure is commutative with respect to . ; that
is, x . y = y . x.

4) (a) The operator . is distributive over +; that is, x . (y + z)
= (x . y) + (x . z).
(b) The operator + is distributive over . ; that is, x + (y . z) =
(x + y) . (x + z).
5) For every element x ϵ B, there exists an element x’ ϵ B
(called the complement of x) such that (a) x + x’ = 1 and (b)
x . x’ = 0.
6) There exist at least two elements x, y ϵ B such that x y.

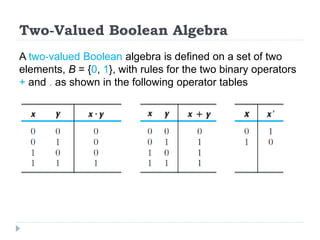

Two‐Valued Boolean Algebra
A two‐valued Boolean algebra is defined on a set of two
elements, B = {0, 1}, with rules for the two binary operators
+ and . as shown in the following operator tables

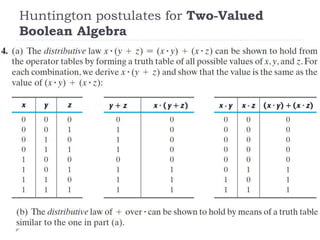

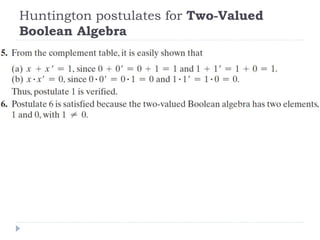

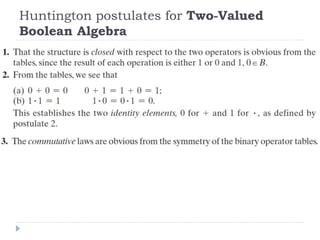

Huntington postulates for Two‐Valued
Boolean Algebra

Duality
If the dual of an algebraic expression is desired, we simply
interchange OR and AND operators and replace 1’s by 0’s
and 0’s by 1’s.

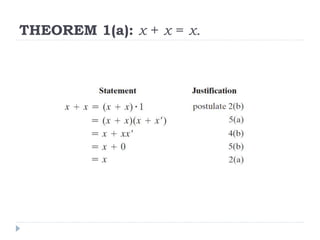

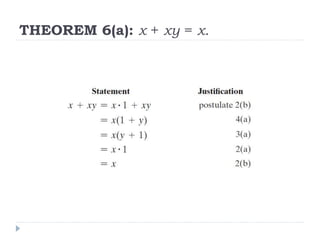

Basic Theorems
Six theorems of Boolean algebra

Boolean Functions
Dr. Bilawal Rehman

2) (a) x + 0 =0 + x = x.
(b) x . 1 = 1 . x = x.
3) (a) x + y = y + x.
(b) x . y = y . x.
4) (a) x . (y + z) = (x . y) + (x . z).
(b) x + (y . z) = (x + y) . (x + z).
5) (a) x + x’ = 1
(b) x . x’ = 0.

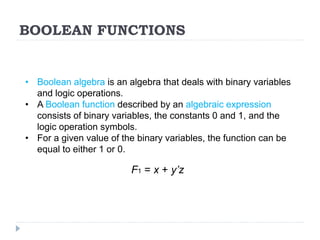

BOOLEAN FUNCTIONS
• Boolean algebra is an algebra that deals with binary variables
and logic operations.
• A Boolean function described by an algebraic expression
consists of binary variables, the constants 0 and 1, and the
logic operation symbols.
• For a given value of the binary variables, the function can be
equal to either 1 or 0.
F1 = x + y’z

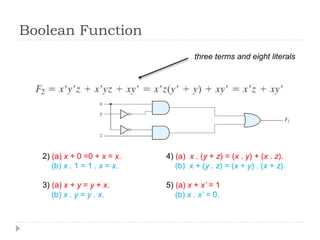

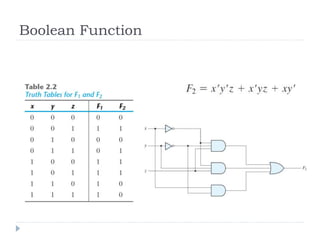

Boolean Function
2) (a) x + 0 =0 + x = x.
(b) x . 1 = 1 . x = x.
3) (a) x + y = y + x.
(b) x . y = y . x.
4) (a) x . (y + z) = (x . y) + (x . z).
(b) x + (y . z) = (x + y) . (x + z).
5) (a) x + x’ = 1
(b) x . x’ = 0.
three terms and eight literals

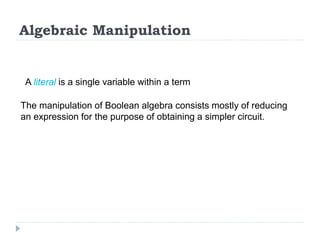

Algebraic Manipulation
A literal is a single variable within a term
The manipulation of Boolean algebra consists mostly of reducing
an expression for the purpose of obtaining a simpler circuit.

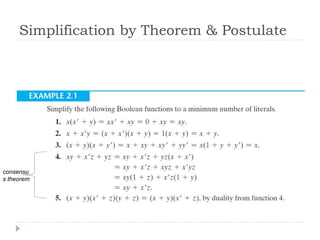

Simplification by Theorem & Postulate
consensu
s theorem

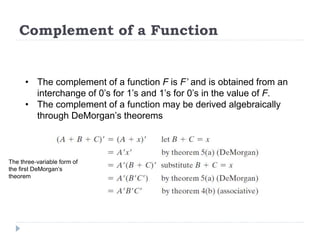

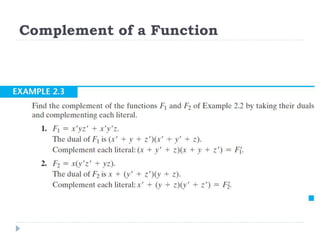

Complement of a Function
• The complement of a function F is F’ and is obtained from an
interchange of 0’s for 1’s and 1’s for 0’s in the value of F.
• The complement of a function may be derived algebraically
through DeMorgan’s theorems
The three‐variable form of
the first DeMorgan’s
theorem

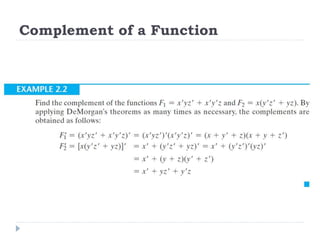

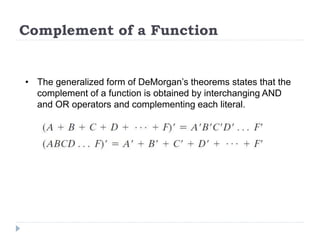

Complement of a Function
• The generalized form of DeMorgan’s theorems states that the
complement of a function is obtained by interchanging AND
and OR operators and complementing each literal.

CANONICAL FORMS

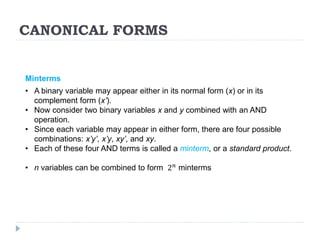

Minterms
• A binary variable may appear either in its normal form (x) or in its
complement form (x’).
• Now consider two binary variables x and y combined with an AND
operation.
• Since each variable may appear in either form, there are four possible
combinations: x’y’, x’y, xy’, and xy.
• Each of these four AND terms is called a minterm, or a standard product.
• n variables can be combined to form 2𝑛 minterms

CANONICAL FORMS
Each minterm is obtained from an AND term of the n variables, with each
variable being primed if the corresponding bit of the binary number is a 0
and unprimed if a 1
A symbol for each minterm is of the form 𝑚𝑗, where the subscript j denotes
the decimal equivalent of the binary number of the minterm designated.
Maxterms
In a similar fashion, n variables forming an OR term, with each variable
being primed or unprimed, provide 2𝑛
possible combinations, called
maxterms, or standard sums

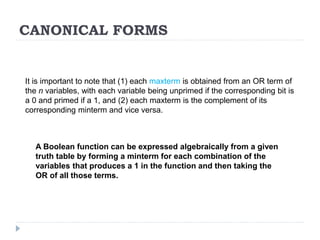

CANONICAL FORMS
It is important to note that (1) each maxterm is obtained from an OR term of
the n variables, with each variable being unprimed if the corresponding bit is
a 0 and primed if a 1, and (2) each maxterm is the complement of its
corresponding minterm and vice versa.
A Boolean function can be expressed algebraically from a given
truth table by forming a minterm for each combination of the
variables that produces a 1 in the function and then taking the
OR of all those terms.

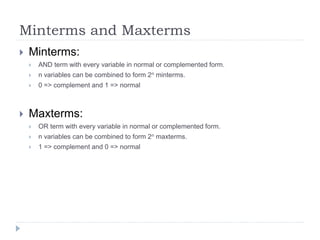

Minterms and Maxterms
 Minterms:
 AND term with every variable in normal or complemented form.
 n variables can be combined to form 2n minterms.
 0 => complement and 1 => normal
 Maxterms:
 OR term with every variable in normal or complemented form.
 n variables can be combined to form 2n maxterms.
 1 => complement and 0 => normal

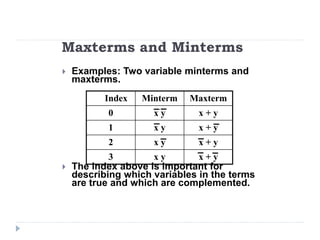

Maxterms and Minterms
 Examples: Two variable minterms and
maxterms.
 The index above is important for
describing which variables in the terms
are true and which are complemented.
Index Minterm Maxterm
0 x y x + y
1 x y x + y
2 x y x + y
3 x y x + y

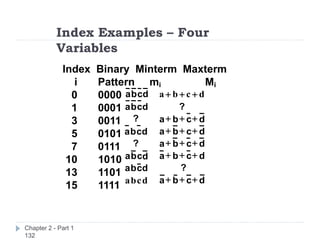

Index Examples – Four
Variables
Chapter 2 - Part 1
132
Index Binary Minterm Maxterm
i Pattern mi Mi
0 0000
1 0001
3 0011
5 0101
7 0111
10 1010
13 1101
15 1111
d
c
b
a d
c
b
a +
+
+
d
c
b
a
d
c
b
a +
+
+
d
c
b
a d
c
b
a +
+
+
d
c
b
a +
+
+
d
c
b
a d
c
b
a +
+
+
d
b
a
d
c
b
a d
c
b
a +
+
+
?
?
?
?
c

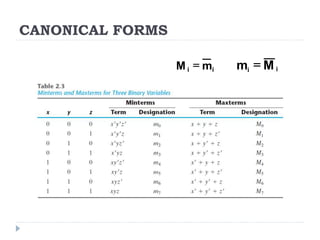

CANONICAL FORMS
i m
M = i i
i M
m =

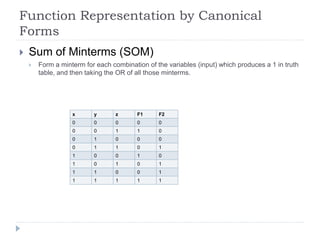

Function Representation by Canonical
Forms
 Sum of Minterms (SOM)
 Form a minterm for each combination of the variables (input) which produces a 1 in truth
table, and then taking the OR of all those minterms.
x y z F1 F2
0 0 0 0 0
0 0 1 1 0
0 1 0 0 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1

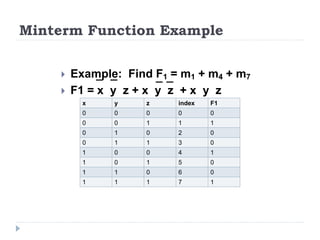

Minterm Function Example
 Example: Find F1 = m1 + m4 + m7
 F1 = x y z + x y z + x y z
x y z index F1
0 0 0 0 0
0 0 1 1 1
0 1 0 2 0
0 1 1 3 0
1 0 0 4 1
1 0 1 5 0
1 1 0 6 0
1 1 1 7 1

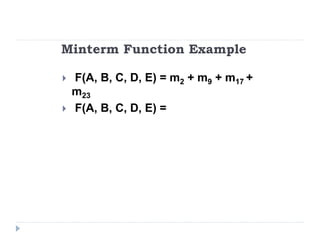

Minterm Function Example
 F(A, B, C, D, E) = m2 + m9 + m17 +
m23
 F(A, B, C, D, E) =

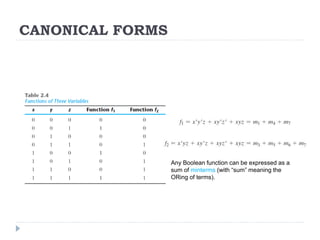

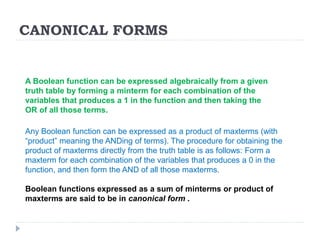

CANONICAL FORMS
Any Boolean function can be expressed as a
sum of minterms (with “sum” meaning the
ORing of terms).

Function Representation by Canonical
Forms

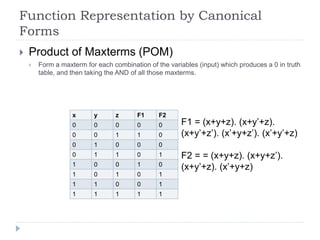

 Product of Maxterms (POM)
 Form a maxterm for each combination of the variables (input) which produces a 0 in truth
table, and then taking the AND of all those maxterms.
x y z F1 F2
0 0 0 0 0
0 0 1 1 0
0 1 0 0 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1
F1 = (x+y+z). (x+y’+z).
(x+y’+z’). (x’+y+z’). (x’+y’+z)
F2 = = (x+y+z). (x+y+z’).
(x+y’+z). (x’+y+z)

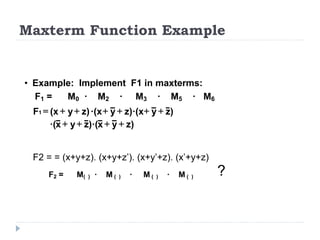

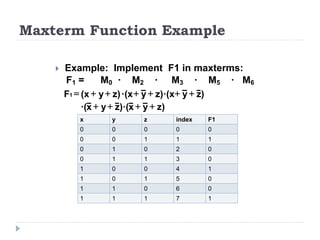

Maxterm Function Example
 Example: Implement F1 in maxterms:
F1 = M0 · M2 · M3 · M5 · M6
)
z
y
z)·(x
y
·(x
z)
y
(x
F1 +
+
+
+
+
+
=
z)
y
x
)·(
z
y
x
·( +
+
+
+
x y z index F1
0 0 0 0 0
0 0 1 1 1
0 1 0 2 0
0 1 1 3 0
1 0 0 4 1
1 0 1 5 0
1 1 0 6 0
1 1 1 7 1

F2 = = (x+y+z). (x+y+z’). (x+y’+z). (x’+y+z)
• Example: Implement F1 in maxterms:
F1 = M0 · M2 · M3 · M5 · M6
)
z
y
z)·(x
y
·(x
z)
y
(x
F1 +
+
+
+
+
+
=
z)
y
x
)·(
z
y
x
·( +
+
+
+

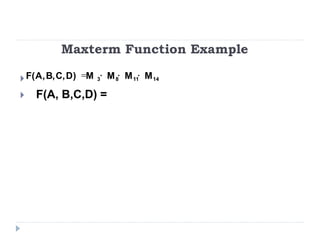

F2 = M( ) · M ( ) · M ( ) · M ( )
?


 F(A, B,C,D) =
14
11
8
3 M
M
M
M
)
D
,
C
,
B
,
A
(
F 


=

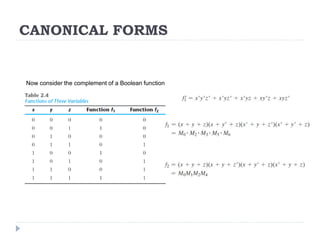

CANONICAL FORMS
Now consider the complement of a Boolean function

CANONICAL FORMS
Any Boolean function can be expressed as a product of maxterms (with
“product” meaning the ANDing of terms). The procedure for obtaining the
product of maxterms directly from the truth table is as follows: Form a
maxterm for each combination of the variables that produces a 0 in the
function, and then form the AND of all those maxterms.
Boolean functions expressed as a sum of minterms or product of
maxterms are said to be in canonical form .
A Boolean function can be expressed algebraically from a given
truth table by forming a minterm for each combination of the
variables that produces a 1 in the function and then taking the
OR of all those terms.

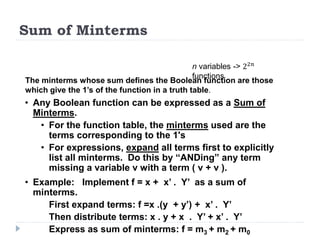

Sum of Minterms
The minterms whose sum defines the Boolean function are those
which give the 1’s of the function in a truth table.
n variables -> 22𝑛
functions
• Any Boolean function can be expressed as a Sum of
Minterms.
• For the function table, the minterms used are the
terms corresponding to the 1's
• For expressions, expand all terms first to explicitly
list all minterms. Do this by “ANDing” any term
missing a variable v with a term ( v + v ).

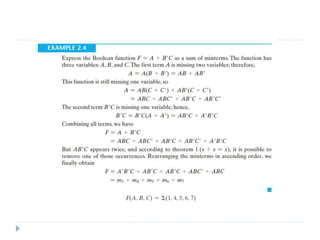

• Example: Implement f = x + x’ . Y’ as a sum of
minterms.
First expand terms: f =x .(y + y’) + x’ . Y’
Then distribute terms: x . y + x . Y’ + x’ . Y’
Express as sum of minterms: f = m3 + m2 + m0

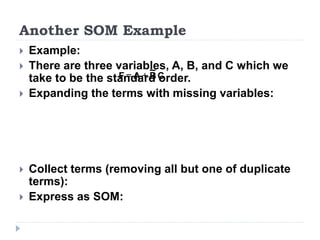

Another SOM Example
 Example:
 There are three variables, A, B, and C which we
take to be the standard order.
 Expanding the terms with missing variables:
 Collect terms (removing all but one of duplicate
terms):
 Express as SOM:
C
B
A
F +
=

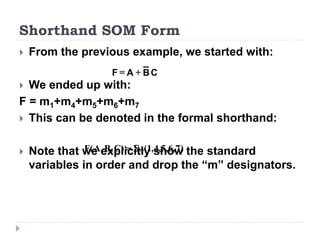

Shorthand SOM Form
 From the previous example, we started with:
 We ended up with:
F = m1+m4+m5+m6+m7
 This can be denoted in the formal shorthand:
 Note that we explicitly show the standard
variables in order and drop the “m” designators.
)
7
,
6
,
5
,
4
,
1
(
)
C
,
B
,
A
(
F m

=
C
B
A
F +
=

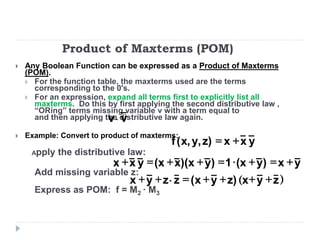

Product of Maxterms (POM)
 Any Boolean Function can be expressed as a Product of Maxterms
(POM).
 For the function table, the maxterms used are the terms
corresponding to the 0's.
 For an expression, expand all terms first to explicitly list all
maxterms. Do this by first applying the second distributive law ,
“ORing” terms missing variable v with a term equal to
and then applying the distributive law again.
 Example: Convert to product of maxterms:
Apply the distributive law:
Add missing variable z:
Express as POM: f = M2 · M3
y
x
x
)
z
,
y
,
x
(
f +
=
y
x
)
y
(x
1
)
y
)(x
x
(x
y
x
x +
=
+

=
+
+
=
+
( )
z
y
x
)
z
y
x
(
z
z
y
x +
+
+
+
=

+
+
v
v

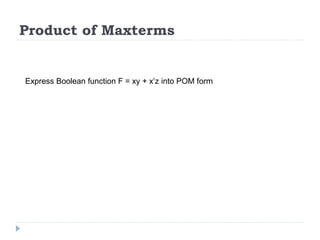

Product of Maxterms
Express Boolean function F = xy + x’z into POM form

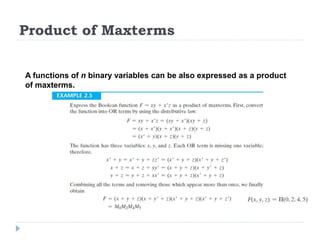

Product of Maxterms
A functions of n binary variables can be also expressed as a product
of maxterms.

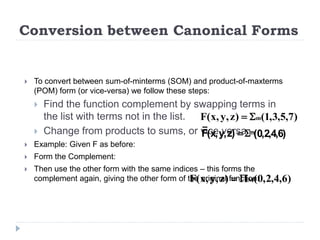

Conversion between Canonical Forms
 To convert between sum-of-minterms (SOM) and product-of-maxterms
(POM) form (or vice-versa) we follow these steps:
 Find the function complement by swapping terms in
the list with terms not in the list.
 Change from products to sums, or vice versa.
 Example: Given F as before:
 Form the Complement:
 Then use the other form with the same indices – this forms the
complement again, giving the other form of the original function:
)
7
,
5
,
3
,
1
(
)
z
,
y
,
x
(
F m

=
)
6
,
4
,
2
,
0
(
)
z
,
y
,
x
(
F m

=
)
6
,
4
,
2
,
0
(
)
z
,
y
,
x
(
F M

=

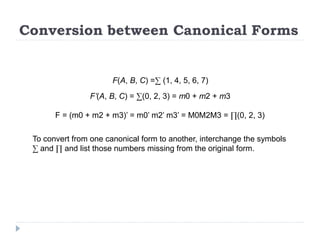

Conversion between Canonical Forms
F(A, B, C) =∑ (1, 4, 5, 6, 7)
F’(A, B, C) = ∑(0, 2, 3) = m0 + m2 + m3
F = (m0 + m2 + m3)’ = m0’ m2’ m3’ = M0M2M3 = ∏(0, 2, 3)
To convert from one canonical form to another, interchange the symbols
∑ and ∏ and list those numbers missing from the original form.

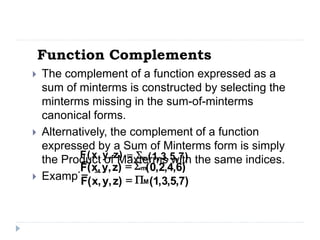

Function Complements
 The complement of a function expressed as a
sum of minterms is constructed by selecting the
minterms missing in the sum-of-minterms
canonical forms.
 Alternatively, the complement of a function
expressed by a Sum of Minterms form is simply
the Product of Maxterms with the same indices.
 Example: Given
)
7
,
5
,
3
,
1
(
)
z
,
y
,
x
(
F m

=
)
6
,
4
,
2
,
0
(
)
z
,
y
,
x
(
F m

=
)
7
,
5
,
3
,
1
(
)
z
,
y
,
x
(
F M

=

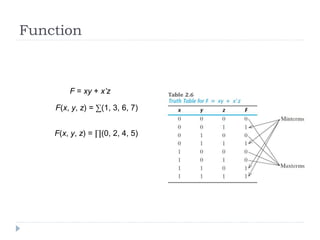

Function
F = xy + x’z
F(x, y, z) = ∑(1, 3, 6, 7)
F(x, y, z) = ∏(0, 2, 4, 5)

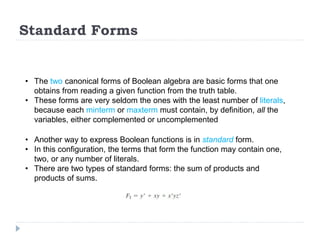

Standard Forms
• The two canonical forms of Boolean algebra are basic forms that one
obtains from reading a given function from the truth table.
• These forms are very seldom the ones with the least number of literals,
because each minterm or maxterm must contain, by definition, all the
variables, either complemented or uncomplemented
• Another way to express Boolean functions is in standard form.
• In this configuration, the terms that form the function may contain one,
two, or any number of literals.
• There are two types of standard forms: the sum of products and
products of sums.

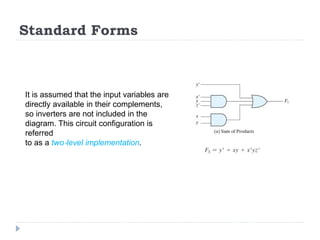

Standard Forms
It is assumed that the input variables are
directly available in their complements,
so inverters are not included in the
diagram. This circuit configuration is
referred
to as a two‐level implementation.

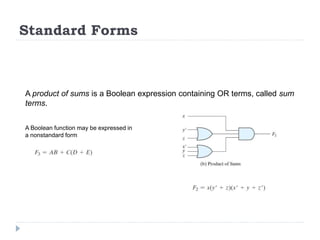

Standard Forms
A product of sums is a Boolean expression containing OR terms, called sum
terms.
A Boolean function may be expressed in
a nonstandard form

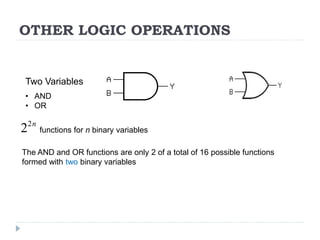

OTHER LOGIC OPERATIONS
• AND
• OR
Two Variables
functions for n binary variables
2
2 n

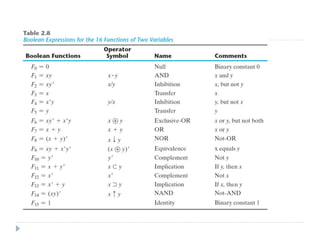

The AND and OR functions are only 2 of a total of 16 possible functions
formed with two binary variables

OTHER LOGIC OPERATIONS
2
2 n
The 16 functions listed can be subdivided into three categories:
1. Two functions that produce a constant 0 or 1.
2. Four functions with unary operations: complement and transfer.
3. Ten functions with binary operators that define eight different operations:
AND, OR, NAND, NOR, exclusive‐OR, equivalence, inhibition, and implication.

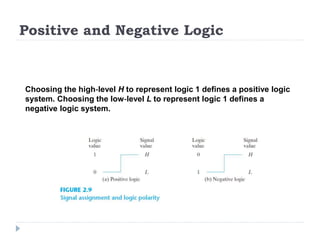

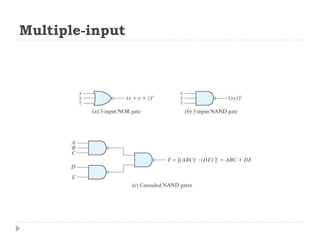

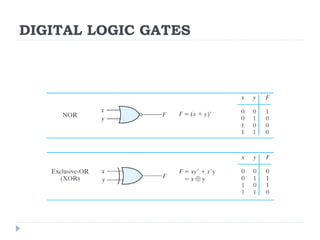

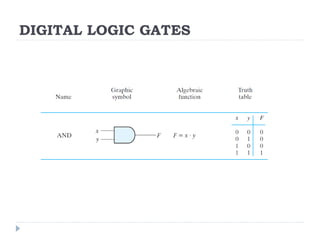

Positive and Negative Logic
Choosing the high‐level H to represent logic 1 defines a positive logic
system. Choosing the low‐level L to represent logic 1 defines a
negative logic system.

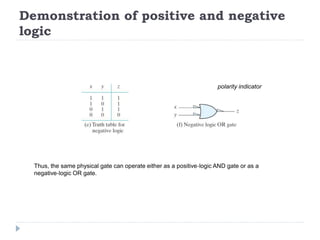

Demonstration of positive and negative
logic

Demonstration of positive and negative
logic
polarity indicator
Thus, the same physical gate can operate either as a positive‐logic AND gate or as a
negative‐logic OR gate.

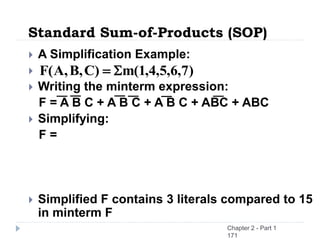

 A Simplification Example:

 Writing the minterm expression:
F = A B C + A B C + A B C + ABC + ABC
 Simplifying:
F =
 Simplified F contains 3 literals compared to 15
in minterm F
Standard Sum-of-Products (SOP)
)
7
,
6
,
5
,
4
,
1
(
m
)
C
,
B
,
A
(
F 
=
Chapter 2 - Part 1
171

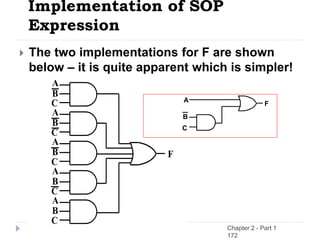

Implementation of SOP
Expression
 The two implementations for F are shown
below – it is quite apparent which is simpler!
F
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C F
B
C
A
Chapter 2 - Part 1
172

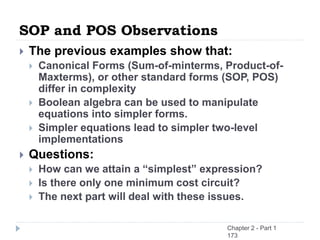

SOP and POS Observations
 The previous examples show that:
 Canonical Forms (Sum-of-minterms, Product-of-
Maxterms), or other standard forms (SOP, POS)
differ in complexity
 Boolean algebra can be used to manipulate
equations into simpler forms.
 Simpler equations lead to simpler two-level
implementations
 Questions:
 How can we attain a “simplest” expression?
 Is there only one minimum cost circuit?
 The next part will deal with these issues.
Chapter 2 - Part 1
173

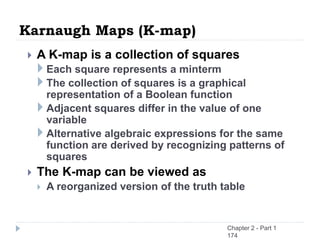

Karnaugh Maps (K-map)
 A K-map is a collection of squares
 Each square represents a minterm
 The collection of squares is a graphical
representation of a Boolean function
 Adjacent squares differ in the value of one
variable
 Alternative algebraic expressions for the same
function are derived by recognizing patterns of
squares
 The K-map can be viewed as
 A reorganized version of the truth table
Chapter 2 - Part 1
174

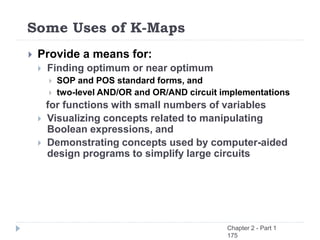

Some Uses of K-Maps
 Provide a means for:
 Finding optimum or near optimum
 SOP and POS standard forms, and
 two-level AND/OR and OR/AND circuit implementations
for functions with small numbers of variables
 Visualizing concepts related to manipulating
Boolean expressions, and
 Demonstrating concepts used by computer-aided
design programs to simplify large circuits
Chapter 2 - Part 1
175

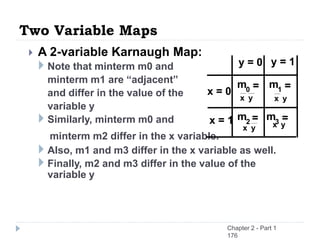

Two Variable Maps
 A 2-variable Karnaugh Map:
 Note that minterm m0 and
minterm m1 are “adjacent”
and differ in the value of the
variable y
 Similarly, minterm m0 and
minterm m2 differ in the x variable.
 Also, m1 and m3 differ in the x variable as well.
 Finally, m2 and m3 differ in the value of the
variable y
y = 0 y = 1
x = 0
m0 = m1 =
x = 1 m2 = m3 =
y
x y
x
y
x y
x
Chapter 2 - Part 1
176

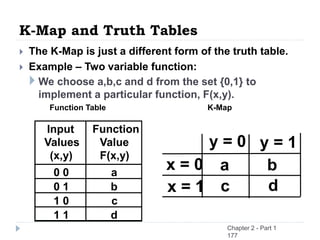

K-Map and Truth Tables
 The K-Map is just a different form of the truth table.
 Example – Two variable function:
 We choose a,b,c and d from the set {0,1} to
implement a particular function, F(x,y).
Function Table K-Map
Input
Values
(x,y)
Function
Value
F(x,y)
0 0 a
0 1 b
1 0 c
1 1 d
y = 0 y = 1
x = 0 a b
x = 1 c d
Chapter 2 - Part 1
177

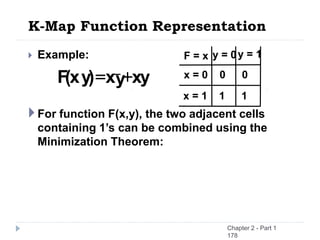

K-Map Function Representation
 Example:
For function F(x,y), the two adjacent cells
containing 1’s can be combined using the
Minimization Theorem:
F = x y = 0y = 1
x = 0 0 0
x = 1 1 1
y
x
y
x
)
y
x
(
F +
=
Chapter 2 - Part 1
178

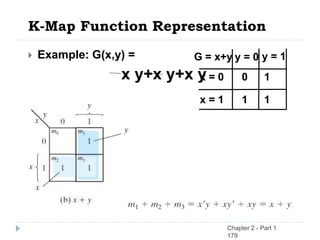

K-Map Function Representation
 Example: G(x,y) =
x y+x y+x y
G = x+y y = 0 y = 1
x = 0 0 1
x = 1 1 1
Chapter 2 - Part 1
179

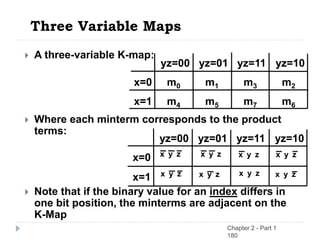

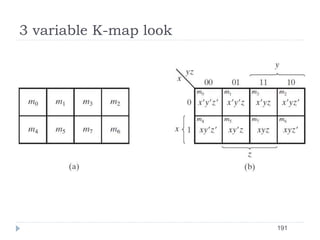

Three Variable Maps
 A three-variable K-map:
 Where each minterm corresponds to the product
terms:
 Note that if the binary value for an index differs in
one bit position, the minterms are adjacent on the
K-Map
yz=00 yz=01 yz=11 yz=10
x=0 m0 m1 m3 m2
x=1 m4 m5 m7 m6
yz=00 yz=01 yz=11 yz=10
x=0
x=1
z
y
x z
y
x z
y
x z
y
x
z
y
x z
y
x z
y
x z
y
x
Chapter 2 - Part 1
180

181
Any two adjacent squares in the map differ by only one variable
Thus, any two minterms in adjacent squares (vertically
or horizontally, but not diagonally, adjacent) that are
ORed together will cause a removal of the dissimilar
variable.

Alternative Map Labeling
 Map use largely involves:
 Entering values into the map, and
 Reading off product terms from the
map.
 Alternate labelings are useful:
y
z
x
1
0 2
4
3
5 6
7
x
y
z
z
y
y z
z
1
0 2
4
3
5 6
7
x
0
1
00 01 11 10
x
Chapter 2 - Part 1
182

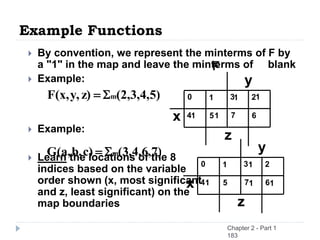

Example Functions
 By convention, we represent the minterms of F by
a "1" in the map and leave the minterms of blank
 Example:
 Example:
 Learn the locations of the 8
indices based on the variable
order shown (x, most significant
and z, least significant) on the
map boundaries
y
x
1
0 2
4
3
5 6
7
1
1
1
1
z
x
y
1
0 2
4
3
5 6
71 1
1
1
z
(2,3,4,5)
z)
y,
F(x, m

=
(3,4,6,7)
c)
b,
G(a, m

=
F
Chapter 2 - Part 1
183

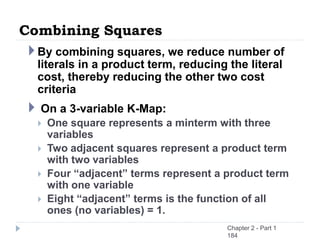

Combining Squares
By combining squares, we reduce number of
literals in a product term, reducing the literal
cost, thereby reducing the other two cost
criteria
 On a 3-variable K-Map:
 One square represents a minterm with three
variables
 Two adjacent squares represent a product term
with two variables
 Four “adjacent” terms represent a product term
with one variable
 Eight “adjacent” terms is the function of all
ones (no variables) = 1.
Chapter 2 - Part 1
184

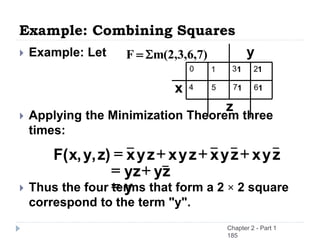

Example: Combining Squares
 Example: Let
 Applying the Minimization Theorem three
times:
 Thus the four terms that form a 2 × 2 square
correspond to the term "y".
y
=
z
y
yz+
=
z
y
x
z
y
x
z
y
x
z
y
x
)
z
,
y
,
x
(
F +
+
+
=
x
y
1
0 2
4
3
5 6
71 1
1
1
z
m(2,3,6,7)
F 
=
Chapter 2 - Part 1
185

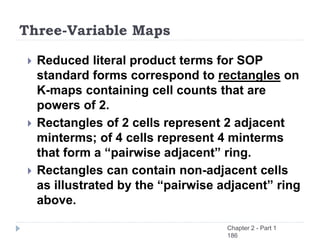

Three-Variable Maps
 Reduced literal product terms for SOP
standard forms correspond to rectangles on
K-maps containing cell counts that are
powers of 2.
 Rectangles of 2 cells represent 2 adjacent
minterms; of 4 cells represent 4 minterms
that form a “pairwise adjacent” ring.
 Rectangles can contain non-adjacent cells
as illustrated by the “pairwise adjacent” ring
above.
Chapter 2 - Part 1
186

Three-Variable Maps
 Example Shapes of 2-cell Rectangles:
 Read off the product terms for the rectangles
shown
y
0 1 3 2
5 6
4 7
x
z
Chapter 2 - Part 1
187

Three-Variable Maps
 Example Shapes of 4-cell Rectangles:
 Read off the product terms for the rectangles
shown
y
0 1 3 2
5 6
4 7
x
z
Chapter 2 - Part 1
188

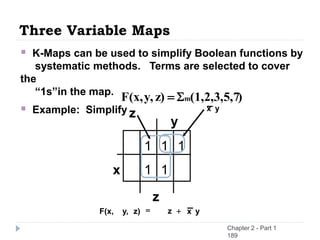

Three Variable Maps
z)
y,
F(x, =
y
1
1
x
z
1 1
1
z
z
y
x
+
y
x
 K-Maps can be used to simplify Boolean functions by
systematic methods. Terms are selected to cover
the
“1s”in the map.
 Example: Simplify
)
(1,2,3,5,7
z)
y,
F(x, m

=
Chapter 2 - Part 1
189

Three-Variable Map Simplification
 Use a K-map to find an optimum SOP equation
for
,7)
(0,1,2,4,6
Z)
Y,
F(X, m

=
Chapter 2 - Part 1
190

Example 3.1
Chapter 2 - Part 1
192
F (x, y, z) = (2, 3, 4, 5)


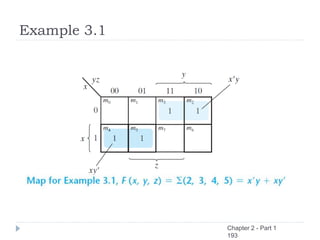

Example 3.1
Chapter 2 - Part 1
193

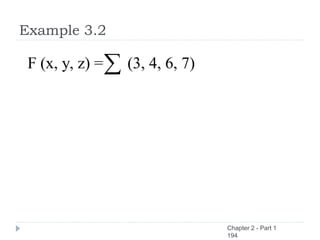

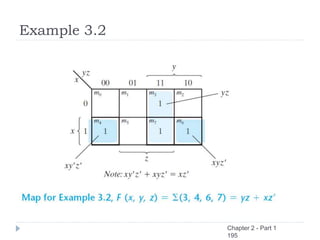

Example 3.2
Chapter 2 - Part 1
194
F (x, y, z) = (3, 4, 6, 7)


Example 3.2
Chapter 2 - Part 1
195

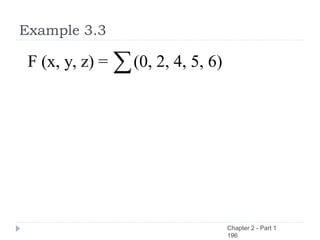

Example 3.3
Chapter 2 - Part 1
196
F (x, y, z) = (0, 2, 4, 5, 6)


Example 3.3
Chapter 2 - Part 1
197

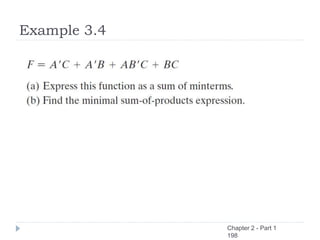

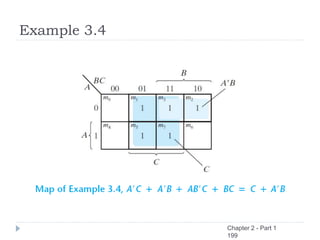

Example 3.4
Chapter 2 - Part 1
198

Example 3.4
Chapter 2 - Part 1
199

Digital Logic Design
4 Variable K-MAP

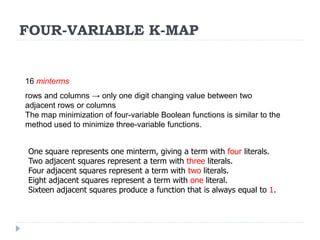

FOUR-VARIABLE K-MAP
16 minterms
rows and columns → only one digit changing value between two
adjacent rows or columns
The map minimization of four-variable Boolean functions is similar to the
method used to minimize three-variable functions.
One square represents one minterm, giving a term with four literals.
Two adjacent squares represent a term with three literals.
Four adjacent squares represent a term with two literals.
Eight adjacent squares represent a term with one literal.
Sixteen adjacent squares produce a function that is always equal to 1.

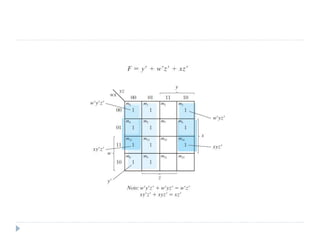

EXAMPLE 3.5
F (w, x, y, z) = (0, 1, 2, 4, 5, 6, 8, 9, 12, 13, 14)


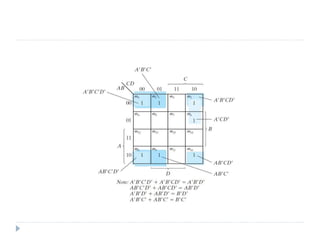

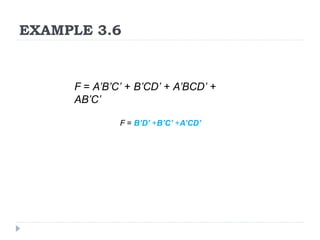

EXAMPLE 3.6
F = A’B’C’ + B’CD’ + A’BCD’ +
AB’C’
F = B’D’ +B’C’ +A’CD’

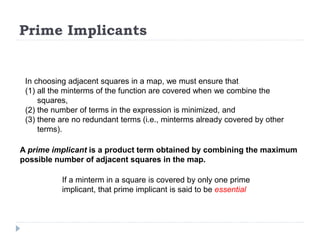

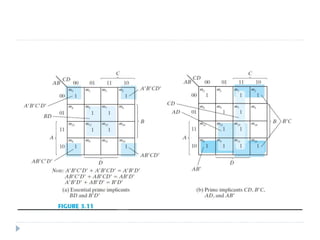

Prime Implicants
In choosing adjacent squares in a map, we must ensure that
(1) all the minterms of the function are covered when we combine the
squares,
(2) the number of terms in the expression is minimized, and
(3) there are no redundant terms (i.e., minterms already covered by other
terms).
A prime implicant is a product term obtained by combining the maximum
possible number of adjacent squares in the map.
If a minterm in a square is covered by only one prime
implicant, that prime implicant is said to be essential

The prime implicants of a function can be obtained from the map by
combining all possible maximum numbers of squares
F(A, B, C, D) = (0, 2, 3, 5, 7, 8, 9, 10, 11, 13, 15)


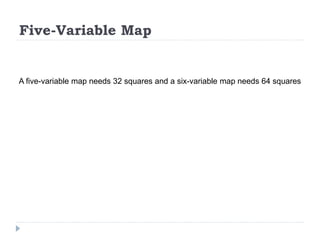

Five-Variable Map
A five-variable map needs 32 squares and a six-variable map needs 64 squares

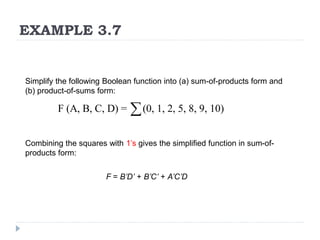

EXAMPLE 3.7
Simplify the following Boolean function into (a) sum-of-products form and
(b) product-of-sums form:
F (A, B, C, D) = (0, 1, 2, 5, 8, 9, 10)

Combining the squares with 1’s gives the simplified function in sum-of-
products form:
F = B’D’ + B’C’ + A’C’D

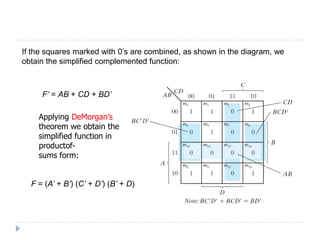

If the squares marked with 0’s are combined, as shown in the diagram, we
obtain the simplified complemented function:
F’ = AB + CD + BD’
Applying DeMorgan’s
theorem we obtain the
simplified function in
productof-
sums form:
F = (A’ + B’) (C’ + D’) (B’ + D)

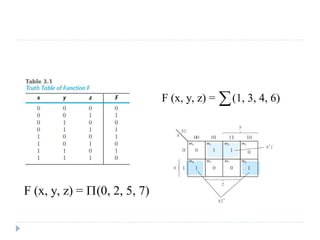

F (x, y, z) = (1, 3, 4, 6)

F (x, y, z) = (0, 2, 5, 7)


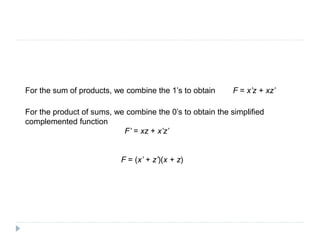

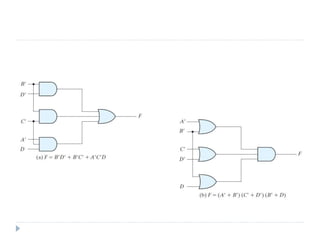

For the sum of products, we combine the 1’s to obtain
For the product of sums, we combine the 0’s to obtain the simplified
complemented function
F = x’z + xz’
F’ = xz + x’z’
F = (x’ + z’)(x + z)

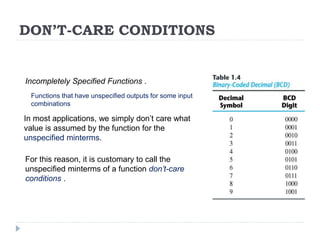

DON’T-CARE CONDITIONS
Incompletely Specified Functions .
Functions that have unspecified outputs for some input
combinations
In most applications, we simply don’t care what
value is assumed by the function for the
unspecified minterms.
For this reason, it is customary to call the
unspecified minterms of a function don’t-care
conditions .

These don’t-care conditions can be used on a map to provide further
simplification of the Boolean expression.
A don’t-care minterm is a combination of variables whose logical value is
not specified.
Such a minterm cannot be marked with a 1 in the map, because it would
require that the function always be a 1 for such a combination.
Likewise, putting a 0 on the square requires the function to be 0.
To distinguish the don’t-care condition from 1’s and 0’s, an X is used.

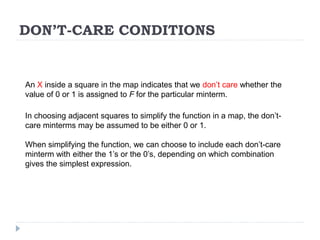

An X inside a square in the map indicates that we don’t care whether the
value of 0 or 1 is assigned to F for the particular minterm.
In choosing adjacent squares to simplify the function in a map, the don’t-
care minterms may be assumed to be either 0 or 1.
When simplifying the function, we can choose to include each don’t-care
minterm with either the 1’s or the 0’s, depending on which combination
gives the simplest expression.

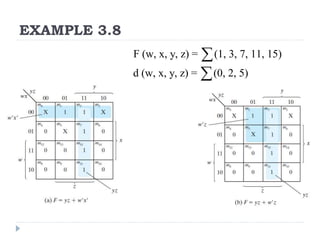

EXAMPLE 3.8
F (w, x, y, z) = (1, 3, 7, 11, 15)
d (w, x, y, z) = (0, 2, 5)



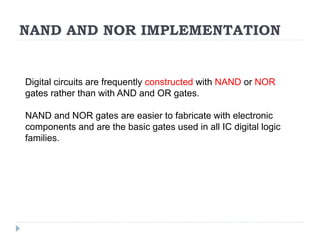

NAND AND NOR IMPLEMENTATION
Digital circuits are frequently constructed with NAND or NOR
gates rather than with AND and OR gates.
NAND and NOR gates are easier to fabricate with electronic
components and are the basic gates used in all IC digital logic
families.

NAND Circuits
The NAND gate is said to be a universal gate because any logic circuit can
be implemented with it.
To show that any Boolean function can be implemented with NAND gates,
we need only show that the logical operations of AND, OR, and complement
can be obtained with NAND gates alone.

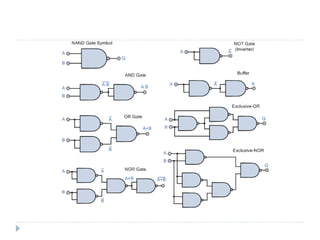

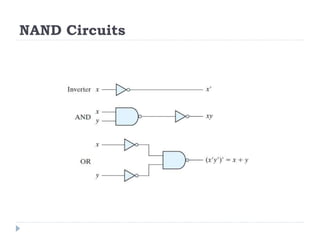

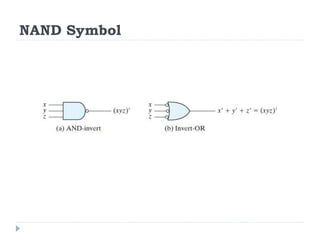

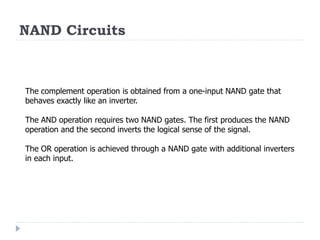

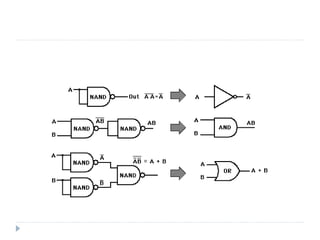

NAND Circuits
The complement operation is obtained from a one-input NAND gate that
behaves exactly like an inverter.
The AND operation requires two NAND gates. The first produces the NAND
operation and the second inverts the logical sense of the signal.
The OR operation is achieved through a NAND gate with additional inverters
in each input.

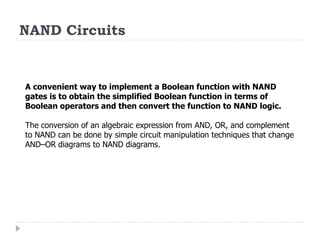

NAND Circuits
A convenient way to implement a Boolean function with NAND
gates is to obtain the simplified Boolean function in terms of
Boolean operators and then convert the function to NAND logic.
The conversion of an algebraic expression from AND, OR, and complement
to NAND can be done by simple circuit manipulation techniques that change
AND–OR diagrams to NAND diagrams.

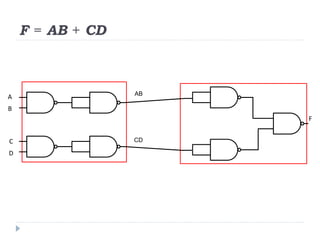

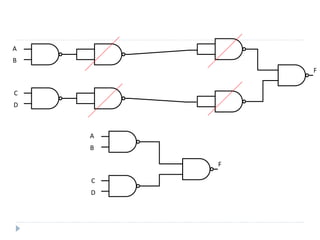

NAND Circuits
The implementation of Boolean functions with NAND gates requires
that the functions be in sum-of-products form.
A
B
C
D

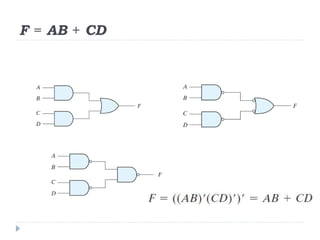

G(A,B,C,D) = A*B + C*D
G(A,B,C,D)

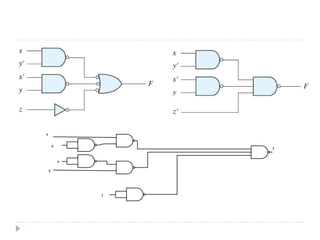

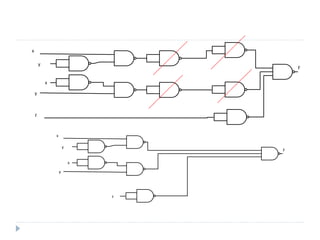

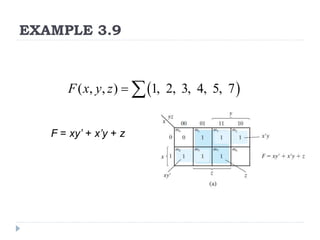

EXAMPLE 3.9
F = xy’ + x’y + z
( )
, , 1, 2, 3, 4,
( ) 5, 7
F x y z = 

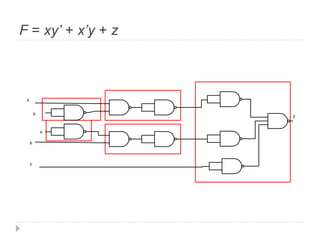

F = xy’ + x’y + z
x
y
x
y
z
F

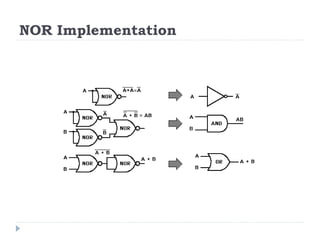

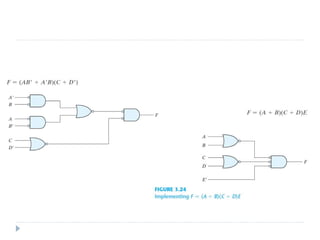

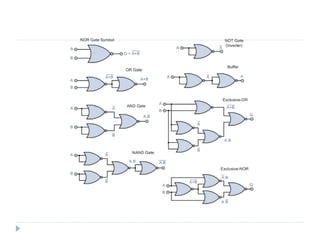

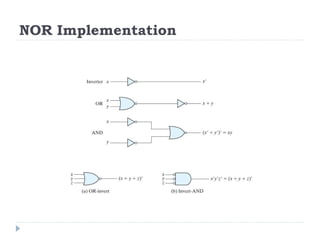

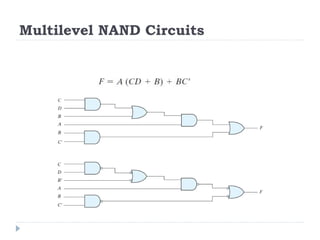

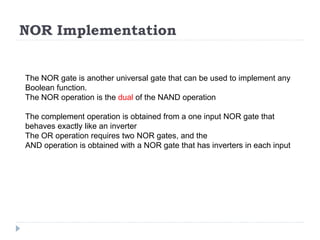

NOR Implementation
The NOR gate is another universal gate that can be used to implement any
Boolean function.
The NOR operation is the dual of the NAND operation
The complement operation is obtained from a one input NOR gate that
behaves exactly like an inverter
The OR operation requires two NOR gates, and the
AND operation is obtained with a NOR gate that has inverters in each input

EXCLUSIVE-OR FUNCTION
The exclusive-OR (XOR), is a logical operation that performs the following
Boolean operation:

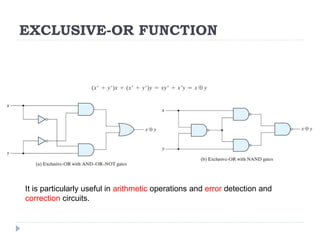

EXCLUSIVE-OR FUNCTION
It is particularly useful in arithmetic operations and error detection and
correction circuits.

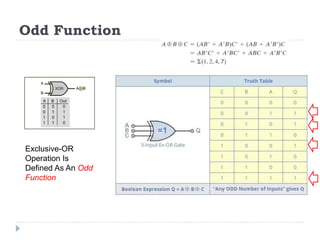

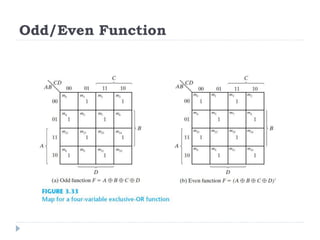

Odd Function
Exclusive-OR
Operation Is
Defined As An Odd
Function

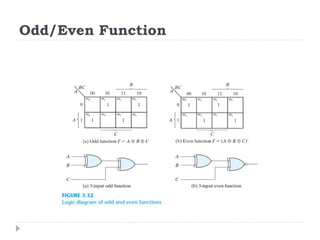

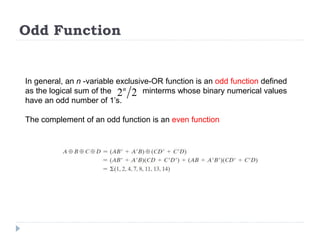

Odd Function
In general, an n -variable exclusive-OR function is an odd function defined
as the logical sum of the minterms whose binary numerical values
have an odd number of 1’s.
The complement of an odd function is an even function
2 2
n

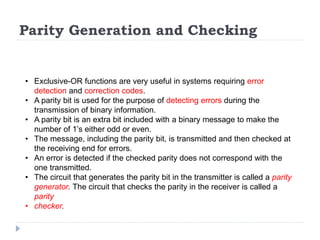

Parity Generation and Checking
• Exclusive-OR functions are very useful in systems requiring error
detection and correction codes.
• A parity bit is used for the purpose of detecting errors during the
transmission of binary information.
• A parity bit is an extra bit included with a binary message to make the
number of 1’s either odd or even.
• The message, including the parity bit, is transmitted and then checked at
the receiving end for errors.
• An error is detected if the checked parity does not correspond with the
one transmitted.

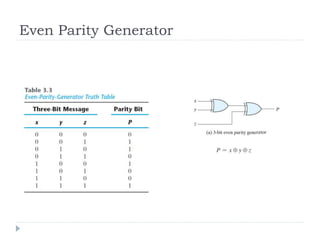

• The circuit that generates the parity bit in the transmitter is called a parity
generator. The circuit that checks the parity in the receiver is called a
parity
• checker.

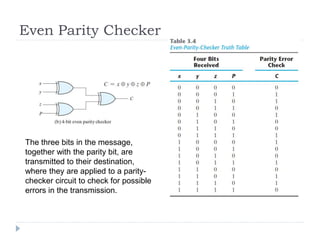

Even Parity Checker
The three bits in the message,
together with the parity bit, are
transmitted to their destination,
where they are applied to a parity-
checker circuit to check for possible
errors in the transmission.

Even Parity Checker
• The information was transmitted
with even parity, the four bits
received must have an even number
of 1’s.
• An error occurs during the
transmission if the four bits received
have an odd number of 1’s,
indicating that one bit has changed
in value during transmission.

DLD-Introduction.pptx

More Related Content

Similar to DLD-Introduction.pptx

Recently uploaded

DLD-Introduction.pptx
