This document summarizes an ORM architecture talk given by Alex Gaynor. It discusses the major components of Django's ORM, including managers, querysets, queries, and SQL compilers. It provides examples of custom aggregates and automatic single object caching using the ORM. The talk focused on 50% ORM architecture details and 50% practical applications of the ORM.

1. Pro ORM
Alex Gaynor
@alex_gaynor
Django NYC

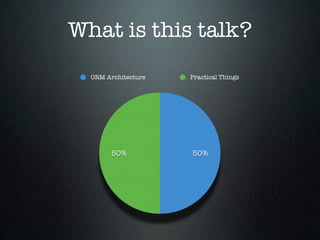

3. What is this talk?
ORM Architecture Practical Things
50% 50%

4. ORM Architecture

5. QuerySet-Refactor

6. • A big refactor of the ORM internals
• Happened a bit before Django 1.0
Old New

7. Multi DB

8. • GSOC project this past summer
• Added multiple database support to
Django
• Ripped up a lot of internals, and then
put them back together
Old New

9. from django.db import models
class MyModel(models.Model):
pass
MyModel.objects
Managers

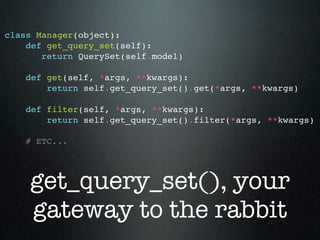

10. class Manager(object):
def get_query_set(self):
return QuerySet(self.model)
def get(self, *args, **kwargs):
return self.get_query_set().get(*args, **kwargs)
def filter(self, *args, **kwargs):
return self.get_query_set().filter(*args, **kwargs)
# ETC...
get_query_set(), your
gateway to the rabbit

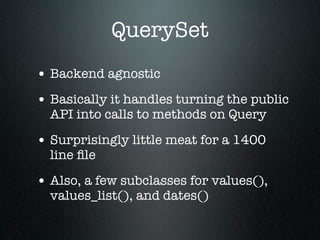

11. QuerySet
• Backend agnostic
• Basically it handles turning the public
API into calls to methods on Query
• Surprisingly little meat for a 1400
line file
• Also, a few subclasses for values(),
values_list(), and dates()

12. Query

14. • This part is backend specific, SQL vs.
GAE here, not Postgres vs. Oracle
• It carries all the info around, ordering,
joins, where, aggregates, etc...
• It used to generate SQL, not anymore
(more on this later)

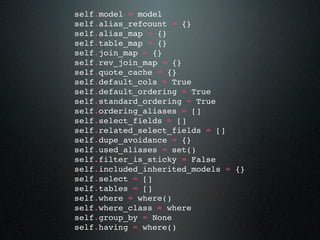

15. self.model = model
self.alias_refcount = {}
self.alias_map = {}
self.table_map = {}
self.join_map = {}
self.rev_join_map = {}
self.quote_cache = {}
self.default_cols = True
self.default_ordering = True
self.standard_ordering = True
self.ordering_aliases = []
self.select_fields = []
self.related_select_fields = []
self.dupe_avoidance = {}
self.used_aliases = set()
self.filter_is_sticky = False
self.included_inherited_models = {}
self.select = []
self.tables = []
self.where = where()
self.where_class = where
self.group_by = None
self.having = where()

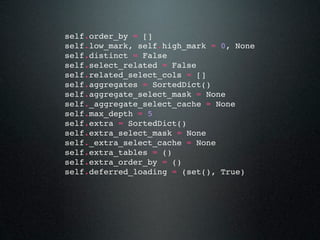

16. self.order_by = []
self.low_mark, self.high_mark = 0, None
self.distinct = False
self.select_related = False
self.related_select_cols = []
self.aggregates = SortedDict()
self.aggregate_select_mask = None
self._aggregate_select_cache = None
self.max_depth = 5
self.extra = SortedDict()
self.extra_select_mask = None
self._extra_select_cache = None
self.extra_tables = ()
self.extra_order_by = ()
self.deferred_loading = (set(), True)

17. I told you it was a lot of
stuff

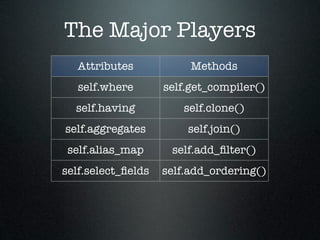

18. The Major Players
Attributes Methods
self.where self.get_compiler()
self.having self.clone()
self.aggregates self.join()
self.alias_map self.add_filter()
self.select_fields self.add_ordering()

19. Dude, where’s my
SQL?
There are no relevant images for SQL, so
you get to settle for me trying to be funny

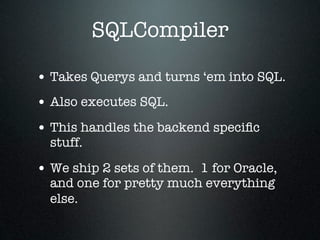

20. SQLCompiler
• Takes Querys and turns ‘em into SQL.
• Also executes SQL.
• This handles the backend specific
stuff.
• We ship 2 sets of them. 1 for Oracle,
and one for pretty much everything
else.

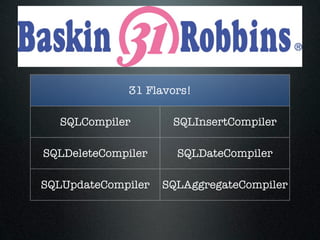

21. 31 Flavors!
SQLCompiler SQLInsertCompiler
SQLDeleteCompiler SQLDateCompiler
SQLUpdateCompiler SQLAggregateCompiler

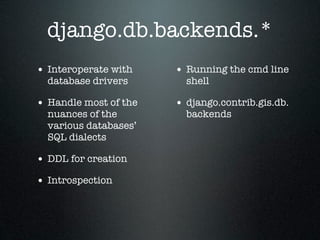

22. django.db.backends.*
• Interoperate with • Running the cmd line
database drivers shell
• Handle most of the • django.contrib.gis.db.
nuances of the backends
various databases’
SQL dialects
• DDL for creation
• Introspection

23. Putting this Stuff to
Good Use
aka the part you might use at your day
job

24. Custom Aggregates

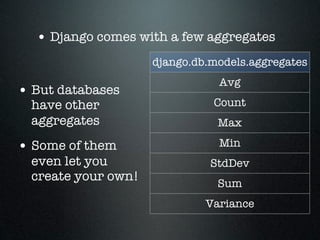

25. • Django comes with a few aggregates
django.db.models.aggregates
Avg
• But databases
have other Count
aggregates Max
• Some of them Min
even let you StdDev
create your own!
Sum
Variance

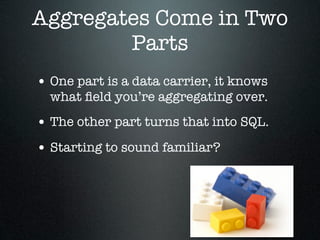

26. Aggregates Come in Two
Parts
• One part is a data carrier, it knows
what field you’re aggregating over.
• The other part turns that into SQL.
• Starting to sound familiar?

27. Part I
from django.db.models import Aggregate
class MyAggregate(Aggregate):
def add_to_query(self, query, alias, col, course,
is_summary):
aggregate = SQLMyAggregate(col, source=source,
is_summary=is_summary, **extra)
query.aggregates[alias] = aggregate

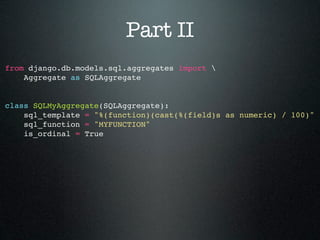

28. Part II
from django.db.models.sql.aggregates import
Aggregate as SQLAggregate
class SQLMyAggregate(SQLAggregate):
sql_template = "%(function)(cast(%(field)s as numeric) / 100)"
sql_function = "MYFUNCTION"
is_ordinal = True

29. Automatic Caching

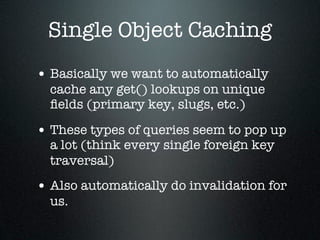

31. Single Object Caching
• Basically we want to automatically
cache any get() lookups on unique
fields (primary key, slugs, etc.)
• These types of queries seem to pop up
a lot (think every single foreign key
traversal)
• Also automatically do invalidation for
us.

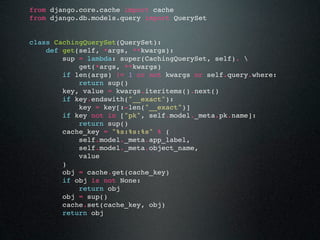

33. from django.core.cache import cache
from django.db.models.query import QuerySet
class CachingQuerySet(QuerySet):
def get(self, *args, **kwargs):
sup = lambda: super(CachingQuerySet, self).
get(*args, **kwargs)
if len(args) != 1 or not kwargs or self.query.where:
return sup()
key, value = kwargs.iteritems().next()
if key.endswith("__exact"):
key = key[:-len("__exact")]
if key not in ["pk", self.model._meta.pk.name]:
return sup()
cache_key = "%s:%s:%s" % (
self.model._meta.app_label,
self.model._meta.object_name,
value
)
obj = cache.get(cache_key)
if obj is not None:
return obj
obj = sup()
cache.set(cache_key, obj)
return obj

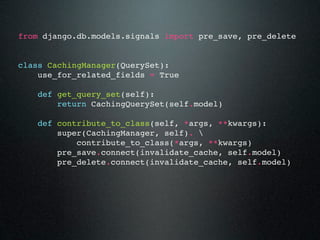

34. from django.db.models.signals import pre_save, pre_delete
class CachingManager(QuerySet):
use_for_related_fields = True
def get_query_set(self):
return CachingQuerySet(self.model)
def contribute_to_class(self, *args, **kwargs):
super(CachingManager, self).
contribute_to_class(*args, **kwargs)
pre_save.connect(invalidate_cache, self.model)
pre_delete.connect(invalidate_cache, self.model)

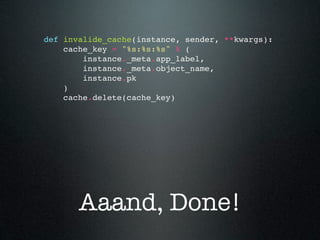

35. def invalide_cache(instance, sender, **kwargs):
cache_key = "%s:%s:%s" % (
instance._meta.app_label,
instance._meta.object_name,
instance.pk
)
cache.delete(cache_key)
Aaand, Done!

36. Questions?

37. Extra
Custom Field Review

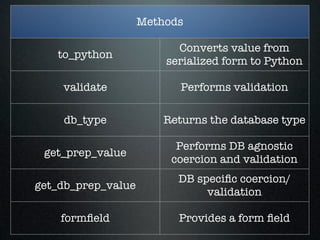

38. Methods
Converts value from
to_python
serialized form to Python
validate Performs validation
db_type Returns the database type
Performs DB agnostic
get_prep_value
coercion and validation
DB specific coercion/
get_db_prep_value
validation
formfield Provides a form field
