This presentation provides a comparison of types of caches highlighting the use of distributed caching. This is followed by an introduction to JCache API. Code samples are at [2]. This is the presentation I did at Java Colombo JUG. [2] [1] https://github.com/kasunbg/jcache-samples [2] http://www.meetup.com/java-colombo/events/223811796/

1. Distributed Caching
with Java
Kasun Gajasinghe
Senior Software Engineer
WSO2

2. ● What & Why for (Distributed) Caching
● Different types of Caches
● Cache access patterns
● Java JCache specification
● Demo
● Q&A
Agenda

3. (... but why do I
want to Cache?)
O O O
source: http://no7scramblecross.blogspot.com/2009/04/speaking-of-cats.html

4. Caching? … Distributed?
Gotcha!!
source: http://matome.naver.jp/odai/2140238539583350401/2140238875587055003

5. ● Application performance - get around
bottlenecks arising from using data that is
expensive to retrieve
○ DB or web service
○ data that is hard to calculate
○ monetary aspects
Why software Caching

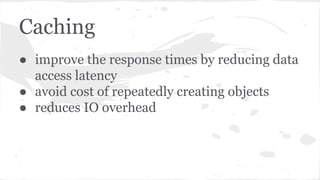

6. ● improve the response times by reducing data
access latency
● avoid cost of repeatedly creating objects
● reduces IO overhead
Caching

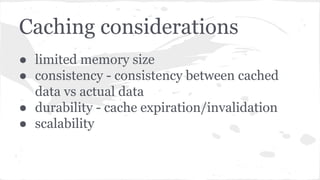

7. ● limited memory size
● consistency - consistency between cached
data vs actual data
● durability - cache expiration/invalidation
● scalability
Caching considerations

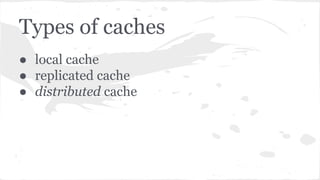

8. Types of caches
● local cache
● replicated cache
● distributed cache

9. Local Cache
● Local Cache a cache that is local to
(completely contained within) a particular
cluster node

10. Local Cache - example

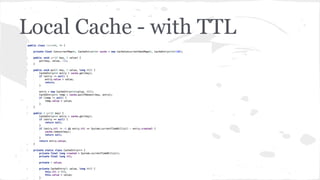

11. Local Cache - with TTL

12. Local Cache
Pros:
● simplicity
● performance
● no serialization/deserialization overhead
Cons:
● not fault-tolerant
● scalability

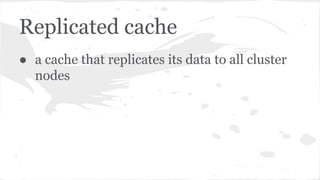

13. Replicated cache
● a cache that replicates its data to all cluster
nodes

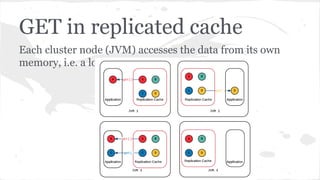

14. GET in replicated cache
Each cluster node (JVM) accesses the data from its own
memory, i.e. a local read.

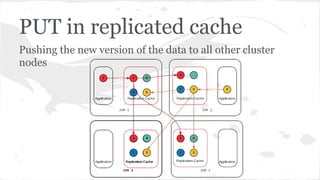

15. PUT in replicated cache
Pushing the new version of the data to all other cluster
nodes

16. Replicated Cache
Pros:
● best read performance
● fault–tolerant
● linear performance scalability for reads
Cons:
● poor write performance
● memory consumption
● additional network load
● poor and limited scalability for writes

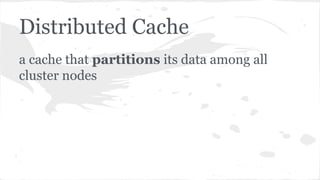

17. Distributed Cache
a cache that partitions its data among all
cluster nodes

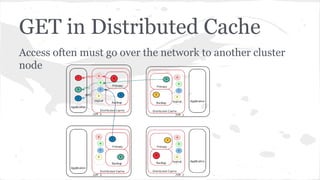

18. GET in Distributed Cache
Access often must go over the network to another cluster
node

19. Resolving known limitation of replicated cache:
PUT in Distributed Cache

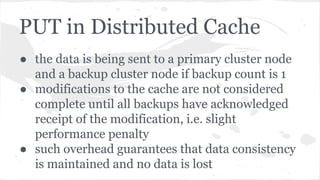

20. PUT in Distributed Cache
● the data is being sent to a primary cluster node
and a backup cluster node if backup count is 1
● modifications to the cache are not considered
complete until all backups have acknowledged
receipt of the modification, i.e. slight
performance penalty
● such overhead guarantees that data consistency
is maintained and no data is lost

21. Failover in Distributed Cache
Failover involves promoting backup data to be
primary storage.

22. Distributed Cache
Pros:
● linear performance scalability for reads and writes
● fault–tolerant
Cons:
● increased latency of reads (due to network round-trip
and serialization/deserialization expenses)

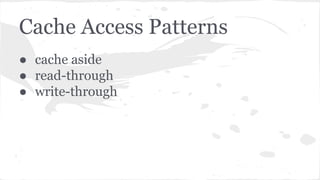

23. Cache Access Patterns
● cache aside
● read-through
● write-through

24. Cache Aside Pattern
● application is responsible of reading and writing to the
storage.
● cache doesn’t interact with storage
● the cache is ‘kept aside’ as a faster and more scalable in-
memory data store

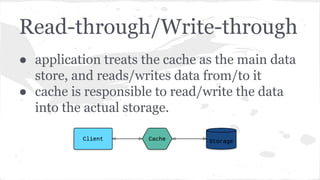

25. Read-through/Write-through
● application treats the cache as the main data
store, and reads/writes data from/to it
● cache is responsible to read/write the data
into the actual storage.

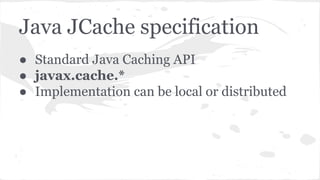

26. Java JCache specification
● Standard Java Caching API
● javax.cache.*
● Implementation can be local or distributed

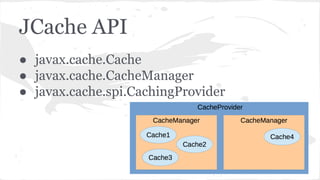

27. JCache API
● javax.cache.Cache
● javax.cache.CacheManager
● javax.cache.spi.CachingProvider

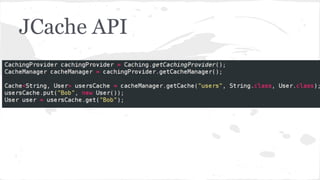

28. JCache API

29. JCache API - Annotations
• Use the cache

30. JCache API - Annotations
• Put into the cache

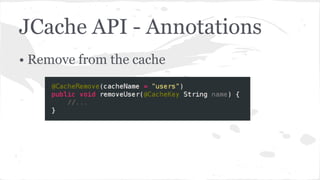

31. JCache API - Annotations
• Remove from the cache

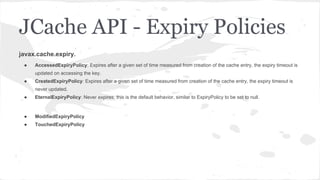

32. javax.cache.expiry.
● AccessedExpiryPolicy: Expires after a given set of time measured from creation of the cache entry, the expiry timeout is
updated on accessing the key.
● CreatedExpiryPolicy: Expires after a given set of time measured from creation of the cache entry, the expiry timeout is
never updated.
● EternalExpiryPolicy: Never expires, this is the default behavior, similar to ExpiryPolicy to be set to null.
● ModifiedExpiryPolicy
● TouchedExpiryPolicy
JCache API - Expiry Policies

33. JCache implementations
• Hazelcast
• Oracle Coherence
• Pivotal Gemfire
• Ehcache
• Infinispan
• Gridgain/Ignite
• Couchbase

34. Q&A

35. THANK YOU!

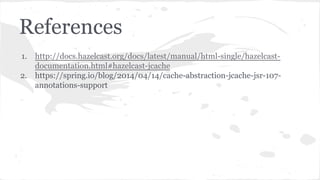

36. 1. http://docs.hazelcast.org/docs/latest/manual/html-single/hazelcast-
documentation.html#hazelcast-jcache
2. https://spring.io/blog/2014/04/14/cache-abstraction-jcache-jsr-107-
annotations-support
References
