Caching  Strategies Michal Špaček, Skype;  WebExpo 2011 , Prague @spazef0rze, www.michalspacek.cz

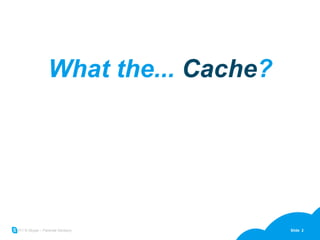

What the...  Cache ? HDD cache, CPU cache, DNS cache, web cache, geocache

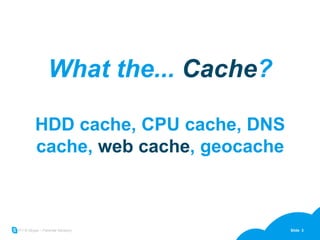

What the...  Cache ? HDD cache, CPU cache, DNS cache,  web cache , geocache

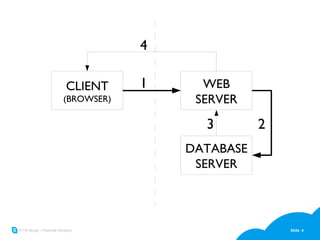

CLIENT (BROWSER) WEB SERVER DATABASE SERVER
HTTP level caching

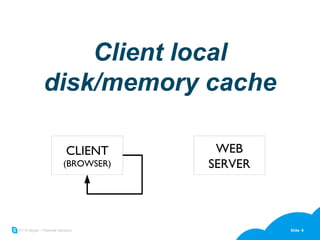

Client local disk/memory cache CLIENT (BROWSER) WEB SERVER

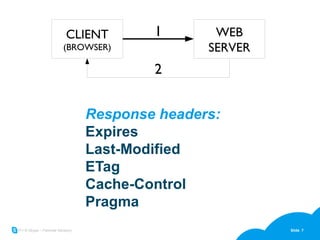

Response headers: Expires Last-Modified ETag Cache-Control Pragma CLIENT (BROWSER) WEB SERVER
Expires:  HTTP-date Expires: Sat, 24 Sep 2011 12:00:00 GMT <  Expires CLIENT (BROWSER)

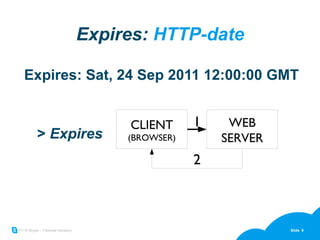

Expires:  HTTP-date Expires: Sat, 24 Sep 2011 12:00:00 GMT >  Expires CLIENT (BROWSER) WEB SERVER

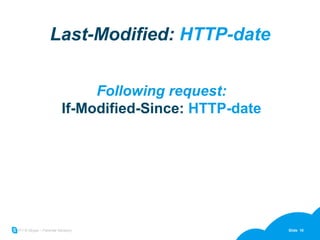

Last-Modified:  HTTP-date Following request: If-Modified-Since:  HTTP-date

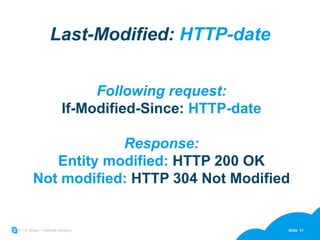

Last-Modified:  HTTP-date Following request: If-Modified-Since:  HTTP-date Response: Entity modified:  HTTP 200 OK Not modified:  HTTP 304 Not Modified
Last-Modified:  HTTP-date Saves bandwidth!

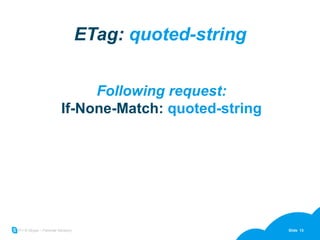

ETag:  quoted-string Following request: If-None-Match:  quoted-string

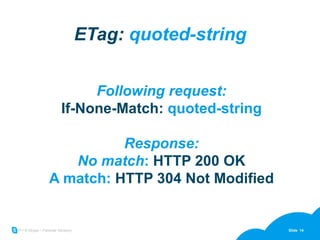

ETag:  quoted-string Following request: If-None-Match:  quoted-string Response: No match :  HTTP 200 OK A match:  HTTP 304 Not Modified
Saves bandwidth, too! ETag:  quoted-string

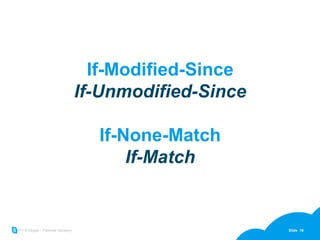

If-Modified-Since If-Unmodified-Since If-None-Match If-Match

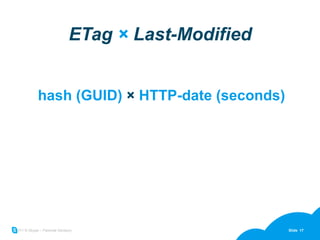

ETag  ×  Last-Modified hash (GUID)  ×  HTTP-date (seconds)

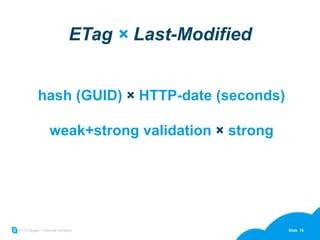

ETag  ×  Last-Modified hash (GUID)  ×  HTTP-date (seconds) weak+strong validation  ×  strong
ETag  ×  Last-Modified hash (GUID)  ×  HTTP-date (seconds) weak+strong validation  ×  strong needs content  ×  needs date

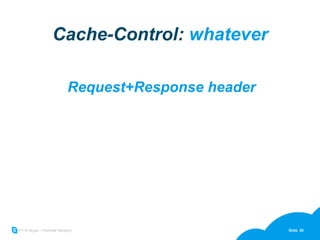

Request+Response header Cache-Control:  whatever

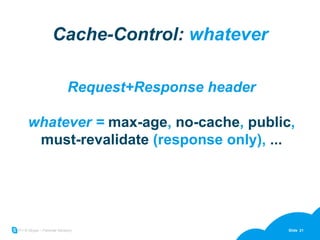

Request+Response header whatever =  max-age ,  no-cache ,  public ,  must-revalidate  (response only),  ... Cache-Control:  whatever

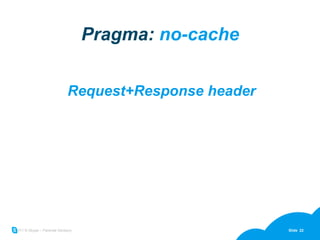

Pragma:  no-cache Request+Response header

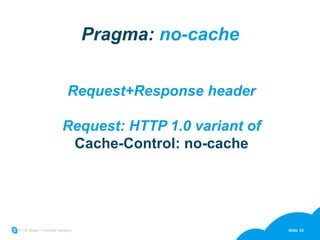

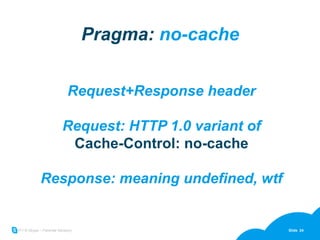

Pragma:  no-cache Request+Response header Request: HTTP 1.0 variant of Cache-Control: no-cache
Pragma:  no-cache Request+Response header Request: HTTP 1.0 variant of Cache-Control: no-cache Response: meaning undefined, wtf

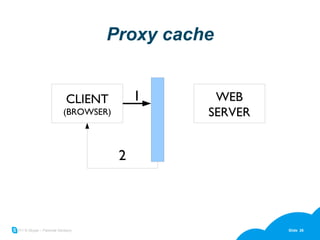

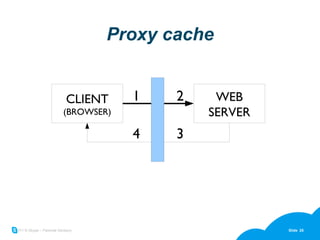

Proxy cache CLIENT (BROWSER) WEB SERVER
Proxy cache CLIENT (BROWSER) WEB SERVER

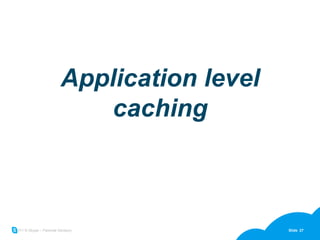

Application level caching

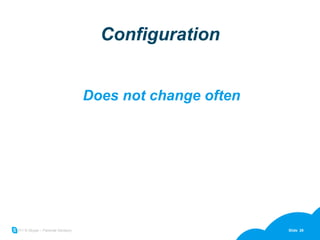

Configuration Does not change often

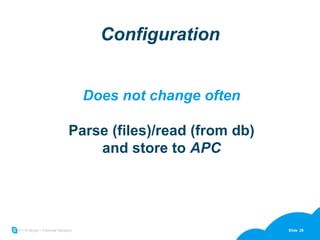

Configuration Does not change often Parse (files)/read (from db) and store to  APC

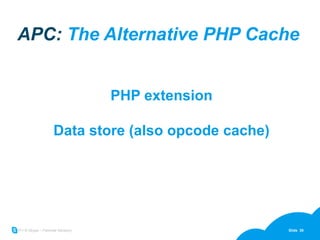

APC:  The Alternative PHP Cache PHP extension Data store (also opcode cache)

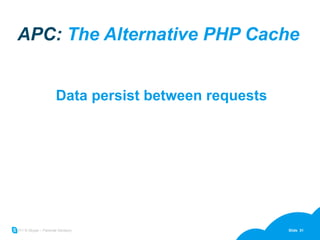

APC:  The Alternative PHP Cache Data persist between requests

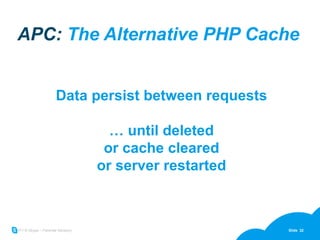

APC:  The Alternative PHP Cache Data persist between requests … until deleted or cache cleared or server restarted

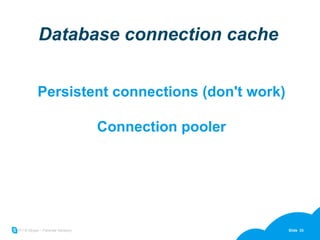

Database connection cache Persistent connections (don't work) Connection pooler

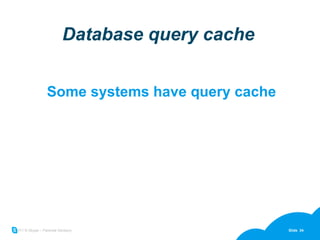

Database query cache Some systems have query cache

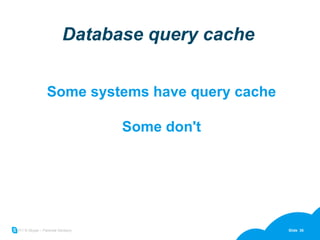

Database query cache Some systems have query cache Some don't

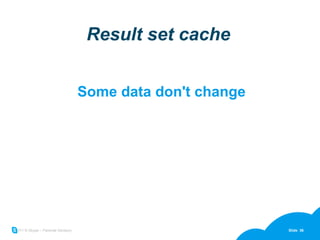

Result set cache Some data don't change

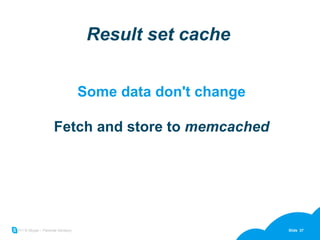

Result set cache Some data don't change Fetch and store to  memcached

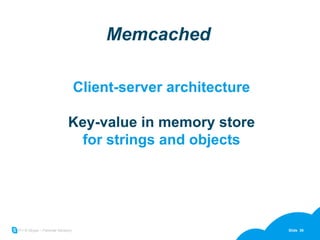

Memcached Client-server architecture Key-value in memory store for strings and objects

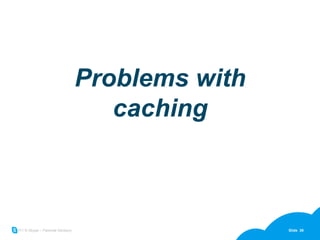

Problems with caching

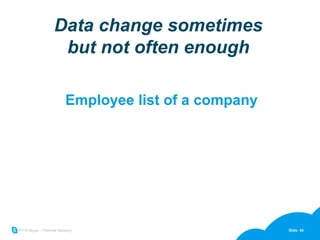

Data change sometimes but not often enough Employee list of a company

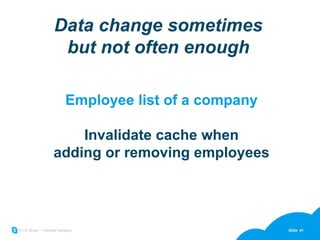

Data change sometimes but not often enough Employee list of a company Invalidate cache when adding or removing employees

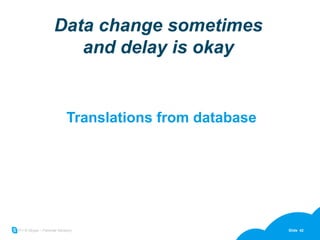

Data change sometimes and delay is okay Translations from database

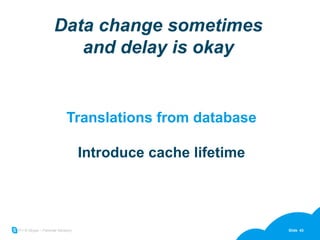

Data change sometimes and delay is okay Translations from database Introduce cache lifetime

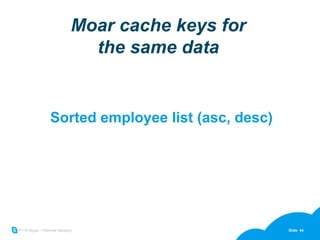

Moar cache keys for the same data Sorted employee list (asc, desc)
Moar cache keys for the same data Sorted employee list (asc, desc) Cache groups

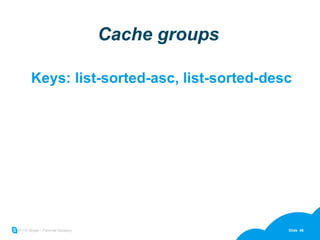

Cache groups Keys: list-sorted-asc, list-sorted-desc

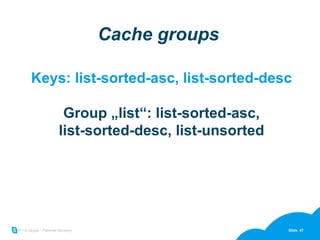

Cache groups Keys: list-sorted-asc, list-sorted-desc Group „list“: list-sorted-asc, list-sorted-desc, list-unsorted
Cache groups Keys: list-sorted-asc, list-sorted-desc Group „list“: list-sorted-asc, list-sorted-desc, list-unsorted Delete group „list“ when adding/removing
Cache wherever and whatever
…  but delete your whatever when needed

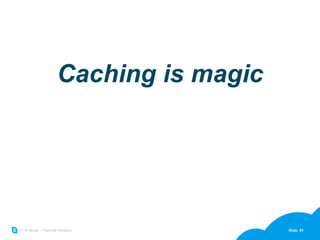

Caching is magic
Caching is magic but not automagic
Caching is magic but not automagic until now
www.phpguru.cz/kaskadova-cache ,[object Object],[object Object]
Practical implementation, anyone ? ,[object Object],[object Object]
