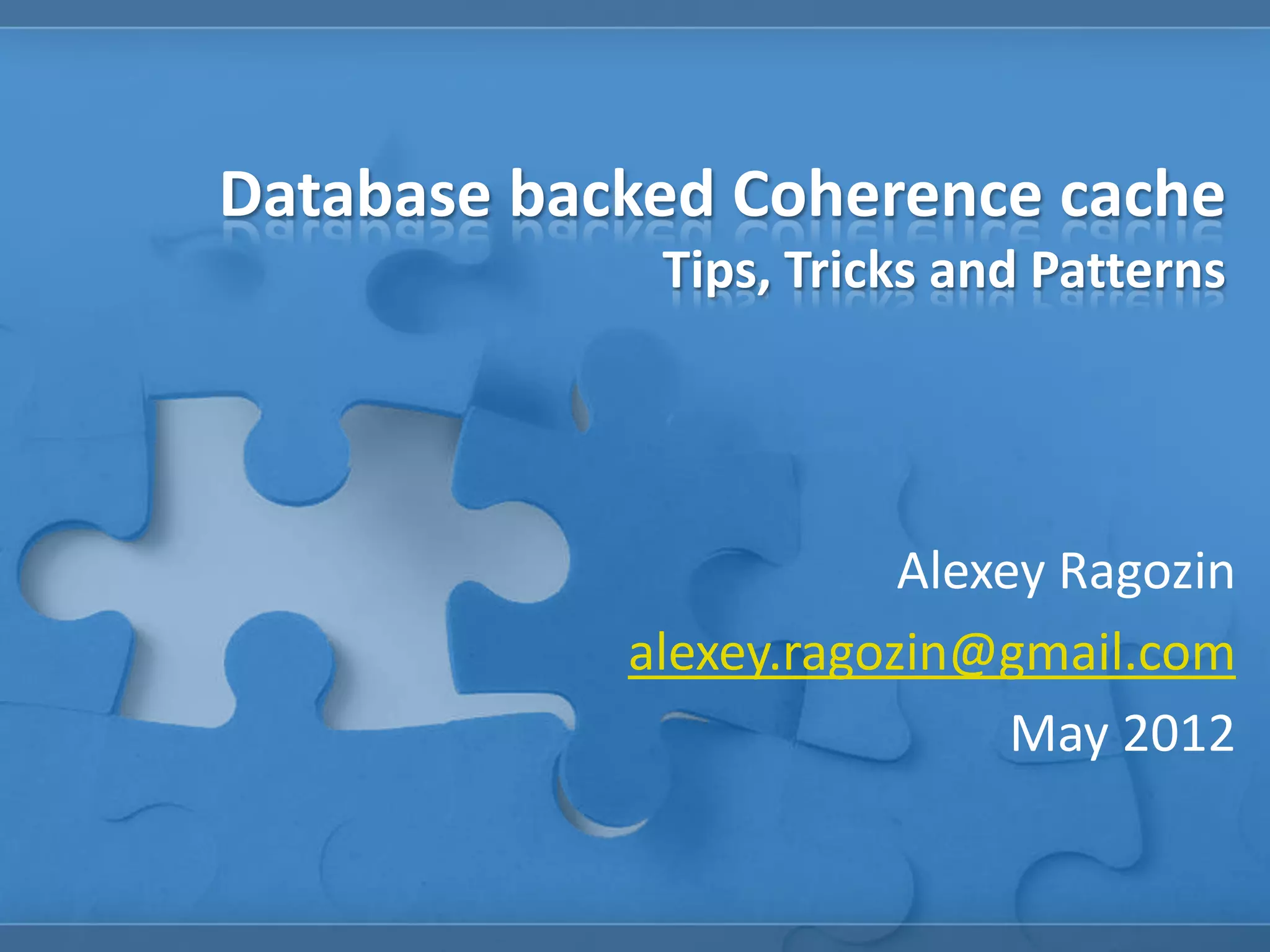

1. Database backed Coherence cache
Tips, Tricks and Patterns
Alexey Ragozin
alexey.ragozin@gmail.com
May 2012

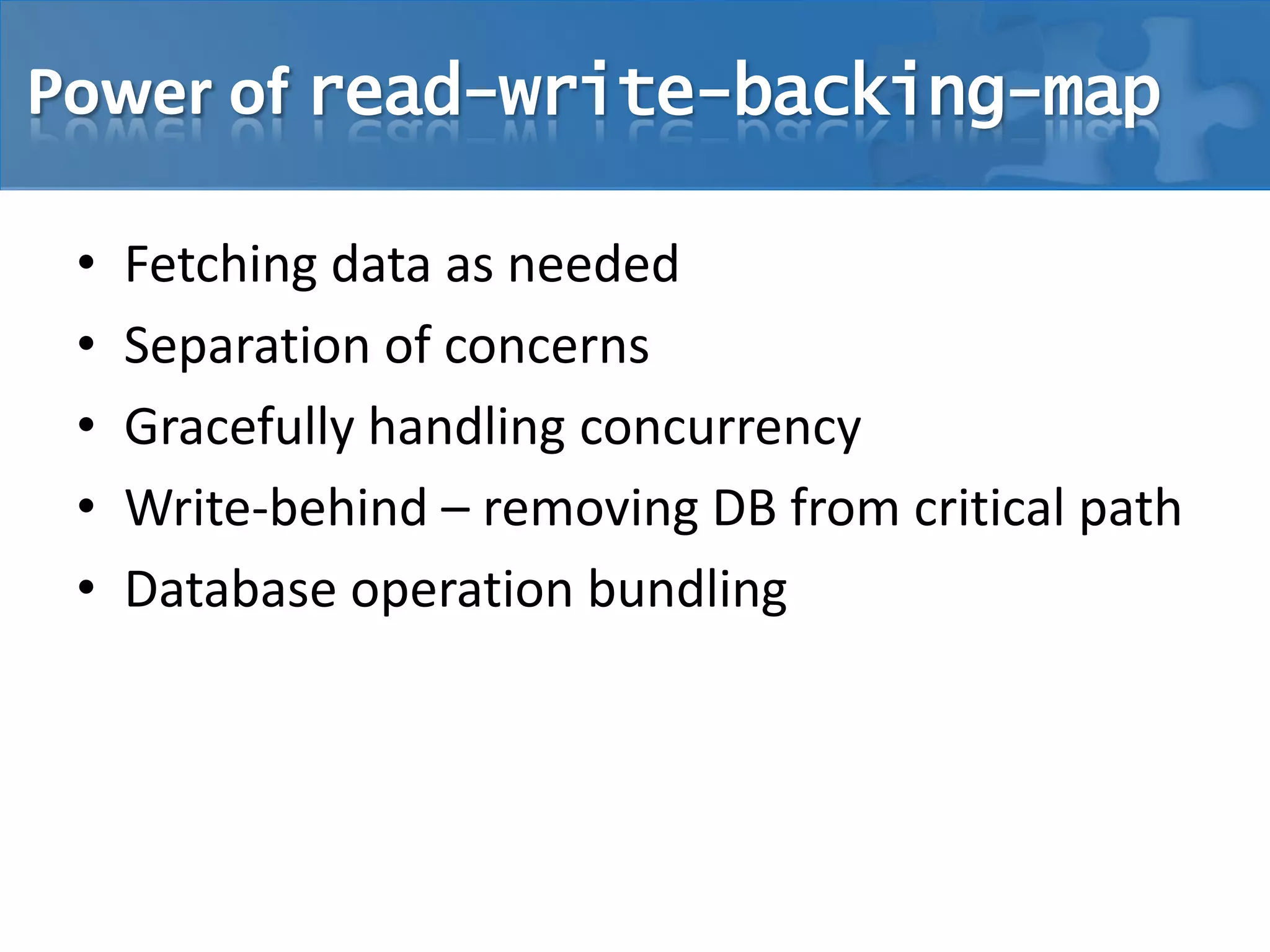

2. Power of read-write-backing-map
• Fetching data as needed
• Separation of concerns
• Gracefully handling concurrency
• Write-behind – removing DB from critical path
• Database operation bundling

3. … and challenges
 DB operations are order of magnitude slower
• Less deterministic response time
• Coherence thread pools issues
 How verify persistence with write behind?
 Data are written in DB in random order
 read-write-backing-map and expiry

4. TIPS

5. BinaryEntryStore, did you know?
BinaryEntryStore – an alternative to
CacheLoader / CacheStore interface.
Works with BinaryEntry instead of objects.
 You can access binary key and value
• Skip deserialization, if binary is enough
 You can access previous version of value
• Distinguish inserts vs. updates
• Find which fields were cached
 You cannot set entry TTL in cache loader 

6. When storeAll(…) is called?
 cache.getAll(…)
• loadAll(…) will be called with partition granularity
(since Coherence 3.7)
 cache.putAll(…)
• write-behind scheme will use storeAll(…)
• write-through scheme will use store(…)
(this could be really slow)

7. When storeAll(…) is called?
 cache.invokeAll(…)/aggregate(…)
• calling get() on entry will invoke load(…)
(if entry is not cached yet)
• calling set() on entry will invoke put(…)
(in case of write-through)
• you can check entry.isPresent() to avoid needless
read-through
• Coherence will never use bulk cache store
operations for aggregators and entry processors

8. Warming up aggregator
public static void preloadValuesViaReadThrough(Set<BinaryEntry> entries) {
CacheMap backingMap = null;
Set<Object> keys = new HashSet<Object>();
for (BinaryEntry entry : entries) {
if (backingMap == null) {
backingMap = (CacheMap) entry.getBackingMapContext().getBackingMap();
}
if (!entry.isPresent()) {
keys.add(entry.getBinaryKey());
}
}
backingMap.getAll(keys);
}
Code above will force all entries for working set to be
preloaded using bulk loadAll(…).
Call it before processing entries.

9. Why load(…) is called on write?
Case:
• Entry processor is called on set of entries which is
not in cache and assigns values to them
Question:
• Why read-through is triggered?
Answer:
• BinaryEntry.setValue(Object) returns old value
• Use BinaryEntry.setValue(Object, boolean)

10. Bulk put with write through
You can use same trick for updates.
1. Pack your values in entry processor.
2. In entry processor obtain backing map reference.
3. Call putAll(…) on backing map.
Be careful !!!
• You should only put key for partition entry processor
was called for.
• Backing map accepts serialized objects.

11. Using operation bundling
Worker thread 3
Worker Worker Worker Cache
RWBM
thread1 thread2 thread3 Store
Req 1
Req 2
Waiting
Req 3
storeAll()
Req 1
Req 2
Req 3
Worker Worker Worker Cache
RWBM
thread1 thread2 thread3 Store

12. Using operation bundling
storeAll(…) with N keys could be called if
 You have at least N concurrent operations
 You have at least N threads in worker pool
<cachestore-scheme>
<operation-bundling>
<bundle-confing>
<operation-name>store</operation-name>
<delay-millis>5</delay-millis>
<thread-threshold>4</thread-threshold>
</bundle-config>
</operation-bundling>
</cachestore-scheme>

13. Checking STORE decoration
 Configure cache as “write-behind”
 Put data
 Wait until, STORE decoration become TRUE
(actually it will switch from FALSE to null)
public class StoreFlagExtractor extends AbstractExtractor implements PortableObject {
// ...
private Object extractInternal(Binary binValue, BinaryEntry entry) {
if (ExternalizableHelper.isDecorated(binValue)) {
Binary store = ExternalizableHelper.getDecoration(binValue, ExternalizableHelper.DECO_STORE);
if (store != null) {
Object st = ExternalizableHelper.fromBinary(store, entry.getSerializer());
return st;
}
}
return Boolean.TRUE;
}
}

14. BEHIND SCENES

15. How it works?
Distributed cache service
backing-map
read-write Internal map
Miss cache
Cache store

16. How it works?
Distribution and backup of data
Distributed cache service
Storing cache data, expiry
backing-map
read-write Internal map
Caching cache loader misses
Miss cache Interacting with
persistent storage
Cache store
Coordination

17. How it works?
get(key)
Distributed cache service
Cache service
is receiving
get(…)
request.
backing-map
read-write Internal map
Miss cache
Cache store
#1

18. How it works?
get(key)
Distributed cache service
Cache service get(key)
is invoking
get(…) on
backing map.
backing-map
read-write Internal map
Partition
transaction is
open. Miss cache
Cache store
#2

19. How it works?
get(key)
Distributed cache service
Backing map get(key)
checks internal
map and miss
cache if present.
backing-map
read-write Internal map
Key is not found.
Miss cache
Cache store
#3

20. How it works?
get(key)
Distributed cache service
Backing map is get(key)
invoking
load(…) on
cache loader.
backing-map
read-write Internal map
Miss cache
Cache store
load(key)
#4

21. How it works?
get(key)
Distributed cache service
Cache loader get(key)
is retrieving
value for
external
backing-map
read-write Internal map
source
Miss cache
Cache store
load(key)
query external data source
#5

22. How it works?
get(key)
Distributed cache service
Value is loaded get(key)
backing-map
read-write Internal map
Miss cache
Cache store
load(key)
query external data source
#6

23. How it works?
get(key)
Distributed cache service
Backing map is get(key)
updating
internal map
backing-map
read-write Internal map
Miss cache
Cache store
load(key)
query external data source
#7

24. How it works?
get(key)
Distributed cache service
Internal map is get(key)
observable and map event
cache service is
receiving event
backing-map
read-write Internal map
about new entry in
internal map.
Miss cache
Cache store
load(key)
query external data source
#8

25. How it works?
get(key)
Distributed cache service
Call to backing get(key)
map returns. map event
Cache service
is ready to
backing-map
read-write Internal map
commit
partition
transaction. Miss cache
Cache store
load(key)
query external data source
#9

26. How it works?
get(key)
update backup
Distributed cache service
Partition get(key)
transaction is map event
being
committed.
backing-map
read-write Internal map
New value is
being sent to
backup node. Miss cache
Cache store
load(key)
query external data source
#10

27. How it works?
get(key)
update backup
Distributed cache service
Response for get(key)
get(…) map event
request is sent
back as backup
backing-map
read-write Internal map
has confirmed
update.
Miss cache
Cache store
load(key)
query external data source
#11

28. How it works?
put(k,v)
Distributed cache service
Cache service
is receiving
put(…)
requiest.
backing-map
read-write Internal map
Miss cache
Cache store
#1

29. How it works?
put(k,v)
Distributed cache service
Cache service put(k,v)
is invoking
put(…) on
backing map.
backing-map
read-write Internal map
Partition
transaction is
open. Miss cache
Cache store
#2

30. How it works?
put(k,v)
Distributed cache service
Value is put(k,v)
immediately
stored in
internal map
backing-map
read-write Internal map
and put to
write-behind
queue. Miss cache
Cache store
#3

31. How it works?
put(k,v)
Distributed cache service
Cache service is put(k,v) map event
receiving event, but DECO_STORE=false
backing map is
decorating value with
backing-map
read-write Internal map
DECO_STORE=false
flag to mark that value
is yet-to-stored. Miss cache
Cache store
#4

32. How it works?
put(k,v)
Distributed cache service
Call to backing put(k,v) map event
map return. DECO_STORE=false
backing-map
read-write Internal map
Miss cache
Cache store
#5

33. How it works?
put(k,v)
update backup
Distributed cache service
Partition transaction put(k,v) map event
is being committed. DECO_STORE=false
Backup will receive
value decorated with
backing-map
read-write Internal map
DECO_STORE=false.
Miss cache
Cache store
#6

34. How it works?
put(k,v)
update backup
Distributed cache service
Cache service is put(k,v) map event
sending response DECO_STORE=false
back as soon as
backup is
backing-map
read-write Internal map
confirmed.
Miss cache
Cache store
#7

35. How it works?
put(k,v)
Distributed cache service
Eventually, cache put(k,v)
store is called to
persist value.
It is done on
backing-map
read-write Internal map
separate thread.
Miss cache
Cache store
#8

36. How it works?
put(k,v)
Distributed cache service
Value is stored put(k,v)
in external
storage by
cache store.
backing-map
read-write Internal map
Miss cache
Cache store
store to external storage
#9

37. How it works?
put(k,v)
Distributed cache service
Once call to cache put(k,v) map event
store has returned DECO_STORE=null
successfully. Backing
map is removing
backing-map
read-write Internal map
DECO_STORE
decoration from value
is internal map. Miss cache
Cache service is
receiving map event
Cache store
store to external storage
#10

38. How it works?
put(k,v)
update backup
Distributed cache service
Map event was put(k,v) map event
received by cache DECO_STORE=null
service outside of
service thread. It will
backing-map
read-write Internal map
be put to OOB queue
and eventually
processed. Miss cache
Update to backup will
be sent once event is
processed. Cache store
store to external storage
#11

39. THREADING

40. Requests and jobs
Client side:
One method call
putAll(…)

41. Requests and jobs
Network:
One request for
each member
PutRequest
putAll(…) PutRequest
PutRequest

42. Requests and jobs
Storage node:
One job per partition
Job
PutRequest Job
putAll(…) PutRequest Job
PutRequest

43. Requests and jobs
Problem
 Single API call may produce hundreds of jobs
for worker threads in cluster (limited by
partition count).
 Write-through and read-through jobs could be
time consuming.
 While all threads are busy by time consuming
jobs, cache is unresponsive.

44. Requests and jobs
Workarounds
 Huge thread pools
 Request throttling
 By member (one network request at time)
 By partitions (one job at time)
 Priorities
 Applicable only to EP and aggregators

45. “UNBREAKABLE CACHE” PATTERN

46. “Canary” keys
 Canary keys – special keys (one per partitions)
ignored by all cache operations.
 Canary key is inserted once “recovery”
procedure have verified that partition data is
complete.
 If partition is not yet loaded or lost due to
disaster, canary key will be missing.

47. Recovery procedure
 Store object hash code in database
 Using hash you can query database for all keys
belonging to partition
 Knowing all keys, can use read-through to pull
data to a cache
 Cache is writable during recovery!
 Coherence internal concurrency control will
ensure consistency

48. “Unbreakable cache”
read/write-trough + canary keys + recovery
 Key based operations rely on read-through
 Filter based operations are checking “canary”
keys (and activate recovery is needed)
 Preloading = recovery
 Cache is writable at all times

49. Checking “canary” keys
 Option 1
 check “canary” keys
 perform query
 Option 2
 perform query
 check “canary” keys

50. Checking “canary” keys
 Option 1
 check “canary” keys
 perform query
 Option 2
 perform query
 check “canary” keys
 Right way
 check “canaries” inside of query!

51. “Unbreakable cache”
Motivation
 Incomplete data set would invalidate hundred of hours of
number crunching
 100% complete data or exception
 Persistent DB is requirement anyway
Summary
 Transparent recovery (+ preloading for free)
 Always writable (i.e. feeds are not waiting for recovery)
 Graceful degradation of service in case of “disastrous
conditions”

52. Thank you
http://blog.ragozin.info
- my articles
http://code.google.com/p/gridkit
- my open source code
Alexey Ragozin
alexey.ragozin@gmail.com
