  Managing user’s datawith Spring Session David  Gómez  G.   @dgomezg
• 2.

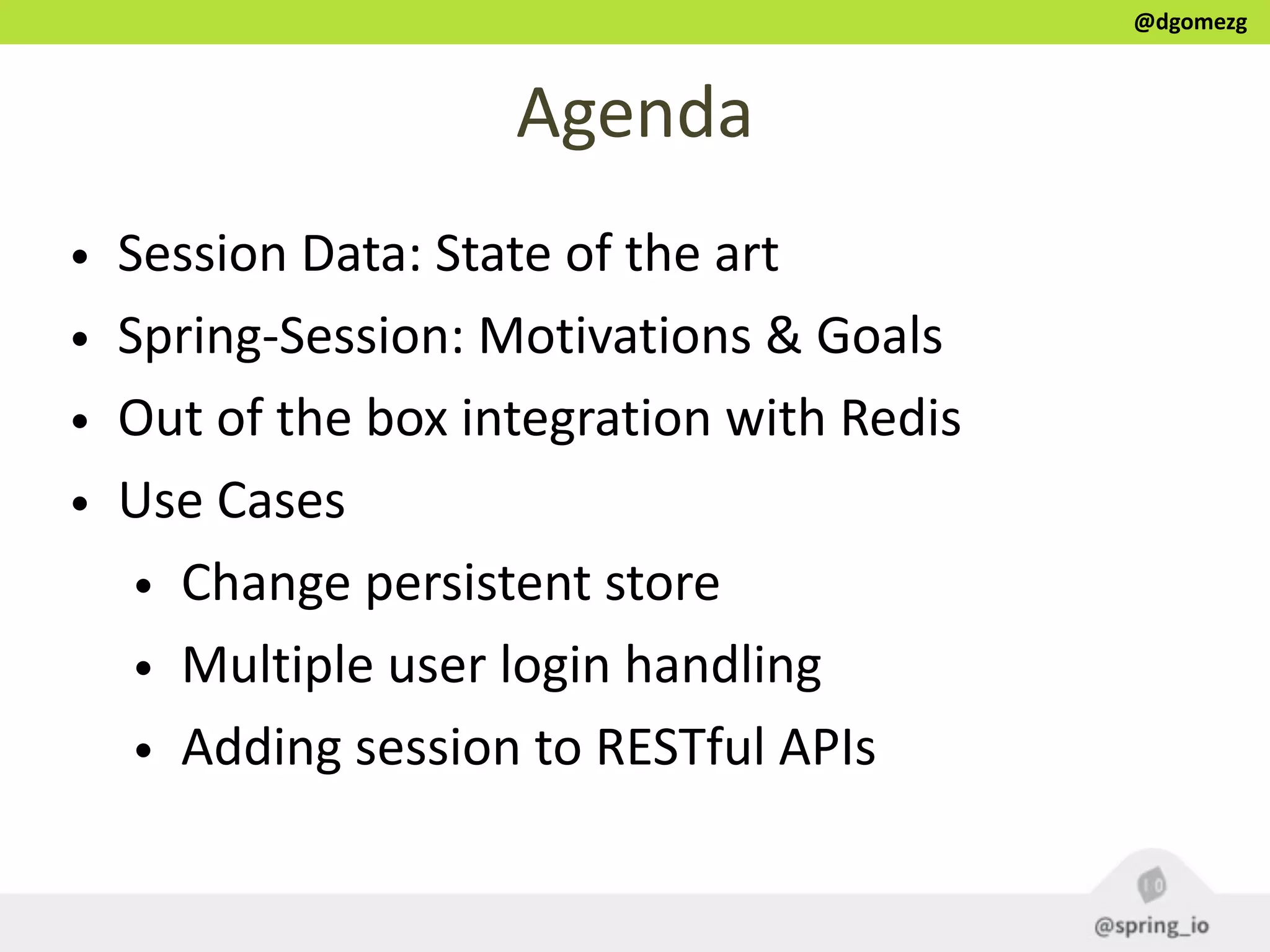

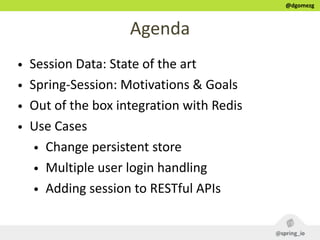

  @dgomezg Agenda • Session  Data: State  of  the  art   • Spring-­‐Session:  Motivations  &  Goals   • Out  of  the  box  integration  with  Redis   • Use  Cases   • Change  persistent  store   • Multiple  user  login  handling   • Adding  session  to  RESTful  APIs
• 3.
  @dgomezg Session  Data:  State of  the  art. • Sometimes  you  need/want  to  keep  data  from   the  user
• 4.

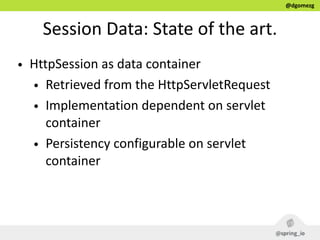

  @dgomezg Session  Data:  State of  the  art. • HttpSession  as  data  container   • Retrieved  from  the  HttpServletRequest   • Implementation  dependent  on  servlet   container   • Persistency  configurable  on  servlet   container
• 5.
  @dgomezg Scalability:  Clustering,  PASS and     Cloud
• 6.

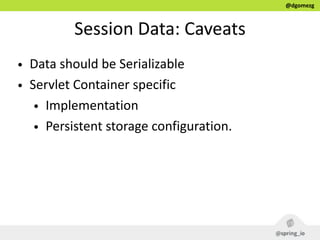

  @dgomezg Session  Data:  Caveats •Data  should  be  Serializable   • Servlet  Container  specific   • Implementation   • Persistent  storage  configuration.
• 7.

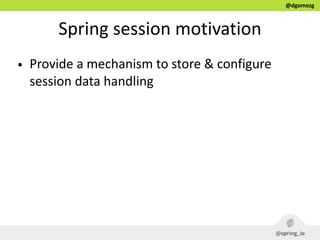

  @dgomezg Spring  session  motivation •Provide  a  mechanism  to  store  &  configure   session  data  handling
• 8.

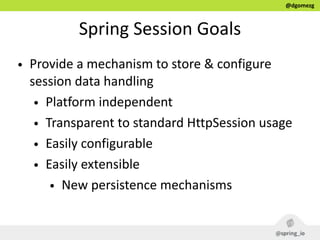

  @dgomezg Spring  Session  Goals •Provide  a  mechanism  to  store  &  configure   session  data  handling   • Platform  independent   • Transparent  to  standard  HttpSession  usage   • Easily  configurable   • Easily  extensible   • New  persistence  mechanisms
• 9.

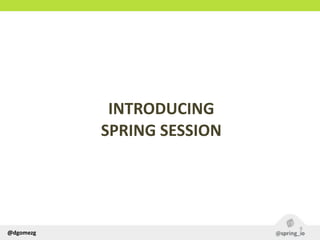

  @dgomezg INTRODUCING   SPRING  SESSION 9
• 10.

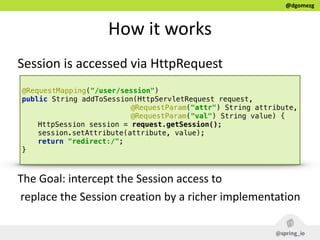

  @dgomezg How  it  works Session is  accessed  via  HttpRequest @RequestMapping("/user/session")
 public String addToSession(HttpServletRequest request,
 @RequestParam("attr") String attribute,
 @RequestParam("val") String value) {
 HttpSession session = request.getSession();
 session.setAttribute(attribute, value);
 return "redirect:/";
 } The  Goal:  intercept  the  Session  access  to    replace  the  Session  creation  by  a  richer  implementation
• 11.
  @dgomezg Architecture SessionRepositoryFilter Other  filters DispatcherServlet HttpRequestWrapper HttpSessionWrapper Transparently  replaces    HttpRequest  &  HttpSession
• 12.

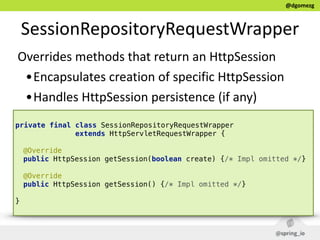

  @dgomezg SessionRepositoryRequestWrapper Overrides  methods  that return  an  HttpSession   •Encapsulates  creation  of  specific  HttpSession   •Handles  HttpSession  persistence  (if  any) private final class SessionRepositoryRequestWrapper extends HttpServletRequestWrapper { @Override
 public HttpSession getSession(boolean create) {/* Impl omitted */}

 @Override
 public HttpSession getSession() {/* Impl omitted */}
 }
• 13.

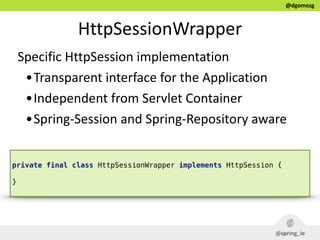

  @dgomezg HttpSessionWrapper Specific  HttpSession  implementation    •Transparent  interface  for  the  Application   •Independent  from  Servlet  Container   •Spring-­‐Session  and  Spring-­‐Repository  aware private final class HttpSessionWrapper implements HttpSession {
 }
• 14.

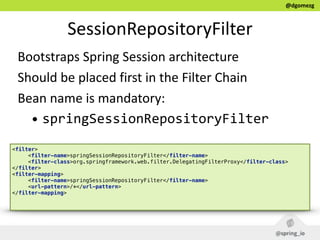

  @dgomezg SessionRepositoryFilter Bootstraps  Spring  Session architecture   Should  be  placed  first  in  the  Filter  Chain   Bean  name  is  mandatory:   • springSessionRepositoryFilter <filter>
 <filter-name>springSessionRepositoryFilter</filter-name>
 <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
 </filter>
 <filter-mapping>
 <filter-name>springSessionRepositoryFilter</filter-name>
 <url-pattern>/*</url-pattern>
 </filter-mapping>

• 15.
  @dgomezg SessionRepositoryFilter Bootstraps  Spring  Session architecture   Servlet  3.0:    Use  AbstractHttpSessionApplicationInitializer   public class Initializer
 extends AbstractHttpSessionApplicationInitializer {

 public Initializer() {
 super(Config.class);
 }
 }
• 16.

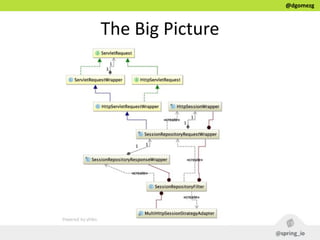

  @dgomezg The  Big  Picture
• 17.

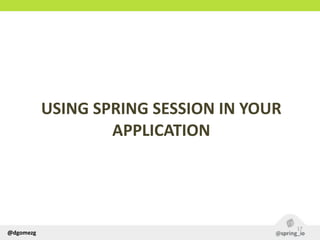

  @dgomezg USING  SPRING  SESSION IN  YOUR   APPLICATION 17
• 18.

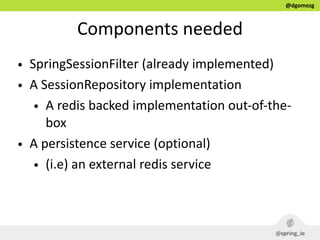

  @dgomezg Components  needed • SpringSessionFilter (already  implemented)   • A  SessionRepository  implementation   • A  redis  backed  implementation  out-­‐of-­‐the-­‐ box   • A  persistence  service  (optional)   • (i.e)  an  external  redis  service
• 19.

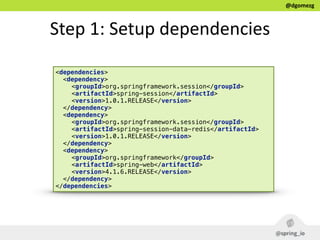

  @dgomezg Step  1:  Setup dependencies <dependencies> <dependency> <groupId>org.springframework.session</groupId>
 <artifactId>spring-session</artifactId>
 <version>1.0.1.RELEASE</version> </dependency> <dependency> <groupId>org.springframework.session</groupId>
 <artifactId>spring-session-data-redis</artifactId>
 <version>1.0.1.RELEASE</version> </dependency> <dependency> <groupId>org.springframework</groupId>
 <artifactId>spring-web</artifactId>
 <version>4.1.6.RELEASE</version> </dependency> </dependencies>
• 20.

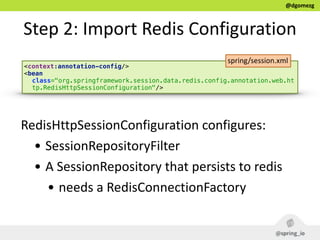

  @dgomezg Step  2:  Import Redis  Configuration <context:annotation-config/>
 <bean class="org.springframework.session.data.redis.config.annotation.web.ht tp.RedisHttpSessionConfiguration"/> RedisHttpSessionConfiguration  configures:   • SessionRepositoryFilter   • A  SessionRepository  that  persists  to  redis   • needs  a  RedisConnectionFactory spring/session.xml
• 21.

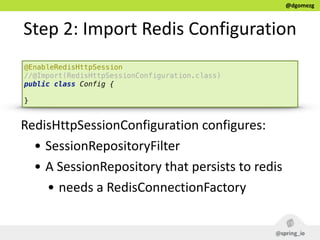

  @dgomezg Step  2:  Import Redis  Configuration @EnableRedisHttpSession //@Import(RedisHttpSessionConfiguration.class) public class Config {
 } RedisHttpSessionConfiguration  configures:   • SessionRepositoryFilter   • A  SessionRepository  that  persists  to  redis   • needs  a  RedisConnectionFactory
• 22.
  @dgomezg Step  3:  RedisConnectionFactory <beanid="connectionFactory"
 class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory"
 p:hostName="${redis.host}" p:port="${redis.port}" p:password="${redis.pass}"/>

 <context:property-placeholder location="classpath:redis.properties"/> Using  Jedis  client   • Defined  in  spring-­‐data-­‐redis.jar   Configures  the  external  connection  to  Redis  server   spring/redis.xml
• 23.

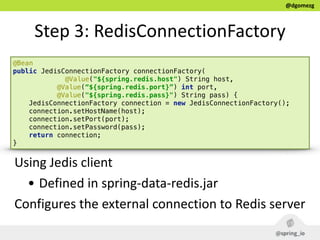

  @dgomezg Step  3:  RedisConnectionFactory @Bean
 publicJedisConnectionFactory connectionFactory( @Value("${spring.redis.host") String host,
 @Value(“${spring.redis.port}”) int port,
 @Value("${spring.redis.pass}") String pass) {
 JedisConnectionFactory connection = new JedisConnectionFactory();
 connection.setHostName(host);
 connection.setPort(port);
 connection.setPassword(pass);
 return connection;
 } Using  Jedis  client   • Defined  in  spring-­‐data-­‐redis.jar   Configures  the  external  connection  to  Redis  server
• 24.

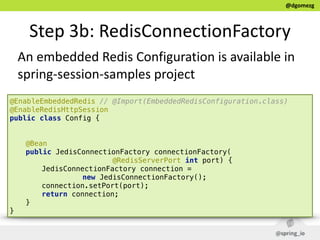

  @dgomezg Step  3b:  RedisConnectionFactory @EnableEmbeddedRedis// @Import(EmbeddedRedisConfiguration.class)
 @EnableRedisHttpSession
 public class Config {


 @Bean
 public JedisConnectionFactory connectionFactory( @RedisServerPort int port) {
 JedisConnectionFactory connection = new JedisConnectionFactory();
 connection.setPort(port);
 return connection;
 }
 } An  embedded  Redis  Configuration  is  available  in   spring-­‐session-­‐samples  project
• 25.
  @dgomezg Step  4:  Session usage @Controller
 public class SessionDataController {

 @RequestMapping("/user/session")
 public String addToSession(HttpServletRequest request,
 @RequestParam("attr") String attribute,
 @RequestParam("val") String value) {
 HttpSession session = request.getSession();
 session.setAttribute(attribute, value);
 return "redirect:/";
 }
 }
 Use  your  HttpSession  as  usual     (through  HttpServletRequest)
• 26.
  @dgomezg Step  5:  Bootstrap SpringSession public class Initializer
 extends AbstractHttpSessionApplicationInitializer {

 public Initializer() {
 super(Config.class);
 }
 } Define  a  DelegatingFilterProxy  with  specific  name   springSessionRepositoryFilter
• 27.

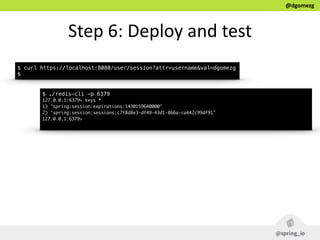

  @dgomezg Step  6:  Deploy and  test $ curl https://localhost:8080/user/session?attr=username&val=dgomezg $ $ ./redis-cli -p 6379 127.0.0.1:6379> keys * 1) "spring:session:expirations:1430159640000" 2) "spring:session:sessions:c7f8d8e3-df49-43d1-866a-ca442c99df91" 127.0.0.1:6379>
• 28.

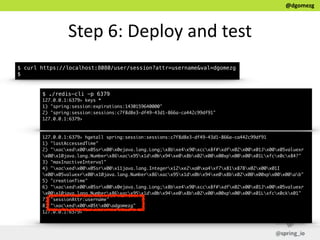

  @dgomezg Step  6:  Deploy and  test $ curl https://localhost:8080/user/session?attr=username&val=dgomezg $ $ ./redis-cli -p 6379 127.0.0.1:6379> keys * 1) "spring:session:expirations:1430159640000" 2) "spring:session:sessions:c7f8d8e3-df49-43d1-866a-ca442c99df91" 127.0.0.1:6379> 127.0.0.1:6379> hgetall spring:session:sessions:c7f8d8e3-df49-43d1-866a-ca442c99df91 1) "lastAccessedTime" 2) "xacxedx00x05srx00x0ejava.lang.Long;x8bxe4x90xccx8f#xdfx02x00x01Jx00x05valuexr x00x10java.lang.Numberx86xacx95x1dx0bx94xe0x8bx02x00x00xpx00x00x01Lxfcx0cx84?" 3) "maxInactiveInterval" 4) "xacxedx00x05srx00x11java.lang.Integerx12xe2xa0xa4xf7x81x878x02x00x01I x00x05valuexrx00x10java.lang.Numberx86xacx95x1dx0bx94xe0x8bx02x00x00xpx00x00ab" 5) "creationTime" 6) "xacxedx00x05srx00x0ejava.lang.Long;x8bxe4x90xccx8f#xdfx02x00x01Jx00x05valuexr x00x10java.lang.Numberx86xacx95x1dx0bx94xe0x8bx02x00x00xpx00x00x01Lxfcx0ckx01" 7) "sessionAttr:username" 8) "xacxedx00x05tx00adgomezg" 127.0.0.1:6379>
• 29.

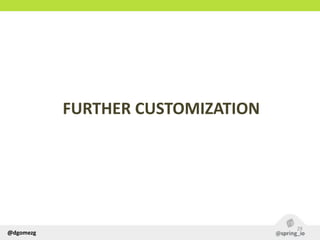

  @dgomezg FURTHER  CUSTOMIZATION 29
• 30.

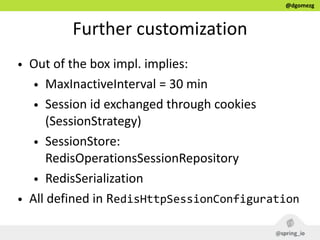

  @dgomezg Further  customization • Out of  the  box  impl.  implies:   • MaxInactiveInterval  =  30  min     • Session  id  exchanged  through  cookies   (SessionStrategy)   • SessionStore:   RedisOperationsSessionRepository   • RedisSerialization   • All  defined  in  RedisHttpSessionConfiguration
• 31.

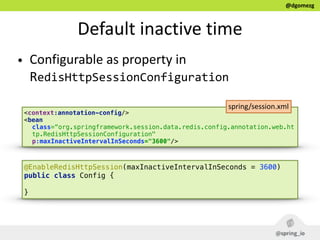

  @dgomezg Default  inactive  time •Configurable  as  property  in   RedisHttpSessionConfiguration <context:annotation-config/>
 <bean class=“org.springframework.session.data.redis.config.annotation.web.ht tp.RedisHttpSessionConfiguration" p:maxInactiveIntervalInSeconds="3600"/> spring/session.xml @EnableRedisHttpSession(maxInactiveIntervalInSeconds = 3600)
 public class Config {
 }
• 32.

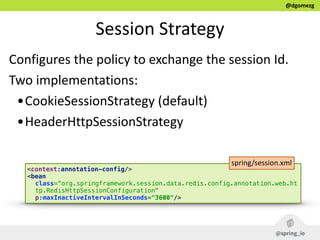

  @dgomezg Session  Strategy Configures  the policy  to  exchange  the  session  Id.   Two  implementations:   •CookieSessionStrategy  (default)   •HeaderHttpSessionStrategy   <context:annotation-config/>
 <bean class=“org.springframework.session.data.redis.config.annotation.web.ht tp.RedisHttpSessionConfiguration" p:maxInactiveIntervalInSeconds="3600"/> spring/session.xml
• 33.

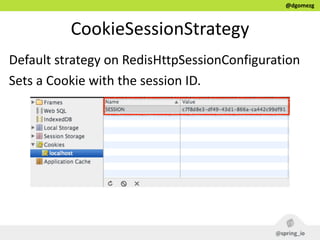

  @dgomezg CookieSessionStrategy Default  strategy  on RedisHttpSessionConfiguration   Sets  a  Cookie  with  the  session  ID.
• 34.

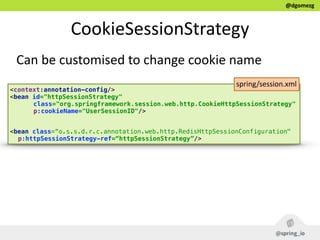

  @dgomezg CookieSessionStrategy Can  be  customised to  change  cookie  name <context:annotation-config/> <bean id="httpSessionStrategy"
 class="org.springframework.session.web.http.CookieHttpSessionStrategy"
 p:cookieName="UserSessionID"/>

 <bean class=“o.s.s.d.r.c.annotation.web.http.RedisHttpSessionConfiguration" p:httpSessionStrategy-ref=“httpSessionStrategy”/> spring/session.xml
• 35.

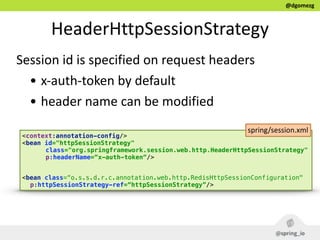

  @dgomezg HeaderHttpSessionStrategy Session  id  is specified  on  request  headers   • x-­‐auth-­‐token  by  default   • header  name  can  be  modified <context:annotation-config/> <bean id="httpSessionStrategy"
 class="org.springframework.session.web.http.HeaderHttpSessionStrategy"
 p:headerName=“x-auth-token“/>

 <bean class=“o.s.s.d.r.c.annotation.web.http.RedisHttpSessionConfiguration" p:httpSessionStrategy-ref=“httpSessionStrategy”/> spring/session.xml
• 36.

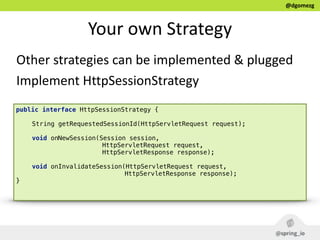

  @dgomezg Your  own  Strategy Other strategies  can  be  implemented  &  plugged   Implement  HttpSessionStrategy public interface HttpSessionStrategy {

 String getRequestedSessionId(HttpServletRequest request);

 void onNewSession(Session session, HttpServletRequest request, HttpServletResponse response);

 void onInvalidateSession(HttpServletRequest request, HttpServletResponse response);
 }

• 37.

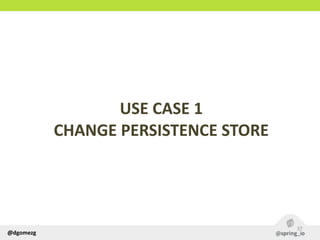

  @dgomezg USE  CASE  1  CHANGE  PERSISTENCE  STORE 37
• 38.

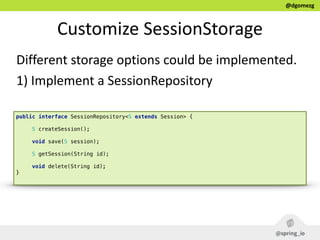

  @dgomezg Customize  SessionStorage Different  storage options  could  be  implemented.   1)  Implement  a  SessionRepository public interface SessionRepository<S extends Session> {

 S createSession();

 void save(S session);

 S getSession(String id);

 void delete(String id);
 }
• 39.

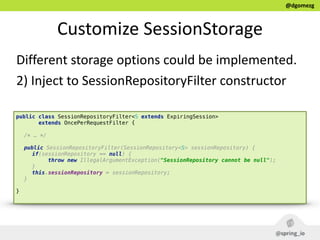

  @dgomezg Customize  SessionStorage Different  storage options  could  be  implemented.   2)  Inject  to  SessionRepositoryFilter  constructor public class SessionRepositoryFilter<S extends ExpiringSession> extends OncePerRequestFilter {
 /* … */
 public SessionRepositoryFilter(SessionRepository<S> sessionRepository) {
 if(sessionRepository == null) {
 throw new IllegalArgumentException("SessionRepository cannot be null");
 }
 this.sessionRepository = sessionRepository;
 }
 }
• 40.
  @dgomezg USE  CASE  2  MULTIPLE  USER  SESSIONS 40
• 41.

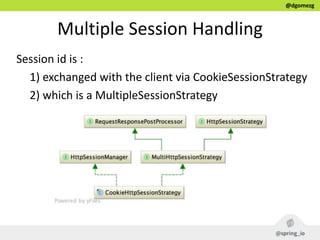

  @dgomezg Multiple  Session  Handling Session id  is  :   1)  exchanged  with  the  client  via  CookieSessionStrategy   2)  which  is  a  MultipleSessionStrategy
• 42.

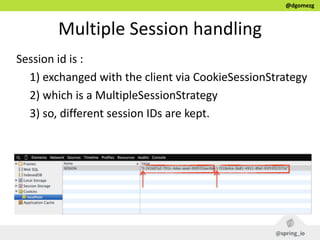

  @dgomezg Multiple  Session  handling Session id  is  :   1)  exchanged  with  the  client  via  CookieSessionStrategy   2)  which  is  a  MultipleSessionStrategy   3)  so,  different  session  IDs  are  kept.
• 43.

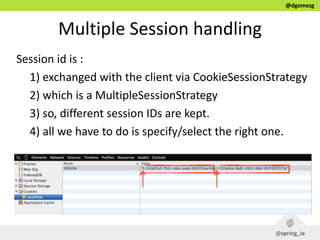

  @dgomezg Multiple  Session  handling Session id  is  :   1)  exchanged  with  the  client  via  CookieSessionStrategy   2)  which  is  a  MultipleSessionStrategy   3)  so,  different  session  IDs  are  kept.   4)  all  we  have  to  do  is  specify/select  the  right  one.
• 44.

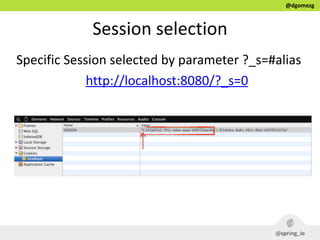

  @dgomezg Session  selection Specific  Session selected  by  parameter  ?_s=#alias   http://localhost:8080/?_s=0
• 45.

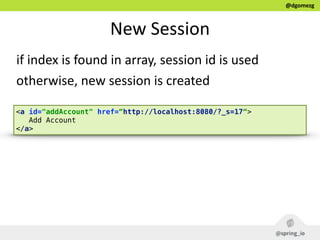

  @dgomezg New  Session   if index  is  found  in  array,  session  id  is  used   otherwise,  new  session  is  created <a id="addAccount" href=“http://localhost:8080/?_s=17“> Add Account </a>
• 46.

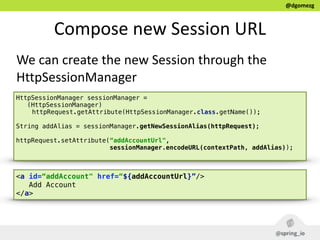

  @dgomezg Compose  new  Session URL   We  can  create  the  new  Session  through  the   HttpSessionManager <a id=“addAccount" href=“${addAccountUrl}”/> Add Account </a> HttpSessionManager sessionManager = (HttpSessionManager) httpRequest.getAttribute(HttpSessionManager.class.getName()); String addAlias = sessionManager.getNewSessionAlias(httpRequest); httpRequest.setAttribute(“addAccountUrl", sessionManager.encodeURL(contextPath, addAlias));
• 47.

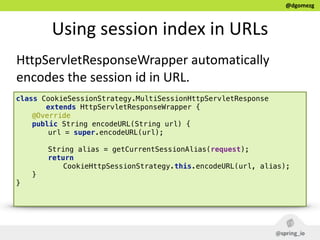

  @dgomezg Using  session  index in  URLs HttpServletResponseWrapper  automatically   encodes  the  session  id  in  URL. class CookieSessionStrategy.MultiSessionHttpServletResponse extends HttpServletResponseWrapper { @Override
 public String encodeURL(String url) {
 url = super.encodeURL(url);

 String alias = getCurrentSessionAlias(request);
 return CookieHttpSessionStrategy.this.encodeURL(url, alias);
 }
 }

• 48.
  @dgomezg USE  CASE  3  RESTORING  STATE  TO  RESTFUL  APIS 48
• 49.
  @dgomezg State  in  RESTful APIs We  could  add  State  to  REST  endpoints:   •  Persisted  on  external  persistent  service  (redis)   •  Restored  into  the  HttpSession  by  the  filter   •  Used  trasparently
• 50.

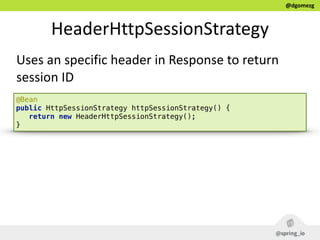

  @dgomezg HeaderHttpSessionStrategy Uses  an  specific header  in  Response  to  return   session  ID @Bean
 public HttpSessionStrategy httpSessionStrategy() {
 return new HeaderHttpSessionStrategy();
 }
• 51.

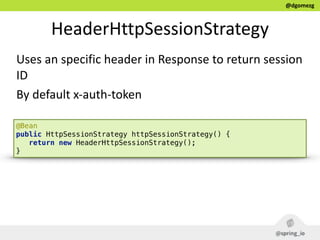

  @dgomezg HeaderHttpSessionStrategy Uses  an  specific header  in  Response  to  return  session   ID   By  default  x-­‐auth-­‐token @Bean
 public HttpSessionStrategy httpSessionStrategy() {
 return new HeaderHttpSessionStrategy();
 }
• 52.
  @dgomezg HeaderHttpSessionStrategy Use  an  HeaderHttpSessionStrategy @Bean
 publicHttpSessionStrategy httpSessionStrategy() {
 return new HeaderHttpSessionStrategy();
 }
• 53.
  @dgomezg HeaderHttpSessionStrategy Session  header  name can  be  customised @Bean
 public HttpSessionStrategy httpSessionStrategy() {
 HeaderHttpSessionStrategy sessionStrategy = new HeaderHttpSessionStrategy();
 sessionStrategy.setHeaderName("x-custom-session-id");
 return sessionStrategy;
 }

• 54.
  @dgomezg CONCLUSIONS 54
• 55.

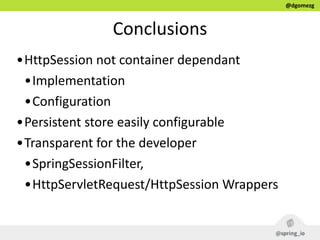

  @dgomezg Conclusions •HttpSession  not  container dependant   •Implementation   •Configuration   •Persistent  store  easily  configurable   •Transparent  for  the  developer     •SpringSessionFilter,     •HttpServletRequest/HttpSession  Wrappers
• 56.
  @dgomezg THANKS! 56 Reach  me  on dgomezg@autentia.com @dgomezg Resources Spring guides Spring  samples  repository
