Digital preservation: an introduction Michael Day UKOLN, University of Bath, UK [email_address] University of the West of England, MSc in Information and Library Management, Advanced Information Systems module Frenchay Campus, Bristol, 27 February 2008

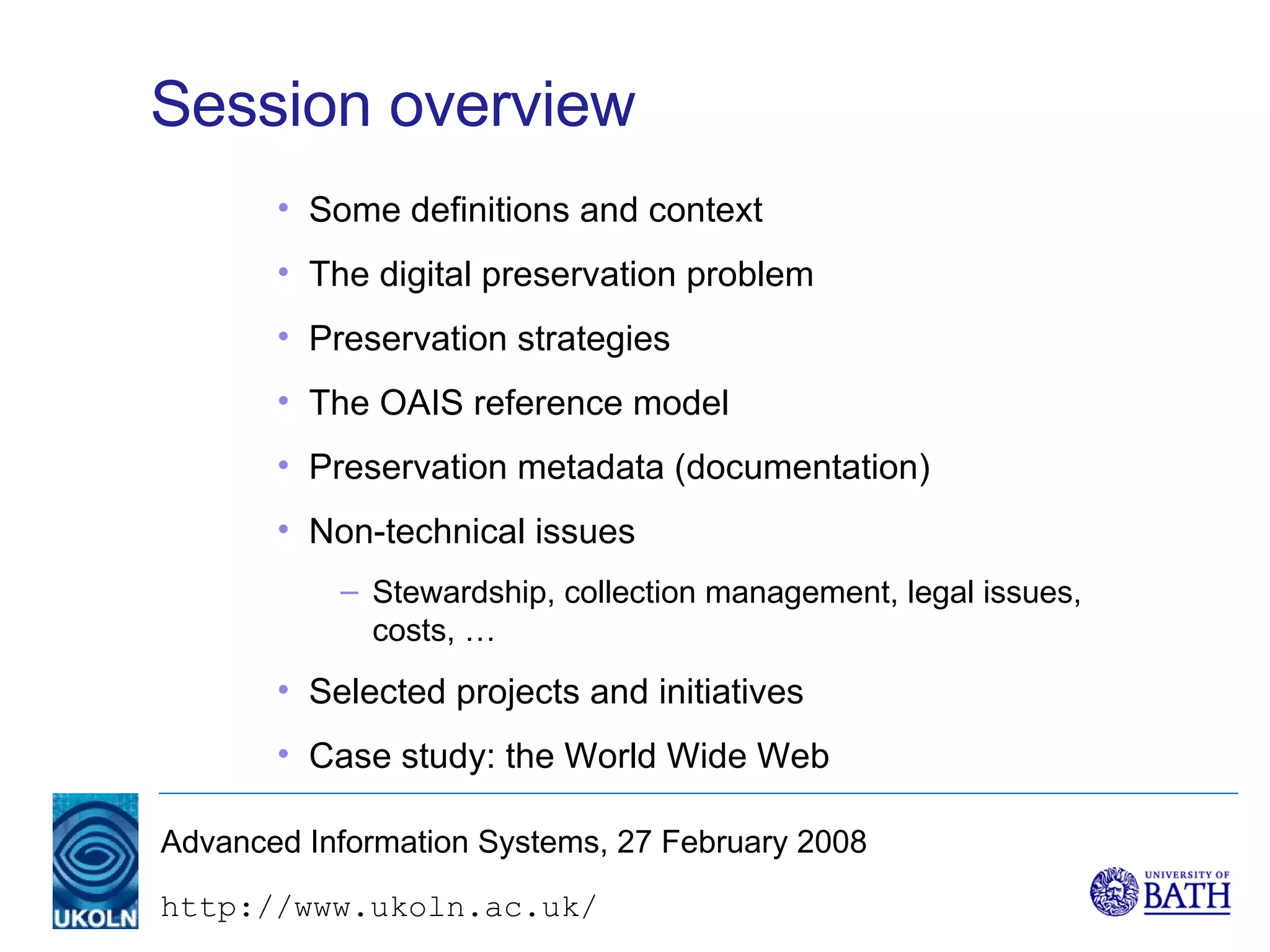

Session overview Some definitions and context The digital preservation problem Preservation strategies The OAIS reference model Preservation metadata (documentation) Non-technical issues Stewardship, collection management, legal issues, costs, … Selected projects and initiatives Case study: the World Wide Web

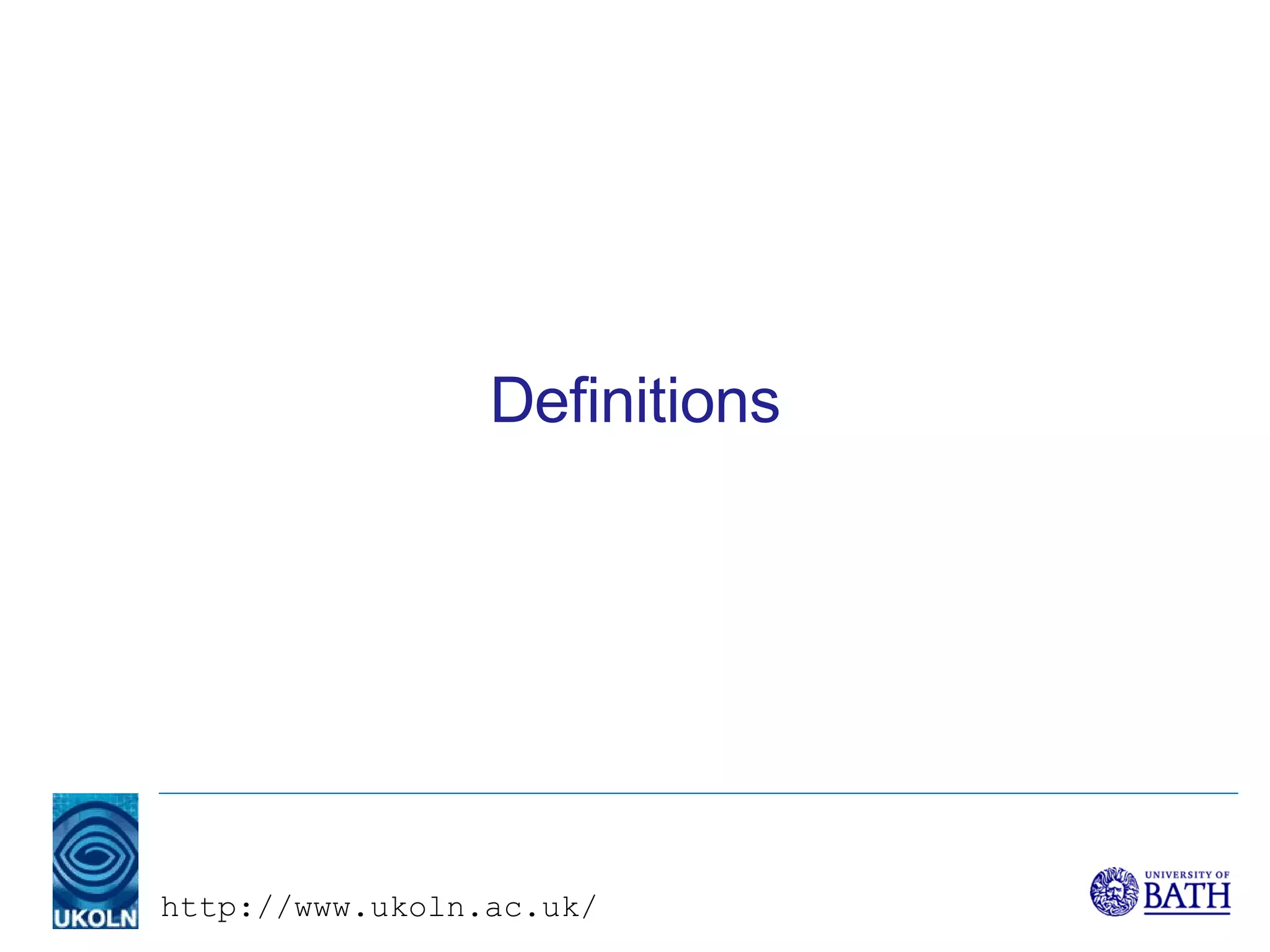

Definitions (1) Preservation: A management function “Its objective is to ensure that information survives in usable form for as long as it is wanted” - John Feather (1991) Not primarily about: Conservation or restoration Storage media or backup regimes Concepts of “permanence”

Definitions (2) Digital preservation: Digital information is different Technical problems with ensuring continued access (more of this later) But also (primarily) a managerial problem “ ... the planning, resource allocation, and application of preservation methods and technologies to ensure that digital information of continuing value remains accessible and usable” - Margaret Hedstrom (1998)

Definitions (3) Digital curation: New(ish) phrase Concept (data curation) originates in the scientific data world (e.g. bioinformatics, astronomy) Is central to the UK Digital Curation Centre Is used to mean something more than just the preservation of objects "The activity of managing and promoting the use of data from its point of creation, to ensure it is fit for contemporary purpose, and available for discovery and reuse" - Philip Lord, et al . (2004) "Maintaining and adding value to a trusted body of information for current and future use" -- DCC presentation at CNI (2005)

Definitions (3) Some confusing terminology: “Archiving” A term used in some computing contexts for the creation of secure backup copies Sometimes used (loosely) in preservation contexts “Archives” A well-understood (and discussed) term in archives and recordkeeping professions But is also used informally to refer to almost any collection of digital 'stuff' e.g., e-print archives, image archives, etc.

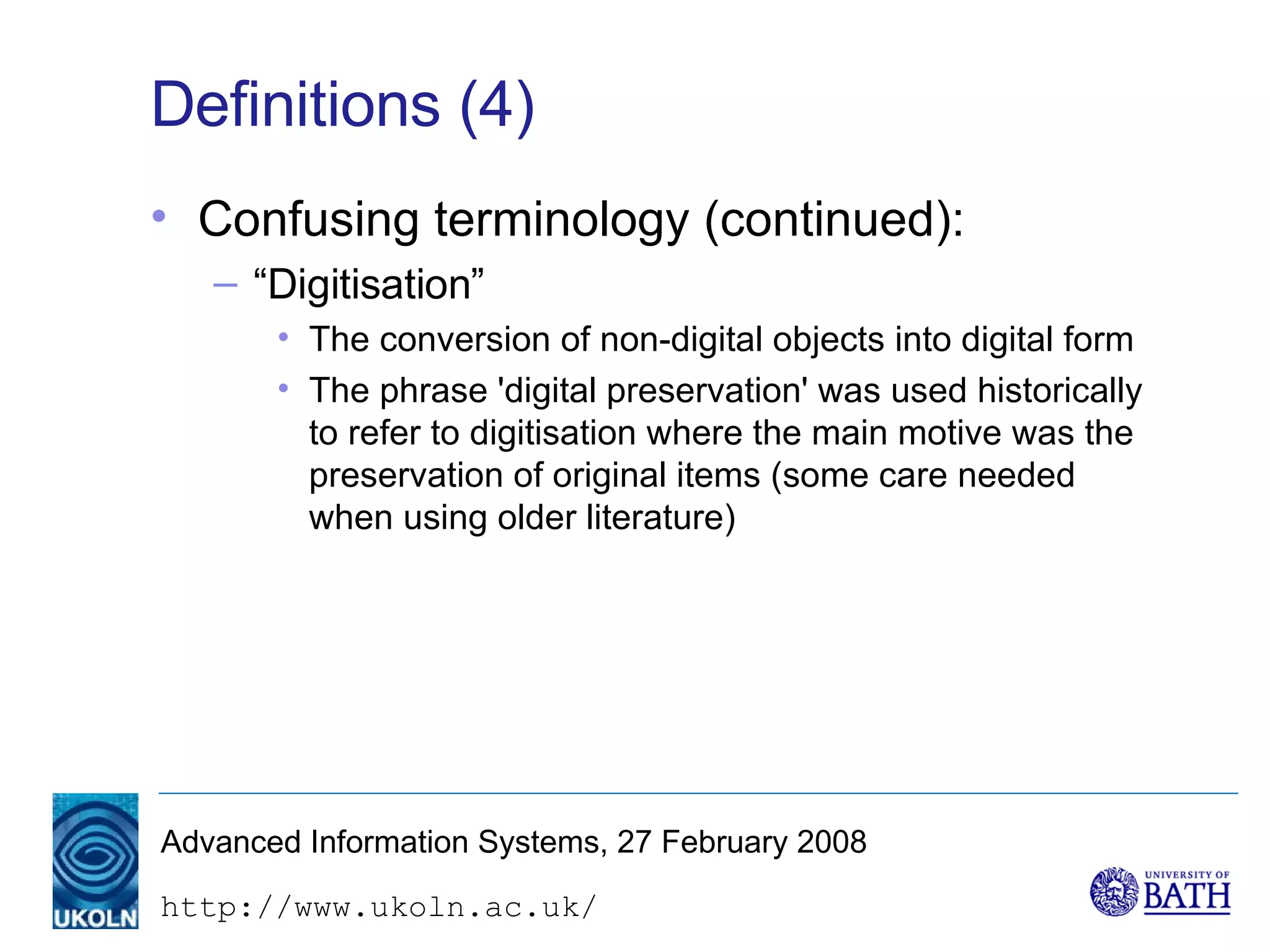

Definitions (4) Confusing terminology (continued): “Digitisation” The conversion of non-digital objects into digital form The phrase 'digital preservation' was used historically to refer to digitisation where the main motive was the preservation of original items (some care needed when using older literature)

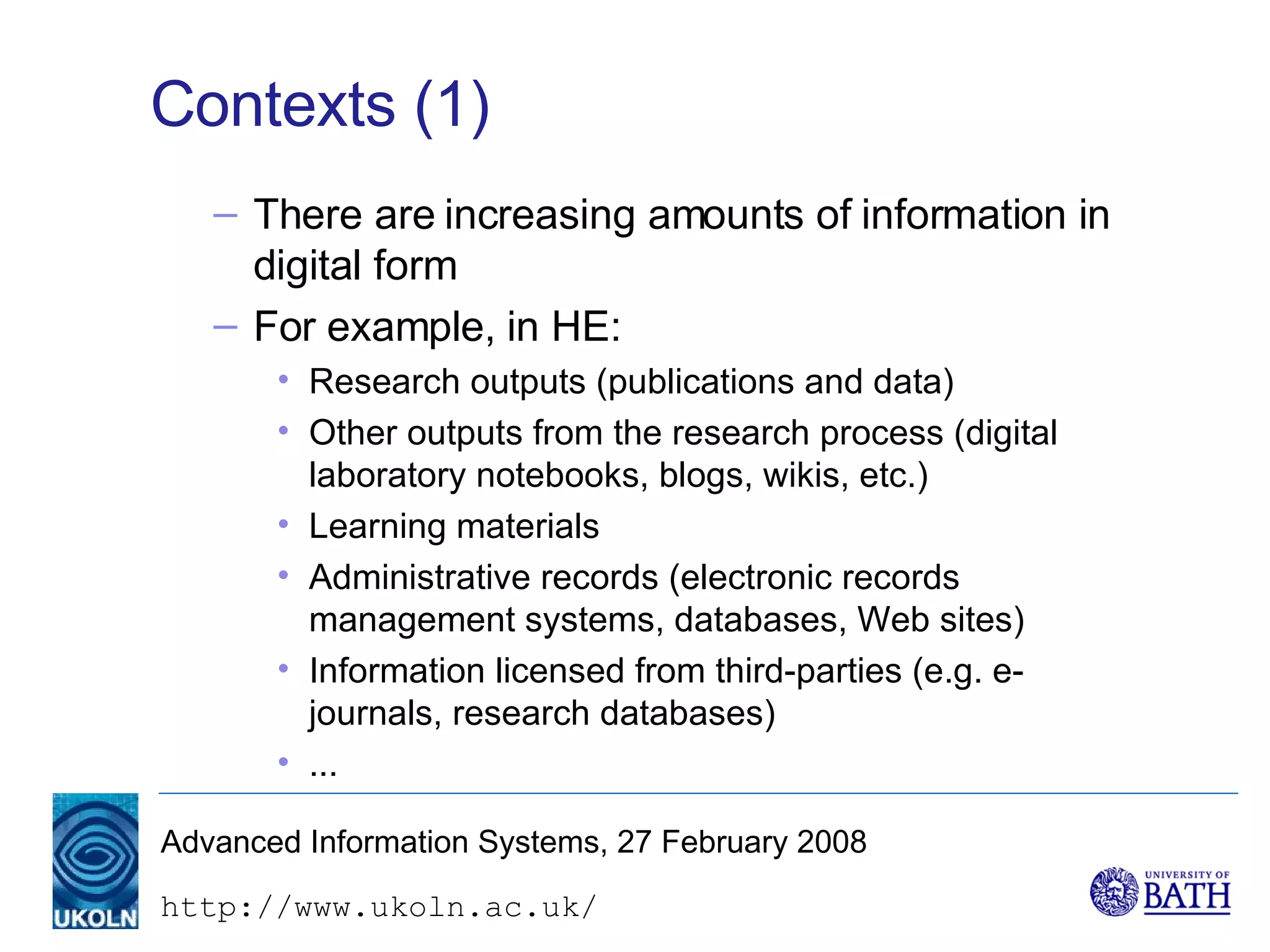

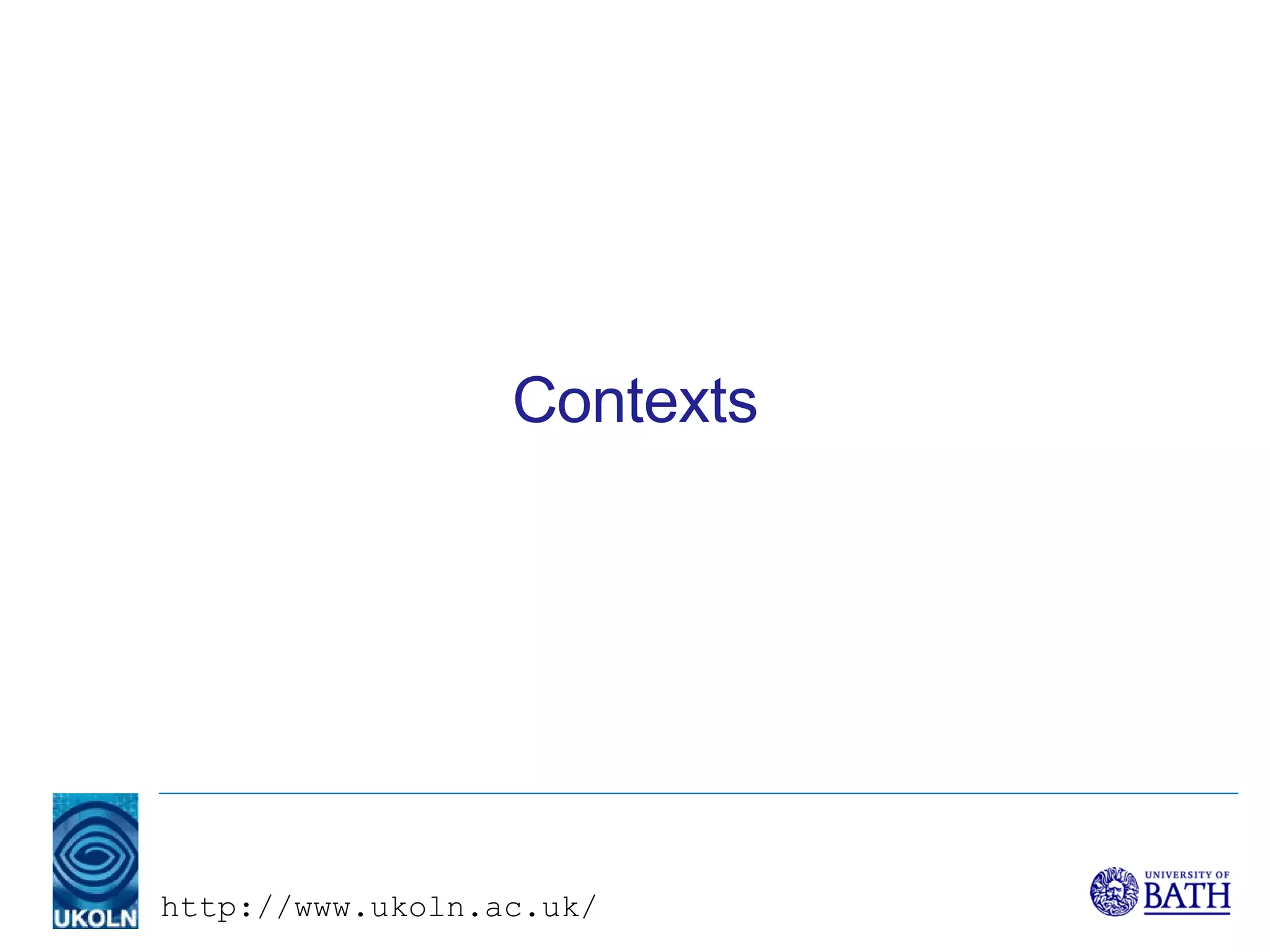

Contexts (1) There are increasing amounts of information in digital form For example, in HE: Research outputs (publications and data) Other outputs from the research process (digital laboratory notebooks, blogs, wikis, etc.) Learning materials Administrative records (electronic records management systems, databases, Web sites) Information licensed from third-parties (e.g. e-journals, research databases) ...

Contexts (2) There is a strategic need to manage these assets adequately, e.g.: Compliance with: Freedom of Information (FoI) legislation Data Protection legislation Verifiability and reproducibility of research Research Council rules on data retention The Open Access agenda

Contexts (3) In HE, institutional responses include: Electronic Records Management Systems Institutional Repositories Some supra-institutional initiatives: Some research councils fund central repositories for certain types of data: AHRC (Arts and Humanities Data Service) ESRC (UK Data Archive) NERC data centres Many other discipline-based databases

Contexts (4) In HE, the main drivers for digital curation are: An increasing awareness that digital assets are reusable, can form the basis of new research An awareness that continuing access is vital to ensure that contemporary scholarship is reproducible and verifiable An awareness that digital assets are fragile

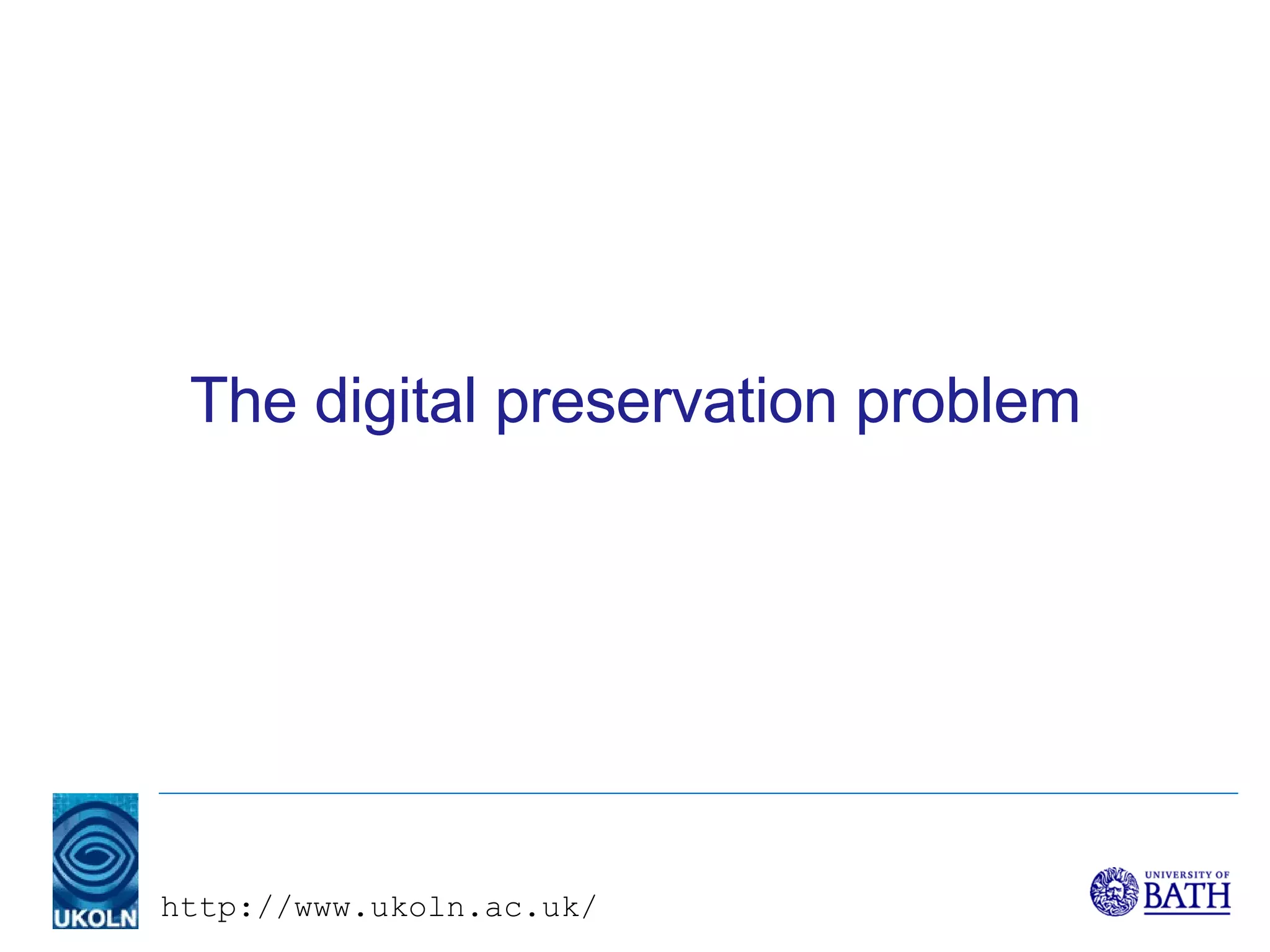

The digital preservation problem

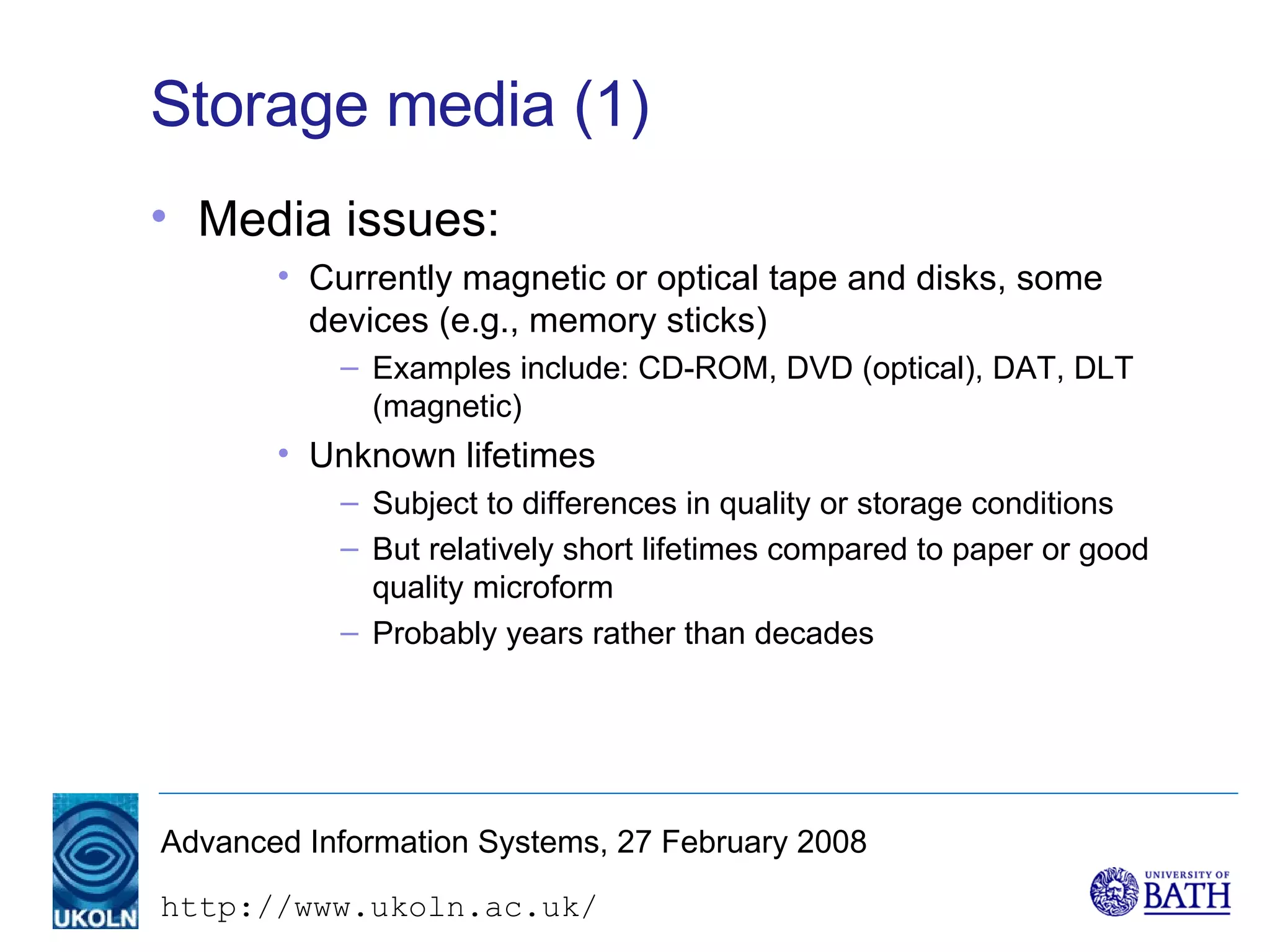

Storage media (1) Media issues: Currently magnetic or optical tape and disks, some devices (e.g., memory sticks) Examples include: CD-ROM, DVD (optical), DAT, DLT (magnetic) Unknown lifetimes Subject to differences in quality or storage conditions But relatively short lifetimes compared to paper or good quality microform Probably years rather than decades

Storage media (2) Media issues (continued): Format differences Technical solutions Longer lasting media: e.g. Norsam's High Density Rosetta system - analogue storage on nickel plates COM (output to good-quality microform) Keeping paper copies! Periodic copying of data bits on to new media (refreshing) - data management solution, e.g. for hierarchical storage systems

Hardware & software dependence Most digital objects are dependent on particular configurations of hardware and software The heart of the digital preservation problem Relatively short obsolescence cycles for: Hardware e.g., BBC Domesday Project (1986) used a special type of videodisc player developed by Philips Software e.g., word-processing files Article on the recovery of Domesday Project content: http://www.atsf.co.uk/dottext/domesday.html

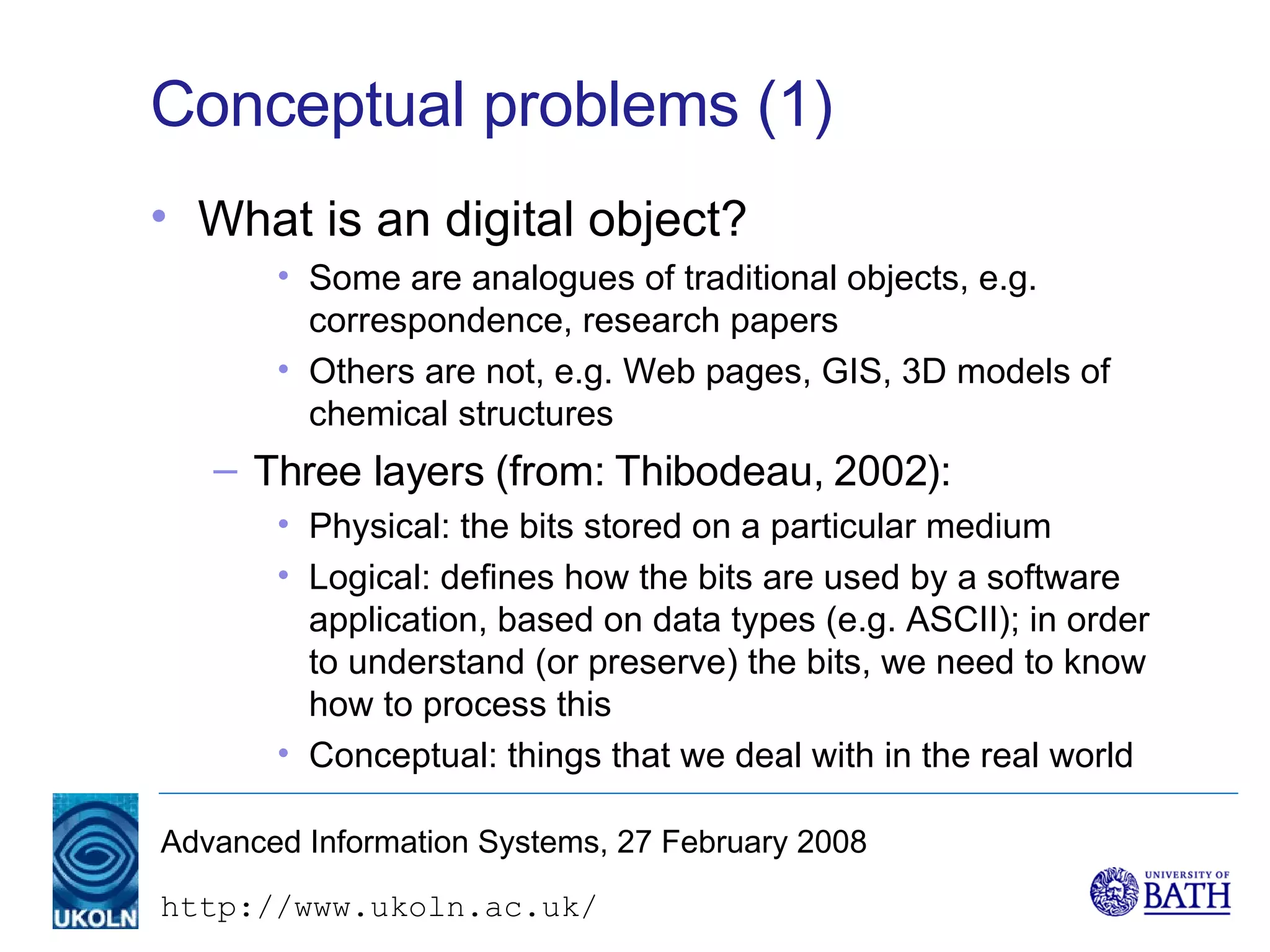

Conceptual problems (1) What is an digital object? Some are analogues of traditional objects, e.g. correspondence, research papers Others are not, e.g. Web pages, GIS, 3D models of chemical structures Three layers (from: Thibodeau, 2002): Physical: the bits stored on a particular medium Logical: defines how the bits are used by a software application, based on data types (e.g. ASCII); in order to understand (or preserve) the bits, we need to know how to process this Conceptual: things that we deal with in the real world

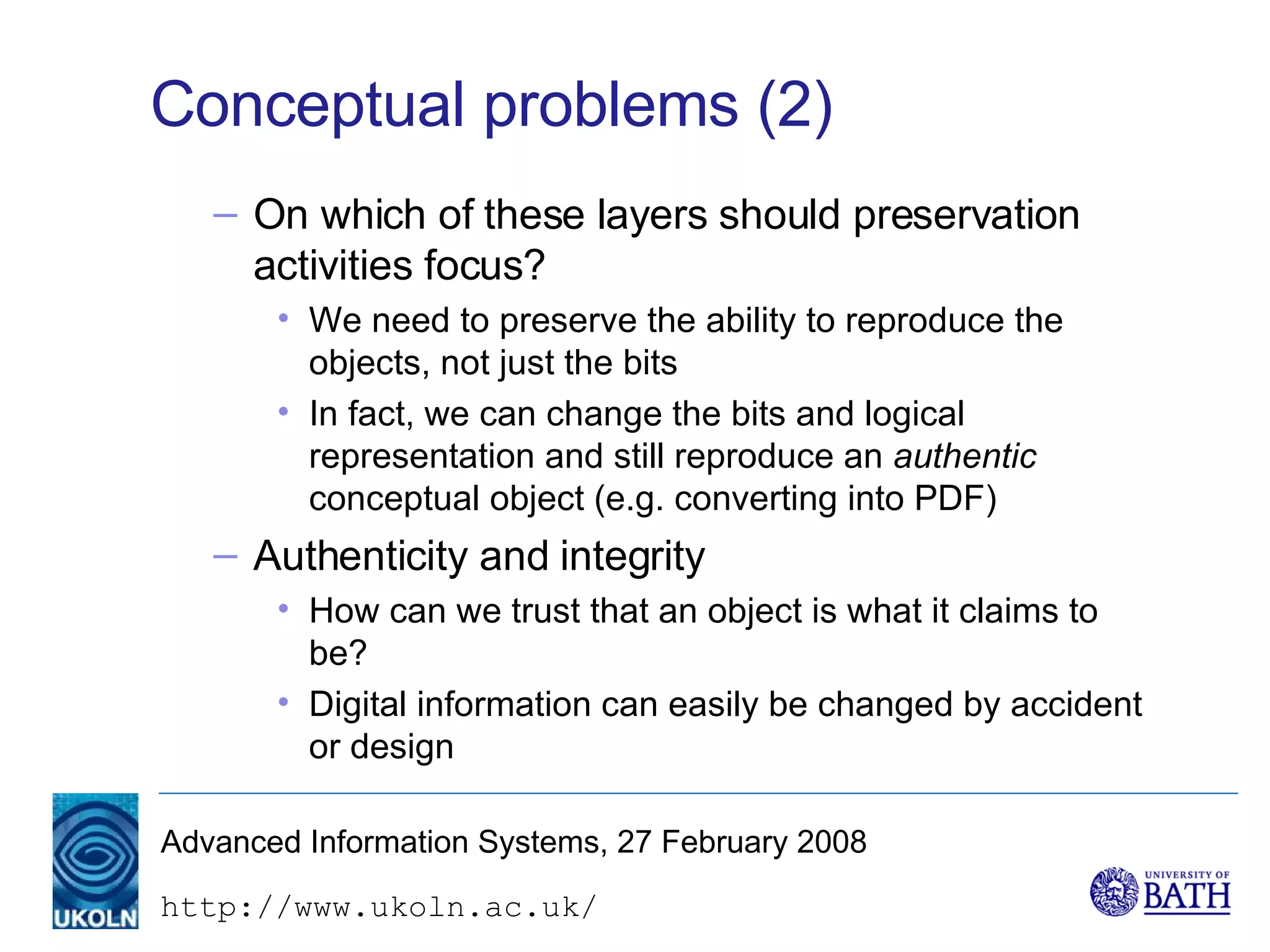

Conceptual problems (2) On which of these layers should preservation activities focus? We need to preserve the ability to reproduce the objects, not just the bits In fact, we can change the bits and logical representation and still reproduce an authentic conceptual object (e.g. converting into PDF) Authenticity and integrity How can we trust that an object is what it claims to be? Digital information can easily be changed by accident or design

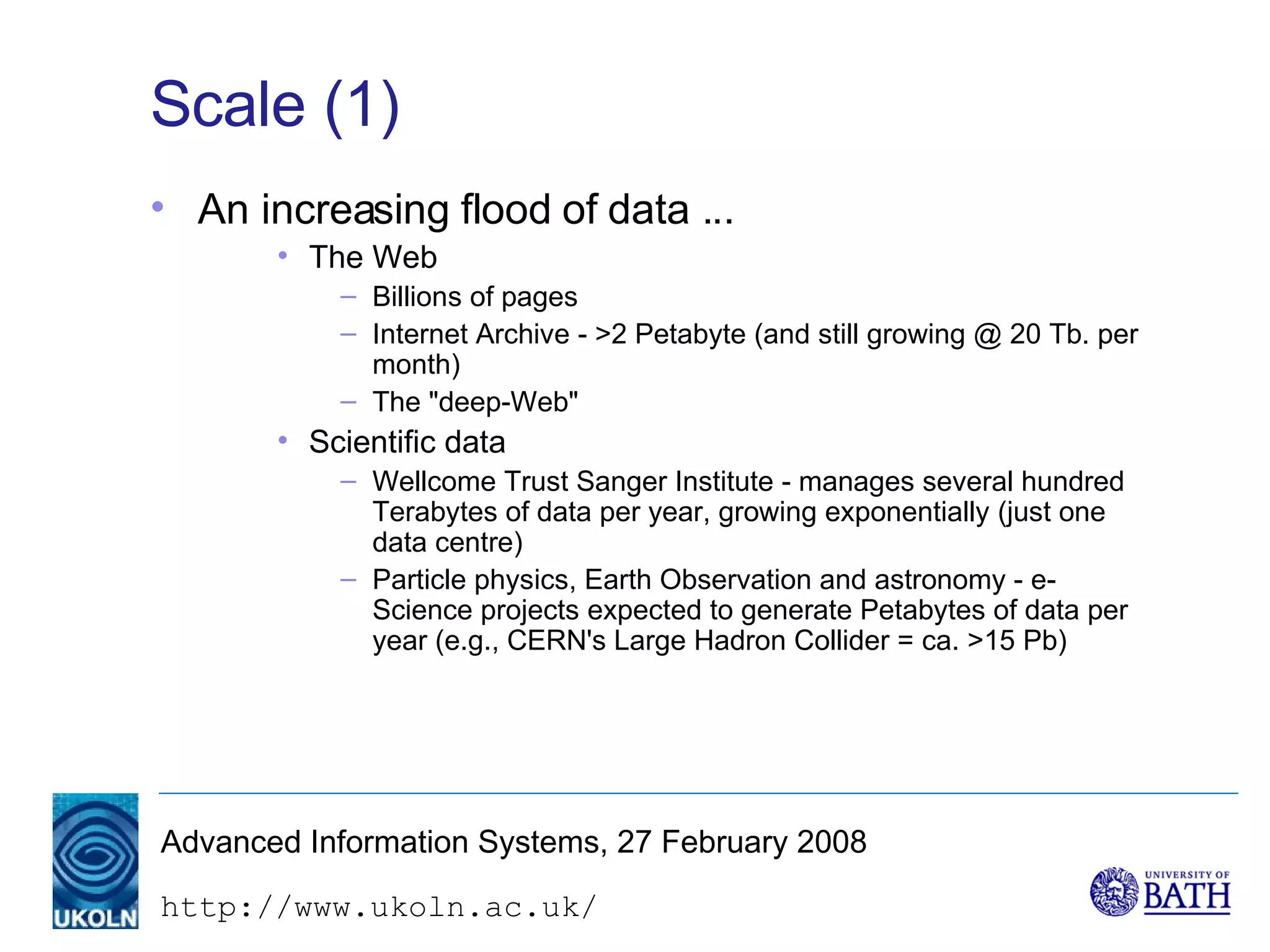

Scale (1) An increasing flood of data ... The Web Billions of pages Internet Archive - >2 Petabyte (and still growing @ 20 Tb. per month) The "deep-Web" Scientific data Wellcome Trust Sanger Institute - manages several hundred Terabytes of data per year, growing exponentially (just one data centre) Particle physics, Earth Observation and astronomy - e-Science projects expected to generate Petabytes of data per year (e.g., CERN's Large Hadron Collider = ca. >15 Pb)

Scale (2) Sizes (broadly): 1,000 Terabytes Petabyte: 1,000 Gigabytes Terabyte: 1 billion bytes Gigabyte: 1,000,000 bytes Megabyte: 1,000 bytes Kilobyte:

Scale (2) Sizes (broadly): 1,000 Zettabytes Yottabyte: 1,000 Exabytes Zettabyte: 1,000 Petabytes Exabyte: 1,000 Terabytes Petabyte: 1,000 Gigabytes Terabyte: 1 billion bytes Gigabyte: 1,000,000 bytes Megabyte: 1,000 bytes Kilobyte:

Some general principles (1) Most of the technical problems associated with long-term digital preservation can be solved if a life-cycle management approach is adopted i.e. a continual programme of active management Ideally, combines both managerial and technical processes, e.g., as in the OAIS Model Many current systems (e.g. repository software) are attempting to support this approach Preservation strategies need to be seen in this wider context Preservation needs to be considered at a very early stage in an object's life-cycle

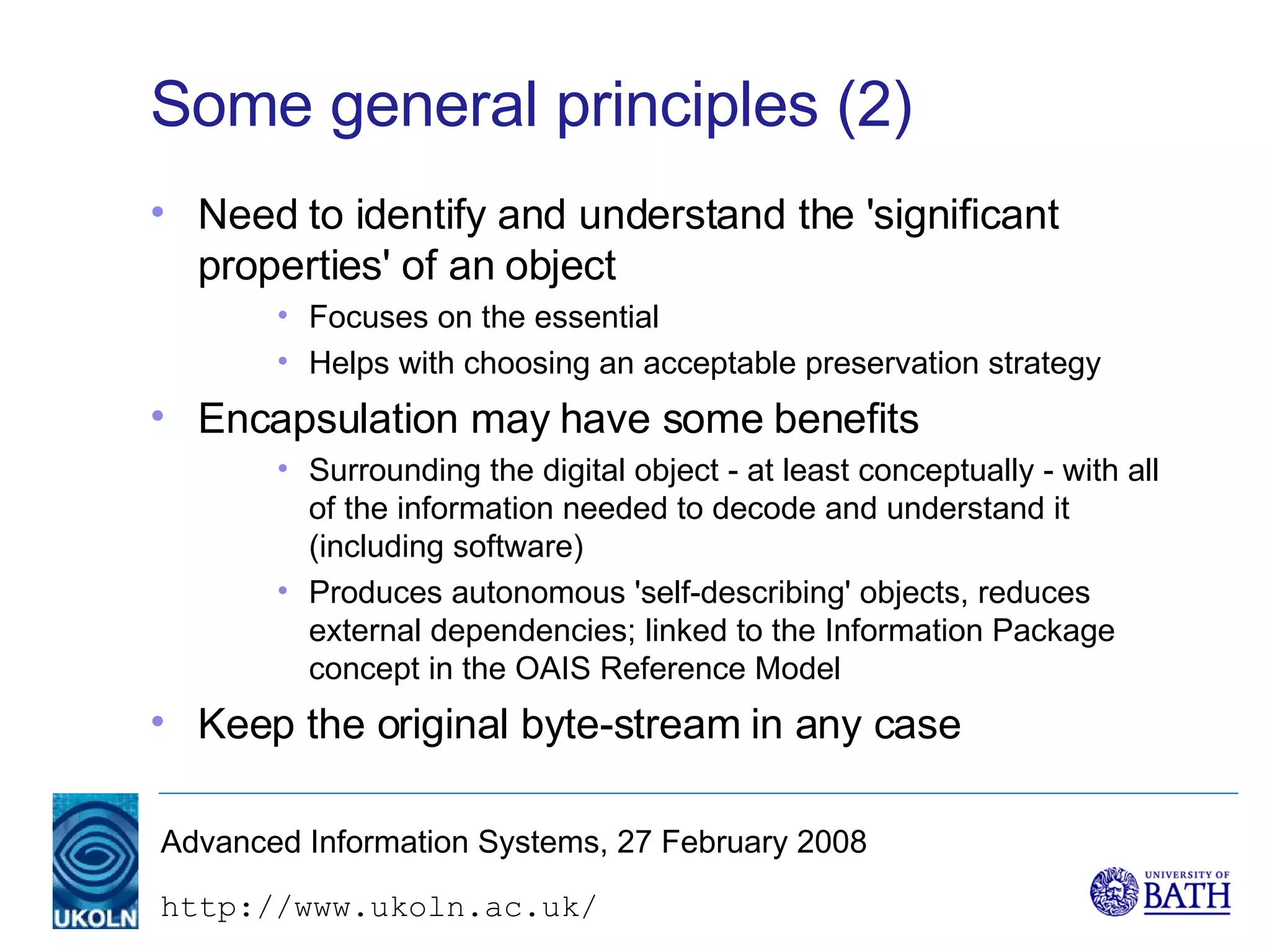

Some general principles (2) Need to identify and understand the 'significant properties' of an object Focuses on the essential Helps with choosing an acceptable preservation strategy Encapsulation may have some benefits Surrounding the digital object - at least conceptually - with all of the information needed to decode and understand it (including software) Produces autonomous 'self-describing' objects, reduces external dependencies; linked to the Information Package concept in the OAIS Reference Model Keep the original byte-stream in any case

Digital preservation strategies

Preservation strategies Three main families: Technology preservation Technology emulation Information migration Also: Digital archaeology (rescue)

Technology preservation The preservation of an information object together with all of the hardware and software needed to interpret it Successfully preserves the look, feel and behaviour of the whole system (at least while the hardware and software still functions) May have a role for historically important hardware Severe problems with storage and ongoing maintenance, missing documentation Would inevitably lead to 'museums' of “ageing and incompatible computer hardware” -- Mary Feeney May have a shorter-term role for supporting the rescue of digital objects (digital archaeology)

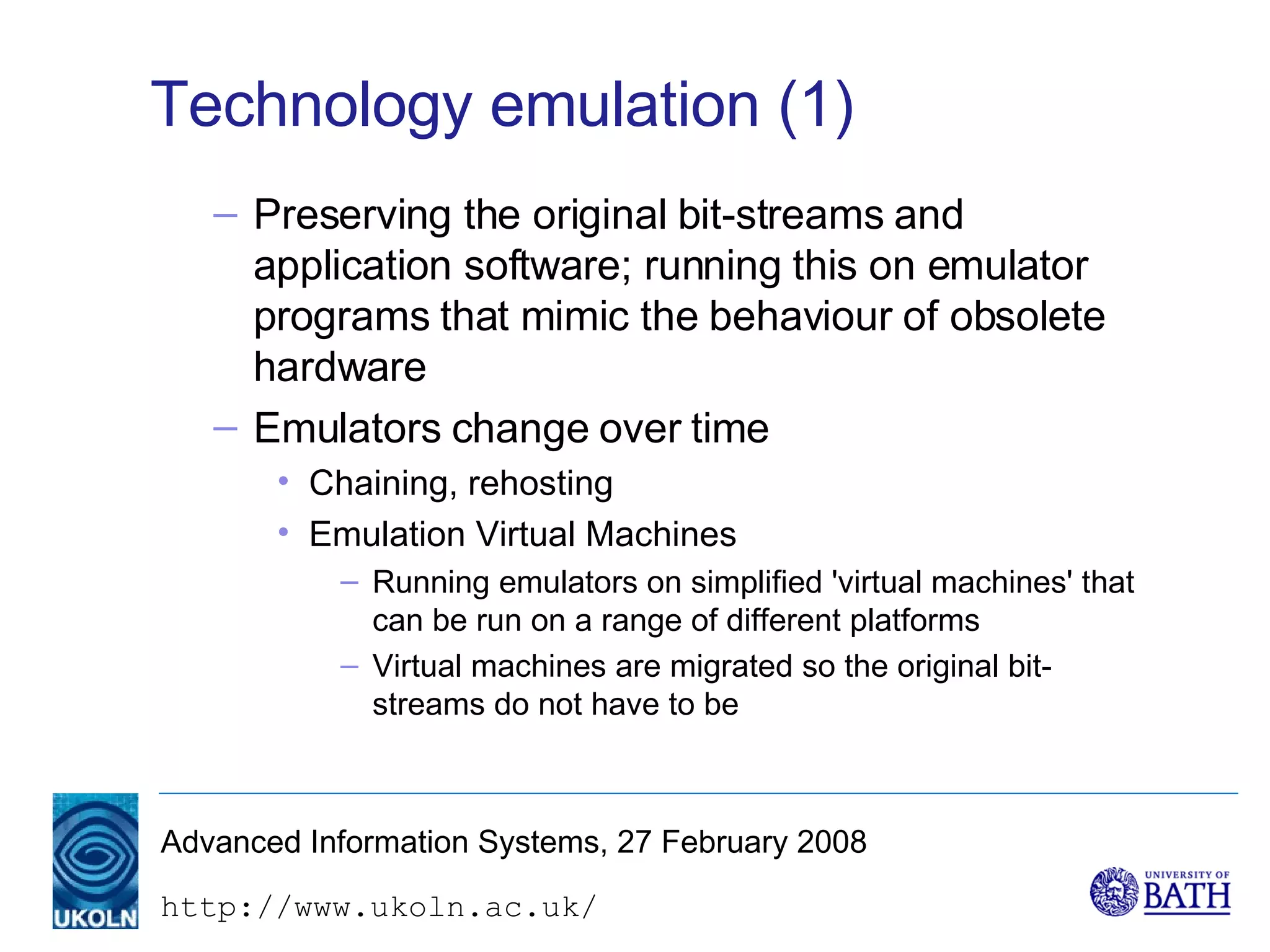

Technology emulation (1) Preserving the original bit-streams and application software; running this on emulator programs that mimic the behaviour of obsolete hardware Emulators change over time Chaining, rehosting Emulation Virtual Machines Running emulators on simplified 'virtual machines' that can be run on a range of different platforms Virtual machines are migrated so the original bit-streams do not have to be

Technology emulation (2) Benefits: Technique already widely used, e.g. for emulating different hardware, computer games Preserves (and uses) the original bits Reduces the need for regular object transformations (but emulators and virtual machines may themselves need to be migrated) Retains ‘look-and-feel’ May be the only approach possible where objects are complex or dependent on executable code Less 'understanding' of formats is needed; little incremental cost in keeping additional formats

Technology emulation (3) Challenges: Do organisations have the technical skills necessary to implement the strategy? Preserving 'look and feel' may not be needed for all objects It will be difficult to know definitively whether user experience has been accurately preserved Conclusions: Promising family of approaches Needs further practical application and research, e.g. Dioscuri software (National Library of the Netherlands (KB), Nationaal Archief and Planets project)

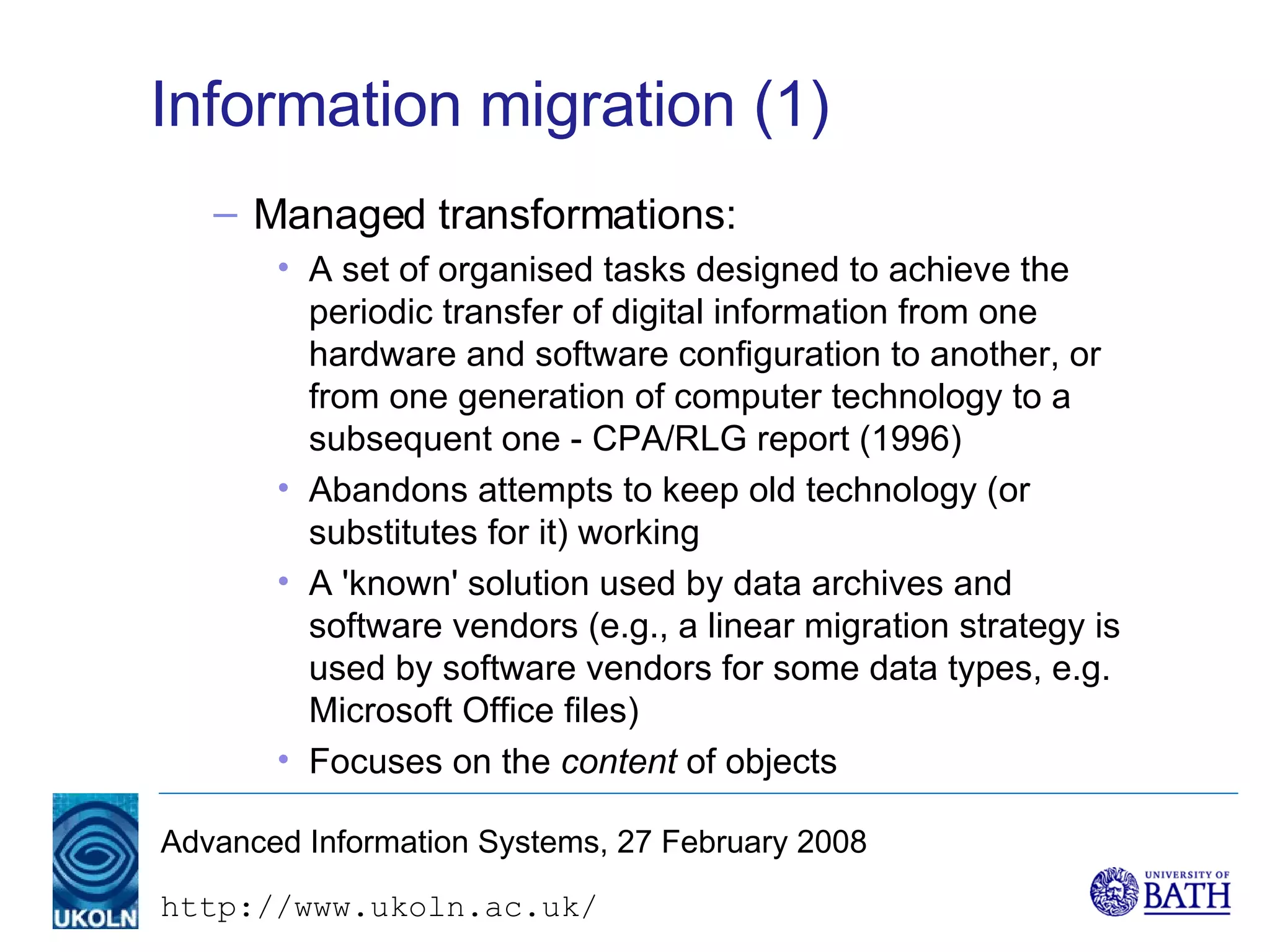

Information migration (1) Managed transformations: A set of organised tasks designed to achieve the periodic transfer of digital information from one hardware and software configuration to another, or from one generation of computer technology to a subsequent one - CPA/RLG report (1996) Abandons attempts to keep old technology (or substitutes for it) working A 'known' solution used by data archives and software vendors (e.g., a linear migration strategy is used by software vendors for some data types, e.g. Microsoft Office files) Focuses on the content of objects

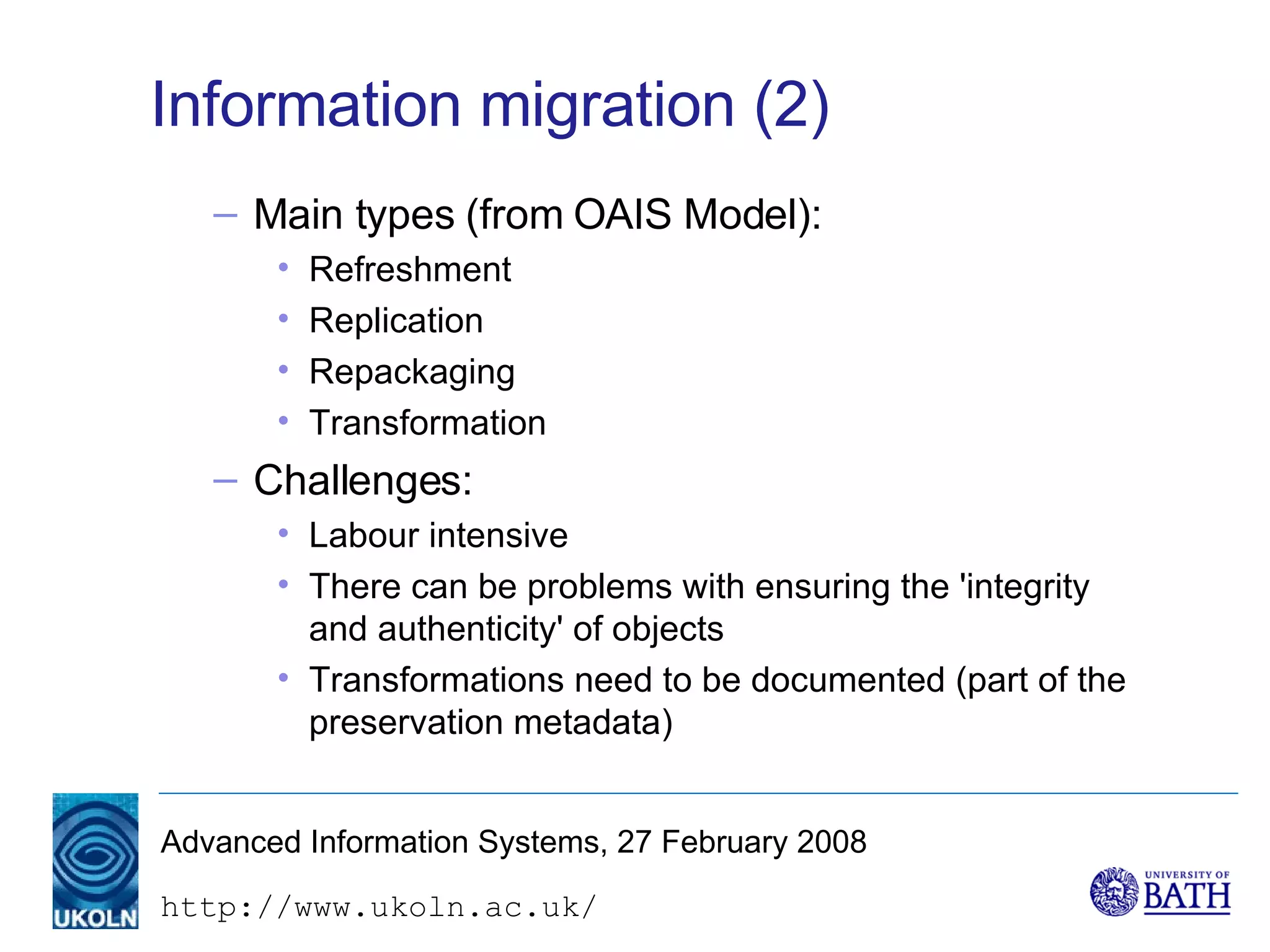

Information migration (2) Main types (from OAIS Model): Refreshment Replication Repackaging Transformation Challenges: Labour intensive There can be problems with ensuring the 'integrity and authenticity' of objects Transformations need to be documented (part of the preservation metadata)

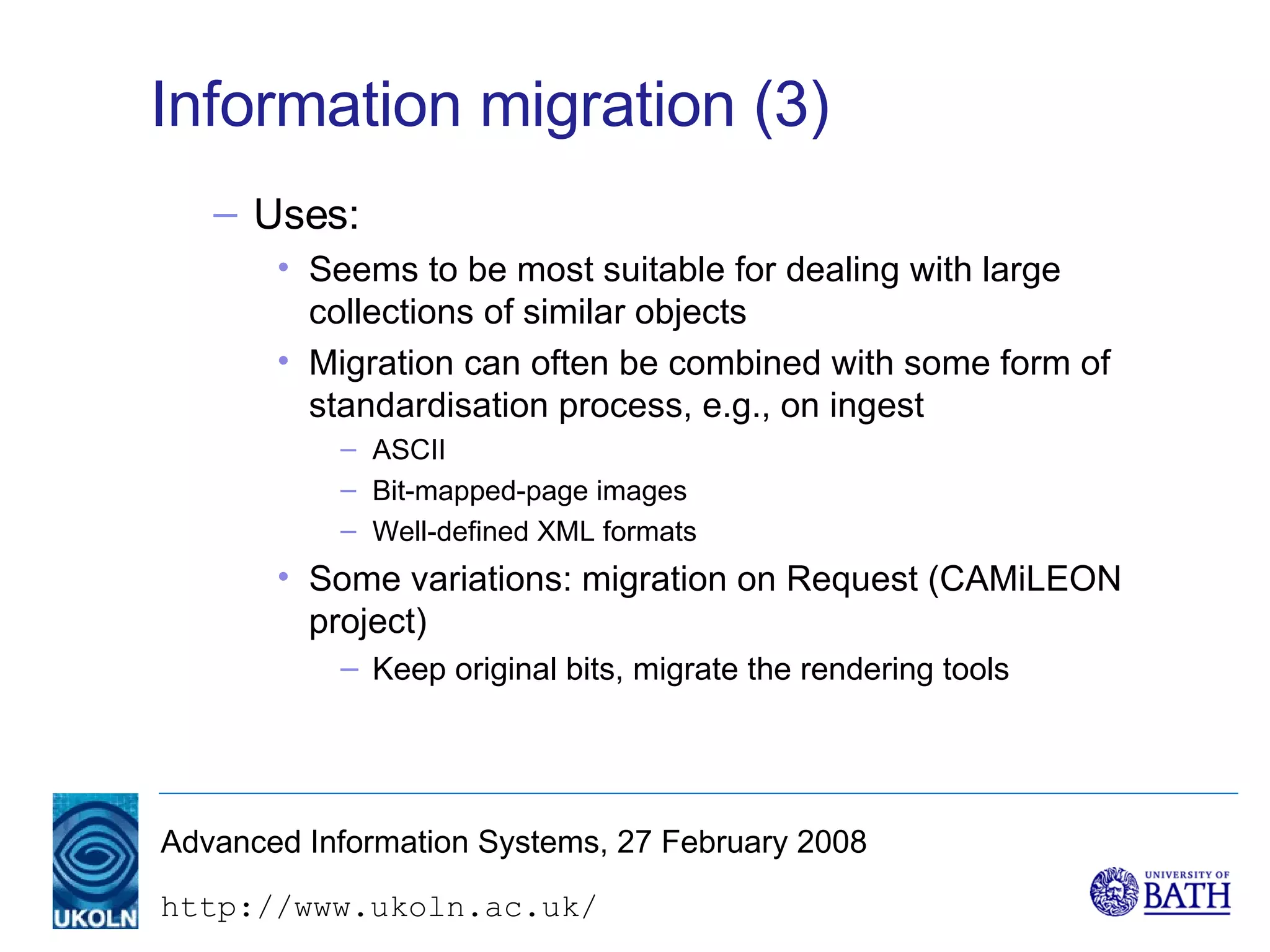

Information migration (3) Uses: Seems to be most suitable for dealing with large collections of similar objects Migration can often be combined with some form of standardisation process, e.g., on ingest ASCII Bit-mapped-page images Well-defined XML formats Some variations: migration on Request (CAMiLEON project) Keep original bits, migrate the rendering tools

Digital archaeology Not so much a preservation strategy, but the default situation if we fail to adopt one Using various techniques to recover digital content from obsolete or damaged physical objects (media, hardware, etc.) A time consuming process, needs specialised equipment and (in most cases) adequate documentation Considered to be expensive (and risky) Remains an option for content deemed to be of value

Encapsulation Encapsulating the digital object with all of the information needed to decode and understand it Not specific to any particular preservation strategy The principle of "self-describing objects" Underlies the Information Package concept in the OAIS Reference Model (more of this later) Examples: Universal Preservation Format (UPF) “ Buckets” (NASA Langley Research Center)

Choosing a strategy (1) Preservation strategies are not in competition (different strategies will work together) A suggestion that we should keep the original bits (with some documentation) in any case But the strategy chosen has implications for: The technical infrastructure required (and metadata) Collection management priorities Rights management e.g, Owning the rights to re-engineer software Costs

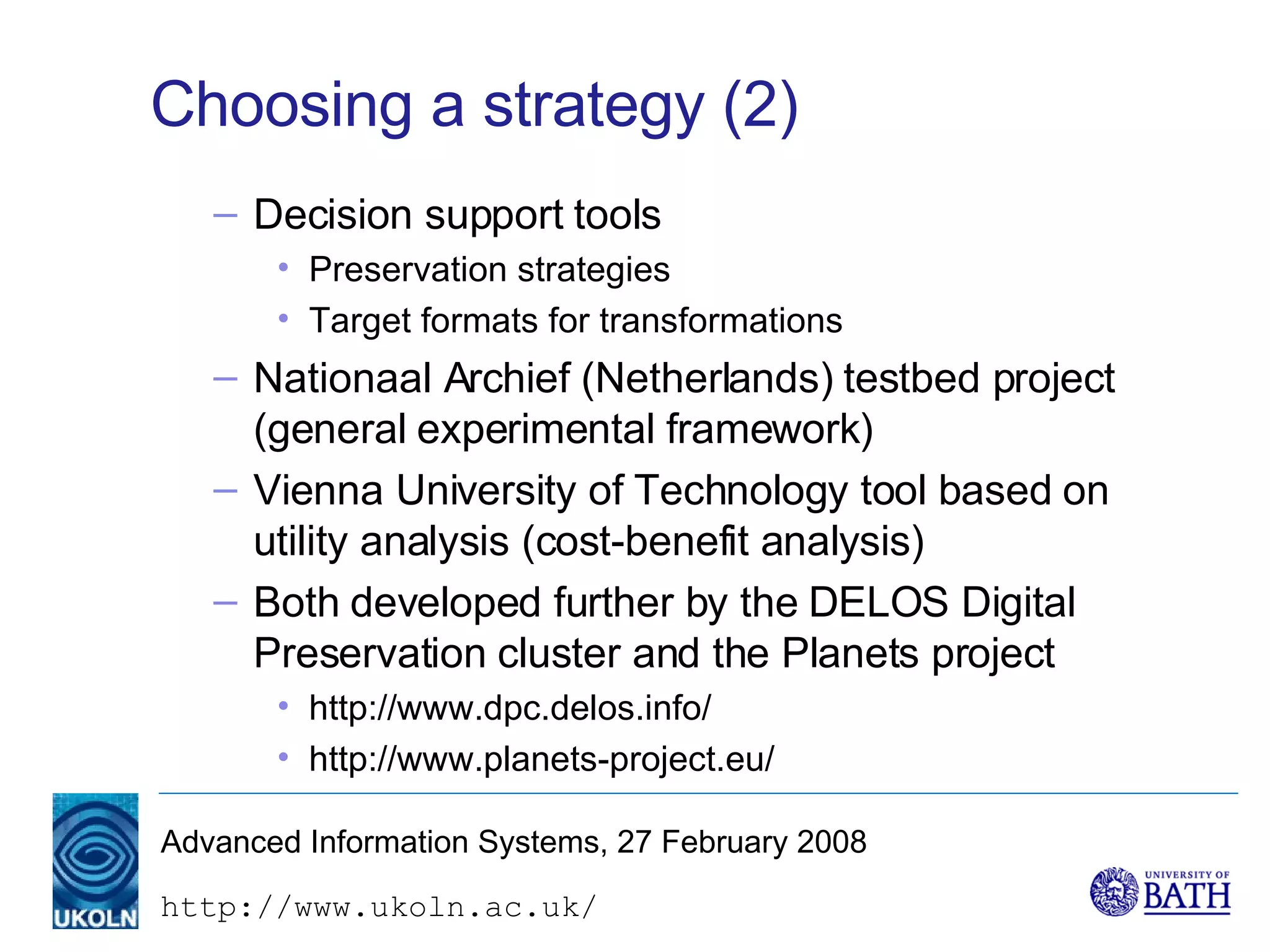

Choosing a strategy (2) Decision support tools Preservation strategies Target formats for transformations Nationaal Archief (Netherlands) testbed project (general experimental framework) Vienna University of Technology tool based on utility analysis (cost-benefit analysis) Both developed further by the DELOS Digital Preservation cluster and the Planets project http://www.dpc.delos.info/ http://www.planets-project.eu/

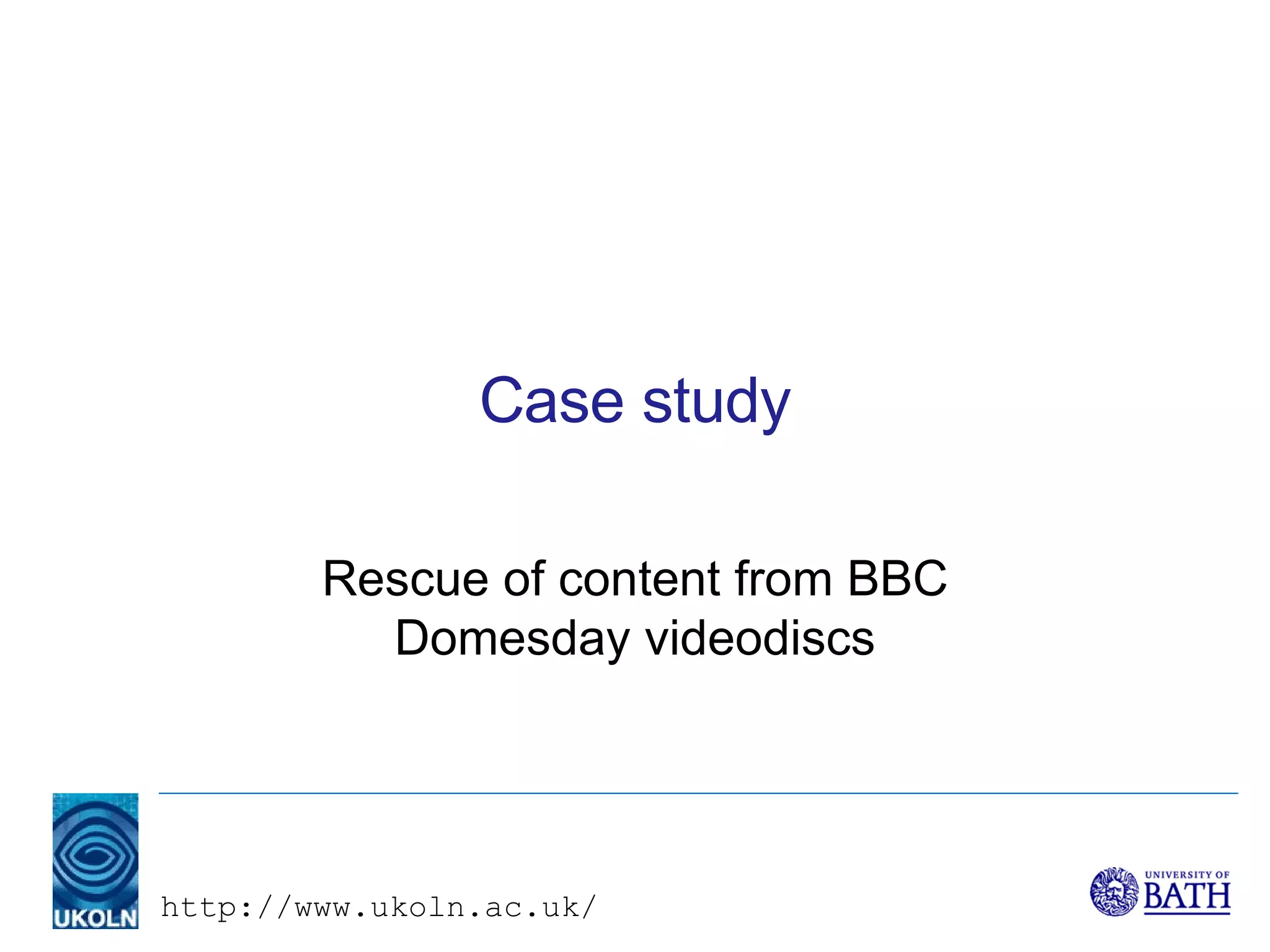

Case study Rescue of content from BBC Domesday videodiscs

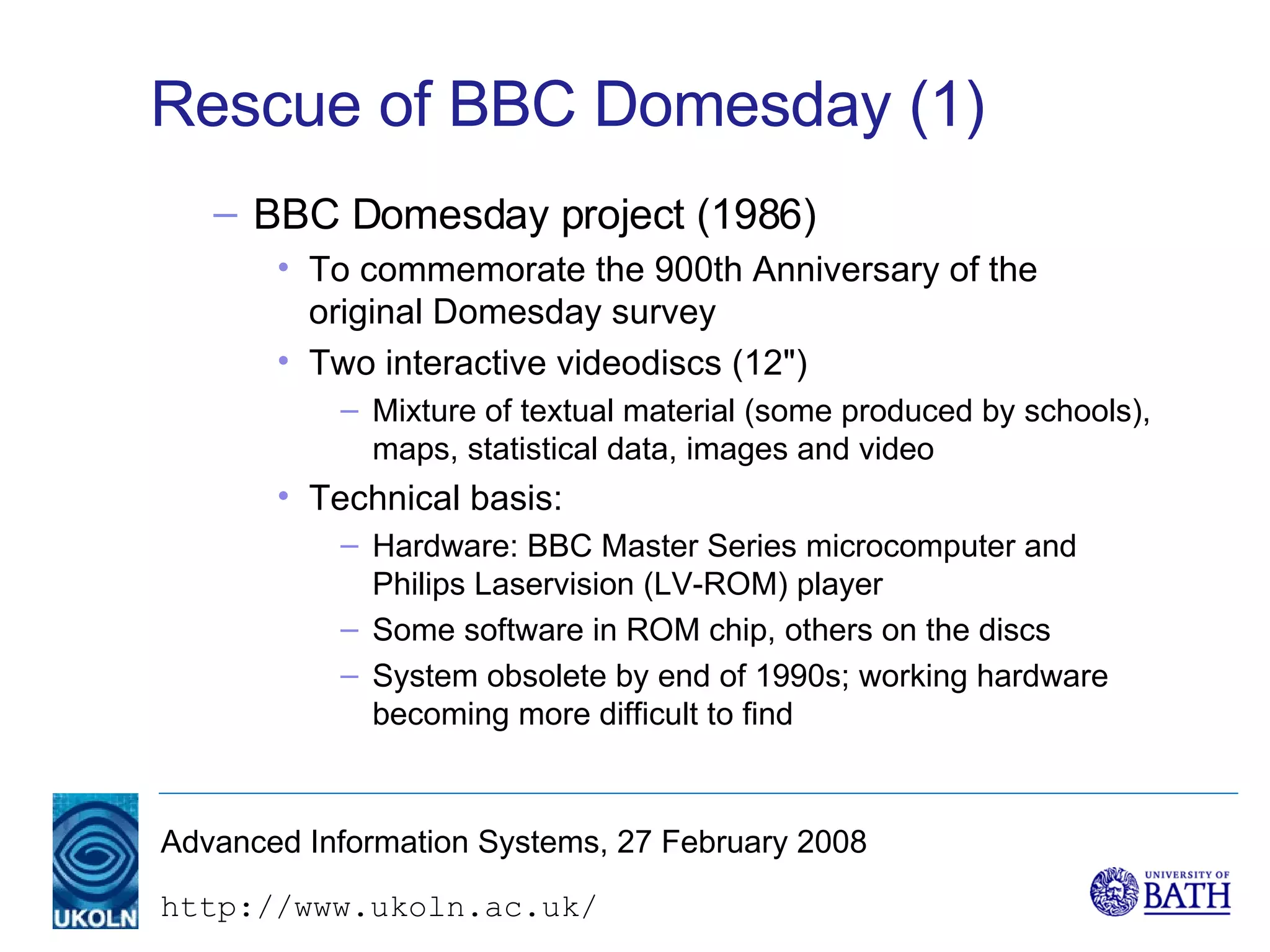

Rescue of BBC Domesday (1) BBC Domesday project (1986) To commemorate the 900th Anniversary of the original Domesday survey Two interactive videodiscs (12") Mixture of textual material (some produced by schools), maps, statistical data, images and video Technical basis: Hardware: BBC Master Series microcomputer and Philips Laservision (LV-ROM) player Some software in ROM chip, others on the discs System obsolete by end of 1990s; working hardware becoming more difficult to find

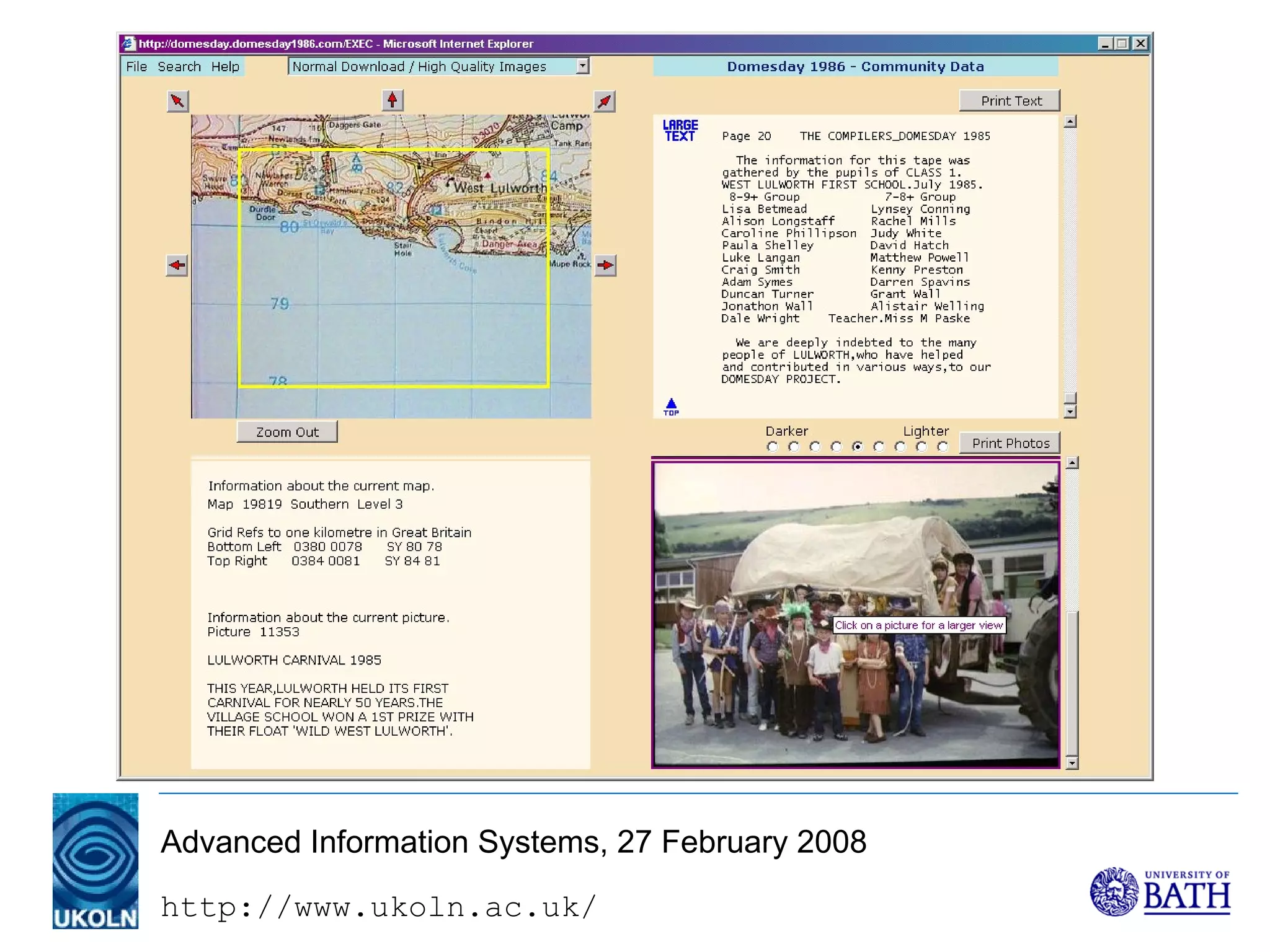

Rescue of BBC Domesday (2) CAMiLEON project Proof of concept for the emulation approach Converted data into media-neutral form Adapted an existing emulator for the BBC microcomputer to render Domesday content The National Archives (and partners) Reengineered the whole system for use on Windows PCs Digital versions of images and video converted from original master tapes (still held by BBC) Developed an improved interface Web version: http://domesday1986.com/

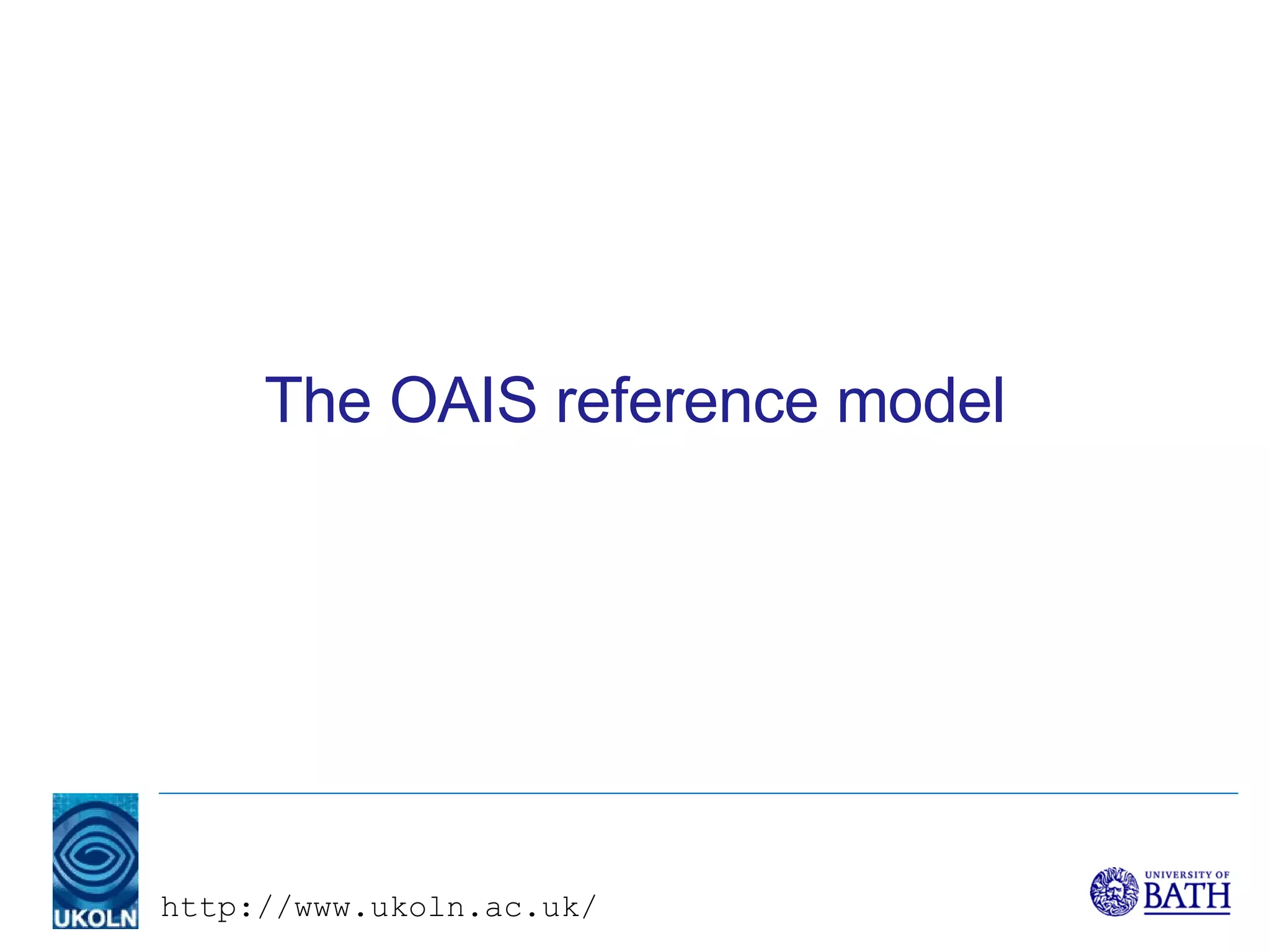

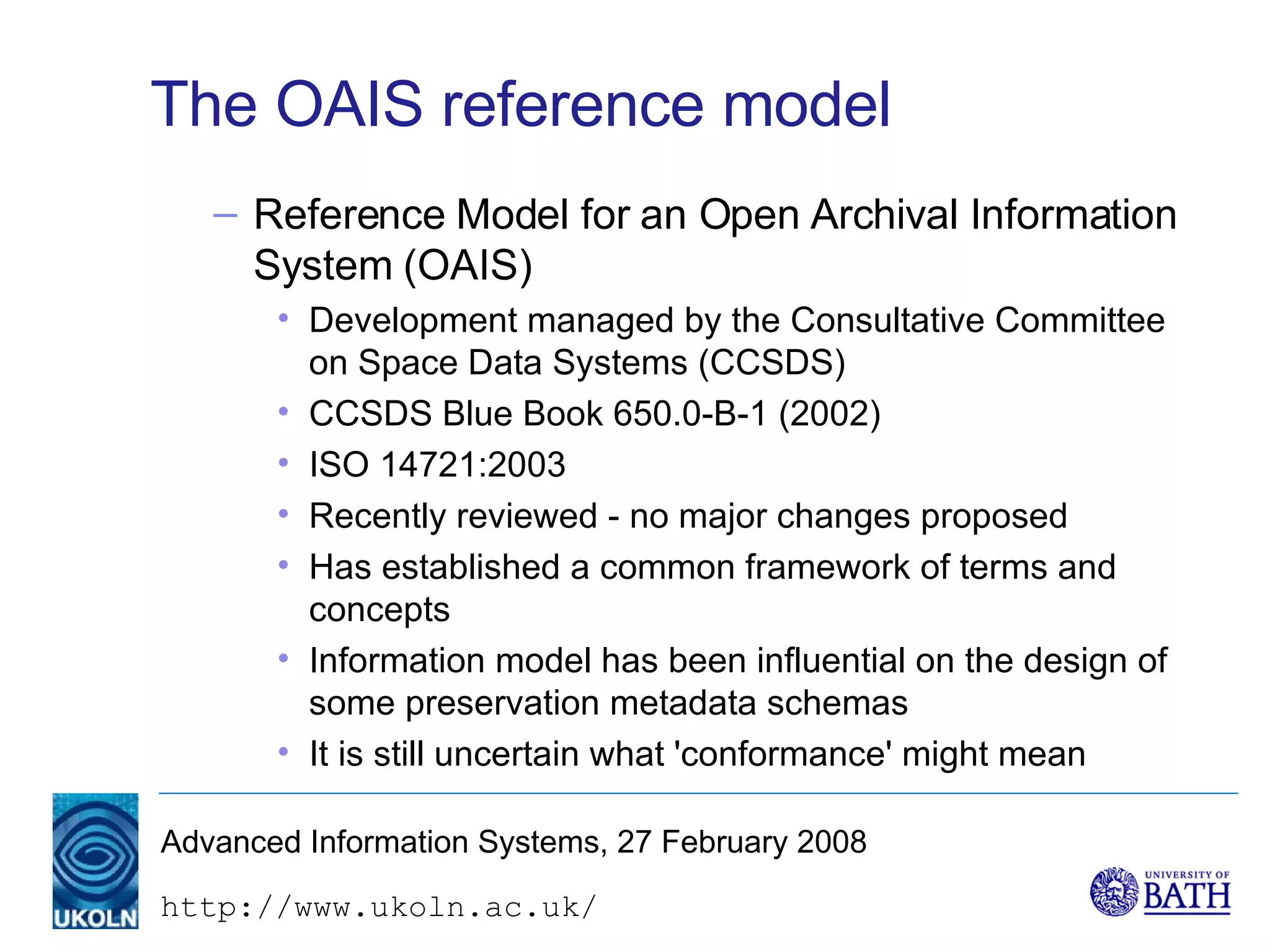

The OAIS reference model Reference Model for an Open Archival Information System (OAIS) Development managed by the Consultative Committee on Space Data Systems (CCSDS) CCSDS Blue Book 650.0-B-1 (2002) ISO 14721:2003 Recently reviewed - no major changes proposed Has established a common framework of terms and concepts Information model has been influential on the design of some preservation metadata schemas It is still uncertain what 'conformance' might mean

OAIS mandatory responsibilities Negotiating and accepting information Obtaining sufficient control of the information to ensure long-term preservation Determining the "designated community" Ensuring that information is independently understandable , i.e. without the assistance of those who produced it Following documented policies and procedures Making the preserved information available

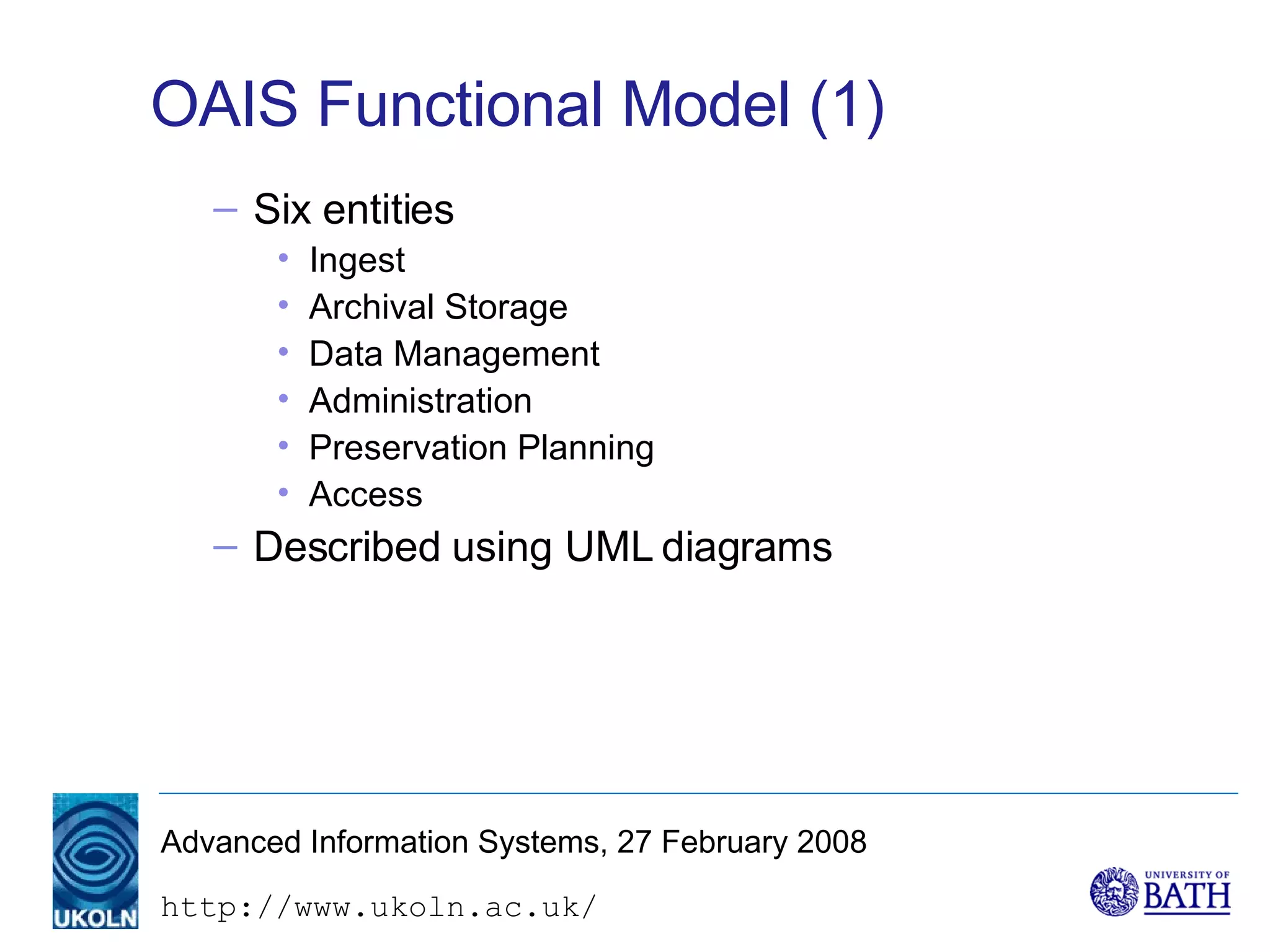

OAIS Functional Model (1) Six entities Ingest Archival Storage Data Management Administration Preservation Planning Access Described using UML diagrams

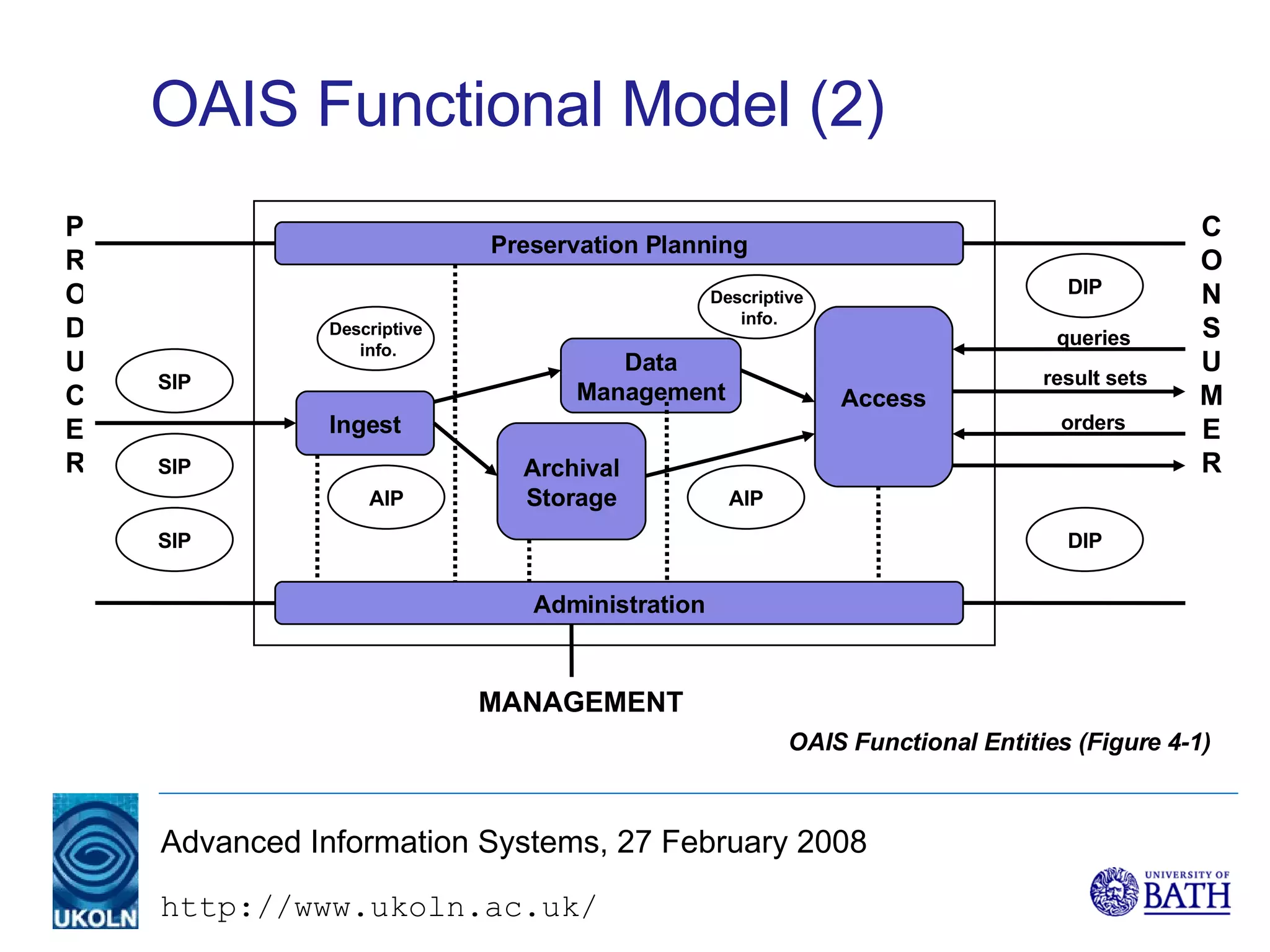

OAIS Functional Model (2) Administration Ingest Archival Storage Access Data Management Descriptive info. PRODUCER CONSUMER MANAGEMENT queries result sets Descriptive info. Preservation Planning orders OAIS Functional Entities (Figure 4-1) SIP SIP SIP DIP DIP AIP AIP

Implementing OAIS Fundamentals: OAIS is a reference model (conceptual framework), NOT a blueprint for system design It informs the design of system architectures, the development of systems and components It provides common definitions of terms … a common language, means of making comparison But it does NOT ensure consistency or interoperability between implementations Conformance only relates to mandatory responsibilities and following information model

Repository audit and certification Building on OAIS concepts ... but focusing on requirements for helping to ensure that repositories meet identified criteria: Trustworthy Repositories Audit & Certification: Criteria and Checklist (TRAC) Center for Research Libraries, OCLC, NARA, et al . http://www.crl.edu/content.asp?l1=13&l2=58&l3=162&l4=91 DRAMBORA (Digital Repository Audit Method Based on Risk Assessment) Self-assessment tool developed by: Digital Curation Centre, Digital Preservation Europe http://www.repositoryaudit.eu/

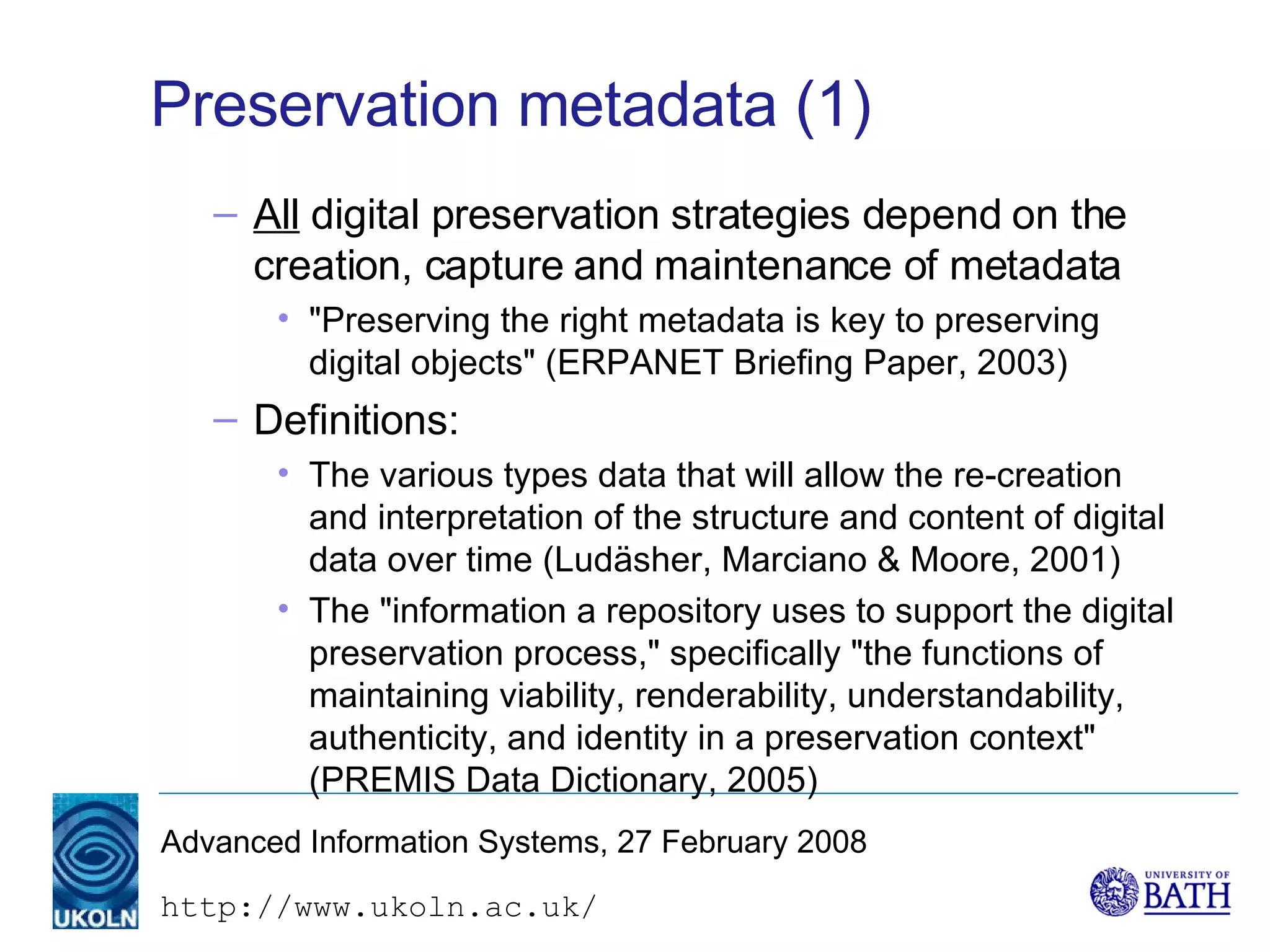

Preservation metadata (1) All digital preservation strategies depend on the creation, capture and maintenance of metadata "Preserving the right metadata is key to preserving digital objects" (ERPANET Briefing Paper, 2003) Definitions: The various types data that will allow the re-creation and interpretation of the structure and content of digital data over time (Ludäsher, Marciano & Moore, 2001) The "information a repository uses to support the digital preservation process," specifically "the functions of maintaining viability, renderability, understandability, authenticity, and identity in a preservation context" (PREMIS Data Dictionary, 2005)

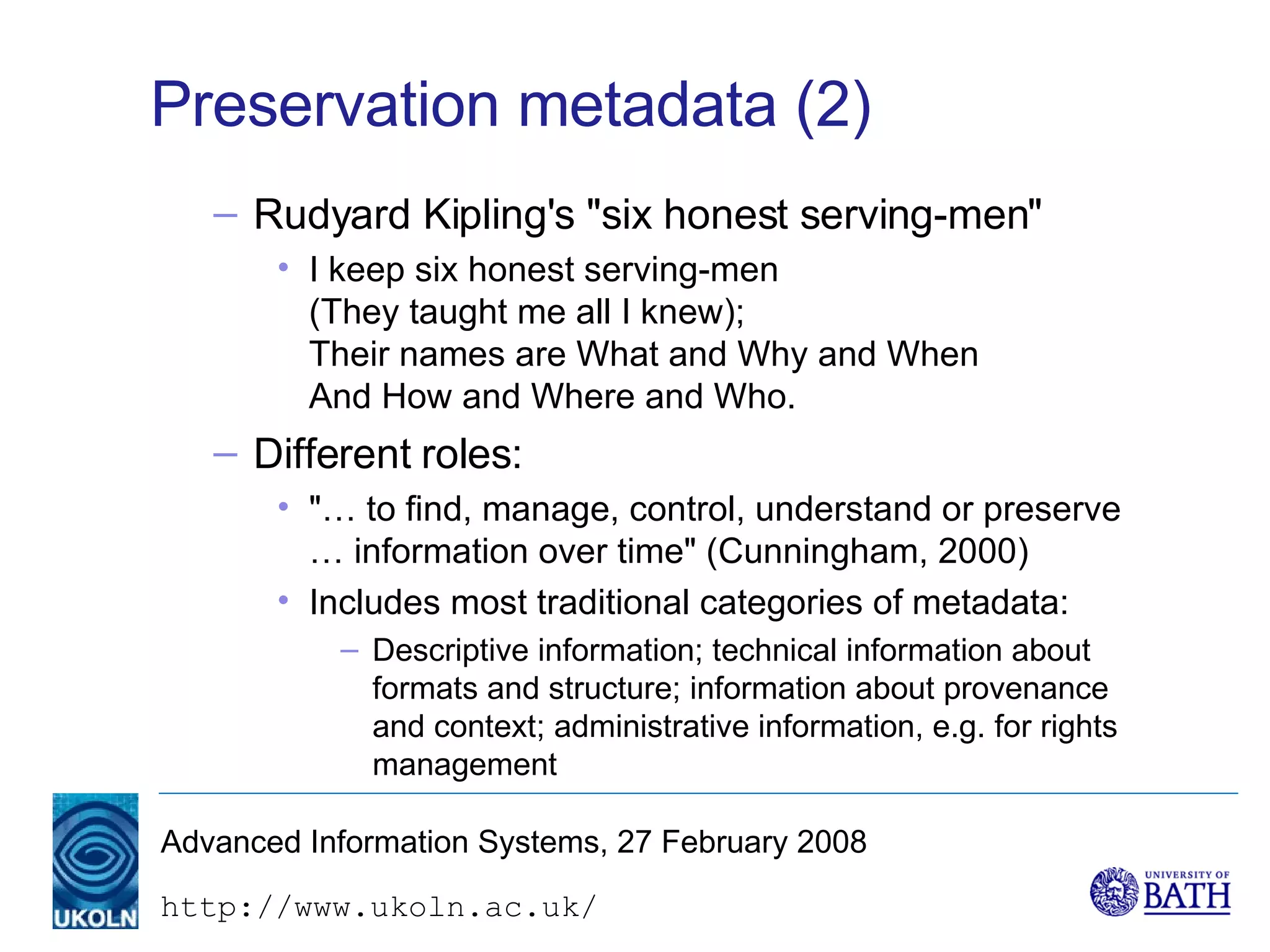

Preservation metadata (2) Rudyard Kipling's "six honest serving-men" I keep six honest serving-men (They taught me all I knew); Their names are What and Why and When And How and Where and Who. Different roles: "… to find, manage, control, understand or preserve … information over time" (Cunningham, 2000) Includes most traditional categories of metadata: Descriptive information; technical information about formats and structure; information about provenance and context; administrative information, e.g. for rights management

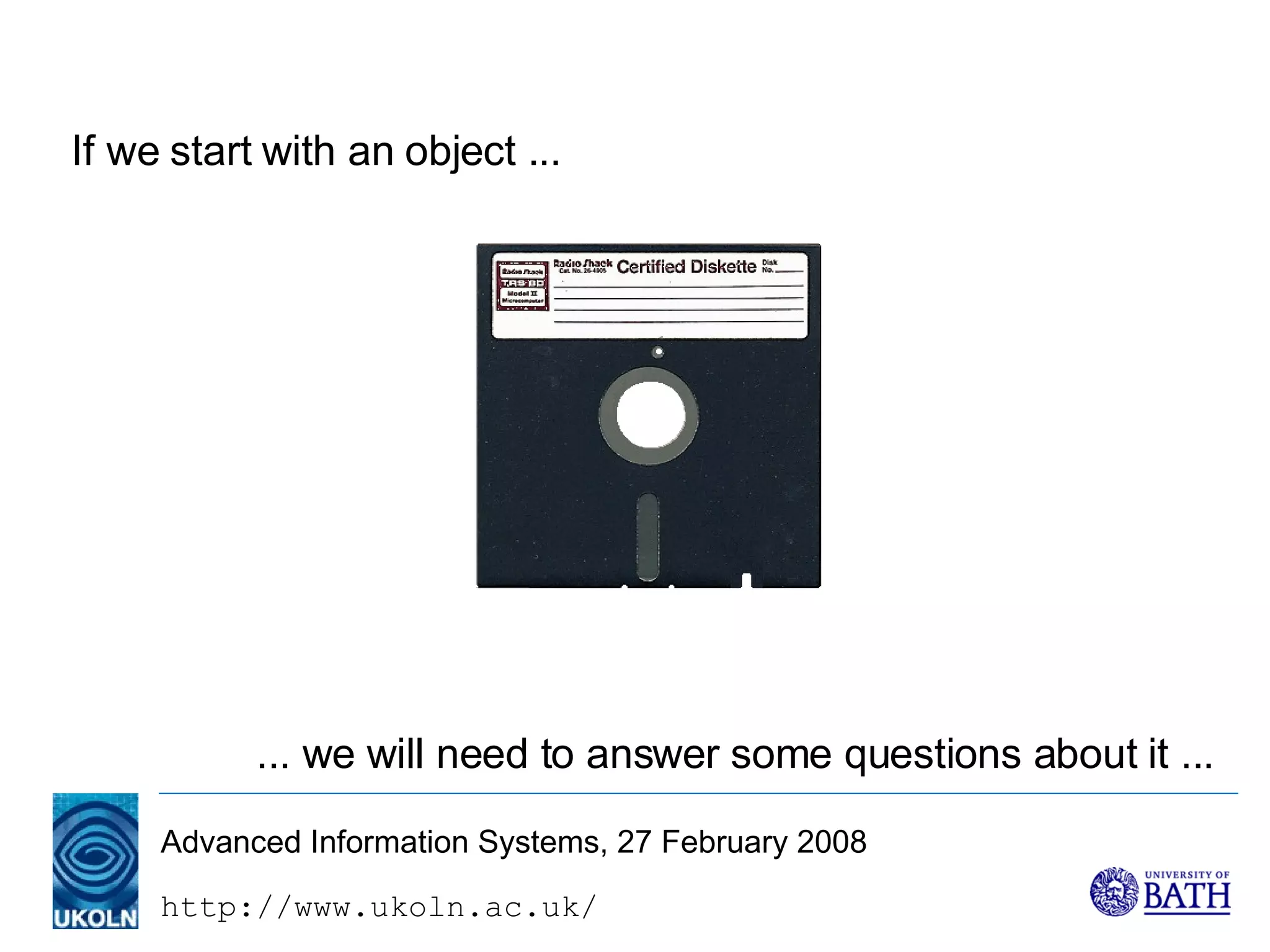

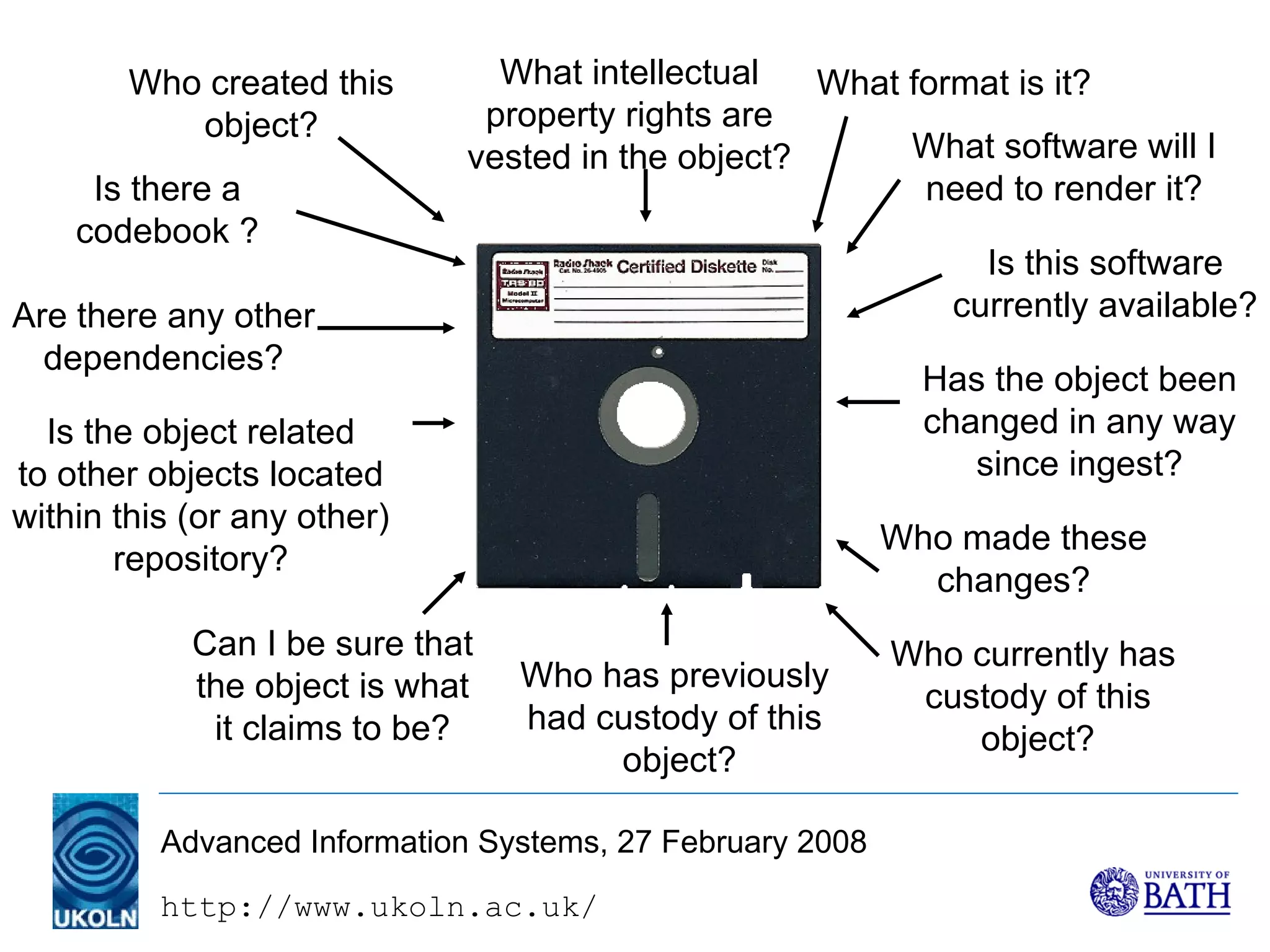

If we start with an object ... ... we will need to answer some questions about it ...

Are there any other dependencies? Who created this object? Is this software currently available? Who made these changes? What intellectual property rights are vested in the object? Who currently has custody of this object? Has the object been changed in any way since ingest? Is the object related to other objects located within this (or any other) repository? Can I be sure that the object is what it claims to be? What software will I need to render it? What format is it? Is there a codebook ? Who has previously had custody of this object?

Sources of metadata (1) Embedded within objects themselves Typical examples include TIFF headers, file properties in Office programs Tools have been developed to capture some of this metadata automatically, e.g.: New Zealand National Library preservation metadata extraction tool JHOVE (JSTOR/Harvard Object Validation Environment) for the identification and validation of formats However, can we always trust embedded metadata? Do we regularly update file properties? What do we do if there are conflicts?

Sources of metadata (2) Associated with objects, e.g.: Readme files or documentation Databases (e.g., bibliographic catalogues, e-journal systems) Documentation standards or codebooks (e.g. XML) Created by the preservation repository itself Part of ingest process Automatically captured from the ongoing management of objects, recording, e.g.: Custodial history Format transformations Usage

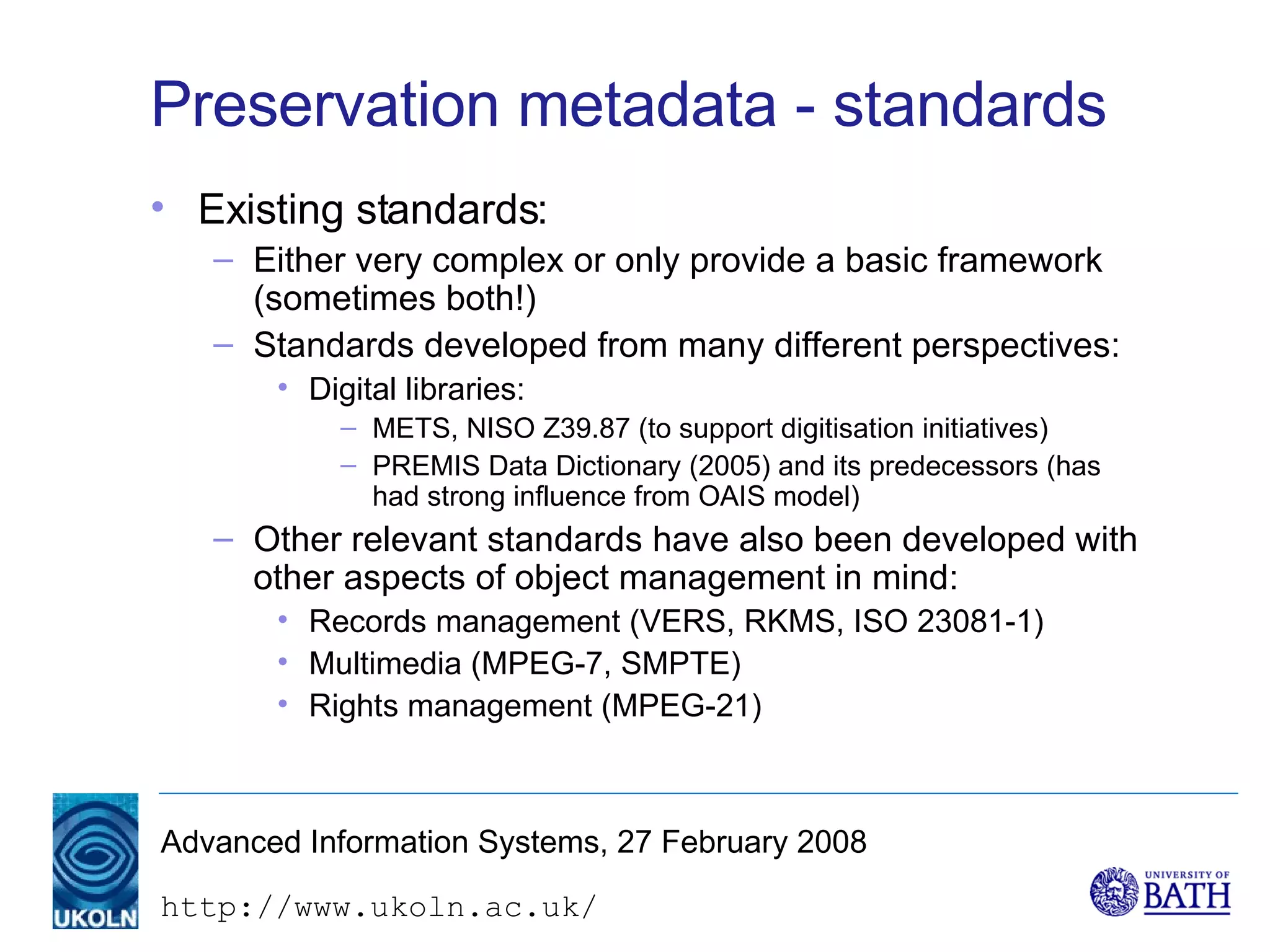

Preservation metadata - standards Existing standards: Either very complex or only provide a basic framework (sometimes both!) Standards developed from many different perspectives: Digital libraries: METS, NISO Z39.87 (to support digitisation initiatives) PREMIS Data Dictionary (2005) and its predecessors (has had strong influence from OAIS model) Other relevant standards have also been developed with other aspects of object management in mind: Records management (VERS, RKMS, ISO 23081-1) Multimedia (MPEG-7, SMPTE) Rights management (MPEG-21)

OAIS Functional Model (reprise) Administration Ingest Archival Storage Access Data Management Descriptive info. PRODUCER CONSUMER MANAGEMENT queries result sets Descriptive info. Preservation Planning orders OAIS Functional Entities (Figure 4-1) SIP SIP SIP DIP DIP AIP AIP

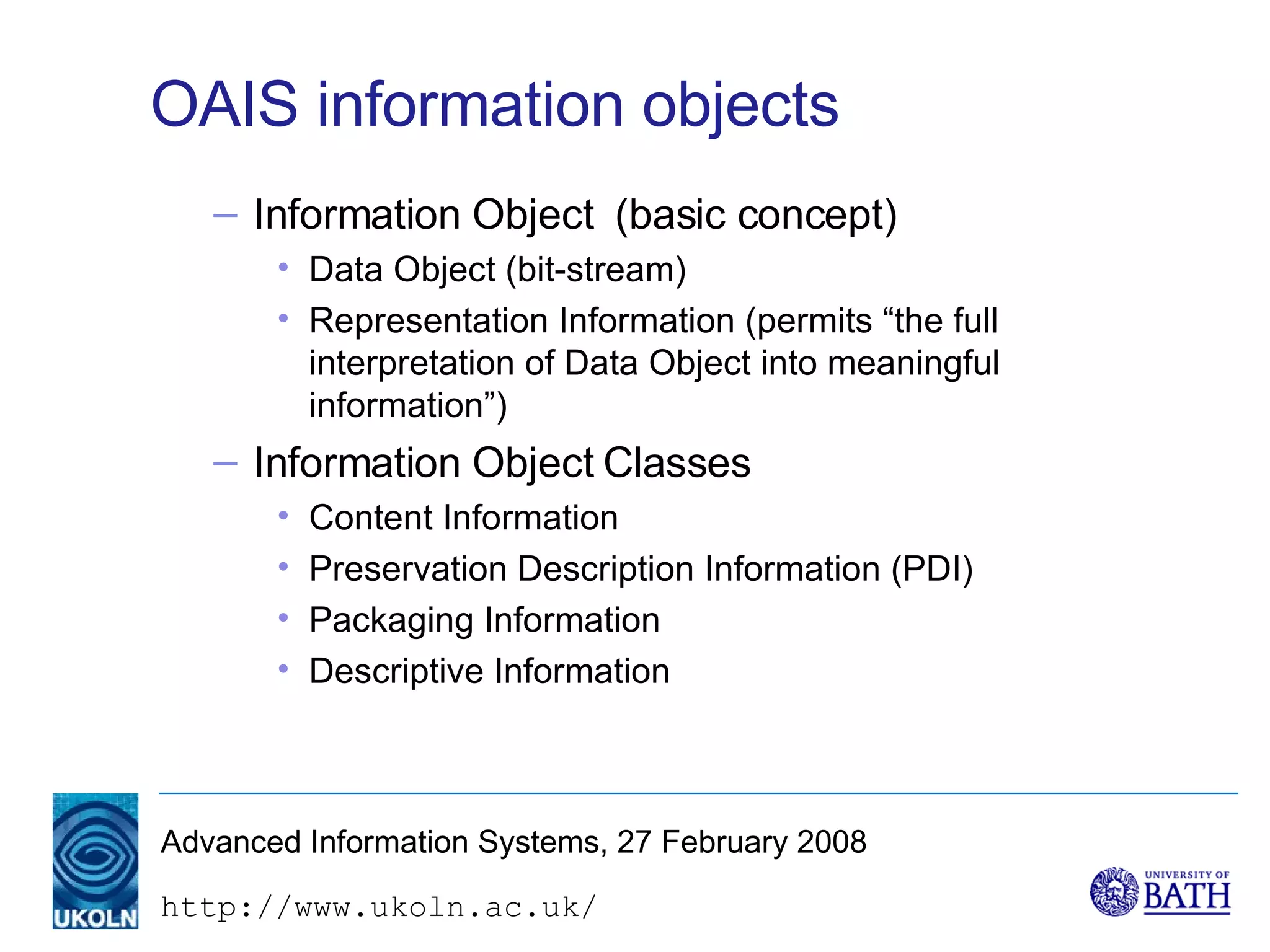

OAIS information objects Information Object (basic concept) Data Object (bit-stream) Representation Information (permits “the full interpretation of Data Object into meaningful information”) Information Object Classes Content Information Preservation Description Information (PDI) Packaging Information Descriptive Information

OAIS information packages Information package: Container that encapsulates Content Information and PDI Packages for submission (SIP), archival storage (AIP) and dissemination (DIP) AIP = “... a concise way of referring to a set of information that has, in principle, all of the qualities needed for permanent, or indefinite, Long Term Preservation of a designated Information Object” PDI = other information (metadata) “which will allow the understanding of the Content Information over an indefinite period of time” Reference, Provenance, Context, Fixity

Preservation Description Information Reference Information Provenance Information Context Information Fixity Information Preservation Description Information: The OAIS model (4) OAIS Information Package Taxonomy (Figure 4-14)

PREMIS Data Dictionary (1) Preservation Metadata: Implementation Strategies Working Group sponsored by OCLC and RLG Reviewed earlier Metadata Framework document and existing practice Focus on implementation and definition of 'core' metadata PREMIS Data Dictionary (May 2005)

PREMIS Data Dictionary (2) PREMIS Data Dictionary version 1.0 Moves away from OAIS Information Model structure Developed own information model Defines semantic units for: Objects, Events (Agents, Rights) Also: An XML implementation Maintenance activity (led by the Library of Congress) PREMIS Implementors Group (PIG) Already thinking about v 2.0

PREMIS roles (1) To define the types of "information a repository uses to support the digital preservation process," specifically "the functions of maintaining viability, renderability, understandability, authenticity, and identity in a preservation context" No specific definitions of these terms, but: Viability - bit streams (and systems) should be managed in a way that ensures that they continue to be available over time

PREMIS roles (2) Definitions (continued): Renderability - preservation strategies should be adopted in order to ensure that objects can be rendered in appropriate ways, e.g. transformed for use within current computing environments or through the emulation of older ones Understandability - objects should be understandable (at various different levels, e.g. relates to structure and semantics) Authenticity - objects should be what they claim to be ... bit integrity is not enough Identity - (versions of) objects should be identifiable and able to be discovered in appropriate ways

Integrity Viability Renderability Priscilla Caplan's revised Preservation Pyramid (2005) Description Secure storage Media management Availability Identity Capture Selection Understandability Authenticity Preservation strategies

Is metadata sustainable? Metadata is expensive to create and maintain: There is a need to balance the risks of data loss (or costs of recovery) with the costs of creating metadata Automatic capture of some types of metadata Metadata already embedded in objects or in secondary databases; capture from archive processes Sharing information via registries of format information (Representation Information) Avoid imposing unnecessary costs: Avoid large schemas (?) Need to identify the right metadata - 'core metadata' (?)

The role of registries Registries for sharing information and for identifying or validating formats, etc. There is "… a pressing need to establish reliable, sustained repositories of file format specifications, documentation, and related software" (Lawrence, et al ., 2000) DSpace 'bitstream format registry' Digital Library Federation, et al . have proposed a Global Digital Format Registry (GDFR) Some components exist, Typed Object Model, JHOVE tool, but GDFR not funded at present Digital Curation Centre Representation Information registry (demonstration)

Stewardship There is widespread confidence that most technical issues can be solved given the organisational will Brings us to the most significant set of problems: Stewardship for the long-term needs sustainable institutions willing to take on responsibility for digital content No significant additional funding is likely (but compare NARA's multi-million Dollar contract for an Electronic Records Archives (ERA) system)

Collection management Selection, storage, access, "de-selection" Issues: Preservation issues need to be considered early in an object's life-cycle (the traditional 'transfer to repository at end of active life' model will not work for most objects) An important role for creators (and funding bodies) Guidance, documentation needed Sharing of responsibilities A need for collaboration and infrastructures that support this Digital storage costs are cheap, so should we keep everything?

Legal issues (1) Institutions need to obtain the legal rights to preserve digital objects and make them accessible: e.g., copying, the re-engineering of software, legal liability for making content available Identify and negotiate with rights holders? but it can be difficult to identify all rights holders ... Safeguard rights Part of legal deposit? Monitoring legislation and case law

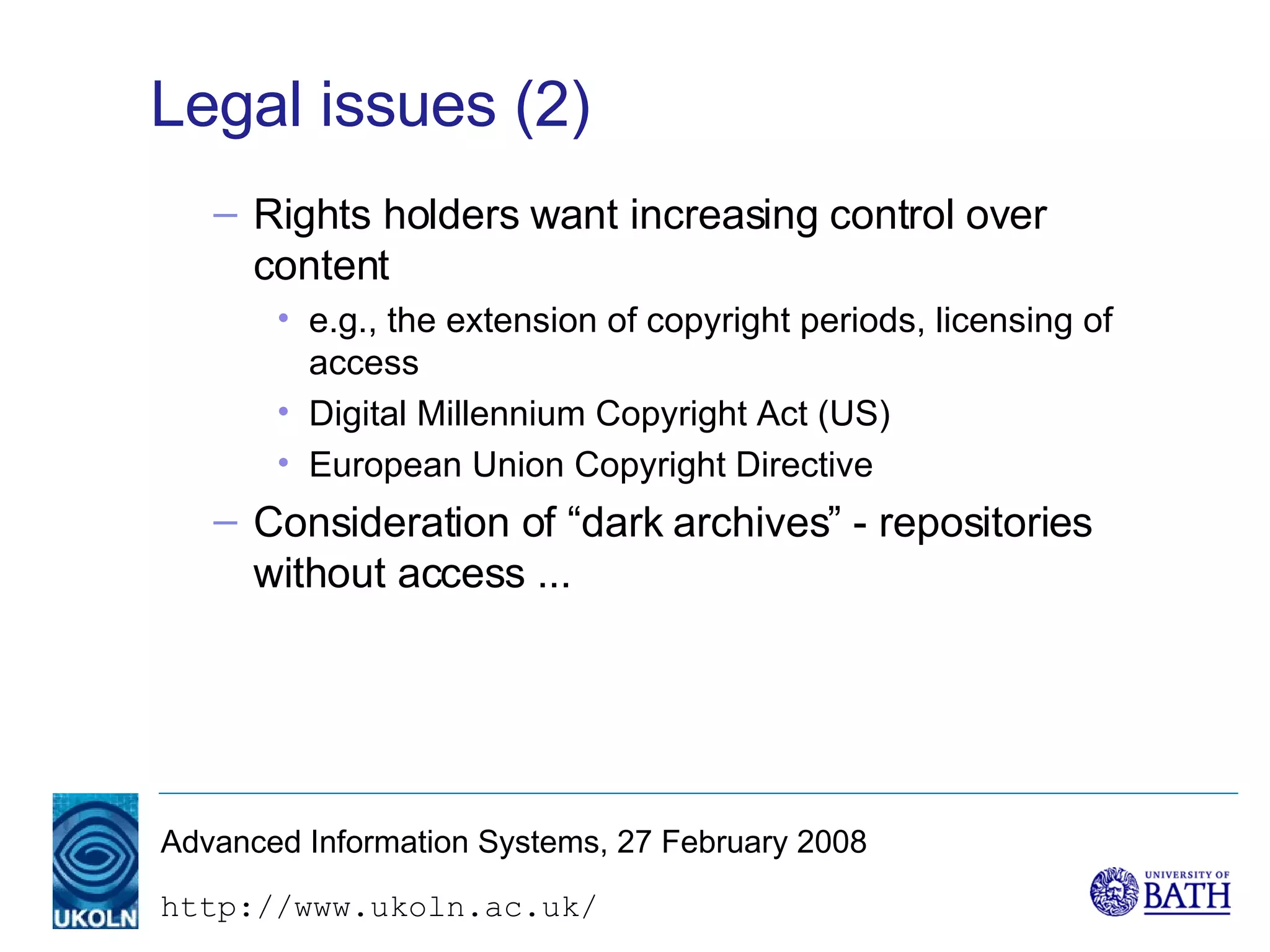

Legal issues (2) Rights holders want increasing control over content e.g., the extension of copyright periods, licensing of access Digital Millennium Copyright Act (US) European Union Copyright Directive Consideration of “dark archives” - repositories without access ...

Costs Still very little known about costs: No widely used economic models No clear idea of who pays? Moore’s Law (technology) digital storage densities increase while costs decrease not necessarily applicable to Petabytes of data from e-science projects Identification of cost elements most used approach National Science Foundation (NSF) and Andrew W. Mellon Foundation have funded a blue-ribbon task force to address the issue of economic sustainability for digital preservation and persistent access - chairs: Fran Berman (SDSC) and Brian Lavoie (OCLC)

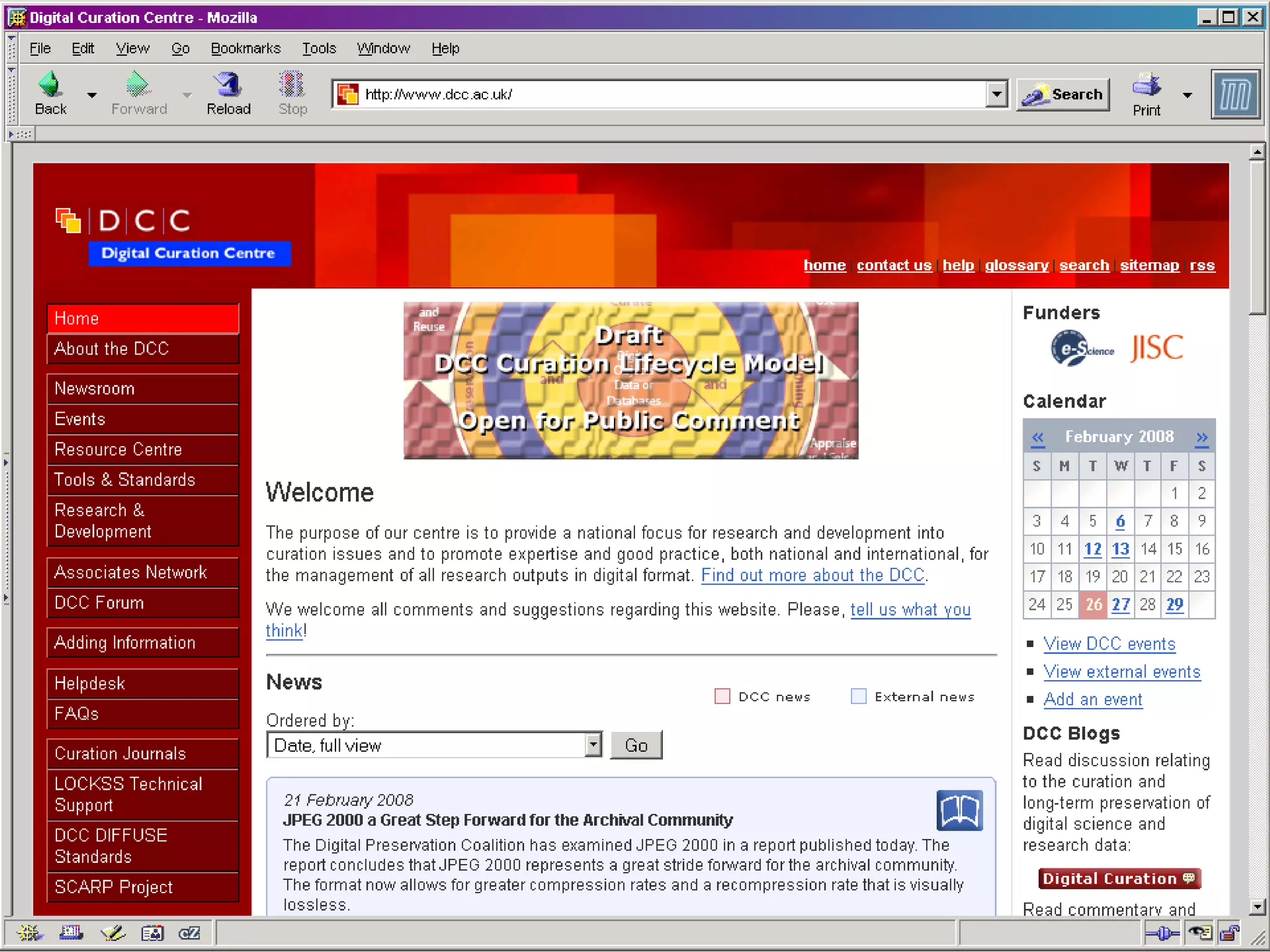

Digital Curation Centre (1) Two main drivers: e-Science, the "data deluge," need for continued access and reuse of data Digital preservation Jointly funded by the Joint Information Systems Committee (JISC) and the e-Science Core Programme Community development, services and technical development (registries) Research programme (ends this week!) Funded since March 2004 Consortium: University of Edinburgh (lead partner), University of Glasgow, Science and Technology Facilities Council (STFC), University of Bath (UKOLN)

Digital Curation Centre (2) Aims: ‘ Continuing quality improvement in data curation and digital preservation’ Main foci: Data as evidential base for science and scholarship Role of data curation & preservation as keys to reproducibility and reuse The worlds of e-learning & scholarly communication

Digital Curation Centre (3) Main activities: Community development Events (annual conference +) Linking with existing communities of practice (SCARP) Engaging with active curators Tools and infrastructure Representation Information registry, packaging tools User services Documentation, DIFFUSE, DRAMBORA risk assessment tool, events (including summer school) Research (to February 2008) Led by University of Edinburgh's School of Informatics

Digital Preservation Coalition Formed in 2001 Aims to foster joint action in the UK and internationally Dissemination Handbook, current awareness bulletin, UK preservation needs assessment ( Mind the Gap! report) Getting digital preservation on the agenda of key stakeholders Members include BL, JISC, OCLC, The National Archives, MLA, BBC, DCC, etc. Mailing list: digital-preservation@jiscmail.ac.uk http://www.dpconline.org/

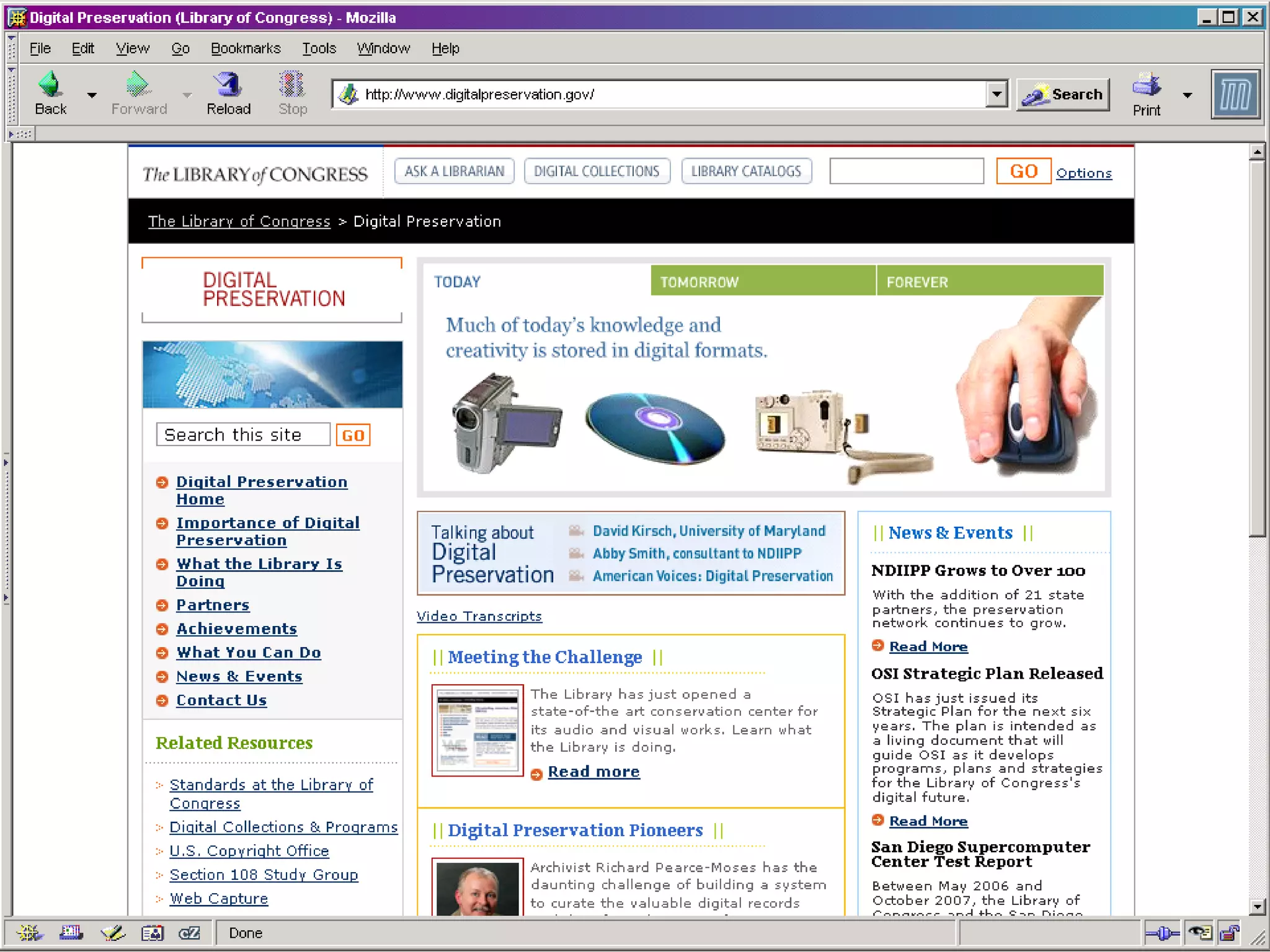

NDIIPP National Digital Information Infrastructure and Preservation Program Funded by the US Congress A national planning effort led by the Library of Congress, in co-operation with representatives of other federal, research, library, and business organisations Master plan approved by Congress, December 2002 Multiple activities: Partnerships with other organisations Research (funded by NSF) http://www.digitalpreservation.gov/

Case study Collecting and preserving Web content

Web archiving - basics (1) Web content is transient and ever changing (but is perceived to be of value) A very diverse collection: Multiple format types: HTML pages, various image formats, multimedia, etc. Overlaps many traditional 'type' categories: Publications, sound recordings, administrative records, etc.); more informal communication like 'blogs' Problem with sites driven by databases (the deep or hidden Web)

Web archiving - basics (2) Problem of 'scale' Multiple Petabytes, repeated Significant legal problems: Intellectual property The Web is typically not covered by legal deposit legislation Liability issues with with 'republishing' problematic content; e.g. that which is defamatory or otherwise illegal (e.g., some types of pornography)

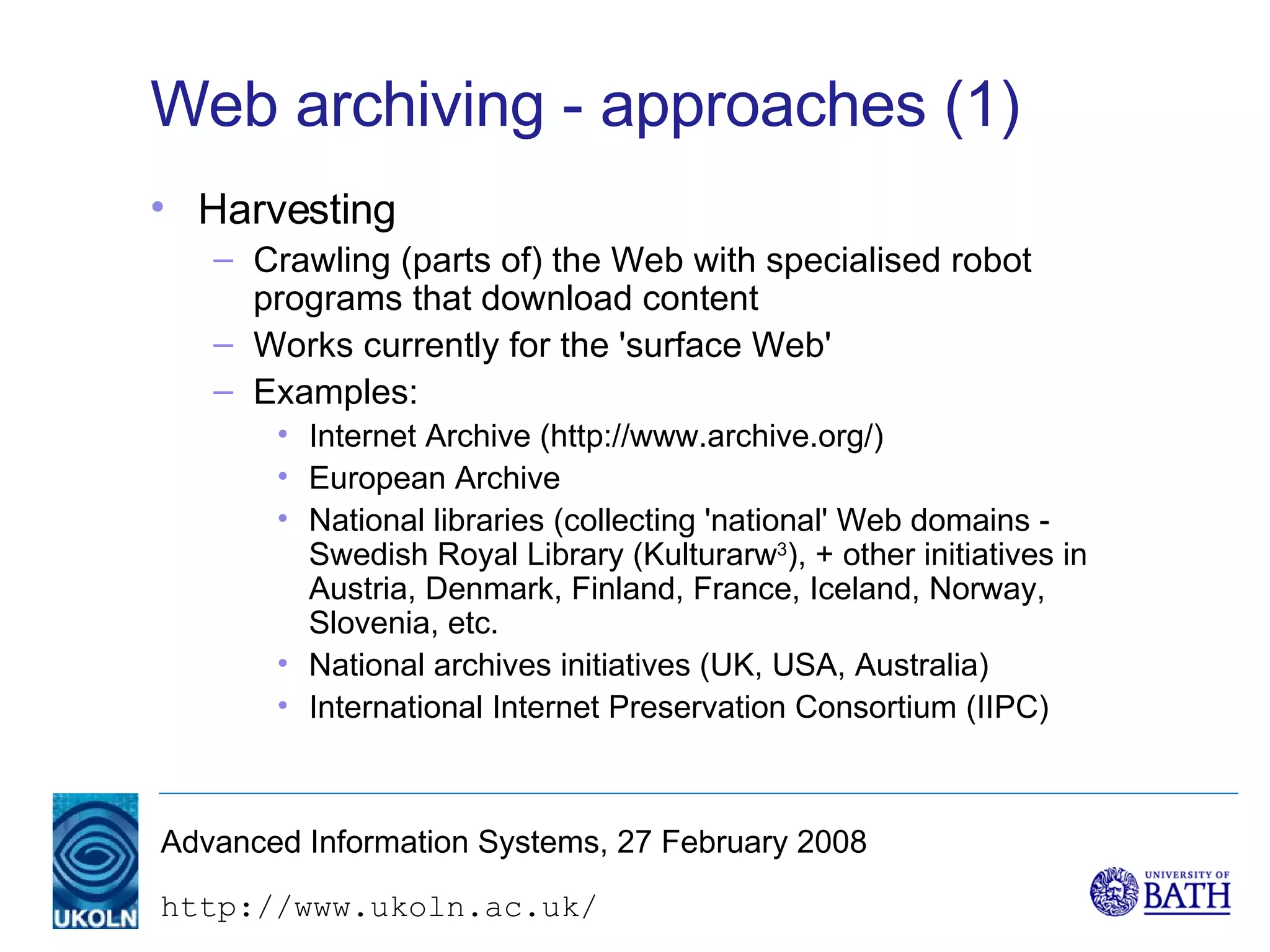

Web archiving - approaches (1) Harvesting Crawling (parts of) the Web with specialised robot programs that download content Works currently for the 'surface Web' Examples: Internet Archive (http://www.archive.org/) European Archive National libraries (collecting 'national' Web domains - Swedish Royal Library (Kulturarw 3 ), + other initiatives in Austria, Denmark, Finland, France, Iceland, Norway, Slovenia, etc. National archives initiatives (UK, USA, Australia) International Internet Preservation Consortium (IIPC)

Web archiving - approaches (2) Selective approach Web sites of value selected, rights negotiated for collection, sites collected by harvesting (e.g. using capture tools like HTTrack or Heritrix) or by deposit Does not scale to whole Web Examples: National Library of Australia (PANDORA) US National Archives and Records Administration (deposit based) The National Archives (joint project with Internet Archive) UK Web Archive Consortium (http://www.webarchive.org.uk/) British Library, National Library of Scotland, National Library of Wales, The National Archives, Wellcome Library, JISC

Web archiving - approaches (3) Selective approach (continued) A major focus on 'events,' e.g.: PANDORA (Sydney Olympic Games) Internet Archive Special Collections (US Presidential elections, 9/11 collection, Hurricane Katrina) National Archives and Records Administration (snapshots of US federal agencies and departments at the end of 2001 - the end of the Clinton era) The National Archives (test capture of No. 10, Downing Street site (2001); UK Central Government Web Archive - co-operation with the Internet Archive for the periodic harvesting of selected central government Web sites)

Web archiving - approaches (4) Combined approaches Crawler-based harvesting of surface Web combined with the 'deposit' of deep Web content Examples: Biblioth è que nationale de France Beginning to be followed by other national libraries, sometimes contracting the actual harvesting (and storage) to the Internet Archive (e.g. National Library of Australia) Being considered by the British Library in addition to (selective) UK Web Archiving Consortium work - assumes that suitable 'deposit' legislation is in place

Web archiving - approaches (5) International Internet Preservation Consortium A focus of co-operation between the Internet Archive and national and research libraries Development of standards and tools Mostly dealing with the problem of scale Heritrix crawler A standardised storage format (WARC) A user interface (WERA) and search facility (NutchWAX) Standard metadata - automatically documenting selection criteria, the context of retrieval http://netpreserve.com/

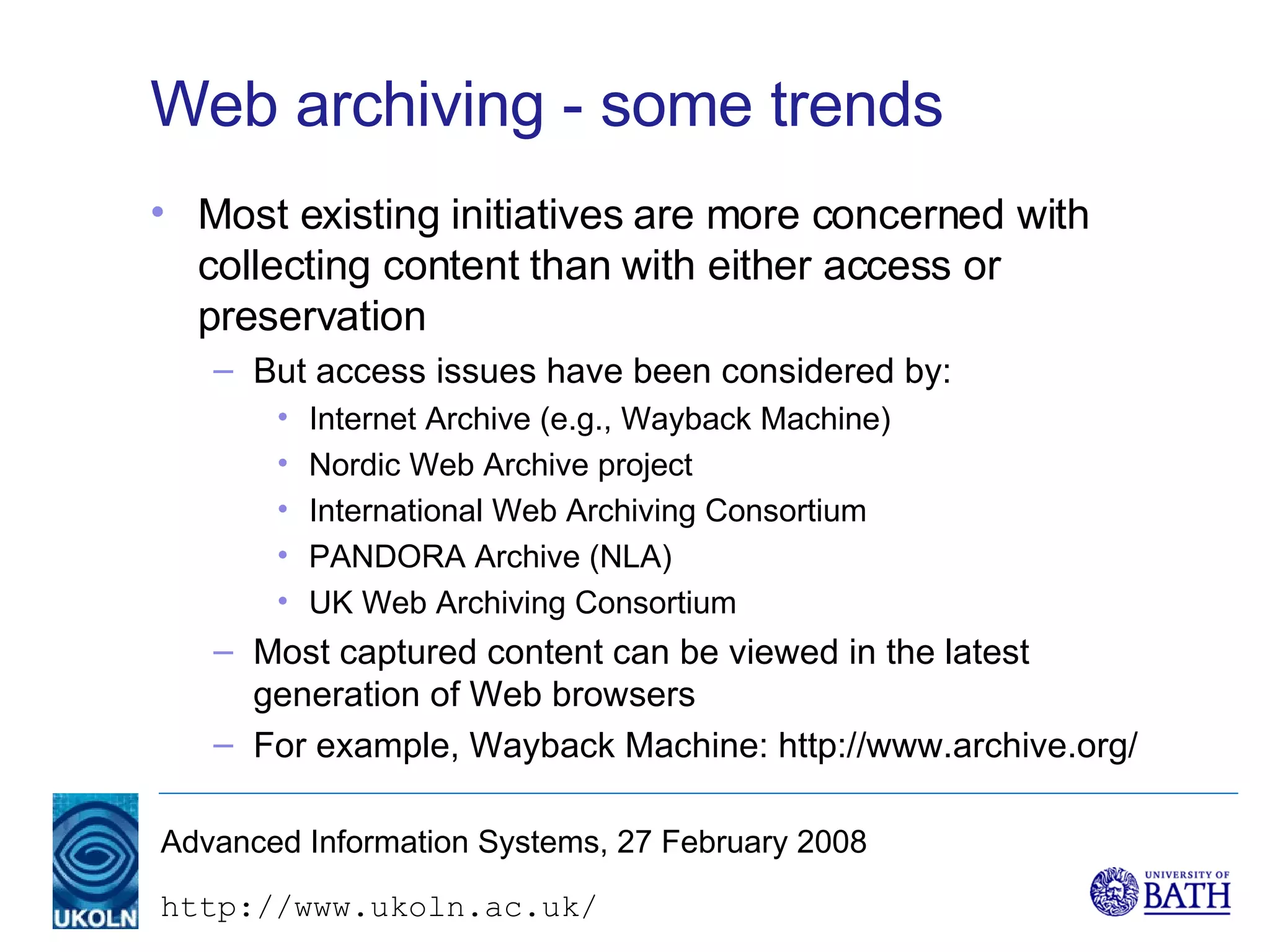

Web archiving - some trends Most existing initiatives are more concerned with collecting content than with either access or preservation But access issues have been considered by: Internet Archive (e.g., Wayback Machine) Nordic Web Archive project International Web Archiving Consortium PANDORA Archive (NLA) UK Web Archiving Consortium Most captured content can be viewed in the latest generation of Web browsers For example, Wayback Machine: http://www.archive.org/

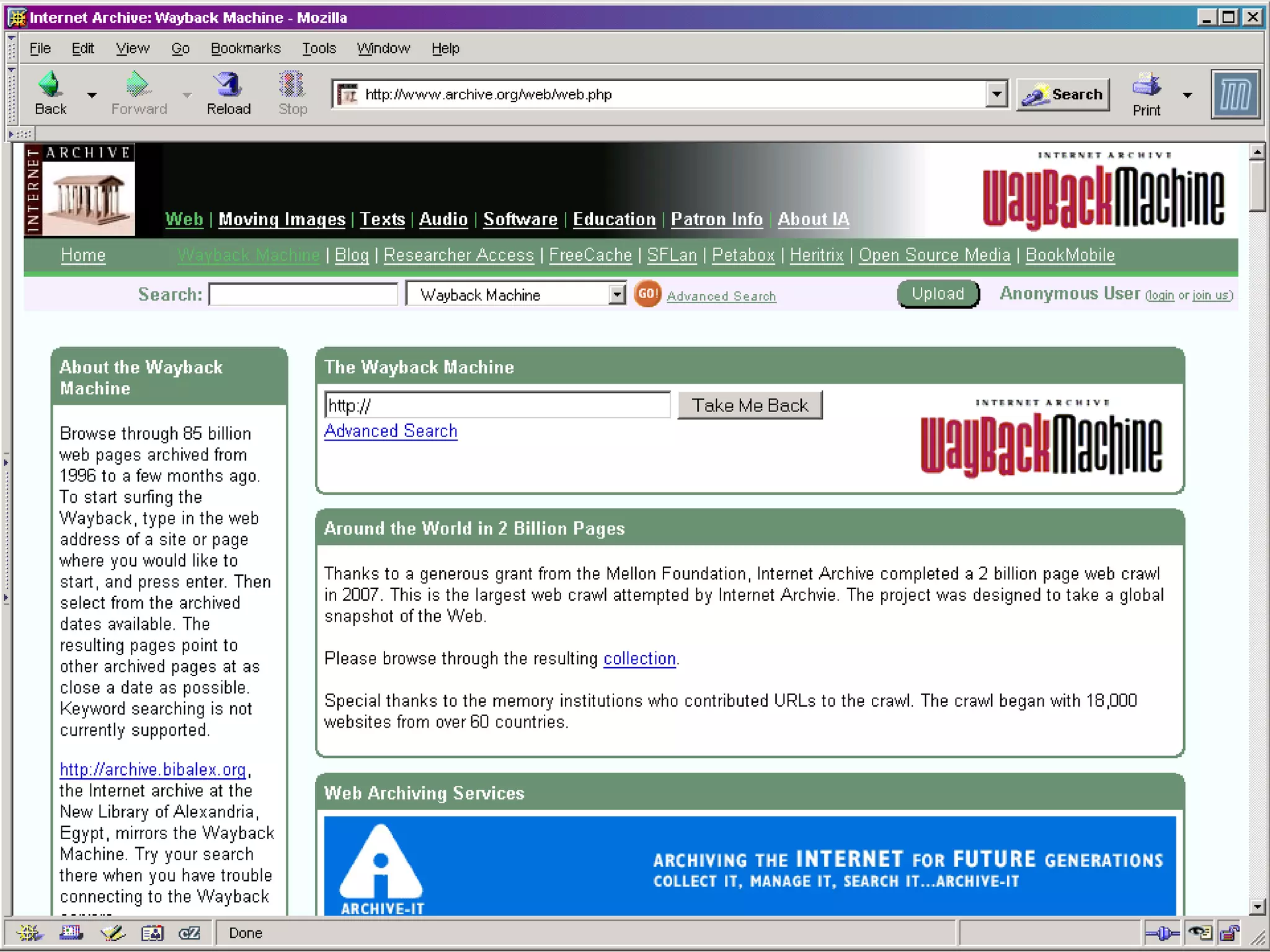

Web archiving - 2007 IA crawl Funded by the Andrew W. Mellon Foundation 2 billion pages gathered using Heritrix Websites nominated by memory institutions around the world

Summing up: Digital preservation is an organisational as well as a technical problem Progress has been made on addressing the technical problems e.g., sustainable preservation strategies and preservation metadata schemas However, many other problems remain In the longer-term, international co-operation will be essential Some progress made on the national level, e.g. the DPC, DCC, NDIIPP (USA), nestor (Germany)

Readings (1) Neil Beagrie and Maggie Jones , Preservation Management of Digital Materials: a Handbook (2001). Updated version available at: http://www.dpconline.org/ Council on Library and Information Resources, Building a National Strategy for Preservation: Issues in Digital Media Archiving (April 2002) http://www.clir.org/pubs/abstract/pub106abst.html Council on Library and Information Resources , The state of digital preservation: an international perspective (July 2002) http://www.clir.org/pubs/abstract/pub107abst.html Margaret Hedstrom , It's about time: research challenges in digital archiving and long-term preservation (2003) http://www.digitalpreservation.gov / Margaret Hedstrom and Seamus Ross, Invest to save: report and recommendations of the NSF-DELOS Working Group on Digital Archiving and Preservation (2003) http://eprints.erpanet.org/archive/00000095/

Readings (2) Philip Lord and Alison Macdonald , Data curation for e-Science in the UK: an audit to establish requirements for future curation and provision (2003) http://www.jisc.ac.uk/ Helen R. Tibbo, "On the nature and importance of archiving in the digital age." Advances in Computers 57 (2003): 1-67. Brian Lavoie and Lorcan Dempsey, "Thirteen Ways of Looking at ... Digital Preservation." D-Lib Magazine 10, no. 7/8 (July/August 2004) http://www.dlib.org/dlib/july04/lavoie/07lavoie.html National Science Board, Long-lived digital data collections: enabling research and education in the 21st century (2005) http://www.nsf.gov/pubs/2005/nsb0540/ DCC Digital Curation Manual (2005- ) http://www.dcc.ac.uk/resource/curation-manual/chapters/

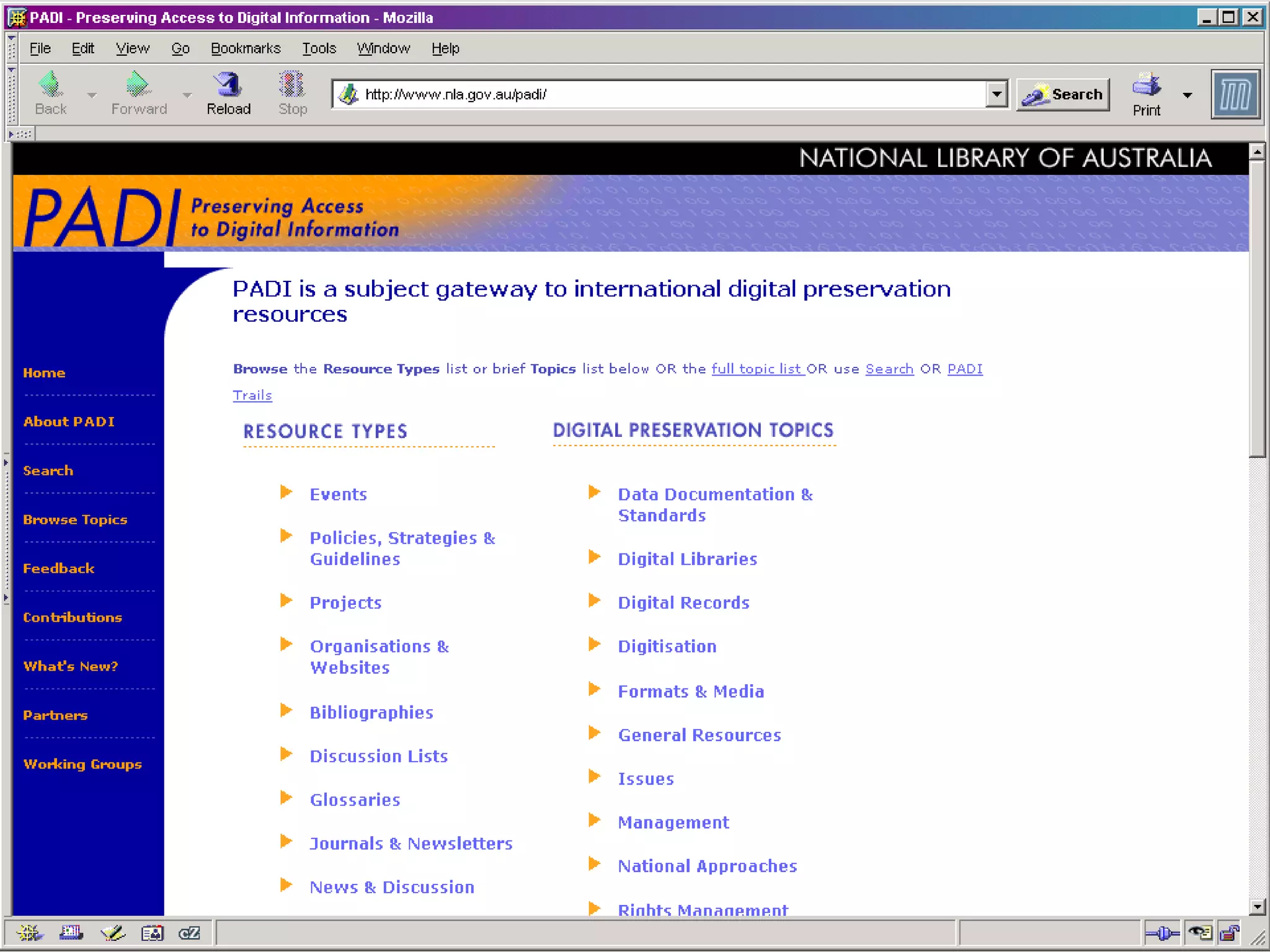

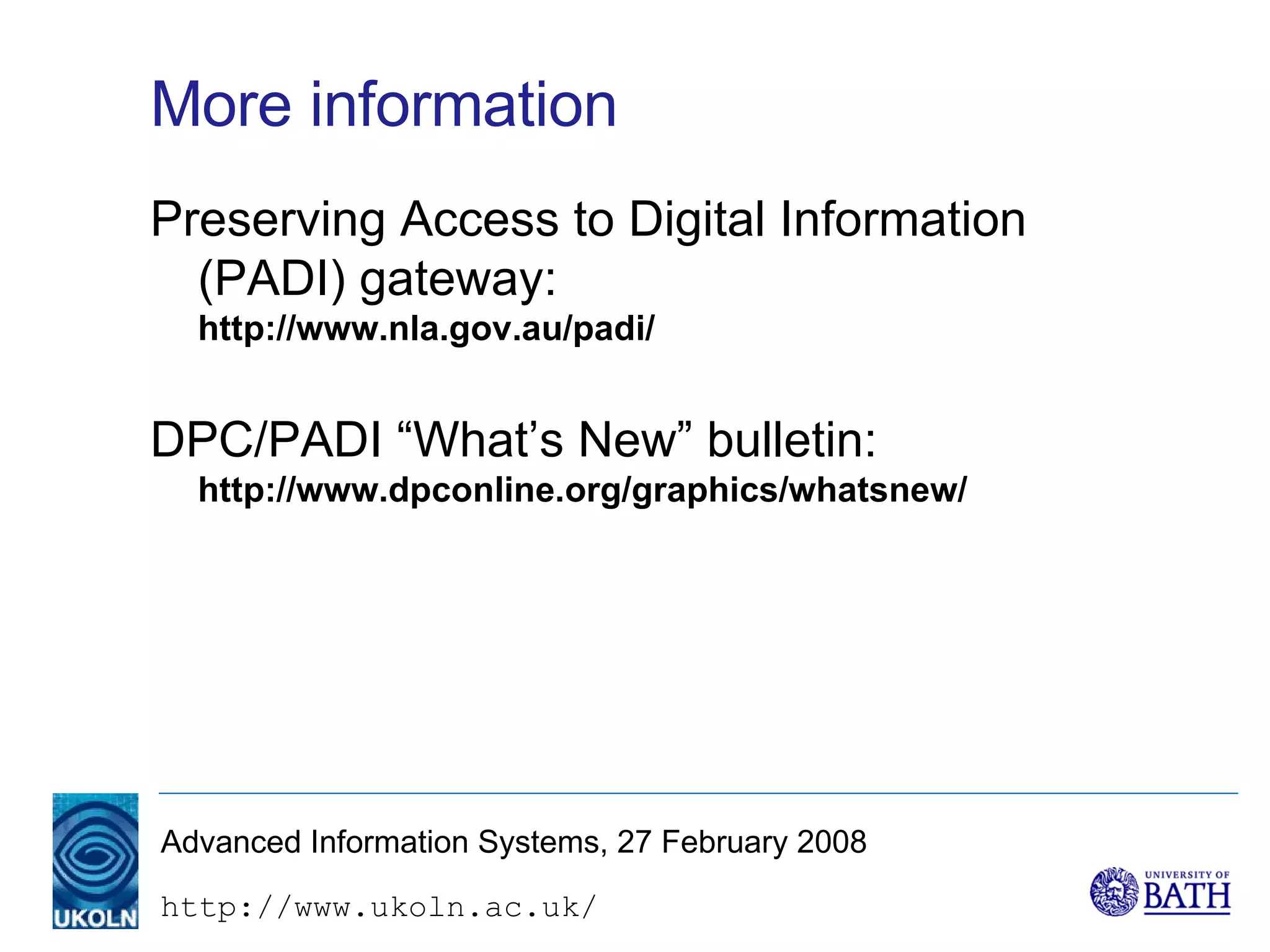

More information Preserving Access to Digital Information (PADI) gateway: http://www.nla.gov.au/padi/ DPC/PADI “What’s New” bulletin: http://www.dpconline.org/graphics/whatsnew/

Acknowledgements UKOLN is funded by the Museums, Libraries and Archives Council, the Joint Information Systems Committee (JISC) of the UK higher and further education funding councils, as well as by project funding from the JISC, the European Union and other sources. UKOLN also receives support from the University of Bath, where it is based: http://www.ukoln.ac.uk/ The Digital Curation Centre is funded by the JISC and the UK e-Science Programme: http://www.dcc.ac.uk/
