1. Device Modeling Report
COMPONENTS:
DIODE/ SCHOOTTKY RECTIFIER / STANDARD
PART NUMBER: DF10SC9
MANUFACTURER: SHINDENGEN
Bee Technologies Inc.
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

2. PSpice model
Model description
parameter
IS Saturation Current
N Emission Coefficient
RS Series Resistance
IKF High-injection Knee Current
CJO Zero-bias Junction Capacitance
M Junction Grading Coefficient
VJ Junction Potential
ISR Recombination Current Saturation Value
BV Reverse Breakdown Voltage(a positive value)
IBV Reverse Breakdown Current(a positive value)
TT Transit Time
EG Energy-band Gap
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

3. Forward Current Characteristic
Circuit Simulation Result
Evaluation Circuit
R1
0.01m
U1
0Vdc V1
DF10SC9
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

4. Comparison Graph
Circuit Simulation Result
Simulation Result
Vfwd(V) Vfwd(V)
Ifwd(A) %Error
Measurement Simulation
0.1 0.290 0.280 -3.45
0.2 0.310 0.303 -2.29
0.5 0.340 0.342 0.65
1 0.375 0.386 2.93
2 0.450 0.456 1.27
5 0.640 0.635 -0.83
10 0.905 0.913 0.92
20 1.450 1.447 -0.19
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

5. Junction Capacitance Characteristic
Circuit Simulation Result
Evaluation Circuit
V2
0Vdc
V2 = 90 V1 U1
V1 = 0
TD = 0
TR = 10ns
TF = 50ns
PW = 5us
PER = 10us DF10SC9
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

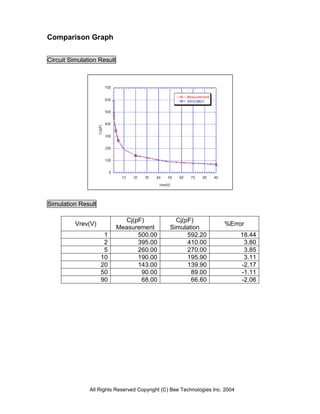

6. Comparison Graph
Circuit Simulation Result
Simulation Result
Cj(pF) Cj(pF)
Vrev(V) %Error
Measurement Simulation
1 500.00 592.20 18.44
2 395.00 410.00 3.80
5 260.00 270.00 3.85
10 190.00 195.90 3.11
20 143.00 139.90 -2.17
50 90.00 89.00 -1.11
90 68.00 66.60 -2.06
