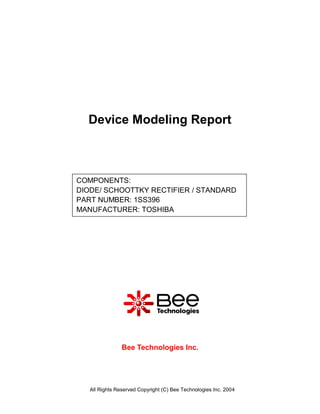

1. Device Modeling Report
COMPONENTS:
DIODE/ SCHOOTTKY RECTIFIER / STANDARD
PART NUMBER: 1SS396
MANUFACTURER: TOSHIBA
Bee Technologies Inc.
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

2. PSpice model
Model description
parameter
IS Saturation Current
N Emission Coefficient
RS Series Resistance
IKF High-injection Knee Current
CJO Zero-bias Junction Capacitance
M Junction Grading Coefficient
VJ Junction Potential
ISR Recombination Current Saturation Value
BV Reverse Breakdown Voltage(a positive value)
IBV Reverse Breakdown Current(a positive value)
TT Transit Time
EG Energy-band Gap
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

3. Forward Current Characteristic
Circuit Simulation Result
Evaluation Circuit
R1
0.01m
V1 0Vdc
U1 1SS396
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

4. Comparison Graph
Circuit Simulation Result
Simulation Result
Vfwd(V) Vfwd(V)
Ifwd(A) %Error
Measurement Simulation
0.5 0.325 0.324 -0.25
1 0.345 0.343 -0.46
2 0.363 0.362 -0.19
5 0.390 0.390 0.10
10 0.415 0.416 0.19
20 0.448 0.449 0.20
50 0.512 0.517 0.92
100 0.610 0.609 -0.21
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

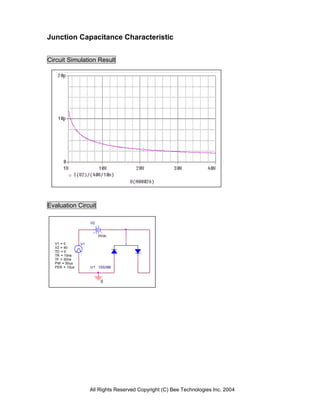

5. Junction Capacitance Characteristic
Circuit Simulation Result
Evaluation Circuit
V2
0Vdc
V1 = 0 V1
V2 = 40
TD = 0
TR = 10ns
TF = 50ns
PW = 50us
PER = 10us U1 1SS396
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

6. Comparison Graph
Circuit Simulation Result
Simulation Result
Cj(pF) Cj(pF)
Vrev(V) %Error
Measurement Simulation
1 12.000 11.970 -0.25
2 9.000 9.020 0.22
5 5.850 5.920 1.20
10 4.200 4.210 0.24
20 3.070 2.970 -3.26
30 2.400 2.410 0.42
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004
