- 1. Develop with Docker Localdevelopment powered by Docker – August 2014 Slides prepared by Vincent De Smet – Art ripped from docker.com & tutum.co

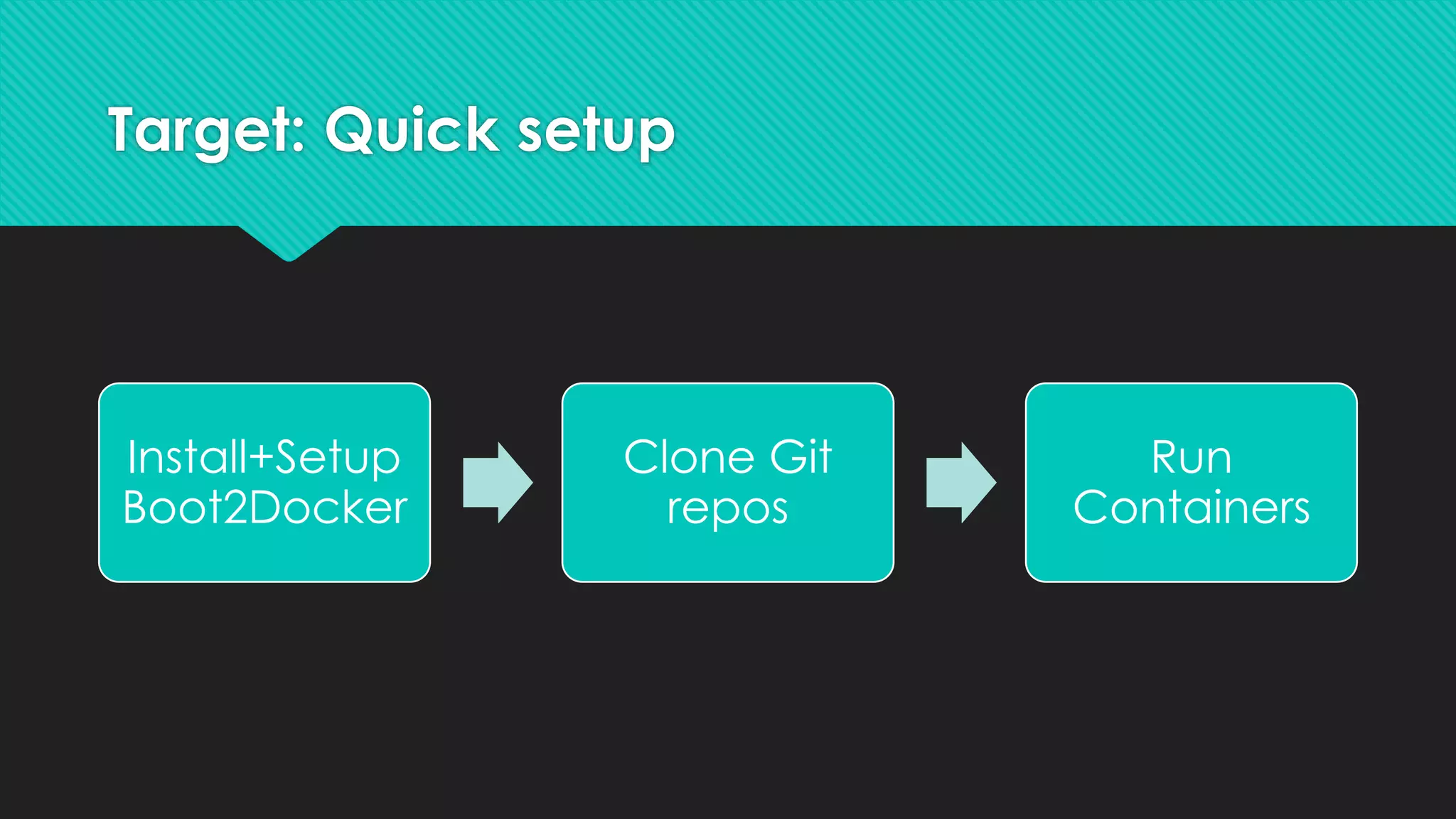

- 2. Target: Quick setup Install+Setup Boot2Docker CloneGit repos Run Containers
- 3. Docker Intro A quickintro to Linux Containers & Docker based on IDF2014 presentation by Nicholas Weaver

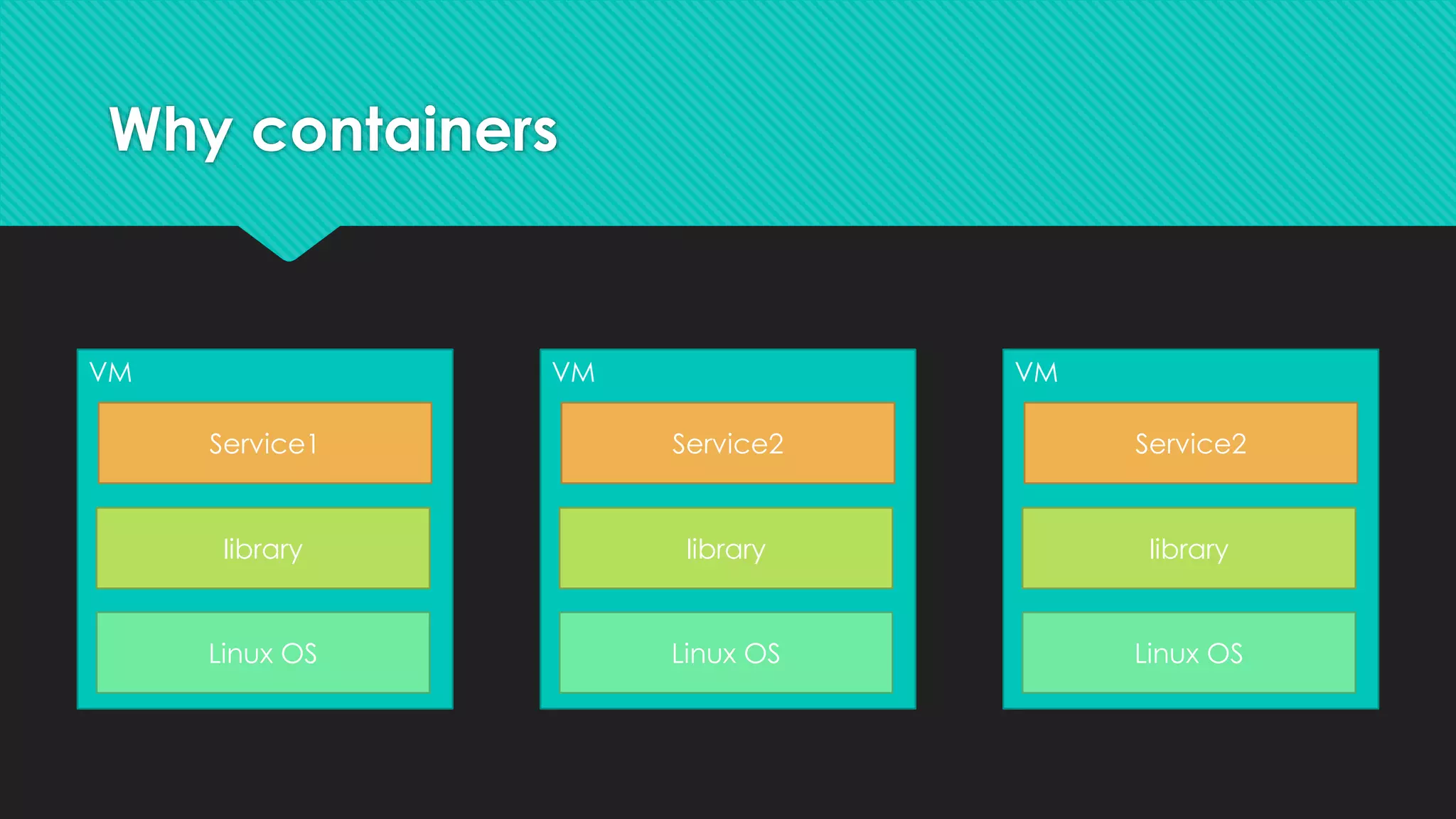

- 4. Why containers VM Linux OS library Service1 VM LinuxOS library Service2 VM Linux OS library Service2

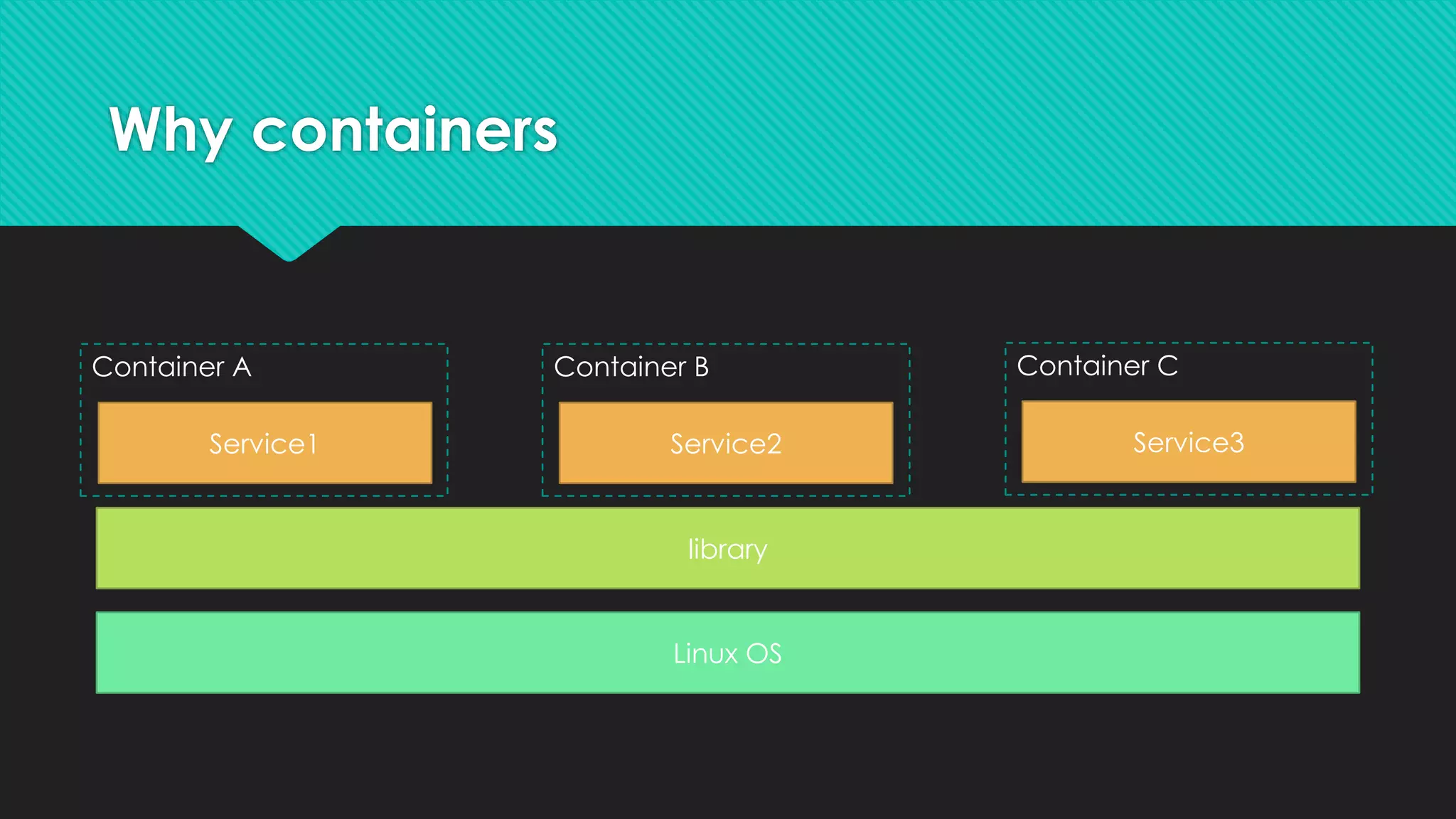

- 5. Why containers Linux OS library Service1Service2 Service3 Container A Container B Container C

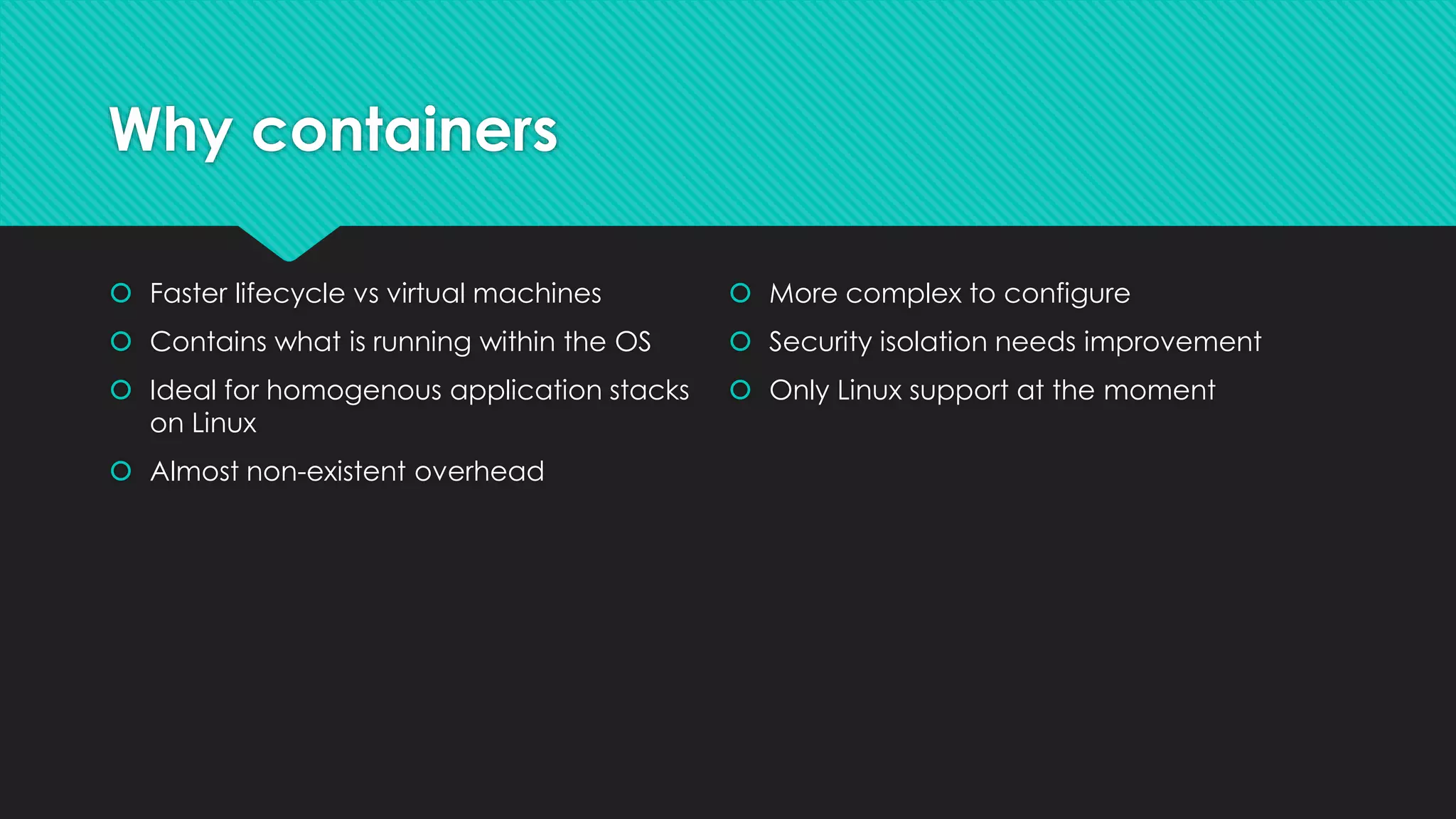

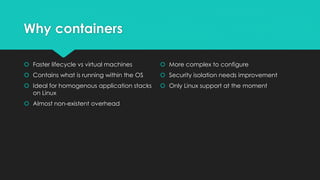

- 6. Why containers Fasterlifecycle vs virtual machines Contains what is running within the OS Ideal for homogenous application stacks on Linux Almost non-existent overhead More complex to configure Security isolation needs improvement Only Linux support at the moment

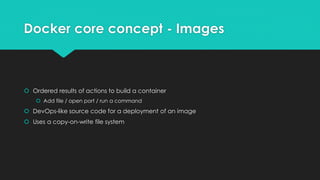

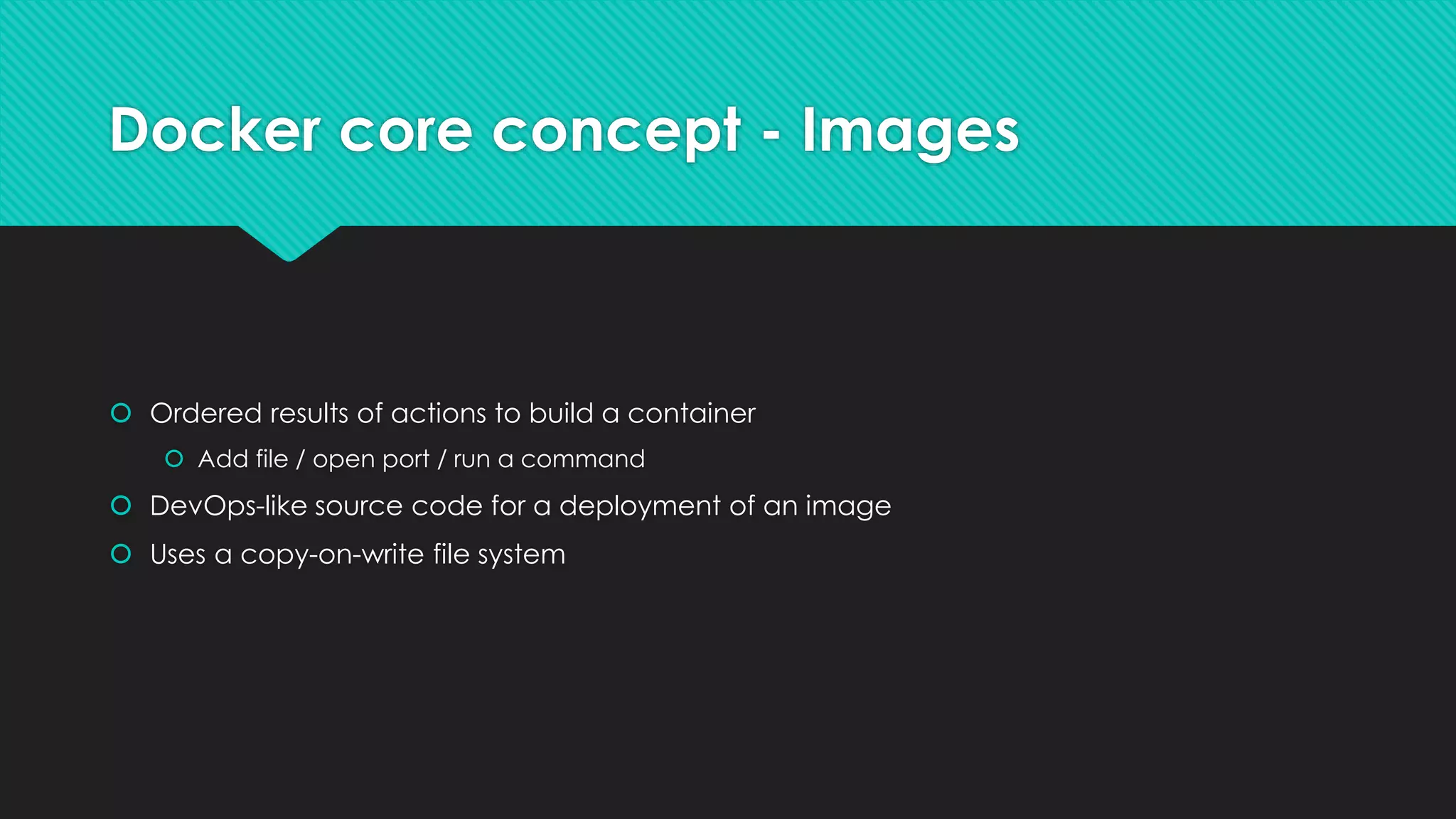

- 7. Docker core concept- Images Ordered results of actions to build a container Add file / open port / run a command DevOps-like source code for a deployment of an image Uses a copy-on-write file system

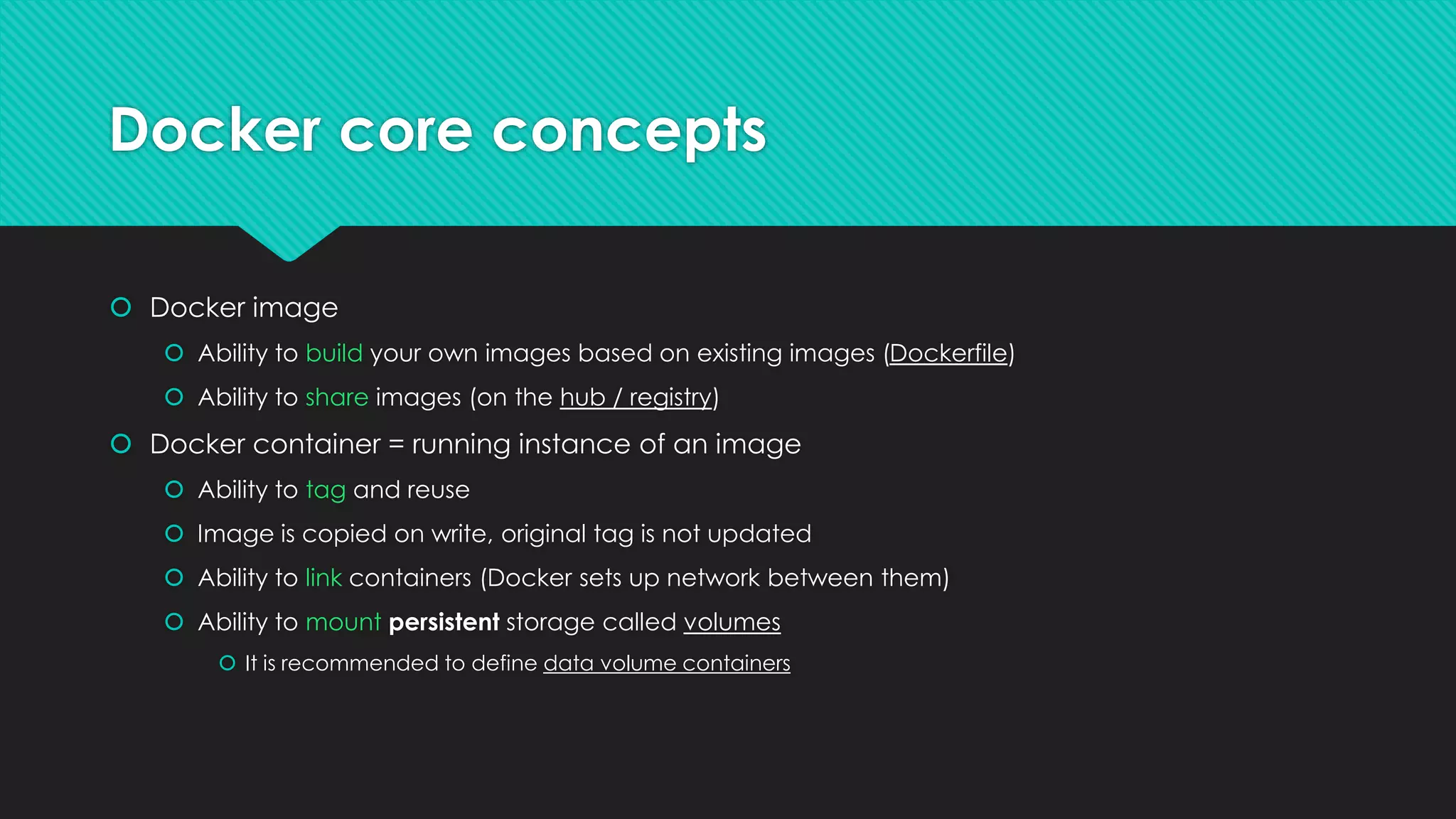

- 8. Docker core concepts Docker image Ability to build your own images based on existing images (Dockerfile) Ability to share images (on the hub / registry) Docker container = running instance of an image Ability to tag and reuse Image is copied on write, original tag is not updated Ability to link containers (Docker sets up network between them) Ability to mount persistent storage called volumes It is recommended to define data volume containers

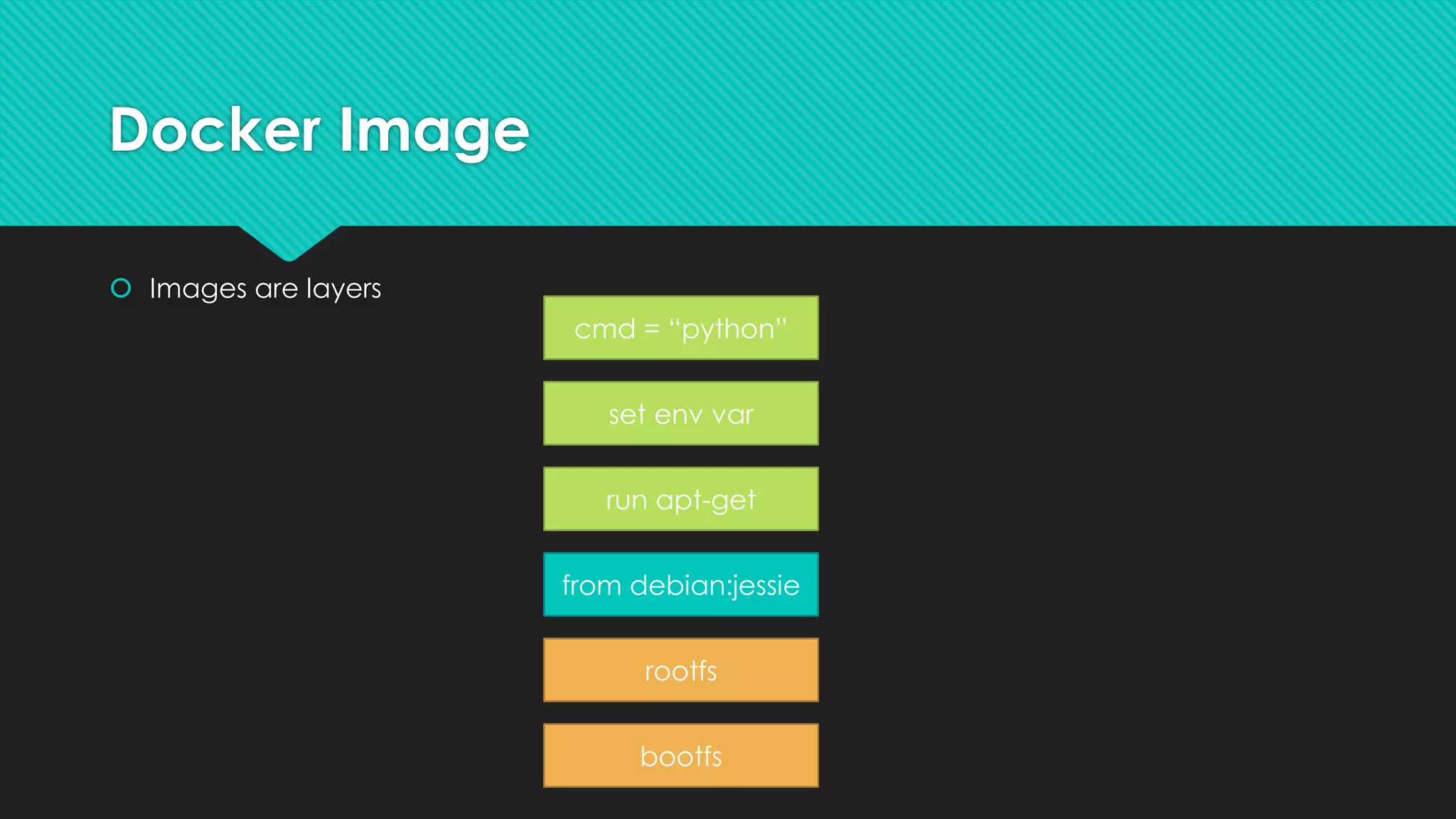

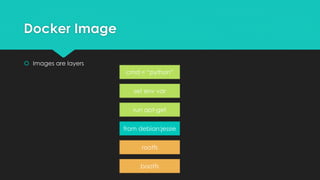

- 9. Docker Image Imagesare layers bootfs rootfs from debian:jessie run apt-get set env var cmd = “python”
- 10. python Docker Image Imagesare layers bootfs rootfs from debian:jessie run apt-get set env var cmd = “python”

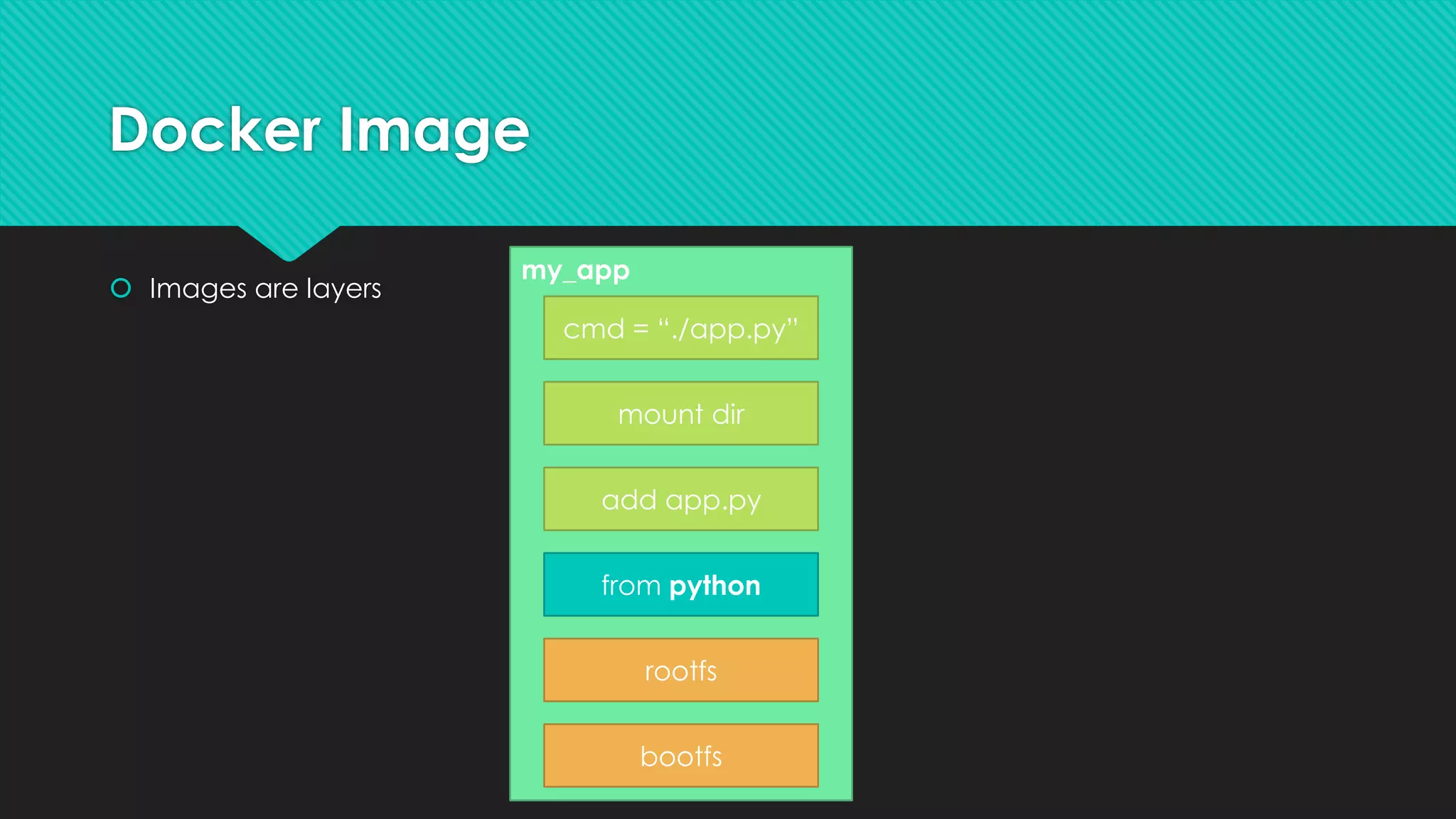

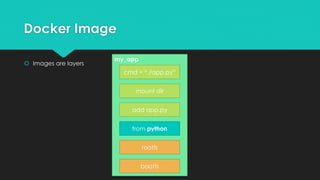

- 11. my_app Docker Image Imagesare layers bootfs rootfs from python add app.py mount dir cmd = “./app.py”

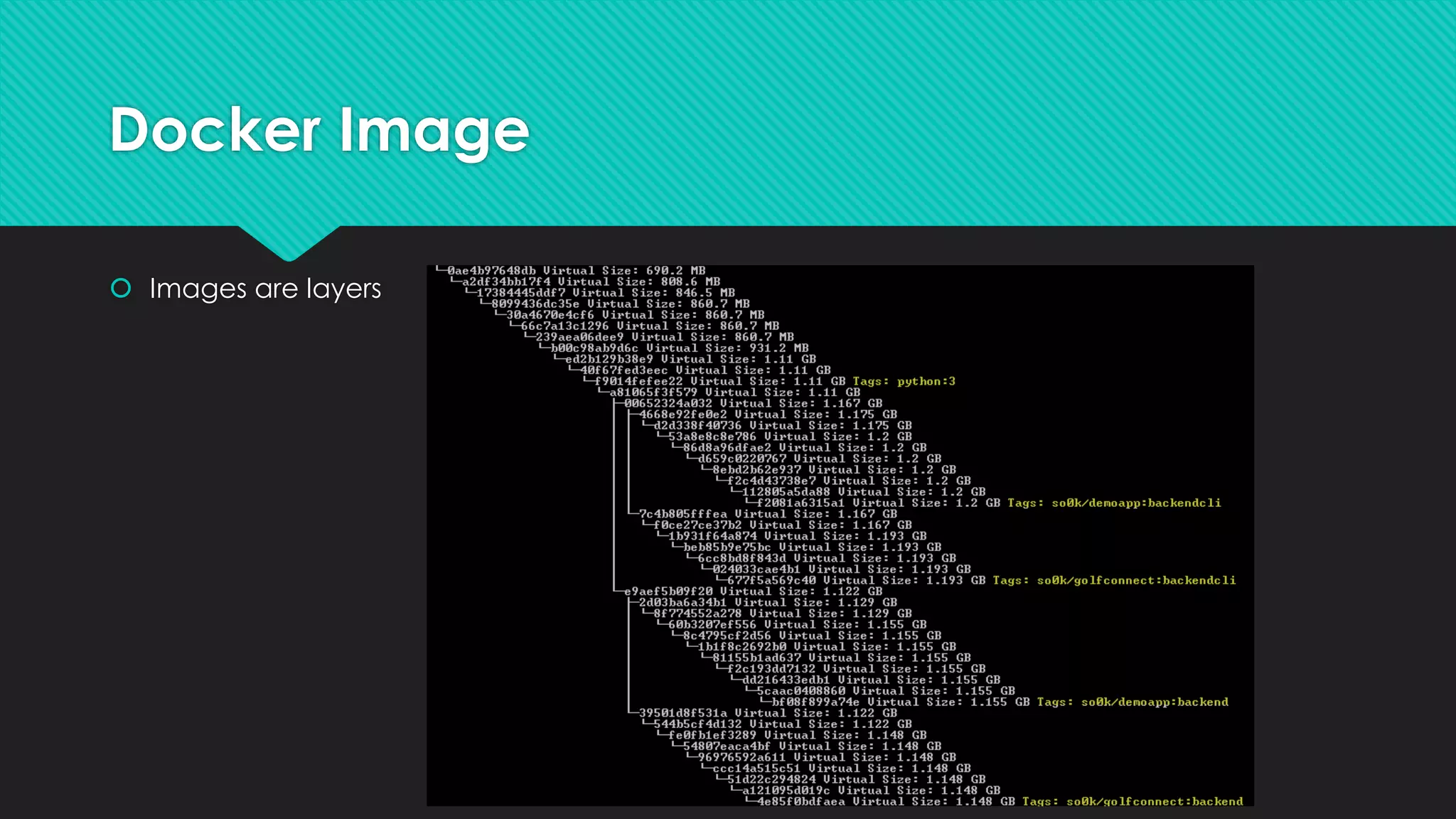

- 12. Docker Image Imagesare layers

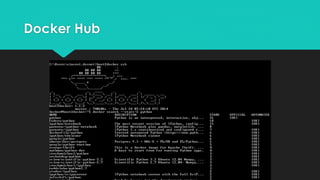

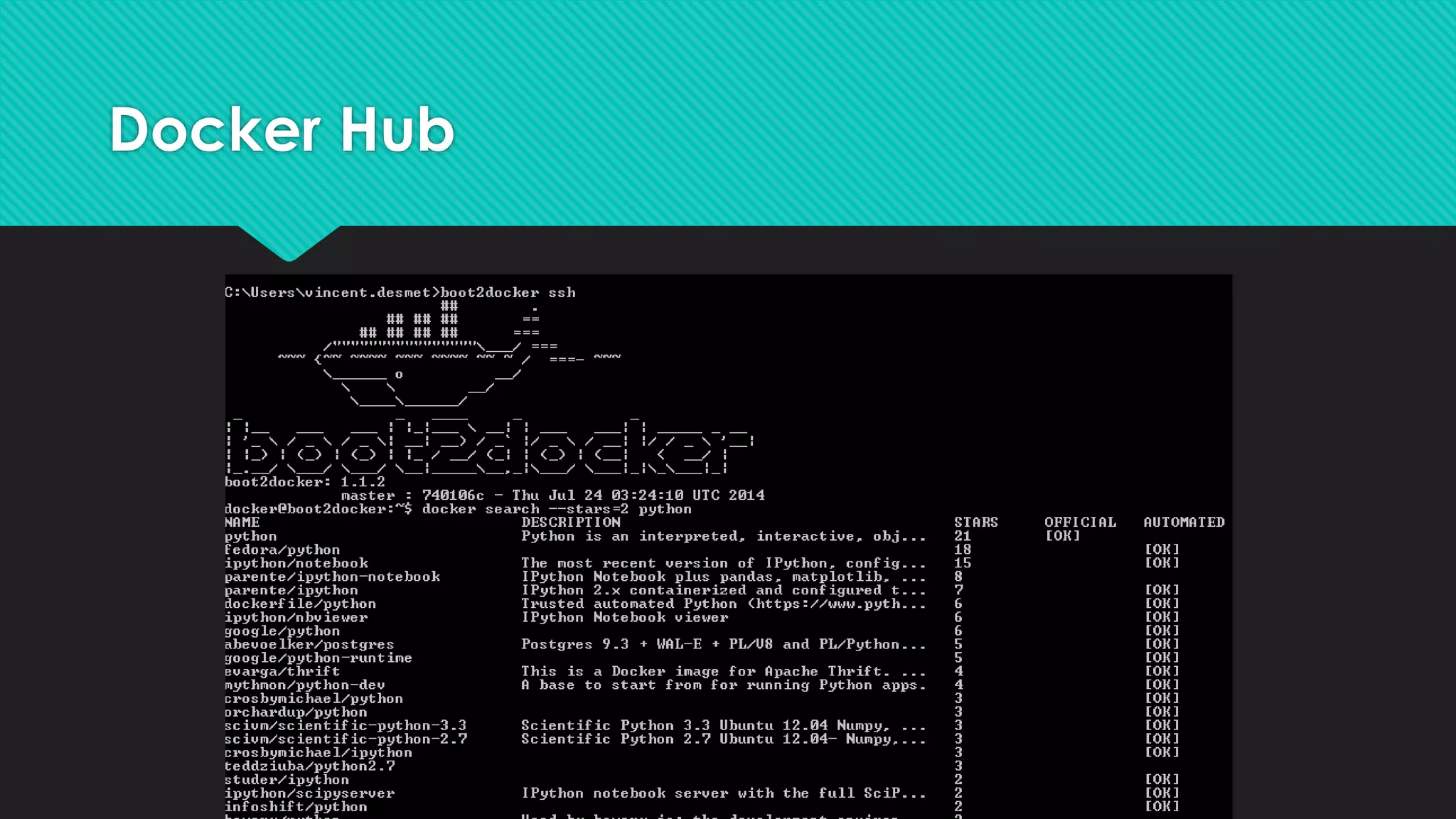

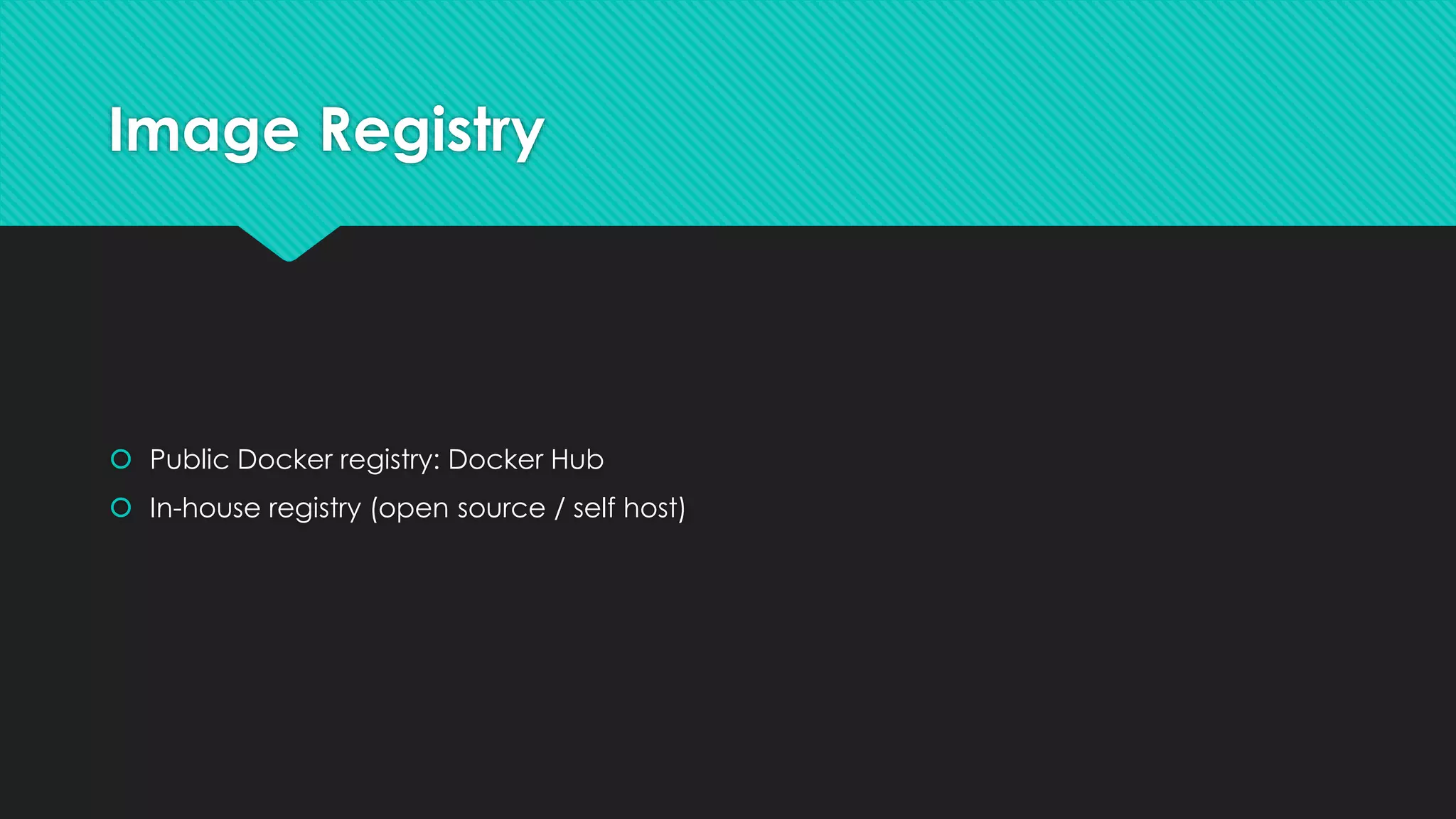

- 13. Image Registry PublicDocker registry: Docker Hub In-house registry (open source / self host)
- 14.

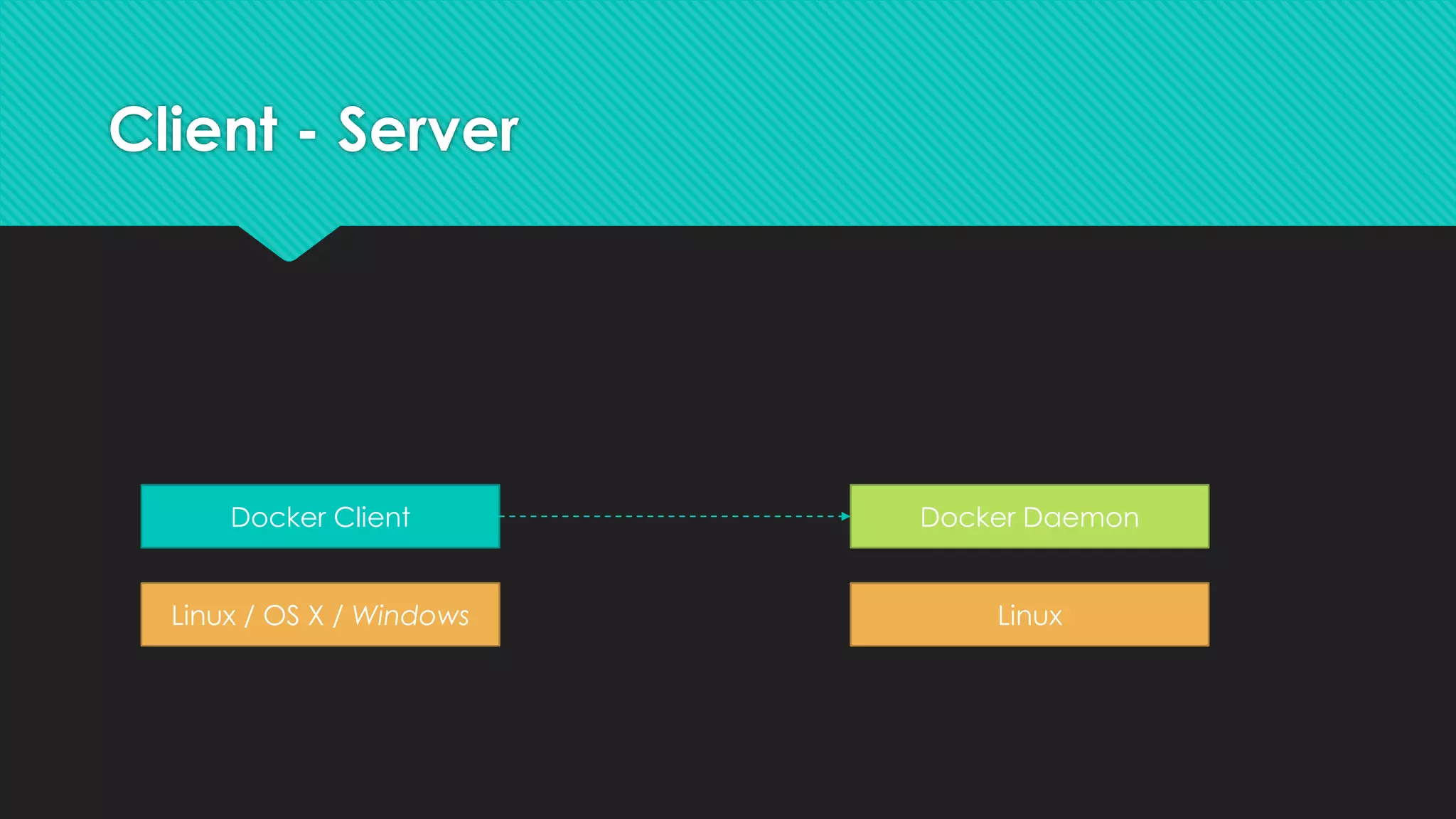

- 15. Client - Server Linux/ OS X / Windows Docker Client Linux Docker Daemon

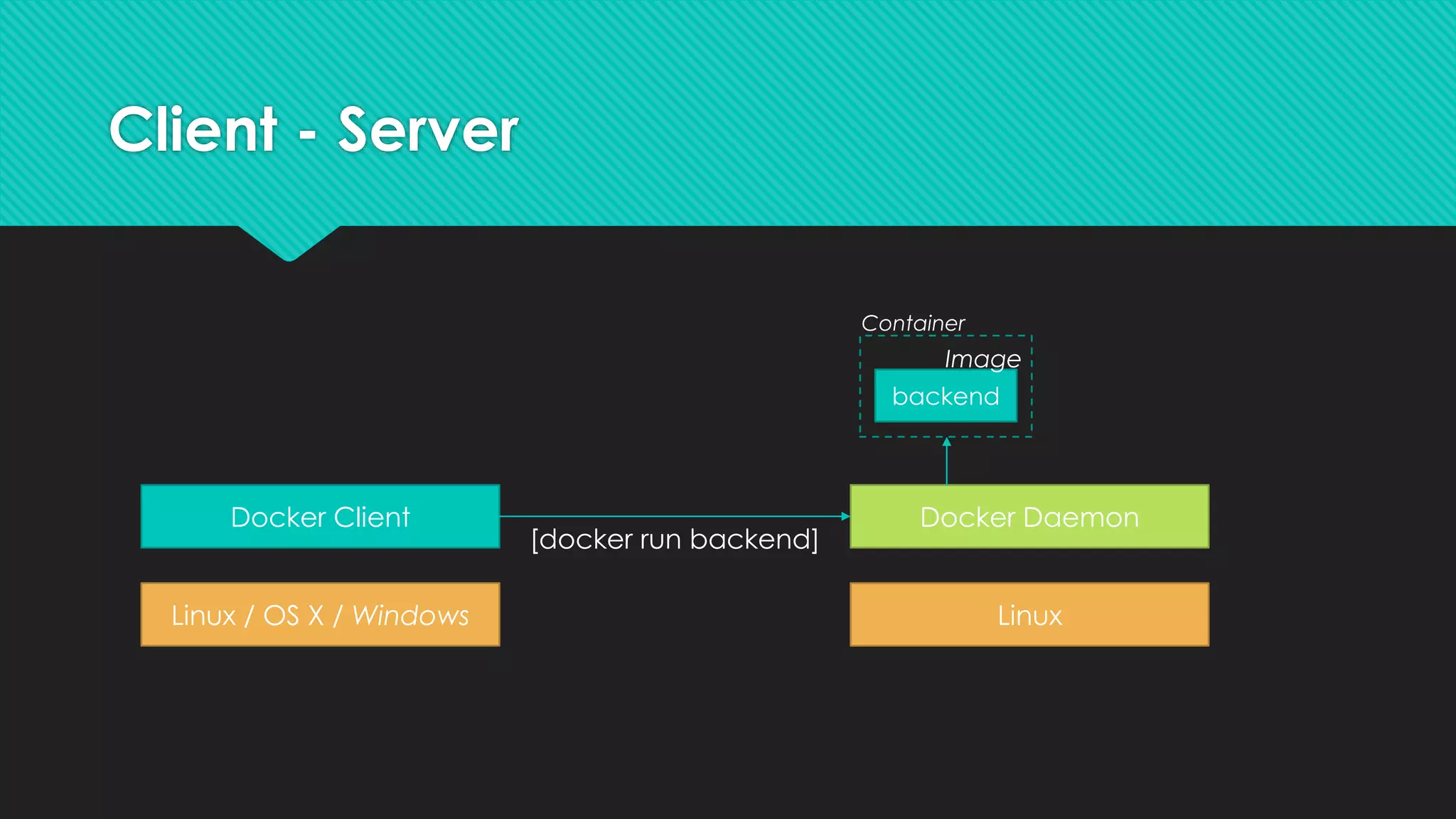

- 16. Client - Server Linux/ OS X / Windows Docker Client Linux Docker Daemon [docker run backend] backend Image Container

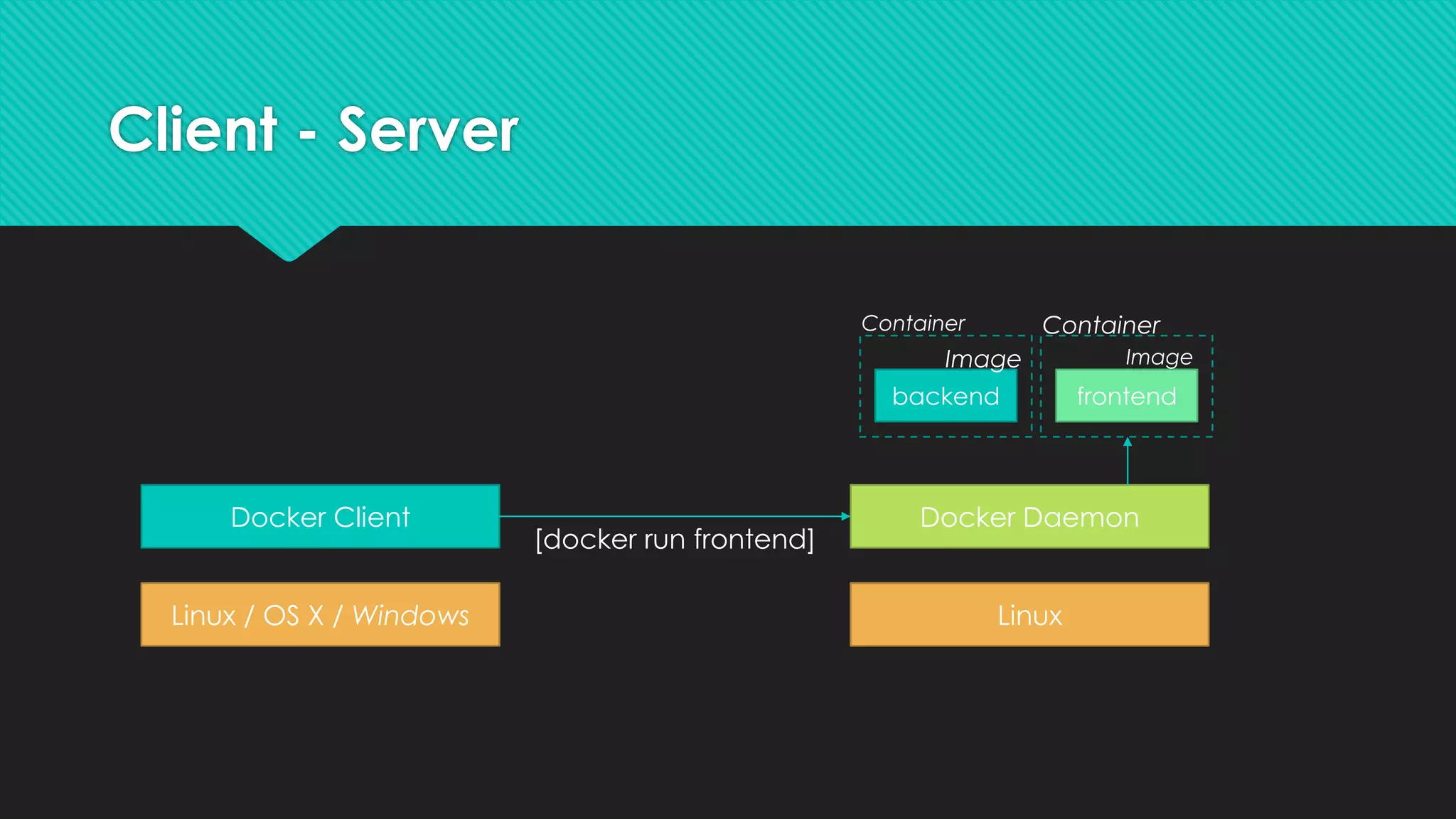

- 17. Client - Server Linux/ OS X / Windows Docker Client Linux Docker Daemon [docker run frontend] backend Image Container frontend Image Container

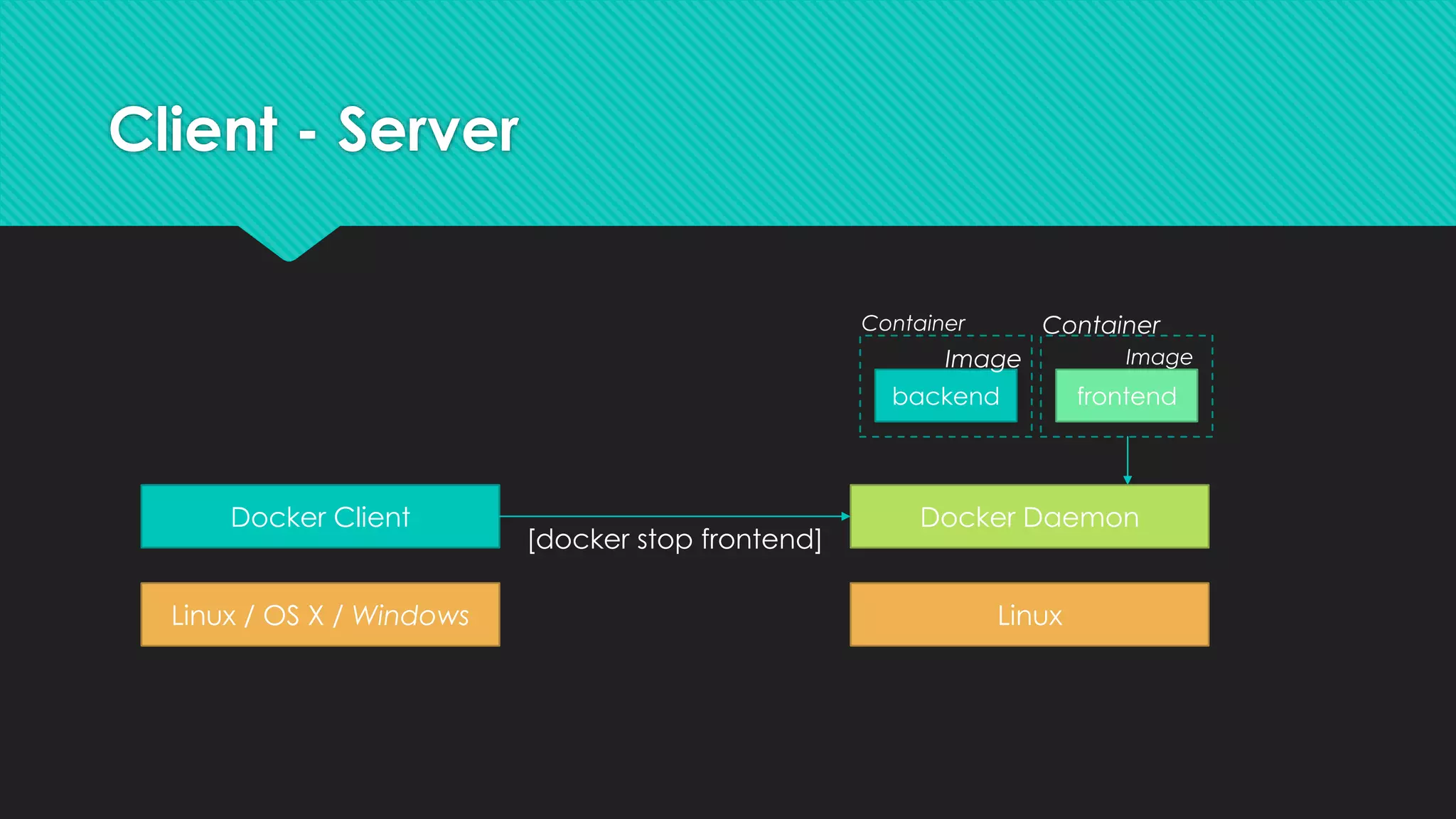

- 18. Client - Server Linux/ OS X / Windows Docker Client Linux Docker Daemon [docker stop frontend] backend Image Container frontend Image Container

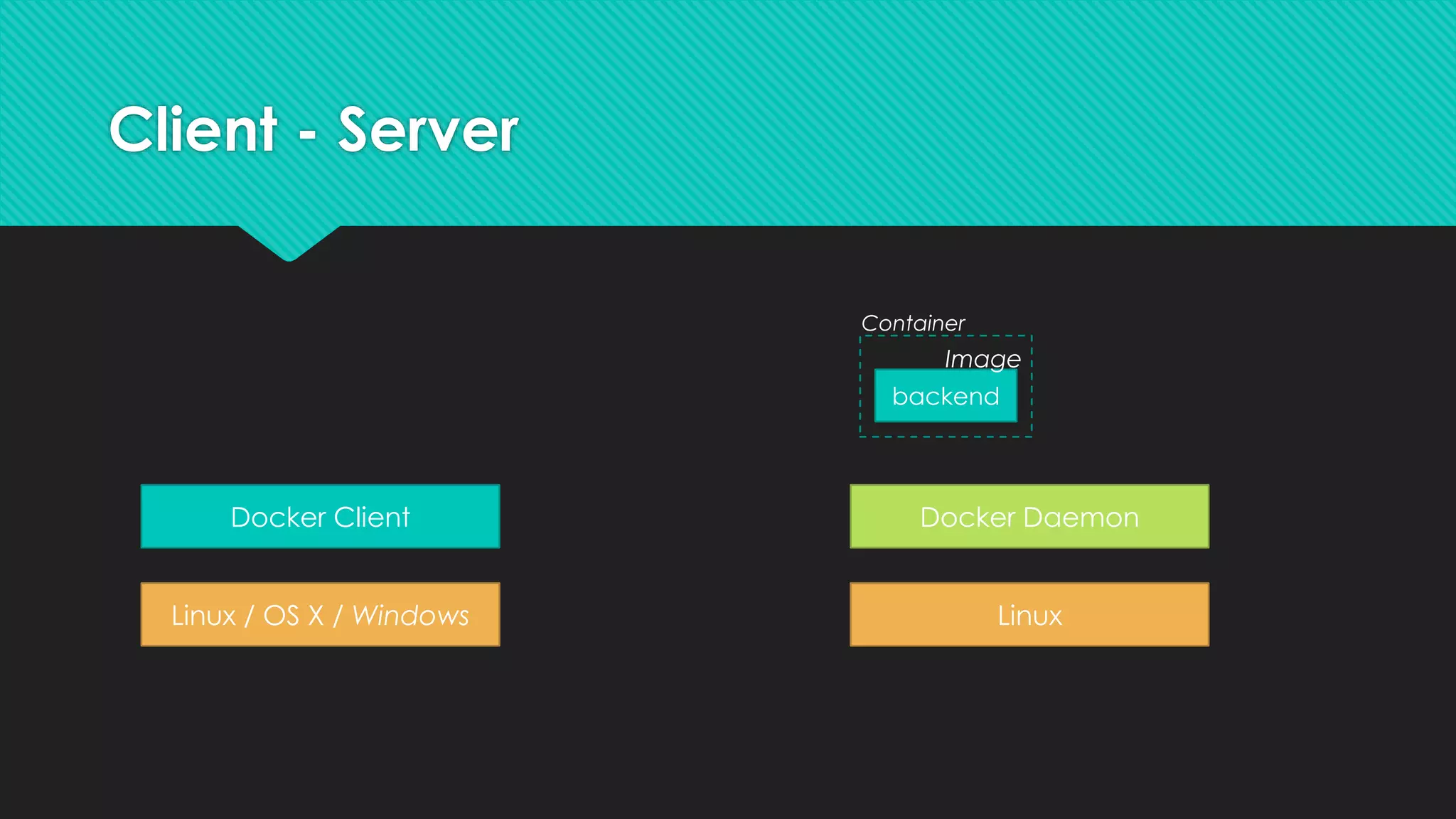

- 19. Client - Server Linux/ OS X / Windows Docker Client Linux Docker Daemon backend Image Container
- 20. Developing in containers makingcontainers your home

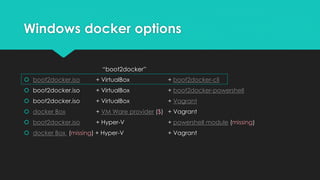

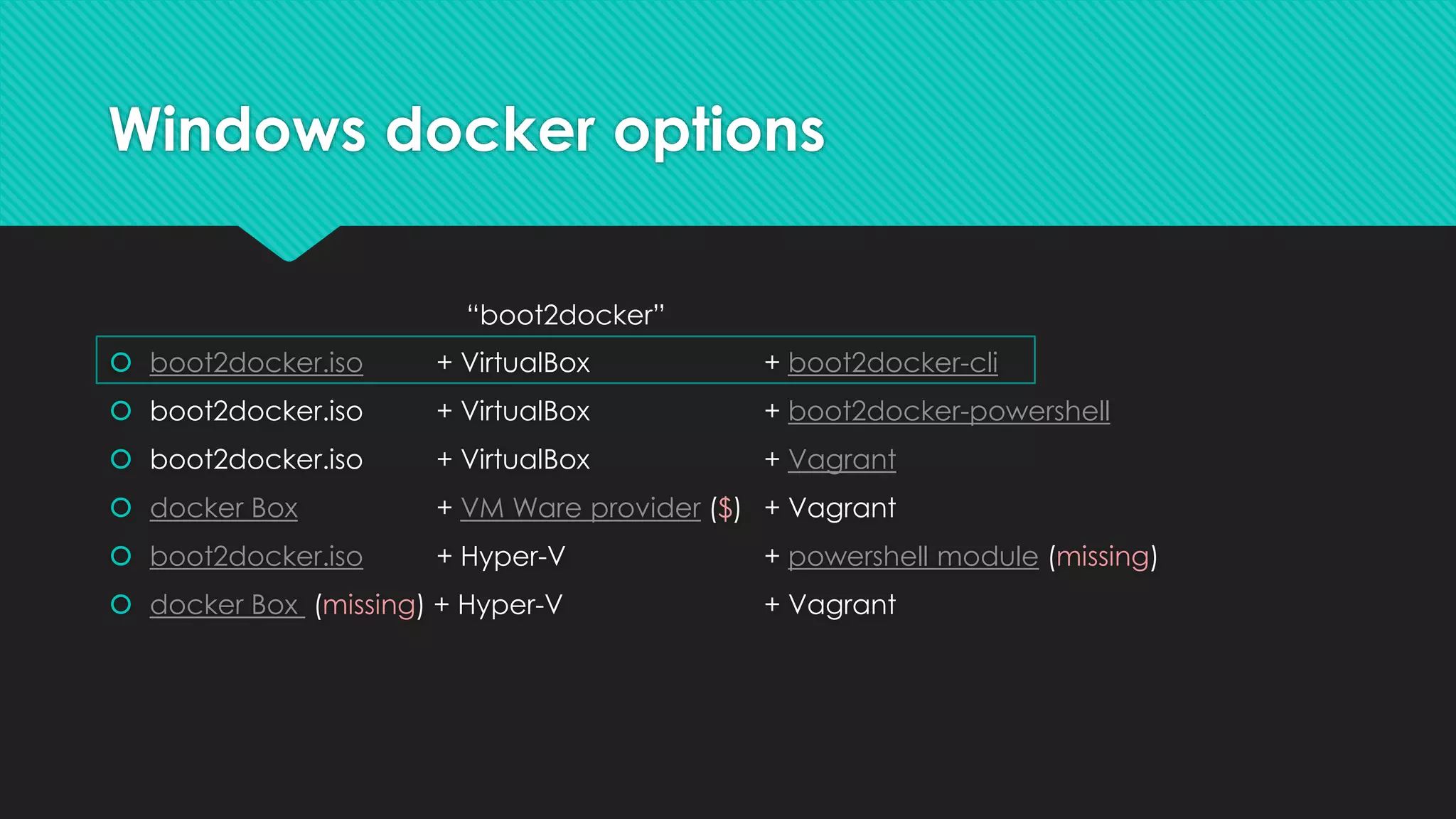

- 21. Windows docker options boot2docker.iso + VirtualBox + boot2docker-cli boot2docker.iso + VirtualBox + boot2docker-powershell boot2docker.iso + VirtualBox + Vagrant docker Box + VM Ware provider ($) + Vagrant boot2docker.iso + Hyper-V + powershell module (missing) docker Box (missing) + Hyper-V + Vagrant “boot2docker”

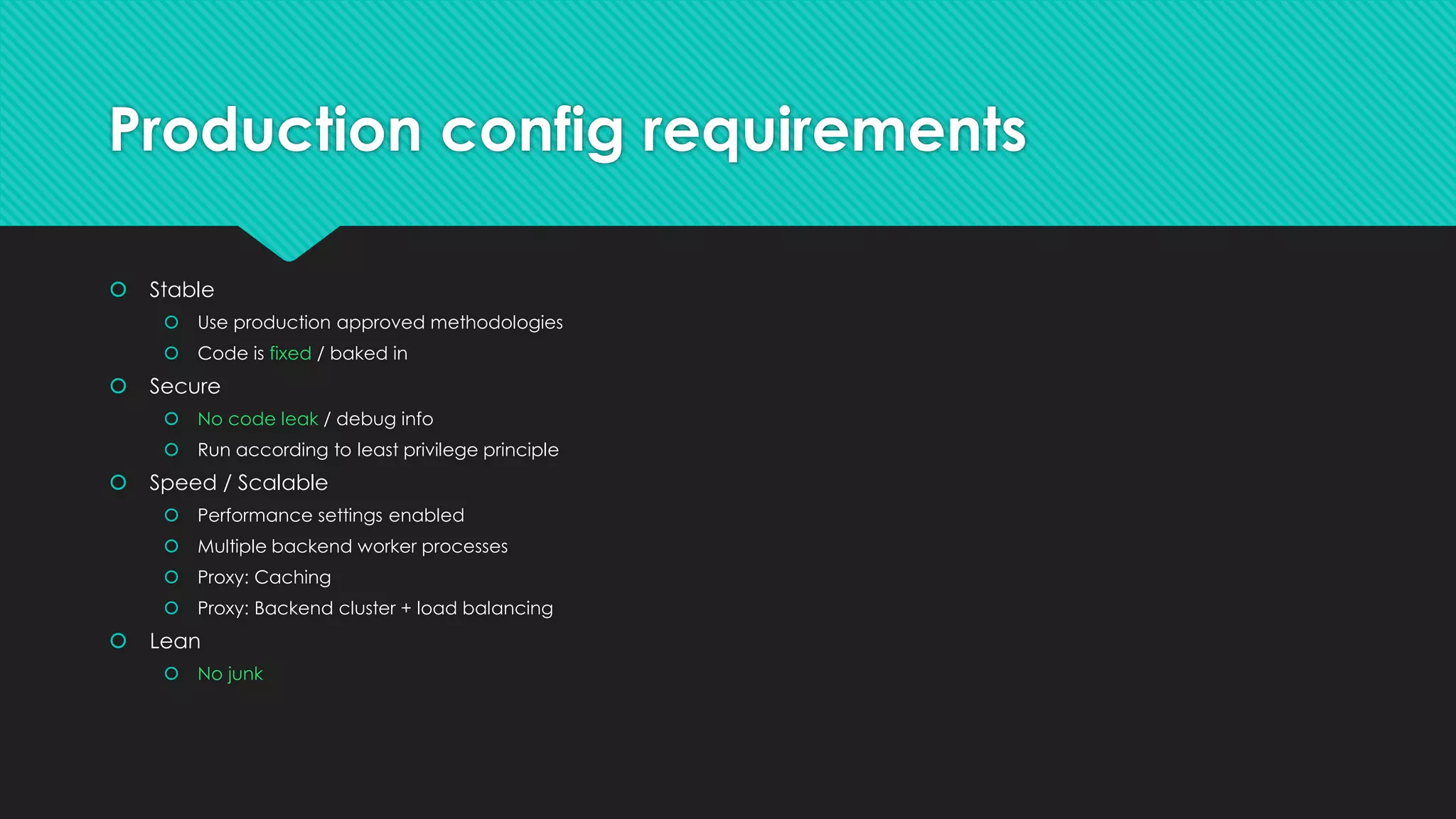

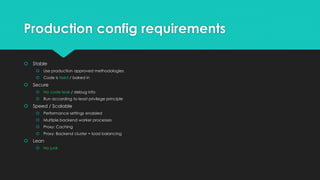

- 22. Production config requirements Stable Use production approved methodologies Code is fixed / baked in Secure No code leak / debug info Run according to least privilege principle Speed / Scalable Performance settings enabled Multiple backend worker processes Proxy: Caching Proxy: Backend cluster + load balancing Lean No junk

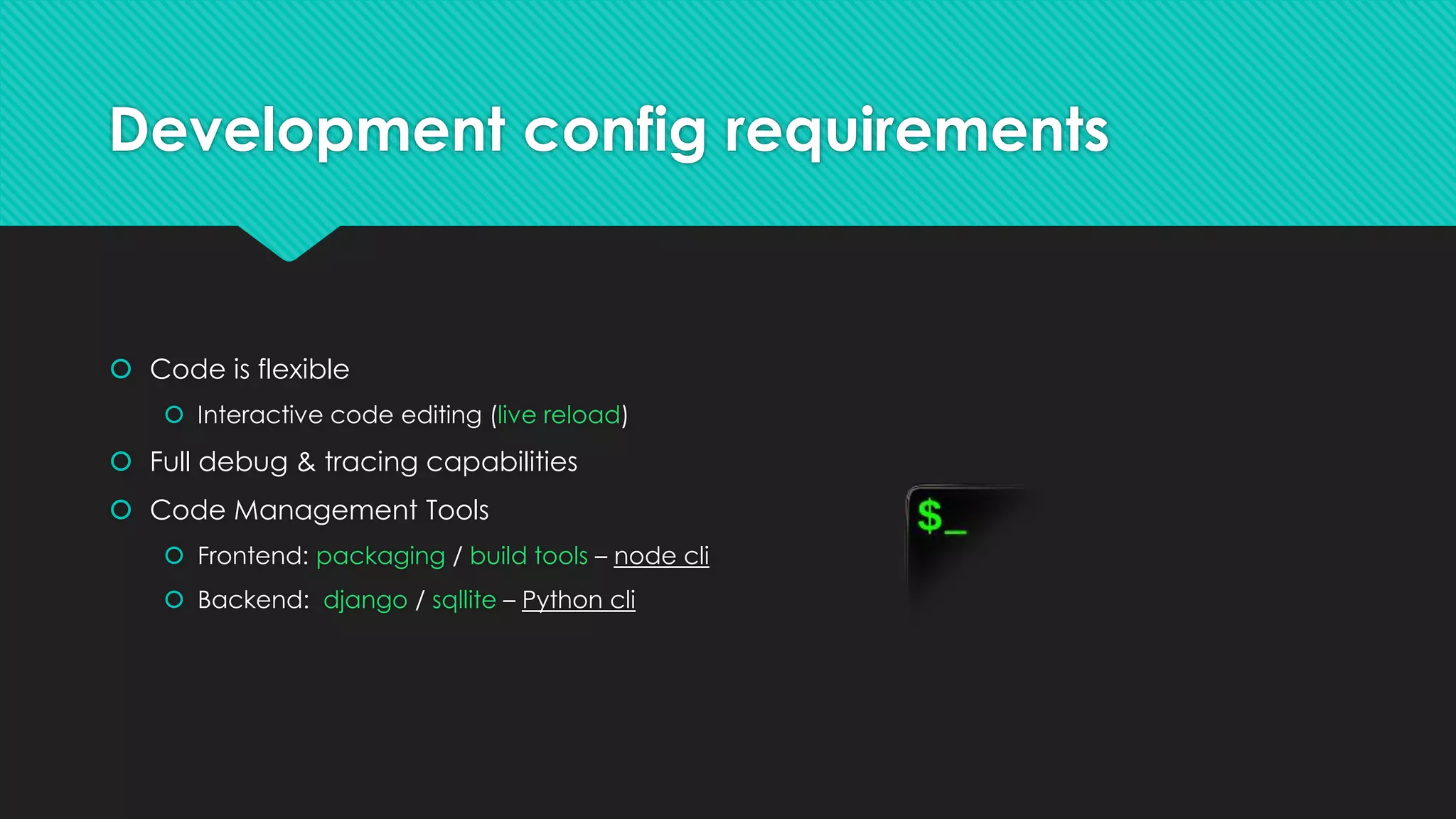

- 23. Development config requirements Code is flexible Interactive code editing (live reload) Full debug & tracing capabilities Code Management Tools Frontend: packaging / build tools – node cli Backend: django / sqllite – Python cli

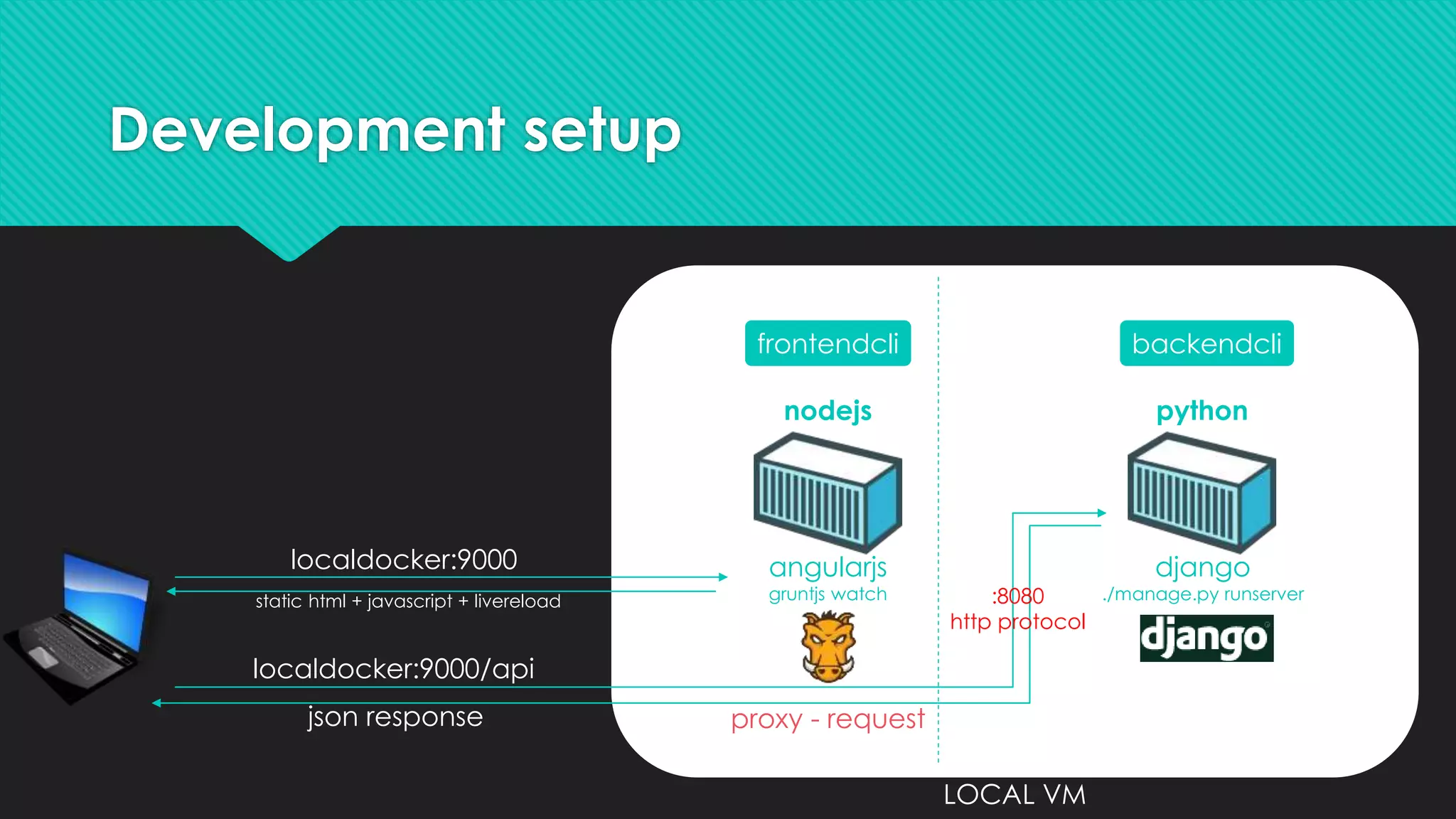

- 24. Development setup nodejs python angularjs gruntjswatch django ./manage.py runserver localdocker:9000 static html + javascript + livereload localdocker:9000/api proxy - requestjson response LOCAL VM frontendcli backendcli :8080 http protocol

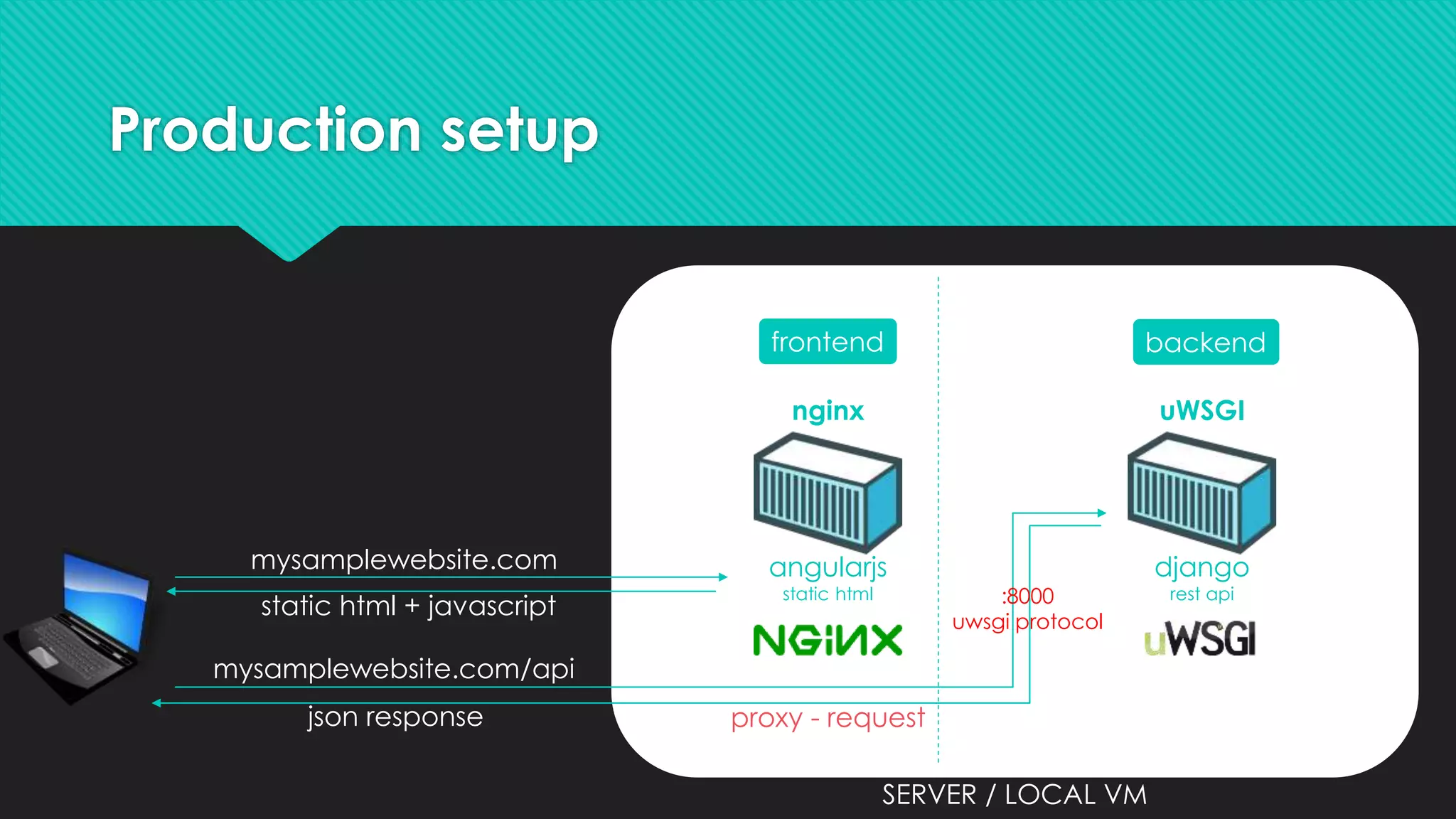

- 25. Production setup nginx uWSGI angularjs statichtml django rest api mysamplewebsite.com static html + javascript mysamplewebsite.com/api proxy - requestjson response SERVER / LOCAL VM frontend backend :8000 uwsgi protocol

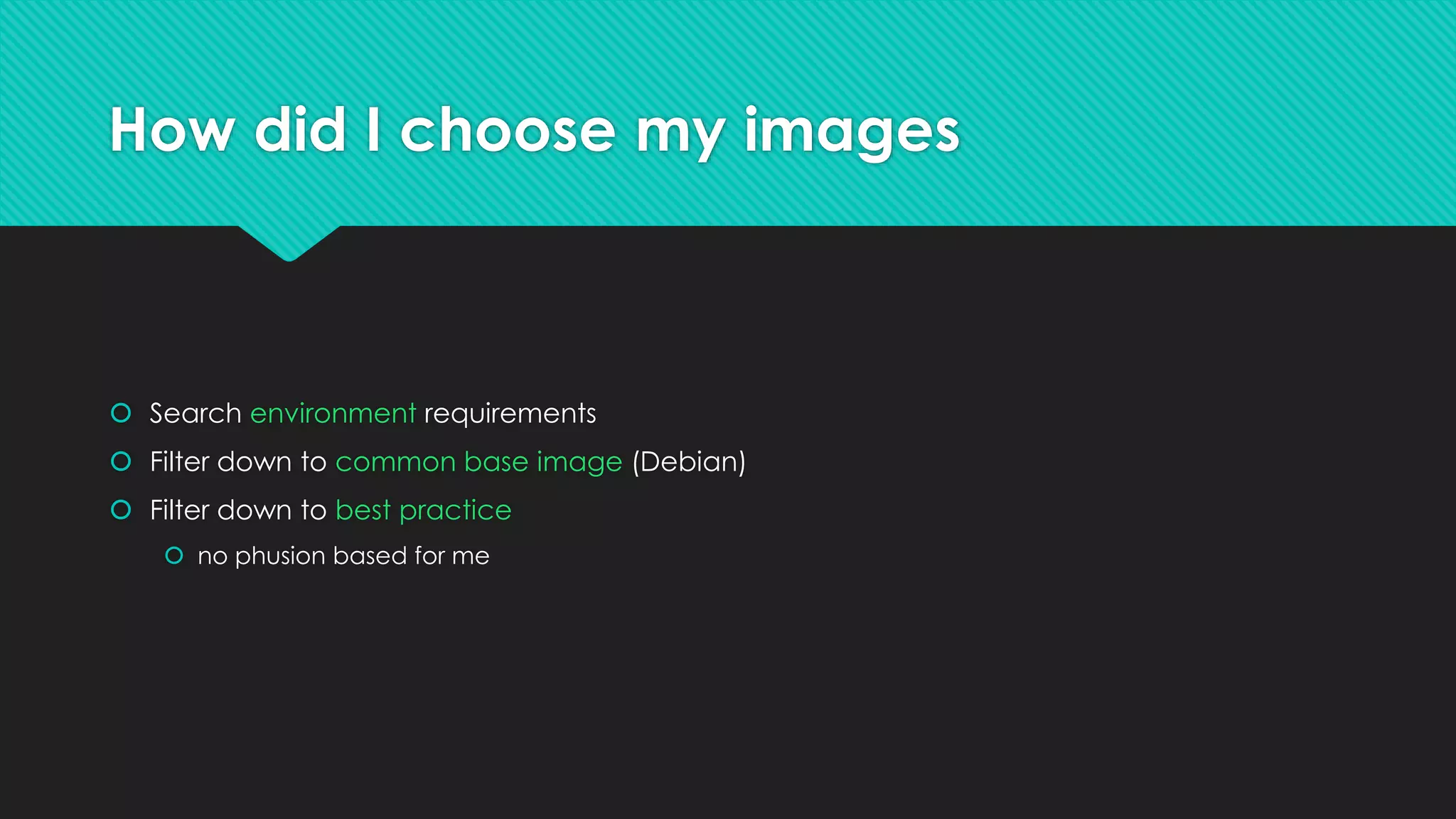

- 26. How did Ichoose my images Search environment requirements Filter down to common base image (Debian) Filter down to best practice no phusion based for me

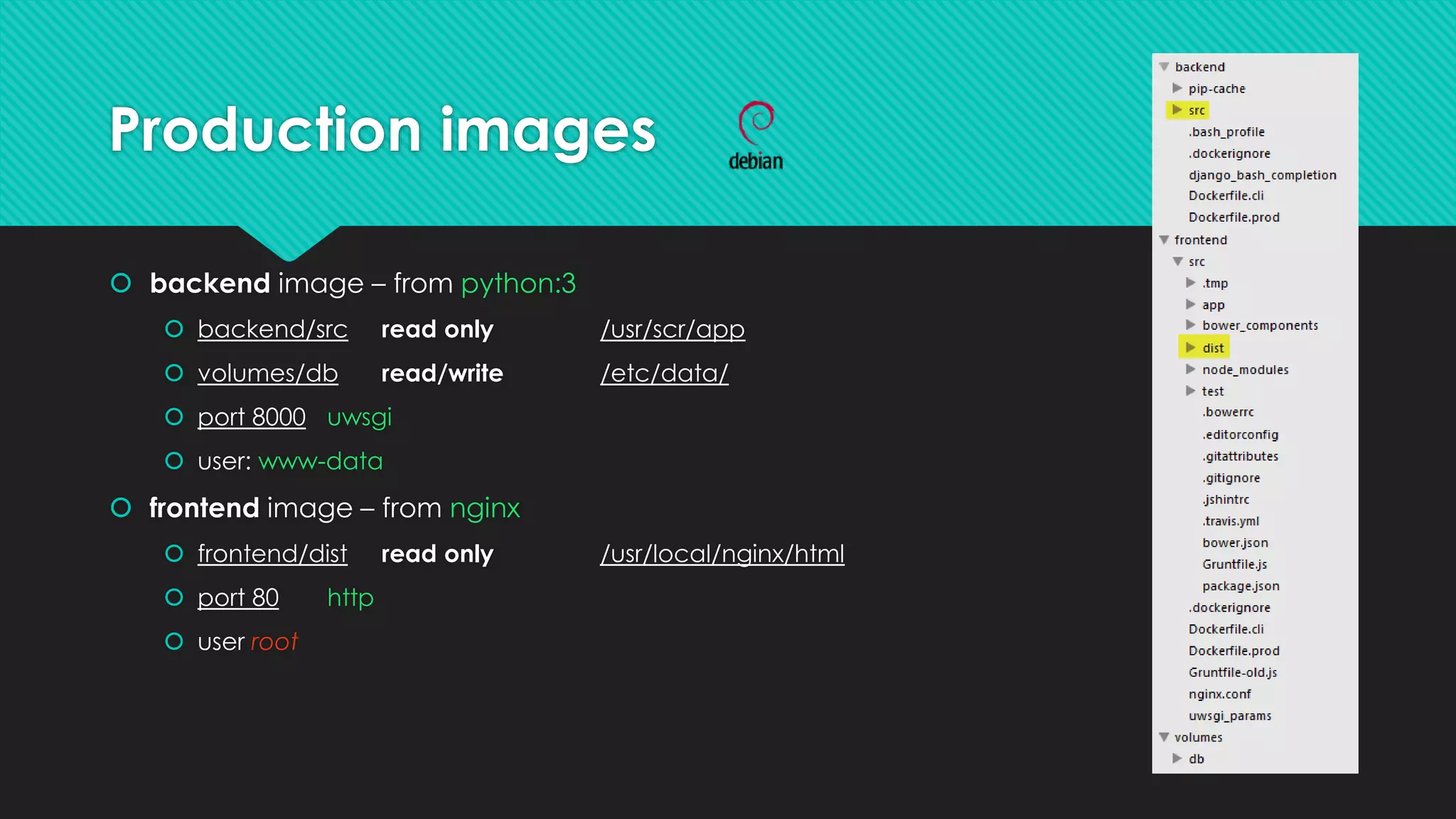

- 27. Production images backendimage – from python:3 backend/src read only /usr/scr/app volumes/db read/write /etc/data/ port 8000 uwsgi user: www-data frontend image – from nginx frontend/dist read only /usr/local/nginx/html port 80 http user root

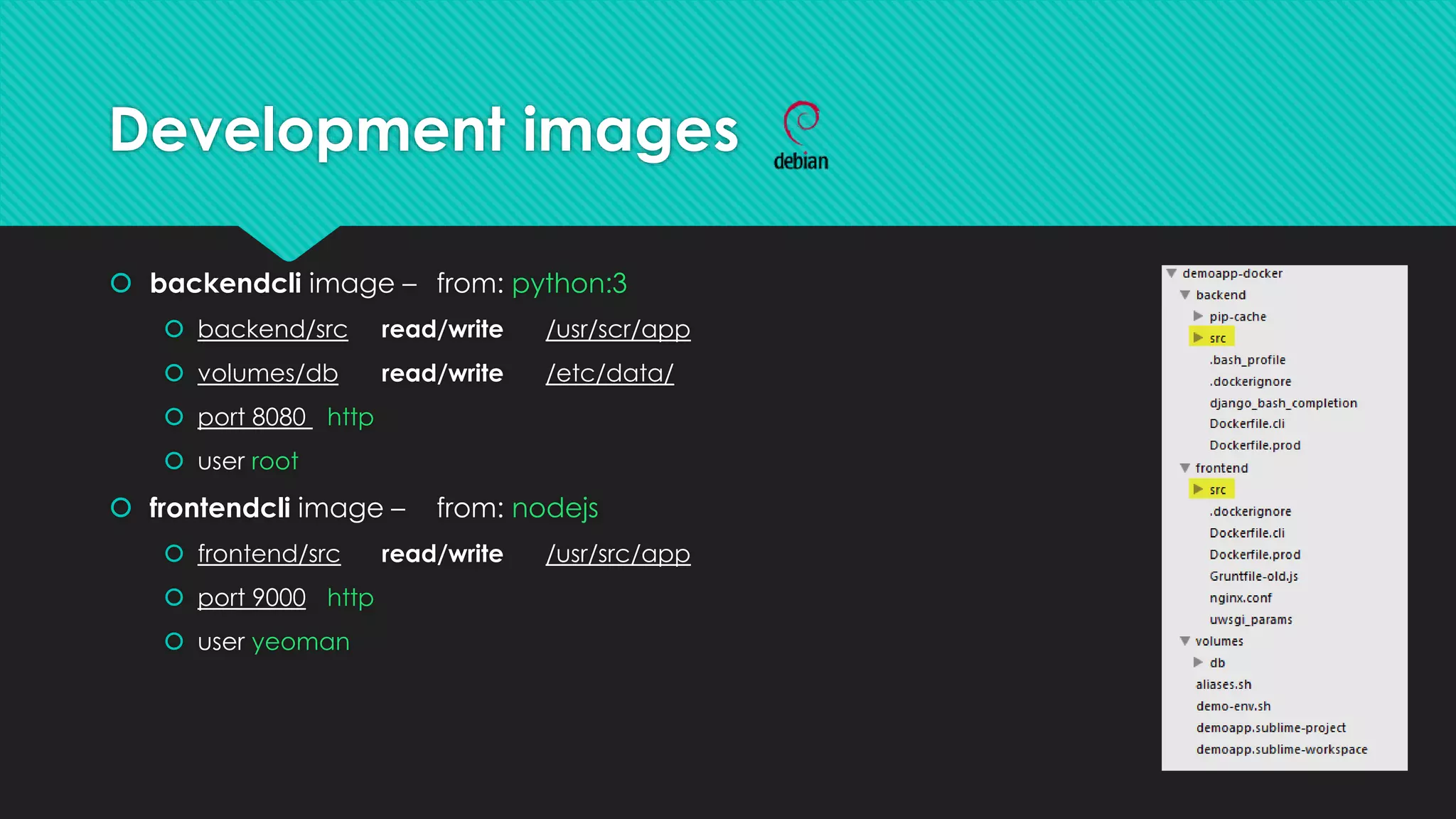

- 28. Development images backendcliimage – from: python:3 backend/src read/write /usr/scr/app volumes/db read/write /etc/data/ port 8080 http user root frontendcli image – from: nodejs frontend/src read/write /usr/src/app port 9000 http user yeoman

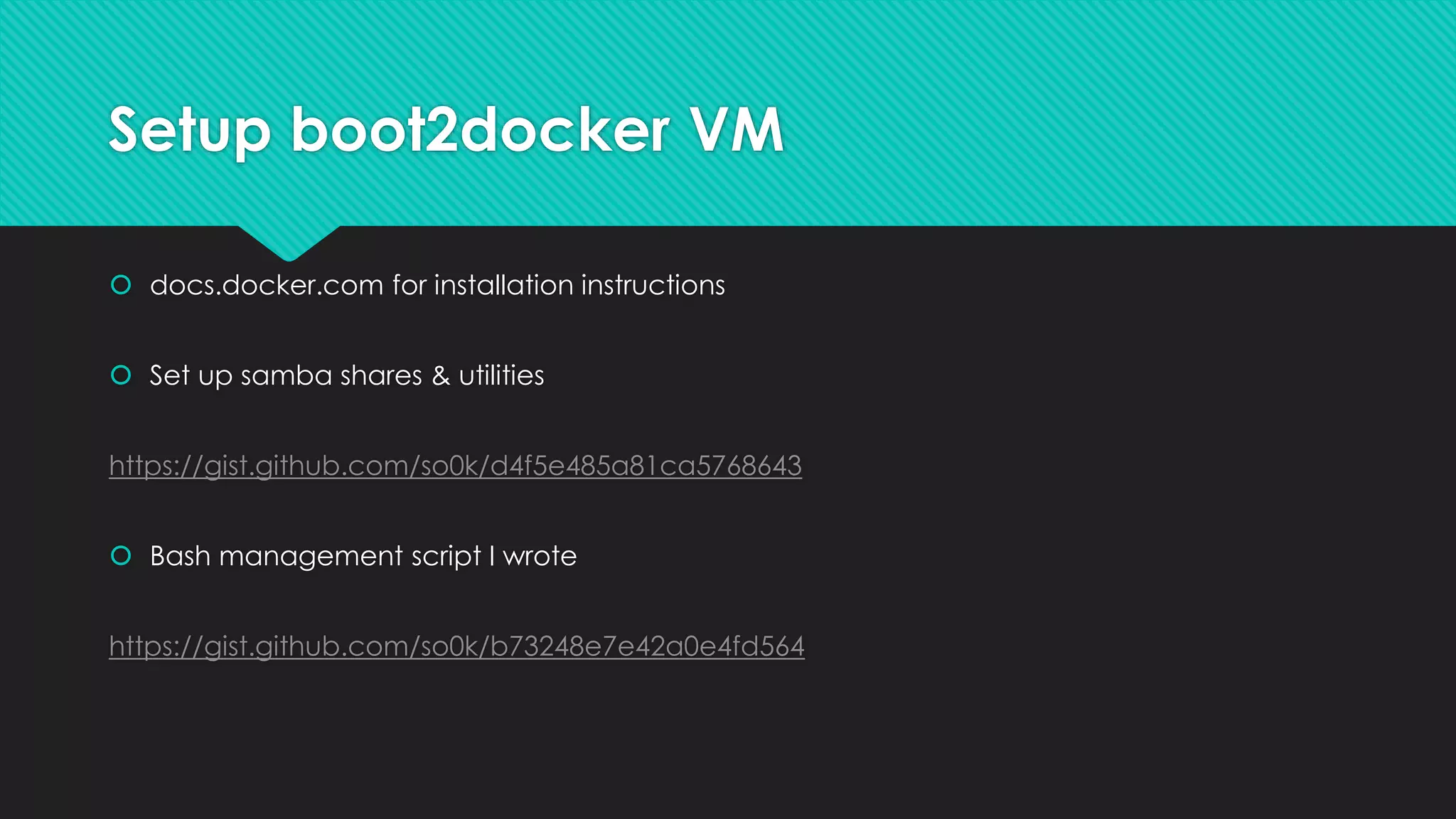

- 29. Setup boot2docker VM docs.docker.com for installation instructions Set up samba shares & utilities https://gist.github.com/so0k/d4f5e485a81ca5768643 Bash management script I wrote https://gist.github.com/so0k/b73248e7e42a0e4fd564

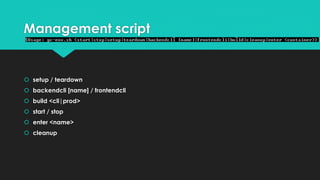

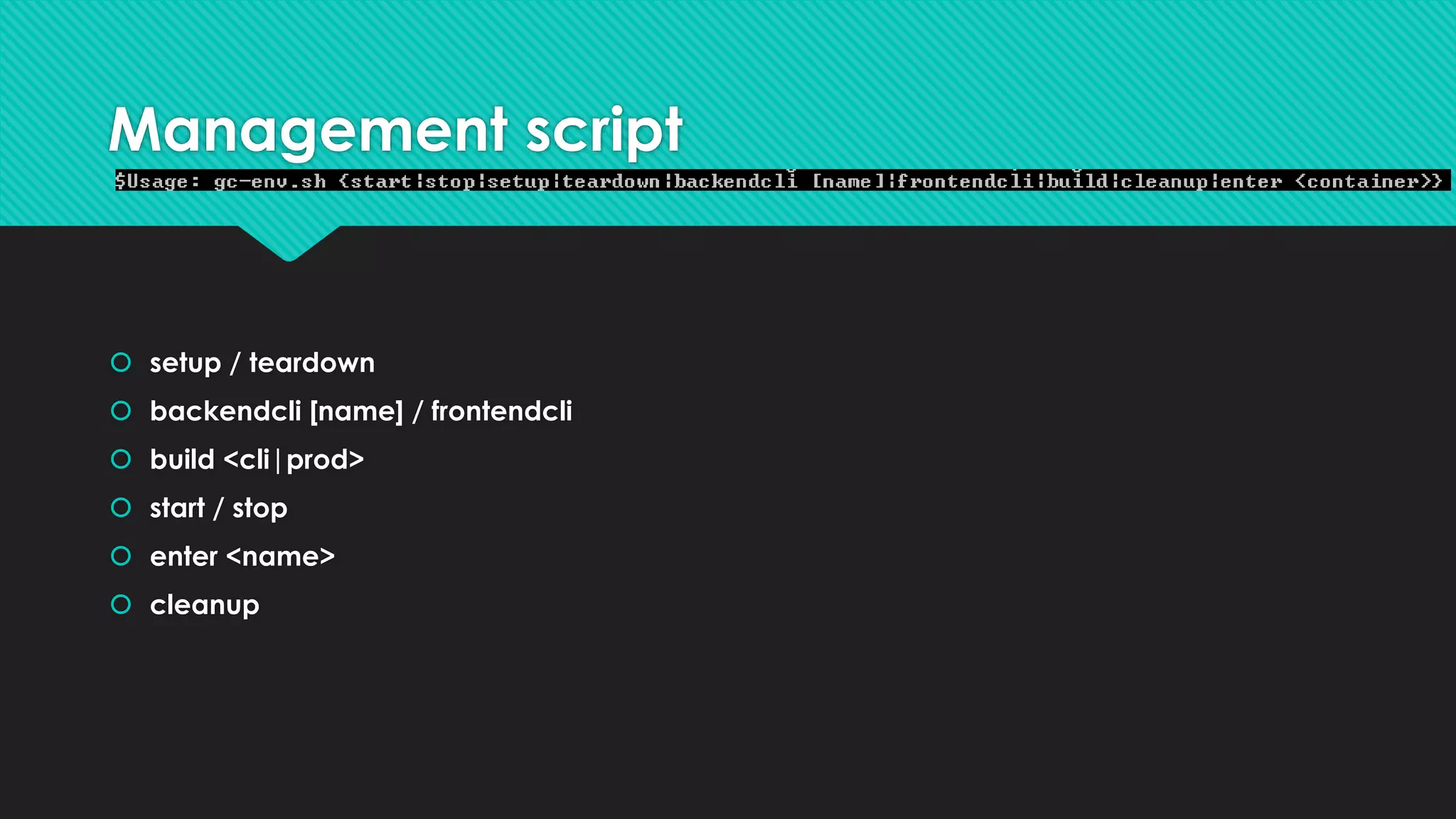

- 30. Management script setup/ teardown backendcli [name] / frontendcli build <cli|prod> start / stop enter <name> cleanup

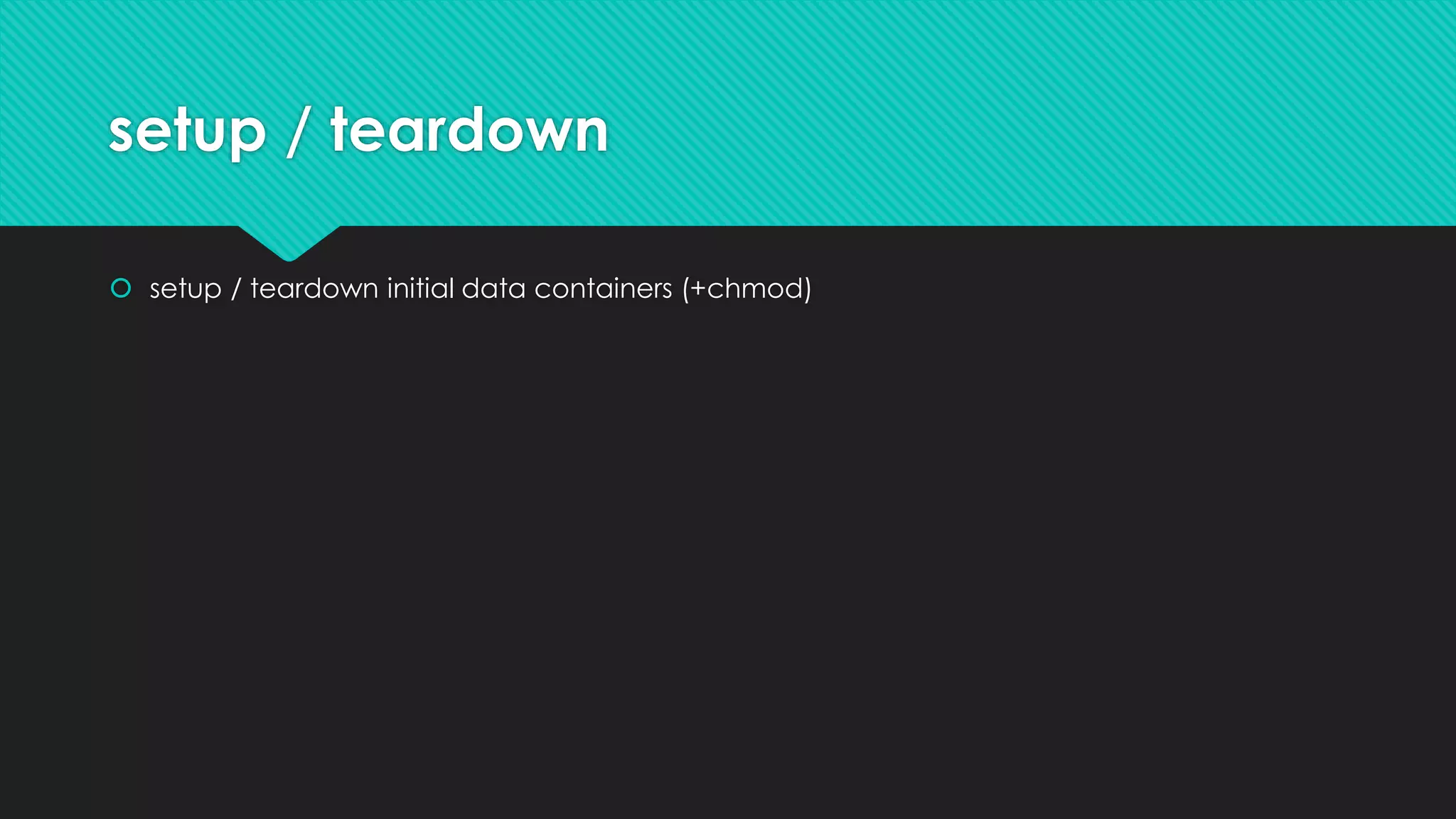

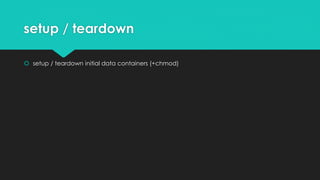

- 31. setup / teardown setup / teardown initial data containers (+chmod)

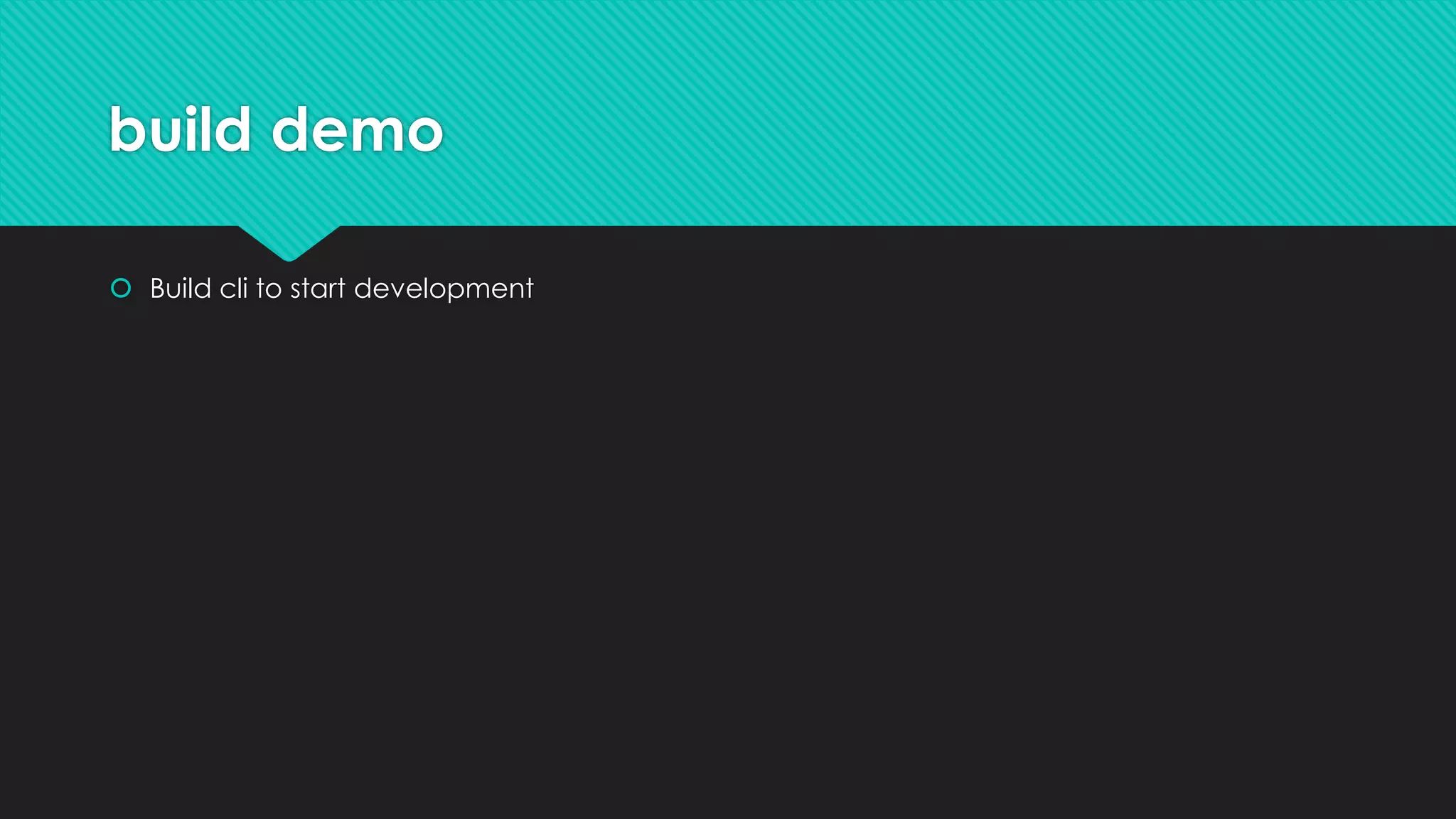

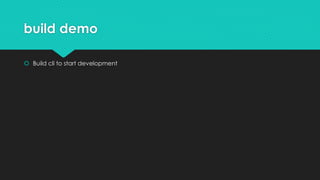

- 32. build demo Buildcli to start development

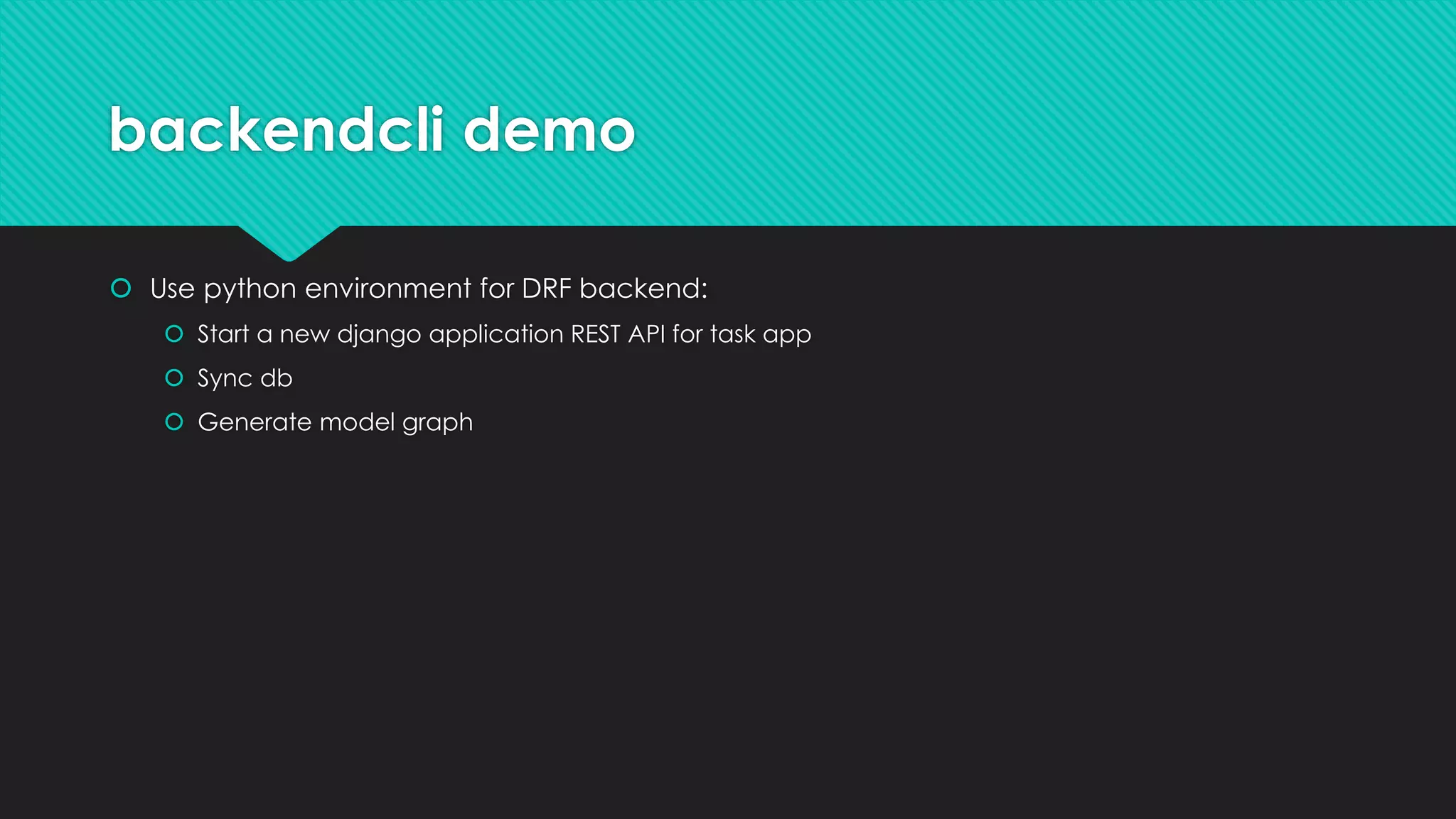

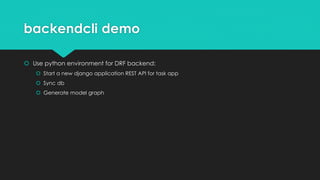

- 33. backendcli demo Usepython environment for DRF backend: Start a new django application REST API for task app Sync db Generate model graph

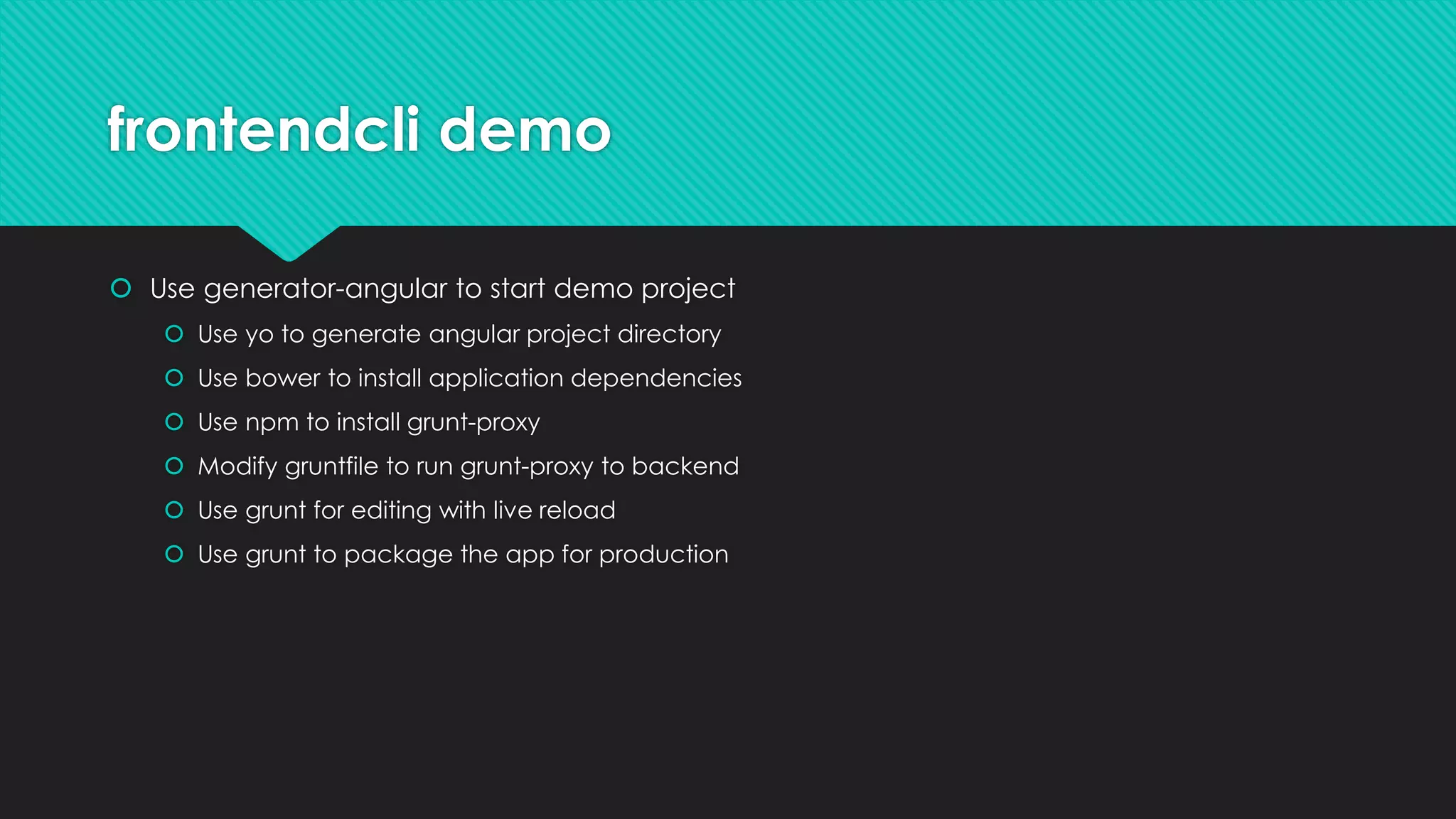

- 34. frontendcli demo Usegenerator-angular to start demo project Use yo to generate angular project directory Use bower to install application dependencies Use npm to install grunt-proxy Modify gruntfile to run grunt-proxy to backend Use grunt for editing with live reload Use grunt to package the app for production

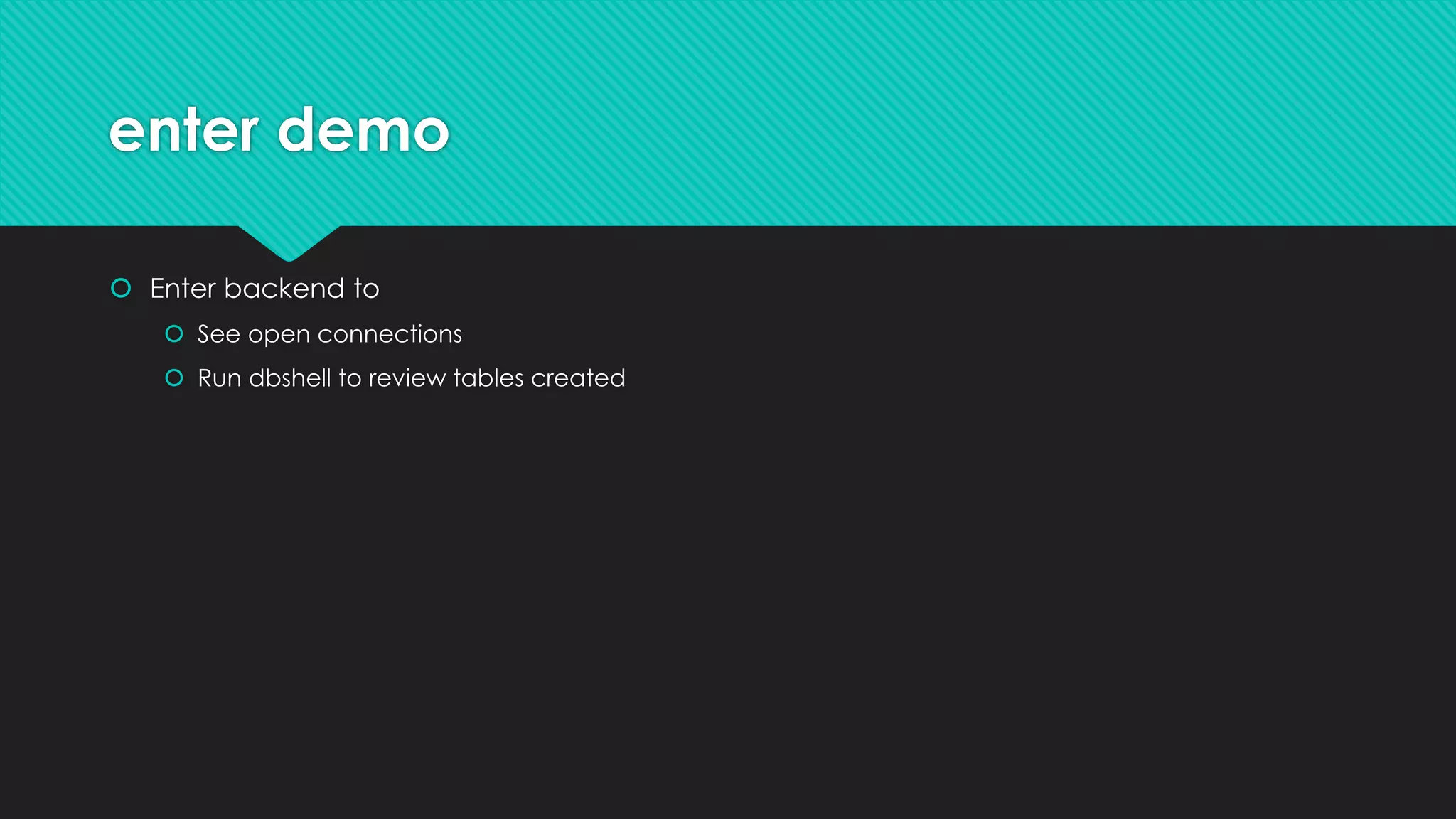

- 35. enter demo Enterbackend to See open connections Run dbshell to review tables created

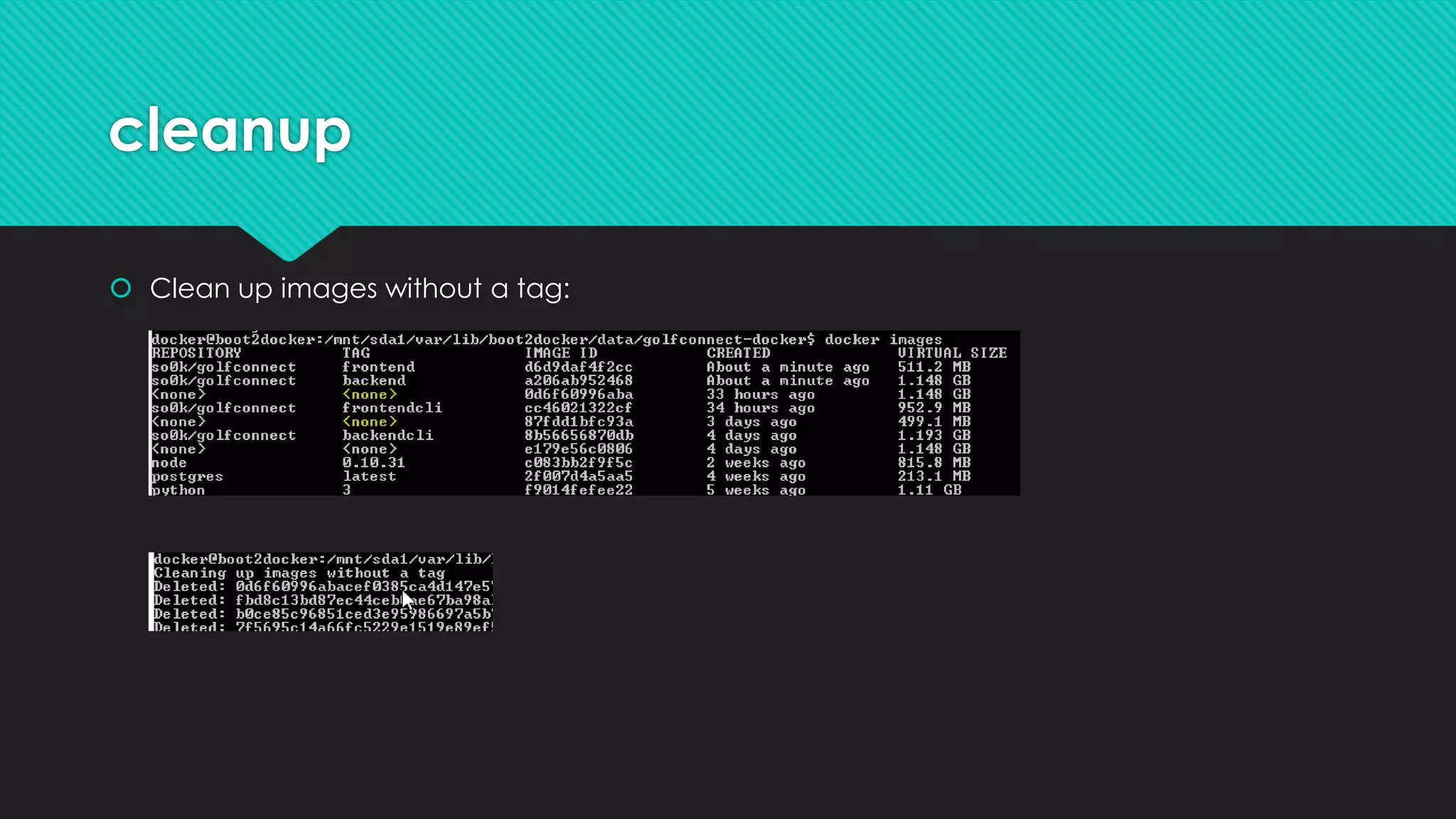

- 36. cleanup Clean upimages without a tag:

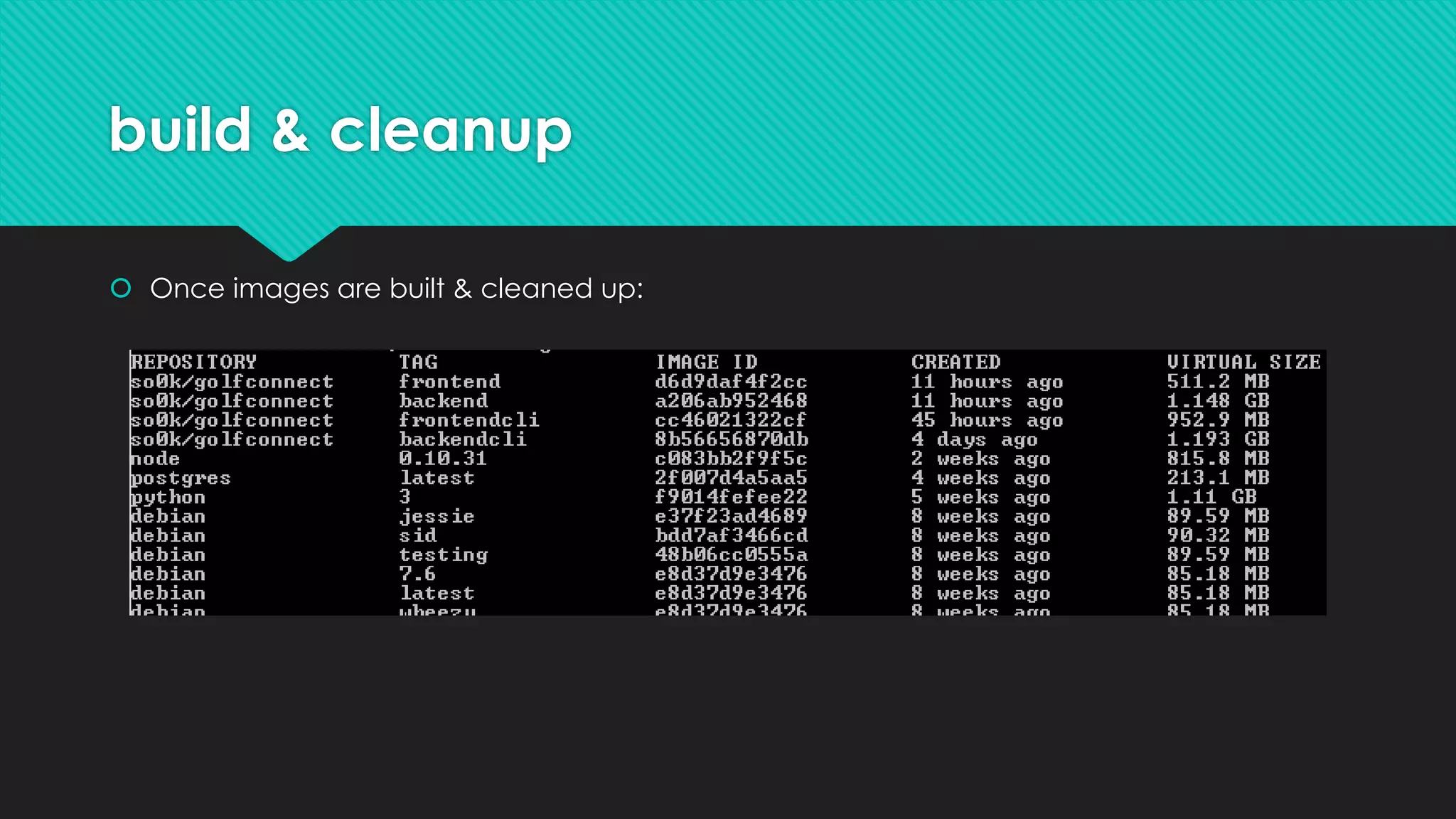

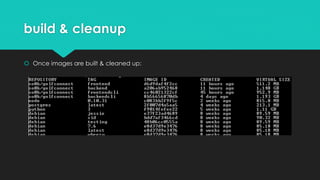

- 37. build & cleanup Once images are built & cleaned up:

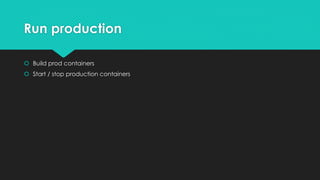

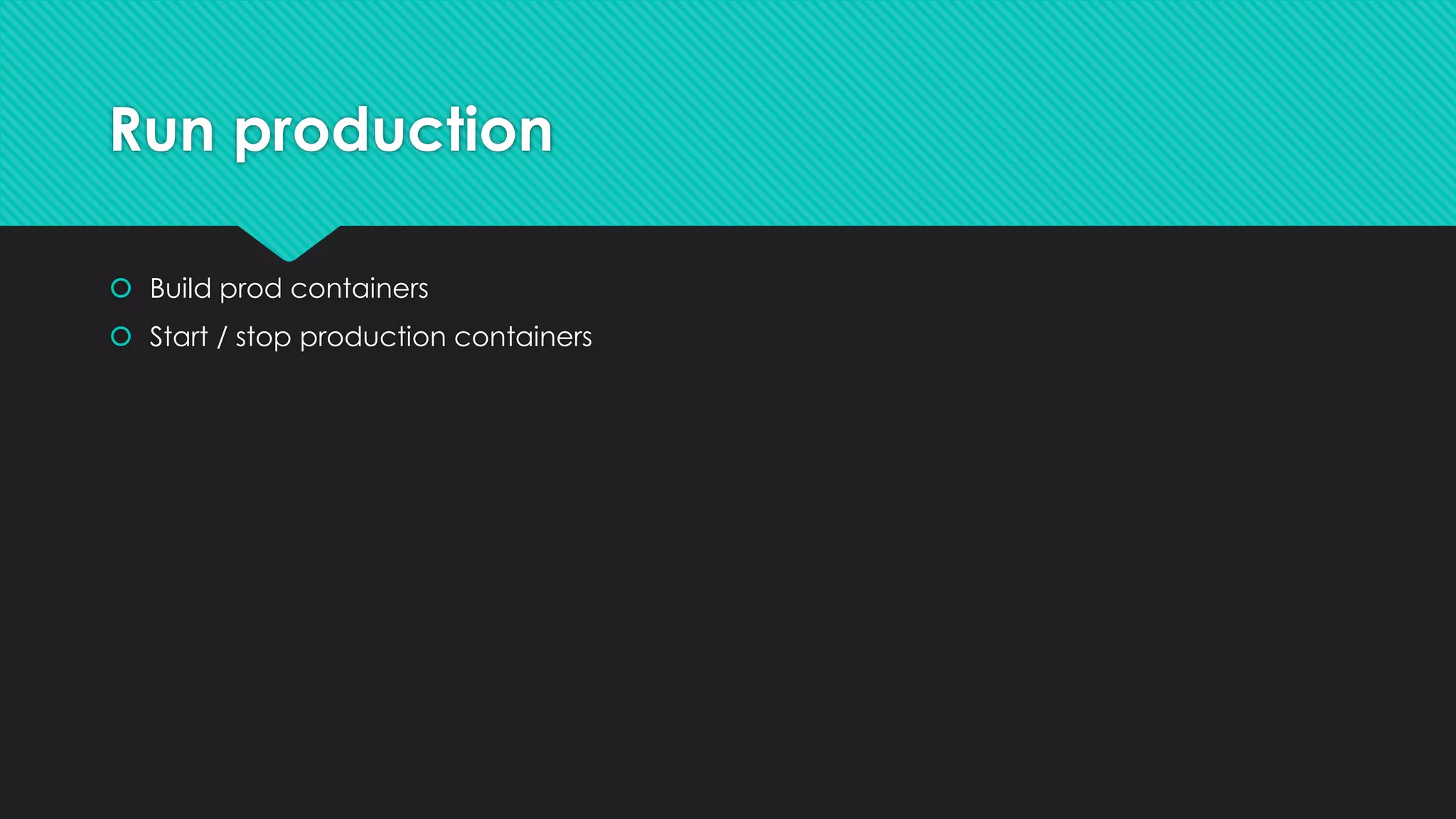

- 38. Run production Buildprod containers Start / stop production containers

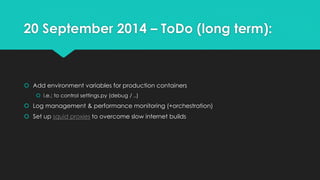

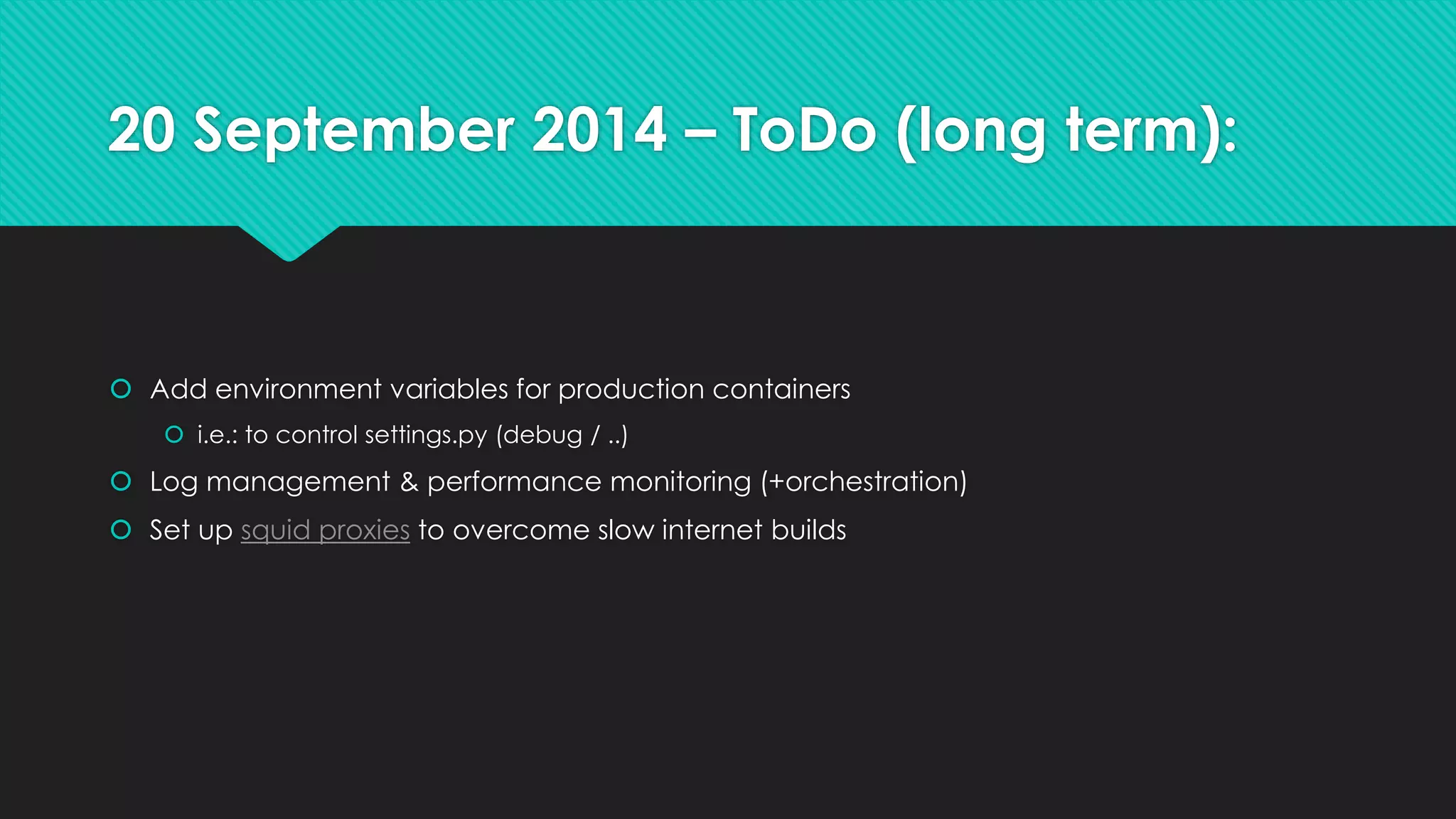

- 39. 20 September 2014– ToDo (long term): Add environment variables for production containers i.e.: to control settings.py (debug / ..) Log management & performance monitoring (+orchestration) Set up squid proxies to overcome slow internet builds
- 40.

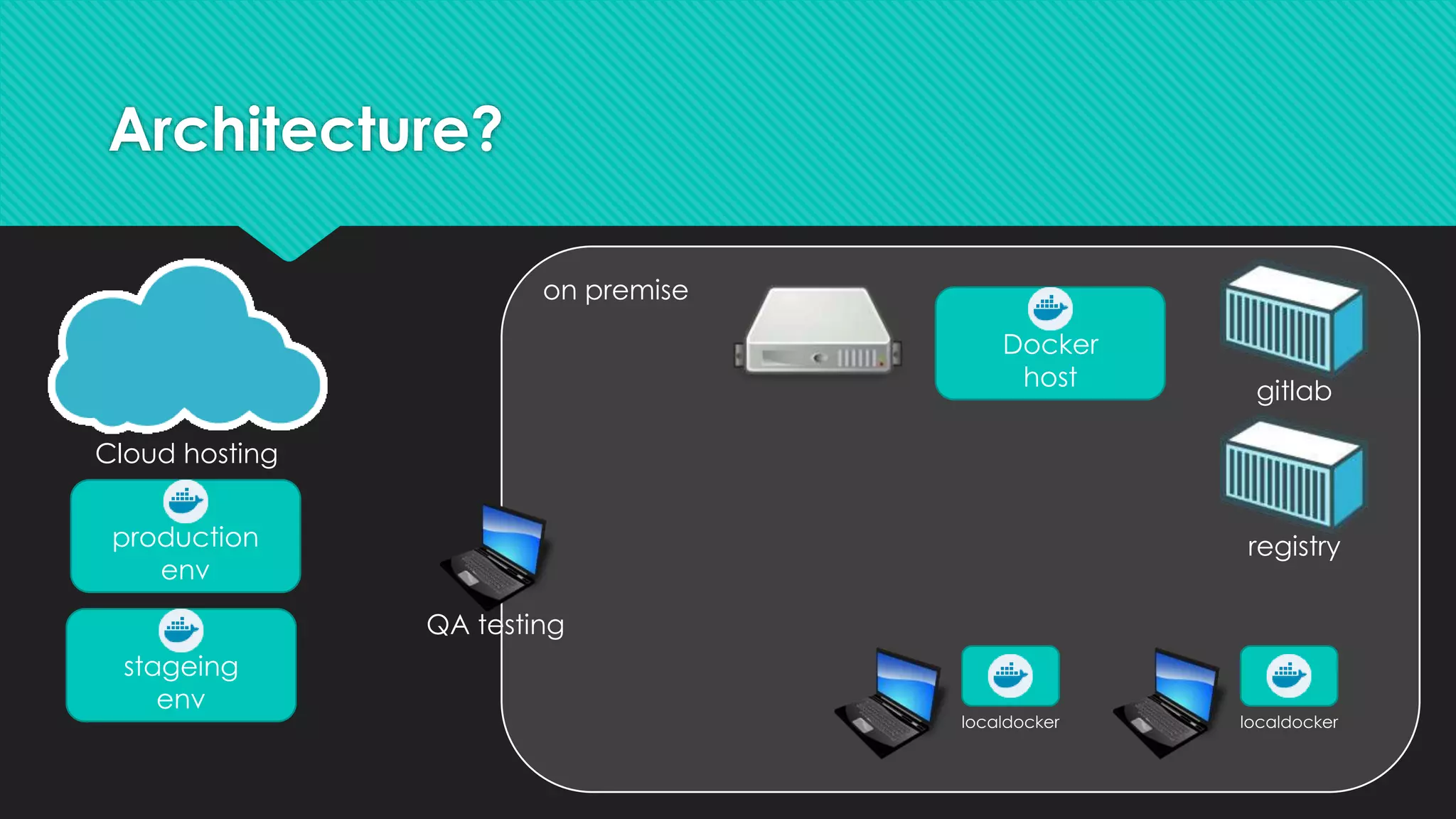

- 41. Architecture? localdocker localdocker Docker host gitlab registry Cloud hosting onpremise QA testing production env stageing env
- 42. About me Author: VincentDe Smet this presentation source code: https://gist.github.com/so0k/b73248e7e42a0e4fd564 Presentation prepared for Docker Saigon Meetup Group You can find us at: http://www.meetup.com/Docker-Saigon www.docker.com
Editor's Notes
- #2 Issues faced and solved (in some way or another): How to work on code locally and sync to shared folder? (using powershell & robocopy currently, not ideal) How to have multiple docker images from 1 repo? How to manage volume permissions within docker? How many of attendees are new to Docker? on windows? Use Python backend? Use Javascript frontend?
- #3 http://matthew-brett.github.io/pydagogue/develop_windows.html I depend heavily on knowing which branch I am on when using git. This is the what the git-completion bash routines do; posh-git does the equivalent for powershell. Why not Vagrant? Not looked into vagrant yet + boot2docker is built to run the latest boot2docker image, let’s use this to get started… http://12factor.net/codebase There is always a one-to-one correlation between the codebase and the app You should have 1 repo for frontend & 1 repo for backend. Docker is used here as the dependency isolation tool during execution to ensure that no implicit dependencies “leak in” from the surrounding system. The new developer can check out the app’s codebase onto their development machine, requiring only the language runtime and dependency manager installed as prerequisites. They will be able to set up everything needed to run the app’s code with a deterministicbuild command. Issues faced: While setting up new developer laptop with only 4GB & limited space on C partition, boot2docker did not allow to specify where to init the VM disk. We achieved this easily with powershell docker management scripts: https://github.com/henjuv/boot2docker-powershell Also considering using winscp to keep folder synchronized: http://winscp.net/eng/docs/task_synchronize_full https://docs.docker.com/articles/host_integration/ https://gist.github.com/nathanleclaire/9927571 http://stackoverflow.com/questions/638975/how-do-i-tell-if-a-file-does-not-exist-in-bash
- #7 Can isolate using VMs
- #8 http://blog.scottlowe.org/2014/09/09/idf2014-bare-metal-docker-containers-and-virtualization/
- #10 http://blog.scottlowe.org/2014/09/09/idf2014-bare-metal-docker-containers-and-virtualization/
- #11 http://blog.scottlowe.org/2014/09/09/idf2014-bare-metal-docker-containers-and-virtualization/
- #12 http://blog.scottlowe.org/2014/09/09/idf2014-bare-metal-docker-containers-and-virtualization/ Images can be tagged
- #13 http://blog.scottlowe.org/2014/09/09/idf2014-bare-metal-docker-containers-and-virtualization/ Tagged images can be used as a starting point for new images to build new layers upon
- #14 http://blog.scottlowe.org/2014/09/09/idf2014-bare-metal-docker-containers-and-virtualization/ Tagged images can be used as a starting point for new images to build new layers upon
- #15 http://blog.scottlowe.org/2014/09/09/idf2014-bare-metal-docker-containers-and-virtualization/
- #16 Share images through the registry Or use docker save –o <file.tar> <image_name> And docker load –i <file.tar>
- #27 Windows has no native docker client either… HyperV cmdlets in Windows http://technet.microsoft.com/en-us/library/hh848559.aspx
- #28 http://confreaks.com/videos/3434-gophercon2014-best-practices-for-production-environments An app’s config is everything that is likely to vary between deploys (staging, production, developer environments, etc). This includes: Resource handles to the database, Memcached, and other backing services Credentials to external services such as Amazon S3 or Twitter Per-deploy values such as the canonical hostname for the deploy twelve-factor, which requires strict separation of config from code. Config varies substantially across deploys, code does not. A litmus test for whether an app has all config correctly factored out of the code is whether the codebase could be made open source at any moment, without compromising any credentials. Code is fixed The twelve-factor app uses strict separation between the build, release, and run stages. For example, it is impossible to make changes to the code at runtime, since there is no way to propagate those changes back to the build stage.
- #31 This is interesting: https://github.com/unbit/uwsgi-docker uwsgi-docker An uWSGI plugin for integration with Docker. This plugin allows you to configure and run vassals in Docker containers. Also notice docker-gitlab container, this container takes docker binary and starts additional containers + links them https://github.com/sameersbn/docker-gitlab/blob/master/assets/init
- #32 Based on: http://www.centurylinklabs.com/how-to-migrate-legacy-applications-into-docker-containers/ After the fact, how did I choose my images and how to justify? does the image provide a tag other than latest, using an image with a tag provides version control for the application Having a common base image will improve the development cycle because they will leverage an image cache. What are the logging strategies? Nginx image compiled to log to stdout / stderr Same for uwsgi setup Intend to use docker logging solution in future..
- #35 Should create a simple git repository to clone.. Edit script to fit project..
- #36 This script was based on gm-env.sh from glowmachine (github). Why a management script? Fig not supported on windows, can’t run it in tcl either. Maybe vagrant could help, use a different linux image to run docker? Also, fugu might make it easier to make a better management script https://github.com/mattes/fugu
- #38 Build should have a target..
- #39 Build should have a target.. Should we use make instead? Or use powershell functions to send SSH commands to the host..
- #40 Reformat your pc and do a trial run. Have code snippets ready for demo scripts! gc frontenv bower list … grunt watch *edit file* *see live reload* grunt dist exit gc build Review newly built image Ideally django rest framework tutorial, do something with api… prepare demo project (generator angular?)
- #43 Yeoman codelab with restangular – drf backend?
- #45 Yeoman codelab with restangular – drf backend?
- #49 Build should have a target.. Should we use make instead? Or use powershell functions to send SSH commands to the host.. Make sure you have the images pre-built (in cache)
- #53 Aliases are not persisted, try https://github.com/Russell91/sshrc https://github.com/msysgit/msysgit/wiki
- #54 http://www.reddit.com/r/docker/comments/2gok31/suggestion_workflow_github_ci_docker_hub/ Set up internal gitlab / fulcrum / docker registry Set up continuous integration servers
- #55 Gitlab webhook for CI Run integration tests On success Push Development branch to Staging in cloud + update redmine On success Push Production branch to Production on cloud
- #56 Google? Amazon? Digital Ocean? AWS? …
