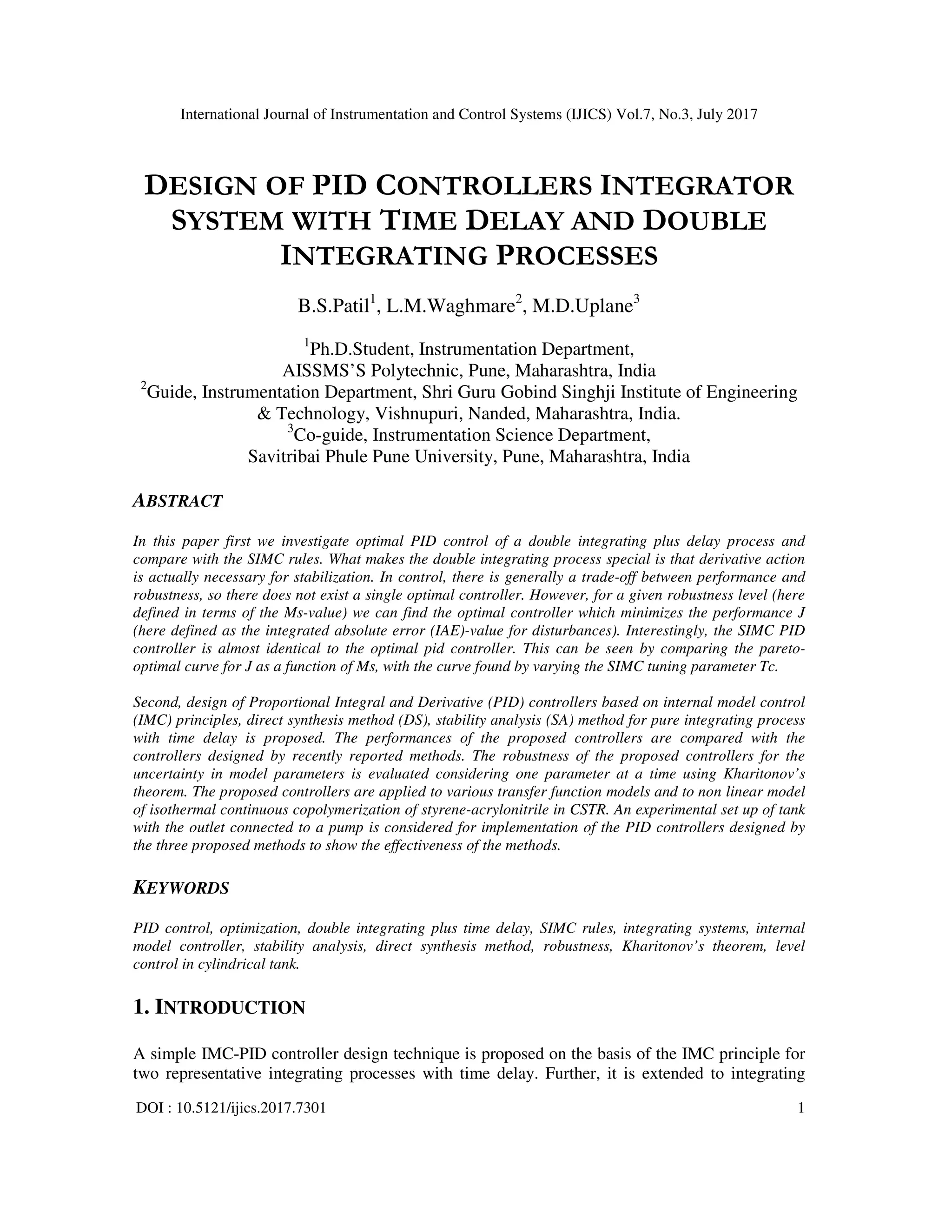

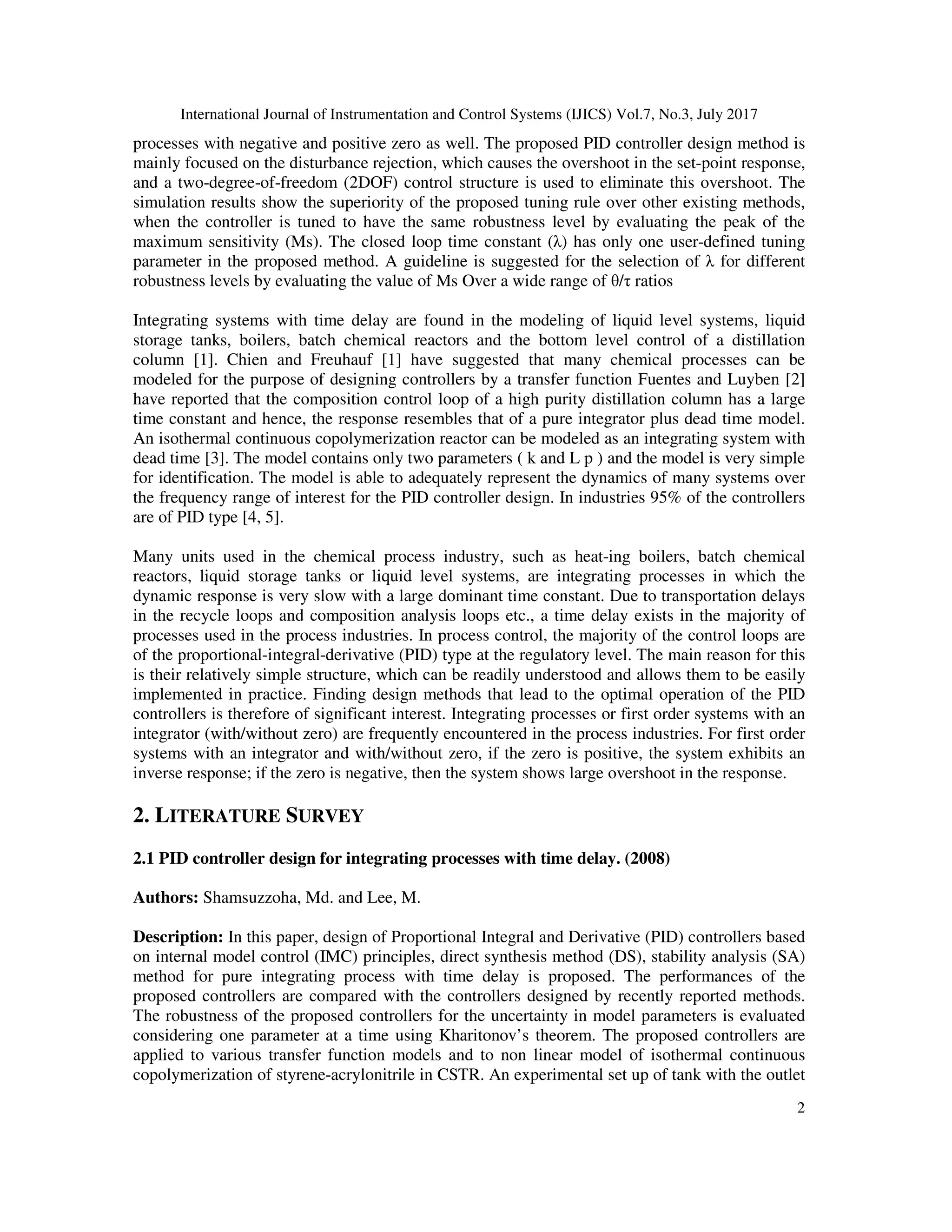

In this paper first we investigate optimal PID control of a double integrating plus delay process and compare with the SIMC rules. What makes the double integrating process special is that derivative action is actually necessary for stabilization. In control, there is generally a trade-off between performance and
robustness, so there does not exist a single optimal controller. However, for a given robustness level (here defined in terms of the Ms-value) we can find the optimal controller which minimizes the performance J (here defined as the integrated absolute error (IAE)-value for disturbances). Interestingly, the SIMC PID controller is almost identical to the optimal pid controller. This can be seen by comparing the paretooptimal
curve for J as a function of Ms, with the curve found by varying the SIMC tuning parameter Tc.
Second, design of Proportional Integral and Derivative (PID) controllers based on internal model control (IMC) principles, direct synthesis method (DS), stability analysis (SA) method for pure integrating process with time delay is proposed. The performances of the proposed controllers are compared with the
controllers designed by recently reported methods. The robustness of the proposed controllers for the uncertainty in model parameters is evaluated considering one parameter at a time using Kharitonov’s theorem. The proposed controllers are applied to various transfer function models and to non linear model of isothermal continuous copolymerization of styrene-acrylonitrile in CSTR. An experimental set up of tank
with the outlet connected to a pump is considered for implementation of the PID controllers designed by
the three proposed methods to show the effectiveness of the methods.
Controller Tuning for Integrator Plus Delay Processes.theijes
A design method for PID controllers based on internal model control (IMC) principles, direct synthesis method (DS), stability analysis (SA) method for pure integrating process with time delay is proposed. Analytical expressions for PID controllers are derived for several common types of process models, including first order and second-order plus time delay models and an integrator plus time delay model. Here in this paper, a simple controller design rule and tuning procedure for unstable processes with delay time is discussed. Simulation examples are included to show the effectiveness of the proposed method
Tuning of IMC-based PID controllers for integrating systems with time delayISA Interchange
Design of Proportional Integral and Derivative (PID) controllers based on IMC principles for various types of integrating systems with time delay is proposed. PID parameters are given in terms of process model parameters and a tuning parameter. The tuning parameter is IMC filter time constant. In the present work, the IMC filter (Q) is chosen in such a manner that the order of the denominator of IMC controller is one less than the order of the numerator. The IMC filter time constant (λ) is tuned in such a way that a good compromise is made between performance and robustness for both servo and regulatory problems. To improve servo response of the controller a set point filter is designed such that the closed loop response is similar to that of first order plus time delay system. The proposed controller design method is applied to various transfer function models and to the non-linear model equations of jacketed CSTR to demonstrate its applicability and effectiveness. The performance of the proposed controller is compared with the recently reported methods in terms of IAE and ITAE. The smooth functioning of the controller is determined in terms of total variation and compared with recently reported methods. Simulation studies are carried out on various integrating systems with time delay to show the effectiveness and superiority of the proposed controllers.
Tuning of PID controllers for integrating systems using direct synthesis methodISA Interchange
A PID controller is designed for various forms of integrating systems with time delay using direct synthesis method. The method is based on comparing the characteristic equation of the integrating system and PID controller with a filter with the desired characteristic equation. The desired characteristic equation comprises of multiple poles which are placed at the same desired location. The tuning parameter is adjusted so as to achieve the desired robustness. Tuning rules in terms of process parameters are given for various forms of integrating systems. The tuning parameter can be selected for the desired robustness by specifying Ms value. The proposed controller design method is applied to various transfer function models and to the nonlinear model equations of jacketed CSTR to show its effectiveness and applicability.
