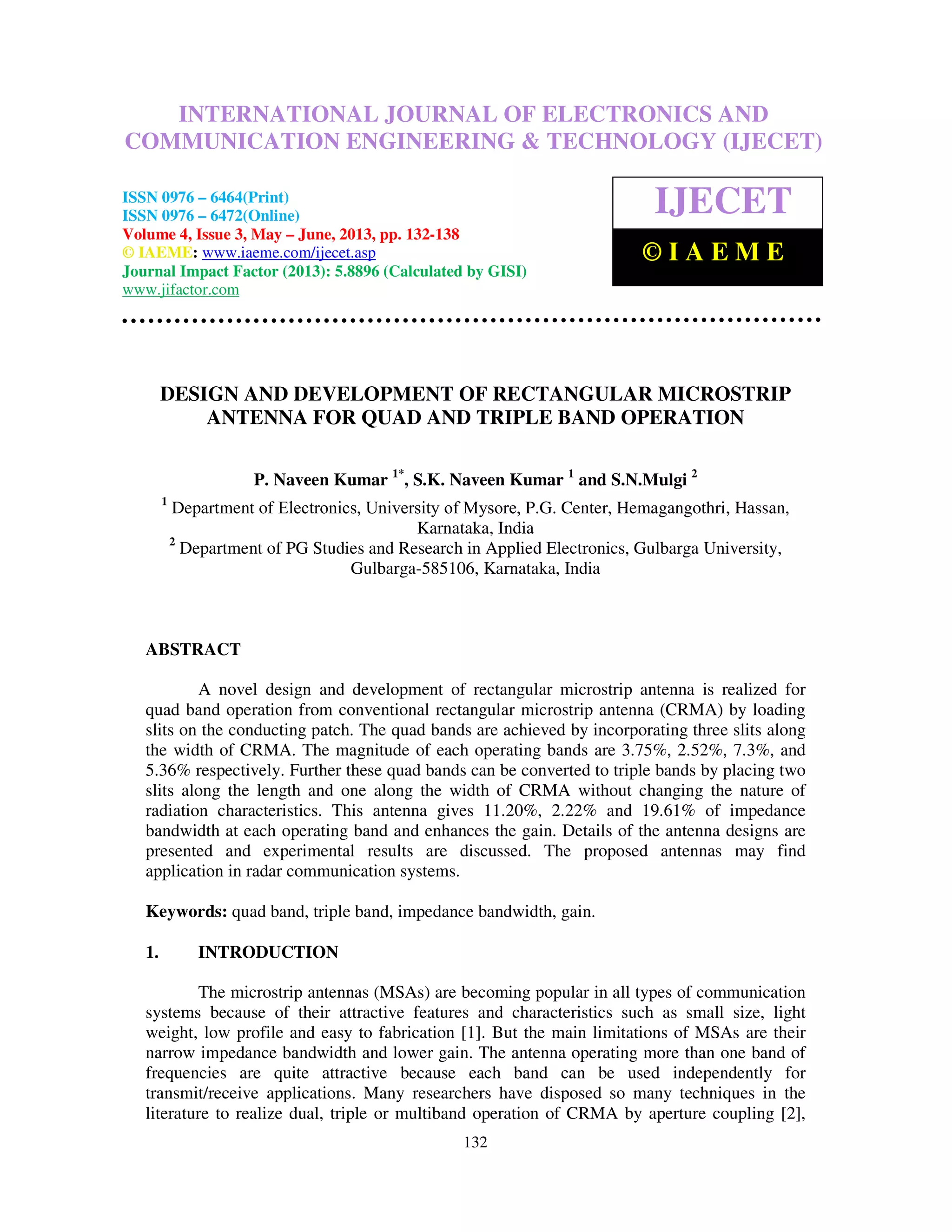

DESIGN AND DEVELOPMENT OF RECTANGULAR MICROSTRIP
ANTENNA FOR QUAD AND TRIPLE BAND OPERATION
P. Naveen Kumar 1*
, S.K. Naveen Kumar 1
and S.N.Mulgi 2
1
Department of Electronics, University of Mysore, P.G. Center, Hemagangothri, Hassan,
Karnataka, India
2
Department of PG Studies and Research in Applied Electronics, Gulbarga University,
Gulbarga-585106, Karnataka, India
ABSTRACT
A novel design and development of rectangular microstrip antenna is realized for
quad band operation from conventional rectangular microstrip antenna (CRMA) by loading
slits on the conducting patch. The quad bands are achieved by incorporating three slits along
the width of CRMA. The magnitude of each operating bands are 3.75%, 2.52%, 7.3%, and
5.36% respectively. Further these quad bands can be converted to triple bands by placing two
slits along the length and one along the width of CRMA without changing the nature of
radiation characteristics. This antenna gives 11.20%, 2.22% and 19.61% of impedance
bandwidth at each operating band and enhances the gain. Details of the antenna designs are
presented and experimental results are discussed. The proposed antennas may find
application in radar communication systems.
Keywords: quad band, triple band, impedance bandwidth, gain.
1. INTRODUCTION
The microstrip antennas (MSAs) are becoming popular in all types of communication
systems because of their attractive features and characteristics such as small size, light
weight, low profile and easy to fabrication [1]. But the main limitations of MSAs are their
narrow impedance bandwidth and lower gain. The antenna operating more than one band of
frequencies are quite attractive because each band can be used independently for
transmit/receive applications. Many researchers have disposed so many techniques in the
literature to realize dual, triple or multiband operation of CRMA by aperture coupling [2],
INTERNATIONAL JOURNAL OF ELECTRONICS AND
COMMUNICATION ENGINEERING & TECHNOLOGY (IJECET)
ISSN 0976 – 6464(Print)
ISSN 0976 – 6472(Online)
Volume 4, Issue 3, May – June, 2013, pp. 132-138
© IAEME: www.iaeme.com/ijecet.asp
Journal Impact Factor (2013): 5.8896 (Calculated by GISI)
www.jifactor.com
IJECET
© I A E M E

2. International Journal of Electronics and Communication Engineering & Technology (IJECET),
ISSN 0976 – 6464(Print), ISSN 0976 – 6472(Online) Volume 4, Issue 3, May – June (2013), © IAEME
133
corner truncation [3], shorting pins on the patch [4], using stacked patches [5] etc. Among all
slot/slit loading is very simple, easy to incorporate and design. Realization of quad bands
using slit along the width and length of CRMA and conversion of quad bands to triple bands
without much changing the radiation characteristic is found to be rare in the literature.
2. DESIGNING
The proposed antenna are designed using low cost glass epoxy substrate materials of
thickness h=1.66mm, relative permittivity εr = 4.2. Figure 1 shows the geometry of (CRMA)
which is designed by using basic equations available in the literature [1]. The antenna is
designed for the resonant frequency of 4 GHz. The CRMA consists of radiating patch of
length L and width W. The feed arrangement consists of quarter wave transformer of length
Lt and width Wt which is used for better impedance matching between the microstripline
feed of length Lf , width Wf and center point (Cp) along the width of the rectangle
microstripline patch. At the tip of microstrip line feed a 50 coaxial SMA connector is used
for feeding the microwave power.

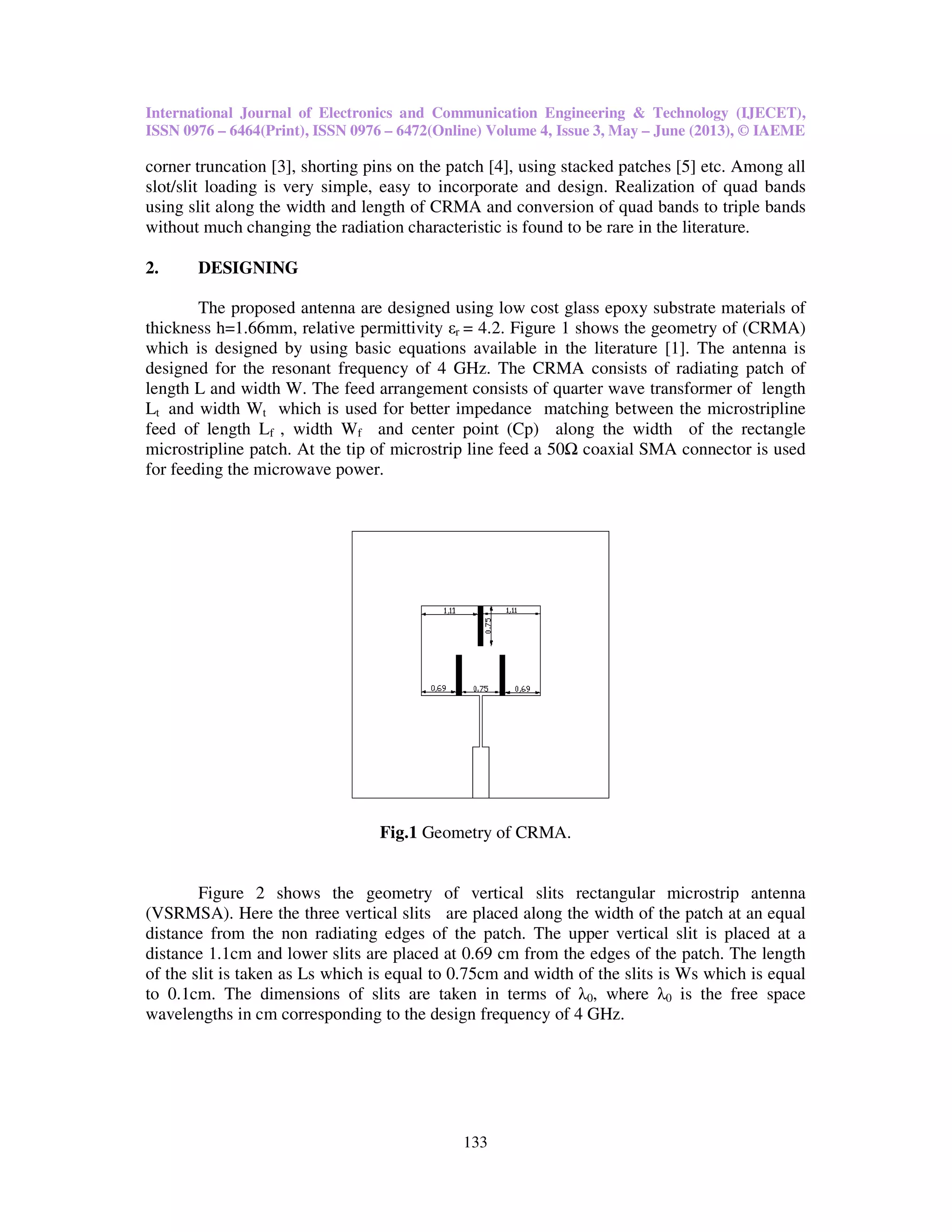

Fig.1 Geometry of CRMA.
Figure 2 shows the geometry of vertical slits rectangular microstrip antenna
(VSRMSA). Here the three vertical slits are placed along the width of the patch at an equal
distance from the non radiating edges of the patch. The upper vertical slit is placed at a
distance 1.1cm and lower slits are placed at 0.69 cm from the edges of the patch. The length
of the slit is taken as Ls which is equal to 0.75cm and width of the slits is Ws which is equal
to 0.1cm. The dimensions of slits are taken in terms of λ0, where λ0 is the free space
wavelengths in cm corresponding to the design frequency of 4 GHz.

3. International Journal of Electronics and Communication Engineering & Technology (IJECET),
ISSN 0976 – 6464(Print), ISSN 0976 – 6472(Online) Volume 4, Issue 3, May – June (2013), © IAEME
134

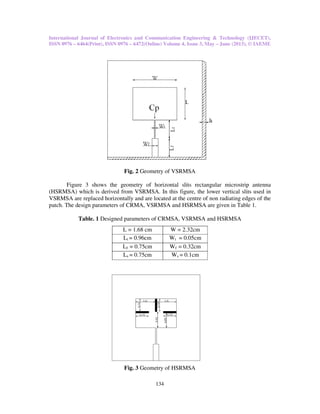

Fig. 2 Geometry of VSRMSA
