Algorithm Analysis, Table method to calculate time complexity, Big-O Notation, Omega Notation, theta notation, Heap types, Operations on Heap

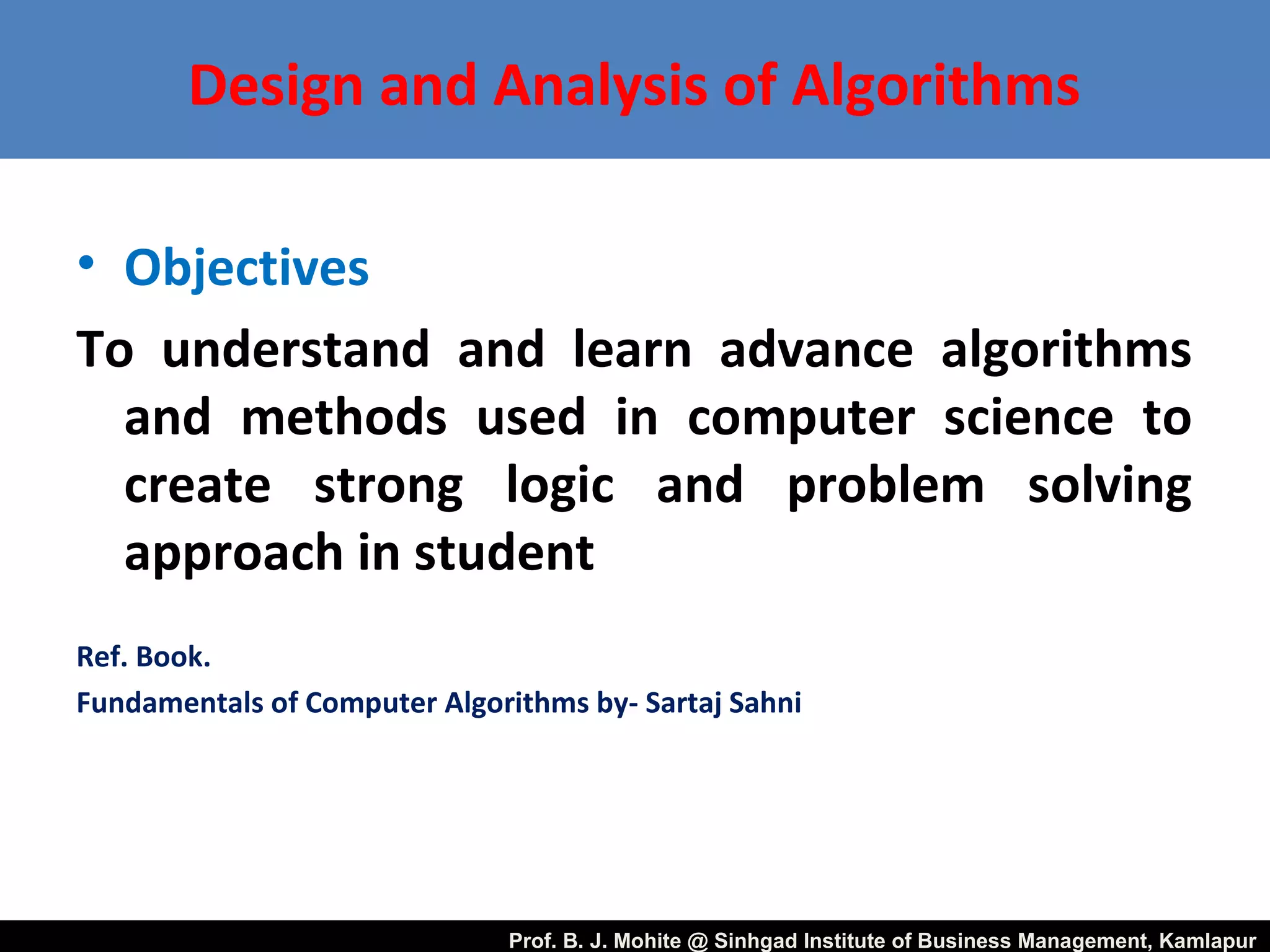

1. Design and Analysis of Algorithms
• Objectives
To understand and learn advance algorithms
and methods used in computer science to
create strong logic and problem solving
approach in student
Ref. Book.
Fundamentals of Computer Algorithms by- Sartaj Sahni
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

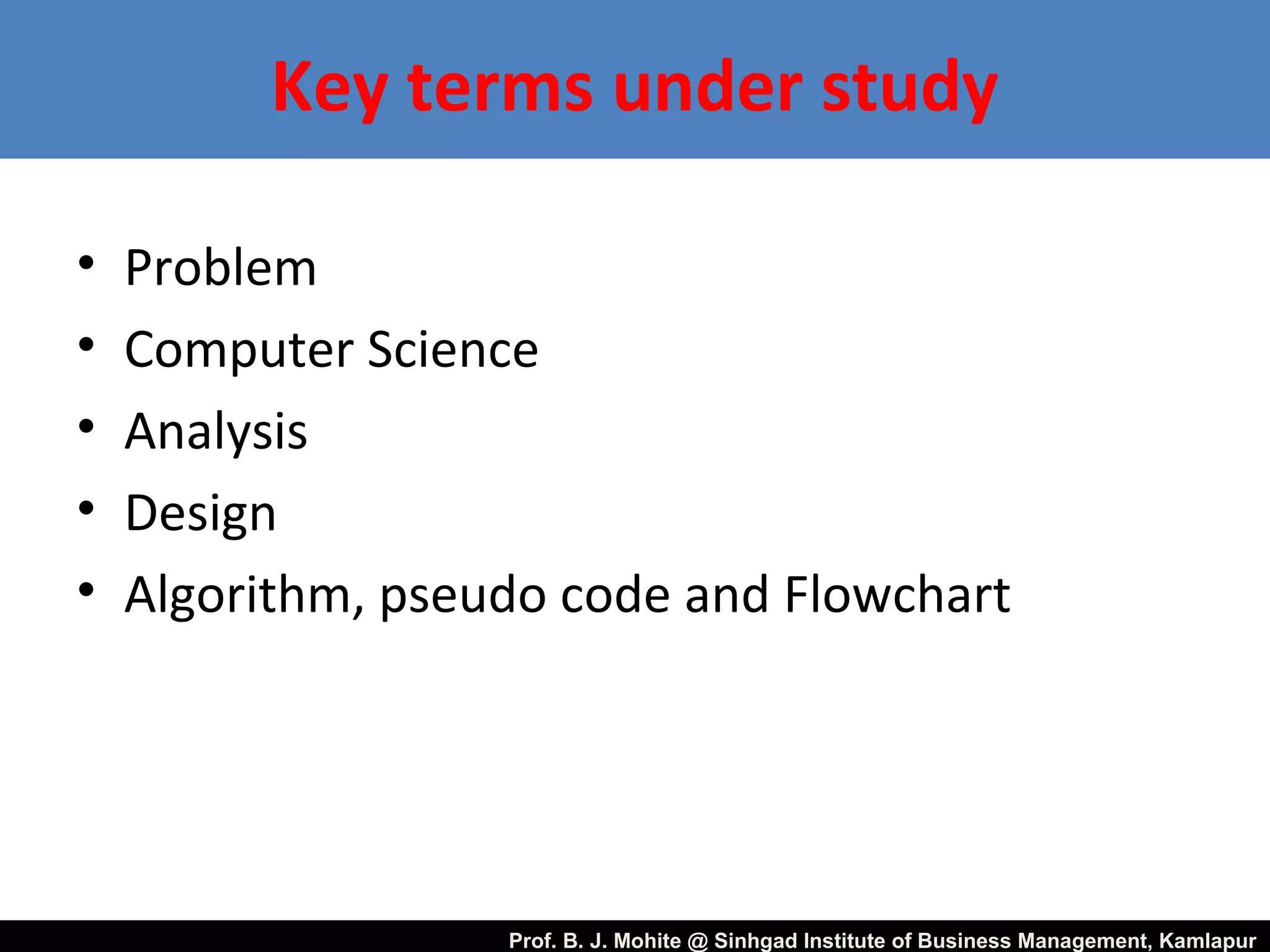

2. Key terms under study
• Problem
• Computer Science
• Analysis
• Design
• Algorithm, pseudo code and Flowchart
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

3. Algorithm ?...
• Persian author, Abu Ja’far Mohammed abn Musa al
Khowarizmi
• Definition:
• Algorithm must satisfy following criteria:
– Input: (Instance)
– Output
– Definiteness
– Finiteness
– Effectiveness
• Algorithms that are definite & effective are also called as
Computational procedures. (OS)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

4. Algorithm
• Advantages
– General Purpose tool
– Independent
– Help in programming
– Help in debugging
– Easiness
• Disadvantages
– Time
– Branching & looping
– Ambiguity
– Synonyms
– No standard method
of wording and
writing of algorithm
text.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

5. Why Algorithms ?...
The study of algorithms includes many
important and active areas of research like –
– How to devise algorithms
– How to validate algorithm
– How to analyze algorithm
– How to test a program.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

6. Pseudo code Conventions…
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

7. Algorithm Analysis
• Process of finding diff. resources required
• To make judgment of some instances like
– Does it do what we want it to do?
– Does it work correctly according to the original
specifications of the task?
– Is there documentation that describes how to use it and
how it works?
– Are procedures created in such a way that they perform
logical sub-functions?
– Is the code readable?
– What amount of computational time required?
– What amount of memory space required?
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

8. Performance Evaluation
• Priori estimates refer as Performance Analysis
• Posterior testing refer as Performance
measurement.
• RAM – PE model – instructions are executed
one after another, with no concurrent
operations.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

9. Performance Analysis
• Branch of CS called as Complexity theory
• Focus on obtaining estimates of Time and
Space required for particular operation, that
are machine independent.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

10. Space Complexity
• Of an Algo. Is the amount of memory space it
needs to-run-to completion of the process.
• Efficiency inversely proportional to memory
• Space complexity can be calculated by
considering Data & its Size and measured on
WORD
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

11. Space needed by any Algo is the Sum of -
– A fixed part that is independent of the characteristics (e.g.
number, size) of the inputs and outputs. This part typically
includes the instruction space (i.e. space for code), space for
simple variable and fixed size component variables (also called
aggregates), space for constants, and so on.
– A variable part that consists of the space needed by component
variables whose size is dependent on the particular problem
instance being solved, the space needed by referenced
variables, and the recursion stack space.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

12. The space requirements S(P) of any algorithm p
may therefore written as –
S(P)= c + Sp(instance characteristics)
Where, c is a constant and fixed variables.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

13. Example :
Algorithm abc( a, b, c)
{
return a+b+c /(a+b) +7.0;
}
Space complexity for the given algorithm = c +
Sp(instance characteristics)
= 4 + 0
= 4 word.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

14. Example :
Algorithm Sum(a,n)
{
s:=0.0;
for i:= 1 to n do
s:= s+ a[i];
return s;
}
Space complexity for the given algorithm
= c + Sp(instance characteristics)
= (3 + n) word.
(n for a[], one each for i, s and n)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

15. Example :
Algorithm RSum(a,n)
{ if n≤ 0 then return a[n];
else return RSum(a, n-1)+ a[n];
}
Space complexity for the given algorithm
= c + Sp (instance characteristics)
= 3 +3(n+1)
=3n+6
= n+2 words.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

16. Time Complexity
• Defn.
• T(P)=Compile time +Run(Execution) Time
• To calculate time complexity, only Run
(Execution) time is taken into consideration.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

17. • introduce a new variable, count, into a program by
identifying Program Step and by Increment the
value of count by appropriate amount with respect
to a statement in the original program executes.
• Program Step - A synthetically meaningful segment of a
program that requires execution time which is independent
on the instance characteristics.
Count method to calculate time complexity
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

18. • The number of steps in any program depends on the kind
of statements. For example –
– Comments count as zero steps
– An assignment statement which does not involves any calls to other
algorithm is counted as one step.
– For looping statements the step count equals to the number of step counts
assignable to goal value expression. And should be incremented by one
within a block and after completion of block.
– For conditional statements the step count should incremented by one before
condition statement.
– A return statement is counted as one step and should be write before return
statement.
Count method to calculate time complexity…
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

19. For example –
Algorithm Sum(a,n)
{ s:=0;
for i:=1 to n do
{ s:=s+a[i];
}
return s;
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

20. Algorithm Sum(a,n) // After Adding Count
{ s:=0;
count:=count+1; // for assignment statement execution
for i:=1 to n do
{
count:=count+1; //for For loop Assignment
s:=s+a[i];
count:=count+1;// for addition statement execution
}
count:=count+1; // for last time of for
count:=count+1; // for the return
return s;
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

21. Algorithm Sum(a,n) //Simplified version for algorithm Sum
{ for i:=1 to n do
{
count:=count+2;
}
count:=count+3;
}
Form above example,
Total number of program steps= 2n + 3, where n is
the loop counter.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

22. Algorithm RSum(a,n)
{
if n ≤ 0 then
return a[n];
else
return RSum(a, n-1) + a[n];
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

23. Algorithm RSum(a,n)
{
count:=count + 1; // for the if condition
if n ≤ 0 then
{ count:=count + 1;// for the return statement
return a[n];
}
else
{ count:=count + 1; // for the addition, function invoked & return
return RSum(a, n-1) + a[n];
}
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

24. Algorithm RSum(a,n) //Simplified version of algorithm RSum
with counting’s only
{
count:=count + 1;
if n ≤ 0 then
count:=count + 1;
else
count:=count + 1;
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

25. Therefore we can write,
• tRSum(n) = 2 if n=0 and
• tRSum(n) = 2+ tRSum(n-1) if n>0
= 2+ 2+ tRSum(n – 2)
= 2(2)+ tRSum(n – 2)
=3 (2) + tRSum(n – 3)
:
:
= n(2) + tRSum(0)
=2n+2
So, the step count for RSum algorithm is 2n+2.Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

26. Table method to calculate time complexity
• build a table in which we list the total number of steps
contributed by each statement. This table contents three
columns –
– Steps per execution (s/e)- contents count value by which count
increases after execution of that statement.
– Frequency – is the value indicating total number of times
statement executes
– Total steps – can be obtained by combining s/e and frequency.
Total step count can be calculated by adding total steps
contribution values.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

27. Statement s/e Frequency Total
steps
Algorithm Sum(a,n)
{
s:=0;
for i:=1 to n do
s:=s+a[i];
return s;
}
0
0
1
1
1
1
0
1
1
1
n+1
n
1
1
0
0
1
n+1
n
1
0
Total step count = 2n+3
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

28. Asymptotic Notations
• Asymptotic Notations are the terminology,
used to make meaningful statements about
Performance Analysis of an algorithm. (i.e.
calculating the time & space complexity)
• Different Asymptotic notations used for
Performance Analysis are –
– Big ‘Oh’ notation (O)
– Omega notation ( Ω)
– Theta notation (Θ)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

29. Big ‘Oh’ notation (O)
• Used in Computer Science to describe the
performance or complexity of an algorithm.
• Describes the worst-case scenario, and can be
used to describe the maximum execution time
(asymptotic upper bounds) required or the
space used (e.g. in memory or on disk) by an
algorithm.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

30. Definition:
The function f (n) = O(g(n)) ( read as ‘f of n is
said to be big oh of g of n’) if and only if there
exists a real, positive constant C and a positive
integer n0 such that,
f (n) ≤ C*g(n) for all n≥n0
Where, n is number of inputs, g(n) is function of
the size of the input data, and f(n) is the
computing time of some algorithm.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

31. Examples – (‘=’ symbol readed as ‘is’ instead of ‘equal’)
• The function 3n+2 = O(n) as 3n+2 ≤ 4n for all n≥2
• The function 3n+3 = O(n) as 3n+3 ≤ 4n for all n≥3
• The function 100n+6 = O(n) as 100n+6 ≤ 101n for all n≥6
• The function 10n2
+4n+2 = O(n2
) as 10n2
+4n+2 ≤ 11n2
for all n≥5
• The function 1000n2
+100n-6 = O(n2
) as 1000n2
+100n-6 ≤
1001n2
for all n≥100
• The function 6*2n
+n2
= O(2n
) as 6*2n
+n2
≤ 7*2n
for all n≥4
• The function 3n+3 = O(n2
) as 3n+3 ≤ 3n2
for all n≥2
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

32. • Consider the job offers from two companies. The first
company offer contract that will double the salary every
year. The second company offers you a contract that
gives a raise of Rs. 1000 per year. This scenario can be
represented with Big-O notation as –
• For first company, New salary = Salary X 2n
(where n is
total service years)
Which can be denoted with Big-O notation as O(2n
)
• For second company, New salary = Salary +1000n
(where n is total service years)
Which can be denoted with Big-O notation as O(n)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

33. O(1)
Describes an algorithm that will always execute
in the same time (or space) regardless of the
size of the input data set i.e. a computing time
is a constant time.
int IsFirstElementNull(char String[])
{ if(strings[0] == ‘0’)
{ return 1;
}
return 0;
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

34. O(N): is called linear time,
Describe an algorithm whose performance will grow
linearly and in direct proportion to the size of the
input data set.
int ContainsValue(char String[], int no, char ch)
{ for( i = 0; i < no; i++)
{ if(string[i] == ch)
{ return 1;
}
}
return 0;
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

35. O(Nk
): (k fixed) refers to polynomial time; (if k=2, it is called
quadratic time, k=3, it is called cubic time),
• which represents an algorithm whose performance is directly
proportional to the square of the size of the input data set.
• This is common with algorithms that involve nested iterations over
the data set. Deeper nested iterations will result in O(N3
), O(N4
) etc.
bool ContainsDuplicates(String[] strings)
{ for(int i = 0; i < strings.Length; i++)
{ for(int j = 0; j < strings.Length; j++)
{ if(i == j) // Don't compare with self
continue;
if(strings[i] == strings[j])
return true;
}
return false;
}
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

36. O(2N
) : is called exponential time,
• Denotes an algorithm whose growth will
double with each additional element in the
input data set.
• The execution time of an O(2N
) function will
quickly become very large.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

37. Omega notation (Ω)
• used in computer science to describe the
performance or complexity of an algorithm.
• specifically describes the best-case scenario,
and can be used to describe the minimum
execution time (asymptotic lower bounds)
required or the space used (e.g. in memory or
on disk) by an algorithm.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

38. Definition:
The function f (n) = Ω(g(n)) ( read as ‘f of n is
said to be Omega of g of n’) if and only if there
exists a real, positive constant C and a positive
integer n0 such that,
f (n) ≥ C*g(n) for all n≥ n0
Here, n0 must be greater than 0.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

39. Examples –
• The function 3n+2 = Ω(n) as 3n+2 ≥ 3n for all n≥1
• The function 3n+3 = Ω(n) as 3n+3 ≥ 3n for all n≥1
• The function 100n+6 = Ω(n) as 100n+6 ≥ 100n for all n≥1
• The function 10n2
+4n+2 = Ω(n2
) as 10n2
+4n+2 ≥ n2
for all n≥1
• The function 6*2n
+n2
= Ω(2n
) as 6*2n
+n2
≥ 2n
for all n≥1
• The function 3n+3 = Ω(1)
• The function 10n2
+4n+2 = Ω(n)
• The function 10n2
+4n+2 = Ω(1)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

40. Theta notation (Θ)
• Used in computer science to describe the
performance or complexity of an algorithm.
• Theta specifically describes the average-case
scenario, and can be used to describe the average
execution time required or the space used by an
algorithm.
• A description of a function in terms of Θ notation
usually only provides an tight bound on the growth
rate of the function.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

41. Definition:
• The function f (n) = Θ(g(n)) ( read as ‘f of n is
said to be Theta of g of n’) if and only if there
exists a positive constants C1, C2, and a positive
integer n0 such that,
C1*g(n) ≤ f (n) ≤ C2*g(n) for all n≥n0
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

42. Examples –
• The function 3n+2 = Θ(n) as
3n+2 ≥ 3n for all n≥2 and
3n+2 ≤4n for all n≥2
So, c1=3, c2=4 and n0=2.
• The function 3n+3 = Θ(n)
• The function 10n2
+4n+2 = Θ (n2
)
• The function 6 * 2n
+n2
= Θ(2n
)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

43. Determining asymptotic complexity
• The asymptotic complexity (i.e. the complexity
in terms of O, Ω, Θ)
• can be determine by first determine the
asymptotic complexity of each statement in
the algorithm and then adding these
complexities one can determine asymptotic
complexity of an algorithm.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

44. Example -1: Calculate Asymptotic complexity of
Algorithm to calculate sum of array element A of size n
Algorithm Sum(a,n)
{ s:=0;
for i:=1 to n do
s:=s+a[i];
return s;
}
Asymptotic complexity of Algorithm Sum
Statement
s/e Frequency Total steps
Algorithm Sum(a,n)
{
s:=0;
for i:=1 to n do
s:=s+a[i];
return s;
}
0
0
1
1
1
1
0
1
1
1
n+1
n
1
1
Θ(0)
Θ(0)
Θ(1)
Θ(n)
Θ(n)
Θ(1)
Θ(0)
Total Asymptotic
complexity =
=Θ(2n+2)
= Θ(n)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

45. Practical Complexity:
• The time complexity of an algorithm is generally some
functions that depend upon instance characteristics.
• This function is very useful in determining how the time
requirements vary as the instance characteristics changes.
• The complexity function also used to compare two algorithms
that performs same task.
• Let us suppose P & Q are two algorithms used to perform
same task. Algorithm P has complexity Θ(n) and algorithm Q
has complexity Θ(n2
). Here one can declare that algorithm P is
faster than algorithm Q for sufficiently large n.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

46. Following example shows you function values and how
various functions grows with values of n.
log n n n log n n2
n3
2n
0
1
2
3
4
5
1
2
4
8
16
32
0
2
8
24
64
160
1
4
16
64
256
1024
1
8
64
512
4096
32768
2
4
16
256
65536
4294967296
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

47. Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

48. Performance Measurement:
• Is concern with obtaining the space and time
requirements of a particular algorithm. These quantities
depend on the compiler and options used as well as on
a computer on which the algorithm is run.
• To obtain computing or run time of a program we need
clocking procedures that returns the time values in
milliseconds.
• We can calculate time complexity with the help of C
programming language also. The time events are stores
in standard library (time.h) & accessed by statement
#include<time.h>.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

49. There are two different methods for
timing events in C.
Method –I Method – II
Start timing Start=Clock(); Start=time(NULL);
Stop timing Stop=Clock(); Stop=time(NULL);
Time returned clock_t time_t
Result in
seconds
Duration=((double)(Stop –
Start)) / CLOCKS_PER_SEC
Duration=(double) difftime
(Stop, Start)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

50. Heaps
• example of Priority queue
• supports the operations of search min or max, insert, and delete
min or max element from a queue
• Heap is viewed as a nearly complete binary tree.
• In Heap, circle represents a node and
• the value within a circle is the value stored at that node,
• the value above the node is the corresponding index at the array
and
• the lines represents relationships between two nodes.
• The node having index value 1 is called root node or parent node
and
• other nodes connected to that node are called children’s.
• In heap Parents are always to the left of their children
1
16
2
14
3
10
6
9
7
3
4
8
5
7
8
2
9
4
10
1
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

51. Heaps types
• Max heap:
A[Parent(i)] ≥ A[i]
• Min heap
A[Parent(i)] ≤ A[i]
• The main drawback of heap tree is
– extra time for creation of heap and
– too much movement of data.
– So it is not preferable for small list of data.
– For space requirement point of view it has no need
of extra space except temporary variable.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

52. Operations on Heap: Insert
• To insert an element into the heap, one add it
‘at the bottom’ of the heap and then
compares it with its parent, grandparent,
great-grandparent, and so on, until it is less
than or equal to the one of these values.
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

53. Algorithm Insert(a,n) //Inserts a[n] into the heap which is stored at a[1: n-1]
{ i:=n;
item:=a[n];
while((i>1) and (a[(i/2)]< item)) do
{
a[i]:=a[(i/2)];
i:=[i/2];
}
a[i] :=item;
}
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

54. • Hipify the array element {100, 119, 118, 171,
112, 151, and 132) with suitable justifications
and diagrams.
• Insert three nodes having values 127,197,717
and Hapify with necessary adjustments
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

55. Sets
• Set is a collection of distinguishable objects, called as members or
elements and listed inside braces.
• If set S contain numbers as 1, 2, and 3 can be written as
S={1,2,3}.
• Two sets A and B are equal, written as A=B if they contain the
same elements e.g. {1, 2, 3} = {3, 2, 1} ={2, 1, 3} etc.
• If an object x is an member of set S, we write x S (read ‘x is∈
member of S’ or ‘x is in S’)
• If an object x is not member of set S, we write x S. If all the∉
elements of a set A are contained in a set B, then we can write A
B and read as A is subset of B.⊆
• Some special notations used in sets are –
– ∅ denotes the empty set, that is, the set containing no members.
– Z denotes a set of integers, that is, the set {…….,-2, -1, 0, 1, 2, …..}
– R denotes the set of real numbers
– N denotes the set of natural numbers, that is, the set {0, 1, 2……} (some
author starts the natural number with 1 instead of 0)
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

56. Disjoint Set
• Disjoint sets are the sets which does not have any
common elements.
• E.g. if set Si and Sj, i ≠ j, are two sets, then there exist
no elements in both Si and Sj.
• Suppose, when n=10, the elements can be partitioned
into three disjoint sets, S1={1,7,8,6}, S2={2, 5, 10} and
S3={3, 4, 9}. Possible representation of these can be
shown as –
• Each set is represented as a tree, which links the nodes
from children to the parent, rather than linking from
parent to the children
1
7 68
5
2 10
3
4 9
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

57. Operations perform on Disjoint sets: Union
• If S1 and S2 are two disjoint sets, then their
union S1 U S2 = all elements in S1 and S2, thus
S1US2= {1, 7, 8, 9, 5, 2, 10}. This can be
represented by making one of the tree as a
sub-tree of the other, as shown bellow
To obtain the union of two disjoint sets, set the
parent field as one of the roots of other root
1
7 98
5
2 10
1
7 98 5
2 10
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur

58. Operations perform on Disjoint sets: Find(i)
• Given the element i, find the set containing i. Thus 7 is in set
S1, 9 is in set S3 etc.
• The searching procedure of element within a set can be
accomplished easily if we keep a pointer to the root of the
tree representing that set.
• If each root has a pointer to the set name, then to determine
which set an element is currently in we follow the parent link
to the root of its tree and use the pointer to the set name, the
data representation for set S1, S2 and S3
• can be shown as
Prof. B. J. Mohite @ Sinhgad Institute of Business Management, Kamlapur
