About Delta Industrial Automation
Who We Are

3. 2

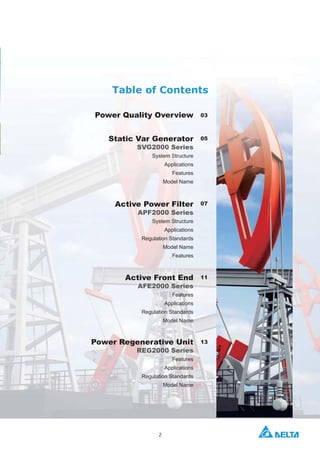

Table of Contents
Power Regenerative Unit
REG2000 Series
Model Name
13
11Active Front End
AFE2000 Series
Model Name
03
05
07
Power Quality Overview
Static Var Generator
SVG2000 Series
Model Name
Active Power Filter
APF2000 Series
Model Name

4. 33
Power Grider
SVG2000
APF2000
AFE2000 REG2000
▲
Applications
Power
Factor
Load
Balance
Harmonics
Suppression
Power
Regeneration
A new solution to traditional
phase-leading capacitors
Infrastructure
Commercial and home power
distribution systems
Metallurgy and
petrochemicals
Mechanical industries
Transportation
Telecommunication, medical
and construction industries
▲
Applications
▲
Applications
Large-inertia loads applications
4-quadrant loads applications
Quick braking applications
Long energy feedback time applications
Power quality improvement
▲
Applications
Large-inertia load applications
4-quadrant load applications
Quick braking applications
Long-term energy feedback
applications
Power Quality Overview
Static Var Generator
SVG2000

5. 44
Crane
XF
3F
2F
1F
B1
FactoryFactory
AC Motor Drive
AC Servo Drive
Woodworking
AC Motor Drive
Packaging
AC Motor Drive
AC Servo Drive
Elevator
AC Motor Drive
Product / Function
SVG2000
APF2000
AFE2000
REG2000
Harmonics Suppression
Improved harmonics ensure operation
stability and prevent system errors and alarms
Power Regeneration
Power regeneration converts regenerative
energy into usable power, and maximizes
energy usage utility
Power Factor
Improved power factor helps save
on utility company penalties and
equipment costs
Load Balance
Improved load balance ensures
system reliability, and prevents
overheating and equipment
damage
Power Factor
Correction
Harmonics
Suppression
Reactive Power
Compensation
Load Balance
Power
Regeneration
Power regeneration
Active Front End
AFE2000
Power Regenerative Unit
REG2000
Active
Power Filter
APF2000

6. 55
System Structure
Applications

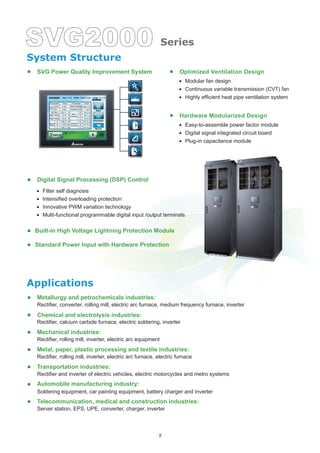

SVG Power Quality Improvement System
Built-in High Voltage Lightning Protection Module
Metallurgy and petrochemicals industries:
Chemical and electrolysis industries:
Mechanical industries:
Metal, paper, plastic processing and textile industries:
Transportation industries:
Automobile manufacturing industry:
Telecommunication, medical and construction industries:
Standard Power Input with Hardware Protection
Optimized Ventilation Design
Digital Signal Processing (DSP) Control
Hardware Modularized Design
Series
433 60 72.3
0.99
0.99
537.3
21.6
23.8
158.6
1.587
158.7
380.1
7.5
82.3
82.1
81.8
311.5
312.2
311.4

7. 66

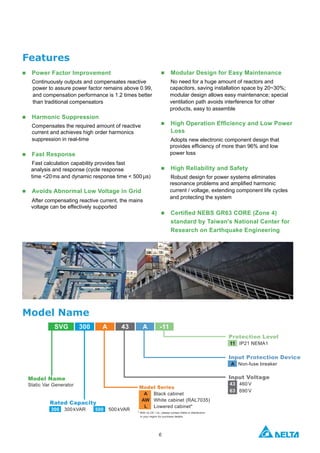

Power Factor Improvement
Continuously outputs and compensates reactive
power to assure power factor remains above 0.99,
and compensation performance is 1.2 times better
than traditional compensators
Harmonic Suppression
Compensates the required amount of reactive
current and achieves high order harmonics
suppression in real-time
Fast Response
Fast calculation capability provides fast
analysis and response (cycle response
time <20ms and dynamic response time < 500 s)
Avoids Abnormal Low Voltage in Grid
After compensating reactive current, the mains
voltage can be effectively supported
Modular Design for Easy Maintenance
No need for a huge amount of reactors and
capacitors, saving installation space by 20~30%;
modular design allows easy maintenance; special
ventilation path avoids interference for other
products, easy to assemble
Loss
Adopts new electronic component design that
power loss
High Reliability and Safety
Robust design for power systems eliminates
current / voltage, extending component life cycles
and protecting the system
Features
Research on Earthquake Engineering
SVG 300 A 43 A -11
Input Protection Device
A Non-fuse breaker
Protection Level
11 IP21 NEMA1
Input Voltage
Rated Capacity
Model Name
Model Name
Model Series
A Black cabinet
AW White cabinet (RAL7035)
L Lowered cabinet*
* With no CE / UL, please contact Delta or distributors
in your region for purchase details.

8. 77
System Structure
Series
Grid Current Compensating Current Load Current
Flexible Control Panel
Monitoring, control, and management via
Ethernet
Digital Signal Processing (DSP) Control
Built-in High Voltage Lightning
Protection Module
Standard Power Input with Hardware
Protection*
Optimized Ventilation Design
Modularized Hardware Design

9. 88
Applications

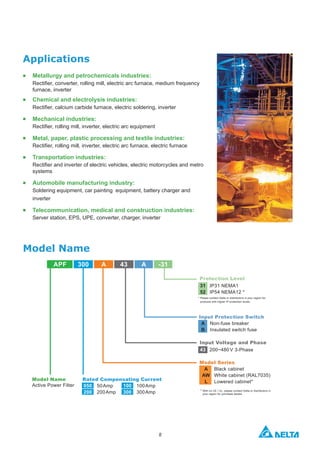

Metallurgy and petrochemicals industries:
furnace, inverter
Chemical and electrolysis industries:
Mechanical industries:
Metal, paper, plastic processing and textile industries:
Transportation industries:
systems
Automobile manufacturing industry:
Soldering equipment, car painting equipment, battery charger and
inverter
Telecommunication, medical and construction industries:
Server station, EPS, UPE, converter, charger, inverter
Input Protection Switch
A Non-fuse breaker
Insulated switch fuse
Rated Compensating Current
50Amp 100Amp
200Amp 300Amp
Model Name
APF 300 A 43 A -31
Protection Level
IP31 NEMA1
52 IP54 NEMA12 *
* Please contact Delta or distributors in your region for
products with higher IP protection levels.
Input Voltage and Phase
Model Name
Active Power Filter
Model Series
A Black cabinet
AW White cabinet (RAL7035)
L Lowered cabinet*
* With no CE / UL, please contact Delta or distributors in
your region for purchase details.

10. 99

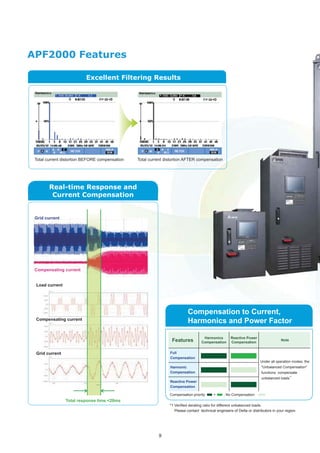

APF2000 Features
Excellent Filtering Results
Total current distortion BEFORE compensation Total current distortion AFTER compensation
Grid current
Compensating current
Load current
Compensating current
Grid current
Real-time Response and
Current Compensation
Compensation to Current,
Harmonics and Power Factor
Features
Harmonics
Compensation
Reactive Power
Compensation
Note
Full
Compensation
Under all operation modes, the
"Unbalanced Compensation"
functions compensate
unbalanced loads*1
Harmonic
Compensation
Reactive Power
Compensation
Compensation priority > ; No Compensation
Please contact technical engineers of Delta or distributors in your region.

11. 1010

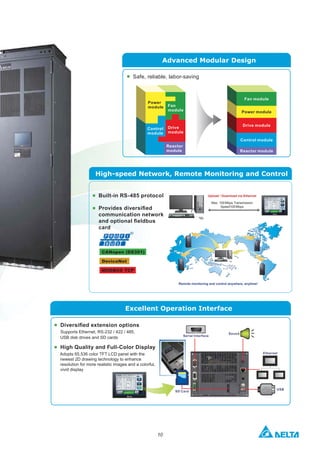

Advanced Modular Design
Excellent Operation Interface
High-speed Network, Remote Monitoring and Control
communication network
card
Supports Ethernet, RS-232 / 422 / 485,
USB disk drives and SD cards
newest 2D drawing technology to enhance
resolution for more realistic images and a colorful,
vivid display
Safe, reliable, labor-saving
Upload / Download via Ethernet
Max. 100Mbps Transmission
Speed100Mbps
Remote monitoring and control anywhere, anytime!
CANopen (DS301)
MODBUS TCP
DeviceNet

12. 1111
Applications
Features
resistor to reduce heat energy
supports 4-quadrant operation with variable frequencies and
adjustable system
Large-inertia loads: centrifuge equipment, dewatering machines and roving machines
4-quadrant loads: elevators, cranes and pumpjacks (oil extraction machines)
Quick braking: machine tools, bag making machines, auto storage and retrieval systems, and lathes
Long-term energy feedback: wind power, water power, steel printing and paper making machinery
(winding equipment)
Improves power quality for industries such as semiconductor and panel industries
Series
Replace traditional brake resistors with the AFE2000 to convert regenerative
energy (excess heat) into reusable electricity
Regenerative energy = excess heatRegenerative energy = reusable electricity
Lights
Air Conditioners
AC Motor
DriveMains
power
Reactor
Drive
Regenerative
energy
AFE2000
Reduces Harmonics
Improves Power Factor
Power Regeneration
Traditional Brake
Resistor
Dissipate the regenerative
energy as heat
Braking Unit
Drive
Regenerative
energy
Mains
power
Regenerative energy
Power Consumed

13. 1212

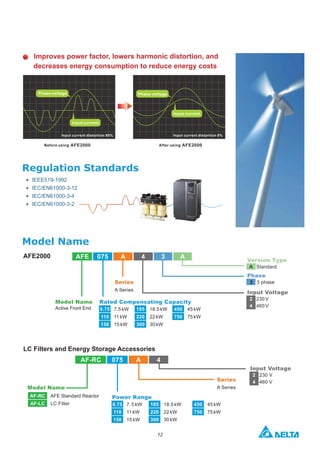

Improves power factor, lowers harmonic distortion, and
decreases energy consumption to reduce energy costs
After using AFE2000
Phase voltage
Input current
Input current distortion 80% Input current distortion 5%
Phase voltage
Input current
AFE2000Before using
Regulation Standards
Model Name
AF-RC 075 A 4
Input Voltage
2
Series
A Series
AFE 075 A 4 3 A
Phase
3 phase
Version Type
Standard
Input Voltage
2
Series
A Series
Rated Compensating Capacity
7.5 kW 18.5 kW 45 kW
11 kW 22 kW 75 kW
15 kW 30 kW
Model Name
Active Front End
LC Filters and Energy Storage Accessories
Model Name
AFE Standard Reactor
LC Filter
Power Range
7. 5 kW 18.5 kW 45 kW
11 kW 22 kW 75 kW
15 kW 30 kW

14. 1313

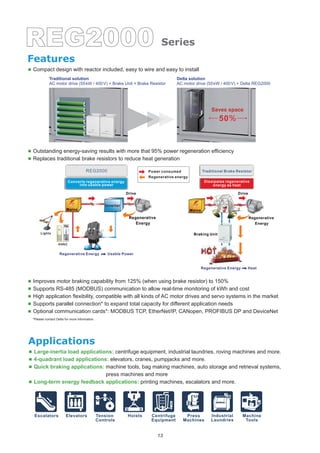

Features
Series
50
Escalators Elevators HoistsTension
Controls
Centrifuge
Equipment
Press
Machines
Industrial
Laundries
Machine
Tools
Applications
Large-inertia load applications:
4-quadrant load applications:
Quick braking applications:
Long-term energy feedback applications:
HVAC
Lights
Power consumed
Regenerative energy
Traditional Brake Resistor
Dissipates regenerative
energy as heat
Braking Unit
Mains
Drive
Regenerative
Energy
Inverter
Converts regenerative energy
into usable power
Regenerative Energy Usable Power
REG2000
Regenerative
Energy
Drive
Mains
Regenerative Energy Heat
Traditional solution Delta solution
Saves space

15. 1414
Application Example
Hoist
REG2000
Brake Resistor
Performance using Delta's REG2000:
32%
NTD 5461
2 s 13 5 s
0 7 s
2 s
0 7 s
2.6 kW
3.3 kW
1.3 kW
2.6 kW
2.1 kW
-0.3 kW
-1.2 kW
-2.1 kW
Lift
Lower
Power
Consumption
Time
Time
Frequency
60Hz
42 4 s
-1 kW
13 5 s10.0 s
Model Name
REG 075 A 43 A 21
Installation Method
A Wall mount
Protection Level
21 IP20 NAMA1
Input Voltage
Product Series
A Series
Power Range
7.5 kW 18.5 kW 37 kW
11 kW 22 kW 45 kW
15 kW 30 kW 55 kW
Model Name
Power Regenerative Unit
REG EMI Filter REG EMI Filter

16. Delta_IA-PQ_All_C_EN_20160307
Industrial Automation Headquarters
Delta Electronics, Inc.
Taoyuan Technology Center
No.18, Xinglong Rd., Taoyuan City,
Taoyuan County 33068, Taiwan
TEL: 886-3-362-6301 / FAX: 886-3-371-6301
Asia
Delta Electronics (Jiangsu) Ltd.
Wujiang Plant 3
1688 Jiangxing East Road,
Wujiang Economic Development Zone
Wujiang City, Jiang Su Province,
People's Republic of China (Post code: 215200)
TEL: 86-512-6340-3008 / FAX: 86-769-6340-7290
Delta Greentech (China) Co., Ltd.
238 Min-Xia Road, Pudong District,
ShangHai, P.R.C.
Post code : 201209
TEL: 86-21-58635678 / FAX: 86-21-58630003
Delta Electronics (Japan), Inc.
2-1-14 Minato-ku Shibadaimon,
Tokyo 105-0012, Japan
TEL: 81-3-5733-1111 / FAX: 81-3-5733-1211
Delta Electronics (Korea), Inc.
1511, Byucksan Digital Valley 6-cha, Gasan-dong,
Geumcheon-gu, Seoul, Korea, 153-704
TEL: 82-2-515-5303 / FAX: 82-2-515-5302
Delta Electronics Int’l (S) Pte Ltd
4 Kaki Bukit Ave 1, #05-05, Singapore 417939
TEL: 65-6747-5155 / FAX: 65-6744-9228
Delta Electronics (India) Pvt. Ltd.
Plot No 43 Sector 35, HSIIDC
Gurgaon, PIN 122001, Haryana, India
TEL : 91-124-4874900 / FAX : 91-124-4874945
Americas
Delta Products Corporation (USA)
P.O. Box 12173,5101 Davis Drive,
Research Triangle Park, NC 27709, U.S.A.
TEL: 1-919-767-3800 / FAX: 1-919-767-8080
Delta Greentech (Brasil) S.A
01332-000-São Paulo-SP-Brazil
TEL: +55 11 3568-3855 / FAX: +55 11 3568-3865
Europe
Delta Electronics (Netherlands) B.V.
De Witbogt 20, 5652 AG Eindhoven, The Netherlands
TEL:+31 (0)40-8003800 / FAX: +31 (0)40-8003898
*We reserve the right to change the information in this catalogue without prior notice.
National New Zealand Power Quality Partner
NZIND Ltd.
T: 027 278 7801
E: gustav@nzind.co.nz
W: http://nzind.co.nz
New Zealand
