Deep neural networks have revolutionized the data analytics scene by improving results in several and diverse benchmarks with the same recipe: learning feature representations from data. These achievements have raised the interest across multiple scientific fields, especially in those where large amounts of data and computation are available. This change of paradigm in data analytics has several ethical and economic implications that are driving large investments, political debates and sounding press coverage under the generic label of artificial intelligence (AI). This talk will present the fundamentals of deep learning through the classic example of image classification, and point at how the same principal has been adopted for several tasks. Finally, some of the forthcoming potentials and risks for AI will be pointed.

1. bit.ly/commsenselab
@DocXavi
Deep Learning
Representations for All
(a.k.a. the AI hype)
Xavier Giro-i-Nieto
@DocXavi
xavier.giro@upc.edu

2. bit.ly/commsenselab
@DocXavi
2
Xavier Giro-i-Nieto
Associate Professor at Universitat Politècnica de Catalunya (UPC)
Hola
IDEAI Center for
Intelligent Data Science
& Artificial Intelligence

3. bit.ly/commsenselab
@DocXavi
3
● 11 faculty members
● 12 Phd students
Research Group & Centers
https://imatge.upc.edu/
https://www.bsc.es/
● National computation center #1
● Supercomputer MareNostrum
● Emerging Technologies for
Artificial Intelligence Group,
directed by Prof. Jordi Torres.
https://ideai.upc.edu/
● Center funded in 2017
● 60 researchers
IDEAI (Intelligent Data Science and
Artificial Intelligence)

4. bit.ly/commsenselab
@DocXavi
4
Why am I here ?
Jitendra Malik, “What lead computer vision to deep learning ?” ACM Communications 2017.

5. bit.ly/commsenselab
@DocXavi
5
Why am I here ?
Jitendra Malik, “What lead computer vision to deep learning ?” ACM Communications 2017.

6. bit.ly/commsenselab
@DocXavi
6

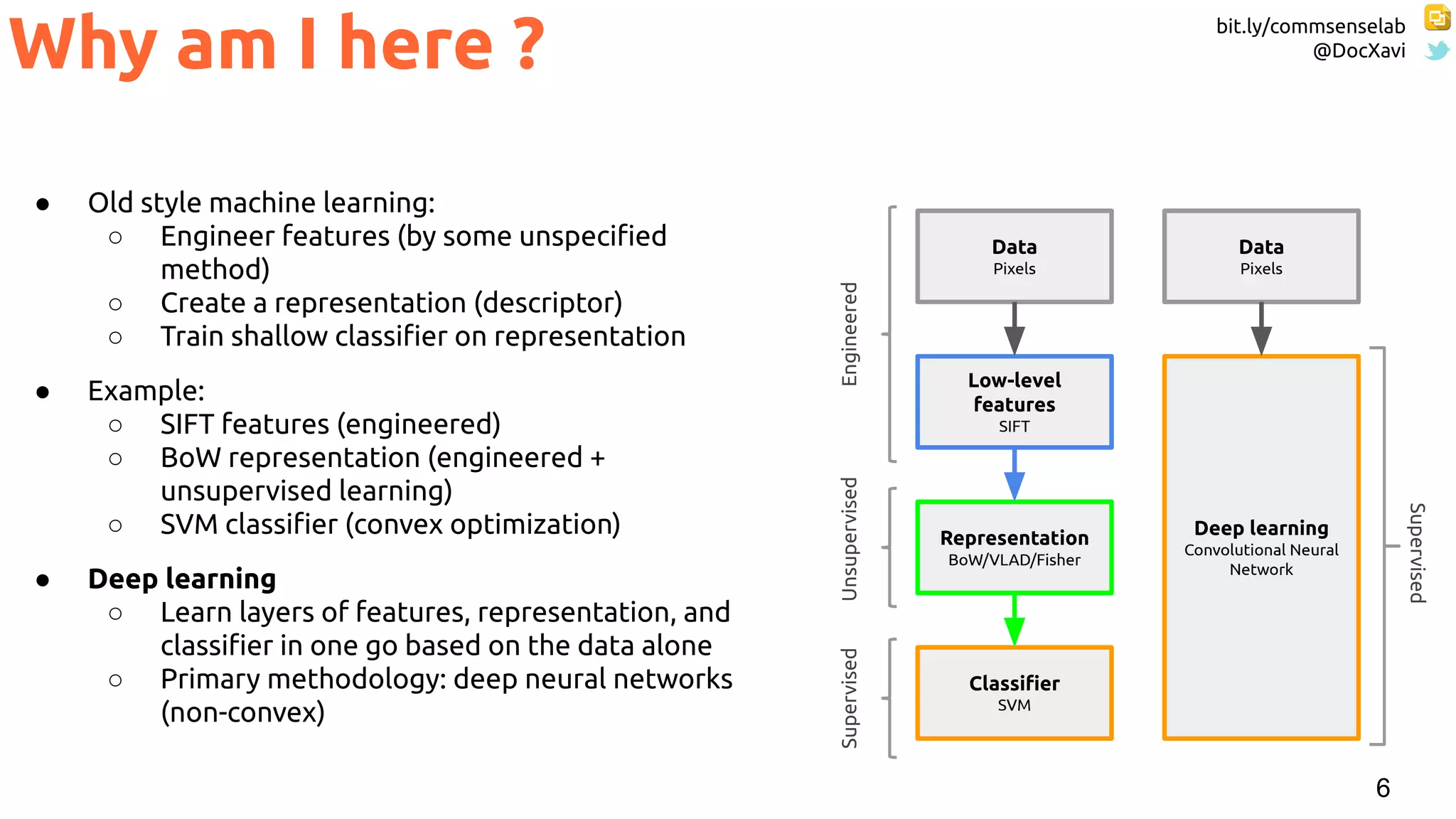

Why am I here ?
● Old style machine learning:
○ Engineer features (by some unspecified
method)
○ Create a representation (descriptor)
○ Train shallow classifier on representation
● Example:
○ SIFT features (engineered)
○ BoW representation (engineered +
unsupervised learning)
○ SVM classifier (convex optimization)
● Deep learning
○ Learn layers of features, representation, and
classifier in one go based on the data alone
○ Primary methodology: deep neural networks
(non-convex)
Data
Pixels
Deep learning
Convolutional Neural
Network
Data
Pixels
Low-level
features
SIFT
Representation
BoW/VLAD/Fisher
Classifier
SVM
EngineeredUnsupervisedSupervised
Supervised

7. bit.ly/commsenselab
@DocXavi
7

8. bit.ly/commsenselab
@DocXavi
8

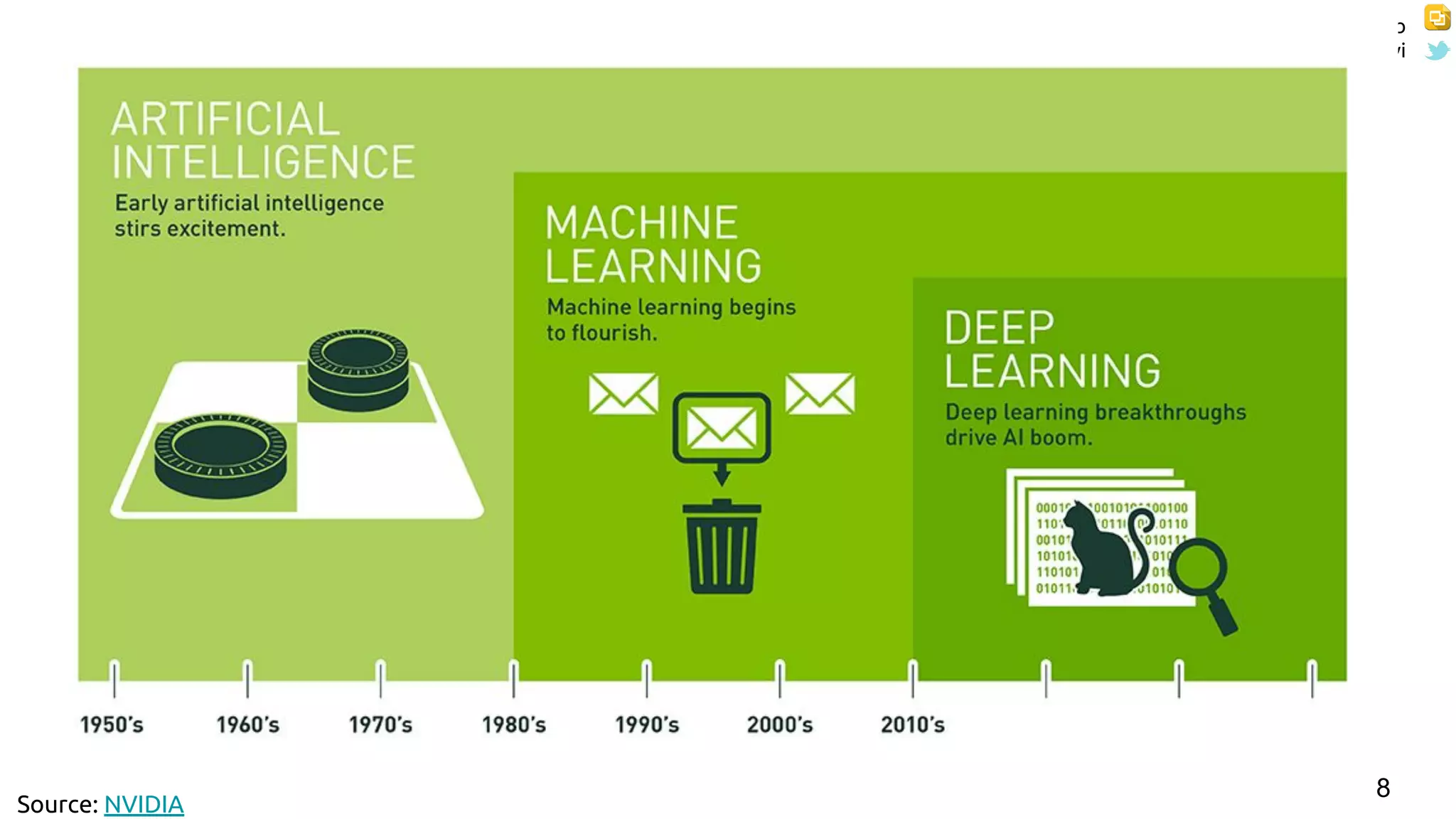

Source: NVIDIA

9. bit.ly/commsenselab
@DocXavi
9

10. bit.ly/commsenselab
@DocXavi
10

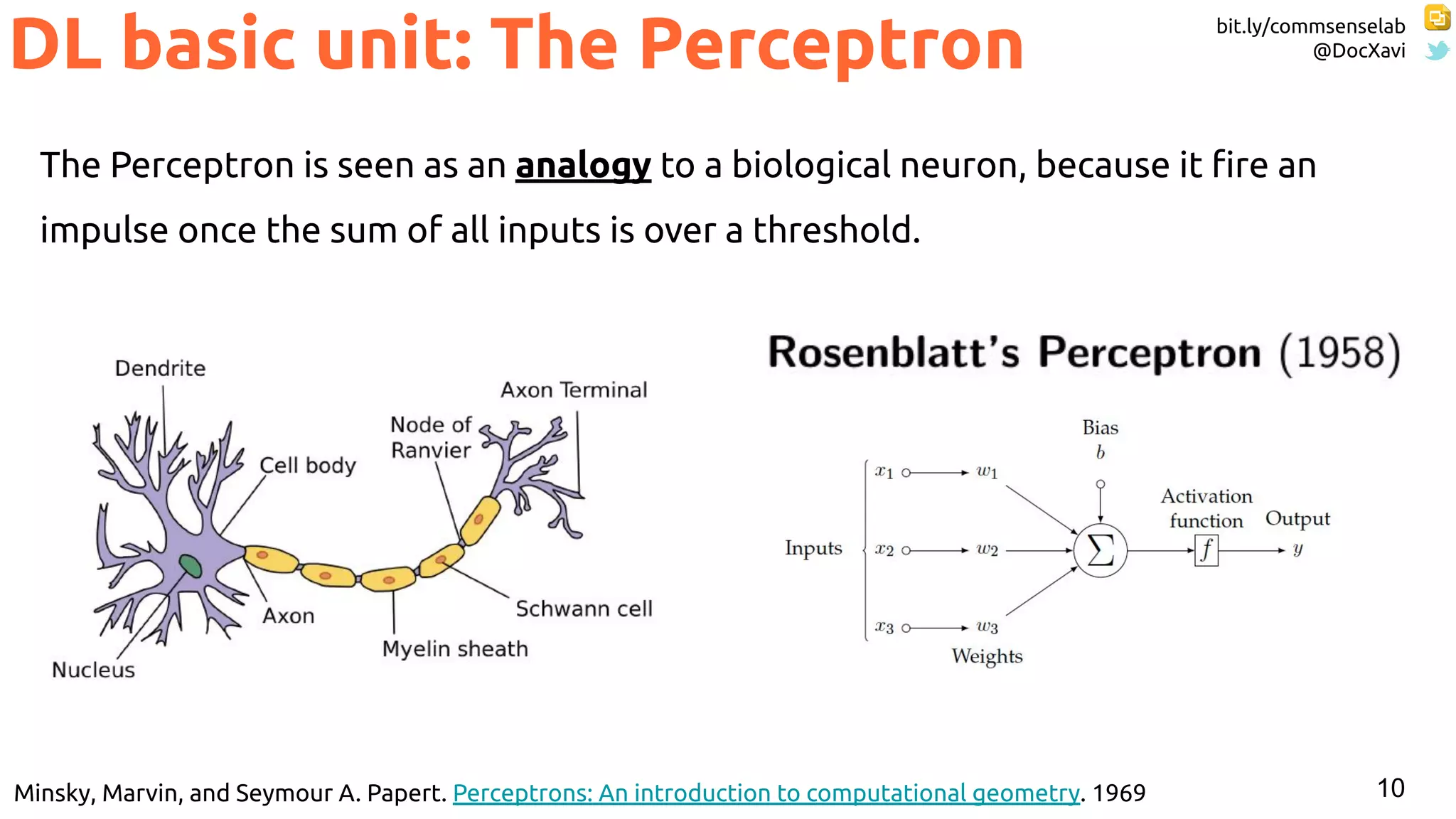

DL basic unit: The Perceptron
The Perceptron is seen as an analogy to a biological neuron, because it fire an
impulse once the sum of all inputs is over a threshold.
Minsky, Marvin, and Seymour A. Papert. Perceptrons: An introduction to computational geometry. 1969

11. bit.ly/commsenselab
@DocXavi
11

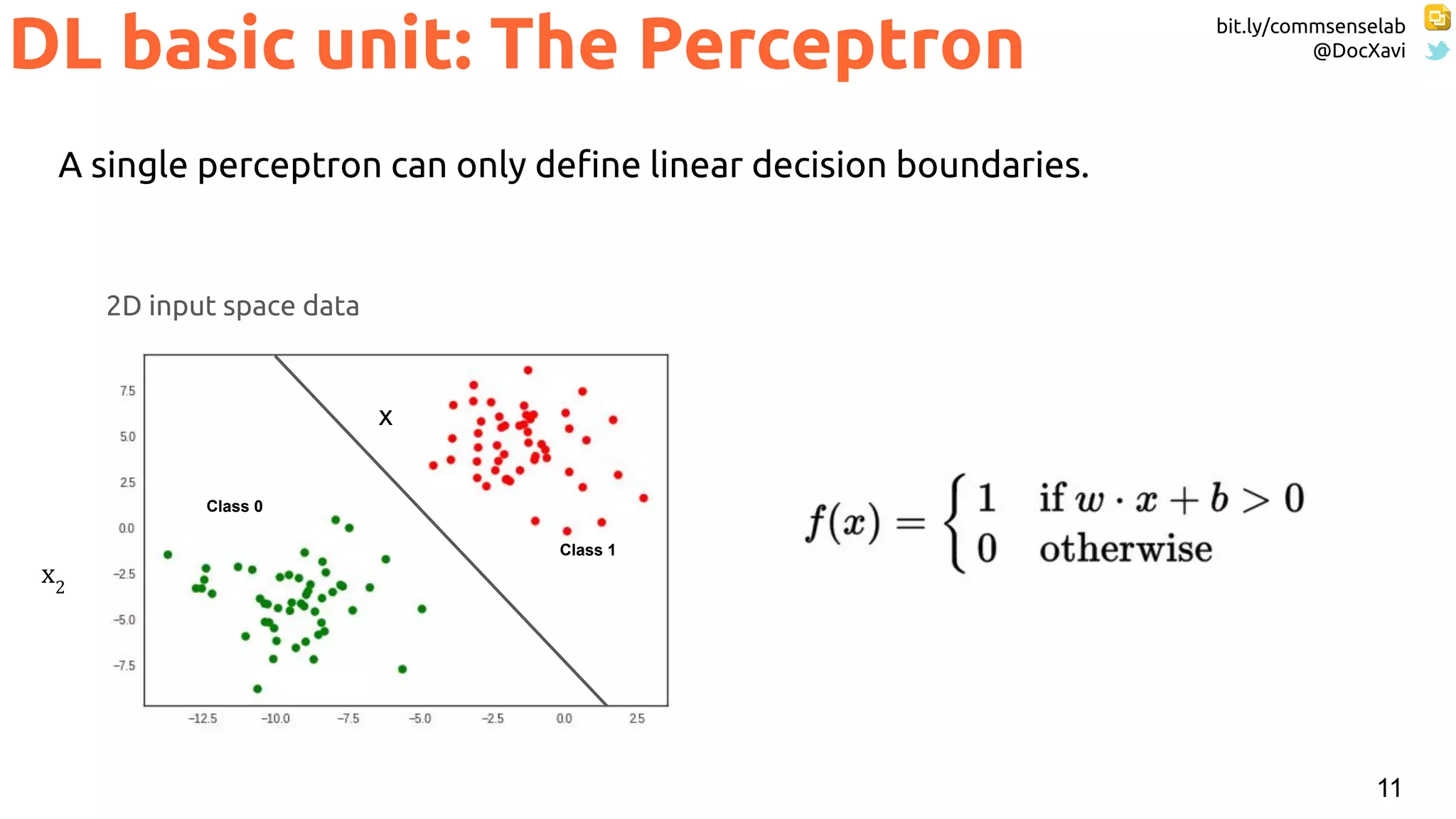

DL basic unit: The Perceptron
A single perceptron can only define linear decision boundaries.
x2
Class 0
Class 1
2D input space data
x

12. bit.ly/commsenselab
@DocXavi
12

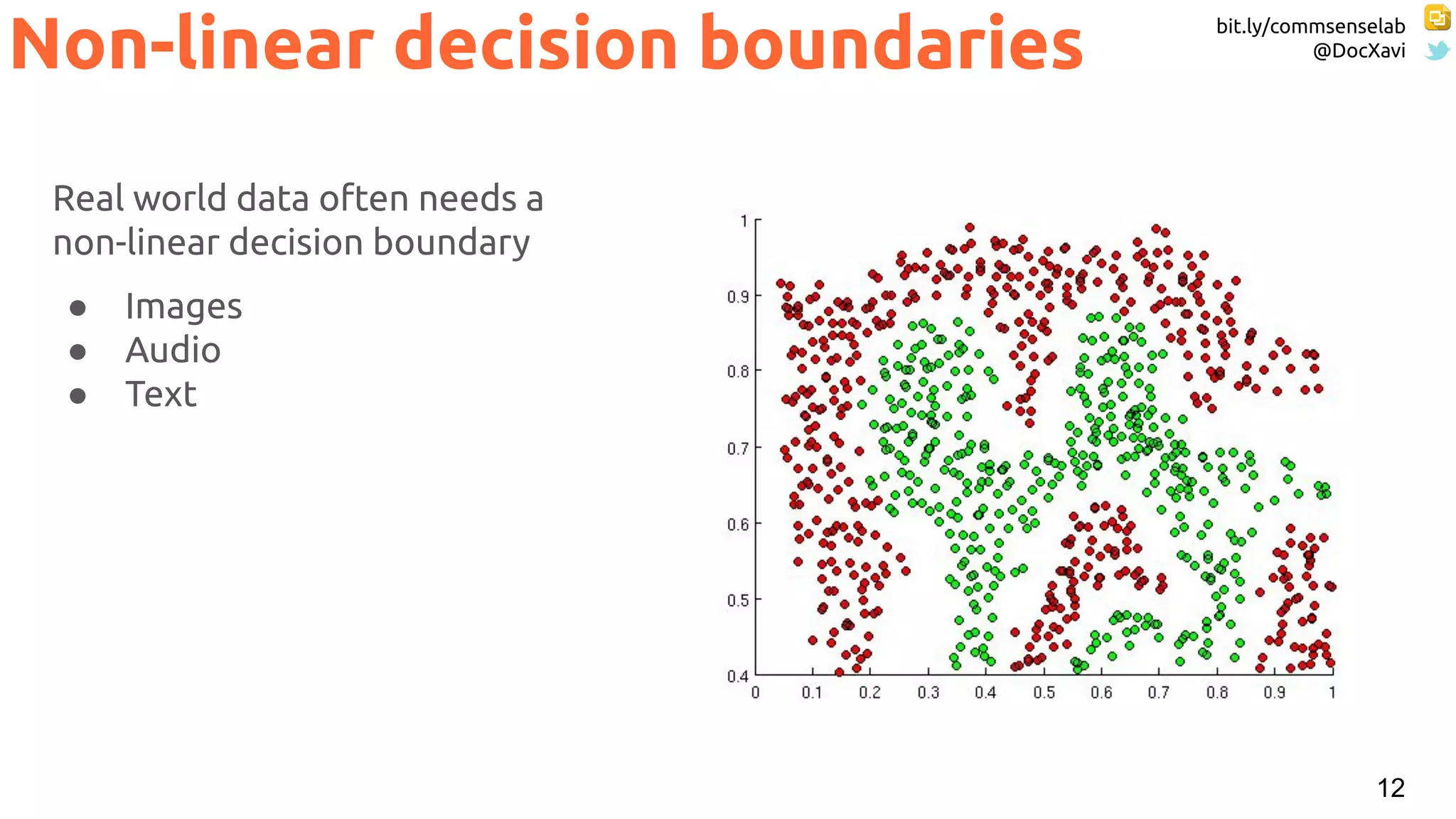

Non-linear decision boundaries
Real world data often needs a
non-linear decision boundary
● Images
● Audio
● Text

13. bit.ly/commsenselab
@DocXavi
13

14. bit.ly/commsenselab
@DocXavi
14

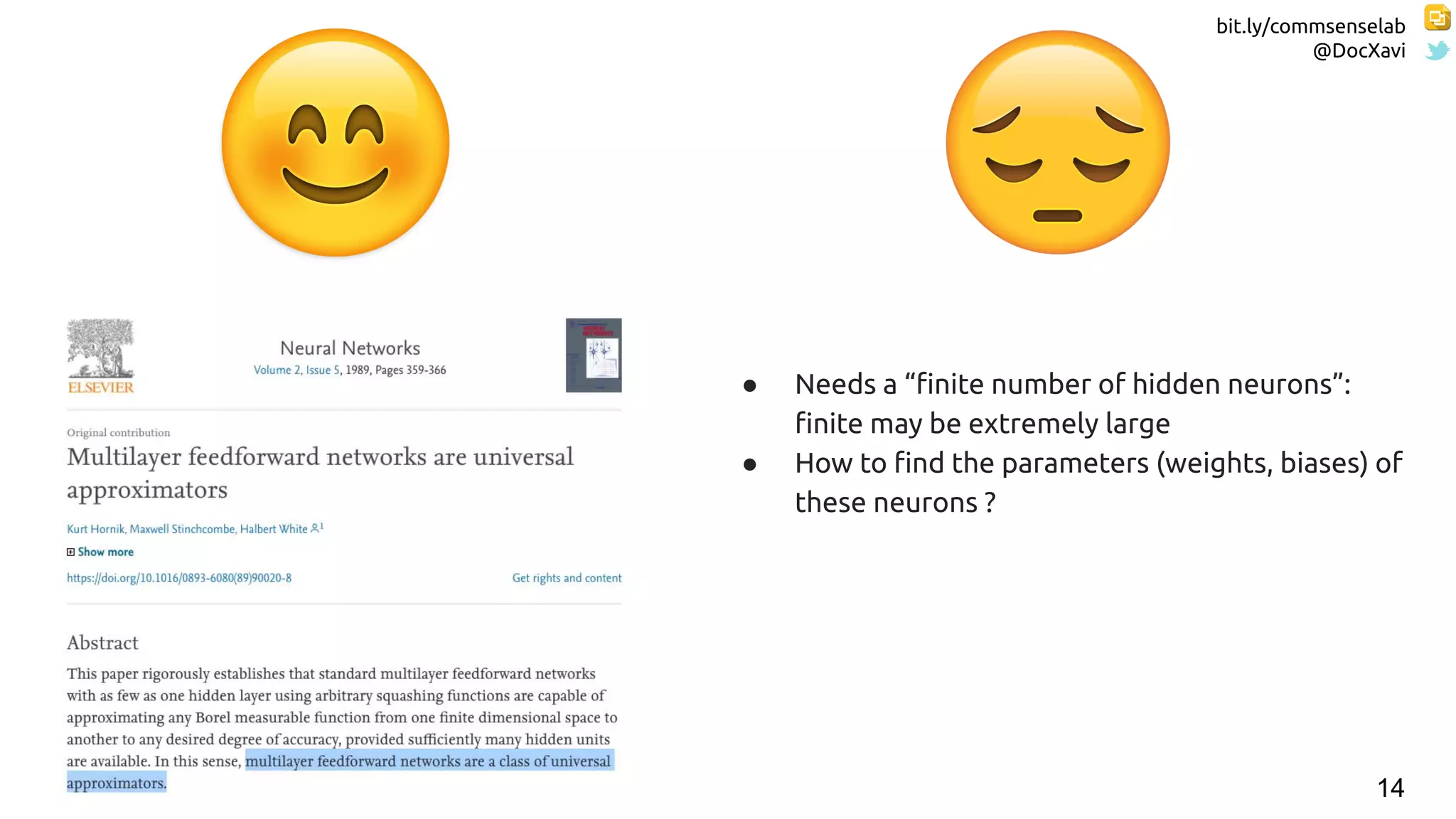

● Needs a “finite number of hidden neurons”:
finite may be extremely large
● How to find the parameters (weights, biases) of
these neurons ?

15. bit.ly/commsenselab
@DocXavi
15

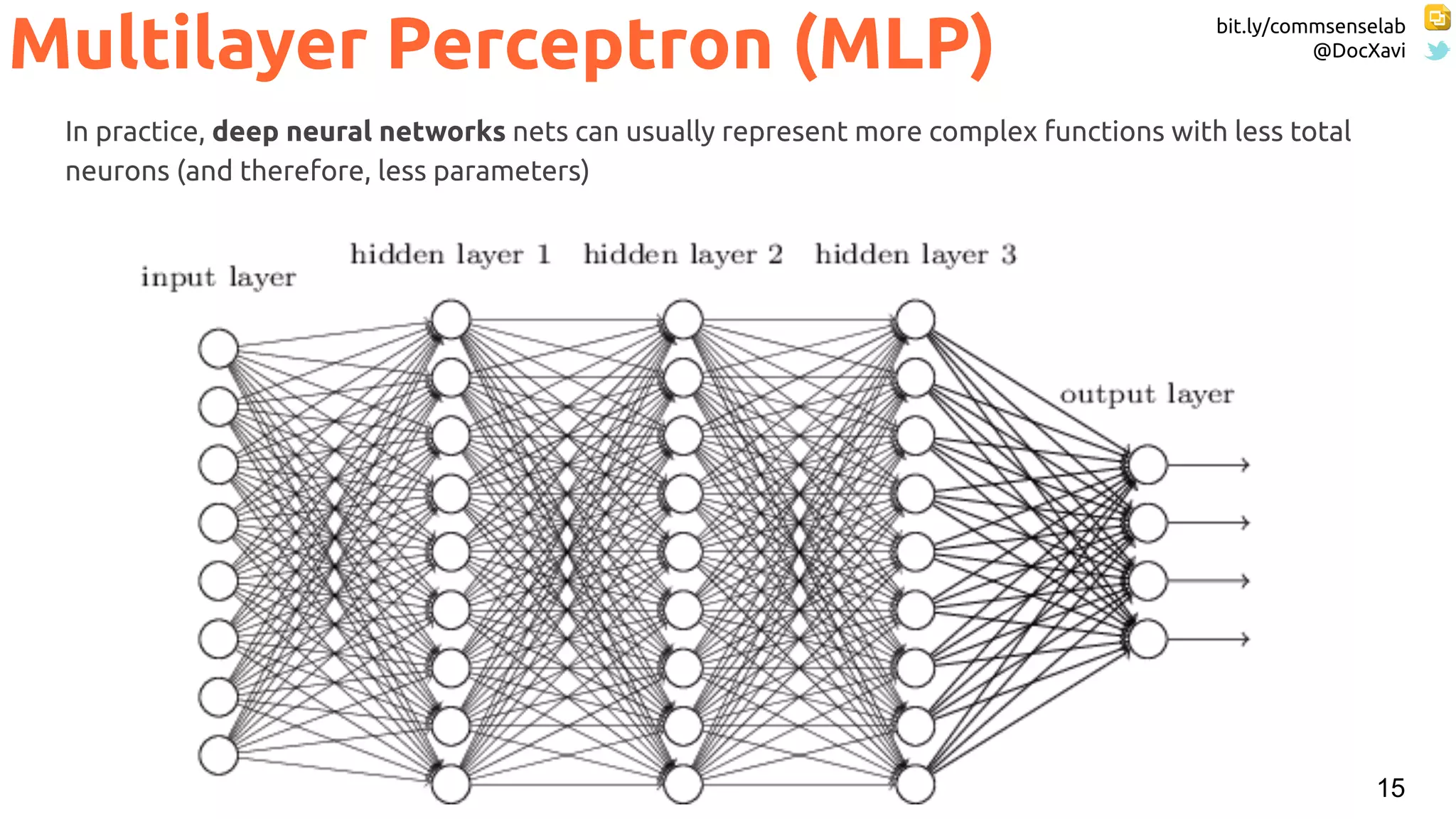

Multilayer Perceptron (MLP)
In practice, deep neural networks nets can usually represent more complex functions with less total
neurons (and therefore, less parameters)

16. bit.ly/commsenselab
@DocXavi
16

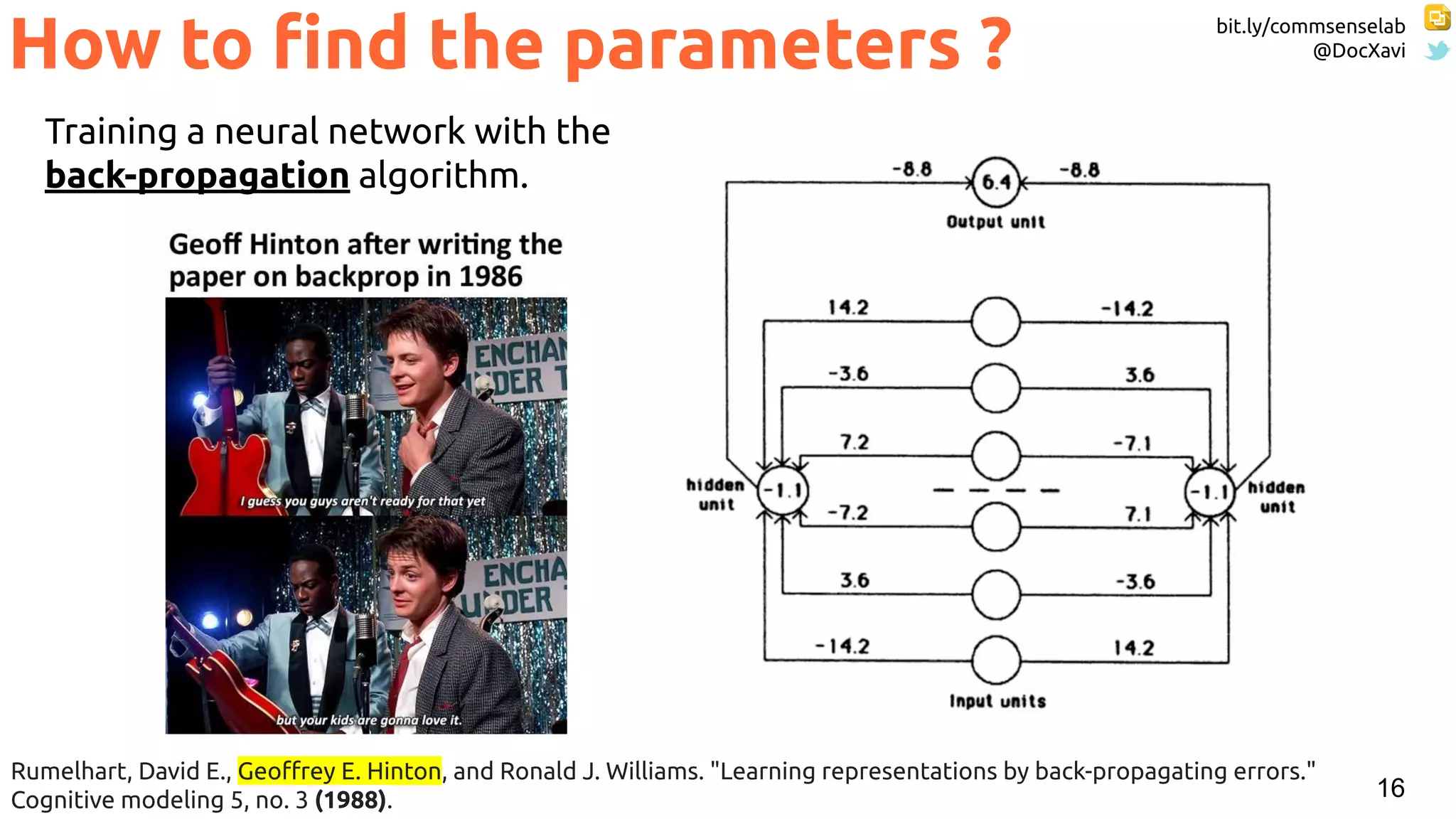

How to find the parameters ?
Rumelhart, David E., Geoffrey E. Hinton, and Ronald J. Williams. "Learning representations by back-propagating errors."
Cognitive modeling 5, no. 3 (1988).
Training a neural network with the
back-propagation algorithm.

17. bit.ly/commsenselab
@DocXavi
17

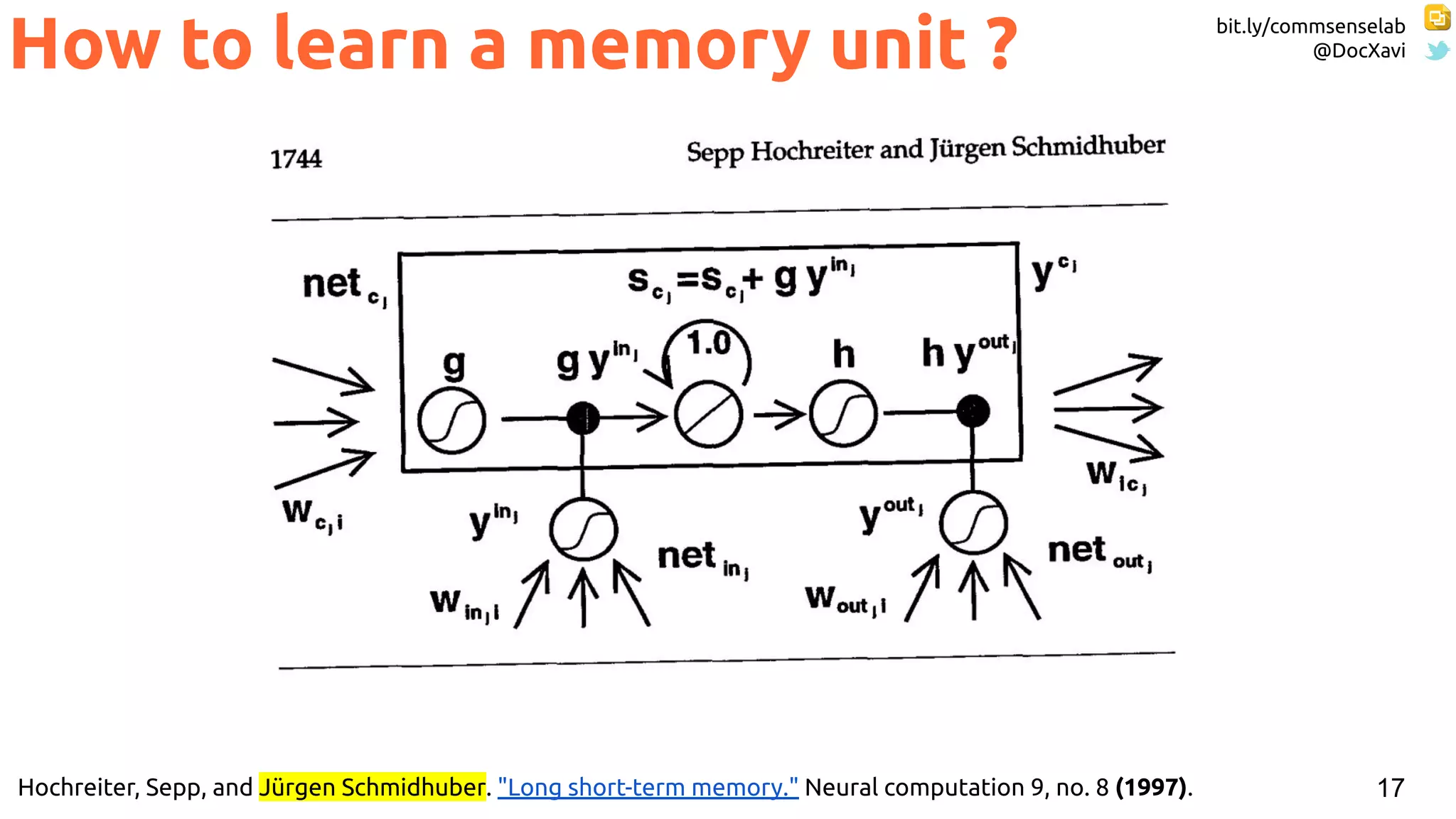

How to learn a memory unit ?
Hochreiter, Sepp, and Jürgen Schmidhuber. "Long short-term memory." Neural computation 9, no. 8 (1997).

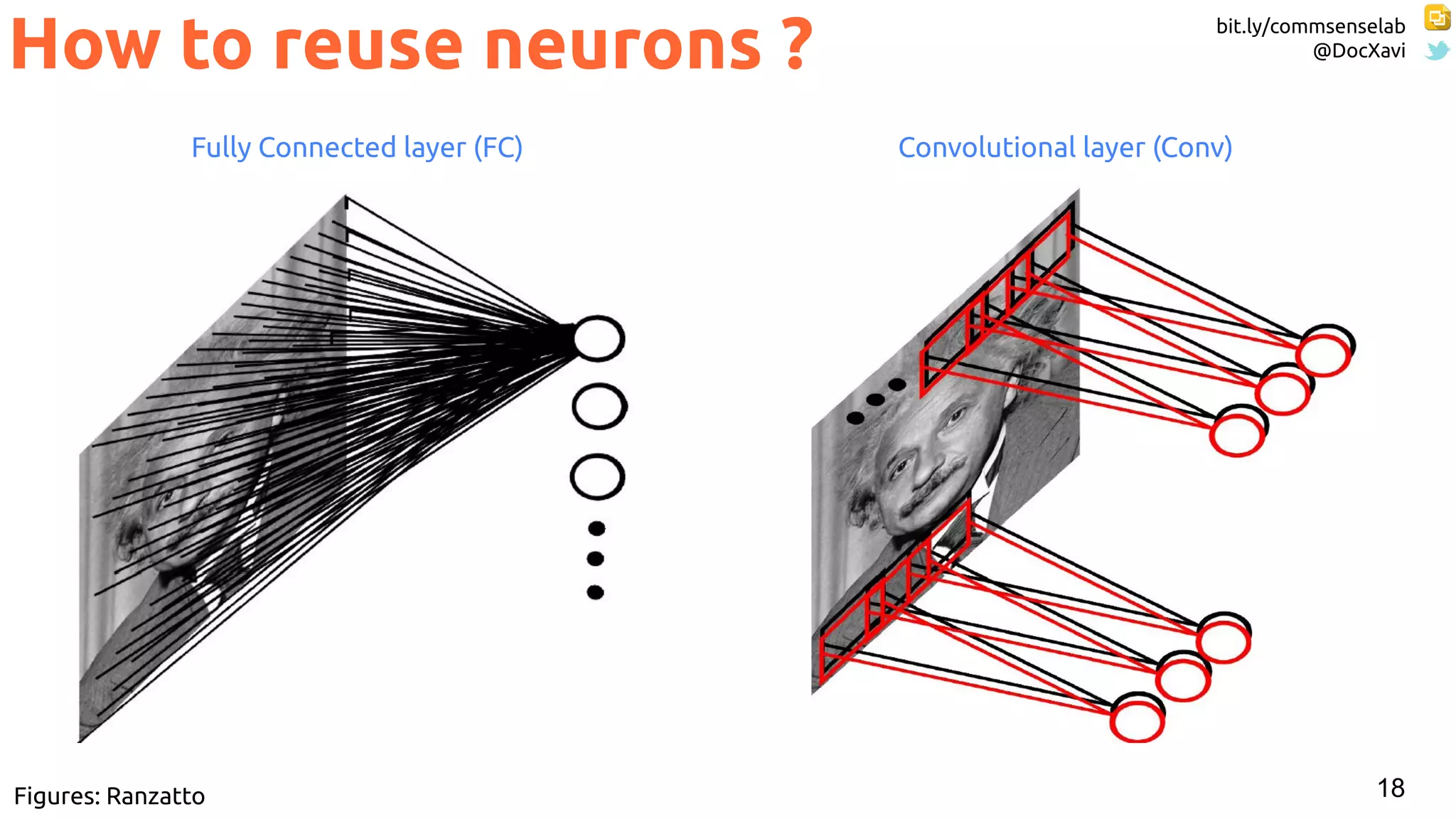

18. bit.ly/commsenselab
@DocXavi
18
How to reuse neurons ?
Fully Connected layer (FC) Convolutional layer (Conv)
Figures: Ranzatto

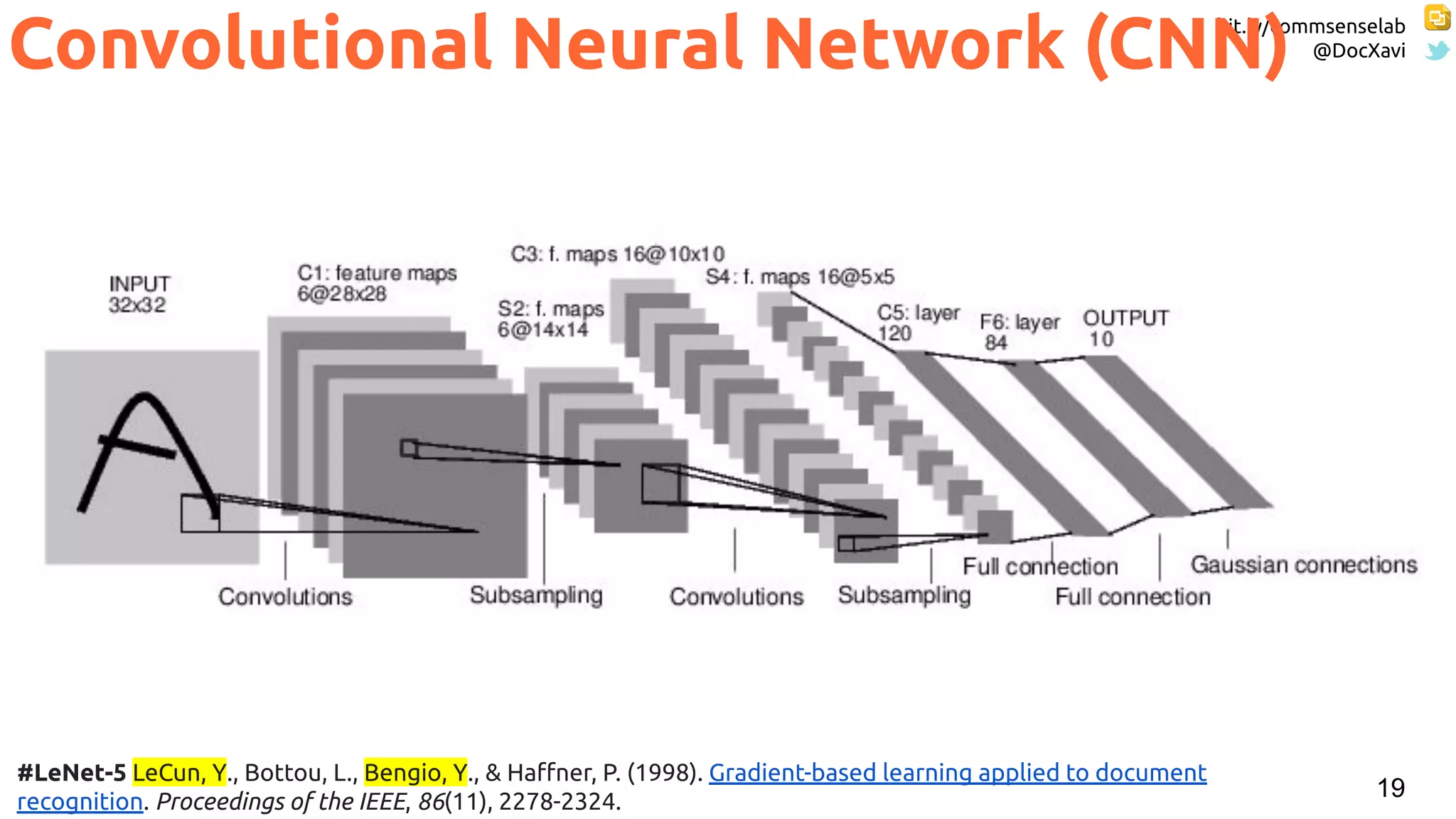

19. bit.ly/commsenselab
@DocXavi
19
Convolutional Neural Network (CNN)
#LeNet-5 LeCun, Y., Bottou, L., Bengio, Y., & Haffner, P. (1998). Gradient-based learning applied to document
recognition. Proceedings of the IEEE, 86(11), 2278-2324.

20. bit.ly/commsenselab
@DocXavi
20
Many other researchers have also
contrinbuted to the field as, for
example, those pointed out by LSTM
author Jürgen Schmidhuber in “Deep
Learning Conspirancy”.

21. bit.ly/commsenselab
@DocXavi
21

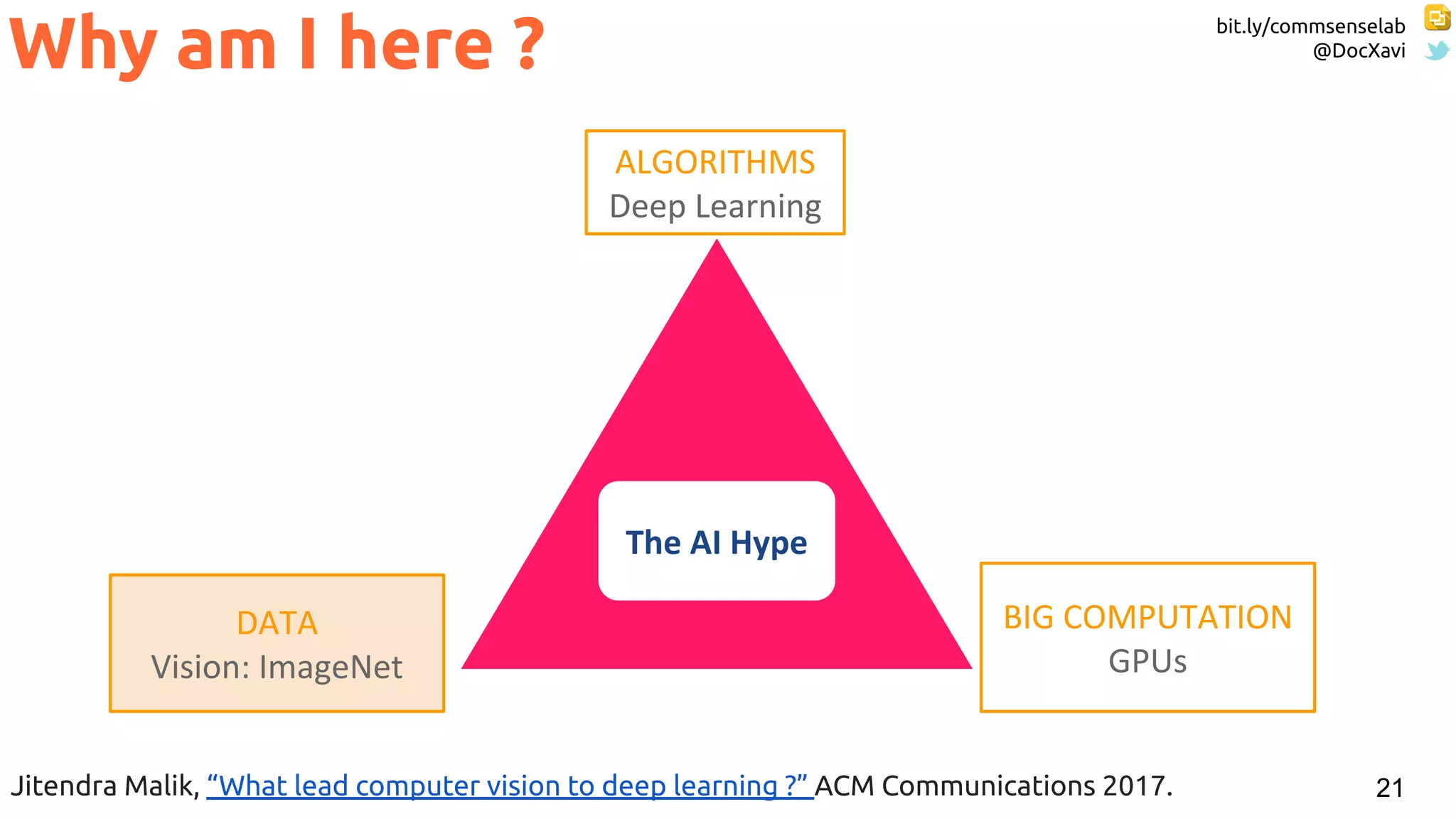

Why am I here ?
Jitendra Malik, “What lead computer vision to deep learning ?” ACM Communications 2017.

22. bit.ly/commsenselab
@DocXavi
22

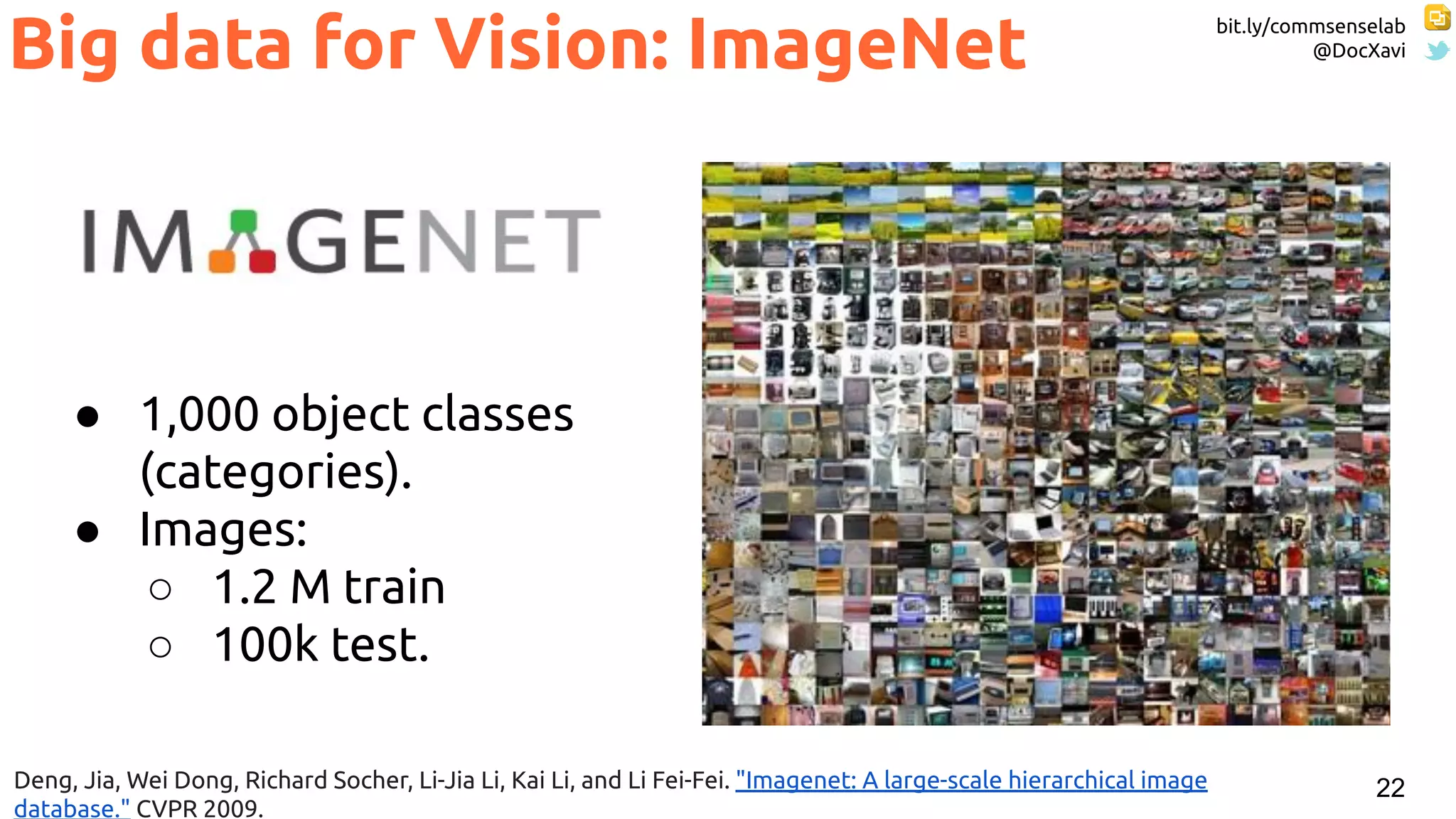

Big data for Vision: ImageNet
● 1,000 object classes
(categories).
● Images:
○ 1.2 M train
○ 100k test.
Deng, Jia, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. "Imagenet: A large-scale hierarchical image
database." CVPR 2009.

23. bit.ly/commsenselab
@DocXavi
23

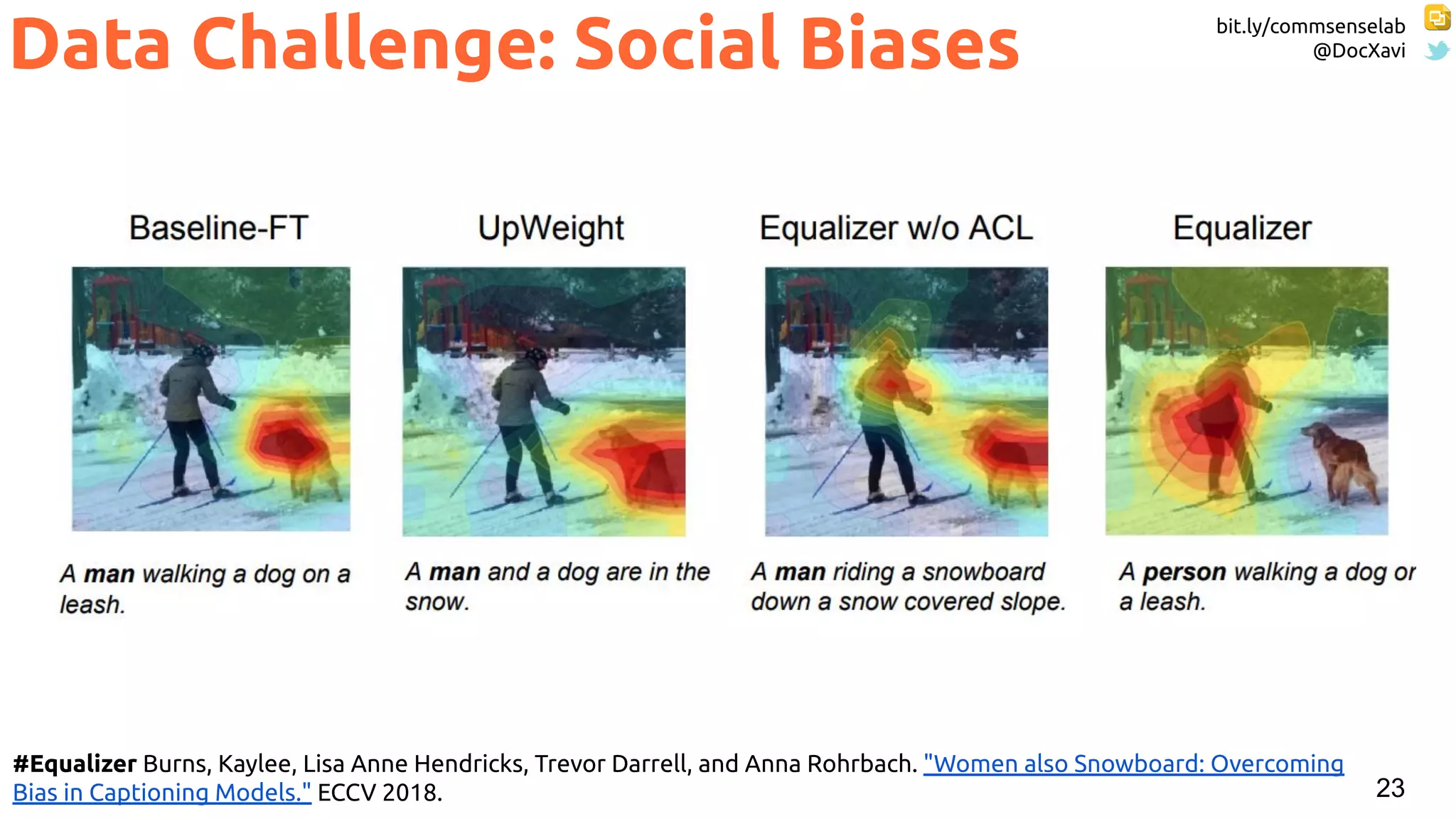

Data Challenge: Social Biases
#Equalizer Burns, Kaylee, Lisa Anne Hendricks, Trevor Darrell, and Anna Rohrbach. "Women also Snowboard: Overcoming
Bias in Captioning Models." ECCV 2018.

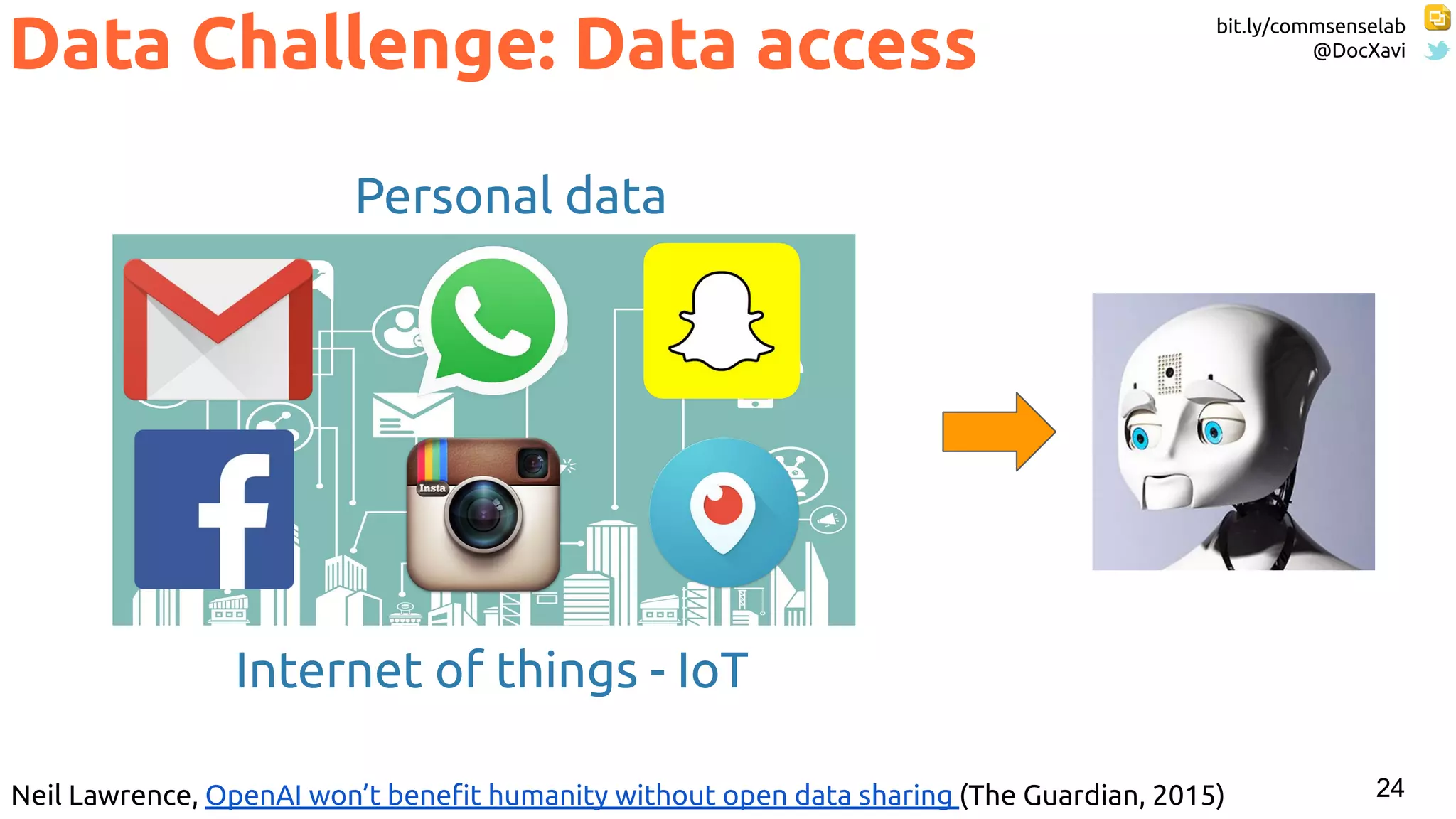

24. bit.ly/commsenselab
@DocXavi
24
Data Challenge: Data access
Personal data
Internet of things - IoT
Neil Lawrence, OpenAI won’t benefit humanity without open data sharing (The Guardian, 2015)

25. bit.ly/commsenselab
@DocXavi
25

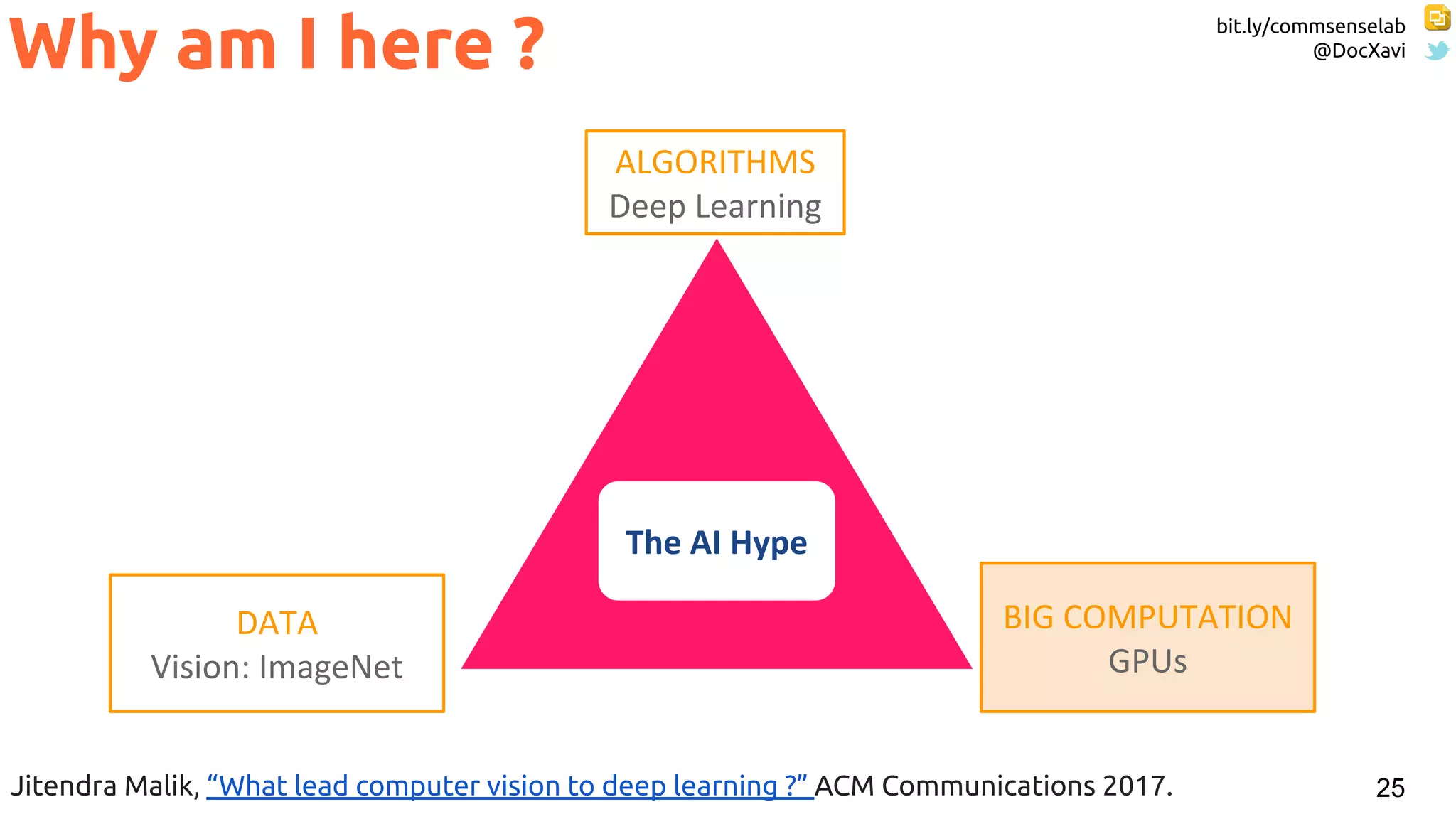

Why am I here ?
Jitendra Malik, “What lead computer vision to deep learning ?” ACM Communications 2017.

26. bit.ly/commsenselab
@DocXavi
26

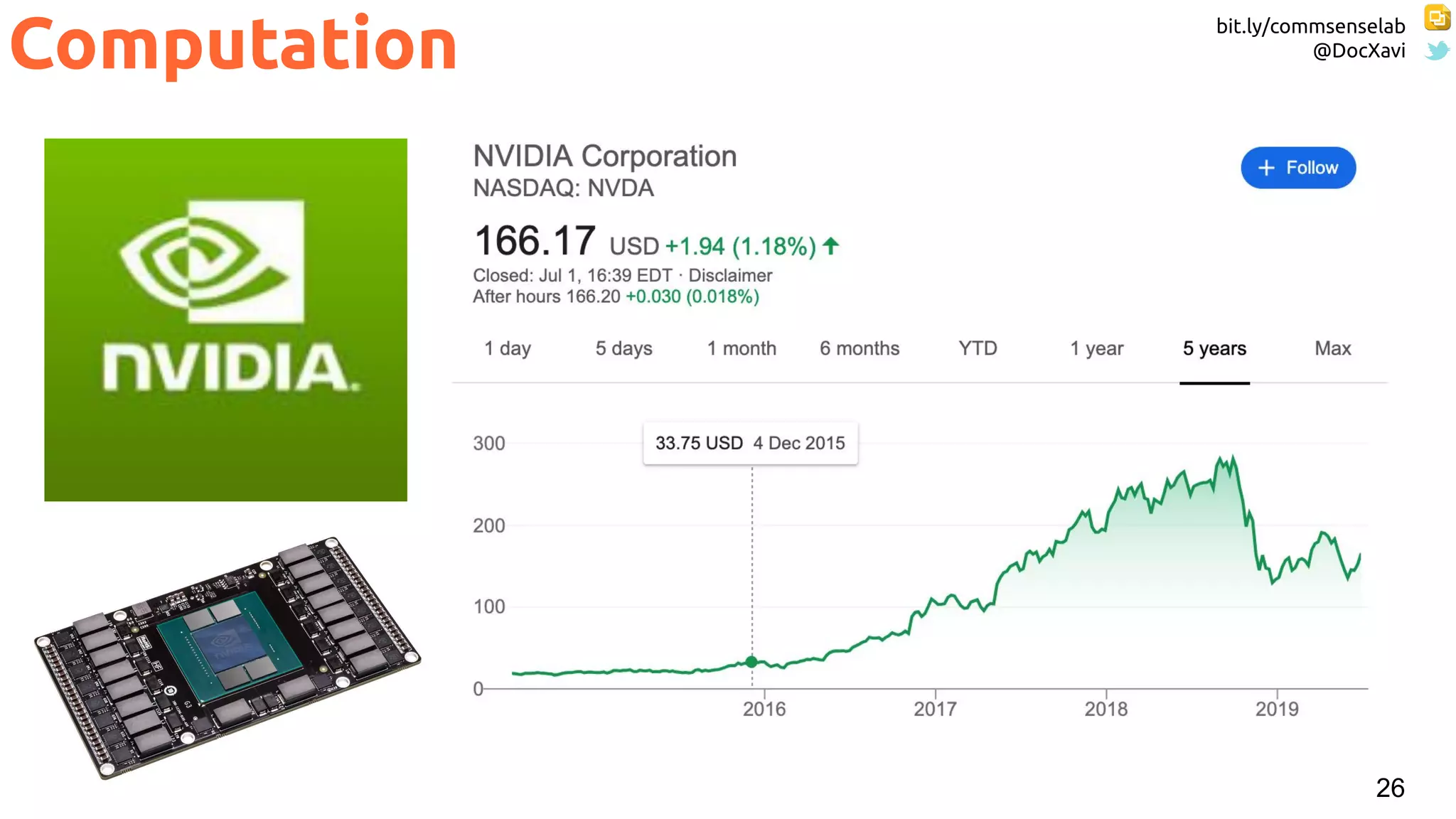

Computation

27. bit.ly/commsenselab
@DocXavi
27
Computation
Deng, Jia, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. "Imagenet: A large-scale hierarchical image database."
CVPR 2009.

28. bit.ly/commsenselab
@DocXavi
28
Computation challenge
Deng, Jia, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. "Imagenet: A large-scale hierarchical image database."
CVPR 2009.

29. bit.ly/commsenselab
@DocXavi
29

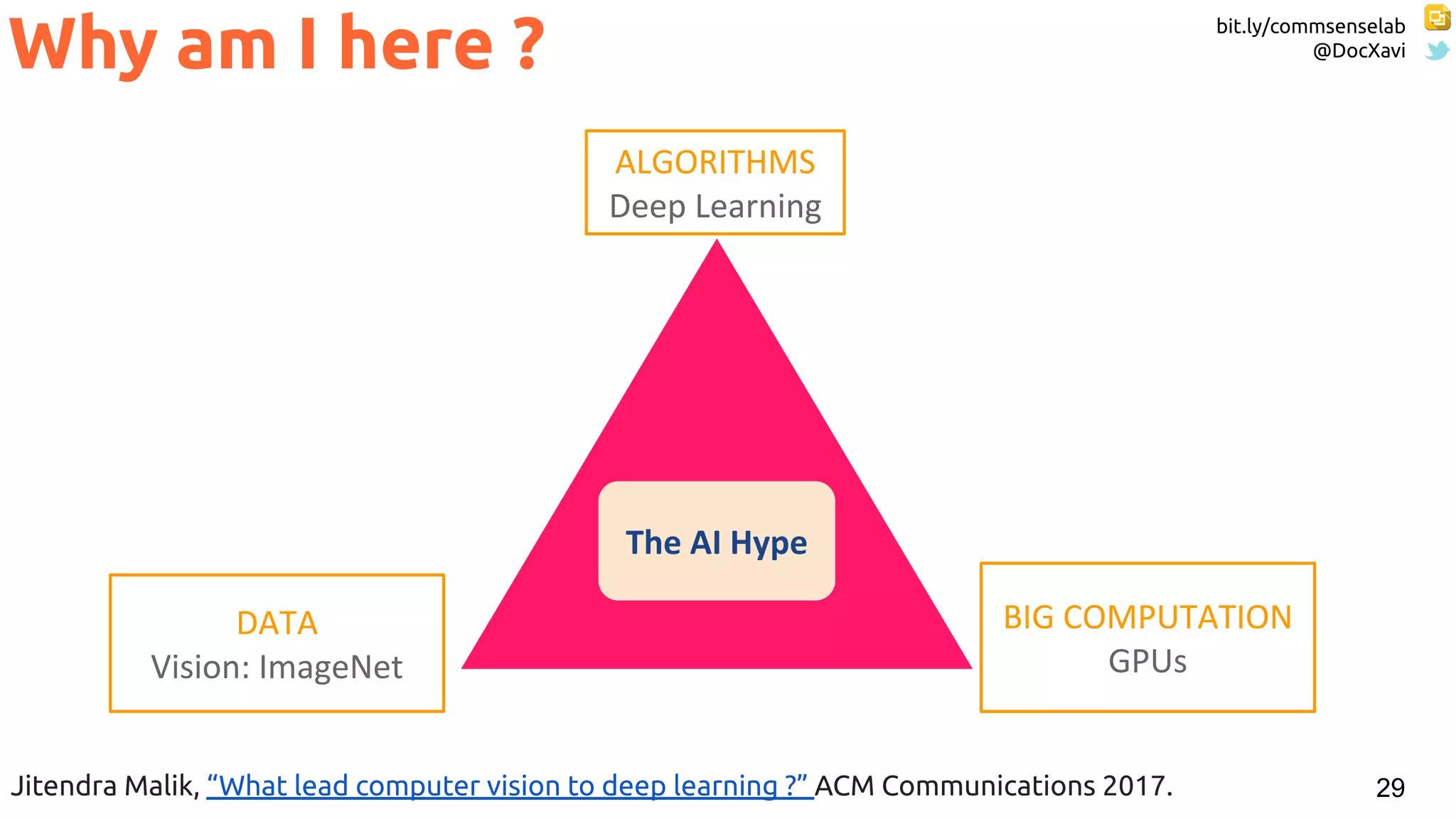

Why am I here ?
Jitendra Malik, “What lead computer vision to deep learning ?” ACM Communications 2017.

30. bit.ly/commsenselab
@DocXavi
30

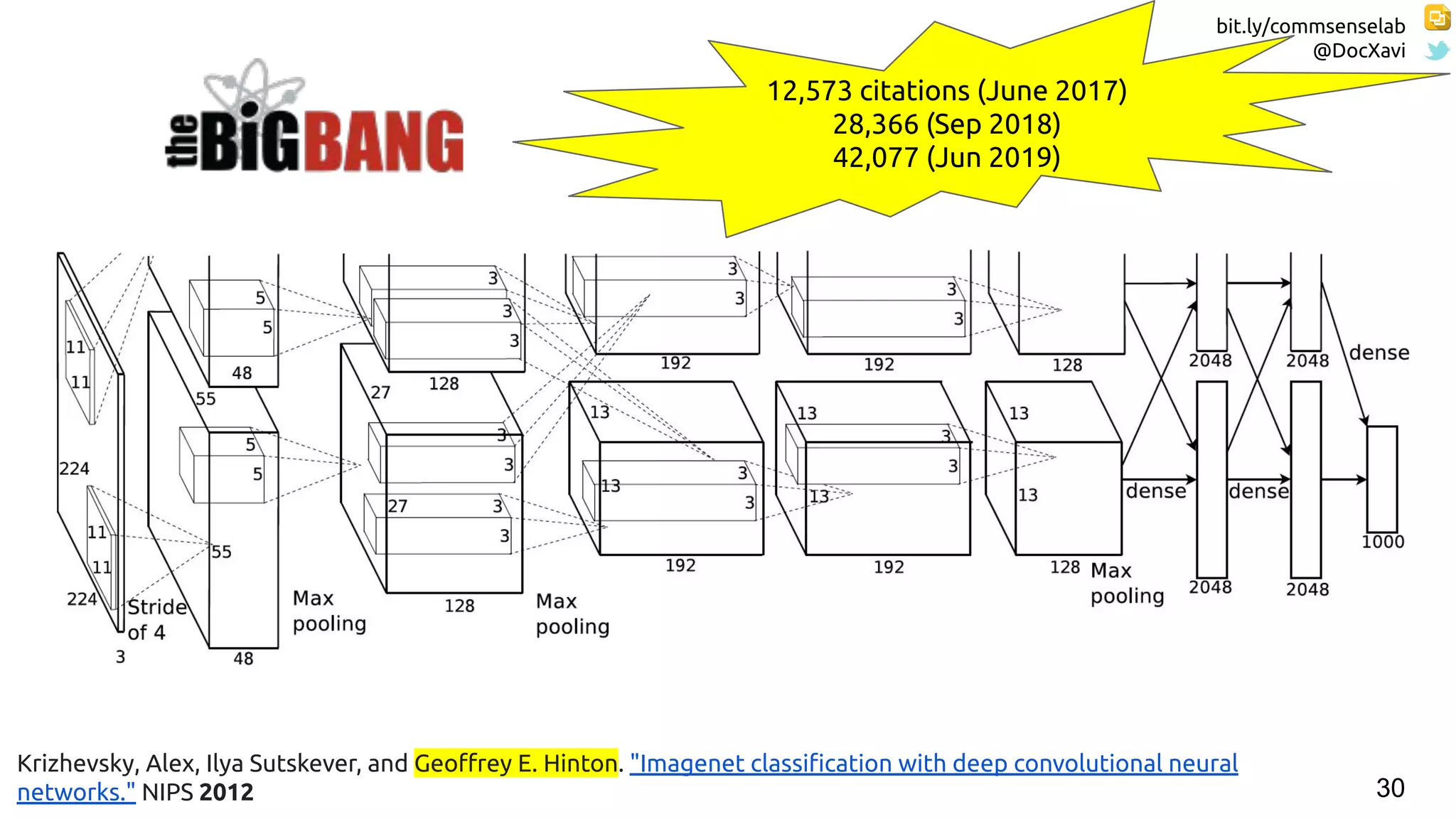

Krizhevsky, Alex, Ilya Sutskever, and Geoffrey E. Hinton. "Imagenet classification with deep convolutional neural
networks." NIPS 2012
12,573 citations (June 2017)
28,366 (Sep 2018)
42,077 (Jun 2019)

31. bit.ly/commsenselab
@DocXavi
31
● 1,000 object classes
(categories).
● Images:
○ 1.2 M train
○ 100k test.

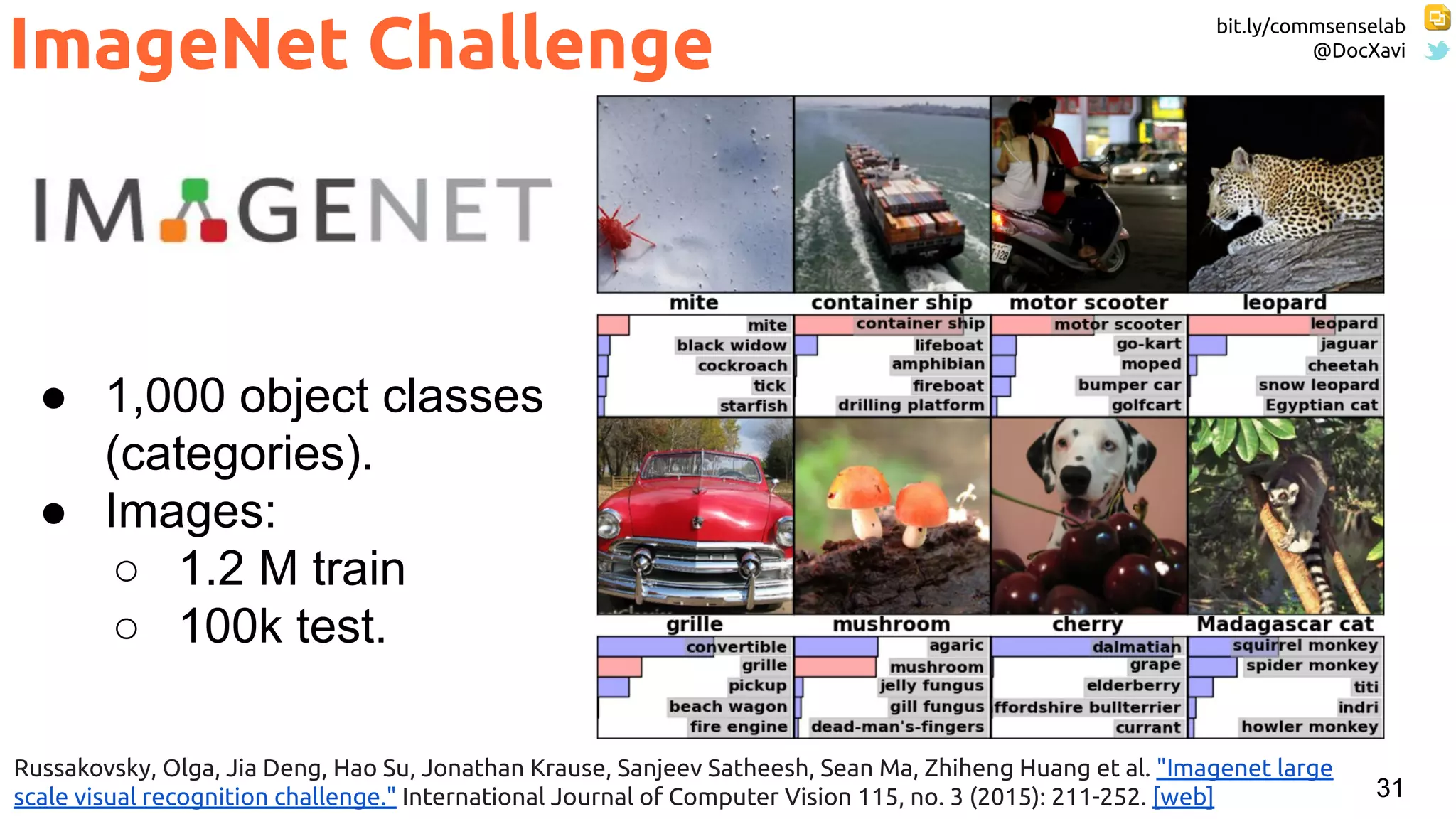

ImageNet Challenge
Russakovsky, Olga, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang et al. "Imagenet large
scale visual recognition challenge." International Journal of Computer Vision 115, no. 3 (2015): 211-252. [web]

32. bit.ly/commsenselab
@DocXavi
32

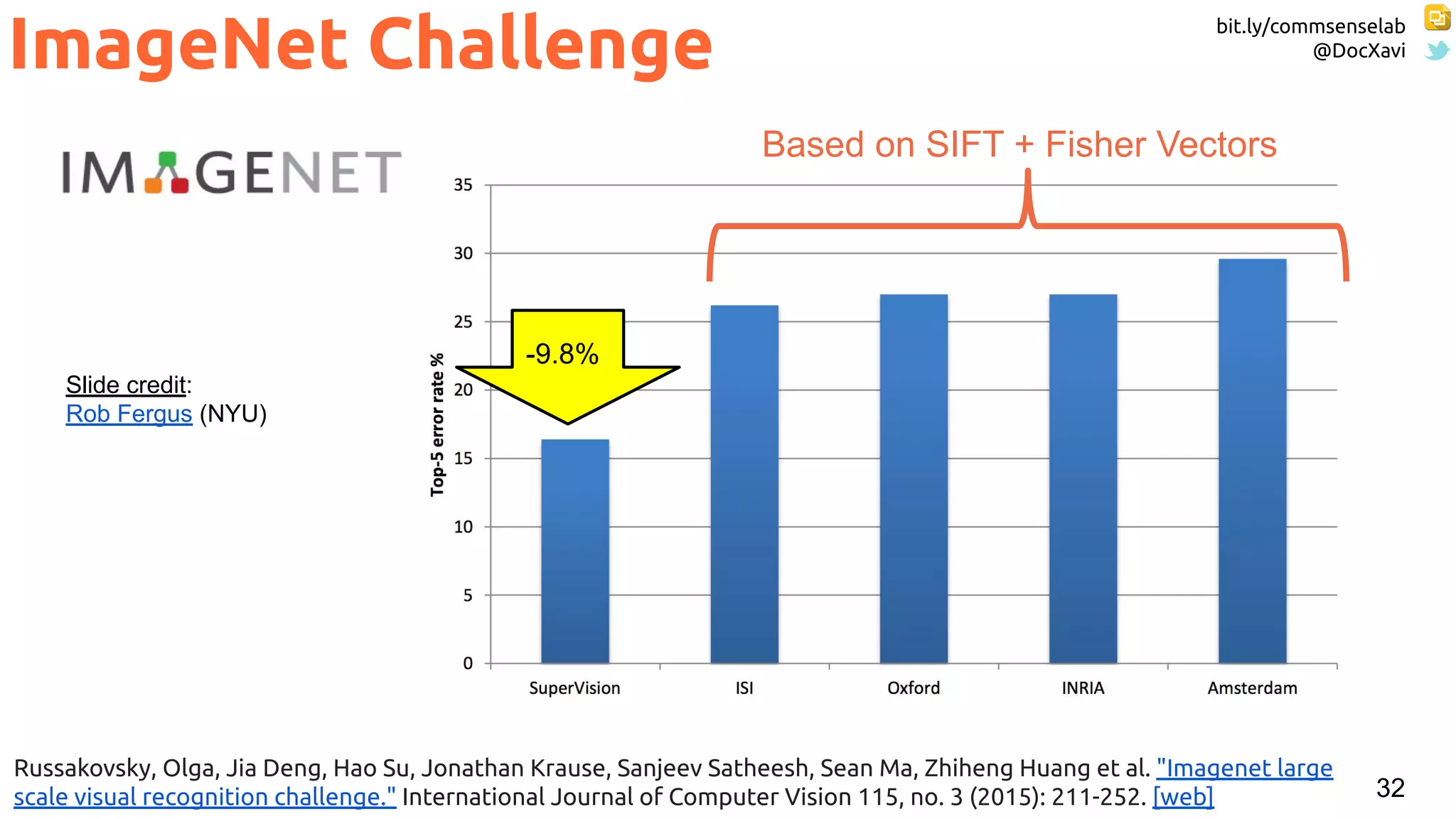

ImageNet Challenge
Russakovsky, Olga, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang et al. "Imagenet large
scale visual recognition challenge." International Journal of Computer Vision 115, no. 3 (2015): 211-252. [web]
Slide credit:
Rob Fergus (NYU)
-9.8%
Based on SIFT + Fisher Vectors

33. bit.ly/commsenselab
@DocXavi
33

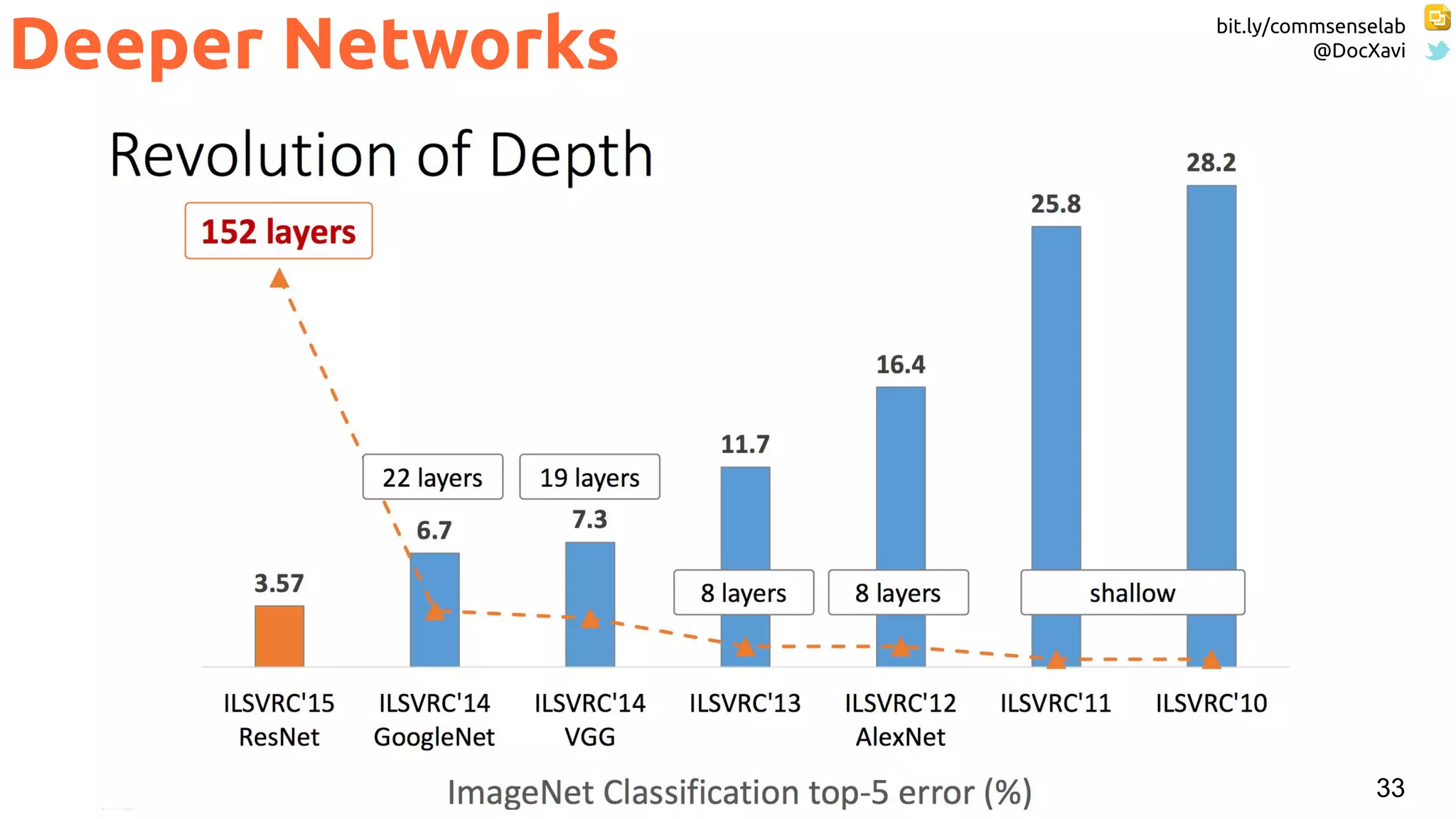

Deeper Networks

34. bit.ly/commsenselab
@DocXavi
34

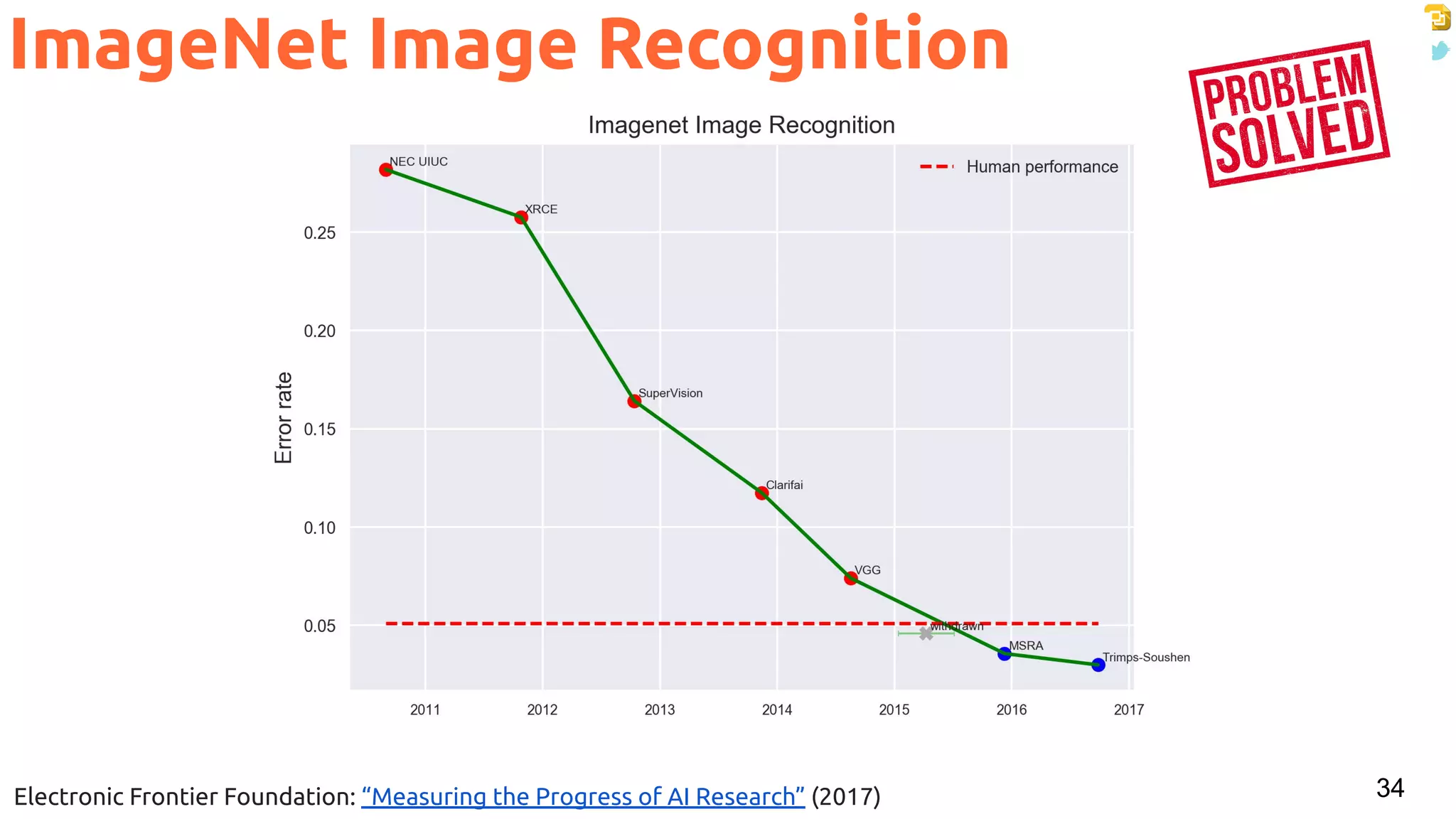

ImageNet Image Recognition
Electronic Frontier Foundation: “Measuring the Progress of AI Research” (2017)

35. bit.ly/commsenselab
@DocXavi
35

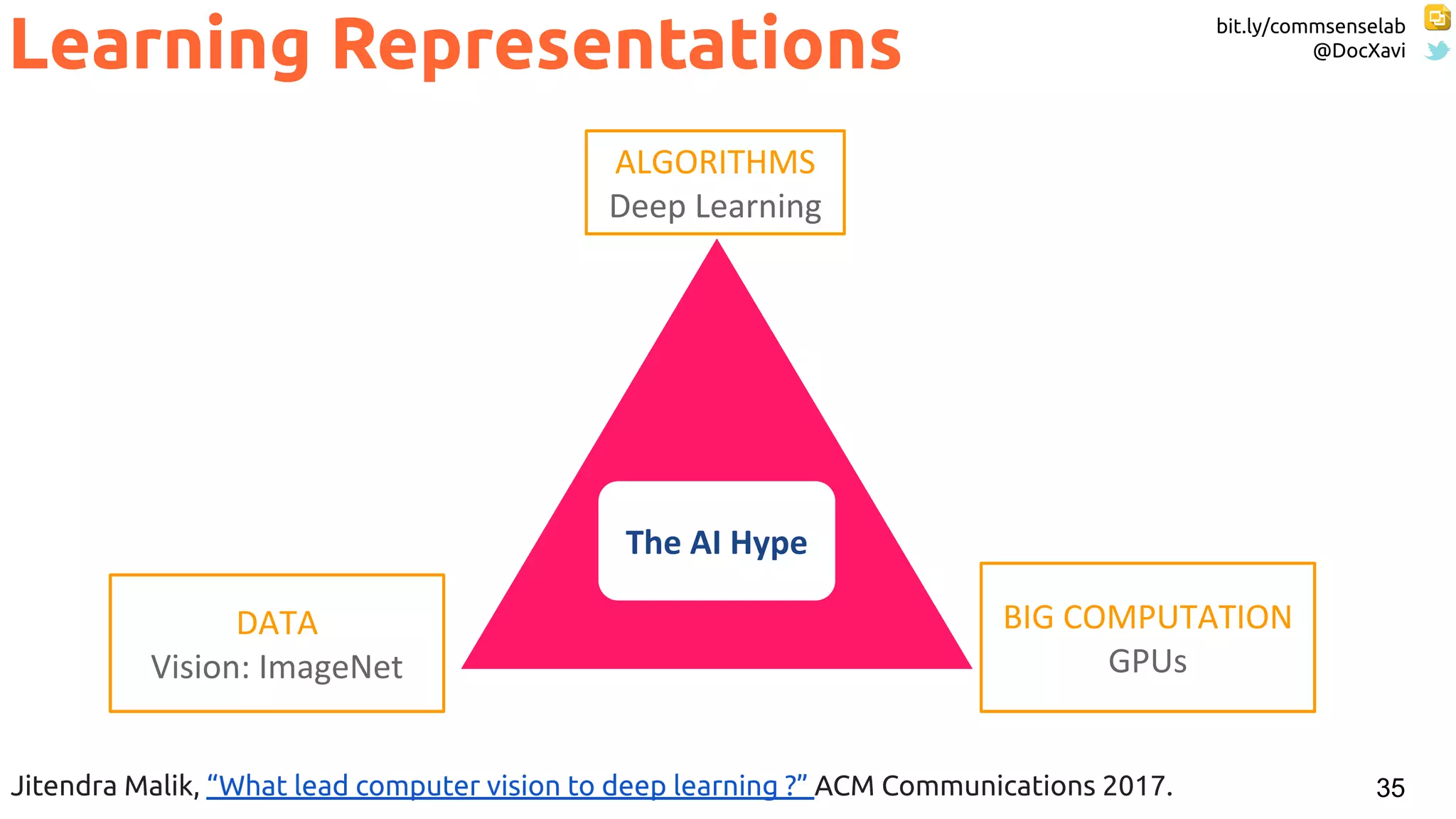

Learning Representations
Jitendra Malik, “What lead computer vision to deep learning ?” ACM Communications 2017.

36. bit.ly/commsenselab
@DocXavi
Text
Audio
36
Speech
Vision

37. bit.ly/commsenselab
@DocXavi
Text
Audio
37
Speech
Vision

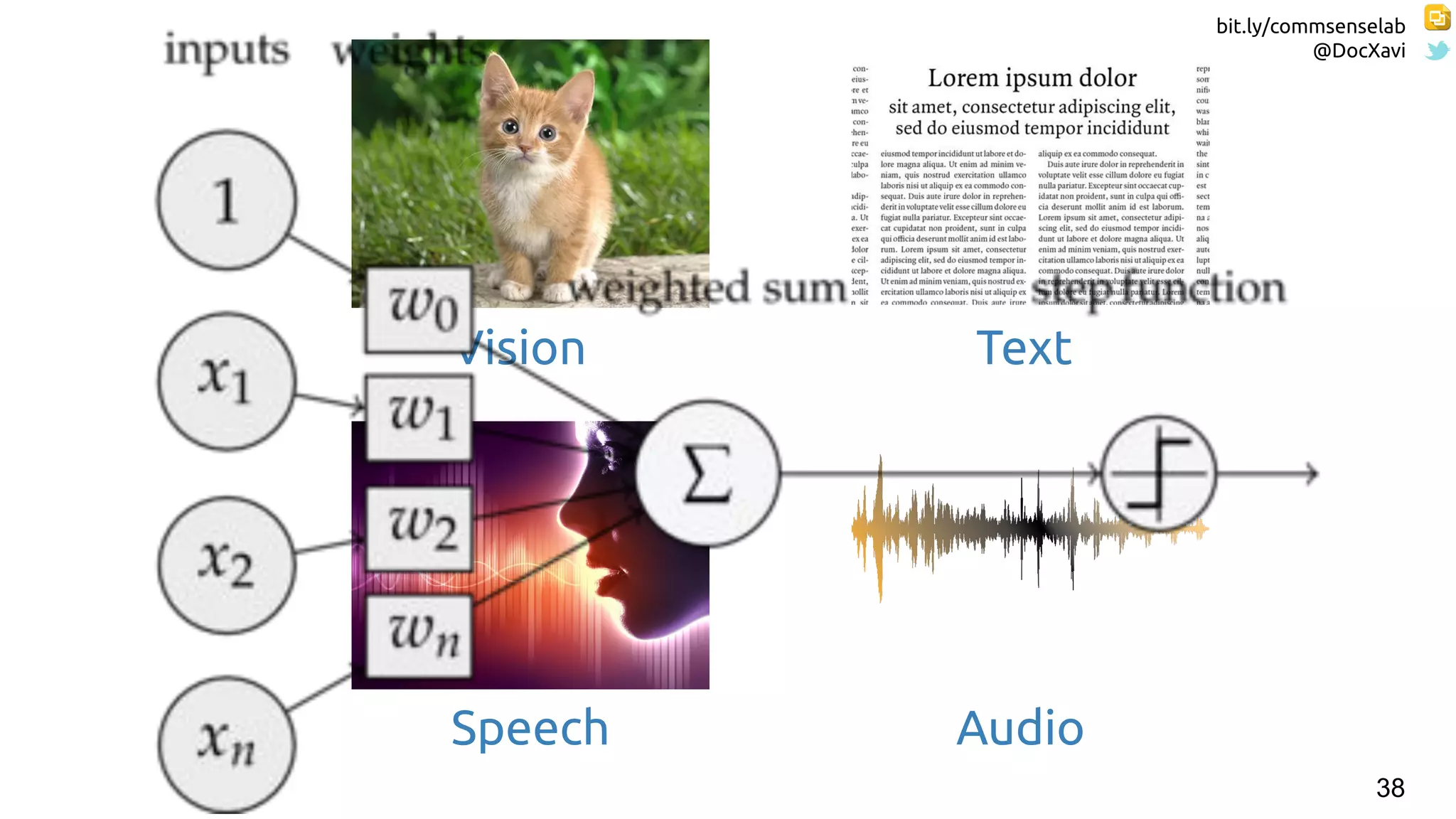

38. bit.ly/commsenselab
@DocXavi
Text
Audio
38
Speech
Vision

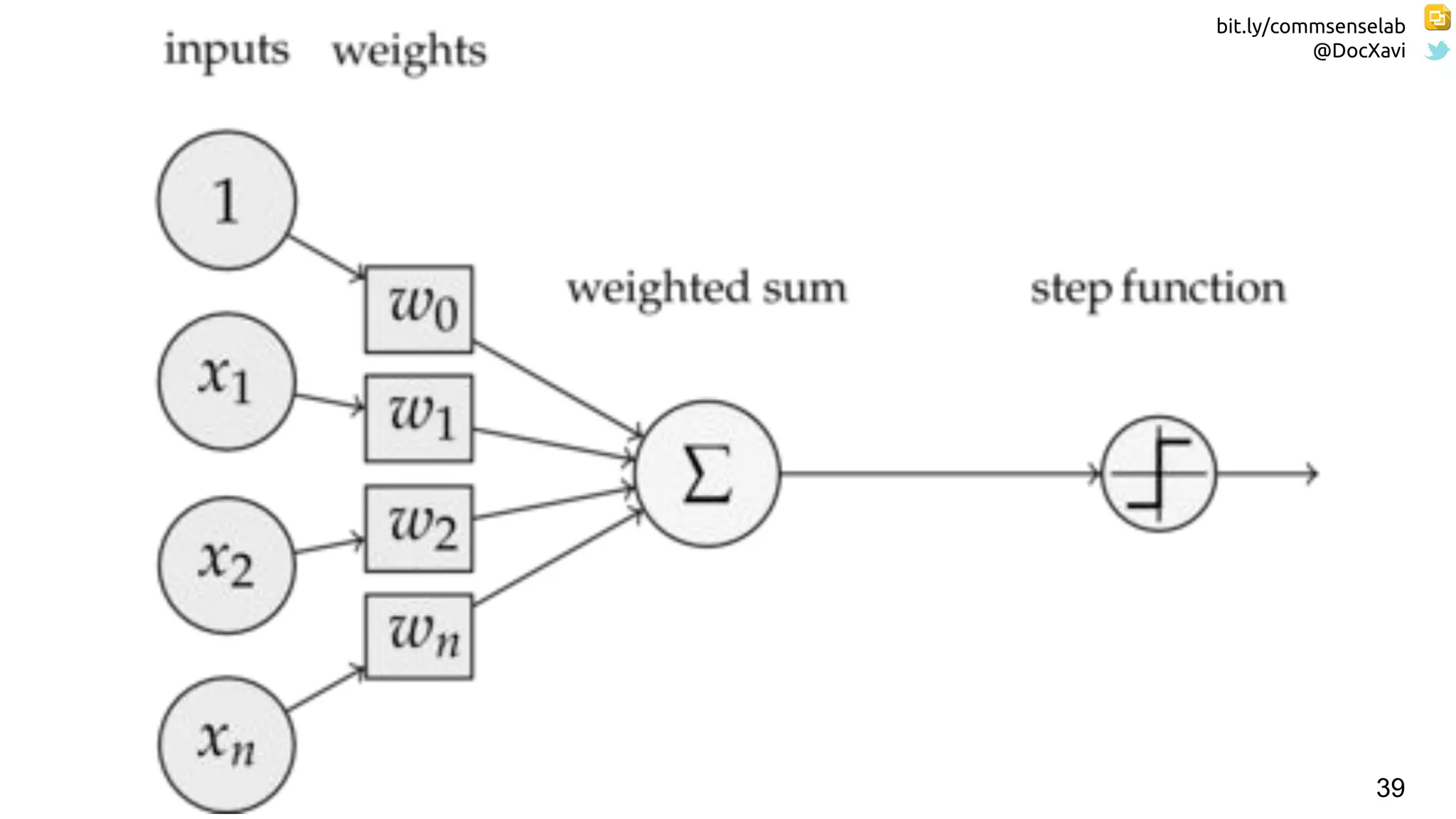

39. bit.ly/commsenselab
@DocXavi
39

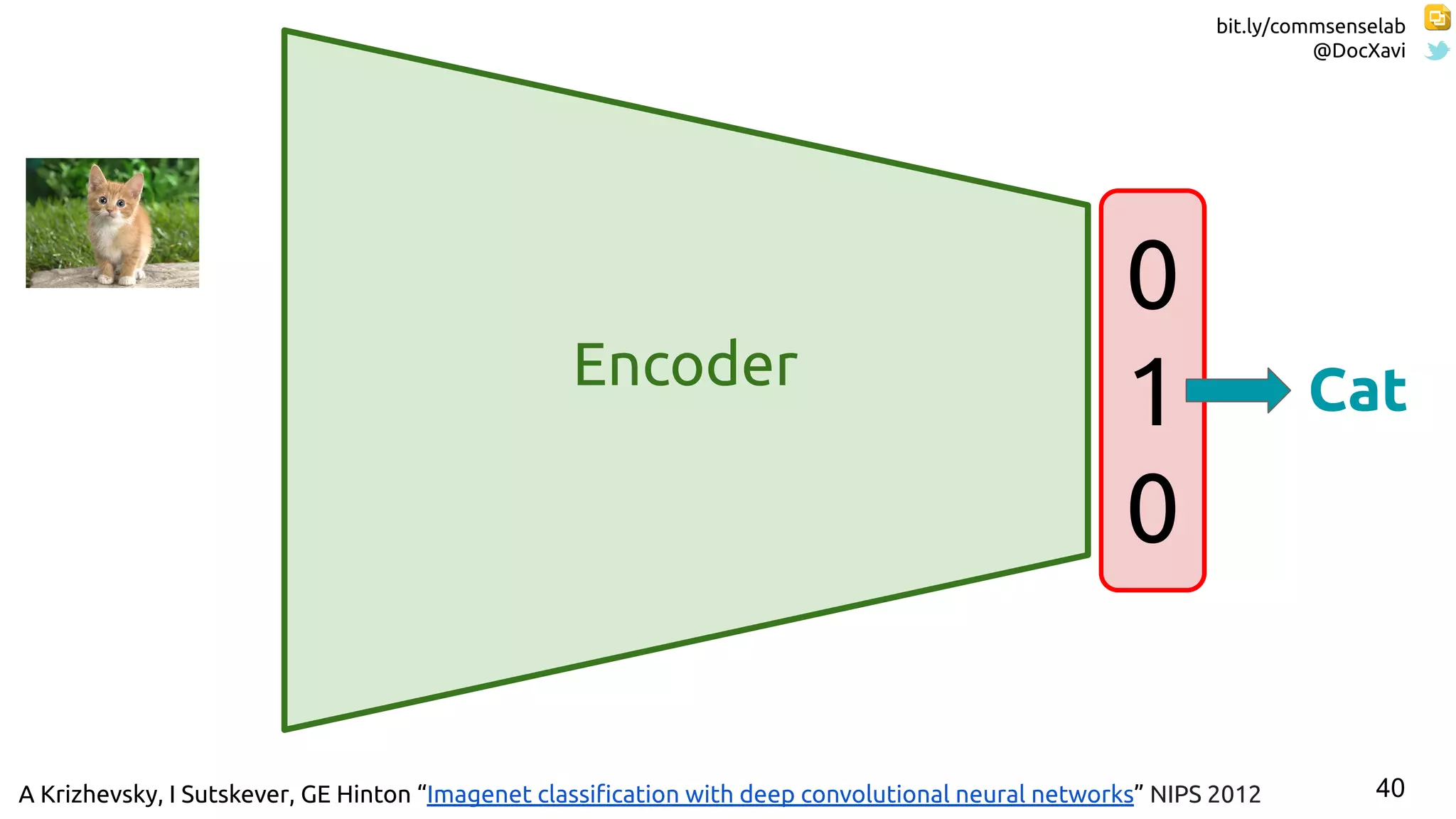

40. bit.ly/commsenselab
@DocXavi
40
Encoder
0
1
0
Cat
A Krizhevsky, I Sutskever, GE Hinton “Imagenet classification with deep convolutional neural networks” NIPS 2012

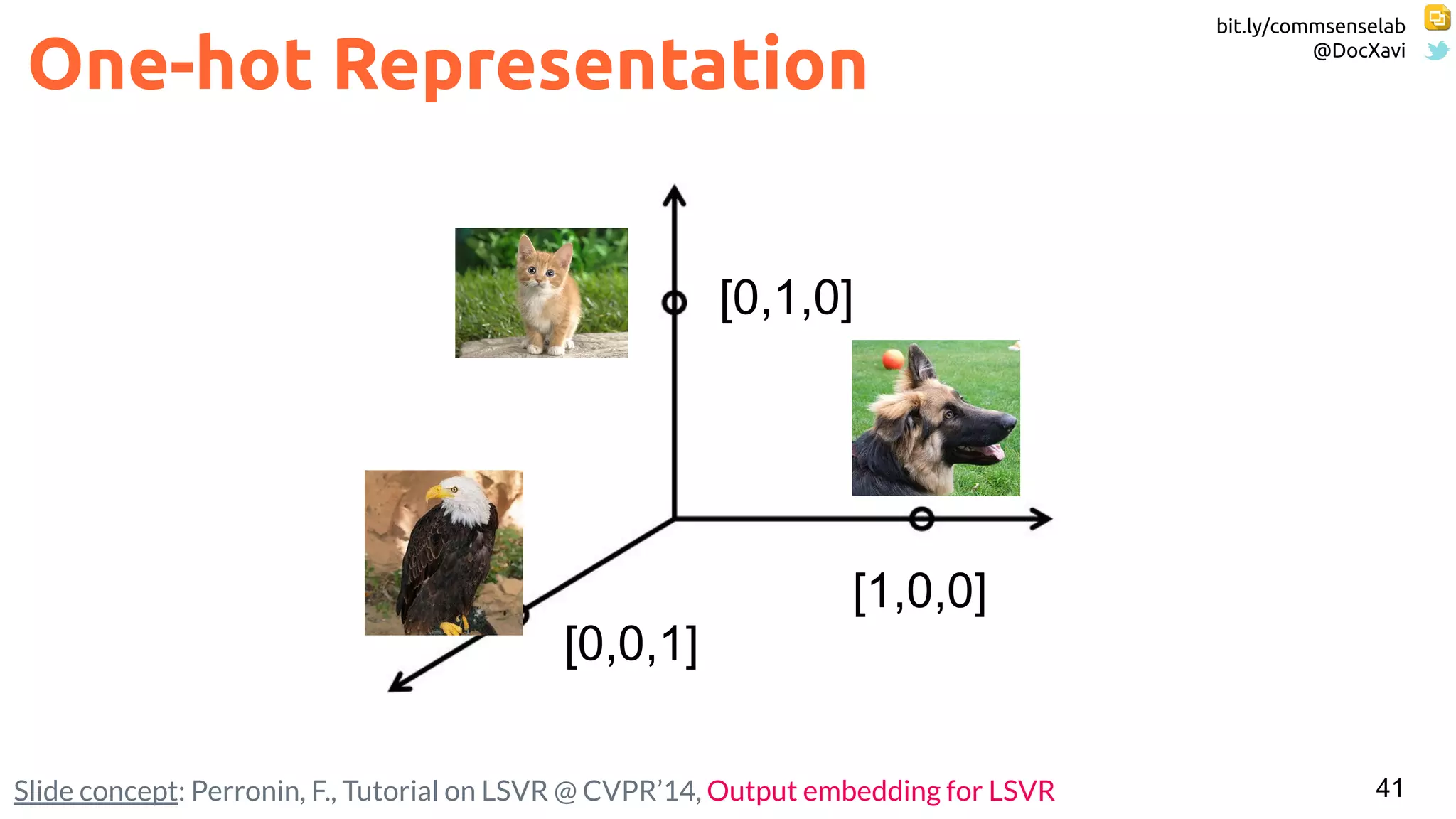

41. bit.ly/commsenselab
@DocXavi
41Slide concept: Perronin, F., Tutorial on LSVR @ CVPR’14, Output embedding for LSVR
One-hot Representation
[1,0,0]
[0,1,0]
[0,0,1]

42. bit.ly/commsenselab
@DocXavi
42

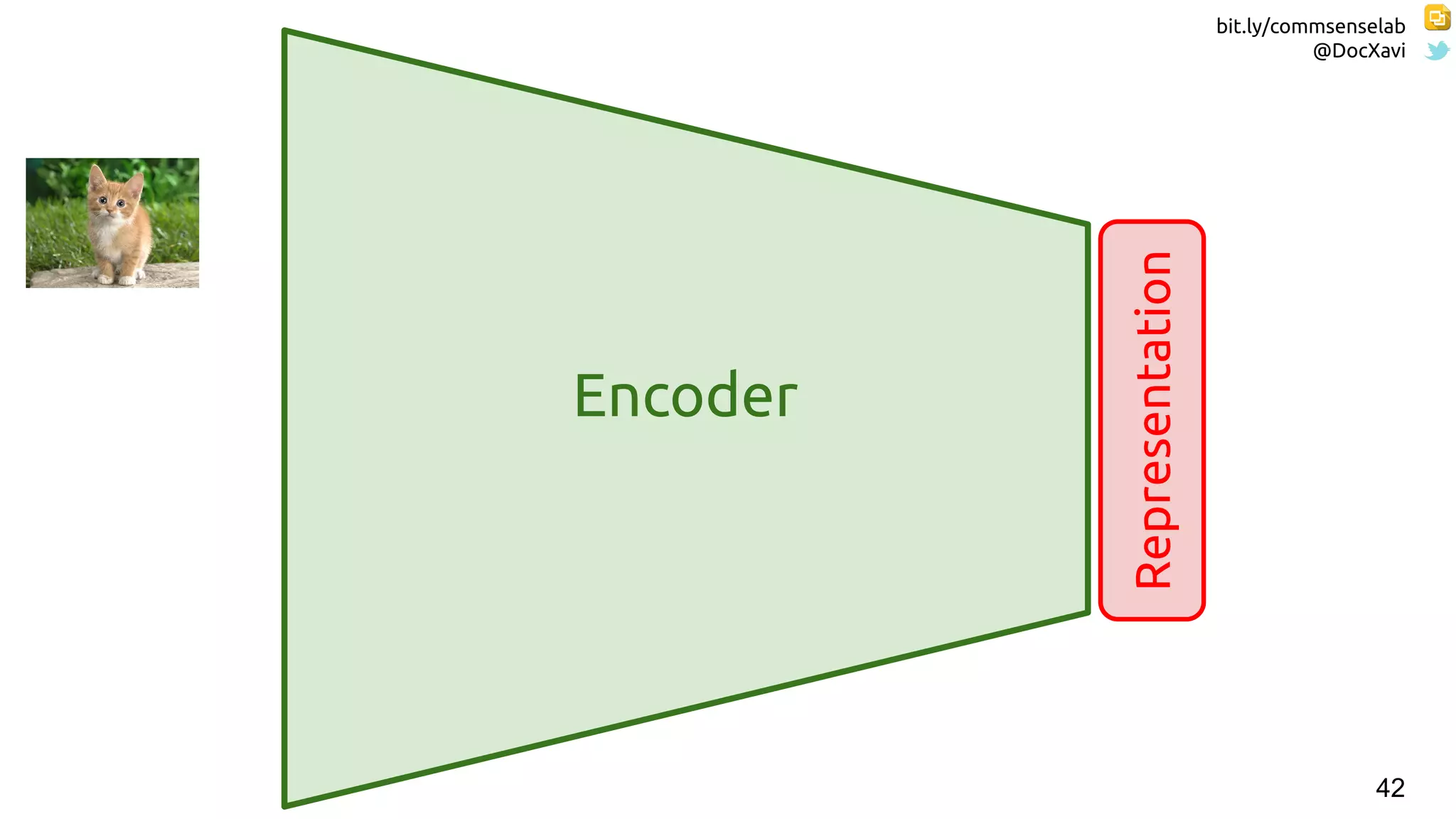

Encoder
Representation

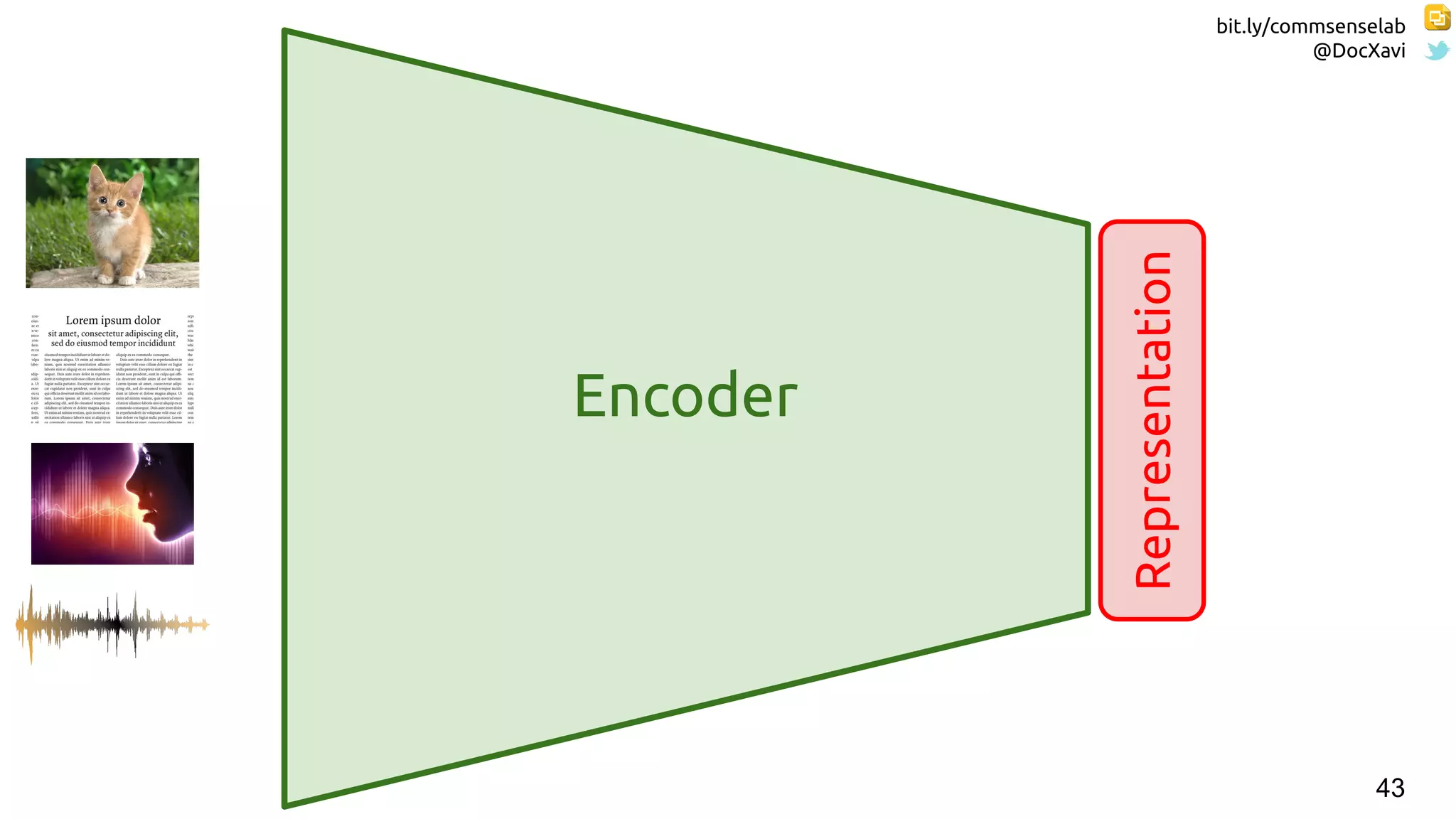

43. bit.ly/commsenselab
@DocXavi
43
Encoder
Representation

44. bit.ly/commsenselab

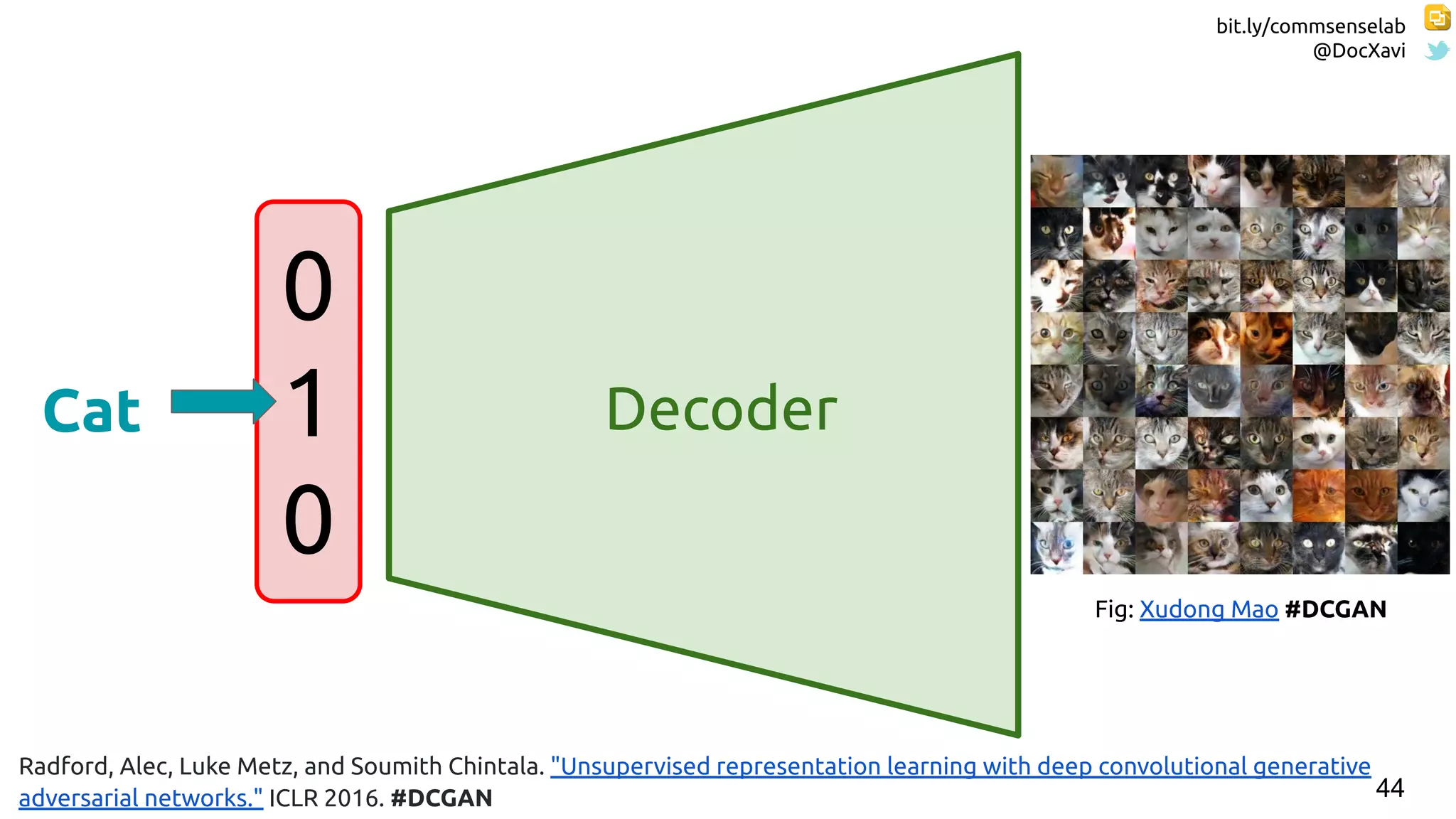

@DocXavi
44
Decoder
Radford, Alec, Luke Metz, and Soumith Chintala. "Unsupervised representation learning with deep convolutional generative
adversarial networks." ICLR 2016. #DCGAN
0
1
0
Cat
Fig: Xudong Mao #DCGAN

45. bit.ly/commsenselab
@DocXavi
45

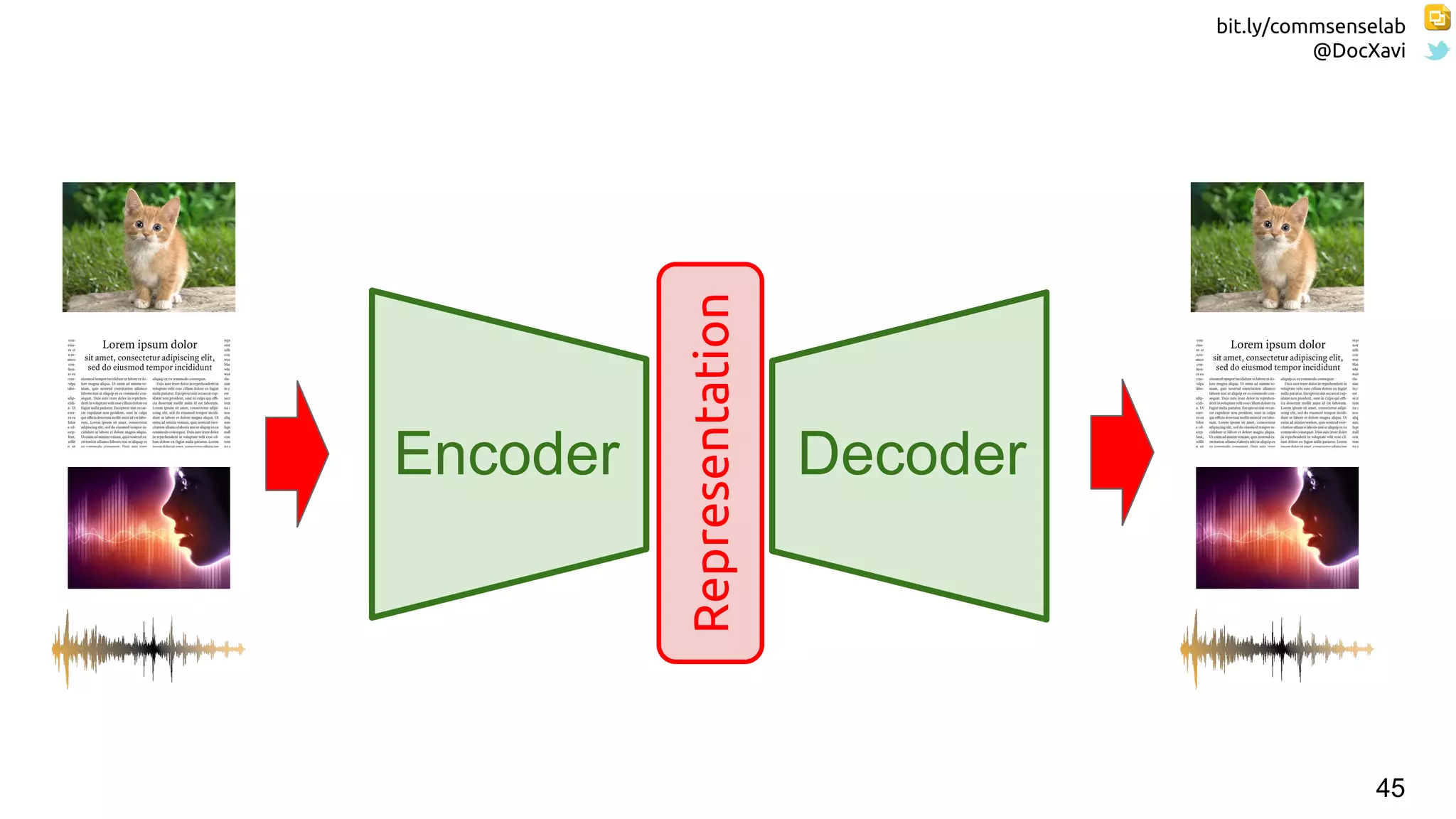

Encoder Decoder
Representation

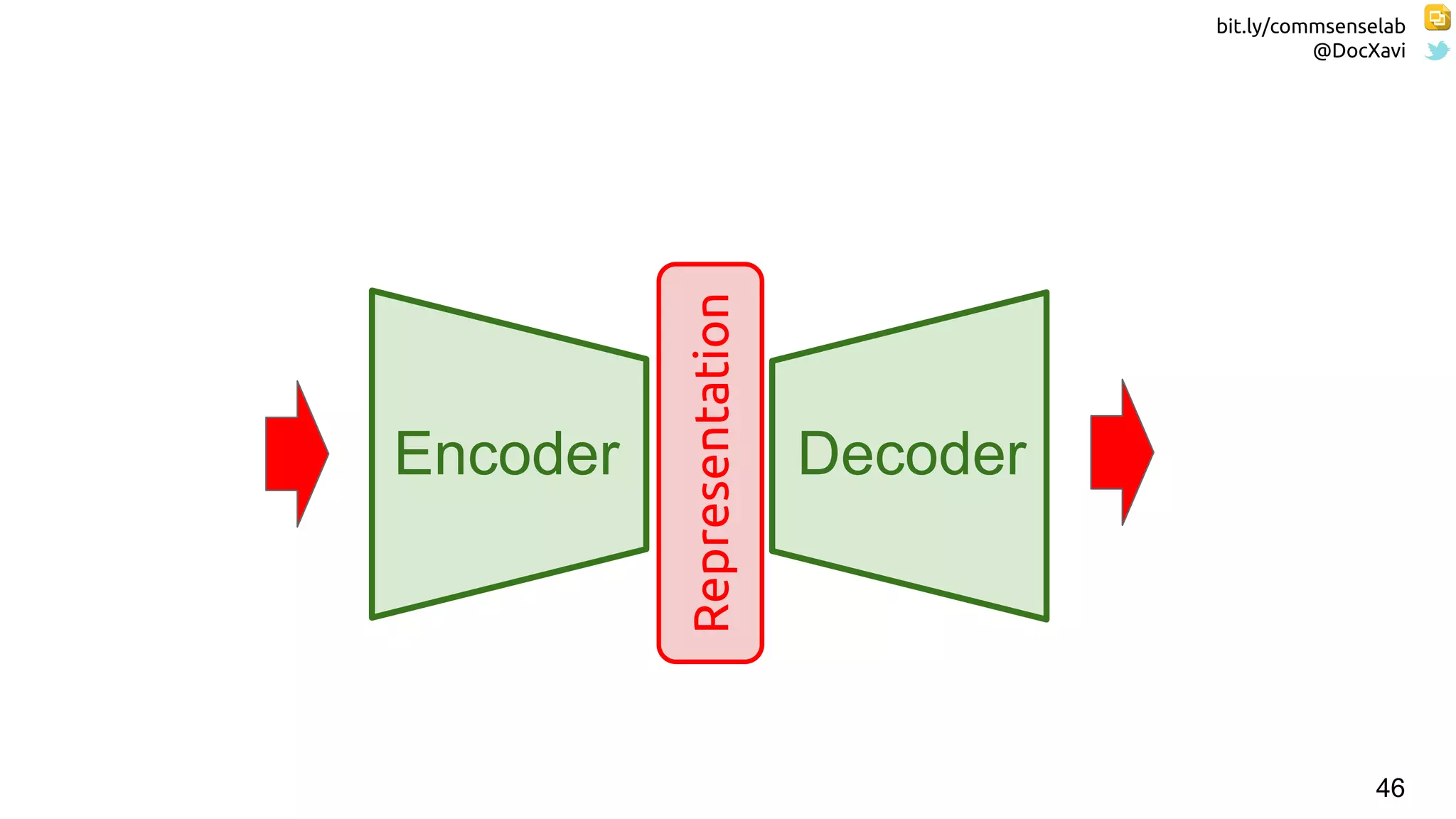

46. bit.ly/commsenselab
@DocXavi
46
Encoder Decoder
Representation

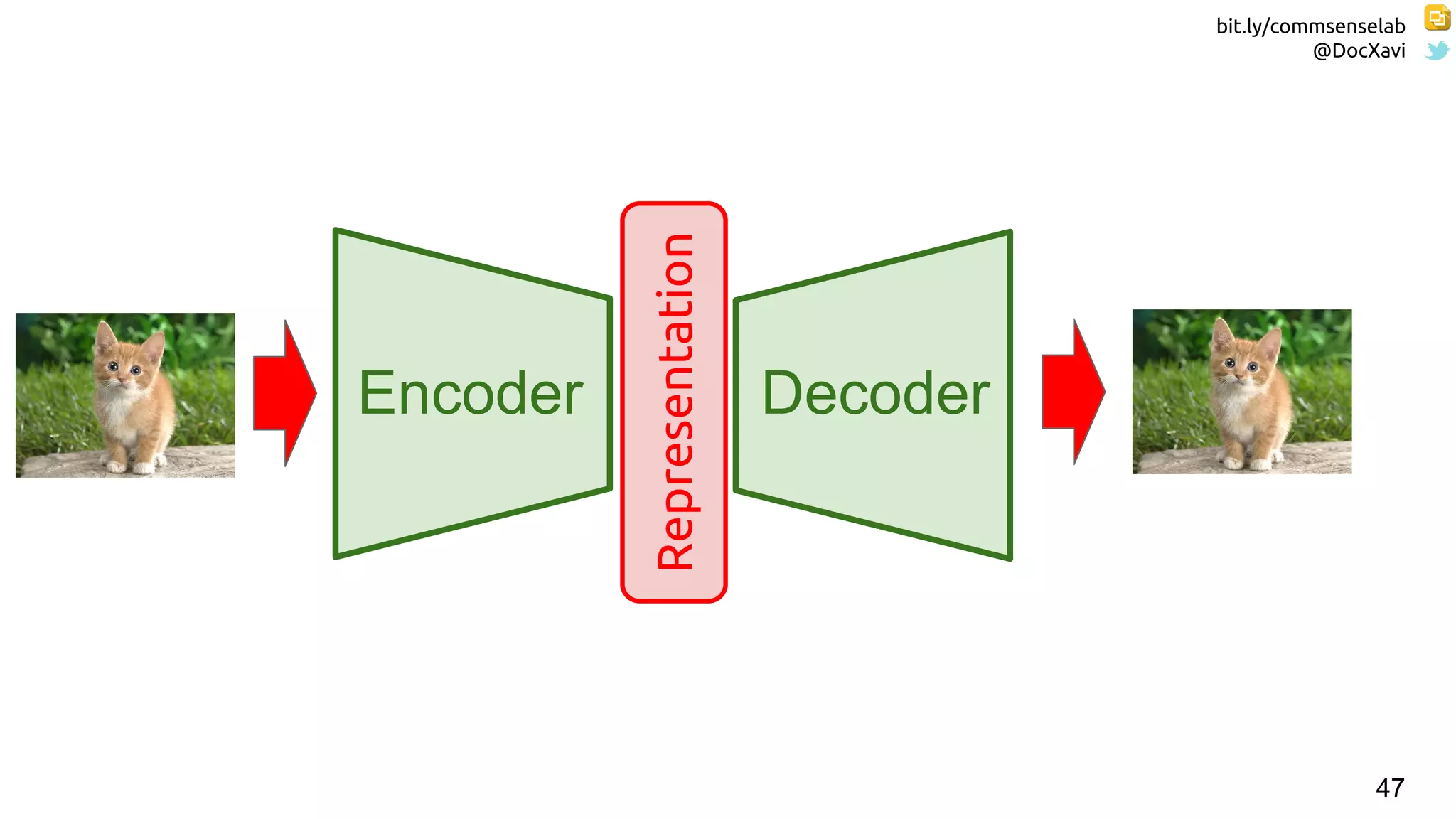

47. bit.ly/commsenselab
@DocXavi
47
Encoder Decoder
Representation

48. bit.ly/commsenselab
@DocXavi
48

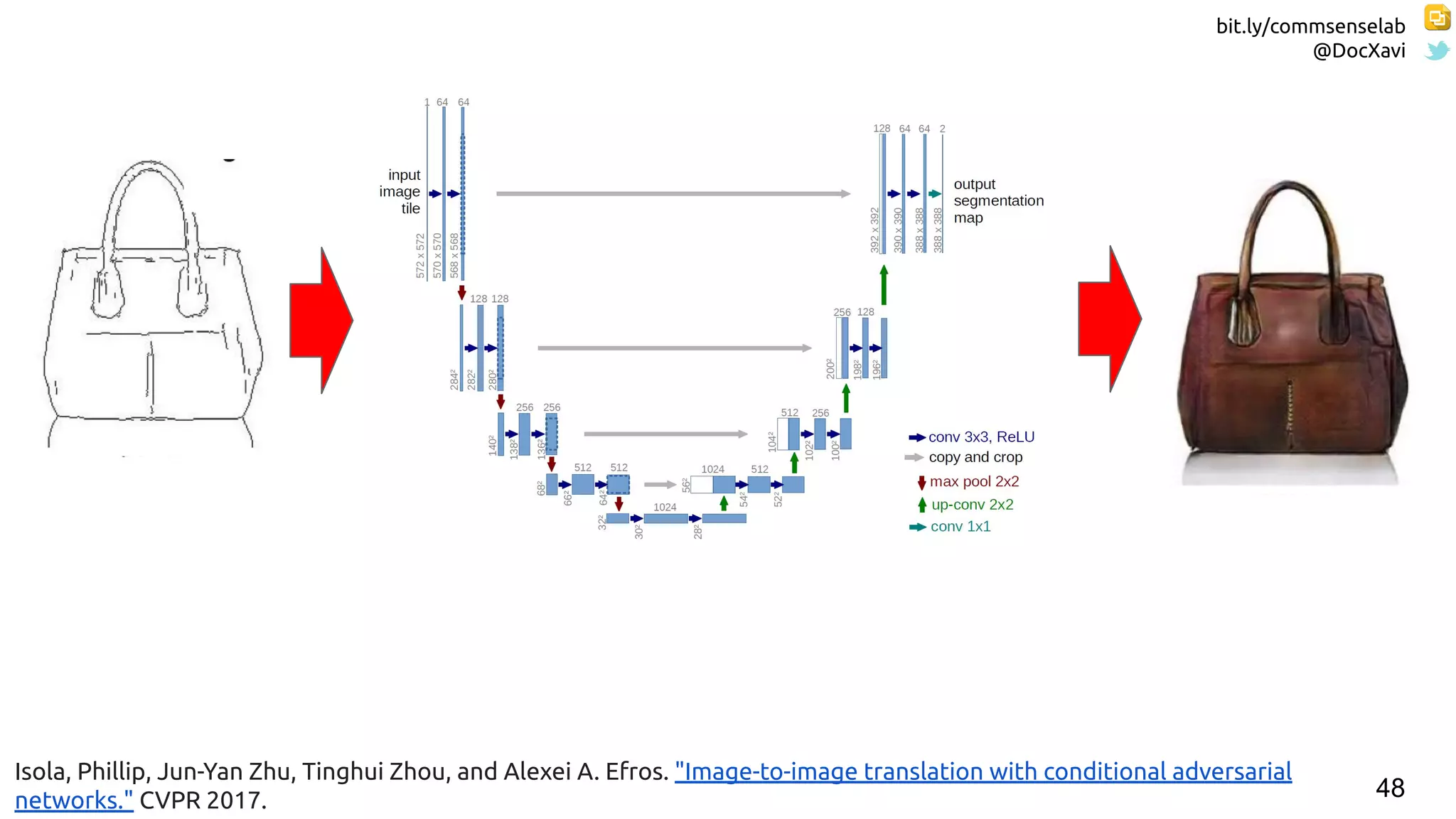

Isola, Phillip, Jun-Yan Zhu, Tinghui Zhou, and Alexei A. Efros. "Image-to-image translation with conditional adversarial
networks." CVPR 2017.

49. bit.ly/mmm-docxavi
@DocXavi
49

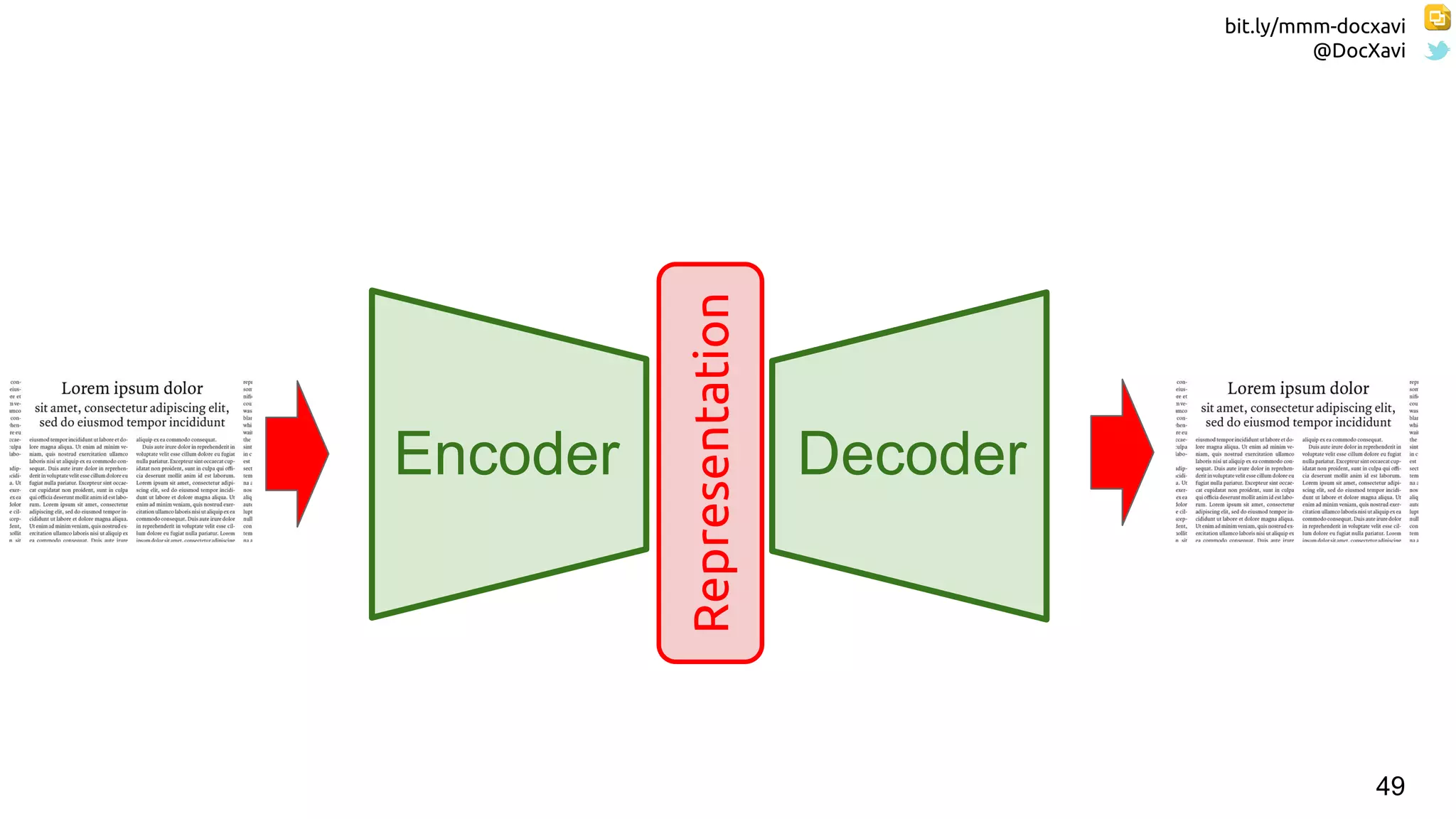

Encoder Decoder
Representation

50. bit.ly/mmm-docxavi
@DocXavi
50

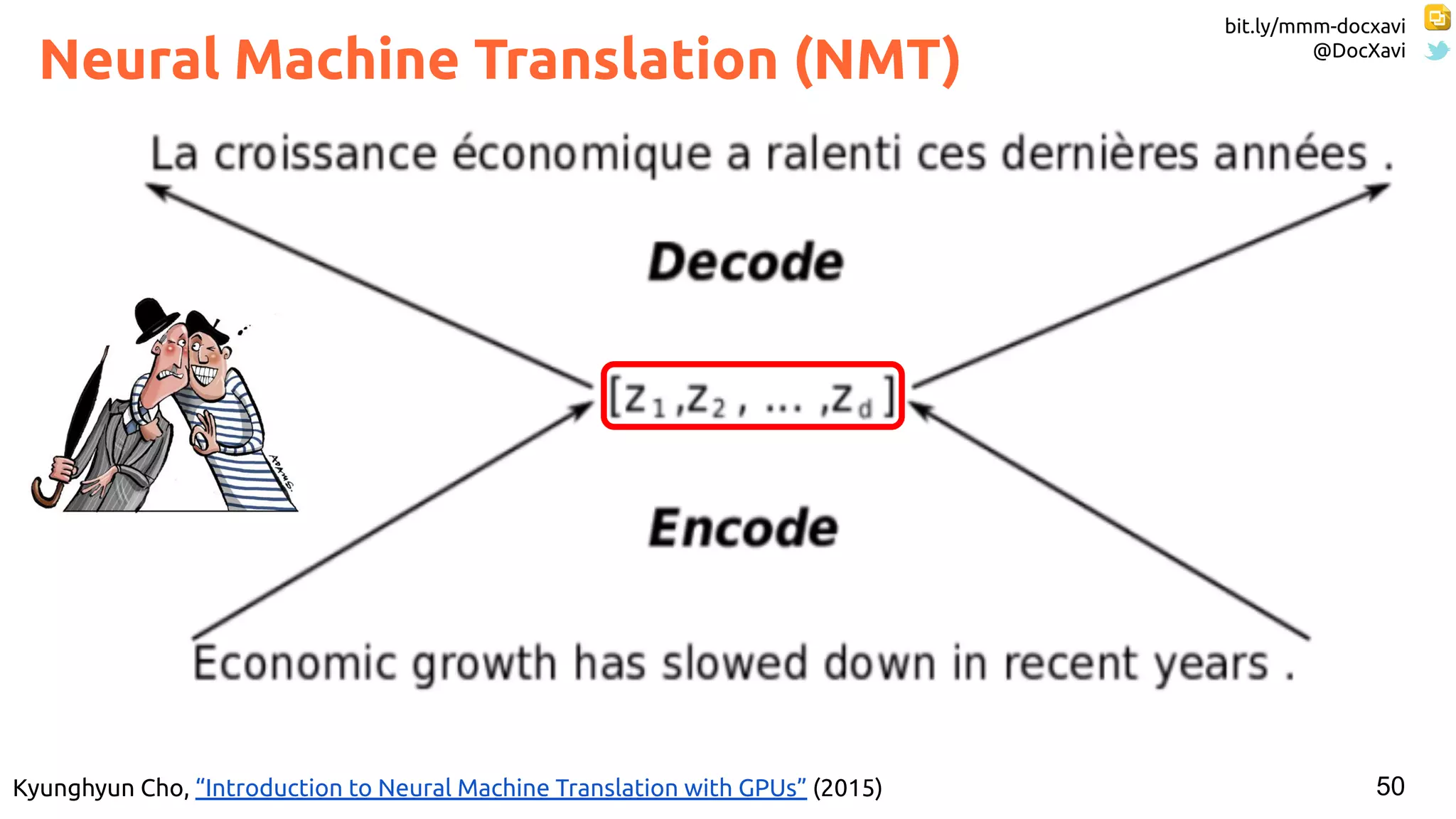

Neural Machine Translation (NMT)
Kyunghyun Cho, “Introduction to Neural Machine Translation with GPUs” (2015)

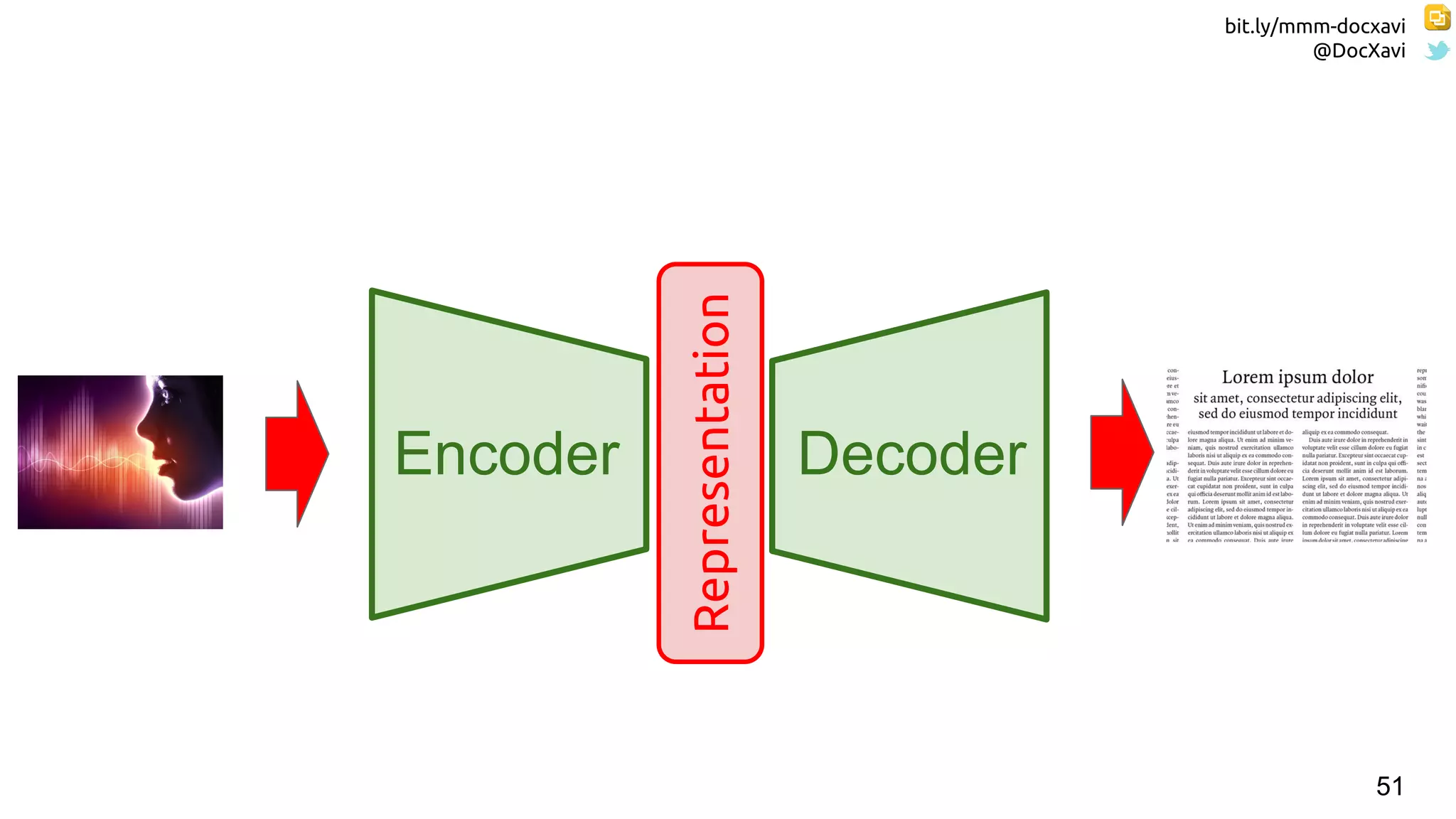

51. bit.ly/mmm-docxavi
@DocXavi
51
Encoder Decoder
Representation

52. bit.ly/mmm-docxavi
@DocXavi
52

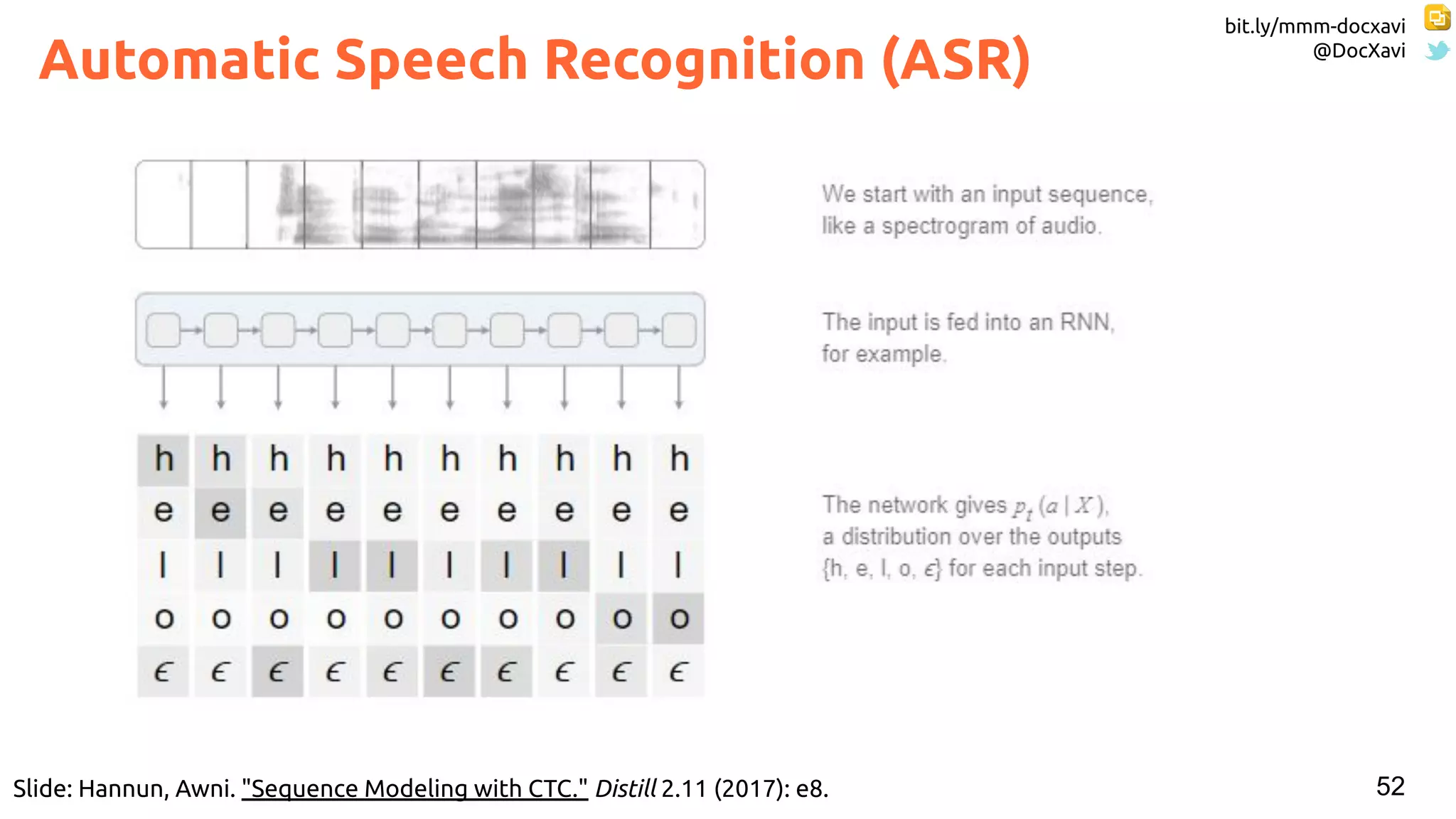

Automatic Speech Recognition (ASR)
Slide: Hannun, Awni. "Sequence Modeling with CTC." Distill 2.11 (2017): e8.

53. bit.ly/mmm-docxavi
@DocXavi
53

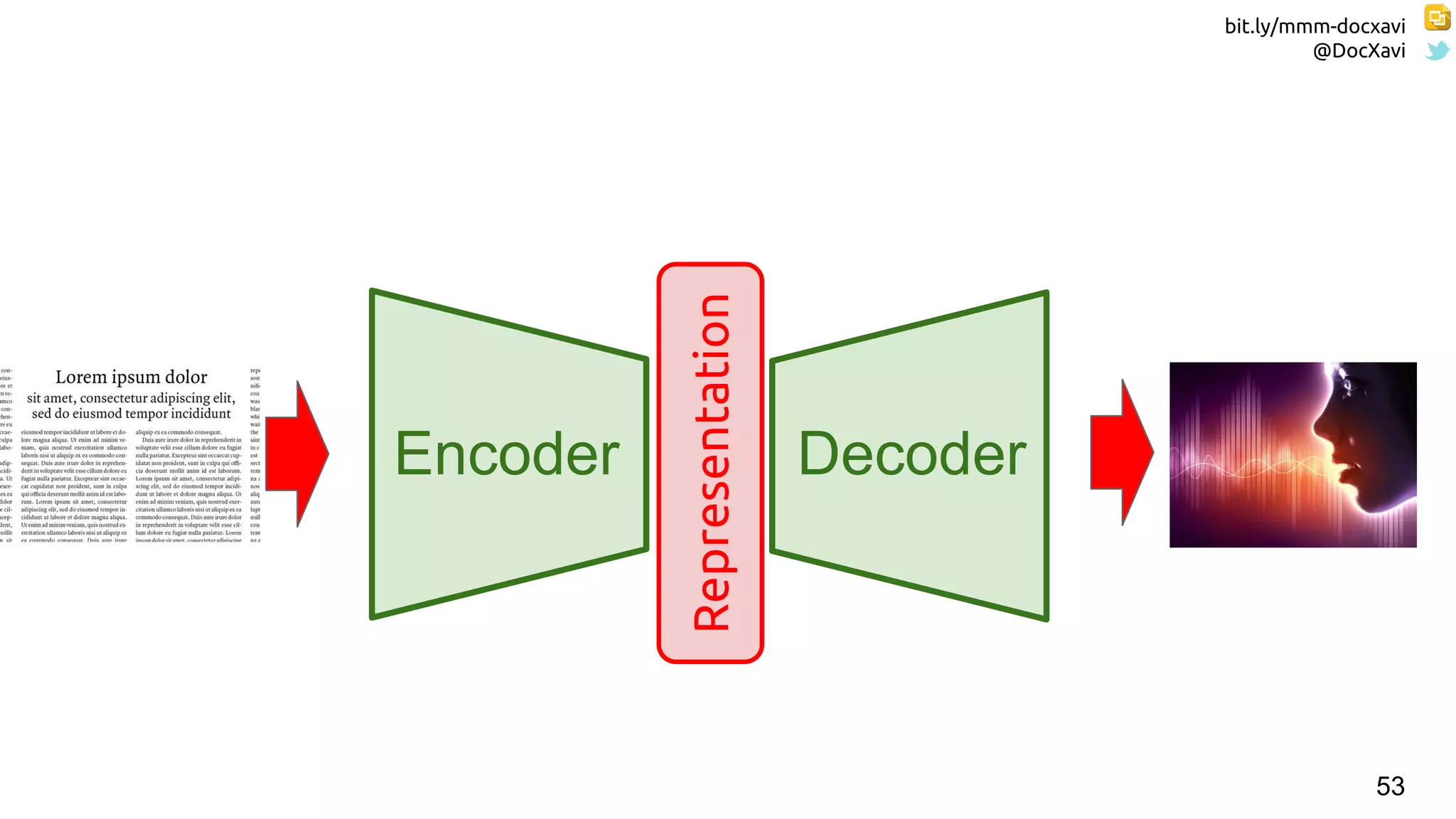

Encoder Decoder
Representation

54. bit.ly/mmm-docxavi
@DocXavi
54

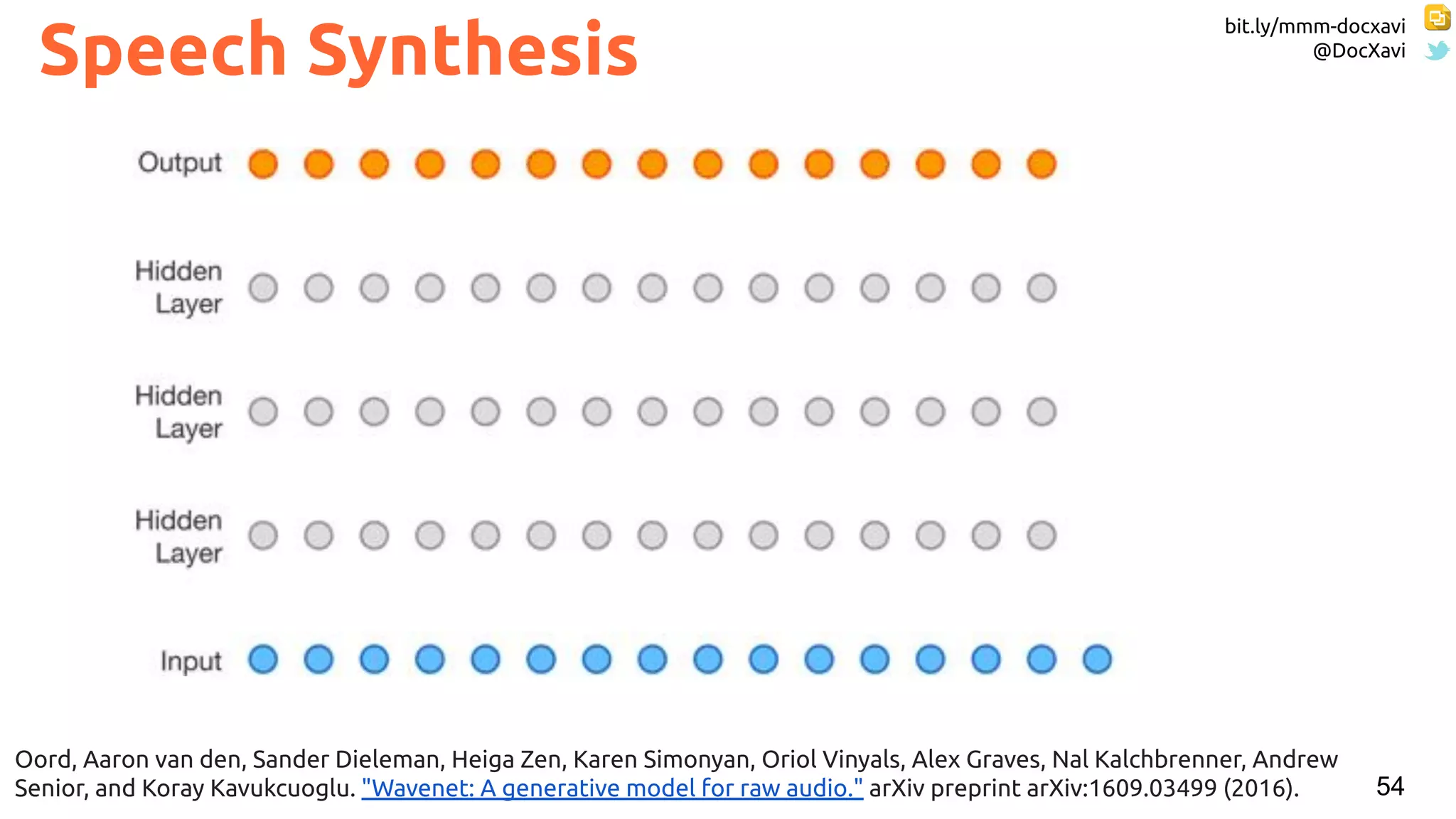

Speech Synthesis
Oord, Aaron van den, Sander Dieleman, Heiga Zen, Karen Simonyan, Oriol Vinyals, Alex Graves, Nal Kalchbrenner, Andrew
Senior, and Koray Kavukcuoglu. "Wavenet: A generative model for raw audio." arXiv preprint arXiv:1609.03499 (2016).

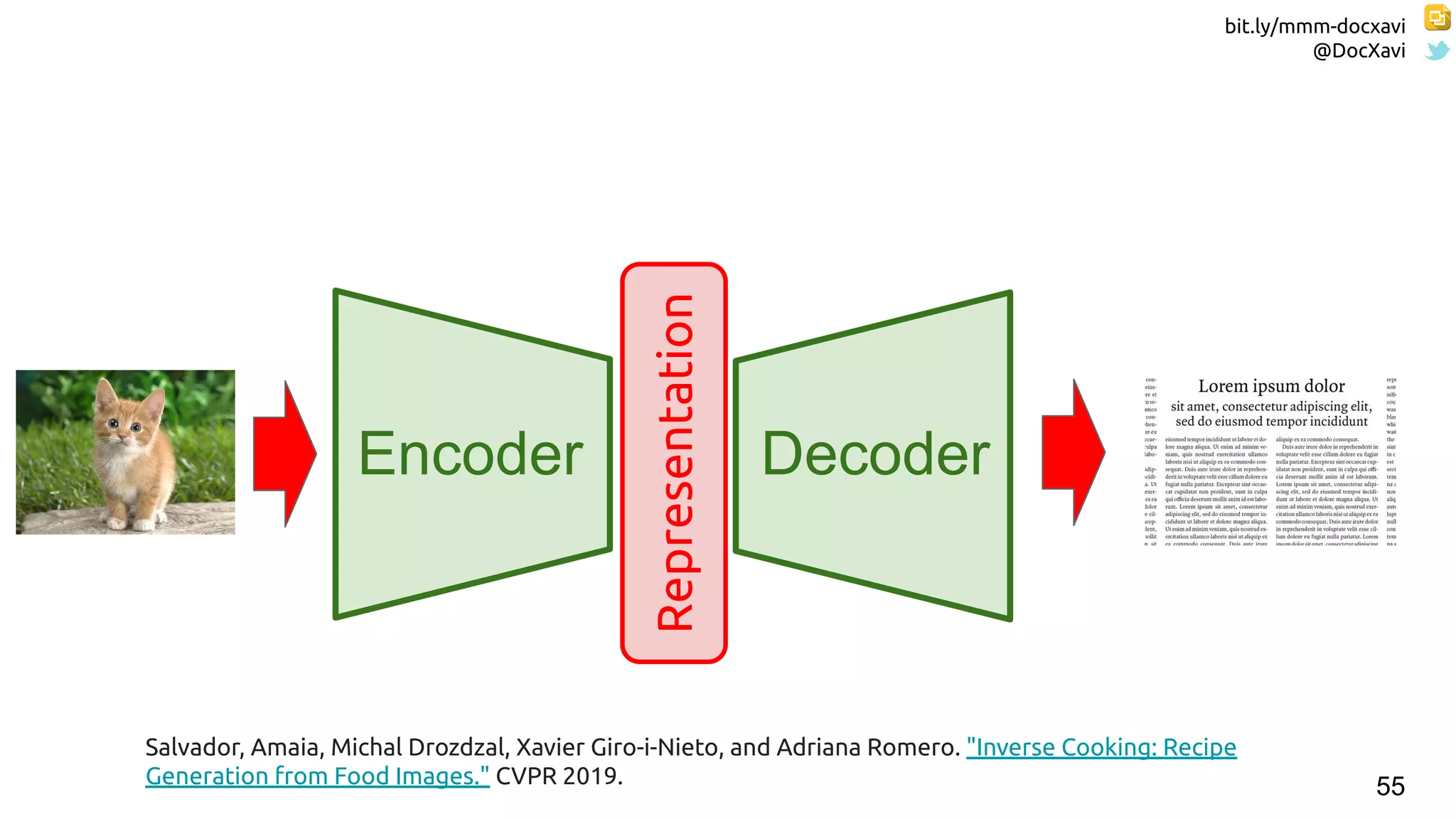

55. bit.ly/mmm-docxavi
@DocXavi
55
Encoder Decoder
Representation
Salvador, Amaia, Michal Drozdzal, Xavier Giro-i-Nieto, and Adriana Romero. "Inverse Cooking: Recipe
Generation from Food Images." CVPR 2019.

56. bit.ly/mmm-docxavi
@DocXavi
56

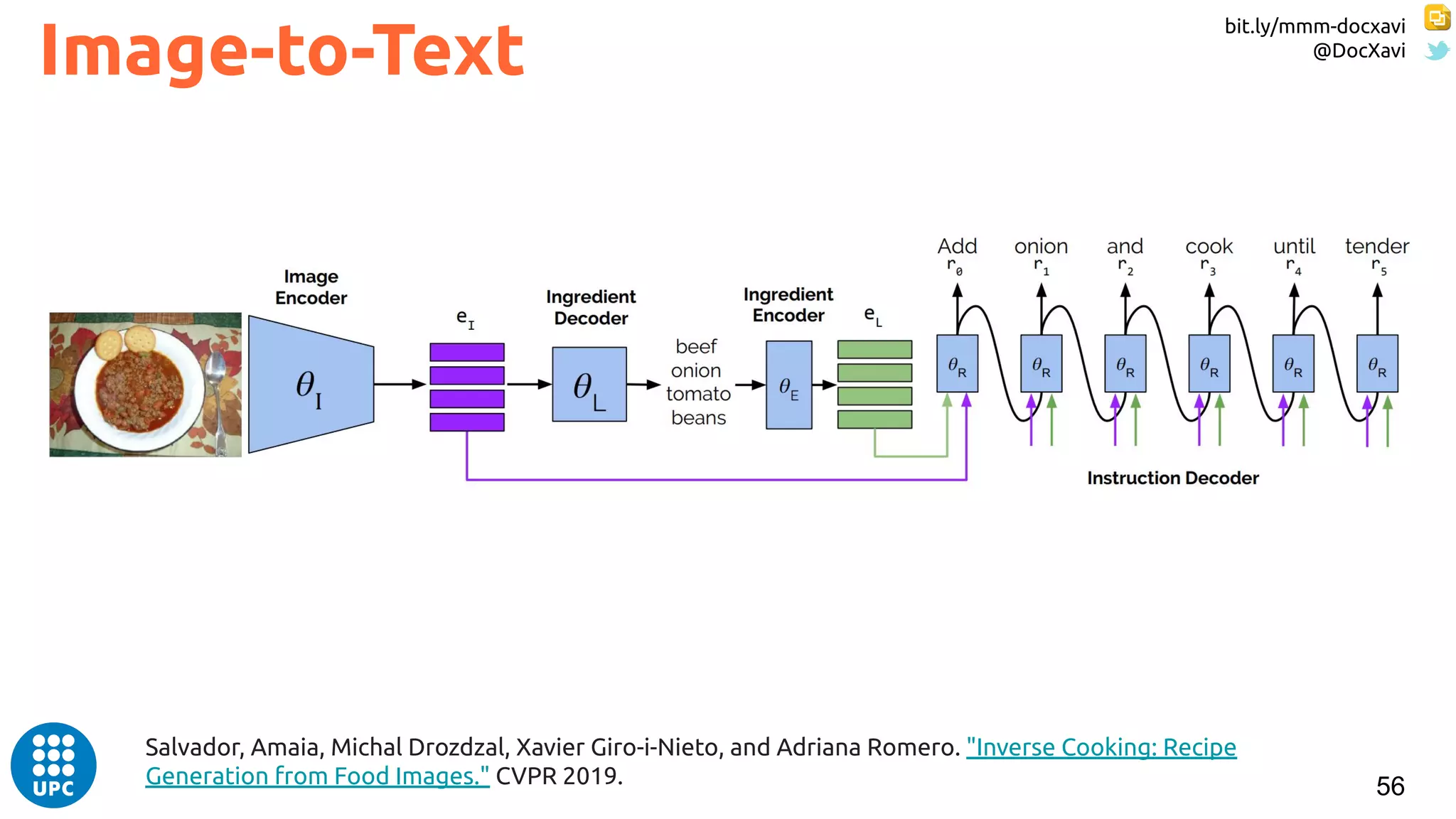

Image-to-Text
Salvador, Amaia, Michal Drozdzal, Xavier Giro-i-Nieto, and Adriana Romero. "Inverse Cooking: Recipe
Generation from Food Images." CVPR 2019.

57. bit.ly/mmm-docxavi
@DocXavi
57

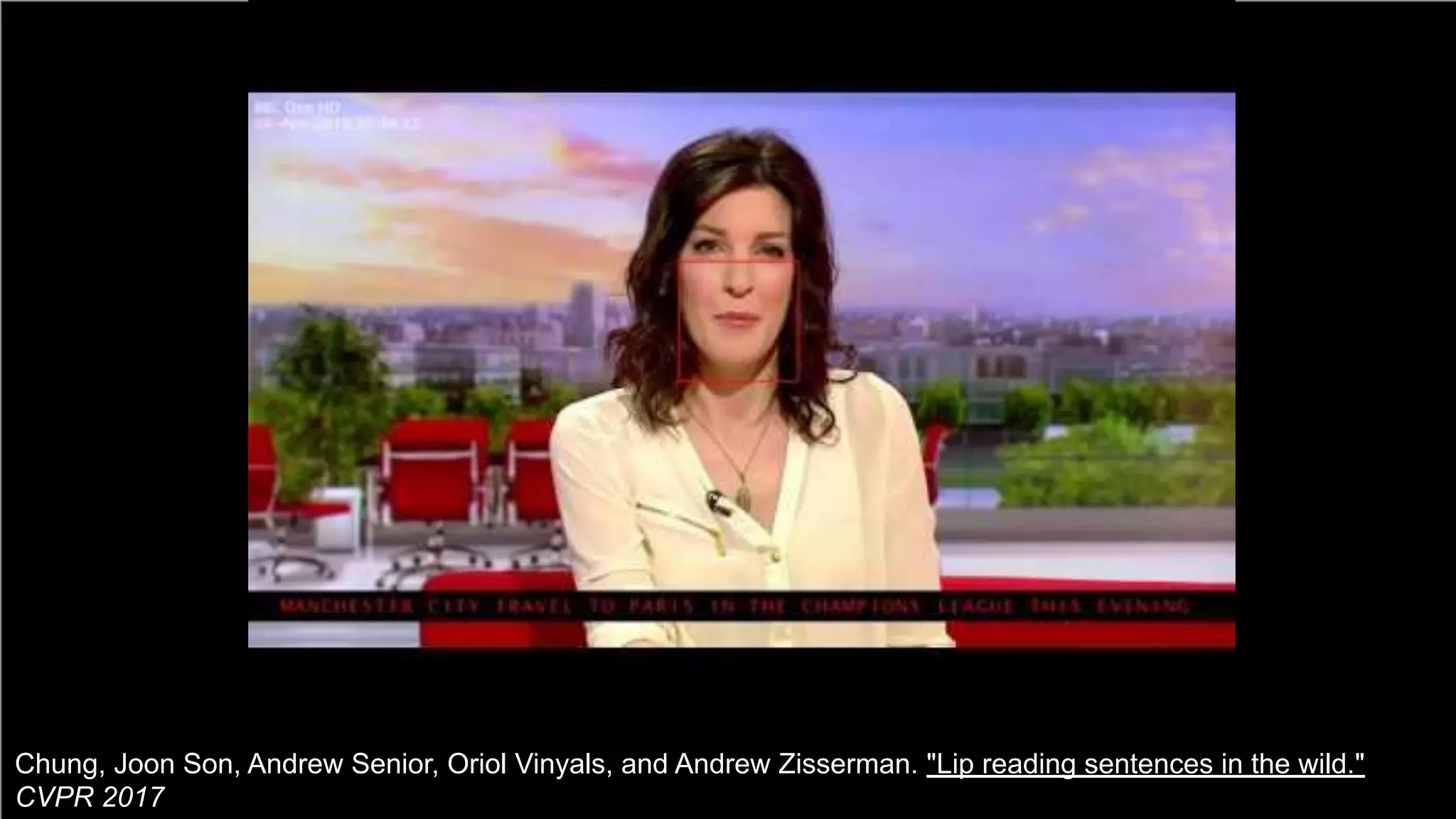

Chung, Joon Son, Andrew Senior, Oriol Vinyals, and Andrew Zisserman. "Lip reading sentences in the wild."
CVPR 2017

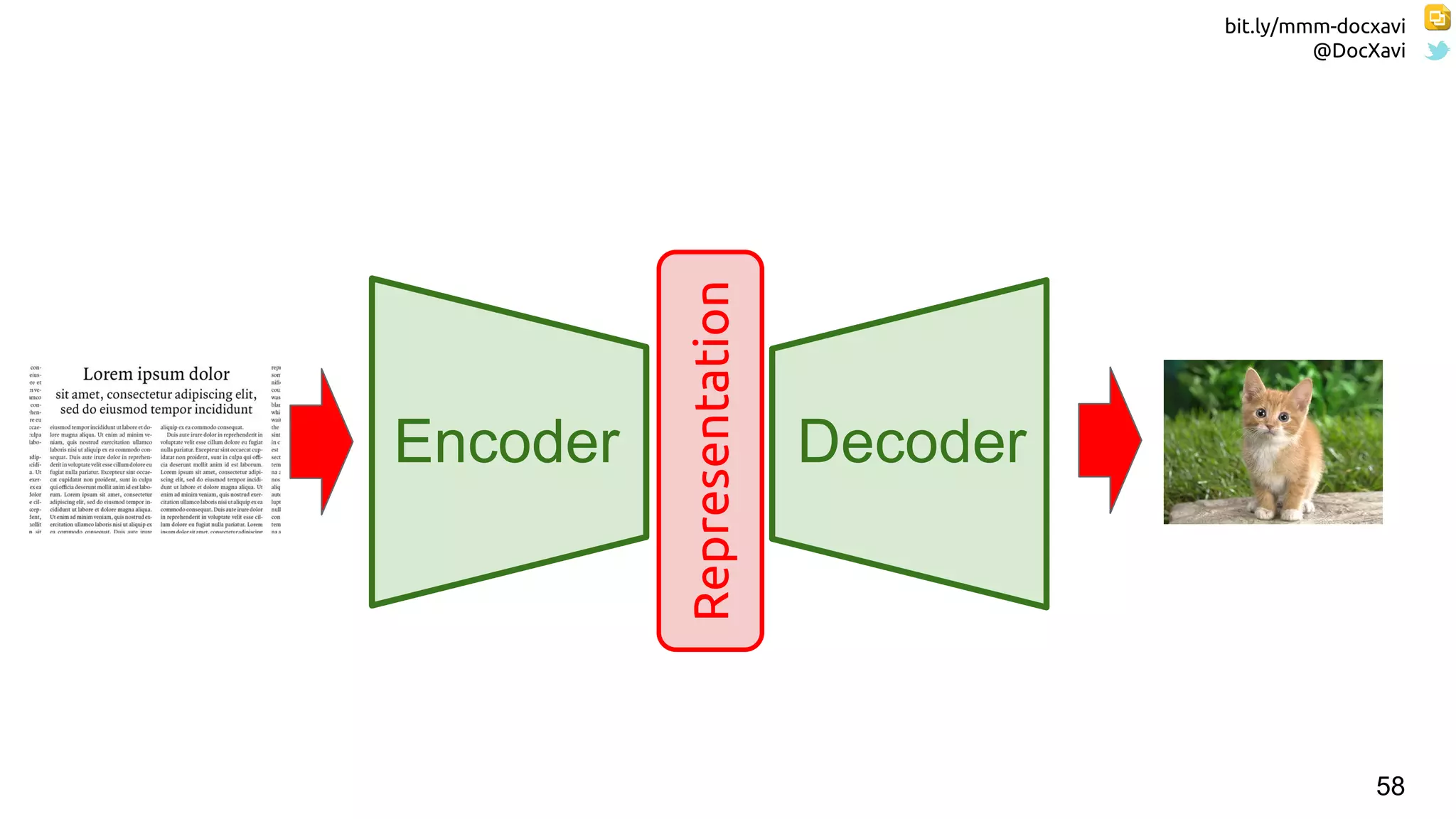

58. bit.ly/mmm-docxavi
@DocXavi
58
Encoder Decoder
Representation

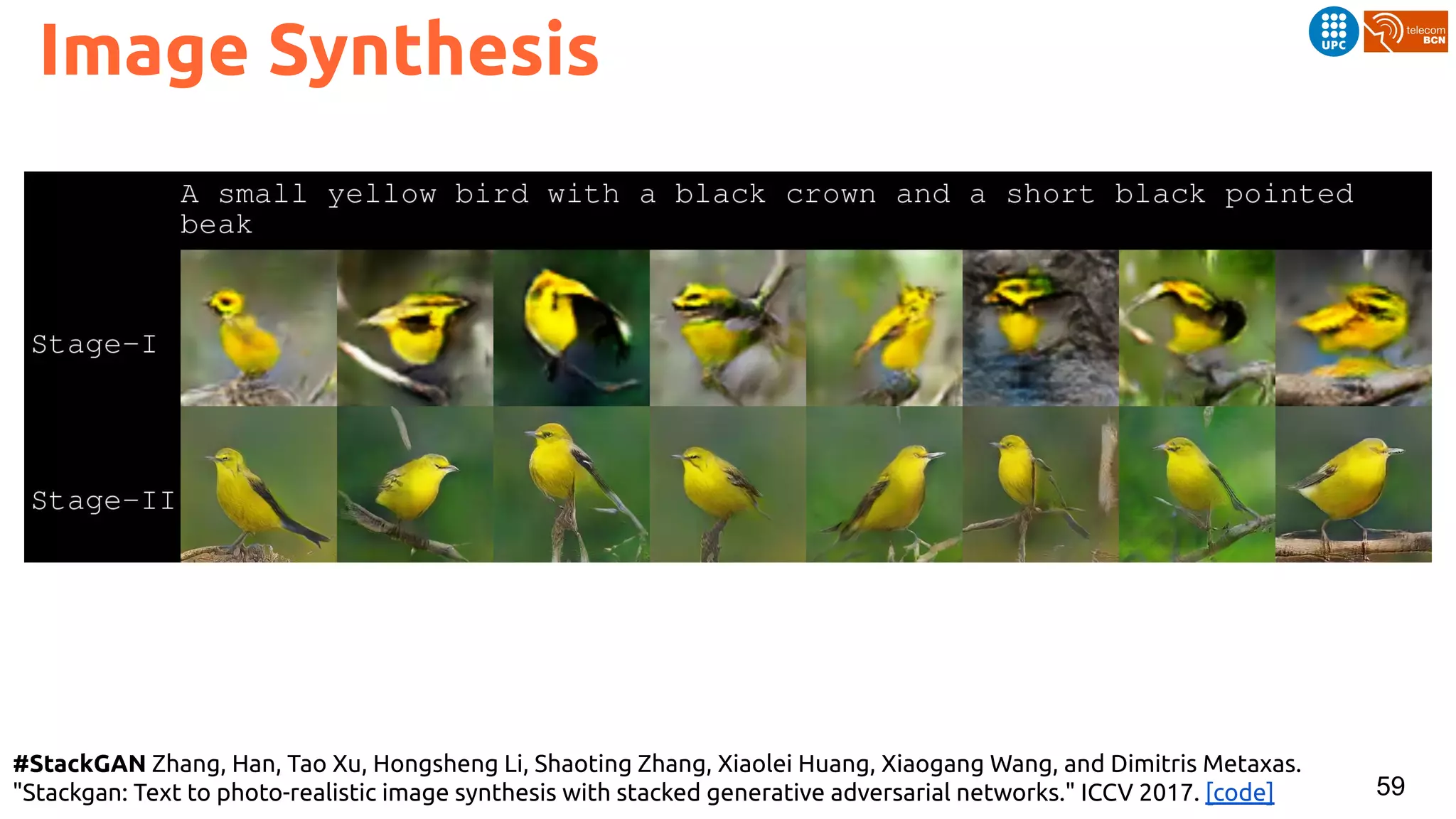

59. 59
#StackGAN Zhang, Han, Tao Xu, Hongsheng Li, Shaoting Zhang, Xiaolei Huang, Xiaogang Wang, and Dimitris Metaxas.
"Stackgan: Text to photo-realistic image synthesis with stacked generative adversarial networks." ICCV 2017. [code]
Image Synthesis

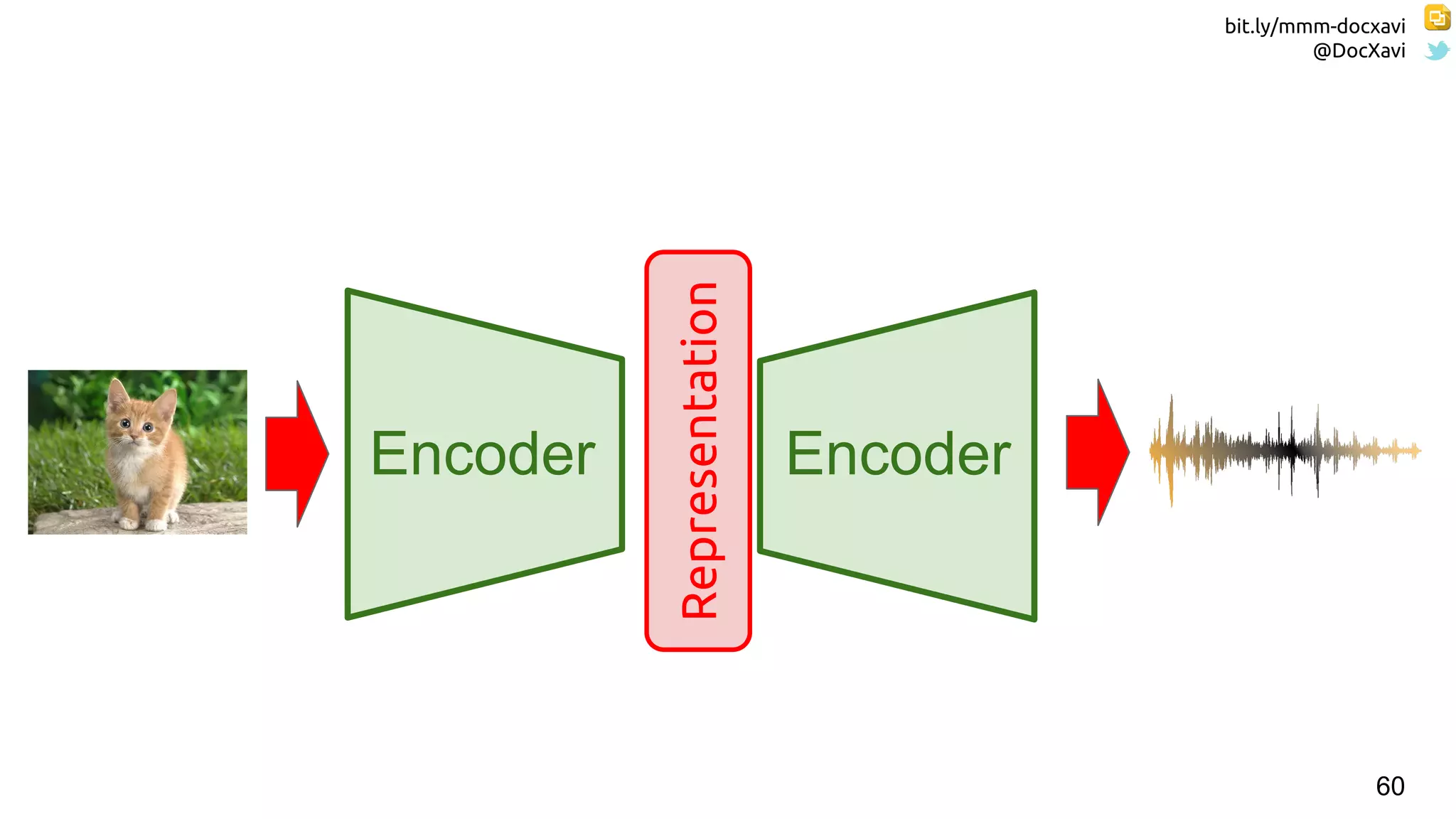

60. bit.ly/mmm-docxavi
@DocXavi
60
Encoder Encoder
Representation

61. bit.ly/mmm-docxavi
@DocXavi
61
Owens, Andrew, Phillip Isola, Josh McDermott, Antonio Torralba, Edward H. Adelson, and William T.
Freeman. "Visually indicated sounds." CVPR 2016.

62. bit.ly/mmm-docxavi
@DocXavi
62

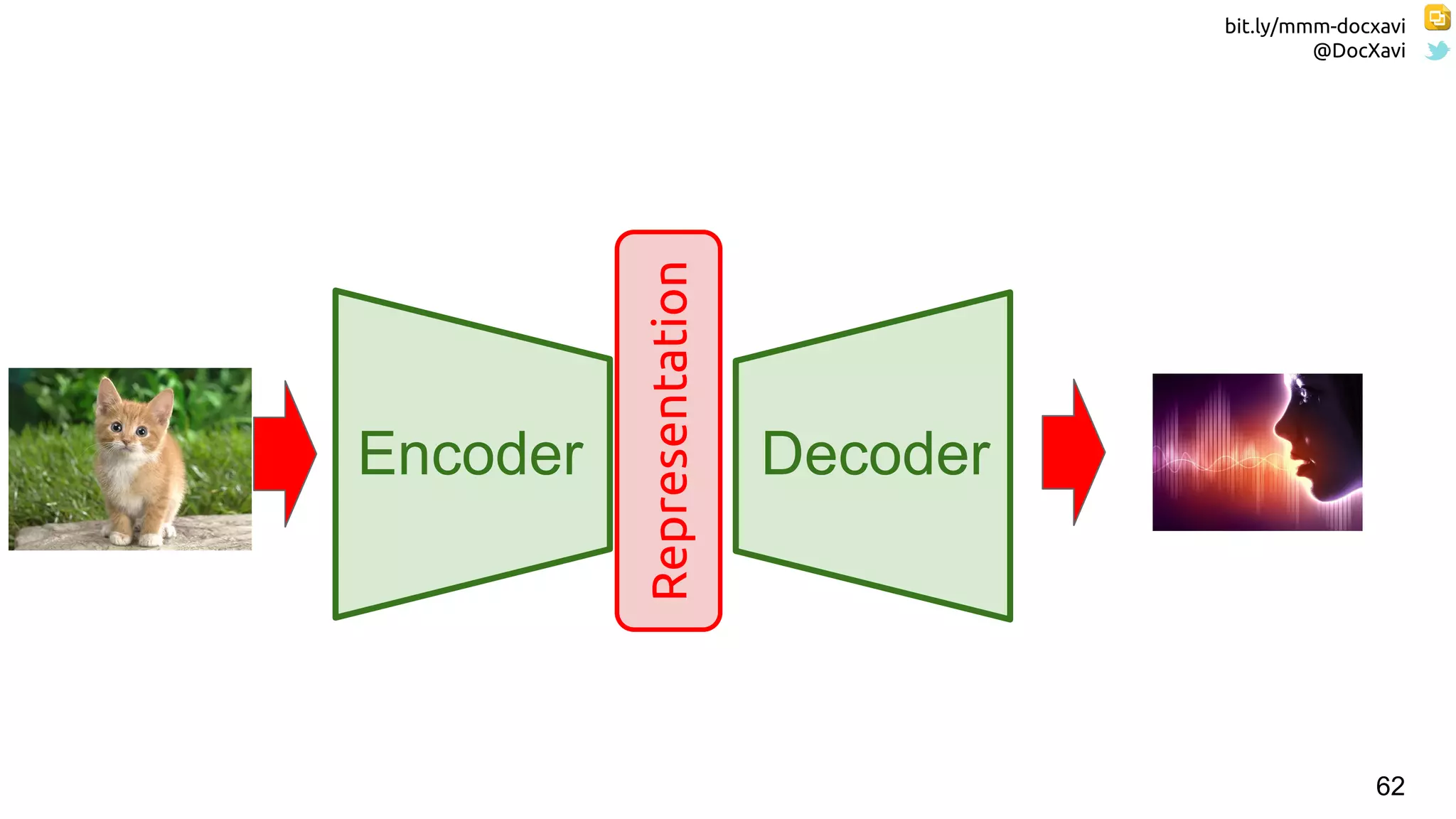

DecoderEncoder
Representation

63. bit.ly/DLCV2018
#DLUPC
63
Ephrat, Ariel, Tavi Halperin, and Shmuel Peleg. "Improved speech reconstruction from silent video." In ICCV Workshop on
Computer Vision for Audio-Visual Media. 2017.

64. bit.ly/mmm-docxavi
@DocXavi
64

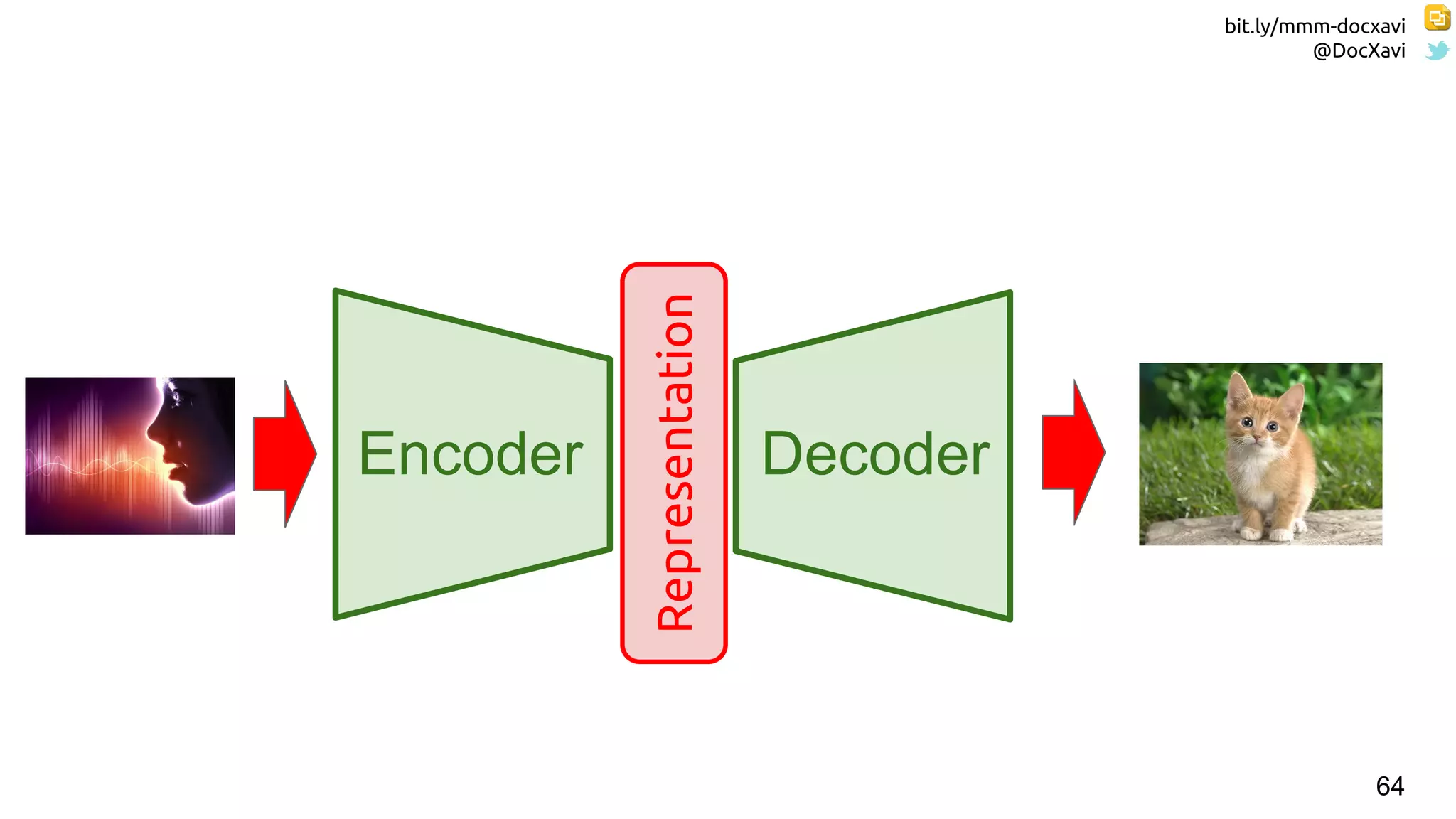

Encoder Decoder
Representation

65. bit.ly/mmm-docxavi
@DocXavi
65

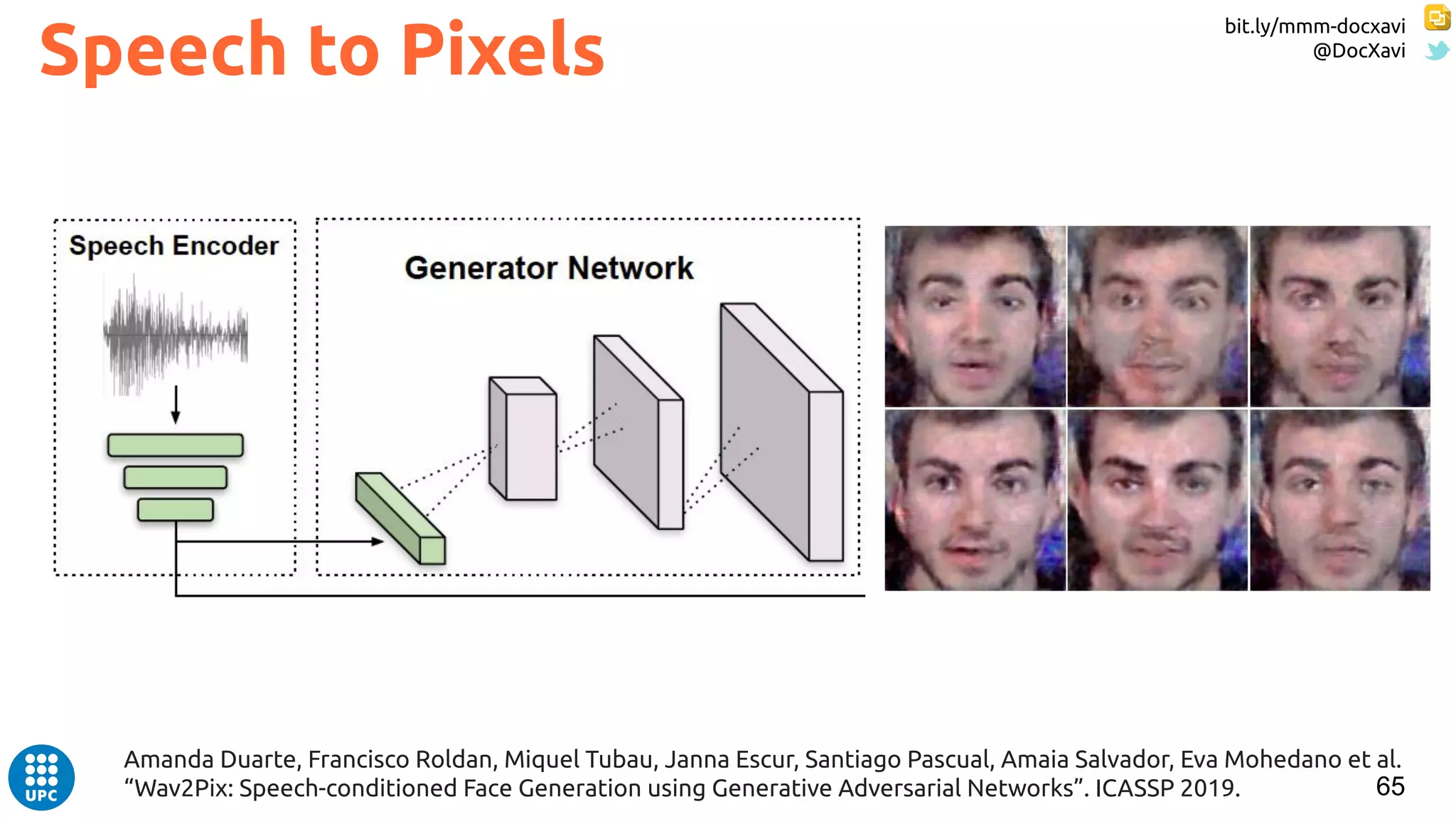

Speech to Pixels
Amanda Duarte, Francisco Roldan, Miquel Tubau, Janna Escur, Santiago Pascual, Amaia Salvador, Eva Mohedano et al.
“Wav2Pix: Speech-conditioned Face Generation using Generative Adversarial Networks”. ICASSP 2019.

66. bit.ly/mmm-docxavi
@DocXavi
66
Encoder Encoder
Representation

67. bit.ly/mmm-docxavi
@DocXavi
67

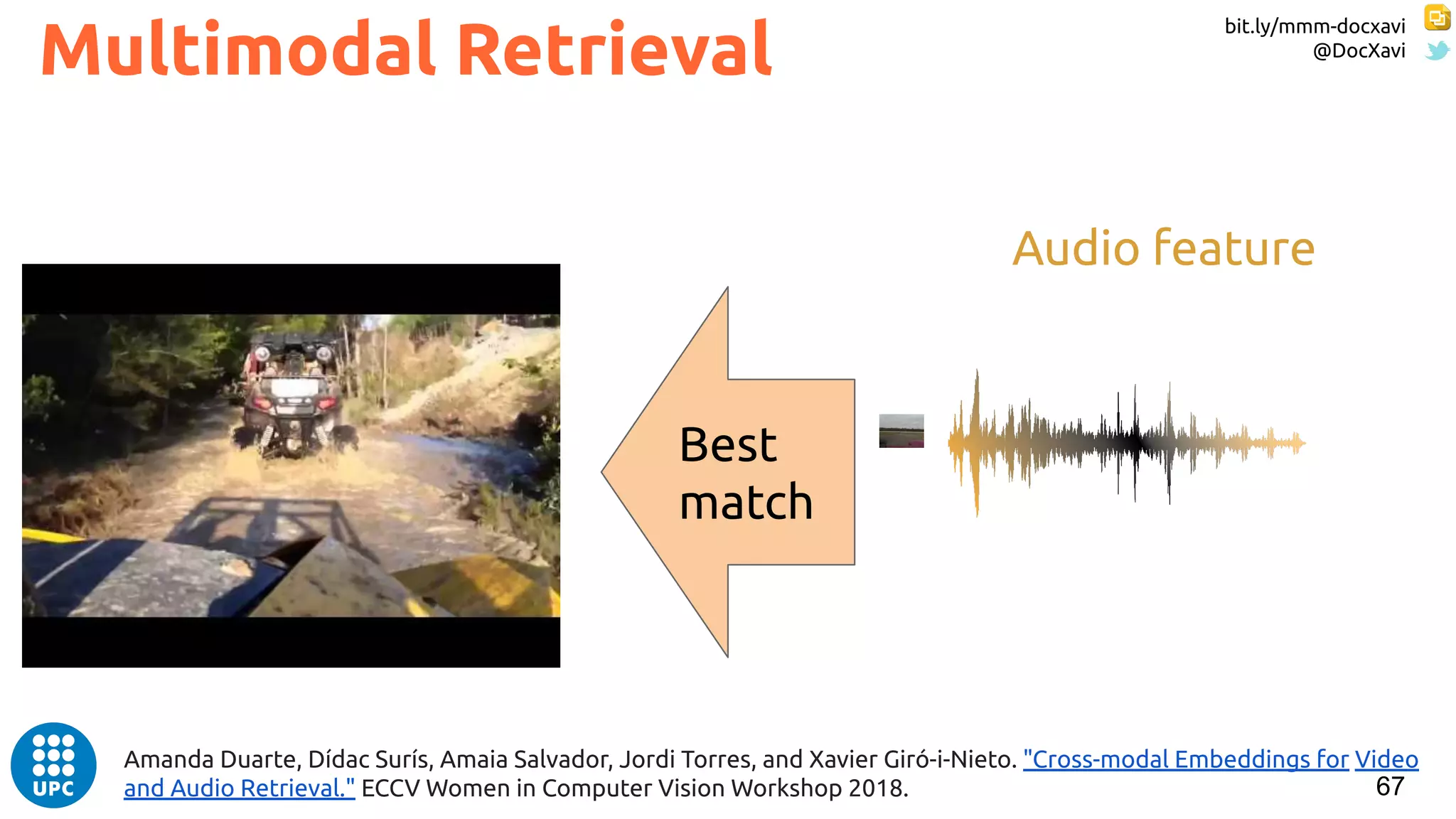

Multimodal Retrieval
Amanda Duarte, Dídac Surís, Amaia Salvador, Jordi Torres, and Xavier Giró-i-Nieto. "Cross-modal Embeddings for Video
and Audio Retrieval." ECCV Women in Computer Vision Workshop 2018.
Best
match
Audio feature

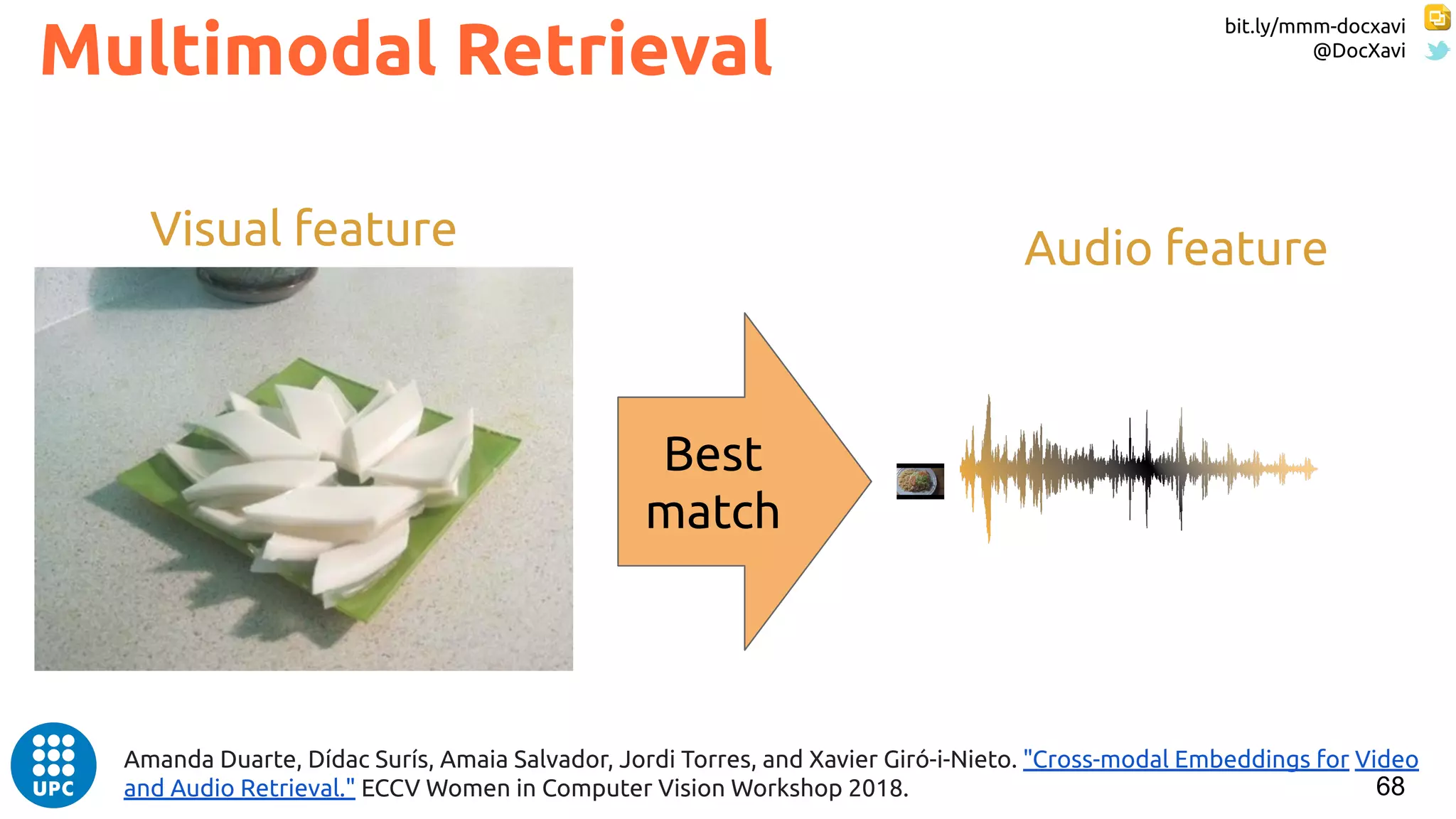

68. bit.ly/mmm-docxavi
@DocXavi
68
Multimodal Retrieval
Best
match
Visual feature Audio feature
Amanda Duarte, Dídac Surís, Amaia Salvador, Jordi Torres, and Xavier Giró-i-Nieto. "Cross-modal Embeddings for Video
and Audio Retrieval." ECCV Women in Computer Vision Workshop 2018.

69. bit.ly/mmm-docxavi
@DocXavi
69

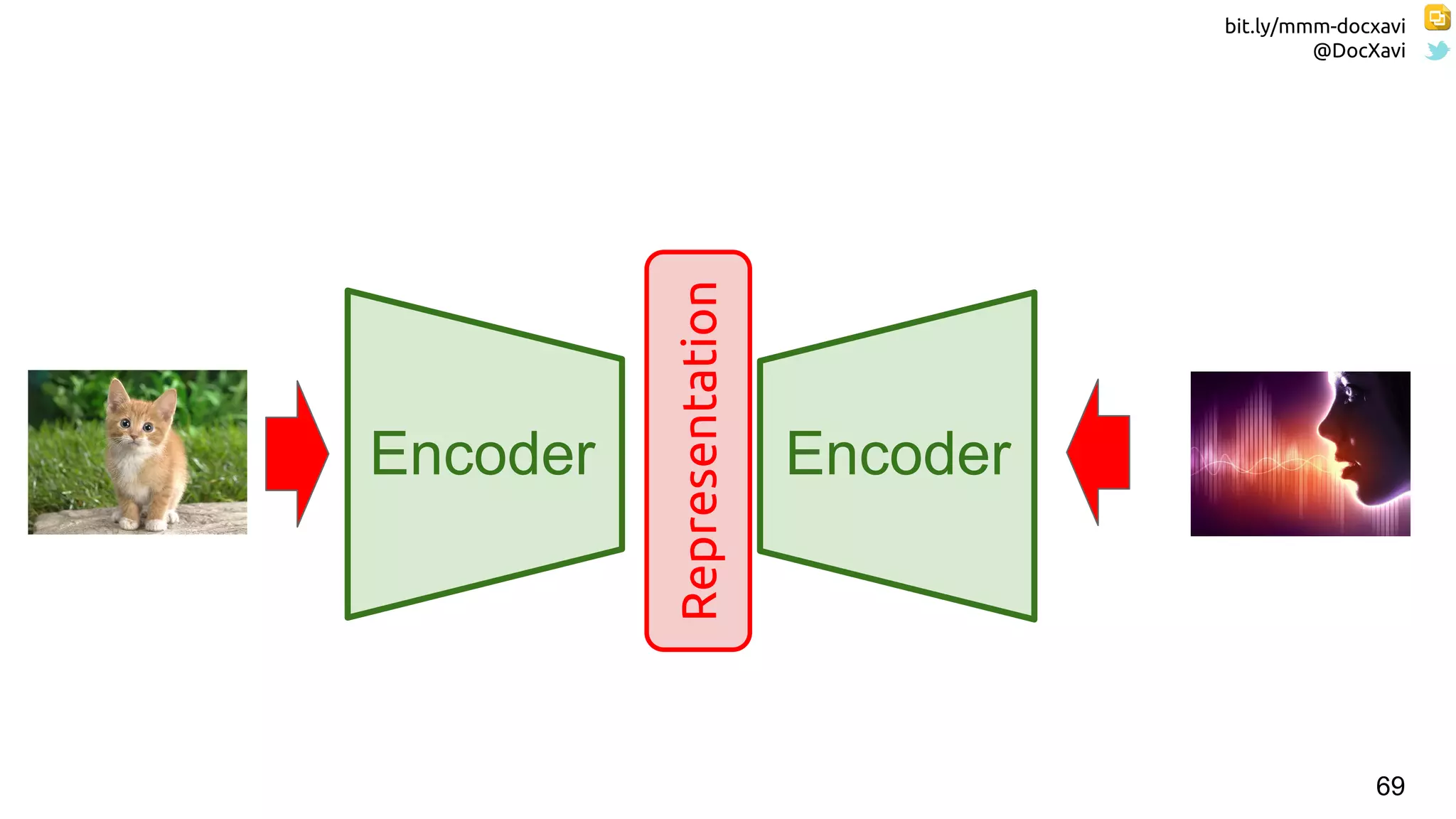

Encoder Encoder
Representation

70. bit.ly/mmm-docxavi
@DocXavi
70

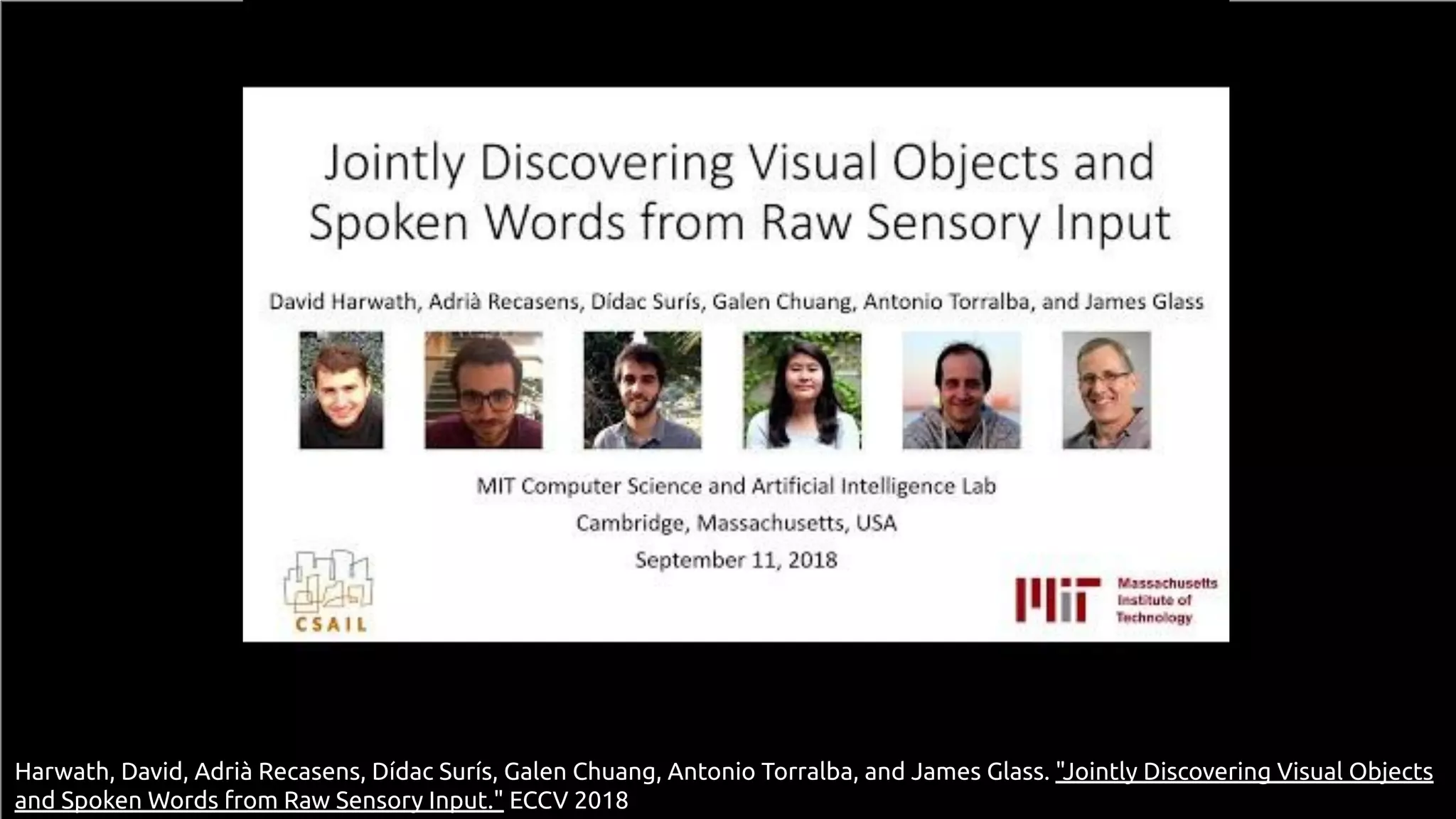

Harwath, David, Adrià Recasens, Dídac Surís, Galen Chuang, Antonio Torralba, and James Glass. "Jointly Discovering Visual Objects
and Spoken Words from Raw Sensory Input." ECCV 2018

71. bit.ly/mmm-docxavi
@DocXavi
71

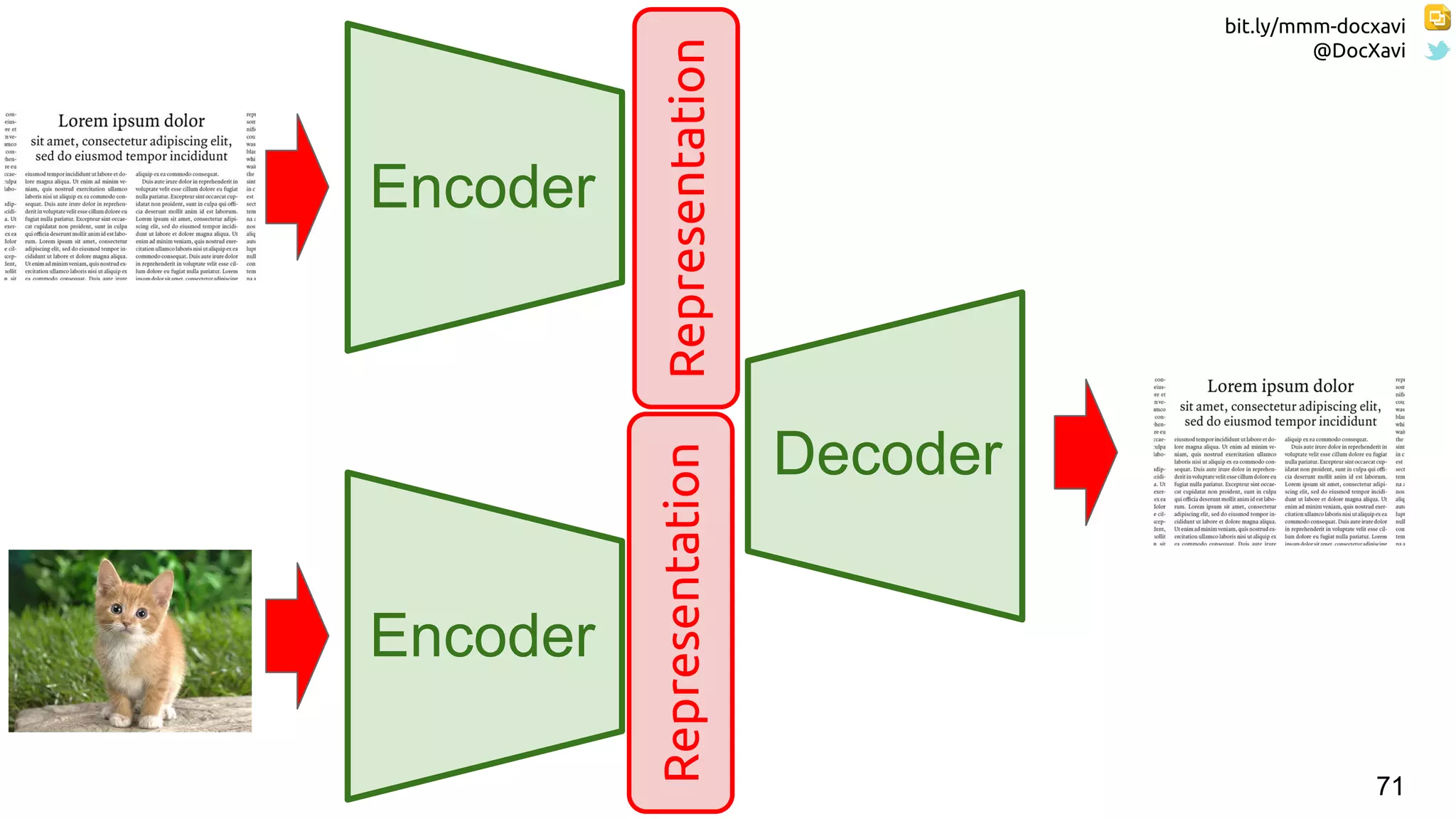

Encoder
Decoder
Representation
Encoder
Representation

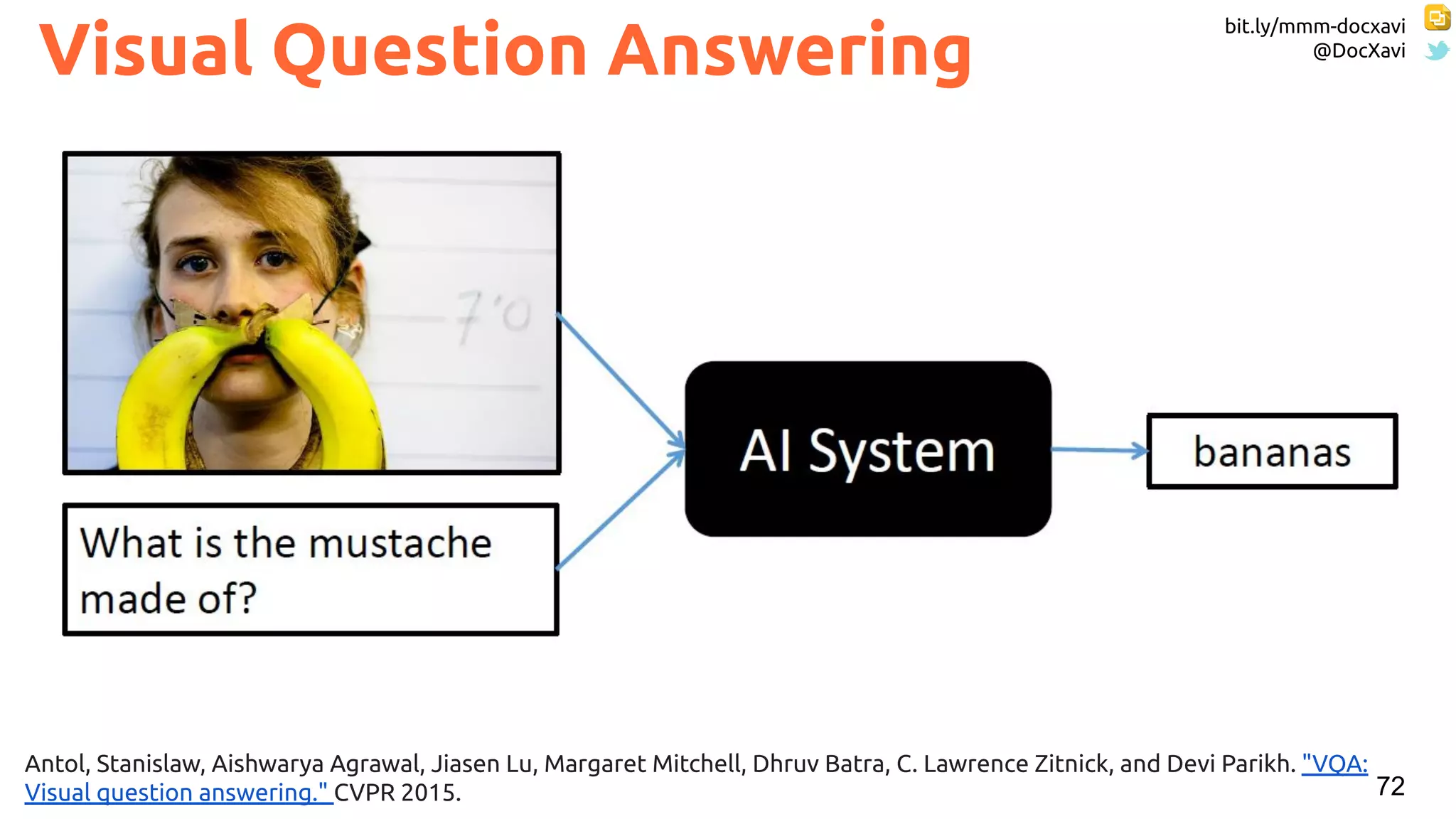

72. bit.ly/mmm-docxavi
@DocXavi
72
Visual Question Answering
Antol, Stanislaw, Aishwarya Agrawal, Jiasen Lu, Margaret Mitchell, Dhruv Batra, C. Lawrence Zitnick, and Devi Parikh. "VQA:
Visual question answering." CVPR 2015.

73. bit.ly/mmm-docxavi
@DocXavi
73

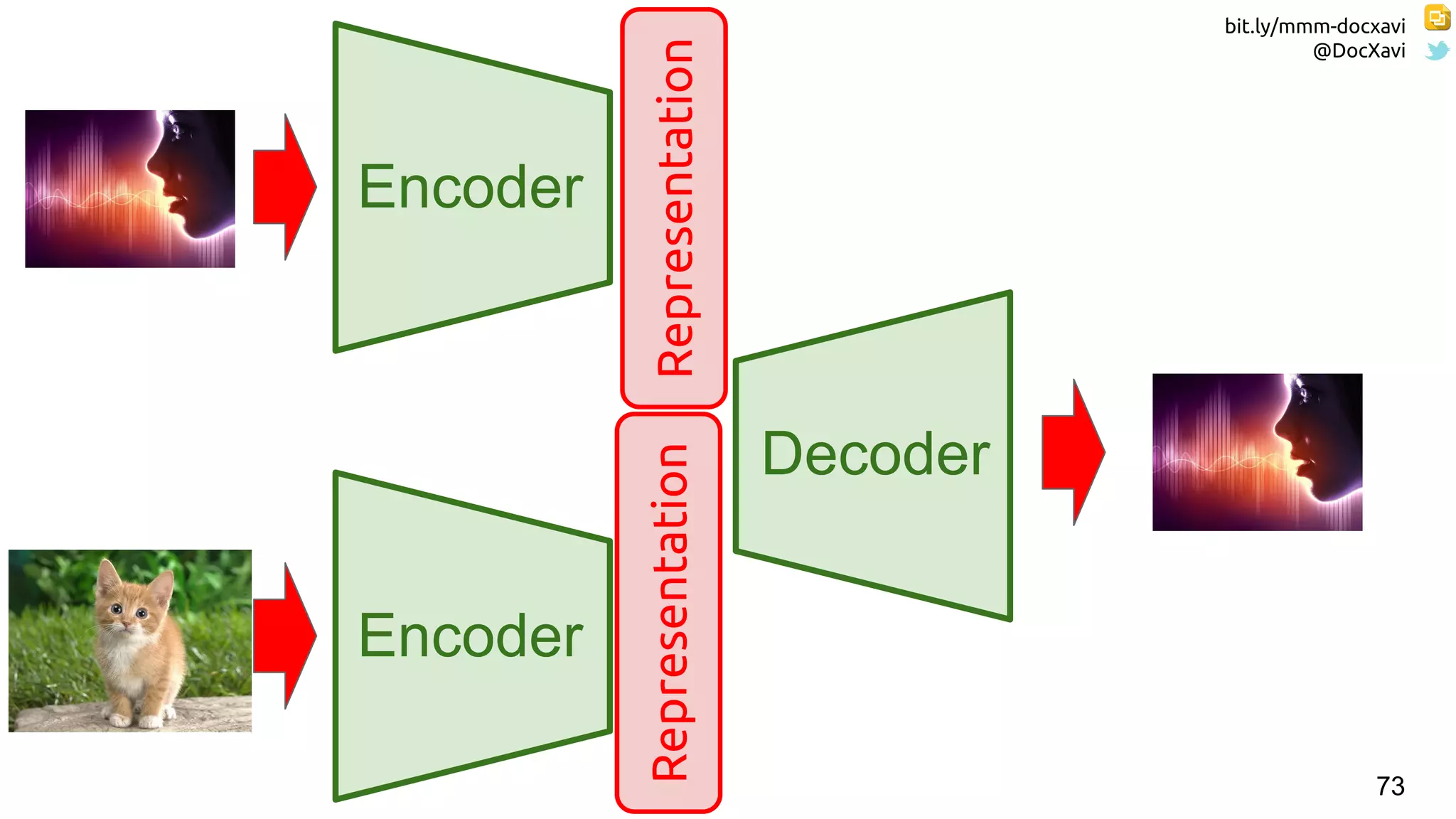

Encoder
Decoder
Representation
Encoder Representation

74. bit.ly/DLCV2018
#DLUPC
74

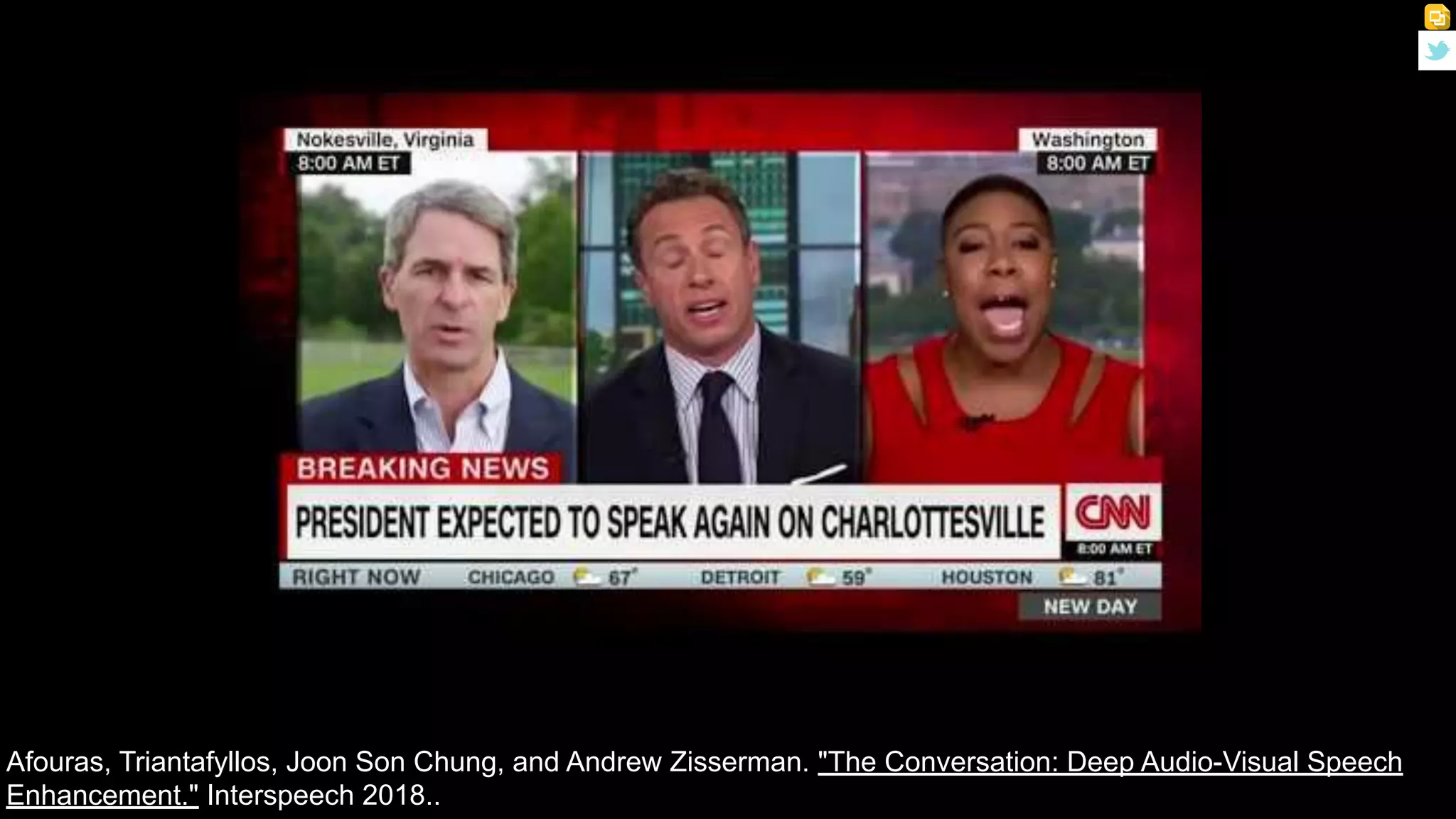

Afouras, Triantafyllos, Joon Son Chung, and Andrew Zisserman. "The Conversation: Deep Audio-Visual Speech
Enhancement." Interspeech 2018..

75. bit.ly/mmm-docxavi
@DocXavi
75

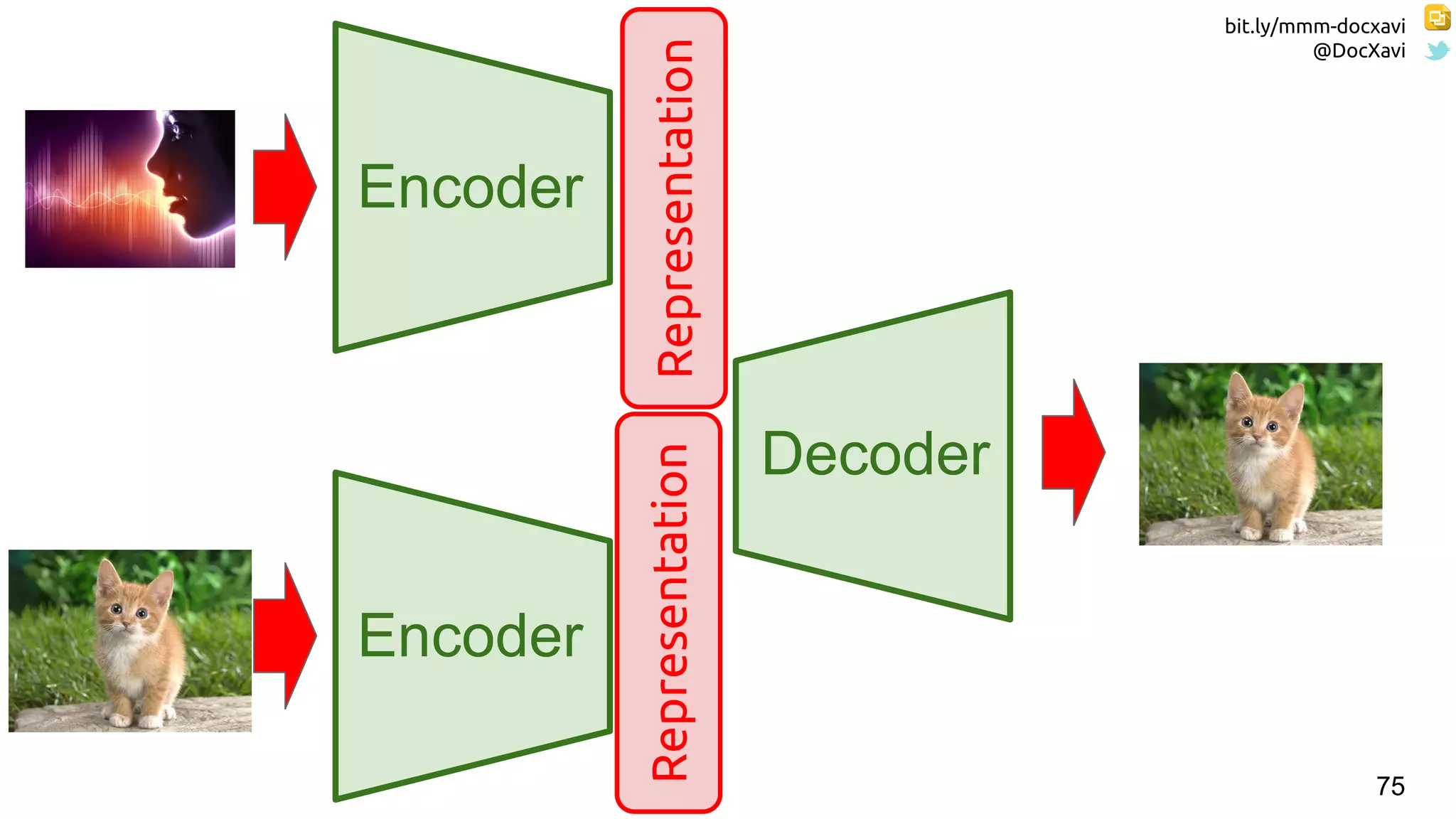

Encoder
Decoder
Representation
Encoder Representation

76. bit.ly/DLCV2018
#DLUPC
76
Karras, Tero, Timo Aila, Samuli Laine, Antti Herva, and Jaakko Lehtinen. "Audio-driven facial animation by
joint end-to-end learning of pose and emotion." SIGGRAPH 2017

77. bit.ly/mmm-docxavi
@DocXavi
Text
Audio
77
Speech
Vision

78. bit.ly/commsenselab
@DocXavi
78

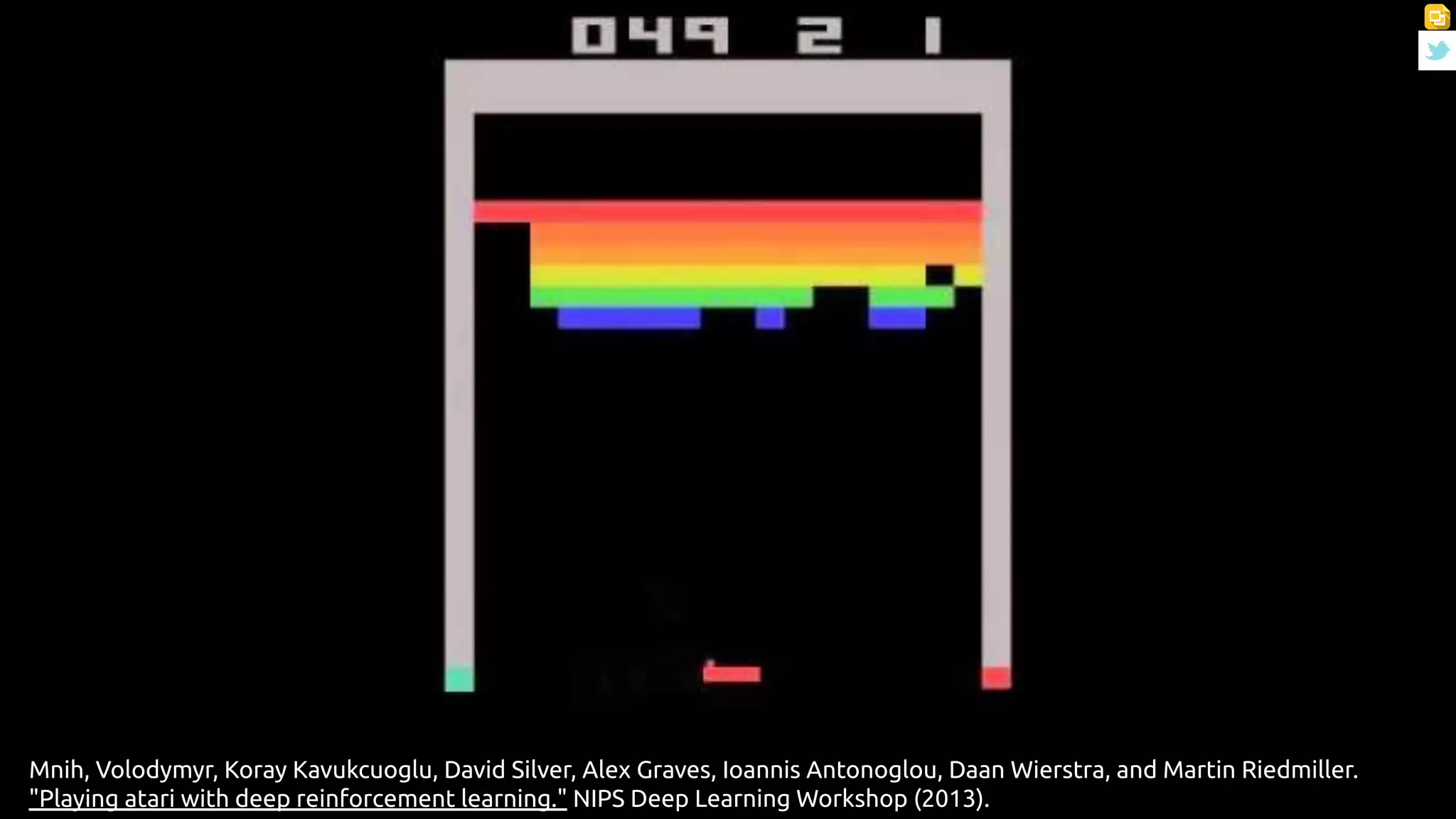

Mnih, Volodymyr, Koray Kavukcuoglu, David Silver, Alex Graves, Ioannis Antonoglou, Daan Wierstra, and Martin Riedmiller.
"Playing atari with deep reinforcement learning." NIPS Deep Learning Workshop (2013).

79. bit.ly/commsenselab
@DocXavi
79
Beyond Multimedia
#AlphaGo Silver, David, Aja Huang, Chris J. Maddison, Arthur Guez, Laurent Sifre, George Van Den Driessche, Julian
Schrittwieser et al. "Mastering the game of Go with deep neural networks and tree search." Nature 2016.

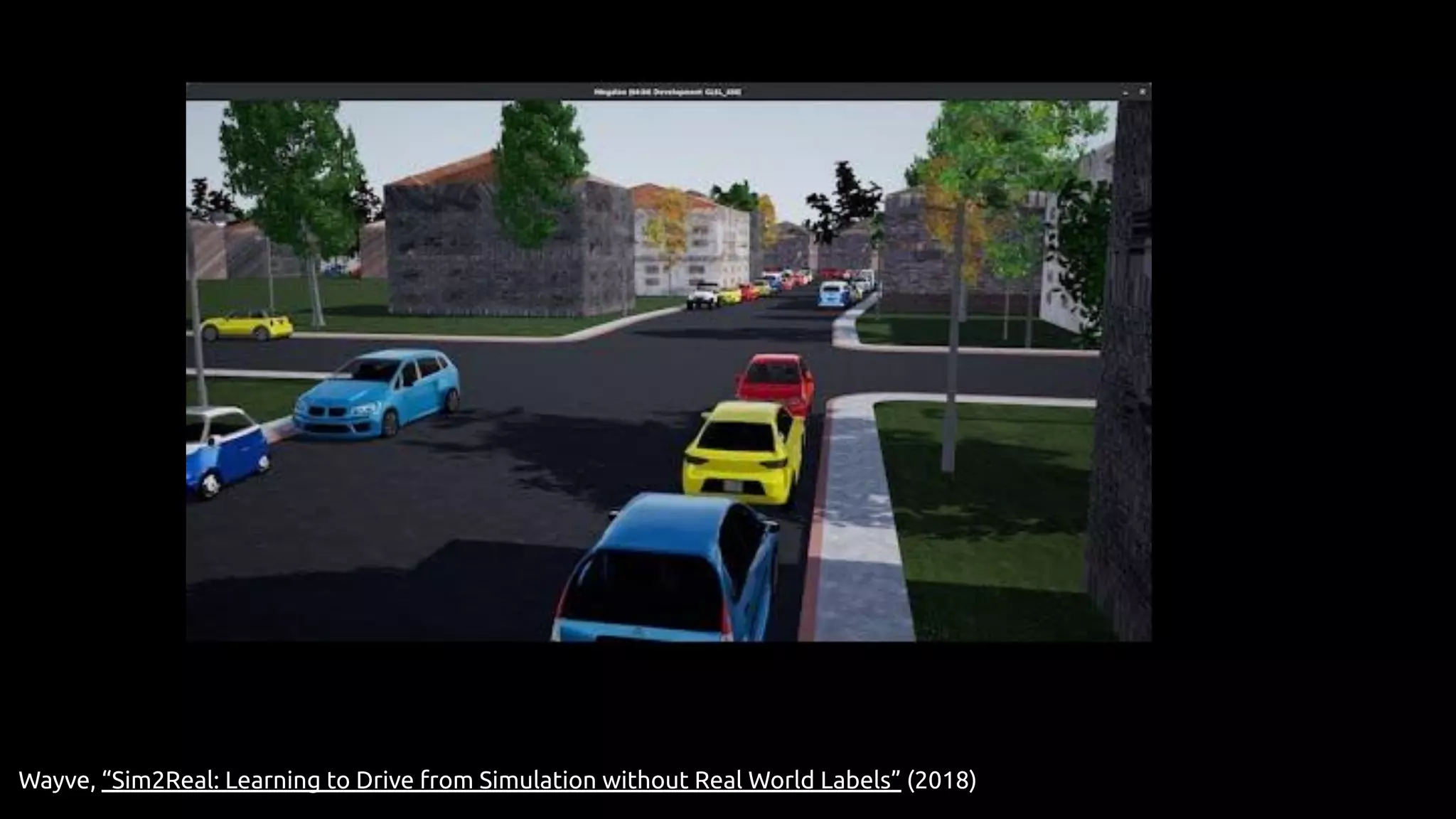

80. Wayve, “Sim2Real: Learning to Drive from Simulation without Real World Labels” (2018)

81. bit.ly/commsenselab
@DocXavi
Sermanet, Pierre, Corey Lynch, Yevgen Chebotar, Jasmine Hsu, Eric Jang, Stefan Schaal, Sergey Levine, and Google Brain.
"Time-contrastive networks: Self-supervised learning from video." ICRA 2018.

82. bit.ly/commsenselab
@DocXavi
82
Beyond Multimedia

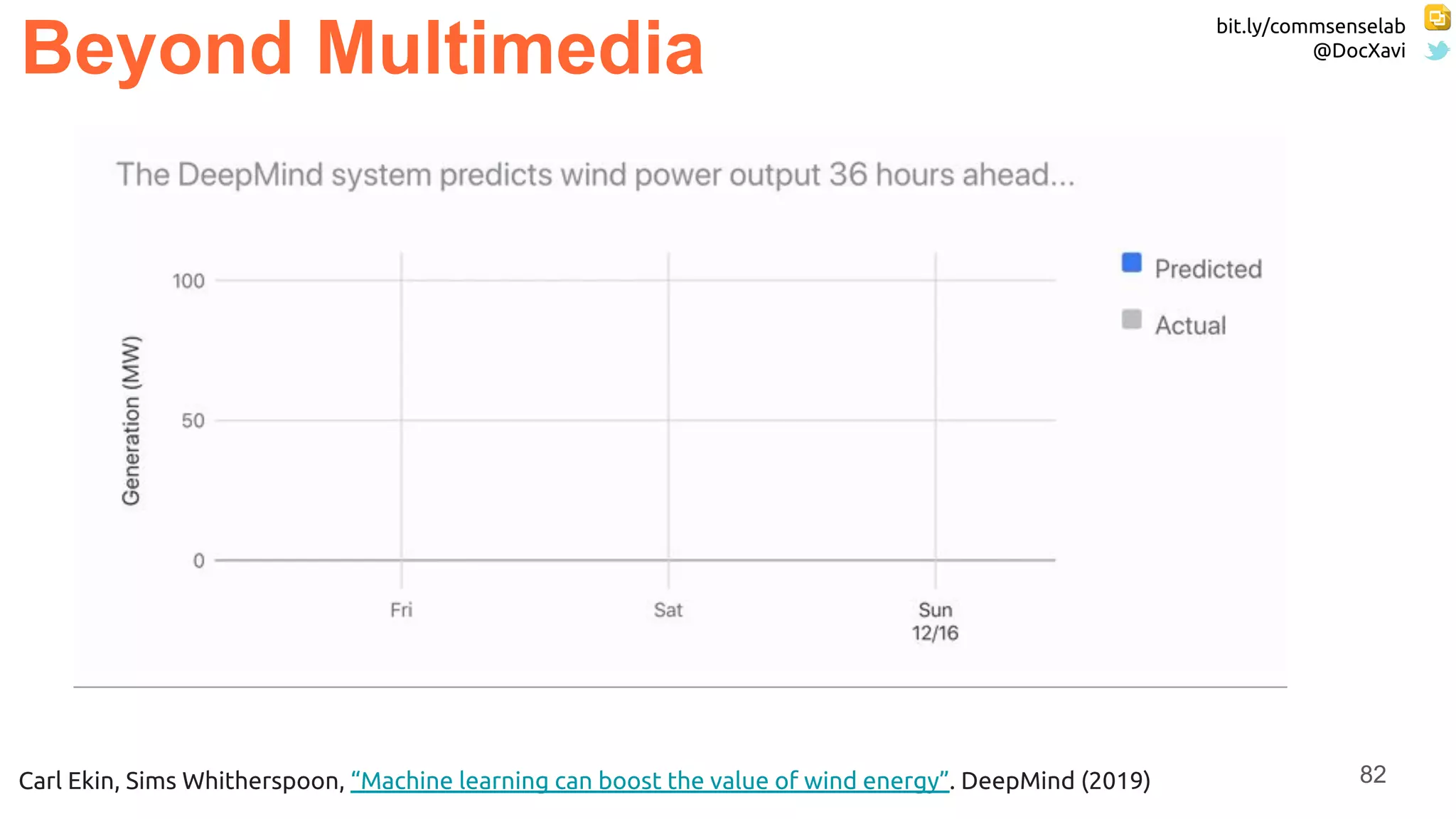

Carl Ekin, Sims Whitherspoon, “Machine learning can boost the value of wind energy”. DeepMind (2019)

83. bit.ly/commsenselab
@DocXavi
83
Beyond Multimedia
Esteva, Andre, Brett Kuprel, Roberto A. Novoa, Justin Ko, Susan M. Swetter, Helen M. Blau, and Sebastian Thrun.
"Dermatologist-level classification of skin cancer with deep neural networks." Nature 542, no. 7639 (2017): 115.

84. bit.ly/commsenselab
@DocXavi
84
Beyond Multimedia

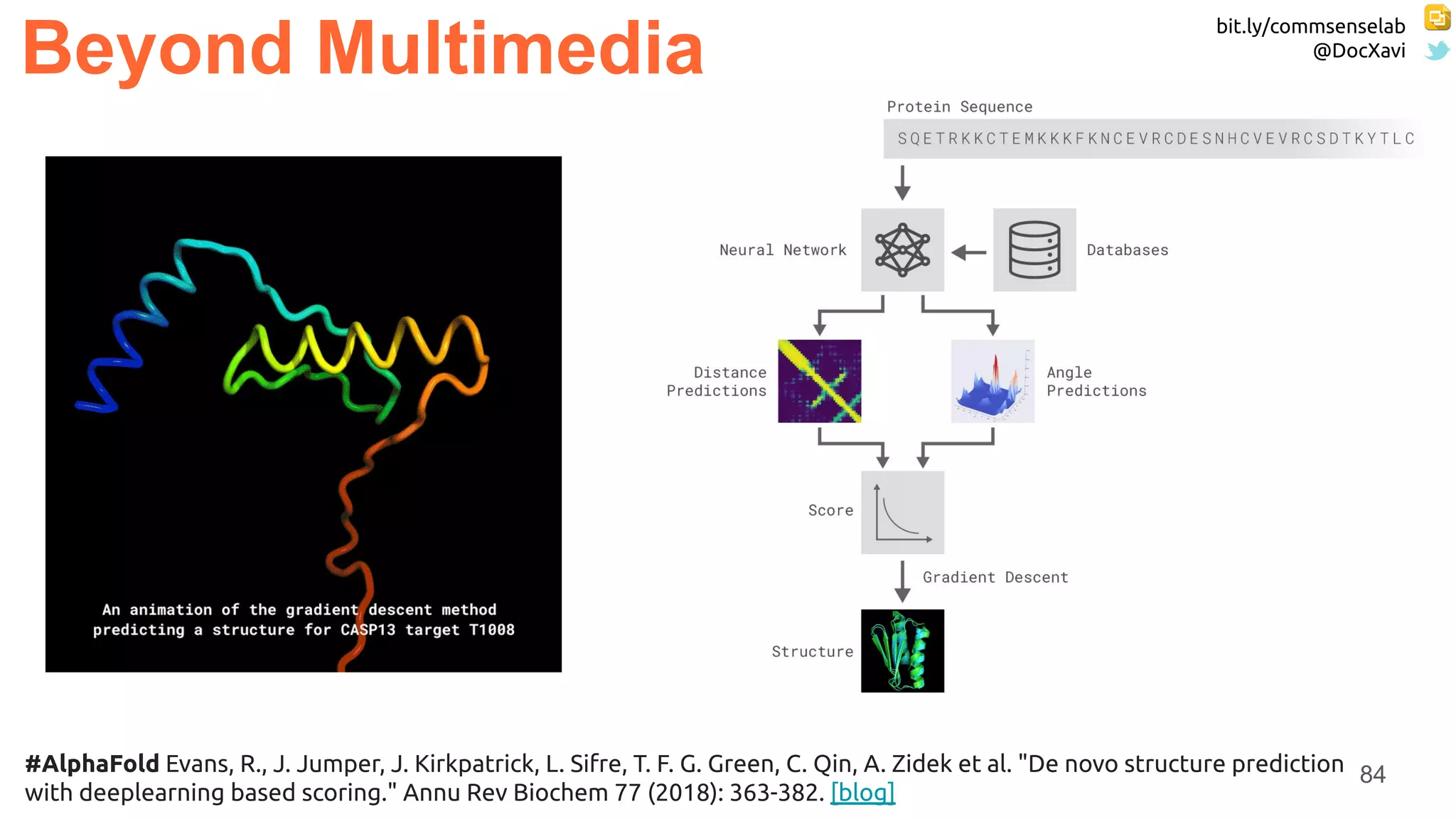

#AlphaFold Evans, R., J. Jumper, J. Kirkpatrick, L. Sifre, T. F. G. Green, C. Qin, A. Zidek et al. "De novo structure prediction
with deeplearning based scoring." Annu Rev Biochem 77 (2018): 363-382. [blog]

85. bit.ly/commsenselab
@DocXavi
85
Beyond Multimedia
?

86. bit.ly/commsenselab
@DocXavi
86

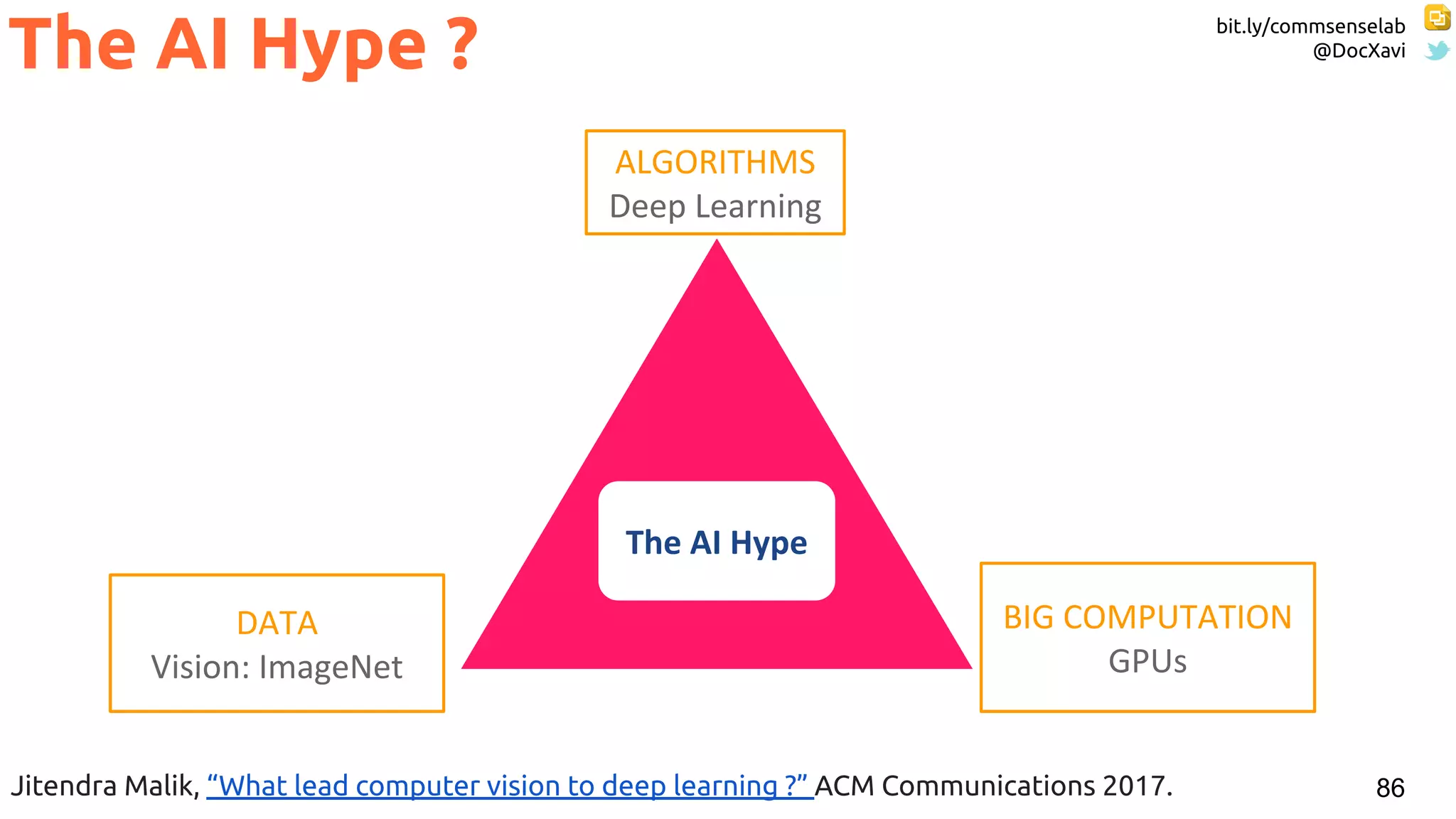

The AI Hype ?
Jitendra Malik, “What lead computer vision to deep learning ?” ACM Communications 2017.

87. bit.ly/commsenselab
@DocXavi
87

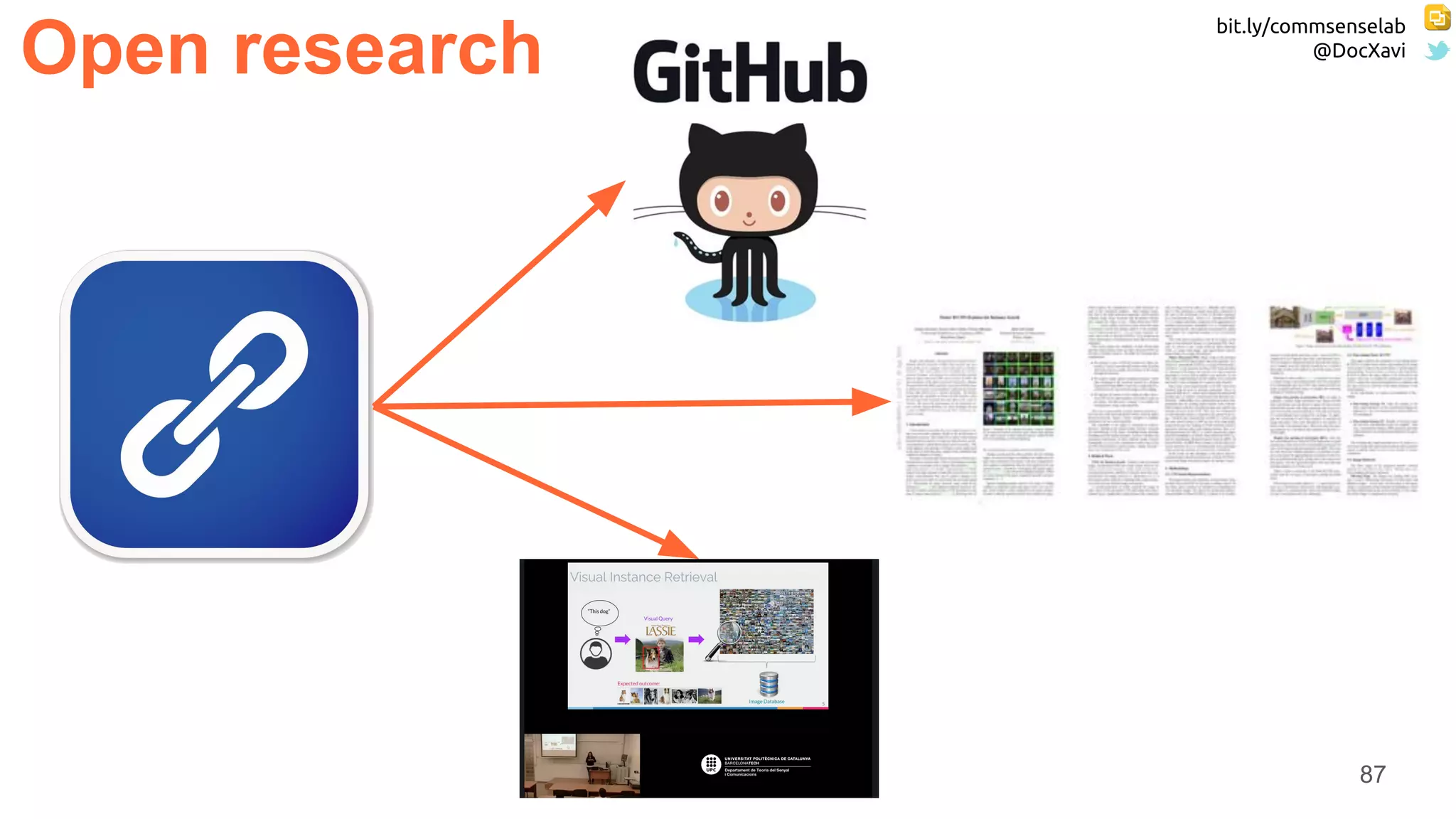

Open research

88. bit.ly/commsenselab
@DocXavi
88

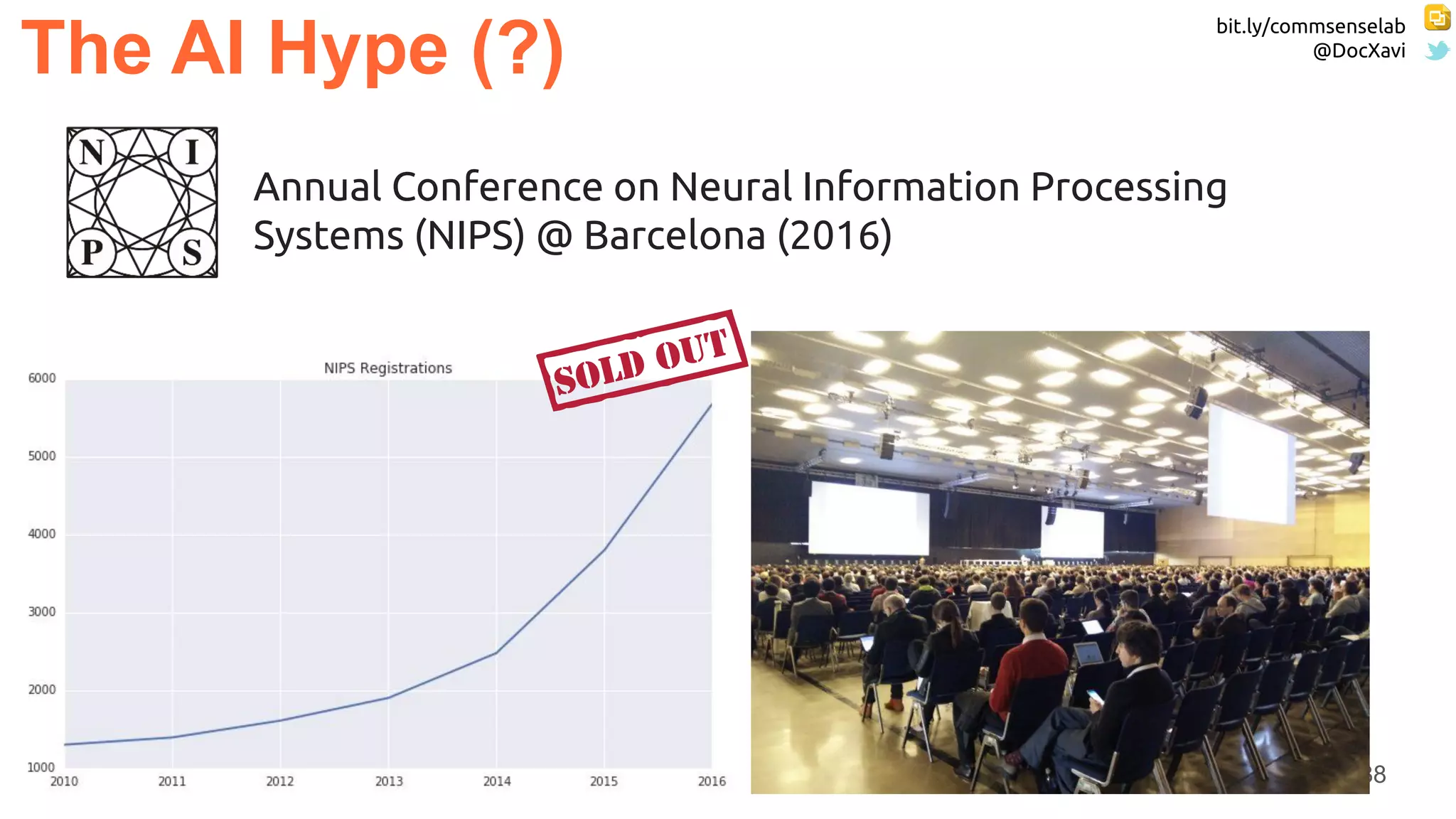

The AI Hype (?)
Annual Conference on Neural Information Processing
Systems (NIPS) @ Barcelona (2016)

89. bit.ly/commsenselab
@DocXavi
89

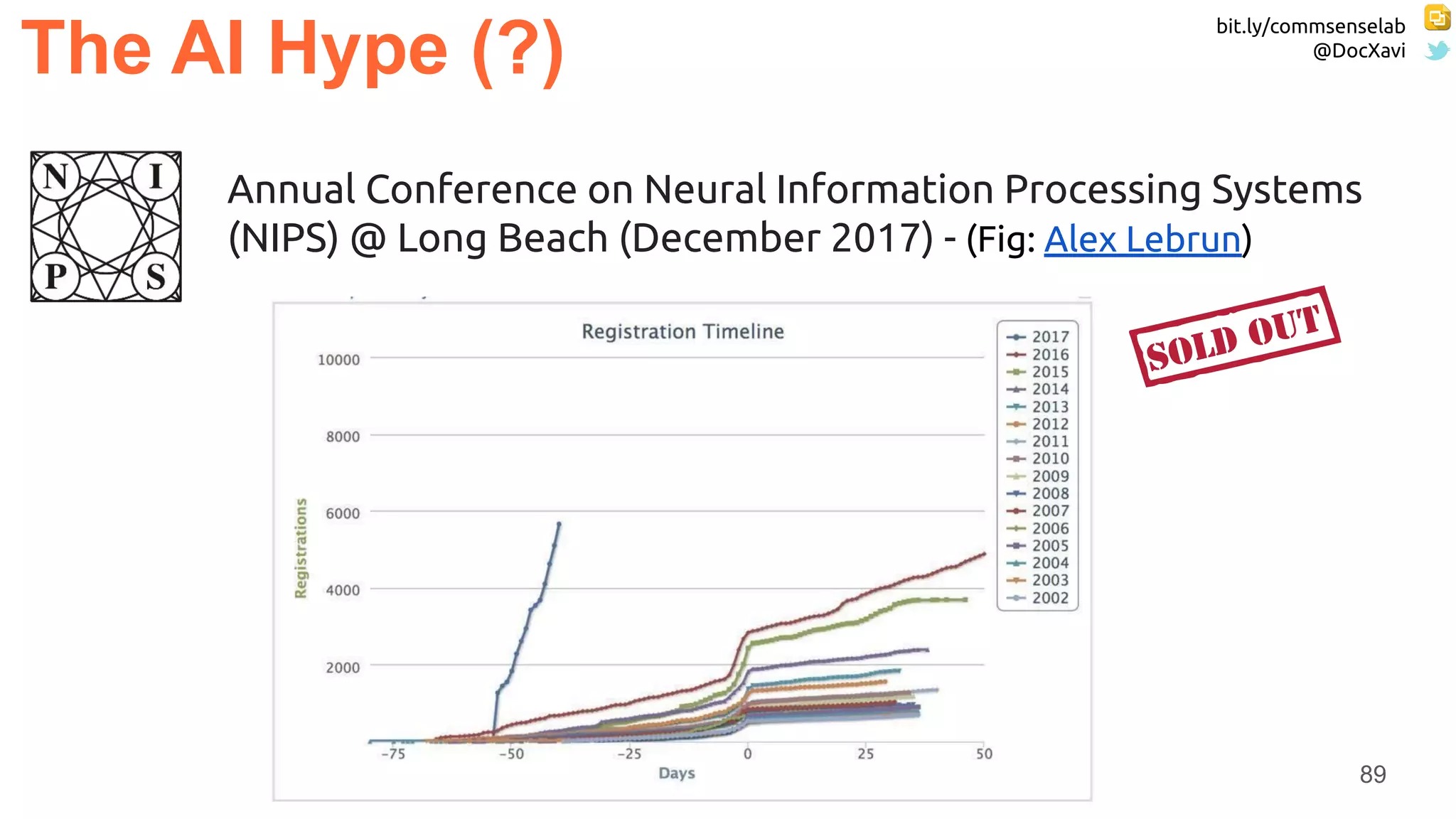

The AI Hype (?)
Annual Conference on Neural Information Processing Systems
(NIPS) @ Long Beach (December 2017) - (Fig: Alex Lebrun)

90. bit.ly/commsenselab
@DocXavi
90

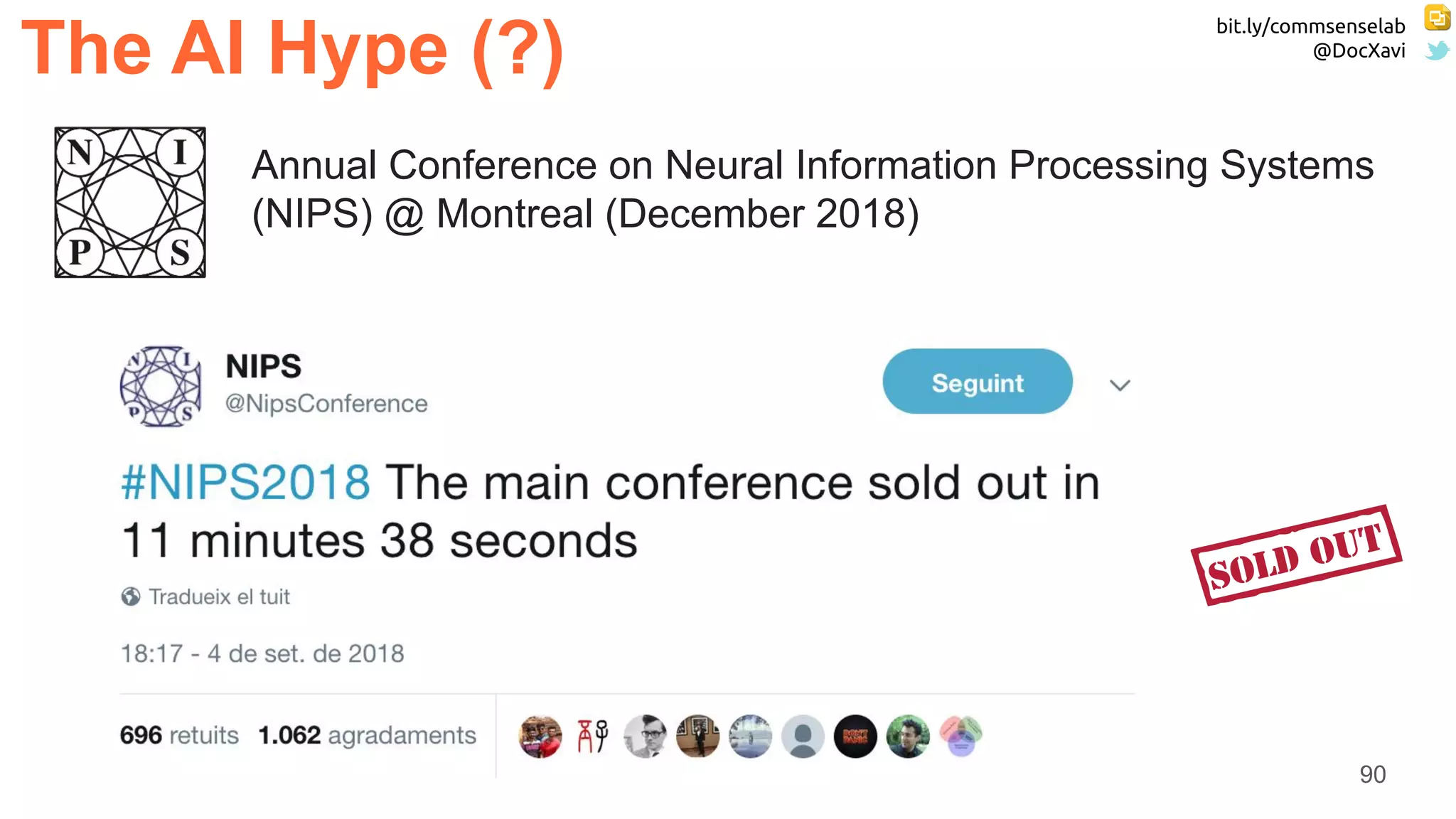

The AI Hype (?)
Annual Conference on Neural Information Processing Systems
(NIPS) @ Montreal (December 2018)

91. bit.ly/commsenselab
@DocXavi
91

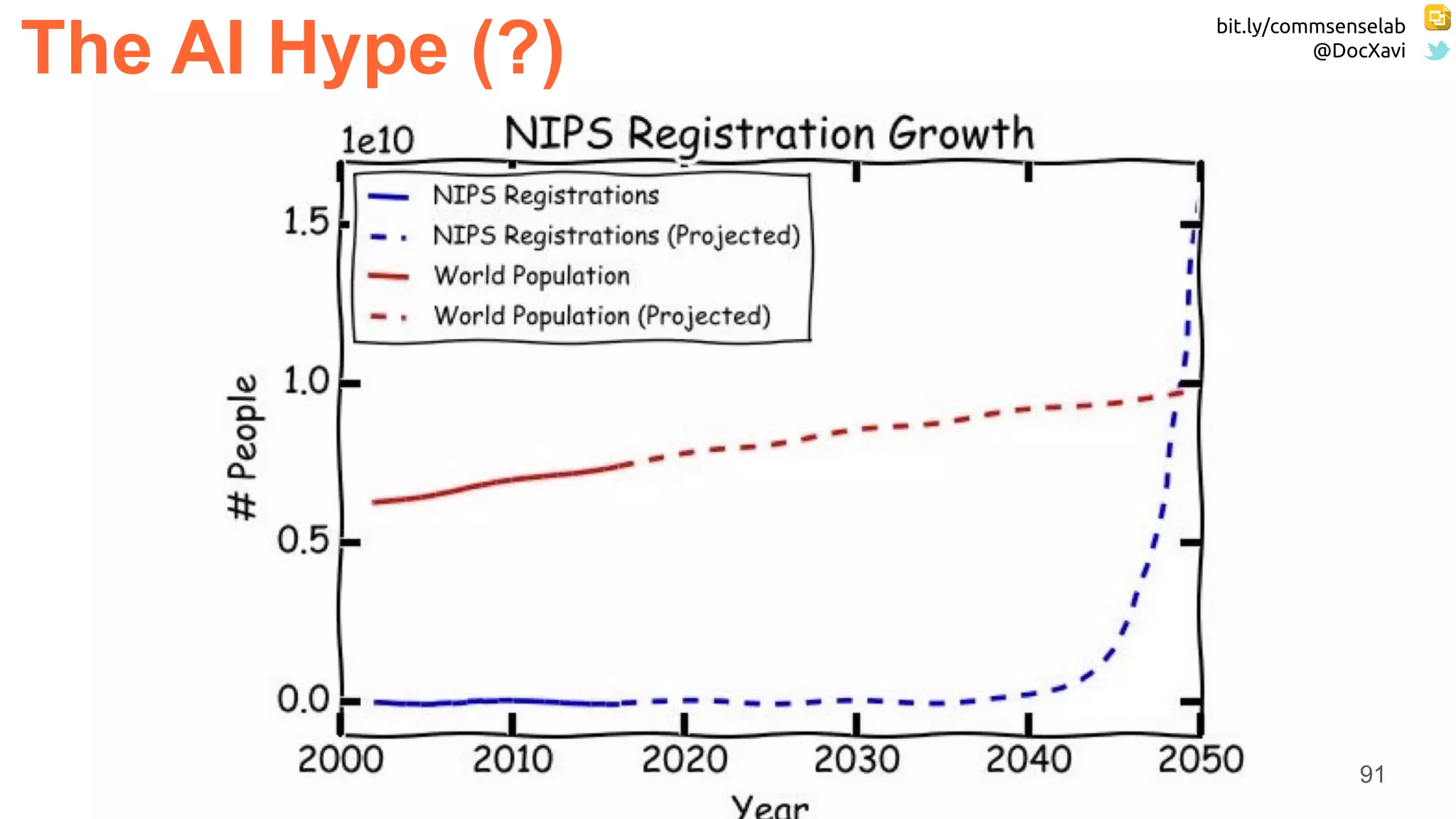

The AI Hype (?)

92. bit.ly/commsenselab
@DocXavi
92

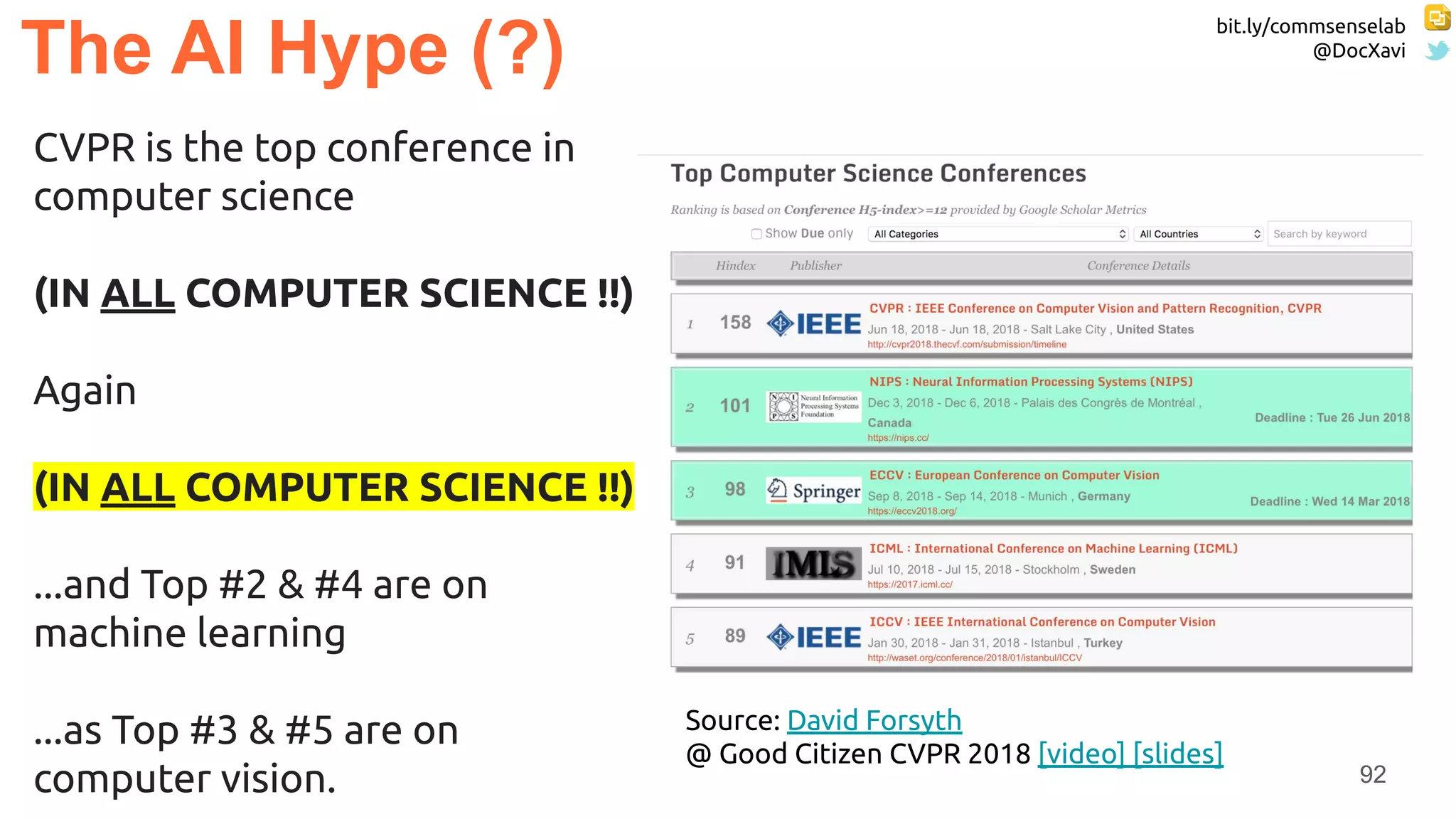

The AI Hype (?)
CVPR is the top conference in
computer science
(IN ALL COMPUTER SCIENCE !!)
Again
(IN ALL COMPUTER SCIENCE !!)
...and Top #2 & #4 are on
machine learning
...as Top #3 & #5 are on
computer vision.
Source: David Forsyth
@ Good Citizen CVPR 2018 [video] [slides]

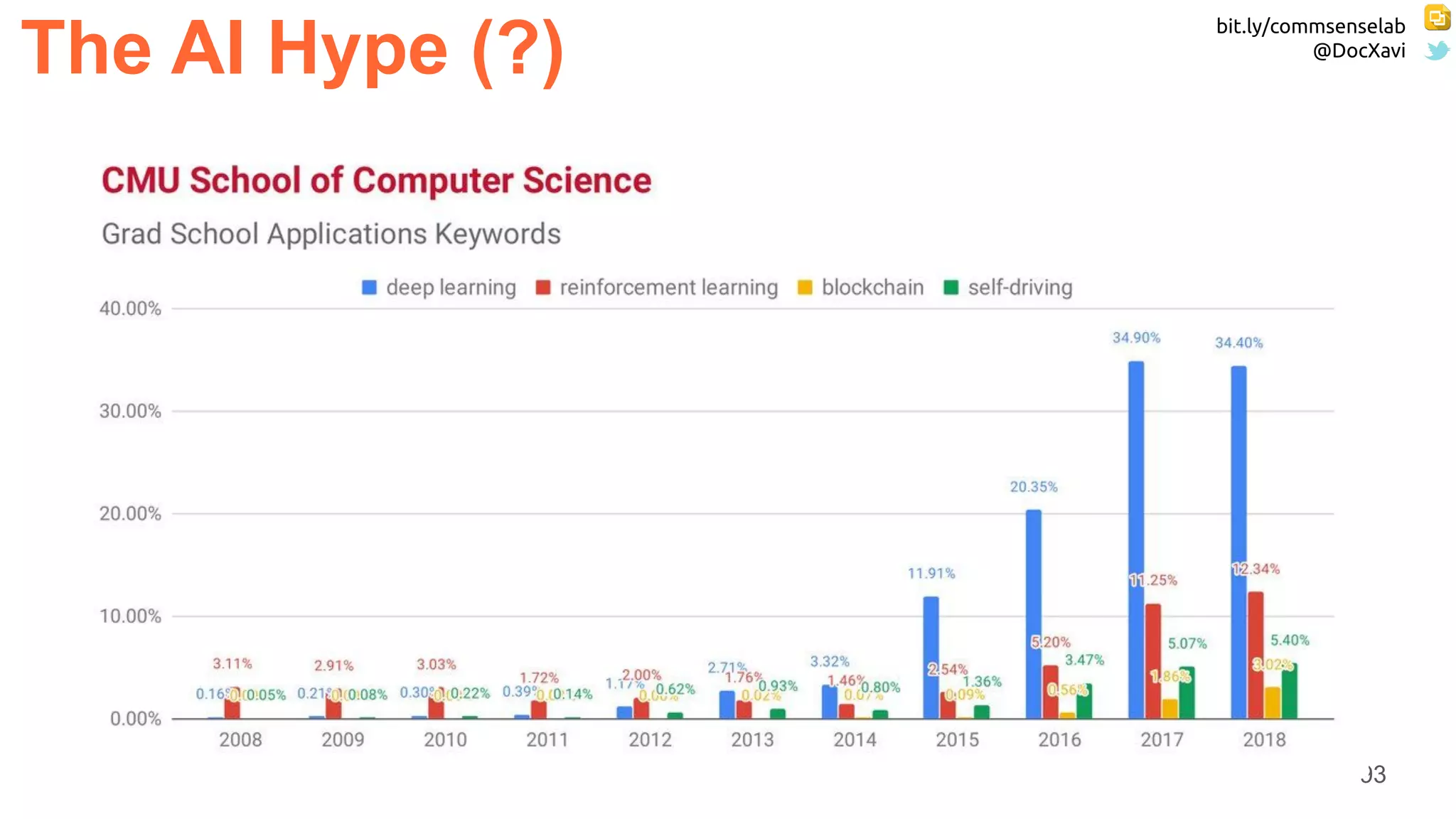

93. bit.ly/commsenselab
@DocXavi
93

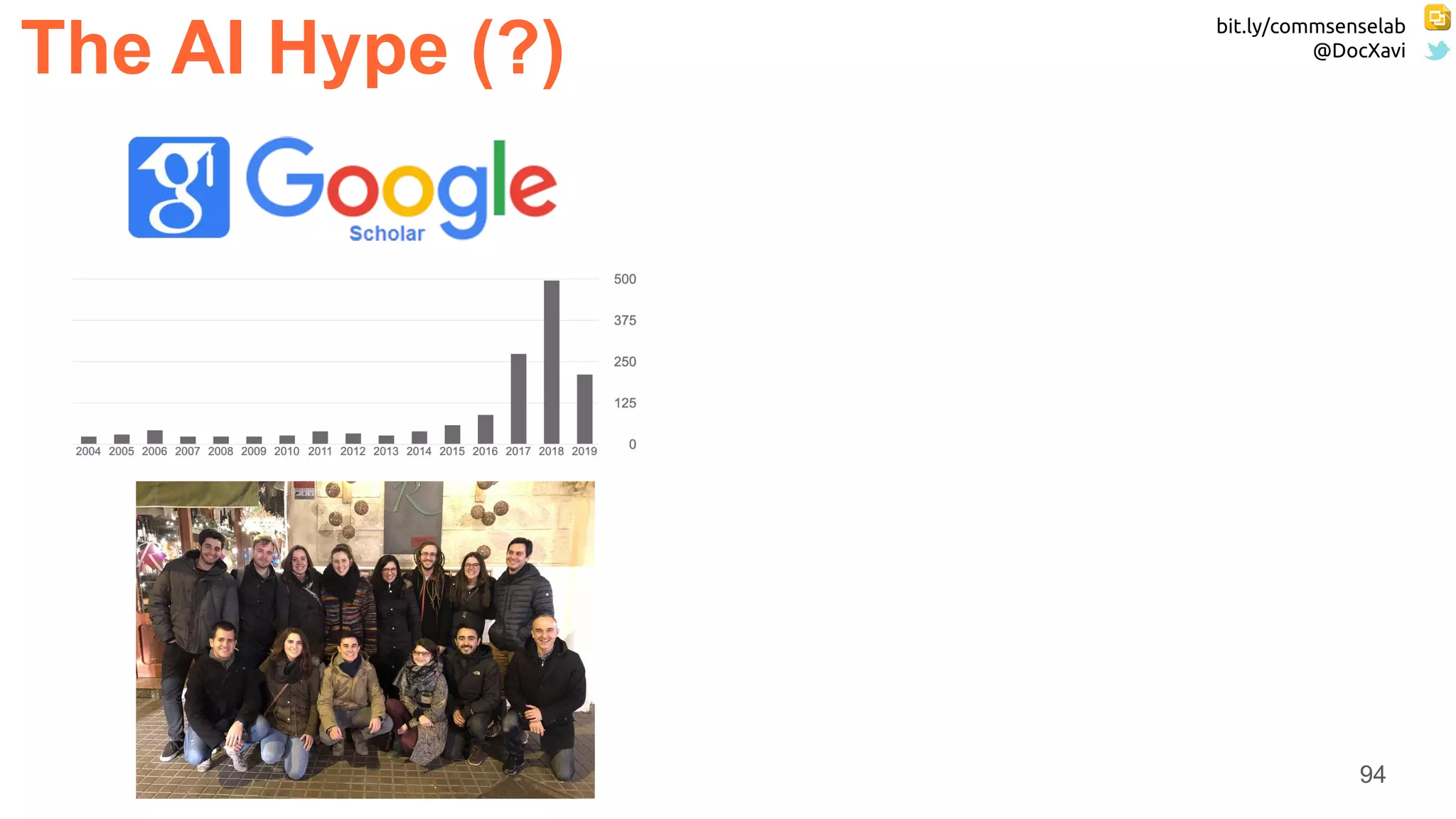

The AI Hype (?)

94. bit.ly/commsenselab
@DocXavi
94
The AI Hype (?)

95. bit.ly/commsenselab
@DocXavi
95
The AI Hype (?)
Nature: Junior AI researchers are in demand by universities and industry (April
2019)

96. bit.ly/commsenselab
@DocXavi
96
The AI Hype (?)
Xavier Sala-i-Martin (Columbia University),
“Les conclusions del Fòrum de Davos”
(TV3, 03/02/2016) - in Catalan
Carles Boix (Princeton University),
“La quarta revolució industrial”
(Diari Ara, 08/02/2016) - in Catalan

97. bit.ly/commsenselab
@DocXavi
97
The AI Hype (?)
Barack Obama, Neural Nets, Self-driving cars, and the Future of the World (Wired,
June 2016)

98. bit.ly/commsenselab
@DocXavi
98
The AI Hype (?)

99. bit.ly/commsenselab
@DocXavi
99
The AI Hype (?)

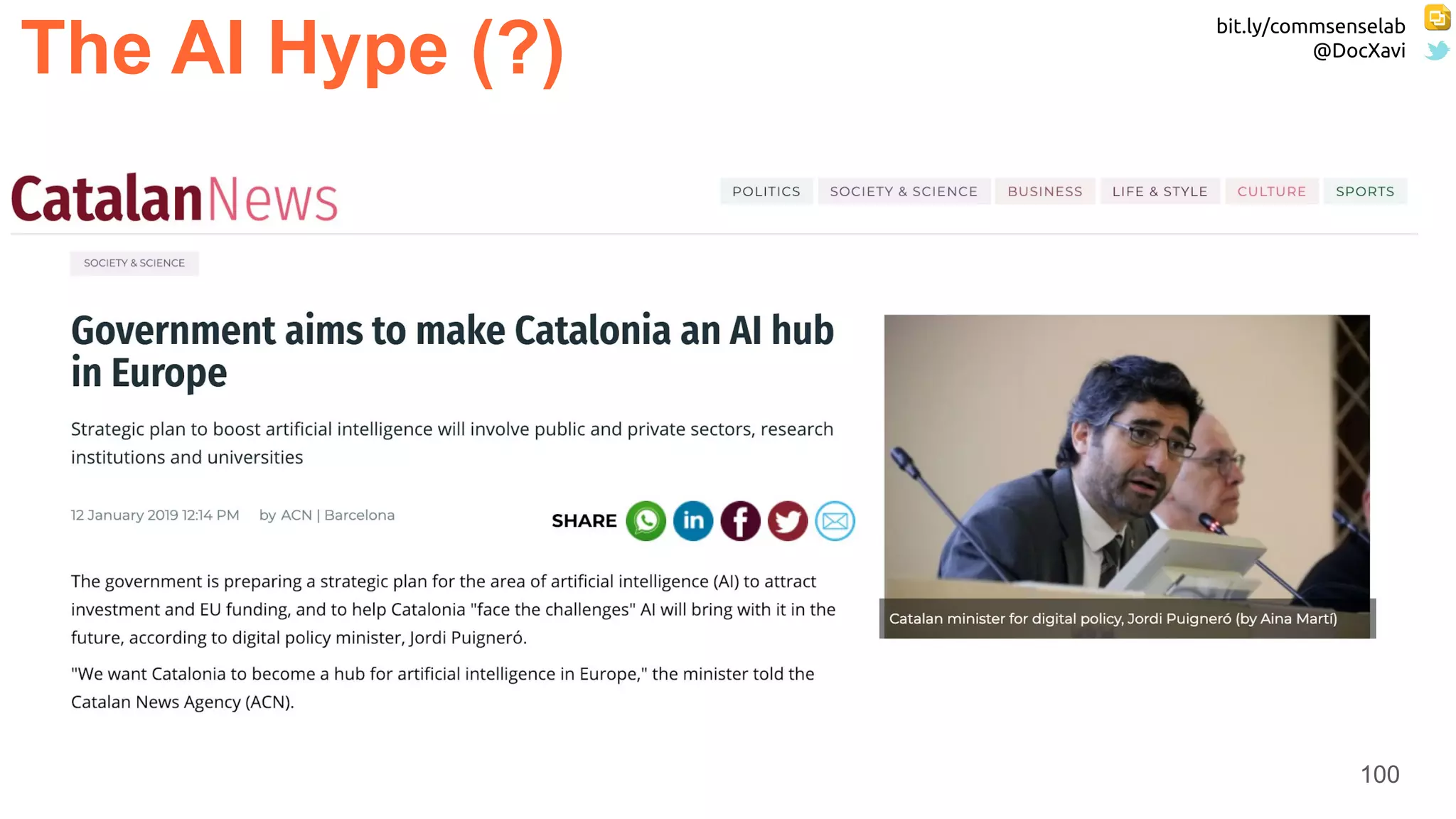

100. bit.ly/commsenselab
@DocXavi
100
The AI Hype (?)

101. bit.ly/commsenselab
@DocXavi
101
The AI Hype (?)
LLegiu l’informe des d’aquí

102. bit.ly/commsenselab
@DocXavi
102
The AI Hype (?)

103. bit.ly/commsenselab
@DocXavi
103
The AI Hype (?)

104. bit.ly/commsenselab
@DocXavi
104
The AI Hype (?)

105. bit.ly/commsenselab
@DocXavi
105
The AI Hype (?)

106. bit.ly/commsenselab
@DocXavi
106
Deep Learning courses @ UPC TelecomBCN:
● MSc course [2017] [2018] [2019]
● BSc course [2018] [2019]
● 1st edition (2016)
● 2nd edition (2017)
● 3rd edition (2018)
● 4th edition (2019)
● 1st edition (2017)
● 2nd edition (2018)
● 3rd edition - NLP (2019)
Next edition: Autumn 2019 Included in ETSETB Master MATT Deep Learning Track + MET

107. bit.ly/commsenselab
@DocXavi
107
Deep Learning for Professionals @ UPC School
Next edition starts November 2019. Sign up here.

108. bit.ly/commsenselab
@DocXavi
108
Community building
bcn.ai deeplearning.barcelona

109. bit.ly/commsenselab
@DocXavi
109
Our team from UPC & BSC Barcelona
Victor
Campos
Amaia
Salvador
Amanda
Duarte
Dèlia
Fernández
Eduard
Ramon
Andreu
Girbau
Dani
Fojo
Oscar
Mañas
Santi
Pascual
Xavi
Giró
Miriam
Bellver
Janna
Escur
Carles
Ventura
Paula
Gómez
Benet
Oriol
Mariona
Carós
Jordi
Torres
Ferran
Marqués
