1. Deconstruction
DR Alshaimaa hussein
MTI
Theory VI (Lecture 5)

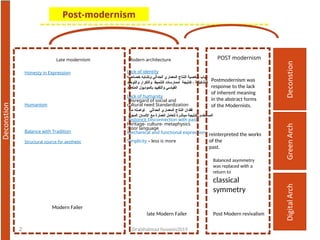

2. Modern architecture
Late modernism
Lack of identity
‫خصائصه‬ ‫وتشابه‬ ‫الحداثي‬ ‫المعماري‬ ‫النتاج‬ ‫شخصية‬ ‫غياب‬
‫والتوحيد‬ ‫والتكرار‬ ‫التنميط‬ ‫لممارسات‬ ‫كنتيجة‬ ، ‫التشكيلية‬
‫المتعامد‬ ‫بالموديول‬ ‫والتقييد‬ ‫القياسي‬
Lack of humanity
Disregard of social and
cultural need Standardization
‫مع‬ ‫تواصله‬ ‫الحداثي‬ ‫المعماري‬ ‫النتاج‬ ‫فقدان‬
‫المجرد‬ ‫اإلنسان‬ ‫مع‬ ‫العمارة‬ ‫لتعامل‬ ‫مباشرة‬ ‫كنتيجة‬ ،‫المستخدم‬
-historicit Disconnection with past-
heritage- culture- metaphysics
Poor language
:
Mechanical and functional expression
Simplicity – less is more
Honesty in Expression
Humanism
Balance with Tradition
Structural source for aesthetic
Modern Failer
late Modern Failer
Post-modernism
Dralshaimaa hussein2019
2
POST modernism
Post Modern revivalism
reinterpreted the works
of the
past.
Postmodernism was
response to the lack
of inherent meaning
in the abstract forms
of the Modernists.
Balanced asymmetry
was replaced with a
return to
classical
symmetry

3. 3
Deconstruction

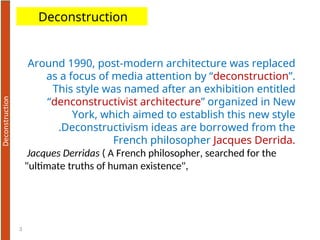

Around 1990, post-modern architecture was replaced
as a focus of media attention by “deconstruction”.
This style was named after an exhibition entitled
“denconstructivist architecture” organized in New
York, which aimed to establish this new style
.Deconstructivism ideas are borrowed from the
French philosopher Jacques Derrida.
Jacques Derridas ( A French philosopher, searched for the
"ultimate truths of human existence",

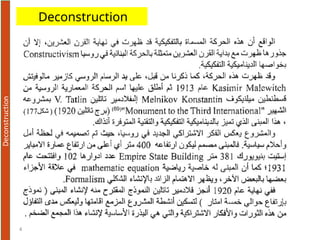

4. 4
Deconstruction

5. Dralshaimaa hussein2019 5

6. 6
Deconstruction

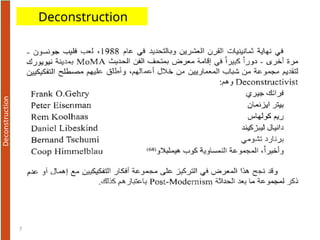

7. 7
Deconstruction

8. 8

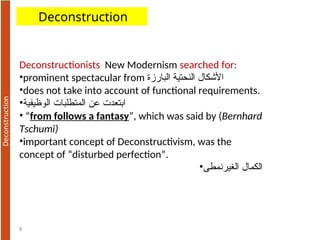

Deconstructionists New Modernism searched for:
•prominent spectacular from ‫البارزة‬ ‫النحتية‬ ‫األشكال‬
•does not take into account of functional requirements.
•‫الوظيفية‬ ‫المتطلبات‬ ‫عن‬ ‫ابتعدت‬
• “from follows a fantasy”, which was said by (Bernhard
Tschumi)
•important concept of Deconstructivism, was the
concept of “disturbed perfection”.
•‫الغيرنمطى‬ ‫الكمال‬
Deconstruction

9. •
Deconstruction
Fragmentation, disassociation, and layering. ‫االنفصالية‬ ‫المدرسة‬
The style of this architectural approach resembled ruins, due to the
use of linear objects, with planar objects, in a disassociated
fragmented way.
Post-Modern Classicism
Neo Constructivism
Deconstructionists used new elements in their designs
.
The Folliers - Folies
the use of overlapped elements which showed a great complexity.
Positive Nihilism
the use of different materials, elements, contradictions, beside each other
.

10. 10

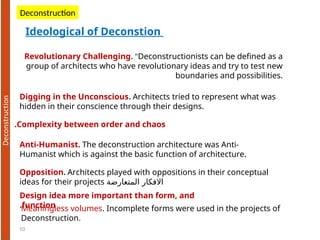

Revolutionary Challenging. "Deconstructionists can be defined as a
group of architects who have revolutionary ideas and try to test new
boundaries and possibilities.
Ideological of Deconstion
Deconstruction
Digging in the Unconscious. Architects tried to represent what was
hidden in their conscience through their designs.
Complexity between order and chaos
.
Anti-Humanist. The deconstruction architecture was Anti-
Humanist which is against the basic function of architecture.
Opposition. Architects played with oppositions in their conceptual
ideas for their projects ‫المتعارضة‬ ‫االفكار‬
Design idea more important than form, and
function
.Meaningless volumes. Incomplete forms were used in the projects of
Deconstruction.

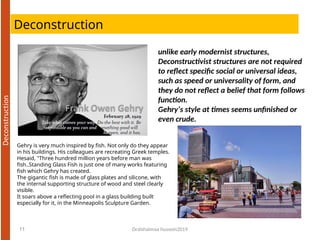

11. Deconstruction
Dralshaimaa hussein2019
11
unlike early modernist structures,
Deconstructivist structures are not required
to reflect specific social or universal ideas,
such as speed or universality of form, and
they do not reflect a belief that form follows
function.
Gehry’s style at times seems unfinished or
even crude.
Gehry is very much inspired by fish. Not only do they appear
in his buildings. His colleagues are recreating Greek temples.
Hesaid, "Three hundred million years before man was
fish..Standing Glass Fish is just one of many works featuring
fish which Gehry has created.
The gigantic fish is made of glass plates and silicone, with
the internal supporting structure of wood and steel clearly
visible.
It soars above a reflecting pool in a glass building built
especially for it, in the Minneapolis Sculpture Garden.

12. Dralshaimaa hussein2019
12

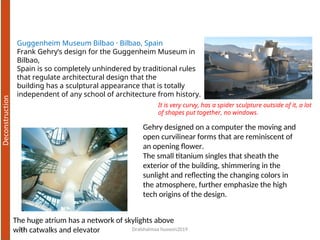

Guggenheim Museum Bilbao · Bilbao, Spain
Frank Gehry’s design for the Guggenheim Museum in
Bilbao,
Spain is so completely unhindered by traditional rules
that regulate architectural design that the
building has a sculptural appearance that is totally
independent of any school of architecture from history.
Gehry designed on a computer the moving and
open curvilinear forms that are reminiscent of
an opening flower.
The small titanium singles that sheath the
exterior of the building, shimmering in the
sunlight and reflecting the changing colors in
the atmosphere, further emphasize the high
tech origins of the design.
The huge atrium has a network of skylights above
with catwalks and elevator
It is very curvy, has a spider sculpture outside of it, a lot
of shapes put together, no windows.

13. Dralshaimaa hussein2019
13

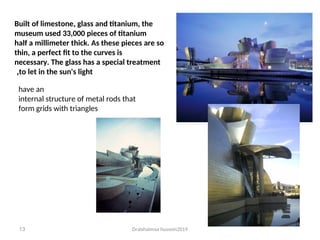

Built of limestone, glass and titanium, the
museum used 33,000 pieces of titanium
half a millimeter thick. As these pieces are so
thin, a perfect fit to the curves is
necessary. The glass has a special treatment
to let in the sun's light
,
have an
internal structure of metal rods that
form grids with triangles

14. Dralshaimaa hussein2019
14

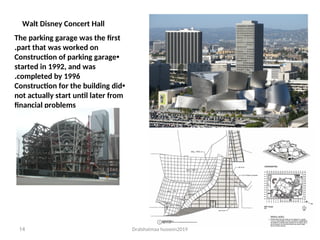

Walt Disney Concert Hall
The parking garage was the first
part that was worked on
.
•
Construction of parking garage
started in 1992, and was
completed by 1996
.
•
Construction for the building did
not actually start until later from
financial problems

15. Dralshaimaa hussein2019
15

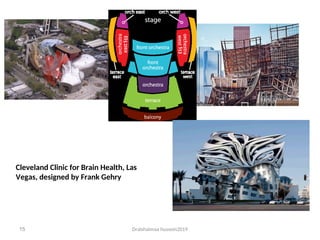

Cleveland Clinic for Brain Health, Las
Vegas, designed by Frank Gehry

16. Dralshaimaa hussein2019
16

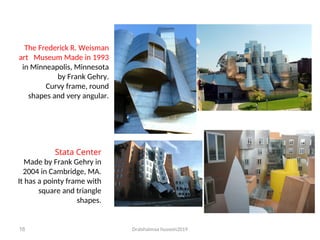

The Frederick R. Weisman
art Museum Made in 1993
in Minneapolis, Minnesota
by Frank Gehry.
Curvy frame, round
shapes and very angular.
Stata Center
Made by Frank Gehry in
2004 in Cambridge, MA.
It has a pointy frame with
square and triangle
shapes.

17. Dralshaimaa hussein2019
17

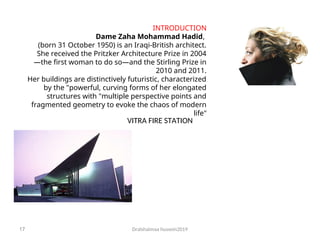

INTRODUCTION
Dame Zaha Mohammad Hadid,
(born 31 October 1950) is an Iraqi-British architect.
She received the Pritzker Architecture Prize in 2004
—the first woman to do so—and the Stirling Prize in
2010 and 2011.
Her buildings are distinctively futuristic, characterized
by the "powerful, curving forms of her elongated
structures with "multiple perspective points and
fragmented geometry to evoke the chaos of modern
life"
VITRA FIRE STATION

18. Dralshaimaa hussein2019
18

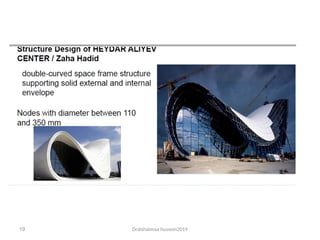

19. Dralshaimaa hussein2019
19

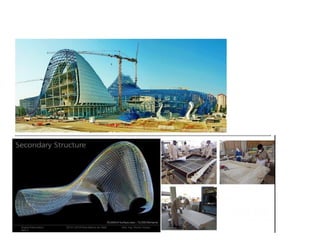

20. Dralshaimaa hussein2019
20

21. Dralshaimaa hussein2019
21

22. Dralshaimaa hussein2019
22

23. Dralshaimaa hussein2019
23

24. Dralshaimaa hussein2019
24

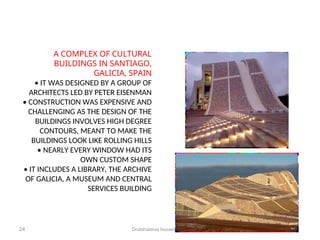

A COMPLEX OF CULTURAL
BUILDINGS IN SANTIAGO,
GALICIA, SPAIN
• IT WAS DESIGNED BY A GROUP OF
ARCHITECTS LED BY PETER EISENMAN
• CONSTRUCTION WAS EXPENSIVE AND
CHALLENGING AS THE DESIGN OF THE
BUILDINGS INVOLVES HIGH DEGREE
CONTOURS, MEANT TO MAKE THE
BUILDINGS LOOK LIKE ROLLING HILLS
• NEARLY EVERY WINDOW HAD ITS
OWN CUSTOM SHAPE
• IT INCLUDES A LIBRARY, THE ARCHIVE
OF GALICIA, A MUSEUM AND CENTRAL
SERVICES BUILDING

25. Dralshaimaa hussein2019
25

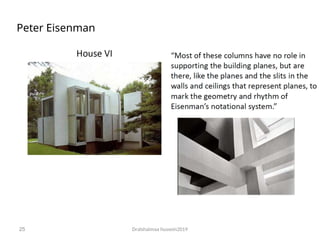

Peter Eisenman

26. Dralshaimaa hussein2019
26

27. Dralshaimaa hussein2019
27

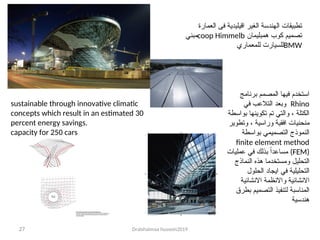

‫العمارة‬ ‫فى‬ ‫اقيليدية‬ ‫الغير‬ ‫الهندسة‬ ‫تطبيقات‬
‫تصميم‬
‫همبليمان‬ ‫كوب‬
coop Himmelb
‫مبني‬
BMW
‫للمعماري‬ ‫للسيارت‬
sustainable through innovative climatic
concepts which result in an estimated 30
percent energy savings.
capacity for 250 cars
‫برنامج‬ ‫المصمم‬ ‫فيها‬ ‫استخدم‬
Rhino
‫في‬ ‫التالعب‬ ‫وبعد‬
‫بواسطة‬ ‫تكوينها‬ ‫تم‬ ‫والتي‬ ، ‫الكتلة‬
‫وتطوير‬ ، ‫وراسية‬ ‫افقية‬ ‫منحنيات‬
‫بواسطة‬ ‫التصميمي‬ ‫النموذج‬
finite element method
(FEM)
‫عمليات‬ ‫في‬ ‫بذلك‬ ً‫ا‬‫مساعد‬
‫النماذج‬ ‫هذه‬ ‫ومستخدما‬ ‫التحليل‬
‫الحلول‬ ‫ايجاد‬ ‫في‬ ‫التحليلية‬
‫االنشائية‬ ‫واالنظمة‬ ‫االنشائية‬
‫بطرق‬ ‫التصميم‬ ‫لتنفيذ‬ ‫المناسبة‬
‫هندسية‬

28. Dralshaimaa hussein2019
28

29. Dralshaimaa hussein2019
29

30. Dralshaimaa hussein2019
30
