2. New Lamond-Riggs Neighborhood Library
Community Meeting 3
June 12, 2019
Agenda
Timeline Highlights
What We Heard
Understanding the Site
Building Program
Blocking + Stacking
Sustainability
Questions
Next Steps
4. Consigli / HGADCPL Lamond Riggs Library
Timeline Highlights
EARLY ENGAGEMENT PROGRAM DESIGN CONSTRUCTION
FALL 2017 OCTOBER 2018
- JANUARY 2019
EARLY 2019 EARLY 2020 LATE 2021
Open Interim
OPEN NEW LAMOND-RIGGS LIBRARY
1 4 532
4
Draft
Program
Overview
of Spaces
Guiding
Principles /
Themes
Breakout
Sessions
Program
Review
Blocking +
Stacking
6. "I like the idea of LARGE MEETING ROOMS those would be a really great addition to
this neighborhood.“
"I would like a WOW factor both on the inside and also on the outside“
"I don’t want my children infringing on somebody else’s enjoyment of the library at
the same time, I want my children to be able to ENJOY BEING HERE.”
You also want PARKING, more LIGHT and better use of the lot and how the building
is situated on it.
What We Heard
7. Consigli / HGADCPL Lamond Riggs Library
…a place that’s WELCOMING
- comfortable seating
- lots of natural light
- areas for different ages
…a place for LEARNING and
TECHNOLOGY
- quiet spaces
- modern and reliable
technology
- classes for all ages
…a place for COMMUNITY
- local history
- flexible meeting spaces
- a place to meet friends
7
What We Heard / You Want your Library to be…

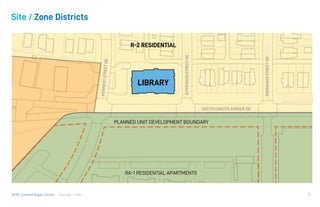

9. Consigli / HGADCPL Lamond Riggs Library
Site / Zone Districts
9
R-2 RESIDENTIAL
RA-1 RESIDENTIAL APARTMENTS
PLANNED UNIT DEVELOPMENT BOUNDARY
JEFFERSONSTREETNE
INGRAHAMSTREETNE
SOUTH DAKOTA AVENUE NE
LIBRARY

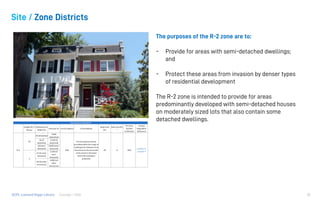

10. Consigli / HGADCPL Lamond Riggs Library
Site / Zone Districts
10
The purposes of the R-2 zone are to:
- Provide for areas with semi-detached dwellings;
and
- Protect these areas from invasion by denser types
of residential development
The R-2 zone is intended to provide for areas
predominantly developed with semi-detached houses
on moderately sized lots that also contain some
detached dwellings.
11. Consigli / HGADCPL Lamond Riggs Library
SOUTH DAKOTA AVE NE
JEFFERSONSTNE
20 FT
20 FT
15 FT 15 FT
Lot Occupancy (Allowed)
40% (±9,360 SF)
11

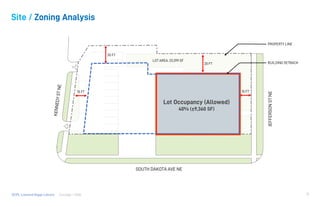

Site / Zoning Analysis
PROPERTY LINE
BUILDING SETBACK
LOT AREA: 23,399 SF

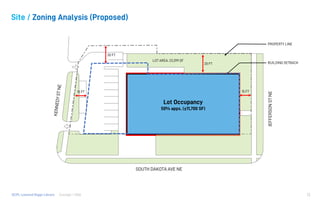

13. Consigli / HGADCPL Lamond Riggs Library
PROPERTY LINE
BUILDING SETBACK
SOUTH DAKOTA AVE NE
JEFFERSONSTNE
20 FT
20 FT
15 FT 15 FT
LOT AREA: 23,399 SF
Lot Occupancy
50% appx. (±11,700 SF)
13
Site / Zoning Analysis (Proposed)
14. Consigli / HGADCPL Lamond Riggs Library

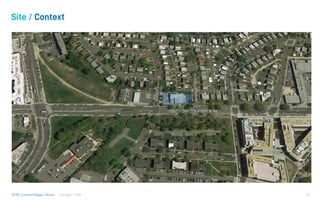

Site / Context
14
SOUTH DAKOTA AVENUE NE

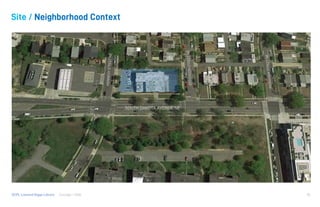

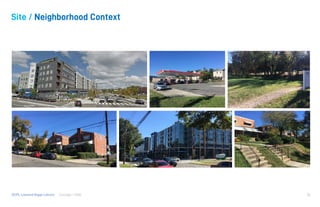

15. Consigli / HGADCPL Lamond Riggs Library
Site / Neighborhood Context
15
SOUTH DAKOTA AVENUE NE
20. Consigli / HGADCPL Lamond Riggs Library
E4, R1, R2
@ RIGGS RD SE
E4 @ CHILLUM RD SE
20
Site / Movement (Pedestrian, Vehicular, Transit)

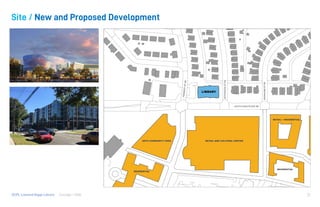

21. Consigli / HGADCPL Lamond Riggs Library 21
Site / New and Proposed Development

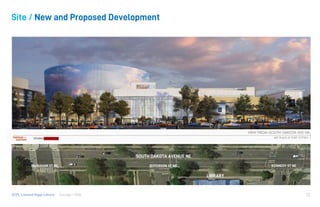

22. Consigli / HGADCPL Lamond Riggs Library 22
Site / New and Proposed Development
SOUTH DAKOTA AVENUE NE
LIBRARY
JEFFERSON ST NE KENNEDY ST NEINGRAHAM ST NE
26. Consigli / HGADCPL Lamond Riggs Library

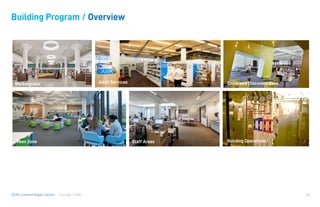

Building Program / Overview
26
Marketplace Adult Services Children’s Discovery Zone
Teen Zone Staff Areas Building Operations

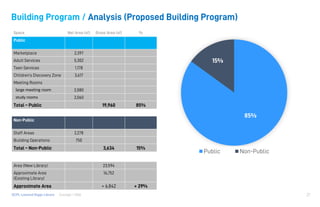

27. Consigli / HGADCPL Lamond Riggs Library
Building Program / Analysis (Proposed Building Program)
27
Space Net Area (sf) Gross Area (sf) %
Public
Marketplace 2,397
Adult Services 5,302
Teen Services 1,178
Children’s Discovery Zone 3,617
Meeting Rooms
large meeting room 2,080
study rooms 2,060
Total – Public 19,960 85%
Non-Public
Staff Areas 2,278
Building Operations 750
Total – Non-Public 3,634 15%
Area (New Library) 23,594
Approximate Area
(Existing Library)
16,752
Approximate Area + 6,842 + 29%
85%
15%
Public Non-Public

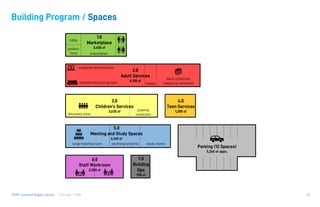

28. Consigli / HGADCPL Lamond Riggs Library 28
Building Program / Spaces
Parking (12 Spaces)
5,260 sf appx.
1.0
Marketplace
2,400 sf
lobby
produc-
tivity information
5.0
Meeting and Study Spaces
4,140 sf
large meeting room anything/anytime study rooms
4.0
Teen Services
1,200 sf
7.0
Building
Ops
750 sf
6.0
Staff Workroom
2,280 sf
3.0
Children’s Services
3,630 sf
discovery zone
juvenile
collection
2.0
Adult Services
5,310 sf
computer workstations
adult collection
magazine collectionmedianeighborhood living room

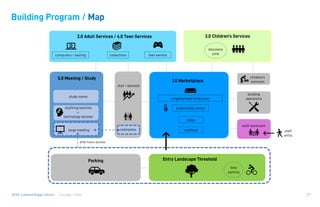

29. Consigli / HGADCPL Lamond Riggs Library 29
Building Program / Map
1.0 Marketplace
vestibule
lobby
productivity center
staff workroom
3.0 Children’s Services
discovery
zone
2.0 Adult Services / 4.0 Teen Services
computers / seating collections
children’s
restroom
building
operations
5.0 Meeting / Study
restrooms
neighborhood living room
large meeting
anything/anytime
+
technology alcoves
staff
entry
Entry Landscape Threshold
bike
parking
Parking
teen service
stair / elevator
study rooms
after hours access

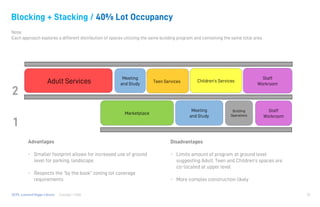

31. Consigli / HGADCPL Lamond Riggs Library 31
Blocking + Stacking / 40% Lot Occupancy
Meeting
and Study
Children’s ServicesTeen Services
Meeting
and Study
Staff
Workroom
Staff
Workroom
Building
Operations
Adult Services
Marketplace
1
2
Note:
Each approach explores a different distribution of spaces utilizing the same building program and containing the same total area.
Advantages
- Smaller footprint allows for increased use of ground
level for parking, landscape
- Respects the “by the book” zoning lot coverage
requirements
Disadvantages
- Limits amount of program at ground level
suggesting Adult, Teen and Children’s spaces are
co-located at upper level
- More complex construction likely
32. Consigli / HGADCPL Lamond Riggs Library 32
Blocking + Stacking / 50% Lot Occupancy
Building
Operations
Meeting
and Study
Children’s Services
Adult Services Teen Services Meeting and Study Staff Workroom
Staff
Workroom
Building
Operations
Marketplace
1
2
Note:
Each approach explores a different distribution of spaces utilizing the same building program and containing the same total area.
Advantages
- Simplifies construction
- Provides flexibility for different blocking/stacking
configurations
Disadvantages
- Exceeds allowable lot coverage
- Increased use of ground level reduces area for
landscape, parking

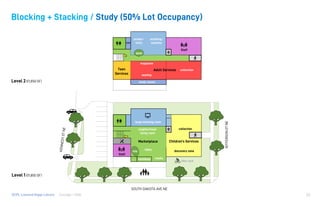

33. Consigli / HGADCPL Lamond Riggs Library 33
media
Teen
Services
Adult Services collection
magazine
seating
Staff
Children’s Services
collection
discovery zone
large meeting room
Marketplace
vestibule
lobby
bike rack
SOUTH DAKOTA AVE NE
JEFFERSONSTNE
info
neighborhood
living room
desk
anything/
anytime
Staff
produc-
tivity
Level 2 (11,850 SF)
Level 1 (11,850 SF)
study rooms
Blocking + Stacking / Study (50% Lot Occupancy)
34. Consigli / HGADCPL Lamond Riggs Library 34

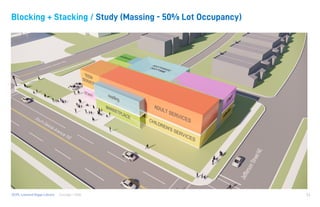

Blocking + Stacking / Study (Massing - 50% Lot Occupancy)
35. Consigli / HGADCPL Lamond Riggs Library
media
35
Upper Level
Ground Level
Teen Services
Adult Services
collectionmagazine
seating
Staff
Children’s Services
collection
discovery zone
large meeting room
Marketplace
vestibule
lobby
bike rack
SOUTH DAKOTA AVE NE
JEFFERSONSTNE
info
desk
anything/
anytime
Staff
produc-
tivity
seating
study study study

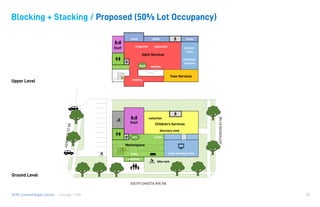

Blocking + Stacking / Proposed (50% Lot Occupancy)
