1. DC Earth Fault Relay
Working Principle

2. Introduction

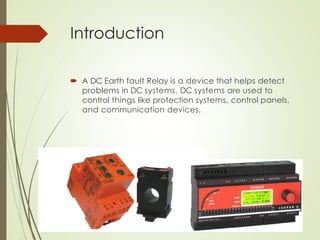

 A DC Earth fault Relay is a device that helps detect
problems in DC systems. DC systems are used to
control things like protection systems, control panels,
and communication devices.

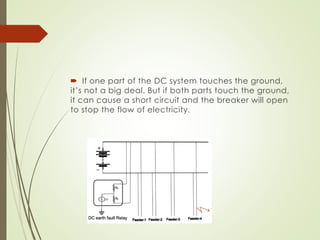

3.  If one part of the DC system touches the ground,
it’s not a big deal. But if both parts touch the ground,
it can cause a short circuit and the breaker will open
to stop the flow of electricity.

4.  To prevent this from happening, we use a DC earth
fault relay. It can detect when one part of the DC
system touches the ground and let us know that there’s
a problem that needs to be fixed right away.

5.  The way it works is by connecting the DC system to
the ground through two equal resistances. These
resistances are chosen so that only a tiny amount of
current flows between the DC terminals.

6.  Under normal conditions, when there’s no problem,
the voltage between the positive and negative
terminals to the ground is the same. But if there’s an
earth fault, it creates a parallel path for the current to
flow and changes the voltage.

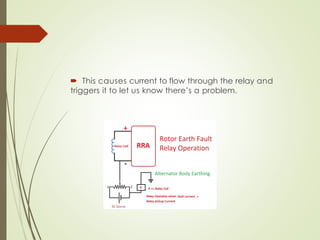

7.  This causes current to flow through the relay and
triggers it to let us know there’s a problem.

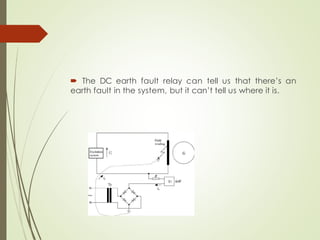

8.  The DC earth fault relay can tell us that there’s an
earth fault in the system, but it can’t tell us where it is.

9.  To find out where the fault is, we need to use a DC
earth fault locator.
