HD/SD DIGITAL VIDEO SWITCHER                                                                                   SE-2800

   HD/SD Digital Video Switcher                                                                   DVI

   SE-2800                                                      SDI YUV                                        5



                                                                                      SE-2800 is designed for the
                                                                                      event or activity that needs more
                                                                                      than 3 cameras to produce the
                                                                                      program. Versatile inputs/outputs
                                                                                      and powerful effects, cost effec-
                                                                                      tive on SE-2800 HD/SD switcher
                                                                                      with 12 inputs. Superb 4:2:2 10
                                                                                       bit broadcast quality. SE-2800 is
                                                                                      also easy for mobile or O.B Van
                                                                                      demand.


                                                            Multiscreen via HDMI output and operate in 3 ways
                                                            Way 1: HDMI 1 Multiscreen1: 9 smaller windows for inputs
  FEATURES                                                  1-9 with embedded audio level indication (group1, channel 1)
■ Support HD and SD. The input signals can be both HD       HDMI 2 Multiscreen2: 3 smaller windows for inputs 10-12
 and SD.                                                    with embedded audio level indication (group1, channel 1) +
■ 12 inputs. Part of 12 inputs can be reconfigured. The     2 bigger windows for Preview + Program, embedded audio
 maximum number of inputs for a certain input format: 12    level indication for Program (group1, channel 1)
 HD SDI,12 SD SDI, 6 CVBS, 3 HDMI.
■ 3 BNC output connectors SDI Outputs. 2 HDMI for multi-
 screen.
■ Powerful multiscreen via HDMI outputs. 3 ways operation
 such as one or 2 monitors at 1920 x 1080i resolution.
■ Wipe with border 6 options                                Way 2: HDMI 1 Multiscreen1- 12 smaller windows for inputs
■ Clock on screen                                           1-12 with embedded audio level indication (group1, channel
■ Count down counter on multiscreen                         1) + 2 bigger windows for Preview and Program. embedded
■ Two PIP display with any kind of border                   audio level indication for Program (group1, channel 1)
■ PC remote control                                         HDMI 2 Multiscreen2 : Program, Multiscreen 1
■ Separate, rack mountable processing unit.
■ DC 12V operation voltage, available for mobile.


  SE-2800 PROCESSING UNIT



                                                            Way 3: HDMI 1 Multiscreen1- 8 smaller windows for inputs
                                                            1-8 with embedded audio level indication (group1, channel
                                                            1) + 2 bigger windows for Preview and Program. Embedded
                                                            audio level indication for Program (group1, channel 1)
                                                            HDMI 2 Multiscreen 2 : Program, Multiscreen 1




                                                                                                                           23

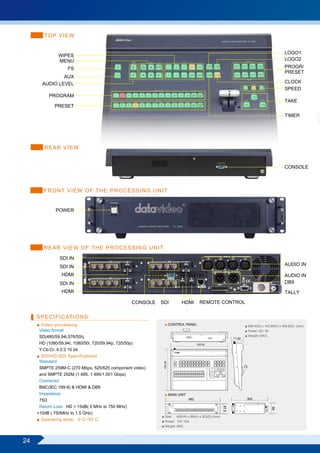

TOP VIEW


                                                                                                                                        LOGO1
              WIPES
              MENU                                                                                                                      LOGO2
                  FS                                                                                                                    PROGR/
                                                                                                                                        PRESET
               AUX
       AUDIO LEVEL                                                                                                                      CLOCK
                                                                                                                                        SPEED
          PROGRAM
                                                                                                                                        TAKE
             PRESET
                                                                                                                                        TIMER




        REAR VIEW


                                                                                                                                        CONSOLE



        FRONT VIEW OF THE PROCESSING UNIT


             POWER




        REAR VIEW OF THE PROCESSING UNIT
               SDI IN
               SDI IN                                                                                                                   AUDIO IN

                HDMI                                                                                                                    AUDIO IN
               SDI IN                                                                                                                   DB9
                HDMI                                                                                                                    TALLY

                                               CONSOLE   SDI             HDMI          REMOTE CONTROL


     SPECIFICATIONS
     ■ Video processing                                            CONTROL PANEL                               ■ 699.4(W) x 143.89(H) x 436.6(D) (mm)
      Video format                                                                                             ■ Power:12V 3A
      SD(480/59.94i,576/50i),                                                                                  ■ Weight:10KG
                                                                                                       71.82
      HD (1080/59.94i, 1080/50i, 720/59.94p, 720/50p)                                432.59

      Y:Cb:Cr, 4:2:2 10 bit
     ■ SDI/HD-SDI Specifications
      Standard
                                                          432.59




      SMPTE 259M-C (270 Mbps, 525/625 component video)
      and SMPTE 292M (1.485, 1.485/1.001 Gbps)
      Connector
      BNC(IEC 169-8) & HDMI & DB9
      Impedance                                                    MAIN UNIT
      75Ω                                                                      482                              302

      Return Loss HD > 15dB( 5 MHz to 750 MHz)
                                                                                                87.5




                                                                                                                               88




     >10dB ( 750MHz to 1.5 GHz)
                                                         ■ Size: 482(W) x 88(H) x 302(D) (mm)
     ■ Operating temp 0˚C~50˚C                           ■ Power: 12V 10A
                                                         ■ Weight: 9KG



24

Datavideo SE-2800
