1. CCTV LCD Display Series
A Special Monitor for the Invaluable You!
Multifunctional interface that combines many of today's digital features.
Vivid and lifelike high resolution images and advanced technology tooted
from ergonomic design and environmentally-friendliness.
And elegant and fraceful lines present you with something exclusive.

2. STANDARD & HIGH PERFORMANCE SERIES
ITEM STANDARD
SIZE 15" 17" 19"
CABINET MATERIAL PLASTIC PLASTIC PLASTIC
BACKLIGHT CCFL CCFL CCFL
ASPECT RATIO 4:3 5:4 5:4
VIEWING ANGLE (H/V) 150° / 130° 170° / 160° 170° / 160°
DISPLAY CONTRAST RATIO 500:1 1000:1 1000:1
RESPONSE TIME 8ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf)
BRIGHTNESS 250cd/m2 250cd/m2 250cd/m2
RESOLUTION 1024 x 768 1280 x 1024 1280 x 1024
FEATURES ㅡ ㅡ ㅡ
PLUG & PLAY DDC Compatible(DDC 1/2B) DDC Compatible(DDC 1/2B) DDC Compatible(DDC 1/2B)
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub
DVI IN ㅡ 1 1
PC STEREO IN 1 1 1
INTERFACE
BNC IN/OUT 1/1 1/1 1/1
S-VIDEO IN/OUT ㅡ ㅡ ㅡ
HEADPHONE OUT 1 1 1
RCA AUDIO
2(R+L) 2(R+L) 2(R+L)
(STEREO IN/MONO OUT)
SPEAKER Built-in Built-in Built-in
POWER VOLTAGE DC 12V, 3.33A DC 12V, 3.33A DC 12V, 3.33A
POWER CONSUMPTION <30W <30W <30W
WALL MOUNT VESA STANDARD 75 X 75 mm 100 X 100 mm 100 X 100 mm
PANEL PROTECTION GLASS OPTION OPTION OPTION
TRANSMITTER REMOTE CONTROL OPTION OPTION OPTION
ITEM HIGH PERFORMANCE
SIZE 17" 19" 22" 24"
CABINET MATERIAL PLASTIC PLASTIC PLASTIC PLASTIC
BACKLIGHT CCFL CCFL CCFL CCFL
ASPECT RATIO 5:4 5:4 16:10 16:10
VIEWING ANGLE (H/V) 170° / 160° 170° / 160° 170° / 160° 160° / 160°
CONTRAST RATIO 1000:1 1000:1 1000:1 1000:1
DISPLAY
RESPONSE TIME 5ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf)
BRIGHTNESS 250cd/m2 250cd/m2 250cd/m2 300cd/m2
RESOLUTION 1280 x 1024 1280 x 1024 1680 x 1050 1920 x 1200
FEATURES 3D comb FilterDe-interlace ㅡ 3D comb FilterDe-interlace 3D comb FilterDe-interlace
PLUG & PLAY DDC Compatible(DDC 1/2B) DDC Compatible(DDC 1/2B) DDC Compatible(DDC 1/2B) DDC Compatible(DDC 1/2B)
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub
HDMI IN Or DVI IN HDMI IN HDMI IN HDMI IN HDMI IN Or DVI IN
PC STEREO IN 1 1 1 1
BNC IN/OUT 1/1 1/1 1/1 2/2
INTERFACE
S-VIDEO IN/OUT ㅡ ㅡ ㅡ 1/1
HEADPHONE OUT 1 1 1 1
RCA AUDIO
2(R+L) 2(R+L) 2(R+L) 2(R+L)
(STEREO IN/MONO OUT)
SPEAKER Built-in Built-in Built-in Built-in
POWER VOLTAGE DC 12V, 3.33A DC 12V, 3.33A DC 12V, 5A 100-240VAC
POWER CONSUMPTION <30W <30W < 50W < 55W
WALL MOUNT VESA STANDARD 100 X 100 mm 100 X 100 mm 100 X 100 mm 100 X 100 mm
PANEL PROTECTION GLASS OPTION OPTION OPTION OPTION
TRANSMITTER REMOTE CONTROL YES YES YES YES
PIP/POP YES YES YES YES
02 * specifications are subject to change without any prior notice

3. PREMIUM SERIES & LARGE MONITOR
ITEM PREMIUM
SIZE 8" 10.4" 17" 19"
CABINET MATERIAL METAL METAL METAL METAL
BACKLIGHT LED LED CCFL CCFL
ASPECT RATIO 4:3 4:3 5:4 5:4
VIEWING ANGLE (H/V) 140° / 130° 150° / 110° 170° / 160° 170° / 160°
DISPLAY CONTRAST RATIO 500:1 500:1 1000:1 1000:1
RESPONSE TIME 30ms (Tr+Tf) 30ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf)
BRIGHTNESS 250cd/m2 300cd/m2 250cd/m2 250cd/m2
RESOLUTION 800 x 600 800 x 600 1280 x 1024 1280 x 1024
DDC Compatible DDC Compatible DDC Compatible DDC Compatible
PLUG & PLAY
(DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B)
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub
DVI IN ㅡ ㅡ 1 1
PC STEREO IN 1 1 1 1
BNC IN/OUT 1/1 1/1 2/2 2/2
INTERFACE S-VIDEO IN/OUT ㅡ ㅡ 1/1 1/1
HEADPHONE OUT 1 1 1 1
RCA AUDIO
OPTION OPTION OPTION OPTION
(STEREO IN/MONO OUT)
HD-SDI OPTION OPTION OPTION OPTION
COMPONENT IN ㅡ ㅡ 1 1
SPEAKER OPTION OPTION OPTION OPTION
POWER VOLTAGE DC 12V.3.33A DC 12V.3.33A DC 12V.3.33A DC 12V.3.33A
POWER CONSUMPTION <15W <15W <30W <30W
WALL MOUNT VESA STANDARD 75 X 75 mm 75 X 75 mm 200(100) X 100 mm 200(100) X 100 mm
PANEL PROTECTION GLASS OPTION OPTION YES YES
TRANSMITTER REMOTE CONTROL OPTION OPTION YES YES
PIP/POP ㅡ ㅡ OPTION OPTION
ITEM LAGRE SIZE MONITOR (Stand Type)
SIZE 24" 26" 32" 42" 55"
CABINET MATERIAL METAL METAL METAL METAL METAL
BACKLIGHT LED CCFL LED LED CCFL
ASPECT RATIO 16:9 16:9 16:9 16:9 16:9
VIEWING ANGLE 170° / 160° 178° / 178° 178° / 178° 178° / 178° 178° / 178°
DISPLAY CONTRAST RATIO 1000:1 5000:1 3000:1 3000:1 5000:1
RESPONSE TIME 5ms (Tr+Tf) 8ms (G-to-G) 6.5ms (G-to-G) 6.5ms (G-to-G) 8ms (G-to-G)
BRIGHTNESS 250cd/m2 300cd/m2 350cd/m2 350cd/m2 450cd/m2
RESOLUTION 1920 x 1080 FHF 1920 x 1080 FHD 1920 x 1080 FHD 1920 x 1080 FHD 1920 x 1080 FHD
3D comb Filter 3D comb Filter 3D comb Filter 3D comb Filter 3D comb Filter
FEATURES
De-interlace De-interlace De-interlace De-interlace De-interlace
DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible
PLUG & PLAY
(DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B)
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub
HDMI IN 1 1 1 1 1
PC STEREO IN 1 1 1 1 1
BNC IN/OUT 2/2 2/2 2/2 2/2 2/2
INTERFACE HD-SDI IN/OUT 1/1(OPTION) 1/1(OPTION) 1/1(OPTION) 1/1(OPTION) 1/1(OPTION)
HEADPHONE OUT 1 1 1 1 1
S-VIDEO IN/OUT 1/1 1/1 1/1 1/1 1/1
RCA AUDIO
2(R+L) 2(R+L) 2(R+L) 2(R+L) 2(R+L)
(STEREO IN/MONO OUT)
SPEAKER Built-in Built-in Built-in Built-in Built-in
100-240VAC 100-240VAC Or 100-240VAC Or 100-240VAC Or
POWER VOLTAGE 100-240VAC
Or DC 12 / 5A 24V / 2.7A 24V / 2.7A 24V / 5A
POWER CONSUMPTION < 40W < 50W < 55W < 90W < 350W
WALL MOUNT VESA STANDARD 200(100) X 100 mm 200(100) X 100 mm 200(100) X 100 mm 400(200) X 200 mm 600(400) X 400 mm
PANEL PROTECTION GLASS OPTION OPTION OPTION OPTION OPTION
TRANSMITTER REMOTE CONTROL YES YES YES YES YES
PIP/POP OPTION OPTION OPTION OPTION OPTION
03

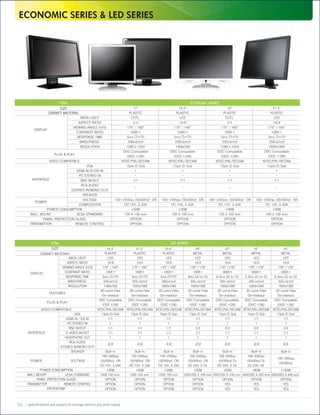

4. ECONOMIC SERIES & LED SERIES
ITEM ECONOMIC SERIES
SIZE 17" 18.5" 19" 21.5"
CABINET MATERIAL PLASTIC PLASTIC PLASTIC PLASTIC
BACK LIGHT CCFL LED CCFL LED
ASPECT RATIO 5:4 16:9 5:4 16:9
VIEWING ANGLE (H/V) 170° / 160° 170° / 160° 170° / 160° 170° / 160°
DISPLAY
CONTRAST RATIO 1000:1 1000:1 1000:1 1000:1
RESPONSE TIME 5ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf)
BRIGHTNESS 250cd/m2 250cd/m2 250cd/m2 250cd/m2
RESOLUTION 1280 x 1024 1366x768 1280 x 1024 1920x1080
DDC Compatible DDC Compatible DDC Compatible DDC Compatible
PLUG & PLAY
(DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B)
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub
HDMI IN Or DVI IN 1 1 1 1
PC STEREO IN - - - -
INTERFACE BNC IN/OUT 1/1 1/1 1/1 1/1
RCA AUDIO
- - - -
(STEREO IN/MONO OUT)
SPEAKER - - - -
VOLTAGE 100~240Vac (50/60Hz) OR 100~240Vac (50/60Hz) OR 100~240Vac (50/60Hz) OR 100~240Vac (50/60Hz) OR
POWER
COMPOSITION DC 12V, 3.33A DC 12V, 3.33A DC 12V, 3.33A DC 12V, 3.33A
POWER CONSUMPTION <30W <30W <30W <30W
WALL MOUNT VESA STANDARD 100 X 100 mm 100 X 100 mm 100 X 100 mm 100 X 100 mm
PANEL PROTECTION GLASS OPTION OPTION OPTION OPTION
TRANSMITTER REMOTE CONTROL OPTION OPTION OPTION OPTION
ITEM LED SERIES
SIZE 18.5" 21.5" 23.6" 26" 32" 42" 55"
CABINET MATERIAL PLASTIC PLASTIC PLASTIC METAL METAL METAL METAL
BACK LIGHT LED LED LED LED LED LED LED
ASPECT RATIO 16:9 16:9 16:9 16:9 16:9 16:9 16:9
VIEWING ANGLE (H/V) 170° / 160° 170° / 160° 170° / 160° 178° / 178° 178° / 178° 178° / 178° 178° / 178°
DISPLAY CONTRAST RATIO 1000:1 1000:1 1000:1 1000:1 3000:1 3000:1 3000:1
RESPONSE TIME 5ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf) 8ms (G-to-G) 6.5ms (G-to-G) 6.5ms (G-to-G) 6.5ms (G-to-G)
BRIGHTNESS 250cd/m2 250 cd/m2 300cd/m2 300 cd/m2 350 cd/m2 350 cd/m2 450 cd/m2
RESOLUTION 1366x768 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080
3D comb Filter 3D comb Filter 3D comb Filter 3D comb Filter 3D comb Filter 3D comb Filter 3D comb Filter
FEATURES
De-interlace De-interlace De-interlace De-interlace De-interlace De-interlace De-interlace
DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible
PLUG & PLAY
(DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B)
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub
HDMI IN / DVI IN 1/1 1/1 1/1 1/1 1/1 1/1 1/1
PC STEREO IN 1 1 1 1 1 1 1
BNC IN/OUT 1/1 1/1 1/1 2/2 2/2 2/2 2/2
INTERFACE S-VIDEO IN/OUT 1/1 1/1 1/1 1/1 1/1 1/1 1/1
HEADPHONE OUT 1 1 1 1 1 1 1
RCA AUDIO
2/2 2/2 2/2 2/2 2/2 2/2 2/2
(STEREO IN/MONO OUT)
SPEAKER Built-in Built-in Built-in Built-in Built-in Built-in Built-in
100-240Vac 100-240Vac 100-240Vac 100-240Vac 100-240Vac 100-240Vac
100-240Vac
POWER VOLTAGE (50/60Hz) OR (50/60Hz) OR (50/60Hz) OR (50/60Hz) OR (50/60Hz) Or (50/60Hz) Or
(50/60Hz)
DC 12V, 3.33A DC 12V, 3.33A DC 12V, 3.33A DC 24V, 2.7A DC 24V, 2.7A DC 24V, 5A
POWER CONSUMPTION <30W <30W <30W <50W <55W <90W <160W
WALL MOUNT VESA STANDARD 100X 100 mm 100X 100 mm 100X 100 mm 200(100) X 100 mm 200(100) X 100 mm 400(200) X 200 mm 600(400) X 400 mm
PANEL PROTECTION GLASS OPTION OPTION OPTION OPTION OPTION OPTION OPTION
TRANSMITTER REMOTE CONTROL OPTION OPTION OPTION OPTION YES YES YES
PIP/POP/PBP OPTION OPTION OPTION OPTION YES YES YES
04 * specifications are subject to change without any prior notice

5. PVM (Public View Monitor)
ITEM PVM
SIZE 8" 10.4" 19" 21.5" 23" 26" 32"
IMAGE METAL METAL METAL METAL METAL METAL METAL
BACK LIGHT LED LED CCFL LED LED LED LED
ASPECT RATIO 4:3 4:3 5:4 16:9 16:9 16:9 16:9
VIEWING ANGLE (H/V) 140° / 130° 150° / 110° 160° / 160° 170° / 160° 170° / 160° 178° / 178° 178° / 178°
DISPLAY CONTRAST RATIO 500:1 500:1 1000:1 1000:1 1000:1 3000:1 4000:1
RESPONSE TIME 30ms (Tr+Tf) 30ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf) 8ms (G-to-G) 6.5ms (G-to-G)
BRIGHTNESS 250cd/m2 300cd/m2 250cd/m2 250cd/m2 250cd/m2 300cd/m2 350cd/m2
RESOLUTION 800 x 600 800 x 600 1280 x 1024 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
3D comb Filter 3D comb Filter 3D comb Filter 3D comb Filter
FEATURES ㅡ ㅡ OPTION
De-interlace De-interlace De-interlace De-interlace
DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible
PLUG & PLAY
(DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B)
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub
HDMI IN / DVI IN 1 1 1 1 1 1 1
INTERNAL CAMERA OUT 1 1 1 1 1 1 1
INTERFACE
HEADPHONE OUT OPTION OPTION OPTION OPTION OPTION OPTION OPTION
PC STEREO IN OPTION OPTION OPTION OPTION OPTION OPTION OPTION
BNC IN/OUT 1/1 1/1 1/1 1/1 1/1 1/1 1/1
SPEAKER OPTION OPTION OPTION OPTION OPTION OPTION OPTION
DC 12V, 3.33A Or DC 12V, 3.33A Or DC 12V, 3.33A Or 100-240VAC Or 100-240VAC Or
POWER VOLTAGE DC 12V, 3.33A DC 12V, 3.33A
DC 24V 2.7A DC 24V 2.7A DC 24V 2.7A DC 24V 2.7A DC 24V 2.7A
POWER CONSUMPTION <15W <15W <35W <35W <35W <50W <55W
WALL MOUNT VESA STANDARD 75 X 75 mm 75 X 75 mm 200(100) X 100 mm 200(100) X 100 mm 200(100) X 100 mm 200(100) X 100 mm 200(100) X 100 mm
PANEL PROTECTION GLASS OPTION OPTION OPTION OPTION OPTION OPTION OPTION
TRANSMITTER REMOTE CONTROL YES YES YES YES YES YES YES
PIP/POP ㅡ ㅡ OPTION OPTION OPTION OPTION OPTION
VOV OPTION OPTION OPTION OPTION OPTION OPTION OPTION
TRIGGER OPTION OPTION OPTION OPTION OPTION OPTION OPTION
CAMERA 3.7mm FIXED 3.7mm FIXED VARI-FOCAL OR WDR VARI-FOCAL OR WDR VARI-FOCAL OR WDR VARI-FOCAL OR WDR VARI-FOCAL OR WDR
MMP SD CARD TYPE OPTION OPTION OPTION OPTION OPTION OPTION OPTION
MOTION YES YES YES YES YES YES YES
DVR OPTION OPTION OPTION OPTION OPTION OPTION OPTION
ITEM Mega-Pixel PVM / IP PVM CAMERA TYPE FIXED VARI-FOCAL MEGA-PIXELS IP CAMERA
SIZE 23" 26" 32" Vari-focal Auto Iris Vari-focal Auto Iris 2.9 mm 80° horizontal
IMAGE METAL METAL METAL LENS TYPE 3.7mm Fixed
(2.8-10mm) (3.5-16mm) angle of view , F2.0
BACK LIGHT LED LED LED
ASPECT RATIO 16:9 16:9 16:9 LIGHT SENSITIVITY 0.15Lux 0.1Lux 0.5Lux 2.0Lux
VIEWING ANGLE (H/V) 160° / 160° 178° / 178° 178° / 178° SONY 1/3" Super HAD PIXIM 1/3" High 1/2.8" SONY 3M pixel
DISPLAY CONTRAST RATIO 1000:1 3000:1 3000:1 1/4" progressive
IMAGE SENSOR High Sensitivity Sensitivity Digital CMOS Progressive
RESPONSE TIME 5ms (Tr+Tf) 8ms (G-to-G) 6.5ms (G-to-G) scan RGB CMOS
BRIGHTNESS 250cd/m2 300cd/m2 350cd/m2 Color CCD (W-5) Sensor (Seawolf) Scan Sensor
RESOLUTION 1920 x 1080 1920 x 1080 1920 x 1080 NTSC:768(H)x494(V)
3D comb Filter 3D comb Filter 3D comb Filter EFFECTIVE PIXELS 758(H) x 540(V) 1329(H) x 1076(V) 768(H) x 494(V)
FEATURES PAL:752(H)x582(V)
De-interlace De-interlace De-interlace
DDC Compatible DDC Compatible DDC Compatible SCNANNING SYSTEM 2:1 Interlace 2:1 Interlace Progressive ㅡ
PLUG & PLAY
(DDC 1/2B) (DDC 1/2B) (DDC 1/2B) SYNC SYSTEM Internal / Line lock Internal / Line lock Internal Internal
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
Analog /1.0 Vp-p
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub
HDMI IN / DVI IN 1 1 1 1.0 Vp-p Composite, 1.0 Vp-p Composite, composit 75Ω, HD-SDI
VIDEO OUTPUT 1.0 Vp-p Composite,
INTERNAL CAMERA OUT 1 1 1 75Ω 75Ω SMPTE 292M / 75Ω
INTERFACE 75Ω
HEADPHONE OUT OPTION OPTION OPTION
BNC(Optional)
PC STEREO IN OPTION OPTION OPTION
BNC IN/OUT 1/1 1/1 1/1 AGC Off / Low / High Low / Auto / High / Off Off / Low / Mid / High Low / Medium / High
SPEAKER OPTION OPTION OPTION Color / Auto / B/W / EXT
POWER VOLTAGE 100-240VAC 100-240VAC 100-240VAC DAY & NIGHT Auto / Color / B/W Digital day & nignt Digital day & nignt
(Built In DC Motor Driver)
POWER CONSUMPTION <35W < 50W < 55W
WALL MOUNT VESA STANDARD 200(100) X 100 mm 200(100) X 100 mm 200(100) X 100 mm
SHUTTER TIME 1/60~1/120,000sec Up to 1/30.720 sec Up to 1/30.720 sec 1/24 500 s to 1/6 sec
PANEL PROTECTION GLASS OPTION OPTION OPTION
TRANSMITTER REMOTE CONTROL YES YES YES
ATW, Outdoor, Indoor,
PIP/POP OPTION OPTION OPTION ATW / AWB / Indoor / Auto White Balance Auto White Balance
VOV OPTION OPTION OPTION WHITE BALANCE Manual, AWC
Outdoor / Manual (AWB) (AWB)
TRIGGER OPTION OPTION OPTION (1,700°K ~ 11,000°K)
CAMERA VARI-FOCALOr WDR VARI-FOCALOr WDR VARI-FOCALOr WDR
MOTION DETECTION Yes Yes Yes Yes
MMP SD CARD TYPE OPTION OPTION OPTION
MOTION DETECTION OPTION OPTION OPTION Note: IP CAMERA includes security and alarm function.
05

6. SUNLIGHT READABLE SERIES
ITEM SUNLIGHT READABLE
SIZE 15" 17" 19" 32"
CABINET MATERIAL METAL METAL METAL METAL
COLOR BLACK BLACK BLACK BLACK
BACKLIGHT LED LED LED LED
ASPECT RATIO 4 :3 5:4 5:4 16:9
VIEWING ANGLE (H/V) 160° / 160° 160° / 160° 160° / 160° 178° / 178°
DISPLAY CONTRAST RATIO 700 : 1 1000 : 1 800 : 1 2100 : 1
RESPONSE TIME 8ms 5ms 5ms 6.5ms
BRIGHTNESS 1500cd/m2 1000cd/m2 1000cd/m2 1000cd/m2
RESOLUTION 1024 x 768 1280 x 1024 1280 x 1024 1366 x 768
3D comb Filter 3D comb Filter 3D comb Filter 3D comb Filter
FEATURES
De-interlace De-interlace De-interlace De-interlace
DDC Compatible DDC Compatible DDC Compatible DDC Compatible
PLUG & PLAY
(DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B)
VIDEO COMPATIBLE NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM NTSC/PAL/SECAM
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub
HDMI IN / DVI IN 1/1 1/1 1/1 1/1
AUDIO IN 1 1 1 1
BNC IN/OUT 2/2 2/2 2/2 2/2
INPUT/
OUTPUT S-VIDEO IN/OUT 1/1 1/1 1/1 1/1
RCA AUDIO
2/2 2/2 2/2 2/2
(STEREO IN/MONO OUT)
SPEAKER Built-in Built-in Built-in Built-in
POWER VOLTAGE DC 12V, 3.33A DC 12V, 3.33A DC 12V, 3.33A 100-220VAC
POWER CONSUMPTION <35W <40W <40W < 130W
WALL MOUNT VESA STANDARD 100 X 100 mm 100 X 100 mm 100 X 100 mm 200 X 100 mm
PANEL PROTECTION GLASS OPTION OPTION OPTION OPTION
TRANSMITTER REMOTE CONTROL YES YES YES YES
PIP/POP YES YES YES YES
06 * specifications are subject to change without any prior notice

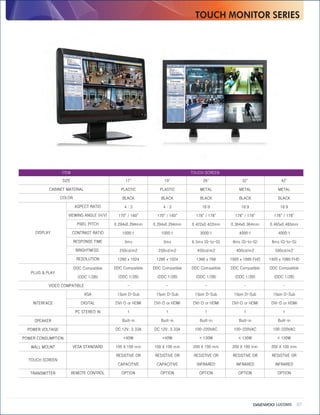

7. TOUCH MONITOR SERIES
ITEM TOUCH SCREEN
SIZE 17" 19" 26" 32" 42"
CABINET MATERIAL PLASTIC PLASTIC METAL METAL METAL
COLOR BLACK BLACK BLACK BLACK BLACK
ASPECT RATIO 4:3 4:3 16:9 16:9 16:9
VIEWING ANGLE (H/V) 170° / 160° 170° / 160° 178° / 178° 178° / 178° 178° / 178°
PIXEL PITCH 0.294x0.294mm 0.294x0.294mm 0.422x0.422mm 0.364x0.364mm 0.485x0.485mm
DISPLAY CONTRAST RATIO 1000:1 1000:1 3000:1 4000:1 4000:1
RESPONSE TIME 5ms 5ms 6.5ms (G-to-G) 8ms (G-to-G) 8ms (G-to-G)
BRIGHTNESS 250cd/m2 250cd/m2 450cd/m2 400cd/m2 500cd/m2
RESOLUTION 1280 x 1024 1280 x 1024 1366 x 768 1920 x 1080 FHD 1920 x 1080 FHD
DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible DDC Compatible
PLUG & PLAY
(DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B) (DDC 1/2B)
VIDEO COMPATIBLE - - - - -
VGA 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub 15pin D-Sub
INTERFACE DIGITAL DVI-D or HDMI DVI-D or HDMI DVI-D or HDMI DVI-D or HDMI DVI-D or HDMI
PC STEREO IN 1 1 1 1 1
SPEAKER Built-in Built-in Built-in Built-in Built-in
POWER VOLTAGE DC 12V, 3.33A DC 12V, 3.33A 100-220VAC 100-220VAC 100-220VAC
POWER CONSUMPTION <40W <40W < 130W < 130W < 130W
WALL MOUNT VESA STANDARD 100 X 100 mm 100 X 100 mm 200 X 100 mm 200 X 100 mm 200 X 100 mm
RESISTIVE OR RESISTIVE OR RESISTIVE OR RESISTIVE OR RESISTIVE OR
TOUCH SCREEN
CAPACITIVE CAPACITIVE INFRARED INFRARED INFRARED
TRANSMITTER REMOTE CONTROL OPTION OPTION OPTION OPTION OPTION
07
