The Datavideo HS-550 is a compact, portable mobile video studio contained within a single carrying case. It features a 4-channel video switcher, dual monitor bank, 5-channel intercom system, and optional solid state recorder. The HS-550 allows for mixing of up to 4 composite video cameras or 3 cameras plus 1 VGA/DVI source. It provides multiview display of all sources and a recording solution in a fully-integrated portable package for live production.

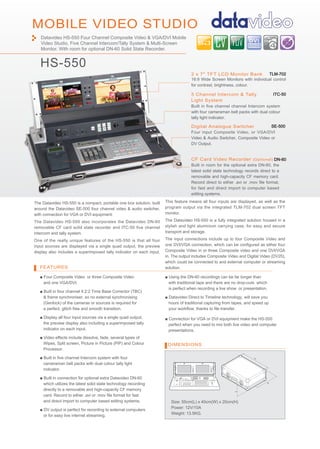

1. MOBILE VIDEO STUDIO
Datavideo HS-550 Four Channel Composite Video & VGA/DVI Mobile
Video Studio, Five Channel Intercom/Tally System & Multi-Screen
DVI
Monitor. With room for optional DN-60 Solid State Recorder.
4
HS-550
2 x 7" TFT LCD Monitor Bank TLM-702
16:9 Wide Screen Monitors with individual control
for contrast, brightness, colour.
5 Channel Intercom & Tally ITC-50
Light System
Built in five channel channel Intercom system
with four cameraman belt packs with dual colour
tally light indicator.
Digital Analogue Switcher SE-500
Four input Composite Video, or VGA/DVI
Video & Audio Switcher, Composite Video or
DV Output.
CF Card Video Recorder (Optional) DN-60
Built in room for the optional extra DN-60, the
latest solid state technology records direct to a
removable and high-capacity CF memory card.
Record direct to either .avi or .mov file format,
for fast and direct import to computer based
editing systems.
The Datavideo HS-550 is a compact, portable one box solution, built This feature means all four inputs are displayed, as well as the
around the Datavideo SE-500 four channel video & audio switcher, program output via the integrated TLM-702 dual screen TFT
with connection for VGA or DVI equipment. monitor.
The Datavideo HS-550 also incorporates the Datavideo DN-60 The Datavideo HS-550 is a fully integrated solution housed in a
removable CF card solid state recorder and ITC-50 five channel stylish and light aluminium carrying case, for easy and secure
intercom and tally system. transport and storage.
One of the really unique features of the HS-550 is that all four The input connections include up to four Composite Video and
input sources are displayed via a single quad output, the preview one DVI/VGA connection, which can be configured as either four
display also includes a superimposed tally indicator on each input. Composite Video in or three Composite video and one DVI/VGA
in. The output includes Composite Video and Digital Video (DV25),
which could be connected to and external computer or streaming
FEATURES solution.
■ Four Composite Video or three Composite Video ■ Using the DN-60 recordings can be far longer than
and one VGA/DVI. with traditional tape and there are no drop-outs which
is perfect when recording a live show or presentation.
■ Built in four channel 4:2:2 Time Base Corrector (TBC)
& frame synchroniser, so no external synchronising ■ Datavideo Direct to Timeline technology, will save you
(Genlock) of the cameras or sources is required for hours of traditional capturing from tapes, and speed up
a perfect, glitch free and smooth transition. your workflow, thanks to file transfer.
■ Display all four input sources via a single quad output, ■ Connection for VGA or DVI equipment make the HS-550
the preview display also including a superimposed tally perfect when you need to mix both live video and computer
indicator on each input. presentations.
■ Video effects include dissolve, fade, several types of
Wipes, Split screen, Picture in Picture (PiP) and Colour DIMENSIONS
Processor.
■ Built in five channel Intercom system with four 55
0
cameraman belt packs with dual colour tally light
indicator.
■ Built in connection for optional extra Datavideo DN-60
which utilizes the latest solid state technology recording 400
directly to a removable and high-capacity CF memory 200
card. Record to either .avi or .mov file format for fast
and direct import to computer based editing systems. Size: 55cm(L) x 40cm(W) x 20cm(H)
Power: 12V/10A
■ DV output is perfect for recording to external computers
Weight: 13.5KG.
or for easy live internet streaming.

2. HD MOBILE VIDEO STUDIO

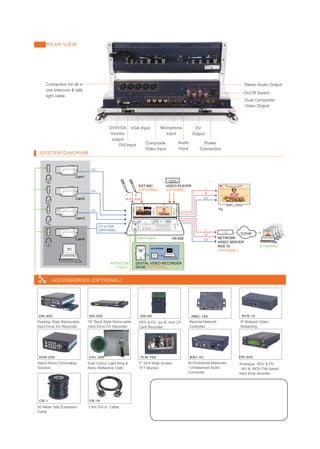

REAR VIEW
Connection for all in Stereo Audio Output
one Intercom & tally
On/Off Switch
light cable.
Dual Composite
Video Output
DVI/VGA VGA Input Microphone DV
monitor Input Output
output
Composite Audio Power
DVI Input
Video Input Input Connection
SYSTEM DIAGR AM
CV
Cam1
EXT.MIC VIDEO PLAYER
(OPTIONAL) (OPTIONAL) L
CV
1 2
R
Cam2 XLR XLR CV
CV TV
Cam3
CV or VGA
(OPTIONAL) L
R TCP/IP
Cam4 SWITCHER HS-550 CV
NETWORK
VIDEO SERVER
NVS-10 ETHERNET
PC NLE SYSTEM
(OPTIONAL)
CF
INTERCOM DIGITAL VIDEO RECORDER
+TALLY DN-60 (OPTIONAL)
ACCESSORIES (OPTIONAL)
DN - 40 0 DN - 50 0 DN - 60 RMC -150 NVS -10
Desktop Style Removable 19” Rack Style Removable HDV & DV .avi & .mov CF Remote Network IP Network Video
Hard Drive DV Recorder. Hard Drive DV Recorder. Card Recorder. Controller. Streaming.
DVK-20 0 CKL-30 0 TLM -70 0 BAC - 03 DN -20 0
Stand Alone Chromakey Dual Colour Light Ring & 7” 16:9 Wide Screen Bi-Directional Balanced Analogue, HDV & DV
Solution. Retro Reflective Cloth. TFT Monitor. / Unbalanced Audio .AVI & .MOV File based
Converter. hard drive recorder.
CB -1 CB -19
50 Meter Tally Extension 1.8m DVI-D Cable
Cable
